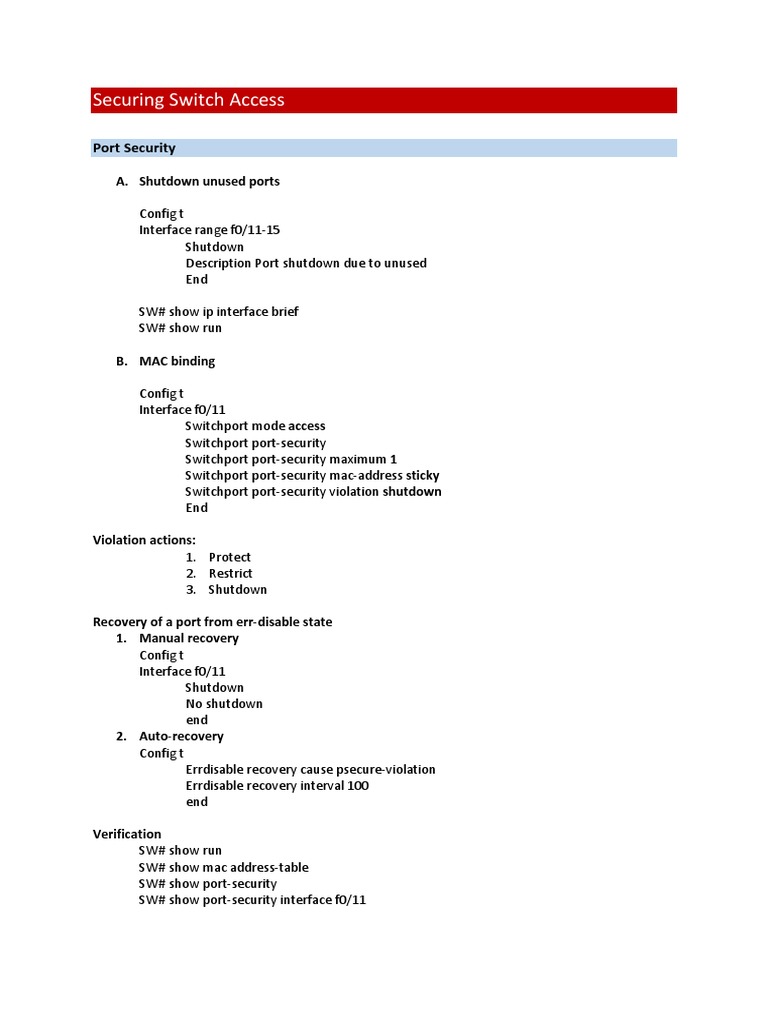

Securing Switch Access

Port Security

A. Shutdown unused ports

Config t
Interface range f0/11-15
Shutdown
Description Port shutdown due to unused
End

SW# show ip interface brief

SW# show run

B. MAC binding

Config t
Interface f0/11
Switchport mode access
Switchport port-security
Switchport port-security maximum 1
Switchport port-security mac-address sticky
Switchport port-security violation shutdown
End

Violation actions:
1. Protect
2. Restrict
3. Shutdown

Recovery of a port from err-disable state

1. Manual recovery
Config t
Interface f0/11
Shutdown
No shutdown
end
2. Auto-recovery
Config t
Errdisable recovery cause psecure-violation
Errdisable recovery interval 100
end

Verification
SW# show run
SW# show mac address-table
SW# show port-security
SW# show port-security interface f0/11
Storm Control

Switch floods the following frames if it receives:

 Broadcast frames
 Multicast frames
 Unknown unicast frames

Storm Control is a feature used to set limits on flooded traffic before it can cause problems on your
network.

Config t
Int range f0/1-10
Storm-control broadcast | multicast | unicast level level | bps ____ | pps _____
Storm-control action shutdown | trap
End

Sw# show storm-control interface f0/1

Port-based Authentication

 Catalyst switches can support port-based authentication, a combination of AAA authentication

and port security.

 This feature is based on the IEEE 802.1X standard.

Conf t
Hostname SW-X
Vlan 2
Name server
Vlan 3
Name sales
Vlan 4
Name marketing

Int vlan 2
Ip address 170.10.2.1 255.255.255.0
No shut
Exit
Int vlan 3
Ip address 170.10.3.1 255.255.255.0
No shut
Exit
Int vlan 4
Ip address 170.10.4.1 255.255.255.0
No shut
Exit

ip routing
int f0/24
switchport mode access
switchport access vlan 2
exit

ip dhcp pool sales

network 170.10.3.0 255.255.255.0
default-router 170.10.3.1
exit
ip dhcp excluded-address 170.10.3.1

ip dhcp pool marketing

network 170.10.4.0 255.255.255.0
default-router 170.10.4.1
exit
ip dhcp excluded-address 170.10.4.1

aaa new-model
aaa authentication dot1x default group radius
aaa authorization network default group radius
radius-server host 170.10.2.100 key cisco123

dot1x system-auth-control (Globally enables 802.1x on switch)

int range f0/1 -4

shutdown
switchport mode access
dot1x port-control auto (Enables 802.1x auth on the port)
dot1x reauthentication (Enables periodic re-authentication of the client)
dot1x timeout reauth-period 60 (Number of seconds between re-authentication attempts)
dot1x auth-fail max-attempts 2 (No of auth attempts to allow before a port moves to the
restricted VLAN)
dot1x host-mode multi-host
spanning-tree portfast
no shut
end
