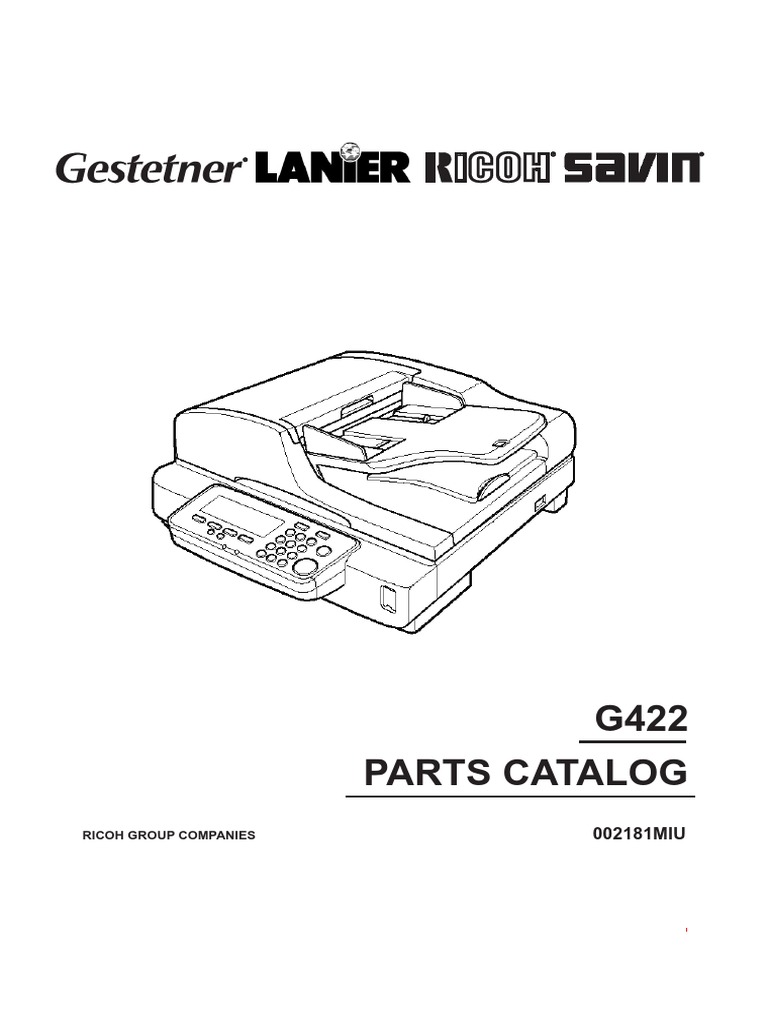

G422
PARTS CATALOG
RICOH GROUP COMPANIES 002181MIU
 ®

PARTS CATALOG
G422

RICOH GROUP COMPANIES

 G422
PARTS CATALOG

002181MIU
It is the reader's responsibility when discussing the information contained within this
document to maintain a level of confidentiality that is in the best interest of Ricoh
Corporation and its member companies.

NO PART OF THIS DOCUMENT MAY BE REPRODUCED IN ANY

FASHION AND DISTRIBUTED WITHOUT THE PRIOR
PERMISSION OF RICOH CORPORATION.

All product names, domain names or product illustrations, including desktop images,
used in this document are trademarks, registered trademarks or the property of their
respective companies.
They are used throughout this book in an informational or editorial fashion only and for
the benefit of such companies. No such use, or the use of any trade name, or web
site is intended to convey endorsement or other affiliation with Ricoh products.

 2005 RICOH Corporation. All rights reserved.

 LEGEND
PRODUCT CODE COMPANY
GESTETNER LANIER RICOH SAVIN
G422 IS200e

DOCUMENTATION HISTORY
REV. NO. DATE COMMENTS
* 2/2005 Original Printing
 G422
TABLE OF CONTENTS

G422 PARTS LOCATION AND LIST

1. ADF 1 (G422)...................................................... 2
2. ADF 2 (G422)...................................................... 4
3. ADF 3 (G422)...................................................... 6
4. SCANNER 1 (G422) ........................................... 8
5. SCANNER 2 (G422) .......................................... 10
6. SCANNER 3 (G422) .......................................... 12
7. ACCESSORIES (G422)..................................... 14

G422 PARTS INDEX

PARTS INDEX............................................................ 2
 G422
PARTS LOCATION AND LIST
This section instructs you as to the numbers and names of parts on this machine.
1.ADF 1 (G422)

1
2 101
3

102 102
103 104
102
102
10
102
6
4 102

7
101

8
5
9

G422 2 Parts Location and List

1.ADF 1 (G422)
Index Q’ty Per Index Q’ty Per
Part No. Description Part No. Description
No. Assembly No. Assembly
1 G422 1545 Cover: Upper: ADF 1 101 0954 3010N Screw: Polished Round/Spring - M3x10
2 G422 1550 Cover: Rear: ADF 1 102 0452 4010N Binding Self-Tapping Screw - 4x10
3 G422 2460 Decal: Lock 1 103 0353 0060N Philips Pan Head Bind Screw - M3x6
4 G422 3280 Right Bracket 1 104 0452 3008N Tapping Screw - M3x8
5 G422 1560 Cover: Front: ADF 1
6 G422 5410 Original Sensor: TLP1241 1
7 G422 3250 Left Bracket 1
8 G422 3305 Base 1
9 G422 3220 Original Tray 1
10 G422 3350 DF Sensor 1

G422 3 Parts Location and List

2.ADF 2 (G422)

101 1
2
3
1

6
4

7
6

2
8

11
17

13
15
10
17 16 103
9 14 12
17 102
102
101

G422 4 Parts Location and List

2.ADF 2 (G422)
Index Q’ty Per Index Q’ty Per
Part No. Description Part No. Description
No. Assembly No. Assembly
1 G422 5531 ADF Main Harness 1 101 0951 3006N Screw - M3x6
2 G422 5410 Original Sensor:TLP1241 3 102 0353 0060N Philips Pan Head Bind Screw - M3x6
3 G422 3525 Gear 080-25 1
4 G422 3290 Pickup Roller: Ass'y 1
5 G422 3260 Friction Pad 1
6 G422 3375 Spring 2
7 G422 3230 Upper Guide 1
8 G422 3240 Lower Guide 1
9 G422 3500 Gear: Dial 1
10 G422 3515 Gear 080-45 1
11 G422 3520 Gear 080-14 1
12 G422 3405 Pulley - S2M19 1
13 G422 5420 Original Sensor: TLP1253 1
14 G422 3450 Timing Belt - S2M075040 1
15 G422 3400 Pulley - S2M27 1
16 G422 5500 Harness: Exit 1
17 G422 5505 Harness: Exit: FG 1
18 5447 2681 Tapping Screw - M3x8

G422 5 Parts Location and List

3.ADF 3 (G422)

102
1
3
21
101
3 15 102
2
4 11

104 24 5
103

16

22
17
14 106
101
6 13
12 106

105
102 18
101
7 20
12 106 19
102 19
10 106
102
102 103

102
102
3
102

9
8

G422 6 Parts Location and List

3.ADF 3 (G422)
Index Q’ty Per Index Q’ty Per
Part No. Description Part No. Description
No. Assembly No. Assembly
1 G422 5510 Harness: Connecting 1 101 0951 3006N Screw - M3x6
2 G422 5130 PCB:ADF 1 102 0954 3006N Screw - M3x6
3 G422 5531 ADF Main Harness 1 103 0353 0060N Philips Pan Head Bind Screw - M3x6
4 G422 5525 Harness: ADF: Interface 1 104 0951 4030N Screw: Polished Round - M4x30
5 G422 3325 Link Spring 1 105 0454 3006Q Tapping Screw - 3x6
6 G422 1340 Fan Motor 1 106 0720 0040E Retaining Ring - M4
7 G422 3355 Tension Spring 1
8 G422 3360 Tension Spring 1
9 G422 1320 Stepper Motor - KH42JMB205 1
10 G422 1330 Stepper Motor - KH42JMB204 1
11 G422 1310 Solenoid 1
12 G422 3465 Timing Belt - S2M074040 2
13 G422 3440 Pulley 1
14 G422 3425 Drive Pulley - S2M23 1
15 G422 1370 Solenoid A'ssy 1
16 G422 3455 Timing Belt - S2M069060 1
17 G422 3420 Drive Pulley - S2M30 1
18 G422 3435 Drive Pulley - S2M36 1
19 G422 3430 Drive Pulley - ST15 2
20 G422 3460 Timing Belt - ST1138060 1
21 G422 5410 Original Sensor - TLP1241 1
22 G422 3315 Tension Spring 1

G422 7 Parts Location and List

4.Scanner 1 (G422)

1 101

101 15
2 101
3
5
4 6
101
7
12
8

11 9
102 18
10
102
102

13
103
102
102
103 102
102
20
16
103 102

14
19 102

103
103
17

G422 8 Parts Location and List

4.Scanner 1 (G422)
Index Q’ty Per Index Q’ty Per
Part No. Description Part No. Description
No. Assembly No. Assembly
1 G422 1901 Operation Sub-unit: NA: Ass'y 1 101 0452 4010N Binding Self-Tapping Screw - 4x10
1 G422 1902 Operation Sub-unit: EU: Ass'y 1 102 0452 3008N Tapping Screw - M3x8
2 G422 1905 Operation Panel Cover: NA 1 103 0452 3010N Binding Self-Tapping Screw - 3x10
2 G422 1906 Operation Panel Cover: EU 1
3 G422 1927 Keytop - Selection 1
4 G422 1921 keytop - 10key 1
5 G422 1926 Keytop - User 1
6 G422 1925 Keytop - Reset (NA) 1
7 G422 1923 Keytop - Clear 1
8 G422 1922 Keytop - Start 1
9 G422 1940 Sheet 1
10 G422 5110 Operation Panel Board 1
11 A250 1490 LED 1
12 G422 5590 LED Harness 1
13 G422 1915 Lower Case 1
14 G422 1530 Cover: Front 1
15 G422 1520 Cover: Upper 1
16 G422 2721 Platen: Ass'y (NA) 1
16 G422 2722 Platen: Ass'y (EU) 1
17 G422 1580 Main Switch Cover 1
18 G422 1710 Exposure Glass 1
19 G422 2420 Model Name Decal (RIC NA) 1
19 G421 2421 Model Name Decal (RIC EU/ASIA) 1
19 G421 2428 Model Name Decal (GES NA) 1
19 G421 2424 Model Name Decal (GES EU) 1
19 G421 2422 Model Name Decal (NSA) 1
19 G421 2423 Model Name Decal (REX) 1
20 GA00 1050 Logo Plate (RIC) 1

G422 9 Parts Location and List

5.Scanner 2 (G422)

106
3

12
102
1

101

6 103
2
7 4

105
7
104

11 104

8 105
104 10
5

104

G422 10 Parts Location and List

5.Scanner 2 (G422)
Index Q’ty Per Index Q’ty Per
Part No. Description Part No. Description
No. Assembly No. Assembly
1 G422 2710 Halogen Lamp - UXFL-10W28P3 1 101 0951 3006N Screw - M3x6
2 G422 1650 Drive Shaft 1 102 0452 3006P Tapping Screw - M3x6
3 G422 5560 Harness: FFC: CCD 1 103 0951 3008N Screw: Polished Round - M3x8
4 G422 1170 Pulley Bracket 1 104 0954 3006N Screw - M3x6
5 G422 1605 Tension Spring 1 105 0353 0060N Philips Pan Head Bind Screw - M3x6
6 G422 5410 Original Sensor:TLP1241 1 106 0450 3008P Tapping Screw - 3x8
7 G422 1220 Timing Belt - ST1105060 2
8 G422 1360 Stepper Motor: Ass'y 1
9 G422 5620 Invertor 1
10 G422 1180 Motor Bracket 1
11 G422 1610 Tension Spring 1
12 G422 2700 Image Reading Unit: Ass'y 1

G422 11 Parts Location and List

6.Scanner 3 (G422)
103
1
103
3
103
103 103
102

27 2
103
101
30 23
103
29 24

103 4
28

26 103
21
105
22
105
105
12 10 105
11
16 105 5
106 6

9
18 105
19
7

14 101 105
8
15 101 103
25
101 20 13 17
103
106

G422 12 Parts Location and List

6.Scanner 3 (G422)
Index Q’ty Per Index Q’ty Per
Part No. Description Part No. Description
No. Assembly No. Assembly
1 G422 1350 Fan Motor 1 101 0353 0060N Philips Pan Head Bind Screw - M3x6
2 G422 1400 Dust Filter 1 102 0951 4030N Screw: Polished Round - M4x30
3 G422 5605 Power Supply Unit 1 103 0452 3008N Tapping Screw - M3x8
4 G422 5540 Harness: Inlet 1 104 0954 4006N Screw: Polished Round/Spring - M4x6
5 G422 5120 PCB:USB 1 105 0454 3006Q Tapping Screw - 3x6
6 G421 5350 SMBU Board 1 106 0954 3006N Screw - M3x6
7 G422 5565 Harness: FFC: Operation Sub-unit 1
8 G422 5580 Harness: SCSI 1
9 G422 5100 PCB: Main Control 1
10 G422 5595 AC Harness 1
11 G422 5560 Harness: FFC:CCD 1
12 G422 5570 Harness: Interface 1
13 G422 5585 Harness: Power Source: NIC 1
14 G422 5555 Harness: Motor Control 1
15 G422 5550 Harness: Invertor 1
16 G422 1160 Heat Shrink 1
17 G422 1040 NIC Cover 1
18 G422 5545 Harness: HP 1
19 G422 5575 Harness: USB 1
20 G422 1195 Main Board Cover 1
21 G422 1510 Lower Cover 1
22 G422 5630 Switch Base 1
23 G422 1130 Switch Bracket 1
24 G422 2460 Decal: Lock 1
25 G422 5595 Harness LED1 1
26 G422 5596 Harness LED2 1
27 G422 1030 Slide Rail 1
28 G422 1600 Lock Cover 1
29 G422 1615 Lock Lever 1
30 G422 1620 Lock Spring 1

G422 13 Parts Location and List

7.Accessories (G422)

1 2 3

4 5 6

7 8

G422 14 Parts Location and List

7.Accessories (G422)
Index Q’ty Per Index Q’ty Per
Part No. Description Part No. Description
No. Assembly No. Assembly
1 G422 5660 Power Supply Cord: NA 1
1 G422 5670 Power Supply Cord: EU 1
2 G422 5650 Cable: USB 1
3 G421 5720 USB Board 1
4 G422 5700 Keyboard :USB 1
5 G422 1570 Cover: Interface 1
6 B645 5010 SD-Card: Ass'y 1
7 B645 6800 SD-Card:USB:Writer:BN-SDCE2 1
8 G404 9005 RS-13 Chart Set (5 pcs.) - A4 1

G422 15 Parts Location and List

 G422
PARTS INDEX
This section instructs you as to the numbers and names of parts on this machine.
Parts Index
Page and Page and
Part No. Description Part No. Description
Index No. Index No.
G422 1030 Slide Rail 13 - 27 G422 1915 Lower Case 9- 13
G422 1040 NIC Cover 13 - 17 G422 1921 keytop - 10key 9- 4
G422 1130 Switch Bracket 13 - 23 G422 1922 Keytop - Start 9- 8
G422 1160 Heat Shrink 13 - 16 G422 1923 Keytop - Clear 9- 7
G422 1170 Pulley Bracket 11 - 4 G422 1925 Keytop - Reset (NA) 9- 6
G422 1180 Motor Bracket 11 - 10 G422 1926 Keytop - User 9- 5
G422 1195 Main Board Cover 13 - 20 G422 1927 Keytop - Selection 9- 3
G422 1220 Timing Belt - ST1105060 11 - 7 G422 1940 Sheet 9- 9
G422 1310 Solenoid 7- 11 G422 2420 Model Name Decal (RIC NA) 9- 19
G422 1320 Stepper Motor - KH42JMB205 7- 9 G422 2460 Decal: Lock 3- 3
G422 1330 Stepper Motor - KH42JMB204 7- 10 G422 2460 Decal: Lock 13 - 24
G422 1340 Fan Motor 7- 6 G422 2700 Image Reading Unit: Ass'y 11 - 12
G422 1350 Fan Motor 13 - 1 G422 2710 Halogen Lamp - UXFL-10W28P3 11 - 1
G422 1360 Stepper Motor: Ass'y 11 - 8 G422 2721 Platen: Ass'y (NA) 9- 16
G422 1370 Solenoid A'ssy 7- 15 G422 2722 Platen: Ass'y (EU) 9- 16
G422 1400 Dust Filter 13 - 2 G422 3220 Original Tray 3- 9
G422 1510 Lower Cover 13 - 21 G422 3230 Upper Guide 5- 7
G422 1520 Cover: Upper 9- 15 G422 3240 Lower Guide 5- 8
G422 1530 Cover: Front 9- 14 G422 3250 Left Bracket 3- 7
G422 1545 Cover: Upper: ADF 3- 1 G422 3260 Friction Pad 5- 5
G422 1550 Cover: Rear: ADF 3- 2 G422 3280 Right Bracket 3- 4
G422 1560 Cover: Front: ADF 3- 5 G422 3290 Pickup Roller: Ass'y 5- 4
G422 1570 Cover: Interface 15 - 5 G422 3305 Base 3- 8
G422 1580 Main Switch Cover 9- 17 G422 3315 Tension Spring 7- 22
G422 1600 Lock Cover 13 - 28 G422 3325 Link Spring 7- 5
G422 1605 Tension Spring 11 - 5 G422 3350 DF Sensor 3- 10
G422 1610 Tension Spring 11 - 11 G422 3355 Tension Spring 7- 7
G422 1615 Lock Lever 13 - 29 G422 3360 Tension Spring 7- 8
G422 1620 Lock Spring 13 - 30 G422 3375 Spring 5- 6
G422 1650 Drive Shaft 11 - 2 G422 3400 Pulley - S2M27 5- 15
G422 1710 Exposure Glass 9- 18 G422 3405 Pulley - S2M19 5- 12
G422 1901 Operation Sub-unit:NA:Ass'y 9- 1 G422 3420 Drive Pulley - S2M30 7- 17
G422 1902 Operation Sub-unit:EU:Ass'y 9- 1 G422 3425 Drive Pulley - S2M23 7- 14
G422 1905 Operation Panel Cover :NA 9- 2 G422 3430 Drive Pulley - ST15 7- 19
G422 1906 Operation Panel Cover :EU 9- 2 G422 3435 Drive Pulley - S2M36 7- 18

G422 2 Parts Index

 Page and Page and
Part No. Description Part No. Description
Index No. Index No.
G422 3440 Pulley 7- 13 G422 5590 LED Harness 9- 12
G422 3450 Timing Belt - S2M075040 5- 14 G422 5595 AC Harness 13 - 10
G422 3455 Timing Belt - S2M069060 7- 16 G422 5595 Harness LED1 13 - 25
G422 3460 Timing Belt - ST1138060 7- 20 G422 5596 Harness LED2 13 - 26
G422 3465 Timing Belt - S2M074040 7- 12 G422 5605 Power Supply Unit 13 - 3
G422 3500 Gear: Dial 5- 9 G422 5620 Invertor 11 - 9
G422 3515 Gear 080-45 5- 10 G422 5630 Switch Base 13 - 22
G422 3520 Gear 080-14 5- 11 G422 5650 Cable: USB 15 - 2
G422 3525 Gear 080-25 5- 3 G422 5660 Power Supply Cord: NA 15 - 1
G422 5100 PCB: Main Control 13 - 9 G422 5670 Power Supply Cord: EU 15 - 1
G422 5110 Operation Panel Board 9- 10 G422 5700 Keyboard: USB 15 - 4
G422 5120 PCB: USB 13 - 5
G422 5130 PCB: ADF 7- 2
G422 5410 Original Sensor - TLP1241 11 - 6
G422 5410 Original Sensor - TLP1241 5- 2
G422 5410 Original Sensor - TLP1241 3- 6
G422 5410 Original Sensor - TLP1241 7- 21
G422 5420 Original Sensor - TLP1253 5- 13
G422 5500 Harness: Exit 5- 16
G422 5505 Harness: Exit: FG 5- 17
G422 5510 Harness: Connecting 7- 1
G422 5525 Harness: ADF: Interface 7- 4
G422 5531 ADF Main Harness 5- 1
G422 5531 ADF Main Harness 7- 3
G422 5540 Harness: Inlet 13 - 4
G422 5545 Harness: HP 13 - 18
G422 5550 Harness: Invertor 13 - 15
G422 5555 Harness: Motor Control 13 - 14
G422 5560 Harness: FFC: CCD 11 - 3
G422 5560 Harness: FFC: CCD 13 - 11
G422 5565 Harness: FFC: Operation Sub-unit 13 - 7
G422 5570 Harness: Interface 13 - 12
G422 5575 Harness: USB 13 - 19
G422 5580 Harness: SCSI 13 - 8
G422 5585 Harness: Power Source: NIC 13 - 13

G422 3 Parts Index

 Page and Page and
Part No. Description Part No. Description
Index No. Index No.
A250 1490 LED 9- 11 GA00 1050 Logo Plate (RIC) 9 - 20
B645 5010 SD-Card: Ass'y 15 - 6
B645 6800 SD-Card: USB: Writer: BN-SDCE2 15 - 7
G404 9005 RS-13 Chart Set (5 pcs) - A4 15 - 8
G421 2421 Model Name Decal (RIC EU/ASIA) 9- 19
G421 2422 Model Name Decal (NSA) 9- 19
G421 2423 Model Name Decal (REX) 9- 19
G421 2424 Model Name Decal (GES EU) 9- 19
G421 2428 Model Name Decal (GES NA) 9- 19
G421 5350 SMBU Board 13 - 6
G421 5720 USB Board 15 - 3

G422 4 Parts Index

 Page and Page and
Part No. Description Part No. Description
Index No. Index No.
0353 0060N Philips Pan Head Bind Screw - M3x6 3 - 103 5447 2681 Tapping Screw - M3x8 5 - 18
0353 0060N Philips Pan Head Bind Screw - M3x6 5 - 102
0353 0060N Philips Pan Head Bind Screw - M3x6 11 - 105
0353 0060N Philips Pan Head Bind Screw - M3x6 7 - 103
0353 0060N Philips Pan Head Bind Screw - M3x6 13 - 101
0450 3008P Tapping Screw - 3x8 11 - 106
0452 3006P Tapping Screw - M3x6 11 - 102
0452 3008N Tapping Screw - M3x8 9 - 102
0452 3008N Tapping Screw - M3x8 3 - 104
0452 3008N Tapping Screw - M3x8 13 - 103
0452 3010N Binding Self-Tapping Screw - 3x10 9 - 103
0452 4010N Binding Self-Tapping Screw - 4x10 3 - 102
0452 4010N Binding Self-Tapping Screw - 4x10 9 - 101
0454 3006Q Tapping Screw - 3x6 7 - 105
0454 3006Q Tapping Screw - 3x6 13 - 105
0720 0040E Retaining Ring - M4 7 - 106
0951 3006N Screw - M3x6 11 - 101
0951 3006N Screw - M3x6 7 - 101
0951 3006N Screw - M3x6 5 - 101
0951 3008N Screw - Polished Round - M3x8 11 - 103
0951 4030N Screw - Polished Round - M4x30 7 - 104
0951 4030N Screw - Polished Round - M4x30 13 - 102
0954 3006N Screw - M3x6 13 - 106
0954 3006N Screw - M3x6 11 - 104
0954 3006N Screw - M3x6 7 - 102
0954 3010N Screw - Polished Round/Spring - M3x10 3 - 101
0954 4006N Screw - Polished Round/Spring - M4x6 13 - 104

G422 5 Parts Index
