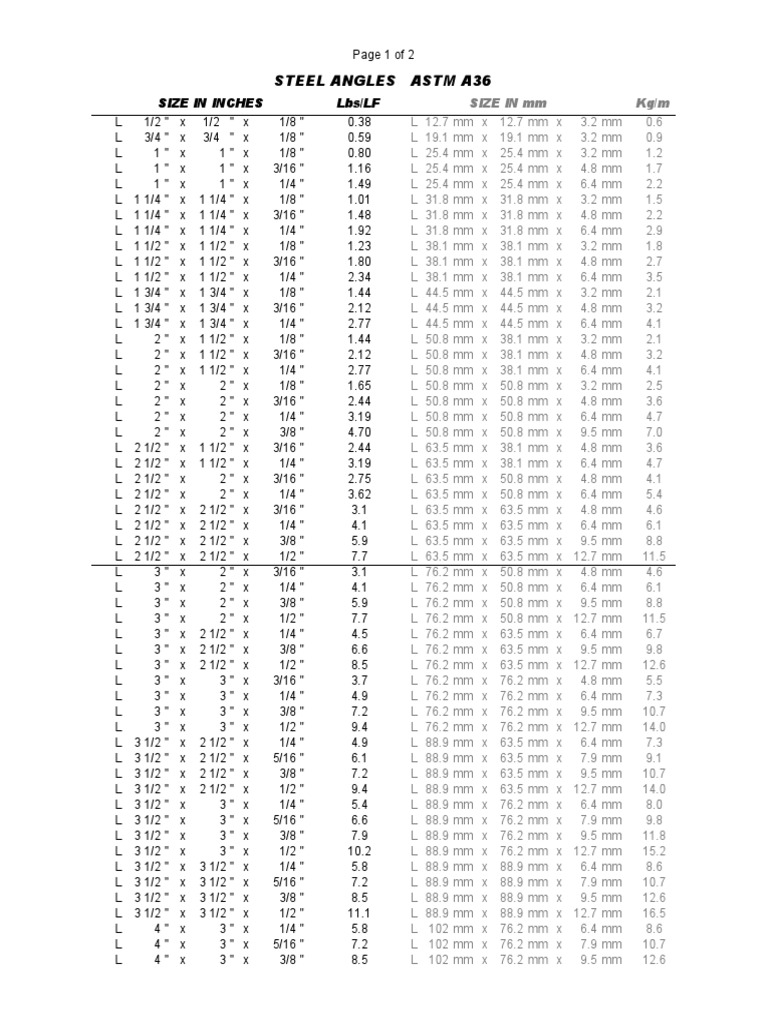

Page 1 of 2

STEEL ANGLES ASTM A36


SIZE IN INCHES Lbs/LF SIZE IN mm Kg/m
L 1/2 " x 1/2 " x 1/8 " 0.38 L 12.7 mm x 12.7 mm x 3.2 mm 0.6
L 3/4 " x 3/4 " x 1/8 " 0.59 L 19.1 mm x 19.1 mm x 3.2 mm 0.9
L 1 " x 1 " x 1/8 " 0.80 L 25.4 mm x 25.4 mm x 3.2 mm 1.2
L 1 " x 1 " x 3/16 " 1.16 L 25.4 mm x 25.4 mm x 4.8 mm 1.7
L 1 " x 1 " x 1/4 " 1.49 L 25.4 mm x 25.4 mm x 6.4 mm 2.2
L 1 1/4 " x 1 1/4 " x 1/8 " 1.01 L 31.8 mm x 31.8 mm x 3.2 mm 1.5
L 1 1/4 " x 1 1/4 " x 3/16 " 1.48 L 31.8 mm x 31.8 mm x 4.8 mm 2.2
L 1 1/4 " x 1 1/4 " x 1/4 " 1.92 L 31.8 mm x 31.8 mm x 6.4 mm 2.9
L 1 1/2 " x 1 1/2 " x 1/8 " 1.23 L 38.1 mm x 38.1 mm x 3.2 mm 1.8
L 1 1/2 " x 1 1/2 " x 3/16 " 1.80 L 38.1 mm x 38.1 mm x 4.8 mm 2.7
L 1 1/2 " x 1 1/2 " x 1/4 " 2.34 L 38.1 mm x 38.1 mm x 6.4 mm 3.5
L 1 3/4 " x 1 3/4 " x 1/8 " 1.44 L 44.5 mm x 44.5 mm x 3.2 mm 2.1
L 1 3/4 " x 1 3/4 " x 3/16 " 2.12 L 44.5 mm x 44.5 mm x 4.8 mm 3.2
L 1 3/4 " x 1 3/4 " x 1/4 " 2.77 L 44.5 mm x 44.5 mm x 6.4 mm 4.1
L 2 " x 1 1/2 " x 1/8 " 1.44 L 50.8 mm x 38.1 mm x 3.2 mm 2.1
L 2 " x 1 1/2 " x 3/16 " 2.12 L 50.8 mm x 38.1 mm x 4.8 mm 3.2
L 2 " x 1 1/2 " x 1/4 " 2.77 L 50.8 mm x 38.1 mm x 6.4 mm 4.1
L 2 " x 2 " x 1/8 " 1.65 L 50.8 mm x 50.8 mm x 3.2 mm 2.5
L 2 " x 2 " x 3/16 " 2.44 L 50.8 mm x 50.8 mm x 4.8 mm 3.6
L 2 " x 2 " x 1/4 " 3.19 L 50.8 mm x 50.8 mm x 6.4 mm 4.7
L 2 " x 2 " x 3/8 " 4.70 L 50.8 mm x 50.8 mm x 9.5 mm 7.0
L 2 1/2 " x 1 1/2 " x 3/16 " 2.44 L 63.5 mm x 38.1 mm x 4.8 mm 3.6
L 2 1/2 " x 1 1/2 " x 1/4 " 3.19 L 63.5 mm x 38.1 mm x 6.4 mm 4.7
L 2 1/2 " x 2 " x 3/16 " 2.75 L 63.5 mm x 50.8 mm x 4.8 mm 4.1
L 2 1/2 " x 2 " x 1/4 " 3.62 L 63.5 mm x 50.8 mm x 6.4 mm 5.4
L 2 1/2 " x 2 1/2 " x 3/16 " 3.1 L 63.5 mm x 63.5 mm x 4.8 mm 4.6
L 2 1/2 " x 2 1/2 " x 1/4 " 4.1 L 63.5 mm x 63.5 mm x 6.4 mm 6.1
L 2 1/2 " x 2 1/2 " x 3/8 " 5.9 L 63.5 mm x 63.5 mm x 9.5 mm 8.8
L 2 1/2 " x 2 1/2 " x 1/2 " 7.7 L 63.5 mm x 63.5 mm x 12.7 mm 11.5
L 3 " x 2 " x 3/16 " 3.1 L 76.2 mm x 50.8 mm x 4.8 mm 4.6
L 3 " x 2 " x 1/4 " 4.1 L 76.2 mm x 50.8 mm x 6.4 mm 6.1
L 3 " x 2 " x 3/8 " 5.9 L 76.2 mm x 50.8 mm x 9.5 mm 8.8
L 3 " x 2 " x 1/2 " 7.7 L 76.2 mm x 50.8 mm x 12.7 mm 11.5
L 3 " x 2 1/2 " x 1/4 " 4.5 L 76.2 mm x 63.5 mm x 6.4 mm 6.7
L 3 " x 2 1/2 " x 3/8 " 6.6 L 76.2 mm x 63.5 mm x 9.5 mm 9.8
L 3 " x 2 1/2 " x 1/2 " 8.5 L 76.2 mm x 63.5 mm x 12.7 mm 12.6
L 3 " x 3 " x 3/16 " 3.7 L 76.2 mm x 76.2 mm x 4.8 mm 5.5
L 3 " x 3 " x 1/4 " 4.9 L 76.2 mm x 76.2 mm x 6.4 mm 7.3
L 3 " x 3 " x 3/8 " 7.2 L 76.2 mm x 76.2 mm x 9.5 mm 10.7
L 3 " x 3 " x 1/2 " 9.4 L 76.2 mm x 76.2 mm x 12.7 mm 14.0
L 3 1/2 " x 2 1/2 " x 1/4 " 4.9 L 88.9 mm x 63.5 mm x 6.4 mm 7.3
L 3 1/2 " x 2 1/2 " x 5/16 " 6.1 L 88.9 mm x 63.5 mm x 7.9 mm 9.1
L 3 1/2 " x 2 1/2 " x 3/8 " 7.2 L 88.9 mm x 63.5 mm x 9.5 mm 10.7
L 3 1/2 " x 2 1/2 " x 1/2 " 9.4 L 88.9 mm x 63.5 mm x 12.7 mm 14.0
L 3 1/2 " x 3 " x 1/4 " 5.4 L 88.9 mm x 76.2 mm x 6.4 mm 8.0
L 3 1/2 " x 3 " x 5/16 " 6.6 L 88.9 mm x 76.2 mm x 7.9 mm 9.8
L 3 1/2 " x 3 " x 3/8 " 7.9 L 88.9 mm x 76.2 mm x 9.5 mm 11.8
L 3 1/2 " x 3 " x 1/2 " 10.2 L 88.9 mm x 76.2 mm x 12.7 mm 15.2
L 3 1/2 " x 3 1/2 " x 1/4 " 5.8 L 88.9 mm x 88.9 mm x 6.4 mm 8.6
L 3 1/2 " x 3 1/2 " x 5/16 " 7.2 L 88.9 mm x 88.9 mm x 7.9 mm 10.7
L 3 1/2 " x 3 1/2 " x 3/8 " 8.5 L 88.9 mm x 88.9 mm x 9.5 mm 12.6
L 3 1/2 " x 3 1/2 " x 1/2 " 11.1 L 88.9 mm x 88.9 mm x 12.7 mm 16.5
L 4 " x 3 " x 1/4 " 5.8 L 102 mm x 76.2 mm x 6.4 mm 8.6
L 4 " x 3 " x 5/16 " 7.2 L 102 mm x 76.2 mm x 7.9 mm 10.7
L 4 " x 3 " x 3/8 " 8.5 L 102 mm x 76.2 mm x 9.5 mm 12.6
Page 2 of 2

STEEL ANGLES ASTM A36


SIZE IN INCHES Lbs/LF SIZE IN mm Kg/m
L 4 " x 3 " x 1/2 " 11.1 L 102 mm x 76.2 mm x 12.7 mm 16.5
L 4 " x 3 1/2 " x 1/4 " 6.2 L 102 mm x 88.9 mm x 6.4 mm 9.2
L 4 " x 3 1/2 " x 5/16 " 7.7 L 102 mm x 88.9 mm x 7.9 mm 11.5
L 4 " x 3 1/2 " x 3/8 " 9.1 L 102 mm x 88.9 mm x 9.5 mm 13.5
L 4 " x 3 1/2 " x 1/2 " 11.9 L 102 mm x 88.9 mm x 12.7 mm 17.7
L 4 " x 4 " x 1/4 " 6.6 L 102 mm x 102 mm x 6.4 mm 9.8
L 4 " x 4 " x 5/16 " 8.2 L 102 mm x 102 mm x 7.9 mm 12.2
L 4 " x 4 " x 3/8 " 9.8 L 102 mm x 102 mm x 9.5 mm 14.6
L 4 " x 4 " x 1/2 " 12.8 L 102 mm x 102 mm x 12.7 mm 19.0
L 4 " x 4 " x 5/8 " 15.7 L 102 mm x 102 mm x 15.9 mm 23.4
L 4 " x 4 " x 3/4 " 18.5 L 102 mm x 102 mm x 19.1 mm 27.5
L 5 " x 3 " x 1/4 " 6.6 L 127 mm x 76.2 mm x 6.4 mm 9.8
L 5 " x 3 " x 5/16 " 8.2 L 127 mm x 76.2 mm x 7.9 mm 12.2
L 5 " x 3 " x 3/8 " 9.8 L 127 mm x 76.2 mm x 9.5 mm 14.6
L 5 " x 3 " x 1/2 " 12.8 L 127 mm x 76.2 mm x 12.7 mm 19.0
L 5 " x 3 1/2 " x 1/4 " 7.0 L 127 mm x 88.9 mm x 6.4 mm 10.4
L 5 " x 3 1/2 " x 5/16 " 8.7 L 127 mm x 88.9 mm x 7.9 mm 12.9
L 5 " x 3 1/2 " x 3/8 " 10.4 L 127 mm x 88.9 mm x 9.5 mm 15.5
L 5 " x 3 1/2 " x 1/2 " 13.6 L 127 mm x 88.9 mm x 12.7 mm 20.2
L 5 " x 5 " x 5/16 " 10.3 L 127 mm x 127 mm x 7.9 mm 15.3
L 5 " x 5 " x 3/8 " 12.3 L 127 mm x 127 mm x 9.5 mm 18.3
L 5 " x 5 " x 7/16 " 14.3 L 127 mm x 127 mm x 11.1 mm 21.3
L 5 " x 5 " x 1/2 " 16.2 L 127 mm x 127 mm x 12.7 mm 24.1
L 5 " x 5 " x 5/8 " 20.0 L 127 mm x 127 mm x 15.9 mm 29.8
L 6 " x 3 1/2 " x 5/16 " 9.8 L 152 mm x 88.9 mm x 7.9 mm 14.6
L 6 " x 3 1/2 " x 3/8 " 11.7 L 152 mm x 88.9 mm x 9.5 mm 17.4
L 6 " x 3 1/2 " x 1/2 " 15.3 L 152 mm x 88.9 mm x 12.7 mm 22.8
L 6 " x 4 " x 5/16 " 10.3 L 152 mm x 102 mm x 7.9 mm 15.3
L 6 " x 4 " x 3/8 " 12.3 L 152 mm x 102 mm x 9.5 mm 18.3
L 6 " x 4 " x 1/2 " 16.2 L 152 mm x 102 mm x 12.7 mm 24.1
L 6 " x 4 " x 5/8 " 20.0 L 152 mm x 102 mm x 15.9 mm 29.8
L 6 " x 4 " x 3/4 " 23.6 L 152 mm x 102 mm x 19.1 mm 35.1
L 6 " x 4 " x 7/8 " 33.1 L 152 mm x 102 mm x 22.2 mm 49.3
L 6 " x 6 " x 3/8 " 14.9 L 152 mm x 152 mm x 9.5 mm 22.2
L 6 " x 6 " x 1/2 " 19.6 L 152 mm x 152 mm x 12.7 mm 29.2
L 6 " x 6 " x 5/8 " 24.2 L 152 mm x 152 mm x 15.9 mm 36.0
L 6 " x 6 " x 3/4 " 28.7 L 152 mm x 152 mm x 19.1 mm 42.7
L 6 " x 6 " x 7/8 " 33.1 L 152 mm x 152 mm x 22.2 mm 49.3
L 6 " x 6 " x 1 " 37.4 L 152 mm x 152 mm x 25.4 mm 55.7
L 7 " x 4 " x 3/8 " 13.6 L 178 mm x 102 mm x 9.5 mm 20.2
L 7 " x 4 " x 1/2 " 17.9 L 178 mm x 102 mm x 12.7 mm 26.6
L 7 " x 4 " x 5/8 " 22.1 L 178 mm x 102 mm x 15.9 mm 32.9
L 7 " x 4 " x 3/4 " 26.2 L 178 mm x 102 mm x 19.1 mm 39.0
L 8 " x 4 " x 1/2 " 19.6 L 203 mm x 102 mm x 12.7 mm 29.2
L 8 " x 4 " x 3/4 " 28.7 L 203 mm x 102 mm x 19.1 mm 42.7
L 8 " x 6 " x 1/2 " 23.0 L 203 mm x 152 mm x 12.7 mm 34.2
L 8 " x 6 " x 3/4 " 33.8 L 203 mm x 152 mm x 19.1 mm 50.3
L 8 " x 6 " x 1 " 44.2 L 203 mm x 152 mm x 25.4 mm 65.8
L 8 " x 8 " x 1/2 " 26.4 L 203 mm x 203 mm x 12.7 mm 39.3
L 8 " x 8 " x 5/8 " 32.7 L 203 mm x 203 mm x 15.9 mm 48.7
L 8 " x 8 " x 3/4 " 38.9 L 203 mm x 203 mm x 19.1 mm 57.9
L 8 " x 8 " x 1 " 51.0 L 203 mm x 203 mm x 25.4 mm 75.9
