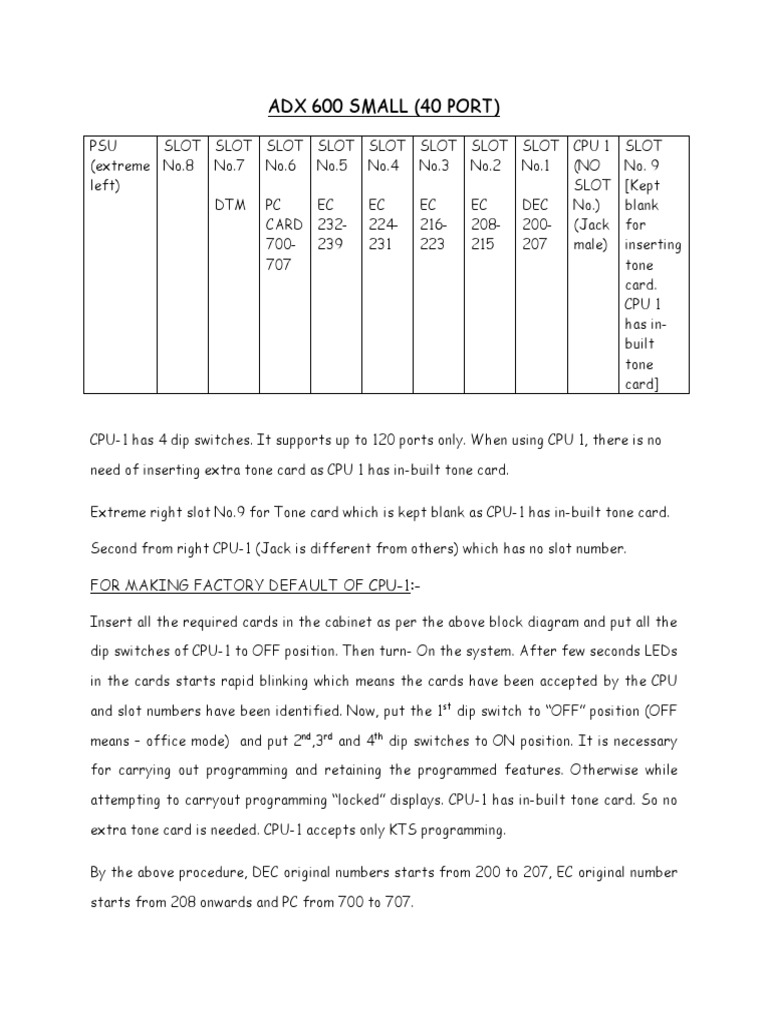

ADX 600 SMALL (40 PORT)

PSU SLOT SLOT SLOT SLOT SLOT SLOT SLOT SLOT CPU 1 SLOT
(extreme No.8 No.7 No.6 No.5 No.4 No.3 No.2 No.1 (NO No. 9
left) SLOT [Kept
DTM PC EC EC EC EC DEC No.) blank
CARD 232- 224- 216- 208- 200- (Jack for
700- 239 231 223 215 207 male) inserting
707 tone
card.
CPU 1
has in-
built
tone
card]

CPU-1 has 4 dip switches. It supports up to 120 ports only. When using CPU 1, there is no

need of inserting extra tone card as CPU 1 has in-built tone card.

Extreme right slot No.9 for Tone card which is kept blank as CPU-1 has in-built tone card.

Second from right CPU-1 (Jack is different from others) which has no slot number.

FOR MAKING FACTORY DEFAULT OF CPU-1:-

Insert all the required cards in the cabinet as per the above block diagram and put all the

dip switches of CPU-1 to OFF position. Then turn- On the system. After few seconds LEDs

in the cards starts rapid blinking which means the cards have been accepted by the CPU

and slot numbers have been identified. Now, put the 1st dip switch to “OFF” position (OFF

means – office mode) and put 2nd,3rd and 4th dip switches to ON position. It is necessary

for carrying out programming and retaining the programmed features. Otherwise while

attempting to carryout programming “locked” displays. CPU-1 has in-built tone card. So no

extra tone card is needed. CPU-1 accepts only KTS programming.

By the above procedure, DEC original numbers starts from 200 to 207, EC original number

starts from 208 onwards and PC from 700 to 707.


TO ADD CARD IN THE RUNNING SYSTEM:-

Switch off the system.

Ensure position of dip switch 1 - OFF, 2nd,3rd and 4th dip switches to ON position to save
the previous programmed features.

Insert the new card which is needed to be added.

Put 4th dip switch to OFF position and switch ON the system.

Now the system restarts and LED of the newly inserted card starts to blink rapidly. By
this procedure, the newly inserted card have been accepted by the CPU. Since dip
switches 2 and 3 are kept in ON position previously programmed flexible numbers will be
kept intact. While putting dip switch 4 in OFF condition will reload all the cards, clear all
the DSS key settings, clear auto redial, function keys (KTS & DSS) will be set to default &
reception line will be re-defined. Again to further carryout programming of newly inserted
card put the 4th dip sw to ON position.

INSTALLATION OF THE SYSTEM:-

To install the System, a general procedure has to be followed. The PSU Card occupies 1st
Slot (from the left) in the ADX-600 System.
There is an exclusive slot to accommodate the CPU Card. The CPU Card occupies the 2nd
slot (from the right in the 40 port & 72 port system and the 9th slot (from the right) in
the 120 Ports System. The installation of the line cards will be start from the right side
towards the left. The order of insertion is as follows:
1. DEC Card
2. EC Card
3. PC Card
4. DTM Card

In DEC, only KTS (digital phone) can work. Normal analog phone do not works. In DEC there
is PTC (yellow colour) which works as fuse. DEC has four physical ports (on paper it has 8
ports). If one port becomes defective, can use another port.

In long distance extensions, if CLI do not works properly change the jumper to 48 V in the
corresponding EC card.
DTM provides caller ID to the system.

PSU having shielded cover (like at B/1 sig) produces 48 V DC, 28 V DC and ringer voltage
of 75 V AC. Working of these three voltages are indicated by three LEDs. Battery
charging voltage is 27.5 V DC having current capacity 700 mA. AC main fuse 2 Amp and DC
fuse 5 Amp. PSU can work for AC range from 150 to 250 V AC.

PROGRAMMING PROCEDURE FROM KTS :-

Press PROG, PW- 1234, displays MODE (now enter the required mode number and carry
out corresponding programming )

To continue programming:- press hold.

After ending programming, press release.

PROGRAMMING PROCEDURE FROM ANY SLT :-

# 1234 then mode number. If programming accepted, confirmation tone gets. To continue
programming, press flash/recall in SLT. After ending programming hang-up (place
handset).

PROGRAMMING FROM KTS:-

To set Date:-

PROG+1234+61+DD+MM+YY+W

(W= week of the day. Sunday = 0, Monday-1 and so on)

Displays pass if correct. Press hold to continue

To set Time:-

43+HH+MM+SS

Displays pass if correct. Press hold to continue


FLEXIBLE NUMBER PROGRAMMING:-

Flex numbers can be programmed from 200 to 499 in office version and from 10 to 499 in
hotel version.

PROG+1234+63+original hardware number+ new flexible number+1

Displays pass if correct. Press hold to continue

BULK FLEXIBLE NUMBER PROGRAMMING:-

Prog+1234+00+63+starting hardware number+ending hardware number+starting flex


number+ending flex number+1

Example, to set flex numbers starting from 300 to 331 in the above EC cards:-

Prog+1234+00+63+208+239+300+331+1

TO ACCESS MAIN OPERATOR (CONSOLE) BY 9:-

Prog+1234+25+9+1

( 1 for enable and 0 for disable)

TO MAKE AN EXTENSION OPERATOR:-

Prog+1234+31+extension number+1

(By this programming this extension can be accessed by dialing 9)

Prog+1234+31+extension number+0 (to disable)

(or)

To cancel, lift the handset of that extension and dial # 1234+25+9+0

TO ENABLE / DISABLE ATRUNK LINE:-

Prog+1234+30+trk no+3 (to enable)

Prog+1234+30+trk no+2 (to disable)

All trk ports except the one in which PNT line connected to be disabled by above command.
TO DISABLE ALL TRUNK LINE BY SINGLE COMMAND:-

Prog+1234+00+30+700+707+2

Displays pass if correct.

BY DEFAULT PNT WORKS IN PULSE MODE. TO CHANGE PULSE TO TONE


MODE:-

Prog+1234+00+30+700+707+1

BY DEFAULT CONSOLE AND SLT HAVE ONLY LOCAL RIGHTS. TO GIVE STD
RIGHTS TO CONSOLE:-

Prog+1234+42+200+5+5+1

Displays pass if correct (200 is the first digital port)

INCOMING PNT LANDING:-

By default all trunk lines lands at console. To drop pnt from console to any extension there
is two commands:-

1. Prog+1234+42+trunk no+D+N+1
D and N are day and night rights
Values of D and N are:-
0 = round robbin
1 = simultaneous
2 = delay ringing
3 = operator landing
4 = one terminal termination
5 – DISA landing.
To drop pnt at one extension the command is :-
Prog+1234+42+trunk no+4+4+1 (ie one terminal extension in day and night)
Prog+1234+41+trunk no+extension number where pnt want to be dropped.
Displays pass if correct.
Again to land pnt to console:-
Prog+1234+42+trunk no+3+3+1 ( ie operator landing in day and night)
CALLER ID PROGRAMMING:- (ONE TIME MEASURE)
Prog+1234+56+00+125+001+00
Prog+1234+56+00+125+129+000
Prog+1234+56+00+051+001+00
Prog+1234+56+00+048+004+00 ( value of 4 in 004 can be changed from 0 to 9)

TO ENABLE CLI ON EXTENSIONS:-

Prog+1234+33+extn no+3 (extn flex numbers)

( 3 for enable and 2 for disable)

BULK CALLER ID FOR EXTENSIONS:-

Prog+1234+00+33+208+499+3

( 208 starting hardware number of first EC and 499 ending hardware number)

Displays pass if correct.

DIALING RIGHTS IE “0” DIALLING:-

Prog+1234+42+extn number+D+N+1

D= Day right

N= Night right

Values of D and N

0 - only intercom

3 - all local

4 - local+STD

5 - local+STD+ISD

By default console and all extensions have only intercom rights.

To give local plus intercom rights = prog+1234+42+extn no+3+3+1

To give local plus STD rights = prog+1234+42+extn no+4+4+1

To give full rights= prog+1234+42+extn no+5+5+1


To remove 0 dialling:- prog+1234+42+extn no+0+0+1

BULK 0 DIALLING:-

Prog+1234+00+42+200+499+5+5+1 (200 is the first digital port where console is connected

and 499 ending hardware number)

Displays pass if correct. Ji

SETTING OF DSS KEYS:-

By default KTS is connected at digital port 200. DSS (Direct Station Selection), which is
also a digital extension, works in conjunction with KTS. Generally, if KTS is connected at
digital port 200 then DSS is connects at port 201.

Here if KTS is connected at 200 and DSS is connected at 201, then the key settings of
DSS are as under:-

Prog+1234+36+501+4 (501 means DSS port number+300 ) (4 is the type of DSS)


Prog+1234+41+501+200
Prog+1234+45+K+F and press hold to continue.
Value of K = 001 TO 104 (key numbers)
Value of F = 208,209 and so on (enter flexible extension numbers only)
To assign a DSS key to console:- value of F = 200
To assign a DSS key a trunk line: - value of F = 700, 701 etc

PORT CHANGING:-
Eg.If port of extn 300 become defective and wants to change with serviceable port of extn 315.
Prog+1234+63+hardware no of 300+499+1 (499 is dummy number)
Prog+1234+63+hardware no of 315+300+1
After repairing the process of reversal:-
Prog+1234+63+hardware no of 300+315+1
Prog+1234+63+hardware no of 499+300+1

PROGRAMMING TO ACTIVATE CALL FORWARDING, CALL PICK UP FOLLOW ME ETC:-


Prog+1234+24+9+0 (to enable)

Prog+1234+24+9+1 (to disble)

Call forward (from own extension number):- 55+777+3+destination extn no+1

Follow me:- lift the handset of extn where u r presently sitting and dial 52+your original extn no.

Master cancellation (done by user only):- 55+777+50

PAGING PORT IN CPU-1:-


Install a public address system at a central place which can be heard by majority of personnel.

Connect the terminal of paging port to PL 55 plug and insert it in mic input of PA. Lift the

handset of any telephone, dial 80 and announce the matter, which can be heard over all

loud speakers connected with the PA.

To enable paging:-

Prog+1234+33+extn no+1 (enable)

Prog+1234+33+extn no+0 (disable)

Auto call back on busy:- press 8 and hang up on getting busy tone.

Forceful release of a line:- 51+extn no ( or 51+trunk no)

Telephone ringing testing:- 4261

DND cancel:-

Lift the handset of that telephone and dial 55+777+50

Mr. Govardhan Sharma-09319448593


Mr.Yeshwant-09319438010 (customer care)

SERVICE ENGINEER. (Guwahati)


Mr. Pankaj = 07399269509
Service centre-09957191998
Email:- serviceguwahati@yahoo.co.in
