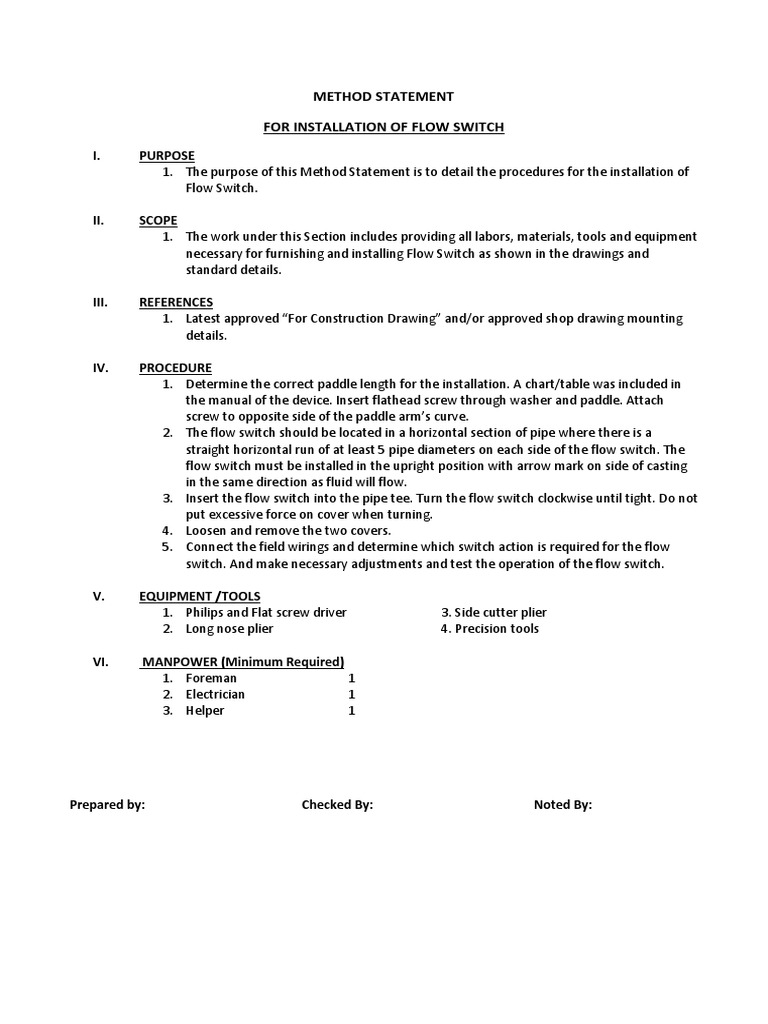

METHOD STATEMENT

FOR INSTALLATION OF FLOW SWITCH

I. PURPOSE
1. The purpose of this Method Statement is to detail the procedures for the installation of
Flow Switch.

II. SCOPE
1. The work under this Section includes providing all labors, materials, tools and equipment
necessary for furnishing and installing Flow Switch as shown in the drawings and
standard details.

III. REFERENCES
1. Latest approved “For Construction Drawing” and/or approved shop drawing mounting
details.

IV. PROCEDURE
1. Determine the correct paddle length for the installation. A chart/table was included in
the manual of the device. Insert flathead screw through washer and paddle. Attach
screw to opposite side of the paddle arm’s curve.
2. The flow switch should be located in a horizontal section of pipe where there is a
straight horizontal run of at least 5 pipe diameters on each side of the flow switch. The
flow switch must be installed in the upright position with arrow mark on side of casting
in the same direction as fluid will flow.
3. Insert the flow switch into the pipe tee. Turn the flow switch clockwise until tight. Do not
put excessive force on cover when turning.
4. Loosen and remove the two covers.
5. Connect the field wirings and determine which switch action is required for the flow
switch. And make necessary adjustments and test the operation of the flow switch.

V. EQUIPMENT /TOOLS
1. Philips and Flat screw driver 3. Side cutter plier
2. Long nose plier 4. Precision tools

VI. MANPOWER (Minimum Required)

1. Foreman 1
2. Electrician 1
3. Helper 1

Prepared by: Checked By: Noted By:
