1 2 3 4 5 6 7 8

A A

B B

C C

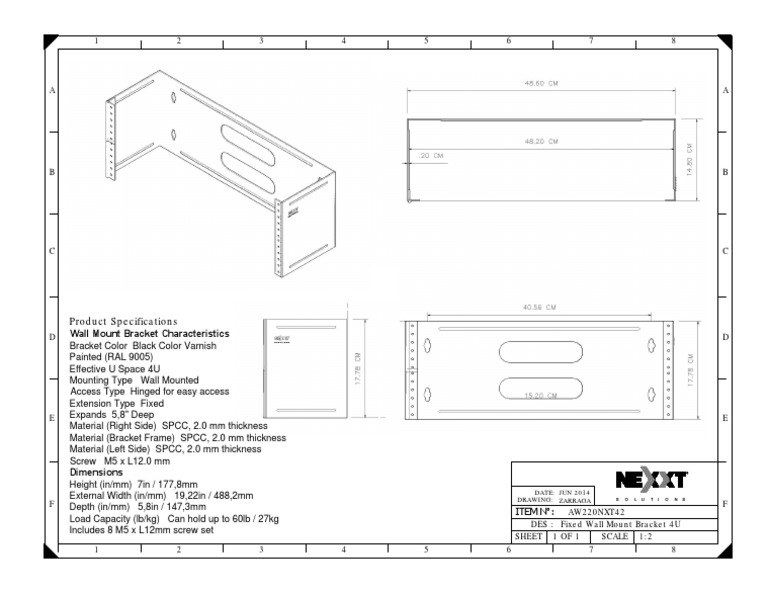

Product Specifications
D Wall Mount Bracket Characteristics D
Bracket Color Black Color Varnish
Painted (RAL 9005)
Effective U Space 4U
Mounting Type Wall Mounted
Access Type Hinged for easy access
Extension Type Fixed
E Expands 5,8" Deep E
Material (Right Side) SPCC, 2.0 mm thickness
Material (Bracket Frame) SPCC, 2.0 mm thickness
Material (Left Side) SPCC, 2.0 mm thickness
Screw M5 x L12.0 mm
Dimensions
Height (in/mm) 7in / 177,8mm
DATE: JUN 2014
External Width (in/mm) 19,22in / 488,2mm DRAWING: ZARRAGA S O L U T I O N S
F Depth (in/mm) 5,8in / 147,3mm F
AW220NXT42
Load Capacity (lb/kg) Can hold up to 60lb / 27kg
DES : Fixed Wall Mount Bracket 4U
Includes 8 M5 x L12mm screw set
SHEET 1 OF 1 SCALE 1:2
1 2 3 4 5 6 7 8
