The document contains code to plot the configuration space (cspace) of a 2-link robot moving in a workspace containing obstacles. It defines the coordinates of obstacle vertices, plots the obstacle and robot links, then iterates through all possible joint angle combinations to check for collisions and plots collision points in the cspace plot in red.
The document contains code to plot the configuration space (cspace) of a 2-link robot moving in a workspace containing obstacles. It defines the coordinates of obstacle vertices, plots the obstacle and robot links, then iterates through all possible joint angle combinations to check for collisions and plots collision points in the cspace plot in red.
The document contains code to plot the configuration space (cspace) of a 2-link robot moving in a workspace containing obstacles. It defines the coordinates of obstacle vertices, plots the obstacle and robot links, then iterates through all possible joint angle combinations to check for collisions and plots collision points in the cspace plot in red.

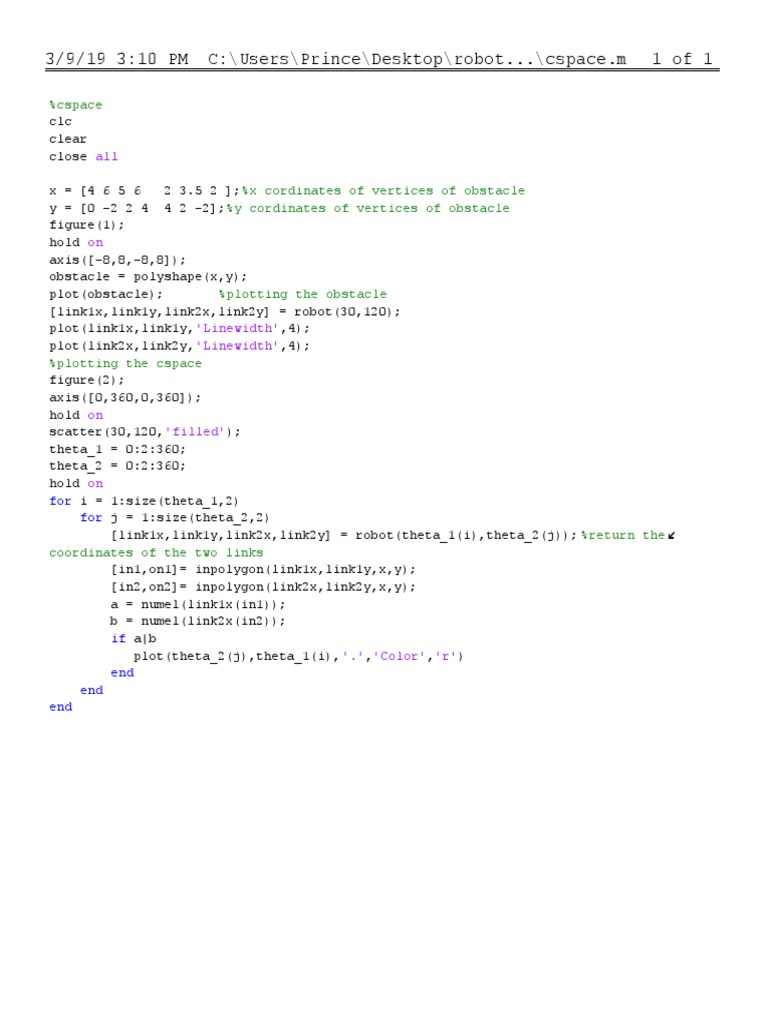

x = [4 6 5 6 2 3.5 2 ];%x cordinates of vertices of obstacle
y = [0 -2 2 4 4 2 -2];%y cordinates of vertices of obstacle figure(1); hold on axis([-8,8,-8,8]); obstacle = polyshape(x,y); plot(obstacle); %plotting the obstacle [link1x,link1y,link2x,link2y] = robot(30,120); plot(link1x,link1y,'Linewidth',4); plot(link2x,link2y,'Linewidth',4); %plotting the cspace figure(2); axis([0,360,0,360]); hold on scatter(30,120,'filled'); theta_1 = 0:2:360; theta_2 = 0:2:360; hold on for i = 1:size(theta_1,2) for j = 1:size(theta_2,2) [link1x,link1y,link2x,link2y] = robot(theta_1(i),theta_2(j)); %return the coordinates of the two links [in1,on1]= inpolygon(link1x,link1y,x,y); [in2,on2]= inpolygon(link2x,link2y,x,y); a = numel(link1x(in1)); b = numel(link2x(in2)); if a|b plot(theta_2(j),theta_1(i), '.','Color','r') end end end
