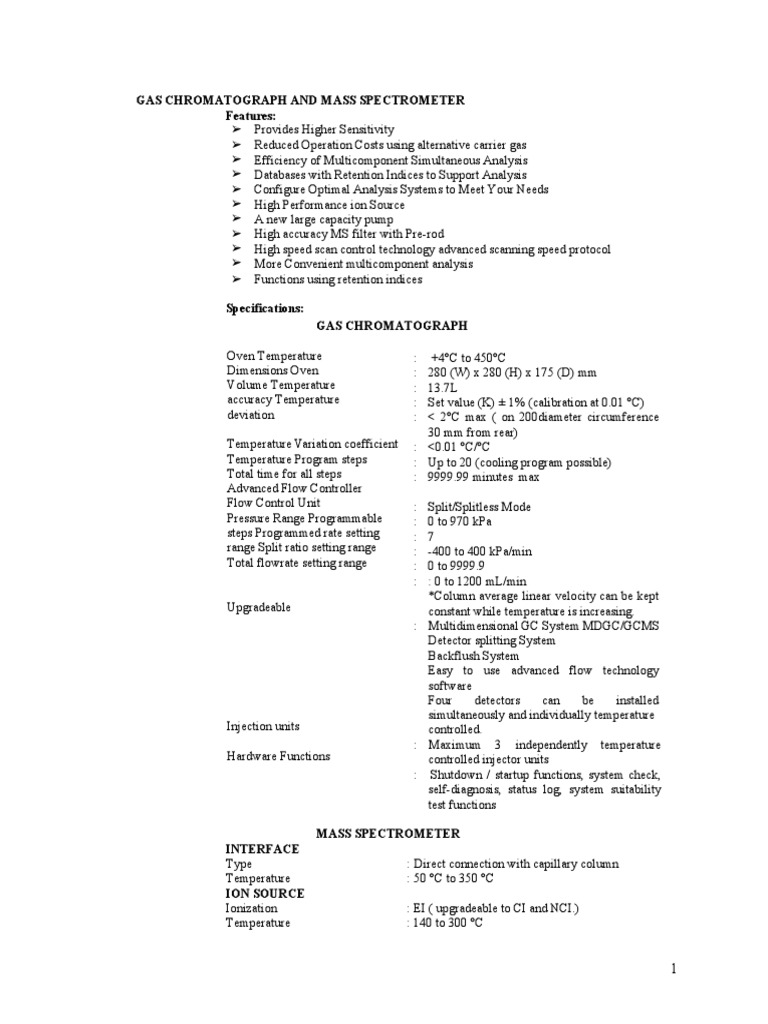

GAS CHROMATOGRAPH AND MASS SPECTROMETER

Features:
➢ Provides Higher Sensitivity
➢ Reduced Operation Costs using alternative carrier gas
➢ Efficiency of Multicomponent Simultaneous Analysis
➢ Databases with Retention Indices to Support Analysis
➢ Configure Optimal Analysis Systems to Meet Your Needs
➢ High Performance ion Source
➢ A new large capacity pump
➢ High accuracy MS filter with Pre-rod
➢ High speed scan control technology advanced scanning speed protocol
➢ More Convenient multicomponent analysis
➢ Functions using retention indices

Specifications:
GAS CHROMATOGRAPH

Oven Temperature : +4°C to 450°C

Dimensions Oven
Volume Temperature
accuracy Temperature
deviation
Temperature Variation coefficient
Temperature Program steps
Total time for all steps
Advanced Flow Controller
Flow Control Unit
Pressure Range Programmable
steps Programmed rate setting
range Split ratio setting range
Total flowrate setting range
Upgradeable
Injection units
Hardware Functions
: 280 (W) x 280 (H) x 175 (D) mm
: 13.7L
: Set value (K) ± 1% (calibration at 0.01 °C)
: < 2°C max ( on 200diameter circumference
30 mm from rear)
: <0.01 °C/°C
: Up to 20 (cooling program possible)
: 9999.99 minutes max
: Split/Splitless Mode
: 0 to 970 kPa
: 7
: -400 to 400 kPa/min
: 0 to 9999.9
: : 0 to 1200 mL/min
*Column average linear velocity can be kept
constant while temperature is increasing.
: Multidimensional GC System MDGC/GCMS
Detector splitting System
Backflush System
Easy to use advanced flow technology
software
Four detectors can be installed
simultaneously and individually temperature
controlled.
: Maximum 3 independently temperature
controlled injector units
: Shutdown / startup functions, system check,
self-diagnosis, status log, system suitability
test functions

MASS SPECTROMETER
INTERFACE
Type : Direct connection with capillary column
Temperature : 50 °C to 350 °C
ION SOURCE
Ionization : EI ( upgradeable to CI and NCI.)
Temperature : 140 to 300 °C

1
 Filament : Dual, automatic switching
Electron Energy : 10 to 200 eV
Electron Current : 5 to 250 µA
Upgradeable to Direct Sample Inlet
Front access structure for easy maintenance.

MASS ANALYZER AND DETECTOR

Mass Analyzer : Metal quadrupole with pre-rod
Mass Range : m/z 1.5 to 1090
Possible setting of FWHM : 0.5 to 2.0 u
Stability : ± 0.1 u/48 hours (constant temperature)
High-Speed Scan Control : Advanced Scanning Speed Protocol
High-Speed Scan Rate : 20000 u/sec
Minimum Measurement Interval : 0.01 s (100 scan/sec maximum)
Detector : Electron multiplier with low noise
overdrive lens 8 × 10^6 (dynamic range)
Pump : 190 L/sec / 170 L/sec (He)
Turbomolecular pump differential
exhaust system
Auxiliary Pump : 30 L/min (60 Hz) oil rotary pump
Column Flow Rate : 15 mL/min maximum (He)
Carrier Gas : Helium, hydrogen, nitrogen
EI Scan Sensitivity :1 pg octafluoronaphthalene; 272 m/z; S/N >
2000 (He carrier gas)

SOFTWARE
Measurement Mode : Scan, SIM, FASST
(simultaneous Scan/SIM measurements)
SIM Channels : 64 channels× 128 groups
Energy Savings : Ecology mode
Insert Replacement : Easy sTop
Method Wizard : Smart SIM*
(automatic SIM table creation)
AART
(Automatic Adjustment of Retention Time)
Library Search : Similarity searches using retention
indices
(Compatible with multiple retention index
groups)
Up to 10libraries can be configured
Instrument Tuning : Automatic (EI,CI,NCI)
Quality Control : Accuracy control QA/QC function, instrument
control system check function, user control
security function
Measurement Data Control : Optimal compound structure format for GLP
Maintenance Support : MSNAVIGATOR
Report : Flexible report creation, templates
Assistance : Multi sample Quantitation

1 UNIT NIST MASS SPECTRUM LIBRARY

Features:
- The main library contains spectra for 191, 436 general compounds, and 28, 307 of
these spectra are registered in a sub-library.
- More than 99.9% of these spectra are accompanied by structural information.
- Retention indices are also given for about 90% of the compounds.
1UNIT AUTOSAMPLER (2 in 1, HEADSPACE AND LIQUID INJECTOR)
Features:
➢ Overlap function heightens the analysis efficiency
➢ Continuous analysis with HS injections using overlap function
➢ Continuous analysis using the reagent preparation function
➢ Automatic creation of calibration curve samples
➢ Method files are preconfigured with typical analysis conditions
➢ Injection volume and other parameters that need to be changed for each analysis
can be easily edited
➢ Auto sampler must be installed at the top of GC

LIQUID INJECTOR
Number of vials : 162 2 mL vials per tray
60 10 mL / 20 mL vials per tray
Liquid injection volume : 1 μL to 10 μL
Type of syringe : 10 μL
Repeated injection : 1 cycle to 99 cycles / vial

HEADSPACE
Number of samples : 60 10 mL / 20 mL vials per tray
Headspace injection volume : 250 uL to 2500 μL (using a standard 2.5 mL
syringe)
Syringe heating : ~150 ˚C (set in 1 ˚C increments)
Agitator : Six heated vials
(2 mL/10 mL/20 mL vials used)
Heating range ~200 ˚C, varied
in 1 ˚C increments
Accessories Included:
➢ UHP Gas Regulator for He, N2, H2 and Air
➢ SUS pipe for He, N2, 5 meters each
➢ 1 Triple (Oxygen/Moisture/Hydrocarbon) Helium-specific Filter Kit - 1/8" SS
➢ Preventive Maintenance Kit
• MS Filter, Conditioning
• Filter Assy
• Septum Set,(Crs)25/Pkt
• O-Ring,4d P5x5
• Filament D Assy

➢ GCMS Kit
• SH-Rxi-5Sil MS, 30m, 0.25mm, 0.25um,
• 1.5ml Sample Vial Set with cap & septum, 200 pcs
• 20ml Sample Vial for Headspace, 100pcs
• 100pcs septum for 1.5ml Sample Vial
• 100pcs septum for 20ml Sample Vial
• GC Consumables kit
▪ Syringe
▪ ceramic column cutter
▪ 4 ferrules
▪ 5 septa
▪ liner, split
▪ liner, splitless
▪ 2 pcs Viton o-rings
➢ Complete PC System (Desktop), O/S: Microsoft Windows 10, Hard Disk
Drive:1TB, Monitor:21.5’ LED Color monitor, Processor: i5, 4G RAM
➢ Continuous Ink Supply System Printer
TERMS AND CONDITION:
Delivery Time : 2-3 months after receipt of P.O.
Installation Site : Taguig City
Installation : Free-of-charge by Factory Trained Engineer
On-site Training : Free-of-charge by Application Chemist
Warranty : Twelve (12) months on parts and services
