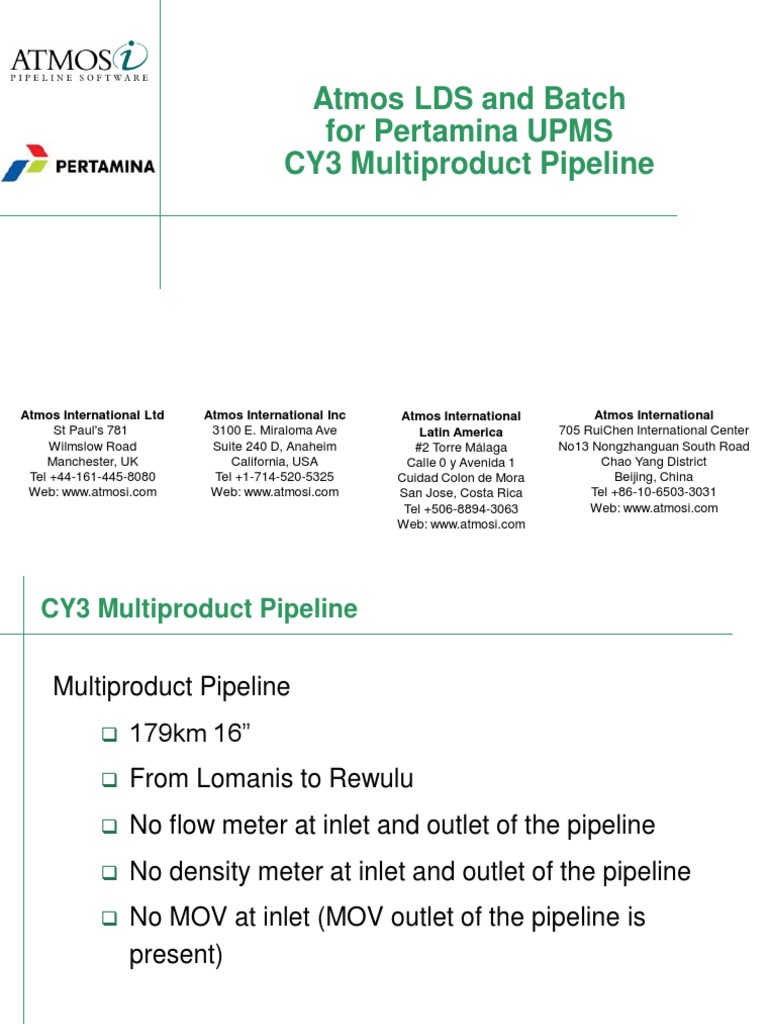

Atmos LDS and Batch

for Pertamina UPMS

CY3 Multiproduct Pipeline

Atmos International Ltd Atmos International Inc Atmos International Atmos International
St Paul's 781 3100 E. Miraloma Ave Latin America 705 RuiChen International Center
Wilmslow Road Suite 240 D, Anaheim #2 Torre Málaga No13 Nongzhanguan South Road
Manchester, UK California, USA Calle 0 y Avenida 1 Chao Yang District
Tel +44-161-445-8080 Tel +1-714-520-5325 Cuidad Colon de Mora Beijing, China
Web: www.atmosi.com Web: www.atmosi.com San Jose, Costa Rica Tel +86-10-6503-3031
Tel +506-8894-3063 Web: www.atmosi.com
Web: www.atmosi.com
CY3 Multiproduct Pipeline

Multiproduct Pipeline
❑ 179km 16”
❑ From Lomanis to Rewulu
❑ No flow meter at inlet and outlet of the pipeline
❑ No density meter at inlet and outlet of the pipeline
❑ No MOV at inlet (MOV outlet of the pipeline is
present)
CY3 Multiproduct Pipeline

Requirement:
❑ Leak Detection and Theft Detector (pipeline security)
❑ Batch Tracking software
CY3 Multiproduct Pipeline

Atmos software solutions:

❑ Atmos Wave Flow
❖ Leak Detection and Theft Detection
❑ Atmos Batch
❖ Batch Tracking software
BATCH TRACKING SOFTWARE
Atmos Batch

Provides up to the minute batch volume and location of

products in the pipeline.

Tracks product from Provides Scheduling of Reporting

injection station to accurate location injections and capabilities
delivery station in real- information for deliveries
time and provides batch interfaces
Estimated Time of
Arrivals (ETAs)
Atmos Batch – GUI Example 1

Custody meter
Menu

Totalisers
• Menu
• Totalisers
• Custody meter
Warning indicator
• Warning indicator
• Navigation panel
• Events

Navigation panel

Events
Atmos Batch – GUI Example 2

Expected and actual time of

arrival of batches

Colour indicates type of

product

Batches of the same product

but different batches
Atmos Batch – GUI Map

Batch
locations on a
pipeline
running from
Vancouver to
Edmonton

Each colour
represents a
different
product
Atmos Batch – Instrumentation Requirement

➢ Requires minimum one flow meter at inlet of pipeline

➢ Requires minimum one density meter (or speed of
sound signal) at inlet of pipeline
Atmos Batch – Control System Block Diagram

Lomanis Kutawinangun Rewulu

Booster Pump
LDS
Workstation

Fibre
Optic

Eclipse
Eclipse

DTx DTx
FTx

MOV MOV

KP 0 KP 90 KP 179

Speed of Sound
FTx Clamp-on DTx
Signal
Flow Transducer
LEAK DETECTION +
THEFT DETECTION
Atmos Wave Flow
➢ Redundant leak detection system
➢ Two leak alarms provided to operators to provide more
confidence for operator to make emergency action
➢ Primary leak detection using Negative Pressure Wave
method utilizing high speed pressure sensor
➢ Secondary leak detection using Mass Balance + RTTM
method utilizing clamp-on flow transducer within Atmos
Eclipse
➢ Speed of sound signal using clamp-on flow transducer
with Atmos Eclipse to improve location accuracy.
➢ Calculation of leak flow rate using clamp-on flow
transducer.
Atmos Wave Flow

➢ Provides theft detection function by recognizing valve

opening/closing events from theft activities
➢ Detects leak without using flow meter
➢ Detects 1% leak during flow/pumping condition
➢ Detects 0.1% leak during no flow condition
➢ Detects within 5 minutes
➢ Locates within 900 meters
➢ Intermediate pressure measurement is not required
Theft detection

Valve opening Valve closing

Atmos Eclipse

➢ 6-in-1 box
➢ What is in the box ?
o AWAS DAU with GPS antenna
o Clamp-on flow transducer
o Temperature sensor
o Pressure sensor
o Clamp-on PT or external PT
o Speed of sound measurement
o Communication (TCPIP, RS485, 3G, Radio)
➢ IP66
➢ Explosion proof
➢ Pipe diameter: 3”-24”
Atmos Wave Flow for CY3 – Configuration

Lomanis Kutawinangun Rewulu

Booster Pump
LDS LDS LDS LDS
Workstation Server Server Workstation

Fibre
Optic

Eclipse
Eclipse

FTx PTx PTx FTx

PTx PTx PTx PTx

MOV MOV
Min 20m Min 20m

KP 0 KP 90 KP 179

WIKA
PTx High Speed FTx Clamp-on
Flow Transducer
Pressure Sensor
Advantages of Atmos Wave Flow

➢ Redundant leak detection with two leak alarms

➢ Leak detection and theft detection system
➢ Detects leak/theft without using flow meter
➢ Fastest leak detection (within 5 minutes)
➢ Most accurate leak location (within 900 meters)
Why Atmos ?

➢ Leader in pipeline leak detection system

➢ Leader in pipeline theft detection system
➢ Preferred LDS of Shell, BP and ExxonMobil
➢ 1700+ online installation
➢ 100+ multiproduct pipeline references
