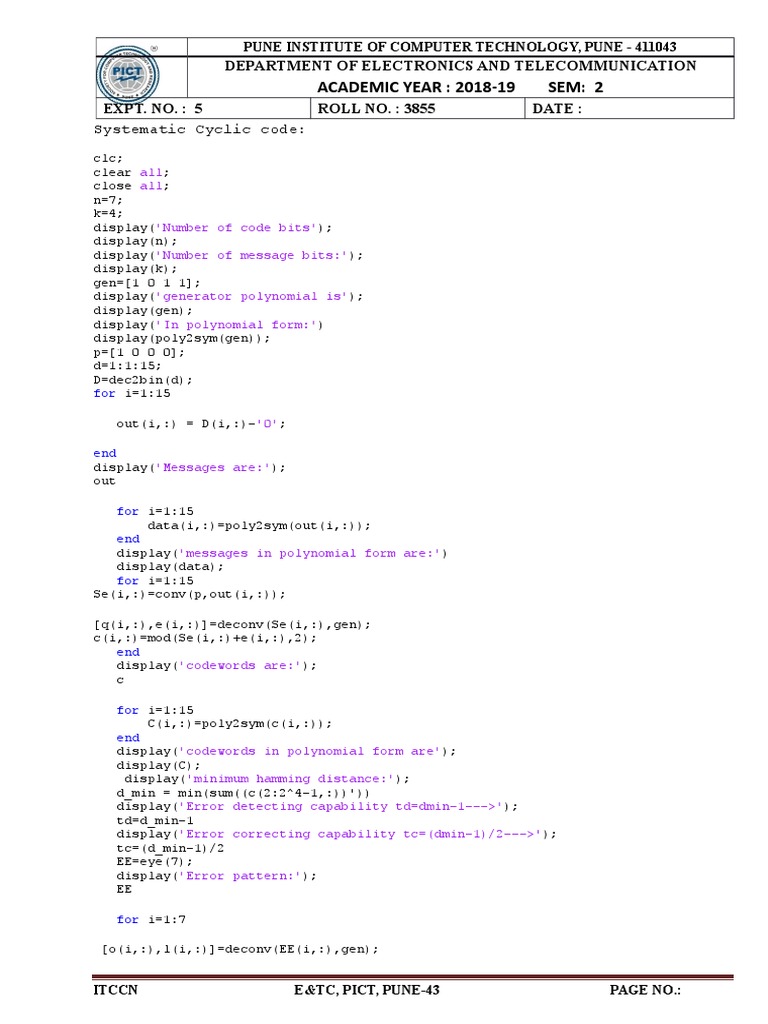

Systematic Cyclic code:
clc;
clear all;
close all;
n=7;
k=4;
display('Number of code bits');
display(n);
display('Number of message bits:');
display(k);
gen=[1 0 1 1];
display('generator polynomial is');
display(gen);
display('In polynomial form:')
display(poly2sym(gen));
p=[1 0 0 0];
d=1:1:15;
D=dec2bin(d);
for i=1:15

out(i,:) = D(i,:)-'0';

end
display('Messages are:');
out

for i=1:15
data(i,:)=poly2sym(out(i,:));
end
display('messages in polynomial form are:')
display(data);
for i=1:15
Se(i,:)=conv(p,out(i,:));

[q(i,:),e(i,:)]=deconv(Se(i,:),gen);
c(i,:)=mod(Se(i,:)+e(i,:),2);
end
display('codewords are:');
c

for i=1:15
C(i,:)=poly2sym(c(i,:));
end
display('codewords in polynomial form are');
display(C);
display('minimum hamming distance:');
d_min = min(sum((c(2:2^4-1,:))'))
display('Error detecting capability td=dmin-1--->');
td=d_min-1
display('Error correcting capability tc=(dmin-1)/2--->');
tc=(d_min-1)/2
EE=eye(7);
display('Error pattern:');
EE

for i=1:7

[o(i,:),l(i,:)]=deconv(EE(i,:),gen);

ITCCN E&TC, PICT, PUNE-43 PAGE NO.:

 PUNE INSTITUTE OF COMPUTER TECHNOLOGY, PUNE - 411043
DEPARTMENT OF ELECTRONICS AND TELECOMMUNICATION
ACADEMIC YEAR : 2018-19 SEM: 2
EXPT. NO. : 5 ROLL NO. : 3855 DATE :
end
L=mod(l,2);

for i=1:7

h(i,:)=L(i,5:7);

end

for i=1:7
H(i,:)=poly2sym(h(i,:));
end
disp('syndrome table');
disp(h);
r=input('enter the noisy code:');
disp('Noisy code in polynomial form:');
disp(poly2sym(r));
[qe,S]=deconv(r,gen);
s=mod(S(1,5:7),2);
display(‘Syndrome is:’);
display(s);

if s==[0 0 0]
display('no error')

else
for i=1:7
if s==h(i,:)
display('error is in following bit');
display(i);
display('Corresponding error pattern');
display(EE(i,:));
c_x=mod(r+EE(i,:),2);
display('corrected codeword ----> c(x)=r(x)+e(x) ');
display(c_x);
display('In polynomial form:');

display(poly2sym(c_x));

break ;
end
end
end

ITCCN E&TC, PICT, PUNE-43 PAGE NO.:

 PUNE INSTITUTE OF COMPUTER TECHNOLOGY, PUNE - 411043
DEPARTMENT OF ELECTRONICS AND TELECOMMUNICATION
ACADEMIC YEAR : 2018-19 SEM: 2
EXPT. NO. : 5 ROLL NO. : 3855 DATE :
OUTPUT:

Number of code bits

n =

Number of message bits:

k =

generator polynomial is

gen =

1 0 1 1

In polynomial form:

x^3+x+1

Messages are:

ITCCN E&TC, PICT, PUNE-43 PAGE NO.:

 PUNE INSTITUTE OF COMPUTER TECHNOLOGY, PUNE - 411043
DEPARTMENT OF ELECTRONICS AND TELECOMMUNICATION
ACADEMIC YEAR : 2018-19 SEM: 2
EXPT. NO. : 5 ROLL NO. : 3855 DATE :

out =

0 0 0 1

0 0 1 0

0 0 1 1

0 1 0 0

0 1 0 1

0 1 1 0

0 1 1 1

1 0 0 0

1 0 0 1

1 0 1 0

1 0 1 1

1 1 0 0

1 1 0 1

1 1 1 0

1 1 1 1

messages in polynomial form are:

ITCCN E&TC, PICT, PUNE-43 PAGE NO.:

 PUNE INSTITUTE OF COMPUTER TECHNOLOGY, PUNE - 411043
DEPARTMENT OF ELECTRONICS AND TELECOMMUNICATION
ACADEMIC YEAR : 2018-19 SEM: 2
EXPT. NO. : 5 ROLL NO. : 3855 DATE :

data =

x+1

x^2

x^2+1

x^2+x

x^2+x+1

x^3

x^3+1

x^3+x

x^3+x+1

x^3+x^2

x^3+x^2+1

x^3+x^2+x

x^3+x^2+x+1

codewords are:

ITCCN E&TC, PICT, PUNE-43 PAGE NO.:

 PUNE INSTITUTE OF COMPUTER TECHNOLOGY, PUNE - 411043
DEPARTMENT OF ELECTRONICS AND TELECOMMUNICATION
ACADEMIC YEAR : 2018-19 SEM: 2
EXPT. NO. : 5 ROLL NO. : 3855 DATE :

c =

0 0 0 1 0 1 1

0 0 1 0 1 1 0

0 0 1 1 1 0 1

0 1 0 0 1 1 1

0 1 0 1 1 0 0

0 1 1 0 0 0 1

0 1 1 1 0 1 0

1 0 0 0 1 0 1

1 0 0 1 1 1 0

1 0 1 0 0 1 1

1 0 1 1 0 0 0

1 1 0 0 0 1 0

1 1 0 1 0 0 1

1 1 1 0 1 0 0

1 1 1 1 1 1 1

codewords in polynomial form are

ITCCN E&TC, PICT, PUNE-43 PAGE NO.:

 PUNE INSTITUTE OF COMPUTER TECHNOLOGY, PUNE - 411043
DEPARTMENT OF ELECTRONICS AND TELECOMMUNICATION
ACADEMIC YEAR : 2018-19 SEM: 2
EXPT. NO. : 5 ROLL NO. : 3855 DATE :

C =

x^3+x+1

x^4+x^2+x

x^4+x^3+x^2+1

x^5+x^2+x+1

x^5+x^3+x^2

x^5+x^4+1

x^5+x^4+x^3+x

x^6+x^2+1

x^6+x^3+x^2+x

x^6+x^4+x+1

x^6+x^4+x^3

x^6+x^5+x

x^6+x^5+x^3+1

x^6+x^5+x^4+x^2

x^6+x^5+x^4+x^3+x^2+x+1

minimum hamming distance:

ITCCN E&TC, PICT, PUNE-43 PAGE NO.:

 PUNE INSTITUTE OF COMPUTER TECHNOLOGY, PUNE - 411043
DEPARTMENT OF ELECTRONICS AND TELECOMMUNICATION
ACADEMIC YEAR : 2018-19 SEM: 2
EXPT. NO. : 5 ROLL NO. : 3855 DATE :

d_min =

Error detecting capability td=dmin-1--->

td =

Error correcting capability tc=(dmin-1)/2--->

tc =

Error pattern:

ITCCN E&TC, PICT, PUNE-43 PAGE NO.:

 PUNE INSTITUTE OF COMPUTER TECHNOLOGY, PUNE - 411043
DEPARTMENT OF ELECTRONICS AND TELECOMMUNICATION
ACADEMIC YEAR : 2018-19 SEM: 2
EXPT. NO. : 5 ROLL NO. : 3855 DATE :

EE =

1 0 0 0 0 0 0

0 1 0 0 0 0 0

0 0 1 0 0 0 0

0 0 0 1 0 0 0

0 0 0 0 1 0 0

0 0 0 0 0 1 0

0 0 0 0 0 0 1

syndrome table

1 0 1

1 1 1

1 1 0

0 1 1

1 0 0

0 1 0

0 0 1

enter the noisy code:[1 0 1 0 0 1 0]

Noisy code in polynomial form:

x^6+x^4+x

Syndrome is:

ITCCN E&TC, PICT, PUNE-43 PAGE NO.:

 PUNE INSTITUTE OF COMPUTER TECHNOLOGY, PUNE - 411043
DEPARTMENT OF ELECTRONICS AND TELECOMMUNICATION
ACADEMIC YEAR : 2018-19 SEM: 2
EXPT. NO. : 5 ROLL NO. : 3855 DATE :
s =

0 0 1

error is in following bit

i =

Corresponding error pattern

ans =

0 0 0 0 0 0 1

corrected codeword ----> c(x)=r(x)+e(x)

c_x =

1 0 1 0 0 1 1

In polynomial form:

= x^6+x^4+x+1
