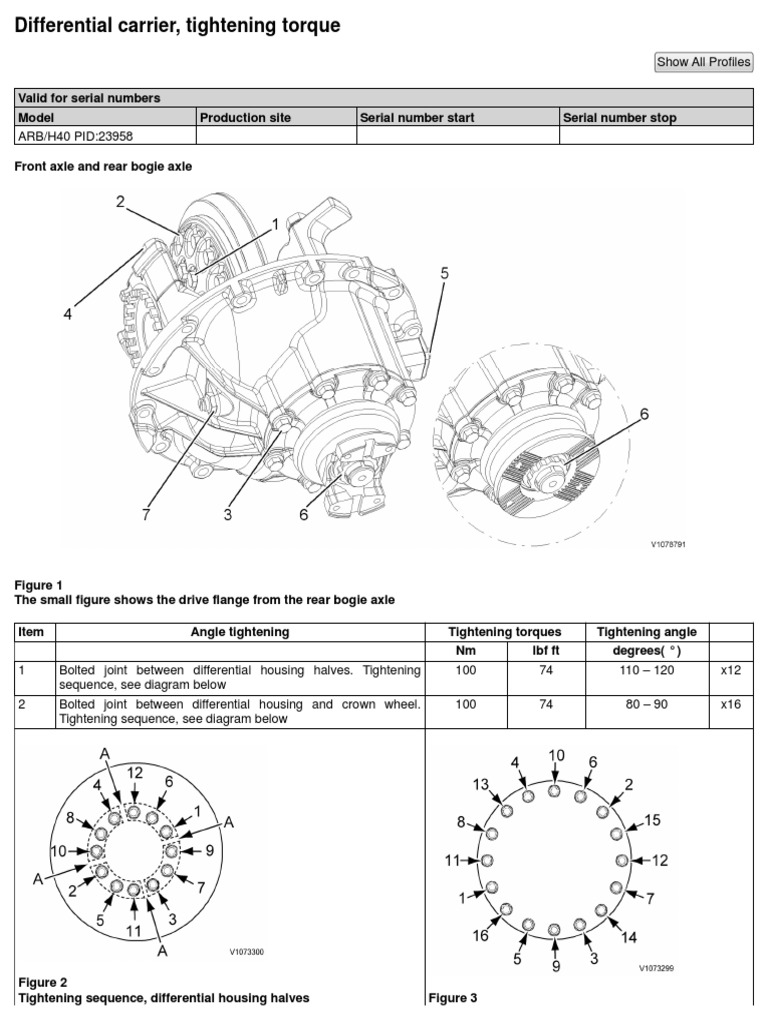

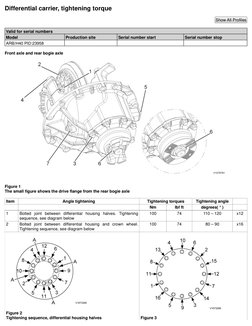

Differential carrier, tightening torque

Show All Profiles

Valid for serial numbers


Model Production site Serial number start Serial number stop
ARB/H40 PID:23958

Front axle and rear bogie axle

Figure 1
The small figure shows the drive flange from the rear bogie axle

Item Angle tightening Tightening torques Tightening angle


Nm lbf ft degrees( ° )
1 Bolted joint between differential housing halves. Tightening 100 74 110 – 120 x12
sequence, see diagram below
2 Bolted joint between differential housing and crown wheel. 100 74 80 – 90 x16
Tightening sequence, see diagram below

Figure 2
Tightening sequence, differential housing halves Figure 3

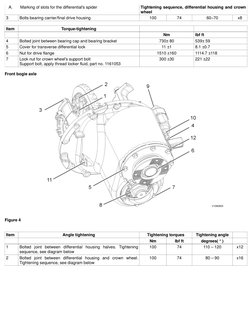

A. Marking of slots for the differential's spider Tightening sequence, differential housing and crown
wheel
3 Bolts bearing carrier/final drive housing 100 74 60–70 x8

Item Torque-tightening
Nm lbf ft
4 Bolted joint between bearing cap and bearing bracket 730± 80 539± 59
5 Cover for transverse differential lock 11 ±1 8.1 ±0.7
6 Nut for drive flange 1510 ±160 1114.7 ±118
7 Lock nut for crown wheel's support bolt 300 ±30 221 ±22
Support bolt, apply thread locker fluid, part no. 1161053

Front bogie axle

Figure 4

Item Angle tightening Tightening torques Tightening angle


Nm lbf ft degrees( ° )
1 Bolted joint between differential housing halves. Tightening 100 74 110 – 120 x12
sequence, see diagram below
2 Bolted joint between differential housing and crown wheel. 100 74 80 – 90 x16
Tightening sequence, see diagram below

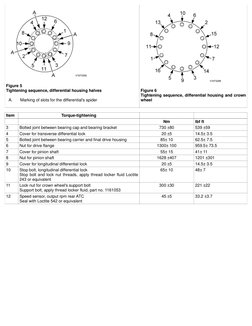

Figure 5
Tightening sequence, differential housing halves Figure 6
Tightening sequence, differential housing and crown
A. Marking of slots for the differential's spider wheel

Item Torque-tightening
Nm lbf ft
3 Bolted joint between bearing cap and bearing bracket 730 ±80 539 ±59
4 Cover for transverse differential lock 20 ±5 14.5± 3.5
5 Bolted joint between bearing carrier and final drive housing 85± 10 62.5± 7.5
6 Nut for drive flange 1300± 100 959.5± 73.5
7 Cover for pinion shaft 55± 15 41± 11
8 Nut for pinion shaft 1628 ±407 1201 ±301
9 Cover for longitudinal differential lock 20 ±5 14.5± 3.5
10 Stop bolt, longitudinal differential lock 65± 10 48± 7
Stop bolt and lock nut threads, apply thread locker fluid Loctite
243 or equivalent
11 Lock nut for crown wheel's support bolt 300 ±30 221 ±22
Support bolt, apply thread locker fluid, part no. 1161053
12 Speed sensor, output rpm rear ATC 45 ±5 33.2 ±3.7
Seal with Loctite 542 or equivalent
