02/11/2015 www.crouzet.

com

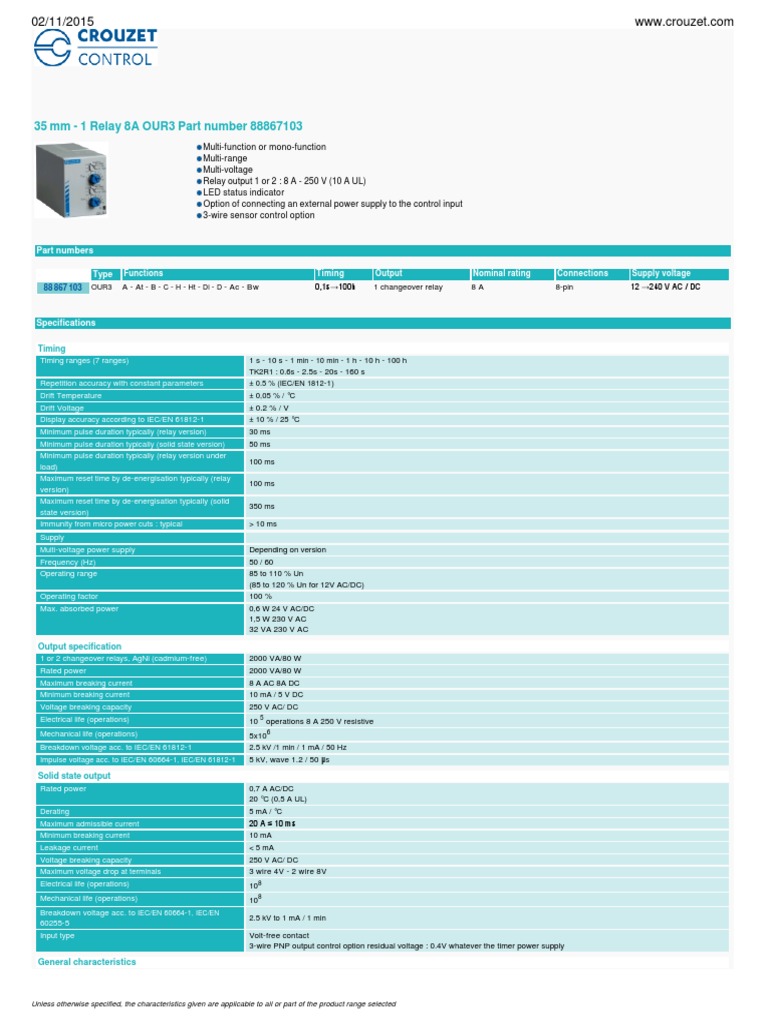

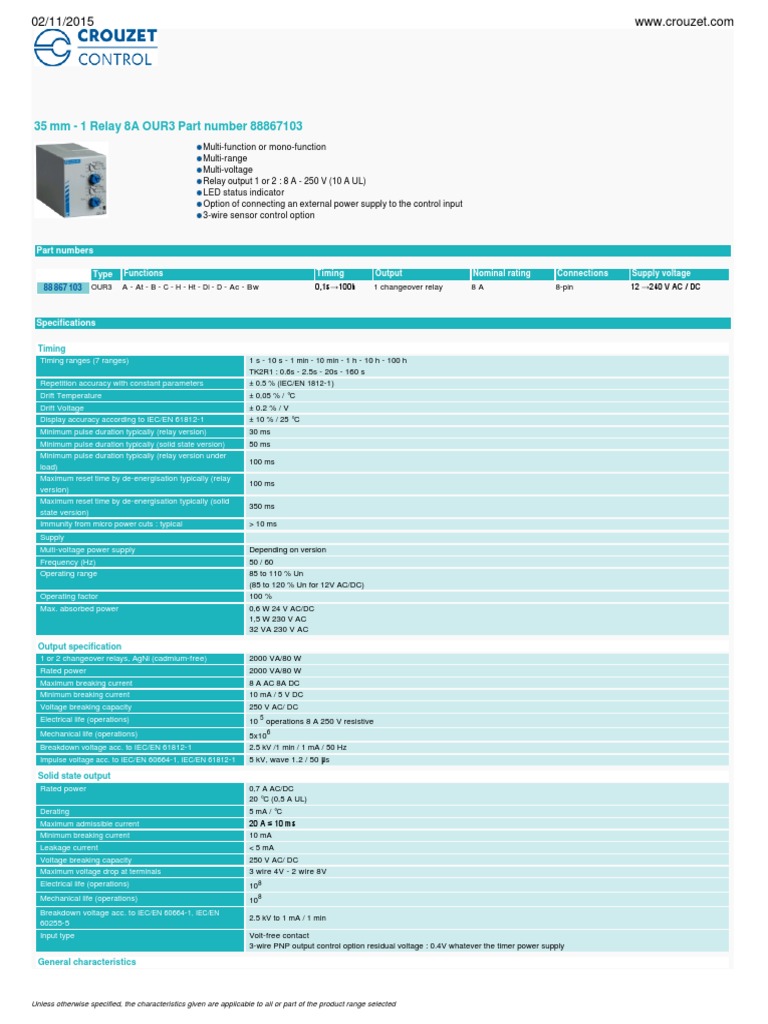

35 mm - 1 Relay 8A OUR3 Part number 88867103

Multi-function or mono-function
Multi-range
Multi-voltage
Relay output 1 or 2 : 8 A - 250 V (10 A UL)
LED status indicator
Option of connecting an external power supply to the control input
3-wire sensor control option

Part numbers

Type Functions Timing Output Nominal rating Connections Supply voltage

88 867 103 OUR3 A - At - B - C - H - Ht - Di - D - Ac - Bw 0,1s→100h 1 changeover relay 8A 8-pin 12 →240 V AC / DC

Specifications

Timing
Timing ranges (7 ranges) 1 s - 10 s - 1 min - 10 min - 1 h - 10 h - 100 h
TK2R1 : 0.6s - 2.5s - 20s - 160 s
Repetition accuracy with constant parameters ± 0.5 % (IEC/EN 1812-1)
Drift Temperature ± 0,05 % / °C
Drift Voltage ± 0.2 % / V
Display accuracy according to IEC/EN 61812-1 ± 10 % / 25 °C
Minimum pulse duration typically (relay version) 30 ms
Minimum pulse duration typically (solid state version) 50 ms
Minimum pulse duration typically (relay version under
100 ms
load)
Maximum reset time by de-energisation typically (relay
100 ms
version)
Maximum reset time by de-energisation typically (solid
350 ms
state version)
Immunity from micro power cuts : typical > 10 ms
Supply
Multi-voltage power supply Depending on version
Frequency (Hz) 50 / 60
Operating range 85 to 110 % Un
(85 to 120 % Un for 12V AC/DC)
Operating factor 100 %
Max. absorbed power 0,6 W 24 V AC/DC
1,5 W 230 V AC
32 VA 230 V AC
Output specification
1 or 2 changeover relays, AgNi (cadmium-free) 2000 VA/80 W
Rated power 2000 VA/80 W
Maximum breaking current 8 A AC 8A DC
Minimum breaking current 10 mA / 5 V DC
Voltage breaking capacity 250 V AC/ DC
Electrical life (operations) 10 5 operations 8 A 250 V resistive
Mechanical life (operations) 5x106
Breakdown voltage acc. to IEC/EN 61812-1 2.5 kV /1 min / 1 mA / 50 Hz
Impulse voltage acc. to IEC/EN 60664-1, IEC/EN 61812-1 5 kV, wave 1.2 / 50 μs
Solid state output
Rated power 0,7 A AC/DC
20 °C (0,5 A UL)
Derating 5 mA / °C
Maximum admissible current 20 A ≤ 10 ms
Minimum breaking current 10 mA
Leakage current < 5 mA
Voltage breaking capacity 250 V AC/ DC
Maximum voltage drop at terminals 3 wire 4V - 2 wire 8V
Electrical life (operations) 108
Mechanical life (operations) 108
Breakdown voltage acc. to IEC/EN 60664-1, IEC/EN
2.5 kV to 1 mA / 1 min
60255-5
Input type Volt-free contact
3-wire PNP output control option residual voltage : 0.4V whatever the timer power supply
General characteristics

Unless otherwise specified, the characteristics given are applicable to all or part of the product range selected
02/11/2015 www.crouzet.com
Conformity to standards IEC/EN 61812-1
IEC/EN 61000-6-1
IEC/EN 61000-6-2
IEC/EN 61000-6-3
IEC/EN 61000-6-4
Certifications CE, UL, cUL, CSA, GL
Temperature limits use (°C) -20 →+60
Temperature limits stored (°C) -30 →+60
Installation category
Voltage surge category
(acc. to IEC/EN 60664-1)
Creepage distance and clearance acc. to IEC/EN 60664-1 4 kV / 3
Protection (IEC/EN 60529) IP 20
IP 40
Degree of protection acc. to IEC/EN 60529 Front face
IP 50
(except Tk2R1)
Vibration resistance f = 10 55 Hz
acc. to IEC/EN 60068-2-6 A = 0,35 mm
Relative humidity no condensation acc. to IEC/EN 60068-
93 % sans condensation
2-30
Electromagnetic compatibility - Immunity to electrostatic
Level III (Air 8 KV / Contact 6 KV)
discharges acc to IEC/EN 61000-4-2
Immunity to radiated, radio-frequency, electromagnetic
Level III 10V/m (80 M Hz to 1 G Hz)
field acc. IEC/EN 61000-4-3
Immunity to rapid transient bursts acc. to IEC/EN 61000-4-
Level III (direct 2kV / Capacitive coupling clamp 1 KV)
4
Immunity to shock waves on power supply acc. to IEC/EN
Level III (2 KV / common mode 2 KV/residual current mode 1KV)
61000-4-5
Immunity to radio frequency in common mode acc. to
Level III (10V rms : 0.15 M Hz to 80 M Hz)
IEC/EN 61000-4-6
Immunity to voltage dips and breaks acc. to IEC/EN 61000- 30 %/10 ms
4-11 60 %/100 ms >
95 %/5 s
Mains-borne and radiated emissions acc. to EN 55022
Class B
(CISPR22), EN55011 (CISPR11)
Fixing : Symmetrical DIN rail 35 mm
Connection capacity - without ferrule 2 x 2,5 mm2
Connection capacity - with ferrule 2 x 1,5 mm2
Spring terminals, 2 terminals per connection point -
1,5 mm2
flexible wire
Spring terminals, 2 terminals per connection point - rigid
2,5 mm2
wire
Housing material Self-extinguishing
Weight : casing 17,5 mm 60 g
Weight : casing 22,5 mm 90 g
Weight : plug-in casing 80 g

80

Accessories

Accessories Code

8-pin connector base 25 622 128

Display
State displayed by 1 LED
- Flashing green when on
Green LED operation indicator
Pulsing :
- timer on, no timing in progress (except functions Di-D and Li-L)
Flashing :
- timing in progress
Permanently lit :
- Relay waiting, no timing in progress

Dimensions (mm)

Unless otherwise specified, the characteristics given are applicable to all or part of the product range selected
02/11/2015 www.crouzet.com

Dimensions (mm)
Accessories

Curves
Function A

Function A

Delay on energisation 1 relay

Curves
Function Ac

Function Ac

Timing after closing and opening of control contact 1 relay

Curves
Function At

Unless otherwise specified, the characteristics given are applicable to all or part of the product range selected
02/11/2015 www.crouzet.com

Function At

Timing on energisation with memory 1 relay

Curves
Function B

Function B

Timing on impulse one shot

Curves
Function Bw

Function Bw

Pulse output (adjustable) 1 relay

Curves
Function C

Function C

Timing after impulse 1 timer

Curves
Function D

Unless otherwise specified, the characteristics given are applicable to all or part of the product range selected
02/11/2015 www.crouzet.com

Function D

Flip-flop 1 relay Pause start

Curves
Function Di

Function Di

Flip-flop 1 relay Pulse start

Curves
Function H

Function H

Timing on energisation 1 relay

Curves
Function Ht

Function Ht

Delay on energisation with memory 1 relay

Connections
8-pin 1 relay output

Unless otherwise specified, the characteristics given are applicable to all or part of the product range selected
02/11/2015 www.crouzet.com

Functions

Functions A - At / H - Ht / B / C / Di - D / Ac /Bw

Unless otherwise specified, the characteristics given are applicable to all or part of the product range selected
