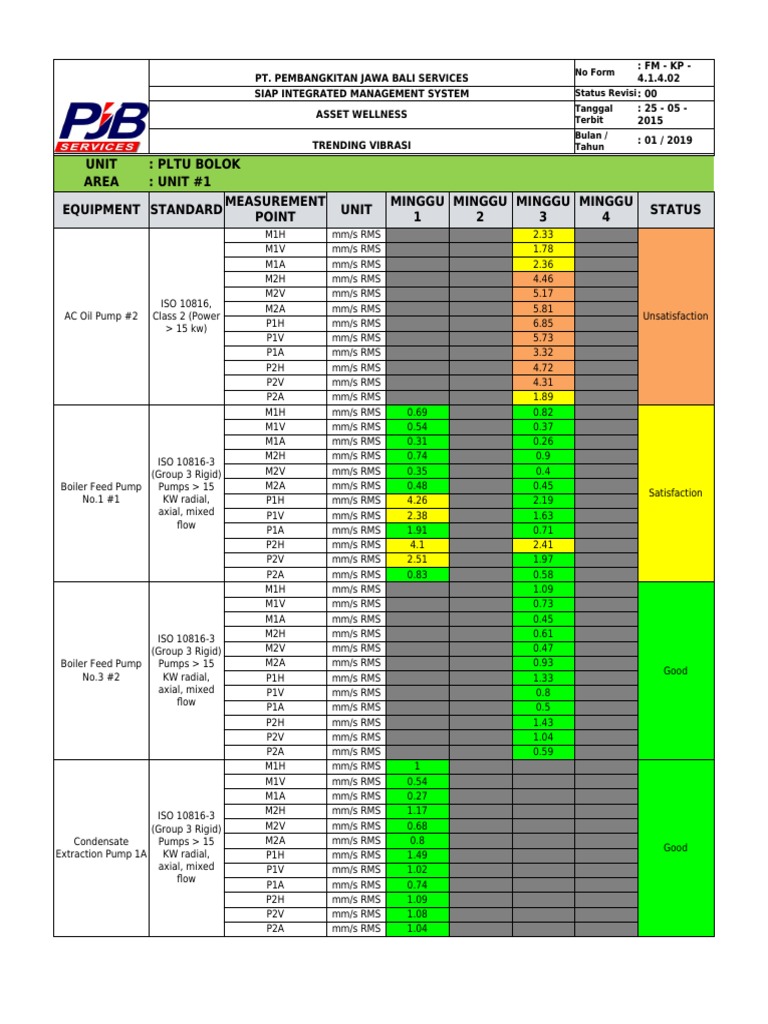

: FM - KP -

No Form
PT. PEMBANGKITAN JAWA BALI SERVICES 4.1.4.02
SIAP INTEGRATED MANAGEMENT SYSTEM Status Revisi : 00
Tanggal : 25 - 05 -
ASSET WELLNESS
Terbit 2015
Bulan /
TRENDING VIBRASI : 01 / 2019
Tahun

UNIT : PLTU BOLOK

AREA : UNIT #1
MEASUREMENT MINGGU MINGGU MINGGU MINGGU
EQUIPMENT STANDARD UNIT STATUS
POINT 1 2 3 4
M1H mm/s RMS 2.33
M1V mm/s RMS 1.78
M1A mm/s RMS 2.36
M2H mm/s RMS 4.46
M2V mm/s RMS 5.17
ISO 10816, M2A mm/s RMS 5.81
AC Oil Pump #2 Class 2 (Power Unsatisfaction
> 15 kw) P1H mm/s RMS 6.85
P1V mm/s RMS 5.73
P1A mm/s RMS 3.32
P2H mm/s RMS 4.72
P2V mm/s RMS 4.31
P2A mm/s RMS 1.89
M1H mm/s RMS 0.69 0.82
M1V mm/s RMS 0.54 0.37
M1A mm/s RMS 0.31 0.26
M2H mm/s RMS 0.74 0.9
ISO 10816-3
(Group 3 Rigid) M2V mm/s RMS 0.35 0.4
Boiler Feed Pump Pumps > 15 M2A mm/s RMS 0.48 0.45
Satisfaction
No.1 #1 KW radial, P1H mm/s RMS 4.26 2.19
axial, mixed P1V mm/s RMS 2.38 1.63
flow
P1A mm/s RMS 1.91 0.71
P2H mm/s RMS 4.1 2.41
P2V mm/s RMS 2.51 1.97
P2A mm/s RMS 0.83 0.58
M1H mm/s RMS 1.09
M1V mm/s RMS 0.73
M1A mm/s RMS 0.45
M2H mm/s RMS 0.61
ISO 10816-3
(Group 3 Rigid) M2V mm/s RMS 0.47
Boiler Feed Pump Pumps > 15 M2A mm/s RMS 0.93
Good
No.3 #2 KW radial, P1H mm/s RMS 1.33
axial, mixed P1V mm/s RMS 0.8
flow
P1A mm/s RMS 0.5
P2H mm/s RMS 1.43
P2V mm/s RMS 1.04
P2A mm/s RMS 0.59
M1H mm/s RMS 1
M1V mm/s RMS 0.54
M1A mm/s RMS 0.27
M2H mm/s RMS 1.17
ISO 10816-3
(Group 3 Rigid) M2V mm/s RMS 0.68
Condensate Pumps > 15 M2A mm/s RMS 0.8
Good
Extraction Pump 1A KW radial, P1H mm/s RMS 1.49
axial, mixed P1V mm/s RMS 1.02
flow
P1A mm/s RMS 0.74
P2H mm/s RMS 1.09
P2V mm/s RMS 1.08
P2A mm/s RMS 1.04
 M1H mm/s RMS 1.06
M1V mm/s RMS 1.82
M1A mm/s RMS 0.36
M2H mm/s RMS 0.97
ISO 10816-3
(Group 3 Rigid) M2V mm/s RMS 2.39
Condensate Pumps > 15 M2A mm/s RMS 1.12
Satisfaction
Extraction Pump 1B KW radial, P1H mm/s RMS 3.95
axial, mixed P1V mm/s RMS 2.57
flow
P1A mm/s RMS 2.92
P2H mm/s RMS 4.01
P2V mm/s RMS 3.19
P2A mm/s RMS 3.15
M1H mm/s RMS 1.35
M1V mm/s RMS 0.97
M1A mm/s RMS 0.26
M2H mm/s RMS 1.36
ISO 10816-3
(Group 3 Rigid) M2V mm/s RMS 1.04
Condensate Pumps > 15 M2A mm/s RMS 1.26
Good
Extraction Pump 2A KW radial, P1H mm/s RMS 1.15
axial, mixed P1V mm/s RMS 1.03
flow
P1A mm/s RMS 0.74
P2H mm/s RMS 1.13
P2V mm/s RMS 0.92
P2A mm/s RMS 1.48
M1H mm/s RMS 1.1
M1V mm/s RMS 0.85
M1A mm/s RMS 0.22
M2H mm/s RMS 1.64
ISO 10816-3
(Group 3 Rigid) M2V mm/s RMS 1.24
Condensate Pumps > 15 M2A mm/s RMS 1.36
Satisfaction
Extraction Pump 2B KW radial, P1H mm/s RMS 2.41
axial, mixed P1V mm/s RMS 1.7
flow
P1A mm/s RMS 0.95
P2H mm/s RMS 1.76
P2V mm/s RMS 1.46
P2A mm/s RMS 1
M1H mm/s RMS 0.46
M1V mm/s RMS 0.59
M1A mm/s RMS 0.48
M2H mm/s RMS 0.44
M2V mm/s RMS 0.36
ISO 10816, M2A mm/s RMS 0.5
Coal Feeder No.1
Class 1 (Power Good
#1 G1H mm/s RMS 0.23
< 15 kw)
G1V mm/s RMS 0.46
G1A mm/s RMS 0.22
G2H mm/s RMS 0.15
G2V mm/s RMS 0.29
G2A mm/s RMS 0.21
M1H mm/s RMS 0.6
M1V mm/s RMS 1.1
M1A mm/s RMS 0.42
M2H mm/s RMS 0.4
M2V mm/s RMS 1.29
ISO 10816, M2A mm/s RMS 0.62
Coal Feeder No.2
Class 1 (Power Satisfaction
#1 G1H mm/s RMS 0.59
< 15 kw)
G1V mm/s RMS 0.45
G1A mm/s RMS 0.23
G2H mm/s RMS 0.48
G2V mm/s RMS 0.31
G2A mm/s RMS 0.25
 M1H mm/s RMS 0.56
M1V mm/s RMS 1.5
M1A mm/s RMS 0.55
M2H mm/s RMS 0.43
M2V mm/s RMS 0.86
ISO 10816, M2A mm/s RMS 1.21
Coal Feeder No.3
Class 1 (Power Satisfaction
#1 G1H mm/s RMS 0.64
< 15 kw)
G1V mm/s RMS 0.56
G1A mm/s RMS 0.24
G2H mm/s RMS 0.25
G2V mm/s RMS 0.41
G2A mm/s RMS 0.32
M1H mm/s RMS 3.89
M1V mm/s RMS 2.52
ISO 10816-3 M1A mm/s RMS 1.11
(Group 3 Rigid) M2H mm/s RMS 1.9
Circulating Water Pumps > 15
M2V mm/s RMS 1.1 Satisfaction
Pump 1A KW radial,
axial, mixed M2A mm/s RMS 0.39
flow P1H mm/s RMS 0.71
P1V mm/s RMS 0.34
P1A mm/s RMS 1.43
M1H mm/s RMS 8.25
M1V mm/s RMS 6.55
ISO 10816-3 M1A mm/s RMS 0.77
(Group 3 Rigid) M2H mm/s RMS 3.14 Vibration
Circulating Water Pumps > 15
M2V mm/s RMS 2.46 Caused
Pump 1B KW radial,
M2A mm/s RMS 0.34 Damage
axial, mixed
flow P1H mm/s RMS 1.14
P1V mm/s RMS 0.98
P1A mm/s RMS 0.56
M1H mm/s RMS 1.24
M1V mm/s RMS 0.89
M1A mm/s RMS 1.39
M2H mm/s RMS 1.11
ISO 10816-3
(Group 3 Rigid) M2V mm/s RMS 0.5
Circulating Water Pumps > 15 M2A mm/s RMS 0.71
Good
Pump 2A KW radial, P1H mm/s RMS 0.97
axial, mixed P1V mm/s RMS 1.17
flow
P1A mm/s RMS 1.08
P2H mm/s RMS
P2V mm/s RMS
P2A mm/s RMS
M1H mm/s RMS 0.76
M1V mm/s RMS 1.65
M1A mm/s RMS 1.15
M2H mm/s RMS 0.58
ISO 10816-3
(Group 3 Rigid) M2V mm/s RMS 0.48
Circulating Water Pumps > 15 M2A mm/s RMS 0.36
Good
Pump 2B KW radial, P1H mm/s RMS 0.35
axial, mixed P1V mm/s RMS 0.33
flow
P1A mm/s RMS 0.94
P2H mm/s RMS
P2V mm/s RMS
P2A mm/s RMS
 M1H mm/s RMS 6.38 0.94
M1V mm/s RMS 8.33 0.4
M1A mm/s RMS 7.89 0.51
M2H mm/s RMS 9.05 0.88
M2V mm/s RMS 5.31 0.44
ISO 10816, M2A mm/s RMS 15.14 0.51
Drain Pump #1 Class 1 (Power Unsatisfaction
< 15 kw) P1H mm/s RMS 3.42 2.51
P1V mm/s RMS 1.82 0.99
P1A mm/s RMS 1.54 0.58
P2H mm/s RMS 2.33 1.84
P2V mm/s RMS 1.54 0.75
P2A mm/s RMS 2.02 1.07
M1H mm/s RMS 1.01
M1V mm/s RMS 0.37
ISO 10816, M1A mm/s RMS 0.53
Gland Steam
Class 1 (Power Satisfaction
Exhaust Fan 1B M2H mm/s RMS 1.37
< 15 kw)
M2V mm/s RMS 0.32
M2A mm/s RMS 1.05
M1H mm/s RMS 1.61
M1V mm/s RMS 0.87
ISO 10816, M1A mm/s RMS 1.06
Gland Steam
Class 2 (Power Satisfaction
Exhaust Fan 2B M2H mm/s RMS 1.68
> 15 kw)
M2V mm/s RMS 0.4
M2A mm/s RMS 1.61
M1H mm/s RMS 1.56
M1V mm/s RMS 1.45
M1A mm/s RMS 0.5
M2H mm/s RMS 1.15
ISO 10816-3
(Group 3 Rigid) M2V mm/s RMS 0.74
Pumps > 15 M2A mm/s RMS 1.68
HP Oil Pump #2 Unsatisfaction
KW radial, P1H mm/s RMS 4.87
axial, mixed P1V mm/s RMS 3.12
flow
P1A mm/s RMS 1.53
P2H mm/s RMS 2.85
P2V mm/s RMS 2.24
P2A mm/s RMS 1
M1H mm/s RMS 0.93
M1V mm/s RMS 0.59
M1A mm/s RMS 0.24
M2H mm/s RMS 0.73
ISO 10816-3 M2V mm/s RMS 0.76
(Group 2 Rigid) M2A mm/s RMS 0.56
ID Fan 1A Medium Good
Machine 15KW F1H mm/s RMS 0.69
< p < 300KW F1V mm/s RMS 0.73
F1A mm/s RMS 1.28
F2H mm/s RMS 0.92
F2V mm/s RMS 1.2
F2A mm/s RMS 1.12
M1H mm/s RMS 0.51
M1V mm/s RMS 0.49
M1A mm/s RMS 0.32
M2H mm/s RMS 0.64
ISO 10816-3 M2V mm/s RMS 0.29
(Group 2 Rigid) M2A mm/s RMS 0.79
ID Fan 1B Medium Satisfaction
Machine 15KW F1H mm/s RMS 1.1
< p < 300KW F1V mm/s RMS 1.19
F1A mm/s RMS 1.02
F2H mm/s RMS 1.12
F2V mm/s RMS 0.56
F2A mm/s RMS 1.5
 M1H mm/s RMS 0.99
M1V mm/s RMS 0.57
M1A mm/s RMS 0.3
M2H mm/s RMS 0.92
ISO 10816-3 M2V mm/s RMS 0.57
(Group 2 Rigid) M2A mm/s RMS 0.61
ID Fan 2A Medium Good
Machine 15KW F1H mm/s RMS 0.53
< p < 300KW F1V mm/s RMS 0.64
F1A mm/s RMS 0.39
F2H mm/s RMS 0.47
F2V mm/s RMS 0.36
F2A mm/s RMS 0.44
M1H mm/s RMS 0.72
M1V mm/s RMS 0.36
M1A mm/s RMS 0.27
M2H mm/s RMS 0.76
ISO 10816-3 M2V mm/s RMS 0.6
(Group 2 Rigid) M2A mm/s RMS 0.66
ID Fan 2B Medium Good
Machine 15KW F1H mm/s RMS 0.73
< p < 300KW F1V mm/s RMS 0.5
F1A mm/s RMS 0.59
F2H mm/s RMS 0.74
F2V mm/s RMS 0.65
F2A mm/s RMS 0.58
M1H mm/s RMS 1.87
M1V mm/s RMS 0.78
M1A mm/s RMS 0.55
M2H mm/s RMS 1.98
ISO 10816-3 M2V mm/s RMS 1.09
(Group 2 Rigid) M2A mm/s RMS 0.97
PA Fan 1A Medium Satisfaction
Machine 15KW F1H mm/s RMS 1.54
< p < 300KW F1V mm/s RMS 0.84
F1A mm/s RMS 0.7
F2H mm/s RMS 1.37
F2V mm/s RMS 0.77
F2A mm/s RMS 0.72
M1H mm/s RMS 1.02
M1V mm/s RMS 0.76
M1A mm/s RMS 0.36
M2H mm/s RMS 1.12
ISO 10816-3 M2V mm/s RMS 1.08
(Group 2 Rigid) M2A mm/s RMS 0.9
PA Fan 1B Medium Satisfaction
Machine 15KW F1H mm/s RMS 1.48
< p < 300KW F1V mm/s RMS 1.16
F1A mm/s RMS 1.62
F2H mm/s RMS 1.37
F2V mm/s RMS 1.66
F2A mm/s RMS 1.44
M1H mm/s RMS 2.4
M1V mm/s RMS 1.4
M1A mm/s RMS 0.6
M2H mm/s RMS 2.29
ISO 10816-3 M2V mm/s RMS 2.06
(Group 2 Rigid) M2A mm/s RMS 1.47
PA Fan 2A Medium Satisfaction
Machine 15KW F1H mm/s RMS 0.96
< p < 300KW F1V mm/s RMS 0.79
F1A mm/s RMS 0.87
F2H mm/s RMS 0.94
F2V mm/s RMS 0.92
F2A mm/s RMS 0.96
 M1H mm/s RMS 1.16
M1V mm/s RMS 0.43
M1A mm/s RMS 0.4
M2H mm/s RMS 1.19
ISO 10816-3 M2V mm/s RMS 0.66
(Group 2 Rigid) M2A mm/s RMS 0.84
PA Fan 2B Medium Good
Machine 15KW F1H mm/s RMS 1.07
< p < 300KW F1V mm/s RMS 0.46
F1A mm/s RMS 0.61
F2H mm/s RMS 0.99
F2V mm/s RMS 0.78
F2A mm/s RMS 0.55
M1H mm/s RMS 6.93
M1V mm/s RMS 9.07
ISO 10816-3 M1A mm/s RMS 1.96
(Group 3 Rigid) M2H mm/s RMS 2.78 Vibration
Pumps > 15
Pipe Pre-Pump 1B M2V mm/s RMS 3.29 Caused
KW radial,
M2A mm/s RMS 3.18 Damage
axial, mixed
flow P1H mm/s RMS 2.5
P1V mm/s RMS 1.41
P1A mm/s RMS 0.62
M1H mm/s RMS 2.08
M1V mm/s RMS 2.33
M1A mm/s RMS 2.87
M2H mm/s RMS 1.28
VDI 3836 M2V mm/s RMS 2.8
(Group 4 M2A mm/s RMS 0.8
Return Fan 1A Flexibel) p > Satisfaction
22KW roots F1H mm/s RMS 4.22
blowers F1V mm/s RMS 1.39
F1A mm/s RMS 1.4
F2H mm/s RMS 3.85
F2V mm/s RMS 1.55
F2A mm/s RMS 1.83
M1H mm/s RMS 3.38
M1V mm/s RMS 1.98
M1A mm/s RMS 2.5
M2H mm/s RMS 2.45
VDI 3836 M2V mm/s RMS 4.47
(Group 4 M2A mm/s RMS 2.12
Return Fan 2A Flexibel) p > Satisfaction
22KW roots F1H mm/s RMS 2.61
blowers F1V mm/s RMS 5.27
F1A mm/s RMS 3.31
F2H mm/s RMS 3.98
F2V mm/s RMS 3.55
F2A mm/s RMS 2.56
M1H mm/s RMS 1.02
M1V mm/s RMS 0.73
M1A mm/s RMS 0.43
M2H mm/s RMS 1.28
ISO 10816-3 M2V mm/s RMS 1.04
(Group 2 Rigid) M2A mm/s RMS 0.98
SA Fan 1A Medium Good
Machine 15KW F1H mm/s RMS 0.7
< p < 300KW F1V mm/s RMS 0.53
F1A mm/s RMS 0.66
F2H mm/s RMS 0.95
F2V mm/s RMS 0.53
F2A mm/s RMS 0.66
 M1H mm/s RMS 1.3
M1V mm/s RMS 0.5
M1A mm/s RMS 0.27
M2H mm/s RMS 1.33
ISO 10816-3 M2V mm/s RMS 0.63
(Group 2 Rigid) M2A mm/s RMS 0.5
SA Fan 1B Medium Good
Machine 15KW F1H mm/s RMS 0.85
< p < 300KW F1V mm/s RMS 0.44
F1A mm/s RMS 0.55
F2H mm/s RMS 0.79
F2V mm/s RMS 0.76
F2A mm/s RMS 0.63
M1H mm/s RMS 0.74
M1V mm/s RMS 0.73
M1A mm/s RMS 0.21
M2H mm/s RMS 1.22
ISO 10816-3 M2V mm/s RMS 0.6
(Group 2 Rigid) M2A mm/s RMS 0.75
SA Fan 2A Medium Good
Machine 15KW F1H mm/s RMS 0.45
< p < 300KW F1V mm/s RMS 0.32
F1A mm/s RMS 0.34
F2H mm/s RMS 0.7
F2V mm/s RMS 0.39
F2A mm/s RMS 0.36
M1H mm/s RMS 0.91
M1V mm/s RMS 0.74
M1A mm/s RMS 0.46
M2H mm/s RMS 1.24
ISO 10816-3 M2V mm/s RMS 0.97
(Group 2 Rigid) M2A mm/s RMS 0.99
SA Fan 2B Medium Good
Machine 15KW F1H mm/s RMS 0.57
< p < 300KW F1V mm/s RMS 0.38
F1A mm/s RMS 0.58
F2H mm/s RMS 0.89
F2V mm/s RMS 0.58
F2A mm/s RMS 0.57
M1H mm/s RMS 0.51
M1V mm/s RMS 0.29
M1A mm/s RMS 0.18
M2H mm/s RMS 0.57
ISO 10816-3
(Group 3 Rigid) M2V mm/s RMS 0.6
Pumps > 15 M2A mm/s RMS 0.36
Service Pump 2A Good
KW radial, P1H mm/s RMS 1.66
axial, mixed P1V mm/s RMS 0.47
flow
P1A mm/s RMS 0.74
P2H mm/s RMS 0.95
P2V mm/s RMS 0.5
P2A mm/s RMS 0.85
M1H mm/s RMS 0.96
M1V mm/s RMS 0.53
M1A mm/s RMS 0.79
M2H mm/s RMS 1.16
ISO 10816-3
(Group 3 Rigid) M2V mm/s RMS 1
Pumps > 15 M2A mm/s RMS 1.08
Service Pump 2B Good
KW radial, P1H mm/s RMS 2.24
axial, mixed P1V mm/s RMS 1.6
flow
P1A mm/s RMS 0.88
P2H mm/s RMS 1.39
P2V mm/s RMS 1.95
P2A mm/s RMS 0.98
 T1H mm/s RMS 3.83
T1V mm/s RMS 2.12
T1A mm/s RMS 1.24
T2H mm/s RMS 2.15
T2V mm/s RMS 1.91
ISO 10816-2 T2A mm/s RMS 1.82
Turbin #1 Satisfaction
(For Turbine) G1H mm/s RMS 2.88
G1V mm/s RMS 1.99
G1A mm/s RMS 1.29
G2H mm/s RMS 3.97
G2V mm/s RMS 1.57
G2A mm/s RMS 5.14
T1H mm/s RMS 3.15
T1V mm/s RMS 1.8
T1A mm/s RMS 2.03
T2H mm/s RMS 2.57
T2V mm/s RMS 2.28
T2A mm/s RMS 3.24 Vibration
ISO 10816-2
Turbin #2 Caused
(For Turbine) T3H mm/s RMS 2.58 Damage
T3V mm/s RMS 3.55
T3A mm/s RMS 2.39
T4H mm/s RMS 13.89
T4V mm/s RMS 4
T4A mm/s RMS 9.81
M1H mm/s RMS 0.96
M1V mm/s RMS 1.18
M1A mm/s RMS 0.56
M2H mm/s RMS 0.88
ISO 10816-3
(Group 3 Rigid) M2V mm/s RMS 0.75
Pumps > 15 M2A mm/s RMS 0.5
Vacuum Pump 1A Satisfaction
KW radial, P1H mm/s RMS 1.63
axial, mixed P1V mm/s RMS 1.35
flow
P1A mm/s RMS 1.21
P2H mm/s RMS 1.9
P2V mm/s RMS 2.48
P2A mm/s RMS 0.86
M1H mm/s RMS 0.69 0.58
M1V mm/s RMS 1.06 1.09
M1A mm/s RMS 0.6 0.59
M2H mm/s RMS 0.73 0.71
ISO 10816-3
(Group 3 Rigid) M2V mm/s RMS 0.69 0.73
Pumps > 15 M2A mm/s RMS 0.46 0.45
Vacuum Pump 1B Good
KW radial, P1H mm/s RMS 1.32 1.24
axial, mixed P1V mm/s RMS 1.22 1.14
flow
P1A mm/s RMS 0.87 0.97
P2H mm/s RMS 1.99 2.02
P2V mm/s RMS 1.6 1.67
P2A mm/s RMS 0.9 0.95
M1H mm/s RMS 0.88
M1V mm/s RMS 3
M1A mm/s RMS 1.55
M2H mm/s RMS 1.38
ISO 10816-3
(Group 3 Rigid) M2V mm/s RMS 0.81
Pumps > 15 M2A mm/s RMS 0.72
Vacuum Pump 2A Unsatisfaction
KW radial, P1H mm/s RMS 2.36
axial, mixed P1V mm/s RMS 4.91
flow
P1A mm/s RMS 1.3
P2H mm/s RMS 2.69
P2V mm/s RMS 5.66
P2A mm/s RMS 1.54
 M1H mm/s RMS 1.38
M1V mm/s RMS 1.1
M1A mm/s RMS 0.48
M2H mm/s RMS 1.79
ISO 10816-3
(Group 3 Rigid) M2V mm/s RMS 1.05
Pumps > 15 M2A mm/s RMS 1.05
Vacuum Pump 2B Good
KW radial, P1H mm/s RMS 1.86
axial, mixed P1V mm/s RMS 1.89
flow
P1A mm/s RMS 0.6
P2H mm/s RMS 1.53
P2V mm/s RMS 1.38
P2A mm/s RMS 0.59
M1H mm/s RMS 0.68 0.77
M1V mm/s RMS 0.55 0.65
M1A mm/s RMS 0.5 0.6
M2H mm/s RMS 1.43 1.46
ISO 10816-3
(Group 3 Rigid) M2V mm/s RMS 1.42 1.44
Pumps > 15 M2A mm/s RMS 1.24 1.51
Service Pump 1A Satisfaction
KW radial, P1H mm/s RMS 2.79 2.69
axial, mixed P1V mm/s RMS 1.64 1.71
flow
P1A mm/s RMS 0.84 0.79
P2H mm/s RMS 1.72 1.6
P2V mm/s RMS 1.03 1.11
P2A mm/s RMS 0.57 0.69
M1H mm/s RMS 1.08
M1V mm/s RMS 0.65
M1A mm/s RMS 0.59
M2H mm/s RMS 1.04
ISO 10816-3
(Group 3 Rigid) M2V mm/s RMS 0.97
Pumps > 15 M2A mm/s RMS 1.08
Service Pump 1B Good
KW radial, P1H mm/s RMS 1.69
axial, mixed P1V mm/s RMS 1.05
flow
P1A mm/s RMS 0.74
P2H mm/s RMS 0.9
P2V mm/s RMS 0.56
P2A mm/s RMS 0.98
M1H mm/s RMS 0.57
M1V mm/s RMS 0.83
M1A mm/s RMS 0.42
M2H mm/s RMS 0.59
M2V mm/s RMS 0.41
ISO 10816, M2A mm/s RMS 0.59
Coal Feeder No.1
Class 1 (Power Satisfaction
#2 G1H mm/s RMS 0.25
< 15 kw)
G1V mm/s RMS 0.46
G1A mm/s RMS 0.17
G2H mm/s RMS 0.18
G2V mm/s RMS 0.51
G2A mm/s RMS 0.27
M1H mm/s RMS 0.48
M1V mm/s RMS 0.77
M1A mm/s RMS 0.41
M2H mm/s RMS 0.34
M2V mm/s RMS 0.45
ISO 10816, M2A mm/s RMS 0.44
Coal Feeder No.2
Class 1 (Power Satisfaction
#2 G1H mm/s RMS 0.3
< 15 kw)
G1V mm/s RMS 0.44
G1A mm/s RMS 0.27
G2H mm/s RMS 0.24
G2V mm/s RMS 0.27
G2A mm/s RMS 0.35
 M1H mm/s RMS 1.82
M1V mm/s RMS 0.74
M1A mm/s RMS 0.38
M2H mm/s RMS 1.66
M2V mm/s RMS 0.58
ISO 10816, M2A mm/s RMS 0.6
Coal Feeder No.3
Class 1 (Power Unsatisfaction
#2 G1H mm/s RMS 0.47
< 15 kw)
G1V mm/s RMS 0.73
G1A mm/s RMS 0.47
G2H mm/s RMS 0.46
G2V mm/s RMS 0.54
G2A mm/s RMS 0.72
M1H mm/s RMS 1.23
M1V mm/s RMS 0.91
M1A mm/s RMS 0.68
ISO 10816, M2H mm/s RMS 0.75
Pipe Pre-Pump 2B Class 1 (Power M2V mm/s RMS 0.49 Satisfaction
< 15 kw) M2A mm/s RMS 0.45
P1H mm/s RMS 0.6
P1V mm/s RMS 0.81
P1A mm/s RMS 0.44
 : FM - KP -
No Form
PT. PEMBANGKITAN JAWA BALI SERVICES 4.1.4.02
SIAP INTEGRATED MANAGEMENT SYSTEM Status Revisi : 00
Tanggal : 25 - 05 -
ASSET WELLNESS
Terbit 2015
Bulan /
TRENDING VIBRASI : 01 / 2019
Tahun

UNIT : PLTU BOLOK

AREA : UNIT #2
MEASUREMENT MINGGU MINGGU MINGGU MINGGU
EQUIPMENT STANDARD UNIT STATUS
POINT 1 2 3 4
M1H mm/s RMS 0.77
M1V mm/s RMS 0.6
M1A mm/s RMS 0.71
M2H mm/s RMS 1
ISO 10816-3
(Group 3 Rigid) M2V mm/s RMS 0.79
Boiler Feed Pump Pumps > 15 M2A mm/s RMS 1.01
Good
No.1 #2 KW radial, P1H mm/s RMS 1.25
axial, mixed P1V mm/s RMS 1.03
flow
P1A mm/s RMS 0.64
P2H mm/s RMS 1.64
P2V mm/s RMS 1.62
P2A mm/s RMS 0.79
 : FM - KP -
No Form
PT. PEMBANGKITAN JAWA BALI SERVICES 4.1.4.02
SIAP INTEGRATED MANAGEMENT SYSTEM Status Revisi : 00
Tanggal : 25 - 05 -
ASSET WELLNESS
Terbit 2015
Bulan /
TRENDING VIBRASI : 01 / 2019
Tahun

UNIT : PLTU BOLOK

AREA : Common
MEASUREMENT MINGGU MINGGU MINGGU MINGGU
EQUIPMENT STANDARD UNIT STATUS
POINT 1 2 3 4
M1H mm/s RMS 6.04
M1V mm/s RMS 1.3
M1A mm/s RMS 1.98
M2H mm/s RMS 4.46
M2V mm/s RMS 1.49
M2A mm/s RMS 1.99
G1H mm/s RMS 2.79
G1V mm/s RMS 1.7
G1A mm/s RMS 1.57
G2H mm/s RMS 2.11
G2V mm/s RMS 1.74
G2A mm/s RMS 1.7
G3H mm/s RMS 1.88
G3V mm/s RMS 1.06
ISO 10816-3 G3A mm/s RMS 2
(Group 2 Rigid) G4H mm/s RMS 1.66 Vibration
Conveyor 3A Medium G4V mm/s RMS 1.38 Caused
Machine 15KW G4A mm/s RMS 1.21 Damage
< p < 300KW G5H mm/s RMS 1.53
G5V mm/s RMS 1.22
G5A mm/s RMS 1.61
G6H mm/s RMS 1.38
G6V mm/s RMS 1.36
G6A mm/s RMS 1.47
G7H mm/s RMS 1.44
G7V mm/s RMS 1.71
G7A mm/s RMS 2.13
G8H mm/s RMS 1.16
G8V mm/s RMS 1.64
G8A mm/s RMS 2.52
G9H mm/s RMS 1
G9V mm/s RMS 1.59
G9A mm/s RMS 1.66
 M1H mm/s RMS 3.09
M1V mm/s RMS 1.23
M1A mm/s RMS 1.58
M2H mm/s RMS 2.51
M2V mm/s RMS 0.99
M2A mm/s RMS 1.88
G1H mm/s RMS 1.83
G1V mm/s RMS 1.46
G1A mm/s RMS 0.69
G2H mm/s RMS 1.11
G2V mm/s RMS 0.95
G2A mm/s RMS 1.14
G3H mm/s RMS 0.7
G3V mm/s RMS 1.04
ISO 10816-3 G3A mm/s RMS 1.16
(Group 2 Rigid) G4H mm/s RMS 0.95
Conveyor 3B Medium G4V mm/s RMS 0.66 Unsatisfaction
Machine 15KW G4A mm/s RMS 0.9
< p < 300KW G5H mm/s RMS 0.77
G5V mm/s RMS 1.05
G5A mm/s RMS 1.1
G6H mm/s RMS 0.9
G6V mm/s RMS 1.16
G6A mm/s RMS 1.06
G7H mm/s RMS 0.63
G7V mm/s RMS 0.89
G7A mm/s RMS 1.15
G8H mm/s RMS 0.79
G8V mm/s RMS 1.04
G8A mm/s RMS 1.36
G9H mm/s RMS 0.9
G9V mm/s RMS 0.58
G9A mm/s RMS 0.87
M1H mm/s RMS 1.95
M1V mm/s RMS 1.77
M1A mm/s RMS 3.61
M2H mm/s RMS 2.12
ISO 10816-3 M2V mm/s RMS 2.35
(Group 2 Rigid) M2A mm/s RMS 2.42 Vibration
Crusher A Medium Caused
Machine 15KW G1H mm/s RMS 1.63 Damage
< p < 300KW G1V mm/s RMS 2.79
G1A mm/s RMS 10.79
G2H mm/s RMS 1.88
G2V mm/s RMS 2.39
G2A mm/s RMS 13.94
M1H mm/s RMS 1.2
M1V mm/s RMS 1.07
M1A mm/s RMS 1.93
M2H mm/s RMS 1.05
ISO 10816-3 M2V mm/s RMS 1.54
(Group 2 Rigid) M2A mm/s RMS 1.74 Vibration
Crusher B Medium Caused
Machine 15KW G1H mm/s RMS 1.63 Damage
< p < 300KW G1V mm/s RMS 1.38
G1A mm/s RMS 4.5
G2H mm/s RMS 2.48
G2V mm/s RMS 3.31
G2A mm/s RMS 6.93
 M1H mm/s RMS 2.11
M1V mm/s RMS 1.89
M1A mm/s RMS 1.22
M2H mm/s RMS 2.29
M2V mm/s RMS 2.65
M2A mm/s RMS 2.55
G1H mm/s RMS 1.7
G1V mm/s RMS 2.08
G1A mm/s RMS 1.93
G2H mm/s RMS 1.41
G2V mm/s RMS 2.83
G2A mm/s RMS 1.72
G3H mm/s RMS 2.99
G3V mm/s RMS 1.99
ISO 10816, G3A mm/s RMS 2.27
Drum Sieve A Class 2 (Power Unsatisfaction
> 15 kw) G4H mm/s RMS 1.93
G4V mm/s RMS 1.69
G4A mm/s RMS 2.32
G5H mm/s RMS 3.15
G5V mm/s RMS 2.32
G5A mm/s RMS 2.04
G6H mm/s RMS 2.78
G6V mm/s RMS 1.88
G6A mm/s RMS 2.69
G7H mm/s RMS 0.77
G7V mm/s RMS 0.98
G7A mm/s RMS 2.14
G8H mm/s RMS 2.05
G8V mm/s RMS 1.89
G8A mm/s RMS 1.61
M1H mm/s RMS 1.12
M1V mm/s RMS 1.08
M1A mm/s RMS 0.82
M2H mm/s RMS 1.17
M2V mm/s RMS 1.47
M2A mm/s RMS 1.29
G1H mm/s RMS 1.15
G1V mm/s RMS 2.76
G1A mm/s RMS 0.96
G2H mm/s RMS 1.19
G2V mm/s RMS 1.66
G2A mm/s RMS 1.66
G3H mm/s RMS 1.6
G3V mm/s RMS 1.92
ISO 10816, G3A mm/s RMS 1.75
Drum Sieve B Class 2 (Power Satisfaction
> 15 kw) G4H mm/s RMS 1.6
G4V mm/s RMS 1.21
G4A mm/s RMS 1.42
G5H mm/s RMS 1.32
G5V mm/s RMS 1.81
G5A mm/s RMS 2.16
G6H mm/s RMS 1.6
G6V mm/s RMS 1.18
G6A mm/s RMS 2.07
G7H mm/s RMS 0.71
G7V mm/s RMS 0.77
G7A mm/s RMS 1.3
G8H mm/s RMS 0.87
G8V mm/s RMS 1.14
G8A mm/s RMS 0.59
 M1H mm/s RMS 0.84
M1V mm/s RMS 0.79
M1A mm/s RMS 0.38
M2H mm/s RMS 1.37
M2V mm/s RMS 1.24
ISO 10816, M2A mm/s RMS 1.57
SWRO Feed Pump A Class 2 (Power Unsatisfaction
> 15 kw) P1H mm/s RMS 6.58
P1V mm/s RMS 5.27
P1A mm/s RMS 6.07
P2H mm/s RMS 3.03
P2V mm/s RMS 5.23
P2A mm/s RMS 3.58
M1H mm/s RMS 0.84
M1V mm/s RMS 1
M1A mm/s RMS 0.69
ISO 10816-3 M2H mm/s RMS 0.54
(Group 4 M2V mm/s RMS 0.73
Flexibel) M2A mm/s RMS 1.07
SWRO HP Pump Pumps > 15 Satisfaction
KW radial, P1H mm/s RMS 2.69
axial, mixed P1V mm/s RMS 1.19
flow P1A mm/s RMS 1.09
P2H mm/s RMS 1.18
P2V mm/s RMS 1.72
P2A mm/s RMS 2.21
 : FM - KP -
No Form
PT. PEMBANGKITAN JAWA BALI SERVICES 4.1.4.02
SIAP INTEGRATED MANAGEMENT SYSTEM Status Revisi : 00
Tanggal : 25 - 05 -
ASSET WELLNESS
Terbit 2015
Bulan /
TRENDING OPERASI PDM : 01 / 2019
Tahun

UNIT : PLTU BOLOK

AREA : UNIT #1
MINGGU MINGGU MINGGU
EQUIPMENT PARAMETER UNIT LIMIT COMMISSIONING MINGGU 4
1 2 3
Generator 1-
MW 16.5 N/A N/A N/A N/A
Output Power 18.00
Steam Press 4.60 -
MPa 4.8 N/A N/A N/A N/A
Turbin #1 Before MSV 5.10
Temp Inlet 460 -
Celcius 480 N/A N/A N/A N/A
Steam 510
Inlet Steam Flow T/h 4 - 80 72 N/A N/A N/A N/A
 : FM - KP -
No Form
PT. PEMBANGKITAN JAWA BALI SERVICES 4.1.4.02
SIAP INTEGRATED MANAGEMENT SYSTEM Status Revisi : 00
Tanggal : 25 - 05 -
ASSET WELLNESS
Terbit 2015
Bulan /
TRENDING OPERASI PDM : 01 / 2019
Tahun

UNIT : PLTU BOLOK

AREA : UNIT #2
MINGGU MINGGU MINGGU
EQUIPMENT PARAMETER UNIT LIMIT COMMISSIONING MINGGU 4
1 2 3
Generator 1-
MW 16.5 N/A N/A N/A N/A
Output Power 18.00
Steam Press 4.60. -
MPa 4.8 N/A N/A N/A N/A
Turbin #2 Before MSV 5.1
MOV Inlet Steam 460 -
Celcius 480 N/A N/A N/A N/A
Temp 510
Inlet Steam Flow T/h 4 - 80 67 N/A N/A N/A N/A
 : FM - KP -
No Form
PT. PEMBANGKITAN JAWA BALI SERVICES 4.1.4.02
SIAP INTEGRATED MANAGEMENT SYSTEM Status Revisi : 00
Tanggal : 25 - 05 -
ASSET WELLNESS
Terbit 2015
Bulan /
TRENDING OPERASI PDM :
Tahun

UNIT : PLTU BOLOK

AREA : Common
MINGGU MINGGU MINGGU
EQUIPMENT PARAMETER UNIT LIMIT COMMISSIONING MINGGU 4
1 2 3
