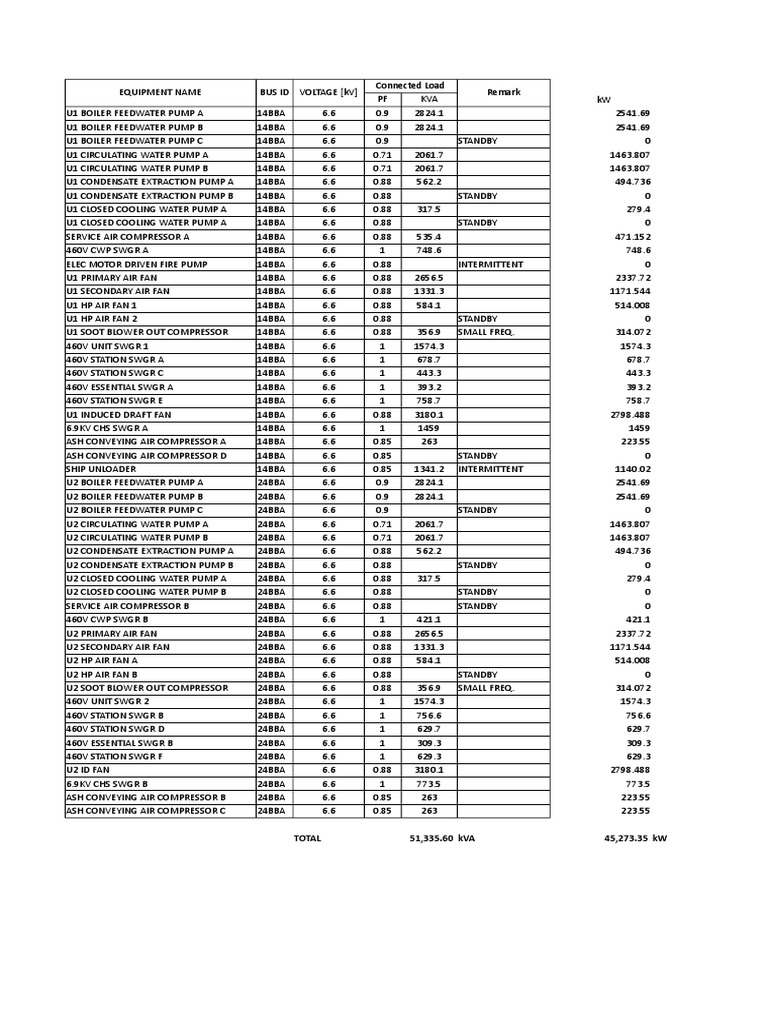

Connected Load
EQUIPMENT NAME BUS ID VOLTAGE [kV] Remark
PF KVA kW
U1 BOILER FEEDWATER PUMP A 14BBA 6.6 0.9 2824.1 2541.69
U1 BOILER FEEDWATER PUMP B 14BBA 6.6 0.9 2824.1 2541.69
U1 BOILER FEEDWATER PUMP C 14BBA 6.6 0.9 STANDBY 0
U1 CIRCULATING WATER PUMP A 14BBA 6.6 0.71 2061.7 1463.807
U1 CIRCULATING WATER PUMP B 14BBA 6.6 0.71 2061.7 1463.807
U1 CONDENSATE EXTRACTION PUMP A 14BBA 6.6 0.88 562.2 494.736
U1 CONDENSATE EXTRACTION PUMP B 14BBA 6.6 0.88 STANDBY 0
U1 CLOSED COOLING WATER PUMP A 14BBA 6.6 0.88 317.5 279.4
U1 CLOSED COOLING WATER PUMP A 14BBA 6.6 0.88 STANDBY 0
SERVICE AIR COMPRESSOR A 14BBA 6.6 0.88 535.4 471.152
460V CWP SWGR A 14BBA 6.6 1 748.6 748.6
ELEC MOTOR DRIVEN FIRE PUMP 14BBA 6.6 0.88 INTERMITTENT 0
U1 PRIMARY AIR FAN 14BBA 6.6 0.88 2656.5 2337.72
U1 SECONDARY AIR FAN 14BBA 6.6 0.88 1331.3 1171.544
U1 HP AIR FAN 1 14BBA 6.6 0.88 584.1 514.008
U1 HP AIR FAN 2 14BBA 6.6 0.88 STANDBY 0
U1 SOOT BLOWER OUT COMPRESSOR 14BBA 6.6 0.88 356.9 SMALL FREQ. 314.072
460V UNIT SWGR 1 14BBA 6.6 1 1574.3 1574.3
460V STATION SWGR A 14BBA 6.6 1 678.7 678.7
460V STATION SWGR C 14BBA 6.6 1 443.3 443.3
460V ESSENTIAL SWGR A 14BBA 6.6 1 393.2 393.2
460V STATION SWGR E 14BBA 6.6 1 758.7 758.7
U1 INDUCED DRAFT FAN 14BBA 6.6 0.88 3180.1 2798.488
6.9KV CHS SWGR A 14BBA 6.6 1 1459 1459
ASH CONVEYING AIR COMPRESSOR A 14BBA 6.6 0.85 263 223.55
ASH CONVEYING AIR COMPRESSOR D 14BBA 6.6 0.85 STANDBY 0
SHIP UNLOADER 14BBA 6.6 0.85 1341.2 INTERMITTENT 1140.02
U2 BOILER FEEDWATER PUMP A 24BBA 6.6 0.9 2824.1 2541.69
U2 BOILER FEEDWATER PUMP B 24BBA 6.6 0.9 2824.1 2541.69
U2 BOILER FEEDWATER PUMP C 24BBA 6.6 0.9 STANDBY 0
U2 CIRCULATING WATER PUMP A 24BBA 6.6 0.71 2061.7 1463.807
U2 CIRCULATING WATER PUMP B 24BBA 6.6 0.71 2061.7 1463.807
U2 CONDENSATE EXTRACTION PUMP A 24BBA 6.6 0.88 562.2 494.736
U2 CONDENSATE EXTRACTION PUMP B 24BBA 6.6 0.88 STANDBY 0
U2 CLOSED COOLING WATER PUMP A 24BBA 6.6 0.88 317.5 279.4
U2 CLOSED COOLING WATER PUMP B 24BBA 6.6 0.88 STANDBY 0
SERVICE AIR COMPRESSOR B 24BBA 6.6 0.88 STANDBY 0
460V CWP SWGR B 24BBA 6.6 1 421.1 421.1
U2 PRIMARY AIR FAN 24BBA 6.6 0.88 2656.5 2337.72
U2 SECONDARY AIR FAN 24BBA 6.6 0.88 1331.3 1171.544
U2 HP AIR FAN A 24BBA 6.6 0.88 584.1 514.008
U2 HP AIR FAN B 24BBA 6.6 0.88 STANDBY 0
U2 SOOT BLOWER OUT COMPRESSOR 24BBA 6.6 0.88 356.9 SMALL FREQ. 314.072
460V UNIT SWGR 2 24BBA 6.6 1 1574.3 1574.3
460V STATION SWGR B 24BBA 6.6 1 756.6 756.6
460V STATION SWGR D 24BBA 6.6 1 629.7 629.7
460V ESSENTIAL SWGR B 24BBA 6.6 1 309.3 309.3
460V STATION SWGR F 24BBA 6.6 1 629.3 629.3
U2 ID FAN 24BBA 6.6 0.88 3180.1 2798.488
6.9KV CHS SWGR B 24BBA 6.6 1 773.5 773.5
ASH CONVEYING AIR COMPRESSOR B 24BBA 6.6 0.85 263 223.55
ASH CONVEYING AIR COMPRESSOR C 24BBA 6.6 0.85 263 223.55
TOTAL 51,335.60 kVA 45,273.35 kW
