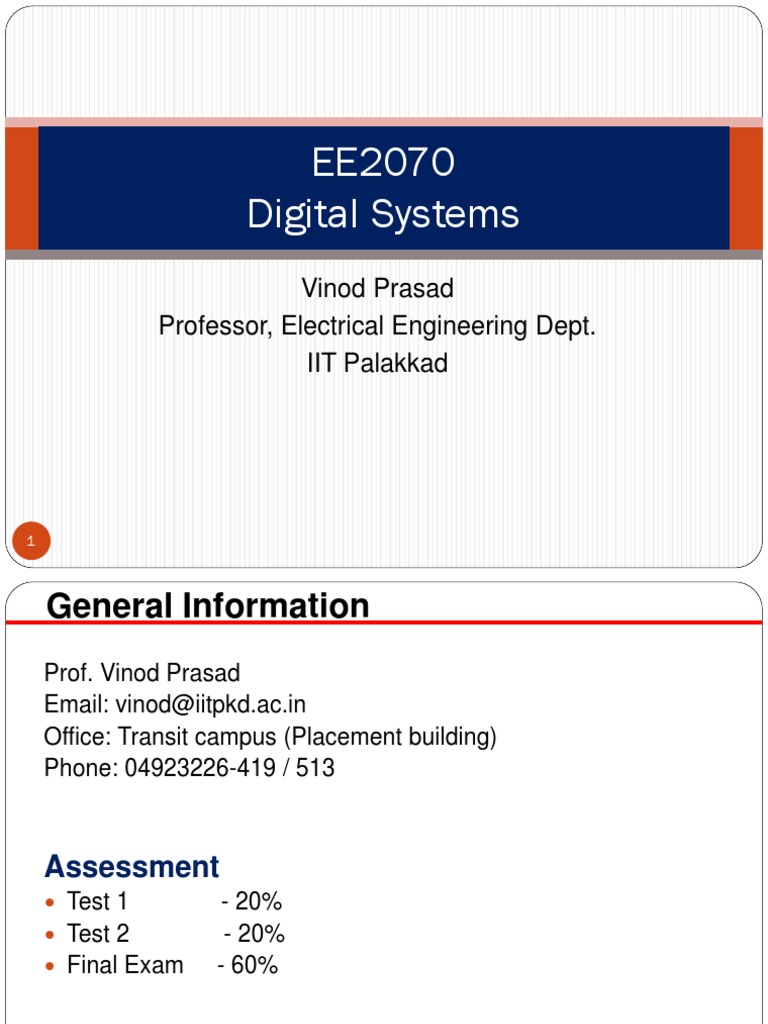

EE2070

Digital Systems
Vinod Prasad
Professor, Electrical Engineering Dept.
IIT Palakkad

1
 General Information
Prof. Vinod Prasad
Email: vinod@iitpkd.ac.in
Office: Transit campus (Placement building)
Phone: 04923226-419 / 513

Assessment
 Test 1 - 20%
 Test 2 - 20%
 Final Exam - 60%

2
 General Information

Text Book:

Digital Design With an Introduction to the Verilog HDL, 5th

Edition, M. Morris Mano, Michael D. Cileti, Pearson Education

Reference Book:

Vahid Frank, Digital Design, Preview Edition, Wiley India Pvt

Ltd,

3
 Class timetable
SLOT SYSTEM – A for Semester IV courses

08.00-08.50 09.00-09.50 10.00-10.50 11.00-11.50 12.00-12.50 13.00-13.50 14.00-14.50 15.00-15.50 16.00-16.50 17.00-17.50

M
o G A B C D P1 E*
n

T
u F G A B C P2 H
e

W
e D E F G A Lunch Break H
d

T
h B C D E F P3 G*
u

F
r A B C D E P4 F*
i

We will follow:

Monday: Slot A (9 am – 10 am)

Tuesday Slot P2 (2 pm – 4 pm)
Wednesday: Slot A (12 Noon – 1 pm)
4
 Objectives of the Course

 Learn the fundamental building elements of digital

systems
 Explore digital system design and analysis methods
 Study the use of Verilog Hardware Description Language

5
 Course Contents

 Introduction
 Number systems and codes
 Boolean algebra and logic gates
 Gate-Level minimization
 Combinational logic
 Synchronous sequential logic
 Registers and counters
 Memory and programmable logic
 Register transfer level (RTL)
 Asynchronous sequential logic
 State Machine Design
 Memory and Programmable Logic Devices
 Field Programmable Gate Arrays

6
 1. Introduction
Analog systems Digital systems

Weighing
Machine

Blood
Pressure
Monitor

Ammeter

7
 1. Introduction
Analog systems Digital systems

Process
control
systems

Radio

TV

8
 Advantages of Digital Systems over Analog Systems
- Greater flexibility: Digital systems can be programmed and
reprogrammed (reconfigured) to perform a variety of functions,
without modifying the hardware – This is one of the biggest
advantages of Digital systems.

Reconfiguration of analog systems usually necessitates

hardware redesign followed by testing and verification.

- Guaranteed accuracy: Determined by the number of bits

used (ADC and Digital Processor wordlengths).

Tolerances in analog circuit components make it extremely

difficult for the system designer to control the accuracy of
analog systems.
9
 Advantages of Digital Systems over Analog Systems

- Perfect reproducibility: No variation in performance due to

component tolerances.

- No drift in performance due to temperature or age.

- Easy storage: Digital signals can be easily stored in data

storage devices without loss of signal fidelity. Therefore, digital
signals are transportable and can be processed offline in a
computer/digital signal processor.

- Can we store analog signal/data?

- Cost: In many cases, digital implementation of signal

processing is cheaper than its analog counterpart (digital
10 hardware is cheaper, flexibility for modifications).
 Limitations of Digital Systems

- Speed: The speed of operation of ADC (and DAC) and digital

signal processor may be insufficient for large bandwidth
signals.

Currently available fast ADCs (and DACs) either are too

expensive or do not have sufficient resolution for large
bandwidth signals (or consume too much power). Speed
limitation of Digital Processor is also a constraint.

- Finite wordlength problems: Finite wordlength in digital

signal processors will cause degradation in system
performance.

Question: As technology matures in future, will digital signal

processing completely replace analog signal processing?
11
 Introduction
Analog Analog
signal
Analog
signal
input System Output

Digital Digital
Digital
signal signal
input System Output

Building blocks (Components) of Analog systems:

Resistors, inductors, capacitors, transistors, Operational amplifiers, etc.

Building blocks of Digital systems:

Digital systems: Logic gates, latches, flip-flops, etc.

12
 Analog and Digital Signals
 Analog signals:
continuous in time, continuous in amplitude
 Discrete-time signals:
discrete in time, continuous in amplitude
 Digital signals:
discrete in time, discrete in amplitude

13 Analog signal Digital signal

 Analog to Digital Conversion
 The analog to digital conversion involves two processes:
 Sampling
conversion from continuous time, continuous
amplitude to discrete time, continuous amplitude.
 Quantization
conversion from discrete time, continuous
amplitude to discrete time, discrete amplitude.

Sampled signal xs(t) is

obtained by sampling the
continuous signal x(t) at
a sampling rate of fs
samples per sec.

14
Role of ADC and DAC in a typical Process Plant Control

15
 Analog to Digital Conversion
 One of the most desirable properties is that the analog
signal reconstructed from the digital signal should look the
same as the original analog signal.

Analog signal Reconstructed Analog

Digital signal
signal

16
 Signal Sampling

How often (fast) should we sample a signal?

• How to choose sampling frequency
(rate).

How many data (samples) do we need to

take from the signal?
 Sampling of Signal
Example 1:
Frequency of signal fSIG = 1 KHz (1 cycle in 1 msec)
Sampling frequency fS = 6 KHz (6 samples in 1 msec)

time

1 msec
Reconstructed signal frequency (Observed
frequency) = 1 KHz (OK)
Ratio: fS/fSIG = 6/1 = 6
 Sampling of Signal (cont)
Example 2: (further reduced in samples per
cycle)
Frequency of signal fSIG = 2 KHz
• 2 cycles in 1 msec
Sampling frequency fS = 6 KHz
• 6 samples in 1 msec

time

1 msec

Observed frequency = 2 KHz (OK)

Ratio: fS/fSIG = 6/2 = 3
 Sampling of Signal (cont)
Example 3:
Frequency of signal fSIG = 3 KHz
• (3 cycles in 1 msec)
Sampling frequency fS = 6 KHz

time

1 msec

Observed frequency = 3KHz (OK)

Ratio: fS/fSIG = 6/3 = 2
 Sampling of Signal (cont)
Example 4:
Frequency of signal fSIG = 4 KHz (4 cycles in 1 msec)
Sampling frequency fS = 6 KHz (6 samples in 1 msec)

time

1 msec

Observed frequency = 2 KHz! (i.e. wrong; reconstructed

signal is different from the original signal  aliasing
occurred). Ratio: fS/fSIG = 6/4 = 1.5
 What should be the Minimum Sampling
Frequency?
Example 5: (Example 3 where fS/fSIG = 2)
Frequency of signal fSIG = 3 KHz (3 cycles in 1 msec)
Sampling frequency fS = 6 KHz (6 samples in 1 msec)

time

1 msec
Observed frequency = 3KHz i.e. correct freq
(Ratio: fS/fSIG = 6/3 = 2)
 Minimum Sampling Frequency (cont)
Example 6:
Frequency of signal fSIG = 3 KHz (3 cycles in 1 msec)
Sampling frequency fS = 6 KHz (6 samples in 1 msec)
Ratio: fS/fSIG = 6/3 = 2

time

1 msec

Observed frequency = 3KHz

i.e. correct frequency but wrong amplitude & phase
because sampling is not done in phase with signal.

In this case, it is safer to fix fS/fSIG slightly larger than 2.

Minimum Sampling Frequency - critically sampled
Example 7:
Frequency of signal fSIG = 3 KHz
Sampling frequency fS = 6 KHz

time

1 msec
Observed frequency = 0Hz!
Ratio: fS/fSIG = 6/3 = 2
 Nyquist-Shannon Sampling Theorem
Harry Nyquist (1889-1976, Engineer @ Bell Labs) and
Claude Shannon (1916-2001, Engineer @ Bell Labs)
Shannon’s Mouse ("Theseus“) - First Artificial
Intelligence Device (1950) !
Maze navigation: Magnetic mouse whose
movement controlled by electromechanical relay
circuit.
The mouse was designed to search through the
corridors until it found the target.
The mouse could be placed anywhere it had been
before, and because of its prior experience it
could go directly to the target.
If placed in unfamiliar territory, it was programmed
to search until it reached a known location and
then it would proceed to the target, adding the
new knowledge to its memory and learning new
behaviour.
 Sampling Theorem
A bandlimited continuous-time signal, with highest
frequency (bandwidth) Fmax, can be uniquely
reconstructed from its samples provided that the
sampling rate Fs ≥ 2 Fmax.

Sampling frequency must be

• At least twice the signal bandwidth:
FS ≥ 2Fmax
i.e. Signal bandwidth must be
• less than half the sampling frequency:
Fmax ≤ ½ FS
 Nyquist Frequency
Nyquist Frequency
• highest frequency of a signal that can be sampled
properly (without causing aliasing), i.e., Fmax.
• equal to half the sampling frequency, i.e., Fs / 2.
Nyquist Rate
• The minimum sampling rate required to avoid aliasing of
signal, i.e., Fs.
• i.e. Nyquist rate is twice the highest frequency of the
signal, Fs = 2 Fmax.
• A signal is
• under-sampled if sampled below the Nyquist rate
• critically sampled if sampled at Nyquist rate
• over-sampled if sampled higher than the Nyquist rate
11
 Aliasing occurs if sampling theorem is not
satisfied
• An aliased signal provides a poor representation of the
analog signal.

• Aliasing is an effect that causes different signals to

become indistinguishable (or aliases of one another)
when sampled.

• Aliasing causes false frequency (or even amplitude &

phase) component to appear in the reconstructed signal.

• It is not possible to reconstruct the original signal from

the signal samples once aliasing occurs.
 Practical Sampling rates

• Signal bandwidth refers to the difference between

the highest frequency in the signal and the lowest
frequency in the signal.
• If the lowest frequency is zero, then the signal’s
bandwidth is equal to the highest frequency.
 Signal Quantization
Conversion from discrete time, continuous amplitude to
discrete time, discrete amplitude.
When an analog signal is converted into digital form
• Quantization of signal into multilevel signals
• loss of signal resolution

Example:
A 3-bit Analog-to-Digital Converter
• input voltage range: 0 to 10V
• i.e. infinite values (in between 0V to10V range)
• output:
• possible output values: 0, 1, 2 ….. 7
• i.e. only 23 = 8 values
 Quantizing and Encoding
• Approximates a continuous range of values and
replaces it with a binary number
• Error is introduced between input voltage and
output binary representation
• Error depends on the resolution of the ADC
Increase in resolution improves the accuracy of the conversion

Minimum voltage step recognized by ADC

Analog Signal Digitized Signal- High Digitized Signal- Low

Resolution Resolution
 Quantization Size
111
?
110

101

100

011

010

001 Q = 1.25V
INPUT (Analog)
000
0V 1.25V 2.5V 3.75V 5.0V 6.25V 7.50 8.25V
10V
Quantization Step-Size (Quantum) Q
• the input voltage range for which its digital o/p value remains the
same
 determines the uncertainty (error) in the actual input analog
value
• Q = FS/2n (where ‘FS’ is the full-scale value and ‘n’ is number of
bits).
Quantization Error
The quantization
error, eq, is bounded
by half of the step-
size, that is,

where Δ is the
quantization step-
size, or the ADC
resolution in volts
(also referred as
Vmin, minimum
detectable voltage)
or the LSB value of
the ADC.
 Resolution of ADC
Can be expressed/described in terms of
• number of bits (n) of ADC
e.g. 8-bit, 10-bit
• actual Quantization step-size Q = FS/2n
where FS = Full Scale input
e.g. 1.25V (for a 0V-10V, 3-bit ADC)
2.44mV (for a ±5V, 12-bit ADC)

Since FS/2n = Least Significant Bit size

• Q is also described as 1 LSB
e.g. Error = ±½ Q = ±½LSB

Note:1 LSB error for 8-bit ADC = 1/28 ≡ 0.4%!

Note:1 LSB error for 16-bit ADC = 1/216 ≡ 0.002%
 Digitized-quantized signal bit rate

37
 Binary valued digital signal
 Binary signal ‐‐ only two possible values
Usually represented as logic values 0 and 1.
Logic value 0  0 volts (High)
Logic value 1  +5 volts (Low)
These voltages may differ, depending on the
hardware used to implement.

 A ‘binary digit’ is called a ‘bit’

 Sometimes, Logic 1 is denoted as True and logic
value 0 is denoted as False

38
 Binary logic
 Consists of binary variables (that take on two
discrete values, 0 or 1) and a set of logical
operations.

 Basic logical operations: AND, OR, and NOT

Logical
operations
listed in a
compact form
called Truth
Tables
39
 Binary logic

 Binary Logic should not be confused with

Binary Arithmetic
 Binary logic  on a single bit logic variable 1
or 0
 Binary arithmetic  on a multibit arithmetic
variable (a number)

40
 Components of digital systems
 Logic gates, flip flops, latches, etc.  Inputs
and outputs of these hardware components
are logic values 0 and 1. These components
consists of basic components such as
transistors, diodes, resistors, capacitors etc.

 Digital systems implement Boolean functions

 Logic design -- digital system design

 Basic component in digital circuits - Transistor

41
42
