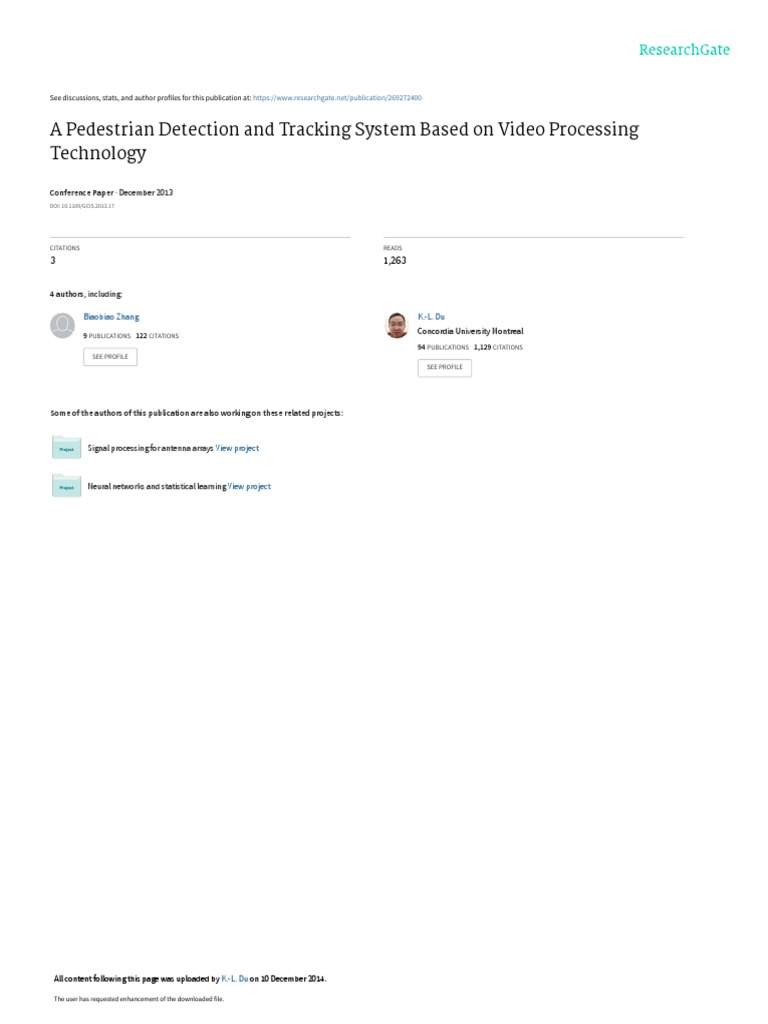

See discussions, stats, and author profiles for this publication at: https://www.researchgate.

net/publication/269272400

A Pedestrian Detection and Tracking System Based on Video Processing

Technology

Conference Paper · December 2013

DOI: 10.1109/GCIS.2013.17

CITATIONS READS
3 1,263

4 authors, including:

Biaobiao Zhang K.-L. Du

9 PUBLICATIONS   122 CITATIONS
Concordia University Montreal
94 PUBLICATIONS   1,129 CITATIONS
SEE PROFILE
SEE PROFILE

Some of the authors of this publication are also working on these related projects:

Signal processing for antenna arrays View project

Neural networks and statistical learning View project

All content following this page was uploaded by K.-L. Du on 10 December 2014.

The user has requested enhancement of the downloaded file.

 A Pedestrian Detection and Tracking System Based on Video Processing
Technology
Yuanyuan Chen1,2, Shuqin Guo2, Biaobiao Zhang1, K.-L. Du1
1. Enjoyor Labs, Enjoyor Inc.
Hangzhou, China
Abstract—Pedestrian detection and tracking are widely applied
to intelligent video surveillance, intelligent transportation,
automotive autonomous driving or driving-assistance systems.
We select OpenCV as the development tool for implementation
of pedestrian detection, tracking, counting and risk warning in
a video segment. We introduce a low-dimensional soft- output
SVM pedestrian classifier to implement precise pedestrian
detection. Experiments indicate that the system has high
recognition accuracy, and can operate in real time.
Keywords-pedestrian detection; pedestrian tracking; pedestr-
ian counting; risk warning
I. INTRODUCTION
Pedestrian detection and tracking are basic functions in
intelligent video surveillance, intelligent transportation [1].
Their performance has a great impact on pedestrian counting,
capture of pedestrian running red lights, and another
behavior analysis. Specifically, it automatically detects
targets of interest in an image sequence, and continuously
locates the target in a subsequent sequence. Currently, the
technology is widely used in banks, military spots,
transportation, supermarkets, warehouses, and other
locations with high security requirements.
II. SYSTEM COMPOSITION
The system is developed on the Visual Studio 2010
platform. We select OpenCV as the development tool, and
improve several functions for implementing pedestrian
detection, tracking, counting and risk warning in a video
segment. Fig. 1 gives the system block diagram comprising
five modules. The user interface is used to load and play a
video, and to display the system functions. The foreground
objects are obtained by difference with the background.
Pedestrians are screened from the foreground objects by
using pedestrian physical characteristics as well as a low-
dimensional soft-output SVM pedestrian classifier. Finally,
interested pedestrians are tracked and their trajectories are
plotted.
Figure 1. System block diagram.
2. College of Information Engineering
Zhejiang University of Technology
Hangzhou, China
III. WORKING PRINCIPLE OF THE SYSTEM
A. Pedestrian detection
Pedestrian detection is to detect pedestrians in each frame
of a video and to sequentially store them into a container. For
video processing of a fixed camera, pedestrian detection in
general can be approached by: optical flow method, inter-
frame difference method and background subtraction
method. Background subtraction method [2] is simple and
easy to be implemented, which is used in this paper. Fig. 2
gives a block diagram of the pedestrian detection algorithm,
comprising two modules, namely a main thread module and
a support thread module. The features of the two threads are
given in Fig. 2.
1) Extracting foreground objects
Background difference method performs background
modeling. Gaussian mixture model [3] is one of the most
successful background modeling methods. It represents
characteristic of each pixel in the image using the Gaussian
probability density function. Let Gt be a background image
at time t . Create a Gaussian mixture model for each pixel in
the background image at time t :
P(Gt ) = ∑ km =1 ω m,t f (G t , μ m,t , σ m2 ,t ) , (1)
where ω m,t , μ m,t , σ m2 ,t are, respectively, the weighting
coefficient, the mean and variance. f (Gt , μ m,t , σ m2 ,t ) is the
distribution function of the Gaussian component at time t .
As time changes, the background image will slowly
change. Then we have to constantly update the Gaussian
mixture model:
ω m,t +1 = (1 + α )ω m,t , μ m,t +1 = βμ m,t + (1 − β ) I ( x, y, t ) , (2)
where α is the weight update parameter of the background
model, β is the mean update parameter of the background
model, and I ( x, y, t ) is the gray value of the image I at
pixel ( x, y ) .
For the Gaussian mixture model given by (1), P (G t ) has
two parameters: mean μ and variance σ . For an image
I ( x, y, t ) , match each pixel I ( x, y ) to the corresponding
background model P (G t ) , if it satisfies
( I ( x, y ) − μ ( x , y )) 2
−
2σ 2 ( x, y )
e >T , (3)

Figure 2. The block diagram of pedestrian detection.
where T is a preset threshold, 0.7 ≤ T ≤ 0.75 . If (3) is
satisfied, ( x, y ) is judged as a background point; Otherwise,
it is judged a foreground point.
2) Screening foreground objects
Screening foreground objects is to identify pedestrians
from foreground objects. The traditional method generally
selects most obvious shape features, such as aspect ratio and
size, for detection. This method can quickly remove objects
with a large variation from pedestrian shape, such as
vehicles. However, this shape-based method has a low
accuracy. Thus, we introduce a classifier to improve the
detection accuracy.
Let the size of a bounding rectangle be S = W × H . Due
to the varying distance between an object and a camera, an
object has a size with wide variation. Thus, we divide the
video frame into three regions on a horizontal or vertical
axis: [0, x 0 ) , [ x 0 , x1 ) , [ x1 , x 2 ) . Judge the condition
⎧0.001 < δ S < 0.01, if 0 ≤ x 0
⎪ to the trained pedestrian classifier. Compare this result with
⎨0.002 < δ S < 0.05, ifx 0 ≤ x1 . (4)
⎪0.004 < δ S < 0.1, ifx ≤ x
⎩ 1 2
If (4) is satisfied, we remove too large or too small objects.
Further, if the aspect ratio of the object bounding rectangle
satisfies
width
0.2 < scale = < 0 .8 , (5)
height
we determine the object as a pedestrian. As pedestrians tend
to be tall and narrow, they can be well separated with the
ratio.
We further use classification to implement pedestrian
detection. We treat each object as a separate region and
perform normalization and feature extraction. Then, classify
the processed objects one by one. For an arbitrary static
image, these objects usually occupy small areas in each
frame. Thus, we extract a characteristic dimension that is
greatly reduced in each image, learning to a substantially
decreased complexity for classification. We present a low-
dimensional soft-output SVM pedestrian classifier.
We first extract HOG features, and then select support
vector machine (SVM) with Gaussian kernel as classifier.
The method is implemented as follows.
(a) Select positive and negative samples for training the
classifier. We select 800 positive samples and 500
negative samples in the INRIA pedestrian database,
which are already normalized to 64 × 128 [4].
(b) Reduce feature dimension of the sample set. If a sample
is positive, trim the pedestrian area and normalize it to
32× 64 ; otherwise, directly normalize it to 32× 64 .
(c) For each sample, extract HOG features [5]. It first
divides a sample into blocks of 32 × 64 pixels; then,
each block is divided into 8× 8 pixel units, and the step
is 8 pixels. The original HOG feature dimension is
7 × 15 × 36 = 3780 . After reducing feature dimension,
HOG feature dimension is 3 × 7 × 36 = 756 . In summary,
the computational complexity is reduced by a factor of 5.
(d) We chose the efficient LIBSVM classifier, and use the
soft output [0,1] instead of {− 1,1} [6].
(e) Train LIBSVM classifier with HOG features as input to
get a low-dimensional soft-output pedestrian classifier.
Meanwhile, sequentially save in the queue those
foreground objects and their frame numbers of the
images that objects stay without clear classification.
(f) Extract HOG features of 756 dimensions for each object.
Input HOG features of each object to the trained
pedestrian classifier, and the output gives whether the
object is a pedestrian.
3) Correcting the wrong output of the main thread
In the main thread module, the foreground objects
without clear classification have been saved sequentially in
the queue. We process these objects in the support thread
module as follows. First, when the count of foreground
images stored in the queue reaches 10, the support thread
starts to work. The system reads these images in FIFO order
and normalizes them to size 64× 128 . Then, extract HOG
features of 3780 dimensions for each image, and feed them
that of the low-dimensional soft output SVM classifier. If
they are the same, go to the next foreground object in the
queue; otherwise, we use this result instead of the previous
result.
B. Pedestrian tracking
Pedestrian tracking is to automatically monitor the space
and time changes of each pedestrian in a video sequence [7].
We select CamShift algorithm, which implements tracking
by color characteristic and can effectively solve the problem
of object deformation.
In OpenCV4.0, there is a semi-automatic, single-object
CamShift algorithm. In practical applications, we expect to
track one or several objects, obtain their trajectories, and
conduct analysis on the trajectories. Thus, the system
implements tracking of multiple objects based on the semi-
automatic, single-target CamShift algorithm [8]. The object
trajectories are plotted and stored in a specified folder. The
working principle of multi-object tracking is given as follows.
(a) Use the mouse to select a region of interest. Set tab
trackObject[i ] to indicate whether i-th object is selected. M 4 M 2 3M 4 M
If unselected, the value is 0; if selected, the value is -1; if
end of the trace, the value is 1. Store all selected areas in Figure 3. Illustration of pedestrian counting
the array by their labels.
(b) Get the initial objects and the H component histogram.
Call setMouseCallback()function to obtain the
coordinates of objects of interest. Call calcHist()
function to calculate the H component histogram of
object region. Initialize size and position of the search
window, and define the mass coordinates y 0 .
(c) Use the histogram to calculate the inverse projection of
the input image. This is implemented by calling
calcBackProject().
(d) Run MeanShift tracking algorithm and search new
window area of object image. Define the zero-order
moment M 00 and first-order moments M 10 , M 01 of the
search window:
M 00 = ∑ x ∑ y I ( x, y) , M 10 = ∑ x ∑ y xI ( x, y) ,
M 10 = ∑ x ∑ y yI ( x, y) , (6)
where ( x, y ) represents the pixel in the search window, Figure 4. Main interface

I ( x, y ) represents the grayscale value of pixel ( x, y ) in

the projection image. The mass coordinates of the
search window are obtained by
M M
( x, y ) = ( 10 , 01 ) . (7)
M 00 M 00
(e) Move the center of the search window to the mass center
y 1 . Denote original mass center by y 0 . We have
y 0 ← y 1 . Let d = y 1 − y 0 , ε the error threshold
value, N the maximum number of iterations. If d < ε or
k > N , then end the iteration and return the new target
position y 1 ; otherwise k = k + 1 , go to (4).
(f) Save the mass center obtained in each frame to a
container of vector <Point2f>. The mass centers of
every fifth frame are connected into a trace. Thus, we
obtain the object trajectories. Figure 5. The secondary interface
C. Pedestrian counting and risk warning
method is as follows. First, set the forbidden region such as
Pedestrian counting is an application of pedestrian the green areas in the park, the cashier in the shopping mall.
detection and tracking [9]. We select a video of size M × N . Then, determine whether a pedestrian is within the preset
Each frame is divided into four regions along the x-axis, as region. If yes, call alarm function to execute alarming.
shown in Fig. 3. The left and right regions are for direction Finally, set the effect of alarming.
flagging, and the two in the middle are counting areas.
When detecting a pedestrian, we first determine the entering IV. SOFTWARE IMPLEMENTATION OF THE SYSTEM
direction. If a pedestrian enters from the left, the left The program runs on a PC machine with a configuration
identifier is set to 1, and the right identifier is 0. Then, when of Intel i3 (CPU), 2GB DDR3 (Memory), and Visual Studio
the pedestrian enters the left counting region, the added by1. 2010 (Development Tool).
If entering from the right, the result is similar.
Risk warning is another application of pedestrian A. User interface
detection and tracking. For video surveillance in such places User interface provides an interactive communication
as parks, shopping malls and other scenes, some regions are platform for user and computer. It allows us change system
prohibited for pedestrians. The system realizes automatic parameters and display system functions. We create a dialog
detection of such abnormal behavior and issues alarm. The box interface, as shown in Fig. 4. The interface consists of a
video loading area and a video processing area. The video • Change a rectangle: double-click anywhere in bounding
loading area selects to play and pause a video source. The rectangle to cancel the rectangle. Then we can redraw a
video processing area contains two options: Set and Run / rectangle.
Stop. Clicking Set button pops up a “Detection” dialog box, • Add Warning button, initialize it to hide, and set the
as shown in Fig. 5, where one can select the processing alarm mode.
methods for moving target detection, pedestrian detection Call ShowWindow() to display the button.
and tracking. Clicking Run/Stop buttons displays or stops Call SetDownColor(), SetUpColor() to change
the processing results in the display. In addition, the display the button color.
text Warning, when an exception is triggered in a preset Call ShowWindow() again to hide the button.
area of the display, will automatically alarm. • Determine whether a pedestrian is within the preset
B. Software implementation region. If yes, call alarm() function to execute
alarming.
Many image processing functions in OpenCV library are
used for the system development. C. Experimental results
First, load and close a video. A video is composed of a In order to verify the effectiveness of the system, we
continuous sequence of images. Each image can read and selected a surveillance video sequence. Size is 480×360,
displayed by setting an appropriate frame number. frame rate is 25f/s.
DrawToHDC() can be called to realize this function. A The procedure of pedestrian detection is shown in Fig. 6.
video can be closed by setting a label. In Fig. 6a, we can see that the system can completely detect
Then, run the pedestrian detection and tracking module. moving objects (vehicle and pedestrian), and some noise
• Background modeling. occurs due to antenna jitter. In Fig. 6b, the system can
Call morphologyEx() function to implement eliminate the noise, and identify all pedestrians. Fig. 7 shows
Gaussian mixture model. that the system can track the objects of interest.
• Foreground extraction. Fig. 8 illustrates pedestrian counting. In Fig. 8a, "in: 2
Call absdiff(), threshold() to implement out: 0" indicates a total of 2 pedestrian entering from the left,
differential operation and binarization, and a binary and a total of 0 entering from the right. In Fig. 8b, "in: 2 out:
foreground image is obtained. Then, through the 1" indicates 2 entering from the left, and 1 from the right.
morphological filtering functions erode(), Clearly, the system gives accurate counting from both sides.
morphologyEx(), dilate(), one can optimize Risk warning is illustrated in Fig. 9. When someone is
the foreground image obtained. trampling the lawn, the system automatically alarms. First,
• Edge detection. Get each foreground contours with we manually set the region of interest on the lawn. If no one
findContours(). The 165th frame The 210th frame
• Pedestrian recognition.
a) Calculate the size and aspect of foreground objects.
b) Load the trained SVM classifier. We can call
resize() to normalize an input foreground image to
32 × 64 .
c) Mark the identified pedestrian with the rec-
tangle().
• Pedestrian tracking.
Select objects of interest, and call setMouse-
Callback() to get the coordinates of these objects.
(a) Foregrounds Extracted by background subtraction method
Then, call calcHist(), normalize(), calc-
BackProject() to get the object histogram and The 165th frame The 210th frame
reverse projection. Finally, implement pedestrian
tracking with CamShift() function.
Finally, run pedestrian counting and risk warning
modules. The procedure of pedestrian counting is given in
Section II.C .The procedure for risk warning is given below.
• Add three message response functions to get the
coordinates of the forbidden region.
OnLButtonDown(): left-click anywhere on the
display to get the coordinates for a vertex of the
rectangle.
OnMouseMove(): drag the mouse to a new location.
OnLButtonUp(): release the mouse to obtain the (b) Pedestrians detectioned
diagonal vertex on the rectangle. The two vertices Figure 6. Pedestrian detection
construct a rectangle parallel to the window.
 (a) Single pedestrian tracking (b) Multiple pedestrians tracking
Figure 7. Pedestrian tracking
(a) Entering from the left (b) Entering from the right
Figure 8. Pedestrian counting
stepped into the region, Warning button would is hidden.
When someone steps into the preset region, the display text
“Warning” flashes, and the system alarms. At the same time,
save the pedestrian trajectory and record a video clip.
V. SUMMARY
In this paper, we developed a pedestrian detection and
tracking system, and also applied it for counting and risk
warning. We also designed a low-dimensional soft-output
SVM pedestrian classifier. The combination of the classifier
with the support thread can improve pedestrian detection
accuracy and the speed of operating.
REFERENCES
[1] P. Spagnolo, M. Leo, T. D’Orazio & A. Distante, “Robust moving
objects segmentation by background subtraction,” Proc. Interactive
Services (WIAMIS), Lisboa, Portugal, 2004, pp. 81-84.
[2] J. Rymal, J. Renno, D. Greenhill, J. Orwell & G. A. Jones, “Adaptive
eigen-backgrounds for object detection,” Proc. IEEE Int. Conf. on
Image Processing (ICIP), Singapore, Oct. 2004, pp. 1847-1850.
[3] M. Andriluka, S. Roth & B. Schiele, “Pictorial structures revisited:
people detection and articulated pose estimation,” Proc. IEEE Conf.
on Computer Vision and Pattern Recognition, Miami, Florida, USA ,
2009, pp. 1014-1021. 9
[4] N. Shou, H. Peng, H. Wang, L.-M. Meng, K.-L. Du, “An ROIs based
pedestrian detection system for single images,” Proc. 5th. Int.
View publication stats
(a) Set a warning zone
(b) Warning
Figure 9. Risk warning
Congress on Image and Signal Processing (CISP), Chongqing, China,
Oct. 2012, pp. 1205-1208.
[5] Q. Zhu, S. Avidan, M.-C. Yeh & K.-T. Cheng, “Fast human detection
using a cascade of histograms of oriented gradients,” Proc. IEEE
Conf. Computer Vision Pattern Recogn., New York, 2006, pp. 1490-
1499.
[6] Platt J. C. “Probabilistic Output for Support Vector Machine and
Comparisons to Regularized Likelihood Methods,” Advances in
Large Margin Classifiers: MIT Press, 1999.
[7] C. Wen, A. Azarbayejani, T. Darrell & A. P.Pfinder, “Real-time
tracking of the human body,” IEEE Trans. Pattern Anal. Mach.
Intell., vol. 19, pp. 780-785, 1997.
[8] M. Andriluka, S. Roth & B. Schiele, “People-tracking-by-detection
and people-detection-by -tracking,” Proc. IEEE Conf. Proc. Computer
Vision and Pattern Recognition, Anchorage, Alaska, USA, 2008, pp.
1-8.
[9] Y.-L. Hou & G.K.H. Pang, “People counting and human detection in
a challenging situation,” IEEE Trans. Syst. Man Cybern., vol. 41, pp.
24-33, 2011.
