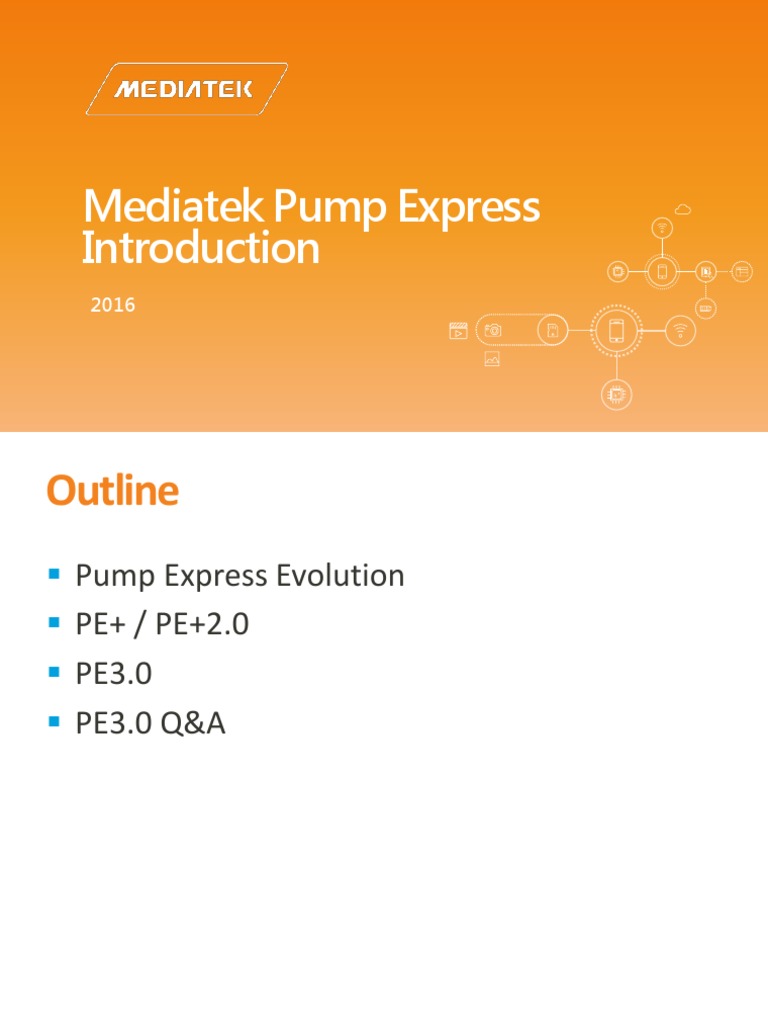

Mediatek Pump Express

Introduction
2016
Outline
 Pump Express Evolution
 PE+ / PE+2.0
 PE3.0
 PE3.0 Q&A
Pump Express Plus Evolution

3
 Pump Express Evolution
2014 2015 2016 2017
Q3 Q4 Q1 Q2 Q3 Q4 Q1 Q2 Q3 Q4 Q1 Q2
Charge Current

3~6V, CC/CV

5/7/9/12V 5~20V, 0.5V/step 3.0

o 5A+ Direct Charge
o Ƞ= 95%+
o Bidirectional Type-C VDM Communication
o 3A Single Charger o 20+ Protection Schemes
o 3A Single Charge
o 4.5A Master/Slave Charger
o 4.5A Master/Slave Charge
o Ƞ = 92%
75% in 20min
o Ƞ = 90%
o Unidirectional Vbus Communication
o Unidirectional Vbus communication
75% in 30min
75% in 35min

Efficiency
Note1 :
The adaptor of PE3.0 is capable of outputting CC (Constant Current) & CV (Constant Voltage) with fine resolution.
Note2 :
PE+2.0 & PE3.0 will co-exist in the market.
PE+2.0 – for micro-B/type-C connector & lower cost
PE3.0 – for type-C connector & higher charge current
Communication Protocols
MediaTek PE+ PE+2.0 PE+3.0 (Direct Charge)
MP Schedule Now Now Q3’16
5V~12V 5V~20V 3V~6V
TA Output
(Fixed 5/7/9/12V) (0.5V per step) (10-20mV per step)
Communication VBUS current modulation VBUS current modulation USB PD
Charge Current Single 3A/Parallel 4.5A Single 3A/Parallel 4.5A+ Direct Charge 5A+
Efficiency 90% 92% 95%+
Competitor’s
QC2.0 QC3.0 N/A
Counter Tech
PE+ / PE+2.0

6
PE+2.0 Improvements
Item Feature Description
1 Faster communication Reduce TA identification time from 2.1sec
to 0.9s
2 Fine-grain voltage levels Adjust adaptor voltage dynamically to
-5V-to-20V (step = 0.5V) optimize charging efficiency
-0.5V/step is good enough

3 Cable Impedance Measurement Calculate cable impedance and manage

(Safety & Eff. Opt.) charging behavior accordingly

-7-
 State Machine
Grade 1 TA: 5V~12V
Grade 2 TA: 5V~20V
5.5V 6V 6.5V

5V 12.5V
WDT*0 time out WDT time out

20V 19.5V 19V

*0 Watch Dog Timer

Fig 2. State machine of PE+.

Change voltage one step sequentially by current pattern.

Change voltage directly by current pattern.

Returned when WDT expired.

Fig 1. State machine of PE+2.0 with 0.5V per step.

-8-
P34
Current Pattern – PE+

-9-
 Current Pattern – PE+ 2.0
0.9s

50ms 100ms 50ms 100ms 100ms 50ms 50ms 100ms 50ms 100ms 150ms 240ms

Frame
(G) (D) (G) (D) (F) (H) (G) (D) (G) (D) (E) WDT

bit4 bit3 bit2 bit1 bit0

[4:0]=00100b
Define the ʺLogic 0ʺ and ʺLogic 1ʺ for bit4~bit0.
50ms 100ms 100ms 50ms

Logic 0 (G) (D) Logic 1 (F) (H)

(G) (D) (G) (D) (G) (D) (G) (D) (G) (D) (E) WDT Change VBUS to 5.5V
≈

(F) (H) (F) (H) (F) (H) (G) (D) (F) (H) (E) WDT Change VBUS to 20V

(F) (H) (F) (H) (F) (H) (F) (H) (G) (D) (E) DET Adaptor healthy self-testing

(F) (H) (F) (H) (F) (H) (F) (H) (F) (H) (E) DET Disable cable drop compensation

-10-
Current Pattern – PE+ 2.0 Lookup Table
Digital Code Absolute
Unit Feature
bit5~bit0 [4:0] Voltage

00000B 5.5 V
00001B 6 V Change Output Voltage
00010B 6.5 V
00011B 7 V
00100B 7.5 V
00101B 8 V
00110B 8.5 V
00111B 9 V
01000B 9.5 V
01001B 10 V
01010B 10.5 V
01011B 11 V
01100B 11.5 V
01101B 12 V
01110B 12.5 V
01111B 13 V
10000B 13.5 V
10001B 14 V
10010B 14.5 V
10011B 15 V
10100B 15.5 V
10101B 16 V
10110B 16.5 V
10111B 17 V
11000B 17.5 V
11001B 18 V
11010B 18.5 V
11011B 19 V
11100B 19.5 V
11101B 20 V
11110B N/A N/A Adaptor Healthy Self-Testing
11111B N/A N/A Disable Cable Drop Compensation
-11-
Table 2. The look-up table of current patterns.
PE+2.0 vs. QC3.0
PE+2.0 QC3.0 Remark
RT9466 (bq25892/6 p2p) Q: single source
Charger IC RT9467 (bq25890 p2p)
SMB1351
MTK : multi source

❶ Efficiency ~89% 85-86%

Do cable imp. Calculation.

❷ Safety Protect cable from burnout
N/A Patent pending
Co-develop with Mitsumi
❸ Speed 27% faster -
(introduce in page 16)
❶ Charger IC Efficiency Measurement
Low RON Poor RON

Competitor 3rd Party

3rd Party

3rd Party

RT9466: better efficiency @2-3A

Mass Production!
RT9466
❷ Cable : Impedance/Safety Detection
MTK
PE+2.0
Adjust Vbus according to
cable impedance/quality

QC3.0 Algorithm Adaptor Phone

①Set desired charge current Type-C 3A Cable
5.5V/3A 5V/3A
② Increase Vbus until meet the
charge current.
③ However, there is no way to USB 1.8A Cable
know cable impedance/quality. 6.0V/3A 5V/3A

Copyright © MediaTek Inc. All rights reserved. -14-

❷ Cable Impedance Measurement
VBUS  Cable R (Ω)
= (V_phone_a – V_phone_b) / 0.45A
V_adaptor_a V_adaptor_b

V_phone_a
V_phone_b [Cable Impedance Measurement]
(Assume TA compensation = 250mV@2A)
IBUS
Ia Ib
450mA 900mA
TA Cable Compensation Disabled
Cable R = 0.3Ω

TA Cable Compensation Enabled

Cable R = 0.175Ω

-15-
 ❸ Accurate Charge Path Impedance Compensation,
extending CC period
Accurate cell voltage can be
Over-estimated measured inside the pack
cell voltage

MW3757
MW3793

CC Extension
MW3757: Protection + Monitor
4.35V
MW3793: Monitor
3.9V
(Exclusive for MediaTek)

Copyright © MediaTek Inc. All rights reserved. -16-

PE+2.0 AC/DC & Charger IC Vendors
 iWatt (Dialog)
– iW1782 (primary side) + iW673 (synchronous rectifier, option for better efficiency)
 On-bright (OB)
– OB2632+OB2607
– 奥海 (Aohai)/百俊达/科讯 (Kosun)
 Fairchild
– FAN602 (primary side) + FAN6290M (secondary side)
– Salcomp/辰陽 (Chenyang Electron)
Pump Express 3.0

18
 PE 3.0 Advantage
Power Dissipation -60%
Standardized Eco-system The power dissipation can be reduced significantly by using
direct charge (without loss caused by switching charger)
Type-C/PD cable, connector. Share the same eco-system
among PC/NB/monitor/phone

Design for Safety

5A+ Charging Bi-directional communication between TA and phone
Over 20 protection mechanisms

75% in 20 min.
Utilize Step Charge and/or high-C-rate battery
 PE 3.0 System Concept
USB PD VDM communication / Type-C 5A Cable

(36V)
VBUS Direct Charge Path
Conventional Charge Path

Type-C Connector
D+/D- VSYS
25W : 43mm x 43mm x 25mm
(will be smaller for MP product) VBAT
AP
battery
Switching Charger
I2C
CC1/CC2 Type-
C/PD
PE 3.0 Phone Impedance Control
Cable/Connector Phone
5A
TA R_CON1 ICHG R_CABLE ICHG R_CON2
RPCB
R_SW
From
ICHG
VBUS
5.7mΩ 77.1mΩ 5.7mΩ 20mΩ 16mΩ
ICHG
AWG22//
ICHG
5mΩ R_C Battery
AWG28
100cm ICHG
Battery 4mΩ
Totally Totally Protector
7 contacts 7 contacts R_Pcb_bat
5mΩ
R_FG
1.For VBUS, (1 AWG22,52.9mΩ)//(3 AWG28,141.9mΩ). R_p
2.For GND, (1 AWG22,52.9mΩ)//(3 AWG28,141.9mΩ). 5mΩ

O Impedance (R) minimization is critical for power dissipation R_b

(Pd) reduction because Pd is in proportion to I2R. Cell 30mΩ
O A high-C-rate cell (usually ≥ 1.5C) with low DCR is a must.
. However, you have to tradeoff C-rate and cell energy density.
 Design for Safety
Bi-direction
communication BIF
PD adaptor Charger AP
Battery
Cable/ Battery BIF Battery
Subject TA Charger
Connector with AP Protector
Identification

OVP

OCP

Thermal
Over 20 Protection Mechanisms
Watchdog Timer

Impedance detect
 PE 3.0 AC/DC Vendor
 Richtek
– RT7786 (Primary) + RT7207 (Secondary)
 Power Makers
TA Vendors Contact Person Phone Mobile Email
Salcomp 賽爾康 Lenny Lin 0920 363 552 Lenny.Lin@salcomp.com
(TW) (886)972-637-968
Phihong Technology Co., Ltd. 飛宏 陳湘怡 Elaina Chen (886)-3-3277288 elaina_chen@phihong.com.tw
(CN) (86)13910483959
SOLUM Co. Ltd. 搜路研電子 王秋東 Eric Wang (86) 10 8478 5696 (86) 152 0140 8181 eric.wang@solu-m.com
(886) 3-3759-888 #
FSP 全漢 賴怡秀 Stacy (TW) (886)960034264 stacy@fsp-group.com.tw
1225
Aohai 奧海
Huntkey 航嘉

23
 Connector/Cable Vendor Info.
 深圳捷訊光電科技 (Sunyking Technology Co. Ltd)
 Cable: SK-USB31CC001
 Connector: SK-CONNCF01
Connector/Cable Vendors Contact Person Phone Email
今浩 Taiwan: +886_919_283_235
賴建興 (Joe Lai) joe@sunyking.com
Ji-Haw Industrial Co., Ltd China: +86_186_824_270_15

24
PE 3.0 Target
 Connector : Type-C@phone
 Cable : A-2-C or C-2-C
 Communication : USB PD (VDM)
 Create a Low-voltage fast charge standard based on
USB PD. Share same supply chain with
PC/Monitor/NB/Tablet.

Copyright © MediaTek Inc. All rights -25-

reserved.
Q&A

26
PE3.0 FAQ (1/3)
 Q: What is PE3.0?
– A: It’s charge technology routing charge current directly from Adaptor to Battery.
 Q: What is the advantage of PE3.0?
– A: Much better charge efficiency (95%+), making high charge current possible.
(Traditional high-voltage fast charge technology ~ 90%)
 Q: What is the required HW of PE3.0?
– (1) 3-6V/5A+ Adaptor with USB PD VDM capability
– (2) Smartphone with Type_C connector and USB PD VDM capability
– (3) 5A cable
– (4) A Battery with high Charge-Rate (C-rate).
• Example #1 : 5A charge current / 2500mAh battery = 2C (emerging)
• Example #2 : 5A charge current / 3333mAh battery = 1.5C (commercial available)
– (5) Low-impedance design, including connector, cable, switch for charge, PCB, battery.

27
PE3.0 FAQ (2/3)
 Q: How much does it cost?
– (1) In the long run, type-C is the standard. So, assuming you already have type-C 3A cable, you
just need to upgrade to 5A cable.
– (2) And, you must pay for adaptor with higher power (e.g. 15W  25W) & USB PD capability
– (3) Phone: no cost up
 Q: When is the mass production schedule of PE3.0?
– A: Ready for mass production
 Q: What is the target platform of PE3.0?
– Mediatek X-series and P-series. For middle-end, it’s by request.
 Q: Is PE3.0 safe?
– Over 20 protection mechanisms are designed for ensuring safety of PE3.0.

28
PE3.0 FAQ (3/3)
 Q: Can PE3.0 support communication via D+/D-?
– A: No, only USB PD

29
