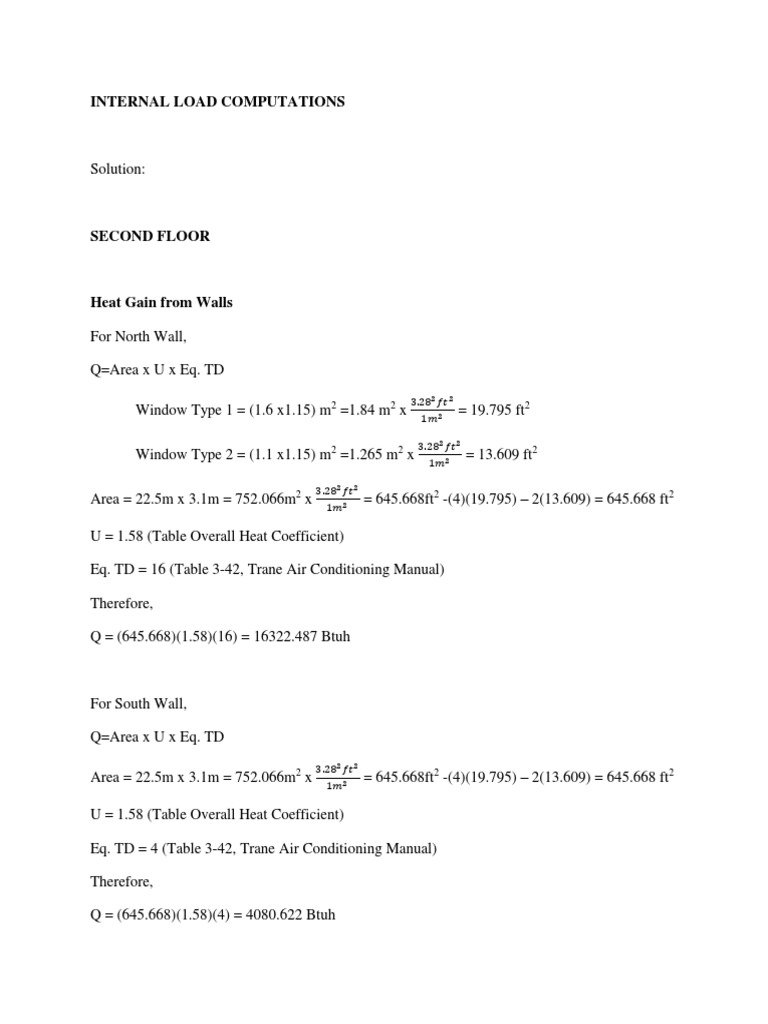

INTERNAL LOAD COMPUTATIONS

Solution:

SECOND FLOOR

Heat Gain from Walls

For North Wall,

Q=Area x U x Eq. TD
3.282 𝑓𝑡 2
Window Type 1 = (1.6 x1.15) m2 =1.84 m2 x = 19.795 ft2
1𝑚2

3.282 𝑓𝑡 2
Window Type 2 = (1.1 x1.15) m2 =1.265 m2 x = 13.609 ft2
1𝑚2

3.282 𝑓𝑡 2
Area = 22.5m x 3.1m = 752.066m2 x = 645.668ft2 -(4)(19.795) – 2(13.609) = 645.668 ft2
1𝑚2

U = 1.58 (Table Overall Heat Coefficient)

Eq. TD = 16 (Table 3-42, Trane Air Conditioning Manual)

Therefore,

Q = (645.668)(1.58)(16) = 16322.487 Btuh

For South Wall,

Q=Area x U x Eq. TD

3.282 𝑓𝑡 2
Area = 22.5m x 3.1m = 752.066m2 x = 645.668ft2 -(4)(19.795) – 2(13.609) = 645.668 ft2
1𝑚2

U = 1.58 (Table Overall Heat Coefficient)

Eq. TD = 4 (Table 3-42, Trane Air Conditioning Manual)

Therefore,

Q = (645.668)(1.58)(4) = 4080.622 Btuh

For West Wall,

Q=Area x U x Eq. TD
3.282 𝑓𝑡 2
Area = 27m x 3.1m = 83.7 m2 x = 900.478ft2 -(9)(19.795= 722.323 ft2
1𝑚2

U = 1.58 (Table Overall Heat Coefficient)

Eq. TD = 8 (Table 3-42, Trane Air Conditioning Manual)

Therefore,

Q = (722.323)(1.58)(8) = 9130.163 Btuh

For East Wall,

Q=Area x U x Eq. TD
3.282 𝑓𝑡 2
Area = 27m x 3.1m = 83.7 m2 x = 900.478ft2 -(9)(19.795= 722.323 ft2
1𝑚2

U = 1.58 (Table Overall Heat Coefficient)

Eq. TD = 14 (Table 3-42, Trane Air Conditioning Manual)

Therefore,

Q = (722.323)(1.58)(14) = 15977.785 Btuh

Heat Gain from Glass

Q = Area {[Table 3-24][Table 3-31] + [Table 3-28][Table 3-32A]} (Equation 3-11)

3.282 𝑓𝑡 2
Window Type 1 = (1.6 x1.15) m2 =1.84 m2 x = 19.795 ft2
1𝑚2

3.282 𝑓𝑡 2
Window Type 2 = (1.1 x1.15) m2 =1.265 m2 x = 13.609 ft2
1𝑚2

For North Wall,

Q = (19.795 ft2 {[11.2][2] + [17.6][0.85]} ) (4) + (13.609 ft2 {[11.2][2] + [17.6][0.85]} ) (2)

Q = 2473.0752 Btuh
For South Wall,

Q = (19.795 ft2 {[86.5][2] + [19.3][0.85]} ) (4) + (13.609 ft2 {[86.5][2] + [19.3][0.85]} ) (2)

Q = 18505.284 Btuh

For West Wall,

Q = (19.795 ft2 {[113.8][2] + [19.9][0.85]} ) (9)

Q = 40700.313 Btuh

For East Wall,

Q = (19.795 ft2 {[16][2] + [17.6][0.85]} ) (9)

Q = 5835.6 Btuh

Heat Gain from People

Assume 110 adults and 66 children per floor

Sensible Heat gain from people

Qs = (110)(220) + (66)(215) =38390 Btuh

Latent Heat gain from people

QL= (66)(230) + (66)(185) =37510 Btuh

Heat Gain from Lights

Q = BTU/hr x U.F x B.F x (no. of lights)

Q =61.4185 x 3.4 x 1.2 x 77

Q = 19295.236 Btuh
Heat Gain from Appliance

Assume 510 mm Monitor

Q TV = 0.2(Monitor Size)-20

Q TV = 82W = 279.795 Btuh

Assume 1 large refrigerator

QREF= 310 W = 1057.764 Btuh

Qapp = 279.795 +1057.764

Qapp = 29426.32 Btuh

Sensible Heat (Btuh) Latent Heat (Btuh)

Walls 45511.057
Glasses 67514.2722
Total Equipment 48721.556
People 38390 37510

TOTAL 200136.8852 37510

Total Heat Gain = 200136.8852 + 37510

Total Heat Gain = 237646.8852 Btuh

THIRD FLOOR

Heat Gain from Walls

For North Wall,

Q=Area x U x Eq. TD

3.282 𝑓𝑡 2
Window Type 1 = (1.6 x1.15) m2 =1.84 m2 x = 19.795 ft2
1𝑚2

3.282 𝑓𝑡 2
Window Type 2 = (1.1 x1.15) m2 =1.265 m2 x = 13.609 ft2
1𝑚2

3.282 𝑓𝑡 2
Area = 22.5m x 3.1m = 752.066m2 x = 645.668ft2 -(4)(19.795) – 2(13.609) = 645.668 ft2
1𝑚2

U = 1.58 (Table Overall Heat Coefficient)

Eq. TD = 16 (Table 3-42, Trane Air Conditioning Manual)

Therefore,

Q = (645.668)(1.58)(16) = 16322.487 Btuh

For South Wall,

Q=Area x U x Eq. TD

3.282 𝑓𝑡 2
Area = 22.5m x 3.1m = 752.066m2 x = 645.668ft2 -(4)(19.795) – 2(13.609) = 645.668 ft2
1𝑚2

U = 1.58 (Table Overall Heat Coefficient)

Eq. TD = 4 (Table 3-42, Trane Air Conditioning Manual)

Therefore,

Q = (645.668)(1.58)(4) = 4080.622 Btuh

For West Wall,

Q=Area x U x Eq. TD
3.282 𝑓𝑡 2
Area = 27m x 3.1m = 83.7 m2 x 1𝑚2
= 900.478ft2 -(9)(19.795= 722.323 ft2
U = 1.58 (Table Overall Heat Coefficient)

Eq. TD = 8 (Table 3-42, Trane Air Conditioning Manual)

Therefore,

Q = (722.323)(1.58)(8) = 9130.163 Btuh

For East Wall,

Q=Area x U x Eq. TD

3.282 𝑓𝑡 2
Area = 27m x 3.1m = 83.7 m2 x = 900.478ft2 -(9)(19.795= 722.323 ft2
1𝑚2

U = 1.58 (Table Overall Heat Coefficient)

Eq. TD = 14 (Table 3-42, Trane Air Conditioning Manual)

Therefore,

Q = (722.323)(1.58)(14) = 15977.785 Btuh

Heat Gain from Glass

Q = Area {[Table 3-24][Table 3-31] + [Table 3-28][Table 3-32A]} (Equation 3-11)

3.282 𝑓𝑡 2
Window Type 1 = (1.6 x1.15) m2 =1.84 m2 x = 19.795 ft2
1𝑚2

3.282 𝑓𝑡 2
Window Type 2 = (1.1 x1.15) m2 =1.265 m2 x = 13.609 ft2
1𝑚2

For North Wall,

Q = (19.795 ft2 {[11.2][2] + [17.6][0.85]} ) (4) + (13.609 ft2 {[11.2][2] + [17.6][0.85]} ) (2)

Q = 2473.0752 Btuh

For South Wall,

Q = (19.795 ft2 {[86.5][2] + [19.3][0.85]} ) (4) + (13.609 ft2 {[86.5][2] + [19.3][0.85]} ) (2)

Q = 18505.284 Btuh
For West Wall,

Q = (19.795 ft2 {[113.8][2] + [19.9][0.85]} ) (9)

Q = 40700.313 Btuh

For East Wall,

Q = (19.795 ft2 {[16][2] + [17.6][0.85]} ) (9)

Q = 5835.6 Btuh

Heat Gain from People

Assume 110 adults and 66 children per floor

Sensible Heat gain from people

Qs = (110)(220) + (66)(215) =38390 Btuh

Latent Heat gain from people

QL= (66)(230) + (66)(185) =37510 Btuh

Heat Gain from Lights

Q = BTU/hr x U.F x B.F x (no. of lights)

Q =61.4185 x 3.4 x 1.2 x 77

Q = 19295.236 Btuh

Heat Gain from Appliance

Assume 510 mm Monitor

Q TV = 0.2(Monitor Size)-20

Q TV = 82W = 279.795 Btuh

Assume 1 large refrigerator

QREF= 310 W = 1057.764 Btuh

Qapp = 279.795 +1057.764

Qapp = 29426.32 Btuh

Sensible Heat (Btuh) Latent Heat (Btuh)

Walls 45511.057
Glasses 67514.2722
Total Equipment 48721.556
People 38390 37510

TOTAL 200136.8852 37510

Total Heat Gain = 200136.8852 + 37510

Total Heat Gain = 237646.8852 Btuh

FOURTH FLOOR

Heat Gain from Walls

For North Wall,

Q=Area x U x Eq. TD

3.282 𝑓𝑡 2
Window Type 1 = (1.6 x1.15) m2 =1.84 m2 x = 19.795 ft2
1𝑚2

3.282 𝑓𝑡 2
Window Type 2 = (1.1 x1.15) m2 =1.265 m2 x = 13.609 ft2
1𝑚2

3.282 𝑓𝑡 2
Area = 22.5m x 3.1m = 752.066m2 x = 645.668ft2 -(4)(19.795) – 2(13.609) = 645.668 ft2
1𝑚2

U = 1.58 (Table Overall Heat Coefficient)

Eq. TD = 16 (Table 3-42, Trane Air Conditioning Manual)

Therefore,

Q = (645.668)(1.58)(16) = 16322.487 Btuh

For South Wall,

Q=Area x U x Eq. TD

3.282 𝑓𝑡 2
Area = 22.5m x 3.1m = 752.066m2 x = 645.668ft2 -(4)(19.795) – 2(13.609) = 645.668 ft2
1𝑚2

U = 1.58 (Table Overall Heat Coefficient)

Eq. TD = 4 (Table 3-42, Trane Air Conditioning Manual)

Therefore,

Q = (645.668)(1.58)(4) = 4080.622 Btuh

For West Wall,

Q=Area x U x Eq. TD
3.282 𝑓𝑡 2
Area = 27m x 3.1m = 83.7 m2 x 1𝑚2
= 900.478ft2 -(9)(19.795= 722.323 ft2
U = 1.58 (Table Overall Heat Coefficient)

Eq. TD = 8 (Table 3-42, Trane Air Conditioning Manual)

Therefore,

Q = (722.323)(1.58)(8) = 9130.163 Btuh

For East Wall,

Q=Area x U x Eq. TD

3.282 𝑓𝑡 2
Area = 27m x 3.1m = 83.7 m2 x = 900.478ft2 -(9)(19.795= 722.323 ft2
1𝑚2

U = 1.58 (Table Overall Heat Coefficient)

Eq. TD = 14 (Table 3-42, Trane Air Conditioning Manual)

Therefore,

Q = (722.323)(1.58)(14) = 15977.785 Btuh

Heat Gain from Glass

Q = Area {[Table 3-24][Table 3-31] + [Table 3-28][Table 3-32A]} (Equation 3-11)

3.282 𝑓𝑡 2
Window Type 1 = (1.6 x1.15) m2 =1.84 m2 x = 19.795 ft2
1𝑚2

3.282 𝑓𝑡 2
Window Type 2 = (1.1 x1.15) m2 =1.265 m2 x = 13.609 ft2
1𝑚2

For North Wall,

Q = (19.795 ft2 {[11.2][2] + [17.6][0.85]} ) (4) + (13.609 ft2 {[11.2][2] + [17.6][0.85]} ) (2)

Q = 2473.0752 Btuh

For South Wall,

Q = (19.795 ft2 {[86.5][2] + [19.3][0.85]} ) (4) + (13.609 ft2 {[86.5][2] + [19.3][0.85]} ) (2)

Q = 18505.284 Btuh
For West Wall,

Q = (19.795 ft2 {[113.8][2] + [19.9][0.85]} ) (9)

Q = 40700.313 Btuh

For East Wall,

Q = (19.795 ft2 {[16][2] + [17.6][0.85]} ) (9)

Q = 5835.6 Btuh

Heat Gain from People

Assume 110 adults and 66 children per floor

Sensible Heat gain from people

Qs = (110)(220) + (66)(215) =38390 Btuh

Latent Heat gain from people

QL= (66)(230) + (66)(185) =37510 Btuh

Heat Gain from Lights

Q = BTU/hr x U.F x B.F x (no. of lights)

Q =61.4185 x 3.4 x 1.2 x 77

Q = 19295.236 Btuh

Heat Gain from Appliance

Assume 510 mm Monitor

Q TV = 0.2(Monitor Size)-20

Q TV = 82W = 279.795 Btuh

Assume 1 large refrigerator

QREF= 310 W = 1057.764 Btuh

Qapp = 279.795 +1057.764

Qapp = 29426.32 Btuh

Sensible Heat (Btuh) Latent Heat (Btuh)

Walls 45511.057
Glasses 67514.2722
Total Equipment 48721.556
People 38390 37510

TOTAL 200136.8852 37510

Total Heat Gain = 200136.8852 + 37510

Total Heat Gain = 237646.8852 Btuh

FIFTH FLOOR

Heat Gain from Walls

For North Wall,

Q=Area x U x Eq. TD

3.282 𝑓𝑡 2
Window Type 1 = (1.6 x1.15) m2 =1.84 m2 x = 19.795 ft2
1𝑚2

3.282 𝑓𝑡 2
Window Type 2 = (1.1 x1.15) m2 =1.265 m2 x = 13.609 ft2
1𝑚2

3.282 𝑓𝑡 2
Area = 22.5m x 3.1m = 752.066m2 x = 645.668ft2 -(4)(19.795) – 2(13.609) = 645.668 ft2
1𝑚2

U = 1.58 (Table Overall Heat Coefficient)

Eq. TD = 16 (Table 3-42, Trane Air Conditioning Manual)

Therefore,

Q = (645.668)(1.58)(16) = 16322.487 Btuh

For South Wall,

Q=Area x U x Eq. TD

3.282 𝑓𝑡 2
Area = 22.5m x 3.1m = 752.066m2 x = 645.668ft2 -(4)(19.795) – 2(13.609) = 645.668 ft2
1𝑚2

U = 1.58 (Table Overall Heat Coefficient)

Eq. TD = 4 (Table 3-42, Trane Air Conditioning Manual)

Therefore,

Q = (645.668)(1.58)(4) = 4080.622 Btuh

For West Wall,

Q=Area x U x Eq. TD
3.282 𝑓𝑡 2
Area = 27m x 3.1m = 83.7 m2 x 1𝑚2
= 900.478ft2 -(9)(19.795= 722.323 ft2
U = 1.58 (Table Overall Heat Coefficient)

Eq. TD = 8 (Table 3-42, Trane Air Conditioning Manual)

Therefore,

Q = (722.323)(1.58)(8) = 9130.163 Btuh

For East Wall,

Q=Area x U x Eq. TD

3.282 𝑓𝑡 2
Area = 27m x 3.1m = 83.7 m2 x = 900.478ft2 -(9)(19.795= 722.323 ft2
1𝑚2

U = 1.58 (Table Overall Heat Coefficient)

Eq. TD = 14 (Table 3-42, Trane Air Conditioning Manual)

Therefore,

Q = (722.323)(1.58)(14) = 15977.785 Btuh

Heat Gain from Glass

Q = Area {[Table 3-24][Table 3-31] + [Table 3-28][Table 3-32A]} (Equation 3-11)

3.282 𝑓𝑡 2
Window Type 1 = (1.6 x1.15) m2 =1.84 m2 x = 19.795 ft2
1𝑚2

3.282 𝑓𝑡 2
Window Type 2 = (1.1 x1.15) m2 =1.265 m2 x = 13.609 ft2
1𝑚2

For North Wall,

Q = (19.795 ft2 {[11.2][2] + [17.6][0.85]} ) (4) + (13.609 ft2 {[11.2][2] + [17.6][0.85]} ) (2)

Q = 2473.0752 Btuh

For South Wall,

Q = (19.795 ft2 {[86.5][2] + [19.3][0.85]} ) (4) + (13.609 ft2 {[86.5][2] + [19.3][0.85]} ) (2)

Q = 18505.284 Btuh
For West Wall,

Q = (19.795 ft2 {[113.8][2] + [19.9][0.85]} ) (9)

Q = 40700.313 Btuh

For East Wall,

Q = (19.795 ft2 {[16][2] + [17.6][0.85]} ) (9)

Q = 5835.6 Btuh

Heat Gain from People

Assume 110 adults and 66 children per floor

Sensible Heat gain from people

Qs = (110)(220) + (66)(215) =38390 Btuh

Latent Heat gain from people

QL= (66)(230) + (66)(185) =37510 Btuh

Heat Gain from Lights

Q = BTU/hr x U.F x B.F x (no. of lights)

Q =61.4185 x 3.4 x 1.2 x 77

Q = 19295.236 Btuh

Heat Gain from Appliance

Assume 510 mm Monitor

Q TV = 0.2(Monitor Size)-20

Q TV = 82W = 279.795 Btuh

Assume 1 large refrigerator

QREF= 310 W = 1057.764 Btuh

Qapp = 279.795 +1057.764

Qapp = 29426.32 Btuh

Sensible Heat (Btuh) Latent Heat (Btuh)

Walls 45511.057
Glasses 67514.2722
Total Equipment 48721.556
People 38390 37510

TOTAL 200136.8852 37510

Total Heat Gain = 200136.8852 + 37510

Total Heat Gain = 237646.8852 Btuh

SIXTH FLOOR

Heat Gain from Walls

For North Wall,

Q=Area x U x Eq. TD

3.282 𝑓𝑡 2
Window Type 1 = (1.6 x1.15) m2 =1.84 m2 x = 19.795 ft2
1𝑚2

3.282 𝑓𝑡 2
Window Type 2 = (1.1 x1.15) m2 =1.265 m2 x = 13.609 ft2
1𝑚2

3.282 𝑓𝑡 2
Area = 22.5m x 3.1m = 752.066m2 x = 645.668ft2 -(4)(19.795) – 2(13.609) = 645.668 ft2
1𝑚2

U = 1.58 (Table Overall Heat Coefficient)

Eq. TD = 16 (Table 3-42, Trane Air Conditioning Manual)

Therefore,

Q = (645.668)(1.58)(16) = 16322.487 Btuh

For South Wall,

Q=Area x U x Eq. TD

3.282 𝑓𝑡 2
Area = 22.5m x 3.1m = 752.066m2 x = 645.668ft2 -(4)(19.795) – 2(13.609) = 645.668 ft2
1𝑚2

U = 1.58 (Table Overall Heat Coefficient)

Eq. TD = 4 (Table 3-42, Trane Air Conditioning Manual)

Therefore,

Q = (645.668)(1.58)(4) = 4080.622 Btuh

For West Wall,

Q=Area x U x Eq. TD
3.282 𝑓𝑡 2
Area = 27m x 3.1m = 83.7 m2 x 1𝑚2
= 900.478ft2 -(9)(19.795= 722.323 ft2
U = 1.58 (Table Overall Heat Coefficient)

Eq. TD = 8 (Table 3-42, Trane Air Conditioning Manual)

Therefore,

Q = (722.323)(1.58)(8) = 9130.163 Btuh

For East Wall,

Q=Area x U x Eq. TD

3.282 𝑓𝑡 2
Area = 27m x 3.1m = 83.7 m2 x = 900.478ft2 -(9)(19.795= 722.323 ft2
1𝑚2

U = 1.58 (Table Overall Heat Coefficient)

Eq. TD = 14 (Table 3-42, Trane Air Conditioning Manual)

Therefore,

Q = (722.323)(1.58)(14) = 15977.785 Btuh

Heat Gain from Glass

Q = Area {[Table 3-24][Table 3-31] + [Table 3-28][Table 3-32A]} (Equation 3-11)

3.282 𝑓𝑡 2
Window Type 1 = (1.6 x1.15) m2 =1.84 m2 x = 19.795 ft2
1𝑚2

3.282 𝑓𝑡 2
Window Type 2 = (1.1 x1.15) m2 =1.265 m2 x = 13.609 ft2
1𝑚2

For North Wall,

Q = (19.795 ft2 {[11.2][2] + [17.6][0.85]} ) (4) + (13.609 ft2 {[11.2][2] + [17.6][0.85]} ) (2)

Q = 2473.0752 Btuh

For South Wall,

Q = (19.795 ft2 {[86.5][2] + [19.3][0.85]} ) (4) + (13.609 ft2 {[86.5][2] + [19.3][0.85]} ) (2)

Q = 18505.284 Btuh
For West Wall,

Q = (19.795 ft2 {[113.8][2] + [19.9][0.85]} ) (9)

Q = 40700.313 Btuh

For East Wall,

Q = (19.795 ft2 {[16][2] + [17.6][0.85]} ) (9)

Q = 5835.6 Btuh

Heat Gain from People

Assume 110 adults and 66 children per floor

Sensible Heat gain from people

Qs = (110)(220) + (66)(215) =38390 Btuh

Latent Heat gain from people

QL= (66)(230) + (66)(185) =37510 Btuh

Heat Gain from Lights

Q = BTU/hr x U.F x B.F x (no. of lights)

Q =61.4185 x 3.4 x 1.2 x 77

Q = 19295.236 Btuh

Heat Gain from Appliance

Assume 510 mm Monitor

Q TV = 0.2(Monitor Size)-20

Q TV = 82W = 279.795 Btuh

Assume 1 large refrigerator

QREF= 310 W = 1057.764 Btuh

Qapp = 279.795 +1057.764

Qapp = 29426.32 Btuh

Sensible Heat (Btuh) Latent Heat (Btuh)

Walls 45511.057
Glasses 67514.2722
Total Equipment 48721.556
People 38390 37510

TOTAL 200136.8852 37510

Total Heat Gain = 200136.8852 + 37510

Total Heat Gain = 237646.8852 Btuh

SEVENTH FLOOR

Heat Gain from Walls

For North Wall,

Q=Area x U x Eq. TD

3.282 𝑓𝑡 2
Window Type 1 = (1.6 x1.15) m2 =1.84 m2 x = 19.795 ft2
1𝑚2

3.282 𝑓𝑡 2
Window Type 2 = (1.1 x1.15) m2 =1.265 m2 x = 13.609 ft2
1𝑚2

3.282 𝑓𝑡 2
Area = 22.5m x 3.1m = 752.066m2 x = 645.668ft2 -(4)(19.795) – 2(13.609) = 645.668 ft2
1𝑚2

U = 1.58 (Table Overall Heat Coefficient)

Eq. TD = 16 (Table 3-42, Trane Air Conditioning Manual)

Therefore,

Q = (645.668)(1.58)(16) = 16322.487 Btuh

For South Wall,

Q=Area x U x Eq. TD

3.282 𝑓𝑡 2
Area = 22.5m x 3.1m = 752.066m2 x = 645.668ft2 -(4)(19.795) – 2(13.609) = 645.668 ft2
1𝑚2

U = 1.58 (Table Overall Heat Coefficient)

Eq. TD = 4 (Table 3-42, Trane Air Conditioning Manual)

Therefore,

Q = (645.668)(1.58)(4) = 4080.622 Btuh

For West Wall,

Q=Area x U x Eq. TD
3.282 𝑓𝑡 2
Area = 27m x 3.1m = 83.7 m2 x 1𝑚2
= 900.478ft2 -(9)(19.795= 722.323 ft2
U = 1.58 (Table Overall Heat Coefficient)

Eq. TD = 8 (Table 3-42, Trane Air Conditioning Manual)

Therefore,

Q = (722.323)(1.58)(8) = 9130.163 Btuh

For East Wall,

Q=Area x U x Eq. TD

3.282 𝑓𝑡 2
Area = 27m x 3.1m = 83.7 m2 x = 900.478ft2 -(9)(19.795= 722.323 ft2
1𝑚2

U = 1.58 (Table Overall Heat Coefficient)

Eq. TD = 14 (Table 3-42, Trane Air Conditioning Manual)

Therefore,

Q = (722.323)(1.58)(14) = 15977.785 Btuh

Heat Gain from Glass

Q = Area {[Table 3-24][Table 3-31] + [Table 3-28][Table 3-32A]} (Equation 3-11)

3.282 𝑓𝑡 2
Window Type 1 = (1.6 x1.15) m2 =1.84 m2 x = 19.795 ft2
1𝑚2

3.282 𝑓𝑡 2
Window Type 2 = (1.1 x1.15) m2 =1.265 m2 x = 13.609 ft2
1𝑚2

For North Wall,

Q = (19.795 ft2 {[11.2][2] + [17.6][0.85]} ) (4) + (13.609 ft2 {[11.2][2] + [17.6][0.85]} ) (2)

Q = 2473.0752 Btuh

For South Wall,

Q = (19.795 ft2 {[86.5][2] + [19.3][0.85]} ) (4) + (13.609 ft2 {[86.5][2] + [19.3][0.85]} ) (2)

Q = 18505.284 Btuh
For West Wall,

Q = (19.795 ft2 {[113.8][2] + [19.9][0.85]} ) (9)

Q = 40700.313 Btuh

For East Wall,

Q = (19.795 ft2 {[16][2] + [17.6][0.85]} ) (9)

Q = 5835.6 Btuh

Heat Gain from People

Assume 110 adults and 66 children per floor

Sensible Heat gain from people

Qs = (110)(220) + (66)(215) =38390 Btuh

Latent Heat gain from people

QL= (66)(230) + (66)(185) =37510 Btuh

Heat Gain from Lights

Q = BTU/hr x U.F x B.F x (no. of lights)

Q =61.4185 x 3.4 x 1.2 x 77

Q = 19295.236 Btuh

Heat Gain from Appliance

Assume 510 mm Monitor

Q TV = 0.2(Monitor Size)-20

Q TV = 82W = 279.795 Btuh

Assume 1 large refrigerator

QREF= 310 W = 1057.764 Btuh

Qapp = 279.795 +1057.764

Qapp = 29426.32 Btuh

Sensible Heat (Btuh) Latent Heat (Btuh)

Walls 45511.057
Glasses 67514.2722
Total Equipment 48721.556
People 38390 37510

TOTAL 200136.8852 37510

Total Heat Gain = 200136.8852 + 37510

Total Heat Gain = 237646.8852 Btuh

EIGHT FLOOR

Heat Gain from Walls

For North Wall,

Q=Area x U x Eq. TD

3.282 𝑓𝑡 2
Window Type 1 = (1.6 x1.15) m2 =1.84 m2 x = 19.795 ft2
1𝑚2

3.282 𝑓𝑡 2
Window Type 2 = (1.1 x1.15) m2 =1.265 m2 x = 13.609 ft2
1𝑚2

3.282 𝑓𝑡 2
Area = 22.5m x 3.1m = 752.066m2 x = 645.668ft2 -(4)(19.795) – 2(13.609) = 645.668 ft2
1𝑚2

U = 1.58 (Table Overall Heat Coefficient)

Eq. TD = 16 (Table 3-42, Trane Air Conditioning Manual)

Therefore,

Q = (645.668)(1.58)(16) = 16322.487 Btuh

For South Wall,

Q=Area x U x Eq. TD

3.282 𝑓𝑡 2
Area = 22.5m x 3.1m = 752.066m2 x = 645.668ft2 -(4)(19.795) – 2(13.609) = 645.668 ft2
1𝑚2

U = 1.58 (Table Overall Heat Coefficient)

Eq. TD = 4 (Table 3-42, Trane Air Conditioning Manual)

Therefore,

Q = (645.668)(1.58)(4) = 4080.622 Btuh

For West Wall,

Q=Area x U x Eq. TD
3.282 𝑓𝑡 2
Area = 27m x 3.1m = 83.7 m2 x 1𝑚2
= 900.478ft2 -(9)(19.795= 722.323 ft2
U = 1.58 (Table Overall Heat Coefficient)

Eq. TD = 8 (Table 3-42, Trane Air Conditioning Manual)

Therefore,

Q = (722.323)(1.58)(8) = 9130.163 Btuh

For East Wall,

Q=Area x U x Eq. TD

3.282 𝑓𝑡 2
Area = 27m x 3.1m = 83.7 m2 x = 900.478ft2 -(9)(19.795= 722.323 ft2
1𝑚2

U = 1.58 (Table Overall Heat Coefficient)

Eq. TD = 14 (Table 3-42, Trane Air Conditioning Manual)

Therefore,

Q = (722.323)(1.58)(14) = 15977.785 Btuh

Heat Gain from Glass

Q = Area {[Table 3-24][Table 3-31] + [Table 3-28][Table 3-32A]} (Equation 3-11)

3.282 𝑓𝑡 2
Window Type 1 = (1.6 x1.15) m2 =1.84 m2 x = 19.795 ft2
1𝑚2

3.282 𝑓𝑡 2
Window Type 2 = (1.1 x1.15) m2 =1.265 m2 x = 13.609 ft2
1𝑚2

For North Wall,

Q = (19.795 ft2 {[11.2][2] + [17.6][0.85]} ) (4) + (13.609 ft2 {[11.2][2] + [17.6][0.85]} ) (2)

Q = 2473.0752 Btuh

For South Wall,

Q = (19.795 ft2 {[86.5][2] + [19.3][0.85]} ) (4) + (13.609 ft2 {[86.5][2] + [19.3][0.85]} ) (2)

Q = 18505.284 Btuh
For West Wall,

Q = (19.795 ft2 {[113.8][2] + [19.9][0.85]} ) (9)

Q = 40700.313 Btuh

For East Wall,

Q = (19.795 ft2 {[16][2] + [17.6][0.85]} ) (9)

Q = 5835.6 Btuh

Heat Gain from People

Assume 110 adults and 66 children per floor

Sensible Heat gain from people

Qs = (110)(220) + (66)(215) =38390 Btuh

Latent Heat gain from people

QL= (66)(230) + (66)(185) =37510 Btuh

Heat Gain from Lights

Q = BTU/hr x U.F x B.F x (no. of lights)

Q =61.4185 x 3.4 x 1.2 x 77

Q = 19295.236 Btuh

Heat Gain from Appliance

Assume 510 mm Monitor

Q TV = 0.2(Monitor Size)-20

Q TV = 82W = 279.795 Btuh

Assume 1 large refrigerator

QREF= 310 W = 1057.764 Btuh

Qapp = 279.795 +1057.764

Qapp = 29426.32 Btuh

Sensible Heat (Btuh) Latent Heat (Btuh)

Walls 45511.057
Glasses 67514.2722
Total Equipment 48721.556
People 38390 37510

TOTAL 200136.8852 37510

Total Heat Gain = 200136.8852 + 37510

Total Heat Gain = 237646.8852 Btuh
