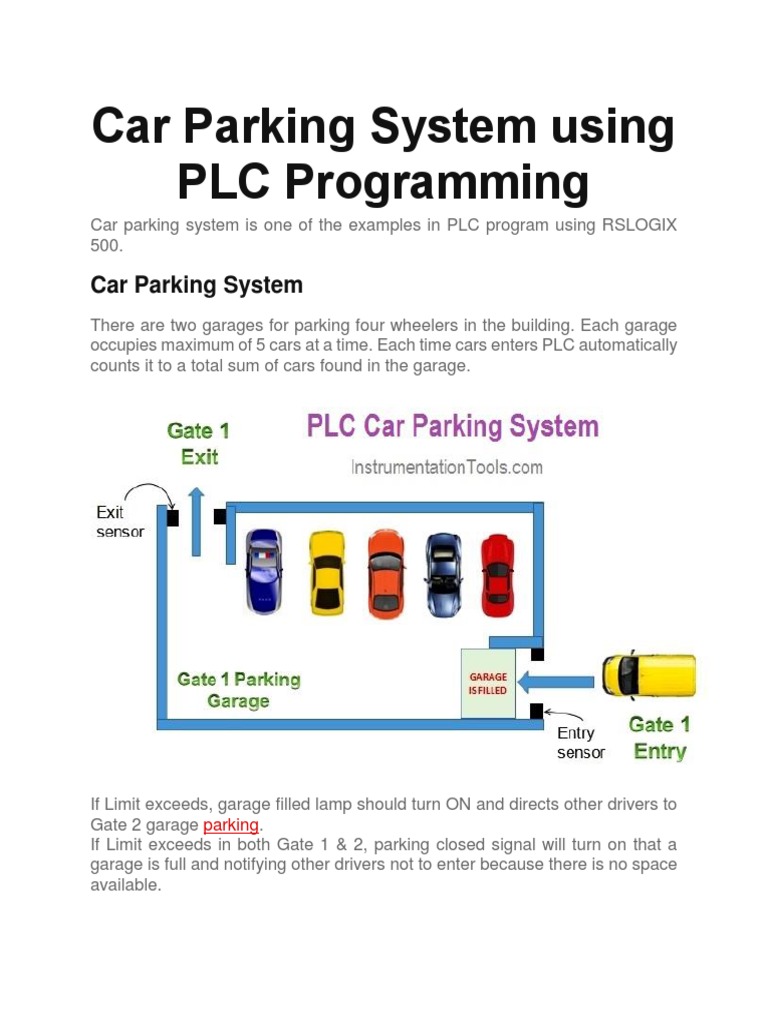

Car Parking System using

PLC Programming
Car parking system is one of the examples in PLC program using RSLOGIX
500.

Car Parking System

There are two garages for parking four wheelers in the building. Each garage
occupies maximum of 5 cars at a time. Each time cars enters PLC automatically
counts it to a total sum of cars found in the garage.

If Limit exceeds, garage filled lamp should turn ON and directs other drivers to
Gate 2 garage parking.
If Limit exceeds in both Gate 1 & 2, parking closed signal will turn on that a
garage is full and notifying other drivers not to enter because there is no space
available.
List of Inputs and Outputs

PLC Car Parking System

PLC Car Parking Logic Description
RUNG000

Latching rung to operate the system through Master Start and Stop PB.
RUNG001

Gate 1 entry to allow vehicles to enter using entry sensor.

RUNG0002 & RUNG 0003

To count the number of cars(maximum 5 cars in each garage) entry

using counter, If limit exceeds, Garage Gate 1 filled lamp will turn ON.
RUNG 0004 & RUNG 0005

When exit sensor turns ON, Exit gate should on to make a count using
counters.
Rung 0006, 0007, 0008, 0009, 0010

When Garage 1 is completely filled; Gate 2 garage follows the same

procedure as above mentioned logic.

Note:
1. Up counters are used to accumulate car entry, Down counters are used
to reduce one in the accumulator valve.
2. One shot is used to give single pulse to counter.
Conclusion:

The above explained Car Parking process is for example only. It may vary
from real time. We can use this example program to understand the working
of Counters and interlocking concept function in AB PLC.
Author : Hema Sundaresan
