Doc. Name: Exhibit B.2.

[Detail Design] MA-LTE NETWORK-01/ZTE/XI/2014

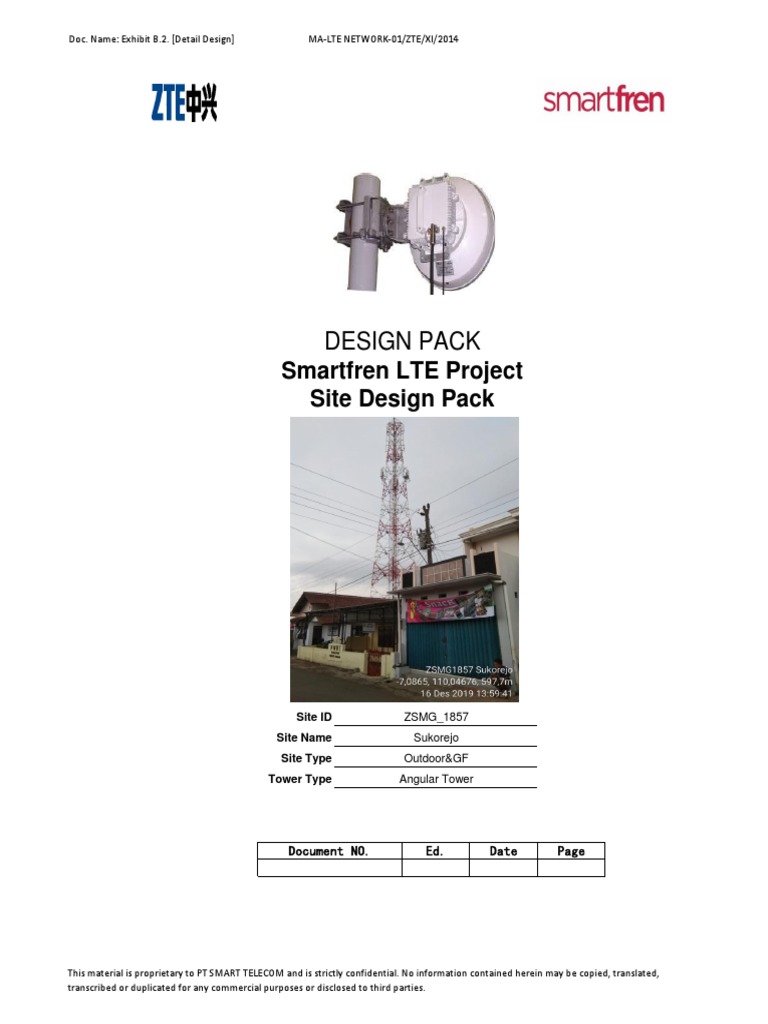

DESIGN PACK
Smartfren LTE Project
Site Design Pack

Site ID ZSMG_1857
Site Name Sukorejo
Site Type Outdoor&GF
Tower Type Angular Tower

Document NO. Ed. Date Page

This material is proprietary to PT SMART TELECOM and is strictly confidential. No information contained herein may be copied, translated,
transcribed or duplicated for any commercial purposes or disclosed to third parties.
Doc. Name: Exhibit B.2. [Detail Design] MA-LTE NETWORK-01/ZTE/XI/2014

PROJECT: SMARTFREN LTE PROJECT

THE EAST BUILDING 26-27th FLOOR PT. SMART Telecom

JL. LINGKAR MEGA KUNINGAN JL. H. AGUS SALIM 45
KAV. E3-2. NO.1 KEBON SIRIH – MENTENG
JAKARTA 12950 JAKARTA PUSAT
TEL:021-2994 2000 TEL:021-31922255
FAX:021-2994 2002 FAX:021-3162519

CONTRACT NO:
Documentation Identification: Document No.
DESIGN PACK

Company Title Name Signature Date

Prepared by ZTE Manan 20-Dec-19

Checked by Smartfren

Approved by Smartfren

Site Name:Sukorejo Total Pages:

Site ID: ZSMG_1857 Edition:

This document is exclusively property of ZTE and shall not be used copied
or communicated to the third party without its prior authorization.

Document NO. Ed. Date Page

This material is proprietary to PT SMART TELECOM and is strictly confidential. No information contained herein may be copied, translated,
transcribed or duplicated for any commercial purposes or disclosed to third parties.
Doc. Name: Exhibit B.2. [Detail Design] MA-LTE NETWORK-01/ZTE/XI/2014

TABLE OF CONTENT

DESIGN PACK

1. PROPOSED SOLUTION

1.1 Site Information

1.2 Site Model Summary
1.3 Proposed RAN Solution
1.4 Proposed LTE Antenna&Feeder System
1.5 Infran & Power Equipment Information
1.6 Proposed Mini CME

2. MAIN EQUIPMENT BOM

3. INSTALLATION AUXILIARY MATERIALS

4. BILL OF QUANTITY OF MINI CME

5. SITE DESIGN DRAWING

APPENDIX I Standard Environmental Requirement

I. General Requirement
II. Floor loading requirement
III. Grounding System
IV. Power Supply requirements
V. Temperature and Humidity Requirement

APPENDIX II Detailed Design Drawings

This material is proprietary to PT SMART TELECOM and is strictly confidential. No information contained herein may be copied, translated,
transcribed or duplicated for any commercial purposes or disclosed to third parties.
Doc. Name: Exhibit B.2. [Detail Design] MA-LTE NETWORK-01/ZTE/XI/2014

1. RF PROPOSED SOLUTION
Site ID:ZSMG_1857
Site Name:Sukorejo
Location:Jl.Kartini, Sudagaran, Sukorejo, Kec. Sukorejo, Kabupaten Kendal, Jawa Tengah
1.1 Site Information
No. Items Information Tips
1 Site ID ZSMG_1857
2 Site Name Sukorejo
Jl.Kartini, Sudagaran, Sukorejo, Kec. Sukorejo,
3 Site Address Kabupaten Kendal, Jawa Tengah
4 Site Ownership Inti Bangun Sejahtera - Mitratel Smartfren,Tower provider, Others
5 Region Central Java
6 Morphology Class Rural Denseurban,Urban,Suburban, Rural
7 Longitude(E): 110.047° With(xx.xxx°) format
8 Latitude(N): -7.08679° With(xx.xxx°) format
9 Site Type Outdoor&GF Linked to cover page, automatically generate
10 Building Height Fill with building height if it is Rooftop site
11 Tower/Pole Type Angular Tower Linked to cover page, automatically generate
12 Equipment Room Type Outdoor Shelter,Concrete room, Outdoor
13 Room Demension 2000 x 1300 x 700 (mm) (HxWxD)
14 Existing BTS Equipment/Type ZXDU68 W201 BS8800,BS8900,BS8906E,CBTS12,SAMSUNG,ZXDU68 W201
15 Existing Power Equipment Available
16 PLN Connection Capacity 1X25A
17 Generator Set Capacity
18 Air Conditioner Qty and capacity
19 Environment Alarm System Power Monitoring

1.2 Site Model Summary

No. Site Model Description
1 M01:New Infill Site TDD Only : TP provide power + reuse TP E-guard + Outdoor + BA-4Q7X90V-00 + New BBU
2 M02:New Infill Site TDD Only : TP provide power + reuse TP E-guard + Outdoor + W4-90A-R1 + New BBU
3 M03:New Infill Site TDD Only : ZXDU48 WR12 + 1 Bank 150AH Battery + New E-guard + Outdoor + BA-4Q7X90V-00 + New BBU
4 M04:New Infill Site T+F : TP provide power + reuse TP E-guard + Outdoor + BA-B74Q7X90V-00 + New BBU
5 M05:New Infill Site T+F : ZXDU48 WR12 + 1 Bank 150AH Battery + New E-guard + Outdoor + BA-B74Q7X90V-00 + New BBU
6 M06:New Infill Site T+F : ZXDU68 W201 +2 Bank 150AH Battery + New E-guard + Outdoor + BA-B74Q7X90V-00 + New BBU
7 M07:New Infill Site T+F : ZXDU68 W201 +2 Bank 150AH Battery + New E-guard + Outdoor + BA-4Q7X90V-00 + LDXX-6515DS-VTM + New BBU
8 M08:New Infill Site T+F : ZXDU68 W201 +2 Bank 150AH Battery + New E-guard + Outdoor + BA-B7B74Q7X90V-00 + New BBU
9 M09:New Infill Site T+F : ZXDU68 W201 +2 Bank 150AH Battery + New E-guard + Outdoor + DDW4-6590D-R3 + New BBU
10 M10:New Infill Site T+F : ZXDU68 W201 +2 Bank 150AH Battery + New E-guard + Outdoor +W4-90A-R1 + LDXX-6515DS-VTM + New BBU
11 M11:New Infill Site T+F : ZXDU48 WR12 + 1 Bank 100AH Battery + New E-guard + Outdoor + BA-B7B74Q7X90V-00 + New BBU
12 M12:New Infill Site FDD Only : ZXDU68 W201 +2 Bank 150AH Battery + New E-guard + Outdoor +LDXX-6515DS-VTM + New BBU
13 M13:New Infill Site TDD Only : ZXDU68 W201 + 2 Bank 150AH Battery + New E-guard + Outdoor + BA-4Q7X90V-00 + New BBU
14 M14:New Infill Site FDD Only : ZXDU68 W201 +1 Bank 150AH Battery + New E-guard + Outdoor +LDXX-6515DS-VTM + New BBU
15 M15:New Infill Site FDD Only : ZXDU68 W201 +2 Bank 150AH Battery + New E-guard + Outdoor +BA-G6G6X65VB1-20 + New BBU
16 M16:New Infill Site T+F : ZXDU68 W201 +2 Bank 100AH Battery + Power monitoring + Outdoor + BA-B7B74Q7X90V-00 + New BBU
17 M17:New Infill Site T+F : ZXDU68 S3001 +2 Bank 100AH Battery + Power monitoring + Indoor + BA-B7B74Q7X90V-00 + New BBU
18 M18:New Infill Site FDD only : ZXDU68 W201 +2 Bank 100AH Battery + Power monitoring + Outdoor + LDXX-6515DS-VTM + New BBU
19 M19:New Infill Site T+F : ZXDU48 WR12 + 1 Bank 100AH Battery + Power monitoring + Outdoor + BA-B74Q7X90V-00 + New BBU
20 M20:New Infill Site T+F : ZXDU68 W201 +2 Bank 100AH Battery + Power monitoring + Outdoor + BA-B74Q7X90V-00 + New BBU
21 M21:New Infill Site FDD Only : ZXDU48 WR12 + 1 Bank 100AH Battery + Power monitoring + Outdoor + LDXX-6515DS-VTM + New BBU
22 M22:New Infill Site T+F : TP provide power + reuse TP E-guard + Outdoor + BA-B7B74Q7X90V-00 + New BBU
23 M23:New Infill Site T+F : ZXDU68 W201 +2 Bank 100AH Battery + Power Monitoring + Outdoor + W4-90A-R1 + LDXX-6515DS-VTM + New BBU
Doc. Name: Exhibit B.2. [Detail Design] MA-LTE NETWORK-01/ZTE/XI/2014

1.3 Proposed RAN Solution

No. Proposed Items Proposed Information Tips
1 Proposed Solution M23 Swap FDD and Upgrade to eNB 2T2R (1/1/1) FDD + 4T4R (2/2/2) TDD (CVV65
2 Proposed Rack outdoor
3 Proposed/Existing BBU type New BBU If existing, just mention the product name
4 Proposed BBU Installation In ZXDU68 W201 ZXDU68 Outdoor Rack
5 RRU Type For TDD R8978 Mention the product name
6 RRU Qty For TDD 3
7 RRU Type For FDD R8862A Mention the product name
8 RRU Qty For FDD 3
9 Proposed ANT type W4-90A-R1 + LDXX-6515DS-VTM Mention the product code
10 Proposed DCPD6 No Yes/No

1.4 Proposed LTE Antenna&Feeder System

Item Sector-1 Sector-2 Sector-3 Sector-4
2x(810-890)M/4x(2300- 2x(810-890)M/4x(2300- 2x(810-890)M/4x(2300-
1 Antenna Type 2400)MHZ Dual-Band 2400)MHZ Dual-Band 2400)MHZ Dual-Band
2 Qty of Antennas 2 2 2
3 Port of Antenna 8+4 8+4 8+4
4 Height (m,AGL) 37 37 37
5 Azimuth 0 140 280
6 Machanical Tilt 0 0 0
7 Electrical Tilt 2 2 2
8 Antenna Jumper Length(m) for TDD 5 5 5
9 Antenna Jumper Length(m) for FDD 5 5 5
10 Feeder Type Fiber Fiber Fiber
11 Feeder/Fiber Length 50 50 50
12 RRU Type R8978&R8862A(T+F) R8978&R8862A(T+F) R8978&R8862A(T+F)
13 Qty. of RRU 2 2 2
14 DC Power Cable Length(m)for TDD 50 50 50
15 DC Power Cable Length(m)for FDD 50 50 50

1.5 Infra & Power Equipment Information

No. Items Information Tips
1 Tower structural analysis No need Need, No need,
Tower structural statement from
2
Consultant
3 Pole structural analysis/design Need Need, No need,
4 Building structural analysis Need Need, No need,
5 Power System Solution Proposed New Power System
6 Proposed DC System Type ZXDU68 W201
7 Add Rectifier Moudle No Need
8 Proposed new battery for new PS 2*100AH
9 Battery replacement No Need
10 Proposed DCPD Box or Subrack No Need
11 Transmission Solution Microwave IPRAN,MW,LL,Dark Fiber, Existing 5928
12 Proposed IPRAN Installation
13 New added Power Loading(MAX) Automatically generate according to Model

1.6 Proposed Mini CME

No. Proposed Items Proposed Information Tips
1 Proposed equipment foundation? Yes
2 Proposed Fence & Gate? No
3 Proposed Sunshade? No
4 AC MCB replacement? No Need to replace or add AC MCB or not?
5 DC MCB replacement? No Need to replace or add DC MCB or not?
6 Proposed PLN? No If Upgrade; see the Mini CME BOQ
7 Proposed Antenna mounting Type Mounting Provide by TP
8 Proposed Antenna mounting Qty 0
9 Proposed RRU mounting Type Share with antenna mounting
10 Proposed RRU mounting Qty
11 Proposed Cable Tray-Type1 8 types of cab tray
12 Length of cable tray type1 m
13 Proposed Cable Tray-Type2 8 types of cab tray
14 Length of cable tray type2 m
15 Power Cabinet installation type
16 Proposed Grounding Bar Qty Provide by TP Including tower grounding bar and main grouding bar
17 Proposed new feeder window?
Doc. Name: Exhibit B.2. [Detail Design] MA-LTE NETWORK-01/ZTE/XI/2014

2. MAIN EQUIPMENT BOM

Site ID:ZSMG_1857
Site Name:Sukorejo
Location:Jl.Kartini, Sudagaran, Sukorejo, Kec. Sukorejo, Kabupaten Kendal, Jawa Tengah
2.1 RAN Equipment BOM
eNB 8T8R (2/2/2) TDD + FDD
No. S/N Item Name Item Code UoM
New infill

A. Hardware
180000367787 Power Module 5 PM5 PCS 1
180000362988 CCF0 CCF0 PCS 1
180000367788 Baseband Processing Board type Q2 BPQ2 PCS 1
180000231216 Processing Unit CR0 PCS 0
TDD BBU 180000059241 1.25G-10KM(Optical Transceiver Module) PCS 1
180000356528 10G-1.4KM Optical Transceiver Module (BBU) PCS 3
180000059243 Site Alarm Module SA0 PCS 1
180000367789 B8200 Rack（Including FA0A Module） KIT 1

180000389236 CCF0 CCF0 PCS 0

180000363427 Baseband Processing Board type Q2 BPQ2 PCS 0
180000337360 Processing Unit CR0 PCS 0
180000013400 Site Alarm Module SA PCS 0
FDD BBU 180000013392 1.25G /1310nm SM Optical Module (10km) PCS 0
180000278955 10G/1310nm SM Optical Module (1.4km) PCS 3
180000337361 Power Module 5 PM 5 PCS 0
180000338435 B8200 Frame (with FA0A and Backboard) KIT 0

180000318531 ZXSDR R8984E Rack Assembly(2330M-2360M) KIT 0

ZXSDR R8978 S2300 Rack Assembly (2330M-
180000244771 KIT 3
TDD RRU 2360M)
180000356547 10G-1.4km Optical Transceiver Module (RRU) PCS 3

R8862A S8500
180000271911 R8862A S8500 (859-20.2/DC) KIT 3
FDD RRU DC
180000278955 10G/1310nm SM Optical Module (1.4km) PCS 3
Subtotal Hardware per configuration TDD(USD)
Subtotal Hardware per configuration FDD(USD)
B. System Feature Software
TDD CAT 1 Feature TDD A-1 Feature Package TDD (Required Now) Sector 3
Software/Featur CAT 2 Feature TDD A-2 Feature Package TDD (Required Future) Sector 3
e
1800001-TDSONF-A1 A-1 TDD SON Feature Package (Required Now ) CS 6
TDD SON
1800001-TDSONF-A2 A-2 TDD SON Feature Package (Required Now ) CS 6
Feature

FDD CAT 1 Feature FDD 10M A-1 Feature Package FDD (Required Now) Sector 3
Software/Featur CAT 2 Feature FDD-10M A-2 Feature Package FDD (Required Future) Sector 3
e
FDD SON 1800001-FDSONF-A1 A-1 FDD SON Feature Package (Required Now ) CS 3
Feature 1800001-FDSONF-A2 A-2 FDD SON Feature Package (Required Now ) CS 3
Subtotal Software per configuration TDD(USD)
Subtotal Software per configuration FDD(USD)

B. Installation Material/Accessories
180000059249 ZXSDR B8200 TL200 Outer Cable KIT 1
180000249928 BBU Power Line(2.5m) PCS 0
TDD BBU 180000075715 Installation Kit Set for Operator's Rack KIT 1
180000059237 ZXSDR B8200 Installation Kit Set KIT 1
180000059252 ZXSDR GPS Feeder Accessory KIT 1

180000013443 B8200 Installation Cable 0

180000013444 B8200 Installation Fitting 0
FDD BBU 180000013546 GPS Sets (Incl. Antenna) 0
180000075715 Installation Kit Set for Operator's Rack 0

RRU Engineering Cable

180000059416 KIT 0
(R8964/R8984E/R8954,DC,<75m)
RRU Engineering Cable
180000194303 KIT 3
(R8968E/R8978/R8988/A8988,DC,<75m)
R8968E/R8978/R8984E/R8988/A8988
TDD RRU 180000194300 KIT 3
Engineering Accessory
180000194299 R8968E/R8978 Installation Kit KIT 3
180000286420 R8984E/R8954 Installation Kit KIT 0
180000338833 Digital Signal Cable PCS 3

180000013452 RRU Engineering cable KIT 3

180000013454 RRU Installation Kit KIT 3
180000013822 RRU Engineering Accessory KIT 3
FDD RRU
180000338833 Digital Signal Cable PCS 3
180000312252 RRU cascaded fiber(5m) (R886X) PCS 0

Subtotal Installation Material per configuration TDD(USD)

Subtotal Installation Material per configuration FDD(USD)
D. Other
180000343859 Andrew Filter Installation Material Kit Kit 3
180000177751 Waterproof Insulation Tape Kit 6
Other
180000004870 Changable diameter Cable Clamp PCS 100
180000322311 ￠32 metel snake tube 10m Kit 1
 Subtotal Installation Material per configuration TDD(USD)
Subtotal Installation Material per configuration FDD(USD)
D. Other
Doc. Name: Exhibit B.2. [Detail Design]
180000343859
180000177751
MA-LTE
Andrew Filter Installation
Waterproof Insulation Tape
NETWORK-01/ZTE/XI/2014
Material Kit Kit
Kit
3
6
Other
180000004870 Changable diameter Cable Clamp PCS 100
180000322311 ￠32 metel snake tube 10m Kit 1

2.2 Power Equipment BOM

ZXDU68
Item W201 3Re-
No. S/N Item Name UoM
Code 2*100AH
comb with
monitoring
Total Price (excl. Battery)
Battery
.. Battery
.. 180000376868 48V100Ah High-adapted battery system（FB101） PCS 2
180000406399 ZXDC48 FB100C lithium-ion battery PCS
ZXDUPA-2 pos 3.81 pitch straight cable screw crimping
180000398909 PCS 4
socket（female）
180000355299 insulated tubal connection port PCS 4
180000354657 0.3mm2 black single core heat resistant Flexible power cable m 2
Cabinet and Power
180000309411 ZXD3000(V5.5)Rectifier Module SET 3
180000064213 ZTE ZXD3000 Rectifier Control Software KIT 3
180000334002 CSU501B01 SET 1
180000064211 ZTE firmware for ZXDU System (G5,Integrated) KIT 1
180000059542 ZXDU68 S301(V5.0R02M03)-Signal Interface Unit KIT 1
180000112784 ZXDUPA-DC Load of LLVD1 MCB-25A/1P KIT 8
180000112788 ZXDUPA-DC Load of LLVD1 MCB-63A/1P KIT 0
180000112808 ZXDUPA-DC Load of BLVD MCB-16A/1P KIT 8
180000112595 ZXDUPA-DC Load of BLVD MCB-63A/1P KIT 1
ZXDU68 W201（V5.0R33M11） outdoor DC power
180000410238 KIT 1
cabinet（H4+T1.220P3.C.LB.10012.frame）
180000134649 ZXDU68 W001(V5.0)-Battery Cable 3(for extension of 3U) KIT 1
180000134650 ZXDU68 W001(V5.0)-Battery Cable 4(for extension of 3U) KIT 1
180000011757 25 square meter outdoor kelly power cable m 10
180000011765 4×10 square meter outdoor power cable m 20
180000317192 16~25sq.mm bare connecting terminal PCS 3
180000317194 16~25sq.mm C45Nterminals PCS 5
180000317196 6~10sq.mm C45Nterminals PCS 5
180000294153 ZXDUPA-Temperature Transducer Cable 5.5m(NTC) KIT 2
180000294155 ZXDUPA-Temperature Transducer Cable 2m(NTC) KIT 1
180000373661 ZXDU68 W001(V5.0)Baterry Lost Alarm Assembly KIT 1
180000354657 0.3mm2 black single core heat resistant Flexible power cable m 20
180000354612 0.3mm2 black dual core heat resistant Flexible power cable m 30
180000407407 Dry contact access licence KIT 8
180000354658 Converter RS232 DB25 KIT 1
180000065724 SA/SE Interface cable KIT 1
180000064211 ZTE firmware for ZXDU System (G5,Integrated) KIT
180000112784 ZXDUPA-DC Load of LLVD1 MCB-25A/1P KIT
180000112788 ZXDUPA-DC Load of LLVD1 MCB-63A/1P KIT
180000156871 DC Power Distribute6 KIT
180000112808 ZXDUPA-DC Load of BLVD MCB-16A/1P KIT
180000347324 ZXD1500(V5.0)Rectifier Module（No Pb） PCS
180000101413 CSU520B Monitoring Unit SET
180000011447 H07V-K&RV Red 1×16 mm2 Wire (VDE/CE/CCC) m
180000011449 H07V-K&RV Blue 1×16mm2 Wire (VDE/CE/CCC) m
180000011734 ZXDU58 W121(V4.0)-GB Maintain Socket KIT
ZXDUPA-MMN501(V5.0)-DC power supply
180000253337 KIT
subrack(4.5kW.220P1.C.LB.10011.9P)
180000234660 ZXDU48 B001-Embedded Interface Unit KIT
180000011580 ZXDUPA-Temperature Transducer(10m) KIT
180000011768 6 square meter outdoor black power cable m
180000011448 16sq.mm PVC cable jacket of Kelly m
180000410239 ZXDUPA-WR12(V1.0R41M02)Outdoor Rack(0300,H5+F) SET
180000271797 ZXDUPA-WR12(V1.0R41M02)-Base Module Assemble KIT
180000372248 19 inchs Li-ion battery frame（6U.M700W700D) KIT
Doc. Name: Exhibit B.2. [Detail Design] MA-LTE NETWORK-01/ZTE/XI/2014

2.3 Transmission Equipment BOM(if have)

NEW MW
Doc. Name: Exhibit B.2. [Detail Design] MA-LTE NETWORK-01/ZTE/XI/2014

2.4 E-Guard BOM

Equipment
Unit BOM of
Item
No. S/N Item Name UoM Price Power
Code
(USD) Monitoring
Solution
without EISU
Hardware
180000294155 ZXDUPA-Temperature Transducer Cable 2m(NTC) KIT 1
180000373661 ZXDU68 W001(V5.0)Baterry Lost Alarm Assembly KIT 1
0.3mm2 black single core heat resistant Flexible power
180000354657 m 20
cable
0.3mm2 black dual core heat resistant Flexible power
180000354612 m 30
cable
180000407407 Dry contact access licence KIT 8
180000354658 Converter RS232 DB25 KIT 1
180000354800 SA PANEL cable KIT 1

Note : door sensor (open/close) already included in this BoM.

Doc. Name: Exhibit B.2. [Detail Design] MA-LTE NETWORK-01/ZTE/XI/2014

3. INSTALLATION AUXILIARY MATERIALS

Site ID:ZSMG_1857
Site Name:Sukorejo
Location:Jl.Kartini, Sudagaran, Sukorejo, Kec. Sukorejo, Kabupaten Kendal, Jawa Tengah
Item Unit Length(m) Qty
ZXDU48 Outdoor Rack Installation
25 mm2 outdoor red power cable(From DC Power system to ZXDU48 Rack) m
25 mm2 outdoor blue power cable(From DC Power system to ZXDU48 Rack) m
16mm2 PVC cable jacket of Kelly(Grouding cable of ZXDU48 Rack) m
ZXDU48 H002 Installation
6 mm2 outdoor black power cable(From ACDB to H002) m
16 mm2 PVC cable jacket of Kelly(Grouding cable of ZXDU48 Rack) m
DCPD BOX (Or DCPD subrack)Installation
50 mm2 outdoor red power cable(From DC Power system to DCPD BOX) m
50 mm2 outdoor blue power cable(From DC Power system to DCPD BOX) m
S301 Installation
3*16mm2+1core PVC cable jacket of black(From ACDB to S301) m
16 mm2 PVC cable jacket of gules(From S301 to Battery,red) m
16 mm2 PVC cable jacket of blove(From S301 to Battery,blue) m
35 mm2PVC cable jacket of Kelly(Grounding cable for S301,yellow-green) m
BC8910+PC8910 (B201) Installation
Base Frame (BC+PC Up&Down installation need 1 base, Side by side installation
pcs
need 2)
5*6mm2 AC Power Cable (From ACDB to B201) m
Grounding cable for BC8910+PC8910 or 19" Rack(16mm2) m
ZXDU68 W201 Installation
Base Frame pcs 1
5*6mm2 AC Power Cable (From ACDB to W201) m 10 1
Grounding cable for W201 or 19" Rack(16mm2) m 5 1
DCPD6 Installation
16 mm2 outdoor red power cable(From DC Power system to DCPD6) m
16 mm2 outdoor blue power cable(From DC Power system to DCPD6) m
BBU Installation
New Indoor 19" rack(Frame) pcs
BC8181A(Wall-mounted box) pcs
BBU power cable m 2 1
BBU grounding cable(6mm2) m 2 1
R8984E /R8964/R8978（TDD RRU） Installation
Qty. of R8984E/R8964/R8978 pcs 3
2 core shielded power cable(4mm2, length<=50m) m 50 3
2 core shielded power cable(6mm2,50m<length<=75m) m
2 core shielded power cable(10mm2,75m<length<=115m) m
Grounding Cable(16mm2) m 30 1
R8862A （FDD RRU） Installation
Qty. of R8862A set 3
2 core shielded power cable(4mm2, length<=50m) m 50 3
2 core shielded power cable(6mm2,50<length<=80m) m
2 core shielded power cable(10mm2,80m<length<=140m) m
ODCPD (for 10mm2 power cable, transfer box) pcs
Grounding Cable(16mm2) m 30 1
Filter（For FDD RRU） Installation
Grounding Cable(16mm2) m 30 1
Fiber
Outdoor fiber(5m) 5m
Outdoor fiber(10m) 10m
Outdoor fiber(20m) 20m
Outdoor fiber(25m) 25m
Outdoor fiber(30m) 30m
Outdoor fiber(40m) 40m
Outdoor fiber(50m) 50m 6
Outdoor fiber(60m) 60m
Outdoor fiber(70m) 70m
Outdoor fiber(80m) 80m
Outdoor fiber(90m) 90m
Outdoor fiber(100m) 100m
Outdoor fiber(115m) 110m
Outdoor fiber(145m) 145m
Outdoor fiber(160m) 160m
Outdoor fiber(175m) 175m
Outdoor fiber(190m) 190m
Doc. Name: Exhibit B.2. [Detail Design] MA-LTE NETWORK-01/ZTE/XI/2014

Outdoor fiber(205m) 205m

Outdoor fiber(220m) 220m
Outdoor fiber(235m) 235m
Outdoor fiber(250m) 250m
Outdoor fiber(280m) 280m
Outdoor fiber(310m) 310m
Outdoor fiber(350m) 350m
Jumper/Feeder/Adpter
1/2" Jumper,2m(FDD) pcs 6
1/2" Jumper,2m(TDD) pcs
1/2" Jumper,3m(FDD) pcs
1/2" Jumper,3m(TDD) pcs
1/2" Jumper,5m(FDD) pcs 12
1/2" Jumper,5m(TDD) pcs 27
1/2" Jumper,more than 10m m
7/8" feeder m
5/4" feeder m
Feeder Window pcs
RF Antenna
Single-Band 4 ports(HWXX-6516DS1-VTM) pcs
Single-Band 4 ports(LDXX-6515DS-VTM) pcs 3
Dual-Band 6 ports(3X-V65A-3XR) pcs
Dual-Band 6 ports(CVV65CSX-M) pcs
Dual-Band 6 ports(CVV65ASX-M) pcs
Single-Band 8 ports(BA-4Q7X90V-00) pcs
Dual-Band 10 ports(BA-B74Q7X90V-00) pcs
Dual-Band 12 ports(BA-B7B74Q7X90V-00) pcs
Dual-Band 12 ports(DDW4-6590D-R3) pcs
Single-Band 8 ports(W4-90A-R1) pcs 3
GPS Antenna
GPS feeder cable m 30 1
GPS Mounting(TypeA, on tower) pcs 1
GPS Mounting(TypeB,on Pole) pcs
GPS Mounting(TypeC, on Shelter) pcs
RF Antenna Mounting
Mounting on wall 3000mm pcs
Mounting to angular tower leg 3000mm(Colocated with existing site) pcs
Mounting to angular tower leg 3000mm(New Colocated site) pcs
Mounting to tubular tower leg 3000mm pcs
Mounting to Monopole 3000mm(Colocated with existing site) pcs
Mounting to Monopole 3000mm(New Colocated site) pcs
Mounting to Minipole 3000mm(Colocated with existing site) pcs
Mounting to Minipole 3000mm(New Colocated site) pcs
3m Rooftop pole pcs
6m Rooftop pole pcs
Cable Tray
Indoor cable tray (width 40 cm) m
Indoor cable tray (width 60 cm) m
Outdoor-GF-Horizontal cable tray(width 40 cm) m
Outdoor-GF-Vertical cable tray (width 40 cm) m
Outdoor-RT-Horizontal cable tray(width 20 cm) m
Outdoor-RT-Horizontal cable tray(width 30 cm) m
Outdoor-RT-Horizontal cable tray(width 40 cm) m
Outdoor-RT-Support m
Pipe
Soft Pipe( For Indoor) m
Metal flexible piple(For Outdoor) m
PVC Pipe (Diameter-25mm) m
PVC Duck m
Steel Pipe (Diameter-25mm ) m
Others
Grounding Bar pcs
50 mm2 grounding cable (Interconnect grounding cable, used for underground
m
connection)
70 mm2 grounding cable (Interconnect grounding cable, used for upon ground
m
connecton)
Pole for KWH pcs
Pole for ACPDB pcs
Pole for RRU on ground pcs
cable Clamp pcs 74
Fiber Holder pcs 0
Metal tie pcs 12
Doc. Name: Exhibit B.2. [Detail Design] MA-LTE NETWORK-01/ZTE/XI/2014

4. BILL OF QUANTITY OF MINI CME

Site ID:ZSMG_1857
Site Name:Sukorejo
Location:Jl.Kartini, Sudagaran, Sukorejo, Kec. Sukorejo, Kabupaten Kendal, Jawa Tengah
SN Items Unit Qty
A Tower Structure & RT Pole
1 Mounting Antenna Sectoral+RRU+GPS and its accessories Kg 0
2 Erection all material mention at point 1 above. Kg 0
3 Pole, including accessories site type RT/HRB Kg 0
Pole foundation/counterweight: reinforcement concrete K-225 Slump
m3
4 12 ± 2
B Mechanical & Electrical (ME)
Pole (standard PLN) for placed KWH Panel BoX including all
pcs 0
1 accessories
2 Pole Ø 3" for MDP & Alarm panel placement (Pole for ACDB) Kg 0
3 PLN upgrade VA
4 MCB 3P replacement of ACPDB pcs
5 Main Power Cable NYFGBY 4x16 mm m'
6 Main Power Cable NYFGBY 3x10 mm m'
7 Main Power Cable NYY 3x10 mm m'
C Cable Tray (indoor & outdoor) & Feeder Entry Point
Horizontal Cable Tray Outdoor type (width 30 cm) with clamp,incl.
support to FEP and other accessories, finishing with hotdipped 0
1 galvanized m

Vertical/Tower Cable Tray Outdoor type - if required (width 30 cm) with 0

2 clamp and other accessories, finishing with hotdipped galvanized m
3 Tray Indoor (width 40 cm) incl. accessories, powder coating m' 0
4 Tray Indoor (width 60 cm) incl. accessories, powder coating m' 0
Cable tray (width 20 cm, out door type, galvanized) for Roof Top
0
5 including accessories) m'
Cable tray (width 30 cm, out door type, galvanized) for Roof Top
0
6 including accessories) m'
Cable tray (width 40 cm, out door type, galvanized) for Roof Top
0
7 including accessories) m'
8 Support & accessories for cable tray outdoor Ls 0
9 Feeder Entry Point (8 hole 4") pcs
10 Feeder Entry Point (12 hole 4") pcs
11 Feeder Entry Point (16 hole 4") pcs
D Outdoor Cabinet & Tower & Pole Foundation
1 Soil Excavation m3
2 Sand Layer m3
3 Stone Mansory m3
4 Soil backfilled m3
5 Concrete Pad and Stair (K-175) m3
6 Plastering & Painting m2
7 Support outdoor cable tray Concrete Foundation (K-175) m3
E Grouding System
1 BC 50mm2 to interconnect to existing site Main Grounding Box m 0
All Aluminum Alloy Cable(AAAC) 70mm2 Down Conductor/EGB
m 0
2 Interconnect
MGB / Main Grounding Bar (Steel Galvanized) 300x100x10 mm, 2
pcs 0
3 rows 14 holes M8
Ceramic Isolator for MGB, EGB & IGB (incl. all accessories required) pcs 0
4
Stainless Cable Scone (incl. all accessories required, ex: bolt, Nuts,
pcs
5 cable shoe & Label).
Termination Box / Main Control box (inside 40x40x50 cm) with pad
pcs
6 lock (as per design dwg)
PVC pipe cable duct dia. 3/4" (ex. Clipsal) for indoor ring shelter and
m
7 buried AAAC
8 Bimetallic connector pcs
Doc. Name: Exhibit B.2. MA-LTE NETWORK-01/ZTE/XI/2014
[Detail Design]

5.APPENDIX I Standard Environmental

Requirement
The standard requirements are listed in the following to ensure ZTE implementation for smooth
execution, subsequent trouble-free operation and maintenance of the BTS station. The
requirements have been mentioned without any consideration of responsibility, which has been
separately spelled out in preceding paragraphs.
I. General Requirement
a) Construction/modification should be completed in all respects as per layout plans.

b) All walls and ceilings should be properly painted and finished.

c) Doors and windows as per requirement should be available and must be dust proof and
lockable.
d) Breakthroughs in walls and ceilings should be completed as per floor layout plans.

e) Room lightings, power supply switches and sockets should be provided according to the
requirements.
f) All rooms, especially the equipment room, should be available in a clean condition.
g) Facility for load transportation into the building or elevator with a weight capacity of 600kg
should be preferably available.
h) To prevent subsequent accumulation of dust a separate room should be available for
storage and unpacking the equipment.
i) Protection against lightning stroke for the building/tower has to be provided.

II. Floor loading requirement

a) Floor loading for BTS 300kg/m2
b) Floor loading for Rectifier 350kg/m2
c) Floor loading for Microwave 100kg/m2
III. Grounding System
a) The ground resistance of the base station should be less than 5 ohm.
b) The engineering requires the ground resistance to be as small as possible
IV. Power Supply requirements
a) 380V (3phs) AC commercial power supply with a tolerance of ±10% or 220V (1-phase)
AC commercial is acceptable.
b) 50 Hz frequency with a tolerance of ±5Hz
c) Wave-shape with a tolerance of distortion <5%

V. Temperature and Humidity Requirement

a) Working temperature: -5°C ~+45°C
b) Relative humidity: 15%~85%
Doc. Name: Exhibit B.2. MA-LTE NETWORK-01/ZTE/XI/2014
[Detail Design]
6. DETAILED DESIGN DRAWINGS
Site ID:ZSMG_1857
Site Name:Sukorejo
Location:Jl.Kartini, Sudagaran, Sukorejo, Kec. Sukorejo, Kabupaten Kendal, Jawa Tengah
SN DRAWING LIST REVISIONS
1 Site Map(detail address,grs,siteidsite name) 1.0
2 Site Layout 1.0
3 Tower/Pole foundation drawing 1.0 NA
4 Pole drawing 1.0 NA
5 Tower strengthening drawing 1.0 NA
6 Antenna bracket and mounting drawing 1.0
7 Shelter/outdoor BTS foundation drawing 1.0 NA
8 Shelter/outdoor BTS canopy-cage view (front, back, side) 1.0 NA
9 Outdoor BTS canopy-cage drawing 1.0 NA
10 Fence detail drawing 1.0 NA
11 Electrical layout 1.0
12 Equipments layout 1.0
13 Indoor cable tray layout 1.0
14 External Grounding system layout 1.0
15 Detail grounding pit and grounding bar drawing 1.0
16 Internal Grounding system 1.0
17 Electrical and Equipment grounding connectivity 1.0
18 Internal shelter/outdoor BTS canopy section drawing 1.0
19 KWH meter pole and foundation drawing 1.0
20 KWH meter internal front view and SLD 1.0
21 ACPDB internal front view 1.0
22 ACPDB SLD 1.0
23 DC Fan front, side and back view 1.0
24 Air conditioner position lay out 1.0
25 EAS/E-Guard front view 1.0
26 EAS/E-Guard connectivity 1.0
27 Block Diagram 1.0
28 AC and DC Power Cable route drawing and table 1.0
Feeder cable, IF cable, PCM cable and other cables route drawing and
29 1.0
table
30 Rectifier and battery system front view 1.0
31 DCPDB front view 1.0
32 Rectifier and DCPDB MCB allocation 1.0
33 BTS front view 1.0
34 Transmission rack front view 1.0 NA
35 Mux front view 1.0 NA
36 DDF,E1 and IP port connection 1.0 NA
37 Transport Equipment(Switch,Router,PTN,etc) front view 1.0 NA
38 ODF (Optical Distribution Frame) view 1.0 NA
39 Fiber Optical Entry Port View 1.0 NA
40 EAS/E-Guard-DDF-BTS/MW Connection sketch map 1.0 NA
41 FEP view 1.0
42 Antenna placement Information 1.0
43 RRU placement information 1.0

Note:For new site,just provide had confirmed with smartfren CME team;for existing
site,if no need,put N/A
 smartfren
REMARKS

DESIGN PACK
APPROVED BY

PREPARED BY

PROJECT NAME

Smartfren LTE Project

NEW INFILL

Approved by : Sign.

Checked by : Sign.

Checked by ( PT. ZTE) : Sign.

SITE NAME/SF ID/SITE ID :

ZSMG_1857 / Sukorejo

Scale :
REGION : CENTRAL JAVA
nts

Notes: Ref. :
BTS/DP / ZSMG_1857 / Sukorejo
Drawing
No.: Unit : mm
01
1. Site ID / Name : ZSMG_1857 / Sukorejo Ed. Description Date : Drawn by :

2. Address : Jl.Kartini, Sudagaran, Sukorejo, Kec. Sukorejo, Kabupaten Kendal, Jawa Tengah 1 New Creation

3. Coordinate : Longitude = 110.047° Lattitude = -7.08679°

DRAWING TITLE

Site Map A4
 smartfren
REMARKS

DESIGN PACK
APPROVED BY

D A

PREPARED BY

PROJECT NAME

Smartfren LTE Project

NEW INFILL

C B Approved by :

Checked by :
Sign.

Sign.

Checked by ( PT. ZTE) : Sign.

SITE NAME/SF ID/SITE ID :

ZSMG_1857 / Sukorejo

Scale :
REGION : CENTRAL JAVA
nts

Ref. : Drawing
No.: Unit : mm
BTS/DP / ZSMG_1857 / Sukorejo 02

Ed. Description Date : Drawn by :

1 New Creation

DRAWING TITLE

Site Layout A4
 smartfren
REMARKS

(+) (+) DESIGN PACK

(-) (-)
BATT-2 APPROVED BY

(+) (+)
(-) (-)
BATT-1

(+) PREPARED BY
DRY (+) (-) (+) (-) (+) (-) (+) (-) (+) (-) (+) (-) (+)
CONTACK (-)
(-)
FDD RRU FDD RRU FDD RRU TDD RRU TDD RRU TDD RRU
R8862A R8862A R8862A R8978 R8978 R8978
PROJECT NAME

Smartfren LTE Project

NEW INFILL
DC OUT
AC IN

Approved by : Sign.
AC OUT

Checked by : Sign.

Checked by ( PT. ZTE) : Sign.

NEW RECTIFIER (+) (-)

KWH Meter Box ACPDB ZXDU68 W201 BBU SITE NAME/SF ID/SITE ID :
(-) (+) ZSMG_1857 / Sukorejo

Scale :
REGION : CENTRAL JAVA
nts

Ref. : Drawing
No.: Unit : mm
BTS/DP / ZSMG_1857 / Sukorejo 03

Ed. Description Date : Drawn by :

1 New Creation

DRAWING TITLE

Electrical layout A4
 smartfren
REMARKS

DESIGN PACK
APPROVED BY

PREPARED BY

PROJECT NAME

Smartfren LTE Project

NEW INFILL

Approved by : Sign.

Checked by : Sign.

Checked by ( PT. ZTE) : Sign.

SITE NAME/SF ID/SITE ID :

ZSMG_1857 / Sukorejo

Scale :
REGION : CENTRAL JAVA
1:30

Ref. : Drawing
No.: Unit : mm
BTS/DP / ZSMG_1857 / Sukorejo 04

Ed. Description Date : Drawn by :

1 New Creation

DRAWING TITLE

Equipments layout A4
 smartfren
REMARKS

D A
DESIGN PACK
APPROVED BY

PREPARED BY

PROJECT NAME

Smartfren LTE Project

NEW INFILL
NEW
CONTROL BOX

Approved by : Sign.

Checked by : Sign.
TO NEW EGB
Checked by ( PT. ZTE) : Sign.

SITE NAME/SF ID/SITE ID :

ZSMG_1857 / Sukorejo

Scale :
REGION : CENTRAL JAVA
nts

Ref. : Drawing

C B
No.: Unit : mm
BTS/DP / ZSMG_1857 / Sukorejo 05

Ed. Description Date : Drawn by :

1 New Creation

DRAWING TITLE

External Grounding
A4
system layout
 smartfren
REMARKS

230 400

DESIGN PACK
APPROVED BY

Netral Terminal Block

Relay
AC1 AC2

MCB
PREPARED BY

Stop Kontak

Arester
700

MCB
Fuse
PROJECT NAME

Smartfren LTE Project

NEW INFILL

Grounding
Approved by : Sign.

Checked by : Sign.

Checked by ( PT. ZTE) : Sign.

SITE NAME/SF ID/SITE ID :

ZSMG_1857 / Sukorejo

200 REGION : CENTRAL JAVA Scale :

1:30
INPUT TO EAS RECTIFIER INPUT
GROUNDING CANOPY LAMP Ref. : Drawing
No.: Unit : mm
BTS/DP / ZSMG_1857 / Sukorejo 07

Ed. Description Date : Drawn by :

1 New Creation

DRAWING TITLE

ACPDB Internal Front View A4

 smartfren
1P 20A (Recti 1) REMARKS
RECTIFIER
LTE
DRY
CONTACT
GROUNDING BAR
NLS-CU 3/10 + AB/SS + AK 4

1P 16A
Grounding Bar
Internal

Recti 2

DESIGN PACK
APPROVED BY

OBO MCD 50-B3 +MCD 125-B/NPE +V20 - C/3 FS-SV or

Tabset BC/3+1 / FM100 & FLT 50 Ctrl 0.9/i+FLT 50 Ctrl 0.9
NYFGBY 4x16mm2 1P 6A OUTLET
1
R RED
KWH METER

MCB 1P
1 PHASE

1P 6A Input EAS
4
25 A
1P 20A Spare

N BLUE
NYAF 10 mm2 PREPARED BY
To Alarm Panel

NYAF 10 mm2

Shielding F1
Fuse PROJECT NAME
di Panel SDP

Smartfren LTE Project

NEW INFILL
Indicator
L1 Lamp BCC 16 mm2

Approved by : Sign.

NEUTRAL BAR Checked by : Sign.

NLS-CU 3/10 + AB/SS + AK 4

Checked by ( PT. ZTE) : Sign.

SITE NAME/SF ID/SITE ID :

ZSMG_1857 / Sukorejo

Scale :
REGION : CENTRAL JAVA
nts

Ref. : Drawing
No.: Unit : mm
BTS/DP / ZSMG_1857 / Sukorejo 08

Ed. Description Date : Drawn by :

1 New Creation

DRAWING TITLE

ACPDB SLD A4
 OMCR smartfren
Server eNode-B REMARKS

NO. Alarm Source ZTE LTE BBU SOW

Input Alarm
DB 25
1 PLN Failure ACPDB ZTE
Pin 1 -14
DB 25
Transmission 2 Rectifier Module Rectifier
Pin 2 -15 ZTE
DC Low Voltage DB 25 DESIGN PACK
3 Rectifier ZTE
Pin 3 -16 APPROVED BY
Input SPD PLN DB 25
4 Failure
ACPDB
Pin 4 -17 ZTE
Battery Stolen DB 25
5 Rectifier/Device ZTE
Pin 5 -18
BBU DB 25
6 High Temp Rectifier ZTE
Pin 6 -19
SA Board Diesel Generator DB 25
7 DG Set Smartfren PREPARED BY
Set On Pin 7 -20
SA panel cable

Door Open DB 25
8 Cabinet/Shelter ZTE
Pin 8 -21
End B3

PROJECT NAME

Smartfren LTE Project

NEW INFILL

Convertor
① ② ③ ④ ⑤ ⑥ ⑦ ⑧ Approved by : Sign.
0.3mm2 black single core heat resistant
0.1mm2 black dual core heat resistant

0.1mm2 black dual core heat resistant

0.1mm2 black dual core heat resistant

0.1mm2 black dual core heat resistant

0.1mm2 black dual core heat resistant

0.1mm2 black dual core heat resistant

Checked by : Sign.
Temperature Transducer Cable (NTC)

Checked by ( PT. ZTE) : Sign.

SITE NAME/SF ID/SITE ID :

ZSMG_1857 / Sukorejo

Scale :
REGION : CENTRAL JAVA
1:30
Flexible power cable

Flexible power cable

Flexible power cable

Flexible power cable

Flexible power cable

Flexible power cable

Flexible power cable

Ref. : Drawing
No.: Unit : mm
BTS/DP / ZSMG_1857 / Sukorejo 09

Ed. Description Date : Drawn by :

1 New Creation

DRAWING TITLE
PLN Rectifier DC Low SPD Battery High DG Door
Failure Module Voltage PLN Failure Stolen Temp Fuel Tank Open
Failure E-Guard connection A4
 smartfren
REMARKS

DESIGN PACK
APPROVED BY

PREPARED BY

DRY CONTACT PROJECT NAME

Smartfren LTE Project

NEW INFILL

Approved by : Sign.

Checked by : Sign.

Checked by ( PT. ZTE) : Sign.

SITE NAME/SF ID/SITE ID :

ZSMG_1857 / Sukorejo

Scale :
REGION : CENTRAL JAVA
1:30

Ref. : Drawing
No.: Unit : mm
BTS/DP / ZSMG_1857 / Sukorejo 09

Ed. Description Date : Drawn by :

1 New Creation

DRAWING TITLE

E-Guard front view A4

 R8862A Filter
PROPOSED ANTENNA LTE 850MHz
4 ports(LDXX-6515DS-VTM) on 37 m smartfren
REMARKS
PROPOSED ANTENNA LTE 850MHz
4 ports(LDXX-6515DS-VTM) on 37 m
R8862A Filter

PROPOSED ANTENNA LTE 850MHz

4 ports(LDXX-6515DS-VTM) on 37 m
R8862A Filter

DESIGN PACK
APPROVED BY

PROPOSED ANTENNA LTE 2300 MHz

8 ports (W4-90A-R1) on 37 m
R8978

PROPOSED ANTENNA LTE 2300 MHz

8 ports (W4-90A-R1) on 37 m
PREPARED BY
BS8200 R8978
(TDD+FDD)

PROPOSED ANTENNA LTE 2300 MHz

8 ports (W4-90A-R1) on 37 m
PROJECT NAME
R8978
Smartfren LTE Project
NEW INFILL

Approved by : Sign.

-48V Checked by : Sign.

ZXDU68
W201
Checked by ( PT. ZTE) : Sign.

SITE NAME/SF ID/SITE ID :

ZSMG_1857 / Sukorejo
-48V TX
See TX Database ODU Use New MW Scale :
RX REGION : CENTRAL JAVA
1:30

Ref. : Drawing
No.: Unit : mm
BTS/DP / ZSMG_1857 / Sukorejo 09

Ed. Description Date : Drawn by :

1 New Creation
Legend：

DC Power Cable
Fiber Optic DRAWING TITLE
Jumper 1/2"

Block Diagram A4
 smartfren
REMARKS

DESIGN PACK
APPROVED BY

PREPARED BY
LEGEND :
: OPTIC CABLE
PROJECT NAME
: GPS CABLE Smartfren LTE Project
NEW INFILL

: IF CABLE
: GROUNDING Approved by : Sign.

: AC POWER CABLE Checked by : Sign.

Checked by ( PT. ZTE) : Sign.

SITE NAME/SF ID/SITE ID :

ZSMG_1857 / Sukorejo

Scale :
REGION : CENTRAL JAVA
nts

Ref. : Drawing
No.: Unit : mm
BTS/DP / ZSMG_1857 / Sukorejo 10

Ed. Description Date : Drawn by :

1 New Creation

DRAWING TITLE

Feeder cable if cable PCM Cable A4

and other route Cable Drawing
 smartfren
ZXDU68 W201 REMARKS

DESIGN PACK
APPROVED BY

PM5 FAN
BPQ2

SAO CCFO
GPS PREPARED BY
to PM BBU to RRU TDD to RRU FDD to MW to Dry Contact to FAN

63A 25A 25A 25A 25A 25A 25A 25A 20A 16A 16A 16A 16A 16A 16A 16A 16A 100A

BATT1 BATT2
DC SPD LLVD1 BLVD

ZXD3000 ZXD3000
PROJECT NAME
ZXD3000

Smartfren LTE Project

NEW INFILL

Approved by : Sign.

Battery Lithium
48 V Checked by : Sign.

Checked by ( PT. ZTE) : Sign.

SITE NAME/SF ID/SITE ID :

ZSMG_1857 / Sukorejo

Scale :
REGION : CENTRAL JAVA
nts

Battery Lithium Ref. : Drawing

No.: Unit : mm
BTS/DP / ZSMG_1857 / Sukorejo
48 V 11

Ed. Description Date : Drawn by :

1 New Creation

TOP VIEW
DRAWING TITLE

FRONT VIEW Rectifire Battery Cable and A4

DCPDB front View MCB Allocation
 ZXDU68 W201 smartfren
REMARKS

DESIGN PACK
APPROVED BY

E-GUARD

PM5 FAN
BPQ2

SAO CCFO
GPS PREPARED BY
to PM BBU to RRU TDD to RRU FDD to MW to Dry Contact to FAN

63A 25A 25A 25A 25A 25A 25A 25A 20A 16A 16A 16A 16A 16A 16A 16A 16A 100A

BATT1 BATT2
DC SPD LLVD1 BLVD

ZXD3000 ZXD3000

PROJECT NAME
ZXD3000

Smartfren LTE Project

NEW INFILL

Approved by : Sign.
Battery Lithium
48 V Checked by : Sign.

Checked by ( PT. ZTE) : Sign.

SITE NAME/SF ID/SITE ID :

ZSMG_1857 / Sukorejo

Scale :
REGION : CENTRAL JAVA
nts

Battery Lithium Ref. : Drawing

No.: Unit : mm
48 V BTS/DP / ZSMG_1857 / Sukorejo 11

Ed. Description Date : Drawn by :

1 New Creation

FRONT VIEW TOP VIEW DRAWING TITLE

DCPDB front view A4

 ZXDU68 W201 smartfren
REMARKS

DESIGN PACK
APPROVED BY

E-GUARD

PM5 FAN
BPQ2

SAO CCFO
GPS
to PM BBU to RRU TDD to RRU FDD to MW to Dry Contact to FAN
PREPARED BY
63A 25A 25A 25A 25A 25A 25A 25A 20A 16A 16A 16A 16A 16A 16A 16A 16A 100A

BATT1 BATT2
DC SPD LLVD1 BLVD

ZXD3000 ZXD3000

ZXD3000 PROJECT NAME

Smartfren LTE Project

NEW INFILL

Battery Lithium Approved by : Sign.

48 V
Checked by : Sign.

Checked by ( PT. ZTE) : Sign.

SITE NAME/SF ID/SITE ID :

ZSMG_1857 / Sukorejo

Scale :
REGION : CENTRAL JAVA
nts
Battery Lithium
48 V Ref. : Drawing
No.: Unit : mm
BTS/DP / ZSMG_1857 / Sukorejo 11

Ed. Description Date : Drawn by :

1 New Creation

FRONT VIEW TOP VIEW DRAWING TITLE

Rectifier and DCPDB MCB A4

allocation
 ZXDU68 W201 smartfren
REMARKS

DESIGN PACK
APPROVED BY

PM5 FAN
BPQ2

SAO CCFO
GPS PREPARED BY
to PM BBU to RRU TDD to RRU FDD to MW to Dry Contact to FAN

63A 25A 25A 25A 25A 25A 25A 25A 20A 16A 16A 16A 16A 16A 16A 16A 16A 100A

BATT1 BATT2
DC SPD LLVD1 BLVD

ZXD3000 ZXD3000

PROJECT NAME
ZXD3000

Smartfren LTE Project

NEW INFILL

Approved by : Sign.

Battery Lithium
48 V Checked by : Sign.

Checked by ( PT. ZTE) : Sign.

SITE NAME/SF ID/SITE ID :

ZSMG_1857 / Sukorejo

Scale :
REGION : CENTRAL JAVA
nts

Battery Lithium Ref. : Drawing

No.: Unit : mm
BTS/DP / ZSMG_1857 / Sukorejo
48 V 11

Ed. Description Date : Drawn by :

1 New Creation

TOP VIEW
DRAWING TITLE

FRONT VIEW BTS front view A4

 smartfren
REMARKS

DESIGN PACK
APPROVED BY

PREPARED BY

D A

C B PROJECT NAME

Smartfren LTE Project

NEW INFILL

Approved by : Sign.

Checked by : Sign.

Checked by ( PT. ZTE) : Sign.

SITE NAME/SF ID/SITE ID :

ZSMG_1857 / Sukorejo

Scale :
REGION : CENTRAL JAVA
nts

Ref. : Drawing
No.: Unit : mm
BTS/DP / ZSMG_1857 / Sukorejo 12

Ed. Description Date : Drawn by :

1 New Creation

DRAWING TITLE

Ground Level
Antenna placement A4
Information
 smartfren
REMARKS

DESIGN PACK
APPROVED BY

PREPARED BY

PROJECT NAME

Smartfren LTE Project

NEW INFILL

Approved by : Sign.

Checked by : Sign.

Checked by ( PT. ZTE) : Sign.

SITE NAME/SF ID/SITE ID :

ZSMG_1857 / Sukorejo

Scale :
REGION : CENTRAL JAVA
nts

Ref. : Drawing
No.: Unit : mm
BTS/DP / ZSMG_1857 / Sukorejo 12

Ed. Description Date : Drawn by :

1 New Creation

DRAWING TITLE

Jumper Connection A4
