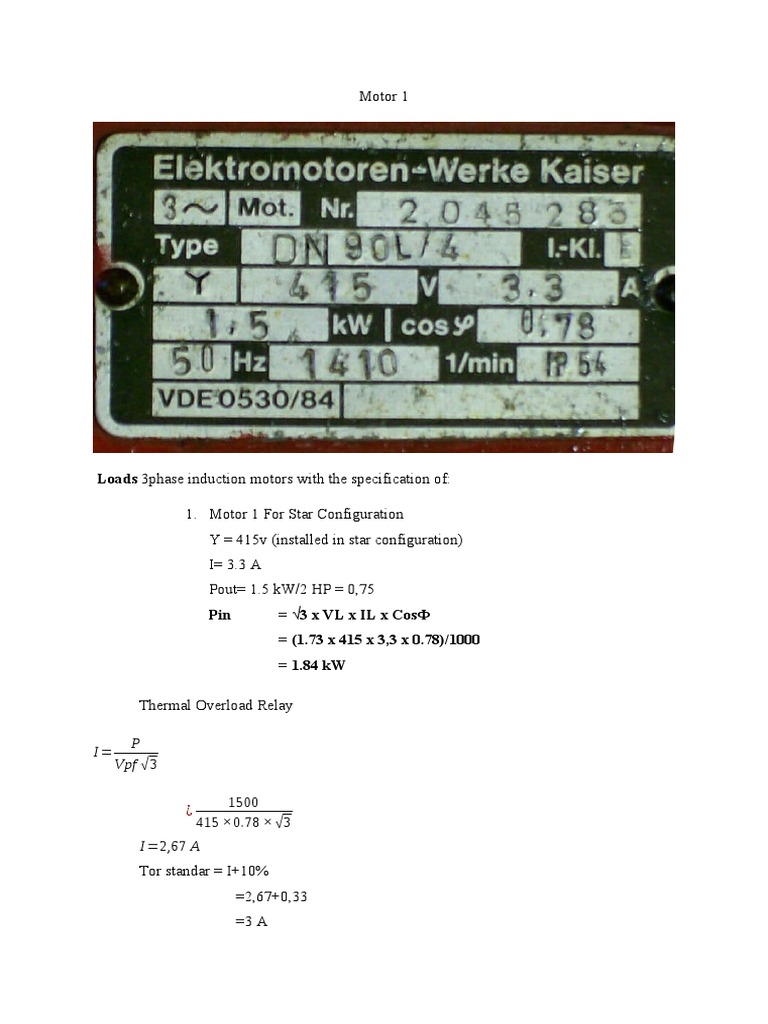

Motor 1

Loads 3phase induction motors with the specification of:

1. Motor 1 For Star Configuration

Y = 415v (installed in star configuration)
I= 3.3 A
Pout= 1.5 kW/2 HP = 0,75
Pin = √3 x VL x IL x CosФ
= (1.73 x 415 x 3,3 x 0.78)/1000
= 1.84 kW

Thermal Overload Relay

P
I=
Vpf √ 3

1500
¿
415 ×0.78 × √ 3
I =2,67 A
Tor standar = I+10%
=2,67+0,33
=3 A
Tor selection

Contactor
 Selecting the contactors type
  100% x full load current
=100% x 2,67
= 2.67
 Selecting the Contactors

2. MCB
 Minimum Selection
1.25 ×2,67=3,3375 A
 Maximum Selection

2.5 ×2,67=6,675 A

 MCB Selection
Cable
 CCC
 1.25 ×2,67=3,3375 A
 Derating Factor at 30°C
 3,3375/1= 3,3375 A
 Cable Selection
NYY with 4 cores and 1.5mm² cross section
 Motor 2

Loads 3phase induction motors with the specification of:

1. Motor 2 For Star - Delta Configuration

Y = 380v / 1,7A
∆ = 660v / 2,9 A
Pout= 1100 W/ 1,47 HP = 748,2
Pin = √3 x VL x IL x CosФ
= (1.73 x 380 x 1,7 x 0.78)/1100
= 0,79 kW

Thermal Overload Relay

P
I=
Vpf √ 3

1100
¿
380× 0.78 × √ 3
I =3,9 A

Tor standar = I+10%

 = 3,9 + 0,39
= 4,29 A
Tor selection

Contactor
 Selecting the contactors type
  100% x full load current
=100% x 3,9
= 3,9A
3. MCB
 Minimum Selection
1.25 ×3,9=4,8 A
 Maximum Selection

2.5 ×3,9=9,7 A

 MCB Selection

Cable
 CCC
 1.25 ×3,9=4,8 A
 Derating Factor at 30°C
 4,8/1= 4,8 A
 Cable Selection
NYY with 4 cores and 2,5mm² cross section
 Motor 3

Loads 3phase induction motors with the specification of:

2. Motor 2 For Star - Delta Configuration

Y = 380v / 1,7A
∆ = 660v / 2,9 A
Pout= 1000 W/ 1,47 HP = 680,2
Pin = √3 x VL x IL x CosФ
= (1.73 x 380 x 1,7 x 0.78)/1000
= 0,87 kW

Thermal Overload Relay

P
I=
Vpf √ 3

1 000
¿
380× 0.78 × √ 3
I =3 , 5 A

Tor standar = I+10%

= 3,5 + 0,35
= 3,85 A
Tor selection

Contactor
 Selecting the contactors type

 100% x full load current

=100% x 3,5
= 3,5A
4. MCB
 Minimum Selection
1.25 ×3 , 5=4 , 3 A
 Maximum Selection

2.5 ×3 , 5=8 ,7 A

 MCB Selection

Cable
 CCC
 1.25 ×3 , 5=4 , 3 A
 Derating Factor at 30°C
 4,3/1= 4,3 A
 Cable Selection
NYY with 4 cores and 2,5mm² cross section
Motor are using Direct Online and Star - Delta connection

DOL connection
 Control Diagram
  Power Diagram

For the refernce we use PUIL 2000 to determine and calculate the component for motor

Terminal Connection
