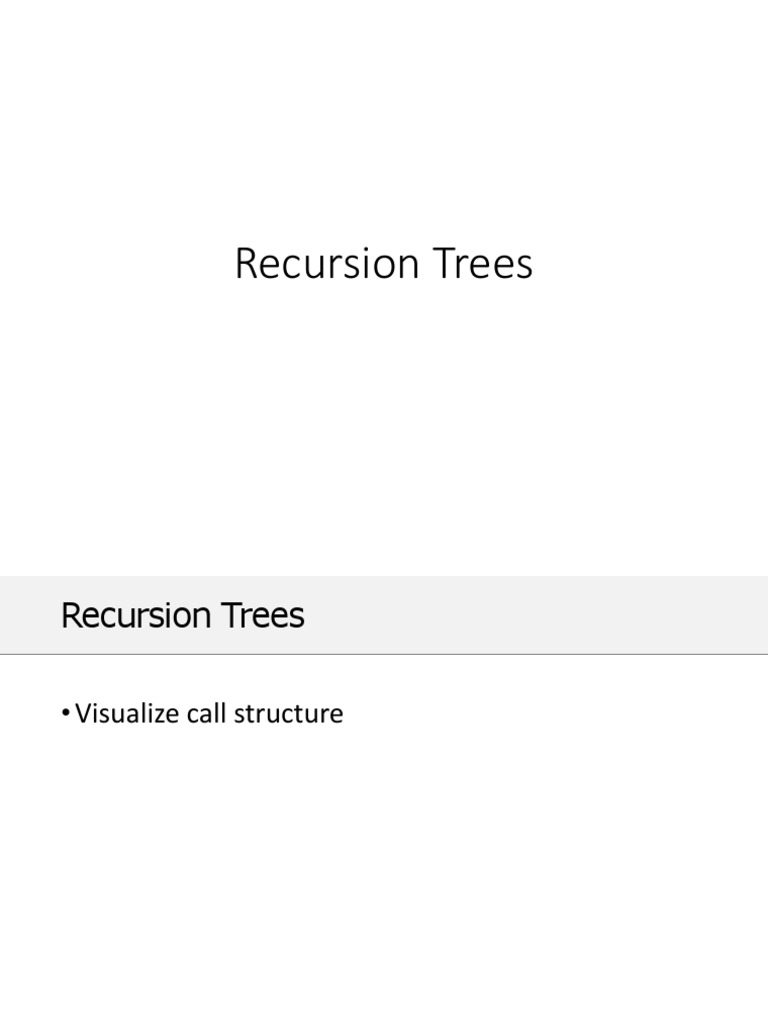

Recursion Trees

Recursion Trees

• Visualize call structure

2
Recursion Trees

• Visualize call structure

• Example: fnc(8) unsigned int fnc (unsigned int n) {

...
return fnc(n/2) + fnc(n/2);
}

3
Fibonacci Tree Problem
 Fibonacci - Recursion Tree
// POST: return value is the n-th
// Fibonacci number F(n)
ifmp::integer fib (const unsigned int n) {
if (n == 0) return 0;
if (n == 1) return 1;
return fib(n-1) + fib(n-2); // n > 1
}

fib(4):

5
 Fibonacci - Recursion Tree
// POST: return value is the n-th
// Fibonacci number F(n)
ifmp::integer fib (const unsigned int n) {
if (n == 0) return 0;
if (n == 1) return 1;
return fib(n-1) + fib(n-2); // n > 1
}

fib(4):

1 1 0

1 0

6
 Fibonacci - Recursion Tree

Fibonacci-number VS function calls

n=4:

fib(4):

1 1 0

1 0

7
 Fibonacci - Recursion Tree

Fibonacci-number VS function calls

n=4: 3

fib(4):

1 1 0

1 0

8
 Fibonacci - Recursion Tree

Fibonacci-number VS function calls

n=4: 3 9

fib(4):

1 1 0

1 0

9
 Fibonacci - Recursion Tree

Fibonacci-number VS function calls

n=4: 3 9

fib(4):
Many more
function calls!

1 1 0

1 0

10
 Fibonacci - Recursion Tree

Fibonacci-number VS function calls

Fibonacci growth:
n=4: 3 𝑛
9
fib(n) ~ 𝑐
(for 𝑛 large, c golden ratio)

n fib(n)
fib(4): 5
Many5more
10 55
function calls!
20 6’765

40 102’334’155

80 23’416’728’348’467’685

1 1 0

1 0

11
 Fibonacci - Recursion Tree

Fibonacci-number VS function calls

Fibonacci growth:
n=4: 3 𝑛
9
fib(n) ~ 𝑐
(for 𝑛 large, c golden ratio)

n fib(n)
fib(4): 5
Many5more
10 55
function calls!
20 6’765

40 102’334’155

80 23’416’728’348’467’685
Requires
unbelievably 1 1 0
many recursive
1 0
calls!
12
The Problem

• Problem: Same computation multiple times

13
The Problem

• Problem: Same computation multiple times

1 1 0

1 0

14
The Problem

• Problem: Same computation multiple times

• Gets worse as n increases :-(

1 1 0

1 0

15
The Problem

• Not all recursive functions are this inefficient.

16
The Problem

• Not all recursive functions are this inefficient.

• Example: unsigned int fnc (unsigned int n) {

...
return fnc(n/2) + fnc(n/2);
}

17
The Problem

• Not all recursive functions are this inefficient.

• Example: unsigned int fnc (unsigned int n) {

...
2n - 1 return fnc(n/2) + fnc(n/2);
}

recursive calls in total

18
The Problem

• Not all recursive functions are this inefficient.

Number of Recursive Calls
• Example: n
unsigned int fnc (unsigned int n) {
fib... fnc
2n - 1 5
return fnc(n/2) + fnc(n/2);
> 5 9
}

recursive calls in total 10 > 55 19

20 > 6’765 39

40 > 102’334’155 79

80 > 23’416’728’348’467’685 159

19
The Problem

• Not all recursive functions are this inefficient.

Number of Recursive Calls
• Example: n
unsigned int fnc (unsigned int n) {
fib... fnc
2n - 1 5
return fnc(n/2) + fnc(n/2);
> 5 9
}

recursive calls in total 10 > 55 19

20 > 6’765 39

40 > 102’334’155 79

80 > 23’416’728’348’467’685 159

Mindblowing
difference!

20
The Problem

• Reason: 𝑛/2 falls much faster than 𝑛 − 1 and 𝑛 − 2

• 𝑛/2  sub-tree of height: log 2 (𝑛)
• 𝑛 − 1, 𝑛 − 2  sub-tree of height: 𝑛 − 1, 𝑛 − 2
log 2 8 = 3

21
