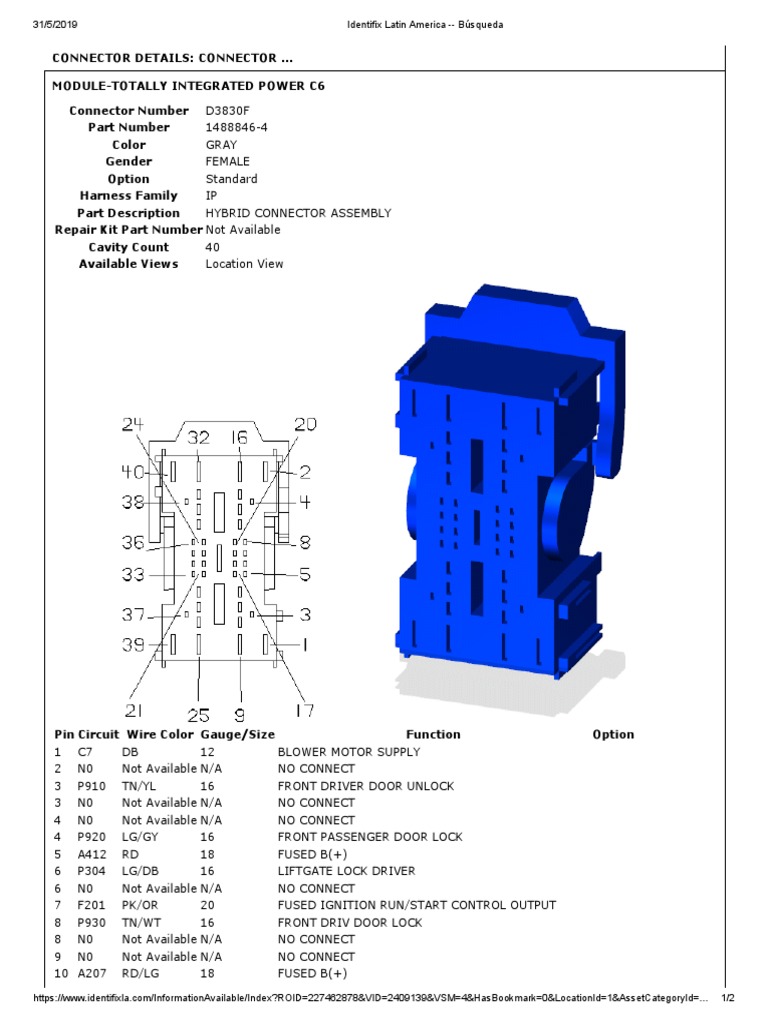

CONNECTOR DETAILS: CONNECTOR ...

MODULE-TOTALLY INTEGRATED POWER C6

Connector Number D3830F

Part Number 1488846-4
Color GRAY
Gender FEMALE
Option Standard
Harness Family IP
Part Description HYBRID CONNECTOR ASSEMBLY
Repair Kit Part Number Not Available
Cavity Count 40
Available Views Location View

Pin Circuit Wire Color Gauge/Size Function Option

1 C7 DB 12 BLOWER MOTOR SUPPLY
2 N0 Not Available N/A NO CONNECT
3 P910 TN/YL 16 FRONT DRIVER DOOR UNLOCK
3 N0 Not Available N/A NO CONNECT
4 N0 Not Available N/A NO CONNECT
4 P920 LG/GY 16 FRONT PASSENGER DOOR LOCK
5 A412 RD 18 FUSED B(+)
6 P304 LG/DB 16 LIFTGATE LOCK DRIVER
6 N0 Not Available N/A NO CONNECT
7 F201 PK/OR 20 FUSED IGNITION RUN/START CONTROL OUTPUT
8 P930 TN/WT 16 FRONT DRIV DOOR LOCK
8 N0 Not Available N/A NO CONNECT
9 N0 Not Available N/A NO CONNECT
10 A207 RD/LG 18 FUSED B(+)

https://www.identifixla.com/InformationAvailable/Index?ROID=227462878&VID=2409139&VSM=4&HasBookmark=0&LocationId=1&AssetCategoryId=… 1/2
31/5/2019 Identifix Latin America -- Búsqueda

Pin Circuit Wire Color Gauge/Size Function Option

11 N0 Not Available N/A NO CONNECT
12 N0 Not Available N/A NO CONNECT
12 F307 LB/PK 18 FUSED IGNITION RUN/ACCESSORY CONTROL OUTPUT
13 N0 Not Available N/A NO CONNECT
14 N0 Not Available N/A NO CONNECT
14 P693 LG/WT 14 HEATED SEAT MODULE SUPPLY
15 N0 Not Available N/A NO CONNECT
16 N0 Not Available N/A NO CONNECT
16 F30 PK/YL 12 IGNITION RUN/ACCESSORY CONTROL OUTPUT
17 N0 Not Available N/A NO CONNECT
18 N0 Not Available N/A NO CONNECT
18 P32 TN/VT 16 LEFT REAR DOOR LOCK DRIVER
19 F921 PK/YL 20 FUSED IGNITION RUN CONTROL OUTPUT
20 N0 Not Available N/A NO CONNECT
20 P38 TN/DB 16 RIGHT REAR DOOR LOCK DRIVER
21 A106 LB/RD 20 FUSED B(+)
22 N0 Not Available N/A NO CONNECT
23 N0 Not Available N/A NO CONNECT
24 N0 Not Available N/A NO CONNECT
25 N0 Not Available N/A NO CONNECT
26 F306 DB/PK 18 FUSED IGNITION RUN/ACCESSORY CONTROL OUTPUT
27 A904 RD 14 FUSED B(+)
27 N0 Not Available N/A NO CONNECT
28 N0 Not Available N/A NO CONNECT
29 A909 RD/BK 20 FUSED B(+)
30 N0 Not Available N/A NO CONNECT
30 A206 RD/VT 18 FUSED B(+)
31 A108 LG/RD 20 FUSED B(+)
32 N0 Not Available N/A NO CONNECT
33 A27 RD/LB 20 FUSED B(+)
34 N0 Not Available N/A NO CONNECT
35 N0 Not Available N/A NO CONNECT
36 N0 Not Available N/A NO CONNECT
37 N0 Not Available N/A NO CONNECT
38 F100 PK/VT 20 FUSED IGNITION RUN CONTROL OUTPUT
39 A215 RD/LG 14 FUSED B(+)
39 N0 Not Available N/A NO CONNECT
40 N0 Not Available N/A NO CONNECT
