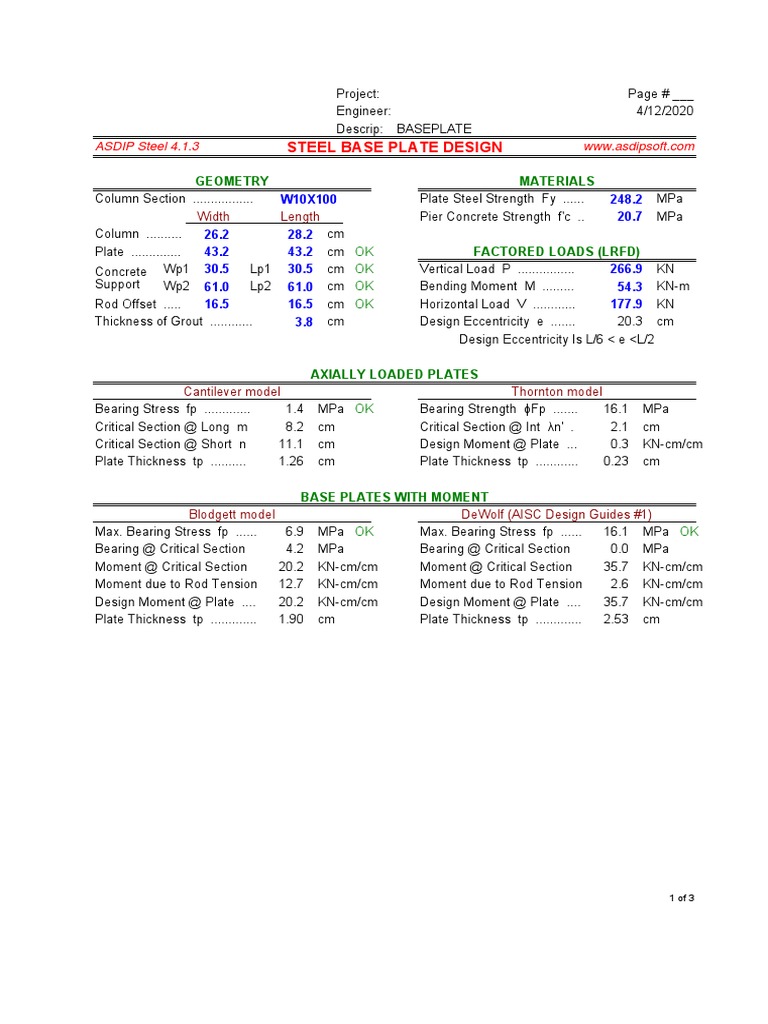

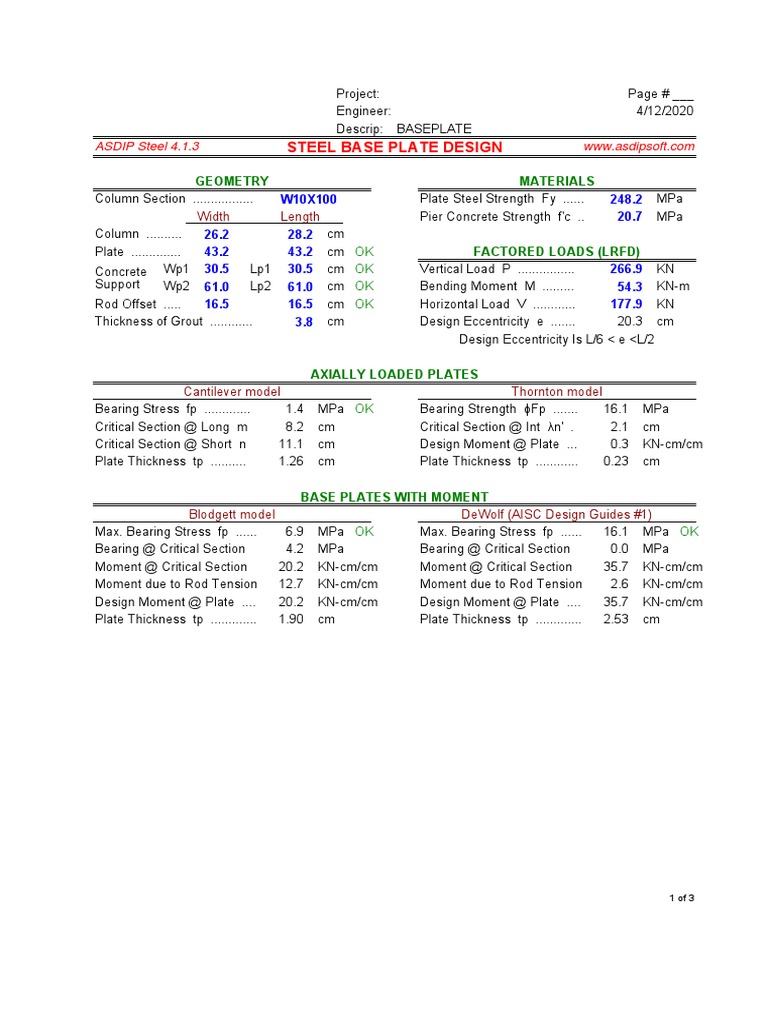

Project: Page # ___

Engineer: 4/12/2020
Descrip: BASEPLATE
ASDIP Steel 4.1.3 STEEL BASE PLATE DESIGN www.asdipsoft.com

GEOMETRY MATERIALS
Column Section ................. W10X100 Plate Steel Strength Fy ...... 248.2 MPa
Width Length Pier Concrete Strength f'c .. 20.7 MPa
Column .......... 26.2 28.2 cm
Plate .............. 43.2 43.2 cm OK FACTORED LOADS (LRFD)
Concrete Wp1 30.5 Lp1 30.5 cm OK Vertical Load P ................ 266.9 KN
Support Wp2 61.0 Lp2 61.0 cm OK Bending Moment M ......... 54.3 KN-m
Rod Offset ..... 16.5 16.5 cm OK Horizontal Load V ............ 177.9 KN
Thickness of Grout ............ 3.8 cm Design Eccentricity e ....... 20.3 cm
Design Eccentricity Is L/6 < e <L/2

AXIALLY LOADED PLATES

Cantilever model Thornton model
Bearing Stress fp ............. 1.4 MPa OK Bearing Strength ϕFp ....... 16.1 MPa
Critical Section @ Long m 8.2 cm Critical Section @ Int λn' . 2.1 cm
Critical Section @ Short n 11.1 cm Design Moment @ Plate ... 0.3 KN-cm/cm
Plate Thickness tp .......... 1.26 cm Plate Thickness tp ............ 0.23 cm

BASE PLATES WITH MOMENT

Blodgett model DeWolf (AISC Design Guides #1)
Max. Bearing Stress fp ...... 6.9 MPa OK Max. Bearing Stress fp ...... 16.1 MPa OK
Bearing @ Critical Section 4.2 MPa Bearing @ Critical Section 0.0 MPa
Moment @ Critical Section 20.2 KN-cm/cm Moment @ Critical Section 35.7 KN-cm/cm
Moment due to Rod Tension 12.7 KN-cm/cm Moment due to Rod Tension 2.6 KN-cm/cm
Design Moment @ Plate .... 20.2 KN-cm/cm Design Moment @ Plate .... 35.7 KN-cm/cm
Plate Thickness tp ............. 1.90 cm Plate Thickness tp ............. 2.53 cm

1 of 3
 Project: Page # ___
Engineer: 4/12/2020
Descrip: BASEPLATE
ASDIP Steel 4.1.3 STEEL BASE PLATE DESIGN www.asdipsoft.com

ANCHORAGE DESIGN SUMMARY OF RESULTS

Rod Material Specification ......... F1554-36 Design Moment @ Plate ... 20.2 KN-cm/cm
(4) Rods , fya = 248.2 MPa, futa = 399.9 MPa Plate Thickness tp ............ 1.90 cm
Anchor Rod Size .. 1" diam. x 30.5 cm emb. Max. Bearing Stress fp ..... 6.87 MPa
Concrete Is Cracked at Service Load Level Bearing Strength ϕFp ....... 16.15 MPa
fp / ϕFp Design Ratio ............... 0.43 OK
Tension Analysis (KN) DESIGN IS DUCTILE
Total Tension Force Nug ....... 50.7 KN
Tension Force per Rod Nui ... 25.3 KN
Anchor Reinf: Use 2 Bars #5 per Rod
Failure Mode ϕ Nn Nu / ϕNn
Steel Strength Nsa 0.75 156.3 0.22 ⬅
Rebars Strength Nrg 0.75 331.0 0.20
Conc. Breakout Ncbg 0.75 N.A. N.A.
Pullout Strength Npn 0.75 160.4 0.21
Side Blowout Nsbg 0.75 N.A. N.A.
Nu / ϕNn Tension Design Ratio .... 0.22 OK

Shear Analysis (KN)

Shear Taken by Anchor Rods only
Total Shear Force V ........... 177.9 KN
Shear Force per Rod Vi ...... 89.0 KN
Only Front Rods Are Effective
Anchor Reinf: Use Hairpins #4 per Rod
Failure Mode ϕ Vn Vu / ϕVn
Steel Strength Vsa 0.65 75.0 1.82 ⬅
Rebars Strength Vrg 0.75 213.5 1.11
Conc. Breakout Vcbg 0.75 N.A. N.A.
Conc. Pryout Vcpg 0.75 379.7 0.62
V / ϕVn Shear Design Ratio ...... 1.82 NG

Tension-Shear Interaction
Combined Stress Ratio ........... 1.86 NG

DESIGN CODES
Steel design ............. AISC 360-10 (14th Ed.)
Base plate design .... AISC Design Series # 1
Anchorage design ... ACI 318-14 Chapter 17

2 of 3
 Project: Page # ___
Engineer: 4/12/2020
Descrip: BASEPLATE
ASDIP Steel 4.1.3 STEEL BASE PLATE DESIGN www.asdipsoft.com

Tension Breakout Shear Breakout

3 of 3
