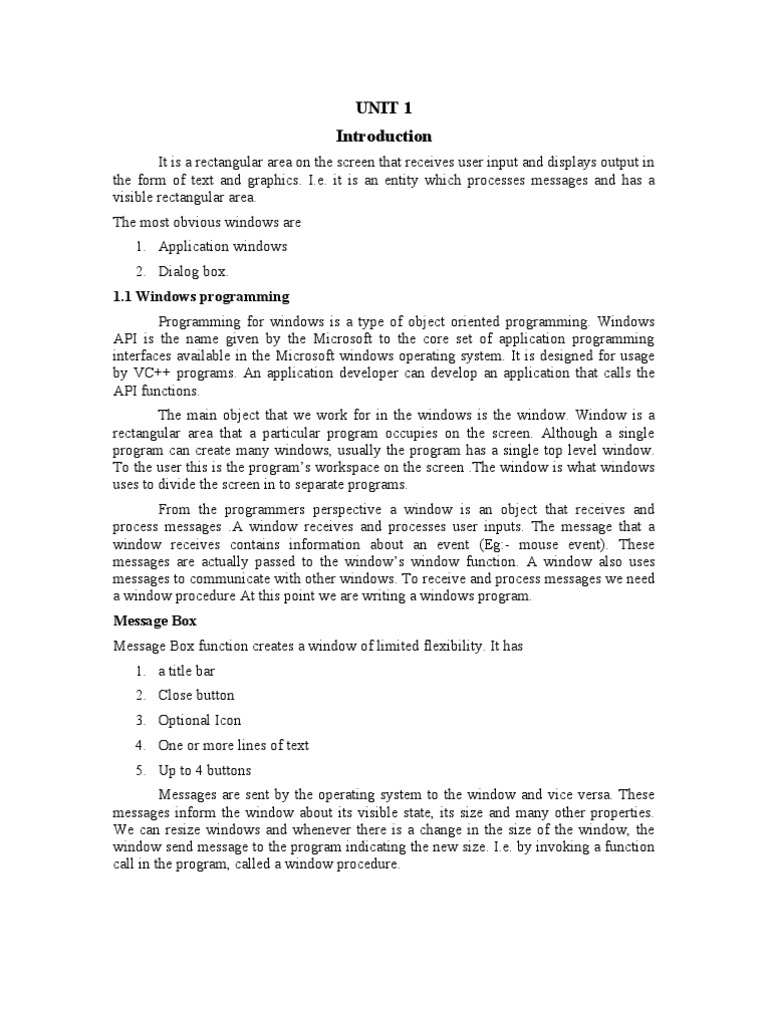

UNIT 1

Introduction
It is a rectangular area on the screen that receives user input and displays output in
the form of text and graphics. I.e. it is an entity which processes messages and has a
visible rectangular area.
The most obvious windows are
1. Application windows
2. Dialog box.
1.1 Windows programming
Programming for windows is a type of object oriented programming. Windows
API is the name given by the Microsoft to the core set of application programming
interfaces available in the Microsoft windows operating system. It is designed for usage
by VC++ programs. An application developer can develop an application that calls the
API functions.
The main object that we work for in the windows is the window. Window is a
rectangular area that a particular program occupies on the screen. Although a single
program can create many windows, usually the program has a single top level window.
To the user this is the program’s workspace on the screen .The window is what windows
uses to divide the screen in to separate programs.
From the programmers perspective a window is an object that receives and
process messages .A window receives and processes user inputs. The message that a
window receives contains information about an event (Eg:- mouse event). These
messages are actually passed to the window’s window function. A window also uses
messages to communicate with other windows. To receive and process messages we need
a window procedure At this point we are writing a windows program.
Message Box
Message Box function creates a window of limited flexibility. It has
1. a title bar
2. Close button
3. Optional Icon
4. One or more lines of text
5. Up to 4 buttons
Messages are sent by the operating system to the window and vice versa. These
messages inform the window about its visible state, its size and many other properties.
We can resize windows and whenever there is a change in the size of the window, the
window send message to the program indicating the new size. I.e. by invoking a function
call in the program, called a window procedure.
 Every window that a program creates has an associated window procedure. A
window procedure is a function that is in the program or in the dynamic linked library.
Windows sends a message to the window by calling the window procedure. It then does
some processing and returns control to windows.
The main object that we work for in the windows is the window. Window is a
rectangular area that a particular program occupies on the screen. Although a single
program can create many windows, usually the program has a single top level window.
To the user this is the program’s workspace on the screen .The window is what windows
uses to divide the screen in to separate programs.
1.2 Windows API
The functionality provided by the Windows API can be grouped into seven categories
1. Base Services
Provide access to the fundamental resources available to a Windows system like
file systems, devices, processes and threads, access to the Windows registry, and
error handling. These functions reside in kernel.exe, krnl286.exe or
krnl386.exe files on 16-bit Windows, and kernel32.dll and advapi32.dll on
32-bit Windows.
2. Graphics Device Interface
Provide the functionality for outputting graphical content to monitors, printers and
other output devices. It resides in gdi.exe on 16-bit Windows, and gdi32.dll on
32-bit Windows.
3. User Interface
Provides the functionality to create and manage screen windows and most basic
controls, such as buttons and scrollbars, receive mouse and keyboard input, and
other functionality associated with the GUI part of Windows. This functional unit
resides in user.exe on 16-bit Windows, and user32.dll on 32-bit Windows.
Since Windows XP versions, the basic controls reside in comctl32.dll, together
with the common controls (Common Control Library).
4. Common Dialog Box Library
Provides applications the standard dialog boxes for opening and saving files,
choosing color and font etc. The library resides in a file called commdlg.dll on
16-bit Windows, and comdlg32.dll on 32-bit Windows. It is grouped under the
User Interface category of the API.
5. Common Control Library
Gives applications access to some advanced controls provided by the operating
system. These include things like status bars, progress bars, toolbars and tabs. The
library resides in a DLL file called commctrl.dll on 16-bit Windows, and
comctl32.dll on 32-bit Windows. It is grouped under the User Interface
category of the API.
6. Windows Shell
 Component of the Windows API allows applications to access the functionality
provided by the operating system shell, as well as change and enhance it.
7. Network Services
Give access to the various networking capabilities of the operating system. Its
sub-components include NetBIOS, Winsock, NetDDE, RPC and many others.

1.2.1 Web related APIs

The Internet Explorer web browser also uses many APIs that are considered as part of
the Windows API. Internet Explorer has been an integrated component of the operating
system since Windows 98, and provides web related services to applications. The
integration will stop with Windows Vista. It provides:
• An embeddable web browser control, contained in shdocvw.dll and
mshtml.dll.

• The URL monitor service, held in urlmon.dll, which provides COM objects to
applications for resolving URLs. Applications can also provide their own URL
handlers for others to use.
• A library for assisting with multi-language and international text support
(mlang.dll).
• DirectX Transforms, a set of image filter components.
• XML support (the MSXML components).
• Access to the Windows Address Book.
1.2.2 Multimedia related APIs
Microsoft has provided the DirectX set of APIs as part of every Windows installation
since Windows 95 OSR2. DirectX provides a loosely related set of multimedia and
gaming services, including:
• Direct3D as an alternative to OpenGL for access to 3D acceleration hardware.
• DirectDraw for hardware accelerated access to the 2D framebuffer. As of DirectX
9, this component has been deprecated in favor of Direct3D, which provides more
general high-performance graphics functionality (as 2D rendering is a subset of
3D rendering).
• DirectSound for low level hardware accelerated sound card access.
• DirectInput for communication with input devices such as joysticks and game
pads.
 • DirectPlay as a multiplayer gaming infrastructure. This component has been
deprecated as of DirectX 9 and Microsoft no longer recommends its use for game
development.
• DirectShow which builds and runs generic multimedia pipelines. It is comparable
to the GStreamer framework and is often used to render in-game videos and build
media players (Windows Media Player is based upon it). DirectShow is no longer
recommended for game development.
• DirectMusic
1.2.3 APIs for interaction between programs
The Windows API is concerned with the interaction between the Operating
System and an application. For communication between the different Windows
applications among themselves, Microsoft has developed a series of technologies
alongside the main Windows API. This includes Dynamic Data Exchange (DDE), which
was superseded by Object Linking and Embedding (OLE) and later by the Component
Object Model (COM).

1.3 Distinction with ordinary programs

The main difference between Windows GUI programming and command line
programming is that Windows itself is in control, and not the programmer. There are
three major differences in DOS based and Windows based programming:
 DOS programs have to bother about the details of the hardware they are running
on. Windows programs are not required to bother about the hardware being used.
As a result, the programmer can know spend time in writing code for the
application rather than for the hardware on which the application is going on to
run. Also, the DOS programmers are under the constant fear that if the hardware
on which the programs are running changes the program may crash. The
Windows programmers are not bothered by the change in hardware because it is
the Windows OS itself which takes care of this change.
 A DOS based program does a job a step at a time calling the OS as and when
required. As against this, the Windows program waits till it receives a message
from the Windows OS about the occurrence of an event, like say, hitting a key
from a keyboard or clicking a mouse button.
 DOS never calls a program running under it. Contrary to this, Windows does call
a program running under it. This calling is done directly by calling the window
procedure which is part of every Windows program. Alternatively, Windows
places messages in a queue notifying the program about the occurrence of an
event. The messages from the queue are ultimately handled by the window
procedure.
1.4 Event driven programming
Event-driven programming or event-based programming is a computer
programming paradigm in which the flow of the program is determined by user actions
(mouse clicks, key presses) or messages from other programs. In contrast, in batch
programming or flow-driven programming the flow is determined by the programmer.
Batch programming is the style taught in beginning programming classes while event-
driven programming is what is needed in any interactive program. Event-driven programs
can be written in any language, although the task is easier in some languages than in
others. I.e. instead of waiting for a complete command to make it process information,
the system is preprogrammed with an event loop, to look repeatedly for information to
process (whether this might be the appearance of a file in a folder, a keyboard or mouse
operation, or a timer event) and then perform a trigger function to process it.
Programming an event-driven system is thus a matter of rewriting the default trigger
functions of the system, to match the required behavior.
Inputs can be polled in the event loop, or interrupt handlers can be registered to
react to hardware events; many systems use a combination of both techniques. The
preprogrammed algorithm ensures that triggers provided are executed when they are
needed, thus providing a software abstraction that emulates an interrupt driven
environment.
1.4.1 Event handlers
Event-driven programs typically consist of a number of small programs called
event handlers, which are to be called in response to external events, and a dispatcher,
which calls the event handlers, often using an event queue to hold unprocessed events. In
many cases event handlers can trigger events themselves, possibly leading to an event
cascade. Graphical user interface programs are typically programmed in an event-driven
style.
Computer operating systems are another classic example of event-driven
programs on at least two levels. At the lowest level, interrupt handlers act as direct event
handlers for hardware events, with the CPU hardware performing the role of the
dispatcher. Operating systems also typically act as dispatchers for software processes,
passing data and software interrupts to user processes that in many cases are programmed
as event handlers themselves.
A command line interface can be viewed as a special case of the event-driven
model in which the system, which is inactive, awaits one very complex event – the entry
of a command by the user.
1.5 WinMain Function
The WinMain function is the entry point of the application. When a user double
clicks, Windows carries out some initialization code then passes control to this function.
Its just like main() in C. In this function the application is set up and then enter a loop that
will continue until the application is closed. i.e. The WinMain function is the
conventional name for the user-provided entry point for a Microsoft Windows-based
application.
Syntax:-
int WINAPI WinMain(
HINSTANCE hInstance,
HINSTANCE hPrevInstance,
LPSTR lpCmdLine,
int nCmdShow );
1.5.1 Parameters of WinMain Function
 hInstance : Handle to the current instance of the application.
 hPrevInstance : Handle to the previous instance of the application. This
parameter is always NULL. If you need to detect whether another instance already
exists, create a uniquely named mutex using the CreateMutex function. CreateMutex
will succeed even if the mutex already exists, but the function will return
ERROR_ALREADY_EXISTS.
 lpCmdLine : Pointer to a null-terminated string specifying the
command line for the application, excluding the program name. To retrieve the entire
command line, use the GetCommandLine function.
 nCmdShow :Specifies how the window is to be shown. This parameter
can be one of the following values.
SW_HIDE - Hides the window and activates another window.
SW_MAXIMIZE - Maximizes the specified window.
SW_MINIMIZE - Minimizes the specified window and activates the next top-level
window in the Z order.
SW_RESTORE -Activates and displays the window. If the window is minimized or
maximized, the system restores it to its original size and position. An application should
specify this flag when restoring a minimized window.
SW_SHOW -Activates the window and displays it in its current size and position.
SW_SHOWMAXIMIZED - Activates the window and displays it as a maximized
window.
SW_SHOWMINIMIZED -Activates the window and displays it as a minimized window.
SW_SHOWMINNOACTIVE -Displays the window as a minimized window. This value
is similar to SW_SHOWMINIMIZED, except the window is not activated.
SW_SHOWNA -Displays the window in its current size and position. This value is
similar to SW_SHOW, except the window is not activated.
SW_SHOWNOACTIVATE -Displays a window in its most recent size and position. This
value is similar to SW_SHOWNORMAL, except the window is not made active.
SW_SHOWNORMAL -Activates and displays a window. If the window is minimized or
maximized, the system restores it to its original size and position. An application should
specify this flag when displaying the window for the first time.
Return Value
 If the function succeeds, then terminating is done when it receives a WM_QUIT
message. Then it should return the exit value contained in that message's wParam
parameter. If he function terminates before entering the message loop, it should return
zero.
Function Information
Table 1.1

Header Declared in Winbase.h, include Windows.h

Import library None

Minimum operating systems Windows 95, Windows NT 3.1

Working of a Windows Program

Fig 1.1 Working of a Windows Program

The different steps are
 1. Register the window classes to be used by the program
2. Create application windows
3. Get a message from the message queue
If WM_QUIT then terminate execution,
else check is handler available , if not available send message to Windows for default
processing else process message and go to step3.
1.5.2 Registering Window Classes
Every little graphical detail we see on the screen is known as a "window". Each
program with a box around it, each button, each text box are all called windows. In fact,
all of these various objects all get created in the same manner. This must mean that there
are a large number of options and customizations available in order to get things as
different as textboxes and scroll bars from the same method. Each window has an
associated "Window Class" that needs to be registered with the system, to specify the
different properties of the window. This is done by following 2 steps:
Fill in the fields of the WNDCLASS data object
Pass the WNDCLASS object to the RegisterClass function.
Also, there is an "extended" version of this procedure that can be followed with similar
results:
Fill in the fields of the WNDCLASSEX object
Pass the WNDCLASSEX object to the RegisterClassEx function.
Either of these methods can be used to register the class, but the -Ex version has a few
more options.
Filling in the w.WNDCLASSEX Structure and Registering the Window
the definition of w.WNDCLASSEX looks like :
type
WNDCLASSEX: record
cbSize : dword;
style : dword;
lpfnWndProc : WNDPROC;
cbClsExtra : dword;
cbWndExtra : dword;
hInstance : dword;
hIcon : dword;
hCursor : dword;
hbrBackground : dword;
lpszMenuName : string;
 lpszClassName : string;
hIconSm : dword;
align(4);
endrecord;
• cbSize is the size of the structure. The main program must initialize this with the size of a
w.WNDCLASSEX structure. Windows uses the value of this field as a "sanity check" on
the w.WNDCLASSEX structure
• The lpfnWndProc field of w.WNDCLASSEX holds the address of the window
procedure for the application's main window. Initializing this field is how you tell
Windows where it can find the window procedure that is going to process all the
messages that Windows passes to your application.
• The cbWndExtra field specifies the number of bytes of extra storage Windows will
allocate for each instance of the window that you create.
• The hInstance field is a handle that identifies the window instance for this application
• The hIcon field is a handle to a Windows icon resource. The icon associated with this
handle is what Windows will draw whenever you minimize the application on the screen.
Windows also uses this code for other purposes throughout the system (e.g., showing a
minimized icon on the task bar and in the upper left hand corner of the Window
• The hCursor field of the w.WNDCLASSEX record holds a handle to a
cursor resource that Windows will draw whenever the user moves the cursor over the top
of the window.
• The hbrBackground field specifies the "brush" that Windows will use to
paint the background of a window. A Windows' brush is simply a color and pattern to
draw. Generally, you'll specify one of the following color constants as this handle value
(though you could create a custom brush and use that; this book will discuss the creation
of brushes later on):
 w.COLOR_ACTIVEBORDER
 w.COLOR_ACTIVECAPTION
 w.COLOR_APPWORKSPACE
 w.COLOR_BACKGROUND
 w.COLOR_BTNFACE
 w.COLOR_BTNSHADOW
 w.COLOR_BTNTEXT
 w.COLOR_CAPTIONTEXT
 w.COLOR_GRAYTEXT
 w.COLOR_HIGHLIGHT
  w.COLOR_HIGHLIGHTTEXT
 w.COLOR_INACTIVEBORDER
 w.COLOR_INACTIVECAPTION
 w.COLOR_MENU
 w.COLOR_MENUTEXT
 w.COLOR_SCROLLBAR
 w.COLOR_WINDOW
 w.COLOR_WINDOWFRAME
 w.COLOR_WINDOWTEXT
• The lpszMenuName field contains the address of a string specifying the resource name
of the class' main menu, as the name appears in a resource file.
• The lpszClassName field is a string that specifies the class name for this window.
• The hIconSm is a handle to a small icon associated with the window class. This handle
was used in Windows 95, but was ignored by Win NT (and later versions of Windows).
1.6 Creating Windows
Every window is a member of a window class. A window class is a template for
creating a window. When you write an application, you must register all of the window
classes that are used to create windows. To simplify the process of creating windows,
Windows CE includes several system-defined window classes; because Windows CE
registers these classes automatically, you can create windows with them immediately.
Windows can be created with functions
 CreateWindow
 CreateWindowEx
The only difference between these functions is that CreateWindowEx supports
the extended style parameter, dwExStyle, but CreateWindow does not. These functions
take a number of parameters that specify the attributes of the window that is being
created. In Windows CE, CreateWindow is implemented as a macro that calls
CreateWindowEx.
In multithreaded applications, the main thread must create the main
application before creating threads for any child windows. Windows CE includes
additional functions for creating special-purpose windows such as dialog boxes and
message boxes, such as DialogBox, CreateDialog, and MessageBox.
The CreateWindowEx function uses the following syntax:
HWND
CreateWindowEx(
DWORD dwExStyle, //Extended style
 LPCWSTR lpClassName, //Class name
LPCWSTR lpWindowName, //Window name
DWORD dwStyle, //Style
int X, //Horizontal position
int Y, //Vertical position
int nWidth, //Width
int nHeight, //Height
HWND hwndParent, //Parent window
HMENU hMenu, //Menu
HINSTANCE hInstance, //Instance handle
LPVOID lpParam); //Creation data
The CreateWindow function does not include the dwExStyle parameter. The following
table shows the window attributes of CreateWindowEx.
Table 1.2

Window attribute Description

Extended style The dwExStyle parameter specifies one or more window

extended styles. These styles have their own set of
WS_EX_* flags, which should not be confused with the
WS_* flags.

Class name Every window belongs to a window class. Except for built-
in classes, such as controls, an application must register a
window class before creating any windows of that class.
The lpClassName parameter specifies the name of the class
that is used as a template for creating the window.

Window name The window name, also known as window text, is a text
string that is associated with a window. The
lpWindowName parameter specifies the window text for the
newly created window. Windows use this text in different
ways: A main window, dialog box, or message box typically
displays its window text in its title bar; a button control, edit
control, or static control displays its window text within the
rectangle that is occupied by the control; a list box, combo
box, or scroll bar control does not display its window name.
All windows have the text attribute, even if they do not
display the text.

Style The dwStyle parameter specifies one or more window styles.

 A window style is a named constant that defines an aspect
of the window's appearance and behavior. For example, a
window with the WS_BORDER style has a border around
it. Some window styles apply to all windows; others apply
only to windows of specific window classes. For a list of
message box styles that are supported by Windows CE, see
Window and Control Styles.

Horizontal and vertical The x and y parameters specify the horizontal and vertical
coordinates screen coordinates, respectively, of the upper-left corner of
the window.

Width and height coordinates The nWidth and nHeight parameters determine the width
and height, respectively, of the window, in device units.

Parent The hwndParent parameter specifies the parent window or

the owner of a window, depending on the style of the flags
that are passed in.
If neither the WS_POPUP style nor the WS_CHILD style is
specified, the hwndParent parameter might be either a valid
window handle or NULL. If the parameter is NULL, the
new window is a top-level window without a parent window
or owner window. If the parameter is non-NULL, the new
window is created as a child window of the specified parent
window.
If the WS_CHILD style is specified, the hwndParent
parameter must be a valid window handle. The new window
is created as a child window of the parent window.
If the WS_POPUP style is specified, the new window is
created as a top-level window, and the hwndParent
parameter specifies the owner window. If WS_POPUP is
specified and the parameter is NULL, the new window is
owned partially by Windows CE. The WS_POPUP style
overrides the WS_CHILD style.

Menu Windows CE does not support menu bars. In Windows CE,

you can use the hMenu parameter to identify a child
window. Otherwise, it must be NULL.

Instance handle The hInstance parameter identifies the handle of the specific
instance of the application that creates the window.

Creation data Every window receives a WM_CREATE message when it

is created. The lpParam parameter is passed onas one of the
 message parameters. Although it can be any value, it is most
commonly a pointer to a structure containing data that is
required to create a particular window.

The class name for a new window class has to be a Unicode string. We can use the
TEXT macro to cast a string as Unicode, as in TEXT("classname"). We can also use the
_T macro, as in __T("classname"). Another option is to declare the string as a Long
string (L"classname"), which will make the string Unicode only.
Displaying the window
The system does not display the main window automatically after the system creates the
window. Instead, the WinMain function of the application uses the ShowWindow
function to display the window. CreateWindow will return a HWND data object, that is a
reference to the newly created window. The program will pass this handle to the
ShowWindow function, to make the window appear on the screen.
An application uses the SetWindowText function to change the window text after it
creates the window; it uses the GetWindowTextLength and GetWindowText functions
to retrieve the window text from a window.
Syntax :- ShowWindow(hwnd , iCmdShow);
hwnd:- Handle to the window just created by Create Window
iCmdShow:- Value passed as parameter to WinMain. –This determines how the window
is to be initially displayed on thescreen.ie whether it is normal , minimized or maximized.
Windows Messages
The system passes input to a window procedure in the form of messages.
Messages are generated by both the system and applications. The system generates a
message at each input event — for example, when the user types, moves the mouse, or
clicks a control such as a scroll bar. The system also generates messages in response to
changes in the system brought about by an application, such as when an application
changes the pool of system font resources or resizes one of its windows. An
application can generate messages to direct its own windows to perform tasks or to
communicate with windows in other applications.
The system sends a message to a window procedure with a set of four
parameters: a window handle, a message identifier, and two values called message
parameters. The window handle identifies the window for which the message is
intended. The system uses it to determine which window procedure should receive the
message.
A message identifieris a named constant that identifies the purpose of a
message. When a window procedure receives a message, it uses a message identifier
to determine how to process the message. For example, the message identifier
WM_PAINT tells the window procedure that the window's client area has changed
and must be repainted.
 Message parameters specify data or the location of data used by a window
procedure when processing a message. The meaning and value of the message
parameters depend on the message. A message parameter can contain an integer,
packed bit flags, a pointer to a structure containing additional data, and so on. When a
message does not use message parameters, they are typically set to NULL. A window
procedure must check the message identifier to determine how to interpret the
message parameters.
Message Types
Two types of messages:
• System-Defined Messages
• Application-Defined Messages
System-Defined Messages
The system sends or posts a system-defined message when it communicates with
an application. It uses these messages to control the operations of applications and to
provide input and other information for applications to process.
Application-Defined Messages
An application can create messages to be used by its own windows or to communicate
with windows in other processes. If an application creates its own messages, the
window procedure that receives them must interpret the messages and provide
appropriate processing.
Message Routing
The system uses two methods to route messages to a window procedure: posting
messages to a first-in, first-out queue called a message queue, a system-defined
memory object that temporarily stores messages, and sending messages directly to a
window procedure.
Messages posted to a message queue are called queued messages. They are
primarily the result of user input entered through the mouse or keyboard, such as
WM_MOUSEMOVE, WM_LBUTTONDOWN, WM_KEYDOWN, and WM_CHAR
messages. Other queued messages include the timer, paint, and quit messages:
WM_TIMER, WM_PAINT, and WM_QUIT. Most other messages, which are sent
directly to a window procedure, are called nonqueued messages.
• Queued Messages
• Nonqueued Messages
Queued Messages
The system can display any number of windows at a time. To route mouse and
keyboard input to the appropriate window, the system uses message queues. The
system maintains a single system message queue and one thread-specific message
queue for each graphical user interface (GUI) thread. To avoid the overhead of
creating a message queue for non–GUI threads, all threads are created initially without
a message queue. The system creates a thread-specific message queue only when the
thread makes its first call to one of the User or Windows Graphics Device Interface
(GDI) functions.
Whenever the user moves the mouse, clicks the mouse buttons, or types on the
keyboard, the device driver for the mouse or keyboard converts the input into
messages and places them in the system message queue. The system removes the
messages, one at a time, from the system message queue, examines them to determine
the destination window, and then posts them to the message queue of the thread that
created the destination window. A thread's message queue receives all mouse and
keyboard messages for the windows created by the thread. The thread removes
messages from its queue and directs the system to send them to the appropriate
window procedure for processing.
With the exception of the WM_PAINT message, the WM_TIMER message,
and the WM_QUIT message, the system always posts messages at the end of a
message queue. This ensures that a window receives its input messages in the proper
first in, first out (FIFO) sequence. The WM_PAINT message, the WM_TIMER
message, and the WM_QUIT message, however, are kept in the queue and are
forwarded to the window procedure only when the queue contains no other messages.
In addition, multiple WM_PAINT messages for the same window are combined into
a single WM_PAINT message, consolidating all invalid parts of the client area into a
single area. Combining WM_PAINT messages reduces the number of times a
window must redraw the contents of its client area.
The system posts a message to a thread's message queue by filling an MSG
structure and then copying it to the message queue. Information in MSG includes: the
handle of the window for which the message is intended, the message identifier, the
two message parameters, the time the message was posted, and the mouse cursor
position. A thread can post a message to its own message queue or to the queue of
another thread by using the PostMessage or PostThreadMessage function.
An application can remove a message from its queue by using the GetMessage
function. To examine a message without removing it from its queue, an application
can use the PeekMessage function. This function fills MSG with information about
the message.
After removing a message from its queue, an application can use the
DispatchMessage function to direct the system to send the message to a window
procedure for processing. DispatchMessage takes a pointer to MSG that was filled by
a previous call to the GetMessage or PeekMessage function. DispatchMessage
passes the window handle, the message identifier, and the two message parameters to
the window procedure, but it does not pass the time the message was posted or mouse
cursor position. An application can retrieve this information by calling the
GetMessageTime and GetMessagePos functions while processing a message.
A thread can use the WaitMessage function to yield control to other threads
when it has no messages in its message queue. The function suspends the thread and
does not return until a new message is placed in the thread's message queue.
 We can call the SetMessageExtraInfo function to associate a value with the
current thread's message queue. Then call the GetMessageExtraInfo function to get the
value associated with the last message retrieved by the GetMessage or PeekMessage
function.
Non-queued Messages
Nonqueued messages are sent immediately to the destination window procedure,
bypassing the system message queue and thread message queue. The system typically
sends nonqueued messages to notify a window of events that affect it. For example,
when the user activates a new application window, the system sends the window a
series of messages, including WM_ACTIVATE, WM_SETFOCUS, and
WM_SETCURSOR. These messages notify the window that it has been activated, that
keyboard input is being directed to the window, and that the mouse cursor has been
moved within the borders of the window. Nonqueued messages can also result when
an application calls certain system functions. For example, the system sends the
WM_WINDOWPOSCHANGED message after an application uses the
SetWindowPos function to move a window.
Some functions that send nonqueued messages are BroadcastSystemMessage,
BroadcastSystemMessageEx, SendMessage, SendMessageTimeout, and
SendNotifyMessage.
1.7 Message Loop
Messages come in the form of an MSG data type. This data object is passed to the
GetMessage() function, which reads a message from the message queue, or waits for a
new message from the system. Next, the message is sent to the TranslateMessage()
function, which takes care of some simple tasks such as translating to Unicode or not.
Finally, the message is sent to the window for processing using the DispatchMessage()
function.
A simple message loop consists of one function call to each of these three
functions: GetMessage, TranslateMessage, and DispatchMessage. If there is an error,
GetMessage returns -1 -- thus the need for the special testing.
MSG msg;
BOOL bRet;
while( (bRet = GetMessage( &msg, NULL, 0, 0 )) != 0)
{
if (bRet == -1)
{ // handle the error and possibly exit }
else {
TranslateMessage(&msg);
DispatchMessage(&msg);
}}
 The GetMessage function retrieves a message from the queue and copies it to a
structure of type MSG. It returns a nonzero value, unless it encounters the
WM_QUIT message, in which case it returns FALSE and ends the loop. In a single-
threaded application, ending the message loop is often the first step in closing the
application. An application can end its own loop by using the PostQuitMessage
function, typically in response to the WM_DESTROY message in the window
procedure of the application's main window.
If you specify a window handle as the second parameter of GetMessage, only
messages for the specified window are retrieved from the queue. GetMessage can also
filter messages in the queue, retrieving only those messages that fall within a specified
range. For more information about filtering messages, see Message Filtering.
A thread's message loop must include TranslateMessage if the thread is to
receive character input from the keyboard. The system generates virtual-key messages
(WM_KEYDOWN and WM_KEYUP) each time the user presses a key. A virtual-
key message contains a virtual-key code that identifies which key was pressed, but not
its character value. To retrieve this value, the message loop must contain
TranslateMessage, which translates the virtual-key message into a character message
(WM_CHAR) and places it back into the application message queue. The character
message can then be removed upon a subsequent iteration of the message loop and
dispatched to a window procedure.
The DispatchMessage function sends a message to the window procedure
associated with the window handle specified in the MSG structure. If the window
handle is HWND_TOPMOST, DispatchMessage sends the message to the window
procedures of all top-level windows in the system. If the window handle is NULL,
DispatchMessage does nothing with the message.
An application's main thread starts its message loop after initializing the
application and creating at least one window. Once started, the message loop
continues to retrieve messages from the thread's message queue and to dispatch them
to the appropriate windows. The message loop ends when the GetMessage function
removes the WM_QUIT message from the message queue.
Only one message loop is needed for a message queue, even if an application
contains many windows. DispatchMessage always dispatches the message to the
proper window; this is because each message in the queue is an MSG structure that
contains the handle of the window to which the message belongs.
You can modify a message loop in a variety of ways. For example, you can
retrieve messages from the queue without dispatching them to a window. This is
useful for applications that post messages not specifying a window. You can also
direct GetMessage to search for specific messages, leaving other messages in the
queue. This is useful if you must temporarily bypass the usual FIFO order of the
message queue.
An application that uses accelerator keys must be able to translate keyboard
messages into command messages. To do this, the application's message loop must
include a call to the TranslateAccelerator function. For more information about
 accelerator keys, see Keyboard Accelerators. If a thread uses a modeless dialog box,
the message loop must include the IsDialogMessage function so that the dialog box
can receive keyboard input.

1.8 Window Procedures

Every window has an associated window procedure a function that processes all
messages sent or posted to all windows of the class. All aspects of a window's
appearance and behavior depend on the window procedure's response to these
messages. Each window is a member of a particular window class. The window class
determines the default window procedure that an individual window uses to process its
messages. All windows belonging to the same class use the same default window
procedure. For example, the system defines a window procedure for the combo box
class (COMBOBOX); all combo boxes then use that window procedure.
An application typically registers at least one new window class and its
associated window procedure. After registering a class, the application can create many
windows of that class, all of which use the same window procedure. Because this means
several sources could simultaneously call the same piece of code, you must be careful
when modifying shared resources from a window procedure. For more information, see
Window Classes.
Window procedures for dialog boxes (called dialog box procedures) have a similar
structure and function as regular window procedures. All points referring to window
procedures in this section also apply to dialog box procedures. This section discusses
the following topics.
• Structure of a Window Procedure
• Default Window Procedure
• Window Procedure Subclassing
• Window Procedure Superclassing
Structure of a Window Procedure
A window procedure is a function that has four parameters and returns a signed
value. The parameters consist of a window handle, a UINT message identifier, and
two message parameters declared with the WPARAM and LPARAM data types.
Message parameters often contain information in both their low-order and high-
order words. There are several macros an application can use to extract information
from the message parameters. The LOWORD macro, for example, extracts the low-
order word (bits 0 through 15) from a message parameter. Other macros include
HIWORD, LOBYTE, and HIBYTE.
The interpretation of the return value depends on the particular message.
Because it is possible to call a window procedure recursively, it is important to
minimize the number of local variables that it uses. When processing individual
messages, an application should call functions outside the window procedure to avoid
 excessive use of local variables, possibly causing the stack to overflow during deep
recursion.
Default Window Procedure
The default window procedure function, DefWindowProc defines certain
fundamental behavior shared by all windows. The default window procedure provides
the minimal functionality for a window. An application-defined window procedure
should pass any messages that it does not process to the DefWindowProc function for
default processing.
Window Procedure Subclassing
When an application creates a window, the system allocates a block of memory
for storing information specific to the window, including the address of the window
procedure that processes messages for the window. When the system needs to pass a
message to the window, it searches the window-specific information for the address of
the window procedure and passes the message to that procedure.
Subclassing is a technique that allows an application to intercept and process
messages sent or posted to a particular window before the window has a chance to
process them. By subclassing a window, an application can augment, modify, or
monitor the behavior of the window. An application can subclass a window belonging
to a system global class, such as an edit control or a list box. For example, an
application could subclass an edit control to prevent the control from accepting certain
characters. However, you cannot subclass a window or class that belongs to another
application. All subclassing must be performed within the same process.
An application subclasses a window by replacing the address of the window's
original window procedure with the address of a new window procedure, called the
subclass procedure. Thereafter, the subclass procedure receives any messages sent or
posted to the window.
The subclass procedure can take three actions upon receiving a message:
- it can pass the message to the original window procedure
- modify the message and pass it to the original window procedure
- Process the message and not pass it to the original window procedure.
If the subclass procedure processes a message, it can do so before, after, or both
before and after it passes the message to the original window procedure. The system
provides two types of subclassing: instance and global. In instance subclassing, an
application replaces the window procedure address of a single instance of a window. An
application must use instance subclassing to subclass an existing window. In global
subclassing, an application replaces the address of the window procedure in the
WNDCLASS structure of a window class. All subsequent windows created with the
class have the address of the subclass procedure, but existing windows of the class are
not affected.
Window Procedure Superclassing
Superclassing is a technique that allows an application to create a new window
class with the basic functionality of the existing class, plus enhancements provided by the
application. A superclass is based on an existing window class called the base class.
Frequently, the base class is a system global window class such as an edit control, but it
can be any window class.
A superclass has its own window procedure, called the superclass procedure. The
superclass procedure can take three actions upon receiving a message: It can pass the
message to the original window procedure, modify the message and pass it to the original
window procedure, or process the message and not pass it to the original window
procedure. If the superclass procedure processes a message, it can do so before, after, or
both before and after it passes the message to the original window procedure.
Unlike a subclass procedure, a superclass procedure can process window creation
messages (WM_NCCREATE, WM_CREATE, and so on), but it must also pass them to
the original base-class window procedure so that the base-class window procedure can
perform its initialization procedure.
To superclass a window class, an application first calls the GetClassInfo function to
retrieve information about the base class. GetClassInfo fills a WNDCLASS structure
with the values from the WNDCLASS structure of the base class. Next, the application
copies its own instance handle into the hInstance member of the WNDCLASS structure
and copies the name of the superclass into the lpszClassName member. If the base class
has a menu, the application must provide a new menu with the same menu identifiers and
copy the menu name into the lpszMenuName member. If the superclass procedure
processes the WM_COMMAND message and does not pass it to the window procedure
of the base class, the menu need not have corresponding identifiers. GetClassInfo does
not return the lpszMenuName, lpszClassName, or hInstance member of the
WNDCLASS structure.
1.9 Menus & Button
Push buttons
A push button is a rectangle enclosing text specified in the window text parameter
of the CreateWindow call. The push button controls are used mostly to trigger an
immediate action without retaining any type of on/off indication The two types of push
button controls have window styles called BS_PUSHBUTTON and
BS_DEFPUSHBUTTON .The DEF stands for default .Pressing the push button causes
the button to be repainted .Releasing the mouse button restores the original appearance
and sends a WM_COMMAND message to the parent window with the notification code
BN_CLICKED .
Checkbox
A check box is a square box with text to the right .The most common styles for a
checkbox are BS_CHECKBOX and BS_AUTOCHECKBOX..The state of a check box
can be set by a message BS_SETCHECK message. The state of the checkbox can be
retrieved by using the BS_GETCHECK message.
Radio Button
The radio button looks very much like a check box except that it contains a little
circle rather than a box .A dot within the circle indicates that the button is checked.The
radio button has the 3 window styles BS_RADIOBUTTON or
BS_AUTORADIOBUTTON
Group box
Groupboxes are used to enclose other button controls. The group box is a
rectangular outline with its window text at the top. It neither processes mouse or
keyboard input nor sends WM_COMMAND message to its parents.
Changing the button text
We can change the text in a button by calling SetWindowText
SetWindowText (hwnd, pszString);

Where hwnd is a handle to the window whose text is being changed and the pszString is a
pointer to a null terminated string .For a normal window this text is the text of the caption
bar. For a button control, it is the text displayed with the button.
The Button Colors
Each of the different Buttons requires multiple colors.
COLOR_BTNFACE is used for the main surface color of the push buttons and the back
ground color of others. COLOR_BTNSHADOW – for suggesting a shadow at the right
and bottom sides of the push buttons and the insides of the checkbox squares and radio
button circles. COLOR_BTNTEXT - For text color
MENUS
A menu is the most important part of the consistent user interface that windows
program offer. A menu is a list of application commands. Each command is replaced by a
string or bitmap called a menu item. When ever the user chooses a menu item, windows
sends the application a command message that indicates which menu item the user
choose. Menu items I pop ups can be enabled , disabled or grayed.
Menu has a hierarchical structure .A menu bar resides at the uppermost level of
hierarchy, immediately below the caption bar. The top level menu has a menu handle.
Each popup menu within a top level menu has its own handle. Selecting an item from the
menu bar activates the popup menu.
Eg:- Selecting a file item in the menu bar activates a popup menu with the items such as
the New, Open ,save and so on.
 Fig 1.3 Menu
Each item in a menu is defined by three characteristics which include,
- what appears in the menu (either a text string or a bitmap)
- an ID number that WINDOWS sends to the program
- the handle to the top up menu.
Each item of the menu list is primarily a word or a group of words on a line.
Different menu items are used for different reasons. For example, some menu items
simply display a word or a group of words. Some other items display a check mark. This
indicates that the item toggles the availability or disappearance of an object. When a
menu item is only meant to lead to a sub-menu, such a menu item is called a popup menu.
There are two types of popup menus. If the menu displays on top of a window, which is
the type of menu under the title bar, the word on top, which represents a category of
menu, is a popup menu. If a menu item is equipped with an arrow in its right , which
means the menu item has a submenu, such a menu item is also a popup menu. Popup
menus are used only to represent a submenu. No inherent action is produced by clicking
them, except that, when placed on top, such menu items allow opening the submenu.
Menus and messages
Windows sends several different messages to the window procedure when the user
selects a menu item.
Eg :
 WM_MENUSELECT – A menu tracking message .
A program can receive many WM_MENUSELECT messages as the user moves the cursor or
mouse among the menu items

 WM_COMMAND – Indicates that user has chosen an enabled menu item from
the window’s menu.
 WM_SYSCOMMAND - Indicates that user has chosen an enabled menu item
from the system menu.
 WM_MENUCHAR - this message is issued in 2 circumstances. Ie when user
presses
- ALT and a character that does not correspond to a menu item.
- A character key that does not correspond to an item in pop up.
Menu functions
1) Append Menu-Adds a new menu item to the end of a menu
2) CheckMenuItem-checks or unchecks the menu item
3) CreatePopupMenu-creates a popup menu
4) CreateMenu-creates a new empty menu
 5) DeleteMenu-removes an item from a menu
6) DestroyMenu-removes a menu from the memory
7) DrawMenuBar-forces a window’s menu bar to be repainted
8) EnableMenuItem-Changes a menu item to/from enabled
9) GetMenu-Retrieves a handle to the window’s menu
10) GetMenuItemCount- gets the no of menuitems in a menu.
11) GetMenuItemID- retrieves the ID value associated with the menuitem
12) GetMenuState-finds the no of items in a menu or the status of an item
13) GetMenuString-retrieves the label displayed in a menu item.
14) GetSubMenu-retrieves a handle toa popup menu
15) GetSystemMenu-retrieves a handle to the system menu
16) InsertMenu-Inserts a new menu item to an existing menu
17) ModifyMenu-changes the properties of a menu item
1.10 Drawing on Windows
The subsystem of Microsoft Windows responsible for displaying graphics on
video displays and printers is known as the Graphics Device Interface (GDI). GDI is an
extremely important part of Windows. Not only do the applications we write for
Windows use GDI for the display of visual information, but windows itself uses GDI for
the GDI consist of visual display of user interfaces. several hundred function calls and
some associated data types, macros and structures. Windows uses the device context to
store "attributes" that govern how the GDI functions operate on the display
1) SetPixel(hdc,x,y,crColor);
2) crColor=GetPixel(hdc,x,y);
3) LineTo(hdc,x,y);-Draws straight line
4) Polyline and PolylineTo –draws a series of connected straight lines
5) PolyPolyline –Draws multiple polylines.
6) Arc-Draws elliptical lines
7) PolyBezier and PolBezierTo –Draw Bezier splines
8) ArcTo and AngleArc –Draw elliptical lines
9) PolyDraw –Draws a series of connected straight lines and Bezier splines
10) Rectangle – Draws a rectangle
11) Ellipse – Draws an ellipse
12) RoundRect –Draws a rectangle with rounded corners.
13) Pie- Draws a part of an ellipse that looks like a pie slice
14) Chord –Draws part of an ellipse formed by a chord
To draw a straight line, you must call two functions. The first function specifies the point
at which the line begins, and the second function specifies the end point of the line:
MoveToEx (hdc, xBeg, yBeg, NULL)
LineTo (hdc, xEnd, yEnd) ;
MoveToEx doesn't actually draw anything instead, it sets the attribute of the device
context known as the "currentposition”. LineTo function then draws a straight line from
the current position to the point specified in the LineTo function.
Rectangle, Ellipse, RoundRect, Chord, and Pie functions are not strictly line-drawing
algorithms, but they draw lines and also fill the enclosed area with the current area-filling
brush
1. Rectangle (hdc, xLeft, yTop, xRight, yBottom) ;
2. Ellipse (hdc, xLeft, yTop, xRight, yBottom) ;
3. RoundRect (hdc, xLeft, yTop, xRight, yBottom, xCornerEllipse, yCornerEllipse);
4. Arc (hdc, xLeft, yTop, xRight, yBottom, xStart, yStart, xEnd, yEnd)
5. Chord (hdc, xLeft, yTop, xRight, yBottom, xStart, yStart, xEnd, yEnd)
6. Pie (hdc, xLeft, yTop, xRight, yBottom, xStart, yStart, xEnd, yEnd)
Pens and Brushes
GDI uses the concept of Pens and Brushes. A Pen defines the style and colour that pixels
will be drawn in while a brush determines the fill colour of shapes. A number of the GDI
drawing functions can be effected by the pen or brush chosen.

Pens
To create a pen we need to obtain a handle to one. This handle is named HPEN,
we can keep hold of this handle during the lifetime of our program but must remember to
delete it before exiting.
To create a pen we use the function:
HPEN CreatePen( int fnPenStyle, int nWidth, COLORREF crColor);
This function takes a style, a pen width and a colour. The style must be one of the
predefined styles. The main ones are shown below:
PS_SOLID - Pen is solid.
PS_DASH - Pen is dashed.
PS_DOT - Pen is dotted.
PS_DASHDOT - Pen has alternating dashes and dots.
PS_DASHDOTDOT - Pen has alternating dashes and double dots.
PS_NULL - Pen is invisible.
So to create a solid green pen of 1 pixel width we would write:
HPEN greenPen=CreatePen(PS_SOLID, 1, RGB(0,255,0));
It is a good idea to create our pens (and brushes) in advance of drawing and then
apply them as required. To apply a pen so future drawing commands use it we must
select it. This is known as selecting it into the device context and is achieved by using
SelectObject. One thing we must be aware of is that when we no longer want to use our
pen we need to re-select the old pen. Luckily SelectObject returns the old pen. So to use
our green pen to draw a line we may do this:
// Select our green pen into the device context and remember previous pen
HGDIOBJ oldPen=SelectObject(hdc,greenPen);
// Draw our line
Polyline(hdc, pntArray, 2);
// Select the old pen back into the device context
SelectObject(hdc,oldPen);
Brushes
Creating and using Brushes is very similar to pens. We can use CreateSolidBrush
to create a solid coloured brush or CreateBrushIndirect to create a brush with specific
styles (like hatched) or even using a loaded bitmap. You can use a bitmap as a repeating
pattern for your brush using CreatePatternBrush. Here I will describe CreateSolidBrush
for the others please look int he MSDN help file.
HBRUSH CreateSolidBrush( COLORREF crColor)
This is a very simple function that takes the required colour and returns a handle
to a brush. We can use it in much the same way as the pen. To create a blue brush we
would write:
HBRUSH blueBrush=CreateSolidBrush(RGB(0,255,0));
To use it to fill a rectangle:
RECT rct;
rct.left=10;
rct.right=100;
rct.top=10;
rct.bottom=200;
FillRect(hdc, &rct, blueBrush);
