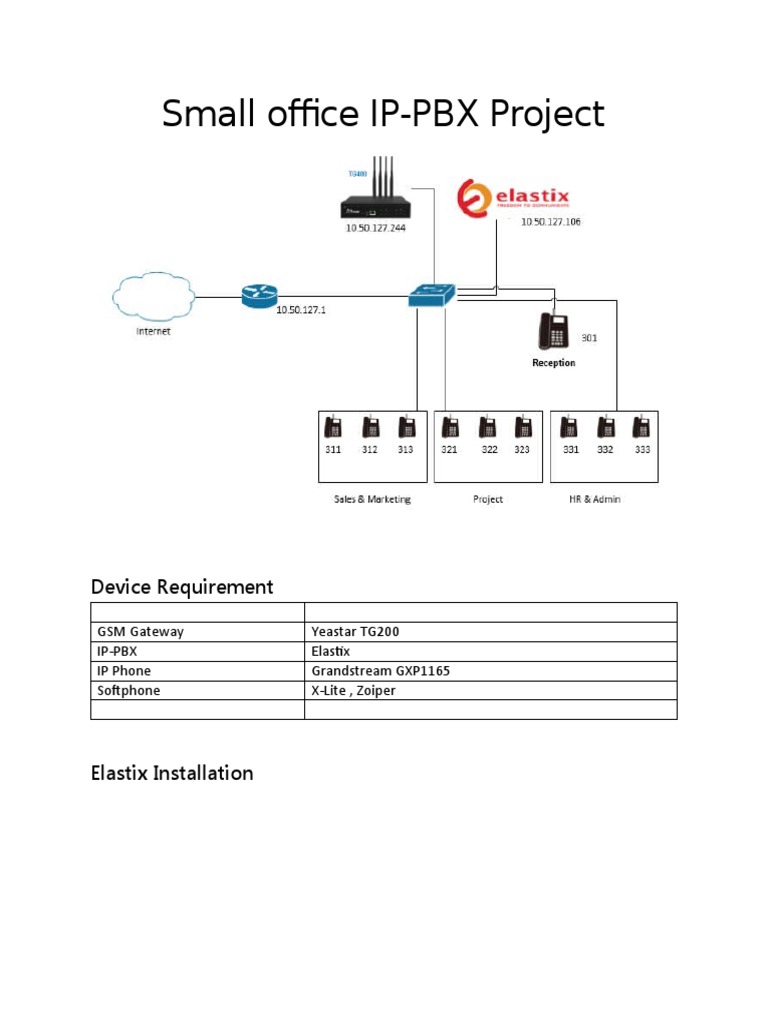

Small office IP-PBX Project

Device Requirement

GSM Gateway Yeastar TG200

IP-PBX Elastix
IP Phone Grandstream GXP1165
Softphone X-Lite , Zoiper

Elastix Installation
Create Extension

SIP Trunking Configuration (Elastix and Yeastar TG)

 SIP Trunk Configuration (GSM Gateway and Elastix)
 Route IP to Mobile (GSM Gateway)
 Outbound configuration (Elastix)
 Route Mobile to IP (GSM Gateway)
 Inbound Configuration (Elastix)

Description：
 IP address of Elastix: 10.50.127.106
  IP address of Yeastar TG200: 10.50.127.244

SIP Trunk Configuration

 PEER Details:
host=10.50.127.244
type=peer
qualify=yes
disallow=all
allow=ulaw,alaw,gsm

Create a VoIP Trunk on Yeastar TG

Path: Gateway--VoIP Settings--VoIP Trunk--Add VoIP Trunk
Choose “Service Provider” mode, and fill in Elastix IP address.
  Trunk Type: Service Provider
 Provider Name: Elastix
 Hostname/IP: 192.168.5.178

After saving and applying the changes, you will see the trunk is ‍“Registered” in ‍“Line Status”.

Path:‍Status--System Status--Trunk Status

IP to Mobile

In this section, we will configure outbound call from Elastix through Yeastar TG.

Create an Outbound Route on Elastix

Path: PBX--Outbound Routes--Add Route

Choose the VoIP trunk "NeoGate_TG" and set the rule for the outbound as the picture shows,
which allows users to dial any number.
Create ‍“IP to Mobile” Route

Mobile to IP
Inbound Route
  Description: From_NeogateTG
 DID Number: 15105989843. DID number should be same to the Hotline number which
you set in TG’s Mobile to IP route.
 Set Destination: IVR-Welcome. The call which DID is 15105989843 will reach the IVR-
Welcome.

IVR Configurations
