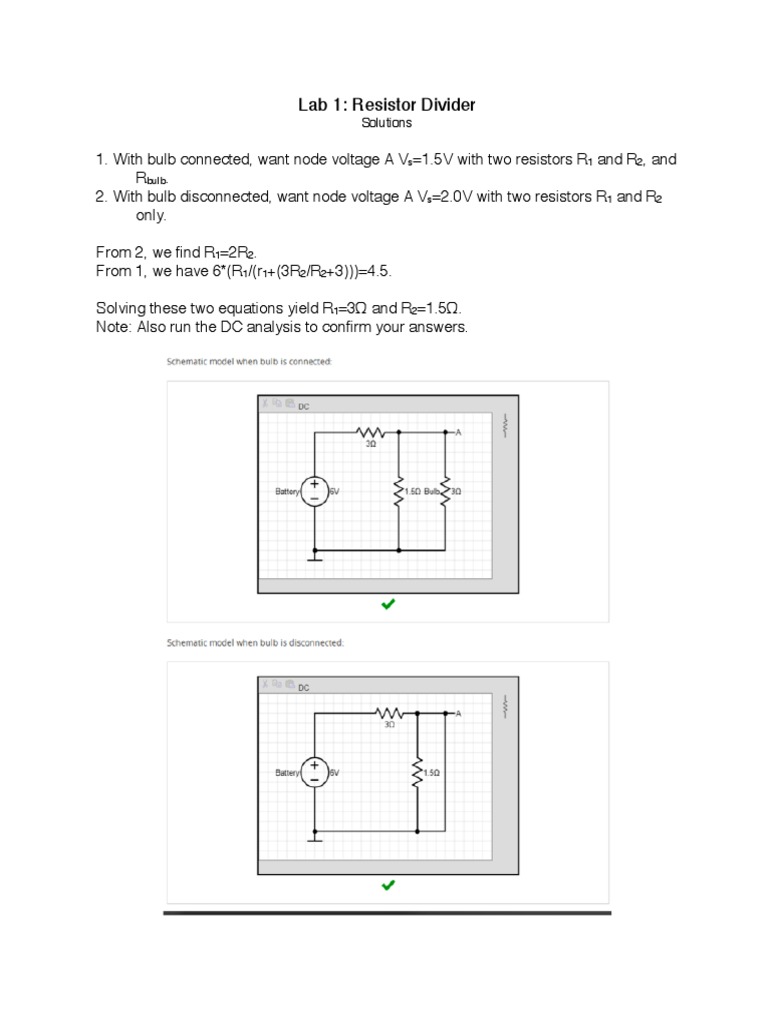

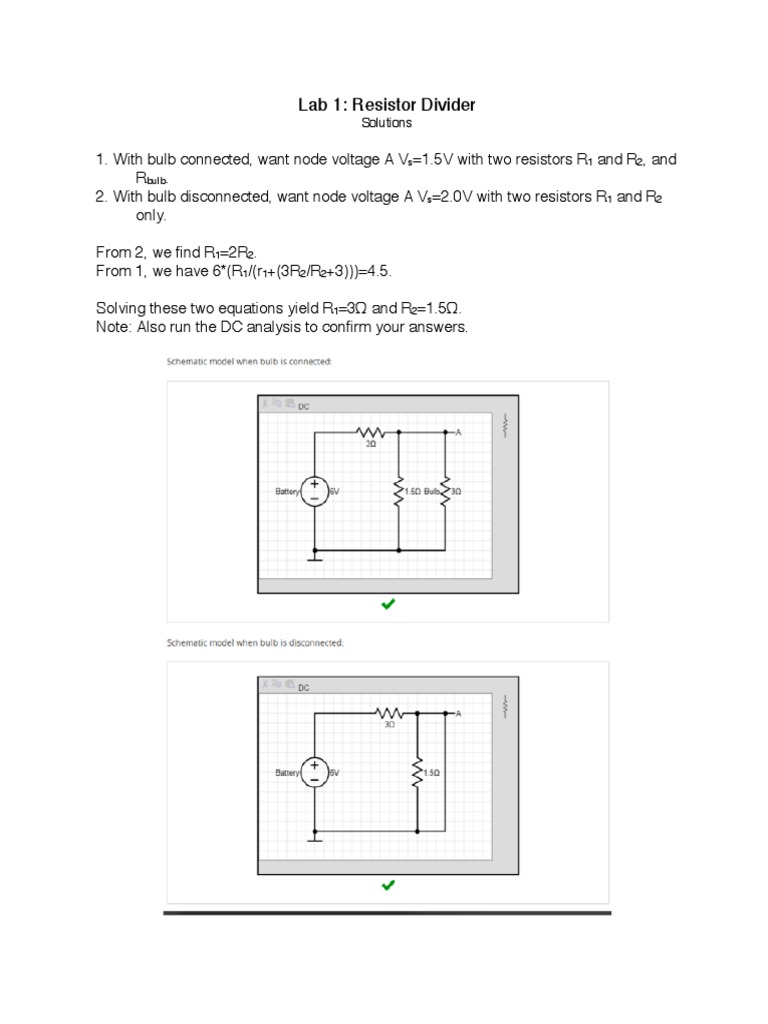

    Lab 1: Resistor Divider

    Solutions

    1. With bulb connected, want node voltage A Vs=1.5V with two resistors R1 and R2, and
    Rbulb.
    2. With bulb disconnected, want node voltage A Vs=2.0V with two resistors R1 and R2
    only.

    From 2, we find R1=2R2.


    From 1, we have 6*(R1/(r1+(3R2/R2+3)))=4.5.

    Solving these two equations yield R1=3Ω and R2=1.5Ω.


    Note: Also run the DC analysis to confirm your answers.
