Course Code MIT523

Description Advanced Computer Networks

College / Department:
LabExer No. 4
Online Education
LABORATORY EXERCISE Page 1 of 5

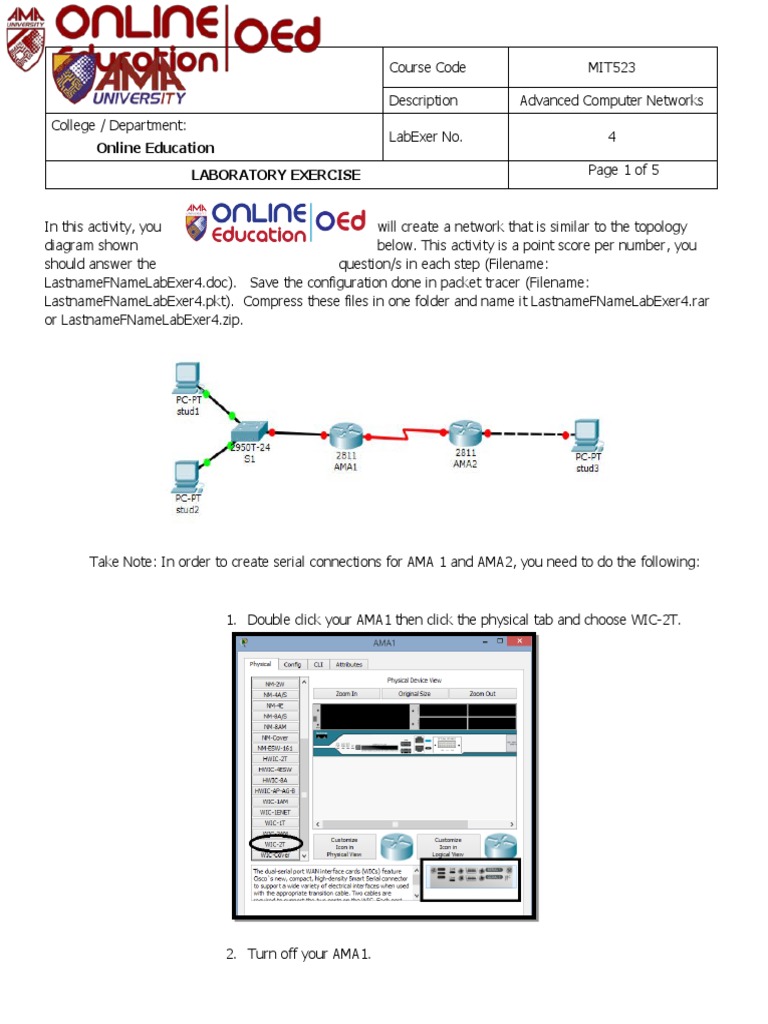

In this activity, you will create a network that is similar to the topology
diagram shown below. This activity is a point score per number, you
should answer the question/s in each step (Filename:
LastnameFNameLabExer4.doc). Save the configuration done in packet tracer (Filename:
LastnameFNameLabExer4.pkt). Compress these files in one folder and name it LastnameFNameLabExer4.rar
or LastnameFNameLabExer4.zip.

Take Note: In order to create serial connections for AMA 1 and AMA2, you need to do the following:

1. Double click your AMA1 then click the physical tab and choose WIC-2T.

2. Turn off your AMA1.

 3. Then drag the 1 WIT-2T below in the slot available for your router AMA1.

4. Then choose serial connection in the cable connection selections. Do it also in

the AMA2 the same process done in AMA 1 in putting serial connection. Make
sure that AMA1 should be assigned to have clockrate.

Use the following given IP addresses that are needed to put in the addressing table.
 a.) AMA 1 to AMA 2 – 187.10.0.0/23
For AMA1 use the first usable host address.
For AMA2 use the second usable host address.
b.) AMA1 to stud1 and stud 2 – 200.11.1.0/ 27
For AMA1 use the first usable host address.
For stud1 use the second usable host address.
For stud2 use the third usable host address.
For the default gateway for stud1 and stud2 assign the first usable host
address.
c.) AMA2 to stud3 – 202.90.2.0/29
For AMA2 use the first usable host address.
For stud2 use the second usable host address.
For the default gateway for stud3 assign the first usable host address.

Addressing Table

Device Interface IP Address Subnet Mask Def. Gateway

AMA1 Se0/3/0 187.10.0.1 255.255.254.0 N/A
Fa0/0 200.11.1.1 255.255.255.224 N/A
AMA2 Se0/3/0 187.10.0.2 255.255.254.0 N/A
Fa0/0 202.90.2.1 255.255.255.248 N/A
stud1 N/A 200.11.1.2 255.255.255.224 200.11.1.1
stud2 N/A 200.11.1.3 255.255.255.224 200.11.1.1
stud3 N/A 202.90.2.2 255.255.255.248 202.90.2.1
Task 1: Cable the Network.
Cable a network that is similar to the one in the Topology Diagram.
Answer the following questions:
What type of cable is used to connect the Ethernet interface on a host PC to the Ethernet interface on a
switch? _Straight Through Cable_
What type of cable is used to connect the Ethernet interface on a switch to the Ethernet interface on a
router? Straight Through Cable_
What type of cable is used to connect the Ethernet interface on a router to the Ethernet interface on a
host PC? _Cross Over Cable___

Task 2: Erase and Reload the Routers.

Step 1: Establish a terminal session to router AMA1.
Start your configuration to AMA1
Step 2: Enter privileged EXEC mode.
Router>enable
Router#
Step 3: Clear the configuration.
To clear the configuration, issue the erase startup-config command. Press Enter when prompted to
[confirm] that you really do want to erase the configuration currently stored in NVRAM.

Router#erase startup-config
SAMPLE OUTPUT Erasing the nvram filesystem will remove all files! Continue? [confirm]
[OK]
Erase of nvram: complete
Router#
Repeat Step 1 through 4 from Task 2 on router AMA2 to remove any startup configuration file
that may be present.

Task 3: Perform Basic Configuration of AMA1.

Step 1: Go to CLI tab for AMA1
Step 2: Enter privileged EXEC mode.
What is the command? Router>enable
Step 3: Enter global configuration mode.
What is the command? Router#Enable
Step 4: Configure the router name as AMA1.
What is the command? Router(config)#hostname AMA1
Step 4: Configure the EXEC mode password.

Configure the EXEC mode password using the enable secret password command. Use class for
the password.
What is the command?
Answer:

Step 5: Configure a message-of-the-day

banner.
Configure a message-of-the-day banner with
message of“!!!THIS IS FOR AMA STUDENT
AUTHORIZED ACCESS ONLY!!!”

What is the command?

Answer:

Step 6: Configure the console password on the router.

Use network as the password. When you are finished, exit from line configuration mode.

What is the command?

Answer:

Step 7: Configure the password for the virtual terminal lines.

Use architecture as the password. When you are finished, exit from line configuration mode.

What is the command?

Answer:

Repeat Step 1 through 7 from Task 3 on router AMA2. Configuration will be checked in the Packet Tracer.

Step 8: Configure the FastEthernet0/0 interface.

For AMA1. Configure the FastEthernet0/0 interface.

What is the command?

Answer:

Step 9: Configure the Serial0/3/0 interface.

For AMA1. Configure the Serial0/3/0 interface and set the clock rate to 64000.
What is the command?
Answer:

Step 10: Configure the FastEthernet0/0 interface.

For AMA2. Configure the FastEthernet0/0 interface.

What is the command?

Answer:

Step 11: Configure the Serial0/3/0 interface.

For AMA2. Configure the Serial0/0/0 interface.

What is the command?

Answer:

Step 11: Save the AMA1 configuration.

Save the AMA1 configuration using the copy running-config startup-config command.

What is the command?

Answer:
Step 12: Save the AMA2 configuration.

Save the AMA2 configuration using the copy running-config startup-config command.

What is the command?

Answer:

Task 13: Configure IP Addressing on the Host PCs.

Step 1: Configure the host stud1.

What is the command?

Answer:

Step 2: Configure the host stud2.

Answer:

What is the command? :

Step 3: Configure the host stud3.

What is the command?

Answer:
