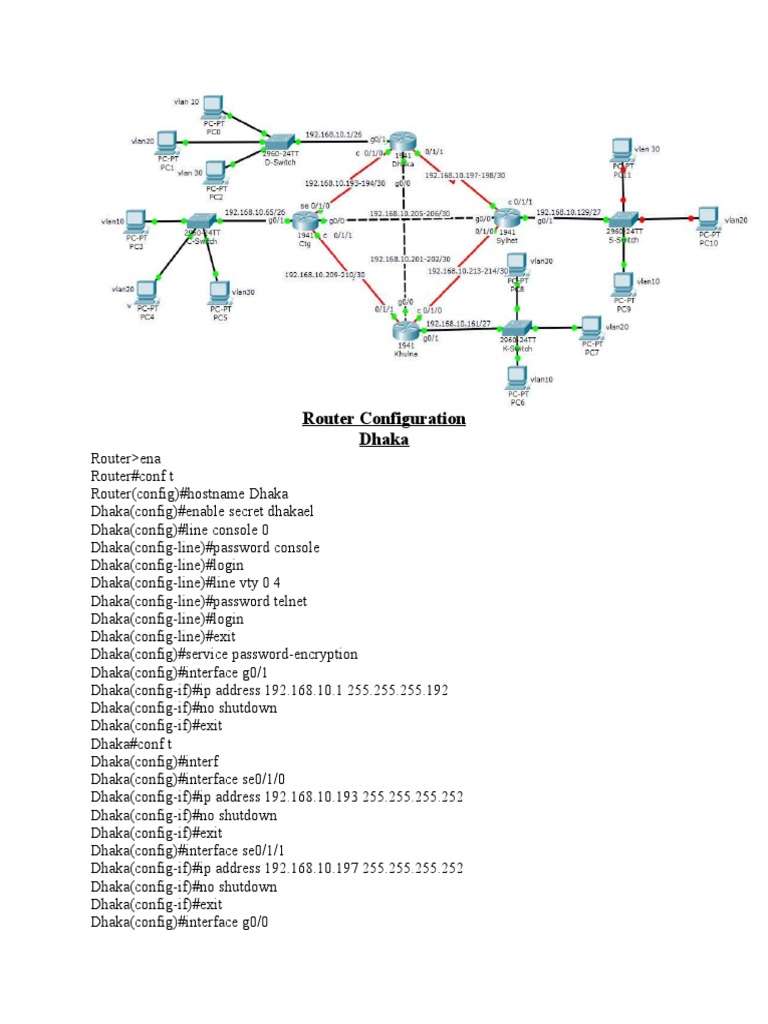

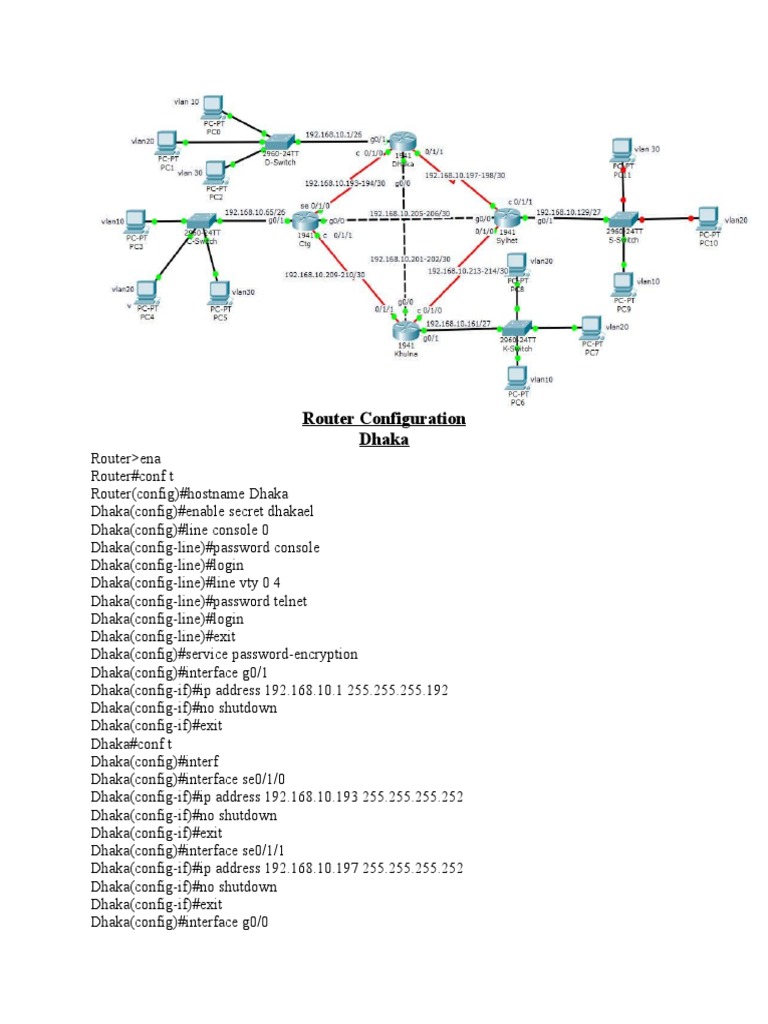

Router Configuration

Dhaka
Router>ena
Router#conf t
Router(config)#hostname Dhaka
Dhaka(config)#enable secret dhakael
Dhaka(config)#line console 0
Dhaka(config-line)#password console
Dhaka(config-line)#login
Dhaka(config-line)#line vty 0 4
Dhaka(config-line)#password telnet
Dhaka(config-line)#login
Dhaka(config-line)#exit
Dhaka(config)#service password-encryption
Dhaka(config)#interface g0/1
Dhaka(config-if)#ip address 192.168.10.1 255.255.255.192
Dhaka(config-if)#no shutdown
Dhaka(config-if)#exit
Dhaka#conf t
Dhaka(config)#interf
Dhaka(config)#interface se0/1/0
Dhaka(config-if)#ip address 192.168.10.193 255.255.255.252
Dhaka(config-if)#no shutdown
Dhaka(config-if)#exit
Dhaka(config)#interface se0/1/1
Dhaka(config-if)#ip address 192.168.10.197 255.255.255.252
Dhaka(config-if)#no shutdown
Dhaka(config-if)#exit
Dhaka(config)#interface g0/0
Dhaka(config-if)#ip address 192.168.10.201 255.255.255.252
Dhaka(config-if)#no shutdown
Dhaka(config-if)#exit
Dhaka(config)#exit
Dhaka#copy running-config startup-config
Dhaka#

Routing

Routing RIP

Router RIP : For routing configuration RIP every network that is connected to router are needed.
For above example the command are as follows :

Dhaka#conf t
Dhaka(config)#router rip
Dhaka(config-router)#version 2
Dhaka(config-router)#network 192.168.10.0
Dhaka(config-router)#network 192.168.10.192
Dhaka(config-router)#network 192.168.10.200
Dhaka(config-router)#network 192.168.10.196
Dhaka(config-router)#no auto-summary
Dhaka(config-router)#exit
Dhaka(config)#exit
Dhaka#

DHCP Server

Dhaka(config)#ip dhcp excluded-address 192.168.10.1

Dhaka(config)#ip dhcp excluded-address 192.168.10.65
Dhaka(config)#ip dhcp excluded-address 192.168.10.161
Dhaka(config)#ip dhcp excluded-address 192.168.10.129
Dhaka(config)#ip dhcp pool D-Lan
Dhaka(dhcp-config)#network 192.168.10.0 255.255.255.192
Dhaka(dhcp-config)#default-router 192.168.10.1
Dhaka(dhcp-config)#dns-server 8.8.8.8
Dhaka(dhcp-config)#exit
Dhaka(config)#ip dhcp pool Ctg-Lan
Dhaka(dhcp-config)#network 192.168.10.64 255.255.255.192
Dhaka(dhcp-config)#default-router 192.168.10.65
Dhaka(dhcp-config)#dns-server 8.8.8.8
Dhaka(dhcp-config)#exit
Dhaka(config)#ip dhcp pool K-Lan
Dhaka(dhcp-config)#network 192.168.10.160 255.255.255.224
Dhaka(dhcp-config)#default-router 192.168.10.161
Dhaka(dhcp-config)#dns-server 4.4.4.4
Dhaka(dhcp-config)#exit
Dhaka(config)#ip dhcp pool S-Lan
Dhaka(dhcp-config)#network 192.168.10.128 255.255.255.224
Dhaka(dhcp-config)#default-router 192.168.10.129
Dhaka(dhcp-config)#dns-server 4.4.4.4
Dhaka(dhcp-config)#exit
Dhaka(config)#exit
Dhaka#copy running-config startup-config

Chittagong
Router>ena
Router#conf t
Router(config)#hostname Ctg
Ctg(config)#line consol
Ctg(config)#enable secret chittagong
Ctg(config)#line console 0
Ctg(config-line)#password console
Ctg(config-line)#line vty 0 4
Ctg(config-line)#password telnet
Ctg(config-line)#login
Ctg(config-line)#exit
Ctg(config)#interface g0/1
Ctg(config-if)#ip address 192.168.10.65 255.255.255.192
Ctg(config-if)#no shutdown
Ctg(config-if)#exit
Ctg(config)#interface se0/1/0
Ctg(config-if)#ip address 192.168.10.194 255.255.255.252
Ctg(config-if)#no shutdown
Ctg(config-if)#exit
Ctg(config)#interface se0/1/1
Ctg(config-if)#ip address 192.168.10.209 255.255.255.252
Ctg(config-if)#no shutdown
Ctg(config-if)#exit
Ctg(config)#interface g0/0
Ctg(config-if)#ip address 192.168.10.205 255.255.255.252
Ctg(config-if)#no shutdown
Ctg(config-if)#exit
Ctg(config)#interface se0/1/1
Ctg(config-if)#clock rate 64000
Ctg(config-if)#exit
Ctg(config)#service password-encryption
Ctg(config)#exit
Ctg#copy running-config startup-config
Ctg#
Routing

Ctg#conf t
Ctg(config)#router rip
Ctg(config-router)#version 2
Ctg(config-router)#network 192.168.10.192
Ctg(config-router)#network 192.168.10.64
Ctg(config-router)#network 192.168.10.204
Ctg(config-router)#network 192.168.10.208
Ctg(config-router)#no auto-summary
Ctg(config-router)#exit
Ctg(config)#

DHCP Client

Ctg#conf t
Ctg(config)#interface g0/1
Ctg(config-if)#ip helper-address 192.168.10.193
Ctg(config-if)#ip helper-address 192.168.10.210
Ctg(config-if)#ip helper-address 192.168.10.206
Ctg(config-if)#ip helper-address 192.168.10.201
Ctg(config-if)#ip helper-address 192.168.10.213
Ctg(config-if)#ip helper-address 192.168.10.197
Ctg(config-if)#exit
Sylhet
Router>ena
Router#conf t
Router(config)#hostname Sylhet
Sylhet(config)#enable secret sylhet
Sylhet(config)#line console 0
Sylhet(config-line)#password console
Sylhet(config-line)#line vty 0 4
Sylhet(config-line)#password telnet
Sylhet(config-line)#login
Sylhet(config-line)#exit
Sylhet(config)#interface serial 0/1/1
Sylhet(config-if)#ip address 192.168.10.198 255.255.255.252
Sylhet(config-if)#no shutdown
Sylhet(config-if)#exit
Sylhet(config)#interface se0/1/0
Sylhet(config-if)#ip address 192.168.10.213 255.255.255.252
Sylhet(config-if)#no shutdown
Sylhet(config-if)#exit
Sylhet(config)#interface g0/0
Sylhet(config-if)#ip address 192.168.10.206 255.255.255.252
Sylhet(config-if)#no shutdown
Sylhet(config-if)#exit
Sylhet(config)#interface g0/1
Sylhet(config-if)#ip address 192.168.10.129 255.255.255.224
Sylhet(config-if)#no shutdown
Sylhet(config-if)#exit
Sylhet(config)#service password-encryption
Sylhet(config)#exit
Sylhet#copy running-config startup-config
Sylhet#

Routing

Sylhet#conf t
Sylhet(config)#router rip
Sylhet(config-router)#version 2
Sylhet(config-router)#network 192.168.10.196
Sylhet(config-router)#network 192.168.10.128
Sylhet(config-router)#network 192.168.10.212
Sylhet(config-router)#network 192.168.10.204
Sylhet(config-router)#no auto-summary
Sylhet(config-router)#exit

DHCP Client

Sylhet#conf t
Sylhet(config)#interface g0/1
Sylhet(config-if)#ip helper-address 192.168.10.197
Sylhet(config-if)#ip helper-address 192.168.10.205
Sylhet(config-if)#ip helper-address 192.168.10.193
Sylhet(config-if)#ip helper-address 192.168.10.214
Sylhet(config-if)#ip helper-address 192.168.10.209
Sylhet(config-if)#ip helper-address 192.168.10.201
Sylhet(config-if)#exit
Sylhet(config)#
Sylhet(config-if)#exit
Sylhet(config)#exit
Sylhet#copy running-config startup-config

Khulna
Router>ena
Router#conf t
Router(config)#hostname Khulna
Khulna(config)#enable secret khulna
Khulna(config)#line console 0
Khulna(config-line)#password console
Khulna(config-line)#line vty 0 4
Khulna(config-line)#password telnet
Khulna(config-line)#exit
Khulna(config)#service password-encryption
Khulna(config)#interface se0/1/1
Khulna(config-if)#ip address 192.168.10.210 255.255.255.252
Khulna(config-if)#no shutdown
Khulna(config-if)#exit
Khulna(config)#interface se0/1/0
Khulna(config-if)#ip address 192.168.10.214 255.255.255.252
Khulna(config-if)#no shutdown
Khulna(config-if)#exit
Khulna(config)#interface g0/0
Khulna(config-if)#ip address 192.168.10.202 255.255.255.252
Khulna(config-if)#no shutdown
Khulna(config-if)#exit
Khulna(config)#interface g0/1
Khulna(config-if)#ip address 192.168.10.161 255.255.255.224
Khulna(config-if)#no shutdown
Khulna(config-if)#exit
Khulna(config)#exit
Khulna#copy running-config startup-config
Khulna#

Routing

Khulna#conf t
Khulna(config)#router rip
Khulna(config-router)#version 2
Khulna(config-router)#network 192.168.10.208
Khulna(config-router)#network 192.168.10.200
Khulna(config-router)#network 192.168.10.212
Khulna(config-router)#network 192.168.10.160
Khulna(config-router)#no auto-summary
Khulna(config-router)#exit
Khulna(config)#exit

DHCP Client

Khulna#conf t
Khulna(config)#inter g0/1
Khulna(config-if)#ip helper-address 192.168.10.201
Khulna(config-if)#ip helper-address 192.168.10.197
Khulna(config-if)#ip helper-address 192.168.10.209
Khulna(config-if)#ip helper-address 192.168.10.193
Khulna(config-if)#ip helper-address 192.168.10.205
Khulna(config-if)#ip helper-address 192.168.10.213
Khulna(config-if)#exit

Switch Configuration

D-Switch
Switch>ena
Switch#conf t
Switch(config)#hostname D-Switch
D-Switch(config)#enable secret dhaka
D-Switch(config)#line console 0
D-Switch(config-line)#password console
D-Switch(config-line)#line vty 0 4
D-Switch(config-line)#password telnet
D-Switch(config-line)#exit
D-Switch(config)#service password-encryption
D-Switch(config)#interface vlan 1
D-Switch(config-if)#ip address 192.168.20.2 255.255.255.248
D-Switch(config-if)#no shutdown
D-Switch(config-if)#exit
D-Switch(config)#exit
D-Switch#copy running-config startup-config
D-Switch#

Ctg-Switch
Switch>ena
Switch#conf t
Switch(config)#hostname C-Switch
C-Switch(config)#enable secret chittagong
C-Switch(config)#line console 0
C-Switch(config-line)#password console
C-Switch(config-line)#line vty 0 4
C-Switch(config-line)#password telnet
C-Switch(config-line)#exit
C-Switch(config)#service password-encryption
C-Switch(config)#interface vlan 1
C-Switch(config-if)#ip address 192.168.20.3 255.255.255.248
C-Switch(config-if)#no shutdown
C-Switch(config-if)#exit
C-Switch(config)#exit
C-Switch#copy running-config startup-config

K-Switch
Switch>ena
Switch#conf t
Switch(config)#hostname K-Switch
K-Switch(config)#enable secret khulna
K-Switch(config)#line console 0
K-Switch(config-line)#password console
K-Switch(config-line)#line vty 0 4
K-Switch(config-line)#password telnet
K-Switch(config-line)#exit
K-Switch(config)#service password-encryption
K-Switch(config)#interface vlan 1
K-Switch(config-if)#ip address 192.168.20.4 255.255.255.248
K-Switch(config-if)#no shutdown
K-Switch(config-if)#exit
K-Switch(config)#exit
K-Switch#copy running-config startup-config

S-Switch
Switch>ena
Switch#conf t
Switch(config)#hostname S-Switch
S-Switch(config)#enable secret sylhet
S-Switch(config)#line console 0
S-Switch(config-line)#password console
S-Switch(config-line)#line vty 0 4
S-Switch(config-line)#password telnet
S-Switch(config-line)#login
S-Switch(config-line)#exit
S-Switch(config)#service password-encryption
S-Switch(config)#interface vlan 1
S-Switch(config-if)#ip address 192.168.20.5 255.255.255.248
S-Switch(config-if)#no shutdown
S-Switch(config-if)#exit
S-Switch(config)#exit
S-Switch#copy running-config startup-config
