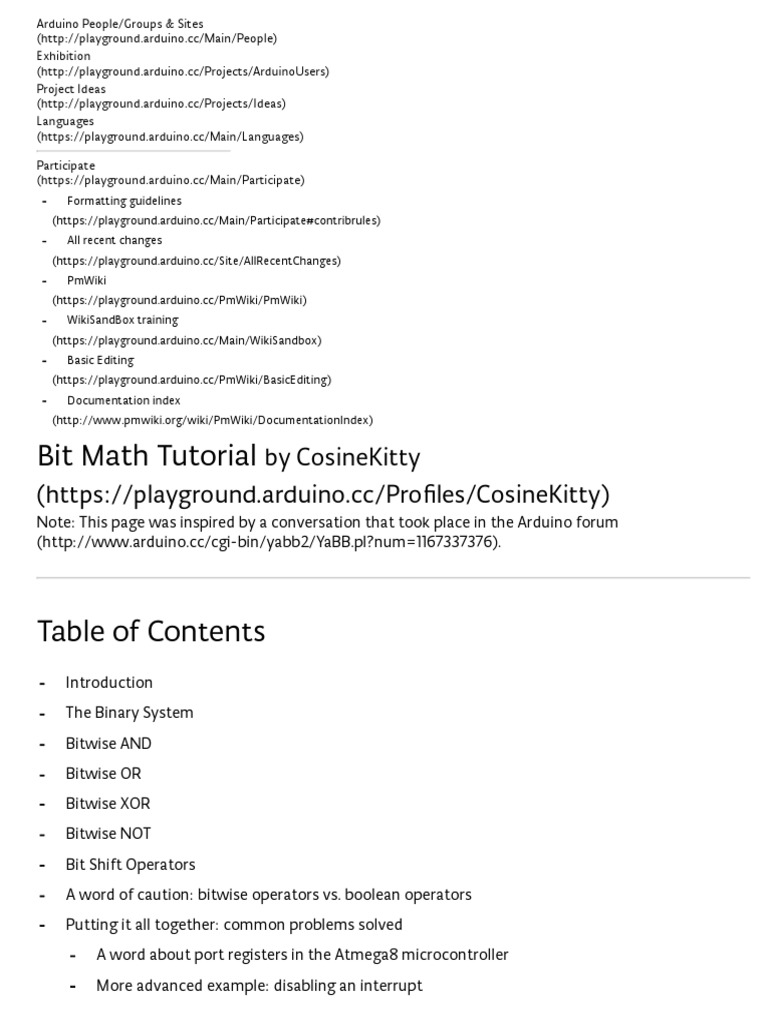

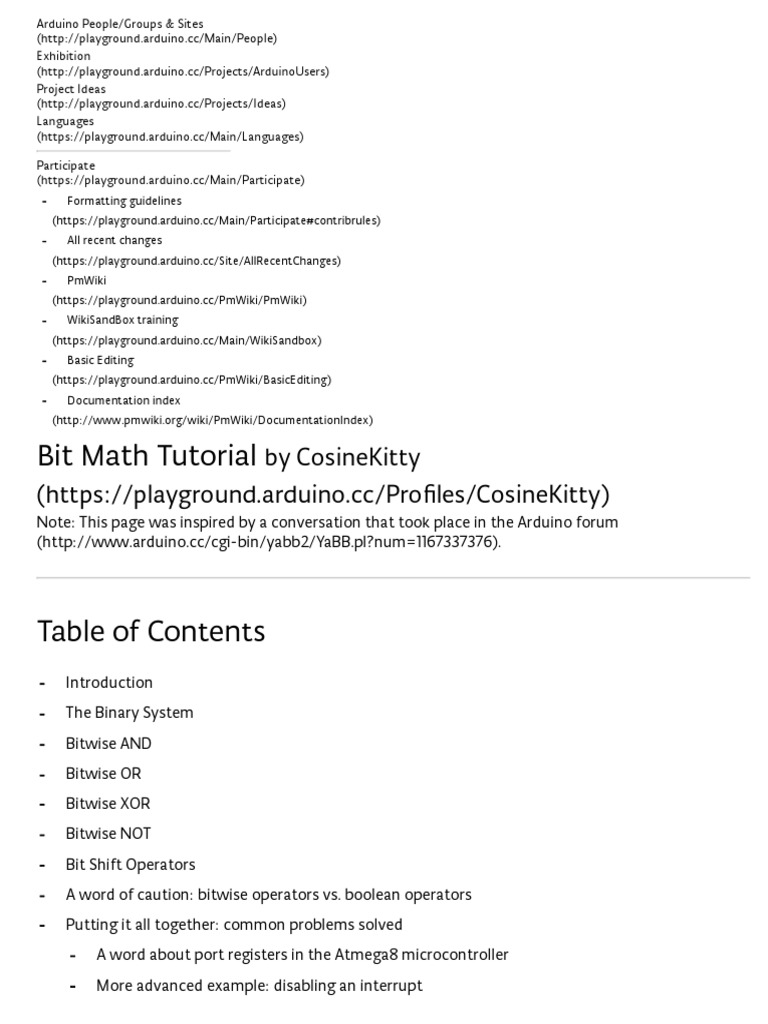

Bit Math Tutorial by CosineKitty

(https://playground.arduino.cc/Profiles/CosineKitty)
Note: This page was inspired by a conversation that took place in the Arduino forum
(http://www.arduino.cc/cgi-bin/yabb2/YaBB.pl?num=1167337376).

Table of Contents
- Introduction
- The Binary System
- Bitwise AND
- Bitwise OR
- Bitwise XOR
- Bitwise NOT
- Bit Shift Operators
- A word of caution: bitwise operators vs. boolean operators
- Putting it all together: common problems solved
- A word about port registers in the Atmega8 microcontroller
- More advanced example: disabling an interrupt
 - Saving memory by packing multiple data items in a single byte
- Quick Reference

Introduction
Often when programming in the Arduino environment (or on any computer, for that matter), the
ability to manipulate individual bits will become useful or even necessary. Here are some situations
where bit math can be helpful:

- Saving memory by packing up to 8 true/false data values in a single byte.

- Turning on/off individual bits in a control register or hardware port register.
- Performing certain arithmetic operations involving multiplying or dividing by powers of 2.
In this tutorial, we first explore the basic bitwise operators available in the C++ language. Then we learn
how to combine them to perform certain common useful operations.

The Binary System

To better explain the bitwise operators, this tutorial will express most integer values using binary
notation, also known as base two. In this system, all integer values use only the values 0 and 1 for each
digit. This is how virtually all modern computers store data internally. Each 0 or 1 digit is called a bit,
short for binary digit.

In the familiar decimal system (base ten), a number like 572 means 5*102 + 7*101 + 2*100. Likewise, in
binary a number like 11010 means 1*24 + 1*23 + 0*22 + 1*21 + 0*20 = 16 + 8 + 2 = 26.

It is crucial that you understand how the binary system works in order to follow the remainder of this
tutorial. If you need help in this area, one good place to start is the Wikipedia article on the binary
system (http://en.wikipedia.org/wiki/Binary_numeral_system).

Arduino allows you to specify binary numbers by prefixing them with 0b , e.g. 0b11 == 3 . For
legacy reasons, it also defines the constants B0 through B11111111 , which can be used in the
same way.

Bitwise AND
The bitwise AND operator in C++ is a single ampersand, & , used between two other integer
expressions. Bitwise AND operates on each bit position of the surrounding expressions independently,
according to this rule: if both input bits are 1, the resulting output is 1, otherwise the output is 0.
Another way of expressing this is:

0 & 0 == 0
0 & 1 == 0
1 & 0 == 0
1 & 1 == 1
In Arduino, the type int is a 16-bit value, so using & between two int expressions causes 16
simultaneous AND operations to occur. In a code fragment like:

int a = 92; // in binary: 0000000001011100

int b = 101; // in binary: 0000000001100101
int c = a & b; // result: 0000000001000100, or 68 in decimal.
Each of the 16 bits in a and b are processed by using the bitwise AND, and all 16 resulting bits are
stored in c , resulting in the value 01000100 in binary, which is 68 in decimal.

One of the most common uses of bitwise AND is to select a particular bit (or bits) from an integer
value, often called masking. For example, if you wanted to access the least significant bit in a variable
x , and store the bit in another variable y , you could use the following code:

int x = 5; // binary: 101

int y = x & 1; // now y == 1
x = 4; // binary: 100
y = x & 1; // now y == 0

Bitwise OR
The bitwise OR operator in C++ is the vertical bar symbol, | . Like the & operator, | operates
independently each bit in its two surrounding integer expressions, but what it does is different (of
course). The bitwise OR of two bits is 1 if either or both of the input bits is 1, otherwise it is 0. In other
words:

0 | 0 == 0
0 | 1 == 1
1 | 0 == 1
1 | 1 == 1
Here is an example of the bitwise OR used in a snippet of C++ code:

int a = 92; // in binary: 0000000001011100

int b = 101; // in binary: 0000000001100101
int c = a | b; // result: 0000000001111101, or 125 in decimal.
Bitwise OR is often used to make sure that a given bit is turned on (set to 1) in a given expression. For
example, to copy the bits from a into b , while making sure the lowest bit is set to 1, use the
following code:

b = a | 1;
 Bitwise XOR
There is a somewhat unusual operator in C++ called bitwise exclusive OR, also known as bitwise XOR.
(In English this is usually pronounced "eks-or".) The bitwise XOR operator is written using the caret
symbol ^ . This operator is similar to the bitwise OR operator | , except that it evaluates to 1 for a
given position when exactly one of the input bits for that position is 1. If both are 0 or both are 1, the
XOR operator evaluates to 0 :

0 ^ 0 == 0
0 ^ 1 == 1
1 ^ 0 == 1
1 ^ 1 == 0
Another way to look at bitwise XOR is that each bit in the result is a 1 if the input bits are different, or 0
if they are the same.

Here is a simple code example:

int x = 12; // binary: 1100

int y = 10; // binary: 1010
int z = x ^ y; // binary: 0110, or decimal 6
The ^ operator is often used to toggle (i.e. change from 0 to 1, or 1 to 0) some of the bits in an
integer expression while leaving others alone. For example:

y = x ^ 1; // toggle the lowest bit in x, and store the result in y.

3ACORE+PROFILE%3APUBLIC+PROFILE%3ACONTACT+OFFLINE&RESPONSE_TYPE=CODE)

Bitwise NOT
The bitwise NOT operator in C++ is the tilde character ~ . Unlike & and | , the bitwise NOT
operator is applied to a single operand to its right. Bitwise NOT changes each bit to its opposite: 0
becomes 1, and 1 becomes 0. For example:

int a = 103; // binary: 0000000001100111

int b = ~a; // binary: 1111111110011000 = -104
You might be surprised to see a negative number like -104 as the result of this operation. This is
because the highest bit in an int variable is the so-called sign bit. If the highest bit is 1, the number
is interpreted as negative. This encoding of positive and negative numbers is referred to as two's
complement. For more information, see the Wikipedia article on two's complement
(http://en.wikipedia.org/wiki/Two%27s_complement).

As an aside, it is interesting to note that for any integer x , ~x is the same as -x-1 .

At times, the sign bit in a signed integer expression can cause some unwanted surprises, as we shall see
later.
Bit Shift Operators
There are two bit shift operators in C++: the left shift operator << and the right shift operator >> .
These operators cause the bits in the left operand to be shifted left or right by the number of positions
specified by the right operand. For example:

int a = 5; // binary: 0000000000000101

int b = a << 3; // binary: 0000000000101000, or 40 in decimal
int c = b >> 3; // binary: 0000000000000101, or back to 5 like we started with
When you shift a value x by y bits ( x << y ), the leftmost y bits in x are lost, literally
shifted out of existence:

int a = 5; // binary: 0000000000000101

int b = a << 14; // binary: 0100000000000000 - the first 1 in 101 was discarded
If you are certain that none of the ones in a value are being shifted into oblivion, a simple way to think
of the left-shift operator is that it multiplies the left operand by 2 raised to the right operand power.
For example, to generate powers of 2, the following expressions can be employed:

1 << 0 == 1
1 << 1 == 2
1 << 2 == 4
1 << 3 == 8
...
1 << 8 == 256
1 << 9 == 512
1 << 10 == 1024
...
When you shift x right by y bits ( x >> y ), and the highest bit in x is a 1, the behavior
depends on the exact data type of x . If x is of type int , the highest bit is the sign bit,
determining whether x is negative or not, as we have discussed above. In that case, the sign bit is
copied into lower bits, for esoteric historical reasons:

int x = -16; // binary: 1111111111110000

int y = x >> 3; // binary: 1111111111111110
This behavior, called sign extension, is often not the behavior you want. Instead, you may wish zeros to
be shifted in from the left. It turns out that the right shift rules are different for unsigned int
expressions, so you can use a typecast to suppress ones being copied from the left:

int x = -16; // binary: 1111111111110000

int y = unsigned(x) >> 3; // binary: 0001111111111110
If you are careful to avoid sign extension, you can use the right-shift operator >> as a way to divide
by powers of 2. For example:

int x = 1000;
int y = x >> 3; // integer division of 1000 by 8, causing y = 125.

Assignment Operators
Often in programming, you want to operate on the value of a variable x and store the modified
value back into x . In most programming languages, for example, you can increase the value of a
variable x by 7 using the following code:

x = x + 7; // increase x by 7
Because this kind of thing occurs so frequently in programming, C++ provides a shorthand notation in
the form of specialized assignment operators. The above code fragment can be written more concisely
as:

x += 7; // increase x by 7
It turns out that bitwise AND, bitwise OR, left shift, and right shift, all have shorthand assignment
operators. Here is an example:

int x = 1; // binary: 0000000000000001

x <<= 3; // binary: 0000000000001000
x |= 3; // binary: 0000000000001011 - because 3 is 11 in binary
x &= 1; // binary: 0000000000000001
x ^= 4; // binary: 0000000000000101 - toggle using binary mask 100
x ^= 4; // binary: 0000000000000001 - toggle with mask 100 again
There is no shorthand assignment operator for the bitwise NOT operator ~ ; if you want to toggle all
the bits in x , you need to do this:

x = ~x; // toggle all bits in x and store back in x

A word of caution: bitwise operators vs. boolean

operators
It is very easy to confuse the bitwise operators in C++ with the boolean operators. For instance, the
bitwise AND operator & is not the same as the boolean AND operator && , for two reasons:

- They don't calculate numbers the same way. Bitwise & operates independently on each bit in its
operands, whereas && converts both of its operands to a boolean value ( true ==1 or
false ==0), then returns either a single true or false value. For example, 4 & 2 == 0 ,
because 4 is 100 in binary and 2 is 010 in binary, and none of the bits are 1 in both integers.
However, 4 && 2 == true , and true numerically is equal to 1 . This is because 4 is not 0,
and 2 is not 0, so both are considered as boolean true values.
- Bitwise operators always evaluate both of their operands, whereas boolean operators use so-
called short-cut evaluation. This matters only if the operands have side-effects, such as causing
output to occur or modifying the value of something else in memory. Here is an example of how
two similar looking lines of code can have very different behavior:
 int fred (int x)
{
Serial.print ("fred ");
Serial.println (x, DEC);
return x;
}
void setup()
{
Serial.begin (9600);
}
void loop()
{
delay(1000); // wait 1 second, so output is not flooded with serial data!
int x = fred(0) & fred(1);
}
If you compile and upload this program, and then monitor the serial output from the Arduino GUI, you
will see the following lines of text repeated every second:

fred 0
fred 1
This is because both fred(0) and fred(1) are called, resulting in the generated output, the
return values 0 and 1 are bitwise-ANDed together, storing 0 in x . If you edit the line

int x = fred(0) & fred(1);

and replace the bitwise & with its boolean counterpart && ,

int x = fred(0) && fred(1);

and compile, upload, and run the program again, you may be surprised to see only a single line of text
repeated every second in the serial monitor window:

fred 0
Why does this happen? This is because boolean && is using a short-cut: if its left operand is zero
(a.k.a. false ), it is already certain that the result of the expression will be false , so there is no
need to evaluate the right operand. In other words, the line of code int x = fred(0) &&
fred(1); is identical in meaning to:

int x;
if (fred(0) == 0) {
x = false; // stores 0 in x
} else {
if (fred(1) == 0) {
x = false; // stores 0 in x
} else {
x = true; // stores 1 in x
}
}
Clearly, the boolean && is a lot more concise way to express this surprisingly complex piece of logic.

As with bitwise AND and boolean AND, there are differences between bitwise OR and boolean OR. The
bitwise OR operator | always evaluates both of its operands, whereas the boolean OR operator
|| evaluates its right operand only if its left operand is false (zero). Also, bitwise | operates
independently on all of the bits in its operands, whereas boolean || treats both of its operands as
either true (nonzero) or false (zero), and evaluates to either true (if either operand is nonzero) or false
(if both operands are zero).
Putting it all together: common problems solved
Now we start exploring how we can combine the various bitwise operators to perform useful tasks
using C++ syntax in the Arduino environment.

A word about port registers in the Atmega8 microcontroller

Usually when you want to read or write to digital pins in the Atmega8, you use the built-in functions
digitalRead() or digitalWrite() supplied by the Arduino environment. Suppose that in your setup()
function, you wanted to define the digital pins 2 through 13 as output, and then you wanted pins 11, 12,
and 13 to be set HIGH, and all the other pins set LOW. Here is how one would typically accomplish this:

void setup()
{
int pin;
for (pin=2; pin <= 13; ++pin) {
pinMode (pin, OUTPUT);
}
for (pin=2; pin <= 10; ++pin) {
digitalWrite (pin, LOW);
}
for (pin=11; pin <= 13; ++pin) {
digitalWrite (pin, HIGH);
}
}
It turns out there is a way to accomplish the same thing using direct access to Atmega8 hardware
ports and bitwise operators:

void setup()
{
// set pins 1 (serial transmit) and 2..7 as output,
// but leave pin 0 (serial receive) as input
// (otherwise serial port will stop working!) ...
DDRD = B11111110; // digital pins 7,6,5,4,3,2,1,0
// set pins 8..13 as output...
DDRB = B00111111; // digital pins -,-,13,12,11,10,9,8
// Turn off digital output pins 2..7 ...
PORTD &= B00000011; // turns off 2..7, but leaves pins 0 and 1 alone
// Write simultaneously to pins 8..13...
PORTB = B00111000; // turns on 13,12,11; turns off 10,9,8
}
This code takes advantage of the fact that the control registers DDRD and DDRB each contain 8
bits that determine whether a given digital pin is output (1) or input (0). The upper 2 bits in DDRB are
not used, because there is no such thing is digital pin 14 or 15 on the Atmega8. Likewise, the port
registers PORTB and PORTD contain one bit for the most recently written value to each digital pin,
HIGH (1) or LOW (0).

Generally speaking, doing this sort of thing is not a good idea. Why not? Here are a few reasons:

- The code is much more difficult for you to debug and maintain, and is a lot harder for other people
to understand. It only takes a few microseconds for the processor to execute code, but it might
 take hours for you to figure out why it isn't working right and fix it! Your time is valuable, right?
But the computer's time is very cheap, measured in the cost of the electricity you feed it. Usually it
is much better to write code the most obvious way.
- The code is less portable. If you use digitalRead() and digitalWrite(), it is much easier to write code
that will run on all of the Atmel microcontrollers, whereas the control and port registers can be
different on each kind of microcontroller.
- It is a lot easier to cause unintentional malfunctions with direct port access. Notice how the line
DDRD = B11111110; above mentions that it must leave pin 0 as an input pin. Pin 0 is the
receive line on the serial port. It would be very easy to accidentally cause your serial port to stop
working by changing pin 0 into an output pin! Now that would be very confusing when you
suddenly are unable to receive serial data, wouldn't it?
So you might be saying to yourself, great, why would I ever want to use this stuff then? Here are some
of the positive aspects of direct port access:

- If you are running low on program memory, you can use these tricks to make your code smaller. It
requires a lot fewer bytes of compiled code to simultaneously write a bunch of hardware pins
simultaneously via the port registers than it would using a for loop to set each pin separately.
In some cases, this might make the difference between your program fitting in flash memory or
not!
- Sometimes you might need to set multiple output pins at exactly the same time. Calling
digitalWrite(10,HIGH); followed by digitalWrite(11,HIGH); will cause pin 10 to go
HIGH several microseconds before pin 11, which may confuse certain time-sensitive external digital
circuits you have hooked up. Alternatively, you could set both pins high at exactly the same
moment in time using PORTB |= B1100;
- You may need to be able to turn pins on and off very quickly, meaning within fractions of a
microsecond. If you look at the source code in lib/targets/arduino/wiring.c , you will see
that digitalRead() and digitalWrite() are each about a dozen or so lines of code, which get
compiled into quite a few machine instructions. Each machine instruction requires one clock cycle
at 16MHz, which can add up in time-sensitive applications. Direct port access can do the same job
in a lot fewer clock cycles.

More advanced example: disabling an interrupt

Now let's take what we have learned and start to make sense of some of the weird things you will
sometimes see advanced programmers do in their code. For example, what does it mean when
someone does the following?

// Disable the interrupt.

GICR &= ~(1 << INT0);
This is an actual code sample from the Arduino 0007 runtime library, in the file
lib\targets\arduino\winterrupts.c . First of all, we need to know what GICR and INT0 mean. It
turns out that GICR is a control register that defines whether certain CPU interrupts are enabled (1) or
disabled (0). If we search through the Arduino standard header files for INT0, we find various
definitions. Depending on what kind of microcontroller you are writing for, you have either

#define INT0 6
or

#define INT0 0
So on some processors, the above line of code will compile to:

GICR &= ~(1 << 0);

and on others, it will compile to:

GICR &= ~(1 << 6);

Let us study the latter case, as it is more illustrative. First of all, the value (1 << 6) means that we
shift 1 left by 6 bits, which is the same as 26, or 64. More useful in this context is to see this value in
binary: 01000000. Then, the bitwise NOT operator ~ is applied to this value, resulting in all the bits
being toggled: 10111111. Then the bitwise AND assignment operator is used, so the code above has the
same effect as:

GICR = GICR & B10111111;

This has the effect of leaving all the bits alone in GICR, except for the second-to-highest bit, which is
turned off.

In the case where INT0 has been defined to 0 for your particular microcontroller, the line of code
would instead be interpreted as:

GICR = GICR & B11111110;

which turns off the lowest bit in the GICR register, but leaves the other bits as they were. This is an
example of how the Arduino environment can support a wide variety of microcontrollers with a single
line of runtime library source code.

Saving memory by packing multiple data items in a single byte

There are many situations where you have a lot of data values, each of which can be either true or
false. An example of this is if you are building your own LED grid and you want to display symbols on
the grid by turning individual LEDs on or off. An example of a 5x7 bitmap for the letter X might look like
this:
A simple way to store such an image is using an array of integers. The code for this approach might
look like this:

const prog_uint8_t BitMap[5][7] = { // store in program memory to save RAM

{1,1,0,0,0,1,1},
{0,0,1,0,1,0,0},
{0,0,0,1,0,0,0},
{0,0,1,0,1,0,0},
{1,1,0,0,0,1,1}
};
void DisplayBitMap()
{
for (byte x=0; x<5; ++x) {
for (byte y=0; y<7; ++y) {
byte data = pgm_read_byte (&BitMap[x][y]); // fetch data from program memory
if (data) {
// turn on the LED at location (x,y)
} else {
// turn off the LED at location (x,y)
}
}
}
}
If this were the only bitmap you had in your program, this would be a simple and effective solution to
the problem. We are using 1 byte of program memory (of which there are about 7K available in the
Atmega8) for each pixel in our bitmap, for a total of 35 bytes. This is not so bad, but what if you
wanted a bitmap for each of the 96 printable characters in the ASCII character set? This would
consume 96*35 = 3360 bytes, which would leave a lot less flash memory for holding your program
code.

There is a much more efficient way to store a bitmap. Let us replace the 2-dimensional array above
with a 1-dimensional array of bytes. Each byte contains 8 bits, and we will use the lowest 7 bits of each
to represent the 7 pixels in a column of our 5x7 bitmap:

const prog_uint8_t BitMap[5] = { // store in program memory to save RAM

B1100011,
B0010100,
B0001000,
B0010100,
B1100011
};
(Here we are using the predefined binary constants available starting in Arduino 0007.) This allows us
to use 5 bytes for each bitmap instead of 35. But how do we make use of this more compact data
format? Here is the answer: we rewrite the function DisplayBitMap() to access the individual bits in
each byte of the BitMap...
 void DisplayBitMap()
{
for (byte x=0; x<5; ++x) {
byte data = pgm_read_byte (&BitMap[x]); // fetch data from program memory
for (byte y=0; y<7; ++y) {
if (data & (1<<y)) {
// turn on the LED at location (x,y)
} else {
// turn off the LED at location (x,y)
}
}
}
}
The crucial line to understand is

if (data & (1<<y)) {

The expression (1<<y) selects a given bit inside data that we want to access. Then using bitwise
AND, data & (1<<y) tests the given bit. If that bit is set, a nonzero value results, causing the if
to see it as being true. Otherwise, if the bit is zero, it is treated as false, so the else executes.

Quick Reference
In this quick reference, we refer to the bits in a 16-bit integer starting with the least significant bit as
bit 0, and the most significant bit (the sign bit if the integer is signed) as bit 15, as illustrated in this
diagram:

Whenever you see the variable n , its value is assumed to be 0 through 15.

y = (x >> n) & 1; // n=0..15. stores nth bit of x in y. y becomes 0 or 1.

x &= ~(1 << n); // forces nth bit of x to be 0. all other bits left alone.
x &= (1<<(n+1))-1; // leaves alone the lowest n bits of x; all higher bits set to 0.
x |= (1 << n); // forces nth bit of x to be 1. all other bits left alone.
x ^= (1 << n); // toggles nth bit of x. all other bits left alone.
x = ~x; // toggles ALL the bits in x.
Here is an interesting function that uses both bitwise & and boolean && . It returns true if and only
if the given 32-bit integer x is a perfect power of 2, i.e., 1, 2, 4, 8, 16, 32, 64, etc. For example, calling
IsPowerOfTwo(64) will return true , but IsPowerOfTwo(65) returns false . To see how this
function works, let us use the number 64 as an example of a power of 2. In binary, 64 is 1000000 .
When we subtract 1 from 1000000 , we get 0111111 . Applying bitwise & , the result is
0000000 . But if we do the same with 65 (binary 1000001), we get 1000001 & 1000000 ==
1000000 , which is not zero.

bool IsPowerOfTwo (long x)

{
return (x > 0) && (x & (x-1) == 0);
}
Here is a function that counts how many bits in the 16-bit integer x are 1 and returns the count:

int CountSetBits (int x)

{
int count = 0;
for (int n=0; n<16; ++n) {
if (x & (1<<n)) {
++count;
}
}
return count;
}
Another way is this:

int CountSetBits (int x)

{
unsigned int count;
for (count = 0; x; count++)
x &= x - 1;
return count;
}
Various tricks for common bit-oriented operations can be found here
(http://graphics.stanford.edu/~seander/bithacks.html).
