IMPLEMENTS

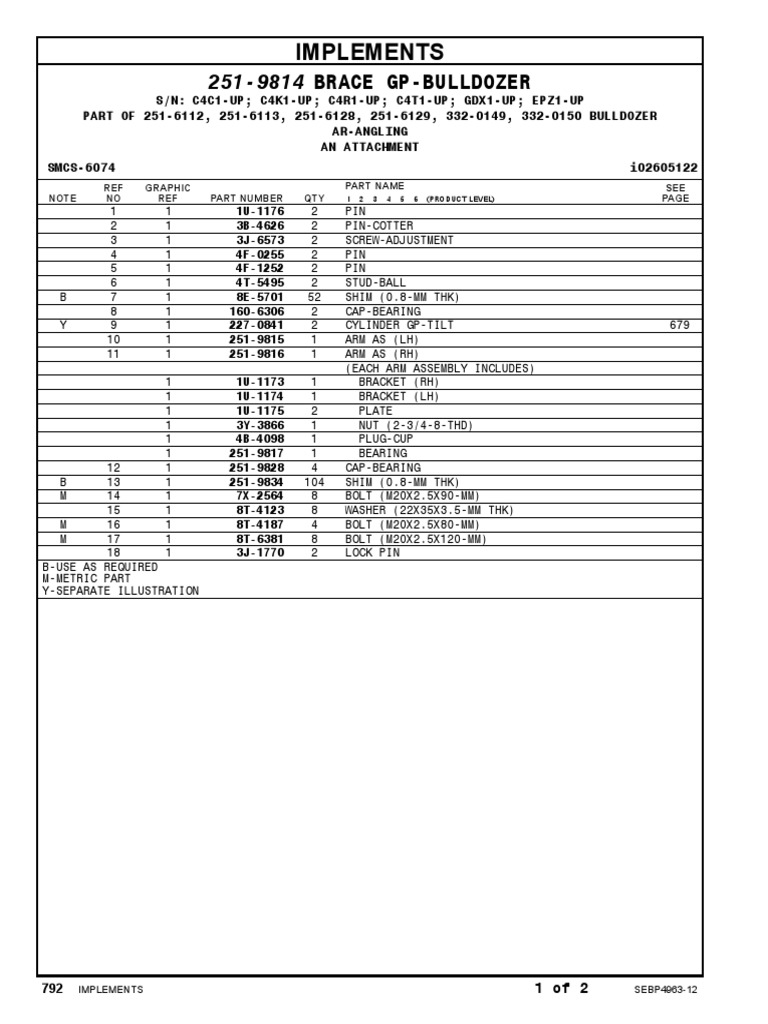

251-9814 BRACE GP-BULLDOZER

S/N: C4C1-UP; C4K1-UP; C4R1-UP; C4T1-UP; GDX1-UP; EPZ1-UP
PART OF 251-6112, 251-6113, 251-6128, 251-6129, 332-0149, 332-0150 BULLDOZER
AR-ANGLING
AN ATTACHMENT
SMCS-6074 i02605122
REF GRAPHIC PART NAME SEE
NOTE NO REF PART NUMBER QTY 1 2 3 4 5 6 (PRODUCT LEVEL) PAGE
1 1 1U-1176 2 PIN
2 1 3B-4626 2 PIN-COTTER
3 1 3J-6573 2 SCREW-ADJUSTMENT
4 1 4F-0255 2 PIN
5 1 4F-1252 2 PIN
6 1 4T-5495 2 STUD-BALL
B 7 1 8E-5701 52 SHIM (0.8-MM THK)
8 1 160-6306 2 CAP-BEARING
Y 9 1 227-0841 2 CYLINDER GP-TILT 679
10 1 251-9815 1 ARM AS (LH)
11 1 251-9816 1 ARM AS (RH)
(EACH ARM ASSEMBLY INCLUDES)
1 1U-1173 1 BRACKET (RH)
1 1U-1174 1 BRACKET (LH)
1 1U-1175 2 PLATE
1 3Y-3866 1 NUT (2-3/4-8-THD)
1 4B-4098 1 PLUG-CUP
1 251-9817 1 BEARING
12 1 251-9828 4 CAP-BEARING
B 13 1 251-9834 104 SHIM (0.8-MM THK)
M 14 1 7X-2564 8 BOLT (M20X2.5X90-MM)
15 1 8T-4123 8 WASHER (22X35X3.5-MM THK)
M 16 1 8T-4187 4 BOLT (M20X2.5X80-MM)
M 17 1 8T-6381 8 BOLT (M20X2.5X120-MM)
18 1 3J-1770 2 LOCK PIN
B-USE AS REQUIRED
M-METRIC PART
Y-SEPARATE ILLUSTRATION

792 IMPLEMENTS 1 of 2 SEBP4963-12

 IMPLEMENTS
251-9814 BRACE GP-BULLDOZER (contd. ) i02605122

GRAPHIC #1 <END> g01262216

SEBP4963-12 2 of 2 IMPLEMENTS 793

 IMPLEMENTS
251-6112 BULLDOZER AR-ANGLING
S/N: C4R1-UP
AN ATTACHMENT
SMCS-6050, 6052 i02454226
REF GRAPHIC PART NAME SEE
NOTE NO REF PART NUMBER QTY 1 2 3 4 5 6 (PRODUCT LEVEL) PAGE
Y 1 1 109-1352 1 TRUNNION GP-BULLDOZER 812
Y 2 1 227-4005 1 CYLINDER & LINES GP-LIFT (RH) 669
Y 3 1 227-4006 1 CYLINDER & LINES GP-LIFT (LH) 671
Y 4 1 238-9559 1 MOUNTING GP-CYLINDER 728
Y 5 1 251-9814 1 BRACE GP-BULLDOZER 792
Y 6 1 251-9818 1 BLADE GP-ANGLING 1025
Y 7 1 251-9830 1 C-FRAME GP 805
Y 8 1 255-8954 1 LINES GP-TILT CYLINDER 716

F 8T-7371 1 PLATE-SERIAL NUMBER (BULLDOZER)

F 4B-4158 2 SCREW-DRIVE (NO 4X0.25-IN)
F-NOT SHOWN
Y-SEPARATE ILLUSTRATION

GRAPHIC #1 <END> g01210484

794 IMPLEMENTS 1 of 1 SEBP4963-12

 IMPLEMENTS
251-6113 BULLDOZER AR-ANGLING
S/N: C4T1-UP
FOR USE WITH 227-4005–PAGE 669, 227-4006–PAGE 671, 238-9559–PAGE 728
AN ATTACHMENT
SMCS-6050, 6052 i02454874
REF GRAPHIC PART NAME SEE
NOTE NO REF PART NUMBER QTY 1 2 3 4 5 6 (PRODUCT LEVEL) PAGE
Y 1 1 109-1352 1 TRUNNION GP-BULLDOZER 812
Y 2 1 251-9814 1 BRACE GP-BULLDOZER 792
Y 3 1 251-9818 1 BLADE GP-ANGLING 1025
Y 4 1 251-9830 1 C-FRAME GP 805
Y 5 1 255-8954 1 LINES GP-TILT CYLINDER 716

F 8T-7371 1 PLATE-SERIAL NUMBER (BULLDOZER)

F 4B-4158 2 SCREW-DRIVE (NO 4X0.25-IN)
F-NOT SHOWN
Y-SEPARATE ILLUSTRATION

GRAPHIC #1 <END> g01210525

SEBP4963-12 1 of 1 IMPLEMENTS 795

 IMPLEMENTS
251-6128 BULLDOZER AR-ANGLING
S/N: C4C1-UP
AN ATTACHMENT
SMCS-6050, 6052 i02454587
REF GRAPHIC PART NAME SEE
NOTE NO REF PART NUMBER QTY 1 2 3 4 5 6 (PRODUCT LEVEL) PAGE
Y 1 1 109-1352 1 TRUNNION GP-BULLDOZER 812
Y 2 1 227-4005 1 CYLINDER & LINES GP-LIFT (RH) 669
Y 3 1 227-4006 1 CYLINDER & LINES GP-LIFT (LH) 671
Y 4 1 238-9559 1 MOUNTING GP-CYLINDER 728
Y 5 1 251-9814 1 BRACE GP-BULLDOZER 792
Y 6 1 251-9818 1 BLADE GP-ANGLING 1025
Y 7 1 255-8951 1 C-FRAME GP 806
Y 8 1 255-8954 1 LINES GP-TILT CYLINDER 716

F 8T-7371 1 PLATE-SERIAL NUMBER (BULLDOZER)

F 4B-4158 2 SCREW-DRIVE (NO 4X0.25-IN)
F-NOT SHOWN
Y-SEPARATE ILLUSTRATION

GRAPHIC #1 <END> g01225350

796 IMPLEMENTS 1 of 1 SEBP4963-12

 IMPLEMENTS
251-6129 BULLDOZER AR-ANGLING
S/N: C4K1-UP
FOR USE WITH 227-4005–PAGE 669, 227-4006–PAGE 671, 238-9559–PAGE 728
AN ATTACHMENT
SMCS-6050, 6052 i02454741
REF GRAPHIC PART NAME SEE
NOTE NO REF PART NUMBER QTY 1 2 3 4 5 6 (PRODUCT LEVEL) PAGE
Y 1 1 109-1352 1 TRUNNION GP-BULLDOZER 812
Y 2 1 251-9814 1 BRACE GP-BULLDOZER 792
Y 3 1 251-9818 1 BLADE GP-ANGLING 1025
Y 4 1 255-8951 1 C-FRAME GP 806
Y 5 1 255-8954 1 LINES GP-TILT CYLINDER 716

F 8T-7371 1 PLATE-SERIAL NUMBER (BULLDOZER)

F 4B-4158 2 SCREW-DRIVE (NO 4X0.25-IN)
F-NOT SHOWN
Y-SEPARATE ILLUSTRATION

GRAPHIC #1 <END> g01225486

SEBP4963-12 1 of 1 IMPLEMENTS 797

 IMPLEMENTS
332-0149 BULLDOZER AR-ANGLING
S/N: GDX1-UP
AN ATTACHMENT
SMCS-6050, 6052 i03892215
REF GRAPHIC PART NAME SEE
NOTE NO REF PART NUMBER QTY 1 2 3 4 5 6 (PRODUCT LEVEL) PAGE
Y 1 1 109-1352 1 TRUNNION GP-BULLDOZER 812
Y 2 1 251-9814 1 BRACE GP-BULLDOZER 792
Y 3 1 251-9818 1 BLADE GP-ANGLING 1025
Y 4 1 332-0148 1 C-FRAME GP 807
Y 5 1 255-8954 1 LINES GP-TILT CYLINDER 716

F 8T-7371 1 PLATE-SERIAL NUMBER (BULLDOZER)

F 4B-4158 2 SCREW-DRIVE (NO 4X0.25-IN)
F-NOT SHOWN
Y-SEPARATE ILLUSTRATION

GRAPHIC #1 <END> g01210525

798 IMPLEMENTS 1 of 1 SEBP4963-12

 IMPLEMENTS
332-0150 BULLDOZER AR-ANGLING
S/N: EPZ1-UP
AN ATTACHMENT
SMCS-6050, 6052 i03892219
REF GRAPHIC PART NAME SEE
NOTE NO REF PART NUMBER QTY 1 2 3 4 5 6 (PRODUCT LEVEL) PAGE
Y 1 1 109-1352 1 TRUNNION GP-BULLDOZER 812
Y 2 1 227-4005 1 CYLINDER & LINES GP-LIFT (RH) 669
Y 3 1 227-4006 1 CYLINDER & LINES GP-LIFT (LH) 671
Y 4 1 238-9559 1 MOUNTING GP-CYLINDER 728
Y 5 1 251-9814 1 BRACE GP-BULLDOZER 792
Y 6 1 251-9818 1 BLADE GP-ANGLING 1025
Y 7 1 332-0148 1 C-FRAME GP 807
Y 8 1 255-8954 1 LINES GP-TILT CYLINDER 716

F 8T-7371 1 PLATE-SERIAL NUMBER (BULLDOZER)

F 4B-4158 2 SCREW-DRIVE (NO 4X0.25-IN)
F-NOT SHOWN
Y-SEPARATE ILLUSTRATION

GRAPHIC #1 <END> g01210484

SEBP4963-12 1 of 1 IMPLEMENTS 799

 IMPLEMENTS
230-5553 BULLDOZER AR-SEMI-UNIVERSAL
S/N: D6C1-UP
AN ATTACHMENT
SMCS-6050, 6078 i02455464
REF GRAPHIC PART NAME SEE
NOTE NO REF PART NUMBER QTY 1 2 3 4 5 6 (PRODUCT LEVEL) PAGE
Y 1 1 109-1352 1 TRUNNION GP-BULLDOZER 812
Y 2 1 227-4005 1 CYLINDER & LINES GP-LIFT (RH) 669
Y 3 1 227-4006 1 CYLINDER & LINES GP-LIFT (LH) 671
Y 4 1 230-5554 1 PUSH ARM GP 808
Y 5 1 230-5555 1 LINES GP-TILT CYLINDER 712
Y 6 1 230-5558 1 BLADE GP-SEMI-UNIVERSAL 1026
Y 7 1 238-9559 1 MOUNTING GP-CYLINDER 728

F 8T-7371 1 PLATE-SERIAL NUMBER (BULLDOZER)

(ON UPPER RH CORNER OF BLADE)
F 4B-4158 2 SCREW-DRIVE (NO 4X0.25-IN)
F-NOT SHOWN
Y-SEPARATE ILLUSTRATION

GRAPHIC #1 <END> g01207569

800 IMPLEMENTS 1 of 1 SEBP4963-12

 IMPLEMENTS
251-6120 BULLDOZER AR-SEMI-UNIVERSAL
S/N: C4W1-UP
FOR USE WITH 227-4005–PAGE 669, 227-4006–PAGE 671, 238-9559–PAGE 728
AN ATTACHMENT
SMCS-6050, 6078 i02454926
REF GRAPHIC PART NAME SEE
NOTE NO REF PART NUMBER QTY 1 2 3 4 5 6 (PRODUCT LEVEL) PAGE
Y 1 1 109-1352 1 TRUNNION GP-BULLDOZER 812
Y 2 1 230-5554 1 PUSH ARM GP 808
Y 3 1 230-5555 1 LINES GP-TILT CYLINDER 712
Y 4 1 230-5558 1 BLADE GP-SEMI-UNIVERSAL 1026

F 8T-7371 1 PLATE-SERIAL NUMBER (BULLDOZER)

F 4B-4158 2 SCREW-DRIVE (NO 4X0.25-IN)
F-NOT SHOWN
Y-SEPARATE ILLUSTRATION

GRAPHIC #1 <END> g01209016

SEBP4963-12 1 of 1 IMPLEMENTS 801

 IMPLEMENTS
252-5854 BULLDOZER AR-SEMI-UNIVERSAL
S/N: C4L1-UP
AN ATTACHMENT
SMCS-6050, 6078 i02454810
REF GRAPHIC PART NAME SEE
NOTE NO REF PART NUMBER QTY 1 2 3 4 5 6 (PRODUCT LEVEL) PAGE
Y 1 1 109-1352 1 TRUNNION GP-BULLDOZER 812
Y 2 1 227-4005 1 CYLINDER & LINES GP-LIFT (RH) 669
Y 3 1 227-4006 1 CYLINDER & LINES GP-LIFT (LH) 671
Y 4 1 238-9559 1 MOUNTING GP-CYLINDER 728
Y 5 1 252-5849 1 LINES GP-TILT CYLINDER 714
Y 6 1 252-5853 1 PUSH ARM GP 810
Y 7 1 252-5856 1 BLADE GP-SEMI-UNIVERSAL 1027

F 8T-7371 1 PLATE-SERIAL NUMBER (BULLDOZER)

(ON UPPER RH CORNER OF BLADE)
F 4B-4158 2 SCREW-DRIVE (NO 4X0.25-IN)
F-NOT SHOWN
Y-SEPARATE ILLUSTRATION

GRAPHIC #1 <END> g01206974

802 IMPLEMENTS 1 of 1 SEBP4963-12

 IMPLEMENTS
252-5855 BULLDOZER AR-SEMI-UNIVERSAL
S/N: C4N1-UP
FOR USE WITH 227-4005–PAGE 669, 227-4006–PAGE 671, 238-9559–PAGE 728
AN ATTACHMENT
SMCS-6050, 6078 i04058689
REF GRAPHIC PART NAME SEE
NOTE NO REF PART NUMBER QTY 1 2 3 4 5 6 (PRODUCT LEVEL) PAGE
Y 1 1 109-1352 1 TRUNNION GP-BULLDOZER 812
Y 2 1 252-5849 1 LINES GP-TILT CYLINDER 714
Y 3 1 252-5853 1 PUSH ARM GP 810
Y 4 1 252-5856 1 BLADE GP-SEMI-UNIVERSAL 1027

F 8T-7371 1 PLATE-SERIAL NUMBER (BULLDOZER)

(ON UPPER RH CORNER OF BLADE)
F 4B-4158 2 SCREW-DRIVE (NO 4X0.25-IN)
F-NOT SHOWN
Y-SEPARATE ILLUSTRATION

GRAPHIC #1 <END> g02272516

SEBP4963-12 1 of 1 IMPLEMENTS 803

 IMPLEMENTS
255-8952 C-FRAME AS
S/N: C4C1-UP; C4K1-UP
PART OF 255-8951 C-FRAME GP
AN ATTACHMENT
SMCS-6063 i02454782
REF GRAPHIC PART NAME SEE
NOTE NO REF PART NUMBER QTY 1 2 3 4 5 6 (PRODUCT LEVEL) PAGE
1 1 6J-9187 1 BRACKET AS (RH)
2 1 6J-9188 1 BRACKET AS (LH)
(EACH BRACKET AS INCLUDES)
1 7J-2595 2 BRACKET
1 4J-2414 1 TRUNNION
3 1 8P-9770 1 PLATE
4 1 9W-4897 6 BRACKET AS
(EACH INCLUDES)
1 3J-2682 1 BRACKET
1 8F-4387 2 PLATE
5 1 9W-5375 2 BAR
6 1 9W-9000 1 ADAPTER AS
1 5M-6214 1 PLUG-PIPE
1 8E-5486 2 BEARING-SLEEVE
7 1 251-9835 2 BEARING

GRAPHIC #1 <END> g01207457

804 IMPLEMENTS 1 of 1 SEBP4963-12

 IMPLEMENTS
251-9830 C-FRAME GP
S/N: C4R1-UP; C4T1-UP
PART OF 251-6112, 251-6113 BULLDOZER AR-ANGLING
AN ATTACHMENT
SMCS-6063 i02454847
REF GRAPHIC PART NAME SEE
NOTE NO REF PART NUMBER QTY 1 2 3 4 5 6 (PRODUCT LEVEL) PAGE
1 1 1U-0725 1 RETAINER
B 2 1 4T-4866 52 SHIM (0.8-MM THK)
M 3 1 251-8203 4 NUT-SQUARE (M24X3-THD)
4 1 251-9831 1 C-FRAME AS
4A 1 4J-2414 1 TRUNNION
4B 1 8E-5486 2 BEARING-SLEEVE
4C 1 251-9835 2 BEARING
5 1 251-9832 1 PIN-PIVOT
6 1 251-9836 2 CAP-BEARING
M 7 1 7X-2562 2 BOLT (M20X2.5X45-MM)
M 8 1 7X-2567 4 BOLT (M24X3X160-MM)
9 1 8T-4167 4 WASHER-HARD (26X44X4-MM THK)
B-USE AS REQUIRED
M-METRIC PART

GRAPHIC #1 <END> g01225229

SEBP4963-12 1 of 1 IMPLEMENTS 805

 IMPLEMENTS
255-8951 C-FRAME GP
S/N: C4C1-UP; C4K1-UP
PART OF 251-6128, 251-6129 BULLDOZER AR-ANGLING
AN ATTACHMENT
SMCS-6063 i02454671
REF GRAPHIC PART NAME SEE
NOTE NO REF PART NUMBER QTY 1 2 3 4 5 6 (PRODUCT LEVEL) PAGE
1 1 1U-0725 1 RETAINER
M 2 1 251-8203 4 NUT-SQUARE (M24X3-THD)
3 1 251-9832 1 PIN-PIVOT
4 1 251-9836 2 CAP-BEARING
Y 5 1 255-8952 1 C-FRAME AS 804
M 6 1 7X-2562 2 BOLT (M20X2.5X45-MM)
M 7 1 7X-2567 4 BOLT (M24X3X160-MM)
8 1 8T-4167 4 WASHER-HARD (26X44X4-MM THK)
B 9 1 4T-4866 52 SHIM (0.8-MM THK)
B-USE AS REQUIRED
M-METRIC PART
Y-SEPARATE ILLUSTRATION

GRAPHIC #1 <END> g01207710

806 IMPLEMENTS 1 of 1 SEBP4963-12

 IMPLEMENTS
332-0148 C-FRAME GP
S/N: GDX1-UP; EPZ1-UP
PART OF 332-0149, 332-0150 BULLDOZER AR-ANGLING
AN ATTACHMENT
SMCS-6063 i03892217
REF GRAPHIC PART NAME SEE
NOTE NO REF PART NUMBER QTY 1 2 3 4 5 6 (PRODUCT LEVEL) PAGE
1 1 1U-0725 1 RETAINER
B 2 1 4T-4866 52 SHIM (0.8-MM THK)
M 3 1 251-8203 4 NUT-SQUARE (M24X3-THD)
4 1 332-0147 1 C-FRAME AS
1 4J-2414 2 TRUNNION
1 8E-5486 2 BUSHING
1 251-9835 2 BEARING
5 1 251-9832 1 PIN-PIVOT
6 1 251-9836 2 CAP-BEARING
B 1 4T-4866 14 SHIM (0.8-MM THK)
M 7 1 7X-2562 2 BOLT (M20X2.5X45-MM)
M 8 1 7X-2567 4 BOLT (M24X3X160-MM)
9 1 8T-4167 4 WASHER-HARD (26X44X4-MM THK)
B-USE AS REQUIRED
M-METRIC PART

GRAPHIC #1 <END> g01212417

SEBP4963-12 1 of 1 IMPLEMENTS 807

 IMPLEMENTS
230-5554 PUSH ARM GP
S/N: D6C1-UP; C4W1-UP
PART OF 230-5553, 251-6120 BULLDOZER AR-SEMI-UNIVERSAL
AN ATTACHMENT
SMCS-6061 i02588544
REF GRAPHIC PART NAME SEE
NOTE NO REF PART NUMBER QTY 1 2 3 4 5 6 (PRODUCT LEVEL) PAGE
1 1 282-9090 2 RETAINER
2 1 4T-1520 1 CAGE AS
2A 1 6J-5383 1 BEARING
B 3 1 4T-4866 52 SHIM (0.8-MM THK)
M 4 1 7Y-5235 4 BOLT (M24X3X190-MM)
B 5 1 8E-5703 78 SHIM (0.8-MM THK)
6 1 8J-2880 3 CAP-BEARING
7 1 124-9672 1 BRACE AS-TILT
8 1 160-6305 2 CAP-BEARING
9 1 194-0935 1 PUSH ARM AS (LH)
9A 1 4T-0780 1 TRUNNION
9B 1 8P-9770 1 PLATE
9C 1 124-9666 1 BRACKET
9D 1 179-6152 1 BEARING
9E 1 179-6153 1 BEARING
9F 1 209-2152 1 BAR
10 1 194-0936 1 PUSH ARM AS (RH)
10A 1 4T-0732 1 BRACKET
10B 1 8P-9770 1 PLATE
10C 1 9W-2579 1 PLATE
10D 1 179-6152 1 BEARING
10E 1 179-6153 1 BEARING
10F 1 209-2152 1 BAR
Y 11 1 233-9134 1 CYLINDER GP-TILT 681
M 12 1 251-8202 8 NUT-SQUARE (M20X2.5-THD)
M 13 1 251-8203 4 NUT-SQUARE (M24X3-THD)
M 14 1 8T-4779 2 BOLT (M16X2X35-MM)
15 1 290-8226 2 PIN
M 16 1 7X-2566 6 BOLT (M20X2.5X110-MM)
M 17 1 8C-8478 12 BOLT (M20X2.5X140-MM)
18 1 8T-4123 6 WASHER (22X35X3.5-MM THK)
M 19 1 8T-4131 10 NUT (M20X2.5-THD)
20 1 8T-4167 4 WASHER-HARD (26X44X4-MM THK)
21 1 8T-5439 6 WASHER-HARD (21.5X45X6-MM THK)
22 1 9X-8257 1 WASHER (17.5X30X3.5-MM THK)
B-USE AS REQUIRED
M-METRIC PART
Y-SEPARATE ILLUSTRATION

808 IMPLEMENTS 1 of 2 SEBP4963-12

 IMPLEMENTS
230-5554 PUSH ARM GP (contd. ) i02588544

GRAPHIC #1 <END> g01304509

SEBP4963-12 2 of 2 IMPLEMENTS 809

 IMPLEMENTS
252-5853 PUSH ARM GP
S/N: C4L1-UP; C4N1-UP
PART OF 252-5854, 252-5855 BULLDOZER AR-SEMI-UNIVERSAL
AN ATTACHMENT
SMCS-6061 i02627199
REF GRAPHIC PART NAME SEE
NOTE NO REF PART NUMBER QTY 1 2 3 4 5 6 (PRODUCT LEVEL) PAGE
1 1 4T-1520 1 CAGE AS
1A 1 6J-5383 1 BEARING
B 2 1 4T-4866 52 SHIM (0.8-MM THK)
M 3 1 7Y-5235 4 BOLT (M24X3X190-MM)
B 4 1 8E-5703 78 SHIM (0.8-MM THK)
5 1 8J-2880 3 CAP-BEARING
6 1 124-9672 1 BRACE AS-TILT
7 1 160-6305 2 CAP-BEARING
CY 8 1 233-9134 1 CYLINDER GP-TILT 681
9 1 179-6151 1 PUSH ARM AS-LH
9A 1 4T-0780 1 TRUNNION
9B 1 8P-9770 1 PLATE
9C 1 124-9666 1 BRACKET
9D 1 179-6152 1 BEARING
9E 1 179-6153 1 BEARING
9F 1 209-2152 1 BAR
10 1 179-6162 1 PUSH ARM AS-RH
10A 1 4T-0732 1 BRACKET
10B 1 8P-9770 1 PLATE
10C 1 9W-2579 2 PLATE
10D 1 179-6152 1 BEARING
10E 1 179-6153 1 BEARING
10F 1 209-2152 1 BAR
M 11 1 251-8202 8 NUT-SQUARE (M20X2.5-THD)
M 12 1 251-8203 4 NUT-SQUARE (M24X3-THD)
13 1 290-8226 2 PIN
14 1 282-9090 2 RETAINER
M 15 1 7X-2566 6 BOLT (M20X2.5X110-MM)
M 16 1 8C-8478 12 BOLT (M20X2.5X140-MM)
17 1 8T-4123 6 WASHER (22X35X3.5-MM THK)
M 18 1 8T-4131 10 NUT (M20X2.5-THD)
19 1 8T-4167 4 WASHER-HARD (26X44X4-MM THK)
M 20 1 8T-4779 2 BOLT (M16X2X35-MM)
21 1 8T-5439 6 WASHER-HARD (21.5X45X6-MM THK)
22 1 9X-8257 2 WASHER (17.5X30X3.5-MM THK)
B-USE AS REQUIRED
C-CHANGE FROM PREVIOUS TYPE
M-METRIC PART
Y-SEPARATE ILLUSTRATION

810 IMPLEMENTS 1 of 2 SEBP4963-12

 IMPLEMENTS
252-5853 PUSH ARM GP (contd. ) i02627199

GRAPHIC #1 <END> g01225461

SEBP4963-12 2 of 2 IMPLEMENTS 811

 IMPLEMENTS
109-1352 TRUNNION GP-BULLDOZER
S/N: C4C1-UP; D6C1-UP; SMC1-UP; C4K1-UP; C4L1-UP; C4N1-UP; C4R1-UP; C4T1-UP;
GCT1-UP; C4W1-UP; GDX1-UP; EPZ1-UP
PART OF 251-6112, 251-6113, 251-6128, 251-6129, 332-0149, 332-0150
BULLDOZER AR-ANGLING, 230-5553, 251-6120, 252-5854, 252-5855 BULLDOZER
AR-SEMI-UNIVERSAL
AN ATTACHMENT
SMCS-6069 i02708715
REF GRAPHIC PART NAME SEE
NOTE NO REF PART NUMBER QTY 1 2 3 4 5 6 (PRODUCT LEVEL) PAGE
1 1 285-0852 2 TRUNNION
M 2 1 7X-2563 20 BOLT (M20X2.5X60-MM)
M-METRIC PART

GRAPHIC #1 <END> g01360146

812 IMPLEMENTS 1 of 1 SEBP4963-12
