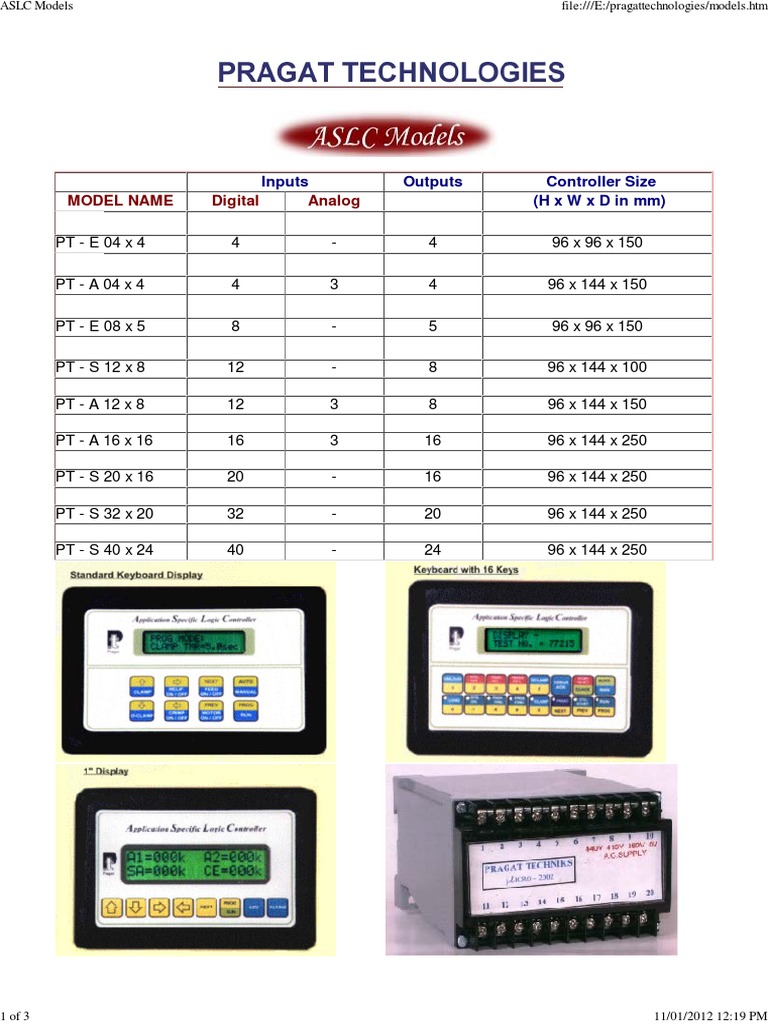

ASLC Models file:///E:/pragattechnologies/models.

htm

Inputs Outputs Controller Size


MODEL NAME Digital Analog (H x W x D in mm)

PT - E 04 x 4 4 - 4 96 x 96 x 150

PT - A 04 x 4 4 3 4 96 x 144 x 150

PT - E 08 x 5 8 - 5 96 x 96 x 150

PT - S 12 x 8 12 - 8 96 x 144 x 100

PT - A 12 x 8 12 3 8 96 x 144 x 150

PT - A 16 x 16 16 3 16 96 x 144 x 250

PT - S 20 x 16 20 - 16 96 x 144 x 250

PT - S 32 x 20 32 - 20 96 x 144 x 250

PT - S 40 x 24 40 - 24 96 x 144 x 250

1 of 3 11/01/2012 12:19 PM
ASLC Models file:///E:/pragattechnologies/models.htm

STANDARD FEATURES

Enclosure DIN Standard


Supply 160 - 270 VAC
Supply for Inputs 24 V DC, Built in
Inputs 24 V DC
Outputs AC - 24 VA (Max 230 V)
DC 24 V, 500 mA
Display 16 x 2 Ch. LCD
Keyboard 8 Keys
Terminations Through Connector

OPTIONAL FEATURES

16 Keys keyboard
1" L.C. Display
Analog inputs - 12 bit, 2 Nos., PT 100 Sensor, 4-20 mA, 0-5 VDC
Analog Output
RS 485 Connectivity
Printer Interface
Terminal Adapter
Real Time Clock

Features of Model No. ASLC 12 x 8


FEATURE ANALOG INPUT ANALOG DIGITAL DO RS - RTC SERIAL PRINTER PRINTER
OUTPUT INPUT 485 EEPROM INTERFACE AND
RTC
with with without Standard High Standard
RTD RTD RTD 10 Speed
10 Bit 12 Bit Bit
STANDARD 2 N 1 O 12 O 8 O O O O O
EXTRA I/P N N N O 12 1 8 O O O N N

RTC 2 N 1 O 12 O 8 O Y O N O
STANDARD
RTC + N N N O 12 1 8 O Y O N O
EXTRA I/P
RTC + 12 2 N 1 O 12 O 8 O Y O N O
BIT ADC

12 BIT ADC N 2 N O 12 O 8 O O O O O
STANDARD
12 BIT ADC N 2 N O 12 O 8 O Y O N O
+ RTC

Where
Y = Available
N = Not Available
O = Optional
O(1) = Serial EEPROM not available.

2 of 3 11/01/2012 12:19 PM
ASLC Models file:///E:/pragattechnologies/models.htm

Features of Model No. ASLC 16 x 16


FEATURE ANALOG INPUT DIGITAL INPUT DIGITAL RS - RTC SERIAL PRINTER PRINTER
OUTPUT 485 EEPROM INTERFACE AND
RTC
with with without Standard High Extra Standard Extra
RTD RTD RTD Speed
10 12 10 Bit
Bit Bit
STANDARD 2 N 1 16 1 N 16 N O(1) N O O O
EXTRA I/P N N N 16 1 3 16 N N N O N N
EXTRA O/P N N N 16 N N 16 4 N N N N N

RTC 2 N 1 16 1 N 16 N N Y O N O(1)
STANDARD
RTC + N N N 16 1 3 16 N N Y O N O(1)
EXTRA I/P
RTC + 2 N 1 16 N N 16 1 N Y O N O(1)
EXTRA O/P
RTC + 12 2 N 1 16 1 N 16 N N Y O N O(1)
BIT ADC

12 BIT ADC N 2 N 16 1 N 16 N O N O O O(1)


STANDARD
12 BIT ADC N 2 N 16 N N 16 4 N N O N N
Extra O/P
12 BIT ADC N 2 N 16 1 N 16 N N Y O N O(1)
+ RTC

Where
Y = Available
N = Not Available
O = Optional
O(1) = Serial EEPROM not available.

3 of 3 11/01/2012 12:19 PM
