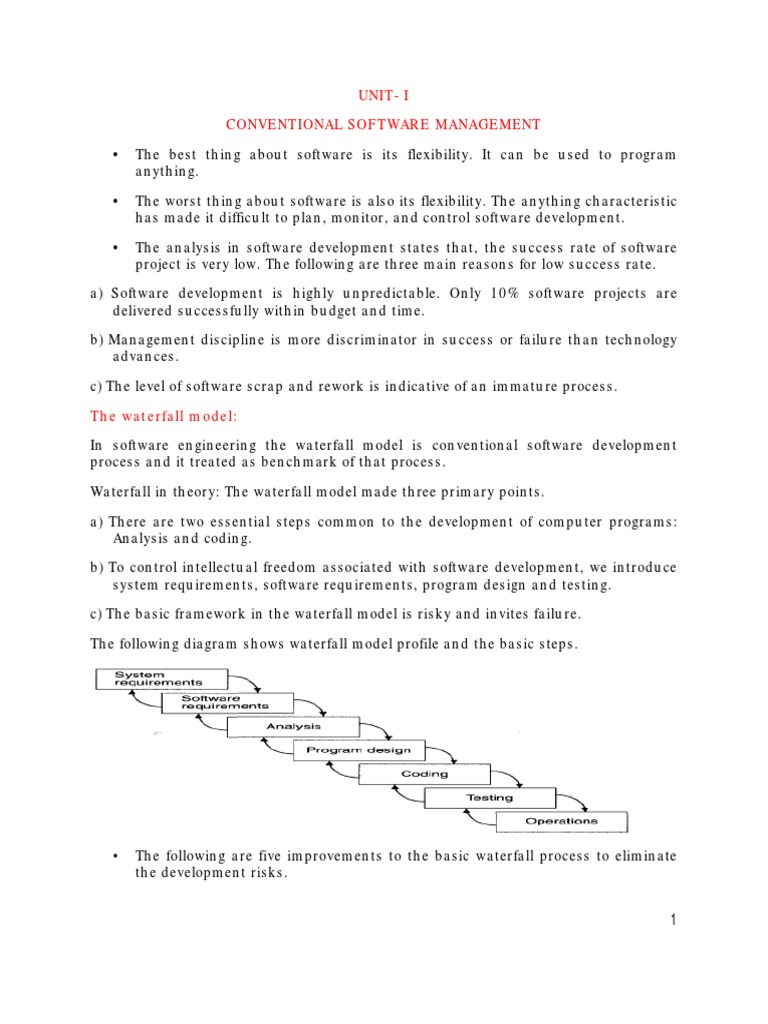

UNIT- I

CONVENTIONAL SOFTWARE MANAGEMENT

• The best thing about software is its flexibility. It can be used to program
anything.

• The worst thing about software is also its flexibility. The anything characteristic
has made it difficult to plan, monitor, and control software development.

• The analysis in software development states that, the success rate of software
project is very low. The following are three main reasons for low success rate.

a) Software development is highly unpredictable. Only 10% software projects are

delivered successfully within budget and time.

b) Management discipline is more discriminator in success or failure than technology

advances.

c) The level of software scrap and rework is indicative of an immature process.

The waterfall model:

In software engineering the waterfall model is conventional software development

process and it treated as benchmark of that process.

Waterfall in theory: The waterfall model made three primary points.

a) There are two essential steps common to the development of computer programs:
Analysis and coding.

b) To control intellectual freedom associated with software development, we introduce

system requirements, software requirements, program design and testing.

c) The basic framework in the waterfall model is risky and invites failure.

The following diagram shows waterfall model profile and the basic steps.

• The following are five improvements to the basic waterfall process to eliminate
the development risks.

1
1) Program design comes first: We should take-up preliminary program design
as the first step even before the requirements and analysis phases.

• At this point the program designer assures that the software will not be fail
because of storage, timing and data flux.

• When we performing analysis as the next phase, the program designer analyze
operational constraints and senses the consequences.

• Due to the early program design phase we should easily understand the total
resources allocated to the project are insufficient, developing operational design
is right or wrong and etc.

• We implement the early program design by follow the following points.

a) Start the design process with program designer not with analysts or
programmers.

b) Design, define, and allocate data processing modes even at being wrong.
Allocate processing functions, design DB Allocate execution time, define
interfaces and operating system, describe input and output process, define
preliminary operating procedures.

c) Write an overview document that is understandable, informative, and current

so that every worker on the project can gain an elemental understanding of the
system.

2) Document the design: We know that document design is the required a lot for
software programs.

The programmers, analysts, designers, are mostly depending on documentation

to finish their work.

• Documentation is important for the following reasons;

a) The software designers communicate with interfacing designers, managers, and

with customers through documentation.

b) During early phases documentation is the design.

c) The value of documentation is to support later modifications by separate test

team, separate maintenance team and operational personnel who are not
software literate.

3) Do it twice: The software delivered to the customer for operational purpose is

actually the second version, after considering critical design and operational
issues.

• In first version of software development, the team have a special broad

competence where they can quickly sense trouble spots in the design, model
them, model alternatives.

2
 4) Plan, control, and monitor testing: The combination of manpower, computer
time, and management is called the test phase. This phase has greater risk in
terms of cost and schedule.

• The following are the important things in the test phase;

a) Employ a team of test specialists who were not responsible for the original
design.

b) Employ visual inspections to spot the obvious errors like dropped minus,
missing factors of two, jump to wrong address etc.

c) Test every logic path.

d) Employ the final checkout on the target computer.

5) Involve the customer: sometimes software design going to wide

interpretations even after previous agreement. So it is important to involve the
customer in a formal way so that he has committed himself at earlier points
before final delivery.

• Insight, judgment and commitment of customer can boost the project

development process. It may do at preliminary software review following the
preliminary program design step, sequence of final software acceptance review.

Waterfall model in practical:

Some software projects still follow the conventional software management process.
Here we summarize the characteristics of conventional model.

1. Protracted integration and late design breakage.

2. Late risk resolution.
3. Requirements driven functional decomposition.
4. Adversarial stakeholder relationships.
5. Focus on documents and review meetings.

Protracted integration and late design breakage: the following diagram shows
development progress versus time. The following sequence of issues is common in this
phase;

1. Early success via paper designs and through briefings.

2. Commitment to code late in life cycle.
3. Integration difficulties due to unforeseen implementation issues and interface
ambiguities.
4. Heavy budget and schedule pressure to get the system working.
5. Late response of non-optimal fixes, with no time for design.
6. A very delicate, unmaintainable product delivered late.

3
In conventional approach the use of immature languages and technologies is difficult
to understand the software project design and to change it in future. In conventional
model the entire system was designed on paper, and implemented all at once, then
integrated. Here we perform system testing at the end of the process to check the
fundamental architecture is good or not.

Late risk resolution: A serious problem in waterfall model was lack of early risk
resolution. The following diagram shows risk profile for conventional model projects
covers four distinct periods.

At the early stage risk is defined as missing a cost, schedule, feature or quality. At this
stage requirement being specified so risk exposure was unpredictable. After the design
concept was available even on paper, risk exposure stabilized. In the next step, after
the system was coded some of the individual component risks was resolved. When
begin the integration the real system level risks are touchable.

Requirement driven functional decomposition: We know that software development

process has been requirements driven. We should present precise requirements
definition and then implement exactly those requirements. It mean that the
requirements completely unambiguous before development activity begins.

We should treat all the requirements are equally important, but it is not possible in
real world. So the specification of requirements is difficult and important part in
software development. Another issue in conventional process is requirements are
specified in functional manner. In waterfall model requirements are allocated to the
components. The decomposition is very difficult based on object oriented design and
use of existing components.

Adversarial stakeholder relationships: the conventional process cause adversarial

stakeholder relationships, in large part because of the difficulties of requirements
specification and the exchange of information only through paper documents and
engineering information in adhoc formats. The following sequence of things are
happened in contractual software development.

1. The contractor prepared a draft contract deliverable document that captured an

intermediate artifact and delivered it to the customer for approval.
2. The customer as expected to provide comments.
3. The contractor incorporated these comments and submitted a final version for
approval.

This one shot review process is highly sensitive on the part of customers and
contractors. The exchanges of paper reviews are intolerable.

Focus on documents and review meetings: the conventional software development

process focused on producing various documents that attempted to describe the
4
software product. Here formal meetings were conducted to exchange specific
documents. The developers produce tons of papers to describe the project progress to
the customers rather than to reduce risk and produce quality software. Most review
meetings has low engineering values and high cost in terms of effort and schedule
involved in their preparation and conduct.

Conventional software management performance:

Barry Bhoom describes the objective characterization of state of software development.

Many of the metrics describe fundamental economic relationships that resulted from
conventional software process practiced over the long period.

1. Finding and fixing a software problem after delivery costs 100 times more than
finding and fixing the problem in early design phase.

2. We can compress software development schedules 25% of normal, but no more

– one reason for this statement is N% reduction in schedule would require M%
increase in personnel resources. Sometimes an optimal schedule be extended
almost arbitrary, depending on people, could performed in much longer times
with fewer resources.

3. For every rupee we spend on development, we will spend two rupees on

maintenance – This is known as iron law of software development. When we
build long lived products which has commercial version upgrades or custom
software system may require twice money spent on maintenance rather than
development lifecycle.

4. Software development and maintenance costs are primarily a function of the

number of sources lines of code – this metric is primarily predominance of
custom software development.

5. Variations among people account for the biggest differences in software

productivity – this metric is subject to both overhype and under hype of people.
We don’t know why the software projects are succeeded or failed. It totally
depending on the quality of people.

6. The overall ratio of software to hardware costs is still growing. In 1955 it was
15:85; in 1985 it was 85:15.

7. Only 15% of software development effort is devoted to programming – This is

important indicator is need to balance software development activities. There
were many activities besides the coding such as requirements management,
design, testing, planning, project control, change management etc.

5
8. Software systems and products typically cost three times as much per SLOC as
individual software programs. Software system products costs nine times as
much – the exponential growth is called diseconomy of scale.

9. Walkthroughs catch 60% of the errors – walkthroughs and other human

inspections are good for catching surface problems and style issues.

10. 80% of contribution comes from 20% of contributors – this is motherhood

statement that is true across any engineering discipline. The following are
fundamental postulates to rationale modern software management process
work.

 80% of engineering is consumed by 20% of equipment.

 80% of errors caused by 20% of components.
 80% of software const is consumed by 20% of components.
 80% of progress made by 20% people.

Software Economics:

Most software cost models can be described five parameters: Size, Process,
Personnel, Environment, and required Quality

1. The size of the end product is typically measured in terms of number of source
lines or the number of functional points developed to achieve the required
functionality.

2. The process used to produce the end product, the ability of the process is to
avoid non value adding activities. (rework, bureaucratic delays,
communications overhead)

3. The capability of software engineering personnel, and particularly their

experience with the computer science issues and the applications domain
issues of the project.

4. The environment which is made up of the tools and techniques available to

support efficient software development and to automate the process.

5. The required quality of the product, including its features, performance,

reliability and adaptability.

The following equation shows the relationship between size, process, personnel,
environment, quality parameters and between the estimated cost.

Effort = (personnel) (Environment) (Quality) (SizeProcess)

All software cost estimation models generally describe the cost in the above form.
Here one important feature of software economics is the relationship between effort
and size exhibits is a diseconomy of scale. It indicates that more software we build
it consumes more expensive per unit of the software.
6
 So the per-line cost of smaller applications is less than for the larger applications.
This feature is used to managing interpersonal communications as the number of
team members scales up. The following diagram shows three generations software
economics in the form of basic technology advancement in tools, components, and
processes. Here the required level of quality and personnel are assumed to be
constant.

The phases represents the life cycle of software business in the organization. So we
can define the three generations of software development as follows;

1. Conventional: the software is developed in conventional manner between 1960

and 1970; here development is treated as craftsmanship. Organizations used
custom tools, custom processes, and virtually custom components built in
primitive languages. Here the performance of the project is highly predictable
and cost, schedule and quality objectives were always underachieved.

2. Transition: this is the middle age of the software development which is between
1980 and 1990; at this time some software engineering principles are formed
and organizations used repeatable and off the shelf tools. During this phase
customer components are built in high level languages and some components
are available commercially such as operating system, database management
system, networking and graphical user interface etc. in this phase organizations
achieve economy scale but due to the growth in complexity of applications the
existing languages, techniques, and technologies are not sustained in longer
time.

7
3. Modern practices: this phase of software development process started in year
2000 and later. In this phase software development is treated as a production.
Here we use integrated automation environments, off the shelf components.

The technologies for environment automation, size reduction and process

improvement are not independent of one another. Now a day’s balancing growth is
achieved in all technologies.

The transition and modern practices represents improved software economics but
at the same time no guaranteed. The developers always realistic in software
execution, use of new technologies compared with old history.

PRAGMATIC SOFTWARE COST ESTIMATION:

Software development process has inconsistently defined metrics or units of

measures. The data from the projects are highly suspect in terms of consistency
and comparability. It is difficult to collect homogeneous set of data projects from a
single organization (i.e an organization may run different types of projects) and
homogenize data from different projects run at different organizations. So the
problem in software cost estimation is lack of well documented case studies of
projects that used iterative development approach. The software cost models sellers
are also develop the cost estimation tools experimentally which some of them may
suit for iterative development approach. The following are three important points to
be considered during the usage of cost estimation model tools.

1. Which cost estimation model to use.

2. How the measure the size of the software project, either in SLOC or function
points.

3. What makes a good software estimate?

Which cost estimation model to use: There were at most 50 vendors of software
cost estimation tools, data, and services all over the world. There are several cost
estimation tools such as, COCOMO, CHECKPOINT, ESTIMACS, KnowledgePlan,
Price-S, ProQMS, SEER, SLIM, SOFTCOST, AND SPQR/20 etc. among all the above
models COCOMO, Ada COCOMO, COCOMO-II are better models for describing
software economics and perspectives. The COCOMO is popular because it is open
and well documented cost estimation model.

How to measure the size of software project: The measure of the software size is
a complex issue. There were two methods: source lines of code (SLOC) and function
points. The SLOC is worked well for the traditional applications and it was
mainly custom built. The SLOC measurement was easy to automate and
8
instrument. But today advanced languages, use of components, automatic source
code generations and object orientation have made SLOC is a confusing measure.

the use of function points has a large following, the primary advantage of function
points is it is independent of technology and therefore it is best primitive unit for
making comparisons between projects and software industries. The main
disadvantage of this method is the measurements are abstracts and not in direct
form.

What makes a good software estimate: A good software estimate should have the
following points.

1. It is supported by the project manager, architecture team, development team,

and test team accountable for performing the work.

2. It is accepted by all customers in positive way.

3. It is based on well defined software cost model with a credible basis.

*** END OF UNIT I ***

9
 UNIT –II
IMPROVING SOFTWARE ECONOMICS

Improvement in the software economics is not a difficult task, but to measure the
improvement is highly difficult because there were inconsistent units of measures,
disagreement among the experts, and so many issues. To improve the software
economics we should consider the following five basic parameters.

1. Reducing the size or complexity what needs to be developed.

2. Improving the development process.
3. Using more skilled personnel and better teams.
4. Using better environments.
5. Trading off or backing of quality thresholds.

Reduction of software product size:

The most considerable way to improve the affordability and return on investment is
to produce a product that achieves the design goals with the minimum amount of
human generated source material. To reduce the software product size, the
developers may follow component based development model, object oriented
technology, automatic code generators and so may tools. The use of high level
languages such as Java, .NET, Visual Basic for software development focused on
few lines of human generated source code. But the other aspect is, when size
reducing technologies are used, they certainly generate human generated source
lines, however increase computer process able executable code.

Languages: To estimate how much human generated code is reduced to decrease

the software project size which is developed with high level languages and tools,
there are two popular parameters. One is Universal Function Points (UFP), which
consider external user inputs, external outputs, internal logical data groups,
external data interfaces, and external inquiries. These are used to indicate relative
program size to implement required functionality. The second one is SLOC which is
used to estimate the reduced size of the software project after a solution is
formulated and an implemented language is known.

The selection of the language for the software project development is depending on
what kind of the data that the application (project) be processed because each
language has a domain of usage. For example, Visual Basic is very expressive and
powerful in building simple interactive applications, but it was not suitable for
real-time, embedded programming.

10
Generally the high level languages has numerous software engineering technology
advances, language enforced configuration control, separation of interface and
implementation, architecture control primitives, encapsulation, concurrency
control, and many other to reduce the source lines of code.

The reduction of code may increase the understandability, changeability, and

reliability. But some of the drawbacks of reduction of size are high-level abstraction
reduces the performance, increasing consumption of resources, and etc.

Object oriented methods and Visual modeling: The object oriented technology
reducing overall size of what needs to be developed. The following are three reasons
for succeed of object oriented projects (proposed by BOOCH).

1. An object oriented model of a problem and its solution encourages a common

vocabulary between the end users of a system and its developers. Due to the
shared understanding the problem being solved.

2. The use of continuous integration creates opportunities to recognize risk early

and make incremental corrections without destabilizing the entire development
effort.

3. Object oriented architecture provides a clear separation among different

elements of a system, creating firewalls that prevent a change in one part of the
system from entire architecture.

Booch also propose the five characteristics of successful object oriented projects.

1. Very high focus on the development of a system provides a well understood

collection of essential minimal characteristics.
2. The current development process is centered on results, encourages
communication, and not afraid of fail.
3. The effective use of object oriented modeling.
4. The reality of strong architectural vision.
5. The application of well managed iterative and incremental development life
cycle.

Reuse: Reuse the developed software components or building reusable components

are the natural software engineering activity which is achieved through the
development of advanced programming languages.

We follow the software component reuse to minimize the development costs at the
same time we never compromise in performance, features, and quality of the
software product. So reuse has an implicit impact on the software development
community.

11
One of the difficulties to use the reuse components is fragmentation of languages,
operating systems, notations, machine architectures, tools and standards. The
main motto behind the reuse of software components is economic reasons. Here we
consider whether the component is truly reusable to the return on investment
(ROI). Most of the software organizations will support the reuse of components
which have the following characteristics.

1. The reuse components have an economic motivation for continued support.

2. The reuse components take ownership of improving product quality, adding
new features and transiting to new technology.
3. The reuse components have broad customer base for profitable.

Here we should note one important factor is the development cost of reusable
components is nontrivial. The value of reuse is immense and has an impact on
efficiency of workflow and quality of software product. It is also useful for better
return on investment.

There were some success stories of reuse software products such as operating
system, database management system, middleware, networking, GUI builders, and
office applications.

Commercial components: Today a common approach in various domains of

software development process is to develop the integration among commercial
components and off-the-shelf products.

The use of commercial components is certainly desirable to reduce the custom

development, but it is not a direct approach of software development. The use of
commercial components effects the quality, cost, supportability, and also has great
impact on overall software development architecture.

So the whether to use or not use the commercial components be decided at the
time of software project architecture design. The following are some advantages
and disadvantages of commercial components.

Advantages:
1. Predictable license costs.
2. Broadly used, mature technology available.
3. Dedicated support organizations for the service.
4. Hardware and software independence.
5. Rich functionality.

12
Disadvantages:
1. Frequent updates.
2. Up-front license fees, recurring maintenance fees.
3. Vendor dependency.
4. Run time efficiency sacrifices.
5. Functionality constraints.
6. Integration not always possible.
7. No control over upgrades and maintenance.
8. Unnecessary features and consumes extra resources.

Improving the software process:

The process is a big term which represents various activities in the software
development process. In a software oriented organizations there were several
processes and sub processes are running. Generally the processes in organizations
divided into three categories.

a) Meta processes: Which represent organization policies, procedures and

practices for pursuing the software business. Here we focus on organization
economics, long term strategies and software return on investment (ROI).
b) Macro processes: It describes policies, procedures, and practices for developing
a complete software product within certain cost, schedule, and quality.
c) Micro processes: These describe policies, procedures, and practices for
achieving the goal of software by the development team. They focus on
intermediate product baseline with adequate quality and functionality as
economically rapidly as practical.

The three levels of the processes are overlapped at some point in the project
development process, even though they have different objectives, audiences,
metrics, concerns and time sales.

Here we consider the macro processes, which are project level processes to reduce
the cost of project development. To make the project as a success one there should
be integration of all processes which may implemented through sequential and
parallel steps.

Generally the project development has two types of process activities

a) Productive activities.
b) Overhead activities.

The productive activities produce some tangible progress towards the end product.
These activates may be prototyping, modeling, coding, debugging etc.

13
The overhead activities have an intangible impact on the end product. These
activities may be plan preparation, progress monitoring, risk assessment, financial
assessment, configuration control, quality assessment, integration and testing etc.

Really the overhead activities have value added efforts but in general less focus
given to these activities. Finally the goal of processes is to maximize the resource
allocation to productive activities and minimize the impact of overhead activities.

Improving the team effectiveness:

Managing the personnel has a great impact on the software project development
process. The COCOMO model describes that combination of personnel skills and
experience have an impact on productivity as a factor of four. At the same time it is
difficult to measure the performance of the software team whether it is functioning
correctly or wrongly. To form a good development team the managers follow the
simple procedure “hiring of good people”.

The good software development team should have two characteristics, one is
Balance and other one is coverage. Whenever a team is out of balance it is helpless.
It have the good combination of planners, designers, coders, testers, trainers and
soon. It means a good team need covers strong individual persons at key positions.
To maximize the team management we should follow the bellow points;

1. A well managed project can succeed with nominal engineering team.

2. A mismanaged project will almost never succeed, even with an expert team of
engineers.
3. A well architected system can be built by a nominal team of software builders.
4. A poorly architected system will have difficulty even with expert team of
builders.

In examining how to staff a software project, Boehm offered the five staffing
principles.

1. The principle of top talent: Use better and fewer people.

2. The principle of job matching: Fit the tasks to the skills and motivation the
people available.
3. The principle of career progression: An organization does best in the long run
by helping its people to self actualize.
4. The principle of team balance: Select people who will balance and go with one
another.
5. The principle of phase out: Keeping a misfit on the team does not benefit
anyone.

14
Software development team is an exercise. Mangers must take care of teamwork
and results rather than individual accomplishment. Out of above five points, team
balance and job matching be the primary issues. The top talented and phase out is
the next important issues. We give final importance to career progression.

The software managers also have good leadership qualities to improve the team
effectiveness. The following are some qualities that a software manager should
have.

1. Hiring skills. Few decisions are as important as hiring decisions. Placing the
right person in the right job seems obvious, but at the same time difficult.
2. Customer-interface skill. Avoiding adversarial relationships among stakeholders
is a prerequisite for success.
3. Decision making skill. We know that a good leader run into problems and
decision making.
4. Team building skill. The manager should establish trust, motivate progress,
transition average people into top performers, eliminate misfits, and consolidate
diverse opinions into a team direction.
5. Selling skill. Successful managers must sell all stakeholders on decisions and
priorities. Selling achievements against objectives.

Improving automation through software environments:

The tools and environments used in software development process have a linear
effect on the productivity. Planning tools, requirements management tools, visual
modeling tools, compilers, editors, debuggers, quality assurance analysis tools, test
tools, and user interfaces provide crucial automation and support for evolving the
software engineering objectives. In addition to above configuration management
environments provide the foundation for executing and instrumenting the process.

Automate the manual tasks that are inefficient or error prone. A software project
success shown that a highly integrated environment is necessary both to facilitate
and to enforce management control of the process. An environment that provides
semantic integration and process automation can improve productivity, improve
software quality, and accelerate the adoption of modern techniques.

15
Achieving required quality:

Today what are the best practices accepted by the software industry are derived
from development processes and technologies. These practices would help to
increase the software project cost efficiency at the same time those are also help to
improve the software quality. The following are the some key issues to improve the
software quality.

1. During the software development focuses on the key requirements and

identifies the critical cases at the beginning of the development. The continuous
monitoring of requirements makes the balance between the requirements
evolution, design evolution, and plan evolution.
2. Use the elegant metrics, indicators to measure the progress and quality of the
software from its beginning of the life cycle to fully completed product.
3. Provide best environment where to integrate various processes to support
configuration control, change management, rigorous design methods, document
automation, and regression test automation.
4. Use the advanced tools such as visual modeling techniques, higher level
languages that support architectural control, abstraction, reliable
programming, reuse, and self documentation.
5. Focus on early and continuous insight into performance issues through
demonstration base evaluations.

Insights into the runtime performance issues are also important to assess the
quality of the software project. The following are some of key issues in project
development life cycle which affects the quality of the software.

1. Project beginning: The proposed design was declare to be low risk with
adequate performance margin.
2. Initial design review: Positive assessments of the design margin done mostly
on paper. The actual application algorithms, databases are also fairly
understood, but the operating system overhead, database management
overhead, inter-processes and network communication overhead are secondary
and misunderstood.
3. Mid-life-cycle design review: The assessment started in cut fashion at the
middle, as early benchmarks and initial tests are correct.
4. Integration and test: Serious performance problems are finding out then
change the architecture. At this point the used infrastructure may be the scrap.

16
Peer inspections: A pragmatic view

Peer inspections are sometimes leads to overestimation of quality of the system.

Generally peer reviews are important to compare the quality of the system against
to the primary quality mechanisms and indicators. The following are some of
primary quality mechanisms to be followed during the development of the project.

1. Transitioning engineering information from one artifact to another. At this

moment we are assessing the consistency, feasibility, understandability, and
technology constraints in engineering.
2. Major milestone demonstrations to be assessed against tangible criteria in the
context of relevant use cases.
3. Environment tools that ensure representation rigidness, consistency,
completeness, and change control.
4. Life cycle testing for detailed insight into critical trade-offs, acceptance criteria,
and requirements completeness.
5. Change management metrics for insight into multiple perspective changes or
divergence from quality and process goals.

The peer inspections are useful to have the products of junior team members
reviewed by seniors or amateurs to experts for accelerating the getting knowledge
and skill in new personnel.

Generally all the developers represent their product as a natural byproduct of the
process; therefore the peer inspections should cover all the developers rather than
all the components of the system. We are also performing random component
inspections periodically to monitor the system performance. We are also comparing
the software developed by the one team with another one to gain the varying levels
of information.

Naturally an inspection is focused on resolving existing issues in an effective way

to determine the cause or arrive at a resolution once the cause is understood.
Software development organizations perform more and more inspections on several
issues but actually 20% of technical or engineering issues deserve the peer
inspections. Sometimes human inspections degenerate comments on style and first
order semantic issues. Significant design or architectural errors really need the
peer inspections by the superficial. To resolve the problems in design and
architectural issues we follow the bellow activities.

1. Analysis, prototyping, or experimentation.

2. Constructing design models.
3. Committing the current state of the design model to an executable
implementation.
17
4. Demonstrate the implementation strengths and weaknesses in the context of
use cases and scenarios.
5. Incorporating lessons learned back into the models, use cases, implementations
and plans.

Finally the quality assurance is everyone’s responsibility and should be integral to

all process activities instead of a separate discipline performed by quality
assurance specialist.

Principles of conventional software engineering:

Over the past two decades there has been a significant re-engineering of the
software development process. Many conventional management and technical
practices have been replaced by new approaches that combine themes of
successful project experience with advances in software engineering technology.
The following are thirty major principles of software engineering.

1. Make quality #1: Quality must be quantified and mechanisms put into place to
motivate its achievement.
2. High quality software is possible: Techniques that have been demonstrated into
increase quality include involving customer, prototype simplifying design,
conducting inspections and hiring the best people.
3. Give products to customers early: No matter how hard to learn user’s needs
during the requirements phase the most effective way to determine real needs
to give users a product and let them play with it.
4. Determine the problem before writing the requirements: When faced with what
they believe is a problem, most engineers rush to offer a solution, before try to
solve a problem, be sure to explore all the alternatives and don’t be blinded by
obvious solution.
5. Evaluate design alternatives: After the requirements are approved, the developer
must examine variety of architectures and algorithms. The architecture should
relevance to the design specification.
6. Use an appropriate process model: Each project must follow a process that
makes the most sense for that project on the basis of corporate culture,
willingness to take risks, application area, volatility of requirements, and the
extent to which requirements are well understood.
7. Use different languages for different phases: Generally software development
follows one notation throughout the development life cycle. But it is not optimal
in all cases.
8. Minimize the intellectual distance: To minimize the intellectual distance, the
software structure should be close to the real world structure.
9. Put techniques before tools: An undisciplined software engineer with a tool
becomes a dangerous.
18
10.Get it right before make it faster: It is easy to make a working program run
faster than it is to make a fast program. That is don’t worry about initial
optimizations.
11.Inspect code: Inspecting the detailed design and code is a much better way to
find errors than testing.
12.Good management is more important than good technology: The best
technology will not compensate for poor management and good manager can
produce great result even with management resources.
13.People are the key to success: Highly skilled people with appropriate experience,
talent, and training are key. The right people with insufficient tools, languages,
and process will succeed. Wrong people with appropriate tools, languages, an d
process will probably fail.
14.Follow with care: Just everybody is doing something does not make it right for
you. It may be right, but you must carefully assess it applicability to the
environment.
15.Take responsibility: In any engineering discipline, the best methods can
produce unpleasant designs, the out of date methods produce elegant designs.
16.Understand the customer’s priorities: One of the fact is the customer would
tolerate 90% of functionality delivered late if they could have of it on time.
17.The more they (customer) see, the more they need: the more functionality if the
developer provides to a user, the more functionality the user wants.
18.Plan to throw one way: One of the important success factors is whether or not
the project is new. The brand new applications rarely work the first time.
19.Design for change: The architecture, components, and specification techniques
must accommodate the change.
20.Design without documentation is not a design
21.Use tools but realistic: we know that software tools make the users more
efficient.
22.Avoid tricks: Some time the developers use tricks to develop the programs,
those are functionally correct but in unclear way.
23.Encapsulate: Information hiding is simple, and this concept results easy to test
the software and much easy to maintain.
24.Use coupling and cohesion: Use coupling and cohesion are the best ways to
measure software’s natural maintainability and adaptability.
25.Use the McCabe complexity measure: There are so many methods to measure
the complexity of software, but use McCabe method which is simple one.
26.Don’t test your own software: The software developer should never be the
primary tester of their own software.
27.Analyze causes for errors: First analyze the causes for errors when those are
detected because it is cost effective to reduce the effect of an error by preventing
it then to find and fix it.

19
28.Realize that software’s entropy increases: Any software system that undergoes
continuous change will grow in complexity and will become more and more
disorganized.
29.People and time are not interchangeable: Measuring a project exclusively by
person-months makes little brains.
30.Expect excellence: The team members will do much better if team leader have
expectations for them.

The principle of modern software management:

The conventional software management principles are not highlight or suitable to

the current trends followed in the industry. In this connection the modern software
principles were evolved. The following are ten (10) modern software principles.

1. Base the process on an architecture first approach: To start the software

development, the developer first thoroughly identifies the requirements then
chooses the significant design decision. Before start the lifecycle (development)
process check the selected resources are sufficient for complete software
development.
2. Establish iterative lifecycle process that face risk early: Today the
organizations not follow to define the entire problem at once, design the entire
solution, build the software, then test and deploy in sequence. The
organizations adopt follows iterative development approach which facilitates,
problem understanding, effective solution, and an effective plan over several
iterations. It also balances the stockholder’s objectives. The main advantage of
iterative approach is risks are identified early to avoid software scrap and
rework.
3. Transition design methods to highlight component based development:
The developers should transits from line-of-code mentality to component based
mentality to reduce the amount of human generated code and custom
development. A component based model is unified set of interface and behavior.
preexisting line of code either in source or executable format, with a defined
4. Establish change management environment: The dynamics of iterative
development, concurrent workflows require the controlled baselines.
5. Enhance change freedom through tools that support round trip
engineering (iterative): The iterative development process supports automate
and synchronize engineering information in different formats. Without
substantial automation, change management, documentation, and testing it is
difficult to reduce project development time. Change freedom is necessity in
iterative process at the same time the role of environment is crucial.
6. Capture design artifacts in rigorous, model based notion: Generally model
based approach supports rich graphical and textual design notions. Visual

20
 modeling and formal machine process able language provides good measures
than traditional design approach.
7. Instrument the process for objective quality control and progress
assessment: Project development progress and the quality should be assessed
in the middle of the development lifecycle. The best assessment mechanisms
are derived directly from the engineering artifacts and able to integrate all the
activities in the development process.
8. Use demonstration based approach to assess intermediate artifacts: Transit
from current development artifacts to executable one to early elimination of
architectural defects.
9. Plan intermediate releases in groups of usage situations with evolving
levels of detail: It is necessary that the software management process has
continuous demonstrations within the operational context. The evolution of
project increments and generations must be equal with current level of
understanding of requirements and architecture.
10. Establish configurable process that is economically scalable: No single
process is suitable for software development. A practical process frame work
must be organizing a broad spectrum of applications. The software development
process must integrate economy of scale, development automation, architecture
patterns and components.

Transitioning to an iterative process:

Modern software development processes have moved away from the conventional
waterfall model, in which each stage of the development process is dependent on
completion of the previous stage.

To implement the modern techniques it is necessary that an initial version of the

system be rapidly constructed early in the development process with an
importance of addressing high-risk areas, stabilizing the basic structure, refining
requirements, developing system on core architecture with number of reviews until
achieving desired level of functionality, performance and robustness.

The iterative development gives importance to whole system rather than the
individual parts. Risks are identified early through continuous integration and
refinement of requirements, architecture, and plans. We are also achieving some
economical benefits with iterative approach, but to quantify the benefits is a
difficult issue. The following are some points represented by the COCOMO-II in the
development of software projects by using the iterative approach.

1. Application precedent: Domain experience is an important factor in

understanding how to plan and execute a software project. For extraordinary
systems, the key goal is to face risks and establish early model, even if they are
21
 incomplete or experimental. This is the primary reason that the software
industry move to an iterative life cycle process.
2. Process flexibility: Today modern software has large solution space and many
interrelated issues that there is a vital need for continuous changes. These
changes natural in problem understanding, solution space, or in plans. So
project development process must support an efficient change management.
3. Architecture risk resolution: Architecture first development is a central theme
in a successful iterative development process. The project team first develops
and then stabilizes the architecture before developing all components that
comprise entire application. This approach initiates integration activity early in
the life cycle as the verification activity of the design process and products.
4. Team cohesion: Successful teams are cohesive and cohesive teams are
successful. The successful and cohesive teams share common objectives and
priorities. Successful and cohesive teams avoid project confusion and entropy
that may generated from stakeholders expectations.
5. Software process maturity: The software engineering institute’s Capability
Maturity Model (CMM) is a well accepted benchmark for software process
assessment. The CMM is crucial important for avoiding software development
risks and develops organization’s software assets. Here we follow object quality
control.

*** END OF UNIT II ***

22
 UNIT-III
Life-Cycle Phases

Introduction: The most important characteristic of a successful software

development is the well defined separation between research and development and
production phases. Suppose any software project is failed the primary reason is
improper separation of these two stages. The unsuccessful projects exhibit the
following characteristics.

1. Overemphasis on research and development. Too many analyses or paper

studies are performed or construction of engineering baseline is differed.
2. Overemphasis on production. Rush-to-judgment designs, premature work by
overage coders, and continuous hacking is typical.

A modern software development process must define to have the following

characteristics.

1. Evolution of plans, requirements, and architecture, together with well defined

synchronization points.
2. Risk management and objective measures of progress and quality.
3. Evolution of system capabilities through demonstrations of increasing
functionality

Engineering and Production phases:

The economic factors provide a simple frame work for deriving a lifecycle picture.
To achieve the scale of economics, and higher returns on investment, the
developers should develop the software with process automation and in component
based development model. At the starting of the project development the following
are two stages of the lifecycle.

1. The engineering stage, driven by less expected but smaller teams doing design
and synthesis activities.
2. The production stage, driven more predictable but larger teams doing
construction, test, and development activities.

The transition between the engineering and production phases is crucial for
stakeholders. Generally the production plans are agreed after enough
understanding of the problem; all stakeholders are agreed to the particular
solution and committed to go for production.

23
Consequently, the engineering stage is decomposed into two stages – Inception,
and Elaboration and production stage into Construction and Transition. These
four phases are mapped to the spiral model. The following diagram shows the
development of project stages.

Here the size of the spiral corresponds to the sluggishness of the project with
respect to the artifacts that has been developed. This sluggishness visualizes the
maintaining the process or development consistency, regression testing,
documentation, quality analysis, and configuration control. Increase in
sluggishness may have little effect on activity but it requires huge changes in
architectural design, requirements specification, planning shifts, and other
subsequent phases. In iterative model each phase include all activities, in various
proportions.

Inception Phase:

The overall goal of the inception phase is to achieve the concurrence between the
stakeholders and lifecycle phases of the project. The following are some primary
and essential activities of the inception phase.

Primary Objectives:

1. Establish the project software scope and boundary conditions, including

operational concepts, acceptance criteria, and a clear understanding of what is
and is not planned to be in the project.
2. Selecting critical use cases of the system and the primary states of operation
that will reduce the major design trade-offs.
3. Demonstrating at least one candidate architecture against some of the primary
situations.
4. Estimating potential risks.

24
Essential Activities:

1. Formulating the scope of the project. This activity involves capturing the
requirements and operational concepts in an information repository that
describes user’s view of the requirements. The information repository should be
sufficient to define the problem space and derive the acceptance criteria for the
end product.
2. Synthesizing the architecture. Here design drawbacks, problem space
ambiguities, and available solution space assets are evaluated. The information
repository is created is sufficient to demonstrate the feasibility of at least one
candidate architecture and an initial baseline of make/buy decisions. So the
cost, schedule, and resource estimation can derive.
3. Planning and preparing the business cases. Here alternatives for risk
management, staffing, iteration plans, and cost, schedule, profitability trade-
offs are evaluated. The infrastructure is sufficient for the project development is
determined.

Primary Evaluation Criteria:

1. Do all the stakeholders agree on the scope definition and cost and schedule
estimates?
2. The requirements are well understood, as evidenced by reliability of critical use
cases?
3. The cost and schedule estimates, priorities, risks, and development processes
believable?
4. The depth and breadth of an architecture prototype demonstrate the preceding
criteria?
5. The actual resource expenditures versus planned expenditures acceptable?

Elaboration Phase:

We know that elaboration phase is most difficult one than remaining three phases.
At the end of the elaboration phase, the total project engineering is considered to
be completed and project goes to production. Whether to start the production or
not, is depends upon the transition from a simple operations with low risk to the
operations with higher cost and risk.

The elaboration phase must ensure that the architecture, requirements, and plans
are stable enough, and risks are sufficiently mitigated, cost and schedule for the
completion of the development can be predicted within acceptable range.

25
Primary objectives:

1. Base lining the architecture as rapidly as practical.

2. Base lining the vision.
3. Base lining high reliability plan for the construction phase.
4. Demonstrating that baseline architecture will support the vision at reasonable
cost and reasonable time.

Essential Activities:

1. Elaborate the vision: This activity involves establishing high reliable and
understanding of critical use cases that make architectural or planning
decisions.
2. Elaborating the process and infrastructure: The construction process, the use
of tools and automation support, their respective evaluation criteria is
established.
3. Elaborating the architecture and selecting components: Potential components
are evaluated and make/buy decisions are understood so that construction
phase cost and schedule can be determined with confidence.

Primary Evaluation Criteria:

1. Is the vision stable?

2. Is the architecture stable?
3. Executable demonstration shows that major risk elements have been
addressed?
4. All the stakeholders agree that the current vision met the current plans to
develop the complete system by using the current architecture?
5. Actual resource expenditures versus planned expenditures acceptable?

Construction Phase:

The construction represents a production process, in which emphasis is placed on

managing resources and controlling operations to optimize costs, schedules, and
quality. At this moment the management thinks about transition from development
of intellectual property during inception and elaboration activities to the
development of deployable products during construction and transition activities.

Many projects are produced by following the parallel increment construction

methodology. These parallel activities significantly accelerate the availability of
deployable releases, it also increase the complexity of resource management and
synchronization of workflows and teams.

26
Primary Objectives:

1. Minimizing development costs by optimizing resources and avoiding

unnecessary scrap and rework.
2. Achieving adequate quality as rapidly as practical.
3. Achieving useful versions as rapidly as practical.

Essential Activities:

1. Resource management, control, and process optimization.

2. Complete component development and testing against evaluation criteria.
3. Assessment of product releases against acceptance criteria of the vision.

Primary Evaluation Criteria:

1. Is the project baseline mature enough to be deployed in the user community?

2. Are the stakeholders ready for transition to the user community?
3. Are actual resource expenditures versus planned expenditures acceptable?

Transition Phase:

The transition phase is entered when project to be deployed in the end user
domain. The transition phase requires a usable system has been developed with
acceptable quality levels and user documentation. This phase includes following
activities.

1. Beta testing has performed to validate the project against user expectations.
2. Beta testing and parallel operations performed to replace the previous system.
3. Conversion of operational databases.
4. Training of users and maintainers.

The transition phase was completed when the developed system achieved the
complete vision. For some projects, the end point of this life cycle phase is starting
point for next version of the product. For other projects deployment completely
deliver information to the user for operation, maintenance, and enhancement.

Generally the transition phase focuses on the activities to place the complete
system in the hands of the user. It includes, beta releases, bug fix, and
enhancement releases. Here the developer put his efforts for developing user
oriented documentation, training users, supporting users for the product use.

27
Primary Objectives:

1. Achieving user self supportability.

2. Achieving stakeholder concurrence that developed system was complete and
consistent with the vision.
3. Achieving final product as rapidly and cost effectively as practical.

Essential Activities:

1. Synchronization and integration of construction into development phases.

2. Deployment specific engineering.
3. Assessment of deployment against the complete vision and acceptance.

Evaluation Criteria:

1. Is the user satisfied?

2. Actual resource expenditures versus planned expenditures acceptable?

The Artifact Sets:

To manage the complete software development process, we should collect various

kinds of information and organized it into artifact sets. Each artifact set may have
related artifacts that are persistent and are in a uniform representation format.
Here set represents a complete view of the system and an artifact represents
unified information that is developed as a single entity.

Generally the artifacts are divided into five distinct sets in the project development
lifecycle. Those are management set artifacts, requirement artifact set, design
artifact set, implementation artifact set, and deployment artifact set.

The Management Artifacts:

The management artifact set consisting of the artifacts related with process
planning and execution. This set use ad hoc notations such as text; graphics
required to represents the agreements among project personnel, among
stakeholders and project personnel and stakeholders.

Management set artifacts are evaluated, assessed, and measured through the
combination of the following.

1. Relevant stakeholder review.

2. Analysis of changes between current artifacts with previous artifacts.
3. Demonstrations to balance all artifacts and in accuracy of business case.
28
The Engineering Set Artifacts:

The engineering set artifacts consists of requirement set, design set,

implementation set, and deployment set. The primary goal to evaluating quality of
each artifact set is transiting the information from one set to another set. So we
can maintain balance among the requirements, design, implementation, and
deployment.

Requirement Artifacts: To specify the vision statement we use structured text in

requirement artifact, this vision document describe the scope of the project and
agreement between the funding authority and project team. Here we use some ad
hoc formats for supplementary specifications. Here we use UML notion for
engineering representation of requirements model. The requirement set is primary
to evaluate the remaining three sets of artifacts. Requirement artifacts are
evaluated, assessed and measured through combination of the following.

1. Analyze the consistency with the release specifications of management set.

2. Analyze the consistency between the vision and the requirements models.
3. Mapping the design, implementation and deployment sets to evaluate the
consistency and completeness.
4. Analyze the changes between current versions of requirement artifacts with
previous version.
5. Individual review of other dimensions of quality.

Design Artifacts: The solution or output of the project is designed by using the
specific design model which is in UML notation. The design set consists of varying
levels of ideas that represent the components solution space. The design model
contains both structural and behavioral information to find out bill of materials.
The design model information directly converted into the implementation and
deployment artifacts.

The design set artifacts includes, the design model, test model, software
architecture description. The design set artifacts are evaluated, assessed and
measured through a combination of the following.

1. Analyze the internal consistency and quality of the design model.

2. Analyze the consistency with the requirements models.
3. Translate the design models into implementation and deployment sets and then
evaluate consistency, completeness between the sets.
4. Analyze the changes between current version design model and previous
version design model.
5. Individual review of other dimensions of quality.
29
Implementation Artifacts: The implementation artifact set includes source code
that is useful to develop the working system components and any executables
required to test these components. The executables are primary parts of the end
system which may custom components, application programming interfaces (API),
reusable or legacy components of programming languages. Implementation set
artifacts can be translated into deployment set.

Some specific artifacts in this set has self documenting product source code and
associated files, self documenting test source code and associated files, stand-alone
component executables etc. Generally implementation artifact set are in human
readable format that are evaluated, assessed, and measured through the following.

1. Analyze the consistency with design models.

2. Translate into deployment set notation.
3. Assessment of component source codes or executable files through inspection,
analysis, demonstration, or testing.
4. Execute stand-alone components and compare the results with actual results.
5. Analyze the difference between current versions of artifacts with previous
version.
6. Individual review of other dimensions of quality.

Deployment Artifacts: The deployment set includes user deliverables and

machine language notations, executable software and build scripts, installation
scripts, executable target data to use the project in user environment. Deployment
information to be installed, executed, and dynamically reconfigured to support the
end system. Deployment artifacts are evaluated, assessed and measured through a
combination of the following.

1. Test the deployment set against the system usage and the quality to be
evaluated with respect to consistency and completeness.
2. Test the system partitioning, replication, and allocation strategies in relevance
with implemented components and physical resources.
3. Test the usage scenarios – user manual, mainstream usage, anomaly
management.
4. Analyze the changes between the current version and previous version.
5. Individual review of other dimensions of quality.

The goal of artifacts is to optimize the process activities and objectives. There is no
scientific methodology for selecting management, requirement, design,
implementation and deployment artifacts.

30
Generally each artifact set use different plans to gain the relevant information of
the system. The management artifacts concentrate on plans, process, business
objectives, and acceptance criteria. Requirement artifacts concentrate on
engineering information and operational concepts. Design artifacts concentrates on
engineering blue prints. Implementation artifacts concentrate on building block of
the solution in human readable form. Deployment artifacts concentrate on solution
in machine readable form. The modern software development process map to any
one of the artifact set.

1. Management: Work flow, defect tracking, change management, documentation,

spreadsheet, resource management, and presentation tools.
2. Requirements: Requirements of management tools.
3. Implementation: Compiler/Debugger tools, code analysis tools, rest coverage
analysis tools, and test management tools.
4. Deployment: Test coverage and test automation tools, network management
tools, commercial components and installation tools.

Implementation set versus Deployment set:

The implementation set and deployment set have their own concepts, the
differences between these two sets are essential. The structure of information
delivered to the user is entirely different from the structure of source code executed
in user environment. We know that the engineering decisions has great impact on
quality and deployment of the system, at the same time it is difficult to understand
the engineering decisions. The engineering decisions have impact on the following
areas of the project.

1. Dynamically reconfigurable parameters such as, color patterns, number of

servers, number of simultaneous clients, data files and run time parameters.
2. Effects on compiler / link optimizations such as space optimization and speed
optimization.
3. Performance under certain allocation strategies such as centralized versus
distributed computing, dynamic load balancing, hot back up etc.
4. Virtual machine constraints such as file descriptors, garbage collection, heap
size, maximum record size, etc.
5. Process level concurrency issues such as deadlock and race conditions.
6. Platform specific differences in performance or behavior.

The above configuration information either exists in implementation set or in

deployment set. In case of dynamically reconfigurable or portable system
(components) it is essential to bifurcate source code implementation (deployment)
from target environment (implementation).

31
Artifact evolution over the lifecycle:

Each state of project development represents a certain amount of precision in the

final system description. At the beginning of the lifecycle, precision is low and the
representation high. Finally the precision is high and everything is specified in full
detail. At any point in life cycle, the five sets of artifacts will be different states of
completeness. But, at the project completing stage all the artifacts are compatible
and reasonably traceable to one another.

As the project development goes on, the architecture stabilizes, and maintaining
traceability linkage among artifact sets. Each phase of project development focuses
on particular artifact set. At the end of the each phase the system development will
process all the sets. The following diagram represents the life cycle evolution of
artifact set.

The inception phase focuses on critical requirements, initial deployment view, and
little focus on implementation and primary focus on design architecture. During
elaboration phase more concentration on requirements, much more in design and
further work on implementation and deployment issues such as performance
trade-offs and make / buy analysis. The elaboration phase activities may include
generation of executable prototype. Here we generally understanding of component
interfaces.

The main focus on construction phase is design and implementation. At the

starting of construction phase should analyze design artifacts in depth. Here we
understand design of source code and individually tested components. The
construction phase drives the requirements, design and implementation sets
almost to complete.

32
The main focus on transition phase is to achieving consistency and completeness
of the deployment set in the context of other sets. Remaining defects are resolved
and feedback from alpha, beta, and system testing is incorporated.

Test Artifacts: In conventional software testing, document driven techniques are

used. Generally the development teams built requirement documents, top level
design documents, and detailed design documents in software development
process. In the same way before conducting the software testing, the system test
plan documents, system test procedure documents, integration test plan
documents, unit test plan documents are constructed by the testing team.

In the modern approach the test notations and artifacts used for software
development and testing are similar. The test procedure is considered as an
important activity in end product. The testing is done basically by identifying the
test infrastructure. Due to this, the following engineering constraints are used in
testing process.

1. The test artifacts must be developed concurrently with the product from
inception through deployment. Thus testing is a full life cycle activity.
2. The test artifacts are communicated, engineered and developed within the same
artifact sets as the development product.
3. The test artifacts are implemented in programmable and repeatable formats.
4. The test artifacts are documented in the same way that the product is
documented.
5. Developers of test artifacts use the same tools, techniques, and training as the
software engineers developing the product.

The testing is only one aspect of the assessment of workflow. Other aspects include
inspection, analysis, and demonstration. Testing refers to the explicit evaluation
through execution of deployment set components under a controlled scenario with
an expected and objective outcome. The success of a test can be determined by
comparing the expected outcome to the actual outcome with well defined
mathematical precision. Tests are exactly the forms of assessment that are
automated.

Management Artifacts:

The management artifact set is used to capture intermediate results and additional
information required to document the product/process. This information have how
to maintain product, how to improve the product and improvements of the process.

33
 Business case: The business case information is used to determine whether
investing in the project in beneficial or not. The business case artifact includes the
expected cost, revenue, backup data and technical management plans. In the
business case is a detail demonstration of risks and reality associated with
management plans. For large projects business case is a full scale proposal with
multiple volumes of information. For small projects it is a brief plan along with
spreadsheet. The main purpose of business case is to transform the vision into
economic terms, so an organization can make accurate ROI. The following is the
detailed outline of business case.

I. Context (domain, market, scope)

II. Technical approach
a. Feature set achievement plan
b. Quality achievement plan
c. Engineering trade-offs and technical risks.
III. Management approach
a. Schedule risk assessment
b. Objective measures of success.
IV. Evolutionary appendixes
a. Financial forecast
1. Cost estimate
2. Revenue estimate
3. Bases estimate

Software Development Plan: The software Development Plan (SDP) describes the
process framework in full detail. It is a defined document of project’s process. It must
fulfill organization standards, project design and requirements, any contracts, used
across all subordinate organizations doing software development. Two important
indicators of SDP is (a) periodic updating and (b) understanding and acceptance by
managers.

Work Breakdown Structure: The work breakdown structure (WBS) is key feature for
budgeting and collecting costs. The project manager should have an idea about project
costs and how they are expended to monitor and control project’s financial
performance. Suppose the WBS may plan improperly it may cause for project failure,
because it has large impact on design and production stages of the project. The project
manager concentrates on lower level of WBS after particular level of stability achieved
in the project development.

Software Change Order Database: Managing change is one of the fundamental issues
in iterative development process. With good change freedom, the project may develop
more productively. The change freedom can increase the flexibility in project contents,

34
quality, and number of iterations that a project can achieve within a given schedule.
Generally change freedom is achieved through process automation.

Release Specifications: The project’s plan scope and objective is assessed before
release. This assessment criterion is depending on the project’s vision statement and
many other parameters. These artifacts are evolved in accordance to the process
development, thereby achieving consistency and requirements understandability is
improved throughout the lifecycle. There are two important forms of requirements, (i)
vision statement (ii) evaluation criteria.

Vision statement: The vision statement describes the contract between the buyer and
the development team. This information evolving and changing slowly across the
lifecycle phases. The vision statement may use ad hoc or some other formats for easily
understand to the buyer. The use case model in vision statement serves to understand
the operational concepts of the project by the user/buyer.

Evaluation criteria: The evaluation criteria contain the release specifications, are
brief snapshots of objectives for an intermediate lifecycle phases. The evaluation
criteria defined management artifacts instead of requirement artifacts. The evaluation
criteria may also derived from the vision statement and many other sources.

The vision statement represents the system requirements that are related to
user/buyer. But actually lower level requirements are evolved by making the several
iterations in project development phases.

1. Inception iterations: The inception iterations can capture key issues

associated with the critical use cases that have an impact on architecture
alternatives and the overall business case.
2. Elaboration iterations: These iterations are used to demonstrate against the
candidate architecture, verify the critical use cases and critical requirements of
vision statement can be met with low risk.
3. Construction iterations: These iterations are associated with meaningful set of
use cases, when passes, develop useful subset of product that can be
transitioned to formal set or alpha or beta releases.
4. Transition iterations: It uses complete set of use cases and associated
evaluation criteria compose acceptance criteria associated with deploying a
version into operation.

Release descriptions: Release description documents describe the result of each

release, including performance against evolution criteria in corresponding release
specification. The release description document should contain release baselines
that represent evolution criteria and provides confirmation that each criterion has
been addressed in an acceptable manner.
35
The release description document should also have metrics summary that quantify
the quality and relative terms. This document can also have outstanding issues,
recommendations for process and product improvement, trade-offs in addressing
evaluation criteria, follow-up actions and similar information.

Status assessment: Status assessment provides periodic snapshots of project

health and status, including the software project manager’s risk assessment,
quality indicators and management indicators. Generally the status assessment
period may vary, but here we have more concentrate on assessment functions
persistent. The principal objective of good management process is to ensure the
expectations of all stakeholders are synchronized and consistent.

The periodic status assessment documents provide the critical mechanism for
managing everyone’s expectations throughout lifecycle for addressing,
communicating, and resolving management issues, technical issues, and project
risks and for capturing project history.

Environment: An important issue in modern software development process is to

define development and maintenance environment. A healthy and integrated
development environment must support the automation of the development
process. Generally this kind of environment must have requirements management,
visual modeling, document automation, and host, target programming tools,
automated regression testing and continuous and integrated change management,
and feature defect tracking.

A common feature in all successful projects is to hire good people and provide
them with good tools to accomplish their jobs. Automation of the software
development process returns in quality, ability to estimate costs, and schedules,
overall productivity using a smaller team.

Deployment: A deployment document can take many forms. Depending on the

project, it could include several sub documents for transitioning the product into
operational status. Here one of the big issues is, suppose the project maintenance
is handover to separate maintenance organization then deployment artifacts
include computer system operations manuals, software installation manuals, plans
and procedures for cutover, site surveys, etc should transfer to the maintenance
organization. For commercial software products, deployment artifacts may include
marketing plans, sales plans and training courses.

36
Engineering Artifacts:

Most engineering artifacts are captured as per accurate engineering planning such
as UML, programming languages, or executable machine codes. There are three
engineering artifacts are more important, those are;

1. Vision document.
2. Architecture description.
3. Software user manual.

Vision document: The vision document provides a complete vision for the software
system under development. It also supports the contract between funding
authority and development organization. Whether the project is huge confidential
one or it may be a small commercial product, they should capture the expectations
of the stakeholders.

A project vision to be challengeable as for the requirements, architecture, plans,

and technology. But a good vision document should change slowly. Generally the
vision document should be developed in user perspective, containing essential
features of the system, and acceptable levels of quality.

The vision document should contain two appendixes. The first appendix should
describe the operational concepts using use cases; the second appendix should
describe change risks inherent in vision statement. The vision statement also has
what to be included and what features are considered but not included.

The vision document should specify operational capabilities of the system, user
profiles, interoperational interfaces with entities outside of system boundary. The
vision should not define for initial operating level; it paves the path for system
adaptability.

Architectural description: The architecture description provides an organized

view of the software architecture. The architectural design is extracted from the
design model and includes views of design, implementation and deployment
information is sufficient to understand operational concepts. The breadth of the
architecture description may vary from project to project depending on many
factors. Generally the project architecture is described as a subset of design model
or abstraction of design model or combination of the both.

Software user manual: The software user manual provides the user with the
reference documentation necessary to support the delivered software. The user
manual contents are variable across the application domains. The user manual

37
should have installation procedures, usage procedures and guidance, operational
constraints, and user interface description etc.

The software user manuals should developed at the beginning of the lifecycle,
because it is a necessary mechanism for communicating and stabilizing a part of
requirements. The user manual written by the test team, who actually understand
the user’s perspective than the development team.

Pragmatic Artifacts:

We known that the documents are more important in the software development
process, but the conventional document driven approaches wasted valuable
engineering time on developing, polishing, formatting, reviewing, updating, and
distributing documents. The documents should be maintained in any software
development process due to two reasons.

1. There were no exact engineering methods or languages for requirements

specification or design in project development. Here paper documents with ad
ho text and graphical representations were the default formats.
2. Predictable language implementations and deployment were extremely puzzling
and highly unstructured.

So to present the details of software structure and behavior to other interested

reviewers good human readable formats were needed. Due to the good
documentation it is easy to monitor the progress of the software development at
various stages and judged properly.

When we dealing with documents, one of the critical issue is quality of the
documents than the quality of engineering information they represented. To
monitor the quality of the documents, document production cycles, review cycles,
and update cycles also inserted into the software development process. Due to this
the software development schedules and synchronization points are prolonged.

The software developers would follow an effective approach to redirect the efforts
from documentation to improving the understandability of hardness of information
source and allow on-line review of present information by using the smart browsing
and navigation tools. This approach eliminates the huge, unproductive source of
information, scrap and rework. This approach addresses the following issues.

1. People want to review information but don’t understand the language of

the artifacts – Suppose the artifacts were written in the engineering language,
the most of the reviewers try to understand the engineering language first. We
know that the reviewers having knowledge about engineering concept, but the
38
 engineering language learning capability is less. Suppose the artifacts are in
high engineering language, then to understand these artifacts the reviewers
take much more time and effort.
2. People want to review the information but don’t have capability to access
the tools – Generally every software development organization not fully tooled
(automated). Only some stakeholders have the capability to review the
engineering artifacts through on-line. Suppose some organizations forced to
exchange the paper documents with the help of some standardized languages,
visualization tools and the web then other stakeholders does not accept this
approach then the efficiency in software development process was corrupted.
3. Human-readable engineering artifacts should use exact notations that are
complete, consistent and used in a self-documenting manner - Properly
spelled English words should be used for all identifiers and descriptions.
Acronyms and abbreviations should be used only where they are well accepted
in the context of component’s usage. The usage of encryptions, programming
language tools may simplify the artifact’s author’s work but causes errors in the
software development process. We know that software is written only once, but
it read many times. Therefore, readability should be given importance and
usage of proper English words should be required in all engineering artifacts.
4. Useful documentation is self-defining - The self-documenting engineering
artifacts should be developed to avoid separate documents to describe all the
details of a model, component, or test procedure. Suppose the document is
generated but not used, and then eliminate it by considering the requirements
which are used in its completion.
5. Paper is tangible; electronic artifacts are too easy to change – Naturally
paper documents are static, persistent and tangible but those are preferable by
only some stakeholders. The online and web-based artifacts have many
advantages but suffer with easy to change and volatile in nature.

*** END OF UNIT III ***

39
 UNIT – IV
Model Based Software Architectures

Introduction: Software architecture is a key concept for every software system.

The software architecture has several dimensions of complexity. Generally the
software system performance issues and features of software system has not
described by any laws of software engineering. Those are directed by well accepted
form of mathematics. So the software architecture has no certain principles.

There were many assumptions and unclear guidelines for software architecture,
but the good software architecture is situation dependent. Due to the lagging in
theory, software architects depend on some form of experimentation in framing
software architectures. This is the main reason for moving from traditional
software development approach to an iterative process.

There was no well definition for the software architecture, because early software
systems were less powerful than present day systems. Early systems would require
only informal representations in single computer, single program system, the
mapping among design objects, implementation objects and deployment objects
was unimportant. But today software systems advanced to multiple distinct models
and views to exploit the advantages of modern technologies such as commercial
components, object oriented methods, open systems, distributed systems, host and
target environments and modern languages. Here a model is a relatively
independent abstraction of a system. A view is a subset of a model that abstracts a
specific, relevant perspective.

Architecture: A Management Perspective

The most critical technical product of a software project is its architecture which
includes the infrastructure, control, and data interfaces that permit software
components to cooperate as a system and software designers to cooperate
efficiently as a team.

We know that establishing accurate and precise communications among teams of

people is an unchanging problem in any software organization. Suppose the
communication media has multiple languages, inter group latency varies then the
communication problem is become complex and unsolvable. If a software
development team is be successful, the interproject communications in software
architecture must be accurate and precise.

40
From management perspective there was three different aspects of architecture.

1. Architecture (Intangible design concept) is the design of a software system; it is

not a design of a component. It includes all engineering required to specify a
complete bill of materials. Significant make or buy decisions are resolved and
all necessary components are elaborated so that individual component cost and
construction or assembly costs can be determined with confidence.
2. Architecture baseline (Tangible artifacts) is a slice of information across the
engineering artifact set to satisfy all stakeholders that vision can be achieved
within the parameters of the business case.
3. Architecture description is an organized subset of information extracted from
the design set models. It includes the additional ad hoc notion necessary to
clarify the information in the models. The architecture description
communicates how the intangible concept is realized in the tangible artifacts.

The definitions are necessarily theoretical, because architecture has different forms
in different domains. Generally the architecture of the software for air traffic
control system is very different from the software architecture of small development
tool. The relation between software architecture and modern software development
process is represented bellow.

1. A valuable project in which important make or buy decisions are solved early
stages leads to the path of achieving stable software architecture. Here all
software development phases are involved and these lifecycle events cause
transition from one stage to another stage.
2. Architecture representations provide a basis for balancing the trade-offs
between the problem space and the solution space.
3. The architecture and process encapsulate many of the important
communications among individuals, teams, organizations, and stakeholders.
4. Poor architectures and immature processes are often given as reasons for
project failures.
5. A mature process, an understanding of the primary requirements, and a
demonstrable architecture are important requirements for predictable planning.
6. Architecture development and process definition are the intellectual steps that
map the problem to a solution without violating the constraints; they require
human innovation and cannot be automated.

Architecture: A Technical Perspective

Software architecture includes the structure of software systems (collection of

elements and composition of elements into progressively larger sub system), their
behavior, (collaboration among elements) and prototypes that guide these
elements, their collaborations and their compositions. The context of software
41
architecture, behavior, and patterns must include functionality, performance,
flexibility, clarity, economic trade-offs, technology constraints and artistic
concerns.

Generally an architecture framework is defined in terms of views that are

abstraction of UML models in the design set. An architecture view is a concept of
design modeling. It has architecturally important information. Naturally software
systems require four views: Design, Process, Component, and deployment. The
following is the purpose of these views.

Design view: The design view describes architecturally significant elements of the
design model which includes structure and function. This view is an idea of design
model. It modeled statically using class and object diagrams and dynamically using
any of the UML behavioral diagrams.

The process view: The process view describes the runtime collaboration issues
involved in executing the architecture on a distributed deployment model,
including the logical software network topology, interprocess communication, and
state management. This view is modeled statically using deployment diagrams and
dynamically using UML behavioral diagrams.

Component view: It describes the architecturally important elements of

implementation set. This view is an idea of the design model, which includes
software source code in perspective of project’s developers. It modeled statically
using component diagrams and dynamically using nay of UML behavioral
diagrams.

Deployment view: It addresses the executable realization of the system, including

the allocation of logical processes in the distribution view to physical resources of
the deployment network. It is modeled statically using deployment diagrams,
dynamically using UML behavioral diagrams.

Generally architecture descriptions take different forms and styles in different

organizations and domains. At any moment architecture requires a subset of
artifacts in each engineering set. The actual level of content in this set is situation
dependent. Architecture baseline includes the following.

1. Requirements: Critical use cases, system level quality objectives, and priority
relationships among features and qualities.
2. Design: Names, attributes, structures, behaviors, groupings and relationships
of significant classes and components.
3. Implementation: Source component inventory and bill of materials of all
primitive components.
42
4. Deployment: Executable components sufficient to demonstrate the critical use
cases and the risk associated with achieving the system qualities.

Workflows of the Process:

Introduction: Generally software processes are described in the format of

sequence of activities. These sequential descriptions of processes are simple to
understand, represent, plan and conduct. At the same time these simple sequential
activities are not realistic on software projects because software projects required
team efforts. The team work may require many artifacts must be synchronized,
cross-checked, homogenized, merged, and integrated. So the distributed nature of
the software process and its assistant workflows is the primary management
complexity.

One of the drawbacks of conventional software process development was

representing the macroprocess as a sequential thread of activities in the lifecycle
model from requirement phase to deployment phase. But it is hard to specify the
boundaries between the phases of lifecycle model and additional efforts are
required to complete a particular phase and engineering decisions are slowed and
stopped.

A modern software development lifecycle activity are turned into predominant

activities, such as inception, elaboration, construction, and transition. Here we
specify the process as a states rather than phases.

Software process workflows:

The software process is described in two ways, either by macro process or micro
process. The macro process contains discrete phases and iterations but not
discrete activities. Generally we know that continuous activities are carried out in
each phase and iteration. The micro processes are also known as workflows which
produces workflows. The workflow is used to a thread of cohesive and sequential
activities. The following are various kinds of workflows.

1. Management workflows: Controlling the process and ensuring win conditions

for all stakeholders.
2. Environment workflows: Automating the process and developing the
maintenance environment.
3. Requirement workflow: Analyzing the problem space and developing the
requirements artifacts.
4. Design workflow: Modeling the solution and developing the architecture and
design artifacts.

43
5. Implementation workflow: Programming the components and developing the
implementation and deployment artifacts.
6. Assessment workflow: Assessing the trends in process and product quality.
7. Deployment workflow: Transitioning the end products to the user.

The following diagram shows the levels of effort required by the workflows in
various project development phases. It also represents modern process framework
and provides a viewpoint from modern software management.

1. Architecture first approach: Deep requirement analysis, design,

implementation and assessment activities are performed before the
construction phase. The implementation and architecture testing occurs prior
to the full scale development and components testing. Here we also focus on
completeness and product quality.
2. Iterative life-cycle process: As shown in the above diagram, each life-cycle
phase represents at least two iterations of each of seven workflows. It is not
necessary to have two iterations of each workflow. Some projects need only one
iteration and some others need much iteration in each phase. It is
advantageous to have more than one iteration in each phase for better and
adequate results.
3. Round trip engineering: Improving environmental activities is risky. The
environment is the tangible area of the project’s process, methods and
notations for producing artifacts.
4. Demonstration based approach: The implementation and assessment
activities gets started in the initial stages of lifecycle. Hence now focus on the
constructing the executable subsets of the architecture.

The documentation results are the by-product of the workflow activities and quality
assurance is not separately carried out because implicitly it occurs in almost all
activities.
44
The following table shows, allocation of artifacts and workflow in each lifecycle
phases of inception, elaboration, construction and transition.

Management workflow
Phases Activity Levels
Inception Preparation of business case and vision
Elaboration Development of plan
Construction Controlling and observing development
Transition Controlling and observing deployment
Environment workflow
Phases Activity Levels
Inception Development environment and change management
infrastructure are defined
Elaboration Development environment is installed and change
management database is established
Construction Maintain development environment
Transition Transition maintenance environment
Requirements workflow
Phases Activity Levels
Inception Define concept of operation
Elaboration Define goals of architecture
Construction Define goals of iteration
Transition Improve release objectives
Design workflow
Phases Activity Levels
Inception Define concept of architecture
Elaboration Get architecture baseline
Construction Component designing
Transition Improve architecture and components
Implementation workflow
Phases Activity Levels
Inception Support prototype of architecture
Elaboration Architecture baseline is produced
Construction Complete components are produced
Transition Maintain components
Assessment workflow
Phases Activity Levels
Inception Assessment of prototypes, plans, and vision
Elaboration Assessment of architecture
Construction Assessment of temporary releases
Transition Assessment of releases
Deployment workflow
45
 Phases Activity Levels
Inception Examine user groups
Elaboration User manual definition
Construction Preparation of transition manuals
Transition Ship end products to user

Iteration workflows:

Iteration consists of sequential set of activities in various sizes, depending on

position of iteration in development cycle. Each iteration is defined in terms of set
of allocated usage scenarios. The components needed to implement all selected
scenarios are developed and integrated with the result of previous iterations. The
following diagram shows individual iterations workflow.

1. Management: Project Management is concerned with the content of the

iterations, assigning work, and the contents of anticipated releases.
2. Environment: Environment is concerned primarily with maintaining the
software change database – tracking, prioritizing, addressing any changes that
arise. All tools, standards, procedures are part of this.
3. Requirement: Requirements is concerned with looking carefully at the
baseline plan, architecture, and requirement set artifacts needed to fully
expand the use cases that need to be demonstrated at the end of this iteration –
as well as their evaluation criteria.

4. Design: It is concerned with developing the design model and test model by
evolving the baseline architecture and design set artifacts against the
evaluation criteria for a specific iteration; Also need to update the design set
artifacts in response to the activities within this iteration.

46
 5. Implementation: It addresses developing (from scratch), customizing, or
acquiring (purchase, reuse) new components and to test and integrate these
components into to current architectural baseline.
6. Assessment: concerned with evaluating the results of each iteration to insure
compliance with evaluation criteria and to identify rework needed before
deployment of this release or allocated to the next iteration; also, assess the
results for this iteration so as to improve the next iteration’s procedure.
7. Deployment: concerned with transmitting the release either internally or to an
external organization for exercise.

In software development process activities are generally goes on concurrently for

example requirements analysis is not done continuously as a single phase. It
interlinks with management, design, implementation, and soon.

Iterations in inception and elaboration phases focus on management,

requirements, and design activities. Iterations in construction phase focus on
design, implementation and assessment. Iterations in the transition phase focus on
assessment and deployment. The following diagram shows importance activities
across the life cycle.

In practice overlapping of iterations causes the development process is more complex.

Here iteration and increment has some practical considerations.

Iteration is considered as the state of entire architecture and complete deliverable

system. It also represented as repetition of set of activities. An increment is defined as
current progressive work that will be combined with results of the previous iteration to
next iteration. Generally each increment produces a complete intermediate or end
product.

47
 UNIT – V
Checkpoints of the Process

Introduction: Checkpoints are also referred as milestones. A milestone is defined as a

planned or organized event used to measure the progress of the project. Good
milestones in software lifecycle was needed for gather the stakeholders face to face, to
discuss progress and plans of the project. The purpose of the milestones is not only
checking how well a project is performed but also achieving the following actions.

1. Coordinate stakeholder’s expectations and achieve concurrence on

requirements, design and plan.
2. Coordinate related artifacts into a consistent and balanced state.
3. Identify the major risks, issues, and out-of-tolerance conditions.
4. Perform global assessment for the whole lifecycle, not just for individual
situation or intermediate product.

Milestones must have well defined expectations and provide tangible results. It is not
possible to change the milestone objectives once understanding the project trade-offs
among requirements, design and plan. In order to achieve stakeholder’s expectations
throughout the software lifecycle, the project checkpoints or milestones are
categorized into the three sequences.

1. Major milestones
2. Minor milestones
3. Status assessments

Major milestones: These system wide events are held at the end of each
development phase. They provide visibility of system wide issues, Synchronize the
management and engineering perspectives and verify that the aims of the phase
have been achieved.

Note: The most important major milestone is usually the event that transitions the
project from elaboration phase into construction phase.

Minor milestones: These iteration focused events are conducted to review the
content of iteration in detail and to authorize continued work. The formats and
content of minor milestones are highly dependent on the project and the
organizational culture.

Status assessments: These periodic events provide management with frequent and
regular insight into the progress being made. Periodic status assessments are
crucial for focusing continuous attention on the evolving health of the project and
its dynamic priorities.
48
 The level and the number of milestones will vary depending on several parameters,
such as scale, number of stakeholders, business context, technical risk, and
sensitivity of cost and schedule. Most of the projects have four milestones, on
exceptional cases one more major milestone. For small projects few or no minor
milestones be needed to manage intermediate results and the number of status
assessments are also infrequent. The following diagram shows sequence of project
milestones for large projects.

Major Milestones:

Major milestones are the system wide events that are held at the end of each
development phase to provide visibility to system wide issues synchronize the
management and engineering perspectives and verify that the goals of the phase have
been achieved. Major milestones are used in different process models, including
conventional waterfall model. In iterative model, the major milestones are used to
achieve concurrence among all stakeholders on the current state of the project.
Naturally different stakeholders have different concerns.

1. Customers: Schedule and budget estimates, feasibility, risk assessment,

requirements understanding, progress, product line compatibility.
2. Users: Consistency with requirements and usage scenarios, potential for
accommodating growth, quality attributes.
3. Architectures and system engineers: Product line compatibility, requirements
changes, trade-off analyses, completeness and consistency, balance among
risk, quality, and usability.
4. Developers: Sufficiency of requirements detail and usage scenario descriptions,
frameworks for component selection or development, resolution of development
risk, product line compatibility, sufficiency of development environment.
5. Maintainers: Sufficiency of product and documentation artifacts,
understandability, interoperability with existing systems, sufficiency of
maintenance environment.

49
6. Others: Possibly many other perspectives by stakeholders such as regulatory
agencies, independent verification and validation contractors, venture capital
investors, subcontractors, associate contractors, and marketing teams.

Life-Cycle objectives milestone: The lifecycle objectives milestone occurs at the

end of the inception phase. The goal of this milestone is to present a road map how
to proceed with project development to all the stakeholders. The presentation of
project development includes plan, estimated cost and schedule and expected
benefits and cost savings. This milestone can also consider complex issues relative
to requirements and other operational concepts.

In this milestone a draft architecture document and demonstration architecture

were developed and those provide confirmation for project completeness and vision.
A successful lifecycle objectives milestone will get approval from all stakeholders to
proceed with the elaboration phase.

Life-Cycle architecture milestone: The lifecycle architecture milestone occurs at

the end of the elaboration phase. The main goal of this milestone is to demonstrate
an executable (working) architecture to all the stakeholders. In this milestone a
more detailed plan for the construction phase is presented to all the stakeholders.
It also considers the complex issues relating to the requirements and operational
concepts.

This milestone achieve consensus on baseline architecture, baseline vision,

baseline software development plan, and evolution criteria for the initial
operational capability.

We know that the baseline architecture consists of both human readable

representations and configuration controlled set of software components captured
in engineering artifacts.

A successful lifecycle architecture milestone will result in approval from

stakeholders to proceed with the construction phase. This is a most important
milestone that transits the project from elaboration phase to the construction
phase. A software project which is ready for this transition must have the following
characteristics.

1. The complex issues in the project have been defined, by getting the approval
from the stakeholders and codified into a set of scenarios to test the
architecture.
2. A stable architecture has been baselined in source language format. Stability
means the architecture should have performance, robustness, scalability,
adaptability.
3. The risks in the project development were understood. At the same time all
risks do not fully resolved, but the stakeholders should have an understanding
of risks and serious consequences. The risks mitigation plans should be
elaborated fully.

50
4. The development plan for construction and transition phases is defined with
enough reliability that construction iterations can proceed with predictable
results.

The content of this milestone will vary across the project domains. It should
include at least the following.

1. A presentation and overview of current project state.

2. A configuration controlled set of engineering information, available
electronically or in hardcopy.
3. An executable demonstration of capability.

Initial operational capability milestone: This milestone is occurs at the end of

the construction phase. The goal of this milestone is to assess the readiness of the
software to begin transition into customer/user site and to get permission to start
the acceptance testing. This milestone would consider installation instructions to
be followed, software version descriptions, user and operator manuals, and the
ability of the development organization support to the user.

This milestone can also reviewed quality parameters of the software for the
customer usage. Here we perform acceptance testing incremental manner across
multiple iterations. The initiation of transition phase is not meaning that the end of
the construction phase. The construction and transition phases are overlapped
until an initial product is delivered to the user for self sufficient operation.

Product Release milestone: The product release milestone occurs at the end of
the transition phase. The goal of this milestone is to check the completion of the
software and its transition to the beneficial organization. Here the results of the
acceptance testing are reviewed and installation instructions, software version
descriptions, user, operator manuals, software support manuals, installation of the
development environment at support sites are considered.

This milestone is also considering the software quality parameters to determine

whether quality is sufficient for the usage.

Minor Milestones:

Minor milestones are called inch-pebbles. These are the iteration specific events
are used to review iterative content in a detailed manner and authorized the
continued work.

Generally, the minor milestones are informal milestones which are depending on
the content and length of the iteration. Normally iteration can take one-month to
six-months of duration. In this duration only two minor milestones are required.
One is iteration readiness review and another one is iteration assessment review.
Sometimes for longer iterations one more intermediate minor milestone may be

51
required. This intermediate minor milestone reviews the progress assessment and
dissemination of work throughout the project.

In minor milestones, all iterations should not have the same length and iteration
can take different forms and priorities, depending on the position of the project in
the lifecycle.

Naturally early iterations focus on analysis and design, with the elements of
discovery, experimentation and risk assessment. Later iterations focus on
completeness, consistency, usability and change management.

Iteration readiness review: This informal milestone is conducted at the start of

each iteration to review the detailed iteration plan and the evaluation criteria that
have been allocated to this iteration.

Iteration assessment review: This informal milestone is conducted at the end of

each iteration to assess the degree to which the iteration achieved its objectives
and satisfied its evaluation criteria.

The review of iteration results and the review of qualification test results used to
determine the amount of rework to be done and to analyze impact of iteration
results on the plan for subsequent iterations.

The format and content of the minor milestones highly dependent on the project
and organizational culture. The following diagram shows various minor milestones
to be considered when a project is being planned.

52
Periodic Status Assessments:

Risk management requires continuous attention to all activities of a software

development process. Periodic status assessment is considered as a management
review carried out on regular intervals of time. So the periodic assessment leads to
indicate the project progress, quality, project dynamics, and maintaining continuous
communication among all the stakeholders.

Periodic status assessment is also considered as one of the critical project checkpoint,
it provides special consideration on the gradual development of the software project
properties. The purpose of status assessment in software development lifecycle
provides the following.

1. A mechanism for openly addressing, communicating, and resolving

management issues, technical issues and project risks.
2. Deriving objective data directly from present activities and evolving product
configurations.
3. A mechanism for disseminating process, progress, quality trends, practices, and
experience information to and from all stakeholders in an open form.

There are some repeated themes from which status assessment is derived from
successful and unsuccessful projects. Those are as follows.

1. From unsuccessful projects status assessments are:

a) High overhead activities due to the differences between daily work and
status generated work.
b) Frequently cancelled, because high priority issues that require resolution.
2. From successful projects status assessments are:
a) Low overhead activities, because the material exists as everyday
management data.
b) Rarely cancelled, because they considered too important.

The default content of periodic status assessments includes the following topics.
1. Personnel: The contents of this topic include staffing plan vs actual attritions,
additions and subtractions.
2. Financial trends: Expenditure plan vs actual for previous, current and next
major milestones and revenue forecasts are the contents of the financial trends.
3. Top 10 risks: Critical resolution plans and issues and exposure of cost, time
and quality comes under top 10 risks.
4. Technical progress: The content of technical progress includes, software
management metrics and indicators, major milestone configuration baseline
schedules, changed current trends and test quality assessments.

53
5. Major milestone plans and results: Schedules, risks and plans for the next
major milestone, pass/fail results for all acceptance criteria are the contents of
this topic.
6. Total product scope: Total size, growth and acceptance criteria included in the
product scope.

Iterative Process Planning:

Introduction: We know that software plan is an intangible piece of intellectual

property which is applied to all the components of the project. The project planning
is also required iterative approach like software development.

Generally software plans have two phases such as engineering stage-during this
period plan has developed and production stage-during this plan has executed.
Plans are improved when we have strong understanding on problem space and
solution space. The planning errors are cause for production errors, which has less
impact on the project when those are resolved earlier.

Work Breakdown Structure:

A good work breakdown structure and its coincidence with the process framework
are critical factors of software project success. The work breakdown structure is
depending on the project management style, organizational culture, customer
performance, financial constraints, and several other hard issues, project specific
parameters.

The work breakdown structure is the hierarchy of elements that decompose the
project plan into the different work tasks. The WBS provides the following
information.

1. A decomposition of all significant work.

2. Clear task decomposition for assignment of responsibilities.
3. A framework for scheduling, budgeting and expenditure tracking.

By the decomposition of work into different tasks, we may derive many parameters
such as, product subsystems, components, functions, organizational units, life-
cycle phases, even geographies. Generally at the first any system is decomposed
into subsystems, subsystems are then decomposed into components.

Conventional WBS issues: Conventional work breakdown structure has the

following limitations.
54
1. They are prematurely structured around the product design.
2. They are prematurely decomposed, planned, and budgeted in either too much
or too little detail.
3. They are project-specific, and cross project comparisons are usually difficult or
impossible.

Conventional work breakdown structures are prematurely structured

around the product design: We know that conventional WBS has been
structured primarily around the subsystems of its product architecture, and then
further decomposed into the components of each subsystem. Once this structure is
fixed in the WBS and then allocates responsibilities to managers with budgets,
schedules, and expected deliverables, and then it is difficult to change.

To couple the plan tightly to the product structure then both have reasonably
mature. Sometimes looser coupling is desirable if either the plan or the
architecture is required to change.

Conventional work breakdown structures are prematurely decomposed,

planned, and budgeted in either too little or too much detail: When we
dealing with large and small projects the fluctuating levels are huge. Sometimes
over planning and under planning of large and small software projects lead to the
fluctuating levels.

Dealing with large software projects, each element is completely planned through
management by creating a baseline budget and schedule for each and every task at
same level of details. Dealing with small software projects each element is planned
through management with improper tasking, cost and schedule in a single phase
with no details. Hence the both of the approaches are not correct.

Generally when developing software projects two or three levels of work breakdown
structure is sufficient. If the project is too large then we may add one more level in
the development life cycle phases.

Conventional work breakdown structures are project specific, and cross

project comparisons are usually difficult or impossible: Most of the software
projects are developed depending on project specific structure specified by the
project manager, or as per the customer demands or other project specific
preferences. But any project has not follow the standard WBS, so it is difficult to
compare plans, financial data, scheduled data, organizational efficiencies, cost
trends, productivity trends or quality trends with other projects. The following are
some questions to be raised to improve the project development.

55
1. What is the ratio between productive activities and overhead activities?
2. What is the percentage of effort expended in rework activities?
3. What is the percentage of cost expended in software capital equipment?
4. What is the ratio between productive testing versus integration?
5. What is the cost of Nth release?

Evolutionary Work Breakdown Structure:

Evolutionary work breakdown structure removes the flaws which are appeared in
the conventional work breakdown structure. The evolutionary work breakdown
structure organization of planning elements is done around the process frame work
instead of product framework like in conventional WBS.

In evolutionary WBS, we follow the loosely coupling which allows changes in the
development of the plan or architecture. This work breakdown structure is
classified hierarchically three levels.

1. First level WBS elements: The first level WBS elements are the workflows such
as management, environment, requirements, design, implementation,
assessment and deployment. These elements are allocated to a single team and
constitute anatomy of a project for the purpose of planning and comparison
with other projects.
2. Second level WBS elements: These elements are used to describe each
lifecycle phase such as inception, elaboration, construction and transition.
These elements allow checking reliability of the plan to evolve more naturally
with the level of understanding of requirements, architecture and risks.
3. Third level of WBS elements: These elements are specified for the activities
producing artifacts in each phase. These elements may be the lowest level in
the hierarchy that collects the cost of artifacts for a given phase or they may be
decomposed further into several lower level activities.

The work breakdown structure needs to be fitted depending on the following

project specifications.

1. Scale: Large projects have more WBS levels and substructures.

2. Organizational structure: Projects having subcontractors or spanning between
several organizations may have constraints that represents different kinds of
allocations in work breakdown structure.
3. Degree of custom development: Depending on the characteristics of the project,
different weights for requirements, design, and implementation workflows.

Generally a business process re-engineering project based primarily on existing

components has much more depth in the requirements, fair simple design and
56
 implementation elements. A fully custom development of technical application
may require deep design and implementation elements to manage risks
associated with first generation components.
4. Business context: Contractual projects require much more elaborate
management and assessment. Project developing commercial products for
delivery to have a broad customer base may require and elaborate substructure
for the deployment of the product.
5. Precedent experience: Generally projects are developed with new generations of
legacy system or with existing organizational standards. These constraints are
required that new projects can use the existing experience and project
performance standards.

The WBS decomposes the character of the project and maps it to the lifecycle.
Reviewing a WBS provides insight into the important attributes, priorities, and
structure of project plan. An important attribute of good WBS is planning reliability
inherent in each element is corresponding with current lifecycle phase and project
state.

Planning Guidelines:

Software project planning should be carried out in an efficient way. The project
planning is valuable, because the total project development process is depending
on planning.

During the project planning the management people can analyze the project
specific details and they know great skill and experience of other people can be
utilized for project initial planning. These experts’ guidelines are considered to
estimate basic factors of the project and instill confidence in stakeholders.

At the same time project independent planning is risky because blind adoption of
guidelines instead of being adapting to a specific project. This leads to
incompetency or inefficiency of management team. Another risk of project
independent planning is some project areas are misinterpreted which has great
impact on project due to the variation of project parameter levels.

There were two simple planning guidelines should be considered when project plan
is being initiated or assessed.

1. The first guideline describes a default allocation of costs among the first level
WBS elements.
2. The second guideline describes allocation of effort and schedule across the
lifecycle phases

57
According to the first guideline, the first level WBS elements include workflows
such as management, environment, design, requirements, implementation,
assessment and deployment, which are carried our fro a single team for allocation.
The following table shows default allocation of WBS
budgets according the first guideline.

Here the allocation of values may be varying from

project to project. This type of allocation provides a
good standard for planning assessment. In order to
avoid the misinterpretation we can also consider
the labor costs and hardware & software costs.

The second guideline deals with allocation of efforts

and schedule across the lifecycle phases. Here
default allocation is provided for second level WBS
elements. These allocated values may also vary
from project to project depending upon application
constraints. The second level WBS allocation values can provide scope of software
projects, processes, technologies etc. the following diagram shows default
allocation of effort and schedule.

The cost and schedule estimating process:

We know that the project plans are developed or derived from two perspectives.

1. Forward-looking or Top-down approach.

2. Backward-looking or Bottom-up approach.

The forward approach is starts with understanding of the general requirements

and constraints, develops a macro level budget and schedule, and then
decomposes these elements into lower level budgets and intermediate milestones.
From the top-down perspective the following points should be considered for
project planning.

1. First the software project manager can understands the project characteristics
and then develops the requirements for overall size, process, environment,
people, and quality of a project.

58
2. A macro level estimate of the total effort and schedule is developed using a
software cost estimation model.
3. The software project manager partitions the estimate for the effort into a top
level WBS which has management, environment, requirements, design,
implementation, assessment and deployment. The project manager can also
partitions the schedule into major milestone dates and partition the effort into
staffing using the effort and schedule guidelines. This is the overall project plan.
Here we ignore detailed project specific parameters.
4. Now a subproject managers given the responsibility for decomposing each of the
WBS elements into lower levels using their top level allocation, staffing profile
and major milestone dates.

The backward-looking or bottom-up approach starts with the end in mid; analyze
the micro-level budgets and schedules, then sum all these elements into the higher
level budgets and intermediate milestones. From bottom-up perspective the
following points should consider for the project planning.

1. The lowest level WBS elements are elaborated into detailed tasks, in which
budgets and schedules are estimated by WBS element manager. These elements
tend to incorporate the project specific parameters in an exaggerated way.
2. Estimates are combined and integrated into higher level budgets and
milestones. This biases of individual estimators need to be homogenized so that
there is a consistent basis of negotiation.
3. Comparisons are made with the top-down budgets and schedule milestones.
Gross differences are assessed and adjustments are made in order to converge
Between bottom-up and top-down estimates.

If we compare the above two approaches, then top down approach enlarge the
preferences of project management resulting an optimistic plan. Whereas bottom
up approach enlarge the preferences of performance resulting in a pessimistic
plan. For the development of plan through multi versions iterating is needed for
validating results through one method and results refinement through another
method. Throughout the project lifecycle uniformity of these approaches should be
maintained.

The iteration planning process:

Another method to derive the software project plane is to concentrate on the actual
sequence of intermediate results produced during the each phase of project
development. Here we plan the contents and schedule of major milestones and
their intermediate iterations. This kind of iterative planning process is most
tangible form of risk management.
59
Here the term iteration is treated as complete synchronization of planning activities
across the project along with good coordination of assessment activities of entire
project baseline. Sometimes we may perform some micro iteration such as
monthly, weekly, or daily are performed to achieve synchronization. The following
appoints represents number of iterations in each and every phase of software
project development.

Inception phase iterations: Inception phase iterations mainly concentrate on the

basic activities of the software project. These iterative activities demonstrate the
candidate architecture and provide executable framework describing major critical
areas within the project.

The executable framework contains, existing components, commercial components,

and custom prototypes, to demonstrate candidate architecture and for
requirements understanding to establish good business case, vision and software
development plan.

Normally in the inception phase, large projects may require two planning iterations
but most of the projects should have one iteration only.

Elaboration iterations: The elaboration iterations concentrate on project

architecture, complete framework and infrastructure for project execution. During
the elaboration iterations the following major points should be considered.

1. Architecture initialization.
2. A design for worst case data processing in system.
3. A design for worst case control processing the system.

Most of the projects have two iterations in this phase to achieve complete
architecture baseline. Extraordinary projects may require additional iterations. But
well established architecture project have one iteration only.

Construction iterations: Most of the projects need at least two construction

iterations. One is alpha release and another one is beta release. An alpha release
has executable capability of all major points within the system. The alpha release
represents 70% of total end product and quality levels below those expected in the
final product.

A beta release has 95% of the total product and achieves complete quality
parameters. But to release the final product some more parameters are necessary
such as robustness, performance to accept the product. Generally any project has

60
two iterations here, but sometime we may add one or two iterations extra to
manage risks or optimize resources.

Transition iterations: Most of the projects have a single iteration to convert the
beta release to the final product. But here number of micro iterations are required
to resolve the final defects and include the performance improvements.

Conclusion: per the planning guidelines, most of the projects have four to nine
planning iterations. But typical projects have six iteration profiles.

1. One iteration in inception: an architecture prototype.

2. Two iterations in elaborations: architecture prototype and architecture baseline.
3. Two iterations in construction: alpha and beta releases.
4. One iteration in transition: product release.

Pragmatic planning:

Pragmatic planning plays a vital role in project development, which is more

dynamic in an iterative environment. Project plan means the way in which the
project requirements are transferred into a product within business
constraints. Good architectures and requirements understanding are the
elements of adequate planning or good planning, where as bad architectures and
misunderstood requirements are the elements of inadequate planning or bad
planning.

A successful project plan is not important one the project development has
completed because it is rarely used by the performer on a day-to-day basis which
does not create interest to end user. Whereas unsuccessful project plan needs to
be refined more as they are not produced instantly. So this unsuccessful plan is
frequently used by performers.

Planning document is worthless once the project development has completed. But
action of planning is very important to achieve the project success. The planning
document provides a framework and forcing functions for making decisions and
transforms subjective, generic process framework into objective processes.

A good project manager to compromise between current iteration plan and next
iteration plan based on the results of current iteration and previous iterations. For
instance, the execution of iteration N in any phase, the software project manager
required reviewing and controls the plan which was started iteration in N-1 and the
planning is done for the iteration N+1. Planes are not certified by the managers,
but also by the team members of the project. Project success is achieved when
more open and visible plan exists.
61
 UNIT – VI
PROJECT ORGANIZATIONS AND RESPOSNIBILITIES

Line of Business Organizations:

The following are the features of the software business organizations.

1. Responsibility of process definition and maintenance, which is specific to the
line of business, where process commonality make the sense. For example a
process for developing one kind of software is different from process to
developing the other software.
2. Responsibility for process automation is an organizational role and it has equal
importance with process definition role. Normally projects achieve the
commonality through the environment support and use of common tools.
3. Organizational roles may fulfilled by a single individual or several different
teams, depending on the scale of organization.

The following diagram shows the default roles of software business organization.

Software Engineering Process Authority: The software engineering process authority

(SEPA) facilitates the exchange of information between all the project participants.
SEPA role is necessary for any organization. It takes the responsibility and
accountability for the process definition and its maintenance. It also responsible for
organization maintaining and current assessment of the project’s development carried
out within organization and plan for future process improvements. SEPA is a single
individual person, such as general manager or sometimes it may be a team. Project
process improvements and their distribution are carried out after the SEPA can
thoroughly understands the project context.

62
Project Review Authority: The project review authority is also a single individual
team, responsible for software project fulfill with all organizational and business
policies, practices, and standards. Here the software project manager act as a review
authority and responsible for requirements of a contract or some other project
compliance standard.

The PRA reviews both the project’s conformance to contractual requirement and
project’s organizational policy requirements. Generally the project customer monitors
contract requirements, contract milestones, contract deliverables, monthly
management reviews, progress, quality, cost, schedule and risk. The RPA reviews
customer commitments as well as stick to organizational policies, deliverables,
financial performance, and risk events.

Software Engineering Environment Authority: It is responsible for organization’s

process automation, keeping organization’s standard environment, training projects
etc. tools, techniques, and training can be implemented effectively only if SEEA is
supporting and monitoring the standard environment.

Infrastructure: An organization’s infrastructure provides human resources support,

project independent research and development and other capital software engineering
assets. The following are the some important software organization infrastructure
components.

1. Project administration: Time accounting system, contracts, pricing, terms and

conditions, corporate information systems integration.
2. Engineering skill centers: Custom tools repository and maintenance, bid and
proposal support, independent research and development.
3. Professional development: Internal training boot camp, personnel recruiting,
personnel skills database maintenance, literature and assets library, technical
publications.

An organizational service center provides a standard environment funded by the line of

business and maintained as capital asset for projects within the organization. The
SEEA is a companion group of SEPA. The SEPA is responsible for process definition
and improvements, and SEEA is responsible for process automation.

Project Organizations:

The following diagram shows default software project organization and project level
roles and responsibilities. The structure of any project organization is changed
accordance with specific circumstance.

63
The following are the main features of any software project organization.

1. The project management team should be active; it is responsible for producing

as well as managing each and every activity in the project development.
2. The architecture team is responsible for real artifacts (information) and for the
integration of components.
3. The development team is responsible for component construction and
maintenance activities. The assessment team is separate from the development.
Here we consider testing and development activities go in concurrence with
development.
4. Quality is the job of everyone, integrated into all activities and checkpoints.
Each team takes responsibility for a different quality perspective.

Software Management Team: We know that the project development is constrained

on schedules, costs, functionality, and quality parameters which are interrelated and
require continuous negotiation with different kinds of stakeholders who have different
goals. The software management team would always try to benefit all stakeholders. So

64
the software manager can balance the several development activities. The following
diagram shows the activities of software management team.

The software development team is responsible for planning, conducting, and adapting
the plan to changes in understanding of requirements or design. The software
management team should also take the responsibility of resource management and
project scope and set operational priorities across the project development.

The software management team takes the responsibility of quality. It could be

achieved through manage the balance between various aspects. Finally the project is
adequate for all stakeholders and optimal for many of them.

Software Architecture Team: The software architecture team is responsible for

project’s architecture. This responsibility consists of accounting knowledge to specify
billing of materials and engineering knowledge for make or buy decisions so that the
components are constructed and assembly. The following diagram shows the activities
of software architecture team.

65
The skill of the software architecture team is crucial during any project development,
because it provides framework for facilitating team communications for achieving
system wide qualities and for implementing applications. In most projects, inception
and elaboration phases are lead by software management team and software
architecture team. The software development team and software assessment teams are
engaged in production phases.

At the time of construction phase, the architecture is transitions into operational mode
and must support by the architecture team. The success of architecture team includes
the following activities.

1. Domain experience to produce an acceptable design view and use case view.
2. Software technology experience to produce an acceptable process view,
component view, and development view.

The architecture team is responsible for system level quality which includes reliability,
performance and maintainability.

Software Development Team: The software development team is an application

specific group. The software development team consists of several sub teams dedicated
to develop group of components that require common skill set. The following are
different skill sets. The following diagram shows activities of software development
team.

1. Commercial components: Specialist with detailed knowledge of commercial

components is central to system architecture.
2. Database: Specialists with experience in the organization, storage, and retrieval
of data.
3. Graphic user interface: Specialists with experience in the display organization,
data presentation and user interaction necessary to support human input,
output, and control needs.
66
4. Operating systems and networking: Specialists with experience in the
execution of multiple software objects on a network of hardware resources.
5. Domain applications: Specialists with experience in the algorithms,
application processing, or business rules specific to the system

The software development team is responsible for the quality of individual

components, including all component development, testing, and maintenance.

Software Assessment Team: We know that the software assessment is done

independently because to assess the software quality and its pros and cons
independently and to perform the assessment activities in concurrence with
development activities.

Due to the concurrence of assessment and development activities, software project

plans are accelerated, change management, test planning, and test scenarios can
also done in parallel with development. The following diagram shows the
assessment activities.

A modern software process should employ use-case oriented or capability based

testing done as a sequence of builds and mechanized by using two artifacts.

1. Release specifications.
2. Release description.

We know that each release may have several components and evaluation criteria
will document that the customer is expect to see at major milestones, and release
descriptions will verify the test results. The final assessment iterations are
equivalent to acceptance testing including the details of software plans, procedures
and reports.

67
The assessment team is responsible for the quality of baseline releases with respect
to the requirements and customer expectations. The assessment team is also
responsible for exposing any quality issues that affect the customer’s expectations,
whether or not these expectations are captured in the requirements.

Evolution of Organizations:

We know that the project organizations are represented in the form of team
structure. It is necessary to change the organization’s structure in relevant to the
project plan, which is part of the work breakdown architecture. The following
diagram represents set of activities carried out by the organization according to the
software project phases.

Inception Team: Here the organization is focused on planning, with enough

support from the other teams to ensure that the plans represent a consensus of all
perspectives.
Elaboration Team: Here the organization concentrates on architecture. At the
point the organization tries to inculcate the architectural activities into the project.
These activities are also supported by the software development team but also
software assessment team. This kind of support is necessary to balance the
software architecture activities.
Construction Team: In good balanced software organizations, the most software
activities are carried within software development and software assessment teams.
Transition Team: This team mostly focused on consumer’s product usage and
feedback, depending on these further development activities are carried on.

68
It is good and equally important to elaborate the details of each sub teams,
responsibility, and work packages by planning the good work breakdown structure.
All lower level team structures are prematurely plan, so it can reduce the project
development inefficiencies.

Process Automation: Many software development organizations are focused on

developing mature process to improve the predictability of software management
and performance of software business. To operate software business in profitable
way in addition to process definition and development, process automation is also
necessary.

Today most software organizations are deal with the task of integrating their own
environment and infrastructure for software development. This way leads to the
selection of incompatible tools that have different information repositories are
supported by developers, work on different platforms, use different jargon and
based on different process assumptions.

Automating the development process and establishing an infrastructure for

supporting the various project workflows are important activities of the engineering
stage of life cycle. They include tool selection, custom tool smiting, and process
automation is necessary to perform against development plan with acceptable
efficiency.

We know that there three levels of process; each level should require some process
automation for the process to be carried out with efficiency.

1. Meta process: Organization’s policies, procedures and practices for managing a

software business. The automation support for this level is called
infrastructure. An infrastructure is a inventory of preferred tools, artifacts
templates, micro process guidelines, macro process guidelines, project
performance repository, database organization skill set, and library of past
project plans and results.
2. Macro process: Project’s policies, procedures and practices for producing a
complete software product within certain cost, schedule, and quality. Here the
automation support for the process is called environment. An environment is a
specific collection of tools to produce a specific set of artifacts governed by
project plan.
3. Micro process: A project team policies, procedures and practices for achieving
an artifact of software process. Here the automation support for the process is
called a Tool. Naturally tools include requirement management, visual
modeling, compilers, editors, debuggers, change management, metrics
automation, document automation, test automation, test estimation and
workflow automation.
69
 Tools: Automated Building Blocks:

Many tools are available to automate the software project development. Most of the
software development tools map closely to one of the software process workflows.
But each of the workflow requires distinct automation support. It should be
represented in the following diagram.

Management: There are several opportunities for automating project planning and
control activities of the management workflow. Software cost estimation tools and
work breakdown structure tools are useful for generating planning artifacts.
Sometimes the workflow management tools and project control panel can maintain
online version status assessment of the project. Here the automation support can
improve metrics collection and reporting.

Environment: Configuration management and version controls are essential in

modern iterative development process. These metrics are dependent measuring
changes in software artifact baseline.

Requirements: In modern software process, requirements are captured in vision

document. But lower level requirements are collected by the process in iteration model
through evaluation criteria.

Iterative models allow the customer and the developer to work with real evolving
version of the system. Practically, requirements can and must evolve along with an
architecture and set of application increments.

70
Design: The tools that support requirements, design, implementation, and assessment
workflows are usually used together. The primary support of automation for designing
is visual modeling, which is used for capturing design models, presenting them in
human readable form and translating them into source code.

Implementation: The implementation workflow primarily depending on programming

environment such as editors, compilers, etc. it also include considerable integration
with change management tools, visual modeling tools, and test automation tools to
support productive iteration.

Assessment and Deployment: The assessment workflow requires all the tools which
are used in previous workflows. To increase the change freedom testing and document
production must be automated. Defect tracking is another important tool that support
assessment-it provides the change management instrumentation necessary to
automate metrics and control baselines.

The Project Environment

The project environment consists of three discrete states:

1. Prototype environment.
2. The development environment.
3. The maintenance environment.

The prototype Environment: It is the platform for the evaluation of prototype

architecture projects. Here we analyze the trade-offs of these projects during the
inception and elaboration phases. This environment should also perform the following
activities.

1. It analyze performance trade-offs and technical risks.

2. It determine make/buy trade-offs and feasibility studies for commercial
products.
3. It also considers fault tolerance/dynamic reconfiguration trade-offs.
4. It analyzes the risks associated with transitioning to full scale implementation.
5. Development of test scenarios, tools, and instrumentation suitable for analyzing
the requirements.

The development environment: It should include full scale of development tools

need to support the various process workflows and to support round-trip engineering
to the maximum possible.

The maintenance environment: It is a matured version of development environment.

Sometimes maintenance environment is subset of the development environment
delivered as one of the project’s end product.
71
The journey towards the fully developed software project process introduces new
challenges and opportunities for management control of concurrent activities and for
assessment of progress and quality. The real world projects should follow some
management disciplines for the success of modern iterative development process.

1. Tools must be integrated to maintain consistency and traceability. Round trip

engineering is the term used to describe this requirement for environment
support of iterative development.
2. Change management must be automated and manage multiple iterations and
to enable change freedom. Change is the fundamental rule of iterative
development.
3. Organizational infrastructure allows the project architecture environment to be
generated from common base of processes and tools. The common base
provides the inter project consistency, reuse of training, reuse of lessons
learned, and other strategic improvements.
4. Extending automation support for stakeholder environments enable further
support for paperless exchange of information and effective review of
engineering information.

Round Trip Engineering:

A high level of automation support is required whenever a software organization

maintains different information sets of the engineering artifacts for efficient and error
free transition of data from one artifact to another. To achieve the consistency among
the engineering artifacts, Round-trip engineering support is required. The following
diagram shows important transitions occur between information repositories.

The techniques of automated transition are applied to design models in order to

translate them into respective source codes and process models. This is a straight
forward phenomenon which is made possible through applications like Active X, and
CORBA.
72
We know that, automated transition of source code into executable code is made
possible using compilers and linkers. So when we developing the project architecture
we should consider what are the different components, platforms and languages are
used. This kind of consideration necessary, when developing, managing and
controlling large scale web projects. This complexity leads to the establishment of new
requirements for configuration control and build management automation.

Round-trip engineering is basically carried out to allow change freedom in data

sources belonging to the software engineering. The configuration control associated
with every technical artifact is important to maintain the consistency and error free
presentation of changing product. It is not necessary that Round-trip engineering
should consist of bi-directional translations. For example test cases are designed for
logical object sets, but it is not possible to perform reverse engineering on the object
from the test cases.

The drawback of automated translation between the data sources is 100%

completeness is not achieved. For example automated translation of design model into
C++ code may generate structural and declaration information of source code
presentation.

Software Change Orders: Software change orders refers to the atomic component of
software work that is allowed to create, alter the component present inside a
configuration baseline. The main purpose of SCO is to divide, assign and schedule the
software work against a software baseline which is well-established. In addition to this
SCO is an important approach for analyzing the product improvement as well as its
quality. The following diagram shows the essential components of SCO.

73
In general, an SCO should be written against a single component so that it is easily
allocated to a single individual. The basic fields of SCO are title, description, metrics,
resolution, assessment, and disposition.

1. Title: The originator is responsible to suggesting the title and it was finalized by
the configuration control board (CCB). This filed should include an external
software problem report, if the change was initiated by an external person
(user).

2. Description: The problem description includes the name of the originator, date
of origination, CCB-assigned, SCO identifier, and relevant version identifiers of
related software support. The textual problem description should provide as
much detail as possible, along with attached code piece, display snapshots,
error messages, and any other data that may help to isolate the problem and
describe the change needed.

3. Metrics: Metrics are gathered from individual SCO’s for planning, scheduling,
analyzing quality improvement activities. The metric field consists of different
change categories. Type-0 indicate critical bug, Type-1 is normal bug, Type-2
indicate enhancement requirement, and Type-3 indicate new features required,
Type-4 may represent any other change.

The metric field has six different items. Out of these, first two falls under the
category of initial estimate and remaining under actual rework, expended
category. The following are the six items.

a) The breakage represents the volume of change, and quantifies the extent of
change and can be defined in units of SLOC, function points, files,
components, or classes.

b) The rework estimates the amount of complexity that arises while changes
are made.

c) The analysis item identifies the number of staff hours expended in

understanding the required change.

d) The implementation item identifies the staff hours necessary to design and
implement the resolution.

e) The test item identifies the amount of time required to test the resolution.

f) The documentation item identifies all effort expended in updating other

artifacts such as user manual or release descriptions.

74
 4. Resolution: This field includes the name of the person responsible for
implementing change, the components changed, the actual metrics and a
description of change. This item also estimates the component fidelity.

5. Assessment: This field describes the assessment technique as inspection,

analysis, demonstration or test. It should also refer all existing test cases and
new test cases executed, and it should identify all different test configurations,
such as platforms, topologies, and compilers.

6. Disposition: The SCO is assigned one of the following states by configuration

control board (CCB).

 Proposed: Written, pending CCB review

 Accepted: CCB approved for resolution
 Rejected: Closed, with justification, such as not a problem, duplicate,
obsolete change, resolved by another SCO.
 Archived: Accepted but postponed until a later release.
 In progress: Assigned and actively being resolved by the development
organization.
 In assessment: Resolved by the development organization; being
assessed by a test organization.
 Closed: Completely resolved, with the concurrence of all CCB members.

Configuration Baseline: A specified collection of software components and its

associated documentation, depending of change management and is upgraded,
maintained, tested, and obsolesced as a unit is called configuration baseline. There
are two general classes of baseline.
1. External product releases.
2. Internal testing releases.
A configuration baseline is a collection of components treated as a single unit and is a
packaged exchange between groups.

Generally most of the systems require three levels of baseline releases, Major, Minor
and interim which are represented by the numbers N.M.X. The major release
represents a new generation of product or project, while minor release represents the
same basic product but with enhanced features, performance, or quality. An interim
release corresponds to a developmental configuration that is intended t be transient.

The major and minor releases are intended to be external product releases that are
persistent and supported for a period of time. Once the software placed in a controlled
baseline all changes are tracked. The following are various change categories.

75
Type-0: It refers the critical failures, which are fixed before the external product
releases. These failures can effects the performance and usability of the software
project.

Type-1: This type of errors does not produce any negative effects on the usefulness of
the software project. But these errors create nuisances in critical use cases or to
serious defects in secondary use cases that have a low probability of occurrence.

Type-2: It is a change that causes the performance improvement rather than

responding to a defect. Its sole purpose is to upgrade the performance, usability,
testability.

Type-3: It is a change that results from updating the requirements by producing the
new additional features.

Type-4: Changes that are not fall in any one of above categories is called type-4
changes.

Configuration Control Board: The CCB is a team of people that functions as a

decision authority on the content of the software project configuration baselines. A
CCB includes the software manager, software architecture manager, software
development manager, software assessment manager and other stake holders who are
part of maintenance of controlled software delivery system.

CCB generally takes the decisions through board meetings and these decisions are
concurrently distributed through online among all the people who are involved in the
software project development. The CCB decisions are final for the projects approval.

We know that iterative software development process require broad careful change
management of configuration baselines. These changes are carried out through the
states of Software Change Orders (SCO). The following are some SCO states for
controlled software development and maintenance.

Proposed: In this state a proposed change is drafted and submitted to CCB. The
proposed change must include a technical description of the problem and an
estimation of solution effect.

Accepted, Archived, or Rejected: In this state the CCB assigns unique identifier to
determine accept, archived or rejects the change. Accepted mean change for resolution
in next release. Archiving accept the change but postpones it for resolution in a future
release, Rejected mean change is not required in the current system.

76
The CCB verifies all the fields of SCO before accepting the changes in the configuration
baseline, and then assigns a responsible person in the development organization for
resolution.

In Progress: In this state, the responsible person analyzes, implements, and tests a
solution to satisfy the SCO. This task includes updating documentation, release notes,
and SCO metrics and submitting new SCOs. Upon achieving complete solution, the
responsible person submits it to the independent test team for assessment.

In Assessment: The independent test team assesses whether the SCO is completely
resolved. When independent test team considers the change to be satisfactorily
resolved, the SCO submits the resolution to the CCB for final disposition and closure.

Closed: When the development organization, independent test organization, and CCB
conclude that the SCO is resolved, it is transitioned to a closed state.

Infrastructures: From process automation view, the organization’s infrastructure

provides the organization’s capital assets, including two key artifacts. Policy-That have
the standards for software development process. Environment-That have inventory of
tools. These tools are automation building blocks for configuration of project
environment efficiently and economically.

Organization Policy: The organization’s policy is a handbook that defines the life
cycle and the process primitives (major milestones, intermediate artifacts, engineering
repositories, metrics, roles and responsibilities). The organization’s policy provides
answers to the following questions.

 What gets done?

 When does it get done?
 Who does it?
 How do we know that it is adequate?

It is important to balance the organization policy because in several times for the
organizations there were no institutionalized process or too much standardization and
bureaucracy. The effective organization’s policy has the following topics.

1. The organization’s policies are concise. Avoid policies are thick bound books.
2. The organization’s policies are confining to the practical to enforce them.
3. The policy statements avoid the word should, but the statements includes the
shoulds. It represents policies need for concise mandatory standards.
4. Waivers are exception, not the rule.
5. Appropriate policy is written at the appropriate level.

77
There are different organizations structures throughout the software development
industry; most of them have three levels of organization. In which each level focus on
different policy matters.

1. Highest organization level: In this level the software organization concentrate

on;
 Strategic and long term process improvements
 General technology insertion and education
 Comparability of project and business unit performance
 Mandatory quality control.
2. Intermediate line of business level: This state of organization promote;
 Tactical and short term process improvements.
 Domain specific technology insertion and training.
 Reuse of components, process, training, tools and personal experience.
 Compliance with organizational standards.
3. Lowest project level: This state of organization should have;
 Efficiency in achieving quality, schedule, and cost targets.
 Project specific training.
 Compliance with customer requirements.
 Compliance with organizational/business standards.

Standardization should focus on line of business not on the top level organization or
projects. But standardization of software development techniques and tools across line
of business is difficult. So we may follow the standardization across the domains.

The organization’s policy is the defining document for the organization’s software
policies. In process assessment this policy document is an important artifact that
represents what we do. Form this document, reviewers should be able to question and
review projects and personnel and determine whether the organization does what it
says.

Organization Environment: The organization environment will provide automation of

the process practically. It says that how the things get done and tools and techniques
are used for process automation. The following are some components of automation
building blocks.

 Standardized tool selections, which promote common workflows and higher ROI
on training.
 Standard notion for artifacts, such as UML for all design models, or Ada for
custom developed, reliability critical implementation artifacts.
 Tool adjuncts or customization.
 Activity templates.
78
Stakeholder Environments: The modern iterative software development process
which supports the automation will never restrict the freedom of software development
team. Many large scale contractual projects invites people from external organizations
to participate in development process. These people are known as other stakeholders.
These people may be procurement agency contract monitors, end user engineering
support personal, third party maintenance contractors, independent verification and
validation contractors, representatives of regulatory agencies and other.

These stakeholder representatives are also able to access development environment

resources so that they can contribute value to development effort. Generally the
external stakeholder team may share the resources through online and exhibit the
following functionalities.
 Accept and use executable increments for hands on evaluation.
 Use the same online tools, data, and reports that the software development
organization uses to manage and monitor the projects.
 Avoid excessive travel, paper interchange delays format translations, paper
and shipping costs and other overhead costs.
The following are the reasons for extending development environment resources to the
external stakeholders.

 Technical artifacts are not just paper. Electronic artifacts in exact notations
such as visual models and source code are viewed for more efficiently by using
tools.
 Independent assessments of improving artifacts are encouraged by electronic
read only access to on-line data. Reviews and inspections, breakage/rework
assessments, metrics analyses and beta testing can be performed
independently of the development team.
 Even paper documents should be delivered electronically to reduce production
costs and turnaround time.

Once environment resources are electronically accessible by stakeholders, continuous

and practical feedback is efficient, real, and useful. In implementing the shared
environment, it is important for development teams to create an open environment
and provide adequate resources that accommodate customer access.

Extending environment resources to the external stakeholder domains may generate

several issues such as;
 How much access freedom supported by external stakeholder?
 How secure the information exchange?
 Who funds environment and tool investments?
 How the change management is synchronized?

79
 UNIT – VII
PROJECT CONTROL AND PROCESS INSTRUMENTATION

Introduction: The primary goal of the modern software development process is deal
with central management issues of complex software, these are;

1. Getting the right design by focusing on the architecture.

2. Managing risk through iterative development.
3. Reducing the complexity with component based techniques.
4. Making software progress and quality tangible through instrumental change
management.
5. Automating the overhead and bookkeeping through the use of round trip
engineering and integrated environments.

Software metrics instrument the activities and products of the software

development/integration process. In modern software development process, software
metrics are simple objective measures of how various perspectives of product and
project are changing.

The quality of software products and the progress made toward project goals must be
measureable throughout the software development lifecycle. Here the goals of software
metrics are to provide the development team and management team with the
following.
 An accurate assessment of progress to date.
 Insight into the quality of developing software product.
 A basis for estimating the cost and schedule for completing the product with
increasing accuracy over time.

The Seven Core Metrics:

There are several metrics are available for managing software process. Here we discuss
seven metrics which are applicable to any software project. Out of these three are
management indicators and four are quality indicators.

Management indicators: 1. Work and progress.

2. Budgeted cost and expenditures.
3. Staffing and team dynamics.

Quality indicators: 1. Changing traffic and stability.

2. Breakage and modularity.
3. Rework and adaptability.
4. Mean time between failures and maturity.

80
Each metric has two dimensions: a static value used as an objective and the dynamic
trend used to manage the achievement of that objective. The metric values provide on
dimension of insight, metric trends provide a more important perspective for managing
the process. Metric trends with respect to time provide insight into how the process
and product are developing. Measuring the change is the most important aspect of the
metrics. The following table shows the seven core metrics.

The seven core metrics can be used in number of ways to help manage projects and
organizations. The seven core metrics are based on common sense and field
experience with both successful and unsuccessful metrics programs. The following are
the attributes of the metrics.

1. They are simple, objective, easy to collect, easy to interpret, and hard to
misinterpret.
2. Collection can be automated and nonintrusive.
3. They provide consistent assessments throughout the lifecycle and are derived
from the product baselines rather than subjective assessments.
4. They are useful for both management and engineering personnel for
communicating progress and quality in a consistent format.
5. Their reliability improves across lifecycle.
81
Metrics applied to the engineering stage is less accurate than those applied to the
production stage. So prescribed metrics are adapted to the production stage, when
cost risk is high and management value is calculated.

Management Indicators:

There are three fundamental sets of management metrics: Technical progress,

Financial status and Staffing progress. By examining these perspectives, management
can generally assess whether a project is on budget and on schedule.

1. Work and Progress: The purpose of this metric is determining a planned

estimation of the work and then monitoring progress against the plan. The
purpose of this metric is iterative planning, plan versus actual, and
management indicators. The perspectives of the metrics as follows;

 Software architecture team: which demonstration of use-cases.

 Software development team: Source line of code under baseline change
management and closing SCOs.
 Software assessment team: Here SCOs are opened followed by the execution of
test hours, till the evaluation criteria is met.
 Software management team: completion of milestones.

2. Budgeted cost and expenditures: Measurement of cost expenditures is

required throughout the project life cycle for providing management control.
The purpose of this metric is financial insight, management indicator, and plan
versus actual. Financial progress monitoring can be achieved by using the
earned value of the system, which provides the clear understanding of cost and
schedule of the project. The following are basic parameters of earned value of
the system
 Expenditure plan: It specifies the planned expenditure over a planned
schedule for a project.
 Actual progress: It is the actual cost expenditure over an actual schedule
in a project called “actual cost”.
 Earned value: It is the value that denotes the planned cost of the actual
project.
 Cost variance: It is the difference between actual cost and earned value.
Cost variance = actual cost – earned value.
If cost variance >0 then it leads to the over budget else it leads to under
budget.
 Schedule variance: It is the difference between the planned cost and
earned value. If the schedule variance is positive then it leads to the

82
 behind scheduled situations else it leads to ahead of scheduled
situations.
The perspective of budgeted cost and expenditure metric are; measuring cost per
month, percentage of splendid budget and full time staff per month.

3. Staffing and Team dynamics: It refers the changes in project personnel over
the time. Here we consider the maintenance team is smaller than development
team. The purpose of this metric is resource planning versus actual resources,
rate of hiring personnel and deterioration rate. The main perspective of this
metric is number of persons added per month and number of persons leaving
per month.

Quality Indicators:

The four quality indicators are primarily based on measurement of software change
across evolving baselines of engineering data.

1. Change traffic and stability: Change traffic is one specific indicator for
progress and quality. Change traffic is defined as the number of software
change orders opened and closed over the life cycle of the project. This metric
can measured by the change type, by release, across all releases, by team, by
components, by subsystem, and soon.

The change traffic metric is linked with work and progress metrics, and it
provides insight into the stability of the software project. The stability is defined
as the relationship between opened versus closed SCOs. The change traffic is
also relevance with release schedule, which provide insight into schedule
predictability, which is primary value of this metric.

2. Breakage and Modularity: Breakage is defined as the average extent of change,

which is the amount of software baseline that needs rework (in SLOC, function
points, etc). Maturity is the average breakage trend over time. For successful
projects the trend is in decreasing order.

This metric provides insight into the gentle character of software change. In a
mature iterative development process, earlier changes result more scrap than
later changes.

3. Rework and Adaptability: Rework is defined as the average cost of change,

which is the effort to analyze, resolve, and retest all changes to software
baselines. Adaptability is defined as the rework trend over time.

83
 All changes are equal. Some changes can be made in staff-hours, others take
staff-weeks. This metric provides insight into rework measurement. In iterative
development process early changes require more rework than later changes.

4. MTBF and Maturity: MTBS (Mean Time Between Failures) is an indicator that
computes the average time consumed between the software failures by dividing
the test hours with type-0 and type-1 software change orders (SCOs). Maturity
metrics specifies how mean time between failures varies over time by comparing
project schedule against the released baseline.

To know more about maturity, traditional testing methods were implemented on

conventional software system. The purpose of doing this was to test each and
every line of code.

Life Cycle Expectations:

There is no mathematical or formal derivation for using the seven core metrics. But
the following are the reasons for using them in project development lifecycle.

1. The quality indicators are derived from the product rather than from the
artifacts.
2. They provide insight into the waste generated by the process. Scrap and rework
metrics are a standard measurement perspective of most manufacturing
processes.
3. They recognize the inherently dynamic nature of an iterative development
process.
4. The combination of insight from the current value and the current trend
provides reliable indicators for management action.

The actual values of these metrics can vary widely across projects, organizations, and
domains.

Pragmatic software metrics:

Measuring is useful, it provides data to the decision makers to ask right questions,
understand the context, and make objective decisions. Due to the dynamic nature of
the software projects, these measures must be available at any time, translated into
any subject for developing the product and maintain trends. The following are some of
the characteristics of good metrics.

1. It is considered meaningful by the customer, manager, and performer: The

metric should be understandable to the customers, managers and developers. If
any of the people find difficulty in understanding the metrics, then the metric
84
 cannot be applied. The customer can use the metric only when the developer
first can understand the metric properly.
2. It demonstrates quantifiable correlation between process perturbations and
business performance: The main goal of the software organization is, increase in
revenue, reduction of cost, increases in margin. To achieve these goals, metrics
must explain properly how changes in software process can have an effect on
the performance of organization.
3. It is objective and unambiguously defined: The metric objective should clear and
precise. The metric objectivity should translate into some form of numeric
representation such as numbers, percentages, ratios etc. and also into textual
representations such as excellent, good, fair etc.

The ambiguity of metrics are well understood by considering various units of

measures such as staff-month, SLOC, change, function point, etc, which are
naturally hard to defined in software engineering.
4. It displays trends: It is a important characteristic, the change in metric’s value
with respect to time, subsequent projects, subsequent releases is an important
perspective. Metrics never drives an action directly, generally metric present
perspective.
5. It is natural byproduct of process: The metric does not introduce new artifacts or
overhead activities; it is derived directly from the main stream engineering and
management workflows.
6. It is supported by automation: The most successful metrics are collected and
reported by automated tools, because software tools require exact definition of
the data they process.

Metrics Automation:

There is a possibility to automate the project control activities of the software project.
The Software Project Control Panel (SPCP) maintains an on-line version of display
panel. This panel can support standard features such as warning lights, thresholds,
variable scales, digital formats, and analog format to present overview of present
project situation. It can also provide detailed situation analysis.

This automation can improve management insight into progress and quality trends
and improve the acceptance of metrics by the engineering team. To implement the
SPCP it is necessary to develop the following things.

 Metrics primitives: indicators, trends, comparisons, and progressions.

 A graphical user interface: GUI support for software project manager.
 Metrics collection agents: Data extractions from environment tools maintain the
engineering notions for various artifact sets.

85
  Metrics data management server: Data management support for populating the
metric displays of the GUI and storing data extracted by agents.
 Metric definitions: Actual metrics presentations for requirements progress,
design progress, implementation progress, assessment progress, and other
progress dimensions.
 Actors: These are monitors and administrators.

The whole display is called panel. Within a panel are graphical objects, which are
types of layouts for information. Each graphical object displays a metric. A panel
typically contains a number of graphical objects positioned in a particular geometric
layout. A metric shown in a graphical object is labeled with the metric type, summary
level, and instance name.

Metric can display in two modes: one is value-refer to a given point in time. The
second is graph-refer to multiple and consecutive points in time. Metrics can display
with or without control values. A control value is an existing expectation, either
absolute or relative, that is used for comparison with a dynamically changing metric.

Indicators may display data in formats that are binary such as black and white and
tertiary such as red, yellow and green, in digital, or in other enumerated types.
Indicators provide mechanism that can be summarized a condition or circumstance
associated with another metric, or relationships between metrics and their associated
control values.

A trend graph presents values over time and permits upper and lower thresholds to be
defined. A comparison graph presents multiple values together over time. Convergence
or divergence among values may link to an indicator. A progression graph presents
percent complete, where elements of progress are shown as transitions between states
and an earned value is associated with each state.

Metrics information can be summarized in user defined level. Users can define
summary structures for low levels. The following is a SPCP diagram for a sample
project.

86
 1. Project activity status: The graphical object in the upper left provides an
overview of the status of top-level WBS. Seven elements are coded in different
colors
2. Technical artifact status: The graphical object in the upper right provides an
overview of the status of the evolving technical artifacts.
3. Milestone progress: The graphical object in the lower left provides a progress
assessment of the achievement of milestones against plan and provides
indicators of the current value.
4. Action item progress: the graphical object in lower right provides a different
perspective of progress.

The format and content of any project panel are configurable to the software project
manger’s preference for tracking metrics of top-level interest. An SPCP should support
the capability to drill down into the details for any given metric. The following top-level
use case, which describe the basic operational concept for SPCP.

 Start SPCP. The SPCP starts and shows the most current information that was
saved when the user last used the SPCP.
 Select a panel preference. The user selects from a list of previously defined
default panel preferences. The SPCP displays the preference selected.
 Select a value or graph metric. The user selects whether the metric should be
displayed for a given point in time or in a graph as trend.

87
  Select to superimpose controls. The user has a freedom to select superimpose
the point in time to graph and vice versa.
 Drill down trend. The use points to a graphical object display, point in time and
frills down to view the trends for the metric.
 Drill down to point in time. The user points graphical object display and frills
down to view the values for the metric.
 Drill down lower level information. The user points to a graphical object display
and drills down to view next level of information.
 Drill down to lower level indicators. The user points to a graphical object display
and drills down to view the breakdown of next level indicators.

The SPCP is a metrics automaton approach that collects, organizes, and reports values
and trends extracted directly from the evolving engineering artifacts.

Process Discriminates:

We know that software process management effort span a broad range of domains.
The handling of software management process is depending on specific domain or
project. There are two dimensions discriminates the software process. One is technical
complexity and another is management complexity. The following diagram shows the
process variability.

The technical complexity: It is the first dimension of process variability; it is

classified into high technical complexity and low technical complexity. The higher
technical complexity projects cost and schedule is unable to predict at the inception
stage, the duration of inception and elaboration phases are also too long. These high
technical complexity projects require more number of iterations for the risk
management; they also require much more domain experience.
88
Management complexity: Like technical complexity, the management complexity is
divided into two types, higher management complexity and lower management
complexity.

Generally the project processes are organized around the six parameters, such as size
of the project, stakeholder cohesion or contention, process flexibility or rigor, process
maturity, architectural risk, and domain experience.

Project Scale or Size:

The most important factor in software process management is size or scale of the
software application. There are many ways to measure the scale, such as number of
source lines of code, number of function points, number of use cases, and number of
rupees. But from the process management perspective, the primary measure of size or
scale is size of the team.

Many project experiences reveal that five people are optimum size for a team.
Depending on the team size the software projects are classified as;

Trivial sized projects: In this kind of projects, there was only one member working
on the project. As the result, there was no management overhead and the performance
of this kind of project is depending on the individual skills of the person how he/she
handles the project.

Small sized projects: The small sized projects have five members as a team, therefore
small management overhead in these kinds of projects. Here the team lead should
plan and modify the milestones of the project and communicate artifacts among the
team members.

Unlike trivial projects, small sized projects performance is not only depending on
functioning of project team, it also affected by individual skills of team members.

Moderate size projects: The number of people working in moderate size projects is
around twenty five. So management overhead is much more than in small sized
projects. Here management overhead is influenced by;

 Formal planning and administration of project milestones.

 Synchronization of project workflow by the project manager.
 Balancing of project resources by the software project manager.
 Communication of project artifacts among the team members.

The moderate size projects performance is depending on how each team member
works and how the team leads control and coordinates the team.

89
Large sized projects: In large sized projects, the number of team members is 125. It
indicates the management overhead is much more than the moderate sized projects.
Here the management overhead includes;

 Formal planning and administration of project milestones.

 Synchronization of project workflow by one software project manager and many
sub project managers.
 Balancing of project resources by software project manager as well as sub
managers.
 Communication of project artifacts by explicit emphasized.

The performance of large sized projects is depending on the functionality of individual

team member as well as managers and sub managers.

Huge projects: In huge projects approximately 625 members are working on a project.
Here management overhead is similar to large sized projects. Here also project
performance is depending on managers and team leads, the performance is also
depending on average people.

Stakeholders Cohesion or Contention:

The degree of cooperation and coordination among stakeholders such as buyers,

developers, users, subcontractors, and maintainers can significantly drive the
particulars of how process is defined. Generally software process management ranges
from cohesion to adversarial.

Cohesive teams have common goals, complementary skills, and close communication.
Adversarial teams have conflicting goals, competing or incomplete skills and less open
communication.

Suppose a product is funded, developed, marketed and sold by the same organization,
then it was setup by common goals. A small, collocated organization can be
established that has a cohesive skill base and excellent day-to-day communication
among team members.

It is much difficult to setup common effort when dealing large projects without some
contention among the teams. Here the project developer and many outside authorities
are involved in the product development. Generally the funding authorities and user
want to minimize the cost, maximize the feature set and accelerate time to market, but
the development authority want to maximize the profitability. All these factors reduce
the team cohesion. The following is comparison between cohesive and adversarial
stakeholders.

90
Cohesive stakeholders:
1. Fewer details and few artifacts are needed for cohesive stakeholders.
2. Management discipline for cohesive stakeholders includes informal planning,
project control.
3. Cohesive team requires less assessment for allocation of work.
4. Phases in lifecycle are not well defined for cohesive stakeholders.

Adversarial stakeholders:
1. More detailed artifacts are needed for adversarial stakeholders.
2. Here we require formal planning of entire process activity.
3. Phases in the lifecycle are well defined for adversarial stakeholders.
4. High assessment overhead is needed for workflow allocation.

Process Flexibility and Rigor:

The degree of rigor and change freedom is inbuilt in project’s vision document,
business case, and in development plan. The process flexibility and rigor have a
significant impact on the implementation of project’s process.

For a loose process such as building a commercial product within existing unit of
software company is easy and has minimum management complexity. For example if a
company wanted to eliminate some features in a product under development to
capture market share from competitors, it is easy task and completed within a week.
Here we expect coordination from marketing manager, development manager, and
business unit manager.

On the other hand, some processes are very rigorous; it could take many months to
authorize a change in a release schedule. For example to avoid custom level
development, it may desirable to buy new commercial component in the design of the
entire product, would require coordination among the development contractor, funding
agency, users, certification agencies, associate contractors, and others.

Process Maturity:

The software process maturity level is another key concept of managing complexity.
Managing the mature process is very simple than managing immature process.
Organizations with mature processes have high level of previous experience in
software development and high level of existing process security enables the current
process predictive planning and execution. Here the security includes well defined
methods, process automation tools, trained personal, planning metrics, artifact
templates, and workflow templates. Making mature organization’s process for a
specific project is a straightforward task.

91
Architectural Risk:

The technical feasibility of the project should to demonstrate before the project goes
into the production stage. The technical feasibility is important dimension in software
project process management. There are several sources architectural risks. Some of
the recurring sources are system performance, robustness to change, and system
reliability. These risks should eliminate before project construction would begins.

Domain Experience:

The development organization’s domain experience is its ability to meet an acceptable

architecture in a minimum number of iterations. An experienced team that agrees on
baseline architecture for a particular application through a maximum of two or three
iterations. But an inexperienced team takes twice the number of iterations to agree on
baseline architecture for the same application which is previously meets by an
experienced team. Difference between these two teams depending on lifecycle phases,
artifacts, checkpoints, and automation etc.

**** END OF UNIT VII ***

92
 UNIT VIII
FUTURE SOFTWARE PROJECT MANAGEMENT

Introduction: The modern software development resolved several drawbacks of

conventional process such as;

1. Prolonged integration and late design breakage are resolved by forcing

integration into the engineering stage. This is achieved through continuous
integration of an architecture baseline supported by executable demonstrations
of primary scenarios.
2. Late risk resolution is resolved by emphasizing an architecture-first approach,
in which the high-risk elements are elaborated early in the life cycle.
3. The analysis paralysis of the requirements-driven functional decomposition is
avoided by organizing lower level specifications along the content of releases
rather than along the product decompositions.
4. Adversarial stakeholder relationships are avoided by providing much more
tangible and objective results throughout the lifecycle.
5. The conventional focus on documents and review meetings is replaced by a
focus on demonstrable results and well-defined sets of artifacts.

Continuous integration:

In the iterative development process, the overall architecture of the project is created
first and then all the integration steps are evaluated to identify and eliminate the
design errors. This approach avoids the problems such as downstream integration,
late patches and shoe-horned software fixes by implementing sequential or continuous
integration rather than implementing large scale integration during the project
completion

The modern software development produces feasible and manageable design by

delaying the design breakage to the engineering phase, where they can efficiently
resolve. This can be done by making use of project demonstrations which forces
integration into the design phase.

The continuous integration is incorporated in the iterative development process, due

to this the quality trade-offs are also better understood and the system features such
as system performance, fault tolerance and maintainability are clearly visible even
before the completion of the project.

In the modern project profile, the distribution of cost among various workflows of the
project is completely different from that of traditional project profile. The modern
projects spend only 25% of their budget for integration as assessment activities,
whereas traditional projects spend 40% of their budgets for these activities.
93
Early Risk resolution:

In the modern project development lifecycle, the engineering phase concentrates on

identification and elimination of risks associated with the resource commitments
before the production stage. The traditional projects involve, the solving of the simpler
steps first and then to the complicated steps, as the a result the progress is visibly
good, whereas the modern projects focus on 20% of the significant requirements, use
cases, components, and risks before inception of the project.

To obtain the useful perspective of risk management, the project lifecycle has to be
applied on 80:20 principle of software management.

 80% of engineering is consumed by 20% of the requirements: Struggle to

understand the important requirements completely before committing resources to
full-scale development.
 80% of the software cost is consumed by 20% of components: First identify
the cost-critical components, so the planning and control of cost are well
understood early in the lifecycle.
 80% of errors are caused by 20% of components: First identify the reliability-
critical components, so that assessment activities have enough time to achieve the
necessary level of maturity.
 80% of software scrap and rework is caused by 20% of changes: First
identify change-critical components, so that broad-impact changes occur when the
project is quick.
 80% of resource consumption is consumed by 20% of the components:
First identify the performance-critical components, so that engineering trade-offs
with reliability, changeability, and cost-effectiveness can be resolved as early in
the lifecycle as possible.
 80% of progress is made by 20% of the people: Make sure that the initial
team for planning the project and designing the architecture having highest
quality.

Evolutionary Requirements:

The traditional software development process divides the system requirements into
subsystem requirements, which in turn divided into components requirements. These
component requirements are further divided into unit requirements. The reason for
this systematic division is to simplify the traceability of the requirements.

In the project lifecycle the requirements and design are given the first and second
preferences, the third preference are given to the traceability between the
requirements and design components. These preferences are given in order to make

94
the design structure evolve into an organization so it is parallel to the structure of the
organization’s requirements.

Modern architecture find it is difficult to trace the requirements because of the usage
of commercial components, usage of legacy components, usage of distributed
resources, and usage of object oriented methods. At the same time the relationship
between the requirements and design structure is one-to-one, one-to-many, many-to-
one, conditional, time-based and state based.
The top level requirements are gathered in the vision, but lower level requirements are
captured in evaluation criteria attached in intermediate release. The following diagram
shows evolving of requirements along the process.

Here we state the significant difference from the traditional approach because; in
traditional approach the fidelity is predicted early in the project lifecycle.

Teamwork among Stakeholders:

Many aspects of the classical development process makes the relationship among the
stakeholders is complex, which in turn imbalance the project requirements, product
features, and plans.

An iterative process development develops the more effective working relationships

between stakeholders, and allows understanding the trade-offs in more objective
manner. But this process requires that customers, users and monitors have both
applications and software knowledge for getting the usable system rather than
enforcing standards and contract terms. In this process the development organization
focus on achieving customer satisfaction and high product quality in a profitable
manner.

95
The iterative process transits the customers from paper artifacts to demonstration of
intermediate results. This is one of the major mechanisms to achieve teamwork among
stakeholders. Here major milestones provide the tangible results and feedback is
considered on product usage point of view. In this process the project does not move
forward until the objectives of the demonstration have been achieved. The following
table shows tangible results of major milestones.

The modern iterative process that focuses on demonstrable results requires all
stakeholders to be educated in the important distinction between actually negative
results and evidence of real progress. For example an early flaw in design can be
treated as a positive progress instead of a major issue.

Top 10 Software Management Principles:

The following principles are describing the project expectation associated with the
successful application of each principle.

1. Base the process on an architecture first approach: An early focus on

architecture results 20% of significant stuff for the overall project development
and success of the project. The early project stuff includes, requirements,
components, use cases, risks, and errors etc. By getting good understanding on
the components which are involved in the architecture should results to reduce
the scrap and rework rate.
2. Establish an iterative lifecycle process that confronts risk early: An
iterative process supports a dynamic planning framework that facilitates the
early risk identification. So it is easy for risk management and for getting
predictable performance.

96
 3. Transition design methods to emphasize component development: The
complexity of software project is directly proportional to the number of artifacts
that it contains. So the components which are part of the solution is small, then
it is easy to manage the complexity.
4. Establish a change management environment: Highly controlled baseline is
required to accommodate the changes done by different teams who are
concurrently working on the shared artifacts.
5. Enhance change freedom through tools that support round-trip
engineering: The round trip engineering environment enables the automation
and synchronization of engineering information into various formats. The
automation of this information enables teams spend more time on engineering
and less time on overhead tasks.
6. Design artifacts must be captured in model based notation: The design
artifacts that are captured using a modeled based notations like UML used for
complexity control, objective assessment and automated analyses.
7. Instrument the process for objective quality control and progress
assessment: Progress and quality control indicators are derived directly from
the artifacts, which provide more meaningful insight into trends and correlation
with requirements.
8. Use a demonstration based approach to assess intermediate artifacts:
Integration occurs early and continuously throughout the lifecycle. Intermediate
results are objective and tangible.
9. Plan intermediate releases in groups of usage scenarios with evolving
levels of detail: The requirements, design and plans evolve in balance. Useful
software releases are available early in the lifecycle.
10. Establish a configurable process that is economically suitable: The
methods, tools, techniques and experience can be applied straightforwardly to a
broad domain, providing improved return on investment across a line of
business.

Software Management Best Practices: The Airlie software council proposed nine best
practices associated with software management. These practices are used to reduce
the complexity of larger projects and to improve software management discipline.

1. Formal risk management: Using the iterative process that deal with risks that
are more effective or less effective.
2. Agreement on interfaces: The interface agreement is one of the important
aspects of architecture first approach because obtaining the architecture forces
selection of various internal as well as external interfaces that should
incorporate within the architecture.
3. Formal inspections: One of the defect identification strategies is formal
inspection. Generally it is a least important strategy because of its high costs in

97
 human resources and its low defect discovery rate for critical architectural
defects span multiple components and temporal complexity.
4. Metric based scheduling and management: This principle is related to model
based approach and objective quality control principles. It states to use
common notations for representation of artifacts, so that quality and progress
can be easily measured.
5. Binary quality gates at the inch-pebble level: The concept of this principle is
easily misinterpreted. Most of the software organizations developed an
expensive and detailed plan during the initial phase of the lifecycle, but later
change something; a large percentage of the detailed planning must be rebase
lined. A better approach is to understanding of the requirements and the
architecture before commencement of the project. At the same time milestones
are established during engineering stage and inch-pebble be followed in the
production stage.
6. Program wide visibility of progress versus plan: This practice involves a
direct communication between different team members of the project so that,
they can discuss significant issues related to the project as well as assess the
progress of the project against the planned activities.
7. Defect tracking against quality targets: This principle is similar to the
architectural first approach and objective quality control principles of software
project management. It involves the elimination of architectural defects at early
stage of lifecycle there by maintain quality to successfully complete the project.
8. Configuration management: According to Airlie software council,
configuration management is a key controlling complexity and tracking changes
to all artifacts. It is also recognized that automation is important because of
volume and dynamics of modern, large scale projects, which make manual
methods cost-prohibitive and error-prone.
9. People aware management accountability: The entire managerial process is
disclosed to all the people dealing with the project.

Next generation software economics:

The next generation software cost models should perform the architecture engineering
and application production separately. The cost associated with designing, building,
testing and maintaining the architecture is defined in terms of scale, quality, process,
technology and the team employed.

After obtaining stable architecture, the cost of its production is an exponential

function of size, quality and complexity involved. The architecture cost model should
reflect certain diseconomy of scale because it is based on research and development
concerns. Whereas the production stage cost model should reflect economy of scale for
production of components.

98
The next generation software cost models should be designed to assess larger software
project architectures with economy of scale. Thus the process exponent will less than
1.0 at the time of production, because large systems have more automated process,
components which are easily reusable.

In the next generation software const models, infrastructure, environment and various
management activities are automated with low effort. It relieves many of the sources of
diseconomy of scale by reusing the common processes that are repetitive in a
particular project. It also reuses the common outcomes of the project. Previous
experience and matured processes utilized in these type of models to eliminate the
scrap and rework sources.

The architecture and applications of next generation cost models have different scales
and sizes which represents the solution space. The size can be computed in terms of
SLOC or megabytes of executable code while the software is defined in terms of
components, classes, processes or nodes. The requirements of use cases of solution
space are different form the problem space. That is there is more than one solution to
a problem. To select the optimal solution the cost is a key discriminator. If the optimal
solution is not found then different solutions need to be selected or to change the
problem statement.

In the next generation cost models, a strict notation must be applied to the design
artifacts so the design of the prediction can be improved. This cost model automates
the process of measuring design scale directly from UML diagrams. There are two
major improvements in next generation software cost estimation models.

1. Separation of the engineering stage form the production stage will force the
estimators to differentiate between architectural scale and implementation size.
2. The use of rigorous design notations will enable the automation and
standardization of measures. So it is easy to trace and determine the total cost
associated with production.

The next generation software economics has two potential breakthroughs, they are,

1. Certain integrated tools would be available that automates the information

transition between the requirements, design, implementation and deployment
elements. These tools facilitate round trip engineering between various artifacts
of engineering.
2. It will reduce four sets of fundamental artifacts into three sets. This is achieved
by automating the activities related to human generated source code so as to
eliminate the need for a separate implementation set.

99
Modern Software Economics:

The following are the top ten software metrics proposed by Boehm. These metrics
provide good description for an organizational manager to do best, transition of
modern process.

1. Identifying and solving a software problem in early stages of development is 100

times cost effective than solving the same problem after the project delivery: The
modern software development process, component based development
technologies and architecture frameworks are used to identify the risks at the
early stage of the project development. At the same time the architectural first
approach is also helpful to indentify the architectural errors in the early stage.
The iterative process development has insight into early risk confronting
activities.
2. Software development schedules can be compressed at the maximum of 25%:
This metric is valid at the engineering stage of the lifecycle, where intellectual
content of the system is developed. Once the schedule compression is
implemented successfully in engineering stage then it is automatically
successive in the production stage.
3. The maintenance cost is almost double the development cost: It is difficult to
generalize this metric, because there are many maintenance models are
available. A better way to measure this ratio is comparison between productivity
rates and development & maintenance. Suppose if we follow the iterative
development model then it is difficult to segregate development and
maintenance.
4. Both software development cost and maintenance cost are dependent on the
number of lines of source code: This metric is applicable to the conventional cost
models, which were lacking after the innovation of commercial components,
reusing techniques, and automated code generation etc. now the development
cost of the project is depending on the involvement of innovative tools and
techniques. The next generation cost models focus on number of components
and their integration efforts rather than number of lines of code.
5. Software productivity mainly relies on the type of people employed: The personal
skills, team work ability and motivation of employees are the crucial factors for
the success and failure of any project.
6. The ratio of software and hardware costs is reversed: As the computers are more
popular, the hardware components are becoming cheaper whereas the software
applications are more complicated. As the result highly skilled persons required
for development and controlling the software. In 1955 software and hardware
cost ratio is 15:85; in 1985 it is 85:15. It is still growing with respect to the
variety of software applications.
7. Only 15% of software development effort is devoted to programming: The
automation and reusability of codes have lead to the reduction in programming.
100
 In the early days a programmer will produce 200 machine instructions per
month; today a programmer is able to produce several thousands of machine
instructions. Still the amount of programming is 15%.
8. Software systems and products cost 3 times as much per SLOC as individual
software programs. Software-system products cost 9 times much: In the software
development the cost of each instruction depends upon the complexity of the
software. The modern software development process reduces the diseconomy of
scale. The economy of scale is achievable under the customer specific software
systems with a common architecture, common environment and common
process.
9. 60% of errors are caught by walkthrough: The walkthrough and other forms of
human inspection catch only the surface errors. However the critical issues are
not caught by the walkthroughs.
10. 80% of contribution comes from 20% of the contributors: This metric is applicable
to most of the engineering concepts such as 80:20 principle of software project
management.

Culture Shifts:

There are several indicators available for genuine cultural transition from the projects
that have follow previous design and development (traditional) methods.

1. Lower level and mid level managers are performers: There were no pure
managers in organizations with 25 or fewer people. The need of pure managers
are arises when personnel resources exceed this level. The software managers
first understand the project status, and then develop the plans and estimates to
achieve the results. The managers should participate in developing the plans.
2. Requirements and designs are fluid and tangible: The conventional processes
utilize tons of paper in order to generate the documents to the desired project.
Thus the traditional process spends most of the time on document preparation
instead of performing software development activities.

An iterative process development involves construction of systems with

described architecture, negotiates the significant requirements, identifies and
resolves the risks etc. it shows progressive deliverables and important
functionalities instead of documentation of the project.
3. Ambitious demonstrations are encouraged: The design errors are exposed by
carrying out demonstrations in the early stages of the lifecycle. The
stakeholders should not over react to these design errors because overemphasis
of the design errors at early stage will discourage the development organizations
in producing motivated future iterations. It does not mean that stakeholders
should bare all these errors. But the stakeholders must follow all the significant

101
 steps needed for resolving these issues because these errors will sometimes lead
to serious down fall of the project.
4. Good and bad project performance is much more obvious earlier in the lifecycle:
The success and failure of any project depends on the planning and
architectural phases of lifecycle. So these phases must employ high skilled
professionals, the remaining phases may work with an average team.
5. Early increments will be immature: External stakeholders cannot expect initial
deliveries to perform up to specification to be complete, to be fully reliable or to
have end target levels of quality or performance. At the same time the
development organizations must be accountable for, and demonstrate, tangible
improvements in successive increments. This trend will indicate future
activities.
6. Artifacts are less importance early, more importance later: The details of artifacts
should not be considered unless a stable and a useful baseline of the project is
obtained.
7. Real issues are surfaced and resolved systematically: Successful projects
recognize that requirements and designs evolve together with continuous
negotiations, trade-off, and exchanging toward best value, rather than blindly
adhering to an ambiguous contract statement.
8. Quality assurance is everyone’s job not a separate discipline: The software
project manager should ensure that quality assurance is integrated in every
aspect of project that it should be integrated into every individual’s role, every
artifact, and every activity performed etc. There are some organizations which
maintain a separate quality assurance group. This team performs inspections,
meetings and checklist to monitor the quality of the project.
9. Invests in automation are necessary: Automation is the key concept of iterative
development projects and it should do with sufficient funds.
10.Good software organizations should be more profitable: Most of the software
contractors focus on obtaining their profit margins beyond the acceptable range
of 5% to 15%. But they don’t look for the quality of product and the customers
will be affected. A good and honest software contractor must be suitable
rewarded whereas a bad contractor must be punished. If the product has good
quality and has responsible rate then customer will not worry about the profit
the contractor has made.
Conventional and Iterative software development characteristics:

The following are the characteristics of conventional software process.

1. Sequentially transitioning from requirements to design to code to test.
2. Achieving 100% completeness of each artifact at each lifecycle stage.
3. Treating all requirements, artifacts, components, and so forth, as equal.
4. Achieving high fidelity traceability among all artifacts at each stage in the life
cycle.

102
A modern iterative software development has the following characteristics.
1. Continuous round trip engineering from requirements to test at evolving levels
of abstraction.
2. Achieving high fidelity understanding of the drivers as early as practical.
3. Evolving the artifacts in breadth and depth based on risk management
priorities.
4. Postponing completeness and consistency analysis until later in the lifecycle.

*** END OF UNIT VIII ***

103
