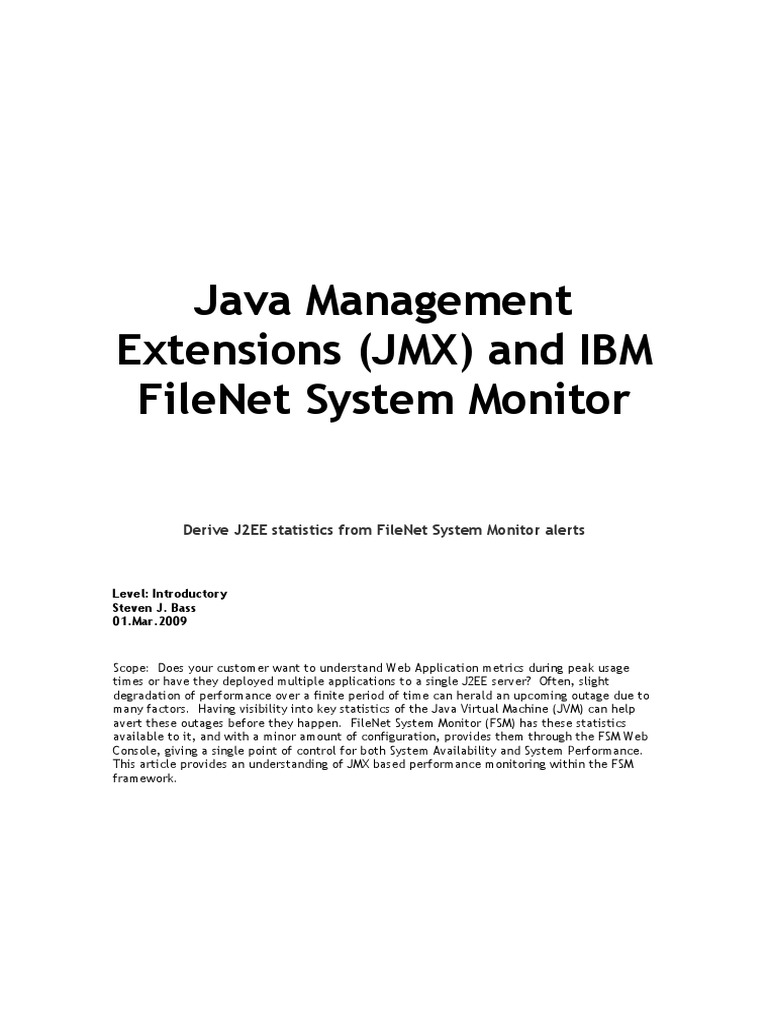

Java Management

Extensions (JMX) and IBM

FileNet System Monitor

Derive J2EE statistics from FileNet System Monitor alerts

Level: Introductory
Steven J. Bass
01.Mar.2009

Scope: Does your customer want to understand Web Application metrics during peak usage
times or have they deployed multiple applications to a single J2EE server? Often, slight
degradation of performance over a finite period of time can herald an upcoming outage due to
many factors. Having visibility into key statistics of the Java Virtual Machine (JVM) can help
avert these outages before they happen. FileNet System Monitor (FSM) has these statistics
available to it, and with a minor amount of configuration, provides them through the FSM Web
Console, giving a single point of control for both System Availability and System Performance.
This article provides an understanding of JMX based performance monitoring within the FSM
framework.
Introduction
IBM FileNet System Monitor (FSM) is an ECM Functional Expansion that enables organizations to effectively manage IBM
FileNet P8, CMv8, and CMOD components and infrastructure while automating routine work and reducing cost in IT
operations. With FSM, you will reduce downtime and costs while improving Management Productivity.

FSM leverages the ability to monitor your Java Application Servers with JMX and integrates it into the FSM monitoring
solution. This substantial integration provides visibility into the Java Application Server, and allows selection of key
metrics that enable a very fine level of granularity to be observed. Proactive monitoring of these metrics with the FSM
monitoring methodology can help avoid resource contention issues of an infinite magnitude.

Java Management Extensions is a Java technology that provides tools for managing and monitoring applications, system
objects, and devices. The Managed Bean (MBean) is the resource representing the object. The programming model of
Java Beans is an official technology used to provide program parts with a plug and play mechanism.

Architecture
The infrastructure of JMX is a three-tiered architecture as shown below.

FileNet System
Monitor (FSM)

The MBean is a type of JavaBean with extensions that enable it to be used as a conduit to the application
configuration, statistic collection and notifying events. Statistics of interest to FSM would include performance,
resource utilization, problems. This whitepaper will familiarize you with the technology incorporated within the IBM
FileNet System Monitor product that enables you to leverage this technology, and use it to your advantage in
proactively monitoring your ECM Platform.
FileNet System Monitor and JMX

Assumptions
The explanations below assume basic understanding of the FSM User Interface. The graphics below do not depict the
entire UI; therefore subjects such as the Hosts view and invocation of the Monitoring Manager applet are not
addressed.

The Web Console interface for FSM shows a grouping of monitors under individual silos of functionality. This
aggregation is customer configurable. The grouping shown below is strictly an example of how monitors might be
arranged within a P8 environment. The third silo from the left is the Application Server silo. The green circle below
the silo indicates the worst severity of the monitors within this group. If there was a warning, critical, or fatal event
occurring within this group, the individual monitor would affect the entire silo’s color (red is a warning event, black is
a fatal event).

Figure 1 – Monitoring Web Console

As we drill down into the Application Server silo, we see a single monitor. As shown below, we see the status of green,
a harmless situation. Additionally shown is the value of OK. In this case OK for the JPSMonConfJMXMon indicates that
the latest invocation of this monitor detected that all the interrogated values were within the tolerance range. The
details of the monitor are presented on the next page. The remainder of this document will illustrate how this monitor
was built and why it is important to use JMX monitors in your environment.

Figure 2 – JMX Monitor Output

Figure 3 Monitor Output Details

As described in the monitor output above, the following conditions are evaluated with a single monitor invocation:

Evaluating the JVM Runtime MBean

The HeapFreeCurrent parameter has returned 32271648. The error condition would be satisfied when the
HeapFreeCurrent returned less than 1000000

The HeapSizeCurrent parameter has returned 100663296. The error condition would be satisfied when the
HeapSizeCurrent is greater than 110663296

Evaluating the Application Runtime MBean

The name of the ApplicationRuntime parameter is assured to be p835ae_Workplace. The error condition would be
satisfied when the ApplicationRuntime parameter is any other value.

In the case of an error condition, the monitor would not return ok as the Value, and the message would indicate which
of the conditions has experienced the anomaly. FSM provides default knowledgebase entries as shown above. The
knowledgebase can be augmented with additional detail of your experience, and/or contain hyperlinks to an existing
PMR where notes from a prior problem can be retrieved. The entire contents of this monitor can be forwarded as an
email or automatically sent as an email, SMS message, or pager alert.
Building the FSM JMX Monitor

The Monitoring Manager tool is an applet within FSM that allows us to define the monitor. We have control over how
frequently the monitor runs, as well as advanced scheduling considerations so that the monitor can be disarmed during
certain known system outages. The escalation table provides flexibility to assign a range of status indicators, as well
as an action to take when the monitor reaches the associated status. Additional information for this monitor is shown
below. I have entered the necessary information for the monitor to establish connectivity with the Weblogic server,
providing port information, user and password. A library path and Java path are also integral to a monitor of this type.
The new feature for FSM 4.0.1 is shown by the arrow below. On the line where the configuration file name is
represented by ae.xml, clicking the Edit button takes us to a new JMX browser feature incorporated into FSM.

Figure 4 – Monitor Definition in the Monitor Configuration Tool

Sample Use Case

At this point, we have the information to create our JMX monitor. The nature of this JMX monitor is to assign
thresholds relevant to our JVM. Once the JMX monitor is created, the resulting values are stored in a database. They
can be viewed from the FSM Console, and analyzed for trends using the FSM reporting tool. The creation of this
monitor has several steps, which we review below.

The following interface is shown after “Edit…” has been selected. This is the tool that enables us to select specific
Java Beans to be interrogated via JMX monitoring. As depicted below, this monitor is ensuring the HeapFreeCurrent
remains less than the value of 1000000, and the HeapSizeCurrent remains greater than 110663296. These values are
specific to the environment for this demonstration and are not recommendations for your monitors. As each
implementation is unique, the thresholds can be adjusted for your specific criteria.

Figure 5 – JMX Monitor Definition example in the JPS Monitor Configuration Tool
Browsing through the available beans within the Workplace application shows us that there are many statistics
available to us for assigning thresholds and monitors. This becomes critical as more applications are running within the
Application Engine component of the P8 Infrastructure. As seen below, there are additional metrics that are easily
ascertained via the JMX browser. Information such as OpenSessionsHighCount and OpenSessionsCurrentCount give us
visibility into the number of User Connections to the application. Metrics at this depth provide many useful purposes.
We can now track usage of multiple applications running on the same Application engine, tracking contention of
resources, memory affecting events, and many other situations that might ultimately cause an outage if these
thresholds were crossed. The use of FSM as a proactive monitoring solution gives the System Administration team the
detailed information it needs to make recommendations on future scalability, web farming, and other resource
viability. With the FSM reporting tool, these metrics can be correlated over a period of time and provide graphical
evidence of the performance of the system over time.

Figure 6 – JMX Monitor Definition continued - MBean browsing in the JPS Monitor Configuration Tool
The result of using the JPS Monitoring Configuration tool is saved into an xml file that is deployed to the respective
server being monitored. In this case, the ae.xml file is shown below. No editing of the xml file is needed. It is shown
for illustration purposes only. All selection of Managed Beans and assignment of thresholds is done via the JPS
Monitoring Configuration tool.

Figure 7 – JMX Monitor Definition translation in XML

Other Use Cases

Many customer implementations are using Workplace, Workplace XT, BPF generated applications and other custom web
applications. FileNet System Monitor has visibility into the Java MBeans from any of these applications. JMX monitors
for these products are built into the FSM product itself. Utilization of FSM JMX monitoring for all web deployed
applications alleviates much of the guesswork associated with understanding what is going on in the respective Java
Virtual Machines (JVM). For example, utilization of FSM in monitoring Workplace provides analysis on full resource
utilization within by that application, something that is not visible to FileNet administrators. This provides the
administrators control over Websphere, Weblogic, JBoss, and other J2EE Servers that may be outside of the ECM
administrators’ domain.

Suggested scenarios for JMX monitoring include metrics as described above, including HeapFreeCurrent, Heap Size
Current, Open Sessions and Servlet Sessions. The potential list of MBeans that can be ultimately included is beyond the
scope of this document. Development groups should be encouraged to expose as much functionality at the Java Bean
level as possible for discrete transaction analysis. Instrumentation of the Java Bean to provide visibility via JMX is a
development topic, and is beyond the scope of this document.
Conclusion

This article demonstrates that FileNet System Monitor can be leveraged as a JMX Monitoring tool, in addition to being
an essential piece of the platform for system availability. The proactive monitoring feature of FSM has helped many
customers avert system outages, and substantially reduces system downtime. Traditional system monitoring via third
party tools is not integrated with the FileNet API set, as is the case with FSM. Therefore, it is the opinion of the author
that FileNet System Monitor should be a solution for both the stability and assurance of the ECM platform availability.

It is important to remember that this type of JMX monitoring can be extended across any web application within the
ECM platform or any infrastructure where J2EE Web Applications are utilized.

Contact Information

IBM – Steven Bass (sbass@us.ibm.com)

Disclaimer

The subject matter contained in this article is the opinion of the author. If you find any discrepancies or would like to
discuss this topic, please contact me.

Feedback

Please provide feedback directly to my attention. This is a new concept for this particular product and I would like
your input on how the field is receiving this contribution.
