This document provides information about 3 phase locomotives, including their specifications and operating procedures. It lists the maximum tractive effort, horsepower, speed, and other specifications for different locomotive models like WAP5, WAP7, and WAG9. It also describes the working of various components in the locomotive like batteries, traction motors, braking systems, and safety features. The document contains operational guidelines for functions like regenerative braking, isolating bogies, and emergency procedures to be followed in case of faults.
This document provides information about 3 phase locomotives, including their specifications and operating procedures. It lists the maximum tractive effort, horsepower, speed, and other specifications for different locomotive models like WAP5, WAP7, and WAG9. It also describes the working of various components in the locomotive like batteries, traction motors, braking systems, and safety features. The document contains operational guidelines for functions like regenerative braking, isolating bogies, and emergency procedures to be followed in case of faults.
This document provides information about 3 phase locomotives, including their specifications and operating procedures. It lists the maximum tractive effort, horsepower, speed, and other specifications for different locomotive models like WAP5, WAP7, and WAG9. It also describes the working of various components in the locomotive like batteries, traction motors, braking systems, and safety features. The document contains operational guidelines for functions like regenerative braking, isolating bogies, and emergency procedures to be followed in case of faults.

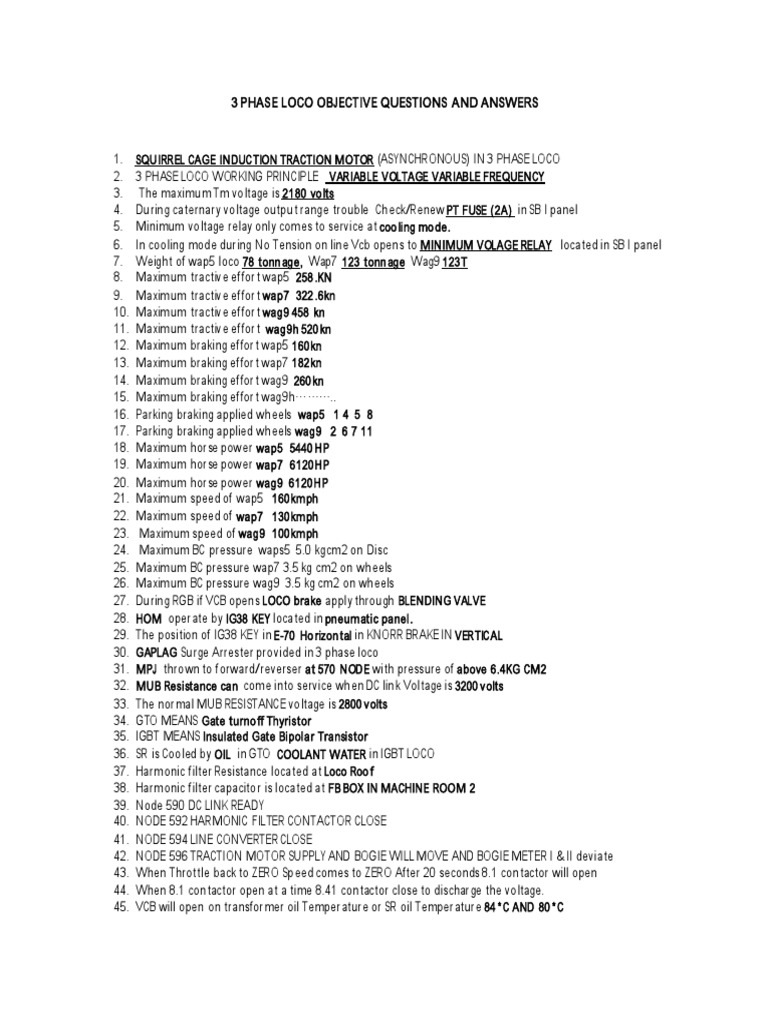

1. SQUIRR EL CAGE INDUCTION TRACTION MOTOR (ASYNCHRONOUS) IN 3 PHASE LOCO
2. 3 PHASE LOCO WORKING PRINCIPLE VARIABLE VOLTAGE VARIABLE FREQUENCY 3. The maximum Tm voltage is 2180 vo lts 4. During ca ternary voltage outpu t range trouble Check/Renew PT FUSE (2A) in SB I panel 5. Minimum voltage relay only comes to service a t coo ling mo de. 6. In cooling mode dur ing No Tension on line Vcb opens to MINIMUM VOLAGE RELAY loca ted in SB I panel 7. Weight of wap5 loco 78 tonn age, Wap7 123 tonn age Wag9 123T 8. Maximum tractive effor t wap5 258 .KN 9. Maximum tractive effor t wap7 322 .6kn 10. Maximum tractive effor t wag9 458 kn 11. Maximum tractive effor t wag9h 520 kn 12. Maximum braking effor t wap5 160kn 13. Maximum braking effor t wap7 182kn 14. Maximum braking effor t wag9 260 kn 15. Maximum braking effor t wag9h……….. 16. Parking braking applied wheels wap5 1 4 5 8 17. Parking braking applied wheels wag9 2 6 7 11 18. Maximum hor se power wap5 5440 HP 19. Maximum hor se power wap7 6120HP 20. Maximum hor se power wag9 6120HP 21. Maximum speed of wap5 160kmph 22. Maximum speed of wap7 130kmph 23. Maximum speed of wag9 100kmph 24. Maximum BC pressure waps5 5.0 kgcm2 on Disc 25. Maximum BC pressure wap7 3.5 kg cm2 on wheels 26. Maximum BC pressure wag9 3.5 kg cm2 on wheels 27. During RGB if VCB opens LOCO brake apply through BLENDING VALVE 28. HOM oper ate by IG38 KEY loca ted in pneumatic panel. 29. The posi tion of IG38 KEY in E-70 Ho rizon tal in KNORR BRAKE IN VERTICAL 30. GAPLAG Surge Arres ter provided in 3 phase loco 31. MPJ thrown to forward/reverser at 570 NOD E wi th pressure of above 6.4KG CM2 32. MUB Resistance can come into service when DC link Vol tage is 3200 volts 33. The nor mal MUB RESISTANCE voltage is 2800 volts 34. GTO MEANS Gate turno ff Thyristor 35. IGBT MEANS Insulated Gate Bipolar Transistor 36. SR is Cooled by OIL in GTO COOLANT WATER in IGBT LOCO 37. Harmonic filter Resistance loca ted a t Loco Roo f 38. Harmonic filter capacitor is loca ted a t FB BOX IN MACHINE ROOM 2 39. Node 590 DC LINK READY 40. NODE 592 HARMONIC FILTER CONTACTOR CLOSE 41. NODE 594 LINE CONVERTER CLOSE 42. NODE 596 TRACTION MOTOR SUPPLY AND BOGIE WILL MOVE AND BOGIE METER I & II devia te 43. When Throttle back to ZERO Speed comes to ZERO After 20 seconds 8.1 con tactor will open 44. When 8.1 con tactor open a t a time 8.41 con tactor close to dischar ge the voltage. 45. VCB will open on transfor mer oil Temper atur e or SR oil Temper atur e 84 * C AND 80 * C 46. When Br eaker 112.1 Trip LOCO SHUTDOWN IMMEDIATELY 47. When breaker 110 trip Train wo rk upto 5Hr s or ba ttery vola tage upto 92v 48. NICKEL CADMIUM BATTERIES type of ba ttery used in 3 phase loco 49. LEAD ACID BATTERIES USED IN CONVENTIONAL TYPE LOCOS 50. 26 BATTERIES provided in 3 phase loco 51. Battery BOX 1 cooled by MRB 1 52. BATTERY BOX 2 cooled by MRB 2 53. Each ba ttery consist of Ba ttery voltage is 1.5 volts and Each Ba ttery Cell consist of 3 CELL 54. Minimum Ba ttery voltage Requir e in 3 phase loco is ABOVE 92 VOLTS 55. When the ba ttery voltage is 92v P2 FAULT will appear in display 56. When the Ba ttery voltage is 86V P1 FAULT will appear in display (traction not available reduce below) 57. When the Ba ttery voltage is 82V P1 FAULT will appear in display wi th LOCO SHUTDOWN 58. Loco work wi th ba ttery UPTO 5HRS 59. Normal Charging curr ent of ba ttery is 10 TO 40 AMPS IN 3 PHASE LOCO in conventional loco 2 TO 7 AMPS 60. 310.4 is machine room light Br eaker 61. Machine Room Ligh ts Glowing D MODE C MODE AND SELFHODE MODE 62. If 112 breaker tripped a t the time of compressor con tactor closing VCB TRIP PANTO LOWER BP DROP AND LOCO SHUTDOWN. 63. Total 21 i tems available in A PANEL + LSTO = 22 ITEMS 64. LSCE lamps glows when CE Temper atur e Exceeds 70 * C a t A panel 65. BLCP HAVE Three Posi tion OFF – AUTO ON – MAN 66. ZTEL - Tractive Effor t Limi t Swi tch dur ing inching mode. 67. ZTEL is Swi tch ON Tractive Effor t is Limi ted On 300KN MAXIMUM 68. Maximum Tractive Effor t During inching mode 150 KN 69. Maximum speed During inching mode is 1.5KMPH 70. If speed is not increase beyond 1.5kmph Check ZTEL SWITCH 71. BPCS will work above 5KMPH and Throttle handle should be in TE/BE 72. Before Relasing Parking Br akes on Respective wheels BP and BC PRESSURE should be in Zero 73. VCD is work above 1.5 KMPH in 3 phase loco above 2kmph in conventional loco 74. NORMAL posi tions of Panto selector swi tch (PSS 85 IS AUTO 75. To Isola te pan1 keep PSS 85 swi tch in 2 POSITION 76. To Isola te pan2 keep PSS 85 swi tch in 1 POSITION 77. While Conducting Loco Br ake Test Loco Should not move upto 150 KN WAG9/WAP7, 100KN FOR WAP5 78. If any CAB Energiza tion PANTO 1 command from in HBB2 79. IF any CAB Energiza tion PANTO 2 command from in STB2 80. If selfhode mode or panto in raised condition wi thou t closing VCB the CE Remains for 10 MINTUTES 81. NODE 612 - STB2 PROCESSOR 82. NODE 613 - STB1 PROCESSOR 83. A9 HAVE SIX NO OF POSITIONS IN E-70 LOCO and FIVE NO OF POSITIONS IN KNORR BRAKE LOCOS 84. BC PRESSURE THROUGH SA9 IS 3.5KG CM2 AND A9 IS 2.5 KG CM2 (CONJUNTIN BRAKE) 85. IN KNORR BRAKE conjunction brake pressure is 3.8 KG CM2 86. DURING DEAD LOCO MOVEMENT CLOSE 70 74 136 COC AND OPEN 47 COC 87. IN KNORR BRAKE AUTO BRAKE LOCKED OR UNLOCKED IN FS POSITION 88. MODE SWITCH LEAD IN LEADING CAB TRAIL IN REAR CAB 89. While working banker MODE SWITCH should be in HELPER POSITION 90. FOR CONDUCTING BP CONTINUITY TEST KEEP MODE SWITCH IN TEST POSITION 91. 70 COC not provided in KNORR BRAKE SYSTEM 92. To Recover from Ser vice penal ty brake keep A9 HANDLE IN FS POSITION for 10 SECONDS 93. To Recover from Emergency penal ty brake keep A9 HANDLE EMERGENCY POSITION for 10 SECONDS 94. When RS pressure is not building up close UL COC IN PNEUMATIC PANEL AND TRY 95. VCU Reset should not use for BRAKE ELECTRNICS FAILURE. 96. NORMAL POSITION OF PER COS IS HORIZONTAL 97. IF panto is not raising due to mois ture con ten t PRESS PAN TEST NIPPLE IN KNORR BRAKE SYSTEM TO DRAIN OUT RS PRESSURE OR OPEN THE DRAIN COC IF PROVIDED 98. 94 COC should not be closed in KNORR BRAKE SYSTEM 99. Regerna tive Br ake will not work when FLG1 AND HBB2 PROCESSOR ISOLATED 100.DURING FAILURE OF ANGLE TRANSIMETER KEEP 152 SWITCH IN 1 POSITION 101.GLOWING OF LSFI CONTINOUSLY ISOLATION OF SUBSYSTEM(S) 102.DURING P1 FAULT LSFI LAMP FLICKER BPFA LAMP GLOW 103.DURING P2 FAULT BPFA LAMP ONLY GLOW 104.To isola te Bogie I keep 154 swi tch in 1 POSTIION 105.To isola te Bogie II keep 154 swi tch in 2 posi tion 106.During MU OPERATION keep 154 swi tch in I & II posi tion in Leading loco 107.To shunting mode keep 160 Swi tch 0 posi tion after keeping MPJ NEUTRAL POSTIOIN 108.If panto simulation screen shows 5kv i t indica tes panto not touch properly to con tact wire 109.The ca tenary voltage should be between above 17.5kv lesssthan 29kv 110.In BHEL MAKE IGBT LOCO if SR conver ter Pump not working check SR pump and Addl MCB IF PROVIDED 111.MUB RESISTANCE TOO HOT WAIT FOR 30 SECONDS TO COOL VCB OPEN CONDITION 112.IN IGBT LOCOS INDIVIDUAL TM WILL BE ISOLATED BY CE T/E 5/6 113.IN LINE CONVERTER ISOLATED BY CE TE/BE 3/6 114.WHEN HARMONIC FILTER IS ISOLATED SPEED OF TRAIN RESRICTED 40KMPH 115.IF HARMONIC FILTER TOO HIGH WAIT FOR 15 MINUTES VCB OPEN CONDITION 116.When STB1 FAILURE HOG NOT WORK IN BOTH CAB 117.WHEN STB2 FAILURE HOG NOT WORK IN CAB2 ONLY 118.DURING ACP LP GET F1002P2 MESSAGE 119.WHEN TWO SMOKE DECTECTOR DETECTS LP WILL EXPERIENCE P1 FAULT 120.FIRE IN MACHINE ROOM LP WILL EXPERIENCE P1 (F1501P1) 121.AFTER PUTTING OUT THE FIRE LP SHOULD PRESS RESET BUTTON IN FDU IN SB2 122.FIRE EXTINGUISHER IN 3 PHASE LOCO CO2 IN CONVENTIONAL LOCO DCP TYPE 123.IN 3 PHASE LOCO FIXED F/E IS 22.5 KG AND PORTABLE F/E IS 2.5 KG AND CONVENTIONAL LOCO IS 5KG 124.BEFORE USING F/E (CO2) ENSURE MACHINE ROOM DOORS ARE CLOSED 125.FDU IS NOT WORK IF 127.9/2 MCB IS TRIPPED 126.BPCS SHOULD PRESSED MORE THAN 5 SECONDS 127.WHEN TM SENSORS BETWEEN 210*C <230*C POWER REDUCTION 100% TO 0% 128.IF TM TEMPERATURE AT 230*C FOR LONGER THAN 10 SECONDS TE/BE COMES TO 0 WITH P1 MESSAGE.
