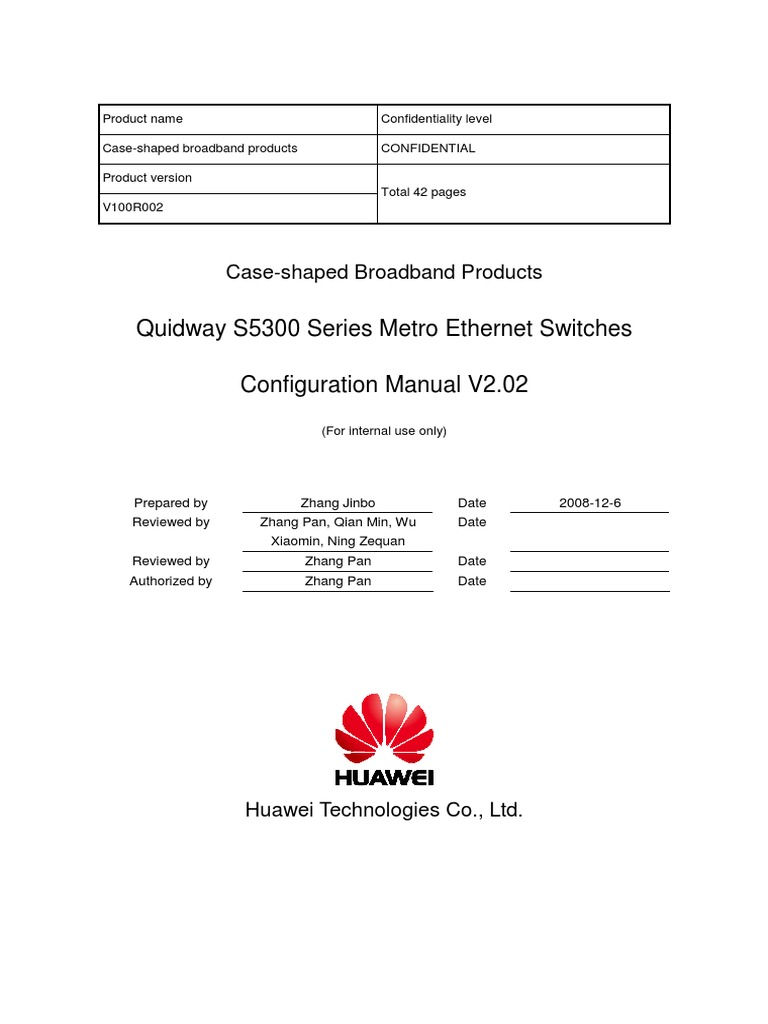

Product name Confidentiality level
Case-shaped broadband products CONFIDENTIAL
Product version
Total 42 pages
V100R002
Case-shaped Broadband Products
Quidway S5300 Series Metro Ethernet Switches
Configuration Manual V2.02

(For internal use only)
Prepared by Zhang Jinbo Date 2008-12-6

Reviewed by Zhang Pan, Qian Min, Wu Date
Xiaomin, Ning Zequan
Reviewed by Zhang Pan Date
Authorized by Zhang Pan Date
Huawei Technologies Co., Ltd.

Case-shaped Broadband Products Quidway S5300 Series Metro
Ethernet Switches Configuration Manual V2.02 CONFIDENTIAL
Contents
1 Product Overview ...........................................................................................................................8

1.1 Basic Configuration Diagram .................................................................................................8
1.1.1 Basic Features of the S5328C ....................................................................................8
1.1.2 Basic Features of the S5352C ....................................................................................9
1.1.3 Basic Features of the S5328C-24S ............................................................................9
1.1.4 Basic Features of the S5324TP ................................................................................10
1.1.5 Basic Features of the S5348TP ................................................................................10
1.1.6 Basic Features of the S5328C-PWR ........................................................................10
1.1.7 Basic Features of the S5352C-PWR ........................................................................11
1.1.8 Basic Features of the S5324TP-PWR ......................................................................12
1.1.9 Basic Features of the S5348TP-PWR ......................................................................12
1.2 User Interfaces.....................................................................................................................12
1.3 Installation Environment Description ...................................................................................13
2 Configuration Principles..............................................................................................................14
2.1 BOM List Structure ..............................................................................................................14
2.1.1 BOM List of the Integrated Device ............................................................................14
2.2 Configuration Description of the Integrated Device .............................................................19
2.2.1 Principles for Configuring the Integrated Device.......................................................19
2.2.2 Configuration Instruction ...........................................................................................25
2.3 Principles for Configuring Optical Modules..........................................................................27
2.3.1 BOM List of Optical Modules.....................................................................................27
2.3.2 Configuration Instruction of Optical Modules ............................................................33
2.3.3 Configuration Notes ..................................................................................................34
2.4 List of AC Power Cables......................................................................................................34
2.4.1 Principles for Configuring AC Power Cables ............................................................36
2.5 Principles for Configuring Optical Fibers .............................................................................36
2.5.1 List of Optical Fibers .................................................................................................36
2.5.2 Instruction for Configuring Optical Fibers..................................................................39
2.5.3 Instruction for Connecting External Optical Fibers....................................................39
3 Upgrade and Capacity Expansion Methods and Configuration Description .........................41

3.1 Capacity Expansion Methods and Configuration Description .............................................41
3.2 Upgrade Methods and Configuration Description................................................................41
3.2.1 Upgrade Methods......................................................................................................41
3.2.2 List of Devices to Be Upgraded.................................................................................42
3.2.3 Notes About the Upgrade..........................................................................................42
3.2.4 Notes About Parts Replacement...............................................................................42
2009-11-09 HUAWEI Confidential Page 2 of 42

Figures
Figure 1 Appearance of the S5328C......................................................................................... 8

Figure 2 Appearance of the S5352C......................................................................................... 9
Figure 3 Appearance of the S5328C-24S ............................................................................... 10
Figure 4 Appearance of the S5324TP..................................................................................... 10
Figure 5 Appearance of the S5348TP..................................................................................... 10
Figure 6 Appearance of the S5328C-PWR..............................................................................11
Figure 7 Appearance of the S5352C-PWR............................................................................. 12
Figure 8 Appearance of the S5324TP-PWR........................................................................... 12
Figure 9 Appearance of the S5348TP-PWR........................................................................... 12

Tables
Table 1 Configuration list of the integrated device .................................................................. 14

Table 2 Principles for configuring the integrated device.......................................................... 19
Table 3 List of optional optical modules of the S5300............................................................. 27
Table 4 Configuration principles of optional optical modules .................................................. 31
Table 5 Instruction for configuring optical modules ................................................................. 33
Table 6 List of AC power cables .............................................................................................. 35
Table 7 List of optical fibers ..................................................................................................... 36
Table 8 Instruction for connecting external optical fibers ........................................................ 39

Revision History
No. Date Author Version Revision Description
Zhang
1 2008-12-15 V1.00 This is the first release.
Jinbo
Yang
2 2009-1-12 V1.01 The BOM list is changed to the SBOM list.
Jinsheng
Description on components such as hosts, cards,

Ning and power modules in V1R3 is added and the
2 2009-5-8 V2.00
Zequan packaging of optical modules is changed from
S401 to 0231.

Quidway S5300 Series Metro Ethernet Switches

Configuration Manual
In this configuration manual, all devices refer to case-shaped broadband products in

V100R002, unless otherwise stated. The features of V100R002 involve all the features
of the case-shaped broadband products in V100R002.
Keywords: S5300, configuration manual, BOM

Abstract: This document describes the configurations of Quidway S5300 series Metro
Ethernet switches (hereinafter referred to as the S5300), including the product
overview, basic networking mode, general configuration principle, chassis
configuration, interface configuration, and configurations of other system accessories.
This document can only be used internally to guide telecom design, commercial
quotation, contract configuration, and actual sales activities. This document is a
technical clarification provided by the R&D Department for the Marketing Department.
To ensure the feasibility of a contract, the marketing personnel must note that the
contents of this document cannot be directly written into the contract. If the
commitments of the R&D Department are required, the commitment workflow of the
Marketing Department must be followed.
Document management: This document is drafted and revised by the PDT of
case-shaped broadband products, reviewed by the R&D, Marketing, Configuration,
and Technical Support departments. The first draft is provided during the application
phase of the pilot office, and will be updated regularly in the future. This document is
released through the Document Platform of Market Technologies database. Anyone
receiving the document must ensure the confidentiality of this document and avoid
disclosure.
Document usage: This document is provided for Telecom Design, Bidding, Technical
Support, Marketing, and Product Order Configuration departments. This manual is
used together with the S5300 Market Technology Guide to guide the sales and
telecom design of the S5300 in both Chinese and overseas markets. This document is
confidential and for internal use only. Hence, the transfer of this document to operators
or competitors is strictly prohibited. Otherwise, involved departments and personnel
will receive punishments such as warning, penalty, salary deduction, and special
condition dismissal. Return any comment or feedback on this manual through the
Document Platform of Market Technologies in time, so that the PDT of case-shaped

broadband products can immediately revise the contents. If you have any comment or
suggestion on this document, send it to the PDT of case-shaped broadband products.
The contact is Zhang Jinbo/50441 and the mobile phone number is 13725506554.

1 Product Overview
The S5300s are Metro Ethernet broadband access devices that are newly developed
by Huawei. The S5300 can be used by various network operators, institutions, and
enterprises, such as China Telecom, CNC, China Mobile, China Unicom, SARFT,
China TieTong, banks, police stations, tax stations, schools, and overseas data
communications markets. The S5300 can be sold with related broadband products,
routers, and transmission products of Huawei.
1.1 Basic Configuration Diagram

The S5300 adopts the integrated chassis design.
1.1.1 Basic Features of the S5328C
The S5328C provides 24 Gigabit Ethernet (GE) interfaces, one console interface for
local configuration, and one management network interface. The S5328C-SI provides
four combo interfaces and one Universal Serial Bus (USB) interface. The S5328C
provides one Switch Control Unit (SCU) that supports a switching capability of 88
Gbit/s. The S5328C supports two 10GE cards, four GE cards, and stacking cards. Two
10GE cards and stacking cards cannot be configured at the same time, four GE cards
and stacking cards cannot be configured at the same time, and two 10GE cards and
four GE cards cannot be configured at the same time. Figure 1 shows the appearance
of the S5328C.
S5328C-EI
S5328C-SI
Figure 1 Appearance of the S5328C

1.1.2 Basic Features of the S5352C
The S5352C provides 48 GE interfaces, one console interface for local configuration,
and one management network interface. The S5352C-SI provides one USB interface.
The S5352C provides one SCU that supports a switching capability of 136 Gbit/s. The
S5352C supports two 10GE cards, four GE cards, and stacking cards. Two 10GE
cards and stacking cards cannot be configured at the same time, four GE cards and
stacking cards cannot be configured at the same time, and two 10GE cards and four
GE cards cannot be configured at the same time. Figure 2 shows the appearance of
the S5352C.
S5352C-EI
S5352C-SI
Figure 2 Appearance of the S5352C
1.1.3 Basic Features of the S5328C-24S
The S5328C-24S provides 24 GE optical interfaces, four combo interfaces, one

console interface for local configuration, and one management network interface. The
S5328C-24S provides one SCU that supports a switching capability of 88 Gbit/s. The
S5328C-24S supports two 10GE cards, four GE cards, and stacking cards. Two 10GE
cards and stacking cards cannot be configured at the same time, four GE cards and
stacking cards cannot be configured at the same time, and two 10GE cards and four
GE cards cannot be configured at the same time. Figure 3 shows the appearance of
the S5328C-24S.

Figure 3 Appearance of the S5328C-24S
1.1.4 Basic Features of the S5324TP
The S5324TP provides 24 GE interfaces, four combo interfaces, one console interface
for local configuration, one management network interface, and one USB interface.
The S5324TP provides one SCU that supports a switching capability of 36 Gbit/s. The
S5324TP supports stacking cards. Figure 4 shows the appearance of the S5324TP.
Figure 4 Appearance of the S5324TP
1.1.5 Basic Features of the S5348TP
The S5348TP provides 48 GE interfaces, four combo interfaces, one console interface
for local configuration, one management network interface, and one USB interface.
The S5348TP provides one SCU that supports a switching capability of 72 Gbit/s. The
S5348TP supports stacking cards. Figure 5 shows the appearance of the S5348TP.
Figure 5 Appearance of the S5348TP
1.1.6 Basic Features of the S5328C-PWR
The S5328C-PWR provides 24 GE interfaces, one console interface for local

configuration, and one management network interface. The S5328C-PWR-SI provides
four combo interfaces and one USB interface. Each GE interface can provide a
maximum of 15.4 W power supply. The S5328C-PWR provides one SCU that supports
a switching capability of 88 Gbit/s. The S5328C-PWR supports two 10GE cards, four
GE cards, and stacking cards. Two 10GE cards and stacking cards cannot be
configured at the same time, four GE cards and stacking cards cannot be configured
at the same time, and two 10GE cards and four GE cards cannot be configured at the
same time. Figure 6 shows the appearance of the S5328C-PWR.

S5328C-PWR-EI
S5328C-PWR-SI
Figure 6 Appearance of the S5328C-PWR
1.1.7 Basic Features of the S5352C-PWR
The S5352C-PWR provides 48 GE interfaces, one console interface for local

configuration, and one management network interface. The S5352C-PWR-SI provides
one USB interface. Each GE interface can provide a maximum of 15.4 W power supply.
The S5352C-PWR provides one SCU that supports a switching capability of 88 Gbit/s.
The S5352C-PWR supports two 10GE cards, four GE cards, and stacking cards. Two
10GE cards and stacking cards cannot be configured at the same time, four GE cards
and stacking cards cannot be configured at the same time, and two 10GE cards and
four GE cards cannot be configured at the same time. Figure 7 shows the appearance
of the S5352C-PWR.
S5352C-PWR-EI

S5352C-PWR-SI
Figure 7 Appearance of the S5352C-PWR
1.1.8 Basic Features of the S5324TP-PWR
The S5324TP-PWR provides 24 GE interfaces, four combo interfaces, one console

interface for local configuration, one management network interface, and one USB
interface. Each GE interface can provide a maximum of 15.4 W power supply. The
S5324TP-PWR provides one SCU that supports a switching capability of 88 Gbit/s.
The S5324TP-PWR supports stacking cards. Figure 8 shows the appearance of the
S5324TP-PWR.
Figure 8 Appearance of the S5324TP-PWR
1.1.9 Basic Features of the S5348TP-PWR
The S5348TP-PWR provides 48 GE interfaces, four combo interfaces, one console

interface for local configuration, one management network interface, and one USB
interface. Each GE interface can provide a maximum of 15.4 W power supply. The
S5348TP-PWR provides one SCU that supports a switching capability of 88 Gbit/s.
The S5348TP-PWR supports stacking cards. Figure 9 shows the appearance of the
S5348TP-PWR.
Figure 9 Appearance of the S5348TP-PWR
1.2 User Interfaces

The S5300 provides Ethernet user interfaces, including GE interfaces and 10 GE
interfaces, to interconnect with other network devices. The S5300 provides GE
electrical interfaces, GE optical interfaces, and 10 GE optical interfaces. These
Ethernet interfaces support standard Ethernet encapsulation and can interwork with
the standard Ethernet interfaces of other manufacturers.
The S5300 provides the following Ethernet interface features:

SFP module interface and XFP module interface

Electrical interface
PoE conforming to 802.3af standards (supported only by the S5300-PWR series
switches)
Before using an interface, you must pay attention to the detailed network requirements,
including:
(1) Transmission rate of the interface, such as 1 Gbit/s and 10 Gbit/s.
(2) Physical features of an interface: You must determine the type of the interface
(electrical interface or optical interface), and the type of the connector, that is, Square
Connector (SC) or Lucent Connector (LC). If the interface is an optical interface, you
must determine the type of the optical fiber (single-mode or multi-mode).
(3) Maximum data transmission distance, such as 100 m, 0.5 km, 2 km, and 10 km.
Then, select proper optical transceivers of different types.
The maximum transmission distances supported by the interfaces of the S5300 are as
follows:
GE electrical interface: 100 m
GE optical interface: 2 km and 15 km for the Small Form-Factor Pluggable (SFP)
optical module; 15 km for the single-fiber bidirectional optical module; 40 km, 80 km,
and 100 km in the environment of the temperature specification reduced to 45°C for
use
Downstream optical interface on the S5328C-24S: 2 km and 15 km for the Fast
Ethernet (FE) optical interface (the SFP optical module); 15 km for the single-fiber
bidirectional optical module; 40 km, 80 km, and 100 km in the environment of the
temperature specification reduced to 45°C for use
10 GE optical interface: 0.3 km, 10 km, and 40 km for the 10-Gigabit Small
Form-Factor Pluggable transceiver (XFP) optical module
1.3 Installation Environment Description

The chassis of the S5300s can be divided into two types according to the dimension
(width x depth x height): 442 mm x 220 mm x 43.6 mm for the S5324TP-SI and 442
mm x 420 mm x 43.6 mm for non-S5324TP-SI switches. The chassis can be installed
on an ordinary worktable, a standard European Telecommunications Standards
Institute (ETSI) front-access cabinet (N63 cabinet), or a standard International
Electrotechnical Commission (IEC) 297 cabinet (N66, N68, or N610 cabinet).For
details, see the Quidway S5300 Metro Ethernet Switches Installation Guide.

The maximum power consumption of the non-S5300-PWR is 100 W.

The S5300 supports the Direct Current (DC) power supply with the input voltage
ranging from –36 V to –72 V.
The S5300 also supports the Alternating Current (AC) power supply with the input
voltage ranging from 90 V to 264 V.
Non-S5324TP-PWR switches and non-S5348TP-PWR switches include power
modules.
The S5300-PWR switches can be configured with ordinary power modules or Power
over Ethernet (PoE) power modules. The PoE function is not provided when the
S5300-PWR switches are configured with ordinary power modules.
The PoE power supply has two specifications, that is, 250 W and 500 W. The 250 W
power supply can provide supply for only eight interfaces. If two 250 W power supplies
are adopted, SCUs and PoE power modules are backed up in 1+1 mode. The 500 W
power supply provides supply for up to 24 interfaces. Two 500 W power supplies can
provide supply for 48 interfaces. Only power modules on SCUs are backed up if two
500 W power supplies are adopted ，On the PoE device with 48 interfaces, when
more than 24 interfaces provide power for PDs, two 500 W PoE power supplies need
to be configured to meet the requirement of the PoE power. It is recommended that
power supplies with different watts not be configured together.
2 Configuration Principles
2.1 BOM List Structure
2.1.1 BOM List of the Integrated Device
Part number: 01052600

Part description: S5300 series Ethernet switches
Table 1 shows the configuration list of the integrated device.
Table 1 Configuration list of the integrated device
BOM Part Part

Part Description Quantity
Level Number Template
0 01052600 S5300 Series Ethernet Switches PTO 0
1 02000698 Hardware ATO 1
2 02238342 S5300,Mainframe AOC 1

BOM Part Part

Quidway S5328C-EI,CX7Z128CM,S5328C-EI
Mainframe(24 10/100/1000Base-T,Chassis,2 Power
3 02351610 AI 1
Supply Slots,Without Flexible Card and Power
Module)
Quidway S5328C-SI,LS5Z228CM,S5328C-SI
Mainframe(24 10/100/1000Base-T,Chassis,Dual
3 02351823 AI 1
Slots of power,Without Flexible Card and Power
Module)
Quidway
S5328C-EI-24S,CX7Z328CM,S5328C-EI-24S
3 02351621 Mainframe(24 100/1000Base-X,4 Combo AI 1
GE(10/100/1000 BASE-T),Chassis,2 Power Supply
Slots,Without Flexible Card and Power Module)
Mainframe(48 10/100/1000Base-T,Chassis,2 Power
3 02351622 AI 1
Module)
Quidway S5352C-SI,LS5Z252CM,S5352C-SI
Mainframe(48 10/100/1000Base-T,Chassis,Dual
3 02351824 AI 1
Module)
Quidway
S5324TP-SI-AC,LS5Z824AM,S5324TP-SI-AC
3 02351820 AI 1
Mainframe(24 10/100/1000Base-T,4 1000Base-X
Combo,Without Stack Card ,AC 110/220V)
Quidway
S5324TP-SI-DC,LS5Z824DM,S5324TP-SI-DC
3 02351825 AI 1
Combo,Without Stack Card ,DC -48V)
Quidway
S5348TP-SI-AC,LS5Z848AM,S5348TP-SI-AC
3 02351821 AI 1
Combo,Without Stack Card,AC 110/220V)

BOM Part Part

Quidway
S5348TP-SI-DC,LS5Z848DM,S5348TP-SI-DC
3 02351826 AI 1
Combo,Without Stack Card ,DC -48V)
Quidway
S5328C-PWR-EI,LS5Z528CM,S5328C-PWR-EI
02351827 Mainframe(24 10/100/1000Base-T,PoE,Chassis,Dual AI 1
3
Module)
Quidway
S5328C-PWR-SI,LS5Z628CM,S5328C-PWR-SI
3 02351828 Mainframe(24 10/100/1000Base-T,PoE,Chassis,Dual AI 1
Module)
Quidway
S5352C-PWR-EI,LS5Z552CM,S5352C-PWR-EI
Module)
Quidway
S5352C-PWR-SI,LS5Z652CM,S5352C-PWR-SI
Module)
Quidway
S5324TP-PWR-SI,LS5ZC24CM,S5324TP-PWR-SI
3 02351831 Mainframe(24 10/100/1000Base-T,4 1000Base-X AI 1
Combo,PoE,Chassis,Dual Slots of power,Without
Stack Card and Power Module)
Quidway
S5348TP-PWR-SI,LS5ZC48CM,S5348TP-PWR-SI
3 02351832 Mainframe(48 10/100/1000Base-T,4 1000Base-X AI 1
Combo,PoE,Chassis,Dual Slots of power,Without
Stack Card and Power Module)

BOM Part Part

2 02238343 S5300,Interface Card AOC 1
03020LU S5300,CX22E2XX,2-Port XGE Optical Interface

3 AI 1
B Card,3*1
S5300,CX7M1E4GF,4-Port GE SFP Optical Interface

3 02317031 AI 1
Card(Used In EI Series)
03020MD S5300,CX22E4GF,4-Port GE SFP Optical Interface

4 AI 1
P Card,2*1
03020ML
4 S5300,CX22ETPB,Extend Channel Card,1*1 AI 1
A
DKBA4.170.3086MX,Individual Unit Complete-set

4 30011779 P 1
Packaging For S5300 Board
S5300,CX7M2E4GF,4-Port GE SFP Optical Interface

3 02317468 AI 1
Card(Used In SI Series)
03020PW S5300,CX22E4GFA,4 Port GE SFP Optical Interface

4 AI 1
P Card,2*1
03020ML
4 S5300,CX22ETPB,Extend Channel Card,1*1 AI 1
A

4 30011779 P 1
S5300,CX7M1ETPC,10G Ethernet Stack Interface

3 02317511 AI 1
Card(include 100cm stack cable)
03020NP
4 S5300,CX22ETPC,Stack Card AI 1
W
Outsourcing Cable,PCIe 8X High Speed

4 04050141 Cable,1.0m,PCIe X8,CC8P0.32B(S)*2,PCIe X8,For P 1
Indoor

4 30011779 P 1
2 02238344 S5300,Power AOC 1

BOM Part Part

OT925-G,3m Power Cords All Over The

3 02236425 AOC 1
World,Terminal Equipment With Connector C13
3 02316784 S5300,CX7M1PWD,DC Power Module AI 1
3 02316783 S5300,CX7M1PWA,AC Power Module AI 1
3 02317464 250W POE Power Module(Used In S5300 Series) AI 1
3 02317465 500W POE Power Module(Used In S5300 Series) AI 1
1 02238341 S23&33&53,Optical Transceiver POC 1
2 02238339 S23&33&53,10G-SFP Optical Transceiver POC 1
2 02238331 S23&33&53,GE-SFP Optical Transceiver POC 1
2 02238338 S23&33&53,FE/STM1-SFP Optical Transceiver POC 1
2 02238340 S23&33&53,BIDI-SFP Optical Transceiver POC 1
1 02238347 S23&33&53,Installation Materials POC 1
2 02238346 Patch Cord POC 1
1 30000126 Complete-set Packaging For S5300 POC 1
DKBA4.170.2848MX,Individual Unit complete-set

2 30011745 P 1
Packaging For S5300 Module

2 30011746 P 1
Packaging For S5300 Power
DKBA4.170.0620MX,Complete-set Packing For

2 30010976 6U*160 Circuit Board With 20.32mm Width Front P 1
Panel
DKBA4.170.0902MX,Box-Integrated Unit
2 30011206 Complete-set Packaging,Interface Board of Metro P 1
1050

2.2 Configuration Description of the Integrated Device

2.2.1 Principles for Configuring the Integrated Device
Table 2 Principles for configuring the integrated device
Part
No. Part Description Configuration Principle
Number
01052600 S5300 Series Ethernet Switches
This item is optional and

quotation is required. The
Mainframe(24 10/100/1000Base-T,Chassis,2
3 02351610 quantity must be determined
Power Supply Slots,Without Flexible Card and
according to project
Power Module)
requirements.
Quidway S5328C-SI,LS5Z228CM,S5328C-SI This item is optional and

Mainframe(24 quotation is required. The
02351823 10/100/1000Base-T,Chassis,Dual Slots of quantity must be determined
power,Without Flexible Card and Power according to project
Module) requirements.
Quidway
S5328C-EI-24S,CX7Z328CM,S5328C-EI-24S
Mainframe(24 100/1000Base-X,4 Combo
GE(10/100/1000 BASE-T),Chassis,2 Power
requirements.
Module)

Mainframe(48 10/100/1000Base-T,Chassis,2
Power Supply Slots,Without Flexible Card and
Power Module)
requirements.
Quidway S5352C-SI,LS5Z252CM,S5352C-SI This item is optional and

Mainframe(48 quotation is required. The
3 02351824 10/100/1000Base-T,Chassis,Dual Slots of quantity must be determined
power,Without Flexible Card and Power according to project
Module) requirements.

Part
Number
Quidway This item is optional and

S5324TP-SI-AC,LS5Z824AM,S5324TP-SI-AC quotation is required. The
02351820 Mainframe(24 10/100/1000Base-T,4 quantity must be determined
1000Base-X Combo,Without Stack Card ,AC according to project
110/220V) requirements.

S5324TP-SI-DC,LS5Z824DM,S5324TP-SI-DC quotation is required. The
1000Base-X Combo,Without Stack Card ,DC according to project
-48V) requirements.

S5348TP-SI-AC,LS5Z848AM,S5348TP-SI-AC quotation is required. The
1000Base-X Combo,Without Stack Card,AC according to project
110/220V) requirements.

S5348TP-SI-DC,LS5Z848DM,S5348TP-SI-DC quotation is required. The
1000Base-X Combo,Without Stack Card ,DC according to project
-48V) requirements.
Quidway
S5328C-PWR-EI,LS5Z528CM,S5328C-PWR-E
I Mainframe(24
02351827 quantity must be determined
10/100/1000Base-T,PoE,Chassis,Dual Slots of
power,Without Flexible Card and Power
requirements.
Module)
Quidway
S5328C-PWR-SI,LS5Z628CM,S5328C-PWR-S
I Mainframe(24
requirements.
Module)

Part
Number
Quidway
S5352C-PWR-EI,LS5Z552CM,S5352C-PWR-E
I Mainframe(48
requirements.
Module)
Quidway
S5352C-PWR-SI,LS5Z652CM,S5352C-PWR-S
I Mainframe(48
requirements.
Module)

S5324TP-PWR-SI,LS5ZC24CM,S5324TP-PW quotation is required. The
02351831 R-SI Mainframe(24 10/100/1000Base-T,4 quantity must be determined
1000Base-X Combo,PoE,Chassis,Dual Slots of according to project
power,Without Stack Card and Power Module) requirements.

S5348TP-PWR-SI,LS5ZC48CM,S5348TP-PW quotation is required. The
02351832 R-SI Mainframe(48 10/100/1000Base-T,4 quantity must be determined
1000Base-X Combo,PoE,Chassis,Dual Slots of according to project
power,Without Stack Card and Power Module) requirements.

quantity must be determined
S5300,CX22E2XX,2-Port XGE Optical according to project
3 03020LUB
Interface Card,3*1 requirements. If the device is
not installed with this part, a
blank panel is automatically
configured.

Part
Number

S5300,CX7M1E4GF,4-Port GE SFP Optical according to project
3 02317031
Interface Card(Used In EI Series) requirements. If the device is
configured.
This item is contained in

03020MD S5300,CX22E4GF,4-Port GE SFP Optical
4 02317031 and is not quoted
P Interface Card,2*1
separately.

03020ML
4 S5300,CX22ETPB,Extend Channel Card,1*1 02317031 and is not quoted
A
separately.

S5300,CX7M2E4GF,4-Port GE SFP Optical according to project
3 02317468
Interface Card(Used In SI Series) requirements. If the device is
configured.

03020PW S5300,CX22E4GFA,4 Port GE SFP Optical
4 02317468 and is not quoted
P Interface Card,2*1
separately.

03020ML
4 S5300,CX22ETPB,Extend Channel Card,1*1 02317468 and is not quoted
A
separately.

Part
Number

S5300,CX7M1ETPC,10G Ethernet Stack according to project
3 02317511
Interface Card(include 100cm stack cable) requirements. If the device is
not installed with this item, a
configured.

03020NP
4 S5300,CX22ETPC,Stack Card 02317511 and is not quoted
W
separately.
Outsourcing Cable,PCIe 8X High Speed This item is contained in

4 04050141 Cable,1.0m,PCIe X8,CC8P0.32B(S)*2,PCIe 02317511 and is not quoted
X8,For Indoor separately.

3 02316784 S5300,CX7M1PWD,DC Power Module quantity must be determined
requirements.

3 02316783 S5300,CX7M1PWA,AC Power Module quantity must be determined
requirements.

250W POE Power Module(Used In S5300
3 02317464 according to project
Series)
requirements. This item is
used by the S5300-PWR
series switches.

Part
Number

500W POE Power Module(Used In S5300
3 02317465 according to project
Series)
requirements. This item is
used by the S5300-PWR
series switches.
This item is not quoted and

OT925-G,3m Power Cords All Over The
3 02236425 needs to be manually
World,Terminal Equipment With Connector C13
configured.
Quotation is required. See

section 2.3 "Principles for
1 02238341 S23&33&53,Optical Transceiver Configuring Optical
Modules" for its
configuration principle.

2 02238339 S23&33&53,10G-SFP Optical Transceiver Configuring Optical
Modules" for its

2 02238331 S23&33&53,GE-SFP Optical Transceiver Configuring Optical
Modules" for its

2 02238338 S23&33&53,FE/STM1-SFP Optical Transceiver Configuring Optical
Modules" for its

2 02238340 S23&33&53,BIDI-SFP Optical Transceiver Configuring Optical
Modules" for its

Part
Number

2 02238346 Patch Cord requirements.
See section 2.5 "Principles
for Configuring Optical
Fibers" for its configuration
principle.
2.2.2 Configuration Instruction
The parts in the configuration list of the integrated device are packed into AI modules
of the host. Items related to delivery of the integrated device such as product labels,
packaging material, and delivery accessories are packed into corresponding AI
module lists of the host.
The optional configurations of the host include the 1-slot upstream interface card,
1-slot rear-installed card, and 2-slot power module.
1-slot upstream interface card: There are two optional configurations, that is, the 2-port
XGE optical interface card and 4-port GE optical interface card. The 4-port GE optical
interface card must be used with the CX22ETPB-extended channel card. If the
upstream interface card is not configured, a blank panel is automatically configured.
1-slot rear-installed card: There are two optional configurations. One configuration is
the extended channel card. If the upstream interface card is the 4-port GE optical
interface card, an extended channel card must be configured; otherwise, a blank panel
is configured. The other configuration is the stacking card that is used to implement
stacking between hosts.
2-slot power module: There are two optional configurations, that is, the AC power
module and the DC power module. You can configure one AC power module, one DC
power module, two AC power modules, two DC power modules, or mixed AC and DC
power modules. At least one power module must be configured. PoE power modules
function the same as AC power modules and are configured on only the S5300-PWR
series switches.
DC power cables delivered with the S5300 are used in the chassis, and cannot be
prolonged. To prolong the DC power cables, you must prolong the input power cables
in the power distribution box.

Other configure
、
1 The S5324TP and S5348TP can be configured with Remote Power Supply (RPS)
power modules and each RPS power module can be configured with two hosts.
Part
Number
1 pcs per two

02312516 HRPS2350-A-1,Redundant Power System
sets
After RPS power modules are configured, RPS power cables need to be configured.
Each host is configured with one power cable. If RPS power modules are required,
you must specify the type and the number of RPS power cables in the contract and
quotation.
Part
Number
Power
99041TPD Cable,1.5m,D10M,18UL3385R+18UL3385B,2*T1. 1 pcs per set
0^2Y,LSZH
、
2 If the S5300 is to be installed in an ETSI cabinet, you must specify the type and the
number of rack-mounting ears in the contract and quotation.
Part
Number
Small Metal Parts,DKBA8.038.5970,Mounting

21121746 2 pcs per set
angle for 1U ETSI cabinet
、
3 Lightning protection sockets need to be configured in the places with many thunder
storms.
Part
Number
19020034 Power Lightning Arrester,6500A,500V,220VAC 1 pcs

、
4 USB disks can be configured for devices that need to be configured with USB disks.
Part
Number
Storage,USB disk,1GB/USB2.0,Chinese&English
06010161 1 pcs
Documnet
2.3 Principles for Configuring Optical Modules

2.3.1 BOM List of Optical Modules
The list of the integrated device includes optional optical modules.

Part description: S23&33&53,Optical Transceiver
Table 3 List of optional optical modules of the S5300
BOM Part
Part Description Template Quantity
Level Number
1 02238341 S23&33&53,Optical Transceiver POC 1
2 02238339 S23&33&53,10G-SFP Optical Transceiver POC 1
Datacom Products,DP0M2XFP,Optical
3 02315176 Transceiver,XFP,10G,Multi-mode AI 1
Module(850nm,0.3km,LC)
Optical
4 34060362 Transceiver,XFP,850nm,10.3Gb/s,-7.3dBm,-1.3 P 1
dBm,-7.5dBm,LC,Multimode,0.3Km
3 02315208 Transceiver,XFP,10G,Single-mode AI 1
Module(1310nm,10km,LC)
Optical
4 34060313 Transceiver,XFP,1310nm,9.95~10.71Gb/s,-6dB P 1
m~-1dBm,-11dBm,LC,10km

BOM Part
Level Number
Optical Transceiver,XFP,1550nm,9.95Gb/s to
4 34060322 11.1Gb/s,+2dBm,-1dBm,-15dBm,LC,Single-mod P 1
e,40km
Datacom Products,CR0M0XFP,Optical
Optical transceiver,XFP,1550nm,9.95Gb/s to
4 34060361 11.1Gb/s,0~4dBm,-24dBm,LC,Single-mode,80k P 1
m
2 02238331 S23&33&53,GE-SFP Optical Transceiver POC 1
Datacom Products,DP0M0ESFP,Optical
3 02315204 Transceiver,ESFP,GE,Multi-mode AI 1
Module(850nm,0.5km,LC)
Optical
4 34060286 Transceiver,eSFP,850nm,2.125Gb/s(Multi P 1
rate) ,-9.5~-2.5dBm,-17dBm,LC,MM,0.5km
Datacom Products,DP0M0SFP,Optical
3 02315200 Transceiver,SFP,GE,Single-mode AI 1
Optical
4 34060473 transceiver,eSFP,1310nm,1.25Gb/s,-9~-3dBm,- P 1
20dBm,LC,Single Mode,10km
Switch Products,LE0M0GS4DD,Optical
3 02317346 Transceiver,eSFP,GE,Single-mode AI 1
Optical
4 34060298 Transceiver,eSFP,1310nm,1.25Gb/s,-5~0dBm,- P 1
23dBm,LC,SM,40km

BOM Part
Level Number
Switch Products,LE0M0GS4FF,Optical
Optical
22dBm,LC,SM,40km
Switch Products,LE0M0GS8FF,Optical
Optical
23dBm,LC,SM,80km
3 02315206 Transceiver,ESFP,GE,Single-mode AI 1
Optical
4 34060295 Transceiver,eSFP,1550nm,1.25Gb/s,0~5dBm,-3 P 1
0dBm,LC,SM,100km
2 02238338 S23&33&53,FE/STM1-SFP Optical Transceiver POC 1
3 02315233 Transceiver,SFP,100M/155M,Multi-mode AI 1
Optical
4 34060287 Transceiver,SFP,1310nm,STM1,-19~-14dBm,-3 P 1
0dBm,LC,MM,2km
3 02315205 Transceiver,ESFP,100M/155M,Single-mode AI 1
Optical
4 34060276 Transceiver,eSFP,1310nm,STM1,-15~-8dBm,-3 P 1
1dBm,LC,SM,15km

BOM Part
Level Number
Switch Products,LE0M0FS4DD,Optical
3 02317344 Transceiver,eSFP,FE,Single-mode AI 1
Optical
4 34060281 Transceiver,eSFP,1310nm,STM1,-5~0dBm,-37d P 1
Bm,LC,SM,40km
Switch Products,LE0M0FS8FF,Optical
3 02317345 Transceiver,eSFP,FE,Single-mode AI 1
Optical
4 34060282 Transceiver,eSFP,1550nm,STM1,-5~0dBm,-37d P 1
Bm,LC,SM,80km
2 02238340 S23&33&53,BIDI-SFP Optical Transceiver POC 1
3 02315286 Transceiver,SFP,GE,BIDI Single-mode AI 1
Module(TX1490/RX1310,10km,LC)
Optical
4 34060475 Transceiver,SFP,Tx1490/Rx1310,1.25Gb/s,-3dB P 1
m,-9dBm,-19.5dBm,LC,Single Mode,10km
3 02315285 Transceiver,SFP,GE,BIDI Single-mode AI 1
Optical
4 34060470 Transceiver,SFP,Tx1310/Rx1490,1.25Gb/s,-3dB P 1
m,-9dBm,-19.5dBm,LC,Single Mode,10km
3 02315203 Transceiver,SFP,FE,BIDI Single-mode AI 1
Optical transceiver,eSFP,Tx 1310nm/Rx

4 34060363 1550nm,STM1,-8dBm,-15dBm,-32dBm,LC/PC,S P 1
M,15km

BOM Part
Level Number
3 02315202 Transceiver,SFP,FE,BIDI Single-mode AI 1
Optical transceiver,eSFP,Tx 1550nm/Rx

4 34060364 1310nm,STM1,-8dBm,-15dBm,-32dBm,LC/PC,S P 1
M,15km
Table 4 Configuration principles of optional optical modules
Part
No. Configuration Principle Remarks
Number
This item is optional and quotation is

1 02315176 required. The quantity must be determined 10G-SFP optical module
according to project requirements.




5 02315204 required. The quantity must be determined GE SFP optical module

6 02315200 required. The quantity must be determined GE SFP optical module
This item is optional for the long distance GE SFP optical module of
and quotation is required. The quantity the long distance (40 km),
7 02317346
must be determined according to project temperature specification
requirements. reduced to 45°C for use

Part
Number
8 02317347
9 02317348
10 02315206

FE/STM1 SFP optical
11 02315233 required. The quantity must be determined
module

FE/STM1 SFP optical
12 02315205 required. The quantity must be determined
module
FE/STM1 SFP optical

This item is optional for the long distance
module of the long distance
and quotation is required. The quantity
13 02317344 (40 km), temperature
must be determined according to project
specification reduced to
requirements.
45°C for use
FE/STM1 SFP optical

This item is optional for the long distance
module of the long distance
and quotation is required. The quantity
14 02317345 (80 km), temperature
must be determined according to project
specification reduced to
requirements.
45°C for use
This item is optional for BIDI and quotation

GE single-fiber bidirectional
is required. The quantity must be
15 02315286 optical module, to be used
determined according to project
with 02315285
requirements.

Part
Number

GE single-fiber bidirectional
16 02315285 optical module, to be used
with 02315286
requirements.

155M single-fiber
17 02315203 bidirectional optical module,
to be used with 02315202
requirements.

155M single-fiber
18 02315202 bidirectional optical module,
to be used with 02315203
requirements.
2.3.2 Configuration Instruction of Optical Modules
Table 5 Instruction for configuring optical modules
No. Part Number Instruction
Can be configured with up to four GE optical modules for the 4-port GE

1 02351610 optical upstream interface card or two 10 GE optical modules for the
2-port XGE optical upstream interface card.
Can be configured with up to eight GE optical modules for the 4-port GE

Can be configured with up to 28 GE optical modules for the 4-port GE



5 02351824 optical upstream interface card, or eight GE optical modules or two 10
GE optical modules for the 2-port XGE optical upstream interface card.

No. Part Number Instruction
6 02351820 Can be configured with up to four GE optical modules.




GE optical module 02315200 is recommended. Select proper optical modules as

required.
2.3.3 Configuration Notes
When selecting single-fiber bidirectional optical modules, note that the modules must
be used in pairs. For example:
The GE single-fiber bidirectional optical module of 02315285 is used with the GE
single-fiber bidirectional optical module of 02315286.
The 155M single-fiber bidirectional optical module of 02315202 is used with the 155M
single-fiber bidirectional optical module of 02315203.
2.4 List of AC Power Cables


Part description: OT925-G,3m Power Cords All Over The World,Terminal Equipment
With Connector C13
Table 6 shows the list of AC power cables.
Table 6 List of AC power cables
BOM Part
Level Number
OT925-G,3m Power Cords All Over The World,Terminal

0 02236425 1
Equipment With Connector C13
External Power Cable,China Power Cable 250V10A 3m,I-Type

1 04041104 3PIN Straight Plug /227IEC53(RVV)3x1mm^2Black/3PIN 1
Straight Connector
External Power Cable,North America AC Power

1 04020728 Cable,125V10A,3.00m,3*0.8mm^2,Black,PBSM,(18SJT(3C)), 1
C13SF,W3394
External Power Cable,Europe AC Power

1 04041056 Cable,250V10A,3m,3x1.0mm^2 Black,PFSM,H05VVF 1
3x1.0mm^2B,C13SF
External Power Cable,Britain/Singapore/Hong Kong Power

1 04040890 Cable 250V10A 3m,G-Type 3PIN Angled Plug /HVV05F 1
3x1.5mm^2Black/3PIN Straight Connector
External Power Cable,Japan AC Power Cable 125V10A,3m,

1 04040887 1
3*1.25mm^2,Black,PBSM,HVCTF-1.25^2(3C),C13SF
External Power Cable,Hong Kong Power Cable 250V10A

1 04040889 3m,D-Type 3PIN Angled Plug /HVV05F 3x1.5mm^2Black/3PIN 1
Straight Connector
External Power Cable,Australia Power Cable 250V10A

1 04040888 3m,I-Type 3PIN Straight Plug /R440 3x1mm^2Black/3PIN 1
Straight Connector
External Power Cable,Switzerland Power Cable 250V10A

1 04041119 3m,J-Type 3PIN Straight Plug /HVV05F 3x1mm^2Black/3PIN 1
Straight Connector
External Power Cable,Italy Power Cable 250V10A 3m,L-Type

1 04041120 3PIN Straight Plug /HVV05F 3x1mm^2Black/3PIN Straight 1
Connector

BOM Part
Level Number
External Power Cable,Argentina Power Cable 250V10A

1 04047785 3m,I-Type 3PIN Straight Plug /H05VV-F 3x1mm^2Black/3PIN 1
Straight Connector
2.4.1 Principles for Configuring AC Power Cables
Select a type of AC power cables from the preceding list according to the delivery
destination. The number of AC power cables must be equal to the number of AC
power modules. By default, 3m power cables are used. Power cables of special
lengths must be separately quoted. AC power cables must provide straight female
connectors.
Note: AC hosts for Chinese markets and overseas markets, AC power modules, and
PoE power modules do not contain AC power cables. Therefore, you need to manually
configure the AC power cables.
2.5 Principles for Configuring Optical Fibers

2.5.1 List of Optical Fibers
The configuration list of the integrated device includes optical fiber module suites.
Part description: Patch Cord
Table 7 List of optical fibers
Part
No. Part Description Template Quantity
Number
1 14130221 Patch Cord,FC/PC,LC/PC,Multimode,2mm,10m P 1
Patch Cord,FC/PC,LC/PC,Multimode,10m,Deliver
2 S4015838 K 1
Code14130221
3 14130198 Patch Cord,FC/PC,LC/PC,Singlemode,2mm,5m P 1
Patch Cord,FC/PC,LC/PC,Singlemode,5m,Deliver
4 S4015826 K 1
Code14130198
5 14130197 Patch Cord,FC/PC,LC/PC,Singlemode,2mm,10m P 1

Part
Number
Patch Cord,FC/PC,LC/PC,Singlemode,10m,Deliver
6 S4015824 K 1
Code14130197
7 14130293 Patch Cord,FC/PC,LC/PC,Single Mode,2mm,15m P 1
Patch Cord,FC/PC,LC/PC,Single
8 S4015862 K 1
Mode,G.652,15m,Deliver Code14130293
9 14130296 Patch Cord,LC/PC-LC/PC,Multimode,A1b,2mm,5m P 1
Patch Cord,LC/PC,LC/PC,Multimode,A1b,5m,Deliver
10 S4015870 K 1
Code14130296
11 14130222 Patch Cord,LC/PC-LC/PC,Multimode,2mm,10m P 1
Patch Cord,LC/PC-LC/PC,Multimode,10m,Deliver
12 S4015725 K 1
Code14130222
13 14130295 Patch Cord,LC/PC-LC/PC,Multimode,2mm,20m P 1
Patch Cord,LC/PC,LC/PC,Multimode,20m,Deliver
14 S4015867 K 1
Code14130295
15 14130195 Patch Cord,LC/PC-LC/PC,Singlemode,2mm,5m P 1
Patch Cord,LC/PC-LC/PC,Singlemode,5m,Deliver
16 S4015817 K 1
Code14130195
17 14130199 Patch Cord,LC/PC-LC/PC,Singlemode,2mm,10m P 1
Patch Cord,LC/PC-LC/PC,Singlemode,10m,Deliver
18 S4015828 K 1
Code14130199
Patch
19 14130251 P 1
Cord,LC/PC-LC/PC,Singlemode,G.652,2mm,20m
Patch
20 S4015783 Cord,LC/PC-LC/PC,Singlemode,G.652,20m,Deliver K 1
Code14130251
21 14130223 Patch Cord,LC/PC-SC/PC,Multimode,2mm,10m P 1
Patch Cord,LC/PC-SC/PC,Multimode,10m,Deliver
22 S4015728 K 1
Code14130223
23 14130279 Patch Cord,LC/PC,SC/PC,Multimode,2mm,20m P 1

Part
Number
Patch Cord,LC/PC,SC/PC,Multimode,20m,Deliver
24 S4015836 K 1
Code14130279
26 S4015822 K 1
Code14130275
28 S4015888 K 1
Code14130311
29 14130193 Patch Cord,LC/PC-SC/PC,Singlemode,G.652,2mm,5m P 1
Patch Cord,LC/PC-SC/PC,Singlemode,5m,Deliver
30 S4015816 K 1
Code14130193
Patch
31 14130196 P 1
Cord,LC/PC-SC/PC,Singlemode,G.652,2mm,10m
Patch
32 S4015821 Cord,LC/PC-SC/PC,Singlemode,G.652,10m,Deliver K 1
Code14130196
Patch Cord,LC/PC,SC/PC,Single
33 14130280 P 1
Mode,G.652,2mm,20m
Patch Cord,LC/PC,SC/PC,Single
34 S4015840 K 1
Mode,G.652,20m,Deliver Code14130280
35 14130276 Patch Cord,LC/PC,SC/PC,Single Mode,2mm,30m P 1
Patch Cord,LC/PC,SC/PC,Single Mode,30m,Deliver

36 S4015825 K 1
Code14130276
Patch
37 14130312 P 1
Cord,LC/PC,SC/PC,Singlemode,G.652,2mm,50m
Patch
38 S4015890 Cord,LC/PC,SC/PC,Singlemode,G.652,50m,Deliver K 1
Code14130312

Note: Parts whose numbers starting with 1413 are used in the quotation for Chinese
markets and parts whose numbers starting with S401 are used in the quotation for
overseas markets.
2.5.2 Instruction for Configuring Optical Fibers
If an optical module has independent transmitting and receiving channels, each optical
interface must be provided with two optical fibers of the same type for the transmission
of signals in both transmitting and receiving directions. If a single-fiber bidirectional
optical module is used, only one optical fiber is required.
A single-mode optical fiber must be used when the optical module is single-mode.
Similarly, a multi-mode optical fiber must be used when the optical module is
multi-mode.
Optical fibers are delivered according to the following rules:
By default, no optical fiber is delivered with the S5300.
If optical fibers are required according to the contract, you must specify the part
numbers and required quantity of optical fibers in the quotation. The production
department prepares for the delivery according to the part numbers and quantity
specified in the contract.
For optical fiber types, see section 2.5.3 "Instruction for Connecting External Optical
Fibers." Select optical fibers of proper types according to the types of the optical
modules selected for the S5300.
2.5.3 Instruction for Connecting External Optical Fibers
Table 8 Instruction for connecting external optical fibers
Device
Part Device Connected
Usage Part Description Connected
Number to End A
to End B
Optical Patch Interface of the LC

LC optical
interface card 14130195 Cord,LC/PC-LC/PC,Singlemode optical module on the
connector
(single-mode) ,2mm,5m S5300
Patch Interface of the LC

LC optical
14130199 Cord,LC/PC-LC/PC,Singlemode optical module on the
connector
,2mm,10m S5300

LC optical
14130251 Cord,LC/PC-LC/PC,Singlemode optical module on the
connector
,2mm,20m S5300

Device
Number to End A
to End B

FC optical
14130197 Cord,FC/PC,LC/PC,Singlemode optical module on the
connector
,2mm,10m S5300

SC optical
14130196 Cord,LC/PC-SC/PC,Singlemode optical module on the
connector
,2mm,10m S5300

SC optical
14130280 Cord,LC/PC,SC/PC,Single optical module on the
connector
Mode,2mm,20m S5300

SC optical
14130276 Cord,LC/PC,SC/PC,Single optical module on the
connector
Mode,2mm,30m S5300

SC optical
14130312 Cord,LC/PC,SC/PC,Singlemode optical module on the
connector
,2mm,50m S5300

SC optical
14130193 Cord,LC/PC-SC/PC,Singlemode optical module on the
connector
,2mm,5m S5300

FC optical
14130293 Cord,FC/PC,LC/PC,Single optical module on the
connector
Mode,2mm,15m S5300

FC optical
14130198 Cord,FC/PC,LC/PC,Singlemode optical module on the
connector
,2mm,5m S5300

LC optical
(multi-mode) 14130296 Cord,LC/PC-LC/PC,Multimode, optical module on the
connector
2mm,5m S5300

LC optical
14130222 Cord,LC/PC-LC/PC,Multimode, optical module on the
connector
2mm,10m S5300

Device
Number to End A
to End B

LC optical
14130295 Cord,LC/PC-LC/PC,Multimode, optical module on the
connector
2mm,20m S5300

FC optical
14130221 Cord,FC/PC,LC/PC,Multimode, optical module on the
connector
2mm,10m S5300

SC optical
14130223 Cord,LC/PC-SC/PC,Multimode, optical module on the
connector
2mm,10m S5300

SC optical
14130279 Cord,LC/PC,SC/PC,Multimode, optical module on the
connector
2mm,20m S5300

SC optical
connector
2mm,30m S5300

SC optical
connector
2mm,50m S5300
3 Upgrade and Capacity Expansion Methods and

Configuration Description
3.1 Capacity Expansion Methods and Configuration
Description
None.
3.2 Upgrade Methods and Configuration Description

3.2.1 Upgrade Methods
You can upgrade the software of the S5300 in one of the following methods:

1) In BootROM mode, through the serial interface of the computer and the console
interface of the S5300, upgrade the software through the Xmodem protocol.
2) In configuration mode, run the File Transfer Protocol (FTP) to download the
software from the FTP server and upgrade the software.
3) In configuration mode, upgrade the software through the Trivial File Transfer
Protocol (TFTP).
3.2.2 List of Devices to Be Upgraded
None.
3.2.3 Notes About the Upgrade
You can upgrade the software. After the upgrade, restart the S5300, and then run the
upgraded software.
3.2.4 Notes About Parts Replacement
No part needs to be replaced.

Manual PDF

Uploaded by

Document Information

Original Title

Copyright

Available Formats

Share this document

Share or Embed Document

Sharing Options

Did you find this document useful?

Is this content inappropriate?

Copyright:

Available Formats

Manual PDF

Uploaded by

Copyright:

Available Formats

Product name Confidentiality level

Case-shaped broadband products CONFIDENTIAL

Case-shaped Broadband Products

Quidway S5300 Series Metro Ethernet Switches

Configuration Manual V2.02

Prepared by Zhang Jinbo Date 2008-12-6

Huawei Technologies Co., Ltd.

1 Product Overview ...........................................................................................................................8

3 Upgrade and Capacity Expansion Methods and Configuration Description .........................41

2009-11-09 HUAWEI Confidential Page 2 of 42

Figure 1 Appearance of the S5328C......................................................................................... 8

2009-11-09 HUAWEI Confidential Page 3 of 42

Table 1 Configuration list of the integrated device .................................................................. 14

2009-11-09 HUAWEI Confidential Page 4 of 42

No. Date Author Version Revision Description

Description on components such as hosts, cards,

2009-11-09 HUAWEI Confidential Page 5 of 42

Quidway S5300 Series Metro Ethernet Switches

In this configuration manual, all devices refer to case-shaped broadband products in

Keywords: S5300, configuration manual, BOM

2009-11-09 HUAWEI Confidential Page 6 of 42

2009-11-09 HUAWEI Confidential Page 7 of 42

1.1 Basic Configuration Diagram

1.1.1 Basic Features of the S5328C

2009-11-09 HUAWEI Confidential Page 8 of 42

1.1.2 Basic Features of the S5352C

1.1.3 Basic Features of the S5328C-24S

The S5328C-24S provides 24 GE optical interfaces, four combo interfaces, one

2009-11-09 HUAWEI Confidential Page 9 of 42

Figure 3 Appearance of the S5328C-24S

1.1.4 Basic Features of the S5324TP

Figure 4 Appearance of the S5324TP

1.1.5 Basic Features of the S5348TP

Figure 5 Appearance of the S5348TP

1.1.6 Basic Features of the S5328C-PWR

The S5328C-PWR provides 24 GE interfaces, one console interface for local

2009-11-09 HUAWEI Confidential Page 10 of 42

Figure 6 Appearance of the S5328C-PWR

1.1.7 Basic Features of the S5352C-PWR

The S5352C-PWR provides 48 GE interfaces, one console interface for local

2009-11-09 HUAWEI Confidential Page 11 of 42

1.1.8 Basic Features of the S5324TP-PWR

The S5324TP-PWR provides 24 GE interfaces, four combo interfaces, one console

Figure 8 Appearance of the S5324TP-PWR

1.1.9 Basic Features of the S5348TP-PWR

The S5348TP-PWR provides 48 GE interfaces, four combo interfaces, one console

Figure 9 Appearance of the S5348TP-PWR

1.2 User Interfaces

2009-11-09 HUAWEI Confidential Page 12 of 42

SFP module interface and XFP module interface

1.3 Installation Environment Description

2009-11-09 HUAWEI Confidential Page 13 of 42

The maximum power consumption of the non-S5300-PWR is 100 W.

Part number: 01052600

Table 1 Configuration list of the integrated device

BOM Part Part

0 01052600 S5300 Series Ethernet Switches PTO 0

1 02000698 Hardware ATO 1

2 02238342 S5300,Mainframe AOC 1

2009-11-09 HUAWEI Confidential Page 14 of 42

BOM Part Part

2009-11-09 HUAWEI Confidential Page 15 of 42

BOM Part Part
