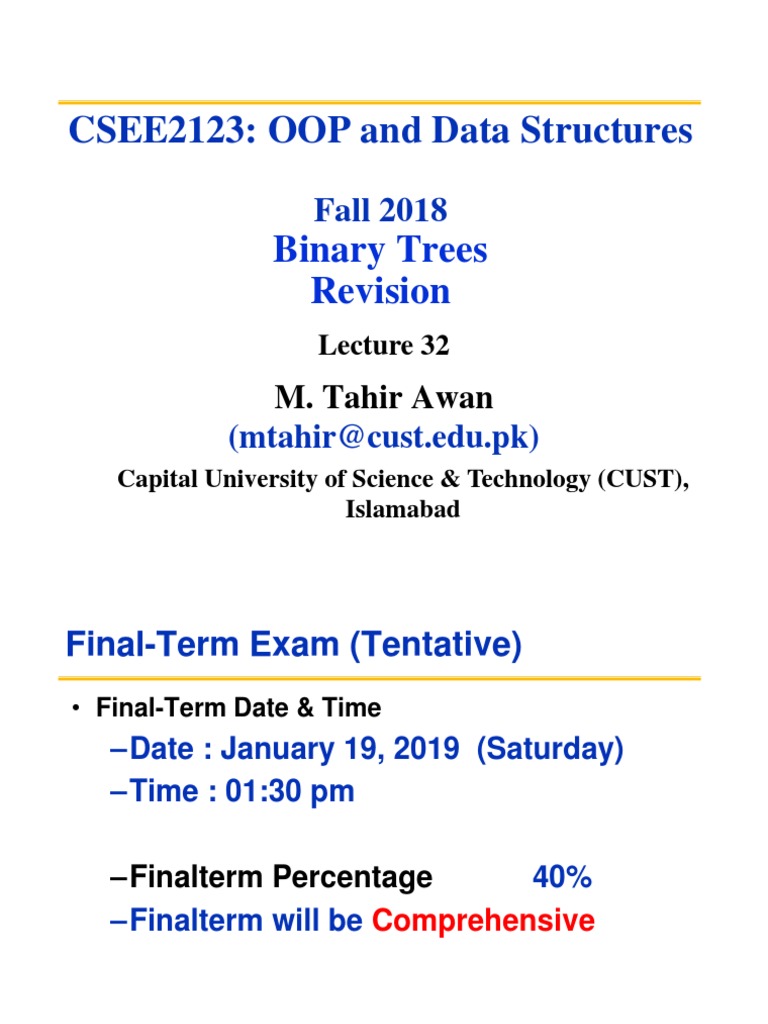

CSEE2123: OOP and Data Structures
Fall 2018
Binary Trees
Revision
Lecture 32
M. Tahir Awan
(mtahir@cust.edu.pk)
Capital University of Science & Technology (CUST),
Islamabad
Final-Term Exam (Tentative)
• Final-Term Date & Time
–Date : January 19, 2019 (Saturday)
–Time : 01:30 pm
–Finalterm Percentage 40%

–Finalterm will be Comprehensive
1/10/2019 CSEE2123:OOP and DS © M. Tahir Awan, CUST 2

Assignment # 4 :
Programming Assignment
• Due Date :
– Thursday, January 10th , 2019
– Due at : 05:00 p.m.
• Late Submission
– Not Allowed
• Assignment Submission
– Separate *.cpp file for each Question
– Submit in zip format
– File name : “Name_RollNo_AssignNo.zip”
– Submission Path
» \\fs\assignments$\mTahir\OOP\Assignment4

Advanced Data Structures
• Linear Data Structures
–Arrays
–Linked Lists
–Stacks
–Queues
• Non-Linear Data Structures
–Trees
–Binary Trees

Binary Tree
• Binary Tree is a special tree where each parent
node has at maximum two child nodes
• Tree starts at the root node i.e. node at the top
• Leaf node in the tree does not have any child
nodes
root
• Root Node 1 has two
child nodes (Left Node
:2 , Right Node:3) 1
• Nodes are connected
through edges 2 3
• Each tree has one root
node 4 5 6 7
Binary Tree : Implementation
• Binary tree can be dynamically implemented as
sequence of nodes
• Each node contain one data field and left & right
node pointers
struct tree_node
{
int data;
tree_node* left;
tree_node* right;
};

Binary Tree Implementation : Class
• A C++ Class to struct tree_node {
tree_node* left;
implement Binary tree_node* right;
Tree int data;
};
• Tree Attributes class BinaryTree {
• Tree Operations private:

tree_node* root;
public:
BinaryTree();
bool isEmpty();
int findHeight();
void inOrder(tree_node*);
void preOrder(tree_node*);
void postOrder(tree_node*);
int countTotalNodes();
int countLeafNodes();
};
Binary Tree : Traversal
• Traversal is the process to visit all the nodes of a
binary tree. Traversal starts from the root node
• Tree traversal is used in insertion, deletion &
searching operations on trees
• There are three methods to traverse a binary tree
Root
–In-order Traversal
–Pre-order Traversal 17
–Post-order Traversal
41 9
29 6 81 40
Binary Tree : Breadth First Traversal
• Traverse all the nodes at one Root
level before moving to the next
level, starting from level 0
17
41 9
29 6 81 40
• Breadth First Traversal: {17 41 9 29 6 81 40}

Binary Tree Implementation : Class
tree_node* left;
Tree int data;
};
• Tree Attributes class BinaryTree {

tree_node* root;
public:
BinaryTree();
bool isEmpty();
int findHeight();
void inOrder(tree_node*);
void preOrder(tree_node*);
void postOrder(tree_node*);
};
Binary Search Tree (BST)
• Binary Search trees are binary trees that exhibit
a special behavior.
– Value of the root node is larger than all the
nodes in left sub-tree
– Value of the root node is smaller than all the
nodes in right sub-tree

Binary Search Tree Implementation :
Class
tree_node* left;
Search Tree int data;
};
• Tree Attributes class BinarySearchTree {

tree_node* root;
public:
BinarySearchTree();
bool isEmpty();
void insertItem(int);
void removeItem(int);
bool searchItem(int);
int findHeight();
};

Binary Search Tree : Searching
• Algorithm for searching in a
binary search tree
– Compare the data to be
searched with root node ,
if found we are done
– If data to be searched is
less than root node ,
search in the left sub-
tree
– If data to be searched is
greater than root node,
search in the right sub-
tree
Traversal in Binary Search Trees
• Three Traversal Methods Root
• in-order
• pre-order 25
• post-order
• In order traversal in binary 15 45
search trees generates a sorted
sequence (ascending order)
9 21 33 77
• In-order Sequence: {9 15 21 25 33 45 77}

• Pre-order Sequence: {25 15 9 21 45 33 77}
• Post-order Sequence: {9 21 15 33 77 45 25}
Binary Search Tree : Insert Item
• In order to insert data in a
binary search tree, first find
the position, where data
should be inserted using
search algorithm
• New item inserted will
always be a leaf node
• Tree should be binary
search tree before and after
insertion of new item
• Binary search tree does not
contain duplicate data

Binary Search Tree :
Practice Question
• Draw a binary search tree, if nodes are inserted
in the order
• 35, 66, 12, 25, 44, 51, 19, 9, 81

Binary Search Tree : Remove Item
• In order to remove data
from a binary search tree,
first locate the node
• 4 Cases :
• Case 1: Node to be removed
is a leaf node
has only left child
has only right child
has both left and right
Childs
• Case 1 : Remove Leaf Node : 45
Before After

• Case 2 : Remove Node with right child only : 30
Before After

• Case 3 : Remove Node with left child only : 80
Before After

• Case 4 : Remove Node with both Childs : 50
Before After

• Case 4 : Remove Node with both Childs : 50
• Algorithm
• Find position of the node to be removed
• Find a minimum value in the right sub-tree OR
maximum value in the left sub-tree
• Replace value of the node to be removed with
found minimum/maximum.
• To remove duplicate value, it becomes Case 2 or
Case 3 i.e node with one child. Remove the
duplicate node accordingly

Binary Search Tree Implementation :
Class
tree_node* left;
Search Tree int data;
};
• Complete the class BinarySearchTree {
following functions private:
tree_node* root;
• void removeItem(int); public:
• int countTotalNodes();
BinarySearchTree();
• int countLeafNodes();
bool isEmpty();
void insertItem(int);
void removeItem(int);
bool searchItem(int);
int findHeight();
};

Revision
C++ : User-Defined Data Types
User-Defined Data
Types
enum struct union class

Object Oriented Paradigm
• Fundamental idea in
object oriented
programming is to
model entities like
real world objects
• An OOP program can
be viewed as a
collection of
cooperating objects

Definition of a „class‟
• Definition of a class is composed of
• 1. Data Members
• The data items within a class are
called data members or data fields
that define its attributes
• 2. Function Members
• Member functions are included
within a class to define its behavior
• All computations on an object are
done using member functions

C++ : Class Definition
Definition of a class starts with the keyword „class‟
followed by class name
Class Definition :
Member functions Out-side class
• Member functions of class can be defined out-
side of class definition
float Circle::getArea() {
return radius* radius* 3.14159;
}
• Scope resolution operator ::

• Class Name :: function Name

Class Constructor : Definitions
• Class Constructor can be defined in one of many
ways to initialize class attributes
Circle() : radius(0) {}
Circle()
{ radius = 0; }
Circle (int r) : radius(r)
{}
Circle (int r)
{ radius = r; }
Circle (int r = 1)
{ radius = r; }
The „This‟ Pointer
• Every object in C++ has access to its own
address through an implicit pointer
called this pointer
• The this pointer is an implicit parameter to all
member functions and constructor of the class
Complex( float real, float void setReal( float real)

imag) {
{ this->real = real;
this->real = real; }
this->imag = imag;
}

C++ : Structures vs. Classes
• In C++ Structures can almost be used exactly the
same way as classes
• Only difference between the two is
– In structures members are public by default
– In classes members are private by default
class noName { struct noName {
int data1; void func();
public: private:
void func(); int data1;
}; };
• Structures are used to group data and classes

are used to group data and functions

C++ : Objects Memory Allocation
• sizeof()
function can be
used to get
memory
allocated to
class objects
Distance d1;
sizeof(d1)

Classes and const
• Const keyword can be used with classes in
following ways
• member function arguments as const
• Function arguments of type const cannot be
modified inside function
• const member functions
• Const member functions cannot change any of
the object data members
• const objects
• Const objects cannot modify any of the object
data
• All functions in Const objects should also be
constant
Function Overloading
• C++ allows to specify more than one definition of
a function, known as function overloading
• Multiple definitions of the function must differ in
terms of types and/or the number of arguments
in the argument list
• Compiler selects the proper function to call
based upon type, number and order of
arguments
• Function definitions that only differ in return type
can not be overload

Distance Class : „+‟ Operator
Overloading
• Argument on the left of operator is the object it-
self while object on the right is argument to
operator member function

Concept of Inheritance
• Derived class inherits all the features (attributes,
behavior) of the base class

Classes : Access Specifiers
• Public, private and protected Access Specifiers
Access public protected private
Same class YES YES YES
Derived classes YES YES NO
Outside classes YES NO NO

Types of Inheritance
• Different Inheritance structures

Types of Inheritance specified by Access
Specifiers
• Class B and C are derived from class A

Function Template
• One function to handle 3 different data types

Class Templates & Objects
• Datatype will
be specified
while
instantiating
class objects

Non-Virtual Functions : Static Binding
• Compiler
ignores
contents of the
pointer ptr and
chooses the
member function
that matches the
type of the
pointer ptr

Virtual Functions : Dynamic Binding
• For Virtual
functions,
compiler selects
the function
based on the
contents of the
pointer ptr, not
on the type of
the pointer

Polymorphism
• Polymorphism means having many forms.
• Polymorphism means that a call to a member
function will cause a different function to be
executed depending on the type of object that
invokes the function
• In C++ polymorphism is achieved through Virtual
Functions

Pure Virtual Function & Abstract
Classes
• If a virtual function in base class has no
meaningful definition, it is called pure virtual
function
• Pure virtual function is defined as:
virtual void Display() = 0;
• If base class contain pure virtual function, all

derived classes must override the virtual
function
• Classes that contain at least one pure virtual
function are known as abstract base classes

Inheritance : Constructor , Destructor
Call Order
• Call order of default constructor & destructors
#include <iostream>
using namespace std; ~Derived ( ) {
class Base { cout<<"Derived destructor"<<endl;
public: }
Base ( ) { };
cout<<"Base construct"<<endl;
} void main( ) {
~Base ( ) { Derived x;
cout<<"Base destructor"<<endl; }
}
};
class Derived : public Base {
Base Class Constructor is
public:
called first than derived
Derived ( ) { class constructor is called
cout<<"Derived construct"<<endl;
}

Basic Data Structures
• Arrays
–One Dimensional,
–Multidimensional Arrays
• Structures
• Union
• Class Objects
• User Defined Data Types
–struct
–class
–enum
Types of Advanced Data Structures
• Array-based Lists
• Linked Lists
– Single
– Double
– Circular
• Queue and Stack
• Implementation with arrays and linked lists
• Trees
• Binary

Advanced Data Structures: Algorithms
• Algorithm is a step-by-step procedure, in order
to get the desired output from data structures
• Algorithms are used to manipulate data in data
structures
• Algorithms used in Data Structures
–Searching
–Sorting
–Traversal
–Hashing
–Recursion

Components of Standard Template
Library (STL)
• Main components of standard template library
(STL) are :
1. Containers
– Containers are used to store & manage data items e.g.
vectors, lists, stack
2. Iterators
– Iterators are used to step through the elements of data
collection (Traversal)
– Iterators are a generalization of the concept of pointers
3. Algorithms
– Algorithms are used to process and manipulate data
stored in containers e.g. searching, sorting

Array based List as a Class
• Array based List can be implemented as a class
in C++
• Array based List class will have following
attributes
– An array (static or dynamic)
– Size or Length
– Maximum Array Size
• Operations on List are
implemented using Class
Functions
• Array based List is an
abstract data type (ADT) for
data storage
Linked List
• A linked list is a data structure that can store an
indefinite amount of items
• Each item in the Linked List contains data and
reference (Link) to the next item. Last item in the
list points to NULL
• Items in the linked list are called nodes. Nodes
are dynamically allocated
• A linked list can grow or shrink in size at runtime
• Address of the first Node is stored in Head

Types of Linked List
• Singly Linked List
• Doubly Linked List
• Circular Linked List

Traversing a Linked List
• HeadPtr points to the first Node
• NextPtr points to the Next Node
• HeadPtr->Data (First Element)

• HeadPtr->NextPtr->Data (Second Element)
• Third Element ?

Building a Doubly Linked List
• Building a Doubly Linked List Forward
• New node is always inserted at the end of the
Linked List

Building a Circular Linked List
• Adding nodes to an empty Circular Linked List

Stack Operations : Push & Pop
• Push() will place data on Top of Stack
• Pop() will remove data from Top of Stack
• Top of Stack points to Empty Location on Stack
item = Pop()
Push(M) item = M
M
D D D
C C C
B B B
A A A

Stack implementation using Arrays :
Push Operation
• Push operation will place data on Top of Stack
• Tope of Stack will Increment

Linked List based Stack
• Stack can be implemented using Singly Linked
List
• Each item is stored in dynamically created nodes
• In Linked List implementation, TopPtr will point
to last item pushed onto stack

Queue Operations : EnQueue &
Dequeue
• In FIFO Queue :
• Data is added at Tail
End. Operation is Called
Enqueue
• Data is removed from
Head End. Operation is
called Dequeue
• Data cannot be
accessed from middle
of the Queue

Array based FIFO Queue : Operations
• Queue Initialization
• Enqueue : Adding Items to the Queue

Array based FIFO Queue : Operations
• Dequeue : Removing Items from the Queue
• Making the Queue Circular

• First Array position immediately
follows the last array position

Linked List based FIFO Queue
• Queue can be implemented using Singly Linked
List
• Each item is stored in dynamically created nodes
• FrontPtr is used to remove items from the Queue
, RearPtr is used to add items to the Queue

Advanced Data Structures: Algorithms
• Algorithm is a step-by-step procedure, in order
to get the desired output from data structures
• Algorithms are used to manipulate data in data
structures
• Algorithms used in Data Structures
–Searching
–Sorting
–Traversal
–Hashing
–Recursion

Algorithm Complexity :
Big O Notation
• Common asymptotic notations
Class Big-Oh
constant O(1)
logarithmic O(log2 N)
linear O(N)
log-linear O(N log2 N)
quadratic O(N2)
cubic O(N3)
... ...
exponential O(2N)

Sequential Search : Example
• Search 33 in the array
• Key = 33

Binary Search : Example
• Search 31 in the array
• Key = 42
• First = 0 , Last = 16
index 0 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16
value -4 2 7 10 15 20 22 25 30 36 42 50 56 68 85 92 103
First Mid Last

Binary Search : Performance Analysis
• Every iteration of Binary Search Loop cuts size
of array by half and makes two comparisons
• Maximum Iterations = m + 1 , where
• Best Case : Item to search is middle item of the

List
• Worst Case : Maximum Comparisons

Sorting Algorithms
• Sorting is arranging data in a specific order i.e.
ascending or descending order
• Sorting can be used to make searching efficient
i.e. binary search
• Sorting Algorithms
–Bubble Sort
–Selection Sort
–Insertion Sort
–Merge Sort
–Quick Sort
70
1/10/2019 CSEE2123:OOP and DS © M. Tahir Awan, CUST
Bubble Sort : Example 2
77 42 35 12 101 5
1 2 3 4 5 6
42 35 12 77 5 101
1 2 3 4 5 6
35 12 42 5 77 101
N – 1 Passes
1 2 3 4 5 6
12 35 5 42 77 101
1 2 3 4 5 6
12 5 35 42 77 101
1 2 3 4 5 6
5 12 35 42 77 101
Selection Sort : Example
• Initial array:
index 0 1 2 3 4 5 6 7 8 9 10
value 22 18 12 -4 27 30 36 50 91 68 7
• After 1st, 2nd, and 3rd passes:

index 0 1 2 3 4 5 6 7 8 9 10
value -4 18 12 22 27 30 36 50 91 68 7
index 0 1 2 3 4 5 6 7 8 9 10
value -4 7 12 22 27 30 36 50 91 68 18
index 0 1 2 3 4 5 6 7 8 9 10
value -4 7 12 22 27 30 36 50 91 68 18
Selection Sort : Example
• Initial array:
index 0 1 2 3 4 5 6 7 8 9 10
value 22 18 12 -4 27 30 36 50 91 68 7
• After 4th , 5th , and (N-1) Passes:

index 0 1 2 3 4 5 6 7 8 9 10
value -4 7 12 18 27 30 36 50 91 68 22
index 0 1 2 3 4 5 6 7 8 9 10
value -4 7 12 18 22 30 36 50 91 68 27
index 0 1 2 3 4 5 6 7 8 9 10
value -4 7 12 18 22 27 30 36 50 68 91
Insertion Sort using Arrays
• One pass of Insertion Sort

Insertion Sort using Linked List
• Pointer lastInOrder points to last element in
sorted sub-list.
• FirstOutOfOrder points to first element in
unsorted sub-list
• Pointers trailCurrent & current are used to
traverse the sorted list

Insertion Sort vs Selection Sort:
Performance Analysis
• Worst case complexity of both Selection Sort
and Insertion sort is O(n2)
• Both Selection Sort and Insertion Sort are fast as

compared to Bubble Sort on average

Recursive Algorithms
• An algorithm that finds the solution to a given
problem by reducing the problem to smaller
versions of itself is called a recursive algorithm
• Recursive algorithms can be used to
– Find factorial of a number
– Compute powers of a number
– Fibonacci Series
– Sort an array
• In computation of recursive algorithms, problem
is recursively reduced to a base case

Merge Sort using Arrays: Example
index 0 1 2 3 4 5 6 7
value 22 18 12 -4 58 7 31 42
split
22 18 12 -4 58 7 31 42
split split
22 18 12 -4 58 7 31 42
split split split split
22 18 12 -4 58 7 31 42
merge merge merge merge
18 22 -4 12 7 58 31 42
merge merge
-4 12 18 22 7 31 42 58
merge
1/10/2019 -4 and7DS12
CSEE2123:OOP 18 ©22 31 Awan,
M. Tahir 42 58
CUST 78
Merge Sort : Performance Analysis
• At Level k, maximum number of comparisons to
merge the lists
• For m Levels , number of comparisons

where
• Maximum number of Comparisons for Merge

Sort
• Merge sort is quite fast as compared to Bubble,

Selection and Insertion Sorts
Quick Sort : Partitioning of the Array
• Select the Last value as Pivot
• Use two pointers to traverse rest of the array
• Partition the array in two halves and place pivot
in centre
• Recursively repeat the process

Quick Sort : Performance Analysis
• Performance Analysis of Quick Sort
• Quick Sort is fast as compared to all the sorting

algorithms that we have studied

Binary Tree
• Binary Tree is a special tree where each parent
node has at maximum two child nodes
• Tree starts at the root node i.e. node at the top
• Leaf node in the tree does not have any child
nodes
root
• Root Node 1 has two
child nodes (Left Node
:2 , Right Node:3) 1
• Nodes are connected
through edges 2 3
• Each tree has one root
node 4 5 6 7
Binary Search Tree (BST)
• Binary Search trees are binary trees that exhibit
a special behavior.
– Value of the root node is larger than all the
nodes in left sub-tree
– Value of the root node is smaller than all the
nodes in right sub-tree

C/C++ Programming Resources
• Other Programming Courses
– Microprocessors & CA
– ASIC Design & FPGA
– Embedded Systems
• Helpful Websites & Resources
• http://www.tutorialspoint.com/
• https://msdn.microsoft.com/en-us/library/
• http://www.cplusplus.com/doc/tutorial/
• Data Structures & Algorithms : Animations
• http://www.ee.ryerson.ca/~courses/coe428/sorting/inserti
onsort.html
• https://www.cs.usfca.edu/~galles/visualization/Algorithm
s.html

Oop Class Notes

Uploaded by

Document Information

Original Title

Copyright

Available Formats

Share this document

Share or Embed Document

Sharing Options

Did you find this document useful?

Is this content inappropriate?

Copyright:

Available Formats

Oop Class Notes

Uploaded by

Copyright:

Available Formats

CSEE2123: OOP and Data Structures

–Finalterm Percentage 40%

1/10/2019 CSEE2123:OOP and DS © M. Tahir Awan, CUST 2

1/10/2019 CSEE2123:OOP and DS © M. Tahir Awan, CUST 3

1/10/2019 CSEE2123:OOP and DS © M. Tahir Awan, CUST 4

1/10/2019 CSEE2123:OOP and DS © M. Tahir Awan, CUST 6

• Tree Operations private:

• Breadth First Traversal: {17 41 9 29 6 81 40}

1/10/2019 CSEE2123:OOP and DS © M. Tahir Awan, CUST 9

• Tree Operations private:

1/10/2019 CSEE2123:OOP and DS © M. Tahir Awan, CUST 11

• Tree Operations private:

1/10/2019 CSEE2123:OOP and DS © M. Tahir Awan, CUST 12

• In-order Sequence: {9 15 21 25 33 45 77}

1/10/2019 CSEE2123:OOP and DS © M. Tahir Awan, CUST 15

1/10/2019 CSEE2123:OOP and DS © M. Tahir Awan, CUST 16

1/10/2019 CSEE2123:OOP and DS © M. Tahir Awan, CUST 18

1/10/2019 CSEE2123:OOP and DS © M. Tahir Awan, CUST 19

1/10/2019 CSEE2123:OOP and DS © M. Tahir Awan, CUST 20

1/10/2019 CSEE2123:OOP and DS © M. Tahir Awan, CUST 21

1/10/2019 CSEE2123:OOP and DS © M. Tahir Awan, CUST 22

1/10/2019 CSEE2123:OOP and DS © M. Tahir Awan, CUST 23

enum struct union class

1/10/2019 CSEE2123:OOP and DS © M. Tahir Awan, CUST 26

1/10/2019 CSEE2123:OOP and DS © M. Tahir Awan, CUST 27

• Scope resolution operator ::

1/10/2019 CSEE2123:OOP and DS © M. Tahir Awan, CUST 29

Complex( float real, float void setReal( float real)

1/10/2019 CSEE2123:OOP and DS © M. Tahir Awan, CUST 31

• Structures are used to group data and classes

1/10/2019 CSEE2123:OOP and DS © M. Tahir Awan, CUST 32

1/10/2019 CSEE2123:OOP and DS © M. Tahir Awan, CUST 33

1/10/2019 CSEE2123:OOP and DS © M. Tahir Awan, CUST 35

1/10/2019 CSEE2123:OOP and DS © M. Tahir Awan, CUST 36

1/10/2019 CSEE2123:OOP and DS © M. Tahir Awan, CUST 37

Access public protected private

Same class YES YES YES

Derived classes YES YES NO

Outside classes YES NO NO

1/10/2019 CSEE2123:OOP and DS © M. Tahir Awan, CUST 38

1/10/2019 CSEE2123:OOP and DS © M. Tahir Awan, CUST 39

1/10/2019 CSEE2123:OOP and DS © M. Tahir Awan, CUST 40

1/10/2019 CSEE2123:OOP and DS © M. Tahir Awan, CUST 41

1/10/2019 CSEE2123:OOP and DS © M. Tahir Awan, CUST 42

1/10/2019 CSEE2123:OOP and DS © M. Tahir Awan, CUST 43

1/10/2019 CSEE2123:OOP and DS © M. Tahir Awan, CUST 44

1/10/2019 CSEE2123:OOP and DS © M. Tahir Awan, CUST 45

• If base class contain pure virtual function, all

1/10/2019 CSEE2123:OOP and DS © M. Tahir Awan, CUST 46

1/10/2019 CSEE2123:OOP and DS © M. Tahir Awan, CUST 47

1/10/2019 CSEE2123:OOP and DS © M. Tahir Awan, CUST 49

1/10/2019 CSEE2123:OOP and DS © M. Tahir Awan, CUST 50

1/10/2019 CSEE2123:OOP and DS © M. Tahir Awan, CUST 51

1/10/2019 CSEE2123:OOP and DS © M. Tahir Awan, CUST 53

• Doubly Linked List

• Circular Linked List

1/10/2019 CSEE2123:OOP and DS © M. Tahir Awan, CUST 54

• HeadPtr->Data (First Element)

1/10/2019 CSEE2123:OOP and DS © M. Tahir Awan, CUST 55

1/10/2019 CSEE2123:OOP and DS © M. Tahir Awan, CUST 56

1/10/2019 CSEE2123:OOP and DS © M. Tahir Awan, CUST 57

1/10/2019 CSEE2123:OOP and DS © M. Tahir Awan, CUST 58

1/10/2019 CSEE2123:OOP and DS © M. Tahir Awan, CUST 59
