Cache Related Preemption Delay Computation For Set-Associative Caches

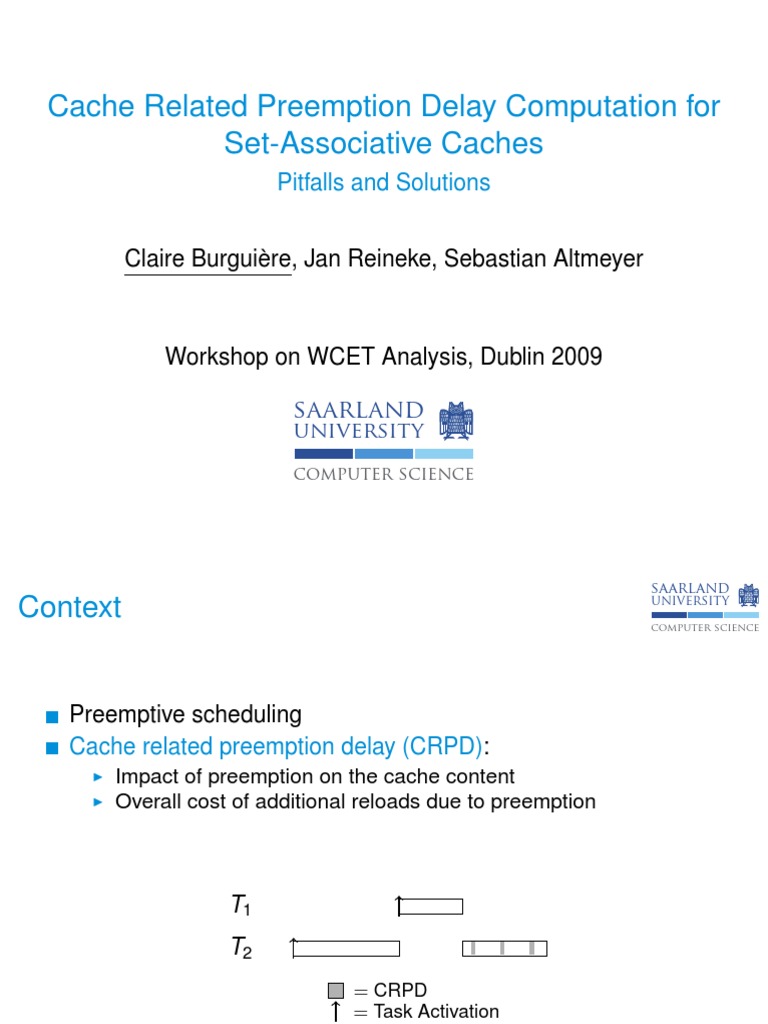

Cache Related Preemption Delay Computation for
Set-Associative Caches
Pitfalls and Solutions
Claire Burguière, Jan Reineke, Sebastian Altmeyer
Workshop on WCET Analysis, Dublin 2009
saarland
university
computer science
saarland
university
Context computer science
Preemptive scheduling
Cache related preemption delay (CRPD):
I Impact of preemption on the cache content
I Overall cost of additional reloads due to preemption
T1
T2
= CRPD
= Task Activation
Burguière, Reineke, Altmeyer CRPD for set-associative caches WCET, Dublin 2009 2 / 13
saarland
university
CRPD computation for set-associative caches computer science
CRPD computation:
I Useful Cache Blocks (UCB)
I Evicting Cache Blocks (ECB)
CRPD for set-associative caches:
⇒ Pitfalls:
I LRU: CRPD not bounded by the number of ECBs
I FIFO and PLRU: CRPD not bounded
saarland
university
Useful Cache Block - [Lee et al., 1996] computer science
Definition (Useful Cache Block)

A memory block m at program point P is called a useful cache block, if
a) m may be cached at P
b) m may be reused at program point P 0 that may be reached from P
with no eviction of m on this path.
= hit
= miss
P
A B D C B A C
Cache Content:
[A, B, C, D]
saarland
university

= hit
= miss
P
A B D C B A C
Cache Content:
[A, B, C, D]
saarland
university

= hit
= miss
P
A B D C B A C
Cache Content:
[A, B, C, D]
c
X
CRPDLRU = CRPDLRU (s)
s=1
LRU n = associativity
CRPDUCB (s) = BRT · min(|UCB(s)|, n) BRT = Block Reload Time
saarland
university
Evicting Cache Blocks computer science
[Tomiyama and Dutt, 2000]

Definition (Evicting Cache Blocks (ECB))
A memory block of the preempting task is called an evicting cache
block, if it may be accessed during the execution of the preempting
task.
Cache Content: X Y Z Cache Content:

[A, B, C, D] [X , Y , Z , D]
A B C B A C
= additional miss due to preemption (CRPD)
saarland
university
Evicting Cache Blocks computer science
[Tomiyama and Dutt, 2000]

Definition (Evicting Cache Blocks (ECB))
A memory block of the preempting task is called an evicting cache
block, if it may be accessed during the execution of the preempting
task.
Cache Content: X Y Z Cache Content:

[A, B, C, D] [X , Y , Z , D]
A B C B A C
= additional miss due to preemption (CRPD)
LRU ?
CRPDECB (s) = BRT · min(|ECB(s)|, n)
saarland
university
CRPD computation for LRU using ECB: Pitfall computer science
0x08
0x09
0x0a
0x0b
8 9 a b
[b, a, 9, 8] [8, b, a, 9] [9, 8, b, a] [a, 9, 8, b] [b, a, 9, 8] 0 misses
saarland
university
CRPD computation for LRU using ECB: Pitfall computer science
0x08
0x09
0x0a
0x0b
8 9 a b
[b, a, 9, 8] [8, b, a, 9] [9, 8, b, a] [a, 9, 8, b] [b, a, 9, 8] 0 misses
ECBs
= {e}
8∗ 9∗ a∗ b∗
[e, b, a, 9] [8, e, b, a] [9, 8, e, b] [a, 9, 8, e] [b, a, 9, 8] 4 misses
|UCB(s)| = 4
|ECB(s)| = 1
n=4
number of additional misses= 4
saarland
university
LRU: new computation of CRPD using ECB computer science
ECB derivation used only to know if the set is used by the

preempting task:

LRU 0 if ECB(s) = ∅
CRPDECB (s) =
BRT · n otherwise
saarland
university
CRPD for FIFO: Pitfalls computer science
a e∗ b c∗ e
[b, a] [b, a] [e, b] [e, b] [c, e] [c, e] 2 misses
saarland
university
CRPD for FIFO: Pitfalls computer science
a e∗ b c∗ e
[b, a] [b, a] [e, b] [e, b] [c, e] [c, e] 2 misses
ECBs
= {x} a∗ e∗ b∗ c∗ e∗
[x, b] [a, x] [e, a] [b, e] [c, b] [e, c] 5 misses
|UCB(s)| = 2
|ECB(s)| = 1
n=2
But: number of additional misses= 3
saarland
university
Definition – Relative Miss-Competitiveness computer science
Notation
mP (p, s) = number of misses that policy P incurs on
access sequence s ∈ M ∗ starting in state p
Definition (Relative miss competitiveness)

Policy P is (k , c)-miss-competitive relative to policy Q, if
mP (p, s) ≤ k · mQ (q, s) + c
for all access sequences s ∈ M ∗ and compatible cache-set states p, q.
saarland
university
Definition – Relative Miss-Competitiveness computer science
Notation
mP (p, s) = number of misses that policy P incurs on
access sequence s ∈ M ∗ starting in state p
Definition (Relative miss competitiveness)

Policy P is (k , c)-miss-competitive relative to policy Q, if
mP (p, s) ≤ k · mQ (q, s) + c
for all access sequences s ∈ M ∗ and compatible cache-set states p, q.
PLRU(n) is (1, 0)-miss-competitive relative to LRU(1 + log2 n).

FIFO(n) is ( n−rn+1 , r )-miss-competitive relative to LRU(r ).
saarland
university
A sequence of memory accesses computer science
Notation:
I m = number of misses
I m = number of misses in the case of preemption
mpre = 4 mpost = 2
mpre = mpre = 4 mpost = mpost + mCRPD = 5
saarland
university
Notation:
mpre = 4 mpost = 2
Relative miss competitiveness:

(t)
m(t) = (t)
mpre + mpost
saarland
university
Notation:
mpre = 4 mpost = 2

(t)
m(t) = (t)
mpre + mpost
LRU(s) LRU(s) LRU(s)
≤ [k · mpre + c] + [k · (mpost + mCRPD ) + c]
saarland
university
Notation:
mpre = 4 mpost = 2

(t)
m(t) = (t)
mpre + mpost
= [k · (mpre + mpost ) + c] + [k · mCRPD + c]
saarland
university
Notation:
mpre = 4 mpost = 2

(t)
m(t) = (t)
mpre + mpost
= [k · (mpre + mpost ) + c] + [k · mCRPD + c]
LRU(s)
= [k · m LRU(s) + c] + [k · mCRPD + c]
saarland
university
Relative Competitiveness – Application computer science
PLRU(8) using LRU(4):

LRU(4)
m PLRU(8) ≤ m LRU(4) + mCRPD
FIFO(8) using LRU(5):

LRU(5)
m FIFO(8) ≤ (2 · m LRU(5) + 5) + (2 · mCRPD + 5)
saarland
university
Conclusions computer science
Pitfalls Solutions
LRU: LRU:
|ECBs| is not an |ECBs| = 0
upper-bound ⇒ the set is not used
FIFO and PLRU: FIFO and PLRU:
|UCBs|, |ECBs| and n using relative
do not bound the number competitiveness
of additional misses and LRU bounds
saarland
university
Further reading computer science
Altmeyer, S. and Burguière, C. (2009).
A New Notion of Useful Cache Block to Improve the Bounds of Cache-Related Preemption
Delay.
In ECRTS ’09 pp. 109–118, IEEE Computer Society.
Lee, C.-G., Hahn, J., Min, S. L., Ha, R., Hong, S., Park, C. Y., Lee, M. and Kim, C. S.
(1996).
Analysis of cache-related preemption delay in fixed-priority preemptive scheduling.
In RTSS’96 p. 264, IEEE Computer Society.
Negi, H. S., Mitra, T. and Roychoudhury, A. (2003).
Accurate estimation of cache-related preemption delay.
In CODES+ISSS’03 ACM.
Reineke, J. (2008).
Caches in WCET Analysis.
PhD thesis, Universität des Saarlandes, Saarbrücken.
Staschulat, J. and Ernst, R. (2007).
Scalable precision cache analysis for real-time software.
ACM TECS 6, 25.
Tan, Y. and Mooney, V. (2004).
Integrated intra- and inter-task cache analysis for preemptive multi-tasking real-time
systems.
In SCOPES’04 pp. 182–199,.
Tomiyama, H. and Dutt, N. D. (2000).
Program
Burgui pathAltmeyer
ère, Reineke, analysis
to bound cache-related
CRPD preemption
for set-associative caches delay in preemptive
WCET, Dublinreal-time
2009 13 / 13
saarland
university
Upper-bound on the CRPD - direct-mapped caches computer science
using UCB [Lee et al., 1996]:
CRPDUCB = BRT · |{si | ∃m ∈ UCB : m mod c = si }|
using ECB [Tomiyama and Dutt, 2000]:
CRPDECB = BRT · |{si | ∃m ∈ ECB : m mod c = si }|
using UCB and ECB [Negi et al., 2003, Tan and Mooney, 2004]:
CRPDUCB&ECB = BRT · |{si | ∃m ∈ UCB : m mod c = si

∧∃m0 ∈ ECB : m0 mod c = si }|
saarland
university
Relative Competitiveness – Example computer science
mpre = 4 mpost = 2
LRU(s) (t) LRU(s)

m(t)
pre ≤ k · mpre +c mpost ≤ k · mpost + c
= k · mpre +c = k · (mpost + mCRPD ) + c
(t)
m(t) = m(t)
pre + mpost
≤ k · mpre + c + k · (mpost + mCRPD ) + c
= (k · (mpre + mpost ) + c) + (k · mCRPD + c)
LRU(s)
= (k · m LRU(s) + c) + (k · mCRPD + c).
saarland
university
Relative Competitiveness – Application computer science
PLRU(n) using LRU(1 + log2 n):

I k = 1, c = 0
LRU(1+log2 n)
m PLRU(n) ≤ m LRU(1+log2 n) + mCRPD
I Example (n=8):
LRU(4)
m PLRU(8) ≤ m LRU(4) + mCRPD
FIFO(n) using LRU(r ):

n
I k= n−r +1 , c =r
n n LRU(r )
m FIFO(n) ≤ ( · m LRU(r ) + r ) + ( · mCRPD + r )
n−r +1 n−r +1
I Example (n=8,r=5):
LRU(5)
m FIFO(8) ≤ (2 · m LRU(5) + 5) + (2 · mCRPD + 5)
saarland
university
CRPD for PLRU: Pitfalls computer science
1 d 0 b 1 c 0 b 1 a 1 d 0
1 1 1 0 0 0 0 1 0 1 1 1 1 0 0 misses
a b c d a b c d a b c d a b c d a b c d a b c d a b c d
ECBs
= {x, y} 1 d* 0 b* 1 c* 0 b 1 a* 0 d* 1
0 0 0 1 1 1 1 0 1 0 1 1 0 1 5 misses
a y c x a y d x b y d x b y d c b y d c b y a c b d a c
|UCB(s)| = 4
|ECB(s)| = 2
n=4
But: number of additional misses= 5
