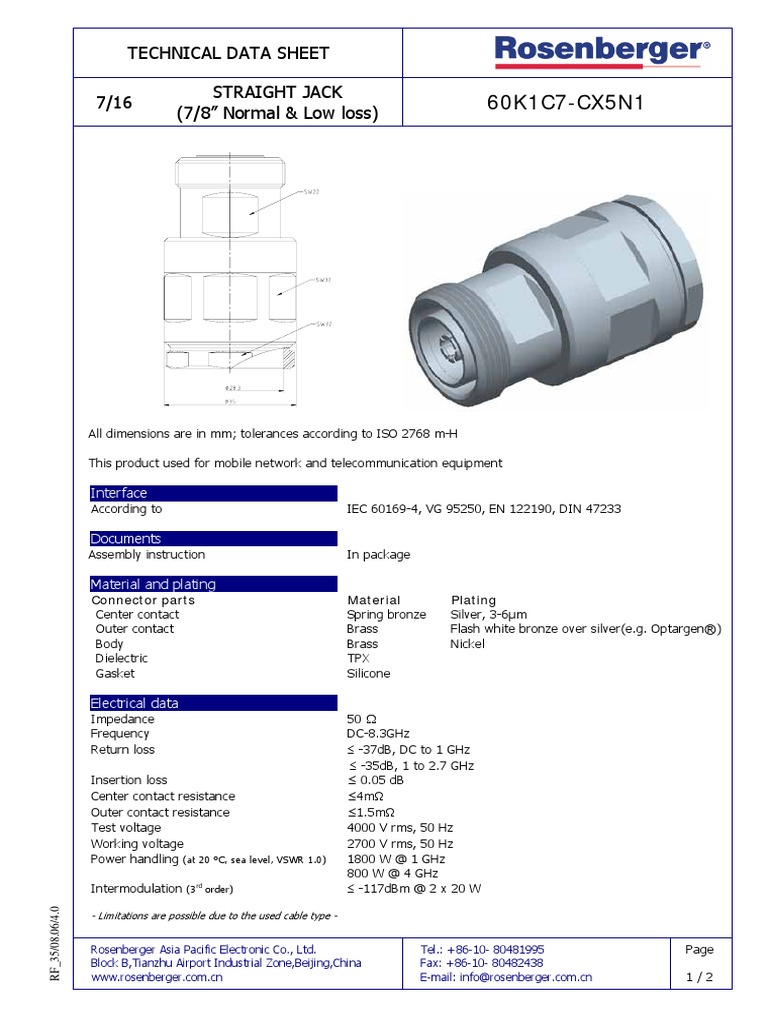

TECHNICAL DATA SHEET

STRAIGHT JACK
7/16
(7/8” Normal & Low loss)
60K1C7-CX5N1

All dimensions are in mm; tolerances according to ISO 2768 m-H

This product used for mobile network and telecommunication equipment

Interface
According to IEC 60169-4, VG 95250, EN 122190, DIN 47233

Documents
Assembly instruction In package

Material and plating

Connector parts Material Plating
Center contact Spring bronze Silver, 3-6µm
Outer contact Brass Flash white bronze over silver(e.g. Optargen®)
Body Brass Nickel
Dielectric TPX
Gasket Silicone

Electrical data
Impedance 50 Ω
Frequency DC-8.3GHz
Return loss ≤ -37dB, DC to 1 GHz
≤ -35dB, 1 to 2.7 GHz
Insertion loss ≤ 0.05 dB
Center contact resistance ≤4mΩ
Outer contact resistance ≤1.5mΩ
Test voltage 4000 V rms, 50 Hz
Working voltage 2700 V rms, 50 Hz
Power handling (at 20 °C, sea level, VSWR 1.0) 1800 W @ 1 GHz
800 W @ 4 GHz
Intermodulation (3rd order) ≤ -117dBm @ 2 x 20 W
RF_35/08.06/4.0

- Limitations are possible due to the used cable type -

Rosenberger Asia Pacific Electronic Co., Ltd. Tel.: +86-10- 80481995 Page
Block B,Tianzhu Airport Industrial Zone,Beijing,China Fax: +86-10- 80482438
www.rosenberger.com.cn E-mail: info@rosenberger.com.cn 1/2
 TECHNICAL DATA SHEET

STRAIGHT JACK
7/16
(7/8” Normal & Low loss)
60K1C7-CX5N1

Mechanical data
Mating cycles min. 500
Coupling nut retention ≥ 1000 N
Center contact captivation: axial ≥ 200 N
radial ≥ 2 Ncm
Coupling test torque max. 35 Nm
Recommended torque 25 Nm to 30 Nm

Environmental data
Temperature range -45°C to +85°C
Rapid change of temperature DIN EN 122190, clause 4.6.7
Corrosion DIN EN 122190, clause 4.6.10
Vibration DIN EN 122190, clause 4.6.3
Damp heat DIN EN 122190, clause 4.6.6
Climatic tests DIN EN 122190, clause 4.6.5 (45/85/56)
Degree of protection (mated pair) IEC 60529, IP68

Tooling
60W007-CX5 (1C7)
Suitable cables
SL 7/8’’R (Normal cable recommend)
SL 7/8’’L (Low loss cable recommend)

Packing
Standard 1Pcs in box
Weight 151 g/pcs

While the information has been carefully compiled to the best of our knowledge, nothing is intended as representation or warranty on
our part and no statement herein shall be construed as recommendation to infringe existing patents. In the effort to improve our
products, we reserve the right to make changes judged to be necessary.

Draft Checker Approved Date Rev. Engineering change number Name Date
RF_35/08.06/4.0

Roger 18.04.2007 b ------------------------------- Roger 18.04.2007

Rosenberger Asia Pacific Electronic Co., Ltd. Tel.: +86-10- 80481995 Page
Block B,Tianzhu Airport Industrial Zone,Beijing,China Fax: +86-10- 80482438
www.rosenberger.com.cn E-mail: info@rosenberger.com.cn 2/2
 TECHNICAL DATA SHEET

STRAIGHT PLUG
7/16
(7/8’’ Normal & Low loss)
60S1C7-CX5N1

All dimensions are in mm; tolerances according to ISO 2768 m-H

This product used for mobile network and telecommunication equipment

Interface
According to IEC 60169-4, VG 95250, EN 122190, DIN 47233

Documents
Assembly instruction In package

Material and plating

Connector parts Material Plating
Center contact Brass Silver, 3-6µm
Outer contact Brass Flash white bronze over silver(e.g. Optargen®)
Body Brass Nickel
Dielectric TPX
Gasket Silicone

Electrical data
Impedance 50 Ω
Frequency DC-8.3GHz
Return loss ≤ -37dB, DC to 1 GHz
≤ -35dB, 1 to 2.7 GHz
Insertion loss ≤ 0.05 dB
Center contact resistance ≤4mΩ
Outer contact resistance ≤1.5mΩ
Test voltage 4000 V rms, 50 Hz
Working voltage 2700 V rms, 50 Hz
Power handling (at 20 °C, sea level, VSWR 1.0) 1800 W @ 1 GHz
800 W @ 4 GHz
Intermodulation (3rd order) ≤ -117dBm @ 2 x 20 W
RF_35/08.06/4.0

Rosenberger Asia Pacific Electronic Co., Ltd. Tel.: +86-10- 80481995 Page
Block B,Tianzhu Airport Industrial Zone,Beijing,China Fax: +86-10- 80482438
www.rosenberger.com.cn E-mail: info@rosenberger.com.cn 1/2
 TECHNICAL DATA SHEET

STRAIGHT PLUG
7/16
(7/8’’ Normal & Low loss)
60S1C7-CX5N1

- Limitations are possible due to the used cable type -

Mechanical data
Mating cycles min. 500
Coupling nut retention ≥ 1000 N
Center contact captivation: axial ≥ 200 N
radial ≥ 2 Ncm
Coupling test torque max. 35 Nm
Recommended torque 25 Nm to 30 Nm

Environmental data
Temperature range -45°C to +85°C
Rapid change of temperature DIN EN 122190, clause 4.6.7
Corrosion DIN EN 122190, clause 4.6.10
Vibration DIN EN 122190, clause 4.6.3
Damp heat DIN EN 122190, clause 4.6.6
Climatic tests DIN EN 122190, clause 4.6.5 (45/85/56)
Degree of protection (mated pair) IEC 60529, IP68

Tooling
60W007-CX5 (1C7)

Suitable cables
SL 7/8’’R (Normal cable recommend)
SL 7/8’’L (Low loss cable recommend)

Packing
Standard 1Pcs in box
Weight 162 g/pcs

While the information has been carefully compiled to the best of our knowledge, nothing is intended as representation or warranty on
our part and no statement herein shall be construed as recommendation to infringe existing patents. In the effort to improve our
products, we reserve the right to make changes judged to be necessary.

Draft Checker Approved Date Rev. Engineering change number Name Date
RF_35/08.06/4.0

Roger 17.04.2007 a --------------------------------- Roger 17.04.2007

Rosenberger Asia Pacific Electronic Co., Ltd. Tel.: +86-10- 80481995 Page
Block B,Tianzhu Airport Industrial Zone,Beijing,China Fax: +86-10- 80482438
www.rosenberger.com.cn E-mail: info@rosenberger.com.cn 2/2
 TECHNICAL DATA SHEET

STRAIGHT JACK
N 50Ω 53K1C7-CX5N1
(7/8’’Normal & Low loss)

All dimensions are in mm; tolerances according to ISO 2768 m-H

This product used for mobile network and telecommunication equipment

Interface
According to IEC 60169-16, MIL-PRF-39012, CECC22210

Documents
Assembly instruction In package

Material and plating

Connector parts Material Plating
Center contact Spring bronze Silver, 3-6µm
Outer contact Brass Flash white bronze over silver(e.g. Optargen®)
Body Brass Flash white bronze over silver(e.g. Optargen®)
Dielectric TPX
Gasket Silicone

Electrical data
Impedance 50 Ω
Frequency Dc to 11 GHz
Return loss ≤ -37dB, DC to 1 GHz
≤ -35dB, 1 to 2.7 GHz
Insertion loss ≤ 0.1 dB
Insulation resistance ≥ 5 x103 MΩ
Center contact resistance ≤ 1mΩ
Outer contact resistance ≤ 0.25mΩ
Test voltage 2500 V rms
Working voltage 1400 V rms
Power handling (at 20 °C, sea level, VSWR 1.0) 1000 W @ 1 GHz
700 W @ 2 GHz
Intermodulation (3rd order) ≤ -117dBm @ 2 x 20 W
RF_35/12.04/3.0

Rosenberger Asia Pacific Electronic Co., Ltd. Tel.: +86 10 80481995 Page
No. 3 Anxiang Street, Block B, Tianzhu Airport Ind. Zone Fax: +86 10 80482438
Beijing, P.C.: 101300 China www.rosenberger.con.cn email: info@rosenberger.com.cn 1/2
 TECHNICAL DATA SHEET

STRAIGHT JACK
N 50Ω 53K1C7-CX5N1
(7/8’’Normal & Low loss)

- Limitations are possible due to the used cable type -

Mechanical data
Mating cycles min. 500
Center contact captivation: axial ≥ 28 N
radial ≥ 3 Ncm
Coupling torque (recommended) 0.7 to 1.1 Nm
Proof torque max. 1.7 Nm

Environmental data
Temperature range -45°C to +85°C
Thermal shock MIL-STD-202, Meth. 107, Cond. B
Corrosion MIL-STD-202, Meth. 101, Cond. B
Vibration MIL-STD-202, Meth. 204, Cond. B
Shock MIL-STD-202, Meth. 213, Cond. I
Moisture resistance MIL-STD-202, Meth. 106
Degree of protection (mated pair) IEC 60529, IP68

Tooling
60W007-C05 (1C7)

Suitable cables
SL 7/8’’R (Normal cable recommend)
SL 7/8’’L (Low loss cable recommend)

Packing
Standard 1 Pcs in box
Weight 134 pcs

While the information has been carefully compiled to the best of our knowledge, nothing is intended as representation or warranty on
our part and no statement herein shall be construed as recommendation to infringe existing patents. In the effort to improve our
products, we reserve the right to make changes judged to be necessary.

Draft Checker Approved Date Rev. Engineering change number Name Date
RF_35/12.04/3.0

Roger a -------------------------------------- Roger 18.04.2007

Rosenberger Asia Pacific Electronic Co., Ltd. Tel.: +86 10 80481995 Page
No. 3 Anxiang Street, Block B, Tianzhu Airport Ind. Zone Fax: +86 10 80482438
Beijing, P.C.: 101300 China www.rosenberger.con.cn email: info@rosenberger.com.cn 2/2
 TECHNICAL DATA SHEET

STRAIGHT PLUG
N 50Ω 53S1C7-CX5N1
(7/8’’Normal & Low loss)

All dimensions are in mm; tolerances according to ISO 2768 m-H

This product used for mobile network and telecommunication equipment

Interface
According to IEC 60169-16, MIL-PRF-39012, CECC22210

Documents
Assembly instruction In package

Material and plating

Connector parts Material Plating
Center contact Brass Silver, 3-6µm
Outer contact Brass Flash white bronze over silver(e.g. Optargen®)
Body Brass Flash white bronze over silver(e.g. Optargen®)
Dielectric TPX
Gasket Silicone

Electrical data
Impedance 50 Ω
Frequency Dc to 11 GHz
Return loss ≤ -37dB, DC to 1 GHz
≤ -35dB, 1 to 2.7 GHz
Insertion loss ≤ 0.1 dB
Insulation resistance ≥ 5 x103 MΩ
Center contact resistance ≤ 1mΩ
Outer contact resistance ≤ 0.25mΩ
Test voltage 2500 V rms
Working voltage 1400 V rms
Power handling (at 20 °C, sea level, VSWR 1.0) 1000 W @ 1 GHz
700 W @ 2 GHz
RF_35/12.04/3.0

Rosenberger Asia Pacific Electronic Co., Ltd. Tel.: +86 10 80481995 Page
No. 3 Anxiang Street, Block B, Tianzhu Airport Ind. Zone Fax: +86 10 80482438
Beijing, P.C.: 101300 China www.rosenberger.con.cn email: info@rosenberger.com.cn 1/2
 TECHNICAL DATA SHEET

STRAIGHT PLUG
N 50Ω 53S1C7-CX5N1
(7/8’’Normal & Low loss)

Intermodulation (3rd order) ≤ -117dBm @ 2 x 20 W

- Limitations are possible due to the used cable type -

Mechanical data
Mating cycles min. 500
Center contact captivation: axial ≥ 28 N
radial ≥ 3 Ncm
Coupling torque (recommended) 0.7 to 1.1 Nm
Proof torque max. 1.7 Nm

Environmental data
Temperature range -45°C to +85°C
Thermal shock MIL-STD-202, Meth. 107, Cond. B
Corrosion MIL-STD-202, Meth. 101, Cond. B
Vibration MIL-STD-202, Meth. 204, Cond. B
Shock MIL-STD-202, Meth. 213, Cond. I
Moisture resistance MIL-STD-202, Meth. 106
Degree of protection (mated pair) IEC 60529, IP68

Tooling
60W007-CX5 (1C7)

Suitable cables
SL 7/8’’R (Normal cable recommend)
SL 7/8’’L (Low loss cable recommend)
Packing
Standard 1 Pcs in box
Weight 146 g/pcs

While the information has been carefully compiled to the best of our knowledge, nothing is intended as representation or warranty on
our part and no statement herein shall be construed as recommendation to infringe existing patents. In the effort to improve our
products, we reserve the right to make changes judged to be necessary.

Draft Checker Approved Date Rev. Engineering change number Name Date
RF_35/12.04/3.0

Roger 17.04.2007 a -------------------------------------- Roger 17.04.2007

Rosenberger Asia Pacific Electronic Co., Ltd. Tel.: +86 10 80481995 Page
No. 3 Anxiang Street, Block B, Tianzhu Airport Ind. Zone Fax: +86 10 80482438
Beijing, P.C.: 101300 China www.rosenberger.con.cn email: info@rosenberger.com.cn 2/2
