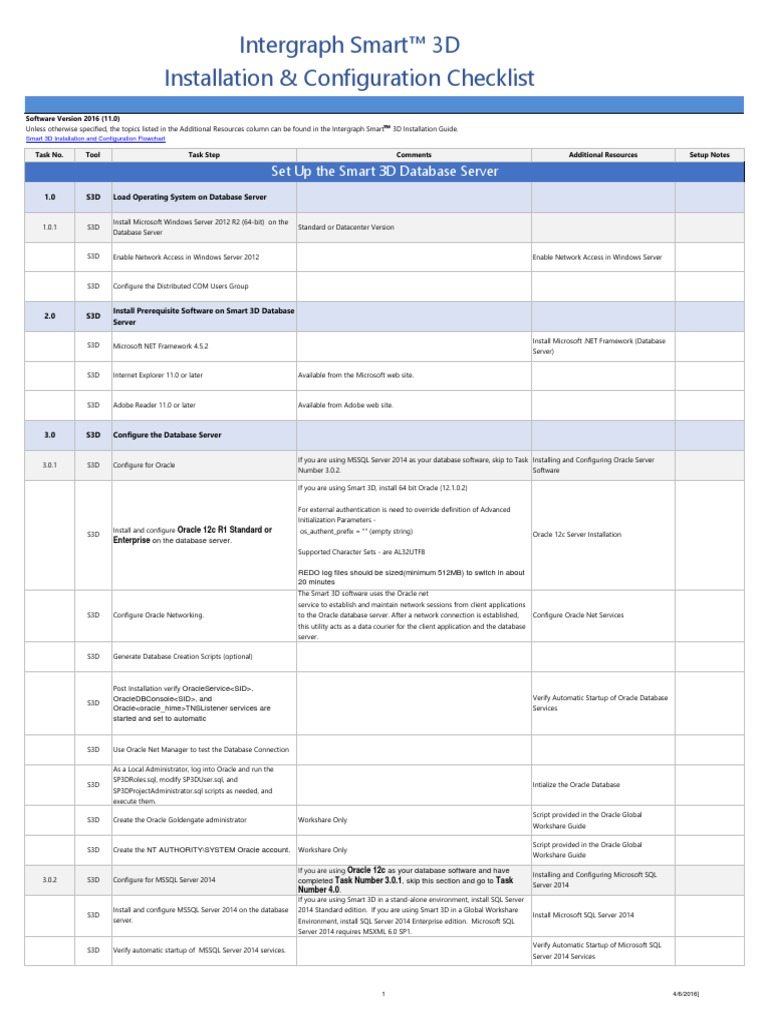

Intergraph Smart™ 3D

Installation & Configuration Checklist

Software Version 2016 (11.0)
Unless otherwise specified, the topics listed in the Additional Resources column can be found in the Intergraph Smart ™ 3D Installation Guide.
Smart 3D Installation and Configuration Flowchart

Task No. Tool Task Step Comments Additional Resources Setup Notes

Set Up the Smart 3D Database Server

1.0 S3D Load Operating System on Database Server

Install Microsoft Windows Server 2012 R2 (64-bit) on the

1.0.1 S3D Standard or Datacenter Version
Database Server

S3D Enable Network Access in Windows Server 2012 Enable Network Access in Windows Server

S3D Configure the Distributed COM Users Group

Install Prerequisite Software on Smart 3D Database

2.0 S3D
Server

Install Microsoft .NET Framework (Database

S3D Microsoft NET Framework 4.5.2
Server)

S3D Internet Explorer 11.0 or later Available from the Microsoft web site.

S3D Adobe Reader 11.0 or later Available from Adobe web site.

3.0 S3D Configure the Database Server

If you are using MSSQL Server 2014 as your database software, skip to Task Installing and Configuring Oracle Server
3.0.1 S3D Configure for Oracle
Number 3.0.2. Software

If you are using Smart 3D, install 64 bit Oracle (12.1.0.2)

For external authentication is need to override definition of Advanced

Initialization Parameters -
Install and configure Oracle 12c R1 Standard or os_authent_prefix = "" (empty string)
S3D Oracle 12c Server Installation
Enterprise on the database server.
Supported Character Sets - are AL32UTF8

REDO log files should be sized(minimum 512MB) to switch in about

20 minutes
The Smart 3D software uses the Oracle net
service to establish and maintain network sessions from client applications
S3D Configure Oracle Networking. to the Oracle database server. After a network connection is established, Configure Oracle Net Services
this utility acts as a data courier for the client application and the database
server.

S3D Generate Database Creation Scripts (optional)

Post Installation verify OracleService<SID>,

OracleDBConsole<SID>, and Verify Automatic Startup of Oracle Database
S3D
Oracle<oracle_hime>TNSListener services are Services
started and set to automatic

S3D Use Oracle Net Manager to test the Database Connection

As a Local Administrator, log into Oracle and run the

SP3DRoles.sql, modify SP3DUser.sql, and
S3D Intialize the Oracle Database
SP3DProjectAdministrator.sql scripts as needed, and
execute them.
Script provided in the Oracle Global
S3D Create the Oracle Goldengate administrator Workshare Only
Workshare Guide

Script provided in the Oracle Global

S3D Create the NT AUTHORITY\SYSTEM Oracle account. Workshare Only
Workshare Guide

If you are using Oracle 12c as your database software and have
Installing and Configuring Microsoft SQL
3.0.2 S3D Configure for MSSQL Server 2014 completed Task Number 3.0.1, skip this section and go to Task
Server 2014
Number 4.0.
If you are using Smart 3D in a stand-alone environment, install SQL Server
Install and configure MSSQL Server 2014 on the database 2014 Standard edition. If you are using Smart 3D in a Global Workshare
S3D Install Microsoft SQL Server 2014
server. Environment, install SQL Server 2014 Enterprise edition. Microsoft SQL
Server 2014 requires MSXML 6.0 SP1.
Verify Automatic Startup of Microsoft SQL
S3D Verify automatic startup of MSSQL Server 2014 services.
Server 2014 Services

1 4/6/2016]
 Intergraph Smart™ 3D
Installation & Configuration Checklist
Software Version 2016 (11.0)
Unless otherwise specified, the topics listed in the Additional Resources column can be found in the Intergraph Smart ™ 3D Installation Guide.
Smart 3D Installation and Configuration Flowchart

S3D Register the database server in SQL Management Studio. Register Microsoft SQL Server

Assign system administrator privileges and grant access to Assign System Administrator Privileges for
S3D
Smart 3D users. SQL Server 2014

Set Up the Smart 3D Workstation Computer

4.0 S3D Load Operating System on Workstation

If you are using MSSQL Server 2014 as your database software, skip this
Install the 32 bit Oracle 12c Client (12.1.0.2) software on
4.0.1 S3D section and go to Task Number 4.0.2. Do not use Oracle "light client" as it Oracle 12c Client Installation
the workstation.
does not include some of the DLLs required by Smart 3D.

S3D Configure the Oracle Client. Configure the Oracle Client

S3D Verify startup of the Oracle Client Services.

Install the 64 bit Oracle 12c Client (12.1.0.2) if running 64
S3D
bit IFC or 64 bit Drawings Batch.
If you are using MSSQL Server 2014 as your database software, skip this
section and go to Task Number 4.0.2. Do not use Oracle "light client" as it Oracle 12c Client Installation
does not include some of the DLLs required by Smart 3D.

If you are using Oracle 12c as your database software, skip this
Install MSSQL Server 2014 Client Software on the Smart 3D
4.0.2 S3D section and have completed Task Number 4.0.1, go to Task
Workstation
Number 4.1.

Microsoft SQL Server 2014 requires MSXML 6.0 SP1 and will automatically
S3D Install Microsoft SQL Server 2014 Client Tools Install Microsoft SQL Server 2014 Client
install it as part of the SQL Server 2014 Prerequisite installation.

Install Prerequisite Software on the Smart 3D Loading Prerequisite Software on the

4.1 S3D
Workstation Client

S3D Internet Explorer 11.0 or later Available from the Microsoft web site.

S3D Adobe Reader 11.0 or later Available from the Adobe web site.

S3D Install Microsoft Excel 2013 (32-bit only) Microsoft Excel is required for reports generation. Install Microsoft Office

SmartPlant License Manager Installation and

S3D SmartPlant License Manager 2012 (12.0) or later Client Available on the SmartPlant License Manager installation DVD
User's Guide

SmartSketch 2016 (9.0 or later), if you are using material

S3D
handling mode.

Install other Intergraph SmartPlant applications, such as

SmartPlant P&ID, before you install Smart 3D if you plan to
S3D
run both applications on the same computer. Always install
Smart 3D last.

4.2 S3D Install Smart 3D Client Software

4.2.1 S3D Install Smart 3D Reference Data. Delivered on the product CD. Install Smart 3D Reference Data

4.2.2 S3D Install the Smart 3D Client software. Delivered on the product CD. Install Smart 3D Client Software

S3D Configure Network Shares. Configure Network Shares

S3D Register Solid Edge ST3, ST4, or ST5 .DLL File (optional)

Install SmartPlant Schema Component, Install SmartPlant Client.

S3D Configure for an Integrated Environment SmartPlant Schema Component is delivered on the product CD under Configure for an Integrated Environment
Prerequisite Software.

4.3 S3D Install and Configure the Name Generator Service. Delivered on the product CD. Name Generator Service Setup

Install Smart 3D PDS Model & Data

4.4 S3D Install Smart 3D PDS Model & Data Translators. Delivered on the product CD.
Translators

2 4/6/2016]
 Intergraph Smart™ 3D
Installation & Configuration Checklist
Software Version 2016 (11.0)
Unless otherwise specified, the topics listed in the Additional Resources column can be found in the Intergraph Smart ™ 3D Installation Guide.
Smart 3D Installation and Configuration Flowchart

4.5 S3D Integrate with SmartPlant P&ID. Integrating with SmartPlant P&ID

4.6 S3D Install PDS Export Tools. Delivered on the product CD under Prerequisite Software. Install PDS Export Tools

4.7 S3D Install Programming Resources. Delivered on the product CD. Programming Resources Setup

4.7.1 S3D Install the Smart 3D Command Wizard. Delivered as part of the Programming Resources setup. Install the Smart 3D Command Wizard

Install the Smart 3D Symbol/Part Definition

4.7.2 S3D Install the Smart 3D Symbol/Part Definition Wizard. Delivered as part of the Programming Resources setup.
Wizard

4.8 S3D Install Piping Specification Remote Access Server. Delivered as part of Smart 3D setup

Configure the Piping Specification Remote Access Server Configure the Piping Specification Remote
4.8.1 S3D
Service Access Server Service

4.8.2 S3D Register the Site Database for P&ID Access Register the Site Database for P&ID Access

Create the Smart 3D Databases

5.0 S3D Create the Site, Catalog, and Schema Databases Configuring the Databases

Create the Site, Catalog, and Schema

5.0.1 S3D Create the Site, Catalog, and Schema Databases for SQL
Databases for SQL

Create the Site, Catalog, and Schema

5.0.2 S3D Create the Site, Catalog, and Schema Databases for Oracle
Databases for Oracle

5.1 S3D Create the Model and Reports Databases

Create the Model and Report Databases for

5.1.1 S3D Create the Model and Reports Databases for SQL
SQL

Create the Model and Report Databases for

5.1.2 S3D Create the Model and Reports Databases for Oracle.
Oracle

5.2 S3D Assign Access Permissions (SQL) Assign Access Permissions for SQL

Configure the Interference Detection Server

6.0 S3D Set Up Server-Based Interference Checking Interference Checking Setup

Install Database Interference Detection

6.0.1 S3D Install Databases Interference Detection Service.
Service

Create IFC Permission Group Folder and

6.0.2 S3D Create IFC Permission Group Folder and Permission Group
Permission Group

Working in an Integrated Environment

For guidelines about integrating Smart 3D, see the SmartPlant Configure the Smart 3D Integration
7.0 S3D Configure the Smart 3D Integration Plant
Enterprise Installation and Configuration Checklist. Plant

7.0.1 S3D Register via Project Management with SPF plant

7.0.2 S3D Retrieve PBS document

Retrieve additional documents (example, PID drawings,

7.0.3 S3D
DDP data, Cable Schedule, and so forth)

3 4/6/2016]
 Smart 3D Flowchart
Smart 3D Installation and Configuration Checklist

4 4/6/2016]
