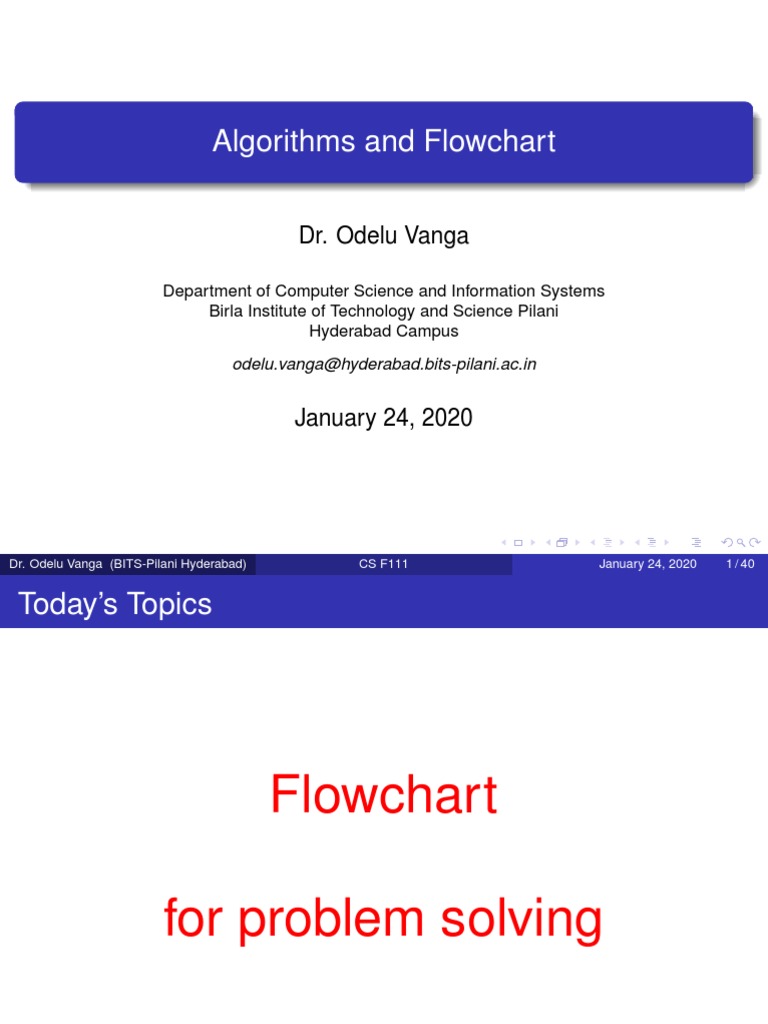

    Algorithms and Flowchart

    Dr. Odelu Vanga

    Department of Computer Science and Information Systems


    Birla Institute of Technology and Science Pilani
    Hyderabad Campus
    odelu.vanga@hyderabad.bits-pilani.ac.in

    January 24, 2020

    Dr. Odelu Vanga (BITS-Pilani Hyderabad) CS F111 January 24, 2020 1 / 40


    Today’s Topics

    Flowchart

    for problem solving

    Dr. Odelu Vanga (BITS-Pilani Hyderabad) CS F111 January 24, 2020 2 / 40


    Algorithm and Flowchart

    Algorithm
    Sequence of steps
    which will produce the desired output
    for the given input

    Dr. Odelu Vanga (BITS-Pilani Hyderabad) CS F111 January 24, 2020 3 / 40


    Algorithm and Flowchart

    Algorithm
    Sequence of steps
    which will produce the desired output
    for the given input

    Flowchart
    Graphical representation
    to the logical steps to carry out a task
    and show how the steps relate to each other

    Dr. Odelu Vanga (BITS-Pilani Hyderabad) CS F111 January 24, 2020 3 / 40


    Flowchart symbols

    Dr. Odelu Vanga (BITS-Pilani Hyderabad) CS F111 January 24, 2020 4 / 40


    Flowchart symbols

    Dr. Odelu Vanga (BITS-Pilani Hyderabad) CS F111 January 24, 2020 5 / 40


    Flowchart symbols

    Dr. Odelu Vanga (BITS-Pilani Hyderabad) CS F111 January 24, 2020 6 / 40


    Flowchart symbols

    Dr. Odelu Vanga (BITS-Pilani Hyderabad) CS F111 January 24, 2020 7 / 40


    Flowchart symbols

    Dr. Odelu Vanga (BITS-Pilani Hyderabad) CS F111 January 24, 2020 8 / 40


    Flowchart symbols

    Dr. Odelu Vanga (BITS-Pilani Hyderabad) CS F111 January 24, 2020 9 / 40


    Flowchart symbols

    Dr. Odelu Vanga (BITS-Pilani Hyderabad) CS F111 January 24, 2020 10 / 40


    Sequence Flowchart
    Find the area of a circle of radius r ?

    Dr. Odelu Vanga (BITS-Pilani Hyderabad) CS F111 January 24, 2020 11 / 40


    Sequence Flowchart
    Find the area of a circle of radius r ?
    Area = πr 2 , where π = 3.14.

    Dr. Odelu Vanga (BITS-Pilani Hyderabad) CS F111 January 24, 2020 11 / 40


    Sequence Flowchart
    Find the area of a circle of radius r ?
    Area = πr 2 , where π = 3.14.

    Dr. Odelu Vanga (BITS-Pilani Hyderabad) CS F111 January 24, 2020 11 / 40


    Sequence Flowchart
    Find the area of a circle of radius r ?
    Area = πr 2 , where π = 3.14.

    Dr. Odelu Vanga (BITS-Pilani Hyderabad) CS F111 January 24, 2020 12 / 40


    Sequence Flowchart
    Find the area of a circle of radius r ?
    Area = πr 2 , where π = 3.14.

    Dr. Odelu Vanga (BITS-Pilani Hyderabad) CS F111 January 24, 2020 13 / 40


    Sequence Flowchart
    Find the area of a circle of radius r ?
    Area = πr 2 , where π = 3.14.

    Dr. Odelu Vanga (BITS-Pilani Hyderabad) CS F111 January 24, 2020 14 / 40


    Finding Average Marks
    A, B, C are the marks scored by a student in Science,
    Mathematics and English

    Dr. Odelu Vanga (BITS-Pilani Hyderabad) CS F111 January 24, 2020 15 / 40


    Finding Average Marks
    A, B, C are the marks scored by a student in Science,
    Mathematics and English

    Dr. Odelu Vanga (BITS-Pilani Hyderabad) CS F111 January 24, 2020 15 / 40


    Finding Average Marks
    A, B, C are the marks scored by a student in Science,
    Mathematics and English

    Esha, who scores 60 marks in Science,


    70 marks in mathematics and 75 marks
    in English. Provide the step-by-step
    execution of the algorithm to calculate
    the average marks of Esha.

    Dr. Odelu Vanga (BITS-Pilani Hyderabad) CS F111 January 24, 2020 15 / 40


    Finding Average Marks
    A, B, C are the marks scored by a student in Science,
    Mathematics and English

    Esha, who scores 60 marks in Science,


    70 marks in mathematics and 75 marks
    in English. Provide the step-by-step
    execution of the algorithm to calculate
    the average marks of Esha.

    First step: 60, 70, 75

    Dr. Odelu Vanga (BITS-Pilani Hyderabad) CS F111 January 24, 2020 15 / 40


    Finding Average Marks
    A, B, C are the marks scored by a student in Science,
    Mathematics and English

    Esha, who scores 60 marks in Science,


    70 marks in mathematics and 75 marks
    in English. Provide the step-by-step
    execution of the algorithm to calculate
    the average marks of Esha.

    First step: 60, 70, 75


    Second step: ———————?
    Third step: ———————— ?
    Forth step: ———————— ?

    Dr. Odelu Vanga (BITS-Pilani Hyderabad) CS F111 January 24, 2020 15 / 40


    Selection flow chart

    if condition is true
    Then
    Process step(s) 1
    else
    Process step(s) 2
    end if

    Dr. Odelu Vanga (BITS-Pilani Hyderabad) CS F111 January 24, 2020 16 / 40


    Selection flow chart

    if condition is true
    Then
    Process step(s) 1
    else
    Process step(s) 2
    end if

    Dr. Odelu Vanga (BITS-Pilani Hyderabad) CS F111 January 24, 2020 16 / 40


    Repetition Flowchart

    while condition is true


    Do
    Process Step(s)
    Loop

    Dr. Odelu Vanga (BITS-Pilani Hyderabad) CS F111 January 24, 2020 17 / 40


    Repetition Flowchart

    while condition is true


    Do
    Process Step(s)
    Loop

    Dr. Odelu Vanga (BITS-Pilani Hyderabad) CS F111 January 24, 2020 17 / 40


    Flowchart of multiplication table for a given number N

    Dr. Odelu Vanga (BITS-Pilani Hyderabad) CS F111 January 24, 2020 18 / 40


    Flowchart of multiplication table for a given number N

    Dr. Odelu Vanga (BITS-Pilani Hyderabad) CS F111 January 24, 2020 19 / 40


    Flowchart of multiplication table for a given number N

    Dr. Odelu Vanga (BITS-Pilani Hyderabad) CS F111 January 24, 2020 20 / 40


    Flowchart of multiplication table for a given number N

    Dr. Odelu Vanga (BITS-Pilani Hyderabad) CS F111 January 24, 2020 21 / 40


    Flowchart of multiplication table for a given number N

    Dr. Odelu Vanga (BITS-Pilani Hyderabad) CS F111 January 24, 2020 22 / 40


    Flowchart of multiplication table for a given number N

    Dr. Odelu Vanga (BITS-Pilani Hyderabad) CS F111 January 24, 2020 23 / 40


    Flowchart - Snakes and Ladder game

    Dr. Odelu Vanga (BITS-Pilani Hyderabad) CS F111 January 24, 2020 24 / 40


    Flowchart - Snakes and Ladder game
    How to play:
    Player’s counter start at ’1’.
    Roll the dice ⇒ Move counter.

    Dr. Odelu Vanga (BITS-Pilani Hyderabad) CS F111 January 24, 2020 24 / 40


    Flowchart - Snakes and Ladder game
    How to play:
    Player’s counter start at ’1’.
    Roll the dice ⇒ Move counter.
    - Counter lands at the bottom
    of a ladder ⇒

    Dr. Odelu Vanga (BITS-Pilani Hyderabad) CS F111 January 24, 2020 24 / 40


    Flowchart - Snakes and Ladder game
    How to play:
    Player’s counter start at ’1’.
    Roll the dice ⇒ Move counter.
    - Counter lands at the bottom
    of a ladder ⇒ Move up to the
    top of the ladder
    - Counter lands on the head of
    a snake ⇒

    Dr. Odelu Vanga (BITS-Pilani Hyderabad) CS F111 January 24, 2020 24 / 40


    Flowchart - Snakes and Ladder game
    How to play:
    Player’s counter start at ’1’.
    Roll the dice ⇒ Move counter.
    - Counter lands at the bottom
    of a ladder ⇒ Move up to the
    top of the ladder
    - Counter lands on the head of
    a snake ⇒ Must slide down
    to the bottom of the snake
    The first player to get to the
    space ’30’ is the winner.

    Dr. Odelu Vanga (BITS-Pilani Hyderabad) CS F111 January 24, 2020 24 / 40


    Flowchart - Snakes and Ladder game
    How to play:
    Player’s counter start at ’1’.
    Roll the dice ⇒ Move counter.
    - Counter lands at the bottom
    of a ladder ⇒ Move up to the
    top of the ladder
    - Counter lands on the head of
    a snake ⇒ Must slide down
    to the bottom of the snake
    The first player to get to the
    space ’30’ is the winner.

    Develop Algorithm and then


    Draw a flowchart to solve this
    problem ?

    Dr. Odelu Vanga (BITS-Pilani Hyderabad) CS F111 January 24, 2020 24 / 40


    Flowchart - Snakes and Ladder game

    Dr. Odelu Vanga (BITS-Pilani Hyderabad) CS F111 January 24, 2020 25 / 40


    Flowchart - Snakes and Ladder game

    Dr. Odelu Vanga (BITS-Pilani Hyderabad) CS F111 January 24, 2020 26 / 40


    Flowchart - Snakes and Ladder game

    Dr. Odelu Vanga (BITS-Pilani Hyderabad) CS F111 January 24, 2020 27 / 40


    Flowchart - Snakes and Ladder game

    Dr. Odelu Vanga (BITS-Pilani Hyderabad) CS F111 January 24, 2020 28 / 40


    Flowchart - Snakes and Ladder game

    Dr. Odelu Vanga (BITS-Pilani Hyderabad) CS F111 January 24, 2020 29 / 40


    Flowchart - Snakes and Ladder game

    Dr. Odelu Vanga (BITS-Pilani Hyderabad) CS F111 January 24, 2020 30 / 40


    Flowchart - Snakes and Ladder game

    Dr. Odelu Vanga (BITS-Pilani Hyderabad) CS F111 January 24, 2020 31 / 40


    Flowchart - Snakes and Ladder game

    Dr. Odelu Vanga (BITS-Pilani Hyderabad) CS F111 January 24, 2020 32 / 40


    Flowchart - Snakes and Ladder game

    Dr. Odelu Vanga (BITS-Pilani Hyderabad) CS F111 January 24, 2020 33 / 40


    Flowchart - Snakes and Ladder game

    Dr. Odelu Vanga (BITS-Pilani Hyderabad) CS F111 January 24, 2020 34 / 40


    Flowchart - Snakes and Ladder game

    Dr. Odelu Vanga (BITS-Pilani Hyderabad) CS F111 January 24, 2020 35 / 40


    Flowchart - Snakes and Ladder game

    Dr. Odelu Vanga (BITS-Pilani Hyderabad) CS F111 January 24, 2020 36 / 40


    Switch-Case Flowchart

    Note that expression must return


    integer constant value

    Dr. Odelu Vanga (BITS-Pilani Hyderabad) CS F111 January 24, 2020 37 / 40


    Switch-Case Flowchart

    switch (expression)
    {
    case 1:
    Statement 1;
    break;

    Note that expression must return


    integer constant value

    Dr. Odelu Vanga (BITS-Pilani Hyderabad) CS F111 January 24, 2020 37 / 40


    Switch-Case Flowchart

    switch (expression)
    {
    case 1:
    Statement 1;
    break;
    case 2:
    Statement 2;
    break;

    Note that expression must return


    integer constant value

    Dr. Odelu Vanga (BITS-Pilani Hyderabad) CS F111 January 24, 2020 37 / 40


    Switch-Case Flowchart

    switch (expression)
    {
    case 1:
    Statement 1;
    break;
    case 2:
    Statement 2;
    break;
    ..
    .
    case n:
    Statement n;
    break;

    Note that expression must return


    integer constant value

    Dr. Odelu Vanga (BITS-Pilani Hyderabad) CS F111 January 24, 2020 37 / 40


    Switch-Case Flowchart

    switch (expression)
    {
    case 1:
    Statement 1;
    break;
    case 2:
    Statement 2;
    break;
    ..
    .
    case n:
    Statement n;
    break;
    default:
    Note that expression must return Statement;
    integer constant value
    }

    Dr. Odelu Vanga (BITS-Pilani Hyderabad) CS F111 January 24, 2020 37 / 40


    Example: switch case

    Write a switch statement to print a op b, where op ∈ {+, −, ∗, invalid}

    Dr. Odelu Vanga (BITS-Pilani Hyderabad) CS F111 January 24, 2020 38 / 40


    Example: switch case

    Write a switch statement to print a op b, where op ∈ {+, −, ∗, invalid}


    switch (op)
    {
    case ’+’:
    printf(”%d”,a+b);
    break;
    case ’-’:
    printf(”%d”,a-b);
    break;
    case ’*’:
    printf(”%d”,a*b);
    break;
    default:
    print (”invalid”);
    }

    Dr. Odelu Vanga (BITS-Pilani Hyderabad) CS F111 January 24, 2020 38 / 40


    Solve the Examples

    1. Find profit or loss when selling a pen.


    2. Find factorial of a given number N.
    3. Print multiplication table for a given number N.
    4. Find the binary equivalent of given number N only using loop concept.
    For example, N = 372.
    6. Develop algorithm and flowchart for the problem:

    1
    f (1) = 1+
    1
    1
    f (2) = 1+
    1 + 12
    1
    f (3) = 1+
    1 + 1+1 1
    3

    Dr. Odelu Vanga (BITS-Pilani Hyderabad) CS F111 January 24, 2020 39 / 40


    .

    Thank You

    Dr. Odelu Vanga (BITS-Pilani Hyderabad) CS F111 January 24, 2020 40 / 40

    You might also like
