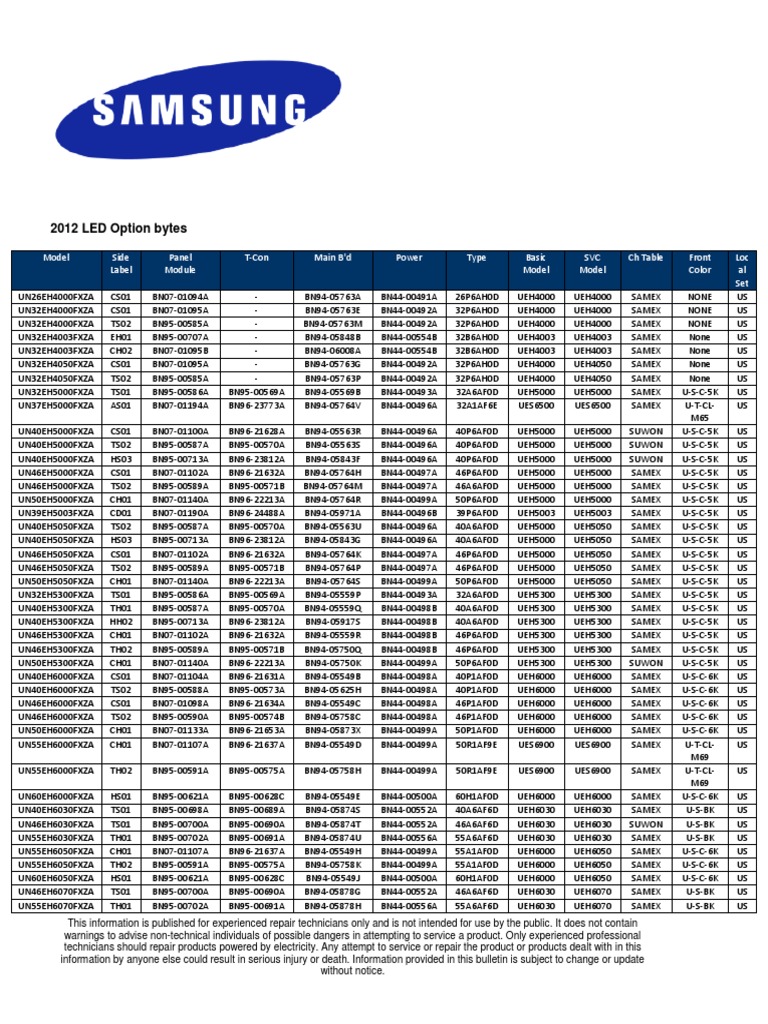

2012 LED Option bytes

Model Side Panel T-Con Main B'd Power Type Basic SVC Ch Table Front Loc
Label Module Model Model Color al
Set
UN26EH4000FXZA CS01 BN07-01094A - BN94-05763A BN44-00491A 26P6AH0D UEH4000 UEH4000 SAMEX NONE US
UN32EH4000FXZA CS01 BN07-01095A - BN94-05763E BN44-00492A 32P6AH0D UEH4000 UEH4000 SAMEX NONE US
UN32EH4000FXZA TS02 BN95-00585A - BN94-05763M BN44-00492A 32P6AH0D UEH4000 UEH4000 SAMEX NONE US
UN32EH4003FXZA EH01 BN95-00707A - BN94-05848B BN44-00554B 32B6AH0D UEH4003 UEH4003 SAMEX None US
UN32EH4003FXZA CH02 BN07-01095B - BN94-06008A BN44-00554B 32B6AH0D UEH4003 UEH4003 SAMEX None US
UN32EH4050FXZA CS01 BN07-01095A - BN94-05763G BN44-00492A 32P6AH0D UEH4000 UEH4050 SAMEX None US
UN32EH4050FXZA TS02 BN95-00585A - BN94-05763P BN44-00492A 32P6AH0D UEH4000 UEH4050 SAMEX None US
UN32EH5000FXZA TS01 BN95-00586A BN95-00569A BN94-05569B BN44-00493A 32A6AF0D UEH5000 UEH5000 SAMEX U-S-C-5K US
UN37EH5000FXZA AS01 BN07-01194A BN96-23773A BN94-05764V BN44-00496A 32A1AF6E UES6500 UES6500 SAMEX U-T-CL- US
M65
UN40EH5000FXZA CS01 BN07-01100A BN96-21628A BN94-05563R BN44-00496A 40P6AF0D UEH5000 UEH5000 SUWON U-S-C-5K US
UN40EH5000FXZA TS02 BN95-00587A BN95-00570A BN94-05563S BN44-00496A 40P6AF0D UEH5000 UEH5000 SUWON U-S-C-5K US
UN40EH5000FXZA HS03 BN95-00713A BN96-23812A BN94-05843F BN44-00496A 40P6AF0D UEH5000 UEH5000 SUWON U-S-C-5K US
UN46EH5000FXZA CS01 BN07-01102A BN96-21632A BN94-05764H BN44-00497A 46P6AF0D UEH5000 UEH5000 SAMEX U-S-C-5K US
UN46EH5000FXZA TS02 BN95-00589A BN95-00571B BN94-05764M BN44-00497A 46A6AF0D UEH5000 UEH5000 SAMEX U-S-C-5K US
UN50EH5000FXZA CH01 BN07-01140A BN96-22213A BN94-05764R BN44-00499A 50P6AF0D UEH5000 UEH5000 SAMEX U-S-C-5K US
UN39EH5003FXZA CD01 BN07-01190A BN96-24488A BN94-05971A BN44-00496B 39P6AF0D UEH5003 UEH5003 SAMEX U-S-C-5K US
UN40EH5050FXZA TS02 BN95-00587A BN95-00570A BN94-05563U BN44-00496A 40A6AF0D UEH5000 UEH5050 SAMEX U-S-C-5K US
UN40EH5050FXZA HS03 BN95-00713A BN96-23812A BN94-05843G BN44-00496A 40A6AF0D UEH5000 UEH5050 SAMEX U-S-C-5K US
UN46EH5050FXZA CS01 BN07-01102A BN96-21632A BN94-05764K BN44-00497A 46P6AF0D UEH5000 UEH5050 SAMEX U-S-C-5K US
UN46EH5050FXZA TS02 BN95-00589A BN95-00571B BN94-05764P BN44-00497A 46P6AF0D UEH5000 UEH5050 SAMEX U-S-C-5K US
UN50EH5050FXZA CH01 BN07-01140A BN96-22213A BN94-05764S BN44-00499A 50P6AF0D UEH5000 UEH5050 SAMEX U-S-C-5K US
UN32EH5300FXZA TS01 BN95-00586A BN95-00569A BN94-05559P BN44-00493A 32A6AF0D UEH5300 UEH5300 SAMEX U-S-C-5K US
UN40EH5300FXZA TH01 BN95-00587A BN95-00570A BN94-05559Q BN44-00498B 40A6AF0D UEH5300 UEH5300 SAMEX U-S-C-5K US
UN40EH5300FXZA HH02 BN95-00713A BN96-23812A BN94-05917S BN44-00498B 40A6AF0D UEH5300 UEH5300 SAMEX U-S-C-5K US
UN46EH5300FXZA CH01 BN07-01102A BN96-21632A BN94-05559R BN44-00498B 46P6AF0D UEH5300 UEH5300 SAMEX U-S-C-5K US
UN46EH5300FXZA TH02 BN95-00589A BN95-00571B BN94-05750Q BN44-00498B 46P6AF0D UEH5300 UEH5300 SAMEX U-S-C-5K US
UN50EH5300FXZA CH01 BN07-01140A BN96-22213A BN94-05750K BN44-00499A 50P6AF0D UEH5300 UEH5300 SUWON U-S-C-5K US
UN40EH6000FXZA CS01 BN07-01104A BN96-21631A BN94-05549B BN44-00498A 40P1AF0D UEH6000 UEH6000 SAMEX U-S-C-6K US
UN40EH6000FXZA TS02 BN95-00588A BN95-00573A BN94-05625H BN44-00498A 40P1AF0D UEH6000 UEH6000 SAMEX U-S-C-6K US
UN46EH6000FXZA CS01 BN07-01098A BN96-21634A BN94-05549C BN44-00498A 46P1AF0D UEH6000 UEH6000 SAMEX U-S-C-6K US
UN46EH6000FXZA TS02 BN95-00590A BN95-00574B BN94-05758C BN44-00498A 46P1AF0D UEH6000 UEH6000 SAMEX U-S-C-6K US
UN50EH6000FXZA CH01 BN07-01133A BN96-21653A BN94-05873X BN44-00499A 50P1AF0D UEH6000 UEH6000 SAMEX U-S-C-6K US
UN55EH6000FXZA CH01 BN07-01107A BN96-21637A BN94-05549D BN44-00499A 50R1AF9E UES6900 UES6900 SAMEX U-T-CL- US
M69
UN55EH6000FXZA TH02 BN95-00591A BN95-00575A BN94-05758H BN44-00499A 50R1AF9E UES6900 UES6900 SAMEX U-T-CL- US
M69
UN60EH6000FXZA HS01 BN95-00621A BN95-00628C BN94-05549E BN44-00500A 60H1AF0D UEH6000 UEH6000 SAMEX U-S-C-6K US
UN40EH6030FXZA TS01 BN95-00698A BN95-00689A BN94-05874S BN44-00552A 40A6AF6D UEH6030 UEH6030 SAMEX U-S-BK US
UN46EH6030FXZA TS01 BN95-00700A BN95-00690A BN94-05874T BN44-00552A 46A6AF6D UEH6030 UEH6030 SUWON U-S-BK US
UN55EH6030FXZA TH01 BN95-00702A BN95-00691A BN94-05874U BN44-00556A 55A6AF6D UEH6030 UEH6030 SAMEX U-S-BK US
UN55EH6050FXZA CH01 BN07-01107A BN96-21637A BN94-05549H BN44-00499A 55A1AF0D UEH6000 UEH6050 SAMEX U-S-C-6K US
UN55EH6050FXZA TH02 BN95-00591A BN95-00575A BN94-05758K BN44-00499A 55A1AF0D UEH6000 UEH6050 SAMEX U-S-C-6K US
UN60EH6050FXZA HS01 BN95-00621A BN95-00628C BN94-05549J BN44-00500A 60H1AF0D UEH6000 UEH6050 SAMEX U-S-C-6K US
UN46EH6070FXZA TS01 BN95-00700A BN95-00690A BN94-05878G BN44-00552A 46A6AF6D UEH6030 UEH6070 SAMEX U-S-BK US
UN55EH6070FXZA TH01 BN95-00702A BN95-00691A BN94-05878H BN44-00556A 55A6AF6D UEH6030 UEH6070 SAMEX U-S-BK US
This information is published for experienced repair technicians only and is not intended for use by the public. It does not contain
warnings to advise non-technical individuals of possible dangers in attempting to service a product. Only experienced professional
technicians should repair products powered by electricity. Any attempt to service or repair the product or products dealt with in this
information by anyone else could result in serious injury or death. Information provided in this bulletin is subject to change or update
without notice.
 Model Side Panel T-Con Main B'd Power Type Basic SVC Ch Table Front Loc
Label Module Model Model Color al
Set
UN40ES6100FXZA TS01 BN95-00604A BN95-00685A BN94-05625Y BN44-00502A 40A1AF0E UES6100 UES6100 SAMEX U-T-CG- US
M61
UN46ES6100FXZA TS01 BN95-00606A BN95-00686A BN94-05656A BN44-00502A 46A1AF0E UES6100 UES6100 SAMEX U-T-CG- US
M61
UN50ES6100FXZA CS01 BN07-01170A BN96-22878A BN94-05873Y BN44-00503A 50P1AF0E UES6100 UES6100 SAMEX U-T-CG- US
M61
UN55ES6100FXZA TS01 BN95-00608A BN95-00687A BN94-05656C BN44-00503A 55A1AF0E UES6100 UES6100 SAMEX U-T-CG- US
M61
UN60ES6100FXZA HH01 BN95-00631A BN95-00708C BN94-05683M BN44-00524A 60H1AF0E UES6100 UES6100 SAMEX U-T-CG- US
M61
UN40ES6150FXZA TS01 BN95-00604A BN95-00685A BN94-05625Z BN44-00502A 40A1AF0E UES6100 UES6150 SAMEX U-T-BG-M US
UN46ES6150FXZA TS01 BN95-00606A BN95-00686A BN94-05656B BN44-00502A 46A1AF0E UES6100 UES6150 SAMEX U-T-BG-M US
UN55ES6150FXZA TS01 BN95-00608A BN95-00687A BN94-05656D BN44-00503A 55A1AF0E UES6100 UES6150 SAMEX U-T-BG-M US
UN32ES6500FXZA TH01 BN95-00610A BN95-00576A BN94-05913A BN44-00517B 32A1AF6E UES6500 UES6500 SAMEX U-T-CL- US
M65
UN40ES6500FXZA TS01 BN95-00611A BN95-00577A BN94-05656E BN44-00520A 40A1AF6E UES6500 UES6500 SAMEX U-T-CL- US
M65
UN46ES6500FXZA TS01 BN95-00607A BN95-00578A BN94-05656G BN44-00520A 46A1AF6E UES6500 UES6500 SAMEX U-T-CL- US
M65
UN50ES6500FXZA CS01 BN07-01134A BN96-21654A BN94-05874G BN44-00521A 50P1AF6E UES6500 UES6500 SAMEX U-T-CL- US
M65
UN55ES6500FXZA TS01 BN95-00609A BN95-00579B BN94-05656J BN44-00521A 55A1AF6E UES6500 UES6500 SAMEX U-T-CL- US
M65
UN60ES6500FXZA HS01 BN95-00632A BN95-00629B BN94-05683P BN44-00525A 60H1AF6E UES6500 UES6500 SAMEX U-T-CL- US
M65
UN65ES6500FXZA MS01 BN95-00635A BN96-22428A BN94-05874L BN44-00545A 65L1AF6E UES6500 UES6500 SAMEX U-T-CL- US
M65
UN55ES6550FXZA TS01 BN95-00609A BN95-00579B BN94-05656K BN44-00521A 55A1AF6E UES6500 UES6550 SAMEX U-T-CL- US
M65
UN40ES6580FXZA TS01 BN95-00611A BN95-00577A BN94-05656N BN44-00520A 40A1AF6E UES6500 UES6580 SAMEX U-T-CL- US
M65
UN46ES6580FXZA TS01 BN95-00607A BN95-00578A BN94-05656R BN44-00520A 46A1AF6E UES6500 UES6580 SAMEX U-T-CL- US
M65
UN55ES6580FXZA TS01 BN95-00609A BN95-00579B BN94-05656U BN44-00521A 55A1AF6E UES6500 UES6580 SUWON U-T-CL- US
M65
UN46ES6600FXZA TS01 BN95-00607A BN95-00578A BN94-05656L BN44-00520A 46A1AF6E UES6600 UES6600 SAMEX U-T-CL- US
M66
UN55ES6600FXZA TS01 BN95-00609A BN95-00579B BN94-05656M BN44-00521A 55A1AF6E UES6600 UES6600 SAMEX U-T-CL- US
M66
UN40ES6820FXZA TS01 BN95-00611A BN95-00577A BN94-05656P BN44-00520A 40A1AF6E UES6800 UES6820 SAMEX U-T-CL- US
M68
UN46ES6820FXZA TS01 BN95-00607A BN95-00578A BN94-05656S BN44-00520A 46A1AF6E UES6800 UES6820 SUWON U-T-CL- US
M68
UN55ES6820FXZA TS01 BN95-00609A BN95-00579B BN94-05656V BN44-00521A 55A1AF6E UES6800 UES6820 SUWON U-T-CL- US
M68
UN50ES6900FXZA AD01 BN07-01186B BN96-23500A BN94-05874X BN44-00543A 50R1AF9E UES6900 UES6900 SAMEX U-T-CL- US
M69
UN55ES6900FXZA TD01 BN95-00715A BN95-00579B BN94-05874Y BN44-00521C 55A1AF6E UES6900 UES6900 SAMEX U-T-CL- US
M69
UN46ES7100FXZA TS01 BN95-00619A BN95-00581D BN94-05572T BN44-00522A 46A2UF0E UES7100 UES7100 SAMEX U-T-CL- US
M71
UN46ES7100FXZA US02 BN95-00717A BN95-00711A BN94-05895A BN44-00522A 46A2UF0E UES7100 UES7100 SAMEX U-T-CL- US
M71
UN55ES7100FXZA TS01 BN95-00618A BN95-00582C BN94-05572U BN44-00523A 55A2UF0E UES7100 UES7100 SAMEX U-T-CL- US
M71
UN55ES7100FXZA US02 BN95-00718A BN95-00712A BN94-05896A BN44-00523A 55A2UF0E UES7100 UES7100 SAMEX U-T-CL- US
M71
UN60ES7100FXZA HS01 BN95-00633B BN95-00630B BN94-05578B BN44-00526A 60H2UF0E UES7100 UES7100 SAMEX U-T-CL- US
M71
UN46ES7150FXZA TS01 BN95-00619A BN95-00581D BN94-05882A BN44-00522A 46A2UF0E UES7100 UES7150 SAMEX U-T-CL- US
M71
UN46ES7150FXZA US02 BN95-00717A BN95-00711A BN94-05572Z BN44-00522A 46A2UF0E UES7100 UES7150 SAMEX U-T-CL- US
M71

This information is published for experienced repair technicians only and is not intended for use by the public. It does not contain
warnings to advise non-technical individuals of possible dangers in attempting to service a product. Only experienced professional
technicians should repair products powered by electricity. Any attempt to service or repair the product or products dealt with in this
information by anyone else could result in serious injury or death. Information provided in this bulletin is subject to change or update
without notice.
 Model Side Panel T-Con Main B'd Power Type Basic SVC Ch Table Front Loc
Label Module Model Model Color al
Set
UN55ES7150FXZA TS01 BN95-00618A BN95-00582C BN94-05883A BN44-00523A 55A2UF0E UES7100 UES7150 SAMEX U-T-CL- US
M71
UN55ES7150FXZA US02 BN95-00718A BN95-00712A BN94-05578A BN44-00523A 55A2UF0E UES7100 UES7150 SAMEX U-T-CL- US
M71
UN60ES7150FXZA HS01 BN95-00633B BN95-00630B BN94-05907A BN44-00526A 60H2UF0E UES7100 UES7150 SAMEX U-T-CL- US
M71
UN46ES7500FXZA TS01 BN95-00619A BN95-00581D BN94-05566A BN44-00522A 46A2UF0E UES7500 UES7500 SAMEX U-MOIP- US
7K
UN55ES7500FXZA TS01 BN95-00618A BN95-00582C BN94-05566C BN44-00523A 55A2UF0E UES7500 UES7500 SAMEX U-MOIP- US
7K
UN60ES7500FXZA HS01 BN95-00633A BN95-00630A BN94-05566E BN44-00526A 60H2UF0E UES7500 UES7500 SAMEX U-MOIP- US
7K
UN46ES7550FXZA TS01 BN95-00619A BN95-00581D BN94-05595M BN44-00522A 46A2UF0E UES7500 UES7550 SAMEX U-MOIP- US
7K
UN55ES7550FXZA TS01 BN95-00618A BN95-00582C BN94-05595N BN44-00523A 55A2UF0E UES7500 UES7550 SAMEX U-MOIP- US
7K
UN60ES7550FXZA HS01 BN95-00633A BN95-00630A BN94-05595P BN44-00526A 60H2UF0E UES7500 UES7550 SAMEX U-MOIP- US
7K
UN46ES8000FXZA TS01 BN95-00619A BN95-00581D BN94-05160N BN44-00522A 46A2UF0E UES8000 UES8000 SAMEX U-MOIP- US
8K
UN55ES8000FXZA TS01 BN95-00618A BN95-00582C BN94-05160P BN44-00523A 55A2UF0E UES8000 UES8000 SAMEX U-MOIP- US
8K
UN60ES8000FXZA HS01 BN95-00633A BN95-00630A BN94-05160Q BN44-00526A 60H2UF0E UES8000 UES8000 SAMEX U-MOIP- US
8K
UN65ES8000FXZA AH01 BN95-00636A BN96-21574A BN94-05578J BN44-00539A 65L2UF0E UES8000 UES8000 SAMEX U-MOIP- US
8K

This information is published for experienced repair technicians only and is not intended for use by the public. It does not contain
warnings to advise non-technical individuals of possible dangers in attempting to service a product. Only experienced professional
technicians should repair products powered by electricity. Any attempt to service or repair the product or products dealt with in this
information by anyone else could result in serious injury or death. Information provided in this bulletin is subject to change or update
without notice.
