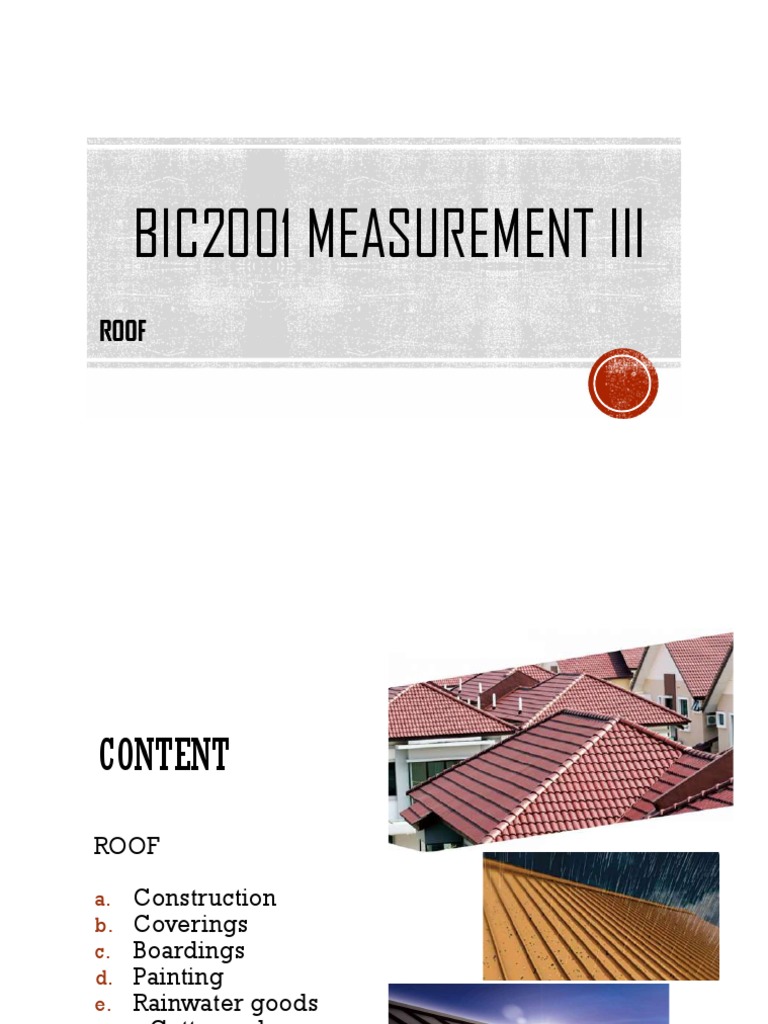

BIC2001 MEASUREMENT III

ROOF
CONTENT
ROOF

a. Construction
b. Coverings
c. Boardings
d. Painting
e. Rainwater goods
• Gutterwork
• Pipework

2
A. CONSTRUCTION

Refer pg.148
A. CONSTRUCTION (CONT’D)
SMM2
M.2.1.d
M.1.1

Refer pg.152
A. CONSTRUCTION (CONT’D)

Refer pg.153
A. CONSTRUCTION (CONT’D)

500mm
rafter
c.t.c

End of
rafter

10000

Refer pg.154
A. CONSTRUCTION (CONT’D) Refer pg.154 & 155

500mm
rafter
c.t.c

End of
rafter

10000

Hip roof

9500
A. CONSTRUCTION (CONT’D)

Ridge- purple line

Roof plan (not to scale)

A. CONSTRUCTION (CONT’D)
SMM2
M.3.2

Wrought surface
- Rafter (purple)
- Ceiling joist (orange)
- Hip rafter
- Valley rafter

Length wrought
surface for rafter
45˚
= 0verhang/cos45˚
Overhang- 500 = 0.500/0.7071
= 0.707

hip
rafter
rafter

Overhang- 500
A. CONSTRUCTION (CONT’D)
TIMBER PITCHED ROOF
Taking-off list
Construction
1. Plates -m
a) 100 x 75 wall plates
2. 50 x 100 pitched roof members -m
a) Rafters
b) Ceiling joists
3. 50 x 100 pitched roof members -m
a) Hip rafters
b) Valley rafters
A. CONSTRUCTION (CONT’D)
TIMBER PITCHED ROOF
Taking-off list
Construction
4. 25 x 150 pitched roof members -m
a) Ridge boards
5. Wrought surface on rafters -m
6. Wrought surface on hip/valley rafters -m
B. COVERINGS
SMM2
L.15
L.4
L.14

Rafter length

Roof length

Roof covering area = (roof length x rafter length) x 2

The area of roof covering is measured in the same way whether the roof is hipped or gabled at the
ends, provided that the angle of pitch is constant throughout, that is, twice the length if the roof
multiplied by the length on slope.

Refer pg.157 & 158

B. COVERINGS (CONT’D)
SMM2
L.38.1
L.48.1
B. COVERINGS (CONT’D)
TIMBER PITCHED ROOF
Taking-off list
Coverings
7. Roof tiles - m2
8. Insulation - m2
9. Hip tiles - m
10. Verge tiles - m
11. Ridge capping - m
12. Fair ends - No.
13. Apex tiles - No.
14. Flashing - m
C. BOARDINGS & D. PAINTING
SMM2
M.4.1g
C. BOARDINGS & D. PAINTING (CONT’D)
TIMBER PITCHED ROOF
Taking-off list
Boardings
15. Fascia boards -m
Painting
16. Painting to timber - m2
17. Painting to timber -m

Painting refer to SMM2 U3 – Measurement based on exposed and wrought surfaces.

E. RAINWATER GOODS
SMM2
Q.5.1
Q.1.5
Q.5.3
Q.8.6
E. RAINWATER GOODS (CONT’D)
TIMBER PITCHED ROOF
Taking-off list
Rainwater goods
Gutterwork
18. Gutter - m
19. Stop ends - No.
20. Bends - No.
21. Bends with outlet - No.
22. Balloon gratings - No.
E. RAINWATER GOODS (CONT’D)
TIMBER PITCHED ROOF
Taking-off list
Rainwater goods
Pipework
23. Pipes - m
24. Bends - No.
25. Swan necks - No.
26. Shoes - No.
THANK YOU
