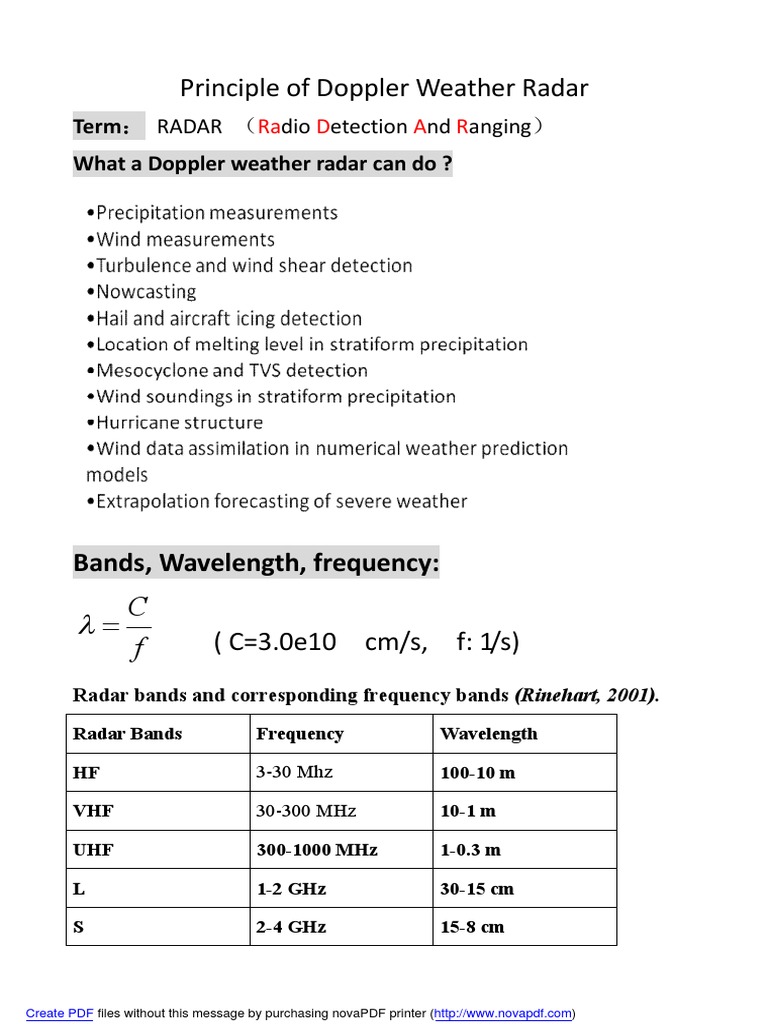

Principle of Doppler Weather Radar

Term： RADAR （Radio Detection And Ranging）

What a Doppler weather radar can do ?

Bands, Wavelength, frequency:

C

f ( C=3.0e10 cm/s, f: 1/s)
Radar bands and corresponding frequency bands (Rinehart, 2001).
Radar Bands Frequency Wavelength

HF 3-30 Mhz 100-10 m

VHF 30-300 MHz 10-1 m

UHF 300-1000 MHz 1-0.3 m

L 1-2 GHz 30-15 cm

S 2-4 GHz 15-8 cm

Create PDF files without this message by purchasing novaPDF printer ([Link]
 C 4-8 GHz 8-4 cm

X 8-12 GHz 4-2.5 cm

Ku 12-18 GHz 2.5-1.7 cm

K 18-27 GHz 1.7-1.2 cm

Ka 27-40 GHz 1.2-0.75 cm

W 40-300 GHz 7.5-1 mm

Why so many bands of weather radar are employed ?

World-widely used radar is S, C or X band radar for weather detection.

Base Information provided by radar(Level 1 product):
Radar Reflectivity Factor, Z
Radial Velocity, V
Velocity Spectrum Width, W/SW
Derived information(Level 2 product):
Rainfall intensity, Rainfall amount,

Create PDF files without this message by purchasing novaPDF printer ([Link]
 Rainfall distribution,
Wind (Horizontal, vertical),
Echo top,
Vertical Integrated liquid water content
Hail (POH, POSH,MEHS)
... …
Maximum Range for monitoring:
460 Km (WSR-88D or Cinrad/SA/SB）
300 Km (C-band),
200 Km (X-band)
20+ Km (Ka-band)
Radar System configuration

Main modules of a weather radar system:

Create PDF files without this message by purchasing novaPDF printer ([Link]
 Transmitter
Receiver
Antenna
Singal Processor and display

Refer to WSR-88D, the Radar system is made of RDA, RPG and

PUP
RDA: Radar Data Acquisition
RPG: Radar Product Generator
PUP: Principal User Processor

RDA: Antenna, Transmitter, Receiver, Controller

RPG: Computer + Algorithm
PUP: Computer + Interface

Create PDF files without this message by purchasing novaPDF printer ([Link]
 What a weather radar system looks like ?

Some Important Parameters of weather radar

Pt Peak power from Transmitter (600 kw)
τ Pulse duration (microsecond (1 μs)
PRF Pulse Repeating Frequency (1000 Hz)
λ Wave length
Θ,Φ Beam width of the antenna
Φ, θ≈73λ/D (Degree)
λ: working wavelength
D: Antenna Diameter
G Gain of the antenna (40dB)

Create PDF files without this message by purchasing novaPDF printer ([Link]
 G≈33000/(Φ*θ) (Φ and θ in degree)
A WSR-88D radar has a 8.5-meter (28-feet) antenna.
Φ, θ is about 1 degree, G is about 45dB
Beam of weather radar antenna
Main lobe, side lobe, beam width

Of all the above parameters, λis most important,

PRF is the second important.

Weather Radar installed in China

About 226 CINRAD totally, the following map shows
the radar installed till year 2004.

Create PDF files without this message by purchasing novaPDF printer ([Link]
 Examples of radar product
Radar reflectivity factor (Reflects rainfall Intensity --- rain rate)

Reflectivity Factor (dBZ)

65 55 45 35 25 15 5

Create PDF files without this message by purchasing novaPDF printer ([Link]
 With GIS Overlaid (please care about the text information)

Reflectivity factor and radial wind velocity

Create PDF files without this message by purchasing novaPDF printer ([Link]
 Scan models (PPI, RHI, V-PPI)
PPI (Plain-Position Indicator)

PPI shows the horizontal distribution of rainfall

Create PDF files without this message by purchasing novaPDF printer ([Link]
 RHI (Range-Height Indicator)

RHI shows the vertical structure of a storm cell

Create PDF files without this message by purchasing novaPDF printer ([Link]
 V-PPI（Volumetric PPI）

The V-PPI data contains 3-D information of storms

Extract CAPPI data from V-PPI data

(Constant Altitude PPI)

Create PDF files without this message by purchasing novaPDF printer ([Link]
 Basic processings of radar data
(1) Data display
(2) Data quality control (clutter cancelling)
(3) Radar data composition
(4) Level 2 product from radar base data
(rain rate, rainfall amount, wind field)
……

(1) 3D display

(2) Clutter filtering

Before filtering After filtering

Create PDF files without this message by purchasing novaPDF printer ([Link]
 (3) Radar data composite

(4) Echo top

Create PDF files without this message by purchasing novaPDF printer ([Link]
 (5) VCS (Vertical Cutting Section )

Create PDF files without this message by purchasing novaPDF printer ([Link]
 Weather radar working principle
1） Weather object position：
Range
Azimuth
Elevation
R= r*cosα Rmax=?
H = (h0+Rsinα+R2/17000 (km) )
2) Echo intensity
Scattering：
Re-emiting the incident electromagnetic wave.

Scattering characters are related to λ(working wavelength)

and partical feathers especially the size of the size of particle.

Create PDF files without this message by purchasing novaPDF printer ([Link]
 If s/λ<<0.1 (S: circumference of a droplet)
 Rayleigh Scattering (small particle)
If s/λ～1  Mie Scattering (large particle)
Valid for Rayleigh Scatter

Scattering feathers:

(Rayleigh scattering)

Create PDF files without this message by purchasing novaPDF printer ([Link]
 (Mie scattering)

Create PDF files without this message by purchasing novaPDF printer ([Link]
 Under Rayleigh scattering, the radar received echo
power Pr is: (Radar equation)
Pt G 2  2 h  1 1
Pr 
1 0 2 4 ln 2  2 R 2

V
i

Pt G 2  2 h  1 1
 2 2

1 0 2 4 ln 2  R

 5 m2  1 
 4 2  n( D) D 6 dD
 m 2 0

 5 m2  1
 4 2 Z
 m 2
2
3 PhG  m 2
1 
Pr  t
 n( D) D 6 dD
1024 ln 2  2 R 2 m 2  2 0

C 2
Pr  2
K Z
R
C: Radar constant
K 2 : Complex refractive index,
0.93 for water, 0.19 for dry ice/snow
Pr R 2
Z
CK 2
Z : mm6/m3 (0.001 ~ 10,000,000 )
Z  dBZ (dBZ =10*Log10Z) (-30 ~ 70)

Create PDF files without this message by purchasing novaPDF printer ([Link]
 Range of radar reflectivity factor for weather echoes

3) Radial velocity
Doppler effect

Create PDF files without this message by purchasing novaPDF printer ([Link]
 2V
fd 
 (1)
Magnitude of Doppler shift

A Doppler radar can detect the Doppler frequency fd,

so the radial velocity can be obtained by (1).
Horizontal wind and radial velocity demonstration

Create PDF files without this message by purchasing novaPDF printer ([Link]
 The measured radial velocity is the average of
Z-weighted radial velocity of all particles within the
sampling volume.

4) Spectrum width

Create PDF files without this message by purchasing novaPDF printer ([Link]
 N
1 2
W
N
 Vi  VD 
i 1

Spectrum width is a measure for the varies of particle

velocity within the sampling volume. Mathematically,
close to standard variation, denotes for hydrometer
velocity instability, or turbulence.
Currently, Product relevant to spectrum width is not
well used, because two many factors(meteorologivcal
and non-meteorological) have impact on the width. It
is hard to connect spectrum width and weather event.

Create PDF files without this message by purchasing novaPDF printer ([Link]
 Summary
(1) Radar ability
(2) Radar configuration
(3) Parameters
(4) Scan mode
(5) Basic processing
(6) Scattering
(7) Radar equation --- echo intensity Z
(8) Doppler effect --- radial velocity
(9) Velocity variation --- Spectrum width

Appendix:
Weather radar types
Conventional radar,
Doppler radar,
Dual polarization (polarimetric) Doppler radar,
Dual wavelength radar,
Phase-arrayed weather radar.

Vertical Coverage Pattern VCP11 and VCP21 in

WSR-88D system.
• VCP11
– 14 elevations in 5 min

Create PDF files without this message by purchasing novaPDF printer ([Link]
 – Contains fewest data gaps
– Used for examining nearby storms and
when significant echoes are present
– Requires a high degree of data
processing

• VCP 21
– 9 elevation scans in 6 minutes
– Adequate coverage in non-severe wx
events
– Increased data gaps
• Especially near storms

Create PDF files without this message by purchasing novaPDF printer ([Link]
 Question:
1. What is the of a radar antenna radome ? What is the
side-effect of the radome ?
2. Which is better, big antenna or small antenna ?
3. Thinking about the sampling volume.
4. Can birds produce echo ? what features it may
have ?
5. How to distinguish ground clutter ?
6. Can sea wave cause sea clutter ?
