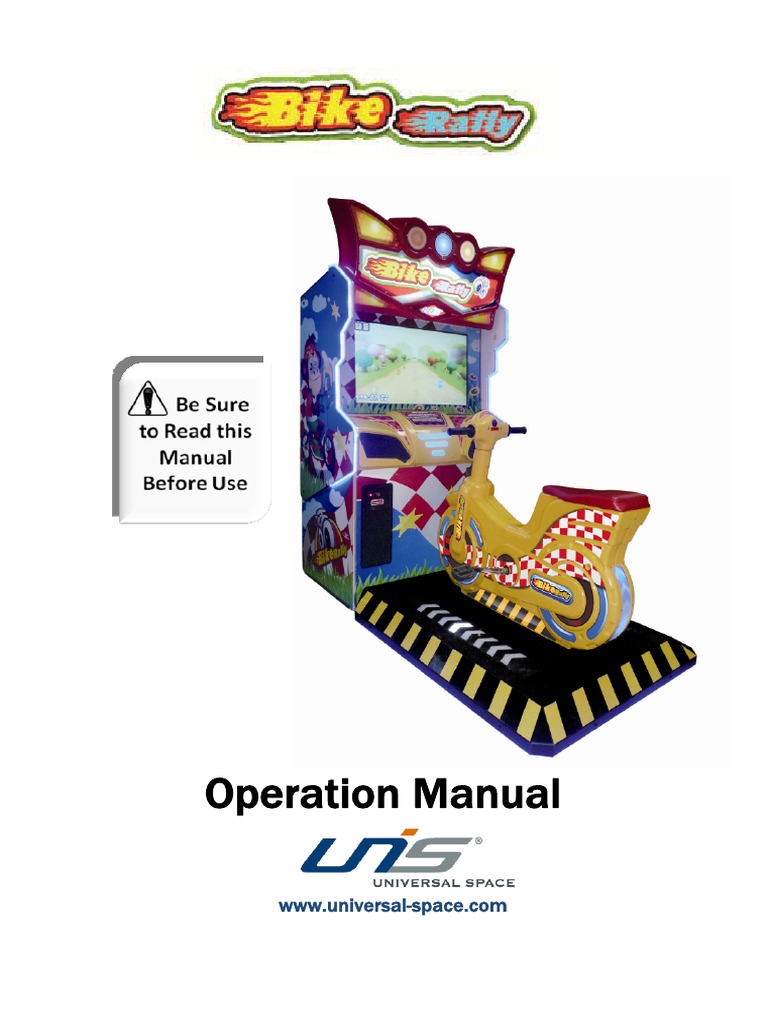

Bike Rally

Operation Manual
www.universal-space.com
Bike Rally Manual Ver.1.01
CONTENT
IMPORTANT SAFETY INSTRUCTIONS ..................................................................... 2
1. SPECIFICATIONS ..................................................................................................... 4
2.PACKAGE CONTENTS ............................................................................................ 5
3.SET UP & INSTALLATION ...................................................................................... 6
4.HOW TO PLAY ......................................................................................................... 9
5. PARAMETER SETTINGS ...................................................................................... 12
6. MAINTENANCE&INSPECTION.............................................................................. 13
7. OVERALL CONSTRUCTION ................................................................................... 14
8. GAME DECALS ....................................................................................................... 25
Non-technical personnel who do not have technical knowledge and

Expertise should refrain from performing such work that this manual
require or perform tasks which are not explained in this manual.
Failing to comply can cause severe accidents such as electric shock or
other serious injuries. All repairs must be performed to original
manufacturer specifications.
WARNING: To reduce the risk of fire, electric shock or personal injury,

unplug or disconnect the machine from the power supply before
servicing.
1
Thank you for purchasing Bike Rally from Universal Space. We hope you enjoy the product.
This manual contains valuable information about how to operate and maintain your game
machine properly and safely. It is intended for the owner and personnel in charge of
product operation. Carefully read and understand the instructions.
If you need any help during installation and setup please utilize this manual and
troubleshooting guide. If the product fails to function properly, non-technical personnel
should under no circumstance attempt to service the machine. Contact your distributor or
manufacturer for help.
Before use, please read IMPORTANT SAFETY INSTRUCTIONS.
IMPORTANT SAFETY INSTRUCTIONS

To ensure the safe usage of this product, carefully read and understand these instructions
before operating your game.
Save these instructions for future reference.

Use this product only as described in this manual. Other uses not recommended may
cause fire, electric shock or personal injury. Unplug the game from the outlet when not in
use, when moving from one location to another, and before cleaning and servicing.
Explanations which require special attention are indicated by signs of warning. Depending
on the potential hazardous degree, the terms: NOTE, NOTICE, and WARNING are used.
NOTE: A NOTE indicates useful hints or information about product usage.

NOTICE: A NOTICE indicates potential damage to product and how to avoid the problem.
WARNING: A WARNING indicates a potential for product damage or serious personal Injury.
It is important to understand the meaning of the following HAZARD SIGNS before

continuing:
High Voltage and Shock Hazard:
High voltage can cause electric shock.
Turn off/unplug power before servicing.
High Temperature Hazard:

This part may cause scalding.
Do not touch. Surface may be hot.
No Touching Hazard:
This part may be hot or can cause electric shock. Do not touch.
Use the following safety guidelines to help ensure your own personal safety
and to help protect your equipment and surrounding environment from
potential damage.
2
This product is an indoor game machine. Do not install

outdoors.
Avoid installing in the following places to prevent fire, electric shock, injury
and/or machine malfunctioning:
 Places subject to rain/moisture, or places subject to high humidity.

 Places subject to direct sunlight, or places subject to extremely hot or cold
temperatures to ensure that it is used within the specified operating range.
 Places where inflammable gas may be present or in the vicinity of highly
inflammable/volatile chemicals or items that can easily catch fire
 On unstable or sloped surfaces. The machine may topple or cause unforeseen
accidents.
 Vicinity of fire exits, fire extinguishers etc that may block/prevent safety measures
IMPORTANT NOTE:
ALL REPAIRS MUST BE DONE TO ORIGINAL MANUFACTURER SPECIFICATIONS.
FAILURE TO DO SO VOID ALL WARRANTIES AND OPERATOR ASSUMES ALL
RISKS.
Note: The contents of this manual may be updated without notice
3
1. SPECIFICATIONS
Work voltage:110V 50/60Hz
Power consumption: Mini power consumption:230W
Max power consumption:260W
Dimension:W75.78×D39.37×H75.15 (inches)
Weight: approximately 551 (lbs)
Environment condition: (Indoor) Temperature:-10℃~+40℃
Humidity:≤90%
Atmospheric pressure:86Pa~106 Pa
Note: After turning off the game, please wait at least 1 minute before restarting
again.
75.15
39.37 75.78
Note: Game parameters are subject to change without notice.
4
2. PACKAGE CONTENT
Open the package and make sure all the items are included:
 1 x Body Assembly
 Following accessories
If any items are found to be missing, please contact your sales representative
No. Part No. Draw No. Name Spec. Qty Illustration
1 H-121-448-000 23301000001 Power cord 10A/250V-1.8M 1
H-121-449-000 25300171002 Key 171 2

2
H-121-484-000 25302222002 Key 2222 1
Φ5×20mm
3 H-121-450-000 21901000015 Fuse 2
T6.3A 250VAC
4 H-121-451-000 41300000003 USB Lenovo 2G 1
5 H-121-701-000 41441110001 Manual English 1
6 H-121-195-000 4.06.13.160028 Wrench 13-15
for help immediately.
NOTE: Part models are subject to change without notice.
5
3. PART NAMES
Marquee
LCD monitor
Auto play button
Speaker Coin mech.
bike
Lights
Ticket
dispenser
Lights
6
4. SET UP & INSTALLATION
This product is an indoor game machine. Do not install

outdoors.
 Refer to IMPORTANT SAFETY INSTRUCTIONS (Pg. 2) for places to avoid
 Place the unit on a dry level surface
 Ventilation openings in the back of the unit must not be obstructed by objects or by
wall.
4.1 Play Zone

This machine requires space for playing and for maintenance as shown below.
Leave space around the game upon installation:
7
4.2 Level Adjustment
Install this machine on a flat surface. Adjust levers to lift casters off the ground to level the
game. If the game is installed on an unsuitable floor, it could cause game malfunction.
To secure the game, adjust the Leveler down until it touches the floor, lifting the casters off
the ground by 5mm. Repeat the same for all levelers.
Leveler Caster
About0.19 inches
Move Fix
NOTICE
Make sure the machine is level with the ground and all the
adjustable legs should stick to the floor closely.
4.3 Transporting The Game

If you need to move the game, adjust the levelers back to an “up” position so the casters
touch the ground.
Level Caster
Mov
NOTICE
 Be careful not to damage the machine during transport.
 The machine should be handled with care when bringing it down from a higher
level.
 Always unplug the game before moving.
 Keep the machine in upright position during transport.
 For longer distance transport, package the game properly to prevent damages
8
4.4 Connecting Power

WARNING: Check the voltage rating before you connect the equipment
to an electrical outlet to ensure that the required voltage and frequency
match the available power source. Please refer the label of the machine.
 Do not plug the equipment power cables into an electrical outlet if the power cable
is damaged.
 Avoid putting many loads on one electrical outlet as it could generate heat and fire
resulting from overload.
 Connect the grounding conductor to the earth terminal (GND):
WARNING
Ensure no heavy objects rest on the power cord. Check to make sure the game cabinet
does not sit on the power cord as this could damage the cord and become hazardous.
To disconnect the game, grip the plug and pull it from the wall outlet. Never pull by the
cord.
To prevent electric shock, do not touch the power plug when hand is wet.
Ensure that nothing rests on the power cord and that it is not located where it can be
stepped on or tripped over.
9
5. HOW TO PLAY
*Rally bike playable is designed for children.

* Choose different character by player or by computer. Choose to play in forest mode or
street mode by player or by computer.
*Use the pedals, handle bar and brakes to control the bike.
*Try your best to avoid all obstacles and win as many point as possible in limited time.
*More points means more tickets, so try your best.
10
6 GAME SETTINGS
6.1 Game setting menu Step 3: Press button to

confirm the setting.
Step 2: Hold the break

to select item.
Step 1: Press “Test” button, and go

to the setting menu.
Item Explanations setting range

Language select Select Chinese or English Chinese/English
Free play Play game with/without coin On/off
Coin setting credit required to play 1~9 coins
Time(Seconds) Game play time 20~90 seconds
Character Choose Chosen by player/Chosen by
Choose character method
Mode computer
Chosen by player/Chosen by
Map Choose Mode Choose map method
computer
Ticket Payout
Points for every 1 ticket 1-99 points
(Every ticket)
Sound control Game play music control On/off
Coin Show current total amount of coin
Ticket Show current total amount of ticket
Clear Clear game data All clear
Times chosen by bookkeeping the times chosen two
player characters by layer
Times chosen by bookkeeping the times chosen two
computer characters by computer
Save the setting and back to the
Save & Exit
game
11
7. MAINTENANCE & INSPECTION

7.1 Safety Check
Check the points listed before operating the machine. These checks are necessary for safe
machine operation:
1. Try to run the game before operation each day.
2. Conduct monthly routine checks of game components ensure good working condition
3. Check the machine regularly for dust and clean when necessary.
Note: Parts and components require preventative maintenance to be kept running
smoothly
7.2 Handling Precautions

When installing or inspecting the machine, be very careful of the following points and
pay attention to ensure that the player can enjoy the game safely.
Non-compliance with the following points or inappropriate handling running counter to
the cautionary matters herein stated can cause personal injury or damage to the machine
WARNING
• Before servicing the machine, be sure to turn power off. Servicing without turning the
power off can cause electric shock or short circuit.
• To avoid electric shock or short circuit, do not plug then unplug the power quickly
• Do not expose power cords and earth wires, these are susceptible to damage.
• Damaged cords and wires can cause electric shock or short circuit and should be
replaced immediately.
• When or after installing the product, avoid pulling the power cord to prevent
unnecessary wear and tear. Use the power button to disconnect power.
• In case the power cord is damaged, ask for replacement through where the product was
purchased from or replace locally. Continued usage of damaged cord can cause fire,
electric shock or leakage.
• Perform grounding appropriately. Inappropriate grounding can cause electric shock.
• Use fuses that meet specified rating. Fuses exceeding can cause an electric shock.
• Should a problem occur, turn off the power immediately and stop operating the
machine. Unplug the power cord of the service outlet. Operating the machine without
correcting the problem may cause a fire or injuries.
• Insert the power plug securely into the outlet. Poor contact may cause overheating,
resulting in fire or burns.
• To ensure the warning labels attached on the machine are visible and legible, install
the machine in a well-lit location, and keep the labels clean at all times. Make sure the
labels are not hidden behind other game machines.
12
7.3 Pedal Assembly Maintenance

Pedals are wearing parts. They can last about one year under normal operation. So please
change to new pedals every at least half a year or one year. If pedals do not be operated
smoothly or sounds unusual, please replace it right away. Pedal is marked “R” or “L” on
each pedal to distinguish the position. Make sure do not replace the wrong pedal for
service.
(Left bike pedal) (Right bike pedal)
A) To replace the left bike pedal

Step 1 Power off the game. Hold the crank and use the wrench (H-121-195-000) to clamp
the joint of the crank and pedal. Turn the wrench in a clockwise direction to release the left
pedal.
Step 2 Install the new left pedal to the crank. Use the wrench to clamp the joint of the
crank and the pedal. Turn the wrench in an anti-clockwise direction to lock the pedal.
Make sure the pedal is locked tightly to the crank.
B) To replace the right bike pedal

Step 1 Power off the game. Hold the crank and use the wrench (H-121-195-000) to clamp
the joint of the crank and pedal. Turn the wrench in an anti-clockwise direction to release
the right pedal.
Step 2 Install the new right pedal to the crank. Use the wrench to clamp the joint of the
crank and the pedal. Turn the wrench in a clockwise direction to lock the pedal.
Make sure the pedal is locked tightly to the crank.
Left side Right side
Lock
Lock
Release
Release
13
8. OVERALL CONSTRUCTION
8.1 Main Assembly
No. Part No. Draw No. Name Qty

1 H-121-001-000 HLJTC-00-01(M) Main frame 1
2 H-121-101-000 HLJTC-00-02 PC bracket 1
3 H-121-002-000 HLJTC-01-00 Back box 1
4 H-121-003-000 HLJTC-02-00 Bike body mechanism 1
5 H-121-004-000 HLJTC-03-00 Bike head mechanism 1
6 H-121-005-000 HLJTC-04-00 Base mechanism 1
7 H-121-006-000 HLJTC-05-00 Marquee mechanism 1
8 H-121-401-000 TY-JX-012 Shockproof screw A 4
9 H-121-402-000 20102030031 Swing nuts 4
10 H-121-403-000 20101010009 Hexagon socket head cap screws 4
11 H-121-404-000 20102040023 Non-metallic inserted hexagon nuts 4
12 H-121-405-000 20105000020 A type circlip for bearing 1
13 H-121-102-000 HLJTC-04-01 Frame base 1
14 H-121-103-000 HLJTC-04-02 Frame seat cover 2
15 H-121-104-000 HLJTC-04-03 Light cover board 2
16 H-121-601-000 HLJTC-04-04 Lighting acrylic 2
17 H-121-406-000 TY-JX-008 2.5” leveler 4
18 H-121-407-000 25501000056 2.5” caster 4
20 H-121-409-000 20104020003 Cross recessed pan head kit bolts 16
21 H-121-410-000 20102030014 Hexagon nut 4
14
8.2 Cabinet
NO. Part No. Draw No. Name Qty

1 H-121-501-000 HLJTC-01-01(M) Wooden box 1
2 H-121-105-000 HLJTC-01-02 Connecting board 1
3 H-121-602-000 HLJTC-01-03 Side acrylic 2
4 H-121-106-000 HLJTC-01-04 Side cover 2
5 H-121-603-000 HLJTC-01-05 Control panel vacuum form 1
6 H-121-301-000 HLJTC-01-06 Fiberglass 1
7 H-121-107-000 HLJTC-01-07 Monitor sheet metal 1
8 H-121-108-000 HLJTC-01-08 L speaker board 1
9 H-121-109-000 HLJTC-01-09 R speaker board 1
10 H-121-110-000 HLJTC-01-10 Monitor upper fixed board 1
11 H-121-111-000 HLJTC-01-11 Monitor down fixed board 1
12 H-121-112-000 HLJTC-01-12 LED frame 1
13 H-121-411-000 HLJTC-01-15 Monitor EVA 12
Control panel vacuum form
14 H-121-604-000 HLJTC-01-14 1
transparent board
15
20
19
21
15
18
16
17

15 H-121-113-000 HLJTC-01-13 Outer coin box 1
16 H-121-114-000 HLJTC-01-16 Box side T-molding 2
17 H-121-115-000 HLJTC-01-17 Wooden box front T-molding 2
18 H-121-116-000 HLJTC-01-18 Wooden box back T-molding 1
19 H-121-117-000 TY-JX-006 Ticket box 234 1
20 H-121-118-000 TY-JX-002 Counter fixed board A 1
21 H-121-119-000 TY-JX-001 Power supply bracket 1
16
8.3 Bike Assembly

1 H-121-007-000 HLJTC-02-01 Bike body 1
2 H-121-008-000 HLJTC-02-02 Fly wheel mechanism 1
3 H-121-120-000 HLJTC-02-03 Bike bracket 1
4 H-121-121-000 HLJTC-02-04 Rear-wheel light bracket 1
5 H-121-009-000 HLJTC-02-05 Seat cushion 1
6 H-121-605-000 HLJTC-HM-08 Rear-wheel light plate 1
7 H-121-010-000 HLJTC-02-07 Resistance mechanism 2
8 H-121-122-000 HLJTC-02-08 Adjustable push rob 1
9 H-121-123-000 HLJTC-02-09 Adjustable screw 1
10 H-121-302-000 HLJTC-02-10 Adjustable rotation sleeve 2
11 H-121-124-000 HLJTC-02-11 Adjustable rod socket 2
12 H-121-418-000 25100050001 Pedal crank 2
13 H-121-419-000 25100060001 Bike pedal board 2
14 H-121-420-000 25100070001 Pedal crank cover 2
18 H-121-424-000 20101020024 Cross recessed pan head screw 12
19 H-121-606-000 HLJTC-02-01-1 L-side bike body 1
20 H-121-607-000 HLJTC-02-01-2 R-side bike body 1
17
8.4 Bike Header
18

1 H-121-125-000 HLJTC-03-01 Bike head bracket 1
2 H-121-126-000 HLJTC-03-02 Washer 1
3 H-121-127-000 HLJTC-03-03 L-brake upper board 1
4 H-121-128-000 HLJTC-03-04 L-brake down board 1
5 H-121-129-000 HLJTC-03-05 POT support bracket 1
6 H-121-130-000 HLJTC-03-06 R-brake upper board 1
7 H-121-131-000 HLJTC-03-07 R-brake down board 1
8 H-121-608-000 HLJTC-03-08 Bike head upper cover 1
9 H-121-609-000 HLJTC-03-09 Bike head down cover 1
10 H-121-132-000 HLJTC-03-10 Limited seat 1
11 H-121-132-000 HLJTC-03-11 Hand brake blocking plate 1
12 H-121-133-000 HLJTC-03-12 Spring seat down sleeve 1
13 H-121-134-000 HLJTC-03-13 Steering limited assembly 1
14 H-121-135-000 CJMTC-06-11 Brake handle pillar 2
15 H-121-135-000 CJMTC -06-13 L-handle bearing 2
16 H-121-136-000 CJMTC -06-14 Brake lever 2
17 H-121-137-000 CJMTC -06-15 Brake handle rotate pillar 2
18 H-121-610-000 CJMTC -06-17 Brake reset limited plastic 4
19 H-121-138-000 CJMTC -06-18 Brake handle pillar washer 2
20 H-121-139-000 CJMTC -06-19 Brake handle bearing down 2
21 H-121-140-000 CJMTC -06-20 Brake handle bearing upper 2
22 H-121-141-000 CJMTC -06-24 Brake limited Cu sleeve 6
23 H-121-142-000 CJMTC -06-27 L-brake reset spring 1
24 H-121-143-000 CJMTC -06-28 R-brake reset spring 1
25 H-121-611-000 CJMTC -06-31 Brake limited plastic pillar 2
26 H-121-425-000 20101020174 Cross recessed pan head 2
27 H-121-426-000 20101100066 Inner hexagon flat round head 8
28 H-121-427-000 20101003001 Inner hexagon flat head 1
29 H-121-428-000 20102100034 Non-metallic inserted hexagon 4
30 H-121-429-000 20102100022 Non-metallic inserted hexagon 8
31 H-121-430-000 20101020036 Cross recessed pan head 6
32 H-121-431-000 25100040001 Shock eliminator 1
33 H-121-432-000 25102000035 Bike handle 2
34 H-121-483-000 22604000007 Micro SW 2
19
8.5 Marquee Assembly.

1 H-121-612-000 HLJTC-05-01 Marquee vacuum form 1
2 H-121-502-000 HLJTC-05-03(M) Marquee board 1
3 H-121-144-000 HLJTC-05-03 Marquee vacuum form fixed assembly 8
4 H-121-145-000 HLJTC-05-04 Marquee board fixed assembly 1
5 H-121-613-000 HLJTC-05-05 Marquee PVC plate 1 1
12 H-121-433-000 20101100098 Hexagon socket set screws with flat point 32
20
8.6 Fly Wheel Assembly
18 16
18
19

1 H-121-146-000 HLJTC-02-02-1 Fly wheel bracket 1
2 H-121-147-000 HLJTC-02-02-23 Bearing base 2
3 H-121-148-000 HLJTC-02-02-3 Fly wheel bearing 1
4 H-121-149-000 HLJTC-02-02-4 Drive sleeve 1
5 H-121-150-000 HLJTC-02-02-5 Fly wheel plate 1
6 H-121-151-000 HLJTC-02-02-6 Weight block 1
7 H-121-152-000 HLJTC-02-02-7 Infrared blocking plate 1
8 H-121-153-000 HLJTC-02-02-8 Infrared fixed bracket 1
9 H-121-154-000 HLJTC-02-02-9 Drive sleeve blocking circle 1
10 H-121-155-000 HLJTC-02-02-10 Drive sleeve pressure circle 1
11 H-121-156-000 HLJTC-02-02-11 Key 1 1
12 H-121-157-000 HLJTC-02-02-12 Key 2 1
13 H-121-158-000 HLJTC-02-02-13 Lock plate 1
14 H-121-159-000 HLJTC-02-02-14 Electromagnetism lock limit 1
15 H-121-160-000 HLJTC-02-02-15 Electromagnetism lock fixed 1
16 H-121-161-000 HLJTC-02-27-8 spring 1
17 H-121-436-000 20106000081 Ball bearing 2
18 H-121-437-000 20108010001 Hexagon welding 4
20 H-121-439-000 20106150001 Single-track bearing 1
25 H-121-444-000 25300000021 Electromagnetism lock 1
21
8.7 Resistance Adjustment Assembly

1 H-121-162-000 HLJTC-02-07-1 L support board 1
2 H-121-163-000 HLJTC-02-07-2 Plastic wheel bracket 1
3 H-121-619-000 HLJTC-02-07-3 Plastic wheel 1
4 H-121-164-000 HLJTC-02-07-4 Plastic bearing 1
5 H-121-165-000 HLJTC-02-07-5 Connecting rob 4
6 H-121-166-000 HLJTC-02-07-6 Connecting rob upper bearing 2
7 H-121-303-000 HLJTC-02-07-7 Plastic wheel bearing sleeve 1
8 H-121-167-000 HLJTC-02-07-8 Spring 1
9 H-121-168-000 HLJTC-02-07-9 Connecting rob down bearing 1
10 H-121-169-000 HLJTC-02-07-10 Limited rob 4
11 H-121-304-000 HLJTC-02-07-11 Plastic wheel washer 1
12 H-121-305-000 HLJTC-02-07-12 Plastic wheel bracket washer 4
13 H-121-306-000 HLJTC-02-07-13 Connecting rob Limited sleeve 1
14 H-121-307-000 HLJTC-02-07-14 R support board 1
15 H-121-308-000 HLJTC-02-07-15 Connecting rob down limited 1
How to adjust the resistance:
Turn it down to reduce the resistance. Backwards is to increase the resistance.

22
8.8 Electrical Parts 1
6 8 2 3 4 5
1 7
9 10
12
11

1 H-121-801-000 22803000031 2.0 track amplifier 1
2 H-121-802-000 21701000006 Mother board 1
3 H-121-448-000 23303000003 Serial cable 1
4 H-121-449-000 26601070109 VGA-VGA Video Cable 1
5 H-121-803-000 21602000004 SW power box 1
6 H-121-453-000 23305000005 Stereo audio line 1
7 H-121-467-000 21201032004 32” LCD 1
8 H-121-473-000 23301050002 Power cord 1
9 H-121-450-000 21712000001 Ticket dispenser 1
10 H-121-804-000 29741108002 Light board 1
11 H-121-451-000 22002013004 LED flexible Rope Light 6.2
12 H-121-452-000 22002013005 LED flexible Rope Light 0.5
23
5 6 7
3 11
13
2 4
9
8
12 10
15 14

1 H-121-454-000 23000000005 Counter 2
H-121-805-000 21709000002 POT connecting board 1
2 H-121-455-000 22501000006 POT 1
H-121-456-000 22403000001 POT knob 1
3 H-121-457-000 22402030002 Button 1
4 H-121-458-000 22402010002 Button 1
5 H-121-459-000 21412000001 Terminal 1
6 H-121-460-000 22601000005 Small rocker SW 1
7 H-121-461-000 23200000001 Filter 1
8 H-121-462-000 22702000020 Cable exhaust fan 1
9 H-121-463-000 22702000010 Exhaust fan net 2
10 H-121-464-000 22201000042 Insert door light bracket 1
11 H-121-471-000 21901000015 Fuse 1
12 H-121-472-000 22003000006 LED bulb 1
13 H-121-478-000 22003000075 Red light bracket 1
14 H-121-480-000 22401020005 30 type cassette button 1
15 H-121-481-000 22501000029 5K POT 1
24
5
3
10
1 9
7
11
2 4 8
12
13

1 H-121-465-000 23100000005 Ticket dispenser 1
2 H-121-466-000 22801000005 Speaker 2
H-121-469-000 22006000054 T5-8W energy tube(UL) 2
3
H-121-470-000 22006000056 T5-13W energy tube 2
H-121-806-000 29741110001 LED light board 2
4
H-121-807-000 29741110002 LED light board 1
5 H-121-475-000 23301000052 Socket 3
6 H-121-808-000 29740930002 PCB board 3
7 H-121-468-000 21101000007 Dell PC 1
8 H-121-474-000 23301000001 Power cord 1
H-121-476-000 21107020036 Dongle 1
9
H-121-477-000 41300000003 USB flash disk 1
10 H-121-809-000 21603000037 UPS power 1
11 H-121-479-000 50400000003 Diode 1
12 H-121-810-000 21705000016 Infrared board 1
13 H-121-482-000 50900021044 Carbon resister 1
25
8.11 Game Decals
26

1 H-121-701-000 HLJTC-HM-01 Marquee round light decal 1
2 H-121-702-000 HLJTC-HM-02 Marquee name decal 1
3 H-121-703-000 HLJTC-HM-03 Marquee brand decal 1
4 H-121-704-000 HLJTC-HM-04 Marquee upper left decal 1
5 H-121-705-000 HLJTC-HM-05 Marquee upper right decal 1
6 H-121-706-000 HLJTC-HM-06 Marquee left down decal 1
7 H-121-707-000 HLJTC-HM-07 Marquee right down decal 1
8 H-121-708-000 HLJTC-HM-08 Rear-wheel decal 1
9 H-121-709-000 HLJTC-HM-09 Cabinet L-side upper decal 1
10 H-121-710-000 HLJTC-HM-10 Cabinet L-side down decal 1
11 H-121-711-000 HLJTC-HM-11 Cabinet R-side upper decal 1
12 H-121-712-000 HLJTC-HM-12 Cabinet R-side down decal 1
13 H-121-713-000 HLJTC-HM-13 Bike body L-side label 1
14 H-121-714-000 HLJTC-HM-14 Bike body R-side label 1
15 H-121-715-000 HLJTC-HM-15 Base L-side decal 1
16 H-121-716-000 HLJTC-HM-16 Base R-side decal 1
17 H-121-717-000 HLJTC-HM-17 Base back decal 1
18 H-121-718-000 HLJTC-HM-18 Monitor sheet metal label 1
19 H-121-719-000 HLJTC-HM-19 Front door decal 1
20 H-121-720-000 HLJTC-HM-20 How to play 1
21 H-121-721-000 HLJTC-HM-21 Vacuum form L-side label 1
22 H-121-722-000 HLJTC-HM-22 Vacuum form R-side label 1
23 H-121-723-000 HLJTC-HM-23 Bike head decal 1
24 H-121-724-000 HLJTC-HM-24 Start button 1
25 H-121-730-000 TY-HM-05 Testing label 1
26 H-121-731-000 TY-HM-09 Service button 1
27 H-121-727-000 TY-HM-01 Coin counter 1
28 H-121-728-000 TY-HM-02 Ticket out counter 1
29 H-121-729-000 TY-HM-03 Volume label 1
30 H-121-734-000 TY-HM-34 Ticket out counter 1
27

31 H-121-725-000 HLJTC-HM-25 110V nameplate 1
32 H-121-732-000 TY-HM-13 Fuse T6.3A 1
33 H-121-733-000 TY-HM-16 Power SW label A 1
34 H-121-726-000 HLJTC-HM-26 FCC certificate nameplate 1
35 H-121-735-000 TY-HM-36 High voltage warning (Small) 1
36 H-121-736-000 TY-HM-40 Label 110V 1
37 H-121-737-000 TY-HM-42 Maintenance information 1
39 H-121-739-000 TY-HM-67 Maintenance notice label 1
28
1 2 3 4 5 6 7 8
A3-1/2
20M
CN1 1 20M RP? HLJTC-PX-107
40M 1
2 40M
50M HLJTC-PX-103 2 J08
Master volume control 3 50M A0 A0 A0
VR.PCB 60M 3 1 1 LED48NC.PCB 1 1 1 1 1
4 60M 42 42 LED48NC.PCB 42 LED48NC.PCB Screen bottom light
AC IN E 4 2 2 15 blue light 2 2 2 2 2
5 E 15 blue light 15 Blue light
5 XH2P XH2P XH2P XH2P XH2P XH2P
XH6P 6
6 XH6P
J04 RP?
20O 20O
1 1 1
L speaker A2O A2O J09 HLJTC-PX-108 J10
D 2 2 2 42 42 42 80M Shield wire D
1 1 1 1
P C VH2P 91 91 91 80M Shield wire 888888 Coin counter
HLJTC-PX-104 2 2 2 2
92 92 92 80M Shield wire
J05 RP? 3 3 3 3
20O 20O A0 A0 A0 A0 80M Shield wire 888888 Ticket counter
1 1 1 4 4 4 4
R speaker A2O A2O 20M 20 20 10
2 2 2 5 5 5 5 Ticket machine reset
30M 30 30 60
P C VH2P 6 6 6 6
Filter 42 42
7 7 C P Service
A0 A0
8 8
A0 J11 J13
AUDIO IN 9 9 42 42
42 42 1 1 1
10 10 A0 A0 Flexible strip light
42 42 2 2 2 L side light
FUSE RP? 11 11
32" display 40P 10 10 C P XH2P DC12VLED3528/m=60 Blue 1420mm
1 12 12
A0P 42 42x2 J12 J14
2 13 13 42 42
20 20 1 1 1
AC IN VH2P 14 14 A0 A0 Flexible strip light
30 30 2 2 2 R side light
SW-1 15 15 DC12VLED3528/m=60 Blue 1420mm
42 42 Marquee lighting C P XH2P
HLJTC-PX-106
VGA IN 16 16
A0 A0 J15
17 17 42 Ticket inverter board
90 90 1 1
J3 18 18 10 SSST-LED01.PCB light1 50 CN1 CN2 50
50M 50 2 2 1 1 1
1 10M 19 19 42 42
Coin 42 42x2 XH2P 2 2 2 CLE
20M 20 20 A0 TICK-CH.PCB A0 Ticket machine
Test 2 40 40 J16 3 3 3
30M 21 21 42 90 90 CL-002Q-270
Reset 3 A0 A0 1 1 4 4 4
50M 22 22 20 SSST-LED01.PCB light 2 RVS2-4
Ticket machine feedback 4 10M 10 2 2 45P
60M 23 23
10P
60P
45P
L&R brake 5 45P 45P XH2P J18 Resistance 1.5K 1/4W
70M 24 24 42 42 42 LED
HF Speed sensor 6 J17 1 1 Ticket light
J06 80M C P 42 40 40
1 1
2 2
3 3
HM Start button 7 1 1 2 2
30 SSST-LED01.PCB light 3
YY1820D-26P 2 2 C P
HLJTC-PX-101
XH2P J19 HLJTC-PX-109 FASTON-110#x2
10P
60P
45P
C 42 42 C
10P J17 1 1
90 A0 A0x2 Coin door light X2
10P
45P
60P
60P Ticket machine drive 1 J20 2 2
91 60M 60M 10 10 FASTON-250#x2（flag-shaped
HM 45P Coin meter 2 1 1 3 3
J01 92 70M 70M
1 1
2 2
3 3
HF Ticket meter 3 2 2 C P
93 80M 80M Coin switch X2
Tail light 1 4 3 3
94 93 93 J21 J22
Tail light 2 5 4 4 42 42 HLJTC-PX-111 42 42
10P
45P
60P
95 94 94 1 1 1 1
Tail light 3 6 5 5 93 93 93 93
96 95 95 2 2 2 2
VGA Coil 1 7 6 6 94 94 94 94
96 3 3 3 3 LED48NC.PCB(24 blue light） Tail light 1
Coil 2 8 7 7 95 95 95 95
50 50 4 4 4 4
AC IN VH8P 8 8 42 42
5 5 C P
AUDIO
PC C P 70M 70
6 6 J23
J16 42 A0 A0 42 42
COM 10 7 7 1 1
10Px5
45Px4
60Px5
USB Marquee light 1 1 42 42 42 93 93
20 8 8 2 2
Marquee light 1 2 A0 50 50 94 94
30 9 9 3 3 LED48NC.PCB(24 blue light） Tail light 2
Marquee light 3 3 A0 A0 A0 95 95
40 10 10 4 4
Out of ticket light 4 60M 60
50 11 11 C P
Start button light 5 80M 80
HLJTC-PX-102
12 12
60P
10P
45P
60P
10P
Shield wire Shield wire 6 20M 20M 42 XH3P
13 13 1 J24
7 90M 90M 70 42 42
14 14 2 MOC70T4 Speed sensor 1 1
8 E E A0 50 50
HLJTC-PX-110 15 15 3 2 2
HM PC USB VH8P 42 42 42 A0 A0 Start/stop button
J02 16 16 3 3
2 2
1 1
HF 96 96 96 J25 80 80
17 17 42 42 4 4
UPS J8 45P 45P 45P 1 1
E 18 18 50 50 C P
GND 1 2 2
90M C P A0 A0X2
AC IN AD0 2 3 3 A0
HM 20M 60 60 NC
+3.3V 3 4 4 60 C
J03 80 80
3 3
2 2
1 1
HF 10P XH3P 5 5 L brake
COM1
B 60P 6 6 NO B
45P 45P C P
J4 Base metal grounding J26 NC
45P
60P
10P
J07 20M 20M HLJTC-PX-112 C
10P A0 RVS2-4 1 1
1 1 90M 90M R brake
60P A0 2 2
2 2 Exhaust fan E E NO
45P 45P 3 3
3 3
C P Coil lock 5K
HM HF 30 1 3
J27
Fluorescent light
J28 HLJTC-PX-113 42 Shield wire 90 2 Handle pot
42 42 1 1
J5 1 1 96 A0
A0 A0 2 2
1 2 2
L NE A0P 42 42x2 C P
2 J15 3 3
40P 10 10x2 J29
3 Pedal light 1 1 4 4 42 42
20 20x2 1 1
4 Pedal light 2 2 5 5 A0 A0 Base bottom light
+ LED flexible strip light DC12VLED3528/m=60 Blue 3300mm
40PX2 42x4
HLJTC-PX-105 30 30x2 2 2 -
+12V VH4P Pedal light 3 3 6 6
42x5 42x5 40 40x2 C P
+12V Pedal light 4 4 7 7
A0Px2 50 50x2
GND Pedal light 5 5 8 8
A0x3 A0x5 60 60x2
GND Pedal light 6 6 9 9
Tube connected wire

45P 70 70x2
E Pedal light 7 7 10 10 HLTJC-JTLED.PCB HLJTC-TJLED.PCB HLTJC-JTLED.PCB HLTJC-JTLED.PCB HLTJC-JTLED.PCB HLTJC-JTLED.PCB HLTJC-JTLED.PCB HLTJC-JTLED.PCB
80 L base light
Power box Pedal light 8 8 11 11
80x2
1
2
1
2
1
2
1
2
1
2
1
2
1
2
1
2
VH8P 12 12 CN1 XH2P CN1 XH2P CN1 XH2P CN1 XH2P CN1 XH2P CN1 XH2P CN1 XH2P CN1 XH2P
Fluorescent light
EPT-S150-S12 45P
C P
42
10
42
20
42
30
42
40
42
50
42
60
42
70
42
80
RVS2-4 42 42x8
Fluorescent light connected wire
Fluorescent light V12 Mainboard 42 42x8
connected wire marquee Fluorescent light
42
10
42
20
42
30
42
40
42
50
42
60
42
70
42
80
Notice: The color and the type of the wire express as follow. For example: 2 0 M
1
2
1
2
1
2
1
2
1
2
1
2
1
2
1
2
Wire color :20 is single red CN1 XH2P CN1 XH2P CN1 XH2P CN1 XH2P CN1 XH2P CN1 XH2P CN1 XH2P CN1 XH2P
Wire type: Mis AWG24 UL1007
Rbase light
A HLTJC-JTLED.PCB HLTJC-JTLED.PCB HLTJC-JTLED.PCB HLTJC-JTLED.PCB HLTJC-JTLED.PCB HLTJC-JTLED.PCB HLTJC-JTLED.PCB HLTJC-JTLED.PCB A
9 White I R AWG14 UL1005
8 Gray H Q AWG16 UL1005 Unite mm
7 Violet G P AWG18 UL1007
6 Blue F O AWG20 UL1007 Prop. : Name:
Universal Space
Design Technics
5 Green E Shielding layer N AWG22 UL1007 4001~5000 ±50
Amusement machine
4 Yellow D Light Blue M AWG24 UL1007 3001~4000 ±40
Bike rally CEC wiring diagram
Drawing Standard
3 Orange C Light Green L AWG26 UL1007 2001~3000 ±30 Chart Drawing NO. Version:
29
2 Red B Pink K AWG28 UL1007 1001~2000 ±20

Collate
A3
1 Brown A Black J AWG30 UL1007 0~1000 ±10 Date:
Page
17-Apr-2012
Check Approve
Wire Color Wire Type Tolerance Path: G:\chenym(199.199.12.112)\欢乐脚踏车配线图\欢乐脚踏车HLJT
UNIS
1 2 3 4 5 6 7 8

Bike Rally

Uploaded by

Document Information

Original Description:

Copyright

Available Formats

Share this document

Share or Embed Document

Sharing Options

Did you find this document useful?

Is this content inappropriate?

Copyright:

Available Formats

Bike Rally

Uploaded by

Copyright:

Available Formats

Operation Manual

IMPORTANT SAFETY INSTRUCTIONS ..................................................................... 2

Non-technical personnel who do not have technical knowledge and

WARNING: To reduce the risk of fire, electric shock or personal injury,

IMPORTANT SAFETY INSTRUCTIONS

Save these instructions for future reference.

NOTE: A NOTE indicates useful hints or information about product usage.

It is important to understand the meaning of the following HAZARD SIGNS before

High Temperature Hazard:

This product is an indoor game machine. Do not install

 Places subject to rain/moisture, or places subject to high humidity.

Note: The contents of this manual may be updated without notice

Note: Game parameters are subject to change without notice.

1 H-121-448-000 23301000001 Power cord 10A/250V-1.8M 1

H-121-449-000 25300171002 Key 171 2

4 H-121-451-000 41300000003 USB Lenovo 2G 1

5 H-121-701-000 41441110001 Manual English 1

6 H-121-195-000 4.06.13.160028 Wrench 13-15

for help immediately.

NOTE: Part models are subject to change without notice.

Auto play button

Speaker Coin mech.

4. SET UP & INSTALLATION

This product is an indoor game machine. Do not install

4.1 Play Zone

4.3 Transporting The Game

4.4 Connecting Power

*Rally bike playable is designed for children.

6.1 Game setting menu Step 3: Press button to

Step 2: Hold the break

Step 1: Press “Test” button, and go

Item Explanations setting range

7. MAINTENANCE & INSPECTION

7.2 Handling Precautions

7.3 Pedal Assembly Maintenance

(Left bike pedal) (Right bike pedal)

A) To replace the left bike pedal

B) To replace the right bike pedal

No. Part No. Draw No. Name Qty

NO. Part No. Draw No. Name Qty

No. Part No. Draw No. Name Qty

No. Part No. Draw No. Name Qty

No. Part No. Draw No. Name Qty

No. Part No. Draw No. Name Qty

No. Part No. Draw No. Name Qty

No. Part No. Draw No. Name Qty

How to adjust the resistance:

Turn it down to reduce the resistance. Backwards is to increase the resistance.

No. Part No. Draw No. Name Qty

No. Part No. Draw No. Name Qty

No. Part No. Draw No. Name Qty

No. Part No. Draw No. Name Qty

No. Part No. Draw No. Name Qty

Tube connected wire

2 Red B Pink K AWG28 UL1007 1001~2000 ±20

You might also like
