Exterior: Section

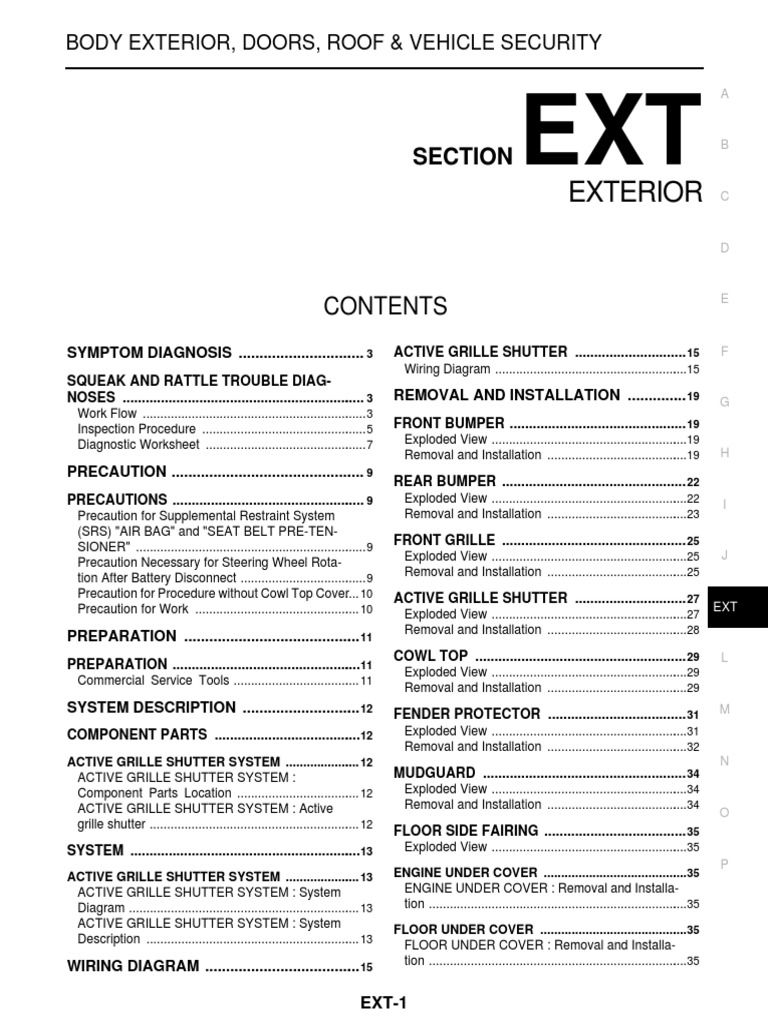

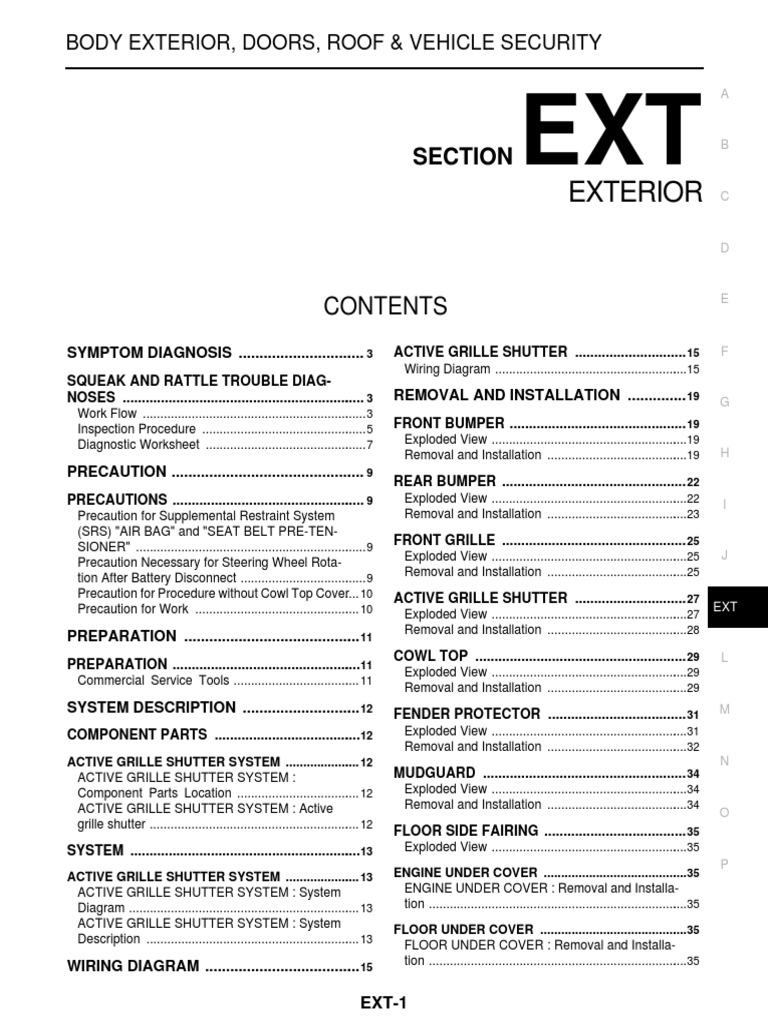

BODY EXTERIOR, DOORS, ROOF & VEHICLE SECURITY
SECTION EXT EXTERIOR

B
E
CONTENTS
SYMPTOM DIAGNOSIS ............................... 3 ACTIVE GRILLE SHUTTER ............................. 15 F
Wiring Diagram ........................................................15
SQUEAK AND RATTLE TROUBLE DIAG-
NOSES ................................................................ 3 REMOVAL AND INSTALLATION ............... 19 G
Work Flow ................................................................. 3
Inspection Procedure ................................................ 5 FRONT BUMPER .............................................. 19
Diagnostic Worksheet ............................................... 7 Exploded View .........................................................19
Removal and Installation .........................................19 H
PRECAUTION ............................................... 9
REAR BUMPER ................................................ 22
PRECAUTIONS ................................................... 9 Exploded View .........................................................22
I
Precaution for Supplemental Restraint System Removal and Installation .........................................23
(SRS) "AIR BAG" and "SEAT BELT PRE-TEN-
SIONER" ................................................................... 9
FRONT GRILLE ................................................ 25
Exploded View .........................................................25 J
Precaution Necessary for Steering Wheel Rota-
tion After Battery Disconnect ..................................... 9 Removal and Installation .........................................25
Precaution for Procedure without Cowl Top Cover.... 10 ACTIVE GRILLE SHUTTER ............................. 27
Precaution for Work ................................................ 10 EXT
Exploded View .........................................................27
Removal and Installation .........................................28
PREPARATION ........................................... 11
COWL TOP ....................................................... 29 L
PREPARATION ..................................................11
Exploded View .........................................................29
Commercial Service Tools ..................................... 11
SYSTEM DESCRIPTION ............................. 12 FENDER PROTECTOR .................................... 31 M
COMPONENT PARTS .......................................12 Exploded View .........................................................31

ACTIVE GRILLE SHUTTER SYSTEM ...................... 12 N
ACTIVE GRILLE SHUTTER SYSTEM : MUDGUARD ..................................................... 34
Component Parts Location .................................... 12 Exploded View .........................................................34
ACTIVE GRILLE SHUTTER SYSTEM : Active Removal and Installation .........................................34
O
grille shutter ............................................................. 12
FLOOR SIDE FAIRING ..................................... 35
SYSTEM .............................................................13 Exploded View .........................................................35
P
ACTIVE GRILLE SHUTTER SYSTEM ...................... 13 ENGINE UNDER COVER ..........................................35
ACTIVE GRILLE SHUTTER SYSTEM : System ENGINE UNDER COVER : Removal and Installa-
Diagram ................................................................... 13 tion ...........................................................................35
ACTIVE GRILLE SHUTTER SYSTEM : System FLOOR UNDER COVER ...........................................35
Description .............................................................. 13
FLOOR UNDER COVER : Removal and Installa-
WIRING DIAGRAM ...................................... 15 tion ...........................................................................35
EXT-1
FILLET MOLDING ............................................. 37 Removal and Installation ......................................... 42
Exploded View ........................................................ 37
Removal and Installation ........................................ 37 DOOR OUTSIDE LOWER MOLDING ............... 43
Exploded View ........................................................ 43
ROOF SIDE MOLDING ...................................... 38 Removal and Installation ......................................... 43
Exploded View ........................................................ 38
Removal and Installation ........................................ 38 DOOR PARTING SEAL ..................................... 44
Exploded View ........................................................ 44
ROOF RAIL ........................................................ 40 Removal and Installation ......................................... 44
Exploded View ........................................................ 40
Removal and Installation ........................................ 40 BACK DOOR FINISHER ................................... 45
Exploded View ........................................................ 45
DOOR SASH MOLDING .................................... 41 Removal and Installation ......................................... 45
Exploded View ........................................................ 41
Removal and Installation ........................................ 41 REAR SPOILER ................................................ 46
Exploded view ......................................................... 46
DOOR OUTSIDE MOLDING .............................. 42 Removal and Installation ......................................... 46
Exploded View ........................................................ 42
EXT-2
SQUEAK AND RATTLE TROUBLE DIAGNOSES
< SYMPTOM DIAGNOSIS >
SYMPTOM DIAGNOSIS A
Work Flow INFOID:0000000010377895
B
G
SBT842
CUSTOMER INTERVIEW H
Interview the customer if possible, to determine the conditions that exist when the noise occurs. Use the Diag-
nostic Worksheet during the interview to document the facts and conditions when the noise occurs and any of
the customer's comments; refer to EXT-7, "Diagnostic Worksheet". This information is necessary to duplicate
the conditions that exist when the noise occurs. I
• The customer may not be able to provide a detailed description or the location of the noise. Attempt to obtain
all the facts and conditions that exist when the noise occurs (or does not occur).
• If there is more than one noise in the vehicle, be sure to diagnose and repair the noise that the customer is J
concerned about. This can be accomplished by a test drive with the customer.
• After identifying the type of noise, isolate the noise in terms of its characteristics. The noise characteristics
are provided so the customer, service adviser and technician are all speaking the same language when
EXT
defining the noise.
• Squeak – (Like tennis shoes on a clean floor)
Squeak characteristics include the light contact/fast movement/brought on by road conditions/hard surfaces
= higher pitch noise/softer surfaces = lower pitch noises/edge to surface = chirping L
• Creak – (Like walking on an old wooden floor)
Creak characteristics include firm contact/slow movement/twisting with a rotational movement/pitch depen-
dent on materials/often brought on by activity. M
• Rattle – (Like shaking a baby rattle)
Rattle characteristics include the fast repeated contact/vibration or similar movement/loose parts/missing
clip or fastener/incorrect clearance.
• Knock – (Like a knock on a door) N
Knock characteristics include hollow sounding/sometimes repeating/often brought on by driver action.
• Tick – (Like a clock second hand)
Tick characteristics include gentle contacting of light materials/loose components/can be caused by driver O
action or road conditions.
• Thump – (Heavy, muffled knock noise)
Thump characteristics include softer knock/dead sound often brought on by activity.
• Buzz – (Like a bumble bee) P
Buzz characteristics include high frequency rattle/firm contact.
• Often the degree of acceptable noise level will vary depending upon the person. A noise that you may judge
as acceptable may be very irritating to the customer.
• Weather conditions, especially humidity and temperature, may have a great effect on noise level.
DUPLICATE THE NOISE AND TEST DRIVE
EXT-3
If possible, drive the vehicle with the customer until the noise is duplicated. Note any additional information on
the Diagnostic Worksheet regarding the conditions or location of the noise. This information can be used to
duplicate the same conditions when you confirm the repair.
If the noise can be duplicated easily during the test drive, to help identify the source of the noise, try to dupli-
cate the noise with the vehicle stopped by doing one or all of the following:
1) Close a door.
2) Tap or push/pull around the area where the noise appears to be coming from.
3) Rev the engine.
4) Use a floor jack to recreate vehicle “twist”.
5) At idle, apply engine load (electrical load, half-clutch on M/T model, drive position on A/T model).
6) Raise the vehicle on a hoist and hit a tire with a rubber hammer.
• Drive the vehicle and attempt to duplicate the conditions the customer states exist when the noise occurs.
• If it is difficult to duplicate the noise, drive the vehicle slowly on an undulating or rough road to stress the
vehicle body.
LOCATE THE NOISE AND IDENTIFY THE ROOT CAUSE
1. Narrow down the noise to a general area. To help pinpoint the source of the noise, use a listening tool
(Engine Ear or mechanics stethoscope).
2. Narrow down the noise to a more specific area and identify the cause of the noise by:
• removing the components in the area that you suspect the noise is coming from.
Do not use too much force when removing clips and fasteners, otherwise clips and fastener can be broken
or lost during the repair, resulting in the creation of new noise.
• tapping or pushing/pulling the component that you suspect is causing the noise.
Do not tap or push/pull the component with excessive force, otherwise the noise will be eliminated only tem-
porarily.
• feeling for a vibration with your hand by touching the component(s) that you suspect is (are) causing the
noise.
• placing a piece of paper between components that you suspect are causing the noise.
• looking for loose components and contact marks.
Refer to EXT-5, "Inspection Procedure".
REPAIR THE CAUSE
• If the cause is a loose component, tighten the component securely.
• If the cause is insufficient clearance between components:
- separate components by repositioning or loosening and retightening the component, if possible.
- insulate components with a suitable insulator such as urethane pads, foam blocks, felt cloth tape or urethane
tape are available through your authorized Nissan Parts Department.
CAUTION:
Do not use excessive force as many components are constructed of plastic and may be damaged.
NOTE:
• URETHANE PADS
Insulates connectors, harness, etc.
• INSULATOR (Foam blocks)
Insulates components from contact. Can be used to fill space behind a panel.
• INSULATOR (Light foam block)
• FELT CLOTHTAPE
Used to insulate where movement does not occur. Ideal for instrument panel applications.
The following materials, not available through NISSAN Parts Department, can also be used to repair
squeaks and rattles.
• UHMW(TEFLON) TAPE
Insulates where slight movement is present. Ideal for instrument panel applications.
• SILICONE GREASE
Used in place of UHMW tape that will be visible or not fit.
Note: Will only last a few months.
• SILICONE SPRAY
Use when grease cannot be applied.
• DUCT TAPE
Use to eliminate movement.
CONFIRM THE REPAIR
EXT-4
Confirm that the cause of a noise is repaired by test driving the vehicle. Operate the vehicle under the same
conditions as when the noise originally occurred. Refer to the notes on the Diagnostic Worksheet. A
Inspection Procedure INFOID:0000000010377896
Refer to Table of Contents for specific component removal and installation information. B
INSTRUMENT PANEL
Most incidents are caused by contact and movement between:
C
1. Cluster lid A and instrument panel
2. Acrylic lens and combination meter housing
3. Instrument panel to front pillar garnish D
4. Instrument panel to windshield
5. Instrument panel mounting pins
6. Wiring harnesses behind the combination meter E
7. A/C defroster duct and duct joint
These incidents can usually be located by tapping or moving the components to duplicate the noise or by
pressing on the components while driving to stop the noise. Most of these incidents can be repaired by apply- F
ing felt cloth tape or silicon spray (in hard to reach areas). Urethane pads can be used to insulate wiring har-
ness.
CAUTION: G
Do not use silicone spray to isolate a squeak or rattle. If you saturate the area with silicone, you will
not be able to recheck the repair.
CENTER CONSOLE H
Components to pay attention to include:
1. Shifter assembly cover to finisher
2. A/C control unit and cluster lid C I
3. Wiring harnesses behind audio and A/C control unit
The instrument panel repair and isolation procedures also apply to the center console.
J
DOORS
Pay attention to the:
1. Finisher and inner panel making a slapping noise
EXT
2. Inside handle escutcheon to door finisher
3. Wiring harnesses tapping
4. Door striker out of alignment causing a popping noise on starts and stops L
Tapping or moving the components or pressing on them while driving to duplicate the conditions can isolate
many of these incidents. You can usually insulate the areas with felt cloth tape or insulator foam blocks to
repair the noise. M
TRUNK
Trunk noises are often caused by a loose jack or loose items put into the trunk by the owner.
In addition look for: N
1. Trunk lid dumpers out of adjustment
2. Trunk lid striker out of adjustment
3. Trunk lid torsion bars knocking together O
4. A loose license plate or bracket
Most of these incidents can be repaired by adjusting, securing or insulating the item(s) or component(s) caus-
ing the noise. P
SUNROOF/HEADLINING
Noises in the sunroof/headlining area can often be traced to one of the following:
1. Sunroof lid, rail, linkage or seals making a rattle or light knocking noise
2. Sunvisor shaft shaking in the holder
3. Front or rear windshield touching headlining and squeaking
EXT-5
Again, pressing on the components to stop the noise while duplicating the conditions can isolate most of these
incidents. Repairs usually consist of insulating with felt cloth tape.
SEATS
When isolating seat noise it is important to note the position the seat is in and the load placed on the seat
when the noise is present. These conditions should be duplicated when verifying and isolating the cause of
the noise.
Cause of seat noise include:
1. Headrest rods and holder
2. A squeak between the seat pad cushion and frame
3. Rear seatback lock and bracket
These noises can be isolated by moving or pressing on the suspected components while duplicating the con-
ditions under which the noise occurs. Most of these incidents can be repaired by repositioning the component
or applying urethane tape to the contact area.
UNDERHOOD
Some interior noise may be caused by components under the hood or on the engine wall. The noise is then
transmitted into the passenger compartment.
Causes of transmitted underhood noise include:
1. Any component mounted to the engine wall
2. Components that pass through the engine wall
3. Engine wall mounts and connectors
4. Loose radiator mounting pins
5. Hood bumpers out of adjustment
6. Hood striker out of adjustment
These noises can be difficult to isolate since they cannot be reached from the interior of the vehicle. The best
method is to secure, move or insulate one component at a time and test drive the vehicle. Also, engine RPM
or load can be changed to isolate the noise. Repairs can usually be made by moving, adjusting, securing, or
insulating the component causing the noise.
EXT-6
Diagnostic Worksheet INFOID:0000000010377897
EXT
PIIB8740E
P
EXT-7
PIIB8742E
EXT-8
PRECAUTIONS
< PRECAUTION >
PRECAUTION A
PRECAUTIONS
Precaution for Supplemental Restraint System (SRS) "AIR BAG" and "SEAT BELT B
PRE-TENSIONER" INFOID:0000000010377898
The Supplemental Restraint System such as “AIR BAG” and “SEAT BELT PRE-TENSIONER”, used along C
with a front seat belt, helps to reduce the risk or severity of injury to the driver and front passenger for certain
types of collision. Information necessary to service the system safely is included in the “SRS AIR BAG” and
“SEAT BELT” of this Service Manual.
WARNING: D
Always observe the following items for preventing accidental activation.
• To avoid rendering the SRS inoperative, which could increase the risk of personal injury or death in
the event of a collision that would result in air bag inflation, all maintenance must be performed by E
an authorized NISSAN/INFINITI dealer.
• Improper maintenance, including incorrect removal and installation of the SRS, can lead to personal
injury caused by unintentional activation of the system. For removal of Spiral Cable and Air Bag
F
Module, see “SRS AIR BAG”.
• Never use electrical test equipment on any circuit related to the SRS unless instructed to in this Ser-
vice Manual. SRS wiring harnesses can be identified by yellow and/or orange harnesses or harness
connectors. G
PRECAUTIONS WHEN USING POWER TOOLS (AIR OR ELECTRIC) AND HAMMERS
WARNING: H
Always observe the following items for preventing accidental activation.
• When working near the Air Bag Diagnosis Sensor Unit or other Air Bag System sensors with the
ignition ON or engine running, never use air or electric power tools or strike near the sensor(s) with
a hammer. Heavy vibration could activate the sensor(s) and deploy the air bag(s), possibly causing I
serious injury.
• When using air or electric power tools or hammers, always switch the ignition OFF, disconnect the
battery, and wait at least 3 minutes before performing any service. J
Precaution Necessary for Steering Wheel Rotation After Battery Disconnect
INFOID:0000000010377899
EXT
CAUTION:
Comply with the following cautions to prevent any error and malfunction.
• This Procedure is applied only to models with Intelligent Key system and NATS (NISSAN ANTI-
THEFT SYSTEM). L
• Remove and install all control units after disconnecting both battery cables with the ignition switch
in the LOCK position.
• Always use CONSULT to perform self-diagnosis as a part of each function inspection after finishing M
work. If DTC is detected, perform trouble diagnosis according to self-diagnostic results.
For models equipped with the Intelligent Key system and NATS, an electrically controlled steering lock mech-
anism is adopted on the key cylinder.
For this reason, if the battery is disconnected or if the battery is discharged, the steering wheel will lock and N
steering wheel rotation will become impossible.
If steering wheel rotation is required when battery power is interrupted, follow the procedure below before
starting the repair operation. O
OPERATION PROCEDURE
1. Connect both battery cables.
NOTE: P
Supply power using jumper cables if battery is discharged.
2. Use the Intelligent Key or mechanical key to turn the ignition switch to the ACC position. At this time, the
steering lock will be released.
3. Disconnect both battery cables. The steering lock will remain released and the steering wheel can be
rotated.
4. Perform the necessary repair operation.
EXT-9
PRECAUTIONS
< PRECAUTION >
5. When the repair work is completed, return the ignition switch to the LOCK position before connecting the
battery cables. (At this time, the steering lock mechanism will engage.)
6. Perform a self-diagnosis check of all control units using CONSULT.
Precaution for Procedure without Cowl Top Cover INFOID:0000000010377900
When performing the procedure after removing cowl top cover, cover
the lower end of windshield with urethane, etc to prevent damage to
windshield.
PIIB3706J
Precaution for Work INFOID:0000000010377901
• After removing and installing the opening/closing parts, be sure to carry out fitting adjustments to check their
operation.
• Check the lubrication level, damage, and wear of each part. If necessary, grease or replace it.
EXT-10
PREPARATION
< PREPARATION >
PREPARATION A
PREPARATION
Commercial Service Tools INFOID:0000000010377902
B
Tool name Description

C
D
Engine ear Locating the noise
E
SIIA0995E
Power tool
PIIB1407E
Clip remover Removing clips I
E1KIA0055GB J
EXT
EXT-11
COMPONENT PARTS
< SYSTEM DESCRIPTION >
SYSTEM DESCRIPTION
COMPONENT PARTS
ACTIVE GRILLE SHUTTER SYSTEM
ACTIVE GRILLE SHUTTER SYSTEM : Component Parts Location INFOID:0000000010479943
JSBIA4779ZZ
No. Component Reference

EXT-12, "ACTIVE GRILLE SHUTTER SYSTEM : Active grille
Active grille shutter
shutter"
• K9K engine models: Refer to ECK-12, "Component Parts Loca-
tion"
ECM
• R9M engine models: Refer to EC9-12, "Component Parts Loca-
tion"
For the engine related component parts, refer to ECK-12, "Component Parts Location" (K9K engine), EC9-12,
"Component Parts Location" (R9M engine).
ACTIVE GRILLE SHUTTER SYSTEM : Active grille shutter INFOID:0000000010479944
Active grille shutter is located at front bumper lower opening, and

according to the signal from ECM it operates actuator to perform
open/close movement of flap to control the amount of air flow
taken into engine compartment.
JSBIA3648ZZ
EXT-12
SYSTEM
SYSTEM
A
ACTIVE GRILLE SHUTTER SYSTEM
ACTIVE GRILLE SHUTTER SYSTEM : System Diagram INFOID:0000000010479945
B
F
JSBIA5056GB
G
ACTIVE GRILLE SHUTTER SYSTEM : System Description INFOID:0000000010479946
While driving, the active grille shutter system closes shutter to reduce air flow to engine compartment for the
purpose of reducing aerodynamic drag, and as a result, improves the vehicle's fuel efficiency. H
ECM controls active grille shutter system by detecting vehicle status through respective modules and sensors.
Active grille shutter actuator is equipped with self-diagnosis function. When it detects malfunction, transmits
diagnosis signal to ECM and ECM records active grille shutter malfunction. I
BASIC MOVEMENTS
EXT
JSBIA5059GB N
• S1: Approximately 30 - 160 km/h (19 - 100 MPH)
• *1: Shutter initial position learning.
• *2: Judgement of high vehicle speed.
O
• *3: Judgement of low vehicle speed.
DESCRIPTION OF MOVEMENTS
Active grille shutter is fully open when the vehicle stops or the ignition switch is turned OFF. P
ECM operates the shutter to close position in order to perform shutter's initial position learning when the igni-
tion switch is turned ON and the vehicle reaches the specified speed for the first time. At the end of initial posi-
tion leaning ECM operates shutter to open position. (The initial position learning is performed every time when
ignition switch is turned OFF → ON.)
While driving, after the initial position learning ends, ECM operates the active grille shutter to close position
when the operational conditions of active grille shutter are met.
While driving at high speed, ECM operates the shutter to open position when the vehicle reaches the specified
speed in order to prevent the shutter from shutting up by wind resistance.
EXT-13
SYSTEM
When the vehicle speed is reduced below the specified speed ECM operates active grille shutter to open posi-
tion.
ACTIVE GRILLE SHUTTER OPERATIONAL CONDITIONS
ECM operates active grille shutter to close position when following all conditions are met.
Item Status
Active grille shutter initial position learning Complete
Vehicle speed Approx. 30 - 160 km/h (19 - 100 MPH)
Engine coolant temperature Approx. less than 95°C (203 °F)
CVT fluid temperature Approx. less than 135°C (275°F)
Cooling fan OFF
Refrigerant pressure 0.78 MPa (7.95 kg/cm2, 113.1 psi) or less
Malfunction of engine coolant temperature sensor system Not detected
Malfunction of vehicle speed sensor system Not detected
Malfunction of CAN communication system Not detected
ECM operates active grille shutter to open position when one of the following conditions is met.
Item Status
• 22 km/h (14 MPH) or less
Vehicle speed
• 160 km/h (100 MPH) or more
Engine coolant temperature Approx. 95°C (203 °F) or more
CVT fluid temperature Approx. 135°C (275°F) or more
Cooling fan ON
Refrigerant pressure 1.18 MPa (12.04 kg/cm2, 171.1 psi) or more
Malfunction of engine coolant temperature sensor system Detected
Malfunction of vehicle speed sensor system Detected
Malfunction of CAN communication system Detected
EXT-14
ACTIVE GRILLE SHUTTER
< WIRING DIAGRAM >
WIRING DIAGRAM A
Wiring Diagram INFOID:0000000010479947
B
EXT
JRKWD3175GB
EXT-15
< WIRING DIAGRAM >
JRKWD3176GB
EXT-16
< WIRING DIAGRAM >
EXT
JRKWD3177GB
EXT-17
< WIRING DIAGRAM >
JRKWD3178GB
EXT-18
FRONT BUMPER
< REMOVAL AND INSTALLATION >
REMOVAL AND INSTALLATION A
FRONT BUMPER
Exploded View INFOID:0000000010377903
B
E1JIA0309ZZ EXT
1. Front bumper finisher (LH/RH) 2. Fog lamp assembly 3. Front bumper bracket cover assem-
bly L
4. Bumper stays 5. Front bumper fascia assembly 6. Front bumper lower energy absorber
7. Front bumper lower reinforcement 8. Front bumper upper energy ab- 9. Front bumper upper reinforcement
sorber
M
Removal and Installation INFOID:0000000010377904
REMOVAL N
CAUTION:
Bumper fascia is made of resin. Do not apply strong force to it, and be careful to prevent contact with
oil. O
CAUTION:
If bumper stays are removed or replaced, body panel must be painted to ensure corrosion protection.
1. Fully open hood assembly. P
2. Remove front grille. Refer to EXT-25, "Removal and Installation".
3. Remove front fillet mouldings. Refer to EXT-37, "Removal and Installation".
4. Remove front fender protector. Refer to EXT-32, "Removal and Installation".
5. Remove clips from:
• Front crossmember;
• Headlamp.
EXT-19
FRONT BUMPER
6. Remove fixing screws (A), bolts (B) and clips (C) of radiator
undercover (1) and front fender protector (2).
E1KIA0113ZZ
7. Disconnect harness connectors (if equipped):

• Front sonar harness;
• Front camera harness.
8. Remove fixing screw (A) of bumper fascia (LH/RH).
E1KIA0009ZZ
9. Remove washer tank tube.

10. Remove front bumper fascia from bumper side brackets LH/RH.
CAUTION:
Be careful when removing bumper fascia from bumper side brackets as the assembly can be eas-
ily damaged.
11. Remove front bumper fascia.
CAUTION:
When removing bumper fascia, 2 workers are required so as to prevent it from dropping.
12. Remove the following parts after removing bumper fascia:
• Fixing screws from bumper side bracket (LH/RH);
• Front bumper side bracket (LH/RH)
• Front bumper finishers
• Energy absorber upper and lower
• Front fog lamp assembly. Refer to EXL-164, "Removal and Installation" (xenon type) or EXL-321,
"Removal and Installation" (halogen type).
13. Remove front bumper upper energy absorber.

14. Remove front bumper lower energy absorber.
15. Remove front bumper upper reinforcement mounting nuts, and then remove front bumper upper reinforce-
ment.
16. Remove front bumper lower reinforcement.
• Remove front bumper lower reinforcement assembly.
• Remove front air guide fixing clips, then remove front air guide.
INSTALLATION
Install in the reverse order of removal.
CAUTION:
After installation, add water up to the upper level of the washer tank inlet and check for water leakage.
NOTE:
After installing, perform fitting adjustment.
EXT-20
FRONT BUMPER
E1JIA0283ZZ
D
Portion Clearance
Hood assembly – Front grille A–A 9.6 – 4.6 mm (0.378 – 0.181 in) E
Front grille – Front bumper B–B 3.2 – 0.8 mm (0.126 – 0.031 in)
Front grille – Headlamp C–C 5.5 – 0.5 mm (0.217 – 0.020 in)
F
Front grille – Front bumper D–D 3.2 – 0.8 mm (0.126 – 0.031 in)
Headlamp – Front bumper E–E 2.7 – 0.3 mm (0.106 – 0.012 in)
Front bumper – Front fender F–F 1.3 – 0.3 mm (0.051 – 0.012 in) G
Front bumper – Tow Hook Cover G–G 1.4 – 0.0 mm (0.055 – 0.000 in)
Front bumper – Headlamp cleaner cov- H
H–H 0.5 – 0.0 mm (0.020 – 0.000 in)
er
Front bumper – Front Bumper finisher J–J 3.0 – 1.0 mm (0.118 – 0.039 in)
I
EXT
EXT-21
REAR BUMPER
REAR BUMPER
E1JIA0284ZZ
1. Rear bumper fascia assembly 2. Rear fillet molding (LH/RH) 3. Reflector assembly
EXT-22
REAR BUMPER
4. Rear tow hook 5. Rear bumper harness (if equipped) 6. Energy absorber
7. Rear bumper stay assembly (LH/RH) 8. Rear bumper side bracket assembly 9. Rear bumper side retainer A
(LH/RH)

B
REMOVAL
CAUTION: C
Bumper fascia is made of resin. Do not apply strong force to it, and be careful to prevent contact with
oil.
1. Fully open back door assembly.
D
2. Remove rear bumper fixing screws.
3. Remove rear bumper lower fixing screw (A) and clip (B) (LH/
RH).
E
E1KIA0013ZZ
H
4. Remove rear bumper lower clips.
5. Remove rear fillet molding (LH/RH). Refer to EXT-37, "Removal and Installation".
6. Remove rear fender protector fixing clips (LH/RH).
I
7. Remove rear bumper upper fixing screw (A) (LH/RH).
EXT
L
E1KIA0015ZZ
8. Remove rear combination lamp. Refer to EXL-174, "Removal and Installation" (Vehicle with xenon type),
EXL-330, "Removal and Installation" (Vehicle with halogen type). M
9. Push forwards and then pull to release rear bumper from side
bracket B Refer to EXT-22, "Exploded View".
N
E1KIA0016ZZ
EXT-23
REAR BUMPER
10. Release rear bumper clips (A).
E1KIA0017ZZ
11. Disconnect all harness connectors.

12. Remove rear bumper fascia assembly.
CAUTION:
When removing bumper fascia, 2 workers are required so as to prevent it from dropping.
13. Remove the following parts after removing rear bumper fascia.
• Rear bumper energy absorber
• Rear bumper side retainer (LH/RH)
• Rear bumper clips
• Rear bumper side bracket A (LH/RH)
• Reflector assembly (LH/RH)
• Rear bumper stays
• Tow Hook Cover
INSTALLATION
EXT-24
FRONT GRILLE
FRONT GRILLE
A
EXT
E1JIA0288ZZ
N
1. Front grille molding 2. Front emblem 3. Front camera
4. Front grille 5. Fixing clip
Pawl O
P
REMOVAL
CAUTION:
Apply protection tape around outer circumference of front grille (bumper fascia side).
1. Fully open hood assembly.
2. Remove front grille upper fixing clips.
EXT-25
FRONT GRILLE
3. Slowly pull front grille upper side, and using a flat screwdriver,
depress clip barb to remove clips (1) (LH/RH) from headlamp
(2).
E1KIA0018ZZ
4. Release front grille lower pawls from front bumper.

CAUTION:
To remove front grille assembly, slowly release lower pawls to avoid damaging pawls.
5. Disconnect front camera harness (if equipped).
6. Remove front grille assembly.
7. Press barbs to release RH fixing clip (A) and then turn to remove
it from front grille (1) as shown.
For LH fixing clip, turn in opposite side to remove it from front
grille (1).
E1KIA0075ZZ
8. Remove the following parts after removing front grille.

CAUTION:
To remove parts from front grille assembly, slowly release pawls to avoid damaging pawls.
• Front grille molding
• Front emblem
• Front camera (if equipped)
INSTALLATION
EXT-26
A
EXT
AWKIA2516ZZ
N
1. Front bumper fascia side bracket 2. Front bumper reinforcement 3. Active grille shutter
(RH)
4. Front energy absorber 5. Front fascia side deflector 6. Front fog lamp (RH) (if equipped)
(RH)
O
7. Tow cover 8. Front license plate bracket 9. Front bumper fascia
10. Front fog lamp (LH) (if equipped) 11. Front bumper finisher 12. Front fascia side deflector (LH)
(if equipped) P
13. Front air spoiler 14. Front under cover 15. Front bumper fascia side bracket
(LH)
16. Front bumper reinforcement 17. Front bumper reinforcement A. J nut
bracket (RH) bracket (LH)
B. Front fog lamp bracket Pawl
EXT-27
REMOVAL
1. Remove the front bumper fascia. Refer to EXT-19, "Removal and Installation".
2. Remove the radiator core support upper.
3. Reposition the radiator and condenser as necessary to access active grille shutter bolts.
4. Remove the active grille shutter bolts.
5. Release active grille shutter harness clips using a suitable tool.
6. Disconnect the harness connector (A) from the active grille shut-
ter (1).
7. Remove the active grille shutter nut (B) (LH/RH).
ALKIA3150ZZ
INSTALLATION
Installation is in the reverse order of removal.
EXT-28
COWL TOP
COWL TOP
A
I
E1KIA0132ZZ
1. Cowl top assembly 2. Cowl top cover grille 3. Cowl top cover J
4. Cowl top seal (if equipped) 5. Front fender cover 6. Cowl top foam insulator
7. Upper dash assembly 8. Double-adhesive tape
Clip EXT
L
REMOVAL
1. Fully open hood assembly.
2. Remove front wiper arm (LH/RH) from vehicle. Refer to WW-75, "Exploded View". M
3. Remove vehicle identification covers (LH/RH).
4. Remove windscreen washer nozzle (LH/RH).
• Pull nozzle upwards (A) N
• Disconnect washer nozzle tube.
CAUTION:
Fit cap on washer nozzle tube to avoid spills and contami- O
nation.
E1KIA0019ZZ
EXT-29
COWL TOP
5. Release foam insulator (A) from front fender (LH/RH).
E1KIA0020ZZ
6. Remove cowl top cover fixing clips, then pull forward to release cowl top cover from windscreen.
7. Turn cowl top cover upside down to access main windscreen
washer tubes (A).
E1KIA0021ZZ
8. Release main windscreen washer tubes. Remove main windscreen washer tubes.
CAUTION:
Fit cap on washer nozzle tube to avoid spills and contamination.
9. Remove cowl top cover.
• Remove washer tube nozzles.
• Remove cowl top seal (LHD).
10. Remove front fender cover fixing clip (A).
• Push foam insulator to side to release double-adhesive tape.
• Release front fender cover pawl from front pillar.
E1KIA0022ZZ
INSTALLATION
EXT-30
FENDER PROTECTOR
FENDER PROTECTOR
A
FENDER PROTECTOR B
E1KIA0082ZZ
J
1. Front fender protector 2. Hoodledge splashguard 3. Front fender
4. Front fender cover 5. Front fender bracket 6. Front fender seal
7. Louvered cover EXT
Clip
REAR WHEEL HOUSE PROTECTOR L
EXT-31
FENDER PROTECTOR
E1KIA0031GB
1. Rear fender protector 2. Wind deflector

Clip
REMOVAL
FRONT FENDER PROTECTOR
1. Remove front mudguard (if equipped). Refer to EXT-34, "Exploded View".
2. Remove front fender protector fixing screw and fixing bolt.
3. Remove hoodledge splashguard fixing clips (A). Remove hoo-
dledge splashguard.
E1KIA0023ZZ
4. Remove front fender protector fixing clips.

5. Remove front fender protector fixing screws.
6. Release front fender protector upper fixing clip from under, then remove front fender protector.
REAR WHEEL HOUSE PROTECTOR
1. Remove rear wheel house protector lower fixing screw.
2. Remove rear wheel house protector fixing clips.
3. Remove rear wheel house protector.
EXT-32
FENDER PROTECTOR
INSTALLATION
Install in the reverse order of removal. A
EXT
EXT-33
MUDGUARD
MUDGUARD
E1JIA0287ZZ
1. Front mudguard (if equipped) 2. Rear mudguard (if equipped)

Clips
REMOVAL
FRONT MUDGUARD
1. Remove fixing screws.
2. Remove front mudguard.
REAR MUDGUARD
1. Remove fixing screws.
2. Remove clip.
3. Remove rear mudguard.
INSTALLATION
EXT-34
FLOOR SIDE FAIRING
FLOOR SIDE FAIRING
A
J
ALKIA3342ZZ
1. Floor under cover (RH) 2. Engine under cover 3. Floor under cover (LH) EXT
ENGINE UNDER COVER

L
ENGINE UNDER COVER : Removal and Installation INFOID:0000000010508610
REMOVAL
M
1. Remove engine under cover clips.
2. Remove engine under cover.
INSTALLATION N
Installation is in the reverse order of removal.
CAUTION:
When installing engine under covers, check that clips are securely placed in body panel holes. O
FLOOR UNDER COVER
FLOOR UNDER COVER : Removal and Installation INFOID:0000000010508611
P
REMOVAL
EXT-35
FLOOR SIDE FAIRING
1. Remove floor under cover clip (B) and nuts (A).
2. Remove floor under cover (1).
ALKIA3398ZZ
INSTALLATION
CAUTION:
When installing floor under covers, check that clips are securely placed in body panel holes.
EXT-36
FILLET MOLDING
FILLET MOLDING
A
I
E1JIA0285ZZ
1. Front fillet molding 2. Rear fillet molding J
EXT
REMOVAL
FRONT FILLET MOLDING
1. Remove front mudguard (if equipped). L
2. Release front fillet clips.
3. Release front fillet pawls.
4. Remove front fillet molding. M
REAR FILLET MOLDING

1. Remove rear mudguard (if equipped). N
2. Release rear fillet clips.
3. Release rear fillet pawls.
4. Remove rear fillet molding. O
INSTALLATION
P
EXT-37
ROOF SIDE MOLDING
ROOF SIDE MOLDING
E1KIA0131ZZ
1. Roof side molding 2. Roof side molding clip 3. Roof side molding fastener
4. Weatherstrip-roof drip seal
REMOVAL
1. Open back door.
2. Using suitable tool, release roof side molding fixing clips from
rear to front, then remove roof side molding.
CAUTION:
Always use shop cloth to avoid damaging the vehicle.
E1KIA0024ZZ
INSTALLATION
WEATHERSTRIP-ROOF DRIP SEAL
REMOVAL
1. Remove weatherstrip-roof drip seal by releasing clips.
EXT-38
ROOF SIDE MOLDING
INSTALLATION
Install in the reverse order of removal. A
1. Clean the mating surface with an isopropanel spirit wipe to remove any grease or dirt on the weatherstrip-
roof drip seal.
2. Fit clips on the body then apply pressure to the adhesive tape on the back of the weatherstrip drip seal. B
CAUTION:
A new part must be fitted if removed, to make sure a good water seal.
EXT
EXT-39
ROOF RAIL
ROOF RAIL
E1KIA0120ZZ
1. Roof rail assembly
REMOVAL
CAUTION:
Before removal, turn ignition switch OFF, disconnect both battery cables, and then wait for at least 3
minutes.
1. Open back door.
2. Partially remove headlining. Refer to INT-25, "Removal and Installation"
3. Remove roof rail assembly rear nut.
4. Remove plastic cap and then remove roof rail assembly center nuts.
5. Remove roof rail assembly front nuts.
6. Remove roof rail assembly.
INSTALLATION
EXT-40
DOOR SASH MOLDING
DOOR SASH MOLDING
A
I
E1JIA0311ZZ
1. Rear door panel 2. Front door panel 3. Rear door sash tape J
4. Rear door sash molding 5. Front door sash molding seal 6. Front door sash tape

EXT
REMOVAL
REAR DOOR SASH MOLDING L
1. Pull rear door sash molding (A) from upper side to lower side.
NOTE:
If necessary, use a flat screwdriver. M
CAUTION:
Always use shop cloth to avoid damaging the vehicle.
2. Remove rear door sash molding. N
INSTALLATION
CAUTION: O
Always clean body and parts before installation.
EXT-41
DOOR OUTSIDE MOLDING
DOOR OUTSIDE MOLDING
E1JIA0312ZZ
1. Rear door panel 2. Front door panel 3. Rear door outside molding
4. Front door outside molding
REMOVAL
FRONT DOOR OUTSIDE MOLDING
1. Remove door trim. Refer to INT-18, "Removal and Installation".
2. Remove door mirror assembly. Refer toMIR-31, "Removal and Installation" .
3. Fit front door glass to lower position.
4. Remove front door lower weather strip upper end part fixing clip and then release front door lower weather
strip upper end part (1).
5. Twist from rear to front and pull up to upper side, then remove front door outside molding.
REAR DOOR OUTSIDE MOLDING
1. Fit rear door glass to lower position.
2. Remove rear door sash molding. Refer to EXT-41, "Removal and Installation".
3. Remove rear door outside molding fixing screw adhesive cover.
4. Remove rear door outside molding fixing screw.
CAUTION:
Attention, the screw might fall into the door.
5. Twist from front to rear and pull up to upper side, then remove rear door outside molding (1).
INSTALLATION
EXT-42
DOOR OUTSIDE LOWER MOLDING
DOOR OUTSIDE LOWER MOLDING
A
I
E1JIA0286ZZ
1 Front door outside lower molding 2 Rear door outside lower molding 3 Adhesive tape J
clip

EXT
REMOVAL
FRONT DOOR OUTSIDE LOWER MOLDING L
1. Using suitable tool, release adhesive tape from front door.
2. Pull front door outside lower molding upper side outwards to release upper fixing clips.
M
3. Pull front door outside lower molding outwards to release lower fixing clips.
4. Remove front door outside lower molding.
REAR DOOR OUTSIDE LOWER MOLDING N
1. Using suitable tool, release adhesive tape from rear door.
2. Pull rear door outside lower molding upper side outwards to release upper fixing clips.
3. Pull rear door outside lower molding outwards to release lower fixing clips. O
4. Remove rear door outside lower molding.
P
INSTALLATION
CAUTION:
Always clean body and parts before installation.
EXT-43
DOOR PARTING SEAL
DOOR PARTING SEAL
E1JIA0313ZZ
1. Rear door panel 2. Front door panel 3. Rear door parting seal
4. Front door parting seal
REMOVAL
FRONT DOOR PARTING SEAL
1. Fully open front door.
2. Remove front door parting seal mounting plastic clips.
3. Remove front door parting seal.
REAR DOOR PARTING SEAL
1. Fully open rear door.
2. Remove rear door parting seal plastic mounting clips.
3. Remove rear door parting seal.
INSTALLATION
EXT-44
BACK DOOR FINISHER
BACK DOOR FINISHER
A
I
E1KIA0053GB
1. Back door finisher 2. Back door panel 3. License plate light J

4. Back door opener switch assembly 5. Harness

EXT
REMOVAL
1. Fully open back door. L
2. Remove back door trim. Refer to INT-31, "Removal and Installation" .
3. Disconnect rear view camera harness connector (if equipped).
4. Disconnect back door opener request switch, and license plate light harness connector. M
5. Remove back door finisher fixing nuts (A) and release back door
finisher fixing clip (B).
6. Pull harness grommet outwards to release back door finisher. N
7. Remove back door finisher.
• Pull back door finisher.
8. Remove the following parts after removing back door finisher. O
• License plate light. Refer to EXL-178, "Removal and Installa-
tion".
• Opener request switch harness connector. P
• Opener request switch.
• Bulb harness and opener switch connector. E1KIA0054GB
• Back door finisher fixing bolts.

• Back door finisher fixing clip.
INSTALLATION
EXT-45
REAR SPOILER
REAR SPOILER
Exploded view INFOID:0000000010500710
E1KIA0133GB
1. Rear spoiler 2. Clip 3. Double-side tape
REMOVAL
1. Remove rear spoiler mounting bolts.
2. Remove clips.
3. Cut rear spoiler fixing double-sided tape.
4. Lift rear spoiler, and then disconnect high-mounted stop lamp harness connector and rear washer tube.
CAUTION:
Never lift rear spoiler with excessive force.
5. Remove rear spoiler.
6. Remove the following parts after removing rear spoiler:
• High-mounted stop lamp. Refer to EXL-177, "Removal and Installation".
• Washer nozzle.
INSTALLATION
Note the following items, and then install in the reverse order of removal.
EXT-46

Exterior: Section

Uploaded by

Document Information

Original Title

Copyright

Available Formats

Share this document

Share or Embed Document

Sharing Options

Did you find this document useful?

Is this content inappropriate?

Copyright:

Available Formats

Exterior: Section

Uploaded by

Copyright:

Available Formats

BODY EXTERIOR, DOORS, ROOF & VEHICLE SECURITY

SECTION EXT EXTERIOR

COMPONENT PARTS .......................................12 Exploded View .........................................................31

Precaution for Work INFOID:0000000010377901

Tool name Description

Clip remover Removing clips I

No. Component Reference

Active grille shutter is located at front bumper lower opening, and

7. Disconnect harness connectors (if equipped):

9. Remove washer tank tube.

13. Remove front bumper upper energy absorber.

Removal and Installation INFOID:0000000010377906

11. Disconnect all harness connectors.

Removal and Installation INFOID:0000000010377908

4. Release front grille lower pawls from front bumper.

8. Remove the following parts after removing front grille.

Removal and Installation INFOID:0000000010377910

REAR WHEEL HOUSE PROTECTOR L

1. Rear fender protector 2. Wind deflector

Removal and Installation INFOID:0000000010377912

4. Remove front fender protector fixing clips.

1. Front mudguard (if equipped) 2. Rear mudguard (if equipped)

Removal and Installation INFOID:0000000010377914

ENGINE UNDER COVER

1. Front fillet molding 2. Rear fillet molding J

Removal and Installation INFOID:0000000010377916

REAR FILLET MOLDING

Removal and Installation INFOID:0000000010377918

WEATHERSTRIP-ROOF DRIP SEAL

1. Roof rail assembly

Removal and Installation INFOID:0000000010377920

Removal and Installation INFOID:0000000010377924

Removal and Installation INFOID:0000000010377926

Removal and Installation INFOID:0000000010377928

Removal and Installation INFOID:0000000010377930

1. Back door finisher 2. Back door panel 3. License plate light J

Removal and Installation INFOID:0000000010377932

• Back door finisher fixing bolts.

1. Rear spoiler 2. Clip 3. Double-side tape

Removal and Installation INFOID:0000000010500711

You might also like
