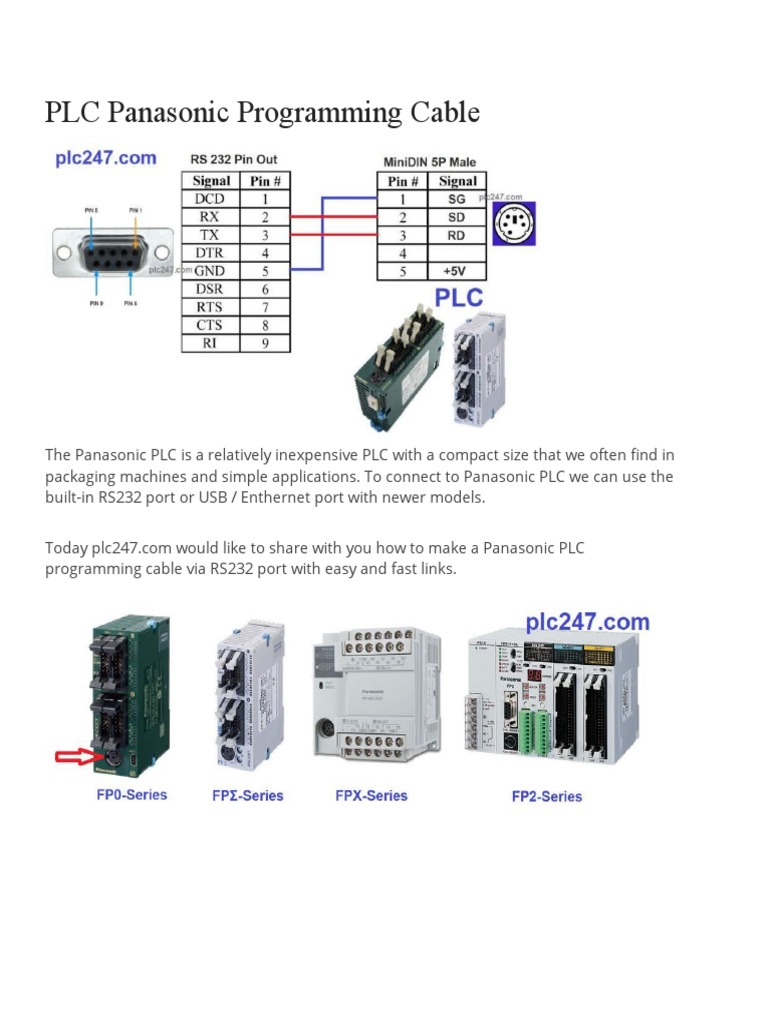

PLC Panasonic Programming Cable

The Panasonic PLC is a relatively inexpensive PLC with a compact size that we often find in
packaging machines and simple applications. To connect to Panasonic PLC we can use the
built-in RS232 port or USB / Enthernet port with newer models.

Today plc247.com would like to share with you how to make a Panasonic PLC
programming cable via RS232 port with easy and fast links.

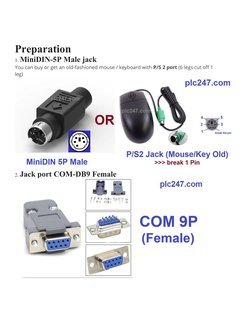

Preparation
1. MiniDIN-5P Male jack
You can buy or get an old-fashioned mouse / keyboard with P/S 2 port (6 legs cut off 1
leg)

2. Jack port COM-DB9 Female


Proceed to make the cable
With Panasonic PLC / HMI cable you solder the cable according to the following diagram

With this Cable, plc247.com has done and tested with Panasonic PLC / HMI, it works well,
download speed is fast and stable.
