COPELAND SCROLL ®

COMPRESSORS 50HZ

THE INDUSTRY
BREAKTHROUGH
Copeland ®

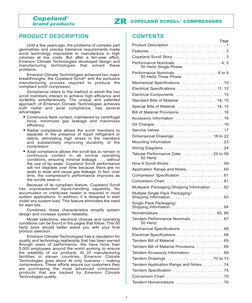

brand products ZR COPELAND SCROLL® COMPRESSORS

PRODUCT DESCRIPTION CONTENTS

Page
Until a few years ago, the problems of complex part Product Description . . . . . . . . . . . . . . . . . . . . . . . . 1
geometries and precise tolerance requirements made Features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
scroll technology impossible to manufacture in high
volumes at low costs. But after a ten-year effort, Copeland Scroll Story . . . . . . . . . . . . . . . . . . . . . . . 3
Emerson Climate Technologies developed design and Performance Nominals . . . . . . . . . . . . . . . . . . . 4, 5
manufacturing technologies that solved these 50 Hertz Single Phase
problems.
Performance Nominals . . . . . . . . . . . . . . . . . . 6 to 9
Emerson Climate Technologies achieved two major
50 Hertz Three Phase
breakthroughs: the Copeland Scroll ® and the exclusive
manufacturing process required to produce the Mechanical Specifications . . . . . . . . . . . . . . . . . . 10
compliant scroll compressor. Electrical Specifications . . . . . . . . . . . . . . . . . 11, 12
Compliance refers to the method in which the two
scroll members interact to achieve high efficiency and Electrical Components . . . . . . . . . . . . . . . . . . . . . 13
durability simultaneously. The unique and patented Standard Bills of Material . . . . . . . . . . . . . . . . 14, 15
approach of Emerson Climate Technologies achieves
both radial and axial compliance, has several Special Bills of Material . . . . . . . . . . . . . . . . . 14, 15
advantages: Bill of Material Provisions . . . . . . . . . . . . . . . . . . . 16
• Continuous flank contact, maintained by centrifugal Accessory Information . . . . . . . . . . . . . . . . . . . . . 16
force, minimizes gas leakage and maximizes
efficiency. Oil Charges . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
• Radial compliance allows the scroll members to Service Valves . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
separate in the presence of liquid refrigerant or Dimensional Drawings . . . . . . . . . . . . . . . . . 18 to 22
debris, eliminating high stress in the members
and substantially improving durability of the Mounting Information . . . . . . . . . . . . . . . . . . . . . . 23
compressor. Wiring Diagrams . . . . . . . . . . . . . . . . . . . . . . . . . . 24
• Axial compliance allows the scroll tips to remain in
Tabular Performance Data . . . . . . . . . . . . . 25 to 58
continuous contact in all normal operating
conditions, ensuring minimal leakage . . . without 50 Hertz
the use of tip seals. Copeland Scroll performance How A Scroll Works . . . . . . . . . . . . . . . . . . . . . . . 59
will not degrade over time because there are no Application Range and Notes . . . . . . . . . . . . . . . . 60
seals to wear and cause gas leakage. In fact, over
time, the compressor's performance improves as Compressor Specification . . . . . . . . . . . . . . . . . . . 61
the scrolls wear-in. Conversion Chart . . . . . . . . . . . . . . . . . . . . . . . . . 61
Because of its compliant feature, Copeland Scroll
has unprecedented liquid-handling capability. No Multipack Packaging / Shipping Information . . . . . 62
accumulator or crankcase heater is required in most Multiple Single Pack Packaging /
system applications. In addition, it is designed to start Shipping Information . . . . . . . . . . . . . . . . . . . . . . . 63
under any system load. This feature eliminates the need
Single Pack Packaging /
for start kits.
Shipping Information . . . . . . . . . . . . . . . . . . . . . . . 64
Combined, these characteristics simplify system
design and increase system reliability. Nomenclature . . . . . . . . . . . . . . . . . . . . . . . . . 65, 66
Model selections, electrical choices and operating Tandem Performance Nominals . . . . . . . . . . . . . . 67
conditions can be found in the pages that follow. This 50 50 Hertz
hertz book should better assist you with your final Mechanical Specifications . . . . . . . . . . . . . . . . . . 68
product selection.
Emerson Climate Technologies has a reputation for Electrical Specifications . . . . . . . . . . . . . . . . . . . . 68
quality and technology leadership that has been earned Tandem Bill of Material . . . . . . . . . . . . . . . . . . . . . 69
through years of performance. We have more than
Tandem Bill of Material Provisions . . . . . . . . . . . . 69
5,000 employees around the world working to ensure
the reliability of our products. At 20 manufacturing Tandem Accessory Information . . . . . . . . . . . . . . 69
facilities in eleven countries, Emerson Climate Tandem Drawings . . . . . . . . . . . . . . . . . . . . 70 to 73
Technologies goes about its only business – making
compressors. These efforts assure our customers they Tandem Application Range and Notes . . . . . . . . . 74
are purchasing the most advanced compressor Tandem Specification . . . . . . . . . . . . . . . . . . . . . . 75
products that are backed by Emerson Climate
Technologies quality. Conversion Chart . . . . . . . . . . . . . . . . . . . . . . . . . 75
Tandem Nomenclature . . . . . . . . . . . . . . . . . . . . . 76

1

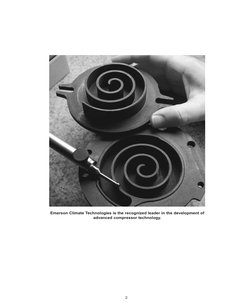

Emerson Climate Technologies is the recognized leader in the development of
advanced compressor technology.

2
Copeland ®
brand products ZR COPELAND SCROLL® COMPRESSORS

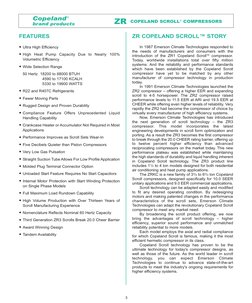

FEATURES ZR COPELAND SCROLL™ STORY

• Ultra High Efficiency In 1987 Emerson Climate Technologies responded to

the needs of manufacturers and consumers with the
• High Heat Pump Capacity Due to Nearly 100% introduction of the ZR1 Copeland ScrollTM compressor.
Volumetric Efficiency Today, worldwide installations total over fifty million
systems. And the reliability and performance standards
• Wide Selection Range which have been established by the Copeland Scroll
50 Hertz 18200 to 68000 BTUH compressor have yet to be matched by any other
4590 to 17100 KCALH manufacturer of compressor technology in production
5330 to 19900 WATTS today.
In 1991 Emerson Climate Technologies launched the
• R22 and R407C Refrigerants ZR2 compressor – offering a higher EER and expanding
scroll to 4-5 horsepower. The ZR2 compressor raised
• Fewer Moving Parts performance levels to 11.5 EER at ARI and 19.5 EER at
CHEER while offering even higher levels of reliability. Very
• Rugged Design and Proven Durability rapidly the ZR2 had become the compressor of choice by
• Compliance Feature Offers Unprecedented Liquid virtually every manufacturer of high efficiency systems.
Handling Capability Now, Emerson Climate Technologies has introduced
the next generation of scroll technology – the ZR3
• Crankcase Heater or Accumulator Not Required in Most compressor. This model incorporates the latest
Applications engineering developments in scroll form optimization and
porting. As a result the ZR3 becomes the first compressor
• Performance Improves as Scroll Sets Wear-In to break through the 20.0 CHEER rating barrier, offering up
• Five Decibels Quieter than Piston Compressors to twelve percent higher efficiency than advanced
reciprocating compressors on the market today. This new
• Very Low Gas Pulsation performance plateau was established while maintaining
the high standards of durability and liquid handling inherent
• Straight Suction Tube Allows For Low Profile Application in Copeland Scroll technology. The ZR3 product line
• Molded Plug Terminal Connector Option includes 11/2 to 4 ton models designed for both residential
air conditioning and heat pump applications.
• Unloaded Start Feature Requires No Start Capacitors The ZRKC is a new family of 33/4 to 63/4 ton Copeland
Scroll compressors, designed specifically for 10.0 SEER
• Internal Motor Protection with Start Winding Protection unitary applications and 9.0 EER commercial applications.
on Single Phase Models Scroll technology can be adapted easily and modified
• Full Maximum Load Rundown Capability to fit any desired operating condition. By redesigning
motors and making patented changes in the performance
• High Volume Production with Over Thirteen Years of characteristics of the scroll sets, Emerson Climate
Scroll Manufacturing Experience Technologies can adapt the revolutionary Copeland Scroll
compressor to meet any market need.
• Nomenclature Reflects Nominal 60 Hertz Capacity By broadening the scroll product offering, we now
bring the advantages of scroll technology – higher
• Third Generation ZR3 Scrolls Break 20.0 Cheer Barrier efficiency, superior sound performance and unmatched
• Award Winning Design reliability potential to more models.
Each model employs the axial and radial compliance
• Tandem Availability for which Copeland Scroll is famous, making it the most
efficient hermetic compressor in its class.
Copeland Scroll technology has proven to be the
ultimate technology for today's compressor designs, as
well as those of the future. As the world leader in scroll
technology, you can expect Emerson Climate
Technologies to continue to advance state-of-the-art
products to meet the industry's ongoing requirements for
higher efficiency systems.

3
Copeland ®
brand products ZR COPELAND SCROLL® COMPRESSORS

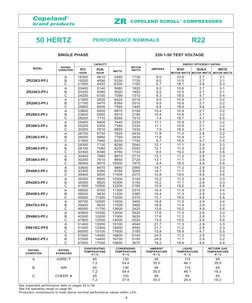

50 HERTZ PERFORMANCE NOMINALS R22

SINGLE PHASE 220-1-50 TEST VOLTAGE

CAPACITY ENERGY EFFICIENCY RATING

MODEL RATING MOTOR
CONDITION BTU KCAL WATTS AMPERES BTUH KCALH WATTS
WATTS
HOUR HOUR MOTOR WATTS MOTOR WATTS MOTOR WATTS
A 18300 4610 5360 1730 8.0 10.6 2.7 3.1
ZR22K3-PFJ B 18200 4590 5330 1730 8.0 10.5 2.7 3.1
C 21500 5420 6300 1190 5.7 18.1 4.6 5.3
A 20400 5140 5980 1920 9.2 10.6 2.7 3.1
ZR24K3-PFJ B 20200 5090 5920 1920 9.2 10.5 2.7 3.1
C 24200 6100 7090 1310 6.3 18.5 4.7 5.4
A 21900 5520 6420 2010 9.5 10.9 2.7 3.2
ZR26K3-PFJ B 21700 5470 6360 2010 9.5 10.8 2.7 3.2
C 25800 6500 7560 1400 6.8 18.4 4.6 5.4
A 23800 6000 6970 2190 10.4 10.9 2.7 3.2
ZR28K3-PFJ B 23600 5950 6910 2190 10.4 10.8 2.7 3.2
C 28200 7110 8260 1510 7.4 18.7 4.7 5.5
A 25400 6400 7440 2330 11.1 10.9 2.7 3.2
ZR30K3-PFJ B 25200 6350 7380 2330 11.1 10.8 2.7 3.2
C 30200 7610 8850 1630 7.9 18.5 4.7 5.4
A 26700 6730 7820 2430 11.8 11.0 2.8 3.2
ZR32K3-PFJ B 26500 6680 7760 2430 11.8 10.9 2.7 3.2
C 31500 7940 9230 1700 8.7 18.5 4.7 5.4
A 28300 7130 8290 2540 12.1 11.1 2.8 3.3
ZR34K3-PFJ B 28100 7080 8230 2550 12.1 11.0 2.8 3.2
C 33300 8390 9760 1730 8.5 19.2 4.8 5.6
A 30400 7660 8910 2710 13.1 11.2 2.8 3.3
ZR36K3-PFJ B 30200 7610 8850 2720 13.1 11.1 2.8 3.3
C 36000 9070 10500 1870 9.4 19.3 4.9 5.6
A 33600 8470 9840 2990 14.7 11.2 2.8 3.3
ZR40K3-PFJ B 33300 8390 9760 3000 14.7 11.1 2.8 3.2
C 39400 9930 11500 2070 10.8 19.0 4.8 5.6
A 35300 8900 10300 3140 15.2 11.2 2.8 3.3
ZR42K3-PFJ B 35000 8820 10300 3150 15.2 11.1 2.8 3.3
C 41500 10500 12200 2160 10.9 19.2 4.9 5.6
A 38500 9700 11300 3370 16.4 11.4 2.9 3.4
ZR45K3-PFJ B 38200 9630 11200 3380 16.4 11.3 2.8 3.3
C 45000 11300 13200 2370 12.1 19.0 4.8 5.6
A 39700 10000 11600 3450 16.8 11.5 2.9 3.4
ZR47K3-PFJ B 39400 9930 11500 3460 16.8 11.4 2.9 3.3
C 46500 11700 13600 2420 12.6 19.2 4.8 5.6
A 40800 10300 12000 3620 17.6 11.3 2.8 3.3
ZR48K3-PFJ B 40500 10200 11900 3630 17.6 11.2 2.8 3.3
C 47800 12000 14000 2520 13.5 19.0 4.8 5.6
A 51400 13000 15100 4540 21.7 11.3 2.9 3.3
ZR61KC-PFZ B 51000 12900 14900 4550 21.7 11.2 2.8 3.3
C 60000 15100 17600 3180 15.9 18.9 4.7 5.5
A 57500 14500 16800 5140 24.5 11.2 2.8 3.3
ZR68KC-PFJ B 57000 14400 16700 5150 24.5 11.1 2.8 3.2
C 67500 17000 19800 3670 18.2 18.4 4.6 5.4
EVAPORATING CONDENSING AMBIENT LIQUID RETURN GAS
RATING RATING
TEMPERATURE TEMPERATURE TEMPERATURE TEMPERATURE TEMPERATURE
CONDITION STANDARD
°F / °C °F / °C °F / °C °F / °C °F / °C
A ASRE / T 45 130 95 115 95
7.2 54.4 35.0 46.1 35.0
B ARI 45 130 95 115 65
7.2 54.4 35.0 46.1 18.3
C CHEER 45 100 95 85 65
7.2 37.8 35.0 29.4 18.3
See expanded performance data on pages 25 to 58.
See full operating range on page 60.
Production compressors to meet above nominal performance values within ± 5%.
4
Copeland ®
brand products ZR COPELAND SCROLL® COMPRESSORS

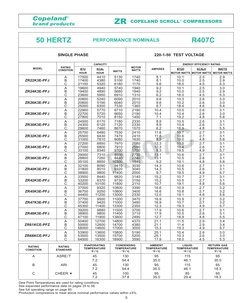

50 HERTZ PERFORMANCE NOMINALS R407C

SINGLE PHASE 220-1-50 TEST VOLTAGE

CAPACITY ENERGY EFFICIENCY RATING

MODEL RATING MOTOR
CONDITION BTU KCAL WATTS AMPERES BTUH KCALH WATTS
WATTS
HOUR HOUR MOTOR WATTS MOTOR WATTS MOTOR WATTS
A 17500 4410 5130 1740 8.1 10.1 2.5 2.9
ZR22K3E-PFJ B 17400 4380 5100 1740 8.1 10.0 2.5 2.9
C 21100 5320 6180 1170 5.6 18.0 4.5 5.3
A 19600 4940 5740 1940 9.2 10.1 2.5 3.0
ZR24K3E-PFJ B 19400 4890 5680 1940 9.2 10.0 2.5 2.9
C 23600 5950 6910 1310 6.2 18.0 4.5 5.3
A 20800 5240 6090 2010 9.6 10.3 2.6 3.0
ZR26K3E-PFJ B 20600 5190 6040 2010 9.6 10.2 2.6 3.0
C 25000 6300 7330 1360 6.7 18.4 4.6 5.4
A 22900 5770 6710 2190 10.4 10.5 2.6 3.1
ZR28K3E-PFJ B 22700 5720 6650 2190 10.4 10.4 2.6 3.0
C 27800 7010 8150 1450 7.1 19.2 4.8 5.6
A 24500 6170 7180 2330 8.9 10.5 2.6 3.1
ZR30K3E-PFJ B 24300 6120 7120 2330 8.9 10.4 2.6 3.1
C 29600 7460 8670 1570 6.2 18.9 4.8 5.5
A 25700 6480 7530 2410 11.8 10.7 2.7 3.1

C
ZR32K3E-PFJ B 25500 6430 7470 2410 11.8 10.6 2.7 3.1

07
C 31000 7810 9080 1630 8.5 19.0 4.8 5.6
A 27200 6850 7970 2580 12.3 10.5 2.7 3.1
ZR34K3E-PFJ B 27000 6800 7910 2590 12.3 10.4 2.6 3.1

4
C 33100 8340 9700 1700 8.3 19.5 4.9 5.7
A 29000 7310 8500 2730 13.1 10.6 2.7 3.1

R
ZR36K3E-PFJ B 28800 7260 8440 2740 13.1 10.5 2.6 3.1
C 35100 8850 10300 1840 9.2 19.1 4.8 5.6
A 32100 8090 9410 3030 14.3 10.6 2.7 3.1
ZR40K3E-PFJ B 31800 8010 9320 3040 14.3 10.5 2.6 3.1
C 38900 9800 11400 2000 9.7 19.5 4.9 5.7
A 33500 8440 9820 3140 15.2 10.7 2.7 3.1
ZR42K3E-PFJ B 33200 8370 9730 3150 15.2 10.5 2.7 3.1
C 40200 10100 11800 2110 10.7 19.1 4.8 5.6
A 37000 9320 10800 3390 16.6 10.9 2.7 3.2
ZR45K3E-PFJ B 36700 9250 10800 3400 16.6 10.8 2.7 3.2
C 44400 11200 13000 2330 12.0 19.1 4.8 5.6
A 37700 9500 11000 3470 16.9 10.9 2.7 3.2
ZR47K3E-PFJ B 37400 9420 11000 3480 16.9 10.7 2.7 3.2
C 45300 11400 13300 2350 12.3 19.3 4.9 5.7
A 39200 9880 11500 3700 17.9 10.6 2.7 3.1
ZR48K3E-PFJ B 38900 9800 11400 3710 17.9 10.5 2.6 3.1
C 47100 11900 13800 2490 12.7 18.9 4.8 5.5
A 50400 12700 14800 4370 21.1 11.5 2.9 3.4
ZR61KCE-PFZ B 50000 12600 14700 4380 21.1 11.4 2.9 3.4
C 58000 14600 17000 3000 15.3 19.3 4.9 5.7
A 53900 13600 15800 5190 25.1 10.4 2.6 3.0
ZR68KCE-PFJ B 53500 13500 15700 5200 25.1 10.3 2.6 3.0
C 64500 16300 18900 3590 17.9 18.0 4.5 5.3
EVAPORATING CONDENSING AMBIENT LIQUID RETURN GAS
RATING RATING
TEMPERATURE TEMPERATURE TEMPERATURE TEMPERATURE TEMPERATURE
CONDITION STANDARD
°F / °C °F / °C °F / °C °F / °C °F / °C
A ASRE / T 45 130 95 115 95
7.2 54.4 35.0 46.1 35.0
B ARI 45 130 95 115 65
7.2 54.4 35.0 46.1 18.3
C CHEER 45 100 95 85 65
7.2 37.8 35.0 29.4 18.3
Dew Point Temperatures are used for rating conditions.
See expanded performance data on pages 25 to 58.
See full operating range on page 60.
Production compressors to meet above nominal performance values within ± 5%.
5
Copeland ®
brand products ZR COPELAND SCROLL® COMPRESSORS

50 HERTZ PERFORMANCE NOMINALS R22

220-3-50 (TF5)
THREE PHASE TEST VOLTAGE
380-3-50 (TFD)
CAPACITY ENERGY EFFICIENCY RATING
MODEL RATING MOTOR
CONDITION BTU KCAL WATTS AMPERES* BTUH KCALH WATTS
WATTS
HOUR HOUR MOTOR WATTS MOTOR WATTS MOTOR WATTS
A 18300 4610 5360 1770 5.5 / 3.2 10.3 2.6 3.0
ZR22K3-TF5 / D B 18200 4590 5330 1770 5.5 / 3.2 10.3 2.6 3.0
C 21500 5420 6300 1170 4.3 / 2.5 18.4 4.6 5.4
A 20400 5140 5980 1920 6.0 / 3.5 10.6 2.7 3.1
ZR24K3-TF5 / D B 20200 5090 5920 1920 6.0 / 3.5 10.5 2.7 3.1
C 24200 6100 7090 1250 4.7 / 2.7 19.4 4.9 5.7
A 21900 5520 6420 2010 6.6 / 3.8 10.9 2.7 3.2
ZR26K3-TF5 / D B 21700 5470 6360 2010 6.6 / 3.8 10.8 2.7 3.2
C 25800 6500 7560 1360 5.0 / 2.9 19.0 4.8 5.6
A 23800 6000 6970 2140 6.9 / 4.0 11.1 2.8 3.3
ZR28K3-TF5 / D B 23600 5950 6910 2140 6.9 / 4.0 11.0 2.8 3.2
C 28200 7110 8260 1440 5.4 / 3.1 19.6 4.9 5.7
A 25400 6400 7440 2290 7.3 / 4.2 11.1 2.8 3.2
ZR30K3-TF5 / D B 25200 6350 7380 2290 7.3 / 4.2 11.0 2.8 3.2
C 30200 7610 8850 1540 5.5 / 3.2 19.6 4.9 5.7
A 26700 6730 7820 2430 7.6 / 4.4 11.0 2.8 3.2
ZR32K3-TF5 / D B 26500 6680 7760 2430 7.6 / 4.4 10.9 2.7 3.2
C 31500 7940 9230 1640 5.9 / 3.4 19.2 4.8 5.6
A 28300 7130 8290 2500 7.9 / 4.6 11.3 2.9 3.3
ZR34K3-TF5 / D B 28100 7080 8230 2500 7.9 / 4.6 11.2 2.8 3.3
C 33400 8420 9790 1700 6.2 / 3.6 19.6 5.0 5.8
A 30400 7660 8910 2690 8.3 / 4.8 11.3 2.8 3.3
ZR36K3-TF5 / D B 30200 7610 8850 2700 8.3 / 4.8 11.2 2.8 3.3
C 36000 9070 10500 1810 6.4 / 3.7 19.9 5.0 5.8
A 33600 8470 9840 2960 9.2 / 5.3 11.4 2.9 3.3
ZR40K3-TF5 / D B 33300 8390 9760 2970 9.2 / 5.3 11.2 2.8 3.3
C 39400 9930 11500 1990 7.1 / 4.1 19.8 5.0 5.8
A 35300 8900 10300 3090 9.5 / 5.5 11.4 2.9 3.3
ZR42K3-TF5 / D B 35000 8820 10300 3100 9.5 / 5.5 11.3 2.8 3.3
C 41500 10500 12200 2080 7.4 / 4.3 20.0 5.0 5.9
* Ampere values shown are at 220 volts / 380 volts.

EVAPORATING CONDENSING AMBIENT LIQUID RETURN GAS

RATING RATING
TEMPERATURE TEMPERATURE TEMPERATURE TEMPERATURE TEMPERATURE
CONDITION STANDARD
°F / °C °F / °C °F / °C °F / °C °F / °C

A ASRE / T 45 130 95 115 95

7.2 54.4 35.0 46.1 35.0
B ARI 45 130 95 115 65
7.2 54.4 35.0 46.1 18.3
C CHEER 45 100 95 85 65
7.2 37.8 35.0 29.4 18.3
See expanded performance data on pages 25 to 58.
See full operating range on page 60.
Production compressors to meet above nominal performance values within ± 5%.

6
Copeland ®
brand products ZR COPELAND SCROLL® COMPRESSORS

50 HERTZ PERFORMANCE NOMINALS R407C

C
C 27400 6900 8030 1400 5.2/3.0 19.6 4.9 5.7

7
A 24300 6120 7120 2300 7.3/4.2 10.6 2.7 3.1
ZR30K3E-TF5/D B 24100 6070 7060 2300 7.3/4.2 10.5 2.6 3.1

40
C 29400 7410 8610 1530 5.4/3.1 19.2 4.8 5.6
A 25600 6450 7500 2430 7.6/4.4 10.5 2.7 3.1

R
ZR32K3E-TF5/D B 25400 6400 7440 2430 7.6/4.4 10.5 2.6 3.1
C 30800 7760 9020 1620 5.9/3.4 19.0 4.8 5.6
A 27200 6850 7970 2520 8.1/4.7 10.8 2.7 3.2
ZR34K3E-TF5/D B 27000 6800 7910 2530 8.1/4.7 10.7 2.7 3.1
C 32600 8220 9550 1640 6.2/3.6 19.9 5.0 5.8
A 29000 7310 8500 2690 8.3/4.8 10.8 2.7 3.2
ZR36K3E-TF5/D B 28800 7260 8440 2700 8.3/4.8 10.7 2.7 3.1
C 35000 8820 10300 1810 6.4/3.7 19.3 4.9 5.7
A 32000 8060 9380 2950 9.3/5.4 10.8 2.7 3.2
ZR40K3E-TF5/D B 31700 7990 9290 2960 9.3/5.4 10.7 2.7 3.1
C 38300 9650 11200 1940 7.0/4.1 19.7 5.0 5.8
A 33600 8470 9840 3100 9.2/5.3 10.8 2.7 3.2
ZR42K3E-TF5/D B 33300 8390 9760 3110 9.2/5.3 10.7 2.7 3.1
C 40300 10200 11800 2020 7.1/4.1 20.0 5.0 5.8
* Ampere values shown are at 220 volts / 380 volts.

EVAPORATING CONDENSING AMBIENT LIQUID RETURN GAS

RATING RATING
TEMPERATURE TEMPERATURE TEMPERATURE TEMPERATURE TEMPERATURE
CONDITION STANDARD
°F / °C °F / °C °F / °C °F / °C °F / °C

A ASRE / T 45 130 95 115 95

7.2 54.4 35.0 46.1 35.0
B ARI 45 130 95 115 65
7.2 54.4 35.0 46.1 18.3
C CHEER 45 100 95 85 65
7.2 37.8 35.0 29.4 18.3
Dew Point Temperatures are used for rating conditions.
See expanded performance data on pages 25 to 58.
See full operating range on page 60.
Production compressors to meet above nominal performance values within ± 5%.

7

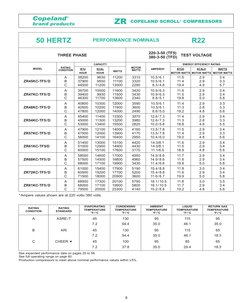

Copeland ®
brand products ZR COPELAND SCROLL® COMPRESSORS

50 HERTZ PERFORMANCE NOMINALS R22

220-3-50 (TF5)
THREE PHASE TEST VOLTAGE
380-3-50 (TFD)
CAPACITY ENERGY EFFICIENCY RATING
MODEL RATING MOTOR
CONDITION BTU KCAL WATTS AMPERES* BTUH KCALH WATTS
WATTS
HOUR HOUR MOTOR WATTS MOTOR WATTS MOTOR WATTS
A 38200 9630 11200 3310 10.5 / 6.1 11.5 2.9 3.4
ZR45KC-TF5 / D B 37900 9550 11100 3320 10.5 / 6.1 11.4 2.9 3.3
C 44500 11200 13000 2290 8.3 / 4.8 19.4 4.9 5.7
A 39700 10000 11600 3420 10.9 / 6.3 11.6 2.9 3.4
ZR47KC-TF5 / D B 39400 9930 11500 3430 10.9 / 6.3 11.5 2.9 3.4
C 46300 11700 13600 2340 8.8 / 5.1 19.8 5.0 5.8
A 40800 10300 12000 3590 10.5/ 6.1 11.4 2.9 3.3
ZR48KC-TF5 / D B 40500 10200 11900 3600 10.5/ 6.1 11.3 2.8 3.3
C 47800 12000 14000 2490 8.6 / 5.0 19.2 4.8 5.6
A 45400 11400 13300 3970 12.6 / 7.3 11.4 2.9 3.4
ZR54KC-TF5 / D B 45000 11300 13200 3980 12.6 / 7.3 11.3 2.8 3.3
C 53000 13400 15500 2820 10.0 / 5.8 18.8 4.8 5.5
A 47900 12100 14000 4160 13.5 / 7.8 11.5 2.9 3.4
ZR57KC-TF5 / D B 47500 12000 13900 4170 13.5 / 7.8 11.4 2.9 3.3
C 56000 14100 16400 2950 10.4 / 6.0 19.0 4.8 5.6
A 51400 13000 15100 4420 14.0/8.1 11.6 2.9 3.4
ZR61KC-TF5/D B 51000 12900 14900 4430 14.0/8.1 11.5 2.9 3.4
C 60000 15100 17600 3170 11.1/6.5 18.9 4.8 5.6
A 58000 14600 17000 4950 14.9 / 8.6 11.7 2.9 3.4
ZR68KC-TF5 / D B 57500 14500 16800 4960 14.9 / 8.6 11.6 2.9 3.4
C 68000 17100 19900 3430 11.4 / 6.6 19.8 5.0 5.8
A 61000 15400 17900 5190 15.4 / 8.8 11.8 3.0 3.4
ZR72KC-TF5 / D B 60500 15200 17700 5200 15.4 / 8.8 11.6 2.9 3.4
C 71500 18000 20900 3600 11.6 / 6.7 19.9 5.0 5.8
A 68500 17300 20100 5790 18.1 / 10.5 11.8 3.0 3.5
ZR81KC-TF5 / D B 68000 17100 19900 5800 18.1 / 10.5 11.7 2.9 3.4
C 79500 20000 23300 4140 15.2 / 8.8 19.2 4.8 5.6
* Ampere values shown are at 220 volts / 380 volts.

EVAPORATING CONDENSING AMBIENT LIQUID RETURN GAS

RATING RATING
TEMPERATURE TEMPERATURE TEMPERATURE TEMPERATURE TEMPERATURE
CONDITION STANDARD
°F / °C °F / °C °F / °C °F / °C °F / °C

A ASRE / T 45 130 95 115 95

8
Copeland ®
brand products ZR COPELAND SCROLL® COMPRESSORS

50 HERTZ PERFORMANCE NOMINALS R407C

ZR54KCE-TF5/D
A
B
C
41700
41400
50500
10500
10400
12700
12200
12100
14800
4160
4170
2770

07 C
15.7/9.1
15.7/9.1
12.4/7.2
10.0
9.9
18.2
2.5
2.5
4.6
2.9
2.9
5.3

4
A 45900 11600 13400 4370 13.8/7.9 10.5 2.7 3.1
ZR57KCE-TF5/D B 45500 11500 13300 4380 13.8/7.9 10.4 2.6 3.0

R
C 53000 13400 15500 2920 13.0/7.5 18.2 4.6 5.3
A 48200 12100 14100 4450 19.3/10.9 10.8 2.7 3.2
ZR61KCE-TF5/D B 47800 12000 14000 4460 19.3/10.9 10.7 2.7 3.1
C 58000 14600 17000 3080 17.0/9.7 18.8 4.7 5.5
A 54400 13700 15900 5090 16.1/8.9 10.7 2.7 3.1
ZR68KCE-TF5/D B 54000 13600 15800 5100 16.1/8.9 10.6 2.7 3.1
C 66000 16600 19300 3300 11.7/6.5 20.0 5.0 5.8
A 57000 14400 16700 5140 15.6/9.1 11.1 2.8 3.2
ZR72KCE-TF5/D B 56500 14200 16600 5150 15.6/9.1 11.0 2.8 3.2
C 69000 17400 20200 3520 12.2/6.5 19.6 4.9 5.7
A 64000 16100 18800 5890 19.7/10.9 10.9 2.7 3.2
ZR81KCE-TF5/D B 63500 16000 18600 5900 19.7/10.9 10.8 2.7 3.2
C 77000 19400 22600 3990 15.4/8.6 19.3 4.9 5.7
* Ampere values shown are at 220 volts / 380 volts.

EVAPORATING CONDENSING AMBIENT LIQUID RETURN GAS

RATING RATING
TEMPERATURE TEMPERATURE TEMPERATURE TEMPERATURE TEMPERATURE
CONDITION STANDARD
°F / °C °F / °C °F / °C °F / °C °F / °C

A ASRE / T 45 130 95 115 95

9
Copeland ®
brand products ZR COPELAND SCROLL® COMPRESSORS

MECHANICAL SPECIFICATIONS
IN 3 CFH COMPRESSOR
CM 3 M 3/ HR NET WEIGHT
NOMINAL CUBIC FEET PER HOUR POUNDS
MODEL HP CUBIC INCHES PER
REVOLUTION CUBIC METERS PER HOUR KILOGRAMS
KW
CUBIC CENTIMETERS 50 HERTZ SINGLE THREE
PER REVOLUTION 2900 RPM PHASE PHASE
1.83 1.873 188.6 56 54
ZR22
1.37 30.69 5.34 25.4 24.5
2.00 2.076 209.0 58 55
ZR24
1.49 34.02 5.92 26.3 24.9
2.17 2.202 221.7 58 56
ZR26
1.62 36.08 6.28 26.3 25.4
2.33 2.395 241.2 58 56
ZR28
1.74 39.24 6.83 26.3 25.4
2.50 2.563 258.1 61 56
ZR30
1.87 42.00 7.31 27.7 25.4
2.67 2.650 266.8 61 57
ZR32
1.99 43.42 7.55 27.7 25.9
2.83 2.816 283.6 63 61
ZR34
2.11 46.14 8.03 28.6 27.7
3.00 3.020 304.1 63 61
ZR36
2.24 49.49 8.61 28.6 27.7
3.33 3.309 333.2 66 61
ZR40
2.48 54.22 9.43 29.9 27.7
ZR42 3.50 3.488 351.2 66 61
2.61 57.15 9.94 29.9 27.7
3.75 3.726 375.2 65 62
ZR45
2.80 61.05 10.62 29.5 28.1
3.92 3.864 389.1 71 –
ZR47K3
2.92 63.31 11.02 32.2 –
3.92 3.915 394.2 – 66
ZR47KC
2.92 64.15 11.16 – 29.9
4.00 3.997 402.5 71 62
ZR48
2.98 65.49 11.39 32.2 28.1
4.50 4.468 449.9 – 80
ZR54
3.36 73.21 12.74 – 36.3
4.75 4.710 474.3 – 79
ZR57
3.54 77.18 13.43 – 35.8
5.08 5.040 507.5 91 82
ZR61
3.79 82.59 14.37 41.3 37.2
5.67 5.676 571.5 94 85
ZR68
4.23 93.01 16.18 42.6 38.6
6.00 5.983 602.5 – 85
ZR72
4.48 98.04 17.06 – 38.6
6.75 6.577 662.3 – 88
ZR81
5.04 107.77 18.75 – 39.9

10
Copeland ®
brand products ZR COPELAND SCROLL® COMPRESSORS

R22 ELECTRICAL SPECIFICATIONS

VOLTAGE CODE PFJ PFZ TF5 TFD
NOMINAL VOLTAGE- 200 / 220-3-50 380 /420-3-50
220 / 240-1-50 220 / 240-1-50
PHASE-HERTZ 200 / 230-3-60 460-3-60
VOLTAGE RANGE
50 HERTZ 198-264 198-264 180-242 342-462
60 HERTZ – – 180-253 414-506
RATED LOCKED RATED LOCKED RATED LOCKED RATED LOCKED
LOAD ROTOR LOAD ROTOR LOAD ROTOR LOAD ROTOR
MODEL
AMPS AMPS AMPS AMPS AMPS AMPS AMPS AMPS
RLA LRA RLA LRA RLA LRA RLA LRA

ZR22K3 9.6 47.0 7.9 48.0 3.9 24.0

ZR24K3 11.4 58.0 8.6 56.0 4.3 26.0

ZR26K3 11.4 60.0 8.6 56.0 4.3 26.0

ZR28K3 12.9 61.0 10.0 70.0 5.0 32.0

ZR30K3 14.3 74.0 10.7 70.0 5.0 32.0

ZR32K3 14.3 74.0 10.7 83.0 5.4 35.0

ZR34K3 13.6 76.0 10.7 83.0 5.7 40.0

ZR36K3 16.4 82.0 10.7 83.0 5.7 40.0

ZR40K3 17.1 100.0 13.9 95.0 6.4 46.0

ZR42K3 17.1 97.0 13.9 95.0 7.1 46.0

ZR45K3 19.3 114.0 15.4 98.0 7.9 48.0

ZR45KC 14.3 98.0 7.2 48.0

ZR47K3 19.3 114.0 16.4 98.0 7.9 50.0

ZR47KC 14.3 98.0 7.2 48.0

ZR48K3 19.3 114.0 16.4 98.0 7.9 50.0

ZR48KC 16.4 98.0 7.9 50.0

ZR54KC 16.4 135.0 8.2 61.8

ZR57KC 17.2 135.0 8.2 61.8

ZR61KC 28.6 150.0 20.7 139.0 10.0 65.0

ZR68KC 30.7 150.0 20.7 172.0 10.0 74.0

ZR72KC 20.7 172.0 10.0 74.0

ZR81KC 25.0 179.0 12.0 101.0

11
Copeland ®
brand products ZR COPELAND SCROLL® COMPRESSORS

R407C ELECTRICAL SPECIFICATIONS

ZR22K3E 9.6 47.0 7.9 48.0 3.9 24.0

ZR24K3E 11.4 58.0 8.6 56.0 4.3 26.0

ZR26K3E 11.4 60.0 8.6 56.0 4.3 26.0

ZR28K3E 12.9 61.0 10.0 70.0 5.0 32.0

ZR30K3E 14.3 74.0 10.7 70.0 5.0 32.0

ZR32K3E 14.3 74.0 10.7 83.0 5.4 35.0

ZR34K3E 13.6 76.0 10.7 83.0 5.7 40.0

ZR36K3E 16.4 82.0 10.7 83.0 5.7 40.0

ZR40K3E 17.1 100.0 13.9 95.0 6.4 46.0

ZR42K3E

ZR45K3E
17.1

19.3
97.0

114.0

0 7 C 13.9 95.0 7.1 46.0

ZR45KCE

ZR47K3E

ZR47KCE

ZR48K3E
19.3

19.3
114.0

114.0
R 4 16.4

14.3

16.4
98.0

98.0

98.0
7.2

7.9

7.2

7.9
48.0

50.0

48.0

50.0

ZR48KCE 16.4 98.0 7.9 50.0

ZR54KCE 16.4 135.0 8.2 61.8

ZR57KCE 17.2 135.0 8.2 61.8

ZR61KCE 28.6 150.0 20.7 139.0 10.0 65.0

ZR68KCE 30.7 150.0 20.7 172.0 10.0 74.0

ZR72KCE 20.7 172.0 10.0 74.0

ZR81KCE 25.0 179.0 12.0 101.0

12
Copeland ®
brand products ZR COPELAND SCROLL® COMPRESSORS

ELECTRICAL COMPONENTS FOR AIR CONDITIONING AND

50 HERTZ HEAT PUMP SINGLE PHASE COMPRESSORS
R22 (PFJ/Z)
RUN CAPACITOR
MODEL
MFD VOLTS PART NUMBER

ZR22K3-PFJ 40 370 014-0054-12

ZR24K3-PFJ 40 370 014-0054-12
ZR26K3-PFJ 40 370 014-0054-12
ZR28K3-PFJ 45 370 014-0054-36
ZR30K3-PFJ 45 370 014-0054-36
ZR32K3-PFJ 45 370 014-0054-36
ZR34K3-PFJ 50 370 014-0054-40
ZR36K3-PFJ 50 370 014-0054-40
ZR40K3-PFJ 55 370 014-0054-39
ZR42K3-PFJ 60 370 014-0054-37
ZR45K3-PFJ 60 370 014-0054-37
ZR47K3-PFJ 60 370 014-0054-37
ZR48K3-PFJ 60 370 014-0054-37
ZR61KC-PFZ 50 440 014-0054-20
ZR68KC-PFJ 50 440 014-0054-20

ELECTRICAL COMPONENTS FOR AIR CONDITIONING AND

50 HERTZ HEAT PUMP SINGLE PHASE COMPRESSORS
R407C (PFJ/Z)
RUN CAPACITOR
MODEL
MFD VOLTS PART NUMBER

ZR22K3E-PFJ 40 370 014-0054-12

ZR24K3E-PFJ 40 370 014-0054-12
ZR26K3E-PFJ 40 370 014-0054-12
ZR28K3E-PFJ 45 370 014-0054-36

C
ZR30K3E-PFJ 45 370 014-0054-36

07
ZR32K3E-PFJ 45 370 014-0054-36
ZR34K3E-PFJ 50 370 014-0054-40
ZR36K3E-PFJ
ZR40K3E-PFJ
ZR42K3E-PFJ
ZR45K3E-PFJ
ZR47K3E-PFJ
50
55
60
60
60
R 4 370
370
370
370
370
014-0054-40
014-0054-39
014-0054-37
014-0054-37
014-0054-37
ZR48K3E-PFJ 60 370 014-0054-37
ZR61KCE-PFZ 50 440 014-0054-20
ZR68KCE-PFJ 50 440 014-0054-20

13
ZR COPELAND
Copeland ®

brand products
BILLS OF MATERIAL FOR

“STANDARD” BILLS
The bill of material includes features as shown by the X.
FOUR FOOT
BILL OF MATERIAL STUB TUBE ROTALOCK MOUNTING PATTERN
MODEL
NUMBER CONNECTIONS CONNECTIONS 7 1/2 x 7 1/2 INCH
(190.5 x 190.5 mm)

501 X X
512 X
522 X X
ZR22 TO 523 X X
ZR42 562 X
601 X X
612 X
622 X X
422 X X
501 X X
512 X
ZR45 AND 522 X X
523 X X
ZR47
562 X
601 X X
612 X
622 X X
422 X X
501 X X
522 X X
ZR48
523 X X
601 X X
622 X X
422 X X
501 X X
ZR54 TO 522 X X
ZR81 523 X X
601 X X
622 X X

“SPECIAL” BILLS
The bill of material includes features as shown by the X.
FOUR FOOT
BILL OF MATERIAL STUB TUBE ROTALOCK MOUNTING PATTERN
NUMBER CONNECTIONS CONNECTIONS 71/2 x 71/2 INCH
MODEL (190.5 x 190.5 mm)

511 X X
ZR22 TO ZR48 515 X X
611 X X
511 X X
ZR68 515 X X
611 X X

14
SCROLL COMPRESSORS Copeland ®

brand products
THE INTERNATIONAL MARKET

OF MATERIAL
THREE FOOT GROUNDING TERMINAL BOX, MOLDED TERMINAL BOX,
SPECIAL TANDEM
MOUNTING PATTERN TAB, COVER AND PLUG COVER AND TANDEM
STYLE MOUTING
6.2 x 7.2 INCH SCREW, AND PUSH-ON ELECTRICAL READY TERMINAL CONNECTOR READY
PARTS
(158.1 x 182.6 mm) WASHER TERMINAL CONNECTIONS TERMINALS BLOCK WITH SCREWS

X
X X
X X
X X
X X X
X
X X
X X
X X X X
X
X X
X X
X X
X X X
X
X X
X X
X X X X
X
X X
X X
X
X X
X X X X
X
X X
X X
X
X X

OF MATERIAL

TERMINAL BOX, MOLDED TERMINAL BOX,

GROUNDING TAB, COVER AND PLUG COVER AND
RUN CAPACITOR SCREW, AND WASHER PUSH-ON ELECTRICAL READY TERMINAL CONNECTOR
TERMINAL CONNECTIONS TERMINALS BLOCK WITH SCREWS

X X
X X X
X X
X X
X X X
X X

15
Copeland ®
brand products ZR COPELAND SCROLL® COMPRESSORS

BILL OF MATERIAL PROVISIONS ACCESSORY INFORMATION

Emerson Climate Technologies is pleased to offer the
bills of material shown on the previous pages that offer a Crankcase Heater - 240 volt - 70 watt 018-0072-00
complete and versatile choice to your compressor (ZR22 to ZR81)
selection. Crankcase Heater - 480 volt - 70 watt 018-0072-01
In addition to the marked features, each compressor will (ZR22 to ZR81)
include the following:
• Wiring diagram.
• Internal line break protector.
• Rubber grommet mounting parts with sleeves
(kit 527-0116-00).
• Grounding tab located in the compressor terminal
box.
See outline drawing pages 18 to 22 for stub tube and
rotalock connection sizes.

COMPRESSOR OIL CHARGES

WHITE OIL MMMA POE OIL
INITIAL REFILL INITIAL REFILL
MODEL OIL OIL MODEL OIL OIL
CHARGE CHARGE CHARGE CHARGE
OUNCES/ LITERS OUNCES / LITERS OUNCES / LITERS OUNCES / LITERS
ZR22K3 ZR22K3E
ZR24K3 38 34 ZR24K3E 38 34
ZR26K3 1.12 1.01 ZR26K3E 1.12 1.01
ZR28K3 ZR28K3E
ZR30K3 ZR30K3E
ZR32K3
ZR34K3 ZR32K3E
42 38
ZR36K3 ZR34K3E
1.24 1.12 42 38
ZR40K3
ZR36K3E 1.24 1.12
ZR42K3
ZR45K3 ZR40K3E
46 42
ZR45KC 1.36 1.24 ZR42K3E
42 38 42 38
ZR47K3 ZR47K3E-PFJ
1.24 1.12 1.24 1.12
46 42 46 42
ZR47KC ZR47KCE-TF5 / TFD
1.36 1.24 1.36 1.24
42 38 42 38
ZR48K3 ZR48K3E-PFJ
1.24 1.12 1.24 1.12
46 42 46 42
ZR48KC 1.36 1.24 ZR48KCE-TF5 / TFD 1.36 1.24
ZR54KC 66 62 ZR54KCE 66 62
ZR57KC 1.95 1.83 ZR57KCE 1.95 1.83
56 52 56 52
ZR61KC-PFZ ZR61KCE-PFZ
1.66 1.54 1.66 1.54
66 62 66 62
ZR61KC-TF5/TFD ZR61KCE-TF5/TFD
1.95 1.83 1.95 1.83
62 58 62 58
ZR68KC-PFJ ZR68KCE-PFJ
1.83 1.72 1.83 1.72
ZR68KC-TF5/TFD ZR68KCE-TF5/TFD
60 56 60 56
ZR72KC ZR72KCE
1.77 1.66 1.77 1.66
ZR81KC ZR81KCE

16
Copeland ®
brand products ZR COPELAND SCROLL® COMPRESSORS

ROTALOCK SERVICE VALVES

For your ZR rotalock connection compressor, please order the Valve Kits
valves separately by choosing them from the tables below. The kits listed in Table B below, include rotalock suction and
discharge service valves and seals for the ZR models shown.
Valve Style
Use of these with your ZR rotalock connection compressors
Table A illustrates the style for each valve listed in Tables B and will simplify your order and inventory process.
C. The drawings in this table will show gage port quantity and
location. The gage ports are 1/4 inch flare fittings and include Special Kits
brass caps. If the kits are not ordered, special valves and seals should be
selected from Table C below to fit the rotalock connections
supplied on the ZR compressor. A suggestion is to select
valves having the same line sizes as the connections supplied
on compressors with stub tubes. Be sure to match rotalock
connection sizes.

TABLE A
STYLE 1 STYLE 2 STYLE 3 STYLE 4

TABLE B
ROTALOCK
SUCTION VALVE DISCHARGE VALVE CONNECTION SIZE IN INCHES
AND SEAL PART NUMBER SUGGESTED
KIT PART NUMBER
TYPE TYPE USAGE
SIZE IN SIZE IN
AND STYLE AND STYLE SUCTION DISCHARGE
INCHES INCHES
VALVE PART NUMBER VALVE PART NUMBER

510-0247-16 3
/4 Solder Solder ZR22
3 /
1 2 2
510-0080-09 510-0133-09 to ZR42

7 Solder Solder 11/4-12 1-14 ZR45

510-0247-17 /8 4 /
1 2 2
510-0105-04 510-0133-09 020-0028-02 020-0028-00 to ZR72

7 Solder Flare ZR45

510-0247-18 /8 4 /
1 2 1
510-0105-04 510-0132-03 to ZR72

7 Solder Solder 11/4-12 11/4-12

510-0247-19 /8 4 /
3 4 3 ZR81
510-0105-04 510-0080-09 020-0028-02 020-0028-02

TABLE C
ROTALOCK CONNECTION SEAL PART NUMBER
VALVE PART NUMBER SIZE IN INCHES TYPE STYLE
SIZE IN INCHES (ONE PER VALVE REQUIRED)
510-0132-05 /
3 8 Flare 1
510-0133-08 /
3 8 Solder 2
510-0132-03 1/2 Flare 1
1-14 510-0133-09 1/2 Solder 2 020-0028-00
510-0132-04 5/8 Flare 1
510-0133-10 5/8 Solder 2
510-0133-13 7/8 Solder 2
510-0105-05 5/8 Solder 4
510-0080-09 3/4 Solder 3
510-0080-08 7/8 Solder 3
11/4-12 510-0105-04 7/8 Solder 4 020-0028-02
510-0133-11 7/8 Solder 2
510-0080-10 11/8 Solder 3
510-0133-12 11/8 Solder 2

17
Copeland ®
brand products ZR COPELAND SCROLL® COMPRESSORS

NOTES: INTERNAL FREE VOLUME

1. NOMINAL DIMENSIONS ARE SHOWN. DIMENSIONAL MODEL NUMBER ØA CM 3 [IN.3 ] EXCLUDING
OIL CHARGE
ALL TOLERANCES ARE ± 1.50 [0.060]
UNLESS OTHERWISE SPECIFIED. INFORMATION ZR22-PFJ
13.46
[0.530] 2861 [175]
2. DUE TO THE ACCUMULATED ASSEMBLY 13.46
TOLERANCES, THE TOP OF THE COM- ZR22-TF5 [0.530] 2861 [175]
PRESSOR, TERMINAL BOX, SUCTION AND
DISCHARGE FITTING VARY FROM THE 17.45
OA ZR22-TFD [0.687] 2928 [179]
MOUNTING FEET BY ± 3.0 [0.12]. PIN O 13
C .4 13.46
3. TERMINAL BOX AND MOLDED PLUG IRC
LE [0.53 6 ZR24-PFJ 2861 [175]
0] [0.530]
OPTIONS ARE SHOWN. BILLS OF MATERIAL PIN
CIRC
LE 13.46
PAGES 14 AND 15 SHOW B / M NUMBERS FOR ZR24-TF5 2861 [175]
EACH OPTION. [0.530]
4. STUB TUBE AND ROTALOCK FITTINGS 17.45
ZR24-TFD [0.687] 2928 [179]
ARE SHOWN. BILLS OF MATERIAL PAGES
14 AND 15 SHOW B / M NUMBERS FOR 13.46
ZR26-PFJ [0.530] 2861 [175]
EACH TYPE OF FITTING.
5. LINEAR MEASUREMENTS IN [ ] ARE 13.46
ZR26-TF5 [0.530] 2861 [175]
INCH CONVERSIONS.
THIRD ANGLE PROJECTION TYPICAL TERMINAL BOX 17.45
TYPICAL MOLDED PLUG ZR26-TFD 2928 [179]
OPTION LAYOUT [0.687]
OPTION LAYOUT
13.46
ZR28-PFJ [0.530] 2861 [175]
13.46
243.0 ZR28-TF5 [0.530] 2861 [175]
[9.567] 17.45
121.5 ZR28-TFD [0.687] 2928 [179]
[4.783]
190.5
4X O 19.00 - 19.50
[7.500]

[7.500]
190.5

[O 0.748 - 0.768]
95.3
[3.752]
[3.752]
[3.272]
95.3
83.1

[8.148]
207.0
[8.902]
226.1

[4.216]
107.1
[3.819]

[4.610]
97.2

[4.547]

117.1
[4.783]
115.5

121.5

58.4
[2.299] 64.3
(49 O (49 [2.531]
) O
)
(31 )
O

(31 )
O

236.1 216.7
[9.295] [8.533]

12.78 - 12.95 [0.503 - 0.510] I.D.

10.10 [0.398] MIN., COPPER 25.4 [1.00] THREAD 31.75 [1.25] THREAD
PLATED STEEL DISCHARGE ROTALOCK SPUD ROTALOCK
FITTING. DISCHARGE SPUD SUCTION

19.12 - 19.30
[0.753 - 0.761] I.D.
16.00 [0.630] MIN.,
COPPER PLATED
STEEL SUCTION
FITTING.
363.8 [14.324]
338.3 [13.319]

244.6 [9.630]
244.5 [9.626]

338.4 [13.323]

O 165.8 O 165.8
216.0 [8.504]

[6.526]
202.9 [7.988]

[6.526]

SEE
DETAIL

TERMINAL BOX OPTION USE THIS SURFACE FOR OVERALL, MOLDED PLUG OPTION AVAILABLE OPTIONAL FITTINGS
FITTING, AND TERMINAL BOX HEIGHTS.
[0.752]
19.1

[0.516]

FOR THE INTERNATIONAL MARKET

13.1

ZR22 to ZR28
HEAT PUMP AND
AIR CONDITIONING MODELS

18
Copeland ®
brand products ZR COPELAND SCROLL® COMPRESSORS

NOTES: INTERNAL FREE VOLUME

1. NOMINAL DIMENSIONS ARE SHOWN. DIMENSIONAL MODEL NUMBER ØA CM 3 [IN.3 ] EXCLUDING
OIL CHARGE
ALL TOLERANCES ARE ± 1.50 [0.060]
UNLESS OTHERWISE SPECIFIED. INFORMATION ZR30-PFJ
13.46
[0.530] 2842 [173]
2. DUE TO THE ACCUMULATED ASSEMBLY 13.46
TOLERANCES, THE TOP OF THE COM- ZR30-TF5 [0.530] 2842 [173]
PRESSOR, TERMINAL BOX, SUCTION AND 17.45
DISCHARGE FITTING VARY FROM THE OA ZR30-TFD [0.687] 3077 [188]
MOUNTING FEET BY ± 3.0 [0.12]. PIN O 13 13.46
C .4
3. TERMINAL BOX AND MOLDED PLUG IRC
LE [0.53 6 ZR32-PFJ [0.530] 2842 [173]
0]
OPTIONS ARE SHOWN. BILLS OF MATERIAL PIN
CIRC 13.46
LE ZR32-TF5 2842 [173]
PAGES 14 AND 15 SHOW B / M NUMBERS FOR [0.530]
EACH OPTION. 17.45
ZR32-TFD [0.687] 3077 [188]
4. STUB TUBE AND ROTALOCK FITTINGS
ARE SHOWN. BILLS OF MATERIAL PAGES 13.46
14 AND 15 SHOW B / M NUMBERS FOR ZR34-PFJ [0.530] 2842 [173]
EACH TYPE OF FITTING. 13.46
ZR34-TF5 [0.530] 2842 [173]
5. LINEAR MEASUREMENTS IN [ ] ARE
INCH CONVERSIONS. 17.45
ZR34-TFD [0.687] 3077 [188]
THIRD ANGLE PROJECTION TYPICAL TERMINAL BOX TYPICAL MOLDED PLUG
OPTION LAYOUT 13.46
OPTION LAYOUT ZR36-PFJ [0.530] 2842 [173]
13.46
ZR36-TF5 [0.530] 2842 [173]
17.45
243.0 ZR36-TFD [0.687] 3077 [188]
[9.567]
121.5
[4.783]
190.5
4X O 19.00 - 19.50
[7.500]

[7.500]
190.5

[O 0.748 - 0.768]
95.3
[3.752]
[3.752]
[3.272]
95.3
83.1

[8.148]
207.0
[8.902]
226.1

[4.216]
107.1
[3.827]

[4.610]
97.2

[4.547]

117.1
[4.783]
115.5

121.5

58.4
[2.299] 64.3
(49 O (49 [2.531]
) O
)
(31 )
O

(31 )
O

236.1 216.7
[9.295] [8.533]

12.78 - 12.95 [0.503 - 0.510] I.D.

10.10 [0.398] MIN., COPPER 25.4 [1.00] THREAD 31.75 [1.25] THREAD
PLATED STEEL DISCHARGE ROTALOCK SPUD ROTALOCK
FITTING. DISCHARGE SPUD SUCTION

19.12 - 19.30
[0.753 - 0.761] I.D.
16.00 [0.630] MIN.,
COPPER PLATED
STEEL SUCTION
FITTING.
386.4 [15.213]
360.9 [14.209]

264.5 [10.413]
264.4 [10.409]

361.0 [14.213]

O 165.8 O 165.8
235.9 [9.287]

[6.526]
222.8 [8.772]

[6.526]

SEE
DETAIL

TERMINAL BOX OPTION USE THIS SURFACE FOR OVERALL, MOLDED PLUG OPTION AVAILABLE OPTIONAL FITTINGS
FITTING, AND TERMINAL BOX HEIGHTS.
[0.752]
19.1

FOR THE INTERNATIONAL MARKET

[0.516]
13.1

ZR30 to ZR36
HEAT PUMP AND
AIR CONDITIONING MODELS

19
Copeland ®
brand products ZR COPELAND SCROLL® COMPRESSORS

NOTES: INTERNAL FREE VOLUME

1. NOMINAL DIMENSIONS ARE SHOWN. DIMENSIONAL MODEL NUMBER ØA CM 3 [IN.3 ] EXCLUDING
OIL CHARGE
ALL TOLERANCES ARE ± 1.50 [0.060]
UNLESS OTHERWISE SPECIFIED. INFORMATION ZR40-PFJ
13.45
[0.530] 2987 [182]
2. DUE TO THE ACCUMULATED ASSEMBLY
13.45
TOLERANCES, THE TOP OF THE COM- ZR40-TF5 2987 [182]
[0.530]
PRESSOR, TERMINAL BOX, SUCTION AND
DISCHARGE FITTING VARY FROM THE OA 17.45
ZR40-TFD [0.687] 3130 [191]
MOUNTING FEET BY ± 3.0 [0.12]. PIN O 13
C .4
3. TERMINAL BOX AND MOLDED PLUG IRC
LE [0.53 5 13.45
0] ZR42-PFJ 2987 [182]
OPTIONS ARE SHOWN. BILLS OF MATERIAL PIN [0.530]
CIRC
LE
PAGES 14 AND 15 SHOW B / M NUMBERS FOR 13.45
EACH OPTION. ZR42-TF5 [0.530] 2987 [182]
4. STUB TUBE AND ROTALOCK FITTINGS 17.45
ARE SHOWN. BILLS OF MATERIAL PAGES ZR42-TFD [0.687] 3130 [191]
14 AND 15 SHOW B / M NUMBERS FOR
EACH TYPE OF FITTING.
5. LINEAR MEASUREMENTS IN [ ] ARE
INCH CONVERSIONS.
THIRD ANGLE PROJECTION TYPICAL TERMINAL BOX TYPICAL MOLDED PLUG
OPTION LAYOUT OPTION LAYOUT

243.0
[9.567]
121.5
[4.783]
190.5
4X O 19.00 - 19.50
[7.500]

[7.500]
190.5

[O 0.748 - 0.768]
95.3
[3.752]
[3.752]
[3.272]
95.3
83.1

[8.148]
207.0
[8.902]
226.1

[4.216]
107.1
[3.827]

[4.610]
97.2

[4.547]

117.1
[4.783]
115.5

121.5

58.4
[2.299] 64.3
(49 O (49 [2.531]
) O
)
(31 )
O

(31 )
O

236.1 216.7
[9.295] [8.533]

12.78 - 12.95 [0.503 - 0.510] I.D.

10.10 [0.398] MIN., COPPER 25.4 [1.00] THREAD 31.75 [1.25] THREAD
PLATED STEEL DISCHARGE ROTALOCK SPUD ROTALOCK
FITTING. DISCHARGE SPUD SUCTION

19.12 - 19.30
[0.753 - 0.761] I.D.
16.00 [0.630] MIN.,
COPPER PLATED
STEEL SUCTION
FITTING.
400.2 [15.756]
374.6 [14.748]

277.3 [10.917]
277.1 [10.910]

374.8 [14.756]

O 165.8 O 165.8
248.6 [9.787]

[6.526]
235.5 [9.272]

[6.526]

SEE
DETAIL

TERMINAL BOX OPTION USE THIS SURFACE FOR OVERALL, MOLDED PLUG OPTION AVAILABLE OPTIONAL FITTINGS
FITTING, AND TERMINAL BOX HEIGHTS.
[0.752]
19.1

FOR THE INTERNATIONAL MARKET

[0.516]
13.1

ZR40, ZR42
HEAT PUMP AND
AIR CONDITIONING MODELS

20
Copeland ®
brand products ZR COPELAND SCROLL® COMPRESSORS

NOTES: INTERNAL FREE VOLUME

1. NOMINAL DIMENSIONS ARE SHOWN. DIMENSIONAL MODEL NUMBER ØA CM 3 [IN.3 ] EXCLUDING
OIL CHARGE
ALL TOLERANCES ARE ± 1.50 [0.060]
UNLESS OTHERWISE SPECIFIED. INFORMATION ZR45-PFJ
13.46
[0.530] 3360 [205]
2. DUE TO THE ACCUMULATED ASSEMBLY
13.46
TOLERANCES, THE TOP OF THE COM- ZR45-TF5 3360 [205]
[0.530]
PRESSOR, TERMINAL BOX, SUCTION AND
DISCHARGE FITTING VARY FROM THE OA 17.45
ZR45-TFD [0.687] 3360 [205]
MOUNTING FEET BY ± 3.0 [0.12]. PIN O 13
C .4
3. TERMINAL BOX AND MOLDED PLUG IRC
LE [0.53 6 13.46
0] ZR47-PFJ 3360 [205]
OPTIONS ARE SHOWN. BILLS OF MATERIAL PIN [0.530]
CIRC
LE
PAGES 14 AND 15 SHOW B / M NUMBERS FOR 13.46
EACH OPTION. ZR47-TF5 [0.530] 3360 [205]
4. STUB TUBE AND ROTALOCK FITTINGS 17.45
ARE SHOWN. BILLS OF MATERIAL PAGES ZR47-TFD [0.687] 3360 [205]
14 AND 15 SHOW B / M NUMBERS FOR
EACH TYPE OF FITTING. 13.46
ZR48-PFJ [0.530] 3360 [205]
5. LINEAR MEASUREMENTS IN [ ] ARE
INCH CONVERSIONS. 13.46
ZR48-TF5 [0.530] 3360 [205]
THIRD ANGLE PROJECTION TYPICAL TERMINAL BOX TYPICAL MOLDED PLUG
OPTION LAYOUT OPTION LAYOUT 17.45
ZR48-TFD [0.687] 3360 [205]

240.0 - 246.0
[9.448 - 9.683]
121.5
[4.783]
190.5
4X O 19.00 - 19.50
[7.500]

[7.500]
190.5

[O 0.748 - 0.768]
95.3
[3.752]
[3.752]
[3.272]
95.3
83.1

[8.148]
207.0
[8.902]
226.1

[4.216]
107.1
[3.827]

[4.610]
97.2

[4.547]

117.1
[4.783]
115.5

121.5

58.4
[2.299] 64.3
(49 O (49 [2.531]
) O
)
(31 )
O

(31 )
O

243.6 216.73
[9.354] [8.5326]

12.78 - 12.95 [0.503 - 0.510] I.D.

10.10 [0.398] MIN., COPPER 25.4 [1.00] THREAD 31.75 [1.25] THREAD
PLATED STEEL DISCHARGE ROTALOCK SPUD ROTALOCK
FITTING. DISCHARGE SPUD SUCTION

22.30 - 22.48
[0.8780- 0.8850] I.D.
20.4 [0.803] MIN.,
COPPER PLATED
STEEL SUCTION
FITTING.
417.3 [16.429]
391.7 [15.421]

294.2 [11.583]
294.2 [11.583]

391.7 [15.421]

O 165.8 O 165.8
265.6 [10.456]

[6.526]
252.0 [9.921]

[6.526]

SEE
DETAIL

TERMINAL BOX OPTION MOLDED PLUG OPTION AVAILABLE OPTIONAL FITTINGS

USE THIS SURFACE FOR OVERALL,
FITTING, AND TERMINAL BOX HEIGHTS.
[0.748]
19.0

FOR THE INTERNATIONAL MARKET

[0.516]

ZR45, ZR47, ZR48

13.1

HEAT PUMP AND

AIR CONDITIONING MODELS

21
Copeland ®
brand products ZR COPELAND SCROLL® COMPRESSORS

NOTES: INTERNAL FREE VOLUME

1. NOMINAL DIMENSIONS ARE SHOWN. DIMENSIONAL MODEL NUMBER A B C D E CM 3 [IN.3 ] EXCLUDING
OIL CHARGE
ALL TOLERANCES ARE ± 1.50 [0.060]
UNLESS OTHERWISE SPECIFIED. INFORMATION ZR54-TF5 / D
437.9
[17.240]
409.8
[16.134]
124.7
[4.91]
12.84
[0.506]
25.4
[1.00] 4195 [256]
2. DUE TO THE ACCUMULATED ASSEMBLY 437.9 409.8 124.7 12.84 25.4
TOLERANCES, THE SUCTION AND ZR57-TF5 / D [17.240] [16.134] [4.91] [0.506] [1.00] 4195 [256]
DISCHARGE FITTINGS VARY FROM THE 437.9 409.8 124.7 12.84 25.4
MOUNTING HOLES BY ± 3.0 [0.12]. ZR61KC-PFZ [17.240] [16.134] [4.91] [0.506] [1.00] 4195 [256]
3. TERMINAL BOX AND MOLDED PLUG
OPTIONS ARE SHOWN. BILLS OF MATERIAL
T1 C ZR61-TF5 / D
437.9
[17.240]
409.8
[16.134]
124.7
[4.91]
12.84
[0.506]
25.4
[1.00] 4195 [256]
O 13
PAGES 14 AND 15 SHOW B / M NUMBERS FOR .4
PIN C 6 [0.530 ZR68-PFJ
437.9 409.8 124.7 12.84 25.4
4195 [256]
EACH OPTION. IRCL ] [17.240] [16.134] [4.91] [0.506] [1.00]
E
4. STUB TUBE AND ROTALOCK FITTINGS S 437.9 409.8 124.7 12.84 25.4
ARE SHOWN. BILLS OF MATERIAL PAGES T2 ZR68-TF5 / D [17.240] [16.134] [4.91] [0.506] [1.00] 5932 [362]
14 AND 15 SHOW B / M NUMBERS FOR 437.9 409.8 124.7 12.84 25.4
EACH TYPE OF FITTING.
T3 ZR72-TF5 / D [17.240] [16.134] [4.91] [0.506] [1.00] 5932 [362]
5. LINEAR MEASUREMENTS IN [ ] ARE R 443.4 413.9 128.7 19.18 31.75
ZR81-TF5 / D [17.457] [16.30] [5.07] [0.755] [1.25] 6060 [370]
INCH CONVERSIONS.
THIRD ANGLE PROJECTION TYPICAL MOLDED PLUG
OPTION LAYOUT

245.6 [9.69]
122.8 [4.83]
4X O 19.00 - 19.50
190.5 [7.50] [O 0.748 - 0.768]
95.3 [3.75]
[4.83]
122.8
[3.75]
95.3

245.6 [9.67]
190.5 [7.50]

219.9 [8.66]
[9.83]
249.8

[4.55]
115.5
[4.07]
103.5

[4.98]
126.5
C

62.2 69.4
[2.45] [2.73]
(41.5 (44 )
(31 )
O

(31 )
O O O
)

240.8 [9.48] 217.7 [8.57]

22.30 - 22.48 [0.878 - 0.885] I.D. E THREAD
D I.D. COPPER DISCHARGE FITTING/ 19.9 [0.78] MIN. COPPER ROTALOCK SPUD
STEEL CHECK VALVE. PLATED STEEL SUCTION FITTING. DISCHARGE

31.75 [1.250]
THREAD
ROTALOCK
SPUD
SUCTION

A
B B
296.7 [11.68]
296.7 [11.68]

O 185.5 O 185.5
275.5 [10.85]

[7.30] [7.30]
233.4 [9.189]

TERMINAL BOX OPTION MOLDED PLUG OPTION AVAILABLE OPTIONAL FITTINGS

USE THIS SURFACE FOR
OVERALL, FITTING, AND
TERMINAL BOX HEIGHTS. C
T1 S
T2
R
T3
[0.50]
[0.75]

FOR THE INTERNATIONAL MARKET

12.7
19.0

TYPICAL TERMINAL
BOX OPTION LAYOUT ZR54 to ZR81
HEAT PUMP AND
AIR CONDITIONING MODELS

22
Copeland ®
brand products ZR COPELAND SCROLL® COMPRESSORS

NOTES:
1. ALL TOLERANCES ± 1.25 [3.18] UNLESS
OTHERWISE SPECIFIED.
2. LINEAR MEASUREMENTS IN [ ] ARE
MOUNTING INFORMATION
INCH CONVERSIONS.

ZR22 TO ZR81 ZR22 TO ZR47

190.5 182.6
[7.500] [7.189]
91.3
95.2 [3.594]
[3.750]

[6.224]
158.1
[7.500]
190.5

[2.075]
52.7

SUCTION

DISCHARGE

DISCHARGE SUCTION

4 FOOT MOUNTING 3 FOOT MOUNTING

ARRANGEMENT ARRANGEMENT
ALL BILLS OF MATERIAL BILLS OF MATERIAL
EXCEPT 512, 562, 612 512, 562, 612

FOR THE INTERNATIONAL MARKET

ZR22 to ZR81
COMPRESSOR
MOUNTING OPTIONS

23
Copeland ®
brand products ZR COPELAND SCROLL® COMPRESSORS

COMPRESSOR WIRING DIAGRAMS

SINGLE PHASE MOTOR

LINE RUN CAPACITOR

C
S
R
LINE

ZR22 TO ZR68

USE MINIMUM 75° C WIRE FOR AMPACITY DETERMINATION

USE THIS EQUIPMENT ON A GROUNDED SYSTEM ONLY
INTERNAL MOTOR PROTECTION. ALLOW TIME FOR RESET
USE COPPER CONDUCTORS ONLY

THREE PHASE MOTOR

T1
T2
T3
ZR22 TO ZR81

CRANKCASE HEATER, WHEN PROVIDED, MUST BE FIELD CONNECTED TO SEPARATE VOLTAGE SOURCE
USE MINIMUM 75° C WIRE FOR AMPACITY DETERMINATION
USE THIS EQUIPMENT ON A GROUNDED SYSTEM ONLY
INTERNAL MOTOR PROTECTION. ALLOW TIME FOR RESET
PRIMARY SINGLE PHASE FAILURE PROTECTION IS PROVIDED
TO CORRECT IMPROPER MOTOR ROTATION, SWITCH ANY TWO SUPPLY LINES
USE COPPER CONDUCTORS ONLY

24
Copeland ®
brand products ZR COPELAND SCROLL® COMPRESSORS

50 HERTZ PERFORMANCE DATA R22

20° F (11.1° C) Superheat 15° F (8.3° C) Subcooling 95° F (35° C) Ambient (Air Over)

220/ 240-1-50 (PFJ) Rated Voltage 220-1-50 (PFJ) Test Voltage

ZR22K3-PFJ
CAPACITY (BTU / HOUR)
CONDENSING TEMPERATURE EVAPORATING TEMPERATURE °F / °C
– 10 0 10 20 30 40 45 50 55
°F / °C – 23.3 – 17.8 – 12.2 – 6.7 – 1.1 4.4 7.2 10.0 12.8
100 (37.8) 5640 7570 9900 12700 15800 19500 21500 23600 25900
120 (48.9) 8530 11100 14100 17500 19400 21400 23500
140 (60.0) 12000 15200 17000 18800 20800

CAPACITY (KCAL / HOUR)

– 10 0 10 20 30 40 45 50 55
°F / °C – 23.3 – 17.8 – 12.2 – 6.7 – 1.1 4.4 7.2 10.0 12.8
100 (37.8) 1420 1910 2490 3200 3980 4910 5420 5950 6530
120 (48.9) 2150 2800 3550 4410 4890 5390 5920
140 (60.0) 3020 3830 4280 4740 5240

CAPACITY (WATTS)
– 10 0 10 20 30 40 45 50 55
°F / °C – 23.3 – 17.8 – 12.2 – 6.7 – 1.1 4.4 7.2 10.0 12.8
100 (37.8) 1650 2220 2900 3720 4630 5710 6300 6910 7590
120 (48.9) 2500 3250 4130 5130 5680 6270 6890
140 (60.0) 3520 4450 4980 5510 6090

POWER (MOTOR WATTS)

– 10 0 10 20 30 40 45 50 55
°F / °C – 23.3 – 17.8 – 12.2 – 6.7 – 1.1 4.4 7.2 10.0 12.8
100 (37.8) 1250 1240 1220 1220 1210 1190 1190 1180 1160
120 (48.9) 1590 1570 1550 1530 1520 1510 1500
140 (60.0) 2030 1990 1980 1960 1940

ZR22K3-TF5 / TFD 200/220-3-50 (TF5) Rated Voltage

380/420-3-50 (TFD)
220-3-50 (TF5)
380-3-50 (TFD) Test Voltage
CAPACITY (BTU / HOUR)
CONDENSING TEMPERATURE EVAPORATING TEMPERATURE °F / °C
– 10 0 10 20 30 40 45 50 55
°F / °C – 23.3 – 17.8 – 12.2 – 6.7 – 1.1 4.4 7.2 10.0 12.8
100 (37.8) 5810 7780 10100 12800 15900 19500 21500 23600 25900
120 (48.9) 8800 11300 14200 17500 19400 21300 23400
140 (60.0) 12000 15100 16800 18700 20600

CAPACITY (KCAL / HOUR)

– 10 0 10 20 30 40 45 50 55
°F / °C – 23.3 – 17.8 – 12.2 – 6.7 – 1.1 4.4 7.2 10.0 12.8
100 (37.8) 1460 1960 2550 3230 4010 4910 5420 5950 6530
120 (48.9) 2220 2850 3580 4410 4890 5370 5900
140 (60.0) 3020 3810 4230 4710 5190

CAPACITY (WATTS)
– 10 0 10 20 30 40 45 50 55
°F / °C – 23.3 – 17.8 – 12.2 – 6.7 – 1.1 4.4 7.2 10.0 12.8
100 (37.8) 1700 2280 2960 3750 4660 5710 6300 6910 7590
120 (48.9) 2580 3310 4160 5130 5680 6240 6860
140 (60.0) 3520 4420 4920 5480 6040

POWER (MOTOR WATTS)

– 10 0 10 20 30 40 45 50 55
°F / °C – 23.3 – 17.8 – 12.2 – 6.7 – 1.1 4.4 7.2 10.0 12.8
100 (37.8) 1200 1200 1190 1180 1170 1170 1170 1170 1170
120 (48.9) 1610 1580 1550 1530 1530 1530 1530
140 (60.0) 2150 2090 2070 2050 2040
Production compressors to meet above nominal performance values within ± 5%.

25
Copeland ®
brand products ZR COPELAND SCROLL® COMPRESSORS

50 HERTZ PERFORMANCE DATA R407C

20° F (11.1° C) Superheat 15° F (8.3° C) Subcooling 95° F (35° C) Ambient (Air Over)

220/ 240-1-50 (PFJ) Rated Voltage 220-1-50 (PFJ) Test Voltage

ZR22K3E-PFJ
CAPACITY (BTU / HOUR)
CONDENSING TEMPERATURE EVAPORATING TEMPERATURE °F / °C
– 10 0 10 20 30 40 45 50 55
°F / °C – 23.3 – 17.8 – 12.2 – 6.7 – 1.1 4.4 7.2 10.0 12.8
100 (37.8) 5180 6980 9230 12000 15200 19000 21100 23400 25800
120 (48.9) 7820 10300 13300 16800 18800 20900 23100
140 (60.0) 11100 14200 16000 17900 20000

CAPACITY (KCAL / HOUR)

– 10 0 10 20 30 40 45 50 55

C
°F / °C – 23.3 – 17.8 – 12.2 – 6.7 – 1.1 4.4 7.2 10.0 12.8

7
100 (37.8) 1310 1760 2330 3020 3830 4790 5320 5900 6500
120 (48.9) 1970 2600 3350 4230 4740 5270 5820

40
140 (60.0) 2800 3580 4030 4510 5040

CAPACITY (WATTS)

R
– 10 0 10 20 30 40 45 50 55
°F / °C – 23.3 – 17.8 – 12.2 – 6.7 – 1.1 4.4 7.2 10.0 12.8
100 (37.8) 1520 2050 2700 3520 4450 5570 6180 6860 7560
120 (48.9) 2290 3020 3900 4920 5510 6120 6770
140 (60.0) 3250 4160 4690 5240 5860

POWER (MOTOR WATTS)

– 10 0 10 20 30 40 45 50 55
°F / °C – 23.3 – 17.8 – 12.2 – 6.7 – 1.1 4.4 7.2 10.0 12.8
100 (37.8) 1240 1220 1210 1200 1190 1180 1170 1160 1140
120 (48.9) 1580 1560 1550 1530 1520 1510 1500
140 (60.0) 2040 2010 2000 1990 1970

ZR22K3E-TF5 / TFD 200/220-3-50 (TF5) Rated Voltage

380/420-3-50 (TFD)
220-3-50 (TF5)
380-3-50 (TFD) Test Voltage
CAPACITY (BTU / HOUR)
CONDENSING TEMPERATURE EVAPORATING TEMPERATURE °F / °C
– 10 0 10 20 30 40 45 50 55
°F / °C – 23.3 – 17.8 – 12.2 – 6.7 – 1.1 4.4 7.2 10.0 12.8
100 (37.8) 5450 7090 9260 12000 15200 19000 21100 23400 25800
120 (48.9) 7960 10400 13400 16900 18800 20900 23100
140 (60.0) 11200 14300 16100 17900 19900

CAPACITY (KCAL / HOUR)

– 10 0 10 20 30 40 45 50 55

C
°F / °C – 23.3 – 17.8 – 12.2 – 6.7 – 1.1 4.4 7.2 10.0 12.8

7
100 (37.8) 1370 1790 2330 3020 3830 4790 5320 5900 6500
120 (48.9) 2010 2620 3380 4260 4740 5270 5820

40
140 (60.0) 2820 3600 4060 4510 5010

CAPACITY (WATTS)

R
– 10 0 10 20 30 40 45 50 55
°F / °C – 23.3 – 17.8 – 12.2 – 6.7 – 1.1 4.4 7.2 10.0 12.8
100 (37.8) 1600 2080 2710 3520 4450 5570 6180 6860 7560
120 (48.9) 2330 3050 3930 4950 5510 6120 6770
140 (60.0) 3280 4190 4720 5240 5830

POWER (MOTOR WATTS)

– 10 0 10 20 30 40 45 50 55
°F / °C – 23.3 – 17.8 – 12.2 – 6.7 – 1.1 4.4 7.2 10.0 12.8
100 (37.8) 1120 1130 1130 1120 1110 1100 1090 1080 1080
120 (48.9) 1480 1480 1470 1460 1450 1440 1430
140 (60.0) 1940 1920 1910 1900 1890
Production compressors to meet above nominal performance values within ± 5%.

26
Copeland ®
brand products ZR COPELAND SCROLL® COMPRESSORS

50 HERTZ PERFORMANCE DATA R22

20° F (11.1° C) Superheat 15° F (8.3° C) Subcooling 95° F (35° C) Ambient (Air Over)

220/ 240-1-50 (PFJ) Rated Voltage 220-1-50 (PFJ) Test Voltage

ZR24K3-PFJ
CAPACITY (BTU / HOUR)
CONDENSING TEMPERATURE EVAPORATING TEMPERATURE °F / °C
– 10 0 10 20 30 40 45 50 55
°F / °C – 23.3 – 17.8 – 12.2 – 6.7 – 1.1 4.4 7.2 10.0 12.8
100 (37.8) 5730 8110 10800 14000 17600 21900 24200 26700 29400
120 (48.9) 9200 12200 15600 19500 21600 23900 26400
140 (60.0) 13000 16700 18700 20800 23100

CAPACITY (KCAL / HOUR)

– 10 0 10 20 30 40 45 50 55
°F / °C – 23.3 – 17.8 – 12.2 – 6.7 – 1.1 4.4 7.2 10.0 12.8
100 (37.8) 1440 2040 2720 3530 4440 5520 6100 6730 7410
120 (48.9) 2320 3070 3930 4910 5440 6020 6650
140 (60.0) 3280 4210 4710 5240 5820

CAPACITY (WATTS)
– 10 0 10 20 30 40 45 50 55
°F / °C – 23.3 – 17.8 – 12.2 – 6.7 – 1.1 4.4 7.2 10.0 12.8
100 (37.8) 1680 2380 3160 4100 5160 6420 7090 7820 8610
120 (48.9) 2700 3570 4570 5710 6330 7000 7740
140 (60.0) 3810 4890 5480 6090 6770

POWER (MOTOR WATTS)

– 10 0 10 20 30 40 45 50 55
°F / °C – 23.3 – 17.8 – 12.2 – 6.7 – 1.1 4.4 7.2 10.0 12.8
100 (37.8) 1380 1370 1360 1340 1330 1310 1310 1300 1290
120 (48.9) 1780 1750 1720 1690 1680 1670 1660
140 (60.0) 2300 2240 2220 2190 2170

ZR24K3-TF5 / TFD 200/220-3-50 (TF5) Rated Voltage

380/420-3-50 (TFD)
220-3-50 (TF5)
380-3-50 (TFD) Test Voltage
CAPACITY (BTU / HOUR)
CONDENSING TEMPERATURE EVAPORATING TEMPERATURE °F / °C
– 10 0 10 20 30 40 45 50 55
°F / °C – 23.3 – 17.8 – 12.2 – 6.7 – 1.1 4.4 7.2 10.0 12.8
100 (37.8) 6170 8210 10800 14000 17700 21900 24200 26600 29100
120 (48.9) 9100 12100 15500 19500 21600 23900 26300
140 (60.0) 12700 16500 18600 20800 23000

CAPACITY (KCAL / HOUR)

– 10 0 10 20 30 40 45 50 55
°F / °C – 23.3 – 17.8 – 12.2 – 6.7 – 1.1 4.4 7.2 10.0 12.8
100 (37.8) 1550 2070 2720 3530 4460 5520 6100 6700 7330
120 (48.9) 2290 3050 3910 4910 5440 6020 6630
140 (60.0) 3200 4160 4690 5240 5800

CAPACITY (WATTS)
– 10 0 10 20 30 40 45 50 55
°F / °C – 23.3 – 17.8 – 12.2 – 6.7 – 1.1 4.4 7.2 10.0 12.8
100 (37.8) 1810 2410 3160 4100 5190 6420 7090 7790 8530
120 (48.9) 2670 3550 4540 5710 6330 7000 7710
140 (60.0) 3720 4830 5450 6090 6740

POWER (MOTOR WATTS)

– 10 0 10 20 30 40 45 50 55
°F / °C – 23.3 – 17.8 – 12.2 – 6.7 – 1.1 4.4 7.2 10.0 12.8
100 (37.8) 1290 1300 1300 1290 1270 1250 1250 1250 1250
120 (48.9) 1780 1750 1710 1670 1660 1640 1630
140 (60.0) 2370 2290 2250 2210 2180
Production compressors to meet above nominal performance values within ± 5%.

27
Copeland ®
brand products ZR COPELAND SCROLL® COMPRESSORS

50 HERTZ PERFORMANCE DATA R407C

20° F (11.1° C) Superheat 15° F (8.3° C) Subcooling 95° F (35° C) Ambient (Air Over)

220/ 240-1-50 (PFJ) Rated Voltage 220-1-50 (PFJ) Test Voltage

ZR24K3E-PFJ
CAPACITY (BTU / HOUR)
CONDENSING TEMPERATURE EVAPORATING TEMPERATURE °F / °C
– 10 0 10 20 30 40 45 50 55
°F / °C – 23.3 – 17.8 – 12.2 – 6.7 – 1.1 4.4 7.2 10.0 12.8
100 (37.8) 5870 8040 10600 13600 17100 21300 23600 26200 28900
120 (48.9) 8990 11700 15000 18800 20900 23200 25700
140 (60.0) 12400 15800 17800 19900 22100

CAPACITY (KCAL / HOUR)

– 10 0 10 20 30 40 45 50 55

C
°F / °C – 23.3 – 17.8 – 12.2 – 6.7 – 1.1 4.4 7.2 10.0 12.8

7
100 (37.8) 1480 2030 2670 3430 4310 5370 5950 6600 7280
120 (48.9) 2270 2950 3780 4740 5270 5850 6480

40
140 (60.0) 3120 3980 4490 5010 5570

CAPACITY (WATTS)

R
– 10 0 10 20 30 40 45 50 55
°F / °C – 23.3 – 17.8 – 12.2 – 6.7 – 1.1 4.4 7.2 10.0 12.8
100 (37.8) 1720 2360 3110 3980 5010 6240 6910 7680 8470
120 (48.9) 2630 3430 4400 5510 6120 6800 7530
140 (60.0) 3630 4630 5220 5830 6480

POWER (MOTOR WATTS)

– 10 0 10 20 30 40 45 50 55
°F / °C – 23.3 – 17.8 – 12.2 – 6.7 – 1.1 4.4 7.2 10.0 12.8
100 (37.8) 1380 1370 1370 1350 1340 1320 1310 1300 1290
120 (48.9) 1780 1750 1730 1710 1690 1680 1670
140 (60.0) 2300 2260 2240 2220 2200

ZR24K3E-TF5 / TFD 200/220-3-50 (TF5) Rated Voltage

380/420-3-50 (TFD)
220-3-50 (TF5)
380-3-50 (TFD) Test Voltage
CAPACITY (BTU / HOUR)
CONDENSING TEMPERATURE EVAPORATING TEMPERATURE °F / °C
– 10 0 10 20 30 40 45 50 55
°F / °C – 23.3 – 17.8 – 12.2 – 6.7 – 1.1 4.4 7.2 10.0 12.8
100 (37.8) 6460 8200 10600 13600 17200 21400 23700 26200 28800
120 (48.9) 8950 11700 14900 18800 20900 23200 25600
140 (60.0) 12100 15700 17700 19800 22100

CAPACITY (KCAL / HOUR)

– 10 0 10 20 30 40 45 50 55

C
°F / °C – 23.3 – 17.8 – 12.2 – 6.7 – 1.1 4.4 7.2 10.0 12.8

7
100 (37.8) 1630 2070 2670 3430 4330 5390 5970 6600 7260
120 (48.9) 2260 2950 3750 4740 5270 5850 6450

40
140 (60.0) 3050 3960 4460 4990 5570

CAPACITY (WATTS)

R
– 10 0 10 20 30 40 45 50 55
°F / °C – 23.3 – 17.8 – 12.2 – 6.7 – 1.1 4.4 7.2 10.0 12.8
100 (37.8) 1890 2400 3110 3980 5040 6270 6940 7680 8440
120 (48.9) 2620 3430 4370 5510 6120 6800 7500
140 (60.0) 3550 4600 5190 5800 6480

POWER (MOTOR WATTS)

– 10 0 10 20 30 40 45 50 55
°F / °C – 23.3 – 17.8 – 12.2 – 6.7 – 1.1 4.4 7.2 10.0 12.8
100 (37.8) 1260 1290 1300 1290 1270 1250 1240 1230 1230
120 (48.9) 1740 1730 1700 1670 1660 1640 1630
140 (60.0) 2350 2290 2260 2230 2200
Production compressors to meet above nominal performance values within ± 5%.

28
Copeland ®
brand products ZR COPELAND SCROLL® COMPRESSORS

50 HERTZ PERFORMANCE DATA R22

20° F (11.1° C) Superheat 15° F (8.3° C) Subcooling 95° F (35° C) Ambient (Air Over)

220/ 240-1-50 (PFJ) Rated Voltage 220-1-50 (PFJ) Test Voltage

ZR26K3-PFJ
CAPACITY (BTU / HOUR)
CONDENSING TEMPERATURE EVAPORATING TEMPERATURE °F / °C
– 10 0 10 20 30 40 45 50 55
°F / °C – 23.3 – 17.8 – 12.2 – 6.7 – 1.1 4.4 7.2 10.0 12.8
100 (37.8) 5670 8280 11300 14700 18700 23300 25800 28600 31500
120 (48.9) 9720 12900 16600 20800 23200 25700 28400
140 (60.0) 14000 17900 20000 22400 24800

CAPACITY (KCAL / HOUR)

– 10 0 10 20 30 40 45 50 55
°F / °C – 23.3 – 17.8 – 12.2 – 6.7 – 1.1 4.4 7.2 10.0 12.8
100 (37.8) 1430 2090 2850 3700 4710 5870 6500 7210 7940
120 (48.9) 2450 3250 4180 5240 5850 6480 7160
140 (60.0) 3530 4510 5040 5640 6250

CAPACITY (WATTS)
– 10 0 10 20 30 40 45 50 55
°F / °C – 23.3 – 17.8 – 12.2 – 6.7 – 1.1 4.4 7.2 10.0 12.8
100 (37.8) 1660 2430 3310 4310 5480 6830 7560 8380 9230
120 (48.9) 2850 3780 4860 6090 6800 7530 8320
140 (60.0) 4100 5240 5860 6560 7270

POWER (MOTOR WATTS)

– 10 0 10 20 30 40 45 50 55
°F / °C – 23.3 – 17.8 – 12.2 – 6.7 – 1.1 4.4 7.2 10.0 12.8
100 (37.8) 1470 1460 1450 1440 1430 1410 1400 1380 1370
120 (48.9) 1850 1830 1800 1780 1770 1760 1740
140 (60.0) 2340 2310 2290 2270 2260

ZR26K3-TF5 / TFD 200/220-3-50 (TF5) Rated Voltage

380/420-3-50 (TFD)
220-3-50 (TF5)
380-3-50 (TFD) Test Voltage
CAPACITY (BTU / HOUR)
CONDENSING TEMPERATURE EVAPORATING TEMPERATURE °F / °C
– 10 0 10 20 30 40 45 50 55
°F / °C – 23.3 – 17.8 – 12.2 – 6.7 – 1.1 4.4 7.2 10.0 12.8
100 (37.8) 6120 8330 11200 14600 18700 23300 25800 28500 31300
120 (48.9) 9560 12800 16500 20800 23100 25600 28200
140 (60.0) 14000 18000 20200 22400 24800

CAPACITY (KCAL / HOUR)

– 10 0 10 20 30 40 45 50 55
°F / °C – 23.3 – 17.8 – 12.2 – 6.7 – 1.1 4.4 7.2 10.0 12.8
100 (37.8) 1540 2100 2820 3680 4710 5870 6500 7180 7890
120 (48.9) 2410 3230 4160 5240 5820 6450 7110
140 (60.0) 3530 4540 5090 5640 6250

CAPACITY (WATTS)
– 10 0 10 20 30 40 45 50 55
°F / °C – 23.3 – 17.8 – 12.2 – 6.7 – 1.1 4.4 7.2 10.0 12.8
100 (37.8) 1790 2440 3280 4280 5480 6830 7560 8350 9170
120 (48.9) 2800 3750 4830 6090 6770 7500 8260
140 (60.0) 4100 5270 5920 6560 7270

POWER (MOTOR WATTS)

– 10 0 10 20 30 40 45 50 55
°F / °C – 23.3 – 17.8 – 12.2 – 6.7 – 1.1 4.4 7.2 10.0 12.8
100 (37.8) 1480 1440 1420 1400 1380 1370 1360 1350 1330
120 (48.9) 1860 1820 1790 1770 1760 1750 1740
140 (60.0) 2370 2320 2300 2290 2270
Production compressors to meet above nominal performance values within ± 5%.

29
Copeland ®
brand products ZR COPELAND SCROLL® COMPRESSORS

50 HERTZ PERFORMANCE DATA R407C

20° F (11.1° C) Superheat 15° F (8.3° C) Subcooling 95° F (35° C) Ambient (Air Over)

220/ 240-1-50 (PFJ) Rated Voltage 220-1-50 (PFJ) Test Voltage

ZR26K3E-PFJ
CAPACITY (BTU / HOUR)
CONDENSING TEMPERATURE EVAPORATING TEMPERATURE °F / °C
– 10 0 10 20 30 40 45 50 55
°F / °C – 23.3 – 17.8 – 12.2 – 6.7 – 1.1 4.4 7.2 10.0 12.8
100 (37.8) 6210 8490 11200 14400 18100 22500 25000 27600 30500
120 (48.9) 9500 12400 15900 19900 22100 24600 27200
140 (60.0) 13100 16800 18800 21000 23300

CAPACITY (KCAL / HOUR)

– 10 0 10 20 30 40 45 50 55

C
°F / °C – 23.3 – 17.8 – 12.2 – 6.7 – 1.1 4.4 7.2 10.0 12.8

7
100 (37.8) 1560 2140 2820 3630 4560 5670 6300 6960 7690
120 (48.9) 2390 3120 4010 5010 5570 6200 6850

40
140 (60.0) 3300 4230 4740 5290 5870

CAPACITY (WATTS)

R
– 10 0 10 20 30 40 45 50 55
°F / °C – 23.3 – 17.8 – 12.2 – 6.7 – 1.1 4.4 7.2 10.0 12.8
100 (37.8) 1820 2490 3280 4220 5300 6590 7330 8090 8940
120 (48.9) 2780 3630 4660 5830 6480 7210 7970
140 (60.0) 3840 4920 5510 6150 6830

POWER (MOTOR WATTS)

– 10 0 10 20 30 40 45 50 55
°F / °C – 23.3 – 17.8 – 12.2 – 6.7 – 1.1 4.4 7.2 10.0 12.8
100 (37.8) 1420 1420 1410 1400 1390 1370 1360 1350 1340
120 (48.9) 1830 1810 1790 1770 1760 1740 1730
140 (60.0) 2370 2330 2310 2290 2280

ZR26K3E-TF5 / TFD 200/220-3-50 (TF5) Rated Voltage

380/420-3-50 (TFD)
220-3-50 (TF5)
380-3-50 (TFD) Test Voltage
CAPACITY (BTU / HOUR)
CONDENSING TEMPERATURE EVAPORATING TEMPERATURE °F / °C
– 10 0 10 20 30 40 45 50 55
°F / °C – 23.3 – 17.8 – 12.2 – 6.7 – 1.1 4.4 7.2 10.0 12.8
100 (37.8) 6720 8550 11000 14200 18000 22500 25000 27700 30500
120 (48.9) 9500 12400 15900 20000 22200 24700 27200
140 (60.0) 13400 17100 19100 21300 23600

CAPACITY (KCAL / HOUR)

– 10 0 10 20 30 40 45 50 55

C
°F / °C – 23.3 – 17.8 – 12.2 – 6.7 – 1.1 4.4 7.2 10.0 12.8

7
100 (37.8) 1690 2150 2770 3580 4540 5670 6300 6980 7690
120 (48.9) 2390 3120 4010 5040 5590 6220 6850

40
140 (60.0) 3380 4310 4810 5370 5950

CAPACITY (WATTS)

R
– 10 0 10 20 30 40 45 50 55
°F / °C – 23.3 – 17.8 – 12.2 – 6.7 – 1.1 4.4 7.2 10.0 12.8
100 (37.8) 1970 2510 3220 4160 5270 6590 7330 8120 8940
120 (48.9) 2780 3630 4660 5860 6500 7240 7970
140 (60.0) 3930 5010 5600 6240 6910

POWER (MOTOR WATTS)

– 10 0 10 20 30 40 45 50 55
°F / °C – 23.3 – 17.8 – 12.2 – 6.7 – 1.1 4.4 7.2 10.0 12.8
100 (37.8) 1430 1400 1370 1350 1330 1310 1300 1280 1260
120 (48.9) 1880 1840 1810 1790 1770 1760 1750
140 (60.0) 2490 2450 2440 2420 2400
Production compressors to meet above nominal performance values within ± 5%.

30
Copeland ®
brand products ZR COPELAND SCROLL® COMPRESSORS

50 HERTZ PERFORMANCE DATA R22

20° F (11.1° C) Superheat 15° F (8.3° C) Subcooling 95° F (35° C) Ambient (Air Over)

220/ 240-1-50 (PFJ) Rated Voltage 220-1-50 (PFJ) Test Voltage

ZR28K3-PFJ
CAPACITY (BTU / HOUR)
CONDENSING TEMPERATURE EVAPORATING TEMPERATURE °F / °C
– 10 0 10 20 30 40 45 50 55
°F / °C – 23.3 – 17.8 – 12.2 – 6.7 – 1.1 4.4 7.2 10.0 12.8
100 (37.8) 6500 9420 12700 16400 20600 25500 28200 31100 34200
120 (48.9) 11000 14400 18300 22700 25200 27900 30700
140 (60.0) 15700 19800 22000 24400 27000

CAPACITY (KCAL / HOUR)

– 10 0 10 20 30 40 45 50 55
°F / °C – 23.3 – 17.8 – 12.2 – 6.7 – 1.1 4.4 7.2 10.0 12.8
100 (37.8) 1640 2370 3200 4130 5190 6430 7110 7840 8620
120 (48.9) 2770 3630 4610 5720 6350 7030 7740
140 (60.0) 3960 4990 5540 6150 6800

CAPACITY (WATTS)
– 10 0 10 20 30 40 45 50 55
°F / °C – 23.3 – 17.8 – 12.2 – 6.7 – 1.1 4.4 7.2 10.0 12.8
100 (37.8) 1900 2760 3720 4810 6040 7470 8260 9110 10000
120 (48.9) 3220 4220 5360 6650 7380 8170 9000
140 (60.0) 4600 5800 6450 7150 7910

POWER (MOTOR WATTS)

– 10 0 10 20 30 40 45 50 55
°F / °C – 23.3 – 17.8 – 12.2 – 6.7 – 1.1 4.4 7.2 10.0 12.8
100 (37.8) 1590 1600 1590 1570 1540 1520 1510 1500 1500
120 (48.9) 2030 2000 1970 1940 1930 1910 1900
140 (60.0) 2570 2520 2500 2480 2470

ZR28K3-TF5 / TFD 200/220-3-50 (TF5) Rated Voltage

380/420-3-50 (TFD)
220-3-50 (TF5)
380-3-50 (TFD) Test Voltage
CAPACITY (BTU / HOUR)
CONDENSING TEMPERATURE EVAPORATING TEMPERATURE °F / °C
– 10 0 10 20 30 40 45 50 55
°F / °C – 23.3 – 17.8 – 12.2 – 6.7 – 1.1 4.4 7.2 10.0 12.8
100 (37.8) 7300 9710 12700 16300 20600 25500 28200 31100 34100
120 (48.9) 11000 14300 18200 22700 25200 27900 30700
140 (60.0) 15500 19600 21900 24300 26900

CAPACITY (KCAL / HOUR)

– 10 0 10 20 30 40 45 50 55
°F / °C – 23.3 – 17.8 – 12.2 – 6.7 – 1.1 4.4 7.2 10.0 12.8
100 (37.8) 1840 2450 3200 4110 5190 6430 7110 7840 8590
120 (48.9) 2770 3600 4590 5720 6350 7030 7740
140 (60.0) 3910 4940 5520 6120 6780

CAPACITY (WATTS)
– 10 0 10 20 30 40 45 50 55
°F / °C – 23.3 – 17.8 – 12.2 – 6.7 – 1.1 4.4 7.2 10.0 12.8
100 (37.8) 2140 2850 3720 4780 6040 7470 8260 9110 9990
120 (48.9) 3220 4190 5330 6650 7380 8170 9000
140 (60.0) 4540 5740 6420 7120 7880

POWER (MOTOR WATTS)

– 10 0 10 20 30 40 45 50 55
°F / °C – 23.3 – 17.8 – 12.2 – 6.7 – 1.1 4.4 7.2 10.0 12.8
100 (37.8) 1510 1520 1510 1500 1480 1450 1440 1440 1430
120 (48.9) 1990 1960 1920 1890 1880 1870 1860
140 (60.0) 2550 2480 2460 2430 2410
Production compressors to meet above nominal performance values within ± 5%.

31
Copeland ®
brand products ZR COPELAND SCROLL® COMPRESSORS

50 HERTZ PERFORMANCE DATA R407C

20° F (11.1° C) Superheat 15° F (8.3° C) Subcooling 95° F (35° C) Ambient (Air Over)

220/ 240-1-50 (PFJ) Rated Voltage 220-1-50 (PFJ) Test Voltage

ZR28K3E-PFJ
CAPACITY (BTU / HOUR)
CONDENSING TEMPERATURE EVAPORATING TEMPERATURE °F / °C
– 10 0 10 20 30 40 45 50 55
°F / °C – 23.3 – 17.8 – 12.2 – 6.7 – 1.1 4.4 7.2 10.0 12.8
100 (37.8) 7000 9450 12400 15900 20100 25000 27800 30800 34000
120 (48.9) 10600 13800 17500 22000 24500 27200 30100
140 (60.0) 14600 18500 20800 23200 25800

CAPACITY (KCAL / HOUR)

– 10 0 10 20 30 40 45 50 55

C
°F / °C – 23.3 – 17.8 – 12.2 – 6.7 – 1.1 4.4 7.2 10.0 12.8

7
100 (37.8) 1760 2380 3120 4010 5070 6300 7010 7760 8570
120 (48.9) 2670 3480 4410 5540 6170 6850 7590

40
140 (60.0) 3680 4660 5240 5850 6500

CAPACITY (WATTS)

R
– 10 0 10 20 30 40 45 50 55
°F / °C – 23.3 – 17.8 – 12.2 – 6.7 – 1.1 4.4 7.2 10.0 12.8
100 (37.8) 2050 2770 3630 4660 5890 7330 8150 9020 9960
120 (48.9) 3110 4040 5130 6450 7180 7970 8820
140 (60.0) 4280 5420 6090 6800 7560

POWER (MOTOR WATTS)

– 10 0 10 20 30 40 45 50 55
°F / °C – 23.3 – 17.8 – 12.2 – 6.7 – 1.1 4.4 7.2 10.0 12.8
100 (37.8) 1540 1530 1520 1510 1490 1460 1450 1430 1410
120 (48.9) 1990 1970 1940 1920 1900 1890 1870
140 (60.0) 2600 2560 2540 2520 2500

ZR28K3E-TF5 / TFD 200/220-3-50 (TF5) Rated Voltage

380/420-3-50 (TFD)
220-3-50 (TF5)
380-3-50 (TFD) Test Voltage
CAPACITY (BTU / HOUR)
CONDENSING TEMPERATURE EVAPORATING TEMPERATURE °F / °C
– 10 0 10 20 30 40 45 50 55
°F / °C – 23.3 – 17.8 – 12.2 – 6.7 – 1.1 4.4 7.2 10.0 12.8
100 (37.8) 7070 9180 12000 15500 19800 24700 27400 30300 33400
120 (48.9) 10300 13500 17400 21900 24400 27100 30000
140 (60.0) 14600 18600 20800 23200 25800

CAPACITY (KCAL / HOUR)

– 10 0 10 20 30 40 45 50 55

C
°F / °C – 23.3 – 17.8 – 12.2 – 6.7 – 1.1 4.4 7.2 10.0 12.8

7
100 (37.8) 1780 2310 3020 3910 4990 6220 6900 7640 8420
120 (48.9) 2600 3400 4380 5520 6150 6830 7560

40
140 (60.0) 3680 4690 5240 5850 6500

CAPACITY (WATTS)

R
– 10 0 10 20 30 40 45 50 55
°F / °C – 23.3 – 17.8 – 12.2 – 6.7 – 1.1 4.4 7.2 10.0 12.8
100 (37.8) 2070 2690 3520 4540 5800 7240 8030 8880 9790
120 (48.9) 3020 3960 5100 6420 7150 7940 8790
140 (60.0) 4280 5450 6090 6800 7560

POWER (MOTOR WATTS)

– 10 0 10 20 30 40 45 50 55
°F / °C – 23.3 – 17.8 – 12.2 – 6.7 – 1.1 4.4 7.2 10.0 12.8
100 (37.8) 1440 1450 1450 1440 1430 1410 1400 1390 1380
120 (48.9) 1910 1900 1890 1870 1860 1850 1830
140 (60.0) 2490 2470 2460 2450 2430
Production compressors to meet above nominal performance values within ± 5%.

32
Copeland ®
brand products ZR COPELAND SCROLL® COMPRESSORS

50 HERTZ PERFORMANCE DATA R22

20° F (11.1° C) Superheat 15° F (8.3° C) Subcooling 95° F (35° C) Ambient (Air Over)

220/ 240-1-50 (PFJ) Rated Voltage 220-1-50 (PFJ) Test Voltage

ZR30K3-PFJ
CAPACITY (BTU / HOUR)
CONDENSING TEMPERATURE EVAPORATING TEMPERATURE °F / °C
– 10 0 10 20 30 40 45 50 55
°F / °C – 23.3 – 17.8 – 12.2 – 6.7 – 1.1 4.4 7.2 10.0 12.8
100 (37.8) 6200 9440 13000 17100 21800 27200 30200 33500 36900
120 (48.9) 11100 14900 19200 24200 26900 29900 33100
140 (60.0) 16400 20900 23400 26100 29000

CAPACITY (KCAL / HOUR)

– 10 0 10 20 30 40 45 50 55
°F / °C – 23.3 – 17.8 – 12.2 – 6.7 – 1.1 4.4 7.2 10.0 12.8
100 (37.8) 1560 2380 3280 4310 5490 6850 7610 8440 9300
120 (48.9) 2800 3750 4840 6100 6780 7530 8340
140 (60.0) 4130 5270 5900 6580 7310

CAPACITY (WATTS)
– 10 0 10 20 30 40 45 50 55
°F / °C – 23.3 – 17.8 – 12.2 – 6.7 – 1.1 4.4 7.2 10.0 12.8
100 (37.8) 1820 2770 3810 5010 6390 7970 8850 9820 10800
120 (48.9) 3250 4370 5630 7090 7880 8760 9700
140 (60.0) 4810 6120 6860 7650 8500

POWER (MOTOR WATTS)

– 10 0 10 20 30 40 45 50 55
°F / °C – 23.3 – 17.8 – 12.2 – 6.7 – 1.1 4.4 7.2 10.0 12.8
100 (37.8) 1720 1720 1710 1690 1670 1640 1630 1620 1620
120 (48.9) 2170 2140 2110 2080 2060 2050 2040
140 (60.0) 2730 2680 2660 2640 2620

ZR30K3-TF5 / TFD 200/220-3-50 (TF5) Rated Voltage

380/420-3-50 (TFD)
220-3-50 (TF5)
380-3-50 (TFD) Test Voltage
CAPACITY (BTU / HOUR)
CONDENSING TEMPERATURE EVAPORATING TEMPERATURE °F / °C
– 10 0 10 20 30 40 45 50 55
°F / °C – 23.3 – 17.8 – 12.2 – 6.7 – 1.1 4.4 7.2 10.0 12.8
100 (37.8) 6500 9500 13000 17100 21900 27200 30200 33300 36600
120 (48.9) 10800 14800 19200 24200 27000 29800 32800
140 (60.0) 15900 20700 23200 25900 28700

CAPACITY (KCAL / HOUR)

– 10 0 10 20 30 40 45 50 55
°F / °C – 23.3 – 17.8 – 12.2 – 6.7 – 1.1 4.4 7.2 10.0 12.8
100 (37.8) 1640 2390 3280 4310 5520 6850 7610 8390 9220
120 (48.9) 2720 3730 4840 6100 6800 7510 8270
140 (60.0) 4010 5220 5850 6530 7230

CAPACITY (WATTS)
– 10 0 10 20 30 40 45 50 55
°F / °C – 23.3 – 17.8 – 12.2 – 6.7 – 1.1 4.4 7.2 10.0 12.8
100 (37.8) 1900 2780 3810 5010 6420 7970 8850 9760 10700
120 (48.9) 3160 4340 5630 7090 7910 8730 9610
140 (60.0) 4660 6070 6800 7590 8410

POWER (MOTOR WATTS)

– 10 0 10 20 30 40 45 50 55
°F / °C – 23.3 – 17.8 – 12.2 – 6.7 – 1.1 4.4 7.2 10.0 12.8
100 (37.8) 1640 1610 1590 1570 1550 1540 1540 1540 1530
120 (48.9) 2120 2070 2040 2010 2000 2000 1990
140 (60.0) 2730 2660 2630 2610 2600
Production compressors to meet above nominal performance values within ± 5%.

33
Copeland ®
brand products ZR COPELAND SCROLL® COMPRESSORS

50 HERTZ PERFORMANCE DATA R407C

20° F (11.1° C) Superheat 15° F (8.3° C) Subcooling 95° F (35° C) Ambient (Air Over)

220/ 240-1-50 (PFJ) Rated Voltage 220-1-50 (PFJ) Test Voltage

ZR30K3E-PFJ
CAPACITY (BTU / HOUR)
CONDENSING TEMPERATURE EVAPORATING TEMPERATURE °F / °C
– 10 0 10 20 30 40 45 50 55
°F / °C – 23.3 – 17.8 – 12.2 – 6.7 – 1.1 4.4 7.2 10.0 12.8
100 (37.8) 7880 10500 13500 17100 21500 26600 29600 32800 36300
120 (48.9) 11400 14800 18700 23500 26100 29100 32200
140 (60.0) 15600 20000 22400 25000 27900
CAPACITY (KCAL / HOUR)
– 10 0 10 20 30 40 45 50 55

C
°F / °C – 23.3 – 17.8 – 12.2 – 6.7 – 1.1 4.4 7.2 10.0 12.8

7
100 (37.8) 1990 2650 3400 4310 5420 6700 7460 8270 9150
120 (48.9) 2870 3730 4710 5920 6580 7330 8110

40
140 (60.0) 3930 5040 5640 6300 7030

CAPACITY (WATTS)

R
– 10 0 10 20 30 40 45 50 55
°F / °C – 23.3 – 17.8 – 12.2 – 6.7 – 1.1 4.4 7.2 10.0 12.8
100 (37.8) 2310 3080 3960 5010 6300 7790 8670 9610 10600
120 (48.9) 3340 4340 5480 6890 7650 8530 9430
140 (60.0) 4570 5860 6560 7330 8170

POWER (MOTOR WATTS)

– 10 0 10 20 30 40 45 50 55
°F / °C – 23.3 – 17.8 – 12.2 – 6.7 – 1.1 4.4 7.2 10.0 12.8
100 (37.8) 1630 1630 1620 1610 1600 1580 1570 1550 1540
120 (48.9) 2100 2090 2070 2050 2040 2030 2010
140 (60.0) 2700 2670 2660 2640 2630

ZR30K3E-TF5 / TFD 200/220-3-50 (TF5) Rated Voltage 220-3-50 (TF5)

380/420-3-50 (TFD) 380-3-50 (TFD) Test Voltage
CAPACITY (BTU / HOUR)
CONDENSING TEMPERATURE EVAPORATING TEMPERATURE °F / °C
– 10 0 10 20 30 40 45 50 55
°F / °C – 23.3 – 17.8 – 12.2 – 6.7 – 1.1 4.4 7.2 10.0 12.8
100 (37.8) 7400 9950 13100 16800 21300 26500 29400 32500 35700
120 (48.9) 10900 14500 18600 23400 26000 28800 31700
140 (60.0) 15300 19700 22100 24600 27300

CAPACITY (KCAL / HOUR)

– 10 0 10 20 30 40 45 50 55

C
°F / °C – 23.3 – 17.8 – 12.2 – 6.7 – 1.1 4.4 7.2 10.0 12.8

7
100 (37.8) 1860 2510 3300 4230 5370 6680 7410 8190 9000
120 (48.9) 2750 3650 4690 5900 6550 7260 7990

40
140 (60.0) 3860 4960 5570 6200 6880

CAPACITY (WATTS)

R
– 10 0 10 20 30 40 45 50 55
°F / °C – 23.3 – 17.8 – 12.2 – 6.7 – 1.1 4.4 7.2 10.0 12.8
100 (37.8) 2170 2920 3840 4920 6240 7760 8610 9520 10500
120 (48.9) 3190 4250 5450 6860 7620 8440 9290
140 (60.0) 4480 5770 6480 7210 8000

POWER (MOTOR WATTS)

– 10 0 10 20 30 40 45 50 55
°F / °C – 23.3 – 17.8 – 12.2 – 6.7 – 1.1 4.4 7.2 10.0 12.8
100 (37.8) 1630 1610 1590 1570 1560 1540 1530 1520 1510
120 (48.9) 2110 2070 2040 2020 2010 2000 1990
140 (60.0) 2730 2680 2660 2640 2620
Production compressors to meet above nominal performance values within ± 5%.

34
Copeland ®
brand products ZR COPELAND SCROLL® COMPRESSORS

50 HERTZ PERFORMANCE DATA R22

20° F (11.1° C) Superheat 15° F (8.3° C) Subcooling 95° F (35° C) Ambient (Air Over)

220/ 240-1-50 (PFJ) Rated Voltage 220-1-50 (PFJ) Test Voltage

ZR32K3-PFJ
CAPACITY (BTU / HOUR)
CONDENSING TEMPERATURE EVAPORATING TEMPERATURE °F / °C
– 10 0 10 20 30 40 45 50 55
°F / °C – 23.3 – 17.8 – 12.2 – 6.7 – 1.1 4.4 7.2 10.0 12.8
100 (37.8) 7680 10700 14300 18500 23200 28600 31500 34600 37900
120 (48.9) 12300 16200 20600 25600 28300 31100 34200
140 (60.0) 17400 22000 24500 27100 29900

CAPACITY (KCAL / HOUR)

– 10 0 10 20 30 40 45 50 55
°F / °C – 23.3 – 17.8 – 12.2 – 6.7 – 1.1 4.4 7.2 10.0 12.8
100 (37.8) 1940 2700 3600 4660 5850 7210 7940 8720 9550
120 (48.9) 3100 4080 5190 6450 7130 7840 8620
140 (60.0) 4380 5540 6170 6830 7530

CAPACITY (WATTS)
– 10 0 10 20 30 40 45 50 55
°F / °C – 23.3 – 17.8 – 12.2 – 6.7 – 1.1 4.4 7.2 10.0 12.8
100 (37.8) 2250 3140 4190 5420 6800 8380 9230 10100 11100
120 (48.9) 3600 4750 6040 7500 8290 9110 10000
140 (60.0) 5100 6450 7180 7940 8760

POWER (MOTOR WATTS)

– 10 0 10 20 30 40 45 50 55
°F / °C – 23.3 – 17.8 – 12.2 – 6.7 – 1.1 4.4 7.2 10.0 12.8
100 (37.8) 1780 1770 1760 1740 1730 1710 1700 1690 1680
120 (48.9) 2230 2200 2180 2150 2140 2130 2120
140 (60.0) 2820 2790 2770 2750 2730

ZR32K3-TF5 / TFD 200/220-3-50 (TF5) Rated Voltage

380/420-3-50 (TFD)
220-3-50 (TF5)
380-3-50 (TFD) Test Voltage
CAPACITY (BTU / HOUR)
CONDENSING TEMPERATURE EVAPORATING TEMPERATURE °F / °C
– 10 0 10 20 30 40 45 50 55
°F / °C – 23.3 – 17.8 – 12.2 – 6.7 – 1.1 4.4 7.2 10.0 12.8
100 (37.8) 7280 10200 13800 18000 22900 28500 31500 34700 38100
120 (48.9) 12000 15800 20300 25400 28300 31300 34500
140 (60.0) 17300 22000 24600 27400 30300

CAPACITY (KCAL / HOUR)

– 10 0 10 20 30 40 45 50 55
°F / °C – 23.3 – 17.8 – 12.2 – 6.7 – 1.1 4.4 7.2 10.0 12.8
100 (37.8) 1830 2570 3480 4540 5770 7180 7940 8740 9600
120 (48.9) 3020 3980 5120 6400 7130 7890 8690
140 (60.0) 4360 5540 6200 6900 7640

CAPACITY (WATTS)
– 10 0 10 20 30 40 45 50 55
°F / °C – 23.3 – 17.8 – 12.2 – 6.7 – 1.1 4.4 7.2 10.0 12.8
100 (37.8) 2130 2990 4040 5270 6710 8350 9230 10200 11200
120 (48.9) 3520 4630 5950 7440 8290 9170 10100
140 (60.0) 5070 6450 7210 8030 8880

POWER (MOTOR WATTS)

– 10 0 10 20 30 40 45 50 55
°F / °C – 23.3 – 17.8 – 12.2 – 6.7 – 1.1 4.4 7.2 10.0 12.8
100 (37.8) 1770 1740 1710 1690 1670 1650 1640 1630 1610
120 (48.9) 2270 2210 2170 2140 2130 2110 2100
140 (60.0) 2890 2820 2790 2770 2750
Production compressors to meet above nominal performance values within ± 5%.

35
Copeland ®
brand products ZR COPELAND SCROLL® COMPRESSORS

50 HERTZ PERFORMANCE DATA R407C

20° F (11.1° C) Superheat 15° F (8.3° C) Subcooling 95° F (35° C) Ambient (Air Over)

220/ 240-1-50 (PFJ) Rated Voltage 220-1-50 (PFJ) Test Voltage

ZR32K3E-PFJ
CAPACITY (BTU / HOUR)
CONDENSING TEMPERATURE EVAPORATING TEMPERATURE °F / °C
– 10 0 10 20 30 40 45 50 55
°F / °C – 23.3 – 17.8 – 12.2 – 6.7 – 1.1 4.4 7.2 10.0 12.8
100 (37.8) 7700 10400 13800 17800 22500 28000 31000 34100 37500
120 (48.9) 11800 15500 19700 24700 27400 30400 33500
140 (60.0) 16400 20900 23300 26000 28800
CAPACITY (KCAL / HOUR)
– 10 0 10 20 30 40 45 50 55

C
°F / °C – 23.3 – 17.8 – 12.2 – 6.7 – 1.1 4.4 7.2 10.0 12.8

7
100 (37.8) 1940 2620 3480 4490 5670 7060 7810 8590 9450
120 (48.9) 2970 3910 4960 6220 6900 7660 8440

40
140 (60.0) 4130 5270 5870 6550 7260

CAPACITY (WATTS)

R
– 10 0 10 20 30 40 45 50 55
°F / °C – 23.3 – 17.8 – 12.2 – 6.7 – 1.1 4.4 7.2 10.0 12.8
100 (37.8) 2260 3050 4040 5220 6590 8200 9080 9990 11000
120 (48.9) 3460 4540 5770 7240 8030 8910 9820
140 (60.0) 4810 6120 6830 7620 8440

POWER (MOTOR WATTS)

– 10 0 10 20 30 40 45 50 55
°F / °C – 23.3 – 17.8 – 12.2 – 6.7 – 1.1 4.4 7.2 10.0 12.8
100 (37.8) 1710 1700 1690 1680 1660 1640 1630 1610 1600
120 (48.9) 2170 2160 2140 2120 2100 2090 2070
140 (60.0) 2820 2800 2780 2770 2750

ZR32K3E-TF5 / TFD 200/220-3-50 (TF5) Rated Voltage

380/420-3-50 (TFD)
220-3-50 (TF5)
380-3-50 (TFD) Test Voltage
CAPACITY (BTU / HOUR)
CONDENSING TEMPERATURE EVAPORATING TEMPERATURE °F / °C
– 10 0 10 20 30 40 45 50 55
°F / °C – 23.3 – 17.8 – 12.2 – 6.7 – 1.1 4.4 7.2 10.0 12.8
100 (37.8) 7250 9890 13200 17300 22100 27700 30800 34100 37600
120 (48.9) 11500 15100 19400 24500 27300 30300 33600
140 (60.0) 16300 20800 23300 26000 29000

CAPACITY (KCAL / HOUR)

– 10 0 10 20 30 40 45 50 55

C
°F / °C
– 23.3 – 17.8 – 12.2 – 6.7 – 1.1 4.4 7.2 10.0 12.8

7
100 (37.8) 1830 2490 3330 4360 5570 6980 7760 8590 9480
120 (48.9) 2900 3810 4890 6170 6880 7640 8470

40
140 (60.0) 4110 5240 5870 6550 7310
CAPACITY (WATTS)

R
– 10 0 10 20 30 40 45 50 55
°F / °C – 23.3 – 17.8 – 12.2 – 6.7 – 1.1 4.4 7.2 10.0 12.8
100 (37.8) 2120 2900 3870 5070 6480 8120 9020 9990 11000
120 (48.9) 3370 4420 5680 7180 8000 8880 9840
140 (60.0) 4780 6090 6830 7620 8500

POWER (MOTOR WATTS)

– 10 0 10 20 30 40 45 50 55
°F / °C
– 23.3 – 17.8 – 12.2 – 6.7 – 1.1 4.4 7.2 10.0 12.8
100 (37.8) 1730 1700 1690 1670 1650 1630 1620 1600 1580
120 (48.9) 2230 2190 2160 2130 2110 2100 2080
140 (60.0) 2870 2820 2800 2780 2760
Production compressors to meet above nominal performance values within ± 5%.

36
Copeland ®
brand products ZR COPELAND SCROLL® COMPRESSORS

50 HERTZ PERFORMANCE DATA R22

20° F (11.1° C) Superheat 15° F (8.3° C) Subcooling 95° F (35° C) Ambient (Air Over)

220/ 240-1-50 (PFJ) Rated Voltage 220-1-50 (PFJ) Test Voltage

ZR34K3-PFJ
CAPACITY (BTU / HOUR)
CONDENSING TEMPERATURE EVAPORATING TEMPERATURE °F / °C
– 10 0 10 20 30 40 45 50 55
°F / °C – 23.3 – 17.8 – 12.2 – 6.7 – 1.1 4.4 7.2 10.0 12.8
100 (37.8) 9010 11900 15500 19700 24600 30300 33300 36600 40000
120 (48.9) 13400 17400 21900 27100 29900 32900 36100
140 (60.0) 18700 23400 26000 28800 31600

CAPACITY (KCAL / HOUR)

– 10 0 10 20 30 40 45 50 55
°F / °C – 23.3 – 17.8 – 12.2 – 6.7 – 1.1 4.4 7.2 10.0 12.8
100 (37.8) 2270 3000 3910 4960 6200 7640 8390 9220 10100
120 (48.9) 3380 4380 5520 6830 7530 8290 9100
140 (60.0) 4710 5900 6550 7260 7960

CAPACITY (WATTS)
– 10 0 10 20 30 40 45 50 55
°F / °C – 23.3 – 17.8 – 12.2 – 6.7 – 1.1 4.4 7.2 10.0 12.8
100 (37.8) 2640 3490 4540 5770 7210 8880 9760 10700 11700
120 (48.9) 3930 5100 6420 7940 8760 9640 10600
140 (60.0) 5480 6860 7620 8440 9260

POWER (MOTOR WATTS)

– 10 0 10 20 30 40 45 50 55
°F / °C – 23.3 – 17.8 – 12.2 – 6.7 – 1.1 4.4 7.2 10.0 12.8
100 (37.8) 1810 1800 1790 1770 1750 1740 1730 1730 1740
120 (48.9) 2300 2280 2260 2250 2240 2240 2250
140 (60.0) 2920 2910 2900 2900 2910

ZR34K3-TF5 / TFD 200/220-3-50 (TF5) Rated Voltage

380/420-3-50 (TFD)
220-3-50 (TF5)
380-3-50 (TFD) Test Voltage
CAPACITY (BTU / HOUR)
CONDENSING TEMPERATURE EVAPORATING TEMPERATURE °F / °C
– 10 0 10 20 30 40 45 50 55
°F / °C – 23.3 – 17.8 – 12.2 – 6.7 – 1.1 4.4 7.2 10.0 12.8
100 (37.8) 8790 11800 15500 19700 24600 30200 33400 36700 40200
120 (48.9) 13400 17300 21800 27100 29900 33000 36300
140 (60.0) 18700 23500 26200 29100 32100

CAPACITY (KCAL / HOUR)

– 10 0 10 20 30 40 45 50 55
°F / °C – 23.3 – 17.8 – 12.2 – 6.7 – 1.1 4.4 7.2 10.0 12.8
100 (37.8) 2220 2970 3910 4960 6200 7610 8420 9250 10100
120 (48.9) 3380 4360 5490 6830 7530 8320 9150
140 (60.0) 4710 5920 6600 7330 8090

CAPACITY (WATTS)
– 10 0 10 20 30 40 45 50 55
°F / °C – 23.3 – 17.8 – 12.2 – 6.7 – 1.1 4.4 7.2 10.0 12.8
100 (37.8) 2580 3460 4540 5770 7210 8850 9790 10800 11800
120 (48.9) 3930 5070 6390 7940 8760 9670 10600
140 (60.0) 5480 6890 7680 8530 9410

POWER (MOTOR WATTS)

– 10 0 10 20 30 40 45 50 55
°F / °C – 23.3 – 17.8 – 12.2 – 6.7 – 1.1 4.4 7.2 10.0 12.8
100 (37.8) 1780 1780 1780 1760 1740 1710 1700 1690 1680
120 (48.9) 2290 2270 2250 2220 2200 2190 2180
140 (60.0) 2890 2860 2840 2820 2800
Production compressors to meet above nominal performance values within ± 5%.

37
Copeland ®
brand products ZR COPELAND SCROLL® COMPRESSORS

50 HERTZ PERFORMANCE DATA R407C

20° F (11.1° C) Superheat 15° F (8.3° C) Subcooling 95° F (35° C) Ambient (Air Over)

220/ 240-1-50 (PFJ) Rated Voltage 220-1-50 (PFJ) Test Voltage

ZR34K3E-PFJ
CAPACITY (BTU / HOUR)
CONDENSING TEMPERATURE EVAPORATING TEMPERATURE °F / °C
– 10 0 10 20 30 40 45 50 55
°F / °C – 23.3 – 17.8 – 12.2 – 6.7 – 1.1 4.4 7.2 10.0 12.8
100 (37.8) 8340 11300 14800 19000 23900 29800 33100 36700 40500
120 (48.9) 12700 16400 20900 26200 29200 32400 35900
140 (60.0) 17400 22100 24700 27600 30700

CAPACITY (KCAL / HOUR)

– 10 0 10 20 30 40 45 50 55

C
°F / °C – 23.3 – 17.8 – 12.2 – 6.7 – 1.1 4.4 7.2 10.0 12.8

7
100 (37.8) 2100 2850 3730 4790 6020 7510 8340 9250 10200
120 (48.9) 3200 4130 5270 6600 7360 8160 9050

40
140 (60.0) 4380 5570 6220 6960 7740

CAPACITY (WATTS)

R
– 10 0 10 20 30 40 45 50 55
°F / °C – 23.3 – 17.8 – 12.2 – 6.7 – 1.1 4.4 7.2 10.0 12.8
100 (37.8) 2440 3310 4340 5570 7000 8730 9700 10800 11900
120 (48.9) 3720 4810 6120 7680 8560 9490 10500
140 (60.0) 5100 6480 7240 8090 9000

POWER (MOTOR WATTS)

– 10 0 10 20 30 40 45 50 55
°F / °C – 23.3 – 17.8 – 12.2 – 6.7 – 1.1 4.4 7.2 10.0 12.8
100 (37.8) 1810 1800 1790 1780 1750 1720 1700 1690 1660
120 (48.9) 2340 2320 2290 2260 2240 2220 2200
140 (60.0) 3070 3020 3000 2980 2950

ZR34K3E-TF5 / TFD 200/220-3-50 (TF5) Rated Voltage

380/420-3-50 (TFD)
220-3-50 (TF5)
380-3-50 (TFD) Test Voltage
CAPACITY (BTU / HOUR)
CONDENSING TEMPERATURE EVAPORATING TEMPERATURE °F / °C
– 10 0 10 20 30 40 45 50 55
°F / °C – 23.3 – 17.8 – 12.2 – 6.7 – 1.1 4.4 7.2 10.0 12.8
100 (37.8) 8400 10900 14300 18500 23500 29300 32600 36000 39700
120 (48.9) 12300 16000 20600 26000 29000 32200 35600
140 (60.0) 17300 22100 24700 27600 30700

CAPACITY (KCAL / HOUR)

– 10 0 10 20 30 40 45 50 55

C
°F / °C – 23.3 – 17.8 – 12.2 – 6.7 – 1.1 4.4 7.2 10.0 12.8

7
100 (37.8) 2120 2750 3600 4660 5920 7380 8220 9070 10000
120 (48.9) 3100 4030 5190 6550 7310 8110 8970

40
140 (60.0) 4360 5570 6220 6960 7740

CAPACITY (WATTS)

R
– 10 0 10 20 30 40 45 50 55
°F / °C – 23.3 – 17.8 – 12.2 – 6.7 – 1.1 4.4 7.2 10.0 12.8
100 (37.8) 2460 3190 4190 5420 6890 8580 9550 10500 11600
120 (48.9) 3600 4690 6040 7620 8500 9430 10400
140 (60.0) 5070 6480 7240 8090 9000

POWER (MOTOR WATTS)

– 10 0 10 20 30 40 45 50 55
°F / °C – 23.3 – 17.8 – 12.2 – 6.7 – 1.1 4.4 7.2 10.0 12.8
100 (37.8) 1700 1700 1700 1690 1670 1650 1640 1630 1620
120 (48.9) 2250 2250 2230 2210 2190 2180 2160
140 (60.0) 2950 2930 2910 2900 2880
Production compressors to meet above nominal performance values within ± 5%.

38
Copeland ®
brand products ZR COPELAND SCROLL® COMPRESSORS

50 HERTZ PERFORMANCE DATA R22

20° F (11.1° C) Superheat 15° F (8.3° C) Subcooling 95° F (35° C) Ambient (Air Over)

220/ 240-1-50 (PFJ) Rated Voltage 220-1-50 (PFJ) Test Voltage

ZR36K3-PFJ
CAPACITY (BTU / HOUR)
CONDENSING TEMPERATURE EVAPORATING TEMPERATURE °F / °C
– 10 0 10 20 30 40 45 50 55
°F / °C – 23.3 – 17.8 – 12.2 – 6.7 – 1.1 4.4 7.2 10.0 12.8
100 (37.8) 8810 12400 16500 21100 26500 32600 36000 39700 43700
120 (48.9) 14100 18400 23400 29100 32200 35600 39200
140 (60.0) 19900 25100 28000 31200 34500

CAPACITY (KCAL / HOUR)

– 10 0 10 20 30 40 45 50 55
°F / °C – 23.3 – 17.8 – 12.2 – 6.7 – 1.1 4.4 7.2 10.0 12.8
100 (37.8) 2220 3120 4160 5320 6680 8220 9070 10000 11000
120 (48.9) 3550 4640 5900 7330 8110 8970 9880
140 (60.0) 5010 6330 7060 7860 8690

CAPACITY (WATTS)
– 10 0 10 20 30 40 45 50 55
°F / °C – 23.3 – 17.8 – 12.2 – 6.7 – 1.1 4.4 7.2 10.0 12.8
100 (37.8) 2580 3630 4830 6180 7760 9550 10500 11600 12800
120 (48.9) 4130 5390 6860 8530 9430 10400 11500
140 (60.0) 5830 7350 8200 9140 10100

POWER (MOTOR WATTS)

– 10 0 10 20 30 40 45 50 55
°F / °C – 23.3 – 17.8 – 12.2 – 6.7 – 1.1 4.4 7.2 10.0 12.8
100 (37.8) 1940 1940 1940 1920 1900 1880 1870 1860 1850
120 (48.9) 2470 2450 2430 2410 2390 2380 2370
140 (60.0) 3140 3100 3090 3070 3050

ZR36K3-TF5 / TFD 200/220-3-50 (TF5) Rated Voltage

380/420-3-50 (TFD)
220-3-50 (TF5)
380-3-50 (TFD) Test Voltage
CAPACITY (BTU / HOUR)
CONDENSING TEMPERATURE EVAPORATING TEMPERATURE °F / °C
– 10 0 10 20 30 40 45 50 55
°F / °C – 23.3 – 17.8 – 12.2 – 6.7 – 1.1 4.4 7.2 10.0 12.8
100 (37.8) 9030 12500 16400 21000 26300 32500 36000 39700 43600
120 (48.9) 14300 18500 23400 29000 32200 35600 39200
140 (60.0) 20000 25200 28100 31200 34500

CAPACITY (KCAL / HOUR)

– 10 0 10 20 30 40 45 50 55
°F / °C – 23.3 – 17.8 – 12.2 – 6.7 – 1.1 4.4 7.2 10.0 12.8
100 (37.8) 2280 3150 4130 5290 6630 8190 9070 10000 11000
120 (48.9) 3600 4660 5900 7310 8110 8970 9880
140 (60.0) 5040 6350 7080 7860 8690

CAPACITY (WATTS)
– 10 0 10 20 30 40 45 50 55
°F / °C – 23.3 – 17.8 – 12.2 – 6.7 – 1.1 4.4 7.2 10.0 12.8
100 (37.8) 2650 3660 4810 6150 7710 9520 10500 11600 12800
120 (48.9) 4190 5420 6860 8500 9430 10400 11500
140 (60.0) 5860 7380 8230 9140 10100

POWER (MOTOR WATTS)

– 10 0 10 20 30 40 45 50 55
°F / °C – 23.3 – 17.8 – 12.2 – 6.7 – 1.1 4.4 7.2 10.0 12.8
100 (37.8) 1880 1890 1890 1870 1850 1820 1810 1790 1770
120 (48.9) 2450 2430 2410 2380 2360 2350 2330
140 (60.0) 3130 3090 3080 3060 3040
Production compressors to meet above nominal performance values within ± 5%.

39
Copeland ®
brand products ZR COPELAND SCROLL® COMPRESSORS

50 HERTZ PERFORMANCE DATA R407C

20° F (11.1° C) Superheat 15° F (8.3° C) Subcooling 95° F (35° C) Ambient (Air Over)

220/ 240-1-50 (PFJ) Rated Voltage 220-1-50 (PFJ) Test Voltage

ZR36K3E-PFJ
CAPACITY (BTU / HOUR)
CONDENSING TEMPERATURE EVAPORATING TEMPERATURE °F / °C
– 10 0 10 20 30 40 45 50 55
°F / °C – 23.3 – 17.8 – 12.2 – 6.7 – 1.1 4.4 7.2 10.0 12.8
100 (37.8) 8780 12100 15900 20400 25600 31700 35100 38800 42700
120 (48.9) 13600 17600 22300 27900 31000 34400 38000
140 (60.0) 18700 23700 26500 29500 32800

CAPACITY (KCAL / HOUR)

– 10 0 10 20 30 40 45 50 55

C
°F / °C – 23.3 – 17.8 – 12.2 – 6.7 – 1.1 4.4 7.2 10.0 12.8

7
100 (37.8) 2210 3050 4010 5140 6450 7990 8850 9780 10800
120 (48.9) 3430 4440 5620 7030 7810 8670 9580

40
140 (60.0) 4710 5970 6680 7430 8270

CAPACITY (WATTS)

R
– 10 0 10 20 30 40 45 50 55
°F / °C – 23.3 – 17.8 – 12.2 – 6.7 – 1.1 4.4 7.2 10.0 12.8
100 (37.8) 2570 3550 4660 5980 7500 9290 10300 11400 12500
120 (48.9) 3980 5160 6530 8170 9080 10100 11100
140 (60.0) 5480 6940 7760 8640 9610

POWER (MOTOR WATTS)

– 10 0 10 20 30 40 45 50 55
°F / °C – 23.3 – 17.8 – 12.2 – 6.7 – 1.1 4.4 7.2 10.0 12.8
100 (37.8) 1910 1920 1920 1910 1890 1860 1840 1830 1810
120 (48.9) 2450 2450 2440 2410 2400 2380 2360
140 (60.0) 3170 3160 3150 3130 3110

ZR36K3E-TF5 / TFD 200/220-3-50 (TF5) Rated Voltage

380/420-3-50 (TFD)
220-3-50 (TF5)
380-3-50 (TFD) Test Voltage
CAPACITY (BTU / HOUR)
CONDENSING TEMPERATURE EVAPORATING TEMPERATURE °F / °C
– 10 0 10 20 30 40 45 50 55
°F / °C – 23.3 – 17.8 – 12.2 – 6.7 – 1.1 4.4 7.2 10.0 12.8
100 (37.8) 9070 12200 15800 20200 25400 31500 35000 38700 42700
120 (48.9) 13700 17600 22300 27800 30900 34300 38000
140 (60.0) 18800 23700 26500 29500 32800

CAPACITY (KCAL / HOUR)

– 10 0 10 20 30 40 45 50 55

C
°F / °C – 23.3 – 17.8 – 12.2 – 6.7 – 1.1 4.4 7.2 10.0 12.8

7
100 (37.8) 2290 3070 3980 5090 6400 7940 8820 9750 10800
120 (48.9) 3450 4440 5620 7010 7790 8640 9580

40
140 (60.0) 4740 5970 6680 7430 8270

CAPACITY (WATTS)

R
– 10 0 10 20 30 40 45 50 55
°F / °C – 23.3 – 17.8 – 12.2 – 6.7 – 1.1 4.4 7.2 10.0 12.8
100 (37.8) 2660 3570 4630 5920 7440 9230 10300 11300 12500
120 (48.9) 4010 5160 6530 8150 9050 10000 11100
140 (60.0) 5510 6940 7760 8640 9610

POWER (MOTOR WATTS)

– 10 0 10 20 30 40 45 50 55
°F / °C – 23.3 – 17.8 – 12.2 – 6.7 – 1.1 4.4 7.2 10.0 12.8
100 (37.8) 1870 1890 1890 1880 1860 1830 1810 1790 1770
120 (48.9) 2420 2420 2400 2380 2360 2340 2320
140 (60.0) 3100 3090 3080 3060 3050
Production compressors to meet above nominal performance values within ± 5%.

40
Copeland ®
brand products ZR COPELAND SCROLL® COMPRESSORS

50 HERTZ PERFORMANCE DATA R22

20° F (11.1° C) Superheat 15° F (8.3° C) Subcooling 95° F (35° C) Ambient (Air Over)

220/ 240-1-50 (PFJ) Rated Voltage 220-1-50 (PFJ) Test Voltage

ZR40K3-PFJ
CAPACITY (BTU / HOUR)
CONDENSING TEMPERATURE EVAPORATING TEMPERATURE °F / °C
– 10 0 10 20 30 40 45 50 55
°F / °C – 23.3 – 17.8 – 12.2 – 6.7 – 1.1 4.4 7.2 10.0 12.8
100 (37.8) 9880 13500 17800 22900 28800 35600 39400 43400 47600
120 (48.9) 15400 20100 25600 32000 35500 39200 43200
140 (60.0) 21800 27700 31000 34400 38100

CAPACITY (KCAL / HOUR)

– 10 0 10 20 30 40 45 50 55
°F / °C – 23.3 – 17.8 – 12.2 – 6.7 – 1.1 4.4 7.2 10.0 12.8
100 (37.8) 2490 3400 4490 5770 7260 8970 9930 10900 12000
120 (48.9) 3880 5070 6450 8060 8950 9880 10900
140 (60.0) 5490 6980 7810 8670 9600

CAPACITY (WATTS)
– 10 0 10 20 30 40 45 50 55
°F / °C – 23.3 – 17.8 – 12.2 – 6.7 – 1.1 4.4 7.2 10.0 12.8
100 (37.8) 2890 3960 5220 6710 8440 10400 11500 12700 13900
120 (48.9) 4510 5890 7500 9380 10400 11500 12700
140 (60.0) 6390 8120 9080 10100 11200

POWER (MOTOR WATTS)

– 10 0 10 20 30 40 45 50 55
°F / °C – 23.3 – 17.8 – 12.2 – 6.7 – 1.1 4.4 7.2 10.0 12.8
100 (37.8) 2160 2150 2140 2120 2100 2080 2070 2060 2060
120 (48.9) 2770 2730 2690 2660 2640 2630 2620
140 (60.0) 3530 3460 3430 3400 3370

ZR40K3-TF5 / TFD 200/220-3-50 (TF5) Rated Voltage

380/420-3-50 (TFD)
220-3-50 (TF5)
380-3-50 (TFD) Test Voltage
CAPACITY (BTU / HOUR)
CONDENSING TEMPERATURE EVAPORATING TEMPERATURE °F / °C
– 10 0 10 20 30 40 45 50 55
°F / °C – 23.3 – 17.8 – 12.2 – 6.7 – 1.1 4.4 7.2 10.0 12.8
100 (37.8) 9960 13600 18000 23100 29000 35700 39400 43400 47600
120 (48.9) 15500 20200 25700 32000 35400 39000 42900
140 (60.0) 22100 27900 31000 34400 37900

CAPACITY (KCAL / HOUR)

– 10 0 10 20 30 40 45 50 55
°F / °C – 23.3 – 17.8 – 12.2 – 6.7 – 1.1 4.4 7.2 10.0 12.8
100 (37.8) 2510 3430 4540 5820 7310 9000 9930 10900 12000
120 (48.9) 3910 5090 6480 8060 8920 9830 10800
140 (60.0) 5570 7030 7810 8670 9550

CAPACITY (WATTS)
– 10 0 10 20 30 40 45 50 55
°F / °C – 23.3 – 17.8 – 12.2 – 6.7 – 1.1 4.4 7.2 10.0 12.8
100 (37.8) 2920 3980 5270 6770 8500 10500 11500 12700 13900
120 (48.9) 4540 5920 7530 9380 10400 11400 12600
140 (60.0) 6480 8170 9080 10100 11100

POWER (MOTOR WATTS)

– 10 0 10 20 30 40 45 50 55
°F / °C – 23.3 – 17.8 – 12.2 – 6.7 – 1.1 4.4 7.2 10.0 12.8
100 (37.8) 2090 2090 2080 2060 2040 2010 1990 1980 1970
120 (48.9) 2730 2700 2660 2620 2600 2590 2580
140 (60.0) 3470 3420 3390 3370 3360
Production compressors to meet above nominal performance values within ± 5%.

41
Copeland ®
brand products ZR COPELAND SCROLL® COMPRESSORS

50 HERTZ PERFORMANCE DATA R407C

20° F (11.1° C) Superheat 15° F (8.3° C) Subcooling 95° F (35° C) Ambient (Air Over)

220/ 240-1-50 (PFJ) Rated Voltage 220-1-50 (PFJ) Test Voltage

ZR40K3E-PFJ
CAPACITY (BTU / HOUR)
CONDENSING TEMPERATURE EVAPORATING TEMPERATURE °F / °C
– 10 0 10 20 30 40 45 50 55
°F / °C – 23.3 – 17.8 – 12.2 – 6.7 – 1.1 4.4 7.2 10.0 12.8
100 (37.8) 9820 13300 17400 22300 28100 35000 38900 43100 47600
120 (48.9) 14900 19300 24600 30800 34300 38100 42200
140 (60.0) 20500 26000 29100 32500 36100

CAPACITY (KCAL / HOUR)

– 10 0 10 20 30 40 45 50 55

C
°F / °C – 23.3 – 17.8 – 12.2 – 6.7 – 1.1 4.4 7.2 10.0 12.8

7
100 (37.8) 2470 3350 4380 5620 7080 8820 9800 10900 12000
120 (48.9) 3750 4860 6200 7760 8640 9600 10600

40
140 (60.0) 5170 6550 7330 8190 9100

CAPACITY (WATTS)

R
– 10 0 10 20 30 40 45 50 55
°F / °C – 23.3 – 17.8 – 12.2 – 6.7 – 1.1 4.4 7.2 10.0 12.8
100 (37.8) 2880 3900 5100 6530 8230 10300 11400 12600 13900
120 (48.9) 4370 5650 7210 9020 10000 11200 12400
140 (60.0) 6010 7620 8530 9520 10600

POWER (MOTOR WATTS)

– 10 0 10 20 30 40 45 50 55
°F / °C – 23.3 – 17.8 – 12.2 – 6.7 – 1.1 4.4 7.2 10.0 12.8
100 (37.8) 2120 2110 2100 2080 2060 2020 2000 1980 1950
120 (48.9) 2750 2720 2690 2650 2630 2610 2580
140 (60.0) 3600 3550 3520 3500 3460

ZR40K3E-TF5 / TFD 200/220-3-50 (TF5) Rated Voltage

380/420-3-50 (TFD)
220-3-50 (TF5)
380-3-50 (TFD) Test Voltage
CAPACITY (BTU / HOUR)
CONDENSING TEMPERATURE EVAPORATING TEMPERATURE °F / °C
– 10 0 10 20 30 40 45 50 55
°F / °C – 23.3 – 17.8 – 12.2 – 6.7 – 1.1 4.4 7.2 10.0 12.8
100 (37.8) 9880 12800 16800 21700 27600 34500 38300 42400 46700
120 (48.9) 14400 18800 24200 30600 34100 37900 41900
140 (60.0) 20400 26000 29100 32400 36000

CAPACITY (KCAL / HOUR)

– 10 0 10 20 30 40 45 50 55

C
°F / °C – 23.3 – 17.8 – 12.2 – 6.7 – 1.1 4.4 7.2 10.0 12.8

7
100 (37.8) 2490 3230 4230 5470 6960 8690 9650 10700 11800
120 (48.9) 3630 4740 6100 7710 8590 9550 10600

40
140 (60.0) 5140 6550 7330 8160 9070

CAPACITY (WATTS)

R
– 10 0 10 20 30 40 45 50 55
°F / °C – 23.3 – 17.8 – 12.2 – 6.7 – 1.1 4.4 7.2 10.0 12.8
100 (37.8) 2890 3750 4920 6360 8090 10100 11200 12400 13700
120 (48.9) 4220 5510 7090 8970 9990 11100 12300
140 (60.0) 5980 7620 8530 9490 10500

POWER (MOTOR WATTS)

– 10 0 10 20 30 40 45 50 55
°F / °C – 23.3 – 17.8 – 12.2 – 6.7 – 1.1 4.4 7.2 10.0 12.8
100 (37.8) 1990 2000 2000 1990 1970 1950 1940 1920 1910
120 (48.9) 2640 2630 2610 2590 2570 2550 2530
140 (60.0) 3440 3420 3400 3380 3360
Production compressors to meet above nominal performance values within ± 5%.

42
Copeland ®
brand products ZR COPELAND SCROLL® COMPRESSORS

50 HERTZ PERFORMANCE DATA R22

20° F (11.1° C) Superheat 15° F (8.3° C) Subcooling 95° F (35° C) Ambient (Air Over)

220/ 240-1-50 (PFJ) Rated Voltage 220-1-50 (PFJ) Test Voltage

ZR42K3-PFJ
CAPACITY (BTU / HOUR)
CONDENSING TEMPERATURE EVAPORATING TEMPERATURE °F / °C
– 10 0 10 20 30 40 45 50 55
°F / °C – 23.3 – 17.8 – 12.2 – 6.7 – 1.1 4.4 7.2 10.0 12.8
100 (37.8) 10800 14600 19200 24400 30600 37600 41500 45600 50000
120 (48.9) 16400 21400 27100 33700 37300 41100 45200
140 (60.0) 23100 29200 32500 36100 39900

CAPACITY (KCAL / HOUR)

– 10 0 10 20 30 40 45 50 55
°F / °C – 23.3 – 17.8 – 12.2 – 6.7 – 1.1 4.4 7.2 10.0 12.8
100 (37.8) 2720 3680 4840 6150 7710 9480 10500 11500 12600
120 (48.9) 4130 5390 6830 8490 9400 10400 11400
140 (60.0) 5820 7360 8190 9100 10100

CAPACITY (WATTS)
– 10 0 10 20 30 40 45 50 55
°F / °C – 23.3 – 17.8 – 12.2 – 6.7 – 1.1 4.4 7.2 10.0 12.8
100 (37.8) 3160 4280 5630 7150 8970 11000 12200 13400 14700
120 (48.9) 4810 6270 7940 9870 10900 12000 13200
140 (60.0) 6770 8560 9520 10600 11700

POWER (MOTOR WATTS)

– 10 0 10 20 30 40 45 50 55
°F / °C – 23.3 – 17.8 – 12.2 – 6.7 – 1.1 4.4 7.2 10.0 12.8
100 (37.8) 2270 2240 2230 2210 2190 2170 2160 2140 2130
120 (48.9) 2880 2850 2810 2780 2760 2740 2720
140 (60.0) 3690 3630 3600 3570 3540

ZR42K3-TF5 / TFD 200/220-3-50 (TF5) Rated Voltage

380/420-3-50 (TFD)
220-3-50 (TF5)
380-3-50 (TFD) Test Voltage
CAPACITY (BTU / HOUR)
CONDENSING TEMPERATURE EVAPORATING TEMPERATURE °F / °C
– 10 0 10 20 30 40 45 50 55
°F / °C – 23.3 – 17.8 – 12.2 – 6.7 – 1.1 4.4 7.2 10.0 12.8
100 (37.8) 10800 14400 19000 24500 30800 37800 41500 45400 49400
120 (48.9) 16600 21300 27000 33800 37500 41300 45400
140 (60.0) 23300 29000 32300 35900 39700

CAPACITY (KCAL / HOUR)

– 10 0 10 20 30 40 45 50 55
°F / °C – 23.3 – 17.8 – 12.2 – 6.7 – 1.1 4.4 7.2 10.0 12.8
100 (37.8) 2720 3630 4790 6170 7760 9530 10500 11400 12400
120 (48.9) 4180 5370 6800 8520 9450 10400 11400
140 (60.0) 5870 7310 8140 9050 10000

CAPACITY (WATTS)
– 10 0 10 20 30 40 45 50 55
°F / °C – 23.3 – 17.8 – 12.2 – 6.7 – 1.1 4.4 7.2 10.0 12.8
100 (37.8) 3160 4220 5570 7180 9020 11100 12200 13300 14500
120 (48.9) 4860 6240 7910 9900 11000 12100 13300
140 (60.0) 6830 8500 9460 10500 11600

POWER (MOTOR WATTS)

– 10 0 10 20 30 40 45 50 55
°F / °C – 23.3 – 17.8 – 12.2 – 6.7 – 1.1 4.4 7.2 10.0 12.8
100 (37.8) 2160 2170 2170 2160 2130 2100 2080 2050 2030
120 (48.9) 2820 2800 2770 2730 2710 2690 2660
140 (60.0) 3640 3590 3560 3540 3510
Production compressors to meet above nominal performance values within ± 5%.

43
Copeland ®
brand products ZR COPELAND SCROLL® COMPRESSORS

50 HERTZ PERFORMANCE DATA R407C

20° F (11.1° C) Superheat 15° F (8.3° C) Subcooling 95° F (35° C) Ambient (Air Over)

220/ 240-1-50 (PFJ) Rated Voltage 220-1-50 (PFJ) Test Voltage

ZR42K3E-PFJ
CAPACITY (BTU / HOUR)
CONDENSING TEMPERATURE EVAPORATING TEMPERATURE °F / °C
– 10 0 10 20 30 40 45 50 55
°F / °C – 23.3 – 17.8 – 12.2 – 6.7 – 1.1 4.4 7.2 10.0 12.8
100 (37.8) 10700 14100 18300 23300 29300 36300 40200 44400 48900
120 (48.9) 15600 20200 25700 32100 35700 39600 43700
140 (60.0) 21500 27300 30600 34100 37800

CAPACITY (KCAL / HOUR)

– 10 0 10 20 30 40 45 50 55

C
°F / °C – 23.3 – 17.8 – 12.2 – 6.7 – 1.1 4.4 7.2 10.0 12.8

7
100 (37.8) 2700 3550 4610 5870 7380 9150 10100 11200 12300
120 (48.9) 3930 5090 6480 8090 9000 9980 11000

40
140 (60.0) 5420 6880 7710 8590 9530

CAPACITY (WATTS)

R
– 10 0 10 20 30 40 45 50 55
°F / °C – 23.3 – 17.8 – 12.2 – 6.7 – 1.1 4.4 7.2 10.0 12.8
100 (37.8) 3140 4130 5360 6830 8580 10600 11800 13000 14300
120 (48.9) 4570 5920 7530 9410 10500 11600 12800
140 (60.0) 6300 8000 8970 9990 11100

POWER (MOTOR WATTS)

– 10 0 10 20 30 40 45 50 55
°F / °C – 23.3 – 17.8 – 12.2 – 6.7 – 1.1 4.4 7.2 10.0 12.8
100 (37.8) 2210 2200 2180 2170 2150 2120 2110 2090 2070
120 (48.9) 2830 2820 2790 2760 2740 2720 2690
140 (60.0) 3690 3650 3630 3610 3580

ZR42K3E-TF5 / TFD 200/220-3-50 (TF5) Rated Voltage

380/420-3-50 (TFD)
220-3-50 (TF5)
380-3-50 (TFD) Test Voltage
CAPACITY (BTU / HOUR)
CONDENSING TEMPERATURE EVAPORATING TEMPERATURE °F / °C
– 10 0 10 20 30 40 45 50 55
°F / °C – 23.3 – 17.8 – 12.2 – 6.7 – 1.1 4.4 7.2 10.0 12.8
100 (37.8) 10500 14100 18400 23400 29300 36300 40300 44500 49200
120 (48.9) 15800 20400 25800 32100 35700 39600 43800
140 (60.0) 21600 27400 30600 34100 37800

CAPACITY (KCAL / HOUR)

– 10 0 10 20 30 40 45 50 55

C
°F / °C – 23.3 – 17.8 – 12.2 – 6.7 – 1.1 4.4 7.2 10.0 12.8

7
100 (37.8) 2650 3550 4640 5900 7380 9150 10200 11200 12400
120 (48.9) 3980 5140 6500 8090 9000 9980 11000

40
140 (60.0) 5440 6900 7710 8590 9530

CAPACITY (WATTS)

R
– 10 0 10 20 30 40 45 50 55
°F / °C – 23.3 – 17.8 – 12.2 – 6.7 – 1.1 4.4 7.2 10.0 12.8
100 (37.8) 3080 4130 5390 6860 8580 10600 11800 13000 14400
120 (48.9) 4630 5980 7560 9410 10500 11600 12800
140 (60.0) 6330 8030 8970 9990 11100

POWER (MOTOR WATTS)

– 10 0 10 20 30 40 45 50 55
°F / °C – 23.3 – 17.8 – 12.2 – 6.7 – 1.1 4.4 7.2 10.0 12.8
100 (37.8) 2160 2130 2100 2070 2050 2030 2020 2010 2000
120 (48.9) 2840 2780 2740 2700 2690 2670 2660
140 (60.0) 3730 3650 3610 3580 3560
Production compressors to meet above nominal performance values within ± 5%.

44
Copeland ®
brand products ZR COPELAND SCROLL® COMPRESSORS

50 HERTZ PERFORMANCE DATA R22

20° F (11.1° C) Superheat 15° F (8.3° C) Subcooling 95° F (35° C) Ambient (Air Over)

220/ 240-1-50 (PFJ) Rated Voltage 220-1-50 (PFJ) Test Voltage

ZR45K3-PFJ
CAPACITY (BTU / HOUR)
CONDENSING TEMPERATURE EVAPORATING TEMPERATURE °F / °C
– 10 0 10 20 30 40 45 50 55
°F / °C – 23.3 – 17.8 – 12.2 – 6.7 – 1.1 4.4 7.2 10.0 12.8
100 (37.8) 12900 17100 21800 27300 33600 40900 45000 49300 54000
120 (48.9) 19100 24200 30100 36900 40600 44700 48900
140 (60.0) 25800 32000 35500 39200 43200

CAPACITY (KCAL / HOUR)

– 10 0 10 20 30 40 45 50 55
°F / °C – 23.3 – 17.8 – 12.2 – 6.7 – 1.1 4.4 7.2 10.0 12.8
100 (37.8) 3250 4310 5490 6880 8470 10300 11300 12400 13600
120 (48.9) 4810 6100 7590 9300 10200 11300 12300
140 (60.0) 6500 8060 8950 9880 10900

CAPACITY (WATTS)
– 10 0 10 20 30 40 45 50 55
°F / °C – 23.3 – 17.8 – 12.2 – 6.7 – 1.1 4.4 7.2 10.0 12.8
100 (37.8) 3780 5010 6390 8000 9840 12000 13200 14400 15800
120 (48.9) 5600 7090 8820 10800 11900 13100 14300
140 (60.0) 7560 9380 10400 11500 12700

POWER (MOTOR WATTS)

– 10 0 10 20 30 40 45 50 55
°F / °C – 23.3 – 17.8 – 12.2 – 6.7 – 1.1 4.4 7.2 10.0 12.8
100 (37.8) 2270 2290 2300 2300 2310 2340 2370 2400 2440
120 (48.9) 2990 2970 2960 2970 2980 3000 3020
140 (60.0) 3920 3880 3870 3870 3870

ZR45KC-TF5 / TFD 200/220-3-50 (TF5) Rated Voltage

380/420-3-50 (TFD)
220-3-50 (TF5)
380-3-50 (TFD) Test Voltage
CAPACITY (BTU / HOUR)
CONDENSING TEMPERATURE EVAPORATING TEMPERATURE °F / °C
– 10 0 10 20 30 40 45 50 55
°F / °C – 23.3 – 17.8 – 12.2 – 6.7 – 1.1 4.4 7.2 10.0 12.8
100 (37.8) 10900 15700 20800 26400 32800 40300 44500 49100 54000
120 (48.9) 18000 23400 29400 36300 40200 44400 49000
140 (60.0) 25500 31900 35400 39300 43500

CAPACITY (KCAL / HOUR)

– 10 0 10 20 30 40 45 50 55
°F / °C – 23.3 – 17.8 – 12.2 – 6.7 – 1.1 4.4 7.2 10.0 12.8
100 (37.8) 2750 3960 5240 6650 8270 10200 11200 12400 13600
120 (48.9) 4540 5900 7410 9150 10100 11200 12300
140 (60.0) 6430 8040 8920 9900 11000

CAPACITY (WATTS)
– 10 0 10 20 30 40 45 50 55
°F / °C – 23.3 – 17.8 – 12.2 – 6.7 – 1.1 4.4 7.2 10.0 12.8
100 (37.8) 3190 4600 6090 7740 9610 11800 13000 14400 15800
120 (48.9) 5270 6860 8610 10600 11800 13000 14400
140 (60.0) 7470 9350 10400 11500 12700

POWER (MOTOR WATTS)

– 10 0 10 20 30 40 45 50 55
°F / °C – 23.3 – 17.8 – 12.2 – 6.7 – 1.1 4.4 7.2 10.0 12.8
100 (37.8) 2270 2280 2270 2260 2260 2280 2290 2320 2350
120 (48.9) 3010 2970 2940 2930 2930 2940 2960
140 (60.0) 3840 3790 3780 3770 3770
Production compressors to meet above nominal performance values within ± 5%.

45
Copeland ®
brand products ZR COPELAND SCROLL® COMPRESSORS

50 HERTZ PERFORMANCE DATA R407C

20° F (11.1° C) Superheat 15° F (8.3° C) Subcooling 95° F (35° C) Ambient (Air Over)

220/ 240-1-50 (PFJ) Rated Voltage 220-1-50 (PFJ) Test Voltage

ZR45K3E-PFJ
CAPACITY (BTU / HOUR)
CONDENSING TEMPERATURE EVAPORATING TEMPERATURE °F / °C
– 10 0 10 20 30 40 45 50 55
°F / °C – 23.3 – 17.8 – 12.2 – 6.7 – 1.1 4.4 7.2 10.0 12.8
100 (37.8) 11800 15500 20200 25700 32300 40100 44400 49000 54000
120 (48.9) 17200 22300 28400 35500 39400 43700 48200
140 (60.0) 23700 30100 33700 37600 41700

CAPACITY (KCAL / HOUR)

– 10 0 10 20 30 40 45 50 55

C
°F / °C – 23.3 – 17.8 – 12.2 – 6.7 – 1.1 4.4 7.2 10.0 12.8

7
100 (37.8) 2970 3910 5090 6480 8140 10100 11200 12300 13600
120 (48.9) 4330 5620 7160 8950 9930 11000 12100

40
140 (60.0) 5970 7590 8490 9480 10500

CAPACITY (WATTS)

R
– 10 0 10 20 30 40 45 50 55
°F / °C – 23.3 – 17.8 – 12.2 – 6.7 – 1.1 4.4 7.2 10.0 12.8
100 (37.8) 3460 4540 5920 7530 9460 11700 13000 14400 15800
120 (48.9) 5040 6530 8320 10400 11500 12800 14100
140 (60.0) 6940 8820 9870 11000 12200

POWER (MOTOR WATTS)

– 10 0 10 20 30 40 45 50 55
°F / °C – 23.3 – 17.8 – 12.2 – 6.7 – 1.1 4.4 7.2 10.0 12.8
100 (37.8) 2430 2420 2400 2390 2370 2340 2330 2310 2290
120 (48.9) 3070 3050 3030 3000 2980 2960 2930
140 (60.0) 3950 3910 3890 3860 3830

ZR45KCE-TF5 / TFD 200/220-3-50 (TF5) Rated Voltage

380/420-3-50 (TFD)
220-3-50 (TF5)
380-3-50 (TFD) Test Voltage
CAPACITY (BTU / HOUR)
CONDENSING TEMPERATURE EVAPORATING TEMPERATURE °F / °C
– 10 0 10 20 30 40 45 50 55
°F / °C – 23.3 – 17.8 – 12.2 – 6.7 – 1.1 4.4 7.2 10.0 12.8
100 (37.8) 4920 9710 15300 21900 29600 38400 43300 48600 54000
120 (48.9) 12500 18600 25700 33900 38500 43300 48500
140 (60.0) 21300 28800 33000 37400 42200

CAPACITY (KCAL / HOUR)

– 10 0 10 20 30 40 45 50 55

C
°F / °C – 23.3 – 17.8 – 12.2 – 6.7 – 1.1 4.4 7.2 10.0 12.8

7
100 (37.8) 1240 2450 3860 5520 7460 9680 10900 12200 13600

40
120 (48.9) 3150 4690 6480 8540 9700 10900 12200
140 (60.0) 5370 7260 8320 9420 10600

CAPACITY (WATTS)

R
– 10 0 10 20 30 40 45 50 55
°F / °C – 23.3 – 17.8 – 12.2 – 6.7 – 1.1 4.4 7.2 10.0 12.8
100 (37.8) 1440 2850 4480 6420 8670 11300 12700 14200 15800
120 (48.9) 3660 5450 7530 9930 11300 12700 14200
140 (60.0) 6240 8440 9670 11000 12400

POWER (MOTOR WATTS)

– 10 0 10 20 30 40 45 50 55
°F / °C – 23.3 – 17.8 – 12.2 – 6.7 – 1.1 4.4 7.2 10.0 12.8
100 (37.8) 2040 2050 2060 2080 2120 2170 2200 2240 2280
120 (48.9) 2840 2840 2850 2880 2900 2920 2950
140 (60.0) 3870 3870 3870 3880 3900
Production compressors to meet above nominal performance values within ± 5%.

46
Copeland ®
brand products ZR COPELAND SCROLL® COMPRESSORS

50 HERTZ PERFORMANCE DATA R22

20° F (11.1° C) Superheat 15° F (8.3° C) Subcooling 95° F (35° C) Ambient (Air Over)

220/ 240-1-50 (PFJ) Rated Voltage 220-1-50 (PFJ) Test Voltage

ZR47K3-PFJ
CAPACITY (BTU / HOUR)
CONDENSING TEMPERATURE EVAPORATING TEMPERATURE °F / °C
– 10 0 10 20 30 40 45 50 55
°F / °C – 23.3 – 17.8 – 12.2 – 6.7 – 1.1 4.4 7.2 10.0 12.8
100 (37.8) 13300 17500 22500 28100 34700 42300 46500 51000 56000
120 (48.9) 19600 24900 31000 38100 41900 46100 50500
140 (60.0) 26500 33000 36600 40400 44500

CAPACITY (KCAL / HOUR)

– 10 0 10 20 30 40 45 50 55
°F / °C – 23.3 – 17.8 – 12.2 – 6.7 – 1.1 4.4 7.2 10.0 12.8
100 (37.8) 3350 4410 5670 7080 8740 10700 11700 12900 14100
120 (48.9) 4940 6270 7810 9600 10600 11600 12700
140 (60.0) 6680 8320 9220 10200 11200

CAPACITY (WATTS)
– 10 0 10 20 30 40 45 50 55
°F / °C – 23.3 – 17.8 – 12.2 – 6.7 – 1.1 4.4 7.2 10.0 12.8
100 (37.8) 3900 5130 6590 8230 10200 12400 13600 14900 16400
120 (48.9) 5740 7300 9080 11200 12300 13500 14800
140 (60.0) 7760 9670 10700 11800 13000

POWER (MOTOR WATTS)

– 10 0 10 20 30 40 45 50 55
°F / °C – 23.3 – 17.8 – 12.2 – 6.7 – 1.1 4.4 7.2 10.0 12.8
100 (37.8) 2320 2340 2350 2350 2360 2390 2420 2450 2490
120 (48.9) 3060 3040 3030 3030 3050 3060 3090
140 (60.0) 4020 3980 3970 3970 3980

ZR47KC-TF5 / TFD 200/220-3-50 (TF5) Rated Voltage

380/420-3-50 (TFD)
220-3-50 (TF5)
380-3-50 (TFD) Test Voltage
CAPACITY (BTU / HOUR)
CONDENSING TEMPERATURE EVAPORATING TEMPERATURE °F / °C
– 10 0 10 20 30 40 45 50 55
°F / °C – 23.3 – 17.8 – 12.2 – 6.7 – 1.1 4.4 7.2 10.0 12.8
100 (37.8) 15300 19100 23700 29000 35200 42300 46300 50500 55000
120 (48.9) 20900 25900 31600 38200 41800 45700 49900
140 (60.0) 27500 33500 36800 40400 44200

CAPACITY (KCAL / HOUR)

– 10 0 10 20 30 40 45 50 55
°F / °C – 23.3 – 17.8 – 12.2 – 6.7 – 1.1 4.4 7.2 10.0 12.8
100 (37.8) 3860 4810 5970 7310 8870 10700 11700 12700 13900
120 (48.9) 5270 6530 7960 9630 10500 11500 12600
140 (60.0) 6930 8440 9270 10200 11100

CAPACITY (WATTS)
– 10 0 10 20 30 40 45 50 55
°F / °C – 23.3 – 17.8 – 12.2 – 6.7 – 1.1 4.4 7.2 10.0 12.8
100 (37.8) 4480 5600 6940 8500 10300 12400 13600 14800 16100
120 (48.9) 6120 7590 9260 11200 12200 13400 14600
140 (60.0) 8060 9820 10800 11800 13000

POWER (MOTOR WATTS)

– 10 0 10 20 30 40 45 50 55
°F / °C – 23.3 – 17.8 – 12.2 – 6.7 – 1.1 4.4 7.2 10.0 12.8
100 (37.8) 2270 2270 2270 2280 2290 2310 2340 2370 2400
120 (48.9) 3060 3030 3000 3000 3010 3030 3060
140 (60.0) 3990 3940 3920 3920 3930
Production compressors to meet above nominal performance values within ± 5%.

47
Copeland ®
brand products ZR COPELAND SCROLL® COMPRESSORS

50 HERTZ PERFORMANCE DATA R407C

20° F (11.1° C) Superheat 15° F (8.3° C) Subcooling 95° F (35° C) Ambient (Air Over)

220/ 240-1-50 (PFJ) Rated Voltage 220-1-50 (PFJ) Test Voltage

ZR47K3E-PFJ
CAPACITY (BTU / HOUR)
CONDENSING TEMPERATURE EVAPORATING TEMPERATURE °F / °C
– 10 0 10 20 30 40 45 50 55
°F / °C – 23.3 – 17.8 – 12.2 – 6.7 – 1.1 4.4 7.2 10.0 12.8
100 (37.8) 12600 16400 21100 26700 33300 41000 45300 49900 55000
120 (48.9) 17800 23000 29100 36100 40000 44200 48600
140 (60.0) 24600 31200 34900 38700 42900

CAPACITY (KCAL / HOUR)

– 10 0 10 20 30 40 45 50 55

C
°F / °C – 23.3 – 17.8 – 12.2 – 6.7 – 1.1 4.4 7.2 10.0 12.8

7
100 (37.8) 3180 4130 5320 6730 8390 10300 11400 12600 13900
120 (48.9) 4490 5800 7330 9100 10100 11100 12200

40
140 (60.0) 6200 7860 8790 9750 10800

CAPACITY (WATTS)

R
– 10 0 10 20 30 40 45 50 55
°F / °C – 23.3 – 17.8 – 12.2 – 6.7 – 1.1 4.4 7.2 10.0 12.8
100 (37.8) 3690 4810 6180 7820 9760 12000 13300 14600 16100
120 (48.9) 5220 6740 8530 10600 11700 13000 14200
140 (60.0) 7210 9140 10200 11300 12600

POWER (MOTOR WATTS)

– 10 0 10 20 30 40 45 50 55
°F / °C – 23.3 – 17.8 – 12.2 – 6.7 – 1.1 4.4 7.2 10.0 12.8
100 (37.8) 2140 2200 2230 2260 2280 2320 2350 2380 2430
120 (48.9) 3010 3020 3030 3050 3070 3090 3130
140 (60.0) 3950 3920 3920 3910 3920

ZR47KCE-TF5 / TFD 200/220-3-50 (TF5) Rated Voltage

380/420-3-50 (TFD)
220-3-50 (TF5)
380-3-50 (TFD) Test Voltage
CAPACITY (BTU / HOUR)
CONDENSING TEMPERATURE EVAPORATING TEMPERATURE °F / °C
– 10 0 10 20 30 40 45 50 55
°F / °C – 23.3 – 17.8 – 12.2 – 6.7 – 1.1 4.4 7.2 10.0 12.8
100 (37.8) 12600 16400 21100 26700 33200 40900 45200 49800 55000
120 (48.9) 17800 23000 29100 36100 40000 44200 48600
140 (60.0) 24700 31300 34900 38800 42900

CAPACITY (KCAL / HOUR)

C
– 10 0 10 20 30 40 45 50 55
°F / °C – 23.3 – 17.8 – 12.2 – 6.7 – 1.1 4.4 7.2 10.0 12.8

7
100 (37.8) 3180 4130 5320 6730 8370 10300 11400 12500 13900

40
120 (48.9) 4490 5800 7330 9100 10100 11100 12200
140 (60.0) 6220 7890 8790 9780 10800

CAPACITY (WATTS)

R
– 10 0 10 20 30 40 45 50 55
°F / °C – 23.3 – 17.8 – 12.2 – 6.7 – 1.1 4.4 7.2 10.0 12.8
100 (37.8) 3690 4810 6180 7820 9730 12000 13200 14600 16100
120 (48.9) 5220 6740 8530 10600 11700 13000 14200
140 (60.0) 7240 9170 10200 11400 12600

POWER (MOTOR WATTS)

– 10 0 10 20 30 40 45 50 55
°F / °C – 23.3 – 17.8 – 12.2 – 6.7 – 1.1 4.4 7.2 10.0 12.8
100 (37.8) 2000 2070 2110 2140 2160 2200 2230 2270 2320
120 (48.9) 2930 2950 2960 2980 3000 3030 3060
140 (60.0) 3940 3910 3900 3900 3900
Production compressors to meet above nominal performance values within ± 5%.

48
Copeland ®
brand products ZR COPELAND SCROLL® COMPRESSORS

50 HERTZ PERFORMANCE DATA R22

20° F (11.1° C) Superheat 15° F (8.3° C) Subcooling 95° F (35° C) Ambient (Air Over)

220/ 240-1-50 (PFJ) Rated Voltage 220-1-50 (PFJ) Test Voltage

ZR48K3-PFJ
CAPACITY (BTU / HOUR)
CONDENSING TEMPERATURE EVAPORATING TEMPERATURE °F / °C
– 10 0 10 20 30 40 45 50 55
°F / °C – 23.3 – 17.8 – 12.2 – 6.7 – 1.1 4.4 7.2 10.0 12.8
100 (37.8) 13400 17700 22800 28700 35600 43400 47800 52500 57500
120 (48.9) 20100 25500 31900 39100 43100 47400 52000
140 (60.0) 27300 33900 37600 41500 45700

CAPACITY (KCAL / HOUR)

– 10 0 10 20 30 40 45 50 55
°F / °C – 23.3 – 17.8 – 12.2 – 6.7 – 1.1 4.4 7.2 10.0 12.8
100 (37.8) 3380 4460 5750 7230 8970 10900 12000 13200 14500
120 (48.9) 5070 6430 8040 9850 10900 11900 13100
140 (60.0) 6880 8540 9480 10500 11500

CAPACITY (WATTS)
– 10 0 10 20 30 40 45 50 55
°F / °C – 23.3 – 17.8 – 12.2 – 6.7 – 1.1 4.4 7.2 10.0 12.8
100 (37.8) 3930 5190 6680 8410 10400 12700 14000 15400 16800
120 (48.9) 5890 7470 9350 11500 12600 13900 15200
140 (60.0) 8000 9930 11000 12200 13400

POWER (MOTOR WATTS)

– 10 0 10 20 30 40 45 50 55
°F / °C – 23.3 – 17.8 – 12.2 – 6.7 – 1.1 4.4 7.2 10.0 12.8
100 (37.8) 2390 2420 2440 2450 2460 2490 2520 2540 2580
120 (48.9) 3180 3170 3160 3170 3180 3200 3220
140 (60.0) 4240 4210 4200 4190 4190

ZR48KC-TF5 / TFD 200/220-3-50 (TF5) Rated Voltage

380/420-3-50 (TFD)
220-3-50 (TF5)
380-3-50 (TFD) Test Voltage
CAPACITY (BTU / HOUR)
CONDENSING TEMPERATURE EVAPORATING TEMPERATURE °F / °C
– 10 0 10 20 30 40 45 50 55
°F / °C – 23.3 – 17.8 – 12.2 – 6.7 – 1.1 4.4 7.2 10.0 12.8
100 (37.8) 13700 18000 23000 28900 35700 43500 47800 52500 57500
120 (48.9) 20200 25600 31900 39100 43000 47300 52000
140 (60.0) 27600 34200 37800 41700 45800

CAPACITY (KCAL / HOUR)

– 10 0 10 20 30 40 45 50 55
°F / °C – 23.3 – 17.8 – 12.2 – 6.7 – 1.1 4.4 7.2 10.0 12.8
100 (37.8) 3450 4540 5800 7280 9000 11000 12000 13200 14500
120 (48.9) 5090 6450 8040 9850 10800 11900 13100
140 (60.0) 6960 8620 9530 10500 11500

CAPACITY (WATTS)
– 10 0 10 20 30 40 45 50 55
°F / °C – 23.3 – 17.8 – 12.2 – 6.7 – 1.1 4.4 7.2 10.0 12.8
100 (37.8) 4010 5270 6740 8470 10500 12700 14000 15400 16800
120 (48.9) 5920 7500 9350 11500 12600 13900 15200
140 (60.0) 8090 10000 11100 12200 13400

POWER (MOTOR WATTS)

– 10 0 10 20 30 40 45 50 55
°F / °C – 23.3 – 17.8 – 12.2 – 6.7 – 1.1 4.4 7.2 10.0 12.8
100 (37.8) 2330 2340 2350 2370 2410 2460 2490 2530 2570
120 (48.9) 3120 3110 3120 3150 3170 3200 3230
140 (60.0) 4120 4120 4120 4130 4150
Production compressors to meet above nominal performance values within ± 5%.

49
Copeland ®
brand products ZR COPELAND SCROLL® COMPRESSORS

50 HERTZ PERFORMANCE DATA R407C

20° F (11.1° C) Superheat 15° F (8.3° C) Subcooling 95° F (35° C) Ambient (Air Over)

220/ 240-1-50 (PFJ) Rated Voltage 220-1-50 (PFJ) Test Voltage

ZR48K3E-PFJ
CAPACITY (BTU / HOUR)
CONDENSING TEMPERATURE EVAPORATING TEMPERATURE °F / °C
– 10 0 10 20 30 40 45 50 55
°F / °C – 23.3 – 17.8 – 12.2 – 6.7 – 1.1 4.4 7.2 10.0 12.8
100 (37.8) 12500 16500 21400 27300 34300 42500 47100 52000 57500
120 (48.9) 18200 23700 30100 37600 41800 46400 51000
140 (60.0) 25100 32000 35800 39900 44300

CAPACITY (KCAL / HOUR)

– 10 0 10 20 30 40 45 50 55

C
°F / °C – 23.3 – 17.8 – 12.2 – 6.7 – 1.1 4.4 7.2 10.0 12.8

7
100 (37.8) 3150 4160 5390 6880 8640 10700 11900 13100 14500
120 (48.9) 4590 5970 7590 9480 10500 11700 12900

40
140 (60.0) 6330 8060 9020 10100 11200

CAPACITY (WATTS)

R
– 10 0 10 20 30 40 45 50 55
°F / °C – 23.3 – 17.8 – 12.2 – 6.7 – 1.1 4.4 7.2 10.0 12.8
100 (37.8) 3660 4830 6270 8000 10000 12500 13800 15200 16800
120 (48.9) 5330 6940 8820 11000 12200 13600 14900
140 (60.0) 7350 9380 10500 11700 13000

POWER (MOTOR WATTS)

– 10 0 10 20 30 40 45 50 55
°F / °C – 23.3 – 17.8 – 12.2 – 6.7 – 1.1 4.4 7.2 10.0 12.8
100 (37.8) 2610 2590 2580 2560 2540 2510 2490 2470 2450
120 (48.9) 3340 3320 3290 3260 3230 3210 3180
140 (60.0) 4350 4300 4280 4250 4210

ZR48KCE-TF5 / TFD 200/220-3-50 (TF5) Rated Voltage

380/420-3-50 (TFD)
220-3-50 (TF5)
380-3-50 (TFD) Test Voltage
CAPACITY (BTU / HOUR)
CONDENSING TEMPERATURE EVAPORATING TEMPERATURE °F / °C
– 10 0 10 20 30 40 45 50 55
°F / °C – 23.3 – 17.8 – 12.2 – 6.7 – 1.1 4.4 7.2 10.0 12.8
100 (37.8) 11800 16200 21200 27000 34000 42200 46800 52000 57500
120 (48.9) 18200 23500 29800 37200 41400 46000 51000
140 (60.0) 25200 31800 35500 39600 44000

CAPACITY (KCAL / HOUR)

– 10 0 10 20 30 40 45 50 55

C
°F / °C – 23.3 – 17.8 – 12.2 – 6.7 – 1.1 4.4 7.2 10.0 12.8

7
100 (37.8) 2970 4080 5340 6800 8570 10600 11800 13100 14500

40
120 (48.9) 4590 5920 7510 9370 10400 11600 12900
140 (60.0) 6350 8010 8950 10000 11100

CAPACITY (WATTS)

R
– 10 0 10 20 30 40 45 50 55
°F / °C – 23.3 – 17.8 – 12.2 – 6.7 – 1.1 4.4 7.2 10.0 12.8
100 (37.8) 3460 4750 6210 7910 10000 12400 13700 15200 16800
120 (48.9) 5330 6890 8730 10900 12100 13500 14900
140 (60.0) 7380 9320 10400 11600 12900

POWER (MOTOR WATTS)

– 10 0 10 20 30 40 45 50 55
°F / °C – 23.3 – 17.8 – 12.2 – 6.7 – 1.1 4.4 7.2 10.0 12.8
100 (37.8) 2350 2350 2360 2370 2380 2400 2410 2420 2430
120 (48.9) 3110 3120 3130 3140 3140 3140 3140
140 (60.0) 4100 4100 4100 4090 4090
Production compressors to meet above nominal performance values within ± 5%.

50
Copeland ®
brand products ZR COPELAND SCROLL® COMPRESSORS

50 HERTZ PERFORMANCE DATA R22

20° F (11.1° C) Superheat 15° F (8.3° C) Subcooling 95° F (35° C) Ambient (Air Over)

200/ 220-3-50 (TF5) 220-3-50 (TF5)

Rated Voltage Test Voltage
380/420-3-50 (TFD) 380-3-50 (TFD)

ZR54KC-TF5 / TFD
CAPACITY (BTU / HOUR)
CONDENSING TEMPERATURE EVAPORATING TEMPERATURE °F / °C
– 10 0 10 20 30 40 45 50 55
°F / °C – 23.3 – 17.8 – 12.2 – 6.7 – 1.1 4.4 7.2 10.0 12.8
100 (37.8) 14300 19700 25600 32200 39700 48300 53000 58000 63500
120 (48.9) 22100 28400 35400 43300 47700 52500 57500
140 (60.0) 31000 38300 42200 46500 51000

CAPACITY (KCAL / HOUR)

– 10 0 10 20 30 40 45 50 55
°F / °C – 23.3 – 17.8 – 12.2 – 6.7 – 1.1 4.4 7.2 10.0 12.8
100 (37.8) 3600 4960 6450 8110 10000 12200 13400 14600 16000
120 (48.9) 5570 7160 8920 10900 12000 13200 14500
140 (60.0) 7810 9650 10600 11700 12900

CAPACITY (WATTS)
– 10 0 10 20 30 40 45 50 55
°F / °C – 23.3 – 17.8 – 12.2 – 6.7 – 1.1 4.4 7.2 10.0 12.8
100 (37.8) 4190 5770 7500 9430 11600 14200 15500 17000 18600
120 (48.9) 6480 8320 10400 12700 14000 15400 16800
140 (60.0) 9080 11200 12400 13600 14900

POWER (MOTOR WATTS)

– 10 0 10 20 30 40 45 50 55
°F / °C – 23.3 – 17.8 – 12.2 – 6.7 – 1.1 4.4 7.2 10.0 12.8
100 (37.8) 2590 2660 2710 2740 2770 2800 2820 2840 2860
120 (48.9) 3390 3460 3500 3530 3550 3560 3580
140 (60.0) 4390 4440 4460 4480 4500

ZR54KCE-TF5 / TFD 200/220-3-50 (TF5) Rated Voltage

380/420-3-50 (TFD)
220-3-50 (TF5) Test Voltage
380-3-50 (TFD)
R407C
CAPACITY (BTU / HOUR)
CONDENSING TEMPERATURE EVAPORATING TEMPERATURE °F / °C
– 10 0 10 20 30 40 45 50 55
°F / °C – 23.3 – 17.8 – 12.2 – 6.7 – 1.1 4.4 7.2 10.0 12.8
100 (37.8) 2220 9010 16400 24600 34000 44600 50500 57000 64000
120 (48.9) 12400 20300 29100 39100 44600 50500 57000
140 (60.0) 24000 33200 38200 43600 49300

CAPACITY (KCAL / HOUR)

C
– 10 0 10 20 30 40 45 50 55
°F / °C – 23.3 – 17.8 – 12.2 – 6.7 – 1.1 4.4 7.2 10.0 12.8

7
100 (37.8) 560 2270 4130 6200 8570 11200 12700 14400 16100

40
120 (48.9) 3120 5120 7330 9850 11200 12700 14400
140 (60.0) 6050 8370 9630 11000 12400

CAPACITY (WATTS)

R
– 10 0 10 20 30 40 45 50 55
°F / °C – 23.3 – 17.8 – 12.2 – 6.7 – 1.1 4.4 7.2 10.0 12.8
100 (37.8) 650 2640 4810 7210 10000 13100 14800 16700 18800
120 (48.9) 3630 5950 8530 11500 13100 14800 16700
140 (60.0) 7030 9730 11200 12800 14400

POWER (MOTOR WATTS)

– 10 0 10 20 30 40 45 50 55
°F / °C – 23.3 – 17.8 – 12.2 – 6.7 – 1.1 4.4 7.2 10.0 12.8
100 (37.8) 2490 2570 2630 2680 2720 2750 2770 2800 2820
120 (48.9) 3450 3530 3590 3630 3650 3660 3680
140 (60.0) 4660 4730 4750 4780 4800
Production compressors to meet above nominal performance values within ± 5%.

51
Copeland ®
brand products ZR COPELAND SCROLL® COMPRESSORS

50 HERTZ PERFORMANCE DATA R22

20° F (11.1° C) Superheat 15° F (8.3° C) Subcooling 95° F (35° C) Ambient (Air Over)

200/ 220-3-50 (TF5) 220-3-50 (TF5)

Rated Voltage Test Voltage
380/420-3-50 (TFD) 380-3-50 (TFD)

ZR57KC-TF5 / TFD
CAPACITY (BTU / HOUR)
CONDENSING TEMPERATURE EVAPORATING TEMPERATURE °F / °C
– 10 0 10 20 30 40 45 50 55
°F / °C – 23.3 – 17.8 – 12.2 – 6.7 – 1.1 4.4 7.2 10.0 12.8
100 (37.8) 15400 20900 27000 34100 42100 51000 56000 61500 67000
120 (48.9) 22800 29600 37200 45800 50500 55500 61000
140 (60.0) 32100 40200 44500 49200 54000

CAPACITY (KCAL / HOUR)

– 10 0 10 20 30 40 45 50 55
°F / °C – 23.3 – 17.8 – 12.2 – 6.7 – 1.1 4.4 7.2 10.0 12.8
100 (37.8) 3880 5270 6800 8590 10600 12900 14100 15500 16900
120 (48.9) 5750 7460 9370 11500 12700 14000 15400
140 (60.0) 8090 10100 11200 12400 13600

CAPACITY (WATTS)
– 10 0 10 20 30 40 45 50 55
°F / °C – 23.3 – 17.8 – 12.2 – 6.7 – 1.1 4.4 7.2 10.0 12.8
100 (37.8) 4510 6120 7910 9990 12300 14900 16400 18000 19600
120 (48.9) 6680 8670 10900 13400 14800 16300 17900
140 (60.0) 9410 11800 13000 14400 15800

POWER (MOTOR WATTS)

– 10 0 10 20 30 40 45 50 55
°F / °C – 23.3 – 17.8 – 12.2 – 6.7 – 1.1 4.4 7.2 10.0 12.8
100 (37.8) 2730 2790 2840 2870 2890 2930 2950 2980 3010
120 (48.9) 3590 3640 3670 3700 3710 3730 3750
140 (60.0) 4620 4660 4680 4700 4710

ZR57KCE-TF5 / TFD 200/220-3-50 (TF5) Rated Voltage

380/420-3-50 (TFD)
220-3-50 (TF5) Test Voltage
380-3-50 (TFD)
R407C
CAPACITY (BTU / HOUR)
CONDENSING TEMPERATURE EVAPORATING TEMPERATURE °F / °C
– 10 0 10 20 30 40 45 50 55
°F / °C – 23.3 – 17.8 – 12.2 – 6.7 – 1.1 4.4 7.2 10.0 12.8
100 (37.8) 14300 19500 25400 32100 39700 48300 53000 58000 63500
120 (48.9) 21400 28000 35400 43700 48300 53000 58000
140 (60.0) 30600 38500 42700 47200 52000

CAPACITY (KCAL / HOUR)

C
– 10 0 10 20 30 40 45 50 55
°F / °C – 23.3 – 17.8 – 12.2 – 6.7 – 1.1 4.4 7.2 10.0 12.8

7
100 (37.8) 3600 4910 6400 8090 10000 12200 13400 14600 16000

40
120 (48.9) 5390 7060 8920 11000 12200 13400 14600
140 (60.0) 7710 9700 10800 11900 13100

CAPACITY (WATTS)

R
– 10 0 10 20 30 40 45 50 55
°F / °C – 23.3 – 17.8 – 12.2 – 6.7 – 1.1 4.4 7.2 10.0 12.8
100 (37.8) 4190 5710 7440 9410 11600 14200 15500 17000 18600
120 (48.9) 6270 8200 10400 12800 14200 15500 17000
140 (60.0) 8970 11300 12500 13800 15200

POWER (MOTOR WATTS)

– 10 0 10 20 30 40 45 50 55
°F / °C – 23.3 – 17.8 – 12.2 – 6.7 – 1.1 4.4 7.2 10.0 12.8
100 (37.8) 2650 2730 2780 2820 2850 2900 2920 2950 2990
120 (48.9) 3680 3740 3780 3810 3830 3850 3870
140 (60.0) 4930 4970 4990 5000 5050
Production compressors to meet above nominal performance values within ± 5%.

52
Copeland ®
brand products ZR COPELAND SCROLL® COMPRESSORS

50 HERTZ PERFORMANCE DATA R22

20° F (11.1° C) Superheat 15° F (8.3° C) Subcooling 95° F (35° C) Ambient (Air Over)

220/ 240-1-50 (PFZ) Rated Voltage 220-1-50 (PFZ) Test Voltage

ZR61KC-PFZ
CAPACITY (BTU / HOUR)
CONDENSING TEMPERATURE EVAPORATING TEMPERATURE °F / °C
– 10 0 10 20 30 40 45 50 55
°F / °C – 23.3 – 17.8 – 12.2 – 6.7 – 1.1 4.4 7.2 10.0 12.8
100 (37.8) 17800 22700 28900 36400 45100 55000 60000 65500 71000
120 (48.9) 25300 32100 40100 49200 54000 59000 64500
140 (60.0) 35300 42500 48000 52500 57500

CAPACITY (KCAL / HOUR)

– 10 0 10 20 30 40 45 50 55
°F / °C – 23.3 – 17.8 – 12.2 – 6.7 – 1.1 4.4 7.2 10.0 12.8
100 (37.8) 4490 5720 7280 9170 11400 13900 15100 16500 17900
120 (48.9) 6380 8090 10100 12400 13600 14900 16300
140 (60.0) 8900 10700 12100 13200 14500

CAPACITY (WATTS)
– 10 0 10 20 30 40 45 50 55
°F / °C – 23.3 – 17.8 – 12.2 – 6.7 – 1.1 4.4 7.2 10.0 12.8
100 (37.8) 5220 6650 8470 10700 13200 16100 17600 19200 20800
120 (48.9) 7410 9410 11700 14400 15800 17300 18900
140 (60.0) 10300 12500 14100 15400 16800

POWER (MOTOR WATTS)

– 10 0 10 20 30 40 45 50 55
°F / °C – 23.3 – 17.8 – 12.2 – 6.7 – 1.1 4.4 7.2 10.0 12.8
100 (37.8) 2750 2850 2910 2950 3010 3110 3180 3280 3390
120 (48.9) 3820 3850 3890 3970 4030 4110 4220
140 (60.0) 5100 5150 5200 5250 5300

ZR61KC-TF5/D 200/220-3-50 (TF5) Rated Voltage

380/420-3-50 (TFD)
220-3-50 (TF5) Test Voltage
380-3-50 (TFD)
CAPACITY (BTU / HOUR)
CONDENSING TEMPERATURE EVAPORATING TEMPERATURE °F / °C
– 10 0 10 20 30 40 45 50 55
°F / °C – 23.3 – 17.8 – 12.2 – 6.7 – 1.1 4.4 7.2 10.0 12.8
100 (37.8) 17800 22700 28900 36400 45100 54800 60000 65400 71000
120 (48.9) 25300 32100 40100 49200 54100 59200 64500
140 (60.0) 35300 43500 48000 52700 57700

CAPACITY (KCAL / HOUR)

– 10 0 10 20 30 40 45 50 55
°F / °C – 23.3 – 17.8 – 12.2 – 6.7 – 1.1 4.4 7.2 10.0 12.8
100 (37.8) 4490 5720 7280 9170 11400 13800 15100 16500 17900
120 (48.9) 6380 8090 10110 12400 13600 14900 16300
140 (60.0) 8900 11000 12100 13300 14500

CAPACITY (WATTS)
– 10 0 10 20 30 40 45 50 55
°F / °C – 23.3 – 17.8 – 12.2 – 6.7 – 1.1 4.4 7.2 10.0 12.8
100 (37.8) 5220 6650 8470 10700 13200 16100 17600 19200 20800
120 (48.9) 7410 9410 11700 14400 15900 17300 18900
140 (60.0) 10340 12700 14100 15400 16900

POWER (MOTOR WATTS)

– 10 0 10 20 30 40 45 50 55
°F / °C – 23.3 – 17.8 – 12.2 – 6.7 – 1.1 4.4 7.2 10.0 12.8
100 (37.8) 2770 2860 2910 2950 3010 3100 3170 3250 3360
120 (48.9) 3750 3780 3820 3890 3950 4030 4130
140 (60.0) 4940 4970 5010 5070 5150
Production compressors to meet above nominal performance values within ± 5%.

53
Copeland ®
brand products ZR COPELAND SCROLL® COMPRESSORS

50 HERTZ PERFORMANCE DATA R407C

20° F (11.1° C) Superheat 15° F (8.3° C) Subcooling 95° F (35° C) Ambient (Air Over)

220/ 240-1-50 (PFZ) Rated Voltage 220-1-50 (PFZ) Test Voltage

ZR61KCE-PFZ
CAPACITY (BTU / HOUR)
CONDENSING TEMPERATURE EVAPORATING TEMPERATURE °F / °C
– 10 0 10 20 30 40 45 50 55
°F / °C – 23.3 – 17.8 – 12.2 – 6.7 – 1.1 4.4 7.2 10.0 12.8
100 (37.8) 17200 21700 27600 34900 43400 53000 58000 63500 69500
120 (48.9) 24500 31100 39000 48000 53000 58000 63500
140 (60.0) 34500 42700 47200 52000 57000

CAPACITY (KCAL / HOUR)

– 10 0 10 20 30 40 45 50 55

C
°F / °C – 23.3 – 17.8 – 12.2 – 6.7 – 1.1 4.4 7.2 10.0 12.8

7
100 (37.8) 4330 5470 6960 8790 10900 13400 14600 16000 17500
120 (48.9) 6170 7840 9830 12100 13400 14600 16000

40
140 (60.0) 8690 10800 11900 13100 14400

CAPACITY (WATTS)

R
– 10 0 10 20 30 40 45 50 55
°F / °C – 23.3 – 17.8 – 12.2 – 6.7 – 1.1 4.4 7.2 10.0 12.8
100 (37.8) 5040 6360 8090 10200 12700 15500 17000 18600 20400
120 (48.9) 7180 9110 11400 14100 15500 17000 18600
140 (60.0) 10100 12500 13800 15200 16700

POWER (MOTOR WATTS)

– 10 0 10 20 30 40 45 50 55
°F / °C – 23.3 – 17.8 – 12.2 – 6.7 – 1.1 4.4 7.2 10.0 12.8
100 (37.8) 2580 2700 2770 2820 2860 2940 3000 3080 3180
120 (48.9) 3670 3700 3740 3800 3860 3930 4020
140 (60.0) 4940 4970 5000 5050 5100

ZR61KCE-TF5/D 200/220-3-50 (TF5) Rated Voltage

380/420-3-50 (TFD)
220-3-50 (TF5) Test Voltage
380-3-50 (TFD)
CAPACITY (BTU / HOUR)
CONDENSING TEMPERATURE EVAPORATING TEMPERATURE °F / °C
– 10 0 10 20 30 40 45 50 55
°F / °C – 23.3 – 17.8 – 12.2 – 6.7 – 1.1 4.4 7.2 10.0 12.8
100 (37.8) 13400 18500 24800 32400 41500 52000 58000 64500 71500
120 (48.9) 21400 28100 36200 46000 51500 57500 63500
140 (60.0) 30800 39200 44100 49300 55000

CAPACITY (KCAL / HOUR)

C
– 10 0 10 20 30 40 45 50 55
°F / °C – 23.3 – 17.8 – 12.2 – 6.7 – 1.1 4.4 7.2 10.0 12.8

7
100 (37.8) 3380 4660 6250 8160 10500 13100 14600 16300 18000

40
120 (48.9) 5390 7080 9120 11600 13000 14500 16000
140 (60.0) 7760 9880 11100 12400 13900

CAPACITY (WATTS)

R
– 10 0 10 20 30 40 45 50 55
°F / °C – 23.3 – 17.8 – 12.2 – 6.7 – 1.1 4.4 7.2 10.0 12.8
100 (37.8) 3930 5420 7270 9490 12200 15200 17000 18900 20900
120 (48.9) 6270 8230 10600 13500 15100 16800 18600
140 (60.0) 9020 11500 12900 14400 16100

POWER (MOTOR WATTS)

– 10 0 10 20 30 40 45 50 55
°F / °C – 23.3 – 17.8 – 12.2 – 6.7 – 1.1 4.4 7.2 10.0 12.8
100 (37.8) 2840 2920 2970 3000 3030 3060 3080 3100 3120
120 (48.9) 3760 3850 3900 3920 3930 3940 3940
140 (60.0) 4940 5000 5050 5050 5050
Production compressors to meet above nominal performance values within ± 5%.

54
Copeland ®
brand products ZR COPELAND SCROLL® COMPRESSORS

50 HERTZ PERFORMANCE DATA R22

20° F (11.1° C) Superheat 15° F (8.3° C) Subcooling 95° F (35° C) Ambient (Air Over)

220/ 240-1-50 (PFJ) Rated Voltage 220-1-50 (PFJ) Test Voltage

ZR68KC-PFJ
CAPACITY (BTU / HOUR)
CONDENSING TEMPERATURE EVAPORATING TEMPERATURE °F / °C
– 10 0 10 20 30 40 45 50 55
°F / °C – 23.3 – 17.8 – 12.2 – 6.7 – 1.1 4.4 7.2 10.0 12.8
100 (37.8) 19800 25700 32600 40800 50500 61000 67500 73500 80500
120 (48.9) 28600 36200 45000 55000 60500 66500 73000
140 (60.0) 38500 47800 53000 58500 64000

CAPACITY (KCAL / HOUR)

– 10 0 10 20 30 40 45 50 55
°F / °C – 23.3 – 17.8 – 12.2 – 6.7 – 1.1 4.4 7.2 10.0 12.8
100 (37.8) 4990 6480 8220 10300 12700 15400 17000 18500 20300
120 (48.9) 7210 9120 11300 13900 15200 16800 18400
140 (60.0) 9700 12000 13400 14700 16100

CAPACITY (WATTS)
– 10 0 10 20 30 40 45 50 55
°F / °C – 23.3 – 17.8 – 12.2 – 6.7 – 1.1 4.4 7.2 10.0 12.8
100 (37.8) 5800 7530 9550 12000 14800 17900 19800 21500 23600
120 (48.9) 8380 10600 13200 16100 17700 19500 21400
140 (60.0) 11300 14000 15500 17100 18800

POWER (MOTOR WATTS)

– 10 0 10 20 30 40 45 50 55
°F / °C – 23.3 – 17.8 – 12.2 – 6.7 – 1.1 4.4 7.2 10.0 12.8
100 (37.8) 3490 3510 3520 3540 3580 3630 3670 3720 3770
120 (48.9) 4550 4510 4500 4530 4550 4590 4640
140 (60.0) 5900 5850 5850 5850 5850

ZR68KC-TF5 / TFD 200/220-3-50 (TF5) Rated Voltage

380/420-3-50 (TFD)
220-3-50 (TF5)
380-3-50 (TFD) Test Voltage
CAPACITY (BTU / HOUR)
CONDENSING TEMPERATURE EVAPORATING TEMPERATURE °F / °C
– 10 0 10 20 30 40 45 50 55
°F / °C – 23.3 – 17.8 – 12.2 – 6.7 – 1.1 4.4 7.2 10.0 12.8
100 (37.8) 16900 23600 31100 39800 49900 61500 68000 75000 82500
120 (48.9) 26900 35100 44500 55500 61500 67500 74500
140 (60.0) 37800 47800 53500 59500 66000

CAPACITY (KCAL / HOUR)

– 10 0 10 20 30 40 45 50 55
°F / °C – 23.3 – 17.8 – 12.2 – 6.7 – 1.1 4.4 7.2 10.0 12.8
100 (37.8) 4260 5950 7840 10000 12600 15500 17100 18900 20800
120 (48.9) 6780 8850 11200 14000 15500 17000 18800
140 (60.0) 9530 12000 13500 15000 16600

CAPACITY (WATTS)
– 10 0 10 20 30 40 45 50 55
°F / °C – 23.3 – 17.8 – 12.2 – 6.7 – 1.1 4.4 7.2 10.0 12.8
100 (37.8) 4950 6910 9110 11700 14600 18000 19900 22000 24200
120 (48.9) 7880 10300 13000 16300 18000 19800 21800
140 (60.0) 11100 14000 15700 17400 19300

POWER (MOTOR WATTS)

– 10 0 10 20 30 40 45 50 55
°F / °C – 23.3 – 17.8 – 12.2 – 6.7 – 1.1 4.4 7.2 10.0 12.8
100 (37.8) 3430 3400 3380 3380 3390 3420 3430 3460 3480
120 (48.9) 4420 4380 4370 4370 4380 4390 4410
140 (60.0) 5650 5600 5600 5600 5600
Production compressors to meet above nominal performance values within ± 5%.

55
Copeland ®
brand products ZR COPELAND SCROLL® COMPRESSORS

50 HERTZ PERFORMANCE DATA R407C

20° F (11.1° C) Superheat 15° F (8.3° C) Subcooling 95° F (35° C) Ambient (Air Over)

220/ 240-1-50 (PFJ) Rated Voltage 220-1-50 (PFJ) Test Voltage

ZR68KCE-PFJ
CAPACITY (BTU / HOUR)
CONDENSING TEMPERATURE EVAPORATING TEMPERATURE °F / °C
– 10 0 10 20 30 40 45 50 55
°F / °C – 23.3 – 17.8 – 12.2 – 6.7 – 1.1 4.4 7.2 10.0 12.8
100 (37.8) 8160 15000 23300 32900 44300 57500 64500 72500 80500
120 (48.9) 19100 28200 38700 51000 57500 64500 72000
140 (60.0) 31600 42900 49100 55500 62500

CAPACITY (KCAL / HOUR)

– 10 0 10 20 30 40 45 50 55

C
°F / °C – 23.3 – 17.8 – 12.2 – 6.7 – 1.1 4.4 7.2 10.0 12.8

7
100 (37.8) 2060 3780 5870 8290 11200 14500 16300 18300 20300
120 (48.9) 4810 7110 9750 12900 14500 16300 18100

40
140 (60.0) 7960 10800 12400 14000 15800

CAPACITY (WATTS)

R
– 10 0 10 20 30 40 45 50 55
°F / °C – 23.3 – 17.8 – 12.2 – 6.7 – 1.1 4.4 7.2 10.0 12.8
100 (37.8) 2390 4400 6830 9640 13000 16800 18900 21200 23600
120 (48.9) 5600 8260 11300 14900 16800 18900 21100
140 (60.0) 9260 12600 14400 16300 18300

POWER (MOTOR WATTS)

– 10 0 10 20 30 40 45 50 55
°F / °C – 23.3 – 17.8 – 12.2 – 6.7 – 1.1 4.4 7.2 10.0 12.8
100 (37.8) 3380 3410 3440 3470 3500 3560 3590 3630 3680
120 (48.9) 4560 4530 4530 4550 4580 4610 4660
140 (60.0) 6100 6000 6000 6000 6000

ZR68KCE-TF5 / TFD 200/220-3-50 (TF5) Rated Voltage

380/420-3-50 (TFD)
220-3-50 (TF5)
380-3-50 (TFD) Test Voltage
CAPACITY (BTU / HOUR)
CONDENSING TEMPERATURE EVAPORATING TEMPERATURE °F / °C
– 10 0 10 20 30 40 45 50 55
°F / °C – 23.3 – 17.8 – 12.2 – 6.7 – 1.1 4.4 7.2 10.0 12.8
100 (37.8) 1960 10300 19800 30600 43200 58000 66000 74500 84000
120 (48.9) 15000 25300 37000 50500 58000 66000 75000
140 (60.0) 29300 42000 49100 56500 65000

CAPACITY (KCAL / HOUR)

– 10 0 10 20 30 40 45 50 55

C
°F / °C – 23.3 – 17.8 – 12.2 – 6.7 – 1.1 4.4 7.2 10.0 12.8

7
100 (37.8) 490 2600 4990 7710 10900 14600 16600 18800 21200

40
120 (48.9) 3780 6380 9320 12700 14600 16600 18900
140 (60.0) 7380 10600 12400 14200 16400

CAPACITY (WATTS)

R
– 10 0 10 20 30 40 45 50 55
°F / °C – 23.3 – 17.8 – 12.2 – 6.7 – 1.1 4.4 7.2 10.0 12.8
100 (37.8) 570 3020 5800 8970 12700 17000 19300 21800 24600
120 (48.9) 4400 7410 10800 14800 17000 19300 22000
140 (60.0) 8580 12300 14400 16600 19000

POWER (MOTOR WATTS)

– 10 0 10 20 30 40 45 50 55
°F / °C – 23.3 – 17.8 – 12.2 – 6.7 – 1.1 4.4 7.2 10.0 12.8
100 (37.8) 3290 3250 3230 3230 3250 3280 3300 3330 3350
120 (48.9) 4470 4430 4410 4410 4410 4430 4440
140 (60.0) 5900 5900 5900 5900 5900
Production compressors to meet above nominal performance values within ± 5%.

56
Copeland ®
brand products ZR COPELAND SCROLL® COMPRESSORS

50 HERTZ PERFORMANCE DATA R22

20° F (11.1° C) Superheat 15° F (8.3° C) Subcooling 95° F (35° C) Ambient (Air Over)

200/ 220-3-50 (TF5) 220-3-50 (TF5)

Rated Voltage Test Voltage
380/420-3-50 (TFD) 380-3-50 (TFD)

ZR72KC-TF5 / TFD
CAPACITY (BTU / HOUR)
CONDENSING TEMPERATURE EVAPORATING TEMPERATURE °F / °C
– 10 0 10 20 30 40 45 50 55
°F / °C – 23.3 – 17.8 – 12.2 – 6.7 – 1.1 4.4 7.2 10.0 12.8
100 (37.8) 18800 25500 33400 42400 53000 65000 71500 78500 86000
120 (48.9) 28900 37400 47100 58000 64500 71000 78000
140 (60.0) 40400 50500 56500 62500 68500

CAPACITY (KCAL / HOUR)

– 10 0 10 20 30 40 45 50 55
°F / °C – 23.3 – 17.8 – 12.2 – 6.7 – 1.1 4.4 7.2 10.0 12.8
100 (37.8) 4740 6430 8420 10700 13400 16400 18000 19800 21700
120 (48.9) 7280 9420 11900 14600 16300 17900 19700
140 (60.0) 10200 12700 14200 15800 17300

CAPACITY (WATTS)
– 10 0 10 20 30 40 45 50 55
°F / °C – 23.3 – 17.8 – 12.2 – 6.7 – 1.1 4.4 7.2 10.0 12.8
100 (37.8) 5510 7470 9790 12400 15500 19000 20900 23000 25200
120 (48.9) 8470 11000 13800 17000 18900 20800 22900
140 (60.0) 11800 14800 16600 18300 20100

POWER (MOTOR WATTS)

– 10 0 10 20 30 40 45 50 55
°F / °C – 23.3 – 17.8 – 12.2 – 6.7 – 1.1 4.4 7.2 10.0 12.8
100 (37.8) 3410 3460 3490 3510 3530 3570 3600 3640 3690
120 (48.9) 4520 4530 4540 4560 4570 4600 4630
140 (60.0) 5900 5900 5900 5900 5900

ZR72KCE-TF5 / TFD 200/220-3-50 (TF5) Rated Voltage

380/420-3-50 (TFD)
220-3-50 (TF5) Test Voltage
380-3-50 (TFD)
R407C
CAPACITY (BTU / HOUR)
CONDENSING TEMPERATURE EVAPORATING TEMPERATURE °F / °C
– 10 0 10 20 30 40 45 50 55
°F / °C – 23.3 – 17.8 – 12.2 – 6.7 – 1.1 4.4 7.2 10.0 12.8
100 (37.8) 17000 23700 31200 39900 50000 62000 69000 76500 84500
120 (48.9) 26300 34400 43800 54500 60500 67500 74500
140 (60.0) 37300 47100 52500 58500 64500

CAPACITY (KCAL / HOUR)

– 10 0 10 20 30 40 45 50 55

C
°F / °C – 23.3 – 17.8 – 12.2 – 6.7 – 1.1 4.4 7.2 10.0 12.8

7
100 (37.8) 4280 5970 7860 10100 12600 15600 17400 19300 21300

40
120 (48.9) 6630 8670 11000 13700 15200 17000 18800
140 (60.0) 9400 11900 13200 14700 16300

CAPACITY (WATTS)

R
– 10 0 10 20 30 40 45 50 55
°F / °C – 23.3 – 17.8 – 12.2 – 6.7 – 1.1 4.4 7.2 10.0 12.8
100 (37.8) 4980 6940 9140 11700 14700 18200 20200 22400 24800
120 (48.9) 7710 10100 12800 16000 17700 19800 21800
140 (60.0) 10900 13800 15400 17100 18900

POWER (MOTOR WATTS)

– 10 0 10 20 30 40 45 50 55
°F / °C – 23.3 – 17.8 – 12.2 – 6.7 – 1.1 4.4 7.2 10.0 12.8
100 (37.8) 3320 3400 3440 3470 3490 3500 3520 3540 3560
120 (48.9) 4430 4480 4510 4520 4520 4530 4530
140 (60.0) 5800 5850 5850 5850 5850
Production compressors to meet above nominal performance values within ± 5%.

57
Copeland ®
brand products ZR COPELAND SCROLL® COMPRESSORS

50 HERTZ PERFORMANCE DATA R22

20° F (11.1° C) Superheat 15° F (8.3° C) Subcooling 95° F (35° C) Ambient (Air Over)

200/ 220-3-50 (TF5) 220-3-50 (TF5)

Rated Voltage Test Voltage
380/420-3-50 (TFD) 380-3-50 (TFD)

ZR81KC-TF5 / TFD
CAPACITY (BTU / HOUR)
CONDENSING TEMPERATURE EVAPORATING TEMPERATURE °F / °C
– 10 0 10 20 30 40 45 50 55
°F / °C – 23.3 – 17.8 – 12.2 – 6.7 – 1.1 4.4 7.2 10.0 12.8
100 (37.8) 22200 28900 37500 47800 59500 72500 79500 87000 94000
120 (48.9) 32700 41900 53000 65500 72500 79500 87000
140 (60.0) 45300 57000 63000 70000 77000

CAPACITY (KCAL / HOUR)

– 10 0 10 20 30 40 45 50 55
°F / °C – 23.3 – 17.8 – 12.2 – 6.7 – 1.1 4.4 7.2 10.0 12.8
100 (37.8) 5590 7280 9450 12000 15000 18300 20000 21900 23700
120 (48.9) 8240 10600 13400 16500 18300 20000 21900
140 (60.0) 11400 14400 15900 17600 19400

CAPACITY (WATTS)
– 10 0 10 20 30 40 45 50 55
°F / °C – 23.3 – 17.8 – 12.2 – 6.7 – 1.1 4.4 7.2 10.0 12.8
100 (37.8) 6500 8470 11000 14000 17400 21200 23300 25500 27500
120 (48.9) 9580 12300 15500 19200 21200 23300 25500
140 (60.0) 13300 16700 18500 20500 22600

POWER (MOTOR WATTS)

– 10 0 10 20 30 40 45 50 55
°F / °C – 23.3 – 17.8 – 12.2 – 6.7 – 1.1 4.4 7.2 10.0 12.8
100 (37.8) 3850 3910 3950 4000 4050 4110 4140 4180 4230
120 (48.9) 5000 5050 5100 5150 5200 5200 5250
140 (60.0) 6450 6500 6550 6550 6600

ZR81KCE-TF5 / TFD 200/220-3-50 (TF5) Rated Voltage

380/420-3-50 (TFD)
220-3-50 (TF5) Test Voltage
380-3-50 (TFD)
R407C
CAPACITY (BTU / HOUR)
CONDENSING TEMPERATURE EVAPORATING TEMPERATURE °F / °C
– 10 0 10 20 30 40 45 50 55
°F / °C – 23.3 – 17.8 – 12.2 – 6.7 – 1.1 4.4 7.2 10.0 12.8
100 (37.8) 15800 23800 32800 43000 55000 69000 77000 85500 95000
120 (48.9) 27600 37000 48000 61000 68500 76500 85000
140 (60.0) 40100 51500 58500 65500 73500

CAPACITY (KCAL / HOUR)

– 10 0 10 20 30 40 45 50 55

C
°F / °C – 23.3 – 17.8 – 12.2 – 6.7 – 1.1 4.4 7.2 10.0 12.8

7
100 (37.8) 3980 6000 8270 10800 13900 17400 19400 21500 23900

40
120 (48.9) 6960 9320 12100 15400 17300 19300 21400
140 (60.0) 10100 13000 14700 16500 18500

CAPACITY (WATTS)

R
– 10 0 10 20 30 40 45 50 55
°F / °C – 23.3 – 17.8 – 12.2 – 6.7 – 1.1 4.4 7.2 10.0 12.8
100 (37.8) 4630 6970 9610 12600 16100 20200 22600 25100 27800
120 (48.9) 8090 10800 14100 17900 20100 22400 24900
140 (60.0) 11700 15100 17100 19200 21500

POWER (MOTOR WATTS)

– 10 0 10 20 30 40 45 50 55
°F / °C – 23.3 – 17.8 – 12.2 – 6.7 – 1.1 4.4 7.2 10.0 12.8
100 (37.8) 3760 3810 3850 3870 3900 3950 3990 4040 4100
120 (48.9) 5100 5100 5100 5150 5150 5200 5250
140 (60.0) 6750 6750 6750 6750 6750
Production compressors to meet above nominal performance values within ± 5%.

58
Copeland ®
brand products ZR COPELAND SCROLL® COMPRESSORS

HOW A SCROLL WORKS

Compression in the scroll is The open passages are As the spiral continues to
created by the interaction of sealed off as gas is drawn orbit, the gas is compressed
an orbiting spiral and a into the spiral. into two increasingly smaller
stationary spiral. Gas enters pockets.
the outer openings as one of
the spirals orbits.

By the time the gas arrives Actually, during operation, all six
at the center port, discharge gas passages are in various stages
pressure has been reached. of compression at all times,
resulting in nearly continuous
suction and discharge.

The scroll is a simple compression concept pushed to the center of the two scrolls while
first patented in 1905. A scroll is an involute simultaneously being reduced in volume.
spiral which, when matched with a mating When the pocket reaches the center of the
scroll form as shown above, generates a scroll form, the gas, which is now at a high
series of crescent-shaped gas pockets pressure, is discharged out of a port located at
between the two members. During the center. During compression, several
compression, one scroll remains stationary pockets are being compressed simultaneouly,
(fixed scroll) while the other form (orbiting resulting in a very smooth process. Both the
scroll) is allowed to orbit (but not rotate) suction process (outer portion of the scroll
around the first form. As this motion occurs, members) and the discharge process (inner
the pockets between the two forms are slowly portion) are continuous.

59
Copeland ®
brand products ZR COPELAND SCROLL® COMPRESSORS

50 APPROVED COMPRESSOR R22

HERTZ OPERATING RANGE
60 R407C
AN OKAY INDICATES AN APPROVED POINT FOR COMPRESSOR OPERATION
AN * * * * INDICATES A NON-APPROVED POINT FOR COMPRESSOR OPERATION

CONDENSING TEMPERATURE EVAPORATING TEMPERATURE °F/°C

– 10 0 10 20 30 40 45 50 55
°F °C
– 23.3 – 17.8 – 12.2 – 6.7 – 1.1 4.4 7.2 10.0 12.8
80 26.7 OKAY OKAY OKAY OKAY OKAY OKAY OKAY OKAY OKAY
90 32.2 OKAY OKAY OKAY OKAY OKAY OKAY OKAY OKAY OKAY
100 37.8 OKAY OKAY OKAY OKAY OKAY OKAY OKAY OKAY OKAY
110 43.3 **** OKAY OKAY OKAY OKAY OKAY OKAY OKAY OKAY
120 48.9 **** **** OKAY OKAY OKAY OKAY OKAY OKAY OKAY
130 54.4 **** **** **** OKAY OKAY OKAY OKAY OKAY OKAY
140 60.0 **** **** **** **** OKAY OKAY OKAY OKAY OKAY
150 65.6 **** **** **** **** **** OKAY OKAY OKAY OKAY
Approved range is based on 20 F° (11.1C°) of superheat.

APPLICATION NOTES
• The Copeland Scroll Compressor has been under • Since Copeland Scroll compressors have very high volumetric
development at Emerson Climate Technologies since 1979 and efficiency, their displacements are lower than for comparable
is the most efficient and durable compressor we have ever capacity reciprocating compressors. As a result, Emerson
developed for residential air conditioning and heat pump Climate Technologies recommends that the capacity rating on
applications. Copeland Scroll compressors have fewer moving reversing valves be no more than 1.5 to 2 times the nominal
parts and no dynamic suction or discharge valves. In addition, capacity of the compressor with which it will be used in order to
they offer very low vibration and sound levels and are very ensure proper operation of the reversing valve under all
tolerant to stresses caused by liquid slugging, flooded starts, operating conditions.
and debris commonly found in residential split air conditioning • The compressor has the approval to operate as a heat pump
and heat pump systems. within the operating range. Its increased bearing surfaces and
• These Copeland Scrolls include a higher range of capacities improved lubrication system provide excellent reliability even
and more electrical options than the earlier ZR1 models. In when operated at the heat pump's higher compression ratios.
addition, there are several operating characteristics and design • Low ambient cut-outs are not required to limit heat pump
features which are different from the ZR1 models. operation.
• The Copeland Scroll is a new type of compressor and there are • These Scroll Compressors have internal pressure relief valves
a number of application characteristics which are different from which open at a discharge to suction differential pressure of
the traditional reciprocating compressor. These are fully 375 to 450 psi.
detailed in the Application Bulletin AE4-1312. • No start assist devices are required. Due to the inherent design
• The motor protector used in these ZR compressors is mounted of the Scroll, the internal compression components always start
internally and its proven design is the result of extensive unloaded even if system pressures are not balanced.
laboratory research and field testing. It protects the motor from • Rated load amps is the value used for contactor and other
maximum operating overload, both high and low voltage, and electrical component selection. It is calculated by dividing the
loss of refrigerant charge. It is both current and heat sensing. maximum continuous current that the compressor draws under
The single phase protector protects both the run and start the condition of maximum load operation and the lowest
windings. The three phase protector is wired at the connection operating voltage by 1.4. See Application Bulletin AE 9-1154 for
point of the motor's three legs. Therefore, the protector protects a detailed explanation.
all three legs and if a problem occurs with one or more of them, • Complete 50 Hertz performance curves are available in the
the protector breaks all three phases. units as follows for all models:
• The rotational speed of the compressor is: • Capacity BTU / Hr
• 50 Hertz 2900 RPM • Power Input Watts
• No crankcase heater is required for single phase compressors. • Current Amps
• A crankcase heater is required for three phase compressors • Efficiency BTU H / Watt
when the system charge exceeds the compressor refrigerant • Emerson Climate Technologies has compiled a book of
charge limit shown below, and no accumulator is used, or when compressor Application Bulletins. Please see the following
the charge exceeds this limit and an accumulator cannot be bulletins, from the book, for more ZR compressor application
piped to provide free liquid drainage into the accumulator information as entitled below:
during the off cycle. Mounting Parts . . . . . . . . . . . . . . . . . . . . . . . . . . . . AE 4 - 1111
• ZR22 to ZR48 8 pounds (3.6 Kg) Application Guidelines . . . . . . . . . . . . . . . . . . . . AE 4 - 1312
• ZR54 to ZR81 10 pounds (4.5 Kg) Nameplate Amperage Rating . . . . . . . . . . . . . . AE 9 - 1154
Nameplate Voltages . . . . . . . . . . . . . . . . . . . . . . . AE 9 - 1228
Maximum Continuous
Current Rating. . . . . . . . . . . . . . . . . . . . . . . . . . . AE 9 - 1250
Run Capacitors . . . . . . . . . . . . . . . . . . . . . . . . . . . . AE10 - 1272
60
Copeland ®
brand products ZR COPELAND SCROLL® COMPRESSORS

COMPRESSOR SPECIFICATION

The compressor shall be a Copeland Scroll type, temperatures up to 150°F (65.6°C). The compressor
with an internal start winding overload motor protector shall operate at an ARI point minimum efficiency of
on all single phase models. For maximum compressor 10.0 BTU/ WATT. Efficiencies of better than 10.0
life the compressor should include a minimum of 38 BTU/WATT are acceptable, but efficiencies below 10.0
ounces (1.12 liters) of oil. The compressor shall be BTU/WATT are not acceptable. The compressor shall
capable of operating within the evaporating range of be of the Copeland™ brand ZR compressor or
–10°F to 55°F (–23.3°C to 12.8°C). The compressor approved equal.
must also be capable of operating at condensing

UNITS CONVERSION CHART

BTUH x 0.252 = KCALH

BTUH x 0.293 = WATTS
(°F – 32) x 5/9 = °C
POUNDS x 0.454 = KILOGRAMS
INCHES x 25.4 = MILLIMETERS
CUBIC INCHES x 16.386 = CUBIC CENTIMETERS
FLUID OUNCES x 0.02957 = LITERS
CUBIC FEET x 0.02831 = CUBIC METERS
HORSEPOWER x 0.746 = KILOWATTS

61
Copeland ®
brand products ZR COPELAND SCROLL® COMPRESSORS

MULTIPACK PACKAGING AND SHIPPING INFORMATION

Compressors are placed on a heavy-duty skid, overpacked with a protective shroud, and banded.
NUMBER OF NUMBER OF TOTAL WEIGHT
NUMBER MULTIPACK
MULTIPACK MULTIPACK MULTIPACKS COMPRESSORS INSIDE
OF DIMENSIONS
WEIGHT CUBE PER PER 20 FOOT STEEL
MODEL COMPRESSORS LENGTH x WIDTH x HEIGHT CUBIC
POUNDS FEET 20 FOOT 20 FOOT STEEL CONTAINER
PER INCHES
KILOGRAMS CUBIC METERS STEEL CONTAINER* POUNDS
MULTIPACK CENTIMETERS CONTAINER KILOGRAMS
1920 43.75 x 43.75 x 37.5 41.5 38400
ZR22 32 20 640
871 111.1 x 111.1 x 95.3 1.18 17400
1985 43.75 x 43.75 x 37.5 41.5 38700
ZR24 32 19.5 624
900 111.1 x 111.1 x 95.3 1.18 17600
1985 43.75 x 43.75 x 37.5 41.5 38700
ZR26 32 19.5 624
900 111.1 x 111.1 x 95.3 1.18 17600
1985 43.75 x 43.75 x 37.5 41.5 38700
ZR28 32 19.5 624
900 111.1 x 111.1 x 95.3 1.18 17600
ZR30 2080 43.75 x 43.75 x 39.25 43.5 38500
32 18.5 592
Single Phase 943 111.1 x 111.1 x 99.7 1.23 17500
ZR30 1920 43.75 x 43.75 x 39.25 43.5 38400
32 20 640
Three Phase 871 111.1 x 111.1 x 99.7 1.23 17400
ZR32 2080 43.75 x 43.75 x 39.25 43.5 38500
32 18.5 592
Single Phase 943 111.1 x 111.1 x 99.7 1.23 17500
ZR32 1950 43.75 x 43.75 x 39.25 43.5 39000
32 20 640
Three Phase 885 111.1 x 111.1 x 99.7 1.23 17700
2145 43.75 x 43.75 x 39.25 43.5 38600
ZR34 32 18 576
973 111.1 x 111.1 x 99.7 1.23 17500
2145 43.75 x 43.75 x 39.25 43.5 38600
ZR36 32 18 576
973 111.1 x 111.1 x 99.7 1.23 17500
ZR40 2240 43.75 x 43.75 x 40.5 44.9 38100
32 17 544
Single Phase 1015 111.1 x 111.1 x 103 1.27 17300
ZR40 2080 43.75 x 43.75 x 40.5 44.9 38500
32 18.5 592
Three Phase 943 111.1 x 111.1 x 103 1.27 17500
ZR42 2240 43.75 x 43.75 x 40.5 44.9 38100
32 17 544
Single Phase 1015 111.1 x 111.1 x 103 1.27 17300
ZR42 2080 43.75 x 43.75 x 40.5 44.9 38500
32 18.5 592
Three Phase 943 111.1 x 111.1 x 103 1.27 17500
ZR45 2210 43.75 x 43.75 x 41.75 46.2 38700
32 17.5 560
Single Phase 1000 111.1 x 111.1 x 106 1.31 17600
ZR45 2110 43.75 x 43.75 x 41.75 46.2 38000
32 18 576
Three Phase 957 111.1 x 111.1 x 106 1.31 17200
ZR47 2400 43.75 x 43.75 x 41.75 46.2 38400
32 16 512
Single Phase 1089 111.1 x 111.1 x 106 1.31 17400
ZR47 2240 43.75 x 43.75 x 41.75 46.2 38100
32 17 544
Three Phase 1015 111.1 x 111.1 x 106 1.31 17300
ZR48 2400 43.75 x 43.75 x 41.75 46.2 38400
32 16 512
Single Phase 1089 111.1 x 111.1 x 106 1.31 17400
ZR48 2110 43.75 x 43.75 x 41.75 46.2 38000
32 18 576
Three Phase 957 111.1 x 111.1 x 106 1.31 17200
2690 43.75 x 43.75 x 43.25 47.9 37700
ZR54 32 14 448
1220 111.1 x 111.1 x 110 1.36 17100
2655 43.75 x 43.75 x 43.25 47.9 38500
ZR57 32 14.5 464
1204 111.1 x 111.1 x 110 1.36 17500
ZR61 3040 43.75 x 43.75 x 43.25 47.9 38000
32 12.5 400
Single Phase 1379 111.1 x 111.1 x 110 1.36 17200
ZR61 2750 43.75 x 43.75 x 43.25 47.9 38500
32 14 448
Three Phase 1247 111.1 x 111.1 x 110 1.36 17500
ZR68 3135 43.75 x 43.75 x 43.25 47.9 37600
32 12 384
Single Phase 1422 111.1 x 111.1 x 110 1.36 17100
ZR68 2850 43.75 x 43.75 x 43.25 47.9 38500
32 13.5 432
Three Phase 1293 111.1 x 111.1 x 110 1.36 17500
2850 43.75 x 43.75 x 43.25 47.9 38500
ZR72 32 13.5 432
1293 111.1 x 111.1 x 110 1.36 17500
2945 43.75 x 43.75 x 43.75 48.5 38300
ZR81 32 13 416
1336 111.1 x 111.1 x 111 1.37 17400
*Minimum quantities are shown. Quantities can be increased through special arrangements if certain equipment and services are available.

62
Copeland ®
brand products ZR COPELAND SCROLL® COMPRESSORS

MULTIPLE SINGLE PACKS PACKAGING AND SHIPPING INFORMATION

Weight (pounds / kilograms) of a pallet of 12 single pack Weight (pounds / kilograms) of a pallet of 18 single pack
cartons placed on a wooden skid, overpacked with a cartons placed on a wooden skid, overpacked with a
protective shroud, and banded. Multipack dimensions protective shroud, and banded. Multipack dimensions
(cube) are 45 x 33 x 46 inches (39.5 FT 3), 114.3 x 83.8 x (cube) are 48.5 x 44 x 46 inches (58.8 FT 3), 123.2 x 111.8 x
MODEL 116.8 centimeters (1.12 m3). 116.8 centimeters (1.61 m3).
RUN RUN
NO CAPACITOR NO CAPACITOR
CAPACITOR CAPACITOR
BILLS OF MATERIAL BILLS OF MATERIAL BILLS OF MATERIAL BILLS OF MATERIAL
501, 512, 522, 523, 562, 601, 612, 622 511, 515, 611 501, 512, 522, 523, 562, 601, 612, 622 511, 515, 611
779 785 1159 1168
ZR22
353 356 526 530
797 803 1186 1195
ZR24
362 364 538 542
803 809 1195 1204
ZR26
364 367 542 546
803 809 1195 1204
ZR28
364 367 542 546
ZR30 851 857 1267 1276
Single Phase 386 389 575 579
ZR30 791 – 1177 –
Three Phase 359 – 534 –
ZR32 851 857 1267 1276
Single Phase 386 389 575 579
ZR32 803 – 1195 –
Three Phase 364 – 542 –
863 869 1285 1294
ZR34
391 394 583 587
ZR36 875 881 1303 1312
Single Phase 397 400 591 595
ZR36 851 – 1267 –
Three Phase 386 – 575 –
ZR40 911 917 1357 1366
Single Phase 413 416 616 620
ZR40 851 – 1267 –
Three Phase 386 – 575 –
ZR42 911 917 1357 1366
Single Phase 413 416 616 620
ZR42 851 – 1267 –
Three Phase 386 – 575 –
ZR45 899 905 1339 1348
Single Phase 408 411 607 611
ZR45 863 – 1285 –
Three Phase 391 – 583 –
ZR47 971 977 1447 1456
Single Phase 440 443 656 660
ZR47 911 – 1357 –
Three Phase 413 – 616 –
ZR48 971 977 1447 1456
Single Phase 440 443 656 660
ZR48 863 – 1285 –
Three Phase 391 – 583 –
1079 – 1609 –
ZR54
489 – 730 –
1067 – 1591 –
ZR57
484 – 722 –
ZR61 1211 1217 1807 1816
Single Phase 549 552 820 824
ZR61 1103 – 1645 –
Three Phase 500 – 746 –
ZR68 1247 1253 1861 1870
Single Phase 566 568 844 848
ZR68 1139 – 1699 –
Three Phase 517 – 771 –
1139 – 1699 –
ZR72
517 – 771 –
1175 – 1753 –
ZR81
533 – 795 –

63
Copeland ®
brand products ZR COPELAND SCROLL® COMPRESSORS

SINGLE PACK PACKAGING AND SHIPPING INFORMATION

For your domestic shipments of 1 single pack, the box dimensions (cube) are 14.5 x 14.5 x 20.5 inches (2.5 FT 3), 36.8 x 36.8 x 52.1
centimeters (.07 m3), and the weights (pounds / kilograms), with accessories noted, are shown below.
NO CAPACITOR RUN CAPACITOR
MODEL BILLS OF MATERIAL BILLS OF MATERIAL
501, 512, 522, 523, 562, 601, 612, 622 511, 515, 611
61 61.5
ZR22
27.7 27.9
62.5 63
ZR24
28.3 28.6
63 63.5
ZR26
28.6 28.8
63 63.5
ZR28
28.6 28.8
ZR30 67 67.5
Single Phase 30.4 30.6
ZR30 62 –
Three Phase 28.1 –
ZR32 67 67.5
Single Phase 30.4 30.6
ZR32 63 –
Three Phase 28.6 –
68 68.5
ZR34
30.8 31.1
ZR36 69 69.5
Single Phase 31.3 31.5
ZR36 67 –
Three Phase 30.4 –
ZR40 72 72.5
Single Phase 32.7 32.9
ZR40 67 –
Three Phase 30.4 –
ZR42 72 72.5
Single Phase 32.7 32.9
ZR42 67 –
Three Phase 30.4 –
ZR45 71 71.5
Single Phase 32.2 32.4
ZR45 68 –
Three Phase 30.8 –
ZR47 77 77.5
Single Phase 34.9 35.2
ZR47 72 –
Three Phase 32.7 –
ZR48 77 77.5
Single Phase 34.9 35.2
ZR48 68 –
Three Phase 30.8 –
86 –
ZR54
39.0 –
85 –
ZR57
38.6 –
ZR61 97 97.5
Single Phase 44.0 44.2
ZR61 88 –
Three Phase 39.9 –
ZR68 100 100.5
Single Phase 45.4 45.6
ZR68 91 –
Three Phase 41.3 –
91 –
ZR72
41.3 –
94 –
ZR81
42.6 –

64
Copeland ®
brand products ZR COPELAND SCROLL® COMPRESSORS

R22 MODEL NUMBER NOMENCLATURE

Product Variations
Compressor Motor Type
Application Range Three digit bill of material
Motor Type Code
Code Description number that indicates
Single phase, P compressor configuration and
R High and medium capacitor run,
temperature accessories included.
permanent
split capacitor

Three phase T

X X X X X X — X X X — X X X

Capacity
Compressor
nominal
60 Hertz
capacity at Model Series
ARI rating Variations
condition to
A number or letter
two significant Electrical Codes
arbitrarily
digits. 50 HZ 60 HZ Code
assigned to
indicate different 220 / 240-1 — J
model types 220 / 240-1 — Z
within any one
200 / 220-3 200 / 230-3 5
family series.
380 / 420-3 460-3 D

65
Copeland ®
brand products ZR COPELAND SCROLL® COMPRESSORS

R407C MODEL NUMBER NOMENCLATURE

Three phase T

X X X X X X X — X X X — X X X

0 7 C
Compressor
Family
Series
Letter “Z”
established
K R 1,000
4
Capacity Multiplier
Compressor
Motor Protection
Type Code
Internal inherent
protection – One
F

for this protector, use

family of with contactor.
compressors.

Capacity
Compressor
nominal
60 Hertz
capacity at Model Series
ARI rating Variations
condition to A number or letter
two significant arbitrarily Electrical Codes
digits. assigned to 50 HZ 60 HZ Code
indicate different Oil Type 220 / 240-1 — J
model types
Code Description 220 / 240-1 — Z
within any one
family series. 200 / 220-3 200 / 230-3 5
E POE
380 / 420-3 460-3 D

66
Copeland ®
brand products ZR COPELAND SCROLL® COMPRESSORS

50 HERTZ PERFORMANCE NOMINALS R22

220-3-50 (TF5)
THREE PHASE TEST VOLTAGE
380-3-50 (TFD)
CAPACITY ENERGY EFFICIENCY RATING
MODEL RATING MOTOR
CONDITION BTU KCAL WATTS AMPERES* BTUH KCALH WATTS
HOUR HOUR WATTS MOTOR WATTS MOTOR WATTS MOTOR WATTS
A 75100 18900 22000 6740 25.6/14.8 11.1 2.8 3.3
ZRT90KC-TF5/D B 74500 18800 21800 6750 25.6/14.8 11.0 2.8 3.2
C 87500 22100 25600 4660 19.9/11.5 18.8 4.7 5.5
A 80600 20300 23600 7190 23.1/13.4 11.2 2.8 3.3
ZRT96KC-TF5/D B 80000 20200 23400 7200 23.1/13.4 11.1 2.8 3.3
C 94500 23800 27700 4980 18.0/10.4 19.0 4.8 5.6
A 90200 22700 26400 8030 27.8/16.1 11.2 2.8 3.3
ZRT108K3-TF5/D B 89500 22600 26200 8050 27.8/16.1 11.1 2.8 3.3
C 105000 26500 30800 5500 23.1/13.4 19.1 4.8 5.6
A 96300 24300 28200 8330 28.8/16.7 11.6 2.9 3.4
ZRT114K3-TF5/D B 95500 24100 28000 8350 28.8/16.7 11.4 2.9 3.4
C 112000 28200 32800 5700 23.5/13.6 19.6 4.9 5.8
A 101800 25700 29800 8880 30.0/17.4 11.5 2.9 3.4
ZRT122K3-TF5/D B 101000 25500 29600 8900 30.0/17.4 11.3 2.9 3.3
C 119000 30000 34900 6100 24.7/14.3 19.5 4.9 5.7
A 114900 29000 33700 10080 39.9/23.1 11.4 2.9 3.3
ZRT136KC-TF5/D B 114000 28700 33400 10100 39.9/23.1 11.3 2.8 3.3
C 134000 33800 39300 7100 31.6/18.3 18.9 4.8 5.5
A 117900 29700 34500 10280 40.8/23.6 11.5 2.9 3.4
ZRU140KC-TF5/D B 117000 29500 34300 10300 40.8/23.6 11.4 2.9 3.3
C 136000 34300 39800 7250 31.6/18.3 18.8 4.7 5.5
A 118900 30000 34800 10480 42.0/24.3 11.3 2.9 3.3
ZRT144KC-TF5/D B 118000 29700 34600 10500 42.0/24.3 11.2 2.8 3.3
C 139000 35000 40700 7400 32.0/18.5 18.8 4.7 5.5
A 136100 34300 39900 11880 44.0/25.5 11.5 2.9 3.4
ZRT162KC-TF5/D B 135000 34000 39600 11900 44.0/25.5 11.3 2.9 3.3
C 159000 40100 46600 8700 38.0/22.0 18.3 4.6 5.4
* Ampere values shown are at 220 volts / 380 volts.

EVAPORATING CONDENSING AMBIENT LIQUID RETURN GAS

RATING RATING
TEMPERATURE TEMPERATURE TEMPERATURE TEMPERATURE TEMPERATURE
CONDITION STANDARD
°F / °C °F / °C °F / °C °F / °C °F / °C

A ASRE / T 45 130 95 115 95

7.2 54.4 35.0 46.1 35.0
B ARI 45 130 95 115 65
7.2 54.4 35.0 46.1 18.3
C CHEER 45 100 95 85 65
7.2 37.8 35.0 29.4 18.3
See full operating range on page 74.
Production compressors to meet above nominal performance values within ± 5%.

67
Copeland ®
brand products ZR COPELAND SCROLL® COMPRESSORS

MECHANICAL SPECIFICATIONS
CFH COMPRESSOR
IN 3
M 3/ HR NET WEIGHT
NOMINAL CM 3
CUBIC FEET PER HOUR POUNDS
MODEL HP CUBIC INCHES PER
CUBIC METERS PER HOUR KILOGRAMS
KW REVOLUTION
CUBIC CENTIMETERS 50 HERTZ THREE
PER REVOLUTION 2900 RPM PHASE
7.50 7.452 750.4 136
ZRT90KC
5.60 122.11 21.24 61.7
8.00 7.994 805.0 136
ZRT96KC
5.97 130.99 22.79 61.7
9.00 8.936 899.8 172
ZRT108K3
6.71 146.43 25.47 78.1
9.50 9.420 948.6 170
ZRT114K3
7.09 154.36 26.85 77.2
10.17 10.080 1015.0 176
ZRT122K3
7.58 165.17 28.73 79.9
11.33 11.352 1143.0 182
ZRT136KC
8.45 186.01 32.36 82.6
11.67 11.659 1174.0 182
ZRU140KC
8.70 191.04 33.24 82.6
12.00 11.966 1205.0 182
ZRT144KC
8.95 196.07 34.11 82.6
13.50 13.154 1324.6 188
ZRT162KC
10.07 215.54 37.50 85.3

ELECTRICAL SPECIFICATIONS
* Note: Electrical specifications are the same as those for individual component compressors comprising the tandem. (Found on page 11).

TANDEM MODEL COMPONENT COMPRESSOR

ZRT90KC ZR45KC + ZR45KC

ZRT96K3 ZR48K3 + ZR48K3

ZRT108K3 ZR54K3 + ZR54K3

ZRT114K3 ZR57K3 + ZR57K3

ZRT122K3 ZR61K3 + ZR61K3

ZRT136KC ZR68KC +ZR68KC

ZRU140KC ZR68KC + ZR72KC

ZRT144KC ZR72KC +ZR72KC

ZRT162KC ZR81KC + ZR81KC

68
Copeland ®
brand products ZR COPELAND SCROLL® COMPRESSORS

“STANDARD” BILL OF MATERIAL

The bill of material includes features as shown by the X.
TERMINAL BOX,
GROUNDING TAB,
BILL OF MATERIAL STUB TUBE COVER AND
SCREW
NUMBER CONNECTIONS TERMINAL CONNECTOR BLOCK
AND WASHER
WITH SCREWS

522 X X X

BILL OF MATERIAL PROVISIONS ACCESSORY INFORMATION

Emerson Climate Technologies is pleased to offer the Crankcase Heater - 240 volt - 70 watt 018-0072-00
bill of material shown above.
Crankcase Heater - 480 volt - 70 watt 018-0072-01
In addition to the marked features, each compressor
Note: Use two heaters per tandem.
will include the following:
• Wiring diagram.
• Internal line break protector.
• White oil per compressor
• ZRT90 and ZRT96
46 ounces (1.36 Liters)
• ZRT108
57 ounces (1.69 Liters)
• ZRT162
60 ounces (1.77 Liters)
• Rubber grommet mounting parts with sleeves. Kit
527-0150-00 for under rails. Compressor to rail
mounting parts are also included.
• ZR 90 to 122 527-0180-00
• ZR 136 to 162 527-0181-00
• Grounding tab located in the compressor terminal
box.
See outline drawing pages 70 to 73 for stub tube sizes.

69
Copeland ®
brand products ZR COPELAND SCROLL® COMPRESSORS

NOTES: MODEL NUMBER

1. NOMINAL DIMENSIONS ARE SHOWN.
ALL TOLERANCES ARE ± 1.50 [0.060]
DIMENSIONAL ZRT90KC-TF5 / D
ZRT96KC-TF5 / D
UNLESS OTHERWISE SPECIFIED. INFORMATION
2. DUE TO THE ACCUMULATED ASSEMBLY
TOLERANCES, THE SUCTION AND
DISCHARGE FITTING VARY FROM THE
MOUNTING HOLES BY ± 4.6 [0.18].
3. LINEAR MEASUREMENTS IN [ ] ARE
INCH CONVERSIONS.
THIRD ANGLE PROJECTION

FOR THE INTERNATIONAL MARKET

ZRT90 and ZRT96
TANDEM HEAT PUMP AND
AIR CONDITIONING MODELS

70
Copeland ®
brand products ZR COPELAND SCROLL® COMPRESSORS

NOTES: MODEL NUMBER

1. NOMINAL DIMENSIONS ARE SHOWN.
ALL TOLERANCES ARE ± 1.50 [0.060]
DIMENSIONAL ZRT108K3-TF5/D

UNLESS OTHERWISE SPECIFIED. INFORMATION ZRT114K3-TF5 / D

ZRT122K3-TF5 / D
2. DUE TO THE ACCUMULATED ASSEMBLY
TOLERANCES, THE SUCTION AND
DISCHARGE FITTING VARY FROM THE
MOUNTING HOLES BY ± 4.6 [0.18].
3. FOR ZRU MODEL, COMPRESSOR “A” IS THE
LEAST CAPACITY UNIT AND COMPRESSOR
“B” IS THE LARGER CAPCITY UNIT.
4. LINEAR MEASUREMENTS IN [ ] ARE
INCH CONVERSIONS.
THIRD ANGLE PROJECTION

TERMINAL BOX LAYOUT

FOR THE INTERNATIONAL MARKET

ZRT108 to ZRT122
TANDEM HEAT PUMP AND
AIR CONDITIONING MODELS

71
Copeland ®
brand products ZR COPELAND SCROLL® COMPRESSORS

NOTES: MODEL NUMBER

1. NOMINAL DIMENSIONS ARE SHOWN.
ALL TOLERANCES ARE ± 1.50 [0.060]
DIMENSIONAL ZRT136KC-TF5 / D

UNLESS OTHERWISE SPECIFIED. INFORMATION ZRU140KC-TF5 / D

ZRT144KC-TF5 / D
2. DUE TO THE ACCUMULATED ASSEMBLY
TOLERANCES, THE SUCTION AND
DISCHARGE FITTING VARY FROM THE
MOUNTING HOLES BY ± 4.6 [0.18].
3. FOR ZRU MODEL, COMPRESSOR “A” IS THE
LEAST CAPACITY UNIT AND COMPRESSOR
“B” IS THE LARGER CAPCITY UNIT.
4. LINEAR MEASUREMENTS IN [ ] ARE
INCH CONVERSIONS.
THIRD ANGLE PROJECTION

TERMINAL BOX LAYOUT

FOR THE INTERNATIONAL MARKET

ZRT136, ZRU140 and ZRT144
TANDEM HEAT PUMP AND
AIR CONDITIONING MODELS

72
Copeland ®
brand products ZR COPELAND SCROLL® COMPRESSORS

NOTES: MODEL NUMBER

1. NOMINAL DIMENSIONS ARE SHOWN.
ALL TOLERANCES ARE ± 1.50 [0.060]
DIMENSIONAL ZRT162KC-TF5 / D

UNLESS OTHERWISE SPECIFIED. INFORMATION

2. DUE TO THE ACCUMULATED ASSEMBLY
TOLERANCES, THE SUCTION AND
DISCHARGE FITTING VARY FROM THE
MOUNTING HOLES BY ± 4.6 [0.18].
3. LINEAR MEASUREMENTS IN [ ] ARE
INCH CONVERSIONS.
THIRD ANGLE PROJECTION

TERMINAL BOX LAYOUT

FOR THE INTERNATIONAL MARKET

ZRT162
TANDEM HEAT PUMP AND
AIR CONDITIONING MODELS

73
Copeland ®
brand products ZR COPELAND SCROLL® COMPRESSORS

50 APPROVED TANDEM
HERTZ OPERATING RANGE R22
60
AN OKAY INDICATES AN APPROVED POINT FOR TANDEM OPERATION
AN * * * * INDICATES A NON-APPROVED POINT FOR TANDEM OPERATION

CONDENSING TEMPERATURE EVAPORATING TEMPERATURE °F/°C

APPLICATION NOTES
Use of the Copeland Scroll Compressor in a tandem • Compressors may be individually cycled.
configuration follows the guidelines of the single • Individual compressors should not be replaced in
compressor with the following exceptions: the field. The entire tandem compressor unit
• The refrigerant charge limit for the tandem must be replaced if it becomes necessary to
compressor is 10 pounds (4.5 kg) for models replace one compressor. Individual compressors
ZRT90 and ZRT96 and 12 pounds (5.4 kg) for all configured for tandem usage will not be available
others. A three-phase unit with a charge over the for replacement.
charge limit must have crankcase heaters added to • In the case of a motor burn, the majority of
both compressors. The crankcase heater must be contaminated oil will be removed with the
located close to the mounting feet for maximum compressor. The rest of the oil is cleaned through
effectiveness. The initial start in the field is a very use of suction and liquid line filter driers. A 100%
critical period for any compressor because all load activated alumina suction filter drier is
bearing surfaces are new and require a short break recommended but must be removed after 72
in period to carry high loads under adverse hours. See Application Engineering Bulletin 24-
conditions. The crankcase heater must be turned on 1105 for clean up procedures and AE Bulletin
12 to 24 hours prior to starting the compressor. This 11-1297 for liquid line filter-drier recommendations.
will prevent oil dilution and bearing stress on initial It is highly recommended that the suction
start up. accumulator be replaced if the system contains
• The ZRT90 - ZRT122 compressors are mounted on one. This is because the accumulator oil return
rails using rubber mounting parts. The ZRT136 - orifice or screen may be plugged with debris or
ZRT162 compressors are rigidly mounted on rails may become plugged shortly after a compressor
using solid steel mounting parts. These mounts are failure. This will result in starvation of oil to the
installed at the factory and should not be loosened. replacement compressor and a second failure.
Tighten to 125 inch pounds (14 NM) if it becomes • Complete 50 Hertz R22 performance curves are
necessary to tighten these mounts. Holes in the available in the units as follows for all models:
mounting rails may be used to mount isolation • Capacity BTU / Hr
grommets under the entire tandem.
• Power Input Watts
• A discharge check valve must be placed in the • Current Amps
common discharge line when pump down is used.
• Efficiency BTU H / Watt
• Both compressors must be at the same level to
prevent oil from migrating to the lowest compressor
through the oil equalization line.

74
Copeland ®
brand products ZR COPELAND SCROLL® COMPRESSORS

TANDEM SPECIFICATION

The tandem shall be a Copeland Scroll type, with condensing temperatures up to 150°F (65.6°C). The
two internal overload motor protectors. For maximum tandem shall operate at an ARI point minimum
compressor life the tandem should include a minimum efficiency of 11.0 BTU/WATT. Efficiencies of better
of 92 ounces (2.72 liters) of oil. The tandem shall be than 11.0 BTU/WATT are acceptable, but efficiencies
capable of operating on R22 within the evaporating below 11.0 BTU/ WATT are not acceptable. The
range of –10°F to 55°F (–23.3°C to 12.8°C). The tandem shall be of the Copeland ZR type or approved
tandem must also be capable of operating at equal.

UNITS CONVERSION CHART

BTUH x 0.252 = KCALH

75
Copeland ®
brand products ZR COPELAND SCROLL® COMPRESSORS

R22 TANDEM MODEL NUMBER NOMENCLATURE

Product Variations
Compressor Motor Type
Application Range Three digit bill of material
Motor Type Code
Code Description number that indicates
R High and medium compressor configuration and
Three phase T
temperature accessories included.

X X X X X X X X — X X X — X X X

Modulation

Code Description
T Even Tandem
U Uneven Tandem
Capacity
Model Series
Compressor Variations
nominal
A number or letter
60 Hertz Electrical Codes
arbitrarily
capacity at 50 HZ 60 HZ Code
assigned to
ARI rating
indicate different
condition to 200 / 220-3 200 / 230-3 5
model types
two or three 380 / 420-3 460-3 D
within any one
significant
family series.
digits.

76
COPELAND EMPLOYEES WAIT AT THESE
WORLDWIDE LOCATIONS TO SERVE YOU

MANUFACTURING LOCATIONS CARACAS, VENEZUELA

SIDNEY, OHIO U.S.A. SÃO PAULO, BRAZIL
SHELBY, NORTH CAROLINA U.S.A. BUENOS AIRES, ARGENTINA
RUSHVILLE, INDIANA U.S.A. SYDNEY, AUSTRALIA
HARTSELLE, ALABAMA U.S.A. YOKOHAMA, JAPAN
LEBANON, MISSOURI U.S.A. SEOUL, SOUTH KOREA
AVA, MISSOURI U.S.A. TAIPEI, TAIWAN
BRANTFORD, ONTARIO CANADA SHENYANG, CHINA
REYNOSA, MEXICO SHANGHAI, CHINA
SHENYANG, CHINA BEIJING, CHINA
SUZHOU, CHINA GUANGZHOU, CHINA
RAYONG, THAILAND HONG KONG
KARAD, INDIA JAKARTA, INDONESIA
ATIT, INDIA BANGKOK, THAILAND
KOLIN, CZECH REPUBLIC KUALA LUMPUR, MALAYSIA
BERLIN, GERMANY KARAD, INDIA
WELKENRAEDT, BELGIUM DUBAI, UAE
THATCHAM, UNITED KINGDOM VAEDERSTAD, SWEDEN
COOKSTOWN, NORTHERN IRELAND BERLIN, GERMANY
TECHNICAL ASSISTANCE FRANKFURT, GERMANY
LOCATIONS MILANO, ITALY
SIDNEY, OHIO U.S.A. ECULLY, FRANCE
MIAMI, FLORIDA U.S.A. NUENEN, NETHERLANDS
BRANTFORD, ONTARIO CANADA WELKENRAEDT, BELGIUM
MEXICO CITY, MEXICO THATCHAM, UNITED KINGDOM
BARCELONA, SPAIN
Form 99-105 R2 Revised 7/07
Emerson, Copeland, and Copeland Scroll are trademarks of Emerson Electric Co. or EMERSON CLIMATE TECHNOLOGIES, INC., 1675 W. CAMPBELL ROAD
SIDNEY, OHIO 45365-0669 USA
one of its affiliated companies. ©1999 Emerson Climate Technologies, Inc. All rights
Telephone 937-498-3011 Telefax 937-498-3793
reserved. Printed in the USA.
Copeland ®
brand products ZR COPELAND SCROLL® COMPRESSORS

PRODUCT DESCRIPTION CONTENTS

1
COMMERCIAL COPELAND SCROLL® COMPRESSORS

THE COMMERCIAL
SOLUTION
Copeland ®
brand products ZR COMMERCIAL COPELAND SCROLL® COMPRESSORS

Contents
Page Page
®
Copeland Scroll Story . . . . . . . . . . . . . . . . . . . . . . 2 ZR90K TO ZR19M
Product Description . . . . . . . . . . . . . . . . . . . . . . . 75
ZR84K TO ZR190K
Features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 75
Product Description . . . . . . . . . . . . . . . . . . . . . . . . 5
Performance Nominals . . . . . . . . . . . . . . . . 76 to 78
Features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
50 Hertz Three Phase
Performance Nominals . . . . . . . . . . . . . . . . . . 6 to 8
Performance Nominals . . . . . . . . . . . . . . . . 79 to 81
50 Hertz Three Phase
60 Hertz Three Phase
Performance Nominals . . . . . . . . . . . . . . . . . 9 to 11
Mechanical Specifications . . . . . . . . . . . . . . . . . . 82
60 Hertz Three Phase
Standard Bills of Material . . . . . . . . . . . . . . . . . . . 82
Mechanical Specifications . . . . . . . . . . . . . . . . . . 12
Electrical Specifications . . . . . . . . . . . . . . . . . . . . 83
Electrical Specifications . . . . . . . . . . . . . . . . . 12, 13
Bill of Material Provisions . . . . . . . . . . . . . . . . . . . 84
Standard Bills of Material . . . . . . . . . . . . . . . . . . . 13
Accessory Information . . . . . . . . . . . . . . . . . . . . . 84
Bill of Material Provisions . . . . . . . . . . . . . . . . . . . 14
Service Valves . . . . . . . . . . . . . . . . . . . . . . . . . . . 85
Accessory Information . . . . . . . . . . . . . . . . . . . . . 14
Dimensional Drawings . . . . . . . . . . . . . . . . . . 86, 87
Service Valves . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
Wiring Diagrams . . . . . . . . . . . . . . . . . . . . . . . . . . 88
Dimensional Drawings . . . . . . . . . . . . . . . . . 16 to 19
Tabular Performance Data . . . . . . . . . . . . . 89 to 97
Wiring Diagram . . . . . . . . . . . . . . . . . . . . . . . . 20, 21
50 Hertz
Tabular Performance Data . . . . . . . . . . . . . 22 to 32
Tabular Performance Data . . . . . . . . . . . . 98 to 106
50 Hertz
60 Hertz
Tabular Performance Data . . . . . . . . . . . . . 33 to 43
Application Range . . . . . . . . . . . . . . . . . . . . . . . 107
60 Hertz
Conversion Chart . . . . . . . . . . . . . . . . . . . . . . . . 107
Application Range and Notes . . . . . . . . . . . . . . . . 44
Application Notes . . . . . . . . . . . . . . . . . . . . . . . . 108
Multipack Packaging / Shipping Information . . . . . 45
Multipack Packaging / Shipping Information . . . . 109
Multiple Single Pack Packaging /
Shipping Information . . . . . . . . . . . . . . . . . . . . . . . 45 Single Pack Packaging /
Shipping Information . . . . . . . . . . . . . . . . . . . . . . 109
Single Pack Packaging /
Shipping Information . . . . . . . . . . . . . . . . . . . . . . . 45 Nomenclature . . . . . . . . . . . . . . . . . . . . . . . . . . . 110
Nomenclature . . . . . . . . . . . . . . . . . . . . . . . . . . . .46
TANDEM COMPRESSORS
TANDEM COMPRESSORS Performance Nominals . . . . . . . . . . . . . . . . . . . 112
Performance Nominals . . . . . . . . . . . . . . . . . . . . 48 50 Hertz Three Phase
50 Hertz Three Phase Performance Nominals . . . . . . . . . . . . . . . . . . . 113
Performance Nominals . . . . . . . . . . . . . . . . . . . . 49 60 Hertz Three Phase
60 Hertz Three Phase Mechanical Specifications . . . . . . . . . . . . . . . . . . 114
Mechanical Specifications . . . . . . . . . . . . . . . . . . 50 Electrical Specifications . . . . . . . . . . . . . . . . . . . 114
Electrical Specifications . . . . . . . . . . . . . . . . . . . . 50 Standard Bills of Material . . . . . . . . . . . . . . . . . . 114
Standard Bill of Material . . . . . . . . . . . . . . . . . . . . 50 Bill of Material Provisions . . . . . . . . . . . . . . . . . . 115
Bill of Material Provisions . . . . . . . . . . . . . . . . . . . 51 Accessory Information . . . . . . . . . . . . . . . . . . . . 115
Accessory Information . . . . . . . . . . . . . . . . . . . . . 51 Dimensional Drawings . . . . . . . . . . . . . . . 116 to 121
Dimensional Drawings . . . . . . . . . . . . . . . . . 52 to 55 Tandem Piping Drawings . . . . . . . . . . . . .122 to 135
Tandem Piping Drawings . . . . . . . . . . . . . . .56 to 66 Wiring Diagrams . . . . . . . . . . . . . . . . . . . . . . . . . 136
Wiring Diagram . . . . . . . . . . . . . . . . . . . . . . . . 67, 68 Application Range . . . . . . . . . . . . . . . . . . . . . . . 136
Application Range . . . . . . . . . . . . . . . . . . . . . . . . 67 Application Notes . . . . . . . . . . . . . . . . . . . . . . . . 137
Application Notes/ Single Pack Packaging /
Tandem Compressor Specifications . . . . . . . . . . . 69 Shipping Information . . . . . . . . . . . . . . . . . . . . . . 138
How A Scroll Works . . . . . . . . . . . . . . . . . . . . . . . 70 Compressor Specification . . . . . . . . . . . . . . . . . . 139
Single Pack Packaging / Conversion Chart . . . . . . . . . . . . . . . . . . . . . . . . 139
Shipping Information . . . . . . . . . . . . . . . . . . . . . . . 71 Nomenclature . . . . . . . . . . . . . . . . . . . . . . . . . . .140
Nomenclature . . . . . . . . . . . . . . . . . . . . . . . . . . . .72
Copeland ®
brand products ZR COMMERCIAL COPELAND SCROLL® COMPRESSORS

Commercial Copeland Scroll® Story

Emerson Climate Technologies, Inc. serve customers with superior quietness,

believes in surpassing customer needs and efficiency and reliability and provides
expectations. After developing the Emerson Climate Technologies, Inc.’s new
dependable low sound QR series, Emerson commercial product lines with greater
Climate Technologies, Inc.’s research and durability. Thanks to radial and axial
development teams set about designing compliance, Copeland Scroll technology
Copeland Scroll product lines for the also furnishes these compressors with
commercial air conditioning market. With protection against damage from liquid
the addition of the ZR84K to ZR19M, refrigerant and debris. In addition, their
Emerson Climate Technologies, Inc. now performance will get better over time
has increased its capability to meet a wide because the Copeland Scroll “wears in,” not
range of needs in commercial air out. The scroll helps Emerson Climate
conditioning around the world. Technologies, Inc. meet today’s market
needs for quieter systems by enabling them
Emerson Climate Technologies, Inc.
to operate at low sound levels despite their
created these product lines to deliver the
large operating capacities.
best value and reliability for buildings such
as shopping centers, warehouses and Due to its proprietary manufacturing
freestanding retail outlets. The ZR84K to technologies and belief in constant
ZR190K line is specifically designed for product improvement and technological
high-volume, 7 to 24 horsepower advancement, Emerson Climate Technologies,
commercial applications. On the other hand, Inc. has become the leader in the scroll
the ZR90K to ZR19M’s robust design compressor market. With millions of scrolls
addresses the needs of the 20 to 100 installed and numerous global
horsepower and above commercial market. manufacturing facilities dedicated to this
ZR90K to ZR19M provides the additional technology, they have established the
features and durability for these more highest scroll production volume of any
demanding applications. Together, these compressor manufacturer in the world. And
two families deliver powerful solutions for now, with the production of ZR84K to
high and low volume commercial air ZR19M the commercial market can enjoy
conditioning needs. the inherent advantages provided by the
Copeland Scroll.
Since they are patented with Emerson
Climate Technologies, Inc.’s award winning
scroll technology, the two product lines

2
Copeland Scroll®

ZR84K to ZR190K
Compared to other commercial compressors in the market, Copeland
Scroll® has higher reliability and efficiency as well as lower sound.

3
Copeland ®
brand products ZR COMMERCIAL COPELAND SCROLL® COMPRESSORS

DESCRIPTION FEATURES
The ZR84K to ZR190K product line, • Copeland Scroll
Emerson Climate Technologies, Inc.’s addition – High Efficiency
to its scroll compressor line, now enables the – Better Liquid Handling
world’s largest producer of integral – Better Debris Handling
horsepower compressors to meet the – Self-compensating for wear
challenges of today’s light commercial A /C
applications by delivering superior reliability, (“Wears-in” vs. “Wears-out”)
durability, efficiency and sound reduction. In
addition to superior performance, these – 70% fewer moving parts
compressors answer the needs that the high – Low sound levels
volume, 7 to 24 horsepower commercial • Handles 16 Pound / 7.3 Kg System
market has for competitive cost and compact Refrigerant Charge without a Crankcase
size. Heater
This product line delivers all the superior
benefits of Copeland Scroll technology. • Compact, Lightweight Shell with 9 Inch / 22.9
Cm Diameter (Rolled / Welded)
• Quiet operation.
• Internal Line Break Motor Protection
• Unmatched reliability with 70% fewer moving
parts than comparably sized reciprocating • Advanced Scroll Temperature Protection
compressors.
• Suction Gas Motor Cooling
• Greater capability at handling liquid and
debris in the system. • Suction Screen

• High efficiency performance. • Disc Type Check Valve

These features, in addition to Emerson • Centrifugal Oil Pump with Filter and Magnet
Climate Technologies, Inc.’s advanced • Rotalock or Braze Fittings
engineering capability, enable the ZR84K to
ZR190K line to provide years of dependable • High Pressure Tap on Rotalock Version
performance even under the most rugged
operating conditions. • DU (PTFE) Journal Bearings

The voltage flexibility makes it capable of • Flexible Voltage Options

satisfying light commercial air conditioning • Arrangement of Fittings and Terminal Box
needs around the world. Its product line Convenient for Service and Installation
consists of five displacements, seven, eight,
nine, ten and twelve horsepower options, for • Wide Model Selection
a total of 20 models. Each model is designed
• Low Shutdown Noise
for use with R-22, R-407C or R134a.
Emerson Climate Technologies, Inc. • R22, R407C and R134a Applications
engineers designed this product line with the • Tandem Availability
needs of all their customers around the world
in mind. With its advanced scroll design,
superior dependability, and exceptional
compressor value, the ZR84K to ZR190K line
shows Emerson Climate Technologies, Inc.’s
commitment to the needs of the global
commercial air conditioning market.

5
Copeland ®
brand products ZR COMMERCIAL COPELAND SCROLL® COMPRESSORS

50 HERTZ PERFORMANCE NOMINALS R22

220-3-50 (TF5/TW5)
THREE PHASE TEST VOLTAGE
380-3-50 (TFD/TWD)
CAPACITY ENERGY EFFICIENCY RATING
MODEL RATING MOTOR
CONDITION BTU KCAL WATTS AMPERES* BTUH KCALH WATTS
WATTS
HOUR HOUR MOTOR WATTS MOTOR WATTS MOTOR WATTS

A 71600 18000 21000 5990 19.7/11.4/- 12.0 3.0 3.5

ZR84KC-TF5/D B 71000 17900 20800 6000 19.7/11.4/- 11.8 3.0 3.5
C 83000 20900 24300 4210 16.2/9.4/- 19.7 5.0 5.8

A 80100 20200 23500 6740 21.6/12.5/- 11.9 3.0 3.5

ZR94KC-TF5/D B 79500 20000 23300 6750 21.6/12.5/- 11.8 3.0 3.5
C 94000 23700 27500 4780 16.5/9.6/- 19.7 5.0 5.8

A 90700 22900 26600 7530 23.7/13.7/- 12.0 3.0 3.5

ZR108KC-TF5/D B 90000 22700 26400 7550 23.7/13.7/- 11.9 3.0 3.5
C 106000 26700 31100 5350 18.5/10.7/- 19.8 5.0 5.8

A 106800 26900 31300 8980 27.3/15.8/- 11.9 3.0 3.5

ZR125KC-TF5/D B 106000 26700 31100 9000 27.3/15.8/- 11.8 3.0 3.5
C 124000 31200 36300 6300 21.2/12.3/- 19.7 5.0 5.8

A 121000 30500 35500 10080 30.4/17.6/- 12.0 3.0 3.5

ZR144KC-TF5/D B 120000 30200 35200 10100 30.4/17.6/- 11.9 3.0 3.5
C 142000 35800 41600 7150 23.1/13.4/- 19.9 5.0 5.8

A 131000 33000 38400 11300 43.1/20.2/20.2 11.6 2.9 3.4

ZR160KC-TW5/TFD/TWD B 130000 32800 38100 11300 43.1/20.2/20.2 11.5 2.9 3.4
C 154000 38800 45100 8050 33.5/15.7/15.7 19.1 4.8 5.6

A 156200 39400 45800 13600 53.4/25.6/25.6 11.5 2.9 3.4

ZR190KC-TW5/TFD/TWD B 155000 39100 45400 13600 53.4/25.6/25.6 11.4 2.9 3.3
C 184000 46400 53900 9750 42.8/20.5/20.5 18.9 4.8 5.5
* Ampere values shown are at 220 volts / 380 volts/380 volts.

EVAPORATING CONDENSING AMBIENT LIQUID RETURN GAS

RATING RATING
TEMPERATURE TEMPERATURE TEMPERATURE TEMPERATURE TEMPERATURE
CONDITION STANDARD
°F / °C °F / °C °F / °C °F / °C °F / °C
A ASRE / T 45 130 95 115 95
7.2 54.4 35.0 46.1 35.0
B ARI 45 130 95 115 65
7.2 54.4 35.0 46.1 18.3
C CHEER 45 100 95 85 65
7.2 37.8 35.0 29.4 18.3
See expanded performance data on pages 22 to 32.
See full operating range on page 44.
Production compressors to meet above nominal performance values within ± 5%.

6
Copeland ®
brand products ZR COMMERCIAL COPELAND SCROLL® COMPRESSORS

50 HERTZ PERFORMANCE NOMINALS R407C

A 67500 17000 19800 6140 19.7/11.4/- 11.0 2.8 3.2

ZR84KCE-TF5/D B 67000 16900 19600 6150 19.7/11.4/- 10.9 2.7 3.2
C 79000 19900 23100 4430 16.4/9.5/- 17.8 4.5 5.2

A 76100 19200 22300 6840 21.6/12.5/- 11.1 2.8 3.3

ZR94KCE-TF5/D B 75500 19000 22100 6850 21.6/12.5/- 11.0 2.8 3.2
C 91000 22900 26700 4820 16.9/9.8/- 18.9 4.8 5.5

A 85200 21500 25000 7580 23.8/13.8/- 11.2 2.8 3.3

C
ZR108KCE-TF5/D B 84500 21300 24800 7600 23.8/13.8/- 11.1 2.8 3.3

07
C 102000 25700 29900 5350 18.7/10.8/- 19.1 4.8 5.6

A 100300 25300 29400 9030 28.0/16.2/- 11.1 2.8 3.3

4
ZR125KCE-TF5/D B 99500 25100 29200 9050 28.0/16.2/- 11.0 2.8 3.2

R
C 121000 30500 35500 6400 22.3/12.9/- 18.9 4.8 5.5

A 114900 29000 33700 10180 30.4/17.6/- 11.3 2.8 3.3

ZR144KCE-TF5/D B 114000 28700 33400 10200 30.4/17.6/- 11.2 2.8 3.3
C 142000 35800 41600 7400 23.5/13.6/- 19.2 4.8 5.6

A 129000 32500 37800 11400 41.0/20.5/20.5 11.3 2.9 3.3

ZR160KCE-TW5/TFD/TWD B 128000 32300 37500 11450 41.0/20.5/20.5 11.2 2.8 3.3
C 159500 40200 46700 7950 32.2/16.1/16.1 20.1 5.1 5.9

A 151200 38100 44300 13600 53.0/26.5/26.5 11.1 2.8 3.3

ZR190KCE-TW5/TFD/TWD B 150000 37800 44000 13650 53.0/26.5/26.5 11.0 2.8 3.2
C 182000 45900 53300 9570 43.7/21.9/21.9 19.0 4.8 5.6
* Ampere values shown are at 220 volts / 380 volts/380 volts.

EVAPORATING CONDENSING AMBIENT LIQUID RETURN GAS

RATING RATING
TEMPERATURE TEMPERATURE TEMPERATURE TEMPERATURE TEMPERATURE
CONDITION STANDARD
°F / °C °F / °C °F / °C °F / °C °F / °C
A ASRE / T 45 130 95 115 95
7.2 54.4 35.0 46.1 35.0
B ARI 45 130 95 115 65
7.2 54.4 35.0 46.1 18.3
C CHEER 45 100 95 85 65
7.2 37.8 35.0 29.4 18.3
Dew Point Temperatures are used for rating conditions.
See expanded performance data on pages 22 to 32.
See full operating range on page 44.
Production compressors to meet above nominal performance values within ± 5%.

7
Copeland ®
brand products ZR COMMERCIAL COPELAND SCROLL® COMPRESSORS

50 HERTZ PERFORMANCE NOMINALS R134a

220-3-50 (TF5/TW5)
THREE PHASE TEST VOLTAGE
380-3-50 (TFD/TWD)

CAPACITY ENERGY EFFICIENCY RATING

RATING MOTOR AMPERES
* AMPERES* BTUH KCALH WATTS
MODEL BTU KCAL
CONDITION WATTS WATTS WATTS
HOUR HOUR MOTOR MOTOR MOTOR
WATTS WATTS WATTS
A 42400 10700 12400 4190 18.5/9.3/- 10.1 2.6 3.0
ZR84KCE-TF5/D B 42100 10600 12300 4200 18.5/9.3/- 10.0 2.5 2.9
C 51300 12900 15000 3000 16.2/8.1/- 17.1 4.3 5.0
A 47700 12000 14000 4700 20.9/10.4/- 10.1 2.6 3.0
ZR94KCE-TF5/D B 47300 11900 13900 4710 20.9/10.4/- 10.0 2.5 3.0
C 57600 14500 16900 3370 18.1/9.1/- 17.1 4.3 5.0

a
A 54500 13700 16000 5200 22.3/11.2/- 10.5 2.6 3.1

4
ZR108KCE-TF5/D B 54100 13600 15900 5260 22.3/11.2/- 10.3 2.6 3.0

3
C 66000 16600 19300 3760 19.4/9.7/- 17.6 4.4 5.1

1
A 62500 15800 18300 6100 25.4/12.7/- 10.2 2.6 3.0
ZR125KCE-TF5/D B 62000 15600 18200 6140 25.4/12.7/- 10.1 2.5 3.0

R
C 75700 19100 22200 4400 22.0/11.0/- 17.2 4.3 5.0
A 80200 20200 23500 6900 30.8/13.3/- 11.6 2.9 3.4
ZR144KCE-TF5/D B 79600 20100 23300 6940 30.8/13.3/- 11.5 2.9 3.4
C 95900 24200 28100 4870 27.4/10.7/- 19.7 5.0 5.8
A 87700 22100 25700 7600 31.4/15.7/15.7 11.5 2.9 3.4
ZR160KCE-TW5/TFD/TWD B 87000 21900 25500 7600 31.4/15.7/15.7 11.4 2.9 3.4
C 103000 26000 30200 5400 24.4/12.2/12.2 19.1 4.8 5.6
A 104800 26400 30700 9200 41.1/20.5/20.5 11.4 2.9 3.3
ZR190KCE-TW5/TFD/TWD B 104000 26200 30500 9200 41.1/20.5/20.5 11.3 2.8 3.3
C 124000 31200 36300 6600 32.9/16.5/16.5 18.8 4.7 5.5
* Ampere values shown are at 220 volts / 380 volts /380 volts.

EVAPORATING CONDENSING AMBIENT LIQUID RETURN GAS

RATING RATING
TEMPERATURE TEMPERATURE TEMPERATURE TEMPERATURE TEMPERATURE
CONDITION STANDARD
°F / °C °F / °C °F / °C °F / °C °F / °C

A ASRE / T 45 130 95 115 95

7.2 54.4 35.0 46.1 35.0
B ARI 45 130 95 115 65
7.2 54.4 35.0 46.1 18.3
C CHEER 45 100 95 85 65
7.2 37.8 35.0 29.4 18.3
See expanded performance data on pages 22 to 32.
See full operating range on page 44.
Production compressors to meet above nominal performance values within ± 5%.

8
Copeland ®
brand products ZR COMMERCIAL COPELAND SCROLL® COMPRESSORS

60 HERTZ PERFORMANCE NOMINALS R22

230-3-60 (TF5/TW5)
380-3-60 (TF7/TW7)
THREE PHASE TEST VOLTAGE
460-3-60 (TFD/TWD)
575-3-60 (TFE/TWE)
CAPACITY ENERGY EFFICIENCY RATING
RATING BTUH KCALH WATTS
MODEL CONDITION BTU KCAL MOTOR AMPERES*
WATTS MOTOR MOTOR MOTOR
HOUR HOUR WATTS WATTS WATTS WATTS
A 86200 21700 25300 7290 22.8/13.8/-/11.4/-/9.1 11.8 3.0 3.5
ZR84KC-TF5/7/D/E B 85500 21500 25100 7300 22.8/13.8/-/11.4/-/9.1 11.7 2.9 3.4
C 100000 25200 29300 5200 18.6/11.3/-/9.3/-/7.4 19.2 4.8 5.6
A 97300 24500 28500 8180 25.6/15.5/-/12.8/-/10.2 11.9 3.0 3.5
ZR94KC-TF5/7/D/E B 96500 24300 28300 8200 25.6/15.5/-/12.8/-/10.2 11.8 3.0 3.5
C 113000 28500 33100 5950 20.8/12.6/-/10.4/-/8.3 19.0 4.8 5.6
A 109900 27700 32200 9180 28.2/17.1/-/14.1/-/11.3 12.0 3.0 3.5
ZR108KC-TF5/7/D/E B 109000 27500 31900 9200 28.2/17.1/-/14.1/-/11.3 11.8 3.0 3.5
C 128000 32300 37500 6750 22.8/13.8/-/11.4/-/9.1 19.0 4.8 5.6
A 129000 32500 37800 10880 32.6/19.7/-/16.3/-/13.0 11.9 3.0 3.5
ZR125KC-TF5/7/D/E B 128000 32300 37500 10900 32.6/19.7/-/16.3/-/13.0 11.7 3.0 3.4
C 150000 37800 44000 7950 25.8/15.6/-/12.9/-/10.3 18.9 4.8 5.5
A 147200 37100 43100 12280 37.2/22.5/-/18.6/-/14.9 12.0 3.0 3.5
ZR144KC-TF5/7/D/E B 146000 36800 42800 12300 37.2/22.5/-/18.6/-/14.9 11.9 3.0 3.5
C 172000 43300 50400 9050 29.2/17.7/-/14.6/-/11.7 19.0 4.8 5.6
A 161300 40600 47300 13900 43.2/24.2/24.2/20.8/20.8/18.3 11.6 2.9 3.4
ZR160KC-TW5/TF7/
B 160000 40300 46900 13900 43.2/24.2/24.2/20.8/20.8/18.3 11.5 2.9 3.4
TW7/TFD/TWD/TWE
C 189000 47600 55400 10300 34.1/19.1/19.1/16.4/16.4/14.5 18.3 4.6 5.4
A 191500 48300 56100 16800 53.2/-/32.0/26.5/26.5/21.7 11.4 2.9 3.3
ZR190KC-TW5/TW7/
B 190000 47900 55700 16800 53.2/-/32.0/26.5/26.5/21.7 11.3 2.9 3.3
TFD/TWD/TWE
C 224000 56400 65600 12400 43.7/-/26.3/21.8/21.8/17.8 18.1 4.5 5.3
* Ampere values shown are at 230 volts / 380 volts / 380 volts / 460 volts/460 volts/575 volts .

EVAPORATING CONDENSING AMBIENT LIQUID RETURN GAS

RATING RATING
TEMPERATURE TEMPERATURE TEMPERATURE TEMPERATURE TEMPERATURE
CONDITION STANDARD
°F / °C °F / °C °F / °C °F / °C °F / °C

A ASRE / T 45 130 95 115 95

7.2 54.4 35.0 46.1 35.0
B ARI 45 130 95 115 65
7.2 54.4 35.0 46.1 18.3
C CHEER 45 100 95 85 65
7.2 37.8 35.0 29.4 18.3
See expanded performance data on pages 33 to 43.
See full operating range on page 44.
Production compressors to meet above nominal performance values within ± 5%.

9
Copeland ®
brand products ZR COMMERCIAL COPELAND SCROLL® COMPRESSORS

60 HERTZ PERFORMANCE NOMINALS R407C

7
22.4/13.6/-/11.2/-/9.0

0
33.4/20.2/-/16.7/-/13.4
11.1
19.1
11.1
2.8
4.8
2.8
3.3
5.6
3.3

4
ZR125KCE-TF5/7/D/E B 120000 30200 35200 10900 33.4/20.2/-/16.7/-/13.4 11.0 2.8 3.2

R
C 146000 36800 42800 7700 26.2/15.9/-/13.1/-/10.5 19.0 4.8 5.6
A 139100 35100 40800 12280 36.4/22.0/-/18.2/-/14.6 11.3 2.9 3.3
ZR144KCE-TF5/7/D/E B 138000 34800 40400 12300 36.4/22.0/-/18.2/-/14.6 11.2 2.8 3.3
C 170000 42800 49800 8800 28.2/17.1/-/14.1/-/11.3 19.3 4.9 5.7
A 155200 39100 45500 13800 41.5/25.1/25.1/20.8/20.8/16.6 11.2 2.8 3.3
ZR160KCE-TW5/TF7/
B 154000 38800 45100 13850 41.5/25.1/25.1/20.8/20.8/16.6 11.1 2.8 3.3
TW7/TFD/TWD/TWE
C 189000 47600 55400 9830 32.2/19.5/19.5/16.1/16.1/12.9 19.2 4.8 5.6
A 182400 46000 53400 16600 52.5/-/31.8/26.2/26.2/21.0 11.0 2.8 3.2
ZR190KCE-TW5/TW7/
B 181000 45600 53000 16650 52.5/-/31.8/26.2/26.2/21.0 10.9 2.7 3.2
TFD/TWD/TWE
C 220000 55400 64500 12150 42.7/-/25.9/21.4/21.4/17.1 18.1 4.6 5.3
* Ampere values shown are at 230 volts / 380 volts /380 volts/ 460 volts /460 volts/ 575 volts .

EVAPORATING CONDENSING AMBIENT LIQUID RETURN GAS

RATING RATING
TEMPERATURE TEMPERATURE TEMPERATURE TEMPERATURE TEMPERATURE
CONDITION STANDARD
°F / °C °F / °C °F / °C °F / °C °F / °C

A ASRE / T 45 130 95 115 95

7.2 54.4 35.0 46.1 35.0
B ARI 45 130 95 115 65
7.2 54.4 35.0 46.1 18.3
C CHEER 45 100 95 85 65
7.2 37.8 35.0 29.4 18.3
Dew Point Temperatures are used for rating conditions.
See expanded performance data on pages 33 to 43.
See full operating range on page 44.
Production compressors to meet above nominal performance values within ± 5%.

10
Copeland ®
brand products ZR COMMERCIAL COPELAND SCROLL® COMPRESSORS

60 HERTZ PERFORMANCE NOMINALS R134a

34
18.3/11.1/-/9.2/-/7.3
24.8/15.0/-/12.4/-/9.9
10.1
17.0
9.9
2.5
4.3
2.5
3.0
5.0
2.9

1
ZR125KCE-TF5/7/D/E B 74900 18900 21900 7570 24.8/15.0/-/12.4/-/9.9 9.9 2.5 2.9

R
C 91000 22900 26700 5450 20.7/12.5/-/10.4/-/8.3 16.7 4.2 4.9
A 97200 24500 28500 8500 30.0/16.5/-/13.7/-/9.1 11.4 2.9 3.4
ZR144KCE-TF5/7/D/E B 96400 24300 28200 8500 30.0/16.5/-/13.7/-/9.1 11.3 2.9 3.3
C 115500 29100 33800 6150 25.6/13.4/-/11.1/-/7.6 18.8 4.7 5.5
A 105800 26700 31000 9500 32.6/19.7/19.7/16.3/16.3/13.0 11.1 2.8 3.3
ZR160KCE-TW5/TF7/
B 105000 26500 30800 9500 32.6/19.7/19.7/16.3/16.3/13.0 11.1 2.8 3.2
TW7/TFD/TWD/TWE
C 124000 31200 36300 7000 25.7/15.6/15.6/12.9/12.9/10.3 17.7 4.5 5.2
A 128000 32300 37500 11300 42.8/-/25.9/21.4/21.4/17.1 11.3 2.9 3.3
ZR190KCE-TW5/TW7/
B 127000 32000 37200 11300 42.8/-/25.9/21.4/21.4/17.1 11.2 2.8 3.3
TFD/TWD/TWE
C 149000 37500 43700 8350 35.2/-/21.3/17.6/17.6/14.1 17.8 4.5 5.2
* Ampere values shown are at 230 volts / 380 volts / 380 volts/460 volts/460 volts / 575 volts .

EVAPORATING CONDENSING AMBIENT LIQUID RETURN GAS

RATING RATING
TEMPERATURE TEMPERATURE TEMPERATURE TEMPERATURE TEMPERATURE
CONDITION STANDARD
°F / °C °F / °C °F / °C °F / °C °F / °C

A ASRE / T 45 130 95 115 95

11
Copeland ®
brand products ZR COMMERCIAL COPELAND SCROLL® COMPRESSORS

MECHANICAL SPECIFICATIONS
CFH COMPRESSOR
IN 3
M 3/ HR NET WEIGHT WITH OIL
NOMINAL CM 3
CUBIC FEET PER HOUR POUNDS
HP CUBIC INCHES PER
MODEL CUBIC METERS PER HOUR KILOGRAMS
KW REVOLUTION
CUBIC CENTIMETERS 50 HERTZ 60 HERTZ THREE
PER REVOLUTION 2900 RPM 3500 RPM PHASE

7.0 6.931 697.9 842.3 126.0

ZR84KC/KCE
5.22 113.6 19.8 23.8 57.2

8.0 7.758 781.2 942.8 126.0

ZR94KC/KCE
6.00 127.1 22.1 26.7 57.2

9.0 8.721 878.2 1059.8 133.0

ZR108KC/KCE
6.71 142.9 24.9 30.0 60.4

10.0 10.198 1026.9 1239.3 135.0

ZR125KC/KCE
7.50 167.1 29.1 35.1 60.4

12.0 11.645 1172.6 1415.2 135.0

ZR144KC/KCE
9.00 190.8 33.2 40.1 61.3

14.0 12.760 1284.9 1550.7 139.0

ZR160KC/KCE
10.44 209.1 36.4 43.9 63.1

16.0 15.202 1530.8 1847.5 143.0

ZR190KC/KCE
11.94 249.1 43.3 52.3 64.9

ELECTRICAL SPECIFICATIONS
VOLTAGE CODE TF5 TF7 TFD TFE
NOMINAL VOLTAGE- 200 / 220-3-50 380 /420-3-50
380-3-60 575-3-60
PHASE-HERTZ 200 / 230-3-60 460-3-60
VOLTAGE RANGE
50 HERTZ 180-242 – 342-462 –
60 HERTZ 180-253 342-418 414-506 518-633
TF5 TF7 TFD TFE
RATED LOCKED RATED LOCKED RATED LOCKED RATED LOCKED
MODEL LOAD ROTOR LOAD ROTOR LOAD ROTOR LOAD ROTOR
AMPS AMPS AMPS AMPS AMPS AMPS AMPS AMPS
RLA LRA RLA LRA RLA LRA RLA LRA

ZR84KC/KCE 28.6 196 15.7 135 14.2 100 9.7 90

ZR94KC/KCE 32.1 203 16.7 123 16.4 95 12.0 80

ZR108KC/KCE 33.6 231 18.6 140 17.3 114 13.5 80

ZR125KC/KCE 42.0 239 23.5 145 19.2 125 13.8 80

ZR144KC/KCE 47.1 273 24.4 145 19.6 125 15.8 100

ZR160KC/KCE 53.6 300 28.6 139 25.0 150 20.7 109

ZR190KC/KCE 58.6 340 35.7 196 30.0 179 23.6 132

12
Copeland ®
brand products ZR COMMERCIAL COPELAND SCROLL® COMPRESSORS

ZR COMMERCIAL SCROLL COMPRESSOR

BILLS OF MATERIAL FOR THE INTERNATIONAL MARKET
ELECTRICAL SPECIFICATIONS CONTINUED
VOLTAGE CODE TW5 TW7 TWD TWE
NOMINAL VOLTAGE- 200 / 220-3-50 380 /420-3-50
380-3-60 575-3-60
PHASE-HERTZ 200 / 230-3-60 460-3-60
VOLTAGE RANGE
50 HERTZ 180-242 – 342-462 –
60 HERTZ 180-253 342-418 414-506 518-633
TW5 TW7 TWD TWE
RATED LOCKED RATED LOCKED RATED LOCKED RATED LOCKED
MODEL LOAD ROTOR LOAD ROTOR LOAD ROTOR LOAD ROTOR
AMPS AMPS AMPS AMPS AMPS AMPS AMPS AMPS
RLA LRA RLA LRA RLA LRA RLA LRA

ZR160KC/KCE 53.6 300 28.6 139 24.3 150 20.7 109

ZR190KC/KCE 58.6 340 35.7 196 28.6 173 23.6 132

“STANDARD” BILLS OF MATERIAL

SIGHT OIL SCHRADER MTG INTERNAL 24V 120/240V TANDEM-
MODEL NAME BOM # STUB ROTALOCK GROUNDING
GLASS EQUALIZATION VALVE PARTS* PROTECTOR MODULE MODULE READY
422 X X X X X X
425 X X X X X X X X
501 X X X
ZR84 TO
522 X X X X
ZR144
523 X X X X
550 X X X X X X
551 X X X X X X
422 X X X X X X
425 X X X X X X X X
ZR160 TO 522 X X X X
ZR190-TF* 523 X X X X
550 X X X X X X
551 X X X X X X
425 X X X X X X X X
426 X X X X X X X X
465 X X X X X X X
ZR160 TO 466 X X X X X X X
ZR190-TW* 550 X X X X X X
551 X X X X X X
561 X X X X X X
568 X X X X X X

* BOM 4XX has hard mounting parts and BOM 5XX has soft mounting parts.
Notes: 1. These bills are consistent with models ZR84 to ZR190.
2. All fusites include T-blocks with screws inserted.
3. Other accessory parts need to be ordered separately.
13
Copeland ®
brand products ZR COMMERCIAL COPELAND SCROLL® COMPRESSORS

BILL OF MATERIAL PROVISIONS ACCESSORY INFORMATION

Please refer to the bills of material shown on the Crankcase Heater - 120 volts - 90 watts 018-0067-00
previous page to view our standard offering of Crankcase Heater - 240 volts - 90 watts 018-0067-01
compressor selections.
Crankcase Heater - 480 volts - 90 watts 018-0067-02
In addition to the marked features, each compressor will
include the following: Crankcase Heater - 575 volts - 90 watts 018-0067-03

• Terminal box and cover complete with wiring Discharge Line Thermostat Kit 998-0071-03
diagram. (non-conduit)

• Four Foot Mounting Pattern. Three Phase Voltage Monitor 085-0160-00

7-1/2 x 7-1/2 inches
(190.5 x 190.5 mm)
• MountingKit (527-0116-00) for ZR84KC/KCE-
ZR144KC/KCE
• MountingKit (527-0210-00) for ZR160KC/KCE-
ZR190KC/KCE
• Internal Line Break or Solid State Protector.
• Advanced Scroll Temperature Protection.
• Terminal Connector Block with Screws.
• Grounding is located in the terminal box.
• 3GS oil for R22, POE (Polyol Ester Oil
w / additives) for R407C and R134a.
• Initial oil charge
ZR84KC / KCE 85 ounces (2.51 liters)
ZR94KC / KCE 85 ounces (2.51 liters)
ZR108KC / KCE 110 ounces (3.25 liters)
ZR125KC / KCE 110 ounces (3.25 liters)
ZR144KC / KCE 110 ounces (3.25 liters)
ZR160KC / KCE 110 ounces (3.25 liters)
ZR190KC / KCE 110 ounces (3.25 liters)
• Refill oil charge
ZR84KC / KCE 81 ounces (2.40 liters)
ZR94KC / KCE 81 ounces (2.40 liters)
ZR108KC / KCE 106 ounces (3.13 liters)
ZR125KC / KCE 106 ounces (3.13 liters)
ZR144KC / KCE 106 ounces (3.13 liters)
ZR160KC / KCE 106 ounces (3.13 liters)
ZR190KC / KCE 106 ounces (3.13 liters)
See outline drawings on pages 16 and 19 for stub tube
and rotalock connection sizes.

14
Copeland ®
brand products ZR COMMERCIAL COPELAND SCROLL® COMPRESSORS

ROTALOCK SERVICE VALVES

For your ZR rotalock connection compressor, please order the Valve Kits
valves separately by choosing them from the tables below. The kits listed in Table B below, include rotalock suction and
discharge service valves and seals for all the ZR84 to ZR144
Valve Style
models. Use of these with your ZR rotalock connection
Table A illustrates the style for each valve listed in Tables B and compressors will simplify your order and inventory process.
C. The drawings in this table will show gauge port quantity and
location. The gauge ports are 1/4 inch flare fittings and include Special Valves
brass caps. Special valves and seals should be selected from Table C
below to fit the rotalock connections supplied on the ZR
compressor. A suggestion is to select valves having the same
line sizes as the connections supplied on compressors with
stub tubes. Be sure to match rotalock connection sizes.

TABLE A
STYLE 1 STYLE 2 STYLE 3

TABLE B
ROTALOCK CONNECTION
SUCTION VALVE DISCHARGE VALVE SIZE IN INCHES
AND SEAL PART NUMBER SUGGESTED
KIT PART NUMBER
TYPE TYPE USAGE
SIZE IN SIZE IN
AND VALVE STYLE AND VALVE STYLE SUCTION DISCHARGE
INCHES INCHES
PART NUMBER PART NUMBER

998-5100-57 11/8 Solder Solder ZR84

510-0330-04 3 /
7 8
510-0080-08 2 ZR94
13/4-12 11/4-12
020-0028-03 020-0028-02
Solder Solder ZR108, ZR125, ZR-
998-5100-49 13/8 510-0330-03 3 /
7 8
510-0080-08 2 144, ZR160, ZR190

TABLE C
ROTALOCK CONNECTION VALVE KIT * VALVE SEAL PART NUMBER
SIZE IN INCHES TYPE STYLE
SIZE IN INCHES PART NUMBER PART NUMBER (ONE PER VALVE REQUIRED)
998-0510-93 510-0105-05 /
5 8 Solder 3
998-5200-51 510-0080-09 /
3 4 Solder 2
11/4-12 998-5100-60 510-0080-08 7/8 Solder 2
Discharge 998-0510-94 510-0105-04 7/8 Solder 3 020-0028-02
998-0510-90 510-0133-11 7/8 Solder 1
998-5200-52 510-0080-10 11/8 Solder 2
998-0510-99 510-0133-12 11/8 Solder 1
998-0510-37 510-0330-05 7/8 Solder 3
1 /4-12
3
998-0510-02 510-0330-04 11/8 Solder 3 020-0028-03
Suction 998-0510-46 510-0330-03 13/8 Solder 3
* NOTE: Valve kit includes the valve and its corresponding seal.

15
Copeland ®
brand products ZR COMMERCIAL COPELAND SCROLL® COMPRESSORS

NOTES: INTERNAL FREE VOLUME

1. NOMINAL DIMENSIONS ARE SHOWN.
ALL TOLERANCES ARE ± 1.50 [0.060]
DIMENSIONAL MODEL NUMBER CM 3 [IN.3 ] EXCLUDING
OIL CHARGE
UNLESS OTHERWISE SPECIFIED. INFORMATION ZR84 10471 [639]
2. DUE TO THE ACCUMULATED ASSEMBLY
ZR94 10471 [639]
TOLERANCES, THE SUCTION AND 95.2 [3.75]
DISCHARGE FITTINGS VARY FROM THE 47.6
MOUNTING HOLES BY ± 3.0 [0.12]. [1.87]
3. STUB TUBE AND ROTALOCK FITTINGS
]
ARE SHOWN. BILLS OF MATERIAL .687 LE
.45 [0 IN CIRC
PAGE 13 SHOWS B / M NUMBERS Ø 17 P
FOR EACH TYPE OF FITTING. L1

[1.89]
47.9
4. OIL EQUALIZATION FITTING INCLUDED ON
TANDEM-READY BILLS OF MATERIAL ONLY.

121.2 [4.77]
5. LINEAR MEASUREMENTS IN [ ] ARE
L2
INCH CONVERSIONS.
THIRD ANGLE PROJECTION

STANDARD TERMINAL
BOX LAYOUT
242.5 [9.55] 121.3 242.5 [9.55]
121.3 Maximum
[4.77] Maximum [4.77]

190.5 [7.50] 190.5 [7.50]

190.5
[7.50]
95.3 [3.75]
190.5
[7.50]

95.3 [3.75] 4X Ø 19.00 - 19.50

242.5 [9.55] [Ø 0.748 - 0.768]
Maximum
242.5 [9.55]
Maximum

[3.75]
95.3
[3.75]
95.3

157.8 [6.21]
157.8 [6.21]

163.8 [6.45]

159.3 [6.27]
121.3
[4.77]

124.6
[4.91]
121.3
[4.77]

132.8
[5.23]

30 40
30 40
76.6 142.3 71.9 142.3
[3.02] [5.60] [2.83] [5.60]

[1.25 - 12] THREAD

ROTALOCK SPUD
DISCHARGE
Ø 22.30 - 22.42
CHECK VALVE
[0.878 - 0.883] I.D.
TORQUE RANGE
20.0 [0.787] MIN. COPPER
27.1 - 40.6
DISCHARGE FITTING/
NEWTON-METERS
STEEL CHECK VALVE
STEEL CHECK VALVE
[240-360 in-lbs]
Ø 28.49 - 28.67
476.3 [18.75]
476.3 [18.75]

[1.75 - 12] THREAD

444.3 [17.49]
444.3 [17.49]

[1.122 - 1.129] I.D.

ROTALOCK SPUD
22.6 [0.890] MIN.
SUCTION FITTING
0.06 [0.002] MIN.
TORQUE RANGE
232.2 THICK EXTERIOR 232.2
93.6 [3.69]
93.6 [3.69]

[9.14] 40.6 - 54.2

[9.14] AND 0.038 [0.0015]
NEWTON-METERS
MIN. THICK
201.5 [7.93]
201.5 [7.93]

[360-480 in-lbs]
INTERIOR COPPER
PLATED STEEL
67.6 [2.66]

SUCTION FITTING

SEE NOTE 4
Available
USE THIS SURFACE Optional
FOR OVERALL FITTING Fittings
AND TERMINAL
BOX HEIGHTS

FOR THE INTERNATIONAL MARKET

[0.75]

[0.50]
19.1

12.7

ZR84 and ZR94

HEAT PUMP AND
AIR CONDITIONING MODELS

16
Copeland ®
brand products ZR COMMERCIAL COPELAND SCROLL® COMPRESSORS

NOTES: INTERNAL FREE VOLUME

1. NOMINAL DIMENSIONS ARE SHOWN.
ALL TOLERANCES ARE ± 1.50 [0.060]
DIMENSIONAL MODEL NUMBER CM 3 [IN.3 ] EXCLUDING
OIL CHARGE
UNLESS OTHERWISE SPECIFIED. INFORMATION ZR108 13257 [809]
2. DUE TO THE ACCUMULATED ASSEMBLY
ZR125 13257 [809]
TOLERANCES, THE SUCTION AND
DISCHARGE FITTINGS VARY FROM THE 95.2 [3.75] ZR144 13257 [809]
MOUNTING HOLES BY ± 3.0 [0.12].
47.6
3. STUB TUBE AND ROTALOCK FITTINGS [1.87]
ARE SHOWN. BILLS OF MATERIAL
]
PAGE 13 SHOWS B / M NUMBERS .687 LE
FOR EACH TYPE OF FITTING. .45 [0 IN CIRC
Ø 17 P
4. OIL EQUALIZATION FITTING INCLUDED ON L1

[1.89]
47.9
TANDEM-READY BILLS OF MATERIAL ONLY.
5. LINEAR MEASUREMENTS IN [ ] ARE

121.2 [4.77]
INCH CONVERSIONS.
L2
THIRD ANGLE PROJECTION

STANDARD TERMINAL
BOX LAYOUT 121.3 242.5 [9.55]
121.3 242.5 [9.55]
[4.77] Maximum
[4.77] Maximum
190.5 [7.50]
190.5 [7.50]

190.5
[7.50]
95.3 [3.75]
95.3 [3.75] 4X Ø 19.00 - 19.50
4X Ø 19.00 - 19.50 [Ø 0.748 - 0.768]
[Ø 0.748 - 0.768]
190.5
[7.50]

242.5 [9.55]
Maximum
242.5 [9.55]
Maximum

[3.75]
95.3
[3.75]
95.3

157.8 [6.21]
157.8 [6.21]

159.3 [6.27]
163.8 [6.45]

121.3
[4.77]

124.6
[4.91]
121.3
[4.77]

133.0
[5.24]

30 40
30 40
71.9 142.3
76.8 142.3 [2.83] [5.60]
[3.02] [5.60]

[1.25 - 12] THREAD

ROTALOCK SPUD
Ø 22.30 - 22.42 DISCHARGE
[0.878 - 0.883] I.D. CHECK VALVE
20.0 [0.787] MIN. COPPER TORQUE RANGE
DISCHARGE FITTING/ 27.1 - 40.6
STEEL CHECK VALVE NEWTON-METERS
STEEL CHECK VALVE
[240-360 in-lbs]
Ø 34.84 - 35.02
533.2 [20.99]

533.2 [20.99]
501.2 [19.73]

[1.372 - 1.379] I.D. [1.75 - 12] THREAD

501.2 [19.73]

22.6 [0.890] MIN. ROTALOCK SPUD

0.06 [0.002] MIN. SUCTION FITTING
THICK EXTERIOR TORQUE RANGE
122.1 [4.81]

232.2
122.1 [4.81]

232.2
[9.14] AND 0.038 [0.0015] [9.14] 40.6 - 54.2
MIN. THICK NEWTON-METERS
242.8 [9.56]

242.8 [9.56]

INTERIOR COPPER [360-480 in-lbs]

PLATED STEEL
82.1 [3.23]

SUCTION FITTING

SEE NOTE 4
Available
USE THIS SURFACE
FOR OVERALL FITTING Optional
AND TERMINAL Fittings
BOX HEIGHTS

FOR THE INTERNATIONAL MARKET

[0.75]

[0.50]
19.1

12.7

ZR108 TO ZR144
HEAT PUMP AND
AIR CONDITIONING MODELS

17
Copeland ®
brand products ZR COMMERCIAL COPELAND SCROLL® COMPRESSORS

NOTES: INTERNAL FREE VOLUME

1. NOMINAL DIMENSIONS ARE SHOWN.
ALL TOLERANCES ARE ± 1.50 [0.060]
DIMENSIONAL MODEL NUMBER CM 3 [IN.3 ] EXCLUDING
OIL CHARGE
UNLESS OTHERWISE SPECIFIED. INFORMATION ZR160KC/KCE-TF7/D 14026 [856]
2. DUE TO THE ACCUMULATED ASSEMBLY
ZR190KC/KCE-TFD 14026 [856]
TOLERANCES, THE SUCTION AND
DISCHARGE FITTINGS VARY FROM THE
MOUNTING HOLES BY ± 3.0 [0.12].
3. STUB TUBE AND ROTALOCK FITTINGS 95.0
ARE SHOWN. BILLS OF MATERIAL [3.74]
PAGE 13 SHOWS B / M NUMBERS 47.49
[1.870] 17.45 [0.687]
FOR EACH TYPE OF FITTING.
PIN CIRCLE
4. OIL EQUALIZATION FITTING INCLUDED ON
TANDEM-READY BILLS OF MATERIAL ONLY.
5. LINEAR MEASUREMENTS IN [ ] ARE
INCH CONVERSIONS.

[1.89]
47.9
THIRD ANGLE PROJECTION

[4.77]
121.2

STANDARD TERMINAL BOX LAYOUT

242.5 MAX 242.5 MAX
121.3 [9.55] SECTION A-A 121.3 [9.55]
[4.77] 190.5 [4.77] 190.5
4X 19.00-19.50 4X 19.00-19.50
95.3 [7.50] 95.3 [7.50] [ 0.748-0.768]
[ 0.748-0.768]
[3.75] [3.75]
242.5 MAX
242.5 MAX

[7.50]
190.5
[9.55]
[7.50]
190.5
[9.55]

[3.75]
[5.24]
133.0

95.3
[3.75]
[5.24]
133.0

95.3

[6.21]
157.8

[6.27]
159.3
[6.45]
163.8
[6.21]
157.8

[4.77]
121.3
[4.77]
121.3

(40°) (40°)
(30°) 76.8 (30°) 142.3
76.8 142.3
[3.02] [5.60] [3.02] [5.60]

[1.25-12] THREAD
22.30-22.42 [0.878-0.883] ID ROTALOCK SPUD
20.0 [0.787] MIN COPPER DISCHARGE CHECK VALVE
DISCHARGE FITTING/ TORQUE RANGE 100-110
STEEL CHECK VALVE NEWTON-METERS
[885-975 IN-LBS]
34.84-35.02 [1.372-1.379] ID [1.75-12] THREAD
22.6 [0.890] MIN ROTALOCK SPUD
0.06 [0.002] MIN THICK EXTERIOR SUCTION FITTING
AND 0.038 [0.0015] MIN THICK TORQUE RANGE 170-180
INTERIOR COPPER PLATED NEWTON-METERS
STEEL SUCTION FITTING [1500-1590 IN-LBS]
[21.71]
551.5

[21.72]
551.6
[20.46]

[20.46]
519.6

519.6

[10.28]
261.2
[10.28]
261.2
[5.53]
140.5

[5.53]
140.5

FOOT FOOT
SEE DETAIL SEE DETAIL
[10.28]

[20.46]

[21.72]
261.2

519.6

551.6
[1.31]
33.3

0.50]
12.7

FOR THE INTERNATIONAL MARKET

ZR160KC/KCE-TF7/D
ZR190KC/KCE-TFD
HEAT PUMP AND
AIR CONDITIONING MODELS

18
Copeland ®
brand products ZR COMMERCIAL COPELAND SCROLL® COMPRESSORS

NOTES: INTERNAL FREE VOLUME

1. NOMINAL DIMENSIONS ARE SHOWN.
ALL TOLERANCES ARE ± 1.50 [0.060]
DIMENSIONAL MODEL NUMBER CM 3 [IN.3 ] EXCLUDING
OIL CHARGE
UNLESS OTHERWISE SPECIFIED. INFORMATION ZR160KC/KCE-TW5/7/D/E 14026 [856]
2. DUE TO THE ACCUMULATED ASSEMBLY
ZR190KC/KCE-TW5/7/D/E 14026 [856]
TOLERANCES, THE SUCTION AND
DISCHARGE FITTINGS VARY FROM THE
MOUNTING HOLES BY ± 3.0 [0.12].
3. STUB TUBE AND ROTALOCK FITTINGS
ARE SHOWN. BILLS OF MATERIAL
PAGE 13 SHOWS B / M NUMBERS
FOR EACH TYPE OF FITTING.
4. OIL EQUALIZATION FITTING INCLUDED ON
TANDEM-READY BILLS OF MATERIAL ONLY.
5. LINEAR MEASUREMENTS IN [ ] ARE
INCH CONVERSIONS.
THIRD ANGLE PROJECTION

242.5 MAX
242.5 MAX
[9.55] [9.55]
121.3 121.3
[4.77] [4.77]
190.5 190.5
[7.50] STANDARD TERMINAL BOX LAYOUT [7.50]
95.3 95.3
[3.75] [3.75]

242.5 MAX

[4.77]
121.3
242.5 MAX

[4.77]
121.3

[9.55]
[9.55]

190.5
[7.50]
[7.50]
190.5

[3.75]
[3.75]

95.3
95.3

[6.8307]
[6.46]
164.0

[6.8307]
173.5

164.0
[6.46]
173.5
[5.24]
133.0
[5.24]
133.0

(30°) (40°) (30°) (40°)

76.8 204.7 76.8 204.7
[3.02] [8.06] [3.02] [8.06]
22.30-22.42 [0.878-0.883] ID [1.25-12] THREAD ROTALOCK SPUD
20.0 [0.787] MIN COPPER DISCHARGE CHECK VALVE
DISCHARGE FITTING/ TORQUE RANGE 27.1-40.6
STEEL CHECK VALVE NEWTON-METERS
[240-360 IN-LBS]

34.84-35.02 [1.372-1.379] ID [1.75-12] THREAD

22.6 [0.890] MIN ROTALOCK SPUD
0.06 [0.002] MIN THICK EXTERIOR SUCTION FITTING
[20.45]
519.5

AND 0.038 [0.0015] MIN THICK TORQUE RANGE 40.6-54.2

[21.71]

[20.45]
551.5

519.5

INTERIOR COPPER PLATED NEWTON-METERS

STEEL SUCTION FITTING [360-480 IN-LBS]
[21.71]
551.5
[5.53]
140.5

140.5
[5.53]
[7.17]
182.0

182.0
[7.17]
[3.64]
92.6

[3.64]

FOOT
92.6

FOOT
SEE DETAIL VALVE SEE DETAIL
SEE DETAIL VALVE
SEE DETAIL
[0.50]
12.7
[3.37]
85.5

[1.31]
33.3

FOR THE INTERNATIONAL MARKET

FOOT
DETAIL ZR160KC/KCE-TW5/7/D/E
ZR190KC/KCE-TW5/7/D/E
VALVE HEAT PUMP AND
DETAIL AIR CONDITIONING MODELS

19
Copeland ®
brand products ZR COMMERCIAL COPELAND SCROLL® COMPRESSORS

COMPRESSOR WIRING DIAGRAMS

THREE PHASE MOTOR

1
T1
TO CONTACTOR
CONNECT

2 3

T3
EXTERNAL MOTOR INTERNAL MOTOR
WIRING DIAGRAM WIRING DIAGRAM

ZR84 TO ZR190KC/KCE-TF*

USE COPPER CONDUCTORS ONLY.

USE THIS EQUIPMENT ON A GROUNDED SYSTEM ONLY.
USE MINIMUM 75° C WIRE FOR AMPACITY DETERMINATION.
INTERNAL MOTOR PROTECTION – ALLOW TIME FOR RESET.
PRIMARY SINGLE PHASE FAILURE PROTECTION IS PROVIDED.
CRANKCASE HEATER, WHEN APPLIED, MUST BE CONNECTED ONLY TO ITS RATED VOLTAGE.
OVERCURRENT PROTECTION DEVICE RATING AND TYPE MUST BE IN ACCORDANCE WITH
REGULATORY AGENCY END PRODUCT APPROVALS – SEE SYSTEM NAMEPLATE.
TO CORRECT IMPROPER MOTOR ROTATION, SWITCH ANY TWO SUPPLY LINES.

20
Copeland ®
brand products ZR COMMERCIAL COPELAND SCROLL® COMPRESSORS

COMPRESSOR WIRING DIAGRAMS

THREE PHASE MOTOR

INTERNAL L1 L2
THERMAL
SENSORS MOTOR WINDING
CONNECTIONS

T2 T1 S2 S1 M2 M1

1 2
L1 L3 L2

ZR160 TO ZR190KC/KCE-TW*

USE COPPER CONDUCTORS ONLY.

21
Copeland ®
brand products ZR COMMERCIAL COPELAND SCROLL® COMPRESSORS

50 HERTZ PERFORMANCE DATA R22

20° F (11.1° C) Superheat 15° F (8.3° C) Subcooling 95° F (35° C) Ambient (Air Over)

200/220-3-50 (TF5) 220-3-50 (TF5)

Rated Voltage Test Voltage
380/420-3-50 (TFD) 380-3-50 (TFD)

ZR84KC-TF5 / TFD R22

CAPACITY (BTU / HOUR)
CONDENSING TEMPERATURE EVAPORATING TEMPERATURE °F / °C
– 10 0 10 20 30 40 45 50 55
°F / °C – 23.3 – 17.8 – 12.2 – 6.7 – 1.1 4.4 7.2 10.0 12.8
100 (37.8) 21200 29900 39400 49900 62000 75500 83000 91000 99500
120 (48.9) 32400 43200 55000 68000 75000 82500 90500
140 (60.0) 46000 59000 66000 73000 81000

CAPACITY (KCAL / HOUR)

– 10 0 10 20 30 40 45 50 55
°F / °C – 23.3 – 17.8 – 12.2 – 6.7 – 1.1 4.4 7.2 10.0 12.8
100 (37.8) 5340 7530 9930 12600 15600 19000 20900 22900 25100
120 (48.9) 8160 10900 13900 17100 18900 20800 22800
140 (60.0) 11600 14900 16600 18400 20400

CAPACITY (WATTS)
– 10 0 10 20 30 40 45 50 55
°F / °C – 23.3 – 17.8 – 12.2 – 6.7 – 1.1 4.4 7.2 10.0 12.8
100 (37.8) 6210 8760 11500 14600 18200 22100 24300 26700 29200
120 (48.9) 9490 12700 16100 19900 22000 24200 26500
140 (60.0) 13500 17300 19300 21400 23700

POWER (MOTOR WATTS)

– 10 0 10 20 30 40 45 50 55
°F / °C – 23.3 – 17.8 – 12.2 – 6.7 – 1.1 4.4 7.2 10.0 12.8
100 (37.8) 4140 4130 4120 4130 4150 4180 4210 4240 4280
120 (48.9) 5400 5350 5350 5300 5350 5350 5350
140 (60.0) 6950 6850 6850 6800 6800

ZR94KC-TF5 / TFD R22

CAPACITY (BTU / HOUR)
CONDENSING TEMPERATURE EVAPORATING TEMPERATURE °F / °C
– 10 0 10 20 30 40 45 50 55
°F / °C – 23.3 – 17.8 – 12.2 – 6.7 – 1.1 4.4 7.2 10.0 12.8
100 (37.8) 23300 33000 43800 56000 69500 85500 94000 104000 113000
120 (48.9) 36900 48600 62000 76500 85000 93500 103000
140 (60.0) 52000 66000 73500 82000 90500

CAPACITY (KCAL / HOUR)

– 10 0 10 20 30 40 45 50 55
°F / °C – 23.3 – 17.8 – 12.2 – 6.7 – 1.1 4.4 7.2 10.0 12.8
100 (37.8) 5870 8320 11000 14100 17500 21500 23700 26200 28500
120 (48.9) 9300 12200 15600 19300 21400 23600 26000
140 (60.0) 13100 16600 18500 20700 22800
CAPACITY (WATTS)
– 10 0 10 20 30 40 45 50 55
°F / °C – 23.3 – 17.8 – 12.2 – 6.7 – 1.1 4.4 7.2 10.0 12.8
100 (37.8) 6830 9670 12800 16400 20400 25100 27500 30500 33100
120 (48.9) 10800 14200 18200 22400 24900 27400 30200
140 (60.0) 15200 19300 21500 24000 26500

POWER (MOTOR WATTS)

– 10 0 10 20 30 40 45 50 55
°F / °C – 23.3 – 17.8 – 12.2 – 6.7 – 1.1 4.4 7.2 10.0 12.8
100 (37.8) 4580 4620 4640 4650 4670 4730 4780 4840 4920
120 (48.9) 6000 5950 5950 5950 6000 6050 6100
140 (60.0) 7650 7650 7650 7650 7650
Production compressors to meet above nominal performance values within ± 5%.

22
Copeland ®
brand products ZR COMMERCIAL COPELAND SCROLL® COMPRESSORS

50 HERTZ PERFORMANCE DATA R22

20° F (11.1° C) Superheat 15° F (8.3° C) Subcooling 95° F (35° C) Ambient (Air Over)

200/220-3-50 (TF5) 220-3-50 (TF5)

Rated Voltage Test Voltage
380/420-3-50 (TFD) 380-3-50 (TFD)

ZR108KC-TF5 / TFD R22

CAPACITY (BTU / HOUR)
CONDENSING TEMPERATURE EVAPORATING TEMPERATURE °F / °C
– 10 0 10 20 30 40 45 50 55
°F / °C – 23.3 – 17.8 – 12.2 – 6.7 – 1.1 4.4 7.2 10.0 12.8
100 (37.8) 30900 40300 51500 64500 79000 96500 106000 116000 127000
120 (48.9) 45300 57500 71000 87000 95500 105000 115000
140 (60.0) 61500 76500 84500 93000 102000

CAPACITY (KCAL / HOUR)

– 10 0 10 20 30 40 45 50 55
°F / °C – 23.3 – 17.8 – 12.2 – 6.7 – 1.1 4.4 7.2 10.0 12.8
100 (37.8) 7790 10200 13000 16300 19900 24300 26700 29200 32000
120 (48.9) 11400 14500 17900 21900 24100 26500 29000
140 (60.0) 15500 19300 21300 23400 25700

CAPACITY (WATTS)
– 10 0 10 20 30 40 45 50 55
°F / °C – 23.3 – 17.8 – 12.2 – 6.7 – 1.1 4.4 7.2 10.0 12.8
100 (37.8) 9050 11800 15100 18900 23100 28300 31100 34000 37200
120 (48.9) 13300 16800 20800 25500 28000 30800 33700
140 (60.0) 18000 22400 24800 27200 29900

POWER (MOTOR WATTS)

– 10 0 10 20 30 40 45 50 55
°F / °C – 23.3 – 17.8 – 12.2 – 6.7 – 1.1 4.4 7.2 10.0 12.8
100 (37.8) 4900 5000 5100 5150 5200 5300 5350 5450 5550
120 (48.9) 6550 6550 6600 6650 6700 6750 6800
140 (60.0) 8550 8500 8500 8550 8550

ZR125KC-TF5 / TFD R22

CAPACITY (BTU / HOUR)
CONDENSING TEMPERATURE EVAPORATING TEMPERATURE °F / °C
– 10 0 10 20 30 40 45 50 55
°F / °C – 23.3 – 17.8 – 12.2 – 6.7 – 1.1 4.4 7.2 10.0 12.8
100 (37.8) 37200 47600 60500 75500 93000 113000 124000 135000 147000
120 (48.9) 53500 67500 83500 102000 112000 123000 134000
140 (60.0) 72500 89500 99000 109000 120000

CAPACITY (KCAL / HOUR)

– 10 0 10 20 30 40 45 50 55
°F / °C – 23.3 – 17.8 – 12.2 – 6.7 – 1.1 4.4 7.2 10.0 12.8
100 (37.8) 9370 12000 15200 19000 23400 28500 31200 34000 37000
120 (48.9) 13500 17000 21000 25700 28200 31000 33800
140 (60.0) 18300 22600 24900 27500 30200
CAPACITY (WATTS)
– 10 0 10 20 30 40 45 50 55
°F / °C – 23.3 – 17.8 – 12.2 – 6.7 – 1.1 4.4 7.2 10.0 12.8
100 (37.8) 10900 13900 17700 22100 27200 33100 36300 39600 43100
120 (48.9) 15700 19800 24500 29900 32800 36000 39300
140 (60.0) 21200 26200 29000 31900 35200

POWER (MOTOR WATTS)

– 10 0 10 20 30 40 45 50 55
°F / °C – 23.3 – 17.8 – 12.2 – 6.7 – 1.1 4.4 7.2 10.0 12.8
100 (37.8) 5700 5850 5950 6050 6100 6200 6300 6350 6450
120 (48.9) 7700 7800 7850 7900 7950 8000 8050
140 (60.0) 10200 10200 10200 10200 10300
Production compressors to meet above nominal performance values within ± 5%.

23
Copeland ®
brand products ZR COMMERCIAL COPELAND SCROLL® COMPRESSORS

50 HERTZ PERFORMANCE DATA R22

20° F (11.1° C) Superheat 15° F (8.3° C) Subcooling 95° F (35° C) Ambient (Air Over)

200/220-3-50 (TF5/TW5) 220-3-50 (TF5/TW5)

Rated Voltage Test Voltage
380/420-3-50 (TFD/TWD) 380-3-50 (TFD/TWD)

ZR144KC-TF5 / TFD R22

CAPACITY (BTU / HOUR)
CONDENSING TEMPERATURE EVAPORATING TEMPERATURE °F / °C
°F / °C – 10 0 10 20 30 40 45 50 55
– 23.3 – 17.8 – 12.2 – 6.7 – 1.1 4.4 7.2 10.0 12.8
100 (37.8) 42600 54500 69500 87000 107000 130000 142000 155000 168000
120 (48.9) 60500 76500 95000 117000 128000 140000 153000
140 (60.0) 81000 101000 111000 123000 135000
CAPACITY (KCAL / HOUR)
– 10 0 10 20 30 40 45 50 55
°F / °C – 23.3 – 17.8 – 12.2 – 6.7 – 1.1 4.4 7.2 10.0 12.8
100 (37.8) 10700 13700 17500 21900 27000 32800 35800 39100 42300
120 (48.9) 15200 19300 23900 29500 32300 35300 38600
140 (60.0) 20400 25500 28000 31000 34000

CAPACITY (WATTS)
– 10 0 10 20 30 40 45 50 55
°F / °C – 23.3 – 17.8 – 12.2 – 6.7 – 1.1 4.4 7.2 10.0 12.8
100 (37.8) 12500 16000 20400 25500 31400 38100 41600 45400 49200
120 (48.9) 17700 22400 27800 34300 37500 41000 44800
140 (60.0) 23700 29600 32500 36000 39600

POWER (MOTOR WATTS)

– 10 0 10 20 30 40 45 50 55
°F / °C – 23.3 – 17.8 – 12.2 – 6.7 – 1.1 4.4 7.2 10.0 12.8
100 (37.8) 6400 6650 6750 6850 6900 7050 7150 7300 7500
120 (48.9) 8700 8800 8850 8900 8950 9050 9150
140 (60.0) 11300 11400 11400 11400 11500

ZR160KC-TW5/TFD/TWD R22
CAPACITY (BTU / HOUR)
CONDENSING TEMPERATURE EVAPORATING TEMPERATURE °F / °C
– 10 0 10 20 30 40 45 50 55
°F / °C – 23.3 – 17.8 – 12.2 – 6.7 – 1.1 4.4 7.2 10.0 12.8
100 (37.8) 35900 54500 73500 94000 116000 141000 154000 169000 184000
120 (48.9) 57500 79000 102000 126000 139000 153000 167000
140 (60.0) 82000 107000 120000 133000 147000

CAPACITY (KCAL / HOUR)

– 10 0 10 20 30 40 45 50 55
°F / °C – 23.3 – 17.8 – 12.2 – 6.7 – 1.1 4.4 7.2 10.0 12.8
100 (37.8) 9000 13700 18500 23700 29200 35500 38800 42600 46400
120 (48.9) 14500 19900 25700 31800 35000 38600 42100
140 (60.0) 20700 27000 30200 33500 37000
CAPACITY (WATTS)
– 10 0 10 20 30 40 45 50 55
°F / °C – 23.3 – 17.8 – 12.2 – 6.7 – 1.1 4.4 7.2 10.0 12.8
100 (37.8) 10500 16000 21500 27500 34000 41300 45100 49500 53900
120 (48.9) 16800 23100 29900 36900 40700 44800 48900
140 (60.0) 24000 31400 35200 39000 43100

POWER (MOTOR WATTS)

– 10 0 10 20 30 40 45 50 55
°F / °C – 23.3 – 17.8 – 12.2 – 6.7 – 1.1 4.4 7.2 10.0 12.8
100 (37.8) 7600 7550 7600 7750 7900 8050 8050 8000 7950
120 (48.9) 9800 9800 9850 10000 10100 10100 10200
140 (60.0) 12800 12700 12700 12700 12800
Production compressors to meet above nominal performance values within ± 5%.

24
Copeland ®
brand products ZR COMMERCIAL COPELAND SCROLL® COMPRESSORS

50 HERTZ PERFORMANCE DATA R22/R407C

20° F (11.1° C) Superheat 15° F (8.3° C) Subcooling 95° F (35° C) Ambient (Air Over)

200/220-3-50 (TF5/TW5) 220-3-50 (TF5/TW5)

Rated Voltage Test Voltage
380/420-3-50 (TFD/TWD) 380-3-50 (TFD/TWD)

ZR190KC-TW5/TFD/TWD R22
CAPACITY (BTU / HOUR)
CONDENSING TEMPERATURE EVAPORATING TEMPERATURE °F / °C
– 10 0 10 20 30 40 45 50 55
°F / °C – 23.3 – 17.8 – 12.2 – 6.7 – 1.1 4.4 7.2 10.0 12.8
100 (37.8) 45200 65500 87000 111000 137000 167000 184000 202000 221000
120 (48.9) 71000 94500 121000 150000 165000 182000 200000
140 (60.0) 99000 127000 142000 158000 175000

CAPACITY (KCAL / HOUR)

– 10 0 10 20 30 40 45 50 55
°F / °C – 23.3 – 17.8 – 12.2 – 6.7 – 1.1 4.4 7.2 10.0 12.8
100 (37.8) 11400 16500 21900 28000 34500 42100 46400 50900 55700
120 (48.9) 17900 23800 30500 37800 41600 45900 50400
140 (60.0) 24900 32000 35800 39800 44100

CAPACITY (WATTS)
– 10 0 10 20 30 40 45 50 55
°F / °C – 23.3 – 17.8 – 12.2 – 6.7 – 1.1 4.4 7.2 10.0 12.8
100 (37.8) 13200 19200 25500 32500 40100 48900 53900 59200 64800
120 (48.9) 20800 27700 35500 44000 48300 53300 58600
140 (60.0) 29000 37200 41600 46300 51300

POWER (MOTOR WATTS)

– 10 0 10 20 30 40 45 50 55
°F / °C – 23.3 – 17.8 – 12.2 – 6.7 – 1.1 4.4 7.2 10.0 12.8
100 (37.8) -10 0 10 20 9550 9700 9750 9850 9900
120 (48.9) 9000 9150 9250 9400 12000 12100 12100 12200 12200
140 (60.0) 11800 11900 15200 15300 15300 15300 15300

ZR84KCE-TF5 / TFD R407C

CAPACITY (BTU / HOUR)
CONDENSING TEMPERATURE EVAPORATING TEMPERATURE °F / °C
– 10 0 10 20 30 40 45 50 55
°F / °C – 23.3 – 17.8 – 12.2 – 6.7 – 1.1 4.4 7.2 10.0 12.8
100 (37.8) 20600 28100 36800 46800 58500 71500 79000 87000 95500
120 (48.9) 27800 39900 52000 64500 70500 77000 83500
140 (60.0) 41000 56000 63000 69500 76000

CAPACITY (KCAL / HOUR)

– 10 0 10 20 30 40 45 50 55

C
°F / °C – 23.3 – 17.8 – 12.2 – 6.7 – 1.1 4.4 7.2 10.0 12.8

7
100 (37.8) 5190 7080 9270 11800 14700 18000 19900 21900 24100
120 (48.9) 7010 10100 13100 16300 17800 19400 21000

40
140 (60.0) 10300 14100 15900 17500 19200
CAPACITY (WATTS)

R
– 10 0 10 20 30 40 45 50 55
°F / °C – 23.3 – 17.8 – 12.2 – 6.7 – 1.1 4.4 7.2 10.0 12.8
100 (37.8) 6040 8230 10800 13700 17100 20900 23100 25500 28000
120 (48.9) 8150 11700 15200 18900 20700 22600 24500
140 (60.0) 12000 16400 18500 20400 22300

POWER (MOTOR WATTS)

– 10 0 10 20 30 40 45 50 55
°F / °C – 23.3 – 17.8 – 12.2 – 6.7 – 1.1 4.4 7.2 10.0 12.8
100 (37.8) 4100 4170 4220 4260 4300 4380 4430 4500 4580
120 (48.9) 5650 5450 5400 5450 5550 5700 5900
140 (60.0) 7100 6850 6800 6850 7000
Production compressors to meet above nominal performance values within ± 5%.

25
Copeland ®
brand products ZR COMMERCIAL COPELAND SCROLL® COMPRESSORS

50 HERTZ PERFORMANCE DATA R407C

20° F (11.1° C) Superheat 15° F (8.3° C) Subcooling 95° F (35° C) Ambient (Air Over)

200/220-3-50 (TF5) 220-3-50 (TF5)

Rated Voltage Test Voltage
380/420-3-50 (TFD) 380-3-50 (TFD)

ZR94KCE-TF5 / TFD R407C

CAPACITY (BTU / HOUR)
CONDENSING TEMPERATURE EVAPORATING TEMPERATURE °F / °C
– 10 0 10 20 30 40 45 50 55
°F / °C – 23.3 – 17.8 – 12.2 – 6.7 – 1.1 4.4 7.2 10.0 12.8
100 (37.8) 22300 31100 41300 53000 66500 82500 91000 101000 111000
120 (48.9) 34400 45500 58000 73000 81000 90000 99500
140 (60.0) 47800 61500 69000 77000 85500

CAPACITY (KCAL / HOUR)

– 10 0 10 20 30 40 45 50 55

C
°F / °C – 23.3 – 17.8 – 12.2 – 6.7 – 1.1 4.4 7.2 10.0 12.8

7
100 (37.8) 5620 7840 10400 13400 16800 20800 22900 25500 28000
120 (48.9) 8670 11500 14600 18400 20400 22700 25100

40
140 (60.0) 12000 15500 17400 19400 21500

CAPACITY (WATTS)

R
– 10 0 10 20 30 40 45 50 55
°F / °C – 23.3 – 17.8 – 12.2 – 6.7 – 1.1 4.4 7.2 10.0 12.8
100 (37.8) 6530 9110 12100 15500 19500 24200 26700 29600 32500
120 (48.9) 10100 13300 17000 21400 23700 26400 29200
140 (60.0) 14000 18000 20200 22600 25100

POWER (MOTOR WATTS)

– 10 0 10 20 30 40 45 50 55
°F / °C – 23.3 – 17.8 – 12.2 – 6.7 – 1.1 4.4 7.2 10.0 12.8
100 (37.8) 4640 4710 4740 4750 4760 4790 4820 4860 4920
120 (48.9) 6000 6050 6050 6050 6050 6100 6150
140 (60.0) 7750 7750 7750 7750 7800

ZR108KCE-TF5 / TFD R407C

CAPACITY (BTU / HOUR)
CONDENSING TEMPERATURE EVAPORATING TEMPERATURE °F / °C
– 10 0 10 20 30 40 45 50 55
°F / °C – 23.3 – 17.8 – 12.2 – 6.7 – 1.1 4.4 7.2 10.0 12.8
100 (37.8) 27200 36600 47100 59500 74000 92000 102000 113000 125000
120 (48.9) 40900 52500 65500 81500 90500 100000 111000
140 (60.0) 56000 70000 78000 86500 96000

CAPACITY (KCAL / HOUR)

– 10 0 10 20 30 40 45 50 55

C
°F / °C – 23.3 – 17.8 – 12.2 – 6.7 – 1.1 4.4 7.2 10.0 12.8

7
100 (37.8) 6850 9220 11900 15000 18600 23200 25700 28500 31500
120 (48.9) 10300 13200 16500 20500 22800 25200 28000

40
140 (60.0) 14100 17600 19700 21800 24200
CAPACITY (WATTS)

R
– 10 0 10 20 30 40 45 50 55
°F / °C – 23.3 – 17.8 – 12.2 – 6.7 – 1.1 4.4 7.2 10.0 12.8
100 (37.8) 7970 10700 13800 17400 21700 27000 29900 33100 36600
120 (48.9) 12000 15400 19200 23900 26500 29300 32500
140 (60.0) 16400 20500 22900 25300 28100

POWER (MOTOR WATTS)

– 10 0 10 20 30 40 45 50 55
°F / °C – 23.3 – 17.8 – 12.2 – 6.7 – 1.1 4.4 7.2 10.0 12.8
100 (37.8) 5000 5100 5150 5200 5250 5300 5350 5450 5550
120 (48.9) 6600 6650 6650 6700 6700 6750 6850
140 (60.0) 8600 8600 8600 8600 8650
Production compressors to meet above nominal performance values within ± 5%.

26
Copeland ®
brand products ZR COMMERCIAL COPELAND SCROLL® COMPRESSORS

50 HERTZ PERFORMANCE DATA R407C

20° F (11.1° C) Superheat 15° F (8.3° C) Subcooling 95° F (35° C) Ambient (Air Over)

200/220-3-50 (TF5) 220-3-50 (TF5)

Rated Voltage Test Voltage
380/420-3-50 (TFD) 380-3-50 (TFD)

ZR125KCE-TF5 / TFD R407C

CAPACITY (BTU / HOUR)
CONDENSING TEMPERATURE EVAPORATING TEMPERATURE °F / °C
– 10 0 10 20 30 40 45 50 55
°F / °C – 23.3 – 17.8 – 12.2 – 6.7 – 1.1 4.4 7.2 10.0 12.8
100 (37.8) 31000 42400 55000 70000 87500 109000 121000 134000 149000
120 (48.9) 47800 61500 77500 96000 107000 119000 131000
140 (60.0) 66000 82500 92000 102000 114000

CAPACITY (KCAL / HOUR)

– 10 0 10 20 30 40 45 50 55

C
°F / °C – 23.3 – 17.8 – 12.2 – 6.7 – 1.1 4.4 7.2 10.0 12.8

7
100 (37.8) 7810 10700 13900 17600 22100 27500 30500 33800 37500
120 (48.9) 12000 15500 19500 24200 27000 30000 33000

40
140 (60.0) 16600 20800 23200 25700 28700

CAPACITY (WATTS)

R
– 10 0 10 20 30 40 45 50 55
°F / °C – 23.3 – 17.8 – 12.2 – 6.7 – 1.1 4.4 7.2 10.0 12.8
100 (37.8) 9080 12400 16100 20500 25600 31900 35500 39300 43700
120 (48.9) 14000 18000 22700 28100 31400 34900 38400
140 (60.0) 19300 24200 27000 29900 33400

POWER (MOTOR WATTS)

– 10 0 10 20 30 40 45 50 55
°F / °C – 23.3 – 17.8 – 12.2 – 6.7 – 1.1 4.4 7.2 10.0 12.8
100 (37.8) 6000 6100 6150 6200 6250 6350 6400 6450 6550
120 (48.9) 7850 7900 7950 8000 8050 8050 8100
140 (60.0) 10200 10200 10200 10200 10300

ZR144KCE-TF5 / TFD R407C

CAPACITY (BTU / HOUR)
CONDENSING TEMPERATURE EVAPORATING TEMPERATURE °F / °C
– 10 0 10 20 30 40 45 50 55
°F / °C – 23.3 – 17.8 – 12.2 – 6.7 – 1.1 4.4 7.2 10.0 12.8
100 (37.8) 41400 50000 63500 81500 103000 128000 142000 157000 172000
120 (48.9) 56500 71000 89500 110000 122000 134000 147000
140 (60.0) 76500 96000 106000 117000 129000

CAPACITY (KCAL / HOUR)

– 10 0 10 20 30 40 45 50 55

C
°F / °C – 23.3 – 17.8 – 12.2 – 6.7 – 1.1 4.4 7.2 10.0 12.8

7
100 (37.8) 10400 12600 16000 20500 26000 32300 35800 39600 43300
120 (48.9) 14200 17900 22600 27700 30700 33800 37000

40
140 (60.0) 19300 24200 26700 29500 32500
CAPACITY (WATTS)

R
– 10 0 10 20 30 40 45 50 55
°F / °C – 23.3 – 17.8 – 12.2 – 6.7 – 1.1 4.4 7.2 10.0 12.8
100 (37.8) 12100 14700 18600 23900 30200 37500 41600 46000 50400
120 (48.9) 16600 20800 26200 32200 35700 39300 43100
140 (60.0) 22400 28100 31100 34300 37800

POWER (MOTOR WATTS)

– 10 0 10 20 30 40 45 50 55
°F / °C – 23.3 – 17.8 – 12.2 – 6.7 – 1.1 4.4 7.2 10.0 12.8
100 (37.8) 6850 6800 6850 7000 7150 7300 7400 7450 7500
120 (48.9) 8850 8850 8950 9000 9050 9050 9050
140 (60.0) 11500 11600 11600 11600 11600
Production compressors to meet above nominal performance values within ± 5%.

27
Copeland ®
brand products ZR COMMERCIAL COPELAND SCROLL® COMPRESSORS

50 HERTZ PERFORMANCE DATA R407C

20° F (11.1° C) Superheat 15° F (8.3° C) Subcooling 95° F (35° C) Ambient (Air Over)

200/220-3-50 (TF5/TW5) 220-3-50 (TF5/TW5)

Rated Voltage Test Voltage
380/420-3-50 (TFD/TWD) 380-3-50 (TFD/TWD)

ZR160KCE-TW5/TFD/TWD R407C
CAPACITY (BTU / HOUR)
CONDENSING TEMPERATURE EVAPORATING TEMPERATURE °F / °C
– 10 0 10 20 30 40 45 50 55
°F / °C – 23.3 – 17.8 – 12.2 – 6.7 – 1.1 4.4 7.2 10.0 12.8
100 (37.8) 34200 48900 66500 87700 113000 143000 159500 178000 197500
120 (48.9) 53500 72900 96100 123500 139000 156000 174000
140 (60.0) 77600 102500 116500 131500 148000

CAPACITY (KCAL / HOUR)

– 10 0 10 20 30 40 45 50 55
°F / °C

C
– 23.3 – 17.8 – 12.2 – 6.7 – 1.1 4.4 7.2 10.0 12.8

7
100 (37.8) 8600 12300 16800 22100 28500 36000 40200 44900 49800
120 (48.9) 13500 18400 24200 31100 35000 39300 43800

40
140 (60.0) 19600 25800 29400 33100 37300

CAPACITY (WATTS)
– 10 0 10 20 30 40 45 50 55

R
°F / °C – 23.3 – 17.8 – 12.2 – 6.7 – 1.1 4.4 7.2 10.0 12.8
100 (37.8) 10000 14300 19500 25700 33100 41900 46700 52200 57900
120 (48.9) 15700 21400 28200 36200 40700 45700 51000
140 (60.0) 22700 30000 34100 38500 43400

POWER (MOTOR WATTS)

– 10 0 10 20 30 40 45 50 55
°F / °C – 23.3 – 17.8 – 12.2 – 6.7 – 1.1 4.4 7.2 10.0 12.8
100 (37.8) 7490 7580 7660 7730 7810 7900 7950 8010 8080
120 (48.9) 9960 10000 10050 10050 10100 10100 10150
140 (60.0) 13100 13050 13000 13000 13000

ZR190KCE-TW5/TFD/TWD R407C
CAPACITY (BTU / HOUR)
CONDENSING TEMPERATURE EVAPORATING TEMPERATURE °F / °C
°F / °C – 10 0 10 20 30 40 45 50 55
– 23.3 – 17.8 – 12.2 – 6.7 – 1.1 4.4 7.2 10.0 12.8
100 (37.8) 43300 60900 81200 104500 132000 164000 182000 201000 222000
120 (48.9) 67200 89600 115500 145500 162000 180000 199000
140 (60.0) 94400 121500 137000 153500 171000

CAPACITY (KCAL / HOUR)

– 10 0 10 20 30 40 45 50 55
°F / °C

C
– 23.3 – 17.8 – 12.2 – 6.7 – 1.1 4.4 7.2 10.0 12.8
100 (37.8) 10900 15300 20500 26300 33300 41300 45900 50700 55900

7
120 (48.9) 16900 22600 29100 36700 40800 45400 50100

40
140 (60.0) 23800 30600 34500 38700 43100

CAPACITY (WATTS)
– 10 0 10 20 30 40 45 50 55

R
°F / °C – 23.3 – 17.8 – 12.2 – 6.7 – 1.1 4.4 7.2 10.0 12.8
100 (37.8) 12700 17800 23800 30600 38700 48100 53300 58900 65000
120 (48.9) 19700 26300 33800 42600 47500 52700 58300
140 (60.0) 27700 35600 40100 45000 50100

POWER (MOTOR WATTS)

– 10 0 10 20 30 40 45 50 55
°F / °C – 23.3 – 17.8 – 12.2 – 6.7 – 1.1 4.4 7.2 10.0 12.8
100 (37.8) 9020 9160 9230 9280 9350 9480 9570 9700 9860
120 (48.9) 11850 11950 11950 12000 12050 12100 12150
140 (60.0) 15450 15450 15500 15500 15500
Production compressors to meet above nominal performance values within ± 5%.

28
Copeland ®
brand products ZR COMMERCIAL COPELAND SCROLL® COMPRESSORS

50 HERTZ PERFORMANCE DATA R134a

20° F (11.1° C) Superheat 15° F (8.3° C) Subcooling 95° F (35° C) Ambient (Air Over)

200/220-3-50 (TF5) 220-3-50 (TF5)

Rated Voltage Test Voltage
380/420-3-50 (TFD) 380-3-50 (TFD)

ZR84KCE-TF5/D R134a
CAPACITY (BTU / HOUR)
CONDENSING TEMPERATURE EVAPORATING TEMPERATURE °F / °C
– 10 0 10 20 30 40 45 50 55
°F / °C – 23.3 – 17.8 – 12.2 – 6.7 – 1.1 4.4 7.2 10.0 12.8
100 (37.8) 12900 17200 22500 29100 36900 46100 51300 56800 62800
120 (48.9) 19500 25300 32200 40600 45300 50300 55800
140 (60.0) 27300 34700 38800 43400 48300

CAPACITY (KCAL / HOUR)

– 10 0 10 20 30 40 45 50 55

a
°F / °C – 23.3 – 17.8 – 12.2 – 6.7 – 1.1 4.4 7.2 10.0 12.8

34
100 (37.8) 3250 4330 5670 7330 9300 11600 12900 14300 15800
120 (48.9) 4910 6380 8110 10200 11400 12700 14100
140 (60.0) 6880 8740 9780 10900 12200

1
CAPACITY (WATTS)

R
– 10 0 10 20 30 40 45 50 55
°F / °C – 23.3 – 17.8 – 12.2 – 6.7 – 1.1 4.4 7.2 10.0 12.8
100 (37.8) 3780 5040 6590 8530 10800 13500 15000 16600 18400
120 (48.9) 5710 7410 9430 11900 13300 14700 16300
140 (60.0) 8000 10200 11400 12700 14200

POWER (MOTOR WATTS)

– 10 0 10 20 30 40 45 50 55
°F / °C – 23.3 – 17.8 – 12.2 – 6.7 – 1.1 4.4 7.2 10.0 12.8
100 (37.8) 2900 2850 2860 2910 2960 3000 3000 3000 2980
120 (48.9) 3600 3660 3720 3750 3750 3740 3710
140 (60.0) 4630 4680 4680 4670 4640

ZR94KCE-TF5/D R134a
CAPACITY (BTU / HOUR)
CONDENSING TEMPERATURE EVAPORATING TEMPERATURE °F / °C
– 10 0 10 20 30 40 45 50 55
°F / °C – 23.3 – 17.8 – 12.2 – 6.7 – 1.1 4.4 7.2 10.0 12.8
100 (37.8) 14350 19250 25300 32700 41500 51800 57600 63900 70600
120 (48.9) 21800 28300 36200 45600 50900 56600 62700
140 (60.0) 30700 38900 43600 48700 54300

CAPACITY (KCAL / HOUR)

– 10 0 10 20 30 40 45 50 55

a
°F / °C – 23.3 – 17.8 – 12.2 – 6.7 – 1.1 4.4 7.2 10.0 12.8

4
100 (37.8) 3620 4850 6380 8240 10500 13100 14500 16100 17800
120 (48.9) 5490 7130 9120 11500 12800 14300 15800

13
140 (60.0) 7740 9800 10990 12300 13700

CAPACITY (WATTS)

R
– 10 0 10 20 30 40 45 50 55
°F / °C – 23.3 – 17.8 – 12.2 – 6.7 – 1.1 4.4 7.2 10.0 12.8
100 (37.8) 4200 5640 7410 9580 12200 15200 16900 18700 20700
120 (48.9) 6390 8290 10600 13400 14900 16600 18400
140 (60.0) 9000 11400 12800 14300 15900

POWER (MOTOR WATTS)

– 10 0 10 20 30 40 45 50 55
°F / °C – 23.3 – 17.8 – 12.2 – 6.7 – 1.1 4.4 7.2 10.0 12.8
100 (37.8) 3290 3210 3200 3250 3310 3360 3370 3370 3350
120 (48.9) 4040 4100 4160 4210 4210 4200 4170
140 (60.0) 5190 5250 5260 5250 5210
Production compressors to meet above nominal performance values within ± 5%.

29
Copeland ®
brand products ZR COMMERCIAL COPELAND SCROLL® COMPRESSORS

50 HERTZ PERFORMANCE DATA R134a

20° F (11.1° C) Superheat 15° F (8.3° C) Subcooling 95° F (35° C) Ambient (Air Over)

200/220-3-50 (TF5) 220-3-50 (TF5)

Rated Voltage Test Voltage
380/420-3-50 (TFD) 380-3-50 (TFD)

ZR108KCE-TF5/D R134a
CAPACITY (BTU / HOUR)
CONDENSING TEMPERATURE EVAPORATING TEMPERATURE °F / °C
– 10 0 10 20 30 40 45 50 55
°F / °C – 23.3 – 17.8 – 12.2 – 6.7 – 1.1 4.4 7.2 10.0 12.8
100 (37.8) 17000 22000 28900 37300 47400 59300 66000 73100 80800
120 (48.9) 24900 32300 41400 52200 58200 64800 71700
140 (60.0) 35000 44500 49900 55700 62000

CAPACITY (KCAL / HOUR)

– 10 0 10 20 30 40 45 50 55

a
°F / °C – 23.3 – 17.8 – 12.2 – 6.7 – 1.1 4.4 7.2 10.0 12.8

34
100 (37.8) 4280 5540 7280 9400 11900 14900 16600 18400 20400
120 (48.9) 6270 8140 10400 13200 14700 16300 18100
140 (60.0) 8820 11200 12600 14000 15600

1
CAPACITY (WATTS)

R
– 10 0 10 20 30 40 45 50 55
°F / °C – 23.3 – 17.8 – 12.2 – 6.7 – 1.1 4.4 7.2 10.0 12.8
100 (37.8) 4980 6450 8470 10900 13900 17400 19300 21400 23700
120 (48.9) 7300 9460 12100 15300 17100 19000 21000
140 (60.0) 10300 13000 14600 16300 18200

POWER (MOTOR WATTS)

– 10 0 10 20 30 40 45 50 55
°F / °C – 23.3 – 17.8 – 12.2 – 6.7 – 1.1 4.4 7.2 10.0 12.8
100 (37.8) 3640 3570 3570 3620 3690 3740 3760 3760 3740
120 (48.9) 4510 4580 4650 4700 4700 4690 4660
140 (60.0) 5810 5870 5880 5870 5830

ZR125KCE-TF5/D R134a
CAPACITY (BTU / HOUR)
CONDENSING TEMPERATURE EVAPORATING TEMPERATURE °F / °C
– 10 0 10 20 30 40 45 50 55
°F / °C – 23.3 – 17.8 – 12.2 – 6.7 – 1.1 4.4 7.2 10.0 12.8
100 (37.8) 19450 25400 33100 42800 54400 68100 75700 83800 92500
120 (48.9) 28500 37000 47400 59700 66700 74200 82200
140 (60.0) 40000 50900 57100 63800 71000

CAPACITY (KCAL / HOUR)

– 10 0 10 20 30 40 45 50 55

a
°F / °C – 23.3 – 17.8 – 12.2 – 6.7 – 1.1 4.4 7.2 10.0 12.8

4
100 (37.8) 4900 6400 8340 10800 13700 17200 19100 21100 23300
120 (48.9) 7180 9320 11900 15000 16800 18700 20700

13
140 (60.0) 10100 12800 14400 16100 17900

CAPACITY (WATTS)

R
– 10 0 10 20 30 40 45 50 55
°F / °C – 23.3 – 17.8 – 12.2 – 6.7 – 1.1 4.4 7.2 10.0 12.8
100 (37.8) 5700 7440 9700 12500 15900 20000 22200 24600 27100
120 (48.9) 8350 10800 13900 17500 19500 21700 24100
140 (60.0) 11700 14900 16700 18700 20800

POWER (MOTOR WATTS)

– 10 0 10 20 30 40 45 50 55
°F / °C – 23.3 – 17.8 – 12.2 – 6.7 – 1.1 4.4 7.2 10.0 12.8
100 (37.8) 4300 4200 4190 4250 4320 4380 4400 4390 4360
120 (48.9) 5280 5360 5440 5490 5490 5480 5430
140 (60.0) 6770 6840 6850 6830 6790
Production compressors to meet above nominal performance values within ± 5%.

30
Copeland ®
brand products ZR COMMERCIAL COPELAND SCROLL® COMPRESSORS

50 HERTZ PERFORMANCE DATA R134a

20° F (11.1° C) Superheat 15° F (8.3° C) Subcooling 95° F (35° C) Ambient (Air Over)

200/220-3-50 (TF5/TW5) 220-3-50 (TF5/TW5)

Rated Voltage Test Voltage
380/420-3-50 (TFD/TWD) 380-3-50 (TFD/TWD)

ZR144KCE-TF5/D R134a
CAPACITY (BTU / HOUR)
CONDENSING TEMPERATURE EVAPORATING TEMPERATURE °F / °C
– 10 0 10 20 30 40 45 50 55
°F / °C – 23.3 – 17.8 – 12.2 – 6.7 – 1.1 4.4 7.2 10.0 12.8
100 (37.8) 32000 38100 47200 58800 72400 87800 95900 104500 113000
120 (48.9) 40100 50700 63400 77800 85500 93600 102000
140 (60.0) 52800 66100 73300 80800 88600

CAPACITY (KCAL / HOUR)

– 10 0 10 20 30 40 45 50 55

a
°F / °C – 23.3 – 17.8 – 12.2 – 6.7 – 1.1 4.4 7.2 10.0 12.8

34
100 (37.8) 8060 9600 11900 14800 18200 22100 24200 26300 28500
120 (48.9) 10100 12800 16000 19600 21500 23600 25700
140 (60.0) 13300 16700 18500 20400 22300

1
CAPACITY (WATTS)

R
– 10 0 10 20 30 40 45 50 55
°F / °C – 23.3 – 17.8 – 12.2 – 6.7 – 1.1 4.4 7.2 10.0 12.8
100 (37.8) 9380 11200 13800 17200 21200 25700 28100 30600 33100
120 (48.9) 11700 14900 18600 22800 25100 27400 29900
140 (60.0) 15500 19400 21500 23700 26000

POWER (MOTOR WATTS)

– 10 0 10 20 30 40 45 50 55
°F / °C – 23.3 – 17.8 – 12.2 – 6.7 – 1.1 4.4 7.2 10.0 12.8
100 (37.8) 3920 4360 4580 4660 4700 4780 4870 5010 5200
120 (48.9) 5870 6090 6160 6150 6160 6180 6240
140 (60.0) 7770 7790 7770 7730 7700

ZR160KCE-TW5/TFD/TWD R134a
CAPACITY (BTU / HOUR)
CONDENSING TEMPERATURE EVAPORATING TEMPERATURE °F / °C
– 10 0 10 20 30 40 45 50 55
°F / °C – 23.3 – 17.8 – 12.2 – 6.7 – 1.1 4.4 7.2 10.0 12.8
100 (37.8) 24000 36400 49200 63000 77500 94500 103000 113000 123000
120 (48.9) 38500 53000 68000 84500 93000 102000 112000
140 (60.0) 55000 71500 80000 89000 98500

CAPACITY (KCAL / HOUR)

– 10 0 10 20 30 40 45 50 55

a
°F / °C – 23.3 – 17.8 – 12.2 – 6.7 – 1.1 4.4 7.2 10.0 12.8

4
100 (37.8) 6050 9170 12400 15900 19500 23800 26000 28500 31000
120 (48.9) 9700 13400 17100 21300 23400 25700 28200

13
140 (60.0) 13900 18000 20200 22400 24800

CAPACITY (WATTS)

R
– 10 0 10 20 30 40 45 50 55
°F / °C – 23.3 – 17.8 – 12.2 – 6.7 – 1.1 4.4 7.2 10.0 12.8
100 (37.8) 7030 10700 14400 18500 22700 27700 30200 33100 36000
120 (48.9) 11300 15500 19900 24800 27200 29900 32800
140 (60.0) 16100 20900 23400 26100 28900

POWER (MOTOR WATTS)

– 10 0 10 20 30 40 45 50 55
°F / °C – 23.3 – 17.8 – 12.2 – 6.7 – 1.1 4.4 7.2 10.0 12.8
100 (37.8) 5100 5100 5150 5250 5350 5400 5400 5400 5350
120 (48.9) 6600 6600 6650 6750 6800 6800 6850
140 (60.0) 8600 8550 8550 8600 8600
Production compressors to meet above nominal performance values within ± 5%.

31
Copeland ®
brand products ZR COMMERCIAL COPELAND SCROLL® COMPRESSORS

50 HERTZ PERFORMANCE DATA R134a

20° F (11.1° C) Superheat 15° F (8.3° C) Subcooling 95° F (35° C) Ambient (Air Over)

200/220-3-50 (TF5/TW5) 220-3-50 (TF5/TW5)

Rated Voltage Test Voltage
380/420-3-50 (TFD/TWD) 380-3-50 (TFD/TWD)

ZR190KCE-TW5/TFD/TWD R134a
CAPACITY (BTU / HOUR)
CONDENSING TEMPERATURE EVAPORATING TEMPERATURE °F / °C
– 10 0 10 20 30 40 45 50 55
°F / °C – 23.3 – 17.8 – 12.2 – 6.7 – 1.1 4.4 7.2 10.0 12.8
100 (37.8) 30500 44000 58500 74500 92500 113000 124000 136000 149000
120 (48.9) 47900 64000 81500 101000 111000 123000 135000
140 (60.0) 66500 85500 96000 107000 118000

CAPACITY (KCAL / HOUR)

– 10 0 10 20 30 40 45 50 55

a
°F / °C – 23.3 – 17.8 – 12.2 – 6.7 – 1.1 4.4 7.2 10.0 12.8

34
100 (37.8) 7690 11100 14700 18800 23300 28500 31200 34300 37500
120 (48.9) 12100 16100 20500 25500 28000 31000 34000
140 (60.0) 16800 21500 24200 27000 29700

1
CAPACITY (WATTS)

R
– 10 0 10 20 30 40 45 50 55
°F / °C – 23.3 – 17.8 – 12.2 – 6.7 – 1.1 4.4 7.2 10.0 12.8
100 (37.8) 8940 12900 17100 21800 27100 33100 36300 39800 43700
120 (48.9) 14000 18800 23900 29600 32500 36000 39600
140 (60.0) 19500 25100 28100 31400 34600

POWER (MOTOR WATTS)

– 10 0 10 20 30 40 45 50 55
°F / °C – 23.3 – 17.8 – 12.2 – 6.7 – 1.1 4.4 7.2 10.0 12.8
100 (37.8) 6100 6200 6250 6350 6450 6550 6600 6650 6700
120 (48.9) 8000 8050 8100 8150 8200 8250 8300
140 (60.0) 10300 10300 10300 10300 10400
Production compressors to meet above nominal performance values within ± 5%.

32
Copeland ®
brand products ZR COMMERCIAL COPELAND SCROLL® COMPRESSORS

60 HERTZ PERFORMANCE DATA R22

20° F (11.1° C) Superheat 15° F (8.3° C) Subcooling 95° F (35° C) Ambient (Air Over)

200/230-3-60 (TF5) 460-3-60 (TFD) 230-3-60 (TF5) 460-3-60 (TFD)

Rated Voltage Test Voltage
380-3-60 (TF7) 575-3-60 (TFE) 380-3-60 (TF7) 575-3-60 (TFE)

ZR84KC-TF5 / TF7/ TFD / TFE R22

CAPACITY (BTU / HOUR)
CONDENSING TEMPERATURE EVAPORATING TEMPERATURE °F / °C
– 10 0 10 20 30 40 45 50 55
°F / °C – 23.3 – 17.8 – 12.2 – 6.7 – 1.1 4.4 7.2 10.0 12.8
100 (37.8) 26800 36600 47700 60000 74500 91500 100000 110000 121000
120 (48.9) 40200 52500 66500 82500 91000 100000 110000
140 (60.0) 56500 71500 80000 88500 98000

CAPACITY (KCAL / HOUR)

– 10 0 10 20 30 40 45 50 55
°F / °C – 23.3 – 17.8 – 12.2 – 6.7 – 1.1 4.4 7.2 10.0 12.8
100 (37.8) 6750 9220 12000 15100 18800 23100 25200 27700 30500
120 (48.9) 10100 13200 16800 20800 22900 25200 27700
140 (60.0) 14200 18000 20200 22300 24700

CAPACITY (WATTS)
– 10 0 10 20 30 40 45 50 55
°F / °C – 23.3 – 17.8 – 12.2 – 6.7 – 1.1 4.4 7.2 10.0 12.8
100 (37.8) 7850 10700 14000 17600 21800 26800 29300 32200 35500
120 (48.9) 11800 15400 19500 24200 26700 29300 32200
140 (60.0) 16600 20900 23400 25900 28700

POWER (MOTOR WATTS)

– 10 0 10 20 30 40 45 50 55
°F / °C – 23.3 – 17.8 – 12.2 – 6.7 – 1.1 4.4 7.2 10.0 12.8
100 (37.8) 4860 4890 4930 4990 5050 5150 5200 5250 5300
120 (48.9) 6350 6400 6400 6450 6500 6500 6550
140 (60.0) 8250 8250 8200 8200 8200

ZR94KC-TF5 / TF7/ TFD / TFE R22

CAPACITY (BTU / HOUR)
CONDENSING TEMPERATURE EVAPORATING TEMPERATURE °F / °C
– 10 0 10 20 30 40 45 50 55
°F / °C – 23.3 – 17.8 – 12.2 – 6.7 – 1.1 4.4 7.2 10.0 12.8
100 (37.8) 30600 41600 54000 68500 84500 103000 113000 124000 136000
120 (48.9) 46500 60000 75500 93000 103000 113000 124000
140 (60.0) 64500 80500 90000 99500 110000

CAPACITY (KCAL / HOUR)

– 10 0 10 20 30 40 45 50 55
°F / °C – 23.3 – 17.8 – 12.2 – 6.7 – 1.1 4.4 7.2 10.0 12.8
100 (37.8) 7710 10500 13600 17300 21300 26000 28500 31200 34300
120 (48.9) 11700 15100 19000 23400 26000 28500 31200
140 (60.0) 16300 20300 22700 25100 27700

CAPACITY (WATTS)
– 10 0 10 20 30 40 45 50 55
°F / °C – 23.3 – 17.8 – 12.2 – 6.7 – 1.1 4.4 7.2 10.0 12.8
100 (37.8) 8970 12200 15800 20100 24800 30200 33100 36300 39800
120 (48.9) 13600 17600 22100 27200 30200 33100 36300
140 (60.0) 18900 23600 26400 29200 32200

POWER (MOTOR WATTS)

– 10 0 10 20 30 40 45 50 55
°F / °C – 23.3 – 17.8 – 12.2 – 6.7 – 1.1 4.4 7.2 10.0 12.8
100 (37.8) 5700 5750 5750 5800 5850 5900 5950 6050 6150
120 (48.9) 7250 7250 7300 7300 7350 7350 7400
140 (60.0) 9150 9150 9150 9200 9200
Production compressors to meet above nominal performance values within ± 5%.

33
Copeland ®
brand products ZR COMMERCIAL COPELAND SCROLL® COMPRESSORS

60 HERTZ PERFORMANCE DATA R22

20° F (11.1° C) Superheat 15° F (8.3° C) Subcooling 95° F (35° C) Ambient (Air Over)

200/230-3-60 (TF5) 460-3-60 (TFD) 230-3-60 (TF5) 460-3-60 (TFD)

Rated Voltage Test Voltage
380-3-60 (TF7) 575-3-60 (TFE) 380-3-60 (TF7) 575-3-60 (TFE)

ZR108KC-TF5 / TF7/ TFD / TFE R22

CAPACITY (BTU / HOUR)
CONDENSING TEMPERATURE EVAPORATING TEMPERATURE °F / °C
– 10 0 10 20 30 40 45 50 55
°F / °C – 23.3 – 17.8 – 12.2 – 6.7 – 1.1 4.4 7.2 10.0 12.8
100 (37.8) 37500 48800 62000 77500 95500 116000 128000 140000 153000
120 (48.9) 55000 69500 86000 105000 116000 127000 139000
140 (60.0) 75500 93000 103000 113000 124000

CAPACITY (KCAL / HOUR)

– 10 0 10 20 30 40 45 50 55
°F / °C – 23.3 – 17.8 – 12.2 – 6.7 – 1.1 4.4 7.2 10.0 12.8
100 (37.8) 9450 12300 15600 19500 24100 29200 32300 35300 38600
120 (48.9) 13900 17500 21700 26500 29200 32000 35000
140 (60.0) 19000 23400 26000 28500 31200

CAPACITY (WATTS)
– 10 0 10 20 30 40 45 50 55
°F / °C – 23.3 – 17.8 – 12.2 – 6.7 – 1.1 4.4 7.2 10.0 12.8
100 (37.8) 11000 14300 18200 22700 28000 34000 37500 41000 44800
120 (48.9) 16100 20400 25200 30800 34000 37200 40700
140 (60.0) 22100 27200 30200 33100 36300

POWER (MOTOR WATTS)

– 10 0 10 20 30 40 45 50 55
°F / °C – 23.3 – 17.8 – 12.2 – 6.7 – 1.1 4.4 7.2 10.0 12.8
100 (37.8) 6000 6150 6300 6400 6550 6650 6750 6800 6900
120 (48.9) 7900 8000 8100 8200 8250 8300 8400
140 (60.0) 10100 10200 10200 10300 10300

ZR125KC-TF5 / TF7/ TFD / TFE R22

CAPACITY (BTU / HOUR)
CONDENSING TEMPERATURE EVAPORATING TEMPERATURE °F / °C
– 10 0 10 20 30 40 45 50 55
°F / °C – 23.3 – 17.8 – 12.2 – 6.7 – 1.1 4.4 7.2 10.0 12.8
100 (37.8) 46300 59000 74500 92500 113000 137000 150000 164000 178000
120 (48.9) 66000 83000 102000 124000 136000 149000 162000
140 (60.0) 89500 110000 121000 132000 144000

CAPACITY (KCAL / HOUR)

– 10 0 10 20 30 40 45 50 55
°F / °C – 23.3 – 17.8 – 12.2 – 6.7 – 1.1 4.4 7.2 10.0 12.8
100 (37.8) 11700 14900 18800 23300 28500 34500 37800 41300 44900
120 (48.9) 16600 20900 25700 31200 34300 37500 40800
140 (60.0) 22600 27700 30500 33300 36300

CAPACITY (WATTS)
– 10 0 10 20 30 40 45 50 55
°F / °C – 23.3 – 17.8 – 12.2 – 6.7 – 1.1 4.4 7.2 10.0 12.8
100 (37.8) 13600 17300 21800 27100 33100 40100 44000 48100 52200
120 (48.9) 19300 24300 29900 36300 39800 43700 47500
140 (60.0) 26200 32200 35500 38700 42200

POWER (MOTOR WATTS)

– 10 0 10 20 30 40 45 50 55
°F / °C – 23.3 – 17.8 – 12.2 – 6.7 – 1.1 4.4 7.2 10.0 12.8
100 (37.8) 7150 7300 7450 7550 7700 7850 7950 8050 8200
120 (48.9) 9450 9550 9600 9750 9800 9900 10000
140 (60.0) 12100 12200 12200 12300 12300
Production compressors to meet above nominal performance values within ± 5%.

34
Copeland ®
brand products ZR COMMERCIAL COPELAND SCROLL® COMPRESSORS

60 HERTZ PERFORMANCE DATA R22

20° F (11.1° C) Superheat 15° F (8.3° C) Subcooling 95° F (35° C) Ambient (Air Over)

200/230-3-60 (TF5/TW5) 460-3-60 (TFD/TWD) 230-3-60 (TF5/TW5) 460-3-60 (TFDTWD)

Rated Voltage Test Voltage
380-3-60 (TF7/TW7) 575-3-60 (TFE/TWE) 380-3-60 (TF7/TW7) 575-3-60 (TFE/TWE)

ZR144KC-TF5 / TF7/ TFD / TFE R22

CAPACITY (BTU / HOUR)
CONDENSING TEMPERATURE EVAPORATING TEMPERATURE °F / °C
– 10 0 10 20 30 40 45 50 55
°F / °C – 23.3 – 17.8 – 12.2 – 6.7 – 1.1 4.4 7.2 10.0 12.8
100 (37.8) 54000 64500 82000 105000 131000 158000 172000 186000 199000
120 (48.9) 72000 91000 115000 141000 155000 168000 182000
140 (60.0) 98000 122000 136000 149000 163000

CAPACITY (KCAL / HOUR)

– 10 0 10 20 30 40 45 50 55
°F / °C – 23.3 – 17.8 – 12.2 – 6.7 – 1.1 4.4 7.2 10.0 12.8
100 (37.8) 13600 16300 20700 26500 33000 39800 43300 46900 50100
120 (48.9) 18100 22900 29000 35500 39100 42300 45900
140 (60.0) 24700 30700 34300 37500 41100

CAPACITY (WATTS)
– 10 0 10 20 30 40 45 50 55
°F / °C – 23.3 – 17.8 – 12.2 – 6.7 – 1.1 4.4 7.2 10.0 12.8
100 (37.8) 15800 18900 24000 30800 38400 46300 50400 54500 58300
120 (48.9) 21100 26700 33700 41300 45400 49200 53300
140 (60.0) 28700 35700 39800 43700 47800

POWER (MOTOR WATTS)

– 10 0 10 20 30 40 45 50 55
°F / °C – 23.3 – 17.8 – 12.2 – 6.7 – 1.1 4.4 7.2 10.0 12.8
100 (37.8) 8000 8250 8400 8550 8700 8950 9050 9200 9400
120 (48.9) 10500 10700 10800 11000 11100 11200 11300
140 (60.0) 13600 13700 13800 13800 13900

ZR160KC-TW5/TF7/TW7/TFD/TWD/TWE R22
CAPACITY (BTU / HOUR)
CONDENSING TEMPERATURE EVAPORATING TEMPERATURE °F / °C
– 10 0 10 20 30 40 45 50 55
°F / °C – 23.3 – 17.8 – 12.2 – 6.7 – 1.1 4.4 7.2 10.0 12.8
100 (37.8) 50000 69000 90000 114000 141000 172000 189000 207000 225000
120 (48.9) 74500 98500 125000 155000 170000 187000 205000
140 (60.0) 105000 133000 149000 164000 181000

CAPACITY (KCAL / HOUR)

– 10 0 10 20 30 40 45 50 55
°F / °C – 23.3 – 17.8 – 12.2 – 6.7 – 1.1 4.4 7.2 10.0 12.8
100 (37.8) 12600 17400 22700 28700 35500 43300 47600 52200 56700
120 (48.9) 18800 24800 31500 39100 42800 47100 51700
140 (60.0) 26500 33500 37500 41300 45600

CAPACITY (WATTS)
– 10 0 10 20 30 40 45 50 55
°F / °C – 23.3 – 17.8 – 12.2 – 6.7 – 1.1 4.4 7.2 10.0 12.8
100 (37.8) 14700 20200 26400 33400 41300 50400 55400 60700 65900
120 (48.9) 21800 28900 36600 45400 49800 54800 60100
140 (60.0) 30800 39000 43700 48100 53000

POWER (MOTOR WATTS)

– 10 0 10 20 30 40 45 50 55
°F / °C – 23.3 – 17.8 – 12.2 – 6.7 – 1.1 4.4 7.2 10.0 12.8
100 (37.8) 9200 9450 9600 9700 9850 10100 10300 10500 10700
120 (48.9) 12100 12200 12300 12400 12500 12600 12800
140 (60.0) 15500 15500 15600 15700 15800
Production compressors to meet above nominal performance values within ± 5%.

35
Copeland ®
brand products ZR COMMERCIAL COPELAND SCROLL® COMPRESSORS

60 HERTZ PERFORMANCE DATA R22/R407C

20° F (11.1° C) Superheat 15° F (8.3° C) Subcooling 95° F (35° C) Ambient (Air Over)

200/230-3-60 (TF5/TW5) 460-3-60 (TFD/TWD) 230-3-60 (TF5/TW5) 460-3-60 (TFD/TWD)

Rated Voltage Test Voltage
380-3-60 (TF7/TW7) 575-3-60 (TFE/TWE) 380-3-60 (TF7/TW7) 575-3-60 (TFE/TWE)

ZR190KC-TW5/TW7/TFD/TWD/TWE R22
CAPACITY (BTU / HOUR)
CONDENSING TEMPERATURE EVAPORATING TEMPERATURE °F / °C
– 10 0 10 20 30 40 45 50 55
°F / °C – 23.3 – 17.8 – 12.2 – 6.7 – 1.1 4.4 7.2 10.0 12.8
100 (37.8) 61000 82500 107000 135000 168000 204000 224000 245000 267000
120 (48.9) 91500 118000 149000 184000 203000 223000 244000
140 (60.0) 126000 159000 176000 195000 215000

CAPACITY (KCAL / HOUR)

– 10 0 10 20 30 40 45 50 55
°F / °C – 23.3 – 17.8 – 12.2 – 6.7 – 1.1 4.4 7.2 10.0 12.8
100 (37.8) 15400 20800 27000 34000 42300 51400 56400 61700 67300
120 (48.9) 23100 29700 37500 46400 51200 56200 61500
140 (60.0) 31800 40100 44400 49100 54200

CAPACITY (WATTS)
– 10 0 10 20 30 40 45 50 55
°F / °C – 23.3 – 17.8 – 12.2 – 6.7 – 1.1 4.4 7.2 10.0 12.8
100 (37.8) 17900 24200 31400 39600 49200 59800 65600 71800 78200
120 (48.9) 26800 34600 43700 53900 59500 65300 71500
140 (60.0) 36900 46600 51600 57100 63000

POWER (MOTOR WATTS)

– 10 0 10 20 30 40 45 50 55
°F / °C – 23.3 – 17.8 – 12.2 – 6.7 – 1.1 4.4 7.2 10.0 12.8
100 (37.8) 10900 11200 11500 11700 11900 12200 12400 12600 12800
120 (48.9) 14400 14600 14700 14900 15100 15200 15400
140 (60.0) 18500 18600 18700 18800 18900

ZR84KCE-TF5 / TF7/ TFD / TFE R407C

CAPACITY (BTU / HOUR)
CONDENSING TEMPERATURE EVAPORATING TEMPERATURE °F / °C
– 10 0 10 20 30 40 45 50 55
°F / °C – 23.3 – 17.8 – 12.2 – 6.7 – 1.1 4.4 7.2 10.0 12.8
100 (37.8) 24300 33600 44200 56500 71000 88000 97500 108000 119000
120 (48.9) 37900 49500 63000 78500 87000 96500 107000
140 (60.0) 53500 67500 75500 84000 93000

CAPACITY (KCAL / HOUR)

– 10 0 10 20 30 40 45 50 55

C
°F / °C – 23.3 – 17.8 – 12.2 – 6.7 – 1.1 4.4 7.2 10.0 12.8

07
100 (37.8) 6120 8470 11100 14200 17900 22200 24600 27200 30000
120 (48.9) 9550 12500 15900 19800 21900 24300 27000
140 (60.0) 13500 17000 19000 21200 23400

4
CAPACITY (WATTS)

R
– 10 0 10 20 30 40 45 50 55
°F / °C – 23.3 – 17.8 – 12.2 – 6.7 – 1.1 4.4 7.2 10.0 12.8
100 (37.8) 7120 9840 13000 16600 20800 25800 28600 31600 34900
120 (48.9) 11100 14500 18500 23000 25500 28300 31400
140 (60.0) 15700 19800 22100 24600 27200

POWER (MOTOR WATTS)

– 10 0 10 20 30 40 45 50 55
°F / °C – 23.3 – 17.8 – 12.2 – 6.7 – 1.1 4.4 7.2 10.0 12.8
100 (37.8) 4870 4940 4990 5050 5050 5100 5150 5150 5200
120 (48.9) 6400 6400 6450 6450 6450 6500 6550
140 (60.0) 8200 8200 8200 8250 8250
Production compressors to meet above nominal performance values within ± 5%.

36
Copeland ®
brand products ZR COMMERCIAL COPELAND SCROLL® COMPRESSORS

60 HERTZ PERFORMANCE DATA R407C

20° F (11.1° C) Superheat 15° F (8.3° C) Subcooling 95° F (35° C) Ambient (Air Over)

200/230-3-60 (TF5) 460-3-60 (TFD) 230-3-60 (TF5) 460-3-60 (TFD)

Rated Voltage Test Voltage
380-3-60 (TF7) 575-3-60 (TFE) 380-3-60 (TF7) 575-3-60 (TFE)

ZR94KCE-TF5 / TF7/ TFD / TFE R407C

CAPACITY (BTU / HOUR)
CONDENSING TEMPERATURE EVAPORATING TEMPERATURE °F / °C
– 10 0 10 20 30 40 45 50 55
°F / °C – 23.3 – 17.8 – 12.2 – 6.7 – 1.1 4.4 7.2 10.0 12.8
100 (37.8) 27000 37400 49500 63500 80000 99000 110000 121000 133000
120 (48.9) 41600 54500 70000 88000 97500 108000 120000
140 (60.0) 58000 74000 83500 93000 104000

CAPACITY (KCAL / HOUR)

– 10 0 10 20 30 40 45 50 55

C
°F / °C – 23.3 – 17.8 – 12.2 – 6.7 – 1.1 4.4 7.2 10.0 12.8

7
100 (37.8) 6800 9420 12500 16000 20200 24900 27700 30500 33500
120 (48.9) 10500 13700 17600 22200 24600 27200 30200

40
140 (60.0) 14600 18600 21000 23400 26200

CAPACITY (WATTS)

R
– 10 0 10 20 30 40 45 50 55
°F / °C – 23.3 – 17.8 – 12.2 – 6.7 – 1.1 4.4 7.2 10.0 12.8
100 (37.8) 7910 11000 14500 18600 23400 29000 32200 35500 39000
120 (48.9) 12200 16000 20500 25800 28600 31600 35200
140 (60.0) 17000 21700 24500 27200 30500

POWER (MOTOR WATTS)

– 10 0 10 20 30 40 45 50 55
°F / °C – 23.3 – 17.8 – 12.2 – 6.7 – 1.1 4.4 7.2 10.0 12.8
100 (37.8) 5550 5600 5650 5650 5700 5750 5800 5850 5950
120 (48.9) 7200 7250 7300 7300 7350 7350 7400
140 (60.0) 9300 9350 9350 9400 9400

ZR108KCE-TF5 / TF7/ TFD / TFE R407C

CAPACITY (BTU / HOUR)
CONDENSING TEMPERATURE EVAPORATING TEMPERATURE °F / °C
– 10 0 10 20 30 40 45 50 55
°F / °C – 23.3 – 17.8 – 12.2 – 6.7 – 1.1 4.4 7.2 10.0 12.8
100 (37.8) 31500 43200 56500 71500 90000 112000 124000 138000 153000
120 (48.9) 48200 63000 79500 99000 110000 122000 135000
140 (60.0) 67500 85500 95000 106000 117000

CAPACITY (KCAL / HOUR)

– 10 0 10 20 30 40 45 50 55

C
°F / °C – 23.3 – 17.8 – 12.2 – 6.7 – 1.1 4.4 7.2 10.0 12.8

7
100 (37.8) 7940 10900 14200 18000 22700 28200 31200 34800 38600
120 (48.9) 12100 15900 20000 24900 27700 30700 34000

40
140 (60.0) 17000 21500 23900 26700 29500

CAPACITY (WATTS)

R
– 10 0 10 20 30 40 45 50 55
°F / °C – 23.3 – 17.8 – 12.2 – 6.7 – 1.1 4.4 7.2 10.0 12.8
100 (37.8) 9230 12700 16600 20900 26400 32800 36300 40400 44800
120 (48.9) 14100 18500 23300 29000 32200 35700 39600
140 (60.0) 19800 25100 27800 31100 34300

POWER (MOTOR WATTS)

– 10 0 10 20 30 40 45 50 55
°F / °C – 23.3 – 17.8 – 12.2 – 6.7 – 1.1 4.4 7.2 10.0 12.8
100 (37.8) 5800 6050 6150 6250 6300 6400 6500 6650 6800
120 (48.9) 7900 8000 8050 8150 8200 8250 8350
140 (60.0) 10300 10400 10400 10400 10500
Production compressors to meet above nominal performance values within ± 5%.

37
Copeland ®
brand products ZR COMMERCIAL COPELAND SCROLL® COMPRESSORS

60 HERTZ PERFORMANCE DATA R407C

20° F (11.1° C) Superheat 15° F (8.3° C) Subcooling 95° F (35° C) Ambient (Air Over)

200/230-3-60 (TF5) 460-3-60 (TFD) 230-3-60 (TF5) 460-3-60 (TFD)

Rated Voltage Test Voltage
380-3-60 (TF7) 575-3-60 (TFE) 380-3-60 (TF7) 575-3-60 (TFE)

ZR125KCE-TF5 / TF7/ TFD / TFE R407C

CAPACITY (BTU / HOUR)
CONDENSING TEMPERATURE EVAPORATING TEMPERATURE °F / °C
– 10 0 10 20 30 40 45 50 55
°F / °C – 23.3 – 17.8 – 12.2 – 6.7 – 1.1 4.4 7.2 10.0 12.8
100 (37.8) 36100 50000 65500 83500 105000 131000 146000 162000 180000
120 (48.9) 56500 73500 93000 116000 129000 143000 158000
140 (60.0) 79000 99500 111000 124000 137000

CAPACITY (KCAL / HOUR)

– 10 0 10 20 30 40 45 50 55

C
°F / °C – 23.3 – 17.8 – 12.2 – 6.7 – 1.1 4.4 7.2 10.0 12.8

7
100 (37.8) 9100 12600 16500 21000 26500 33000 36800 40800 45400
120 (48.9) 14200 18500 23400 29200 32500 36000 39800

40
140 (60.0) 19900 25100 28000 31200 34500

CAPACITY (WATTS)

R
– 10 0 10 20 30 40 45 50 55
°F / °C – 23.3 – 17.8 – 12.2 – 6.7 – 1.1 4.4 7.2 10.0 12.8
100 (37.8) 10600 14700 19200 24500 30800 38400 42800 47500 52700
120 (48.9) 16600 21500 27200 34000 37800 41900 46300
140 (60.0) 23100 29200 32500 36300 40100

POWER (MOTOR WATTS)

– 10 0 10 20 30 40 45 50 55
°F / °C – 23.3 – 17.8 – 12.2 – 6.7 – 1.1 4.4 7.2 10.0 12.8
100 (37.8) 6750 7050 7200 7350 7450 7600 7700 7800 8000
120 (48.9) 9250 9400 9500 9600 9700 9800 9900
140 (60.0) 12200 12300 12400 12400 12500

ZR144KCE-TF5 / TF7/ TFD / TFE R407C

CAPACITY (BTU / HOUR)
CONDENSING TEMPERATURE EVAPORATING TEMPERATURE °F / °C
– 10 0 10 20 30 40 45 50 55
°F / °C – 23.3 – 17.8 – 12.2 – 6.7 – 1.1 4.4 7.2 10.0 12.8
100 (37.8) 51500 61500 77500 98500 124000 154000 170000 188000 206000
120 (48.9) 70000 87000 108000 133000 147000 162000 178000
140 (60.0) 94500 117000 129000 142000 156000

CAPACITY (KCAL / HOUR)

– 10 0 10 20 30 40 45 50 55

C
°F / °C – 23.3 – 17.8 – 12.2 – 6.7 – 1.1 4.4 7.2 10.0 12.8

7
100 (37.8) 13000 15500 19500 24800 31200 38800 42800 47400 51900
120 (48.9) 17600 21900 27200 33500 37000 40800 44900

40
140 (60.0) 23800 29500 32500 35800 39300

CAPACITY (WATTS)

R
– 10 0 10 20 30 40 45 50 55
°F / °C – 23.3 – 17.8 – 12.2 – 6.7 – 1.1 4.4 7.2 10.0 12.8
100 (37.8) 15100 18000 22700 28900 36300 45100 49800 55100 60400
120 (48.9) 20500 25500 31600 39000 43100 47500 52200
140 (60.0) 27700 34300 37800 41600 45700

POWER (MOTOR WATTS)

– 10 0 10 20 30 40 45 50 55
°F / °C – 23.3 – 17.8 – 12.2 – 6.7 – 1.1 4.4 7.2 10.0 12.8
100 (37.8) 7700 7800 7950 8150 8400 8650 8800 8950 9100
120 (48.9) 10400 10500 10600 10800 10800 10900 11000
140 (60.0) 13800 13900 13900 14000 14000
Production compressors to meet above nominal performance values within ± 5%.

38
Copeland ®
brand products ZR COMMERCIAL COPELAND SCROLL® COMPRESSORS

60 HERTZ PERFORMANCE DATA R407C

20° F (11.1° C) Superheat 15° F (8.3° C) Subcooling 95° F (35° C) Ambient (Air Over)

200/230-3-60 (TW5) 460-3-60 (TFD/TWD) 230-3-60 (TW5) 460-3-60 (TFD/TWD)

Rated Voltage Test Voltage
380-3-60 (TF7/TW7) 575-3-60 (TWE) 380-3-60 (TF7/TW7) 575-3-60 (TWE)

ZR160KCE-TW5/TF7/TW7/TFD/TWD/TWE R407C
CAPACITY (BTU / HOUR)
CONDENSING TEMPERATURE EVAPORATING TEMPERATURE °F / °C
– 10 0 10 20 30 40 45 50 55
°F / °C – 23.3 – 17.8 – 12.2 – 6.7 – 1.1 4.4 7.2 10.0 12.8
100 (37.8) 45000 61900 82200 106500 135500 169500 189000 210000 232000
120 (48.9) 68700 90900 117500 148500 166500 185500 206000
140 (60.0) 97300 125500 141000 158500 177000

CAPACITY (KCAL / HOUR)

– 10 0 10 20 30 40 45 50 55

C
°F / °C – 23.3 – 17.8 – 12.2 – 6.7 – 1.1 4.4 7.2 10.0 12.8

7
100 (37.8) 11300 15600 20700 26800 34100 42700 47600 52900 58500
120 (48.9) 17300 22900 29600 37400 42000 46700 51900

40
140 (60.0) 24500 31600 35500 39900 44600

CAPACITY (WATTS)

R
– 10 0 10 20 30 40 45 50 55
°F / °C – 23.3 – 17.8 – 12.2 – 6.7 – 1.1 4.4 7.2 10.0 12.8
100 (37.8) 13200 18100 24100 31200 39700 49700 55400 61500 68000
120 (48.9) 20100 26600 34400 43500 48800 54400 60400
140 (60.0) 28500 36800 41300 46400 51900

POWER (MOTOR WATTS)

– 10 0 10 20 30 40 45 50 55
°F / °C – 23.3 – 17.8 – 12.2 – 6.7 – 1.1 4.4 7.2 10.0 12.8
100 (37.8) 9070 9170 9260 9350 9480 9680 9830 10000 10200
120 (48.9) 11950 12050 12100 12200 12300 12400 12500
140 (60.0) 15600 15650 15700 15750 15800

ZR190KCE-TW5/TW7/TFD/TWD/TWE R407C
CAPACITY (BTU / HOUR)
CONDENSING TEMPERATURE EVAPORATING TEMPERATURE °F / °C
– 10 0 10 20 30 40 45 50 55
°F / °C – 23.3 – 17.8 – 12.2 – 6.7 – 1.1 4.4 7.2 10.0 12.8
100 (37.8) 55500 74800 98100 126000 159000 198500 220000 244000 270000
120 (48.9) 83800 109000 139000 175000 195000 217000 240000
140 (60.0) 117000 148500 166500 186000 207000

CAPACITY (KCAL / HOUR)

– 10 0 10 20 30 40 45 50 55

C
°F / °C – 23.3 – 17.8 – 12.2 – 6.7 – 1.1 4.4 7.2 10.0 12.8

7
100 (37.8) 14000 18800 24700 31800 40100 50000 55400 61500 68000
120 (48.9) 21100 27500 35000 44100 49100 54700 60500

40
140 (60.0) 29500 37400 42000 46900 52200

CAPACITY (WATTS)

R
– 10 0 10 20 30 40 45 50 55
°F / °C – 23.3 – 17.8 – 12.2 – 6.7 – 1.1 4.4 7.2 10.0 12.8
100 (37.8) 16300 21900 28700 36900 46600 58200 64500 71500 79100
120 (48.9) 24600 31900 40700 51300 57100 63600 70300
140 (60.0) 34300 43500 48800 54500 60700

POWER (MOTOR WATTS)

– 10 0 10 20 30 40 45 50 55
°F / °C – 23.3 – 17.8 – 12.2 – 6.7 – 1.1 4.4 7.2 10.0 12.8
100 (37.8) 11100 11050 11150 11350 11650 12000 12150 12300 12450
120 (48.9) 14150 14300 14500 14800 14950 15100 15200
140 (60.0) 18400 18550 18650 18750 18850
Production compressors to meet above nominal performance values within ± 5%.

39
Copeland ®
brand products ZR COMMERCIAL COPELAND SCROLL® COMPRESSORS

60 HERTZ PERFORMANCE DATA R134a

20° F (11.1° C) Superheat 15° F (8.3° C) Subcooling 95° F (35° C) Ambient (Air Over)

200/230-3-60 (TF5) 460-3-60 (TFD) 230-3-60 (TF5) 460-3-60 (TFD)

Rated Voltage Test Voltage
380-3-60 (TF7) 575-3-60 (TFE) 380-3-60 (TF7) 575-3-60 (TFE)

ZR84KCE-TF5/7/D/E R134a
CAPACITY (BTU / HOUR)
CONDENSING TEMPERATURE EVAPORATING TEMPERATURE °F / °C
– 10 0 10 20 30 40 45 50 55
°F / °C – 23.3 – 17.8 – 12.2 – 6.7 – 1.1 4.4 7.2 10.0 12.8
100 (37.8) 15450 21000 27700 35700 45100 56000 62200 68700 75800
120 (48.9) 23800 30900 39400 49300 54900 60900 67400
140 (60.0) 33300 42100 47100 52400 58300

CAPACITY (KCAL / HOUR)

a
– 10 0 10 20 30 40 45 50 55
°F / °C – 23.3 – 17.8 – 12.2 – 6.7 – 1.1 4.4 7.2 10.0 12.8

34
100 (37.8) 3890 5290 6980 9000 11400 14100 15700 17300 19100
120 (48.9) 6000 7790 9930 12400 13800 15300 17000
140 (60.0) 8390 10600 11900 13200 14700

CAPACITY (WATTS)
°F / °C

100 (37.8)
120 (48.9)
140 (60.0)

POWER (MOTOR WATTS)

– 10
– 23.3
4530
0
– 17.8
6150

R 1
10
– 12.2
8120
6970
20
– 6.7
10500
9050
30
– 1.1
13200
11500
9760
40
4.4
16400
14400
12300
45
7.2
18200
16100
13800
50
10.0
20100
17800
15400
55
12.8
22200
19700
17100

– 10 0 10 20 30 40 45 50 55
°F / °C – 23.3 – 17.8 – 12.2 – 6.7 – 1.1 4.4 7.2 10.0 12.8
100 (37.8) 3450 3370 3380 3450 3550 3660 3700 3740 3770
120 (48.9) 4290 4380 4480 4570 4610 4630 4640
140 (60.0) 5630 5730 5760 5770 5770

ZR94KCE-TF5/7/D/E R134a
CAPACITY (BTU / HOUR)
CONDENSING TEMPERATURE EVAPORATING TEMPERATURE °F / °C
– 10 0 10 20 30 40 45 50 55
°F / °C – 23.3 – 17.8 – 12.2 – 6.7 – 1.1 4.4 7.2 10.0 12.8
100 (37.8) 17950 23700 31000 40000 50600 63000 69900 73300 85100
120 (48.9) 26700 34600 44100 55400 61700 68500 75700
140 (60.0) 37300 47200 52800 58900 65400

CAPACITY (KCAL / HOUR)

a
– 10 0 10 20 30 40 45 50 55
°F / °C – 23.3 – 17.8 – 12.2 – 6.7 – 1.1 4.4 7.2 10.0 12.8

34
100 (37.8) 4520 5970 7810 10100 12800 15900 17600 18500 21400
120 (48.9) 6730 8720 11100 14000 15500 17300 19100
140 (60.0) 9400 11900 13300 14800 16500

CAPACITY (WATTS)
°F / °C

100 (37.8)
120 (48.9)
140 (60.0)

POWER (MOTOR WATTS)

– 10
– 23.3
5260
0
– 17.8
6940

R 1
10
– 12.2
9080
7820
20
– 6.7
11700
10100
30
– 1.1
14800
12900
10900
40
4.4
18500
16200
13800
45
7.2
20500
18100
15500
50
10.0
21500
20100
17300
55
12.8
24900
22200
19200

– 10 0 10 20 30 40 45 50 55
°F / °C – 23.3 – 17.8 – 12.2 – 6.7 – 1.1 4.4 7.2 10.0 12.8
100 (37.8) 3890 3780 3780 3850 3960 4070 4120 4160 4180
120 (48.9) 4770 4860 4970 5070 5110 5130 5130
140 (60.0) 6230 6330 6370 6380 6370
Production compressors to meet above nominal performance values within ± 5%.

40
Copeland ®
brand products ZR COMMERCIAL COPELAND SCROLL® COMPRESSORS

60 HERTZ PERFORMANCE DATA R134a

20° F (11.1° C) Superheat 15° F (8.3° C) Subcooling 95° F (35° C) Ambient (Air Over)

200/230-3-60 (TF5) 460-3-60 (TFD) 230-3-60 (TF5) 460-3-60 (TFD)

Rated Voltage Test Voltage
380-3-60 (TF7) 575-3-60 (TFE) 380-3-60 (TF7) 575-3-60 (TFE)

ZR108KCE-TF5/7/D/E R134a
CAPACITY (BTU / HOUR)
CONDENSING TEMPERATURE EVAPORATING TEMPERATURE °F / °C
– 10 0 10 20 30 40 45 50 55
°F / °C – 23.3 – 17.8 – 12.2 – 6.7 – 1.1 4.4 7.2 10.0 12.8
100 (37.8) 20800 56900 35000 45100 57200 71300 79100 87400 96200
120 (48.9) 30100 39100 49900 62800 69900 77500 85600
140 (60.0) 42200 53500 59900 66700 74000

CAPACITY (KCAL / HOUR)

a
– 10 0 10 20 30 40 45 50 55
°F / °C – 23.3 – 17.8 – 12.2 – 6.7 – 1.1 4.4 7.2 10.0 12.8

34
100 (37.8) 5240 14340 8820 11400 14400 18000 19900 22000 24200
120 (48.9) 7590 9850 12600 15800 17600 19500 21600
140 (60.0) 10600 13500 15100 16800 18600

CAPACITY (WATTS)
°F / °C

100 (37.8)
120 (48.9)
140 (60.0)

POWER (MOTOR WATTS)

– 10
– 23.3
6090
0
– 17.8
16700

R 110
– 12.2
10300
8820
20
– 6.7
13200
11500
30
– 1.1
16800
14600
12400
40
4.4
20900
18400
15700
45
7.2
23200
20500
17600
50
10.0
25600
22700
19500
55
12.8
28200
25100
21700

– 10 0 10 20 30 40 45 50 55
°F / °C – 23.3 – 17.8 – 12.2 – 6.7 – 1.1 4.4 7.2 10.0 12.8
100 (37.8) 4300 4220 4240 4330 4450 4580 4640 4690 4720
120 (48.9) 5340 5460 5600 5720 5760 5790 5790
140 (60.0) 7020 7150 7190 7210 7200

ZR125KCE-TF5/7/D/E R134a
CAPACITY (BTU / HOUR)
CONDENSING TEMPERATURE EVAPORATING TEMPERATURE °F / °C
– 10 0 10 20 30 40 45 50 55
°F / °C – 23.3 – 17.8 – 12.2 – 6.7 – 1.1 4.4 7.2 10.0 12.8
100 (37.8) 23900 31100 40500 52100 65900 82000 91000 100500 111000
120 (48.9) 34800 45200 57700 72300 80500 89300 98600
140 (60.0) 48700 61800 69100 76900 85300

CAPACITY (KCAL / HOUR)

a
– 10 0 10 20 30 40 45 50 55
°F / °C – 23.3 – 17.8 – 12.2 – 6.7 – 1.1 4.4 7.2 10.0 12.8

34
100 (37.8) 6020 7840 10200 13100 16600 20700 22900 25300 28000
120 (48.9) 8770 11400 14500 18200 20300 22500 24800
140 (60.0) 12300 15600 17400 19400 21500

CAPACITY (WATTS)
°F / °C

100 (37.8)
120 (48.9)
140 (60.0)

POWER (MOTOR WATTS)

– 10
– 23.3
7000
0
– 17.8
9110

R 110
– 12.2
11900
10200
20
– 6.7
15300
13200
30
– 1.1
19300
16900
14300
40
4.4
24000
21200
18100
45
7.2
26700
23600
20200
50
10.0
29400
26200
22500
55
12.8
32500
28900
25000

– 10 0 10 20 30 40 45 50 55
°F / °C – 23.3 – 17.8 – 12.2 – 6.7 – 1.1 4.4 7.2 10.0 12.8
100 (37.8) 5070 4990 5010 5100 5240 5390 5450 5500 5540
120 (48.9) 6320 6450 6600 6730 6770 6800 6810
140 (60.0) 8270 8410 8460 8470 8460
Production compressors to meet above nominal performance values within ± 5%.

41
Copeland ®
brand products ZR COMMERCIAL COPELAND SCROLL® COMPRESSORS

60 HERTZ PERFORMANCE DATA R134a

20° F (11.1° C) Superheat 15° F (8.3° C) Subcooling 95° F (35° C) Ambient (Air Over)

200/230-3-60 (TF5/TW5) 460-3-60 (TFD/TWD) 230-3-60 (TW5) 460-3-60 (TWD)

Rated Voltage Test Voltage
380-3-60 (TF7/TW7) 575-3-60 (TFE/TWE) 380-3-60 (TW7) 575-3-60 (TWE)

ZR144KCE-TF5/7/D/E R134a
CAPACITY (BTU / HOUR)
CONDENSING TEMPERATURE EVAPORATING TEMPERATURE °F / °C
– 10 0 10 20 30 40 45 50 55
°F / °C – 23.3 – 17.8 – 12.2 – 6.7 – 1.1 4.4 7.2 10.0 12.8
100 (37.8) 38600 42700 53900 69900 88400 107000 115500 123500 130000
120 (48.9) 46600 59000 75600 93900 103000 112000 120000
140 (60.0) 61700 79400 88900 98300 107500

CAPACITY (KCAL / HOUR)

a
– 10 0 10 20 30 40 45 50 55
°F / °C – 23.3 – 17.8 – 12.2 – 6.7 – 1.1 4.4 7.2 10.0 12.8

34
100 (37.8) 9730 10800 13600 17600 22300 27000 29100 31100 32800
120 (48.9) 11700 14900 19100 23700 26000 28200 30200
140 (60.0) 15500 20000 22400 24800 27100

CAPACITY (WATTS)
°F / °C

100 (37.8)
120 (48.9)
140 (60.0)

POWER (MOTOR WATTS)

– 10
– 23.3
11300
0
– 17.8
12500

R 110
– 12.2
15800
13700
20
– 6.7
20500
17300
30
– 1.1
25900
22200
18100
40
4.4
31400
27500
23300
45
7.2
33800
30200
26000
50
10.0
36200
32800
28800
55
12.8
38100
35200
31500

– 10 0 10 20 30 40 45 50 55
°F / °C – 23.3 – 17.8 – 12.2 – 6.7 – 1.1 4.4 7.2 10.0 12.8
100 (37.8) 5450 5510 5590 5700 5850 6040 6150 6280 6410
120 (48.9) 6960 7180 7360 7520 7590 7650 7710
140 (60.0) 9230 9460 9530 9590 9620

ZR160KCE-TW5/TF7/TW7/TFD/TWD/TWE R134a
CAPACITY (BTU / HOUR)
CONDENSING TEMPERATURE EVAPORATING TEMPERATURE °F / °C
– 10 0 10 20 30 40 45 50 55
°F / °C – 23.3 – 17.8 – 12.2 – 6.7 – 1.1 4.4 7.2 10.0 12.8
100 (37.8) 32900 45200 59000 75000 93000 113000 124000 136000 148000
120 (48.9) 49000 64500 82000 101000 112000 123000 135000
140 (60.0) 69000 87500 97500 108000 119000

CAPACITY (KCAL / HOUR)

a
– 10 0 10 20 30 40 45 50 55
°F / °C – 23.3 – 17.8 – 12.2 – 6.7 – 1.1 4.4 7.2 10.0 12.8

34
100 (37.8) 8290 11400 14900 18900 23400 28500 31200 34300 37300
120 (48.9) 12300 16300 20700 25500 28200 31000 34000
140 (60.0) 17400 22100 24600 27200 30000

CAPACITY (WATTS)
°F / °C

100 (37.8)
120 (48.9)
140 (60.0)

POWER (MOTOR WATTS)

– 10
– 23.3
9640
0
– 17.8
13200

R 110
– 12.2
17300
14400
20
– 6.7
22000
18900
30
– 1.1
27200
24000
20200
40
4.4
33100
29600
25600
45
7.2
36300
32800
28600
50
10.0
39800
36000
31600
55
12.8
43400
39600
34900

– 10 0 10 20 30 40 45 50 55
°F / °C – 23.3 – 17.8 – 12.2 – 6.7 – 1.1 4.4 7.2 10.0 12.8
100 (37.8) 6300 6450 6550 6650 6750 6900 7000 7150 7300
120 (48.9) 8250 8350 8400 8450 8500 8600 8700
140 (60.0) 10600 10600 1600 10700 10800
Production compressors to meet above nominal performance values within ± 5%.

42
Copeland ®
brand products ZR COMMERCIAL COPELAND SCROLL® COMPRESSORS

60 HERTZ PERFORMANCE DATA R134a

20° F (11.1° C) Superheat 15° F (8.3° C) Subcooling 95° F (35° C) Ambient (Air Over)

200/230-3-60 (TW5) 460-3-60 (TFD/TWD) 230-3-60 (TW5) 460-3-60 (TFD/TWD)

Rated Voltage Test Voltage
380-3-60 (TW7) 575-3-60 (TWE) 380-3-60 (TW7) 575-3-60 (TWE)

ZR190KCE-TW5/TW7/TFD/TWD/TWE R134a
CAPACITY (BTU / HOUR)
CONDENSING TEMPERATURE EVAPORATING TEMPERATURE °F / °C
– 10 0 10 20 30 40 45 50 55
°F / °C – 23.3 – 17.8 – 12.2 – 6.7 – 1.1 4.4 7.2 10.0 12.8
100 (37.8) 40700 55000 71500 90500 112000 136000 149000 163000 178000
120 (48.9) 61000 79000 99500 123000 135000 149000 163000
140 (60.0) 84000 106000 118000 130000 144000

CAPACITY (KCAL / HOUR)

a
– 10 0 10 20 30 40 45 50 55
°F / °C – 23.3 – 17.8 – 12.2 – 6.7 – 1.1 4.4 7.2 10.0 12.8

34
100 (37.8) 10300 13900 18000 22800 28200 34300 37500 41100 44900
120 (48.9) 15400 19900 25100 31000 34000 37500 41100
140 (60.0) 21200 26700 29700 32800 36300

CAPACITY (WATTS)
°F / °C

100 (37.8)
120 (48.9)
140 (60.0)

POWER (MOTOR WATTS)

– 10
– 23.3
11900
0
– 17.8
16100

R 110
– 12.2
20900
17900
20
– 6.7
26500
23100
30
– 1.1
32800
29200
24600
40
4.4
39800
36000
31100
45
7.2
43700
39600
34600
50
10.0
47800
43700
38100
55
12.8
52200
47800
42200

– 10 0 10 20 30 40 45 50 55
°F / °C – 23.3 – 17.8 – 12.2 – 6.7 – 1.1 4.4 7.2 10.0 12.8
100 (37.8) 7350 7600 7750 7900 8050 8250 8350 8500 8700
120 (48.9) 9750 9850 9950 10100 10200 10300 10400
140 (60.0) 12500 12600 12600 12700 12800
Production compressors to meet above nominal performance values within ± 5%.

43
Copeland ®
brand products ZR COMMERCIAL COPELAND SCROLL® COMPRESSORS

50 APPROVED COMPRESSOR R22

HERTZ OPERATING RANGE R407C
60 R134a
AN OKAY INDICATES AN APPROVED POINT FOR COMPRESSOR OPERATION
A * * * * INDICATES A NON-APPROVED POINT FOR COMPRESSOR OPERATION

CONDENSING TEMPERATURE EVAPORATING TEMPERATURE °F/°C

– 10 0 10 20 30 40 45 50 55
°F °C
– 23.3 – 17.8 – 12.2 – 6.7 – 1.1 4.4 7.2 10.0 12.8
80 26.7 OKAY OKAY OKAY OKAY OKAY OKAY OKAY OKAY OKAY
90 32.2 OKAY OKAY OKAY OKAY OKAY OKAY OKAY OKAY OKAY
100 37.8 OKAY OKAY OKAY OKAY OKAY OKAY OKAY OKAY OKAY
110 43.3 **** OKAY OKAY OKAY OKAY OKAY OKAY OKAY OKAY
120 48.9 **** **** OKAY OKAY OKAY OKAY OKAY OKAY OKAY
130 54.4 **** **** **** OKAY OKAY OKAY OKAY OKAY OKAY
140 60.0 **** **** **** **** OKAY * OKAY OKAY OKAY OKAY
150 65.6 **** **** **** **** **** OKAY * OKAY OKAY OKAY
Approved range is based on 20 °F (11.1°C) of superheat. * This point not approved for ZR144KCE-TF5/7/D/E R407C 50 / 60 hertz.

APPLICATION NOTES • A low mass, disc-type check valve in the discharge

tube of the compressor prevents the compressor from
The Copeland Scroll Compressor, the most efficient running backwards for more than a second.
and durable compressor ever developed for
residential air conditioning and heat pump • The minimum sump temperature to saturated suction
applications, can now also be used in the commercial temperature differential (s
sT) should be greater than
sector. The 7 to 15.8 horsepower scrolls used in the 20°F (11.1°C); maximum sump temperature is 200°F
commercial market are a higher range of capacities (93.3°C).
based on the earlier 4.5 to 6 3/4 horsepower ZR *KC • No crankcase heater is required for this compressor
scrolls. There are several operating characteristics when the system charge is below 16 lbs. (7.3 Kg), but
and design features that are different from the smaller is recommended for applications which experience an
residential air conditioning models. These are fully increased amount of liquid refrigerant floodback.
detailed in the Application Bulletin AE-1303.
• This compressor requires a suction accumulator in
• To attain higher motor efficiency and optimum cooling some applications. See Application Bulletin AE-1303
the suction inlet is placed low on the shell to guide the for application and sizing details.
return gas through the motor.
• Because the suction tube is located on the lower • For scroll compressors, Emerson Climate
Technologies, Inc. recommends that the capacity
portion of the shell, care must be taken to keep the rating on reversing valves be no more than two times
compressor upright during installation and removal, the nominal capacity of the compressor with which it
otherwise oil could spill out of this connection. will be used in order to ensure proper operation for
• These compressors do not have internal pressure relief the reversing valve under all operating conditions.
valves. To ensure safe operation, a high pressure
control set no higher than 425 psig (30 kg / cm 2) must • The compressor has the approval to operate as a heat
pump within the approved operating range.
be used in all applications.
• Compressors built in the USA with serial numbers of • Complete 50 and 60 Hertz R22, R407C, and R134a
performance curves are available in the units as
04J or later contain Advanced Scroll Temperature follows for all models:
Protection (ASTP). Compressors manufactured in
Thailand have this feature added starting in • Capacity BTU H • Current Amps
December 2004 depending on the model. • Power Input Watts • Efficiency BTU H / Watt
Compressors with this feature will have the Advanced • Emerson Climate Technologies, Inc. has compiled a
Scroll Temperature Protection label located directly book of compressor Application Bulletins. Please see
above the terminal box. the following bulletins, from the book, for more ZR
• A low pressure control is required for loss of charge compressor application information as entitled below:
protection. If the compressor does not have ASTP. A Mounting Parts . . . . . . . . . . . . . . . . . . . . . AE 4 -1111
cut-out setting no lower than 25 psig (2 kg/cm2) for air Application Guidelines . . . . . . . . . . . . . . AE 4 -1303
conditioning and 7 psig (0.5 kg/cm2) for heat pumps is Nameplate Amperage Rating . . . . . . . AE 9 -1154
recommended.
Nameplate Voltage . . . . . . . . . . . . . . . . . AE 9 -1228
• A discharge line thermostat is required for all air to
Maximum Continuous
airheat pump applications and must be located within
6" of the discharge fitting. Current Rating . . . . . . . . . . . . . . . . . . . AE 9 -1250

44
Copeland ®
brand products ZR COMMERCIAL COPELAND SCROLL® COMPRESSORS

MULTIPACK PACKAGING AND SHIPPING INFORMATION

MULTIPLE SINGLE PACK PACKAGING AND SHIPPING INFORMATION

Weight (pounds / kilograms) of a pallet of 6 single pack cartons placed on a wooden skid, overpacked with a protective shroud, and
banded. Multipack dimensions (cube) are 46 x 46 x 32 inches (39.2 FT 3), 116.88 x 116.8 x 81.3 centimeters (1.12 m3).

MODEL POUNDS KILOGRAMS

ZR84 886 403

ZR94 886 403
ZR108 928 421
ZR125 940 426
ZR144 940 426
ZR160 964 437
ZR190 988 448

SINGLE PACK PACKAGING AND SHIPPING INFORMATION

For your domestic shipments of 1 single pack, the box dimensions are 19 x 16.5 x 27.5 inches (5.0 FT 3), 48.3 x 41.9 x 69.9
centimeters (0.14 m3), and the weights (pounds / kilograms) are shown below.
MODEL WITH PALLET

ZR84 157 / 71.4

ZR94 157 / 71.4
ZR108 164/ 74.4
ZR125 166/ 75.3
ZR144 166/ 75.3
ZR160 170/77.1
ZR190 174/78.9

45
Copeland ®
brand products ZR COMMERCIAL COPELAND SCROLL® COMPRESSORS

MODEL NUMBER NOMENCLATURE

Product Variations
Application Range Compressor Motor Type
Three digit bill of material
Code Description Motor Type Code number that indicates
R High and medium Three phase T compressor configuration and
temperature accessories included.

Optional

Oil Code
POE E

Z R X X X K C X — T X X — X X X

Compressor Compressor
Family Capacity Multiplier Motor Protection
Series Type Code
Letter “Z” K 1,000
Internal inherent F
established protection – One
for this protector, use
family of with contactor.
compressors.
Solid state motor W
protection – electronic
sensors, and external
control module; use
Capacity
with contactor.
Compressor
nominal
60 Hertz
capacity at ARI Model Series
rating condition Variations
to two or three
significant Indicates different
Electrical Codes
digits. model types
within any one 50 HZ 60 HZ Code
family series. 200 / 220-3 200 / 230-3 5
– 380-3 7
84 380 / 420-3 460-3 D
94 – 575-3 E
108
125
144
160
190

46
Copeland ®
brand products ZR COMMERCIAL COPELAND SCROLL® COMPRESSORS

ZRT168K TO ZRT380K TANDEM COMPRESSORS

47
Copeland ®
brand products ZR COMMERCIAL COPELAND SCROLL® COMPRESSORS

50 HERTZ PERFORMANCE NOMINALS R22

220-3-50 (TF5/TW5/TX5)
THREE PHASE TEST VOLTAGE
380-3-50 (TFD/TWD/TXD)
CAPACITY ENERGY EFFICIENCY RATING
MODEL RATING MOTOR
CONDITION BTU KCAL WATTS AMPERES* BTUH KCALH WATTS
WATTS
HOUR HOUR MOTOR WATTS MOTOR WATTS MOTOR WATTS
A 140100 35300 41000 12100 41.1/23.8/– 11.6 2.9 3.4
ZRT168KC-TF5/D B 139000 35000 40700 12100 41.1/23.8/– 11.5 2.9 3.4
C 163000 41100 47800 8450 34.2/19.8/– 19.3 4.9 5.7
A 149200 37600 43700 13000 47.0/27.2/– 11.5 2.9 3.4
ZRU178KC-TF5/D B 148000 37300 43400 13000 47.0/27.2/– 11.4 2.9 3.3
C 172000 43300 50400 9400 38.0/22.0/– 18.3 4.6 5.4
A 157200 39600 46100 13500 43.2/25.0/– 11.6 2.9 3.4
ZRT188KC-TF5/D B 156000 39300 45700 13500 43.2/25.0/– 11.6 2.9 3.4
C 185000 46600 54200 9550 33.2/19.2/– 19.4 4.9 5.7
A 178400 45000 52300 15100 47.0/27.2/– 11.8 3.0 3.5
ZRT216KC-TF5/D B 177000 44600 51900 15100 47.0/27.2/– 11.7 3.0 3.4
C 208000 52400 60900 10700 37.0/21.4/– 19.4 4.9 5.7
A 209700 52800 61400 18000 53.9/31.2/– 11.7 2.9 3.4
ZRT250KC-TF5/D B 208000 52400 60900 18000 53.9/31.2/– 11.6 2.9 3.4
C 242000 61000 70900 12500 44.0/25.5/– 19.4 4.9 5.7
A 233900 58900 68500 20800 63.3/36.7/36.7 11.2 2.8 3.3
ZRU285KC-TX5/TFD/TXD B 232000 58500 68000 20800 63.3/36.7/36.7 11.2 2.8 3.3
C 275000 69300 80600 14850 49.2/28.5/28.5 18.5 4.7 5.4
A 235900 59400 69100 20200 60.6/35.1/– 11.7 2.9 3.4
ZRT288KC-TF5/D B 234000 59000 68600 20200 60.6/35.1/– 11.6 2.9 3.4
C 278000 70100 81500 14400 46.6/27.0/– 19.3 4.9 5.7
A 258000 65000 75600 23100 72.5/42.0/42.0 11.2 2.8 3.3
ZRU315KC-TX5/TFD/TXD B 256000 64500 75000 23100 72.5/42.0/42.0 11.1 2.8 3.2
C 305000 76900 89400 16600 58.1/33.7/33.7 18.4 4.6 5.4
A 261100 65800 76500 22500 85.8/42.9/42.9 11.6 2.9 3.4
ZRT320KC-TW5/TFD/TWD B 259000 65300 75900 22500 85.8/42.9/42.9 11.5 2.9 3.4
C 307000 77400 90000 16050 66.6/33.6/33.6 19.1 4.8 5.6
A 272200 68600 79800 24300 75.8/43.9/43.9 11.2 2.8 3.3
ZRU334KC-TX5/TFD/TXD B 270000 68000 79100 24300 75.8/43.9/43.9 11.1 2.8 3.3
C 321000 80900 94100 17400 60.7/35.2/35.2 18.4 4.6 5.4
A 281200 70900 82400 25400 80.3/46.5/46.5 11.1 2.8 3.2
ZRU350KC-TW5/TFD/TWD B 279000 70300 81700 25500 80.3/46.5/46.5 10.9 2.8 3.2
C 332000 83700 97300 18300 64.3/37.3/37.3 18.1 4.6 5.3
A 311500 78500 91300 27000 106.4/53.2/53.2 11.5 2.9 3.4
ZRT380KC-TW5/TFD/TWD B 309000 77900 90500 27100 106.4/53.2/53.2 11.4 2.9 3.3
C 367000 92500 107500 19450 85.2/42.6/42.6 18.9 4.8 5.5

* Ampere values shown are at 220 volts / 380 volts/380 volts.

EVAPORATING CONDENSING AMBIENT LIQUID RETURN GAS

RATING RATING
TEMPERATURE TEMPERATURE TEMPERATURE TEMPERATURE TEMPERATURE
CONDITION STANDARD
°F / °C °F / °C °F / °C °F / °C °F / °C
A ASRE / T 45 130 95 115 95
7.2 54.4 35.0 46.1 35.0
B ARI 45 130 95 115 65
7.2 54.4 35.0 46.1 18.3
C CHEER 45 100 95 85 65
7.2 37.8 35.0 29.4 18.3
See full operating range on page 67.
Production compressors to meet above nominal performance values within ± 5%.

48
Copeland ®
brand products ZR COMMERCIAL COPELAND SCROLL® COMPRESSORS

60 HERTZ PERFORMANCE NOMINALS R22

230-3-60 (TF5/TW5/TX5)
380-3-60 (TF7/TW7/TX7)
THREE PHASE TEST VOLTAGE
460-3-60 (TFD/TWD/TXD)
575-3-60 (TFE/TWE/TXE)
CAPACITY ENERGY EFFICIENCY RATING
MODEL RATING MOTOR
CONDITION BTU KCAL WATTS AMPERES*
AMPERES* BTUH KCALH WATTS
WATTS
HOUR HOUR MOTOR WATTS MOTOR WATTS MOTOR WATTS
A 169300 42700 49600 14600 45.6/27.6/22.8/–/18.2 11.6 2.9 3.4
ZRT168KC-TF5/7/D/E B 168000 42300 49200 14600 45.6/27.6/22.8/–/18.2 11.5 2.9 3.4
C 163000 41100 47800 8450 37.2/22.5/18.6/–/14.9 19.3 4.9 5.7
A 178400 45000 52300 15600 48.8/29.5/24.4/–/19.5 11.4 2.9 3.4
ZRU178KC-TF5/7/D/E B 177000 44600 51900 15600 48.8/29.5/24.4/–/19.5 11.3 2.9 3.3
C 209000 52700 61200 11400 39.4/23.8/19.7/–/15.8 18.3 4.6 5.4
A 190500 48000 55800 16300 51.2/31.0/25.6/–/20.5 11.7 2.9 3.4
ZRT188KC-TF5/7/D/E B 189000 47600 55400 16300 51.2/31.0/25.6/–/20.5 11.6 2.9 3.4
C 222000 55900 65000 11900 41.6/25.2/20.8/–/16.6 18.7 4.7 5.5
A 217700 54900 63800 18300 56.2/34.0/28.1/–/22.5 11.9 3.0 3.5
ZRT216KC-TF5/7/D/E B 216000 54400 63300 18300 56.2/34.0/28.1/–/22.5 11.8 3.0 3.5
C 254000 64000 74400 13500 45.6/27.6/22.8/–/18.2 18.8 4.7 5.5
A 254000 64000 74400 21800 65.2/39.4/32.6/–/26.1 11.7 2.9 3.4
ZRT250KC-TF5/7/D/E B 252000 63500 73800 21800 65.2/39.4/32.6/–/26.1 11.6 2.9 3.4
C 294000 74100 86100 15900 51.6/31.2/25.8/–/20.6 18.5 4.7 5.4
A 284300 71600 83300 25000 74.8/45.3/37.4/37.4/29.9 11.4 2.9 3.3
ZRU285KC-TX5/TX7/ B 282000 71100 82600 25100 74.8/45.3/37.4/37.4/29.9 11.2 2.8 3.3
TFD/TXD/TXE C 332000 83700 97300 18450 59.0/35.7/29.5/29.5/23.6 18.0 4.5 5.3
A 288300 72700 84500 24600 74.4/45.0/37.2/–/29.8 11.7 3.0 3.4
ZRT288KC-TF5/7/D/E B 286000 72100 83800 24600 74.4/45.0/37.2/–/29.8 11.6 2.9 3.4
C 336000 84700 98400 18100 58.4/35.3/29.2/–/23.4 18.6 4.7 5.4
A 313500 79000 91900 28000 86.2/52.2/43.1/43.1/34.5 11.2 2.8 3.3
ZRU315KC-TX5/TX7/ B 311000 78400 91100 28100 86.2/52.2/43.1/43.1/34.5 11.1 2.8 3.2
TFD/TXD/TXE C 366000 92200 107200 20800 71.0/43.0/35.5/35.5/28.4 17.6 4.4 5.2
A 321600 81000 94200 27600 86.2/52.2/43.1/43.1/34.5 11.7 2.9 3.4
ZRT320KC-TW5/TW7/ B 319000 80400 93500 27700 86.2/52.2/43.1/43.1/34.5 11.5 2.9 3.4
TFD/TWD/TWE C 377000 95000 110500 20400 68.1/41.2/34.1/34.1/27.3 18.5 4.7 5.4
A 331600 83600 97200 29400 90.0/54.5/45.0/45.0/36.0 11.3 2.8 3.3
ZRU334KC-TX5/TX7/ B 329000 82900 96400 29500 90.0/54.5/45.0/45.0/36.0 11.2 2.8 3.3
TFD/TXD/TXE C 387000 97500 113400 21800 74.1/44.9/37.1/37.1/29.7 17.8 4.5 5.2
A 343700 86600 100700 31300 95.8/58.0/47.9/47.9/38.3 11.0 2.8 3.2
ZRU350KC-TW5/TW7/ B 341000 85900 99900 31400 95.8/58.0/47.9/47.9/38.3 10.9 2.7 3.2
TFD/TWD/TWE C 401000 101100 117500 23200 78.8/47.7/39.4/39.4/31.5 17.3 4.4 5.1
A 381000 96000 111600 33400 106.1/64.2/53.1/53.1/42.5 11.4 2.9 3.3
ZRT380KC-TW5/TW7/ B 378000 95300 110800 33500 106.1/64.2/53.1/53.1/42.5 11.3 2.8 3.3
TFD/TWD/TWE C 446000 112400 130700 24700 83.8/50.7/41.9/41.9/33.5 18.1 4.6 5.3
* Ampere values shown are at 230 volts/ 380 volts/ 460volts/ 460 volts/ 575 volts.

EVAPORATING CONDENSING AMBIENT LIQUID RETURN GAS

RATING RATING
TEMPERATURE TEMPERATURE TEMPERATURE TEMPERATURE TEMPERATURE
CONDITION STANDARD
°F / °C °F / °C °F / °C °F / °C °F / °C

A ASRE / T 45 130 95 115 95

7.2 54.4 35.0 46.1 35.0
B ARI 45 130 95 115 65
7.2 54.4 35.0 46.1 18.3
C CHEER 45 100 95 85 65
7.2 37.8 35.0 29.4 18.3
See full operating range on page 67.
Production compressors to meet above nominal performance values within ± 5%.

49
Copeland ®
brand products ZR COMMERCIAL COPELAND SCROLL® COMPRESSORS

MECHANICAL SPECIFICATIONS
IN 3 CFH COMPRESSOR
CM 3 M 3/ HR NET WEIGHT WITH OIL
NOMINAL CUBIC FEET PER HOUR POUNDS
MODEL HP CUBIC INCHES PER
REVOLUTION CUBIC METERS PER HOUR KILOGRAMS
KW
CUBIC CENTIMETERS 50 HERTZ 60 HERTZ THREE
PER REVOLUTION 2900 RPM 3500 RPM PHASE
14.0 13.862 1395.8 1684.6 278
ZRT168KC
10.4 227.1 39.5 47.7 126
14.8 14.689 1479.1 1785.1 278
ZRU178KC
12.0 240.7 41.9 50.5 126
15.7 15.516 1562.4 1885.6 278
ZRT188KC
11.7 254.2 44.2 53.4 126
18.0 17.442 1756.4 2119.6 292
ZRT216KC
13.5 285.8 49.7 60.0 133
20.8 20.396 2053.8 2478.6 296
ZRT250KC
15.6 334.2 58.1 70.2 134
23.8 22.958 2311.7 2790.0 300
ZRU285KC
17.7 376.2 65.4 79.0 136
24.0 23.290 2345.2 2830.4 296
ZRT288KC
17.9 381.6 66.4 80.1 134
26.3 25.400 2557.6 3086.8 304
ZRU315KC
19.6 416.2 72.4 87.4 138
26.7 25.520 2569.7 3101.4 304
ZRT320KC
19.9 418.2 72.7 87.8 138
27.8 26.847 2703.3 3262.7 304
ZRU334KC
20.8 439.9 76.5 92.4 138
29.2 27.962 2831.8 3398.2 308
ZRU350KC
21.8 458.2 80.2 96.2 140
31.7 30.404 3061.5 3694.9 312
ZRT380KC
23.6 498.2 86.7 104.6 142

ELECTRICAL SPECIFICATIONS
*Note: Electrical specifications are the same as those for individual component compressors comprising the tandem. (Found on page 12 and page 13)

TANDEM MODEL COMPONENT COMPRESSOR TANDEM MODEL COMPONENT COMPRESSOR

ZRT168KC ZR84KC + ZR84KC ZRT288KC ZR144KC + ZR144KC

ZRU178KC ZR84KC + ZR94KC ZRU315KC ZR125KC + ZR190KC
ZRT188KC ZR94KC + ZR94KC ZRT320KC ZR160KC + ZR160KC
ZRT216KC ZR108KC + ZR108KC ZRU334KC ZR144KC + ZR190KC
ZRT250KC ZR125KC + ZR125KC ZRU350KC ZR160KC + ZR190KC
ZRU285KC ZR125KC + ZR160KC ZRT380KC ZR190KC + ZR190KC

“STANDARD” TANDEM BILL OF MATERIAL

MODEL BILL OF MATERIAL DESCRIPTION

NUMBER
ZRT168KC, ZRU178KC, Discharge Out, Suction Up, Oil Equalization Line, Compressor Mounting
ZRT188KC, ZRT216KC, 522 Kit, Rail Mounting Kit, Terminal Box Covers, Oil, Terminal
ZRT250KC, ZRT288KC Blocks with Screws and Grounding.
ZRU285KC, ZRU315KC, Suction Dip Tube Design with TPTL, Compressor Mounting Kit, Rail Mouting
ZRT320KC, ZRU334KC 273 Kit, Terminal Box Covers, Oil, Terminal Blocks with Screws and
ZRU350KC, ZRT380KC 120/240 Volt Modules (When Module is Used).
Suction Dip Tube Design, Oil Equalization Line, Compressor Mounting Kit,
ZRT320KC, ZRT380KC 276 Rail Mounting Kit, Terminal Box Covers, Oil, Terminal Blocks with Screws
and 120/240 Volt Modules.

50
Copeland ®
brand products ZR COMMERCIAL COPELAND SCROLL® COMPRESSORS

BILL OF MATERIAL PROVISIONS ACCESSORY INFORMATION

Please refer to the bills of material shown on the Crankcase Heater - 120 volts - 90 watts 018-0067-00
previous page to view our standard offers of
compressor selections. Crankcase Heater - 240 volts - 90 watts 018-0067-01

In addition to the marked features, each tandem will Crankcase Heater - 480 volts - 90 watts 018-0067-02
include the following: Crankcase Heater - 575 volts - 90 watts 018-0067-03
• Stub tube compressor suction and discharge Discharge Line Thermostat Kit 998-0071-03
fittings and tandem tubing.
(non-conduit)
• Stub tube oil equalization fitting and tandem tubing. Three Phase Voltage Monitor 085-0160-00
• Stub tube connections for suction and discharge to
the system.
• Terminal box and cover complete with wiring
diagram.
• Grounding tab located in the terminal box.
• Four Foot Mounting to rails using mounting
grommets and bolts.
7-1/2 x 7-1/2 inches (190.5 x 190.5 mm)
• Compressor Mounting Parts.
527-0182-00 (One kit per tandem)
• Rail Mounting Parts.
527-0177-00 (One kit per tandem)
• Internal Line Break or Electronic Protector.
• Terminal Connector Block with Screws.
• 3GS oil for use with R22.
• Initial oil charge
ZRT168KC 170 ounces (5.03 liters)
ZRT188KC 170 ounces (5.03 liters)
ZRT216KC 220 ounces (6.51 liters)
ZRT250KC 220 ounces (6.51 liters)
ZRU285KC 220 ounces (6.51 liters)
ZRT288KC 220 ounces (6.51 liters)
ZRU315KC 220 ounces (6.51 liters)
ZRT320KC 220 ounces (6.51 liters)
ZRU334KC 220 ounces (6.51 liters)
ZRU350KC 220 ounces (6.51 liters)
ZRT380KC 220 ounces (6.51 liters)
• Refill oil charge
ZRT168KC 162 ounces (4.79 liters)
ZRT188KC 162 ounces (4.79 liters)
ZRT216KC 212 ounces (6.27 liters)
ZRT250KC 212 ounces (6.27 liters)
ZRU285KC 212 ounces (6.27 liters)
ZRT288KC 212 ounces (6.27 liters)
ZRU315KC 212 ounces (6.27 liters)
ZRT320KC 212 ounces (6.27 liters)
ZRU334KC 212 ounces (6.27 liters)
ZRU350KC 212 ounces (6.27 liters)
ZRT380KC 212 ounces (6.27 liters)
See outline drawings on pages 52 and 55 for stub tube
and rotalock connection sizes.

51
Copeland ®
brand products ZR COMMERCIAL COPELAND SCROLL® COMPRESSORS

NOTES: MODEL NUMBER

1. NOMINAL DIMENSIONS ARE SHOWN.
MAXIMUM OVERALL TOLERANCE RANGE IS
DIMENSIONAL ZRT168KC -TF5 / TF7 / TFD / TFE

± 1.5 MM [0.060 IN]. CONTACT EMERSON

CLIMATE TECHNOLOGIES, INC. IF MORE
INFORMATION ZRU178KC-TF5 / TF7 / TFD / TFE
ZRT188KC -TF5 / TF7 / TFD / TFE
SPECIFIC RANGE IS REQUIRED.
2. DUE TO THE ACCUMULATED ASSEMBLY
TOLERANCES, THE SUCTION AND
DISCHARGE FITTINGS MAY VARY FROM THE
MOUNTING HOLES BY ± 3.0 MM [0.12 IN].
6X Ø 22.60 THRU RAIL
4. LINEAR MEASUREMENTS IN [ ] ARE [0.890]
INCH CONVERSIONS.
635.0
THIRD ANGLE PROJECTION [25.00]
501.6
[19.75]

29.45
[1.16]
250.8 66.7
[9.87] [2.63]

253.3
[9.97]

[12.29]
312.2
[15.69]
398.5

[3.47]
88.2
[3.71]
94.3

A
Ø 9.53 OIL EQUALIZATION
283.3 [0.375]
Ø 41.41 I.D. SUCTION [11.15]
[1.630]
486.9
[19.17]
754.3
[29.70]
[20.50]
520.7

[19.24]
488.8

246.0
[9.68]
196.7 [7.74]
193.4 [7.61]

138.0 [5.43]

C
[4.41]
112.0

C
[1.00]
25.4

Ø 28.70 I.D. DISCHARGE

[1.130]

95.2 [3.75]
47.6
[1.87]
] (WASHER-FLAT)
.687 CLE
.45 [0PIN CIR 102-0008-21 9.9 (RAIL - TANDEM)
Ø 17
L1 [0.39] 574-0053-00
[1.89]
47.9
121.2 [4.77]

L3 (SPACER - EXT MTG)

027-0323-00

(SLEEVE-SPLIT EXT MTG)

[0.35]

STANDARD TERMINAL
8.8

BOX LAYOUT 030-0142-03

FOR THE INTERNATIONAL MARKET

Section C - C ZRT168KC-TF5, TF7, TFD, TFE

527-0177-00 (shown) ZRU178KC-TF5, TF7, TFD, TFE
Rail Mounting Kit ZRT188KC-TF5, TF7, TFD, TFE
HEAT PUMP AND
AIR CONDITIONING MODELS

52
Copeland ®
brand products ZR COMMERCIAL COPELAND SCROLL® COMPRESSORS

NOTES: MODEL NUMBER

1. NOMINAL DIMENSIONS ARE SHOWN.
MAXIMUM OVERALL TOLERANCE RANGE IS
DIMENSIONAL ZRT216KC -TF5 / TF7 / TFD / TFE

± 1.5 MM [0.060 IN]. CONTACT EMERSON

CLIMATE TECHNOLOGIES, INC. IF MORE
INFORMATION ZRT250KC -TF5 / TF7 / TFD / TFE
ZRT288KC -TF5 / TF7 / TFD / TFE
SPECIFIC RANGE IS REQUIRED.
2. DUE TO THE ACCUMULATED ASSEMBLY
TOLERANCES, THE SUCTION AND
DISCHARGE FITTINGS MAY VARY FROM THE
MOUNTING HOLES BY ± 3.0 [0.12 IN]. 6X Ø 22.60 THRU RAIL
[0.890]
4. LINEAR MEASUREMENTS IN [ ] ARE
635.0
INCH CONVERSIONS. [25.00]
THIRD ANGLE PROJECTION
501.6
[19.75]

29.45
[1.16]
250.8 66.7
[9.87] [2.63]

253.3
[9.97]

[12.29]
312.2
[15.71]
398.9

[3.65]
92.8
[3.73]
94.7

A
Ø 9.53 OIL EQUALIZATION
283.3 [0.375]
[11.15]
486.2
[19.14]
756.8
[29.79]
[22.74]
577.6

[21.48]
545.6

[11.31]
219.2 [8.63]

287.3
222.7 [8.77]

C
166.6
[6.56]

126.5
[4.98]

C
[1.00]
25.4

Ø 35.05 I.D. DISCHARGE

[1.380]

95.2 [3.75]
47.6
[1.87]
(WASHER-FLAT)
7] E 102-0008-21 9.9 (RAIL - TANDEM)
.45 [0.68 CIRCL
Ø 17 PIN [0.39] 574-0053-00
L1
[1.89]
47.9
121.2 [4.77]

(SPACER - EXT MTG)

L3 027-0323-00

(SLEEVE-SPLIT EXT MTG)

[0.35]
8.8

STANDARD TERMINAL 030-0142-03

BOX LAYOUT
FOR THE INTERNATIONAL MARKET
Section C - C
527-0177-00 (shown) ZRT216KC-TF5, TF7, TFD, TFE
ZRT250KC-TF5, TF7, TFD, TFE
Rail Mounting Kit
ZRT288KC-TF5, TF7, TFD, TFE
HEAT PUMP AND
AIR CONDITIONING MODELS

53
Copeland ®
brand products ZR COMMERCIAL COPELAND SCROLL® COMPRESSORS

NOTES: MODEL NUMBER

1. NOMINAL DIMENSIONS ARE SHOWN.
MAXIMUM OVERALL TOLERANCE RANGE IS
DIMENSIONAL ZRU285KC-TX5/TX7/TFD/TXD/TXE

± 1.5 MM [0.060 IN]. CONTACT EMERSON

CLIMATE TECHNOLOGIES, INC. IF MORE
INFORMATION ZRU315KC-TX5/TX7/TFD/TXD/TXE
ZRU334KC-TX5/TX7/TFD/TXD/TXE
SPECIFIC RANGE IS REQUIRED.
2. DUE TO THE ACCUMULATED ASSEMBLY
TOLERANCES, THE SUCTION AND
DISCHARGE FITTINGS MAY VARY FROM THE
MOUNTING HOLES BY ± 3.0 MM [0.12 IN].
4. LINEAR MEASUREMENTS IN [ ] ARE
INCH CONVERSIONS.
THIRD ANGLE PROJECTION

FOR THE INTERNATIONAL MARKET

ZRU285KC-TX5, TX7, TFD, TXD, TXE
ZRU315KC-TX5, TX7, TFD, TXD, TXE
ZRU334KC-TX5, TX7, TFD, TXD, TXE
HEAT PUMP AND
AIR CONDITIONING MODELS

54
Copeland ®
brand products ZR COMMERCIAL COPELAND SCROLL® COMPRESSORS

NOTES: MODEL NUMBER

1. NOMINAL DIMENSIONS ARE SHOWN.
MAXIMUM OVERALL TOLERANCE RANGE IS
DIMENSIONAL ZRT320KC-TW5/TW7/TFD/TWD/TWE

± 1.5 MM [0.060 IN]. CONTACT EMERSON

CLIMATE TECHNOLOGIES, INC. IF MORE
INFORMATION ZRU350KC-TW5/TW7/TFD/TWD/TWE
ZRU380KC-TW5/TW7/TFD/TWD/TWE
SPECIFIC RANGE IS REQUIRED.
2. DUE TO THE ACCUMULATED ASSEMBLY
TOLERANCES, THE SUCTION AND
DISCHARGE FITTINGS MAY VARY FROM THE
MOUNTING HOLES BY ± 3.0 MM [0.12 IN].
4. LINEAR MEASUREMENTS IN [ ] ARE
INCH CONVERSIONS.
THIRD ANGLE PROJECTION

FOR THE INTERNATIONAL MARKET

ZRT320KC-TW5, TW7, TFD, TWD, TWE
ZRU350KC-TW5, TW7, TFD, TWD, TWE
ZRT380KC-TW5, TW7, TFD, TWD, TWE
HEAT PUMP AND
AIR CONDITIONING MODELS

55
Copeland ®
brand products ZR COMMERCIAL COPELAND SCROLL® COMPRESSORS

NOTES: PART TUBE- TUBE- SUCTION FITTING DIAMETER

MODEL
1. 15% MINIMUM SILVER SOLDER. NUMBER SUCTION FITTING TEE "D"

ZRT168/ZRU178/ZRT188 528-1697-00 028-0991-01 028-0988-00 036-0020-84 28.34-28.49

2. INSERT TUBING THE ENTIRE DEPTH OF THE
FITTING. ZRT216/ZRT250/ZRT288 528-1697-01 028-0997-01 028-0988-01 036-0020-83 34.69-34.84

3. LINEAR MEASUREMENTS ARE IN

MILLIMETERS

THIRD ANGLE PROJECTION DIMENSIONAL

INFORMATION

FITTING-TEE

393.57

FURNACE Note 1
BRAZE

Note 2
2X 285.68

TUBE-SUCTION TUBE-SUCTION
028-0991 028-0988
“D”
es) ter
lac me

)
o P Dia

( 30°
(Tw tside
Ou

320.62 72.95

FOR THE INTERNATIONAL MARKET

SUCTION TUBE ASSEMBLY
ZRT168KC-TF5, TF7, TFD, TFE
ZRU178KC-TF5, TF7, TFD,TFE
ZRT188KC-TF5, TF7, TFD,TFE
ZRT216KC-TF5, TF7, TFD,TFE
ZRT250KC-TF5, TF7, TFD,TFE
ZRT288KC-TF5, TF7, TFD,TFE
HEAT PUMP AND
AIR CONDITIONING MODELS

56
Copeland ®
brand products ZR COMMERCIAL COPELAND SCROLL® COMPRESSORS

NOTES: MODEL PART TUBE- TUBE- FITTING

1. 15% MINIMUM SILVER SOLDER. NUMBER SUCTION - 1 SUCTION-2 TEE
ZRU285/ZRU334 528-1964-00 028-1404-01 028-1405-02 036-0020-83
2. INSERT TUBING THE ENTIRE DEPTH OF THE
FITTING.

3. LINEAR MEASUREMENTS ARE IN

MILLIMETERS

THIRD ANGLE PROJECTION DIMENSIONAL

INFORMATION

120.51 273.19

NOTE 2

TUBE SUCTION- 2
028-1405-02

TUBE SUCTION- I FURNACE BRAZE

028-1404-01

TUBE - TANDEM SUCTION

028-1528-00
118.40

REDUCER FITTING
NOTE 2
036-1206-00

FURNACE BRAZE

FOR THE INTERNATIONAL MARKET

SUCTION TUBE ASSEMBLY
ZRU285KC-TX5,TX7,TFD,TXD,TXE
ZRU334KC-TX5,TX7,TFD,TXD,TXE

HEAT PUMP AND

AIR CONDITIONING MODELS

57
Copeland ®
brand products ZR COMMERCIAL COPELAND SCROLL® COMPRESSORS

NOTES: MODEL PART NUMBER TUBE SUCTION TUBE SUCTION FITTING TEE DIMENSION"D"
1. 15% MINIMUM SILVER SOLDER. ZRU315/ZRT320/ZRU350/ZRT380 528-1959-01 028-1404-01 028-1405-01 036-0020-83 34.69-34.84

2. INSERT TUBING THE ENTIRE DEPTH OF THE

FITTING.

3. LINEAR MEASUREMENTS ARE IN

MILLIMETERS

THIRD ANGLE PROJECTION DIMENSIONAL

INFORMATION

NOTE 2

TUBE - SUCTION
028-1405-01

TUBE SUCTION FURNACE BRAZE

028-1404-01 OUTSIDE DIAMETER “D”

TUBE - TANDEM SUCTION

028-1528-00

FOR THE INTERNATIONAL MARKET

SUCTION TUBE ASSEMBLY
ZRU315KC-TX5,TX7,TFD,TXD,TXE
ZRT320KC-TW5,TW7,TFD,TWD,TWE
ZRU350KC-TW5,TW7,TFD,TWD,TWE
ZRT380KC-TW5,TW7,TFD,TWD,TWE

HEAT PUMP AND

AIR CONDITIONING MODELS

58
Copeland ®
brand products ZR COMMERCIAL COPELAND SCROLL® COMPRESSORS

NOTES: TUBE-
PART TUBE- DIAMETER DIAMETER DIAMETER
1. 15% MINIMUM SILVER SOLDER. MODEL SUCTION FITTING TEE
NUMBER SUCTION "D" "E" "F"
FITTING

2. INSERT TUBING THE ENTIRE DEPTH OF THE ZRT168/ZRU178/ZRT188 528-1696-01 036-0020-81 028-0989-01 028-0990-01 295.4 28.7 214.85
FITTING.
ZRT216/ZRT250/ZRT288 528-1696-00 036-0020-80 028-0989-00 028-0990-00 326.4 35.05 219.42

3. LINEAR MEASUREMENTS ARE IN

MILLIMETERS

THIRD ANGLE PROJECTION DIMENSIONAL

INFORMATION

308.94 84.76
2X 177.00

NOTE 1
BRAZE GAS TIGHT NOTE 2

NOTE 2 Inside Diameter “E”

393.70
2X (Ø 22.23 ) OD

DISCHARGE TUBE
028-0989

DISCHARGE TUBE
2X D

028-0990

FITTING TEE

FOR THE INTERNATIONAL MARKET

DISCHARGE TUBE ASSEMBLY
ZRT168KC-TF5,TF7,TFD,TFE
ZRU178KC-TF5,TF7,TFD,TFE
ZRT188KC-TF5,TF7,TFD,TFE
ZRT216KC-TF5,TF7,TFD,TFE
ZRT250KC-TF5,TF7,TFD,TFE
ZRT288KC-TF5,TF7,TFD,TFE
HEAT PUMP AND
AIR CONDITIONING MODELS

59
Copeland ®
brand products ZR COMMERCIAL COPELAND SCROLL® COMPRESSORS

NOTES: TUBE-
PART TUBE-
1. 15% MINIMUM SILVER SOLDER. MODEL SUCTION FITTING TEE
NUMBER SUCTION
FITTING

2. INSERT TUBING THE ENTIRE DEPTH OF THE ZRU285/ZRU315/ZRU334 528-1965-00 036-1191-00 028-1406-00 028-1407-01
FITTING.

3. LINEAR MEASUREMENTS ARE IN

MILLIMETERS

THIRD ANGLE PROJECTION DIMENSIONAL

INFORMATION

FITTING TEE
036-1191-00
TUBE -DISCHARGE
028-1406-00

NOTE 2
NOTE 1
CRAZE GAS TIGHT

TUBE DISCHARGE
028-1407-01

194.99
4.7°
15.98

FOR THE INTERNATIONAL MARKET

DISCHARGE TUBE ASSEMBLY
ZRT285KC-TX5,TX7,TFD,TXD,TXE
ZRT315KC-TX5,TX7,TFD,TXD,TXE
ZRU334KC-TX5,TX7,TFD,TXD,TXE

HEAT PUMP AND

AIR CONDITIONING MODELS

60
Copeland ®
brand products ZR COMMERCIAL COPELAND SCROLL® COMPRESSORS

NOTES: TUBE-
PART TUBE-
1. 15% MINIMUM SILVER SOLDER. MODEL SUCTION FITTING TEE
NUMBER SUCTION
FITTING

2. INSERT TUBING THE ENTIRE DEPTH OF THE ZRT320/ZRU350/ZRT380 528-1960-00 036-1191-00 028-1406-00 028-1407-00
FITTING.

3. LINEAR MEASUREMENTS ARE IN

MILLIMETERS

THIRD ANGLE PROJECTION DIMENSIONAL

INFORMATION

FITTING TEE
036-1191-00

DISCHARGE TUBE
028-1406-00 NOTE 2

DISCHARGE TUBE
NOTE 1
028-1407-00
028-1406-00

FOR THE INTERNATIONAL MARKET

DISCHARGE TUBE ASSEMBLY

ZRT320KC-TW5,TW7,TFD,TWD,TWE
ZRU350KC-TW5,TW7,TFD,TWD,TWE
ZRT380KC-TW5,TW7,TFD,TWD,TWE
HEAT PUMP AND
AIR CONDITIONING MODELS

61
Copeland ®
brand products ZR COMMERCIAL COPELAND SCROLL® COMPRESSORS

NOTES:
MODEL NUMBER TUBE OIL EQUALIZATION
1. LINEAR MEASUREMENTS ARE IN
MILLIMETERS
ZRT168/ZRU178/ZRT188
THIRD ANGLE PROJECTION ZRT216/ZRT250/ZRT288 028-1082-00
ZRT320/ZRT380

DIMENSIONAL
INFORMATION

Ø
7.9
0
ID
OD
3
9.5
Ø

393.70

35.65
.05

2X
19
R
°

2X
90

59.47

355.60

FOR THE INTERNATIONAL MARKET

TUBE - OIL EQUALIZATION
ZRT168KC-TF5,TF7,TFD,TFE
ZRU178KC-TF5,TF7,TFD,TFE
ZRT188KC-TF5,TF7,TFD,TFE
ZRT216KC-TF5,TF7,TFD,TFE
ZRT250KC-TF5,TF7,TFD,TFE
ZRT288KC-TF5,TF7,TFD,TFE
ZRT320KC-TW5,TW7,TFD,TWD,TWE
ZRT380KC-TW5,TW7,TFD,TWD,TWE
HEAT PUMP AND
AIR CONDITIONING MODELS

62
Copeland ®
brand products ZR COMMERCIAL COPELAND SCROLL® COMPRESSORS

NOTES:
MODEL NUMBER TPTL
1. LINEAR MEASUREMENTS ARE IN
MILLIMETERS
ZRU285/ZRU315/ZRT320
528-2143-00
THIRD ANGLE PROJECTION ZRU334/ZRU350/ZRT380

DIMENSIONAL
INFORMATION

TPTL TUBE ROTALOCK STRAIGHT ADAPTER

028-1506-00 034-0025-01

SIGHT GLASS FITTING

036-1174-00

SIGHT GLASS*
070-0034-00

WASHER*
020-0028-05

FOR THE INTERNATIONAL MARKET

TUBE - TPTL
ZRU285KC-TFD,TX5,TX7,TXD,TXE
ZRU315KC-TFD,TX5,TX7,TXD,TXE
ZRU334KC-TFD,TX5,TX7,TXD,TXE
ZRT320KC-TW5,TW7,TFD,TWD,TWE
ZRU350KC-TW5,TW7,TFD,TWD,TWE
* NOT PART OF TPTL, PURCHASE SEPARATELY ZRT380KC-TW5,TW7,TFD,TWD,TWE
HEAT PUMP AND
AIR CONDITIONING MODELS

63
Copeland ®
brand products ZR COMMERCIAL COPELAND SCROLL® COMPRESSORS

NOTES: MODEL RAILS QUANTITY PER TANEM

1. LINEAR MEASUREMENTS ARE IN ZRT168/ZRU178/ZRT188
MILLIMETERS
ZRT216/ZRT250/ZRT288
574-0053-00 2
ZRU285/ZRT320/ZRU315
THIRD ANGLE PROJECTION
ZRU334/ZRU350/ZRT380

DIMENSIONAL
INFORMATION

635.00 mm
190.00 203.20 190.50 25.40
31.75
63.15

250.8 250.80

317.5
22.6 Diameter

SEE DETAIL A 91.85 - 93.35

24.65 - 26.15 mm

4.18
635.00 mm

Ø 17.04

(4X [7/16-14 UNC-2B] WELD NUT

DETAIL A
4 PLACES

FOR THE INTERNATIONAL MARKET

RAILS
ZRT168KC-TF5,TF7,TFD,TFE
ZRU178KC-TF5,TF7,TFD,TFE
ZRT188KC-TF5,TF7,TFD,TFE
ZT216KC-TF5,TF7,TFD,TFE
ZRT250KC-TF5,TF7,TFD,TFE
ZRU285KC-TX5,TX7,TFD,TXD,TXE
ZRT288KC-TF5,TF7,TFD,TFE
ZRU315KC-TW5,TW7,TFD,TWD,TWE
ZRT320KC-TW5,TW7,TFD,TWD,TWE
ZRU334KC-TX5,TX7,TFD,TXD,TXE
ZRU350KC-TW5,TW7,TFD,TWD,TWE
574-0053-00 074-0903-00 101-0105-01 ZRT380KC-TW5,TW7,TFD,TWD,TWE
ASSEMBLY RAIL-TANDEM NUT-HEXWELD HEAT PUMP AND
AIR CONDITIONING MODELS
4 PER RAIL

64
Copeland ®
brand products ZR COMMERCIAL COPELAND SCROLL® COMPRESSORS

NOTES: ASSEMBLY WASHER- SPACER-EXT BOLT-HEX WASHER-SPRING

MODEL NUMBER MOUNT MOUNT HEAD CAP LOCK
1. LINEAR MEASUREMENTS ARE IN
MILLIMETERS ZRT168/ZRU178/ZRT188/
2. USE EIGHT OF EACH PART PER TANDEM ZRT216/ZRT250/ZRT288
527-0182-00 102-0236-00 027-0385-00 100-0502-00 102-0243-00
ZRU285/ZRU315/ZRT320
ZRU334/ZRU350/ZRT380
THIRD ANGLE PROJECTION

DIMENSIONAL
INFORMATION

6.35 2X 40° -50° X 0.762 A

Ø 11.94
Ø31.75

Ø 12.57 -13.08 1.63 -2.64

8 R 2.54
.50 A

Ø18.288
R0

Ø26.67
19.05
2X

SECTION A-A

Ø 31.57 -32.51

Ø19.710 MAX

6.909 - 7.391 50.8 Ø11.176 - 11.430

28.575
15.
545
-
15.
875
Ø 10.935 - 11.113

Ø 11.099

2.769
A
WASHER-LOCK
SECTION A-A
BOLT-HEX
102-0243-00 100-0502-00

WASHER-MOUNTING
102-0236-00

SPACER-EXTERNAL MOUNT
027-0385-00
FOR THE INTERNATIONAL MARKET
COMPRESSOR TO RAIL MOUNTING PARTS
ZRT168KC-TF5,TF7,TFD,TFE
ZRU178KC-TF5,TF7,TFD,TFE
ZRT188KC-TF5,TF7,TFD,TFE
ZRT216KC-TF5,TF7,TFD,TFE
ZRT250KC-TF5,TF7,TFD,TFE
ZRT288KC-TF5,TF7,TFD,TFE
ZRU315KC-TW5,TW7,TFD,TWD,TWE
ZRT320KC-TW5,TW7,TFD,TWD,TWE
ZRU334KC-TX5,TX7,TFD,TXD,TXE
Assembly ZRU350KC-TW5,TW7,TFD,TWD,TWE
ZRT380KC-TW5,TW7,TFD,TWD,TWE
HEAT PUMP AND
AIR CONDITIONING MODELS

65
Copeland ®
brand products ZR COMMERCIAL COPELAND SCROLL® COMPRESSORS

NOTES: MODEL ASSEMBLY NUMBER MOUNTING SPACER SPLIT SLEEVE WASHER

1. LINEAR MEASUREMENTS ARE IN ZRT168/ZRU178/ZRT188
MILLIMETERS ZRT216/ZRT250/ZRT288
527-0177-00 027-0323-00 030-0227-02 102-0008-43
2. USE SIX OF EACH PART PER TANDEM ZRU285/ZRU315/ZRT320
ZRU334/ZRU350/ZRT380
THIRD ANGLE PROJECTION

DIMENSIONAL
INFORMATION

A
Ø38.10
2X 45° X 2.67

R
0.5
0
Ø 22.10
Ø 12.70

Ø 27.94
A

A 4.25 30.00
9.14
40.00
SECTION A-A 18.29

Mounting Spacer

0.254 MAX. 39.675

Ø10.058 - 10.566

Ø 9.779 - 10.033

Split Sleeve

Ø 31.623 - 31.877

1.981 - 2.743

Washer
WASHER
102-0008-21
SLEEVE - SPLIT
030-0142-03

FOR THE INTERNATIONAL MARKET

SPACER - EXTERNAL MOUNTING
027-0323-00 RAIL TO BASE MOUNTING PART
ZRT168KC-TF5,TF7,TFD,TFE
ZRU178KC-TF5,TF7,TFD,TFE
ZRT188KC-TF5,TF7,TFD,TFE
ZRT216KC-TF5,TF7,TFD,TFE
ZRT250KC-TF5,TF7,TFD,TFE
ZRT288KC-TF5,TF7,TFD,TFE
ZRU315KC-TW5,TW7,TFD,TWD,TWE
ZRT320KC-TW5,TW7,TFD,TWD,TWE
ZRU334KC-TX5,TX7,TFD,TXD,TXE
ZRU350KC-TW5,TW7,TFD,TWD,TWE
Assembly ZRT380KC-TW5,TW7,TFD,TWD,TWE
HEAT PUMP AND
AIR CONDITIONING MODELS

66
Copeland ®
brand products ZR COMMERCIAL COPELAND SCROLL® COMPRESSORS

COMPRESSOR WIRING DIAGRAMS

THREE PHASE MOTOR

1
T1
TO CONTACTOR
CONNECT

2 3

T3
EXTERNAL MOTOR INTERNAL MOTOR
WIRING DIAGRAM WIRING DIAGRAM

ZRT168KC TO ZRT380KC -TF*

USE COPPER CONDUCTORS ONLY.
USE THIS EQUIPMENT ON A GROUNDED SYSTEM ONLY.
USE MINIMUM 75° C WIRE FOR AMPACITY DETERMINATION.
INTERNAL MOTOR PROTECTION – ALLOW TIME FOR RESET.
PRIMARY SINGLE PHASE FAILURE PROTECTION IS PROVIDED.
CRANKCASE HEATER, WHEN APPLIED, MUST BE CONNECTED ONLY TO ITS RATED VOLTAGE.
OVERCURRENT PROTECTION DEVICE RATING AND TYPE MUST BE IN ACCORDANCE WITH
REGULATORY AGENCY END PRODUCT APPROVALS – SEE SYSTEM NAMEPLATE.
TO CORRECT IMPROPER MOTOR ROTATION, SWITCH ANY TWO SUPPLY LINES.

50 APPROVED COMPRESSOR
HERTZ OPERATING RANGE R22
60
AN OKAY INDICATES AN APPROVED POINT FOR COMPRESSOR OPERATION
AN * * * * INDICATES A NON-APPROVED POINT FOR COMPRESSOR OPERATION

CONDENSING TEMPERATURE EVAPORATING TEMPERATURE °F/°C

67
Copeland ®
brand products ZR COMMERCIAL COPELAND SCROLL® COMPRESSORS

COMPRESSOR WIRING DIAGRAMS

THREE PHASE MOTOR

L1 L2
INTERNAL
THERMAL MOTOR WINDING
SENSORS CONNECTIONS

T2 T1 S2 S1 M2 M1

1 2 L1 L3 L2

ZR160 TO ZR190KC/KCE-TW*

USE COPPER CONDUCTORS ONLY.

68
Copeland ®
brand products ZR COMMERCIAL COPELAND SCROLL® COMPRESSORS

TANDEM APPLICATION NOTES

Use of the ZR84K to ZR190K compressor in a tandem • Pumpdown may be used instead of, or in conjunction
configuration follows the guidelines of the single with, a crankcase heater when the compressor is
compressor found in Application Bulletin AE-1303 and located so that cold air blowing over the compressor
on page 44 with the following exceptions: makes the crankcase heater ineffective. A separate
external check valve must be added to the common
• The tandem compressors are rigidly mounted with discharge close to the manifold if pumpdown is used.
steel spacers on rails. These mounts are installed at
the factory and should not be loosened. Re-torque to • The individual compressors that make up the tandem
are wired independently using the electrical values of
125 inch pounds (14.1 Nm) if it becomes necessary to
the single compressors. It is recommended that
tighten these mounts. Holes in the mounting rails may
compressors be wired to change lead / lag position.
be used to mount isolation grommets under the entire
This will ensure equal run time for both compressors,
tandem.
thereby increasing reliability.
• Both compressors must be at the same level to
• It is recommended that the entire scroll tandem be
prevent oil from migrating to the lowest compressor
replaced should one compressor fail. Individual
through the oil equalization line.
scrolls configured for tandem may not be available in
• Refrigerant charge limit for all these tandem models the field. When a tandem is exchanged in the field it
is 24 lbs. (10.9 kg) for the entire tandem (50% more is possible that a major portion of the oil may still be
than for a single compressor). A tandem with a circuit in the system. While this may not affect the reliability
charge over 24 lbs. (10.9 kg) must use crankcase of the replacement compressor, the extra oil will add
heaters on both compressors. to rotor drag and increase power usage. To remove
this excess oil an access valve may be added to the
lower portion of the suction manifold. The compressor
should then be run for 10 minutes, shut down and the
access valve opened until no oil flows. This should be
repeated twice to make sure the proper oil level has
been achieved.

TANDEM COMPRESSOR SPECIFICATION

The compressor shall be a Copeland Scroll type, –10°F to 55°F (–23.3°C to 12.8°C) at condensing
with DU (PTFE) journal bearings, internal line break temperatures up to 150°F (65.6°C). The compressor
motor protection and both rotalock or braze fittings. shall operate at an ARI point efficiency range of 11.3
The tandem compressor shall be able to handle a 24 to 11.8 BTUH/ WATT. Efficiencies above 11.8
pound (10.9 Kg) refrigerant charge limit without a BTUH/ WATT are also acceptable. The compressor
crankcase heater. The compressor shall be capable shall be of the Copeland® ZR type or approved equal.
of operating on R22 within the evaporating range of

69
Copeland ®
brand products ZR COMMERCIAL COPELAND SCROLL® COMPRESSORS

HOW A SCROLL WORKS

70
Copeland ®
brand products ZR COMMERCIAL COPELAND SCROLL® COMPRESSORS

SINGLE PACK TANDEM PACKAGING AND SHIPPING INFORMATION

For shipments of 1 single pack tandem compressors, the dimensions for the box and the skid together are 42.0 x 26.9 x 33.6 inches
(22.0 ft3), 106.7 x 68.3 x 85.3 centimeters (0.62m3), and the weights (in lbs. and kgs.) are shown in the table below.

MODEL NUMBER WEIGHT (POUNDS) WEIGHT (KILOGRAMS)

ZRT168KC 336 152

ZRU178KC 336 152

ZRT188KC 336 152

ZRT216KC 350 159

ZRT250KC 354 161

ZRT288KC 354 161

ZRT320KC 362 164

ZRT380KC 370 168

Tandem Packaging

090-0342-00 CARTON
1 REQD PER ASSM

094-0132-00 SKID
1 REQD PER ASSM

590-0289-01
COMPRESSOR ORIENTATION

71
Copeland ®
brand products ZR COMMERCIAL COPELAND SCROLL® COMPRESSORS

MODEL NUMBER NOMENCLATURE

Tandem
Code Description
T Even Tandem
U Uneven Tandem

Z R X X X X K C — T X X — X X X

Compressor
Family Capacity Multiplier Compressor
Series Motor Protection
K 1,000 Type Code
Letter “Z”
established Internal inherent F
for this protection – One
family of protector, use
compressors. with contactor.
Solid state motor W
protection – electronic
Capacity sensors, and external
Compressor control module; use
nominal with contactor.
60 Hertz
capacity at ARI
rating condition
Model Series
to three
Variations
significant
digits. Indicates different
Electrical Codes
model types
within any one 50 HZ 60 HZ Code
168 family series. 200 / 220-3 200 / 230-3 5
178 – 380-3 7
188 380 / 420-3 460-3 D
216 – 575-3 E
250
285
288
315
320
334
350
380

72
Copeland Scroll®

ZR90K to ZR19M
With its inherent compliant capabilities, unique features, and applied cost savings,
Copeland Scroll® has expanded the limits of scroll technology to meet the challenges of
the most demanding commercial air-conditioning applications for today and tomorrow.

73
Copeland ®
brand products ZR COMMERCIAL COPELAND SCROLL® COMPRESSORS

DESCRIPTION FEATURES
Emerson Climate Technologies, Inc. continues • Copeland Scroll
to deliver comprehensive compressor solutions for – High Efficiency
the commercial air conditioning market with the – Better Liquid Handling
Copeland Scroll. Its highly engineered robust
design enables the ZR90K to ZR19M scroll – Better Debris Handling
product line to meet the most demanding – Self-compensating for wear
commercial applications around the world. It (“Wears-in” vs. “Wears-out”)
delivers in the 20 to 100 horsepower and above – 70% fewer moving parts
packaged rooftop and chiller markets. It is also – Low sound levels
designed for specialized applications, such as
computer rooms, transportation cooling and • 17 Pound / 7.7 Kg Refrigerant Charge Limit
mushroom coolers.
• Sight Glass and Oil Level Adjustment Port
This family demonstrating superior reliability, the
scroll also possesses the most efficient operating • Unique, Quick Responding Temperature
characteristics of any hermetic compressor in its Protection
class.
• Three Oil Filtration Devices and Rotary Dirt Trap
• High efficiency performance. • Integral Cast Iron Frame and Cast Iron Scrolls
• Low sound levels. • DU (PTFE) Journal Bearings
• Available in 7.5, 9, 10, 13, and 16 • Rotalock or Stub Tube Fittings
horsepower models, five electrical
configurations, and tandem offerings. • High & Low Pressure Taps (Shrader Valves) on
Rotalock Version
• A total of 29 models are available now in this
family, including compressors that use alternate • Low Shutdown Noise
refrigerants such as R-407C and R-134a. They
combine to make up our extensive line of tandem
• Available with POE for R-407C and R-134a
offerings. • Heavy commercial capability with small size,
fewer moving parts and rugged design.
• Unique patented features that are not found in
other scroll compressors. See Product Features • WideModel Selection to Meet Diverse Market
on this page for a listing of unique features. Needs
Even with all its unique benefits and features, • Flexible Voltage Options
the ZR90K to ZR19M line of compressors is
economical due to significant savings in system
• Tandem Models Available
design, service, and applied cost.

75
Copeland ®
brand products ZR COMMERCIAL COPELAND SCROLL® COMPRESSORS

50 HERTZ PERFORMANCE NOMINALS R22

EVAPORATING CONDENSING AMBIENT LIQUID RETURN GAS

RATING RATING
TEMPERATURE TEMPERATURE TEMPERATURE TEMPERATURE TEMPERATURE
CONDITION STANDARD
°F / °C °F / °C °F / °C °F / °C °F / °C
A ASRE / T 45 130 95 115 95
7.2 54.4 35.0 46.1 35.0
B ARI 45 130 95 115 65
7.2 54.4 35.0 46.1 18.3
C CHEER 45 100 95 85 65
7.2 37.8 35.0 29.4 18.3
See expanded performance data on pages 89 to 91.
See full operating range on page 107.
Production compressors to meet above nominal performance values within ± 5%.

76
Copeland ®
brand products ZR COMMERCIAL COPELAND SCROLL® COMPRESSORS

50 HERTZ PERFORMANCE NOMINALS R407C

A 72600 18300 21300 6640 24.5/23.5/12.9 10.9 2.8 3.2

ZR90K3E-TWC/R/D B 72000 18100 21100 6650 24.5/23.5/12.9 10.8 2.7 3.2
C 87500 22100 25600 4460 20.3/19.4/10.7 19.6 5.0 5.7

A 87700 22100 25700 7880 29.3/27.9/15.4 11.1 2.8 3.3

C
ZR11M3E-TWC/R/D B 87000 21900 25500 7900 29.3/27.9/15.4 11.0 2.8 3.2

07
C 105000 26500 30800 5400 24.1/23.1/12.7 19.4 4.9 5.7

A 101800 25700 29800 9030 31.2/29.8/16.4 11.3 2.8 3.3

4
ZR12M3E-TWC/R/D B 101000 25500 29600 9050 31.2/29.8/16.4 11.2 2.8 3.3
C 121000 30500 35500 6050 24.5/23.4/12.9 20.0 5.0 5.9

ZR16M3E-TWC/R/D

ZR19M3E-TWC/R/D
A
B
C

A
B
124000
123000
149000

152200
151000
31200
31000
37500

38400
38100
R 36300
36000
43700
11400
11400
7800

44600 13700
44200 13700
36.5/35.0/19.2
36.5/35.0/19.2
28.1/26.9/14.8

44.5/42.6/23.4
44.5/42.6/23.4
10.9
10.8
19.1

11.1
11.0
2.7
2.7
4.8

2.8
2.8
3.2
3.2
5.6

3.3
3.2
C 182000 45900 53300 9400 34.0/32.6/17.9 19.4 4.9 5.7
* Ampere values shown are at 200 volts / 220 volts / 380 volts .

EVAPORATING CONDENSING AMBIENT LIQUID RETURN GAS

RATING RATING
TEMPERATURE TEMPERATURE TEMPERATURE TEMPERATURE TEMPERATURE
CONDITION STANDARD
°F / °C °F / °C °F / °C °F / °C °F / °C
A ASRE / T 45 130 95 115 95
7.2 54.4 35.0 46.1 35.0
B ARI 45 130 95 115 65
7.2 54.4 35.0 46.1 18.3
C CHEER 45 100 95 85 65
7.2 37.8 35.0 29.4 18.3
Dew Point Temperatures are used for rating conditions.
See expanded performance data on pages 92 to 94.
See full operating range on page 107.
Production compressors to meet above nominal performance values within ± 5%.

77
Copeland ®
brand products ZR COMMERCIAL COPELAND SCROLL® COMPRESSORS

50 HERTZ PERFORMANCE NOMINALS R134a

A 49900 12600 14600 4610 19.2/18.3/10.1 10.8 2.7 3.2

ZR90K3E-TWC/R/D B 49500 12500 14500 4620 19.2/18.3/10.1 10.7 2.7 3.1
C 59000 14900 17300 3260 16.5/15.8/8.7 18.1 4.6 5.3

a
A 61500 15500 18000 5590 21.7/20.8/11.4 11.0 2.8 3.2

4
ZR11M3E-TWC/R/D B 61000 15400 17900 5600 21.7/20.8/11.4 10.9 2.8 3.2

13
C 72500 18300 21200 3970 18.6/17.8/9.8 18.3 4.6 5.3

A 71100 17900 20800 6440 24.9/23.9/13.1 11.0 2.8 3.2

R
ZR12M3E-TWC/R/D B 70500 17800 20700 6450 24.9/23.9/13.1 10.9 2.8 3.2
C 84500 21300 24800 4560 21.5/20.5/11.3 18.5 4.7 5.4

A 87200 22000 25500 7880 30.6/29.2/16.1 11.1 2.8 3.2

ZR16M3E-TWC/R/D B 86500 21800 25300 7900 30.6/29.2/16.1 10.9 2.8 3.2
C 104000 26200 30500 5700 26.4/25.2/13.9 18.2 4.6 5.4

A 103800 26200 30400 10000 34.0/32.5/17.9 10.4 2.6 3.0

ZR19M3E-TWC/R/D B 103000 26000 30200 10000 34.0/32.5/17.9 10.3 2.6 3.0
C 124000 31200 36300 7250 28.1/26.9/14.8 17.1 4.3 5.0
* Ampere values shown are at 200 volts / 220 volts / 380 volts .

EVAPORATING CONDENSING AMBIENT LIQUID RETURN GAS

RATING RATING
TEMPERATURE TEMPERATURE TEMPERATURE TEMPERATURE TEMPERATURE
CONDITION STANDARD
°F / °C °F / °C °F / °C °F / °C °F / °C
A ASRE / T 45 130 95 115 95
7.2 54.4 35.0 46.1 35.0
B ARI 45 130 95 115 65
7.2 54.4 35.0 46.1 18.3
C CHEER 45 100 95 85 65
7.2 37.8 35.0 29.4 18.3
See expanded performance data on pages 95 to 97.
See full operating range on page 107.
Production compressors to meet above nominal performance values within ± 5%.

78
Copeland ®
brand products ZR COMMERCIAL COPELAND SCROLL® COMPRESSORS

60 HERTZ PERFORMANCE NOMINALS R22

230-3-60 (TWC)
460-3-60 (TWD)
THREE PHASE 230-3-60 (TW5) TEST VOLTAGE
575-3-60 (TWE)
380-3-60 (TW7)
CAPACITY ENERGY EFFICIENCY RATING
MODEL RATING MOTOR
CONDITION BTU KCAL WATTS AMPERES* BTUH KCALH WATTS
WATTS
HOUR HOUR MOTOR WATTS MOTOR WATTS MOTOR WATTS
A 89700 22600 26300 7980 25.0/25.0/15.1/12.5/10.0 11.2 2.8 3.3
ZR90K3-TWC/5/7/D/E B 89000 22400 26100 8000 25.0/25.0/15.1/12.5/10.0 11.1 2.8 3.3
C 104000 26200 30500 5700 21.0/21.0/12.7/10.5/8.4 18.2 4.6 5.4
A 108900 27400 31900 9580 28.7/ – /17.4/14.3/11.5 11.4 2.9 3.3
ZR11M3-TWC/7/D/E B 108000 27200 31600 9600 28.7/ – /17.4/14.3/11.5 11.3 2.8 3.3
C 128000 32300 37500 6750 23.3/ – /14.1/11.6/9.3 19.0 4.8 5.6
A 126000 31800 36900 11000 32.9/32.9/19.9/16.5/13.2 11.5 2.9 3.4
ZR12M3-TWC/5/7/D/E B 125000 31500 36600 11000 32.9/32.9/19.9/16.5/13.2 11.4 2.9 3.3
C 148000 37300 43400 7750 26.7/26.7/16.2/13.4/10.7 19.1 4.8 5.6
A 155200 39100 45500 13500 38.3/38.3/23.2/19.1/15.3 11.5 2.9 3.4
ZR16M3-TWC/5/7/D/E B 154000 38800 45100 13500 38.3/38.3/23.2/19.1/15.3 11.4 2.9 3.3
C 181000 45600 53000 9950 30.5/30.518.5/14.9/12.2 18.2 4.6 5.3
A 191500 48300 56100 16500 48.2/48.2/29.2/24.1/19.3 11.6 2.9 3.4
ZR19M3-TWC/5/7/D/E B 190000 47900 55700 16500 48.2/48.2/29.2/24.1/19.3 11.5 2.9 3.4
C 222000 55900 65000 11800 36.9/36.9/22.3/18.5/14.8 18.8 4.7 5.5
* Ampere values shown are at 230 volts / 230 volts/380 volts / 460 volts / 575 volts.

EVAPORATING CONDENSING AMBIENT LIQUID RETURN GAS

RATING RATING
TEMPERATURE TEMPERATURE TEMPERATURE TEMPERATURE TEMPERATURE
CONDITION STANDARD
°F / °C °F / °C °F / °C °F / °C °F / °C

A ASRE / T 45 130 95 115 95

7.2 54.4 35.0 46.1 35.0
B ARI 45 130 95 115 65
7.2 54.4 35.0 46.1 18.3
C CHEER 45 100 95 85 65
7.2 37.8 35.0 29.4 18.3
See expanded performance data on pages 98 to 100.
See full operating range on page 107.
Production compressors to meet above nominal performance values within ± 5%.

79
Copeland ®
brand products ZR COMMERCIAL COPELAND SCROLL® COMPRESSORS

60 HERTZ PERFORMANCE NOMINALS R407C

C
30.2/ – /18.3/15.1/12.1

7
23.9/ – /14.4/11.9/9.5

0
11100 33.1/33.1/20.0/16.5/13.2
10.9
19.2
11.1
2.8
4.8
2.8
3.2
5.6
3.2

4
ZR12M3E-TWC/5/7/D/E B 122000 30700 35700 11100 33.1/33.1/20.0/16.5/13.2 11.0 2.8 3.2

R
C 146000 36800 42800 7600 25.4/25.4/15.4/12.7/10.1 19.2 4.8 5.6
A 150200 37900 44000 13800 39.5/39.5/23.9/19.7/15.8 10.9 2.7 3.2
ZR16M3E-TWC/5/7/D/E B 149000 37500 43700 13800 39.5/39.5/23.9/19.7/15.8 10.8 2.7 3.2
C 180000 45400 52700 9700 29.8/29.818.0/14.9/11.9 18.6 4.7 5.4
A 186500 47000 54600 16700 48.3/48.3/29.2/24.1/19.3 11.2 2.8 3.3
ZR19M3E-TWC/5/7/D/E B 185000 46600 54200 16700 48.3/48.3/29.2/24.1/19.3 11.1 2.8 3.2
C 222000 55900 65000 11400 36.0/36.0/21.8/18.0/14.4 19.5 4.9 5.7
* Ampere values shown are at 230 volts / 230 volts/380 volts / 460 volts / 575 volts.

EVAPORATING CONDENSING AMBIENT LIQUID RETURN GAS

RATING RATING
TEMPERATURE TEMPERATURE TEMPERATURE TEMPERATURE TEMPERATURE
CONDITION STANDARD
°F / °C °F / °C °F / °C °F / °C °F / °C

A ASRE / T 45 130 95 115 95

7.2 54.4 35.0 46.1 35.0
B ARI 45 130 95 115 65
7.2 54.4 35.0 46.1 18.3
C CHEER 45 100 95 85 65
7.2 37.8 35.0 29.4 18.3
Dew Point Temperatures are used for rating conditions.
See expanded performance data on pages 101 to 103.
See full operating range on page 107.
Production compressors to meet above nominal performance values within ± 5%.

80
Copeland ®
brand products ZR COMMERCIAL COPELAND SCROLL® COMPRESSORS

60 HERTZ PERFORMANCE NOMINALS R134a

230-3-60 (TWC) 460-3-60 (TWD)
THREE PHASE 380-3-60 (TW7) TEST VOLTAGE
575-3-60 (TWE)

CAPACITY ENERGY EFFICIENCY RATING

MODEL RATING MOTOR
CONDITION BTU KCAL WATTS AMPERES*
AMPERES* BTUH KCALH WATTS
WATTS
HOUR HOUR MOTOR WATTS MOTOR WATTS MOTOR WATTS
A 60500 15200 17700 5590 20.1/12.2/10.1/8.1 10.8 2.7 3.2
ZR90K3E-TWC/7/D/E B 60000 15100 17600 5600 20.1/12.2/10.1/8.1 10.7 2.7 3.1
C 71000 17900 20800 3940 17.4/10.5/8.7/7.0 18.0 4.5 5.3

a
A 74100 18700 21700 6790 22.9/13.8/11.4/9.1 10.9 2.8 3.2

4
ZR11M3E-TWC/7/D/E B 73500 18500 21500 6800 22.9/13.8/11.4/9.1 10.8 2.7 3.2

3
C 88000 22200 25800 4800 19.6/11.9/9.8/7.8 18.3 4.6 5.4

1
A 85700 21600 25100 7780 26.3/15.9/13.1/10.5 11.0 2.8 3.2
ZR12M3E-TWC/7/D/E B 85000 21400 24900 7800 26.3/15.9/13.1/10.5 10.9 2.7 3.2

R
C 102000 25700 29900 5500 22.5/13.7/11.3/9.0 18.5 4.7 5.4
A 105800 26700 31000 9580 32.1/19.4/16.1/12.8 11.0 2.8 3.2
ZR16M3E-TWC/7/D/E B 105000 26500 30800 9600 32.1/19.4/16.1/12.8 10.9 2.8 3.2
C 125000 31500 36600 6850 27.7/16.8/13.9/11.1 18.2 4.6 5.3
A 127000 32000 37200 12200 35.7/21.6/17.9/14.3 10.4 2.6 3.0
ZR19M3E-TWC/7/D/E B 126000 31800 36900 12200 35.7/21.6/17.9/14.3 10.3 2.6 3.0
C 151000 38100 44200 8900 29.6/17.9/14.8/11.8 17.0 4.3 5.0
* Ampere values shown are at 230 volts / 380 volts / 460 volts / 575 volts.

EVAPORATING CONDENSING AMBIENT LIQUID RETURN GAS

RATING RATING
TEMPERATURE TEMPERATURE TEMPERATURE TEMPERATURE TEMPERATURE
CONDITION STANDARD
°F / °C °F / °C °F / °C °F / °C °F / °C

A ASRE / T 45 130 95 115 95

7.2 54.4 35.0 46.1 35.0
B ARI 45 130 95 115 65
7.2 54.4 35.0 46.1 18.3
C CHEER 45 100 95 85 65
7.2 37.8 35.0 29.4 18.3
See expanded performance data on pages 104 to 106.
See full operating range on page 107.
Production compressors to meet above nominal performance values within ± 5%.

81
Copeland ®
brand products ZR COMMERCIAL COPELAND SCROLL® COMPRESSORS

MECHANICAL SPECIFICATIONS
IN 3 CFH
CM 3 M 3/ HR COMPRESSOR
NOMINAL CUBIC FEET PER HOUR
CUBIC INCHES PER NET WEIGHT
MODEL HP CUBIC METERS PER HOUR
REVOLUTION POUNDS
KW
CUBIC CENTIMETERS 50 HERTZ 60 HERTZ KILOGRAMS
PER REVOLUTION 2900 RPM 3500 RPM

7.5 7.319 737.0 889.5 205.0

ZR90K3/K3E
5.6 119.9 20.86 25.18 93.1
9 8.790 885.1 1068.2 205.0
ZR11M3/M3E
6.7 144.0 25.06 30.24 93.1
10 10.095 1016.5 1226.8 205.0
ZR12M3/M3E
7.5 165.4 28.78 34.73 93.1
13 12.47 1255.6 1515.3 227.0
ZR16M3/M3E
9.7 204.3 35.55 42.90 103.1
15.8 14.76 1486.2 1793.8 247.0
ZR19M3/M3E
11.8 241.9 42.07 50.78 112.1

“STANDARD” BILLS OF MATERIAL

The bill of material includes features as shown by the X.

SOLID STATE
BILL OF MATERIAL STUB TUBE ROTALOCK
MODEL MOTOR PROTECTOR
NUMBER CONNECTIONS CONNECTIONS MODULE

522 X 115 / 230V

ZR90K 551 X 115 / 230V

THROUGH
ZR19M
561 X 24V

568 X 24V

Note: If ordering above compressors for a tandem, order tandem mouting part kit 527-0166-00, one for each tandem. This mounting part goes
between compressor and rail.

82
Copeland ®
brand products ZR COMMERCIAL COPELAND SCROLL® COMPRESSORS

ZR COMMERCIAL SCROLL COMPRESSOR

BILLS OF MATERIAL FOR THE INTERNATIONAL MARKET
ELECTRICAL SPECIFICATIONS

VOLTAGE CODE TWR TWC TW5

NOMINAL VOLTAGE- 200-3-50

220/240-3-50 200/230-3-60
PHASE-HERTZ 208/230-3-60
VOLTAGE RANGE
50 HERTZ 198-264 180-220
60 HERTZ 187-253 180-253
RATED LOCKED RATED LOCKED RATED LOCKED
LOAD ROTOR LOAD ROTOR LOAD ROTOR
MODEL AMPS AMPS AMPS AMPS AMPS AMPS
RLA LRA RLA LRA RLA LRA

REFRIGERANT R22 R407C R134a ALL R22 R407C R134a ALL R22 R407C R134a ALL

ZR90K3/K3E 23.6 25.0 25.0 174 27.2 33.6 33.6 189 27.2 33.6 189

ZR11M3/M3E 30.5 28.6 28.6 221 34.3 38.2 38.2 232

ZR12M3/M3E 35.0 33.1 235 38.6 41.1 41.1 278 38.5 41.1 278

ZR16M3/M3E 44.3 44.3 44.3 293 47.1 48.9 48.9 350 47.1 48.9 350

ZR19M3/M3E 52.2 44.3 44.3 345 55.2 55.0 55.0 425 55.2 55.0 425

VOLTAGE CODE TW7 TWD TWE

NOMINAL VOLTAGE- 380/420-3-50

380-3-60 575-3-60
PHASE-HERTZ 460-3-60
VOLTAGE RANGE
50 HERTZ 342-462
60 HERTZ 342-418 414-506 518-633
RATED LOCKED RATED LOCKED RATED LOCKED
LOAD ROTOR LOAD ROTOR LOAD ROTOR
MODEL AMPS AMPS AMPS AMPS AMPS AMPS
RLA LRA RLA LRA RLA LRA

REFRIGERANT R22 R407C R134a ALL R22 R407C R134a ALL R22 R407C R134a ALL

ZR90K3/K3E 16.6 16.6 16.6 112 14.3 15.3 15.3 99 10.1 11.4 11.4 74

ZR11M3/M3E 21.3 24.9 24.9 144 17.5 18.6 18.6 125 13.2 15.4 15.4 100

ZR12M3/M3E 26.1 30.3 30.3 151 18.9 22.1 22.1 127 15.7 18.3 18.3 100

ZR16M3/M3E 28.7 30.0 30.0 195 25.0 27.2 27.2 167 19.9 19.3 19.3 125

ZR19M3/M3E 37.5 37.1 37.1 239 26.4 32.1 32.1 198 24.3 25.7 25.7 148

83
Copeland ®
brand products ZR COMMERCIAL COPELAND SCROLL® COMPRESSORS

BILL OF MATERIAL PROVISIONS ACCESSORY INFORMATION

Please refer to the bills of material shown on the Crankcase Heater - 120 volts - 70 watts 918-0019-01
previous page to view our standard offers of
compressor selections. Crankcase Heater - 240 volts - 70 watts 918-0019-04

In addition to the marked features, each compressor will Crankcase Heater - 480 volts - 70 watts 918-0019-08
include the following: Crankcase Heater - 575 volts - 60 watts 918-0019-09
• Unique Features – Cast iron inner frame, special Mounting Kit 527-0159-00
bearings, sight glass, oil adjustment port,
temperature probe, as well as additional
refrigerant and oil filtration capacity.
• Terminal box and cover complete with wiring
diagram.
• Four Foot Mounting Pattern.
8.65 x 8.65 inches
(219.7 x 219.7 mm)
• Mounting Kit.
• Grounding Tab, Screw, and Washer.
• Grounding tab located in the terminal box.
• Terminal Connector Block with Screws.
• 3GS or POE Oil.
• Initial oil charge
140 ounces (4.14 liters)
• Refill oil charge.
137 ounces (4.05 liters)
See outline drawing on pages 86 and 87 for stub tube
and rotalock connection sizes.

84
Copeland ®
brand products ZR COMMERCIAL COPELAND SCROLL® COMPRESSORS

ROTALOCK SERVICE VALVES

For your ZR rotalock connection compressor, please order the Valve Kits
valves separately by choosing them from the tables below. The kits listed in Table B below, include rotalock suction and
discharge service valves for the ZR models shown. Use of
Valve Style
these with your ZR rotalock connection compressors will
Table A illustrates the style for each valve listed in Tables B and simplify your order and inventory process. Refer to Table C for
C. The drawings in this table will show gage port quantity and your selection of seal parts.
location. The gage ports are 1/4 inch flare fittings and include
brass caps. Note that parts are available in both Europe and Special Valves
U.S. American part numbers are listed in brackets. If the kits are not ordered, special valves and seals should be
selected from Table C below to fit the rotalock connections
supplied on the ZR compressor. A suggestion is to select
valves having the same line sizes as the connections supplied
on compressors with stub tubes. Be sure to match rotalock
connection sizes.

TABLE A
STYLE 1 STYLE 2 STYLE 3

TABLE B
ROTALOCK CONNECTION
SUCTION VALVE * DISCHARGE VALVE * SIZE IN INCHES
KIT PART NUMBER and SEAL PART NUMBER
COMPRESSOR
EUROPE
MODEL VALVE PART VALVE PART
[U.S.] SIZE IN SIZE IN
NUMBER EUROPE STYLE NUMBER EUROPE STYLE SUCTION DISCHARGE
INCHES INCHES
[U.S.] [U.S.]
2837131
ZR90 [998-5200-53] 11/8 2 /
3 4
[510-0080-09] 1
[510-0330-04] 13/4-12 11/4-12
3 2837120 2050772 2495939
ZR11 [998-5200-54] 1 /8 2 /
3 4
[510-0080-09] 1
[510-0330-03] [020-0028-03] [020-0028-02]
2837120
ZR12-ZR16 [998-5100-49] 13/8 2 /
7 8
[510-0080-08] 1
[510-0330-03]
21/4-12 13/4-12
2731459
ZR19 [998-5100-58] 15/8 [510-0601-01] 3 11/8 2 8506819 2050772
[510-0330-04]
[020-0941-00] [020-0028-03]
*All valves are solder type.

TABLE C
ROTALOCK VALVE PART NUMBER GASKET PART NUMBER
VALVE CONNECTION EUROPE SIZE IN INCHES TYPE STYLE EUROPE [U.S.]
SIZE IN INCHES [U.S.] (ONE PER VALVE REQUIRED)
2495939
11/4-12 [510-0080-09] /
3 4 Solder 1
[020-0028-02]
Discharge 2495939
11/4-12 [510-0080-08] /
7 8 Solder 1
[020-0028-02]
2387131 2050772
13/4-12 11/8 Solder 2
[510-0330-04] [020-0028-03]
2837131 2050772
13/4-12 11/8 Solder 2
[510-0330-04] [020-0028-03]
Suction 2837120 2050772
13/4-12 13/8 Solder 2
[510-0330-03] [020-0028-03]
8506819
21/4-12 [510-0601-01] 15/8 Solder 3
[020-0941-00]

85
Copeland ®
brand products ZR COMMERCIAL COPELAND SCROLL® COMPRESSORS

NOTES: INTERNAL FREE VOLUME

1. NOMINAL DIMENSIONS ARE SHOWN. DIMENSIONAL MODEL NUMBER A B CM 3 [IN.3 ] EXCLUDING
OIL CHARGE
ALL TOLERANCES ARE ± 1.50 [0.060]
UNLESS OTHERWISE SPECIFIED. INFORMATION ZR90K
537.8
[21.2]
497.3
[19.6]
16999
[1037.4]
2. DUE TO THE ACCUMULATED ASSEMBLY
TOLERANCES, THE SUCTION AND 537.8 497.3 16999
ZR11M
DISCHARGE FITTINGS VARY FROM THE [21.2] [19.6] [1037.4]
MOUNTING HOLES BY ± 3.0 [0.12].
537.8 497.3 16999
3. STUB TUBE AND ROTALOCK FITTINGS ZR12M [21.2] [19.6] [1037.4]
ARE SHOWN. BILLS OF MATERIAL
PAGE 82 SHOWS B / M NUMBERS 545.5 505.0 17349
ZR16M
FOR EACH TYPE OF FITTING. [21.5] [19.9] [1058.8]
4. LINEAR MEASUREMENTS IN [ ] ARE
INCH CONVERSIONS.
THIRD ANGLE PROJECTION

219.70 219.70
[8.65] [8.65]
[11.14.00

[11.1 .00
179.47 174.48
]

4]
1 3/4 - 12
Ø 283

3
[6.87]

Ø 28
[7.07] UN-2A THD
Ø 22.42 Ø 22.42
ROTALOCK

'
[0.88]

30
[0.88]
'
30

35.20 [1.39] I.D. SPUD SUCTION

84
84

BRAZING
CONNECTION
SUCTION

109.85
109.85

[4.32]
[4.32]

50
50

30'

219.70
30'

219.70

[8.65]
[8.65]

20
16.80
[0.66]
5 30' RE

20
17.28
[0.68]

141.44
141.44

[5.57]
[5.57]

5 30'
56
56
F

215.60
215.60

[8.49]
[8.49]

22.48 [0.88] I.D.

BRAZING 1 1/4 - 12
CONNECTION UN-2A THD
116.59 ROTALOCK 116.59
DISCHARGE [4.59]
[4.59] SPUD
DISCHARGE
40.50
[1.59]

TERMINAL BOX
194.60 IP 54
40.50
[1.59]

[7.66]
[0.88]
22.48

35.20
[1.39]

175.70
[6.92]

175.70
[6.92]
B

TERMINAL BOX
A

OIL - INLET
SIGHT GLASS IP54 1/8 - 27 NPTF
A
B

1 3/4-12 UN-2A 194.60 194.60

[7.66] [7.66]
OIL-INLET SIGHT - GLASS
318.60 [12.54]
221.55

1/8-27 NPTF
318.60

[8.72]

221.55
[12.54]

[8.72]
13.00
[0.51]

101.30
[3.99]

[0.51]
13.00
[0.24]
6.05

67.40
[2.65]
101.30

67.40
[3.99]

[2.65]

[0.24]

Available Optional
6.05

Fittings

FOR THE INTERNATIONAL MARKET

ZR90K to ZR16M
HEAT PUMP AND
AIR CONDITIONING MODELS

86
Copeland ®
brand products ZR COMMERCIAL COPELAND SCROLL® COMPRESSORS

NOTES: INTERNAL FREE VOLUME

1. NOMINAL DIMENSIONS ARE SHOWN.
ALL TOLERANCES ARE ± 1.50 [0.060]
DIMENSIONAL MODEL NUMBER CM 3 [IN.3 ] EXCLUDING
OIL CHARGE
UNLESS OTHERWISE SPECIFIED. INFORMATION ZR19M
18349
[1119.8]
2. DUE TO THE ACCUMULATED ASSEMBLY
TOLERANCES, THE SUCTION AND
DISCHARGE FITTINGS VARY FROM THE
MOUNTING HOLES BY ± 3.0 [0.12].
3. STUB TUBE AND ROTALOCK FITTINGS
ARE SHOWN. BILLS OF MATERIAL
PAGE 82 SHOWS B / M NUMBERS
FOR EACH TYPE OF FITTING.
4. LINEAR MEASUREMENTS IN [ ] ARE
INCH CONVERSIONS.
THIRD ANGLE PROJECTION

219.70 219.70
[8.65] [8.65]

[11.1 .00
[11.1 .00

181.75 179.86

4]
4]

2 1/4 - 12

3
3

[7.16] [7.08]

Ø 28
Ø 28

UN-2A THD Ø 22.42

Ø 22.42 ROTALOCK

'
[0.88]
'

30
[0.88]
30

41.50 [1.63] I.D. SPUD SUCTION

84
84

BRAZING
CONNECTION
SUCTION

109.85
109.85

[4.32]
[4.32]

50
50

30'
30'

219.70
219.70

[8.65]
[8.65]

17.32
[0.69]
17.50
[0.69]
20

20
141.44
141.44

[5.57]
[5.57]
5 30'

5 30'
56

215.60
215.60

[8.49]
[8.49]

28.85 [1.13] I.D.

BRAZING 1 3/4 - 12
CONNECTION UN-2A THD
DISCHARGE 116.59 ROTALOCK 116.59
[4.59] SPUD [4.59]
DISCHARGE
45.75
[1.80]
45.75
[1.80]

TERMINAL BOX TERMINAL BOX

IP 54
546.10 [21.50]

IP 54
546.10 [21.50]
175.70

175.70
[6.92]

[6.92]
591.85
[23.30]

[23.30]
591.85

OIL - INLET OIL - INLET

1/8 - 27 NPTF 1/8 - 27 NPTF
318.60 [12.54]
318.60 [12.54]

194.60 194.60
[7.66] [7.66]
SIGHT - GLASS SIGHT - GLASS
221.55

221.55
[8.72]

[8.72]
101.40

101.40
[3.99]

[0.51]

[3.99]

[0.51]
13.00

13.00
[0.24]

[0.24]
6.05

6.05
67.50
[2.66]

67.50
[2.66]

Available Optional
Fittings

FOR THE INTERNATIONAL MARKET

ZR19M
HEAT PUMP AND
AIR CONDITIONING MODELS

87
Copeland ®
brand products ZR COMMERCIAL COPELAND SCROLL® COMPRESSORS

COMPRESSOR WIRING DIAGRAMS

THREE PHASE MOTOR

L1 L2

INTERNAL MOTOR WINDING

THERMAL CONNECTIONS
SENSORS

T2 T1 S2 S1 M2 M1

1 2

L1 L3 L2

SYMBOLS
WHEN CHECKING SOLID STATE MODULE: THERMAL SENSORS
DO NOT SHORT ACROSS
S1 AND S2 SENSOR TERMINALS. 1 PROTECTOR MODULE VOLTAGE
MODULE HAS 30 MINUTES TIME DELAY BEFORE 2 TO CONTROL CIRCUIT
RESET IN EVENT OF PROTECTOR TRIP.

ZR90K TO ZR19M
USE COPPER CONDUCTORS ONLY
USE MINIMUM 75°C WIRE FOR AMPACITY DETERMINATION.
USE THIS EQUIPMENT ON A GROUNDED SYSTEM ONLY.
PRIMARY SINGLE PHASE FAILURE PROTECTION IS PROVIDED.
PROTECTOR MODULE AND OPTIONAL CRANKCASE HEATER
MUST BE CONNECTED ONLY TO THEIR RATED VOLTAGE.
OVERCURRENT PROTECTION DEVICE RATING AND TYPE MUST BE IN ACCORDANCE WITH
REGULATORY AGENCY END PRODUCT APPROVALS – SEE SYSTEM NAMEPLATE.

88
Copeland ®
brand products ZR COMMERCIAL COPELAND SCROLL® COMPRESSORS

50 HERTZ PERFORMANCE DATA R22

20° F (11.1° C) Superheat 15° F (8.3° C) Subcooling 95° F (35° C) Ambient (Air Over)

200-3-50 (TWC) 200-3-50 (TWC)

380/420-3-50 (TWD) Rated Voltage 380-3-50 (TWD) Test Voltage
220/240-3-50 (TWR) 220-3-50 (TWR)

ZR90K3-TWC / TWR / TWD R22

CAPACITY (BTU / HOUR)
CONDENSING TEMPERATURE EVAPORATING TEMPERATURE °F / °C
– 10 0 10 20 30 40 45 50 55
°F / °C – 23.3 – 17.8 – 12.2 – 6.7 – 1.1 4.4 7.2 10.0 12.8
100 (37.8) 22100 31200 40800 51500 63500 78000 86000 95000 104000
120 (48.9) 36700 46400 57500 70500 77500 86000 94500
140 (60.0) 50500 62000 69000 76000 84000

CAPACITY (KCAL / HOUR)

– 10 0 10 20 30 40 45 50 55
°F / °C – 23.3 – 17.8 – 12.2 – 6.7 – 1.1 4.4 7.2 10.0 12.8
100 (37.8) 5570 7860 10300 13000 16000 19700 21700 23900 26200
120 (48.9) 9250 11700 14500 17800 19500 21700 23800
140 (60.0) 12700 15600 17400 19200 21200

CAPACITY (WATTS)
– 10 0 10 20 30 40 45 50 55
°F / °C – 23.3 – 17.8 – 12.2 – 6.7 – 1.1 4.4 7.2 10.0 12.8
100 (37.8) 6480 9140 12000 15100 18600 22900 25200 27800 30500
120 (48.9) 10800 13600 16800 20700 22700 25200 27700
140 (60.0) 14800 18200 20200 22300 24600

POWER (MOTOR WATTS)

– 10 0 10 20 30 40 45 50 55
°F / °C – 23.3 – 17.8 – 12.2 – 6.7 – 1.1 4.4 7.2 10.0 12.8
100 (37.8) 4550 4660 4720 4730 4730 4730 4740 4750 4760
120 (48.9) 5900 5950 5900 5900 5900 5900 5900
140 (60.0) 7450 7400 7400 7400 7400

ZR11M3-TWC / TWR / TWD R22

CAPACITY (BTU / HOUR)
CONDENSING TEMPERATURE EVAPORATING TEMPERATURE °F / °C
– 10 0 10 20 30 40 45 50 55
°F / °C – 23.3 – 17.8 – 12.2 – 6.7 – 1.1 4.4 7.2 10.0 12.8
100 (37.8) 28800 39100 50500 63500 78500 96000 106000 116000 128000
120 (48.9) 44500 56500 70500 86500 95000 105000 115000
140 (60.0) 61500 76000 84000 92500 102000

CAPACITY (KCAL / HOUR)

– 10 0 10 20 30 40 45 50 55
°F / °C – 23.3 – 17.8 – 12.2 – 6.7 – 1.1 4.4 7.2 10.0 12.8
100 (37.8) 7260 9850 12700 16000 19800 24200 26700 29200 32300
120 (48.9) 11200 14200 17800 21800 23900 26500 29000
140 (60.0) 15500 19200 21200 23300 25700

CAPACITY (WATTS)
– 10 0 10 20 30 40 45 50 55
°F / °C – 23.3 – 17.8 – 12.2 – 6.7 – 1.1 4.4 7.2 10.0 12.8
100 (37.8) 8440 11500 14800 18600 23000 28100 31100 34000 37500
120 (48.9) 13000 16600 20700 25300 27800 30800 33700
140 (60.0) 18000 22300 24600 27100 29900

POWER (MOTOR WATTS)

– 10 0 10 20 30 40 45 50 55
°F / °C – 23.3 – 17.8 – 12.2 – 6.7 – 1.1 4.4 7.2 10.0 12.8
100 (37.8) 5450 5550 5600 5650 5600 5600 5600 5600 5600
120 (48.9) 7000 7050 7100 7100 7050 7050 7050
140 (60.0) 8850 8900 8900 8900 8900
Production compressors to meet above nominal performance values within ± 5%.

89
Copeland ®
brand products ZR COMMERCIAL COPELAND SCROLL® COMPRESSORS

50 HERTZ PERFORMANCE DATA R22

20° F (11.1° C) Superheat 15° F (8.3° C) Subcooling 95° F (35° C) Ambient (Air Over)

200-3-50 (TWC) 200-3-50 (TWC)

380/420-3-50 (TWD) Rated Voltage 380-3-50 (TWD) Test Voltage
220/240-3-50 (TWR) 220-3-50 (TWR)

ZR12M3-TWC / TWR / TWD R22

CAPACITY (BTU / HOUR)
CONDENSING TEMPERATURE EVAPORATING TEMPERATURE °F / °C
– 10 0 10 20 30 40 45 50 55
°F / °C – 23.3 – 17.8 – 12.2 – 6.7 – 1.1 4.4 7.2 10.0 12.8
100 (37.8) 33400 45300 58500 74000 91000 111000 123000 135000 148000
120 (48.9) 51500 65500 81500 100000 110000 121000 133000
140 (60.0) 71500 88000 97000 107000 118000

CAPACITY (KCAL / HOUR)

– 10 0 10 20 30 40 45 50 55
°F / °C – 23.3 – 17.8 – 12.2 – 6.7 – 1.1 4.4 7.2 10.0 12.8
100 (37.8) 8420 11400 14700 18600 22900 28000 31000 34000 37300
120 (48.9) 13000 16500 20500 25200 27700 30500 33500
140 (60.0) 18000 22200 24400 27000 29700

CAPACITY (WATTS)
– 10 0 10 20 30 40 45 50 55
°F / °C – 23.3 – 17.8 – 12.2 – 6.7 – 1.1 4.4 7.2 10.0 12.8
100 (37.8) 9790 13300 17100 21700 26700 32500 36000 39600 43400
120 (48.9) 15100 19200 23900 29300 32200 35500 39000
140 (60.0) 20900 25800 28400 31400 34600

POWER (MOTOR WATTS)

– 10 0 10 20 30 40 45 50 55
°F / °C – 23.3 – 17.8 – 12.2 – 6.7 – 1.1 4.4 7.2 10.0 12.8
100 (37.8) 6300 6400 6450 6450 6450 6450 6400 6400 6450
120 (48.9) 8050 8100 8150 8150 8100 8100 8100
140 (60.0) 10200 10200 10200 10200 10200

ZR16M3-TWC / TWR / TWD R22

CAPACITY (BTU / HOUR)
CONDENSING TEMPERATURE EVAPORATING TEMPERATURE °F / °C
– 10 0 10 20 30 40 45 50 55
°F / °C – 23.3 – 17.8 – 12.2 – 6.7 – 1.1 4.4 7.2 10.0 12.8
100 (37.8) 40200 55500 72000 90500 112000 136000 150000 165000 181000
120 (48.9) 62500 80500 101000 123000 136000 149000 163000
140 (60.0) 86500 108000 119000 132000 145000

CAPACITY (KCAL / HOUR)

– 10 0 10 20 30 40 45 50 55
°F / °C – 23.3 – 17.8 – 12.2 – 6.7 – 1.1 4.4 7.2 10.0 12.8
100 (37.8) 10100 14000 18100 22800 28200 34300 37800 41600 45600
120 (48.9) 15800 20300 25500 31000 34300 37500 41100
140 (60.0) 21800 27200 30000 33300 36500

CAPACITY (WATTS)
– 10 0 10 20 30 40 45 50 55
°F / °C – 23.3 – 17.8 – 12.2 – 6.7 – 1.1 4.4 7.2 10.0 12.8
100 (37.8) 11800 16300 21100 26500 32800 39800 44000 48300 53000
120 (48.9) 18300 23600 29600 36000 39800 43700 47800
140 (60.0) 25300 31600 34900 38700 42500

POWER (MOTOR WATTS)

– 10 0 10 20 30 40 45 50 55
°F / °C – 23.3 – 17.8 – 12.2 – 6.7 – 1.1 4.4 7.2 10.0 12.8
100 (37.8) 7700 7850 7950 8000 8050 8050 8100 8150 8200
120 (48.9) 9850 9950 10000 10000 10000 10000 10000
140 (60.0) 12500 12600 12600 12600 12500
Production compressors to meet above nominal performance values within ± 5%.

90
Copeland ®
brand products ZR COMMERCIAL COPELAND SCROLL® COMPRESSORS

50 HERTZ PERFORMANCE DATA R22

20° F (11.1° C) Superheat 15° F (8.3° C) Subcooling 95° F (35° C) Ambient (Air Over)

200-3-50 (TWC) 200-3-50 (TWC)

380/420-3-50 (TWD) Rated Voltage 380-3-50 (TWD) Test Voltage
220/240-3-50 (TWR) 220-3-50 (TWR)

ZR19M3-TWC / TWR / TWD R22

CAPACITY (BTU / HOUR)
CONDENSING TEMPERATURE EVAPORATING TEMPERATURE °F / °C
– 10 0 10 20 30 40 45 50 55
°F / °C – 23.3 – 17.8 – 12.2 – 6.7 – 1.1 4.4 7.2 10.0 12.8
100 (37.8) 52500 69000 88500 111000 136000 166000 183000 200000 220000
120 (48.9) 77500 99000 123000 151000 166000 182000 199000
140 (60.0) 108000 133000 147000 161000 177000

CAPACITY (KCAL / HOUR)

– 10 0 10 20 30 40 45 50 55
°F / °C – 23.3 – 17.8 – 12.2 – 6.7 – 1.1 4.4 7.2 10.0 12.8
100 (37.8) 13200 17400 22300 28000 34300 41800 46100 50400 55400
120 (48.9) 19500 24900 31000 38100 41800 45900 50100
140 (60.0) 27200 33500 37000 40600 44600

CAPACITY (WATTS)
– 10 0 10 20 30 40 45 50 55
°F / °C – 23.3 – 17.8 – 12.2 – 6.7 – 1.1 4.4 7.2 10.0 12.8
100 (37.8) 15400 20200 25900 32500 39800 48600 53600 58600 64500
120 (48.9) 22700 29000 36000 44200 48600 53300 58300
140 (60.0) 31600 39000 43100 47200 51900

POWER (MOTOR WATTS)

– 10 0 10 20 30 40 45 50 55
°F / °C – 23.3 – 17.8 – 12.2 – 6.7 – 1.1 4.4 7.2 10.0 12.8
100 (37.8) 9200 9400 9450 9500 9500 9550 9550 9600 9650
120 (48.9) 11900 12000 12100 12100 12100 12100 12100
140 (60.0) 15200 15300 15300 15300 15300
Production compressors to meet above nominal performance values within ± 5%.

91
Copeland ®
brand products ZR COMMERCIAL COPELAND SCROLL® COMPRESSORS

50 HERTZ PERFORMANCE DATA R407C

20° F (11.1° C) Superheat 15° F (8.3° C) Subcooling 95° F (35° C) Ambient (Air Over)

200-3-50 (TWC) 200-3-50 (TWC)

380/420-3-50 (TWD) Rated Voltage 380-3-50 (TWD) Test Voltage
220/240-3-50 (TWR) 220-3-50 (TWR)

ZR90K3E-TWC / TWR / TWD R407C

CAPACITY (BTU / HOUR)
CONDENSING TEMPERATURE EVAPORATING TEMPERATURE °F / °C
– 10 0 10 20 30 40 45 50 55
°F / °C – 23.3 – 17.8 – 12.2 – 6.7 – 1.1 4.4 7.2 10.0 12.8
100 (37.8) 20400 28200 37700 49000 62500 78500 87500 97000 107000
120 (48.9) 32500 42600 54500 69000 77000 86000 95500
140 (60.0) 47200 60000 67000 75000 83500

CAPACITY (KCAL / HOUR)

– 10 0 10 20 30 40 45 50 55

C
°F / °C – 23.3 – 17.8 – 12.2 – 6.7 – 1.1 4.4 7.2 10.0 12.8

7
100 (37.8) 5140 7110 9500 12300 15800 19800 22100 24400 27000
120 (48.9) 8190 10700 13700 17400 19400 21700 24100

40
140 (60.0) 11900 15100 16900 18900 21000

CAPACITY (WATTS)

R
– 10 0 10 20 30 40 45 50 55
°F / °C – 23.3 – 17.8 – 12.2 – 6.7 – 1.1 4.4 7.2 10.0 12.8
100 (37.8) 5980 8260 11000 14400 18300 23000 25600 28400 31400
120 (48.9) 9520 12500 16000 20200 22600 25200 28000
140 (60.0) 13800 17600 19600 22000 24500

POWER (MOTOR WATTS)

– 10 0 10 20 30 40 45 50 55
°F / °C – 23.3 – 17.8 – 12.2 – 6.7 – 1.1 4.4 7.2 10.0 12.8
100 (37.8) 4470 4600 4600 4530 4460 4430 4460 4510 4610
120 (48.9) 5850 5900 5850 5800 5750 5750 5750
140 (60.0) 7650 7700 7700 7700 7700

ZR11M3E-TWC / TWR / TWD R407C

CAPACITY (BTU / HOUR)
CONDENSING TEMPERATURE EVAPORATING TEMPERATURE °F / °C
– 10 0 10 20 30 40 45 50 55
°F / °C – 23.3 – 17.8 – 12.2 – 6.7 – 1.1 4.4 7.2 10.0 12.8
100 (37.8) 27600 36700 47600 60500 76000 94500 105000 116000 128000
120 (48.9) 41400 53000 67000 84000 93000 103000 114000
140 (60.0) 58000 72500 81000 90000 100000

CAPACITY (KCAL / HOUR)

– 10 0 10 20 30 40 45 50 55

C
°F / °C – 23.3 – 17.8 – 12.2 – 6.7 – 1.1 4.4 7.2 10.0 12.8

7
100 (37.8) 6960 9250 12000 15200 19200 23800 26500 29200 32300
120 (48.9) 10430 13400 16900 21200 23400 26000 28700

40
140 (60.0) 14600 18300 20400 22700 25200

CAPACITY (WATTS)

R
– 10 0 10 20 30 40 45 50 55
°F / °C – 23.3 – 17.8 – 12.2 – 6.7 – 1.1 4.4 7.2 10.0 12.8
100 (37.8) 8090 10800 13900 17700 22300 27700 30800 34000 37500
120 (48.9) 12100 15500 19600 24600 27200 30200 33400
140 (60.0) 17000 21200 23700 26400 29300

POWER (MOTOR WATTS)

– 10 0 10 20 30 40 45 50 55
°F / °C – 23.3 – 17.8 – 12.2 – 6.7 – 1.1 4.4 7.2 10.0 12.8
100 (37.8) 5450 5450 5500 5450 5450 5400 5400 5350 5350
120 (48.9) 6950 6950 7000 6950 6950 6950 6950
140 (60.0) 9000 9000 9050 9050 9050
Production compressors to meet above nominal performance values within ± 5%.

92
Copeland ®
brand products ZR COMMERCIAL COPELAND SCROLL® COMPRESSORS

50 HERTZ PERFORMANCE DATA R407C

20° F (11.1° C) Superheat 15° F (8.3° C) Subcooling 95° F (35° C) Ambient (Air Over)

200-3-50 (TWC) 200-3-50 (TWC)

380/420-3-50 (TWD) Rated Voltage 380-3-50 (TWD) Test Voltage
220/240-3-50 (TWR) 220-3-50 (TWR)

ZR12M3E-TWC / TWR / TWD R407C

CAPACITY (BTU / HOUR)
CONDENSING TEMPERATURE EVAPORATING TEMPERATURE °F / °C
– 10 0 10 20 30 40 45 50 55
°F / °C – 23.3 – 17.8 – 12.2 – 6.7 – 1.1 4.4 7.2 10.0 12.8
100 (37.8) 32900 43400 56000 71000 88500 109000 121000 134000 148000
120 (48.9) 48400 62000 78000 97000 108000 119000 132000
140 (60.0) 67000 84000 93500 104000 115000

CAPACITY (KCAL / HOUR)

– 10 0 10 20 30 40 45 50 55

C
°F / °C – 23.3 – 17.8 – 12.2 – 6.7 – 1.1 4.4 7.2 10.0 12.8

7
100 (37.8) 8290 10900 14100 17900 22300 27500 30500 33800 37300
120 (48.9) 12200 15600 19700 24400 27200 30000 33300

40
140 (60.0) 16900 21200 23600 26200 29000

CAPACITY (WATTS)

R
– 10 0 10 20 30 40 45 50 55
°F / °C – 23.3 – 17.8 – 12.2 – 6.7 – 1.1 4.4 7.2 10.0 12.8
100 (37.8) 9640 12700 16400 20800 25900 31900 35500 39300 43400
120 (48.9) 14200 18200 22900 28400 31600 34900 38700
140 (60.0) 19600 24600 27400 30500 33700

POWER (MOTOR WATTS)

– 10 0 10 20 30 40 45 50 55
°F / °C – 23.3 – 17.8 – 12.2 – 6.7 – 1.1 4.4 7.2 10.0 12.8
100 (37.8) 5950 6150 6250 6200 6150 6100 6050 6100 6100
120 (48.9) 7800 7950 8000 7950 7950 7900 7900
140 (60.0) 10200 10300 10400 10400 10300

ZR16M3E-TWC / TWR / TWD R407C

CAPACITY (BTU / HOUR)
CONDENSING TEMPERATURE EVAPORATING TEMPERATURE °F / °C
– 10 0 10 20 30 40 45 50 55
°F / °C – 23.3 – 17.8 – 12.2 – 6.7 – 1.1 4.4 7.2 10.0 12.8
100 (37.8) 40900 53500 69000 87000 109000 135000 149000 165000 182000
120 (48.9) 59500 76000 96000 119000 132000 146000 162000
140 (60.0) 82000 103000 114000 127000 141000

CAPACITY (KCAL / HOUR)

– 10 0 10 20 30 40 45 50 55

C
°F / °C – 23.3 – 17.8 – 12.2 – 6.7 – 1.1 4.4 7.2 10.0 12.8

7
100 (37.8) 10300 13500 17400 21900 27500 34000 37500 41600 45900
120 (48.9) 15000 19200 24200 30000 33300 36800 40800

40
140 (60.0) 20700 26000 28700 32000 35500

CAPACITY (WATTS)

R
– 10 0 10 20 30 40 45 50 55
°F / °C – 23.3 – 17.8 – 12.2 – 6.7 – 1.1 4.4 7.2 10.0 12.8
100 (37.8) 12000 15700 20200 25500 31900 39600 43700 48300 53300
120 (48.9) 17400 22300 28100 34900 38700 42800 47500
140 (60.0) 24000 30200 33400 37200 41300

POWER (MOTOR WATTS)

– 10 0 10 20 30 40 45 50 55
°F / °C – 23.3 – 17.8 – 12.2 – 6.7 – 1.1 4.4 7.2 10.0 12.8
100 (37.8) 7450 7650 7700 7700 7700 7750 7800 7900 8000
120 (48.9) 9800 9900 9950 9950 10000 10000 10100
140 (60.0) 12900 13000 13000 13100 13100
Production compressors to meet above nominal performance values within ± 5%.

93
Copeland ®
brand products ZR COMMERCIAL COPELAND SCROLL® COMPRESSORS

50 HERTZ PERFORMANCE DATA R407C

20° F (11.1° C) Superheat 15° F (8.3° C) Subcooling 95° F (35° C) Ambient (Air Over)

200-3-50 (TWC) 200-3-50 (TWC)

380/420-3-50 (TWD) Rated Voltage 380-3-50 (TWD) Test Voltage
220/240-3-50 (TWR) 220-3-50 (TWR)

ZR19M3E-TWC / TWR / TWD R407C

CAPACITY (BTU / HOUR)
CONDENSING TEMPERATURE EVAPORATING TEMPERATURE °F / °C
– 10 0 10 20 30 40 45 50 55
°F / °C – 23.3 – 17.8 – 12.2 – 6.7 – 1.1 4.4 7.2 10.0 12.8
100 (37.8) 49600 65000 84000 106000 133000 164000 182000 201000 221000
120 (48.9) 73000 93000 117000 145000 162000 179000 198000
140 (60.0) 101000 126000 140000 156000 173000

CAPACITY (KCAL / HOUR)

– 10 0 10 20 30 40 45 50 55

C
°F / °C – 23.3 – 17.8 – 12.2 – 6.7 – 1.1 4.4 7.2 10.0 12.8

7
100 (37.8) 12500 16400 21200 26700 33500 41300 45900 50700 55700
120 (48.9) 18400 23400 29500 36500 40800 45100 49900

40
140 (60.0) 25500 31800 35300 39300 43600

CAPACITY (WATTS)

R
– 10 0 10 20 30 40 45 50 55
°F / °C – 23.3 – 17.8 – 12.2 – 6.7 – 1.1 4.4 7.2 10.0 12.8
100 (37.8) 14500 19000 24600 31100 39000 48100 53300 58900 64800
120 (48.9) 21400 27200 34300 42500 47500 52400 58000
140 (60.0) 29600 36900 41000 45700 50700

POWER (MOTOR WATTS)

– 10 0 10 20 30 40 45 50 55
°F / °C – 23.3 – 17.8 – 12.2 – 6.7 – 1.1 4.4 7.2 10.0 12.8
100 (37.8) 8950 9300 9350 9250 9200 9250 9400 9600 9950
120 (48.9) 11900 12100 12000 12000 11900 12000 12100
140 (60.0) 15700 15700 15700 15700 15700
Production compressors to meet above nominal performance values within ± 5%.

94
Copeland ®
brand products ZR COMMERCIAL COPELAND SCROLL® COMPRESSORS

50 HERTZ PERFORMANCE DATA R134a

20° F (11.1° C) Superheat 15° F (8.3° C) Subcooling 95° F (35° C) Ambient (Air Over)

200-3-50 (TWC) 200-3-50 (TWC)

380/420-3-50 (TWD) Rated Voltage 380-3-50 (TWD) Test Voltage
220/240-3-50 (TWR) 220-3-50 (TWR)

ZR90K3E-TWC / TWR / TWD R134a

CAPACITY (BTU / HOUR)
CONDENSING TEMPERATURE EVAPORATING TEMPERATURE °F / °C
– 10 0 10 20 30 40 45 50 55
°F / °C – 23.3 – 17.8 – 12.2 – 6.7 – 1.1 4.4 7.2 10.0 12.8
100 (37.8) 14500 19900 26100 33600 42400 53000 59000 65500 72000
120 (48.9) 23000 29700 37800 47300 52500 58500 65000
140 (60.0) 32900 41300 46200 51500 57000

CAPACITY (KCAL / HOUR)

a
– 10 0 10 20 30 40 45 50 55
°F / °C – 23.3 – 17.8 – 12.2 – 6.7 – 1.1 4.4 7.2 10.0 12.8

34
100 (37.8) 3650 5010 6580 8470 10700 13400 14900 16500 18100
120 (48.9) 5800 7480 9530 11900 13200 14700 16400
140 (60.0) 8290 10400 11600 13000 14400

CAPACITY (WATTS)
°F / °C

100 (37.8)
120 (48.9)
140 (60.0)

POWER (MOTOR WATTS)

– 10
– 23.3
4250
0
– 17.8
5830

R 1 10
– 12.2
7650
6740
20
– 6.7
9840
8700
30
– 1.1
12400
11100
9640
40
4.4
15500
13900
12100
45
7.2
17300
15400
13500
50
10.0
19200
17100
15100
55
12.8
21100
19000
16700

– 10 0 10 20 30 40 45 50 55
°F / °C – 23.3 – 17.8 – 12.2 – 6.7 – 1.1 4.4 7.2 10.0 12.8
100 (37.8) 3120 3190 3230 3250 3250 3260 3260 3260 3270
120 (48.9) 4040 4080 4110 4110 4110 4110 4110
140 (60.0) 5100 5150 5150 5200 5200

ZR11M3E-TWC / TWR / TWD R134a

CAPACITY (BTU / HOUR)
CONDENSING TEMPERATURE EVAPORATING TEMPERATURE °F / °C
– 10 0 10 20 30 40 45 50 55
°F / °C – 23.3 – 17.8 – 12.2 – 6.7 – 1.1 4.4 7.2 10.0 12.8
100 (37.8) 18900 24400 31700 40900 52000 65500 72500 81000 89500
120 (48.9) 28200 36300 46200 58000 65000 72500 80500
140 (60.0) 40200 50500 56500 63000 70500

CAPACITY (KCAL / HOUR)

a
– 10 0 10 20 30 40 45 50 55
°F / °C – 23.3 – 17.8 – 12.2 – 6.7 – 1.1 4.4 7.2 10.0 12.8

34
100 (37.8) 4760 6150 7990 10300 13100 16500 18300 20400 22600
120 (48.9) 7110 9150 11600 14600 16400 18300 20300
140 (60.0) 10100 12700 14200 15900 17800

CAPACITY (WATTS)
°F / °C

100 (37.8)
120 (48.9)
140 (60.0)

POWER (MOTOR WATTS)

– 10
– 23.3
5540
0
– 17.8
7150

R 1 10
– 12.2
9290
8260
20
– 6.7
12000
10600
30
– 1.1
15200
13500
11800
40
4.4
19200
17000
14800
45
7.2
21200
19000
16600
50
10.0
23700
21200
18500
55
12.8
26200
23600
20700

– 10 0 10 20 30 40 45 50 55
°F / °C – 23.3 – 17.8 – 12.2 – 6.7 – 1.1 4.4 7.2 10.0 12.8
100 (37.8) 3610 3710 3790 3860 3920 3960 3970 3980 3990
120 (48.9) 4750 4850 4930 4990 5000 5050 5050
140 (60.0) 6100 6250 6300 6300 6350
Production compressors to meet above nominal performance values within ± 5%.

95
Copeland ®
brand products ZR COMMERCIAL COPELAND SCROLL® COMPRESSORS

50 HERTZ PERFORMANCE DATA R134a

20° F (11.1° C) Superheat 15° F (8.3° C) Subcooling 95° F (35° C) Ambient (Air Over)

200-3-50 (TWC) 200-3-50 (TWC)

380/420-3-50 (TWD) Rated Voltage 380-3-50 (TWD) Test Voltage
220/240-3-50 (TWR) 220-3-50 (TWR)

ZR12M3E-TWC / TWR / TWD R134a

CAPACITY (BTU / HOUR)
CONDENSING TEMPERATURE EVAPORATING TEMPERATURE °F / °C
– 10 0 10 20 30 40 45 50 55
°F / °C – 23.3 – 17.8 – 12.2 – 6.7 – 1.1 4.4 7.2 10.0 12.8
100 (37.8) 21900 28300 36800 47400 60500 75500 84500 93500 104000
120 (48.9) 32700 42000 53500 67500 75500 84000 93000
140 (60.0) 46600 58500 65500 73000 81500

CAPACITY (KCAL / HOUR)

a
– 10 0 10 20 30 40 45 50 55
°F / °C – 23.3 – 17.8 – 12.2 – 6.7 – 1.1 4.4 7.2 10.0 12.8

34
100 (37.8) 5520 7130 9270 11900 15200 19000 21300 23600 26200
120 (48.9) 8240 10600 13500 17000 19000 21200 23400
140 (60.0) 11700 14700 16500 18400 20500

CAPACITY (WATTS)
°F / °C

100 (37.8)
120 (48.9)
140 (60.0)

POWER (MOTOR WATTS)

– 10
– 23.3
6420
0
– 17.8
8290

R 1 10
– 12.2
10800
9580
20
– 6.7
13900
12300
30
– 1.1
17700
15700
13700
40
4.4
22100
19800
17100
45
7.2
24800
22100
19200
50
10.0
27400
24600
21400
55
12.8
30500
27200
23900

– 10 0 10 20 30 40 45 50 55
°F / °C – 23.3 – 17.8 – 12.2 – 6.7 – 1.1 4.4 7.2 10.0 12.8
100 (37.8) 4150 4260 4360 4440 4500 4550 4560 4580 4590
120 (48.9) 5450 5550 5650 5750 5750 5750 5800
140 (60.0) 7050 7150 7200 7250 7300

ZR16M3E-TWC / TWR / TWD R134a

CAPACITY (BTU / HOUR)
CONDENSING TEMPERATURE EVAPORATING TEMPERATURE °F / °C
– 10 0 10 20 30 40 45 50 55
°F / °C – 23.3 – 17.8 – 12.2 – 6.7 – 1.1 4.4 7.2 10.0 12.8
100 (37.8) 26900 34700 45100 58000 74000 93000 104000 115000 127000
120 (48.9) 40200 51500 65500 83000 92500 103000 114000
140 (60.0) 57000 72000 80500 90000 100000

CAPACITY (KCAL / HOUR)

a
– 10 0 10 20 30 40 45 50 55
°F / °C – 23.3 – 17.8 – 12.2 – 6.7 – 1.1 4.4 7.2 10.0 12.8

34
100 (37.8) 6780 8740 11400 14600 18600 23400 26200 29000 32000
120 (48.9) 10100 13000 16500 20900 23300 26000 28700
140 (60.0) 14400 18100 20300 22700 25200

CAPACITY (WATTS)
°F / °C

100 (37.8)
120 (48.9)
140 (60.0)

POWER (MOTOR WATTS)

– 10
– 23.3
7880
0
– 17.8
10200

R 1 10
– 12.2
13200
11800
20
– 6.7
17000
15100
30
– 1.1
21700
19200
16700
40
4.4
27200
24300
21100
45
7.2
30500
27100
23600
50
10.0
33700
30200
26400
55
12.8
37200
33400
29300

– 10 0 10 20 30 40 45 50 55
°F / °C – 23.3 – 17.8 – 12.2 – 6.7 – 1.1 4.4 7.2 10.0 12.8
100 (37.8) 5250 5300 5350 5450 5500 5600 5700 5750 5850
120 (48.9) 6800 6900 6950 7050 7100 7150 7200
140 (60.0) 8700 8800 8850 8900 8950
Production compressors to meet above nominal performance values within ± 5%.

96
Copeland ®
brand products ZR COMMERCIAL COPELAND SCROLL® COMPRESSORS

50 HERTZ PERFORMANCE DATA R134a

20° F (11.1° C) Superheat 15° F (8.3° C) Subcooling 95° F (35° C) Ambient (Air Over)

200-3-50 (TWC) 200-3-50 (TWC)

380/420-3-50 (TWD) Rated Voltage 380-3-50 (TWD) Test Voltage
220/240-3-50 (TWR) 220-3-50 (TWR)

ZR19M3E-TWC / TWR / TWD R134a

CAPACITY (BTU / HOUR)
CONDENSING TEMPERATURE EVAPORATING TEMPERATURE °F / °C
– 10 0 10 20 30 40 45 50 55
°F / °C – 23.3 – 17.8 – 12.2 – 6.7 – 1.1 4.4 7.2 10.0 12.8
100 (37.8) 27000 39000 53000 69000 88500 111000 124000 137000 152000
120 (48.9) 46300 61000 78500 99000 110000 123000 136000
140 (60.0) 67500 86000 96000 107000 119000

CAPACITY (KCAL / HOUR)

a
– 10 0 10 20 30 40 45 50 55
°F / °C – 23.3 – 17.8 – 12.2 – 6.7 – 1.1 4.4 7.2 10.0 12.8

34
100 (37.8) 6800 9830 13400 17400 22300 28000 31200 34500 38300
120 (48.9) 11700 15400 19800 24900 27700 31000 34300
140 (60.0) 17000 21700 24200 27000 30000

CAPACITY (WATTS)
°F / °C

100 (37.8)
120 (48.9)
140 (60.0)

POWER (MOTOR WATTS)

– 10
– 23.3
7910
0
– 17.8
11400

R 1 10
– 12.2
15500
13600
20
– 6.7
20200
17900
30
– 1.1
25900
23000
19800
40
4.4
32500
29000
25200
45
7.2
36300
32200
28100
50
10.0
40100
36000
31400
55
12.8
44500
39800
34900

– 10 0 10 20 30 40 45 50 55
°F / °C – 23.3 – 17.8 – 12.2 – 6.7 – 1.1 4.4 7.2 10.0 12.8
100 (37.8) 6650 6900 7100 7200 7250 7250 7250 7250 7300
120 (48.9) 8700 8850 8900 9000 9000 9000 9050
140 (60.0) 11000 11100 11100 11200 11200
Production compressors to meet above nominal performance values within ± 5%.

97
Copeland ®
brand products ZR COMMERCIAL COPELAND SCROLL® COMPRESSORS

60 HERTZ PERFORMANCE DATA R22

20° F (11.1° C) Superheat 15° F (8.3° C) Subcooling 95° F (35° C) Ambient (Air Over)

208/230-3-60 (TWC) 380-3-60 (TW7) 230-3-60 (TWC) 380-3-60 (TW7)

575-3-60 (TWE) Rated Voltage 575-3-60 (TWE) Test Voltage
200/230-3-60 (TW5) 460-3-60 (TWD) 230-3-60 (TW5) 460-3-60 (TWD)

ZR90K3-TWC / TW5/TW7/ TWD / TWE R22

CAPACITY (BTU / HOUR)
CONDENSING TEMPERATURE EVAPORATING TEMPERATURE °F / °C
– 10 0 10 20 30 40 45 50 55
°F / °C – 23.3 – 17.8 – 12.2 – 6.7 – 1.1 4.4 7.2 10.0 12.8
100 (37.8) 26700 37700 49300 62000 77000 94000 104000 115000 126000
120 (48.9) 44200 56000 69500 85000 94000 104000 114000
140 (60.0) 61000 75000 83000 92000 101000

CAPACITY (KCAL / HOUR)

– 10 0 10 20 30 40 45 50 55
°F / °C – 23.3 – 17.8 – 12.2 – 6.7 – 1.1 4.4 7.2 10.0 12.8
100 (37.8) 6730 9500 12400 15600 19400 23700 26200 29000 31800
120 (48.9) 11100 14100 17500 21400 23700 26200 28700
140 (60.0) 15400 18900 20900 23200 25500

CAPACITY (WATTS)
– 10 0 10 20 30 40 45 50 55
°F / °C – 23.3 – 17.8 – 12.2 – 6.7 – 1.1 4.4 7.2 10.0 12.8
100 (37.8) 7820 11000 14400 18200 22600 27500 30500 33700 36900
120 (48.9) 13000 16400 20400 24900 27500 30500 33400
140 (60.0) 17900 22000 24300 27000 29600

POWER (MOTOR WATTS)

– 10 0 10 20 30 40 45 50 55
°F / °C – 23.3 – 17.8 – 12.2 – 6.7 – 1.1 4.4 7.2 10.0 12.8
100 (37.8) 5450 5600 5650 5700 5700 5700 5700 5700 5750
120 (48.9) 7150 7150 7150 7150 7100 7100 7150
140 (60.0) 9000 8950 8950 8950 8950

ZR11M3-TWC / TW7/ TWD / TWE R22

CAPACITY (BTU / HOUR)
CONDENSING TEMPERATURE EVAPORATING TEMPERATURE °F / °C
– 10 0 10 20 30 40 45 50 55
°F / °C – 23.3 – 17.8 – 12.2 – 6.7 – 1.1 4.4 7.2 10.0 12.8
100 (37.8) 34900 47300 61000 77000 95000 116000 128000 141000 154000
120 (48.9) 54000 68500 85000 104000 115000 127000 139000
140 (60.0) 74500 92000 101000 112000 123000

CAPACITY (KCAL / HOUR)

– 10 0 10 20 30 40 45 50 55
°F / °C – 23.3 – 17.8 – 12.2 – 6.7 – 1.1 4.4 7.2 10.0 12.8
100 (37.8) 8790 11900 15400 19400 23900 29200 32300 35500 38800
120 (48.9) 13600 17300 21400 26200 29000 32000 35000
140 (60.0) 18800 23200 25500 28200 31000

CAPACITY (WATTS)
– 10 0 10 20 30 40 45 50 55
°F / °C – 23.3 – 17.8 – 12.2 – 6.7 – 1.1 4.4 7.2 10.0 12.8
100 (37.8) 10200 13900 17900 22600 27800 34000 37500 41300 45100
120 (48.9) 15800 20100 24900 30500 33700 37200 40700
140 (60.0) 21800 27000 29600 32800 36000

POWER (MOTOR WATTS)

– 10 0 10 20 30 40 45 50 55
°F / °C – 23.3 – 17.8 – 12.2 – 6.7 – 1.1 4.4 7.2 10.0 12.8
100 (37.8) 6600 6750 6800 6800 6800 6750 6750 6750 6750
120 (48.9) 8500 8550 8550 8550 8550 8550 8500
140 (60.0) 10700 10800 10800 10800 10700
Production compressors to meet above nominal performance values within ± 5%.

98
Copeland ®
brand products ZR COMMERCIAL COPELAND SCROLL® COMPRESSORS

60 HERTZ PERFORMANCE DATA R22

20° F (11.1° C) Superheat 15° F (8.3° C) Subcooling 95° F (35° C) Ambient (Air Over)

208/230-3-60 (TWC) 380-3-60 (TW7) 230-3-60 (TWC) 380-3-60 (TW7)

575-3-60 (TWE) Rated Voltage 575-3-60 (TWE) Test Voltage
200/230-3-60 (TW5) 460-3-60 (TWD) 230-3-60 (TW5) 460-3-60 (TWD)

ZR12M3-TWC / TW5/TW7/ TWD / TWE R22

CAPACITY (BTU / HOUR)
CONDENSING TEMPERATURE EVAPORATING TEMPERATURE °F / °C
– 10 0 10 20 30 40 45 50 55
°F / °C – 23.3 – 17.8 – 12.2 – 6.7 – 1.1 4.4 7.2 10.0 12.8
100 (37.8) 40400 55000 71000 89000 110000 135000 148000 163000 179000
120 (48.9) 62500 79500 98500 121000 133000 147000 161000
140 (60.0) 86500 106000 117000 129000 142000

CAPACITY (KCAL / HOUR)

– 10 0 10 20 30 40 45 50 55
°F / °C – 23.3 – 17.8 – 12.2 – 6.7 – 1.1 4.4 7.2 10.0 12.8
100 (37.8) 10200 13900 17900 22400 27700 34000 37300 41100 45100
120 (48.9) 15800 20000 24800 30500 33500 37000 40600
140 (60.0) 21800 26700 29500 32500 35800

CAPACITY (WATTS)
– 10 0 10 20 30 40 45 50 55
°F / °C – 23.3 – 17.8 – 12.2 – 6.7 – 1.1 4.4 7.2 10.0 12.8
100 (37.8) 11800 16100 20800 26100 32200 39600 43400 47800 52400
120 (48.9) 18300 23300 28900 35500 39000 43100 47200
140 (60.0) 25300 31100 34300 37800 41600

POWER (MOTOR WATTS)

– 10 0 10 20 30 40 45 50 55
°F / °C – 23.3 – 17.8 – 12.2 – 6.7 – 1.1 4.4 7.2 10.0 12.8
100 (37.8) 7600 7700 7800 7800 7800 7750 7750 7750 7750
120 (48.9) 9750 9800 9850 9800 9800 9750 9750
140 (60.0) 12300 12300 12300 12300 12300

ZR16M3-TWC / TW5/TW7/ TWD / TWE R22

CAPACITY (BTU / HOUR)
CONDENSING TEMPERATURE EVAPORATING TEMPERATURE °F / °C
– 10 0 10 20 30 40 45 50 55
°F / °C – 23.3 – 17.8 – 12.2 – 6.7 – 1.1 4.4 7.2 10.0 12.8
100 (37.8) 48600 67000 87000 109000 135000 165000 181000 199000 219000
120 (48.9) 75500 97500 121000 149000 164000 180000 198000
140 (60.0) 105000 130000 144000 159000 175000

CAPACITY (KCAL / HOUR)

– 10 0 10 20 30 40 45 50 55
°F / °C – 23.3 – 17.8 – 12.2 – 6.7 – 1.1 4.4 7.2 10.0 12.8
100 (37.8) 12200 16900 21900 27500 34000 41600 45600 50100 55200
120 (48.9) 19000 24600 30500 37500 41300 45400 49900
140 (60.0) 26500 32800 36300 40100 44100

CAPACITY (WATTS)
– 10 0 10 20 30 40 45 50 55
°F / °C – 23.3 – 17.8 – 12.2 – 6.7 – 1.1 4.4 7.2 10.0 12.8
100 (37.8) 14200 19600 25500 31900 39600 48300 53000 58300 64200
120 (48.9) 22100 28600 35500 43700 48100 52700 58000
140 (60.0) 30800 38100 42200 46600 51300

POWER (MOTOR WATTS)

– 10 0 10 20 30 40 45 50 55
°F / °C – 23.3 – 17.8 – 12.2 – 6.7 – 1.1 4.4 7.2 10.0 12.8
100 (37.8) 9450 9650 9750 9850 9850 9900 9950 10000 10100
120 (48.9) 12000 12100 12200 12200 12200 12200 12200
140 (60.0) 15100 15100 15100 15100 15100
Production compressors to meet above nominal performance values within ± 5%.

99
Copeland ®
brand products ZR COMMERCIAL COPELAND SCROLL® COMPRESSORS

60 HERTZ PERFORMANCE DATA R22

20° F (11.1° C) Superheat 15° F (8.3° C) Subcooling 95° F (35° C) Ambient (Air Over)

208/230-3-60 (TWC) 380-3-60 (TW7) 230-3-60 (TWC) 380-3-60 (TW7)

575-3-60 (TWE) Rated Voltage 575-3-60 (TWE) Test Voltage
200/230-3-60 (TW5) 460-3-60 (TWD) 230-3-60 (TW5) 460-3-60 (TWD)

ZR19M3-TWC / TW5/TW7/ TWD / TWE R22

CAPACITY (BTU / HOUR)
CONDENSING TEMPERATURE EVAPORATING TEMPERATURE °F / °C
– 10 0 10 20 30 40 45 50 55
°F / °C – 23.3 – 17.8 – 12.2 – 6.7 – 1.1 4.4 7.2 10.0 12.8
100 (37.8) 69500 86500 108000 135000 166000 202000 222000 243000 265000
120 (48.9) 97500 121000 150000 183000 202000 221000 242000
140 (60.0) 132000 162000 179000 196000 216000

CAPACITY (KCAL / HOUR)

– 10 0 10 20 30 40 45 50 55
°F / °C – 23.3 – 17.8 – 12.2 – 6.7 – 1.1 4.4 7.2 10.0 12.8
100 (37.8) 17500 21800 27200 34000 41800 50900 55900 61200 66800
120 (48.9) 24600 30500 37800 46100 50900 55700 61000
140 (60.0) 33300 40800 45100 49400 54400

CAPACITY (WATTS)
– 10 0 10 20 30 40 45 50 55
°F / °C – 23.3 – 17.8 – 12.2 – 6.7 – 1.1 4.4 7.2 10.0 12.8
100 (37.8) 20400 25300 31600 39600 48600 59200 65000 71200 77600
120 (48.9) 28600 35500 44000 53600 59200 64800 70900
140 (60.0) 38700 47500 52400 57400 63300

POWER (MOTOR WATTS)

– 10 0 10 20 30 40 45 50 55
°F / °C – 23.3 – 17.8 – 12.2 – 6.7 – 1.1 4.4 7.2 10.0 12.8
100 (37.8) 11000 11400 11500 11600 11600 11700 11800 11900 12000
120 (48.9) 14300 14500 14600 14700 14700 14800 14800
140 (60.0) 18300 18400 18500 18600 18600
Production compressors to meet above nominal performance values within ± 5%.

100
Copeland ®
brand products ZR COMMERCIAL COPELAND SCROLL® COMPRESSORS

60 HERTZ PERFORMANCE DATA R407C

20° F (11.1° C) Superheat 15° F (8.3° C) Subcooling 95° F (35° C) Ambient (Air Over)

208/230-3-60 (TWC) 380-3-60 (TW7) 230-3-60 (TWC) 380-3-60 (TW7)

575-3-60 (TWE) Rated Voltage 575-3-60 (TWE) Test Voltage
200/230-3-60 (TW5) 460-3-60 (TWD) 230-3-60 (TW5) 460-3-60 (TWD)

ZR90K3E-TWC / TW5/TW7/ TWD / TWE R407C

CAPACITY (BTU / HOUR)
CONDENSING TEMPERATURE EVAPORATING TEMPERATURE °F / °C
– 10 0 10 20 30 40 45 50 55
°F / °C – 23.3 – 17.8 – 12.2 – 6.7 – 1.1 4.4 7.2 10.0 12.8
100 (37.8) 27000 36100 46900 60000 75000 93500 104000 115000 127000
120 (48.9) 40800 52500 66500 83000 92500 102000 113000
140 (60.0) 57500 72000 80500 89500 99500

CAPACITY (KCAL / HOUR)

– 10 0 10 20 30 40 45 50 55

C
°F / °C – 23.3 – 17.8 – 12.2 – 6.7 – 1.1 4.4 7.2 10.0 12.8

7
100 (37.8) 6800 9100 11800 15100 18900 23600 26200 29000 32000
120 (48.9) 10300 13200 16800 20900 23300 25700 28500

40
140 (60.0) 14500 18100 20300 22600 25100

CAPACITY (WATTS)

R
– 10 0 10 20 30 40 45 50 55
°F / °C – 23.3 – 17.8 – 12.2 – 6.7 – 1.1 4.4 7.2 10.0 12.8
100 (37.8) 7910 10600 13700 17600 22000 27400 30500 33700 37200
120 (48.9) 12000 15400 19500 24300 27100 29900 33100
140 (60.0) 16800 21100 23600 26200 29200

POWER (MOTOR WATTS)

– 10 0 10 20 30 40 45 50 55
°F / °C – 23.3 – 17.8 – 12.2 – 6.7 – 1.1 4.4 7.2 10.0 12.8
100 (37.8) 5200 5450 5550 5550 5550 5550 5550 5550 5600
120 (48.9) 6850 7000 7050 7050 7050 7100 7100
140 (60.0) 8900 9000 9050 9050 9100

ZR11M3E-TWC / TW7/ TWD / TWE R407C

CAPACITY (BTU / HOUR)
CONDENSING TEMPERATURE EVAPORATING TEMPERATURE °F / °C
– 10 0 10 20 30 40 45 50 55
°F / °C – 23.3 – 17.8 – 12.2 – 6.7 – 1.1 4.4 7.2 10.0 12.8
100 (37.8) 33700 44600 57500 73500 92000 114000 127000 140000 154000
120 (48.9) 50500 64500 81500 101000 113000 125000 138000
140 (60.0) 70000 88000 98000 109000 121000

CAPACITY (KCAL / HOUR)

– 10 0 10 20 30 40 45 50 55

C
°F / °C – 23.3 – 17.8 – 12.2 – 6.7 – 1.1 4.4 7.2 10.0 12.8

7
100 (37.8) 8490 11200 14500 18500 23200 28700 32000 35300 38800
120 (48.9) 12700 16300 20500 25500 28500 31500 34800

40
140 (60.0) 17600 22200 24700 27500 30500

CAPACITY (WATTS)

R
– 10 0 10 20 30 40 45 50 55
°F / °C – 23.3 – 17.8 – 12.2 – 6.7 – 1.1 4.4 7.2 10.0 12.8
100 (37.8) 9870 13100 16800 21500 27000 33400 37200 41000 45100
120 (48.9) 14800 18900 23900 29600 33100 36600 40400
140 (60.0) 20500 25800 28700 31900 35500

POWER (MOTOR WATTS)

– 10 0 10 20 30 40 45 50 55
°F / °C – 23.3 – 17.8 – 12.2 – 6.7 – 1.1 4.4 7.2 10.0 12.8
100 (37.8) 6500 6550 6550 6550 6600 6600 6600 6600 6650
120 (48.9) 8300 8350 8400 8450 8450 8450 8500
140 (60.0) 10700 10800 10900 10900 11000
Production compressors to meet above nominal performance values within ± 5%.

101
Copeland ®
brand products ZR COMMERCIAL COPELAND SCROLL® COMPRESSORS

60 HERTZ PERFORMANCE DATA R407C

20° F (11.1° C) Superheat 15° F (8.3° C) Subcooling 95° F (35° C) Ambient (Air Over)

208/230-3-60 (TWC) 380-3-60 (TW7) 230-3-60 (TWC) 380-3-60 (TW7)

575-3-60 (TWE) Rated Voltage 575-3-60 (TWE) Test Voltage
200/230-3-60 (TW5) 460-3-60 (TWD) 230-3-60 (TW5) 460-3-60 (TWD)

ZR12M3E-TWC / TW5/TW7/ TWD / TWE R407C

CAPACITY (BTU / HOUR)
CONDENSING TEMPERATURE EVAPORATING TEMPERATURE °F / °C
– 10 0 10 20 30 40 45 50 55
°F / °C – 23.3 – 17.8 – 12.2 – 6.7 – 1.1 4.4 7.2 10.0 12.8
100 (37.8) 40100 52500 67500 85500 107000 132000 146000 162000 178000
120 (48.9) 59000 75000 94500 117000 130000 144000 159000
140 (60.0) 81500 102000 113000 126000 139000

CAPACITY (KCAL / HOUR)

– 10 0 10 20 30 40 45 50 55

C
°F / °C – 23.3 – 17.8 – 12.2 – 6.7 – 1.1 4.4 7.2 10.0 12.8

7
100 (37.8) 10100 13200 17000 21500 27000 33300 36800 40800 44900
120 (48.9) 14900 18900 23800 29500 32800 36300 40100

40
140 (60.0) 20500 25700 28500 31800 35000

CAPACITY (WATTS)

R
– 10 0 10 20 30 40 45 50 55
°F / °C – 23.3 – 17.8 – 12.2 – 6.7 – 1.1 4.4 7.2 10.0 12.8
100 (37.8) 11700 15400 19800 25100 31400 38700 42800 47500 52200
120 (48.9) 17300 22000 27700 34300 38100 42200 46600
140 (60.0) 23900 29900 33100 36900 40700

POWER (MOTOR WATTS)

– 10 0 10 20 30 40 45 50 55
°F / °C – 23.3 – 17.8 – 12.2 – 6.7 – 1.1 4.4 7.2 10.0 12.8
100 (37.8) 7200 7450 7550 7600 7600 7600 7600 7650 7650
120 (48.9) 9500 9650 9750 9750 9750 9750 9750
140 (60.0) 12400 12500 12600 12600 12600

ZR16M3E-TWC / TW5/TW7/ TWD / TWE R407C

CAPACITY (BTU / HOUR)
CONDENSING TEMPERATURE EVAPORATING TEMPERATURE °F / °C
– 10 0 10 20 30 40 45 50 55
°F / °C – 23.3 – 17.8 – 12.2 – 6.7 – 1.1 4.4 7.2 10.0 12.8
100 (37.8) 49100 64500 83000 105000 132000 163000 180000 199000 220000
120 (48.9) 72500 92000 116000 144000 160000 177000 196000
140 (60.0) 100000 125000 139000 154000 171000

CAPACITY (KCAL / HOUR)

– 10 0 10 20 30 40 45 50 55

C
°F / °C – 23.3 – 17.8 – 12.2 – 6.7 – 1.1 4.4 7.2 10.0 12.8

7
100 (37.8) 12400 16300 20900 26500 33300 41100 45400 50100 55400
120 (48.9) 18300 23200 29200 36300 40300 44600 49400

40
140 (60.0) 25200 31500 35000 38800 43100

CAPACITY (WATTS)

R
– 10 0 10 20 30 40 45 50 55
°F / °C – 23.3 – 17.8 – 12.2 – 6.7 – 1.1 4.4 7.2 10.0 12.8
100 (37.8) 14400 18900 24300 30800 38700 47800 52700 58300 64500
120 (48.9) 21200 27000 34000 42200 46900 51900 57400
140 (60.0) 29300 36600 40700 45100 50100

POWER (MOTOR WATTS)

– 10 0 10 20 30 40 45 50 55
°F / °C – 23.3 – 17.8 – 12.2 – 6.7 – 1.1 4.4 7.2 10.0 12.8
100 (37.8) 9000 9200 9350 9400 9500 9600 9700 9850 10000
120 (48.9) 11700 11900 12000 12100 12200 12300 12400
140 (60.0) 15400 15600 15700 15800 15800
Production compressors to meet above nominal performance values within ± 5%.

102
Copeland ®
brand products ZR COMMERCIAL COPELAND SCROLL® COMPRESSORS

60 HERTZ PERFORMANCE DATA R407C

20° F (11.1° C) Superheat 15° F (8.3° C) Subcooling 95° F (35° C) Ambient (Air Over)

208/230-3-60 (TWC) 380-3-60 (TW7) 230-3-60 (TWC) 380-3-60 (TW7)

575-3-60 (TWE) Rated Voltage 575-3-60 (TWE) Test Voltage
200/230-3-60 (TW5) 460-3-60 (TWD) 230-3-60 (TW5) 460-3-60 (TWD)

ZR19M3E-TWC / TW5/TW7/ TWD / TWE R407C

CAPACITY (BTU / HOUR)
CONDENSING TEMPERATURE EVAPORATING TEMPERATURE °F / °C
– 10 0 10 20 30 40 45 50 55
°F / °C – 23.3 – 17.8 – 12.2 – 6.7 – 1.1 4.4 7.2 10.0 12.8
100 (37.8) 61000 80000 103000 130000 162000 201000 222000 246000 271000
120 (48.9) 89500 114000 144000 178000 198000 219000 242000
140 (60.0) 124000 155000 172000 191000 212000

CAPACITY (KCAL / HOUR)

– 10 0 10 20 30 40 45 50 55

C
°F / °C – 23.3 – 17.8 – 12.2 – 6.7 – 1.1 4.4 7.2 10.0 12.8

7
100 (37.8) 15400 20200 26000 32800 40800 50700 55900 62000 68300
120 (48.9) 22600 28700 36300 44900 49900 55200 61000

40
140 (60.0) 31200 39100 43300 48100 53400

CAPACITY (WATTS)

R
– 10 0 10 20 30 40 45 50 55
°F / °C – 23.3 – 17.8 – 12.2 – 6.7 – 1.1 4.4 7.2 10.0 12.8
100 (37.8) 17900 23400 30200 38100 47500 58900 65000 72100 79400
120 (48.9) 26200 33400 42200 52200 58000 64200 70900
140 (60.0) 36300 45400 50400 56000 62100

POWER (MOTOR WATTS)

– 10 0 10 20 30 40 45 50 55
°F / °C – 23.3 – 17.8 – 12.2 – 6.7 – 1.1 4.4 7.2 10.0 12.8
100 (37.8) 11100 11100 11200 11400 11500 11500 11400 11300 11100
120 (48.9) 14200 14400 14600 14700 14800 14800 14800
140 (60.0) 18600 18800 18900 19000 19100
Production compressors to meet above nominal performance values within ± 5%.

103
Copeland ®
brand products ZR COMMERCIAL COPELAND SCROLL® COMPRESSORS

60 HERTZ PERFORMANCE DATA R134a

20° F (11.1° C) Superheat 15° F (8.3° C) Subcooling 95° F (35° C) Ambient (Air Over)

208/230-3-60 (TWC) 460-3-60 (TWD) 230-3-60 (TWC) 460-3-60 (TWD)

Rated Voltage Test Voltage
380-3-60 (TW7) 575-3-60 (TWE) 380-3-60 (TW7) 575-3-60 (TWE)

ZR90K3E-TWC / TW7/ TWD / TWE R134a

CAPACITY (BTU / HOUR)
CONDENSING TEMPERATURE EVAPORATING TEMPERATURE °F / °C
– 10 0 10 20 30 40 45 50 55
°F / °C – 23.3 – 17.8 – 12.2 – 6.7 – 1.1 4.4 7.2 10.0 12.8
100 (37.8) 17500 24000 31600 40600 51500 64000 71000 79000 87500
120 (48.9) 27800 36000 45700 57000 63500 71000 78500
140 (60.0) 39800 50000 56000 62000 69000

CAPACITY (KCAL / HOUR)

a
– 10 0 10 20 30 40 45 50 55
°F / °C – 23.3 – 17.8 – 12.2 – 6.7 – 1.1 4.4 7.2 10.0 12.8

34
100 (37.8) 4410 6050 7960 10200 13000 16100 17900 19900 22100
120 (48.9) 7010 9070 11500 14400 16000 17900 19800
140 (60.0) 10000 12600 14100 15600 17400

CAPACITY (WATTS)
°F / °C

100 (37.8)
120 (48.9)
140 (60.0)

POWER (MOTOR WATTS)

– 10
– 23.3
5130
0
– 17.8
7030

R 110
– 12.2
9260
8150
20
– 6.7
11900
10500
30
– 1.1
15100
13400
11700
40
4.4
18800
16700
14700
45
7.2
20800
18600
16400
50
10.0
23100
20800
18200
55
12.8
25600
23000
20200

– 10 0 10 20 30 40 45 50 55
°F / °C – 23.3 – 17.8 – 12.2 – 6.7 – 1.1 4.4 7.2 10.0 12.8
100 (37.8) 3780 3860 3900 3930 3940 3940 3940 3950 3960
120 (48.9) 4890 4940 4970 4980 4980 4980 4980
140 (60.0) 6150 6250 6250 6300 6300

ZR11M3E-TWC / TW7/ TWD / TWE R134a

CAPACITY (BTU / HOUR)
CONDENSING TEMPERATURE EVAPORATING TEMPERATURE °F / °C
– 10 0 10 20 30 40 45 50 55
°F / °C – 23.3 – 17.8 – 12.2 – 6.7 – 1.1 4.4 7.2 10.0 12.8
100 (37.8) 22800 29500 38300 49400 63000 79000 88000 97500 108000
120 (48.9) 34100 43800 56000 70500 78500 87500 97000
140 (60.0) 48600 61000 68500 76500 85000

CAPACITY (KCAL / HOUR)

– 10 0 10 20 30 40 45 50 55

a
°F / °C – 23.3 – 17.8 – 12.2 – 6.7 – 1.1 4.4 7.2 10.0 12.8

34
100 (37.8) 5750 7430 9650 12400 15900 19900 22200 24600 27200
120 (48.9) 8590 11000 14100 17800 19800 22100 24400
140 (60.0) 12200 15400 17300 19300 21400

1
CAPACITY (WATTS)

R
– 10 0 10 20 30 40 45 50 55
°F / °C – 23.3 – 17.8 – 12.2 – 6.7 – 1.1 4.4 7.2 10.0 12.8
100 (37.8) 6680 8640 11200 14500 18500 23100 25800 28600 31600
120 (48.9) 9990 12800 16400 20700 23000 25600 28400
140 (60.0) 14200 17900 20100 22400 24900

POWER (MOTOR WATTS)

– 10 0 10 20 30 40 45 50 55
°F / °C – 23.3 – 17.8 – 12.2 – 6.7 – 1.1 4.4 7.2 10.0 12.8
100 (37.8) 4370 4490 4590 4670 4740 4790 4800 4820 4830
120 (48.9) 5750 5850 5950 6050 6050 6100 6100
140 (60.0) 7400 7550 7600 7650 7650
Production compressors to meet above nominal performance values within ± 5%.

104
Copeland ®
brand products ZR COMMERCIAL COPELAND SCROLL® COMPRESSORS

60 HERTZ PERFORMANCE DATA R134a

20° F (11.1° C) Superheat 15° F (8.3° C) Subcooling 95° F (35° C) Ambient (Air Over)

208/230-3-60 (TWC) 460-3-60 (TWD) 230-3-60 (TWC) 460-3-60 (TWD)

Rated Voltage Test Voltage
380-3-60 (TW7) 575-3-60 (TWE) 380-3-60 (TW7) 575-3-60 (TWE)

ZR12M3E-TWC / TW7/ TWD / TWE R134a

CAPACITY (BTU / HOUR)
CONDENSING TEMPERATURE EVAPORATING TEMPERATURE °F / °C
– 10 0 10 20 30 40 45 50 55
°F / °C – 23.3 – 17.8 – 12.2 – 6.7 – 1.1 4.4 7.2 10.0 12.8
100 (37.8) 26400 34200 44400 57000 73000 91500 102000 113000 125000
120 (48.9) 39600 51000 64500 81500 91000 101000 112000
140 (60.0) 56500 71000 79500 88500 98500

CAPACITY (KCAL / HOUR)

a
– 10 0 10 20 30 40 45 50 55
°F / °C – 23.3 – 17.8 – 12.2 – 6.7 – 1.1 4.4 7.2 10.0 12.8

34
100 (37.8) 6650 8620 11200 14400 18400 23100 25700 28500 31500
120 (48.9) 9980 12900 16300 20500 22900 25500 28200
140 (60.0) 14200 17900 20000 22300 24800

CAPACITY (WATTS)
°F / °C

100 (37.8)
120 (48.9)
140 (60.0)

POWER (MOTOR WATTS)

– 10
– 23.3
7740
0
– 17.8
10000

R 110
– 12.2
13000
11600
20
– 6.7
16700
14900
30
– 1.1
21400
18900
16600
40
4.4
26800
23900
20800
45
7.2
29900
26700
23300
50
10.0
33100
29600
25900
55
12.8
36600
32800
28900

– 10 0 10 20 30 40 45 50 55
°F / °C – 23.3 – 17.8 – 12.2 – 6.7 – 1.1 4.4 7.2 10.0 12.8
100 (37.8) 5000 5150 5250 5350 5450 5500 5500 5500 5550
120 (48.9) 6600 6750 6850 6900 6950 6950 7000
140 (60.0) 8500 8650 8700 8750 8800

ZR16M3E-TWC / TW7/ TWD / TWE R134a

CAPACITY (BTU / HOUR)
CONDENSING TEMPERATURE EVAPORATING TEMPERATURE °F / °C
– 10 0 10 20 30 40 45 50 55
°F / °C – 23.3 – 17.8 – 12.2 – 6.7 – 1.1 4.4 7.2 10.0 12.8
100 (37.8) 32500 42000 54500 70500 89500 112000 125000 139000 154000
120 (48.9) 48600 62500 79500 100000 112000 124000 138000
140 (60.0) 69000 87000 97500 109000 121000

CAPACITY (KCAL / HOUR)

a
– 10 0 10 20 30 40 45 50 55
°F / °C – 23.3 – 17.8 – 12.2 – 6.7 – 1.1 4.4 7.2 10.0 12.8

34
100 (37.8) 8190 10600 13700 17800 22600 28200 31500 35000 38800
120 (48.9) 12200 15800 20000 25200 28200 31200 34800
140 (60.0) 17400 21900 24600 27500 30500

CAPACITY (WATTS)
°F / °C

100 (37.8)
120 (48.9)
140 (60.0)

POWER (MOTOR WATTS)

– 10
– 23.3
9520
0
– 17.8
12300

R 110
– 12.2
16000
14200
20
– 6.7
20700
18300
30
– 1.1
26200
23300
20200
40
4.4
32800
29300
25500
45
7.2
36600
32800
28600
50
10.0
40700
36300
31900
55
12.8
45100
40400
35500

– 10 0 10 20 30 40 45 50 55
°F / °C – 23.3 – 17.8 – 12.2 – 6.7 – 1.1 4.4 7.2 10.0 12.8
100 (37.8) 6300 6400 6500 6600 6650 6800 6850 6950 7050
120 (48.9) 8200 8350 8450 8550 8600 8650 8700
140 (60.0) 10500 10600 10700 10800 10800
Production compressors to meet above nominal performance values within ± 5%.

105
Copeland ®
brand products ZR COMMERCIAL COPELAND SCROLL® COMPRESSORS

60 HERTZ PERFORMANCE DATA R134a

20° F (11.1° C) Superheat 15° F (8.3° C) Subcooling 95° F (35° C) Ambient (Air Over)

208/230-3-60 (TWC) 460-3-60 (TWD) 230-3-60 (TWC) 460-3-60 (TWD)

Rated Voltage Test Voltage
380-3-60 (TW7) 575-3-60 (TWE) 380-3-60 (TW7) 575-3-60 (TWE)

ZR19M3E-TWC / TW7/ TWD / TWE R134a

CAPACITY (BTU / HOUR)
CONDENSING TEMPERATURE EVAPORATING TEMPERATURE °F / °C
– 10 0 10 20 30 40 45 50 55
°F / °C – 23.3 – 17.8 – 12.2 – 6.7 – 1.1 4.4 7.2 10.0 12.8
100 (37.8) 32900 47500 64500 84500 108000 135000 151000 167000 185000
120 (48.9) 56500 74500 95500 120000 134000 149000 166000
140 (60.0) 82500 105000 117000 130000 145000

CAPACITY (KCAL / HOUR)

– 10 0 10 20 30 40 45 50 55

a
°F / °C – 23.3 – 17.8 – 12.2 – 6.7 – 1.1 4.4 7.2 10.0 12.8

34
100 (37.8) 8290 12000 16300 21300 27200 34000 38100 42100 46600
120 (48.9) 14200 18800 24100 30200 33800 37500 41800
140 (60.0) 20800 26500 29500 32800 36500

CAPACITY (WATTS)
°F / °C

100 (37.8)
120 (48.9)
140 (60.0)

POWER (MOTOR WATTS)

– 10
– 23.3
9640
0
– 17.8
13900

R 110
– 12.2
18900
16600
20
– 6.7
24800
21800
30
– 1.1
31600
28000
24200
40
4.4
39600
35200
30800
45
7.2
44200
39300
34300
50
10.0
48900
43700
38100
55
12.8
54200
48600
42500

– 10 0 10 20 30 40 45 50 55
°F / °C – 23.3 – 17.8 – 12.2 – 6.7 – 1.1 4.4 7.2 10.0 12.8
100 (37.8) 8150 8450 8700 8800 8850 8900 8900 8900 8900
120 (48.9) 10600 10800 10900 11000 11000 11000 11000
140 (60.0) 13500 13600 13600 13700 13700
Production compressors to meet above nominal performance values within ± 5%.

106
Copeland ®
brand products ZR COMMERCIAL COPELAND SCROLL® COMPRESSORS

50 R22
APPROVED COMPRESSOR
HERTZ OPERATING RANGE R407C
60
R134a
AN OKAY INDICATES AN APPROVED POINT FOR COMPRESSOR OPERATION
AN * * * * INDICATES A NON-APPROVED POINT FOR COMPRESSOR OPERATION
CONDENSING TEMPERATURE EVAPORATING TEMPERATURE °F/°C

– 10 0 10 20 30 40 45 50 55
°F °C
– 23.3 – 17.8 – 12.2 – 6.7 – 1.1 4.4 7.2 10.0 12.8

80 26.7 OKAY OKAY OKAY OKAY OKAY OKAY OKAY OKAY OKAY

90 32.2 OKAY OKAY OKAY OKAY OKAY OKAY OKAY OKAY OKAY

100 37.8 OKAY OKAY OKAY OKAY OKAY OKAY OKAY OKAY OKAY

110 43.3 **** OKAY OKAY OKAY OKAY OKAY OKAY OKAY OKAY

120 48.9 **** **** OKAY OKAY OKAY OKAY OKAY OKAY OKAY

130 54.4 **** **** **** OKAY OKAY OKAY OKAY OKAY OKAY

140 60.0 **** **** **** **** OKAY OKAY OKAY OKAY OKAY

150 65.6 **** **** **** **** **** OKAY OKAY OKAY OKAY

Approved range is based on 20 °F (11.1°C) of superheat.

UNITS CONVERSION CHART

BTUH x 0.252 = KCALH

107
Copeland ®
brand products ZR COMMERCIAL COPELAND SCROLL® COMPRESSORS

APPLICATION NOTES
Due to the ZR90K to ZR19M scroll product line’s large • A low pressure control is strongly recommended for
operating capacity and unique features, it has some protection against charge loss. Cut out settings no
different characteristics than other scroll compressors. lower than the following are recommended:
Please refer to Application Bulletin AE 4-1316 for R22 — 25 psig for air conditioning
more details. — 7 psig for heat pumps
R407C — 20 psig for air conditioning
• Due to the inherent ability of the Copeland Scroll to — 4 psig for heat pumps
handle liquid refrigerant in flooded conditions, no
crankcase heater or accumulator is required when the R134a — 6 psig for air conditioning
system charge does not exceed 17 pounds (7.7 Kg). — 4 psig for heat pumps

• Since scroll compressors have very high volumetric • Since the scroll compressor is such an excellent gas
efficiencies, their displacements are lower than expander, the compressor may run backwards for a
comparable capacity reciprocating compressors. As a very brief period at shutoff as the internal pressures
result, Emerson Climate Technologies, Inc. equalize. A floating valve in the upper scroll of the
recommends that the capacity rating on reversing compressor prevents the compressor from running
valves be no more than 2 times the nominal capacity backwards for more than a second or two.
of the compressor with which it will be used in order • Thecompressor has the approval to operate as a
to ensure proper operation of the reversing valve heat pump with the R22, R407C, and R134a
under all operating conditions. operating range.
• The discharge gas temperature protection is • Complete 50 and 60 Hertz performance curves for
incorporated in the motor protection. R22, R407C, and R134a are available in the units as
• The electronic motor protection used in all these follows for all models:
models is identified by a “W” as the center letter in the • Capacity BTU H
motor code. This system utilizes the temperature • Power Input Watts
dependent resistance of thermistors (also called PTC- • Current Amps
resistances) to read the winding temperature. • Efficiency BTU H / Watt
•A low ambient cut-out is not required to limit heat • Emerson Climate Technologies, Inc. has compiled a
pump operation. book of compressor Application Bulletins. Please see
• There is no internal pressure relief valve in the the following bulletins, from the book, for more ZR
compressors. To ensure safe operation, a high compressor application information as entitled below:
pressure control set no higher than 425 psig for R22, Mounting Parts . . . . . . . . . . . . . . . . . . . . . AE 4 -1111
455 psig for R407C, and 290 psig for R134a must be Application Guidelines . . . . . . . . . . . . . . AE 4 -1316
used in all applications. Nameplate Amperage Rating . . . . . . . AE 9 -1154
Nameplate Voltage . . . . . . . . . . . . . . . . . AE 9 -1228
Maximum Continuous
Current Rating . . . . . . . . . . . . . . . . . . . AE 9 -1250

108
Copeland ®
brand products ZR COMMERCIAL COPELAND SCROLL® COMPRESSORS

MULTIPACK PACKAGING AND SHIPPING INFORMATION

SINGLE PACK PACKAGING AND SHIPPING INFORMATION

For your shipments of 1 single pack, the box dimensions (cube) are 16.9 x 15.6 x 27.2 inches (4.1 FT 3), 43 x 39.5 x 69
centimeters (0.12 m3), and the weights (pounds / kilograms) are shown below.

MODEL POUNDS KILOGRAMS

ZR90K 212 96

ZR11M 212 96

ZR12M 214 97

ZR16M 227 103

ZR19M 258 117

109
Copeland ®
brand products ZR COMMERCIAL COPELAND SCROLL® COMPRESSORS

MODEL NUMBER NOMENCLATURE

Optional

Oil Code
MMMAPOE E

Z R X X X X X — T W X — X X X

Compressor Compressor
Family Capacity Multiplier Motor Protection
Series Type Code
Letter “Z” K 1,000 Solid state motor W
established protection – electronic
M 10,000
for this sensors, and external
family of control module; use
compressors. with contactor.

Capacity
Compressor
nominal
60 Hertz
capacity at ARI Model Series
rating condition Variations
to two
significant A number only,
arbitrarily Electrical Codes
digits.
assigned to 50 HZ 60 HZ Code
indicate different 200 -3 208 / 230 -3 C
model types 220 / 240-3 — R
within any one
— 200/230-3 5
family series.
— 380-3 7
380 / 420-3 460-3 D
500-3 575-3 E

110
Copeland ®
brand products ZR COMMERCIAL COPELAND SCROLL® COMPRESSORS

ZRT180 TO ZRT380 TANDEM COMPRESSORS

111
Copeland ®
brand products ZR COMMERCIAL COPELAND SCROLL® COMPRESSORS

50 HERTZ PERFORMANCE NOMINALS R22

200-3-50 (TWC)
THREE PHASE 220-3-50 (TWR) TEST VOLTAGE
380-3-50 (TWD)
CAPACITY ENERGY EFFICIENCY RATING
MODEL RATING MOTOR
CONDITION BTU KCAL WATTS AMPERES* BTUH KCALH WATTS
WATTS
HOUR HOUR MOTOR WATTS MOTOR WATTS MOTOR WATTS
A 148200 37300 43400 13170 47.5/ – /25.0 11.3 2.8 3.3
ZRT180K3-TWC/D B 147000 37000 43100 13200 47.5/ – /25.0 11.1 2.8 3.3
C 172000 43300 50400 9450 39.9/ – /21.0 18.2 4.6 5.3
A 180400 45500 52900 15870 54.5/ – /28.7 11.4 2.9 3.3
ZRT220K3-TWC/D B 179000 45100 52400 15900 54.5/ – /28.7 11.3 2.8 3.3
C 211000 53200 61800 11200 44.1/ – /23.2 18.8 4.8 5.5
A 209700 52800 61400 18200 62.5/ – /32.9 11.5 2.9 3.4
ZRT240K3-TWC/D B 208000 52400 60900 18200 62.5/ – /32.9 11.4 2.9 3.3
C 245000 61700 71800 12800 50.7/ – /26.7 19.1 4.8 5.6
A 233900 58900 68500 20300 67.5/ – /35.5 11.5 2.9 3.4
ZRU280K3-TWC/D B 232000 58500 68000 20300 67.5/ – /35.5 11.4 2.9 3.3
C 273000 68800 80000 14500 54.3/ – /28.6 18.8 4.7 5.5
A 263100 66300 77100 22700 76.2/72.9/40.1 11.6 2.9 3.4
ZRU310K3-TWC/R/D B 261000 65800 76500 22700 76.2/72.9/40.1 11.5 2.9 3.4
C 306000 77100 89700 16000 60.6/58.1/31.9 19.1 4.8 5.6
A 257000 64800 75300 22500 72.8/ – /38.3 11.4 2.9 3.3
ZRT320K3-TWC/D B 255000 64300 74700 22500 72.8/ – /38.3 11.3 2.9 3.3
C 300000 75600 87900 16200 58.0/ – /30.5 18.5 4.7 5.4
A 286300 72100 83900 24800 82.5/78.8/43.4 11.5 2.9 3.4
ZRU350K3-TWC/R/D B 284000 71600 83200 24800 82.5/78.8/43.4 11.5 2.9 3.4
C 333000 83900 97600 17600 65.0/62.3/34.2 18.9 4.8 5.5
A 315500 79500 92400 27000 89.9/86.0/47.3 11.7 2.9 3.4
ZRT380K3-TWC/R/D B 313000 78900 91700 27100 89.9/86.0/47.3 11.5 2.9 3.4
C 365000 92000 106900 19100 70.9/67.8/37.3 19.1 4.8 5.6
*Ampere values shown are at 200 volts/220 volts/380 volts.

EVAPORATING CONDENSING AMBIENT LIQUID RETURN GAS

RATING RATING
TEMPERATURE TEMPERATURE TEMPERATURE TEMPERATURE TEMPERATURE
CONDITION STANDARD
°F / °C °F / °C °F / °C °F / °C °F / °C
A ASRE / T 45 130 95 115 95
7.2 54.4 35.0 46.1 35.0
B ARI 45 130 95 115 65
7.2 54.4 35.0 46.1 18.3
C CHEER 45 100 95 85 65
7.2 37.8 35.0 29.4 18.3
See full operating range on page 136.
Production compressors to meet above nominal performance values within ± 5%.

112
Copeland ®
brand products ZR COMMERCIAL COPELAND SCROLL® COMPRESSORS

60 HERTZ PERFORMANCE NOMINALS R22

230-3-60 (TWC)
460-3-60 (TWD)
THREE PHASE 230-3-60 (TW5) TEST VOLTAGE
575-3-60 (TWE)
380-3-60 (TW7)
CAPACITY ENERGY EFFICIENCY RATING
MODEL RATING
BTU KCAL MOTOR AMPERES
*
AMPERES* BTUH KCALH WATTS
CONDITION WATTS
HOUR HOUR WATTS MOTOR WATTS MOTOR WATTS MOTOR WATTS
A 179400 45200 52600 15970 49.9/49.9/30.2/25.0/20.0 11.2 2.8 3.3
ZRT180K3-TWC/5/7/D/E B 178000 44900 52200 16000 49.9/49.9/30.2/25.0/20.0 11.1 2.8 3.3
C 208000 52400 60900 11400 42.0/42.0/25.4/21.0/16.8 18.2 4.6 5.3
A 218700 55100 64100 19160 57.0/ – /34.5/28.5/22.8 11.4 2.9 3.3
ZRT220K3-TWC/7/D/E B 217000 54700 63600 19200 57.0/ – /34.5/28.5/22.8 11.3 2.8 3.3
C 256000 64500 75000 13500 46.2/ – /28.0/23.1/18.5 19.0 4.8 5.6
A 253000 63800 74100 22000 65.5/65.5/39.6/32.7/26.2 11.5 2.9 3.4
ZRT240K3-TWC/5/7/D/E B 251000 63300 73500 22000 65.5/65.5/39.6/32.7/26.2 11.4 2.9 3.3
C 297000 74800 87000 15500 53.0/53.0/32.1/26.5/21.2 19.2 4.8 5.6
A 280200 70600 82100 24400 71.1/71.1/43.0/35.5/28.4 11.5 2.9 3.4
ZRU280K3-TWC/5/7/D/E B 278000 70100 81500 24400 71.1/71.1/43.0/35.5/28.4 11.4 2.9 3.3
C 327000 82400 95800 17500 57.2/57.2/34.6/28.6/22.9 18.7 4.7 5.5
A 315500 79500 92400 27100 80.2/80.2/48.6/40.1/32.1 11.6 2.9 3.4
ZRU310K3-TWC/5/7/D/E B 313000 78900 91700 27200 80.2/80.2/48.6/40.1/32.1 11.5 2.9 3.4
C 367000 92500 107500 19100 63.9/63.9/38.7/31.9/25.6 19.2 4.8 5.6
A 311500 78500 91300 27000 76.2/76.2/46.1/38.1/30.5 11.5 2.9 3.4
ZRT320K3-TWC/5/7/D/E B 309000 77900 90500 27100 76.2/76.2/46.1/38.1/30.5 11.4 2.9 3.3
C 362000 91200 106100 19900 60.0/60.0/36.3/30.0/24.0 18.2 4.6 5.3
A 343700 86600 100700 29700 86.7/86.7/52.5/43.4/34.7 11.6 2.9 3.4
ZRU350K3-TWC/5/7/D/E B 341000 85900 99900 29800 86.7/86.7/52.5/43.4/34.7 11.4 2.9 3.4
C 400000 100800 117200 21200 68.5/68.5/41.5/34.2/27.4 18.9 4.8 5.5
A 383000 96500 112200 33000 96.4/96.4/58.3/48.2/38.6 11.6 2.9 3.4
ZRT380K3-TWC/5/7/D/E B 380000 95800 111300 33100 96.4/96.4/58.3/48.2/38.6 11.5 2.9 3.4
C 445000 112100 130400 23600 73.9/73.9/44.7/36.9/29.5 18.9 4.8 5.5
*Ampere values shown are at 230 volts / 230 volts / 380 volts / 460 volts / 575 volts .

EVAPORATING CONDENSING AMBIENT LIQUID RETURN GAS

RATING RATING
TEMPERATURE TEMPERATURE TEMPERATURE TEMPERATURE TEMPERATURE
CONDITION STANDARD
°F / °C °F / °C °F / °C °F / °C °F / °C

A ASRE / T 45 130 95 115 95

7.2 54.4 35.0 46.1 35.0
B ARI 45 130 95 115 65
7.2 54.4 35.0 46.1 18.3
C CHEER 45 100 95 85 65
7.2 37.8 35.0 29.4 18.3
See full operating range on page 136.
Production compressors to meet above nominal performance values within ± 5%.

113
Copeland ®
brand products ZR COMMERCIAL COPELAND SCROLL® COMPRESSORS

MECHANICAL SPECIFICATIONS
IN 3 CFH
CM 3 M 3/ HR COMPRESSOR
NOMINAL CUBIC FEET PER HOUR
CUBIC INCHES PER NET WEIGHT WITH OIL
MODEL HP CUBIC METERS PER HOUR
REVOLUTION POUNDS
KW
CUBIC CENTIMETERS 50 HERTZ 60 HERTZ KILOGRAMS
PER REVOLUTION 2900 RPM 3500 RPM
15.0 14.64 1474.0 1779.0 478
ZRT180K3 11.2 239.9 41.73 50.36 217
18.3 17.58 1770.2 2136.4 490
ZRT220K3 13.7 288.1 50.11 60.48 222
20.0 20.19 2033.0 2453.6 496
ZRT240K3 14.9 330.8 57.55 69.46 225
23.3 22.56 2272.1 2742.1 510
ZRU280K3 17.4 369.7 64.32 77.63 231
25.8 24.86 2502.7 3020.6 510
ZRU310K3 19.3 407.3 70.85 85.51 231
26.7 24.94 2511.2 3030.6 510
ZRT320K3 19.9 408.6 71.09 85.80 231
29.2 27.23 2741.8 3309.1 545
ZRU350K3 21.8 446.2 77.62 93.68 247
31.7 29.52 2972.4 3587.6 565
ZRT380K3 23.6 483.7 84.15 101.56 256

ELECTRICAL SPECIFICATIONS
*Note: Electrical specifications are the same as those for individual component compressors comprising the tandem. (Found on page 83)

TANDEM MODEL COMPONENT COMPRESSOR

ZRT180K3 ZR90K3 + ZR90K3

ZRT220K3 ZR11M3 + ZR11M3
ZRT240K3 ZR12M3 + ZR12M3
ZRU280K3 ZR12M3 + ZR16M3
ZRU310K3 ZR12M3 + ZR19M3
ZRT320K3 ZR16M3 + ZR16M3
ZRU350K3 ZR16M3 + ZR19M3
ZRT380K3 ZR19M3 + ZR19M3

“STANDARD” INTERNATIONAL TANDEM BILLS OF MATERIAL

TANDEM SOLID STATE
MODEL BILL OF MATERIAL SUCTION TANDEM SUCTION ROTALOCK MOTOR
NUMBER FITTING FITTING CONNECTION PROTECTOR
POINTING UP POINTING OUT MODULE

241 X X 24 V
ZRT180K3 TO 252 X X 24 V
ZRT380K3 271 X X 115/230 V
282 X X 115/230 V
The bill of material includes features as shown by the X.

114
Copeland ®
brand products ZR COMMERCIAL COPELAND SCROLL® COMPRESSORS

BILL OF MATERIAL PROVISIONS ACCESSORY INFORMATION

In addition to the marked features, each compressor will Crankcase Heater - 480 volts - 70 watts 918-0019-08
include the following: Crankcase Heater - 575 volts - 60 watts 918-0019-09
• Unique Features _ Cast iron inner frame, special
bearings, sight glass, oil adjustment port,
temperature probe, as well as additional
refrigerant and oil filtration capacity.
• Rotalock compressor suction and discharge
fittings and tubing.
• Rotalock two phase fittings and tubing.
• Stub tube connections for discharge and suction
to the system.
• Terminal box and cover complete with wiring
diagram.
• Four Foot Mounting
8.65 x 8.65 inches
(219.7 x 219.7 mm)
• Compressor mouting kit complete with mouting
grommets and bolts. 527-0166-00
• Rail Mounting Kit. 527-0177-00
• Grounding Tab, Screw, and Washer.
• Grounding tab located in the terminal box.
• Terminal Connector Block with Screws.
• 3GS oil.
• Initial oil charge
280 ounces (8.28 liters)

• Refill oil charge.

274 ounces (8.10 liters)
See outline drawings on pages 116 to 121 for stub tube
connection sizes.

115
Copeland ®
brand products ZR COMMERCIAL COPELAND SCROLL® COMPRESSORS

NOTES:
1. NOMINAL DIMENSIONS ARE SHOWN.
MAXIMUM OVERALL TOLERANCE RANGE IS
DIMENSIONAL
± 1.5 MM [0.060 IN]. CONTACT EMERSON
CLIMATE TECHNOLOGIES, INC. IF A MORE
INFORMATION
SPECIFIC RANGE IS REQUIRED.
SECTION A-A
2. DUE TO THE ACCUMULATED ASSEMBLY
TOLERANCES, THE SUCTION AND
DISCHARGE FITTINGS MAY VARY FROM THE WASHER-COMP MTG
MOUNTING HOLES BY ± 4.6 MM [0.18 IN]. (8 REQUIRED)
3. THE TANDEM WITH SUCTION CONNECTION
SPLIT WASHER-COMP MTG
POINTED UP IS SHOWN. PAGE 114 SHOWS
(8 REQUIRED)
B / M NUMBERS FOR TANDEMS WITH
SUCTION CONNECTION POINTED UP AND SPACER-EXTERNAL MOUNT
ALSO POINTED OUT. (8 REQUIRED)
4. TUBE ENDS MUST BE SEALED.
5. LINEAR MEASUREMENTS IN [ ] ARE
INCH CONVERSIONS.

THIRD ANGLE PROJECTION

SCREW-COMP MTG M10

(8 REQUIRED) SOFT RUBBER
MOUNTING
SIGHT GLASS AND O-RING

852
375.2 [33.55] 375.2
[14.665] [14.665]
[8.66]
220
[2.28]
58

361
[14.21]
TUBE DISCHARGE ASSM. TUBE-SUCTION ASSM. 475
[18.70] 330
[1 1/8] [1 5/8] [13.01]
I.D. DISCHARGE I.D. SUCTION
529 [22.43]
570

[20.83]

[22.43]
570

[15.59]
396
[0.35]

116
Copeland ®
brand products ZR COMMERCIAL COPELAND SCROLL® COMPRESSORS

NOTES:
1. NOMINAL DIMENSIONS ARE SHOWN.
MAXIMUM OVERALL TOLERANCE RANGE IS
DIMENSIONAL
± 1.5 MM [0.060 IN]. CONTACT EMERSON
CLIMATE TECHNOLOGIES, INC. IF A MORE
INFORMATION
SPECIFIC RANGE IS REQUIRED.
2. DUE TO THE ACCUMULATED ASSEMBLY
TOLERANCES, THE SUCTION AND SECTION A-A
DISCHARGE FITTINGS MAY VARY FROM THE
MOUNTING HOLES BY ± 4.6 MM [0.18 IN].
3. THE TANDEM WITH SUCTION CONNECTION WASHER-COMP MTG
POINTED UP IS SHOWN. PAGE 114 SHOWS (8 REQUIRED) SPLIT WASHER-COMP MTG
B / M NUMBERS FOR TANDEMS WITH (8 REQUIRED)
SUCTION CONNECTION POINTED UP AND
ALSO POINTED OUT. SPACER-EXTERNAL MOUNT
4. FOR UNEVEN TANDEM, COMPRESSOR ‘A’ (8 REQUIRED)
MUST BE THE LEAST CAPACITY UNIT AND
COMPRESSOR ‘B’ MUST BE THE LARGER
CAPACITY UNIT.
5. TUBE ENDS MUST BE SEALED.
6. LINEAR MEASUREMENTS IN [ ] ARE
INCH CONVERSIONS.

THIRD ANGLE PROJECTION SCREW-COMP MTG M10

(8 REQUIRED) SOFT RUBBER
MOUNTING
SIGHT GLASS AND O-RING

852
375.2 [33.55] 375.2
[14.665] [14.665]
[8.66]
220
[2.28]
58

361
[14.21]

475
TUBE DISCHARGE ASSM. TUBE-SUCTION ASSM. [18.70] 330
[1 1/8] [1 5/8] [13.01]
I.D. DISCHARGE I.D. SUCTION
[20.83]
529
536 [22.73]
577

[21.10]

[22.43]
570

[15.59]
396

COMPRESSOR “B” COMPRESSOR “A”

[0.35]

BRACKET-MOUNTING TUBE TWO 123

(2 REQUIRED) PHASE ASSM. [4.84]

580
[22.83]
FOR THE INTERNATIONAL MARKET
ZRU280K3-TWC/5/7/D/E
HEAT PUMP AND
AIR CONDITIONING MODELS

117
Copeland ®
brand products ZR COMMERCIAL COPELAND SCROLL® COMPRESSORS

NOTES:
1. NOMINAL DIMENSIONS ARE SHOWN.
MAXIMUM OVERALL TOLERANCE RANGE IS
DIMENSIONAL
± 1.5 MM [0.060 IN]. CONTACT EMERSON
CLIMATE TECHNOLOGIES, INC. IF A MORE
INFORMATION
SPECIFIC RANGE IS REQUIRED.
2. DUE TO THE ACCUMULATED ASSEMBLY SECTION A-A
TOLERANCES, THE SUCTION AND
DISCHARGE FITTINGS MAY VARY FROM THE
MOUNTING HOLES BY ± 4.6 MM [0.18 IN]. WASHER-COMP MTG
3. THE TANDEM WITH SUCTION CONNECTION (8 REQUIRED) SPLIT WASHER-COMP MTG
POINTED UP IS SHOWN. PAGE 114 SHOWS (8 REQUIRED)
B / M NUMBERS FOR TANDEMS WITH
SUCTION CONNECTION POINTED UP AND SPACER-EXTERNAL MOUNT
ALSO POINTED OUT. (8 REQUIRED)
4. FOR UNEVEN TANDEM, COMPRESSOR ‘A’
MUST BE THE LEAST CAPACITY UNIT AND
COMPRESSOR ‘B’ MUST BE THE LARGER
CAPACITY UNIT.
5. TUBE ENDS MUST BE SEALED.
6. LINEAR MEASUREMENTS IN [ ] ARE
INCH CONVERSIONS.
SCREW-COMP MTG M10
THIRD ANGLE PROJECTION (8 REQUIRED) SOFT RUBBER
MOUNTING
SIGHT GLASS AND O-RING

941
387.5 [37.04] 387.5
[15.256] [15.256]
[8.66]
220
[3.27]
83

356
[14.02]
473
[18.63] 330
TUBE DISCHARGE ASSM. TUBE-SUCTION ASSM.
[13.01]
[1 1/8] [1 5/8]
I.D. DISCHARGE I.D. SUCTION
577 [24.56]
624

[22.72]

[22.43]
570

[9.88]
251

COMPRESSOR “B” COMPRESSOR “A”

[0.35]

BRACKET-MOUNTING TUBE TWO 122

(2 REQUIRED) PHASE ASSM. [4.80]

641
[25.24]
FOR THE INTERNATIONAL MARKET
ZRU310K3-TWC/5/7/D/E
HEAT PUMP AND
AIR CONDITIONING MODELS

118
Copeland ®
brand products ZR COMMERCIAL COPELAND SCROLL® COMPRESSORS

NOTES:
1. NOMINAL DIMENSIONS ARE SHOWN.
MAXIMUM OVERALL TOLERANCE RANGE IS
DIMENSIONAL
± 1.5 MM [0.060 IN]. CONTACT EMERSON
CLIMATE TECHNOLOGIES, INC. IF A MORE
INFORMATION
SPECIFIC RANGE IS REQUIRED.
2. DUE TO THE ACCUMULATED ASSEMBLY SECTION A-A
TOLERANCES, THE SUCTION AND
DISCHARGE FITTINGS MAY VARY FROM THE
MOUNTING HOLES BY ± 4.6 MM [0.18 IN]. WASHER-COMP MTG
3. THE TANDEM WITH SUCTION CONNECTION (8 REQUIRED) SPLIT WASHER-COMP MTG
POINTED UP IS SHOWN. PAGE 114 SHOWS (8 REQUIRED)
B/M NUMBERS FOR TANDEMS WITH
SUCTION CONNETION POINTED UP AND
ALSO POINTED OUT. SPACER-EXTERNAL MOUNT
(8 REQUIRED)
4. TUBE ENDS MUST BE SEALED.
5. LINEAR MEASUREMENTS IN [ ] ARE
INCH CONVERSIONS.

THIRD ANGLE PROJECTION

SCREW-COMP MTG M10

(8 REQUIRED) SOFT RUBBER
MOUNTING
SIGHT GLASS AND O-RING

852
372.5 [33.55] 372.5
[14.665] [14.665]
[8.66]
220
[2.28]
58

361
[14.21]
TUBE DISCHARGE ASSM. TUBE-SUCTION ASSM. 475
[18.70] 330
[1 1/8] [1 5/8] [13.01]
I.D. DISCHARGE I.D. SUCTION
536 [22.73]
577

[21.10]

[22.43]
570

[15.59]
396
[0.35]

TUBE TWO 123

BRACKET-MOUNTING
(2 REQUIRED) PHASE ASSM. [4.84]
580
[22.83]

FOR THE INTERNATIONAL MARKET

ZRT320K3-TWC/5/7/D/E
HEAT PUMP AND
AIR CONDITIONING MODELS

119
Copeland ®
brand products ZR COMMERCIAL COPELAND SCROLL® COMPRESSORS

NOTES:
1. NOMINAL DIMENSIONS ARE SHOWN.
MAXIMUM OVERALL TOLERANCE RANGE IS
DIMENSIONAL
± 1.5 MM [0.060 IN]. CONTACT EMERSON
CLIMATE TECHNOLOGIES, INC. IF A MORE
INFORMATION
SPECIFIC RANGE IS REQUIRED.
2. DUE TO THE ACCUMULATED ASSEMBLY
TOLERANCES, THE SUCTION AND SECTION A-A
DISCHARGE FITTINGS MAY VARY FROM THE
MOUNTING HOLES BY ± 4.6 MM [0.18 IN].
3. THE TANDEM WITH SUCTION CONNECTION WASHER-COMP MTG
POINTED UP IS SHOWN. PAGE 114 SHOWS (8 REQUIRED) SPLIT WASHER-COMP MTG
B/M NUMBERS FOR TANDEM WITH SUCTION (8 REQUIRED)
CONNETION POINTED UP AND ALSO
POINTED OUT. SPACER-EXTERNAL MOUNT
4. FOR UNEVEN TANDEM, COMPRESSOR ‘A’ (8 REQUIRED)
MUST BE THE LEAST CAPACITY UNIT AND
COMPRESSOR ‘B’ MUST BE THE LARGER
CAPACITY UNIT.
5. TUBE ENDS MUST BE SEALED.
6. LINEAR MEASUREMENTS IN [ ] ARE
INCH CONVERSIONS.

THIRD ANGLE PROJECTION SCREW-COMP MTG M10

(8 REQUIRED) SOFT RUBBER
MOUNTING
SIGHT GLASS AND O-RING

387.5 387.5
[15.256] [15.256]
[8.66]
220
[3.27]
83

356
[14.02]
480
TUBE DISCHARGE ASSM. TUBE-SUCTION ASSM. [18.91] 330
[1 3/8] [2 1/8] [13.01]
I.D. DISCHARGE I.D. SUCTION
577 [24.56]
624

[22.73]
577
[22.72]

[10.32]
262

COMPRESSOR “B” COMPRESSOR “A”

[0.35]

BRACKET-MOUNTING TUBE TWO 122

(2 REQUIRED) PHASE ASSM. [4.80]

641 FOR THE INTERNATIONAL MARKET
[25.24]
ZRU350K3-TWC/5/7/D/E
HEAT PUMP AND
AIR CONDITIONING MODELS

120
Copeland ®
brand products ZR COMMERCIAL COPELAND SCROLL® COMPRESSORS

NOTES:
1. NOMINAL DIMENSIONS ARE SHOWN.
MAXIMUM OVERALL TOLERANCE RANGE IS
DIMENSIONAL
± 1.5 MM [0.060 IN]. CONTACT EMERSON
CLIMATE TECHNOLOGIES, INC. IF A MORE
INFORMATION
SPECIFIC RANGE IS REQUIRED.
2. DUE TO THE ACCUMULATED ASSEMBLY SECTION A-A
TOLERANCES, THE SUCTION AND
DISCHARGE FITTINGS MAY VARY FROM THE
MOUNTING HOLES BY ± 4.6 MM [0.18 IN]. WASHER-COMP MTG
3. THE TANDEM WITH SUCTION CONNECTION (8 REQUIRED) SPLIT WASHER-COMP MTG
POINTED UP IS SHOWN. PAGE 114 SHOWS (8 REQUIRED)
B/M NUMBERS FOR TANDEM WITH SUCTION
CONNETION POINTED UP AND ALSO SPACER-EXTERNAL MOUNT
POINTED OUT. (8 REQUIRED)
4. TUBE ENDS MUST BE SEALED.
5. LINEAR MEASUREMENTS IN [ ] ARE
INCH CONVERSIONS.

THIRD ANGLE PROJECTION

SCREW-COMP MTG M10

(8 REQUIRED) SOFT RUBBER
MOUNTING
SIGHT GLASS AND O-RING
944
387.5 [37.17] 387.5
[15.256] [15.256]
[8.66]
220
[3.27]
83

353
[13.90]
479
TUBE DISCHARGE ASSM. TUBE-SUCTION ASSM. [18.87] 330
[1 3/8] [13.01]
[2 1/8]
I.D. DISCHARGE I.D. SUCTION
577 [24.56]

[24.56]
624

624
[22.72]

[10.08]
256
[0.35]

TUBE TWO 121

BRACKET-MOUNTING
(2 REQUIRED) PHASE ASSM. [4.76]
671
[26.42] FOR THE INTERNATIONAL MARKET
ZRT380K3-TWC/5/7/D/E
HEAT PUMP AND
AIR CONDITIONING MODELS

121
Copeland ®
brand products ZR COMMERCIAL COPELAND SCROLL® COMPRESSORS

NOTES: BILL OF MATERIAL 528-1669-00

1. USE SILVER ALLOY. DIMENSIONAL COPELAND®
ITEM PART NUMBER QTY DESCRIPTION
2. All TOLERANCES ± 1.5 UNLESS OTHERWISE
SPECIFIED. INFORMATION 1 005-0886-00 1 CAP PLASTIC
3. LINEAR MEASUREMENTS ARE IN
MILLIMETERS. 2 028-0941-00 1 TUBE SUCTION 2
THIRD ANGLE PROJECTION 3 028-0942-00 1 TUBE SUCTION 1

4 036-0020-59 1 FITTING-SWEAT TEE

5 036-0535-00 2 FITTING ROTALOCK SUCTION

2 x 216

90°

246 179

SECTION A-A
216

179

SUCTION TUBE ASSEMBLY

ZRT180K3-TWC,TW5,TW7,TWD,TWE
ZRT220K3-TWC, TW7,TWD,TWE
ZRT240K3-TWC,TW5,TW7,TWD,TWE
ZRU280K3-TWC,TW5,TW7,TWD,TWE
ZRT320K3-TWC,TW5,TW7,TWD,TWE
HEAT PUMP AND
AIR CONDITIONING MODELS

122
Copeland ®
brand products ZR COMMERCIAL COPELAND SCROLL® COMPRESSORS

NOTES: BILL OF MATERIAL 528-1899-00

1. USE SILVER ALLOY. DIMENSIONAL COPELAND®
ITEM PART NUMBER QTY DESCRIPTION
2. All TOLERANCES ± 1.5 UNLESS OTHERWISE
SPECIFIED. INFORMATION 1 005-0886-00 1 CAP PLASTIC
3. LINEAR MEASUREMENTS ARE IN
MILLIMETERS. 2 005-0908-00 1 CAP-NUT
THIRD ANGLE PROJECTION
3 005-0908-01 1 CAP-NUT

4 028-1309-00 1 TUBE SUCTION 1

5 028-1310-00 1 TUBE SUCTION 2

6 034-0134-00 1 ADAPTER-ROTALOCK

7 034-0134-04 1 ADAPTER-ROTALOCK

8 036-0020-87 1 FITTING-SWEAT TEE

SECTION C-C

SEE DETAIL D

DETAIL D

SUCTION TUBE ASSEMBLY

ZRU310K3-TWC, TW5, TW7, TWD, TWE
HEAT PUMP AND
AIR CONDITIONING MODELS

123
Copeland ®
brand products ZR COMMERCIAL COPELAND SCROLL® COMPRESSORS

NOTES: BILL OF MATERIAL 528-1905-00

1. USE SILVER ALLOY. DIMENSIONAL COPELAND®
ITEM PART NUMBER QTY DESCRIPTION
2. All TOLERANCES ± 1.5 UNLESS OTHERWISE
SPECIFIED. INFORMATION 1 005-0908-00 1 CAP-NUT
3. LINEAR MEASUREMENTS ARE IN
MILLIMETERS. 2 005-0908-01 1 CAP-NUT
THIRD ANGLE PROJECTION 3 005-0946-00 1 CAP PLASTIC 2 1/4''

4 028-1315-00 1 TUBE SUCTION 1

5 028-1316-00 1 TUBE SUCTION 2

6 034-0134-00 1 ADAPTER-ROTALOCK

7 034-0134-04 1 ADAPTER-ROTALOCK

8 036-0020-63 1 FITTING-SWEAT TEE

9 036-1029-00 1 FITTING REDUCER

SECTION C-C
301 148
SEE DETAIL D
2 x 215
2 x 144

DETAIL D

C C

54.5°
215

148

SUCTION TUBE ASSEMBLY

ZRU350K3-TWC,TW5,TW7,TWD,TWE
HEAT PUMP AND
AIR CONDITIONING MODELS

124
Copeland ®
brand products ZR COMMERCIAL COPELAND SCROLL® COMPRESSORS

NOTES: BILL OF MATERIAL 528-1667-01

1. USE SILVER ALLOY. DIMENSIONAL COPELAND®
ITEM PART NUMBER QTY DESCRIPTION
2. All TOLERANCES ± 1.5 UNLESS OTHERWISE
SPECIFIED. INFORMATION 1 005-0908-00 2 CAP-NUT
3. LINEAR MEASUREMENTS ARE IN
MILLIMETERS. 2 005-0946-00 1 CAP PLASTIC 2 1/4''
THIRD ANGLE PROJECTION 3 028-0960-00 1 TUBE SUCTION 1

4 028-0961-00 1 TUBE SUCTION 2

5 034-0134-00 2 ADAPTER-ROTALOCK

6 036-0020-63 1 FITTING-SWEAT TEE

SECTION C-C
SEE DETAIL D
2 X 213

332 123

DETAIL D
2 X 150

C C

53.5°
213

123

SUCTION TUBE ASSEMBLY

ZRT380K3-TWC,TW5,TW7,TWD,TWE
HEAT PUMP AND
AIR CONDITIONING MODELS

125
Copeland ®
brand products ZR COMMERCIAL COPELAND SCROLL® COMPRESSORS

NOTES: BILL OF MATERIAL 528-1634-00

1. USE SILVER ALLOY. DIMENSIONAL COPELAND®
ITEM PART NUMBER QTY DESCRIPTION
2. All TOLERANCES ± 1.5 UNLESS OTHERWISE
SPECIFIED. INFORMATION 1 005-0887-00 1 CAP PLASTIC
3. LINEAR MEASUREMENTS ARE IN
MILLIMETERS. 2 028-0944-00 1 TUBE DISCHARGE 2
THIRD ANGLE PROJECTION 3 028-0945-00 1 TUBE DISCHARGE 1

4 036-0020-60 1 FITTING-SWEAT TEE

5 036-0901-04 2 FITTING-SWEAT ROTALOCK

SECTION A - A
A

SEE DETAIL D

A
2 X 309

120 305

DETAIL D
309

305
DISCHARGE TUBE ASSEMBLY
ZRT180K3-TWC,TW5,TW7,TWD,TWE
ZRT220K3-TWC,TW7,TWD,TWE
ZRT240K3-TWC,TW5,TW7,TWD,TWE
ZRT320K3-TWC,TW5,TW7,TWD,TWE
HEAT PUMP AND
AIR CONDITIONING MODELS

126
Copeland ®
brand products ZR COMMERCIAL COPELAND SCROLL® COMPRESSORS

NOTES: BILL OF MATERIAL 528-1649-00

4 036-0020-60 1 FITTING-SWEAT TEE

5 036-0901-04 2 FITTING-SWEAT ROTALOCK

SEE
DETAIL D
2 X 309

120 305

DETAIL D
309

305

DISCHARGE TUBE ASSEMBLY

ZRU280K3-TWC,TW5,TW7,TWD,TWE
HEAT PUMP AND
AIR CONDITIONING MODELS

127
Copeland ®
brand products ZR COMMERCIAL COPELAND SCROLL® COMPRESSORS

NOTES: BILL OF MATERIAL 528-1900-00

1. USE SILVER ALLOY. DIMENSIONAL COPELAND®
ITEM PART NUMBER QTY DESCRIPTION
2. All TOLERANCES ± 1.5 UNLESS OTHERWISE
SPECIFIED. INFORMATION 1 005-0887-00 1 CAP PLASTIC
3. LINEAR MEASUREMENTS ARE IN
MILLIMETERS. 2 005-0908-01 1 CAP-NUT
THIRD ANGLE PROJECTION
3 005-0908-02 1 CAP-NUT

4 028-1296-00 1 TUBE DISCHARGE 1

5 028-1297-00 1 TUBE DISCHARGE 2

6 034-0134-01 1 ADAPTER-ROTALOCK

7 034-0134-03 1 ADAPTER-ROTALOCK

8 036-0020-86 1 FITTING-SWEAT TEE

A
SECTION A - A SECTION B - B
2 X 334

118 337

SECTION B - B
334

337

DISCHARGE TUBE ASSEMBLY

ZRU310K3-TWC,TW5,TW7,TWD,TWE
HEAT PUMP AND
AIR CONDITIONING MODELS

128
Copeland ®
brand products ZR COMMERCIAL COPELAND SCROLL® COMPRESSORS

NOTES: BILL OF MATERIAL 528-1906-00

1. USE SILVER ALLOY. DIMENSIONAL COPELAND®
ITEM PART NUMBER QTY DESCRIPTION
2. All TOLERANCES ± 1.5 UNLESS OTHERWISE
SPECIFIED. INFORMATION 1 005-0897-00 1 CAP PLASTIC
3. LINEAR MEASUREMENTS ARE IN
MILLIMETERS. 2 005-0908-01 1 CAP-NUT
THIRD ANGLE PROJECTION
3 005-0908-02 1 CAP-NUT

4 028-1317-00 1 TUBE DISCHARGE 1

5 028-1318-00 1 TUBE DISCHARGE 2

6 034-0134-01 1 ADAPTER-ROTALOCK

7 034-0134-03 1 ADAPTER-ROTALOCK

8 036-0020-88 1 FITTING-SWEAT TEE

A SECTION A - A

SEE
DETAIL D
2 X 334

119 336

DETAIL D
334

336

DISCHARGE TUBE ASSEMBLY

ZRU350K3-TWC,TW5,TW7,TWD,TWE
HEAT PUMP AND
AIR CONDITIONING MODELS

129
Copeland ®
brand products ZR COMMERCIAL COPELAND SCROLL® COMPRESSORS

NOTES: BILL OF MATERIAL 528-1666-00

1. USE SILVER ALLOY. DIMENSIONAL COPELAND®
ITEM PART NUMBER QTY DESCRIPTION
2. All TOLERANCES ± 1.5 UNLESS OTHERWISE
SPECIFIED. INFORMATION 1 005-0897-00 1 CAP PLASTIC
3. LINEAR MEASUREMENTS ARE IN
MILLIMETERS. 2 005-0908-01 2 CAP-NUT
THIRD ANGLE PROJECTION 3 028-0958-00 1 TUBE DISCHARGE 2

4 028-0959-00 1 TUBE DISCHARGE 1

5 034-0134-01 2 FITTING-SWEAT TEE

6 036-0020-62 1 FITTING ROTALOCK SUCTION

SECTION A - A

SEE DETAIL D
2 X 334

116 339

DETAIL D
334

339

DISCHARGE TUBE ASSEMBLY

ZRT380K3-TWC,TW5,TW7,TWD,TWE
HEAT PUMP AND
AIR CONDITIONING MODELS

130
Copeland ®
brand products ZR COMMERCIAL COPELAND SCROLL® COMPRESSORS

NOTES: BILL OF MATERIAL 528-1920-00

1. USE SILVER ALLOY. DIMENSIONAL COPELAND®
ITEM PART NUMBER QTY DESCRIPTION
2. ALL TOLERANCES ± 1.5 UNLESS OTHERWISE
SPECIFIED. INFORMATION
1 020-0003-22 1 GASKET - O-RING
3. LINEAR MEASUREMENTS ARE IN
MILLIMETERS. 2 070-0018-00 1 SIGHT GLASS
THIRD ANGLE PROJECTION
3 528-1929-00 1 TUBE TPTL ASSEMBLY

425

SECTION C - C

1 1/8” - 12UN
TORQUES: 130 - 175 IN LBS
15 - 20 Nm

TUBE TPTL ASSEMBLY

ZRT180K3-TWC,TW5,TW7,TWD,TWE
ZRT220K3-TWC,TW7,TWD,TWE
ZRT240K3-TWC,TW5,TW7,TWD,TWE
ZRU280K3-TWC,TW5,TW7,TWD,TWE
ZRT320K3-TWC,TW5,TW7,TWD,TWE
HEAT PUMP AND
AIR CONDITIONING MODELS

131
Copeland ®
brand products ZR COMMERCIAL COPELAND SCROLL® COMPRESSORS

NOTES: BILL OF MATERIAL 528-1920-01

1. USE SILVER ALLOY. DIMENSIONAL COPELAND®
ITEM PART NUMBER QTY DESCRIPTION
2. All TOLERANCES ± 1.5 UNLESS OTHERWISE
SPECIFIED. INFORMATION 1 020-0003-22 1 GASKET - O-RING
3. LINEAR MEASUREMENTS ARE IN
MILLIMETERS. 2 070-0018-00 1 SIGHT GLASS
THIRD ANGLE PROJECTION 3 528-1929-01 1 TUBE TPTL ASSEMBLY

425

SECTION C - C

1 1/8” - 12UN
TORQUES: 130 - 175 IN LBS
15 - 20 Nm

TUBE TPTL ASSEMBLY

ZRU310K3-TWC,TW5,TW7,TWD,TWE
ZRU350K3-TWC,TW5,TW7,TWD,TWE
ZRT380K3-TWC, TW5,TW7, TWD, TWE
HEAT PUMP AND
AIR CONDITIONING MODELS

132
Copeland ®
brand products ZR COMMERCIAL COPELAND SCROLL® COMPRESSORS

NOTES: MODEL PART NUMBER A B C

1. USE SILVER ALLOY. DIMENSIONAL ZRT180,ZRT220,ZRT240, 074-0880-00 495.1 372.5 785
2. All TOLERANCES ± 1.5 UNLESS OTHERWISE
SPECIFIED. INFORMATION ZRU280,ZRT320

3. LINEAR MEASUREMENTS ARE IN ZRU310,ZRU350, 074-0880-01 525.1 387.5 815

MILLIMETERS. ZRT380
THIRD ANGLE PROJECTION

B
A 219.7

+0.11
70.1 219.7
4X 12.50 0
30

A A
20 2X B 3X 22.60 0.20

SECTION B - B
25
R6
60

SECTION A - A
C

4 x 5 x 45° WELDING NUT MIO DIN 929

RAILS
ZRT180K3-TWC,TW5,TW7,TWD,TWE
ZRT220K3-TWC,TW7,TWD,TWE
ZRT240K3-TWC,TW5,TW7,TWD,TWE
ZRU280K3-TWC,TW5,TW7,TWD,TWE
ZRU310K3-TWC,TW5,TW7,TWD,TWE
ZRT320K3-TWC,TW5,TW7,TWD,TWE
ZRU350K3-TWC,TW5,TW7,TWD,TWE
ZRT380K3-TWC,TW5,TW7,TWD,TWE
HEAT PUMP AND
AIR CONDITIONING MODELS

133
Copeland ®
brand products ZR COMMERCIAL COPELAND SCROLL® COMPRESSORS

NOTES: ASSEMBLY SPACER-MTG WASHER L' WASHER- SCREW-HEX

MODEL
1. LINEAR MEASUREMENTS ARE IN NUMBER ASSM SPACER SPRING TYPE HD CAP
MILLIMETERS ZRT180/ZRT220/ZRT240/ZRU280/
527-0166-00 027-0286-00 027-0390-00 102-0273-00 100-0501-00
2. USE EIGHT OF EACH PART PER TANDEM ZRU310/ZRT320/ZRU350/ZRT380

THIRD ANGLE PROJECTION

DIMENSIONAL
INFORMATION

22.0

2.0
A
Ø 10.5 SECTION A-A

Ø 30.00
Ø 22.00
Ø 30.0

2.50
SECTION A-A A
Ø 10.50

7.0
18.90
M10

40 17.0

Ø 18.1
2.2

Ø 10.2

1.3

FOR THE INTERNATIONAL MARKET

3.5 COMPRESSOR TO RAIL MOUNTING PART
ZRT180K3-TWC,TW5,TW7,TWD,TWE
ZRT220K3-TWC,TW7,TWD,TWE
ZRT240K3-TWC,TW5,TW7,TWD,TWE
ZRT320K3-TWC,TW5,TW7,TWD,TWE
ZRU280K3-TWC,TW5,TW7,TWD,TWE
ZRU310K3-TWC,TW5,TW7,TWD,TWE
ZRU350K3-TWC,TW5,TW7,TWD,TWE
ZRT380K3-TWC,TW5,TW7,TWD,TWE
HEAT PUMP AND
AIR CONDITIONING MODELS

134
Copeland ®
brand products ZR COMMERCIAL COPELAND SCROLL® COMPRESSORS

NOTES: ASSEMBLY SPACER-EXT SLEEVE WASHER -

MODEL
1. LINEAR MEASUREMENTS ARE IN NUMBER MOUNT SPLIT STANDARD
MILLIMETERS ZRT180/ZRT220/ZRT240/ZRU280
527-0177-00 027-0323-00 030-0227-02 102-0008-43
2. USE SIX OF EACH PART PER TANDEM ZRU310/ZRT320/ZRU350/ZRT380

THIRD ANGLE PROJECTION

DIMENSIONAL
INFORMATION

A
Ø38.10
2X 45° X 2.67

R
0.5
0
Ø 22.10
Ø 12.70

Ø 27.94
A

A 4.25 30.00
9.14
40.00
SECTION A-A 18.29

Ø10.058 - 10.566
0.254 MAX. 39.675

Ø 9.779 - 10.033

Ø 31.623 - 31.877

1.981 - 2.743

FOR THE INTERNATIONAL MARKET

RAIL TO BASE MOUNTING PART
ZRT180K3-TWC,TW5,TW7,TWD,TWE
ZRT220K3-TWC,TW7,TWD,TWE
ZRT240K3-TWC,TW5,TW7,TWD,TWE
ZRT320K3-TWC,TW5,TW7,TWD,TWE
ZRU280K3-TWC,TW5,TW7,TWD,TWE
ZRU310K3-TWC,TW5,TW7,TWD,TWE
ZRU350K3-TWC,TW5,TW7,TWD,TWE
ZRT380K3-TWC,TW5,TW7,TWD,TWE
HEAT PUMP AND
AIR CONDITIONING MODELS

135
Copeland ®
brand products ZR COMMERCIAL COPELAND SCROLL® COMPRESSORS

COMPRESSOR WIRING DIAGRAMS

THREE PHASE MOTOR L1 L2

MOTOR WINDING
CONNECTIONS
INTERNAL
THERMAL
SENSORS L3

T2 T1 S2 S1 M2 M1

1 2

L1 L3 L2

SYMBOLS WHEN CHECKING SOLID STATE MODULE:

THERMAL SENSORS DO NOT SHORT ACROSS
S1 AND S2 SENSOR TERMINALS.
1 PROTECTOR MODULE VOLTAGE MODULE HAS 30 MINUTES TIME DELAY BEFORE
RESET IN EVENT OF PROTECTOR TRIP.
2 TO CONTROL CIRCUIT
ZRT180 TO ZRT380
USE COPPER CONDUCTORS ONLY
USE MINIMUM 75°C WIRE FOR AMPACITY DETERMINATION.
USE THIS EQUIPMENT ON A GROUNDED SYSTEM ONLY.
PRIMARY SINGLE PHASE FAILURE PROTECTION IS PROVIDED.
PROTECTOR MODULE AND OPTIONAL CRANKCASE HEATER
MUST BE CONNECTED ONLY TO THEIR RATED VOLTAGE.
OVERCURRENT PROTECTION DEVICE RATING AND TYPE MUST BE IN ACCORDANCE WITH
REGULATORY AGENCY END PRODUCT APPROVALS – SEE SYSTEM NAMEPLATE.

50 APPROVED COMPRESSOR
HERTZ OPERATING RANGE R22
60
AN OKAY INDICATES AN APPROVED POINT FOR COMPRESSOR OPERATION
AN * * * * INDICATES A NON-APPROVED POINT FOR COMPRESSOR OPERATION
CONDENSING TEMPERATURE EVAPORATING TEMPERATURE °F/°C
– 10 0 10 20 30 40 45 50 55
°F °C
– 23.3 – 17.8 – 12.2 – 6.7 – 1.1 4.4 7.2 10.0 12.8
80 26.7 OKAY OKAY OKAY OKAY OKAY OKAY OKAY OKAY OKAY
90 32.2 OKAY OKAY OKAY OKAY OKAY OKAY OKAY OKAY OKAY
100 37.8 OKAY OKAY OKAY OKAY OKAY OKAY OKAY OKAY OKAY
110 43.3 **** OKAY OKAY OKAY OKAY OKAY OKAY OKAY OKAY
120 48.9 **** **** OKAY OKAY OKAY OKAY OKAY OKAY OKAY
130 54.4 **** **** **** OKAY OKAY OKAY OKAY OKAY OKAY
140 60.0 **** **** **** **** OKAY OKAY OKAY OKAY OKAY
150 65.6 **** **** **** **** **** OKAY OKAY OKAY OKAY

Approved range is based on 20 °F (11.1°C) of superheat.

136
Copeland ®
brand products ZR COMMERCIAL COPELAND SCROLL® COMPRESSORS

TANDEM APPLICATION NOTES

Use of the ZR90K to ZR19M compressors in a tandem • Refrigerant charge limit for all these tandem models
configuration follows the guidelines of the single is 20.4 lbs. (9.25 kg) for the entire tandem (20% more
compressor found in Application Bulletin AE4-1316 and than for a single compressor). A tandem with a circuit
on page 108 with the following exceptions: charge over 20.4 lbs. (9.25 kg) must use crankcase
heaters on both compressors.
• The 7.5 to 15 ton models are designed so that the
compressors may be piped together for parallel • The individual compressors that make up the tandem
tandem operation offering two steps of modulation. are wired independently using the electrical values of
Either one or both compressors can run, depending the single compressors. It is recommended that
upon the capacity requirement. A discharge and compressors be wired to change lead / lag position.
suction manifold provide a single point discharge and This will ensure equal run time for both compressors,
suction line connection. A two-phase tube is installed thereby increasing reliability.
between the compressors to ensure that oil is
distributed equally. • Only the defective compressor should be replaced in
case of a failure.
• The compressors are mounted directly on two steel • In the case of a motor burn, the majority of
rails. This rigid mounting keeps the interconnecting
contaminated oil will be removed with the burned
tubing stresses to a minimum. The tandem assembly
compressor. The rest of the oil is cleaned through use
should be mounted on rubber isolating grommets to
of suction and liquid line filter driers. A 100% activated
the unit basepan.
alumina suction filter drier is recommended but must
• Both compressors must be at the same level to be removed after 72 hours.
prevent oil from migrating to the lowest compressor
through the oil equalization line. • Application Engineering Bulletin 24-1105 describes
clean-up procedures while AE Bulletin 11-1297 has
liquid line filter recommendations.

137
Copeland ®
brand products ZR COMMERCIAL COPELAND SCROLL® COMPRESSORS

SINGLE PACK TANDEM PACKAGING AND SHIPPING INFORMATION

For shipments of 1 single pack tandem compressors, the dimensions for the box and the skid together are 42.0 x 26.9 x 33.6 inches (22.0 ft3),
106.7 x 68.3 x 85.3 centimeters (0.62m3), and the weights (in lbs. and kgs.) are shown in the table below.

MODEL NUMBER WEIGHT (POUNDS) WEIGHT (KILOGRAMS)

ZRT180 536 243
ZRT220 548 249
ZRT240 554 251
ZRU280 568 258
ZRU310 568 258
ZRT320 568 258
ZRU350 603 274
ZRT380 623 283

TANDEM PACKAGING

090-0342-00 CARTON
1 REQUIRED PER ASSM

094-0132-00 SKID
1 REQUIRED PER ASSM

590-0289-01
COMPRESSOR ORIENTATION

138
Copeland ®
brand products ZR COMMERCIAL COPELAND SCROLL® COMPRESSORS

TANDEM COMPRESSOR SPECIFICATION

The compressor shall be a Copeland Scroll type, evaporating range of –10°F to 55°F (–23.3°C to
with DU (PTFE) journal bearings, both rotalock or 12.8°C) at condensing temperatures up to 150°F
braze fittings, high and low pressure taps on the (65.6°C). With R22 refrigerant, the compressor shall
rotalock version, sight glass and oil adjustment port, operate at an ARI point efficiency range of 11.1 to
and unique, quick responding temperature protection. 11.5 BTU H / WATT. Efficiencies above
The tandem compressor shall be able to handle a 20 11.5 BTUH / WATT are also acceptable. The
pound (9.1 Kg) refrigerant charge. The compressor compressor shall be of the Copeland® ZR type or
shall be capable of operating on R22 within the approved equal.

UNITS CONVERSION CHART

BTUH x 0.252 = KCALH

139
Copeland ®
brand products ZR COMMERCIAL COPELAND SCROLL® COMPRESSORS

MODEL NUMBER NOMENCLATURE

Product Variations
Application Range Compressor Motor Type
Code Description Three digit bill of material
Motor Type Code number that indicates
R High and medium
Three phase T compressor configuration and
temperature
accessories included.
Tandem Application

Tandem
Code Description
T Even Tandem
U Uneven Tandem

ZRXXXXXX—TWX—X X X

Compressor Compressor
Family Motor Protection
Series Capacity Multiplier Type Code
Letter “Z” Solid state motor W
established K 10,000 protection – electronic
for this sensors, and external
family of control module; use
compressors. with contactor.

Capacity
Tandem
Compressor
nominal
60 Hertz Model Series
capacity at ARI Variations
rating condition A number only,
to three arbitrarily Electrical Codes
significant assigned to 50 HZ 60 HZ Code
digits. indicate different 200 -3 208 / 230 -3 C
model types 220 / 240-3 — R
within any one
— 200/230-3 5
180 family series.
— 380-3 7
220
380 / 420-3 460-3 D
240
500-3 575-3 E
280
310
320
350
380

140
EMERSON CLIMATE TECHNOLOGIES, INC.
EMPLOYEES WAIT AT THESE WORLDWIDE LOCATIONS
TO SERVE YOU

MANUFACTURING LOCATIONS CARACAS, VENEZUELA

SIDNEY, OHIO U.S.A. SÃO PAULO, BRAZIL
SHELBY, NORTH CAROLINA U.S.A. BUENOS AIRES, ARGENTINA
RUSHVILLE, INDIANA U.S.A. SYDNEY, AUSTRALIA
HARTSELLE, ALABAMA U.S.A. YOKOHAMA, JAPAN
LEBANON, MISSOURI U.S.A. SEOUL, SOUTH KOREA
AVA, MISSOURI U.S.A. TAIPEI, TAIWAN
BRANTFORD, ONTARIO CANADA SHENYANG, CHINA
REYNOSA, MEXICO SHANGHAI, CHINA
SHENYANG, CHINA BEIJING, CHINA
SUZHOU, CHINA GUANGZHOU, CHINA
RAYONG, THAILAND HONG KONG
KARAD, INDIA JAKARTA, INDONESIA
ATIT, INDIA BANGKOK, THAILAND
KOLIN, CZECH REPUBLIC KUALA LUMPUR, MALAYSIA
BERLIN, GERMANY KARAD, INDIA
WELKENRAEDT, BELGIUM DUBAI, UAE
THATCHAM, UNITED KINGDOM VAEDERSTAD, SWEDEN
COOKSTOWN, NORTHERN IRELAND BERLIN, GERMANY
TECHNICAL ASSISTANCE FRANKFURT, GERMANY
LOCATIONS MILANO, ITALY
SIDNEY, OHIO U.S.A. ECULLY, FRANCE
MIAMI, FLORIDA U.S.A. NUENEN, NETHERLANDS
BRANTFORD, ONTARIO CANADA WELKENRAEDT, BELGIUM
MEXICO CITY, MEXICO THATCHAM, UNITED KINGDOM
BARCELONA, SPAIN
Form 97-49 R4 Revised 12/08
Emerson, Copeland, and Copeland Scroll are trademarks of Emerson Electric Co. or
one of its affiliated companies. ©1997 Emerson Climate Technologies, Inc. All rights EMERSON CLIMATE TECHNOLOGIES, INC., 1675 W. CAMPBELL ROAD
SIDNEY, OHIO 45365-0669 USA
reserved. Printed in the USA.
Telephone 937-498-3011 Telefax 937-498-3793
Copeland ®
brand products ZR COMMERCIAL COPELAND SCROLL® COMPRESSORS

Contents
Page Page
®
Copeland Scroll Story . . . . . . . . . . . . . . . . . . . . . . 2 ZR90K TO ZR19M
Product Description . . . . . . . . . . . . . . . . . . . . . . . 75
ZR84K TO ZR190K
Features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 75
Product Description . . . . . . . . . . . . . . . . . . . . . . . . 5
Performance Nominals . . . . . . . . . . . . . . . . 76 to 78
Features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
50 Hertz Three Phase
Performance Nominals . . . . . . . . . . . . . . . . . . 6 to 8
Performance Nominals . . . . . . . . . . . . . . . . 79 to 81
50 Hertz Three Phase
60 Hertz Three Phase
Performance Nominals . . . . . . . . . . . . . . . . . 9 to 11
Mechanical Specifications . . . . . . . . . . . . . . . . . . 82
60 Hertz Three Phase
Standard Bills of Material . . . . . . . . . . . . . . . . . . . 82
Mechanical Specifications . . . . . . . . . . . . . . . . . . 12
Electrical Specifications . . . . . . . . . . . . . . . . . . . . 83
Electrical Specifications . . . . . . . . . . . . . . . . . 12, 13
Bill of Material Provisions . . . . . . . . . . . . . . . . . . . 84
Standard Bills of Material . . . . . . . . . . . . . . . . . . . 13
Accessory Information . . . . . . . . . . . . . . . . . . . . . 84
Bill of Material Provisions . . . . . . . . . . . . . . . . . . . 14
Service Valves . . . . . . . . . . . . . . . . . . . . . . . . . . . 85
Accessory Information . . . . . . . . . . . . . . . . . . . . . 14
Dimensional Drawings . . . . . . . . . . . . . . . . . . 86, 87
Service Valves . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
Wiring Diagrams . . . . . . . . . . . . . . . . . . . . . . . . . . 88
Dimensional Drawings . . . . . . . . . . . . . . . . . 16 to 19
Tabular Performance Data . . . . . . . . . . . . . 89 to 97
Wiring Diagram . . . . . . . . . . . . . . . . . . . . . . . . 20, 21
50 Hertz
Tabular Performance Data . . . . . . . . . . . . . 22 to 32
Tabular Performance Data . . . . . . . . . . . . 98 to 106
50 Hertz
60 Hertz
Tabular Performance Data . . . . . . . . . . . . . 33 to 43
Application Range . . . . . . . . . . . . . . . . . . . . . . . 107
60 Hertz
Conversion Chart . . . . . . . . . . . . . . . . . . . . . . . . 107
Application Range and Notes . . . . . . . . . . . . . . . . 44
Application Notes . . . . . . . . . . . . . . . . . . . . . . . . 108
Multipack Packaging / Shipping Information . . . . . 45
Multipack Packaging / Shipping Information . . . . 109
Multiple Single Pack Packaging /
Shipping Information . . . . . . . . . . . . . . . . . . . . . . . 45 Single Pack Packaging /
Shipping Information . . . . . . . . . . . . . . . . . . . . . . 109
Single Pack Packaging /
Shipping Information . . . . . . . . . . . . . . . . . . . . . . . 45 Nomenclature . . . . . . . . . . . . . . . . . . . . . . . . . . . 110
Nomenclature . . . . . . . . . . . . . . . . . . . . . . . . . . . .46
TANDEM COMPRESSORS
TANDEM COMPRESSORS Performance Nominals . . . . . . . . . . . . . . . . . . . 112
Performance Nominals . . . . . . . . . . . . . . . . . . . . 48 50 Hertz Three Phase
50 Hertz Three Phase Performance Nominals . . . . . . . . . . . . . . . . . . . 113
Performance Nominals . . . . . . . . . . . . . . . . . . . . 49 60 Hertz Three Phase
60 Hertz Three Phase Mechanical Specifications . . . . . . . . . . . . . . . . . . 114
Mechanical Specifications . . . . . . . . . . . . . . . . . . 50 Electrical Specifications . . . . . . . . . . . . . . . . . . . 114
Electrical Specifications . . . . . . . . . . . . . . . . . . . . 50 Standard Bills of Material . . . . . . . . . . . . . . . . . . 114
Standard Bill of Material . . . . . . . . . . . . . . . . . . . . 50 Bill of Material Provisions . . . . . . . . . . . . . . . . . . 115
Bill of Material Provisions . . . . . . . . . . . . . . . . . . . 51 Accessory Information . . . . . . . . . . . . . . . . . . . . 115
Accessory Information . . . . . . . . . . . . . . . . . . . . . 51 Dimensional Drawings . . . . . . . . . . . . . . . 116 to 121
Dimensional Drawings . . . . . . . . . . . . . . . . . 52 to 55 Tandem Piping Drawings . . . . . . . . . . . . .122 to 135
Tandem Piping Drawings . . . . . . . . . . . . . . .56 to 66 Wiring Diagrams . . . . . . . . . . . . . . . . . . . . . . . . . 136
Wiring Diagram . . . . . . . . . . . . . . . . . . . . . . . . 67, 68 Application Range . . . . . . . . . . . . . . . . . . . . . . . 136
Application Range . . . . . . . . . . . . . . . . . . . . . . . . 67 Application Notes . . . . . . . . . . . . . . . . . . . . . . . . 137
Application Notes/ Single Pack Packaging /
Tandem Compressor Specifications . . . . . . . . . . . 69 Shipping Information . . . . . . . . . . . . . . . . . . . . . . 138
How A Scroll Works . . . . . . . . . . . . . . . . . . . . . . . 70 Compressor Specification . . . . . . . . . . . . . . . . . . 139
Single Pack Packaging / Conversion Chart . . . . . . . . . . . . . . . . . . . . . . . . 139
Shipping Information . . . . . . . . . . . . . . . . . . . . . . . 71 Nomenclature . . . . . . . . . . . . . . . . . . . . . . . . . . .140
Nomenclature . . . . . . . . . . . . . . . . . . . . . . . . . . . .72
Air-Conditioning Product Catalogue
Nomenclature Details

X X X X X X X - X X X - X X X

Compressor Family Series Capacity Multiplier Identifier Product Variations

Letter “C” Established K : 1,000 “M” Designates Upgraded Three-digit Bill Of
For This Family Of Design Material Number That
Compressors Indicates Compressor
Configuration And May
Include Accessories.
Model Series Variation Motor Type
Application Range A Number Or Letter Arbitrarily Code
Code Description Assigned To Indicate Different Single Phase, Capacitor Run,
R High And Medium Temperature Model Types Within Any One Family Permanent Split Capacitor P Typical Electrical Codes
I International Models Series Three Phase T 50 Hz. 60 Hz. Code
S High And Medium Temperature Refrigeration eg: Q – CR Large | 6 – CR Transition 208/230-1 V
220/240-1 Z
380/420-3 460-3 D
Compressor Motor Protection 400-3 M
Capacity Type Protection Code 200/230-3 5
Compressor Nominal Internal Inherent Protection F 230-1 1
Capacity At 60 Hertz Rating One Protector, Use With
Condition To Two Significant Contactor (Single Or Three Phase)
Digits

Mechanical Dimensions for CRK6M

Dist Discharge Dist Discharge
Compressor Mount Suction Tube ID Compressor Mount Suction Tube ID
SN View ‘A’ Tube ID SN View ‘A’ Tube ID
Model type Model type
inch inch mm inch mm inch inch mm inch mm
1 CR20K6M-PFV P A 13.35 5/8 15.8 3/8 9.5 20 CR30K6M-PF1 Q E 14.11 5/8 15.8 3/8 9.5

2 CR20K6M-PFV Q E 13.35 5/8 15.8 3/8 9.5 21 CR30K6M-PF1 R D 14.11 5/8 15.8 3/8 9.5

3 CR20K6M-PFV R D 13.35 5/8 15.8 3/8 9.5 22 CR30K6M-TFM P A 13.59 5/8 15.8 3/8 9.5

4 CR22K6M-PF1 P A 13.35 5/8 15.8 3/8 9.5 23 CR32K6M-PFZ P A 14.11 5/8 15.8 3/8 9.5

5 CR22K6M-PF1 Q E 13.35 5/8 15.8 3/8 9.5 24 CR32K6M-PFZ Q E 14.11 5/8 15.8 3/8 9.5

6 CR22K6M-PF1 R D 13.35 5/8 15.8 3/8 9.5 25 CR32K6M-PFV P A 13.35 5/8 15.8 3/8 9.5

7 CR22K6M-TFM P A 13.59 1/2 12.7 3/8 9.5 26 CR32K6M-PFV Q E 13.35 5/8 15.8 3/8 9.5

8 CR24K6M-PFZ P A 13.35 5/8 15.8 3/8 9.5 27 CR34K6M-PFZ P A 14.11 3/4 19.1 3/8 9.5

9 CR24K6M-PFZ Q E 13.35 5/8 15.8 3/8 9.5 28 CR34K6M-PFZ Q E 14.11 3/4 19.1 3/8 9.5

10 CR24K6M-PFZ R D 13.35 5/8 15.8 3/8 9.5 29 CR34K6M-PFV P A 14.11 3/4 19.1 3/8 9.5

11 CR24K6M-PFV P A 13.35 5/8 15.8 3/8 9.5 30 CR34K6M-PFV Q E 14.11 3/4 19.1 3/8 9.5

12 CR24K6M-PFV Q E 13.35 5/8 15.8 3/8 9.5 31 CR34K6M-TFD P A 13.59 3/4 19.1 3/8 9.5

13 CR24K6M-PFV R D 13.35 5/8 15.8 3/8 9.5 32 CR34K6M-TF5 P A 13.59 3/4 19.1 3/8 9.5

14 CR24K6M-TFD P A 13.59 5/8 15.8 3/8 9.5 33 CR37K6M-PFZ P A 14.11 3/4 19.1 3/8 9.5

15 CR24K6M-TF5 P A 13.59 5/8 15.8 3/8 9.5 34 CR37K6M-PFZ Q E 14.11 3/4 19.1 3/8 9.5

16 CR28K6M-PFV P A 14.11 3/4 19.1 3/8 9.5 35 CR37K6M-PFV P A 14.11 3/4 19.1 3/8 9.5

17 CR28K6M-PFV Q E 14.11 3/4 19.1 3/8 9.5 36 CR37K6M-PFV Q E 14.11 3/4 19.1 3/8 9.5

18 CR28K6M-PFV R D 14.11 3/4 19.1 3/8 9.5 37 CR37K6M-TFD P A 14.00 3/4 19.1 3/8 9.5

19 CR30K6M-PF1 P A 14.11 5/8 15.8 3/8 9.5 38 CR37K6M-TF5 P A 14.00 3/4 19.1 3/8 9.5
Rectangular Mount

Triangular Mount
Square Mount

View ‘Q’

View ‘R’
View ‘P’

Type D
Type A

Type E
HCFC-22 Compressor Specifications

Frequency Cooling Capacity Input Power Input Current Displacement

Series Compressor Model EER LRA
(Hz) (Btu/hr) (Watts) (Amps) (CC/Rev.)

CR22K6M-PF1 18500 1750 10.6 7.8 54 40.8

CR24K6M-PFZ 19800 1950 10.2 8.5 54 44.28
CR24K6M-TFD 19900 1975 10.1 3.6 20 44.28
CR30K6M-PF1 24250 2350 10.3 11 72 51.47
CR32K6M-PFZ 27200 2720 10.0 13.4 85 57.7
CR34K6M-PFZ 28700 2850 10.1 14 85 59.66
50Hz CR34K6M-TFD 28300 2830 10.0 5.3 41 59.66
CR36K6M-PFZ 29300 2720 10.8 13.6 85 56.65
CR36K6M-TFM 29100 2680 10.9 4.9 41 59.66
CR37K6M-TFD 31200 3000 10.4 5.6 45 63.52
CR37K6M-PFZ 30600 3060 10.0 16 90 63.52
CR42K6M-TFM 34200 3300 10.4 6.1 45 72.09
CR42K6M-PFZ 34400 3300 10.4 15.4 104 72.08
CRK6M CR20K6M-PFV 20000 2000 10.0 8.5 60 39.35
CR24K6M-PFV 23900 2350 10.2 10.3 60 44.28
CR24K6M-TFD 23900 2300 10.4 3.5 24 44.28
CR24K6M-TF5 23300 2300 10.1 6.8 55 44.28
CR28K6M-PFV 28500 2650 10.8 12 80 49.62
CR32K6M-PFV 32200 3280 9.8 15.4 88 57.7
CR34K6M-PFV 34300 3385 10.1 15.8 88 59.66
60Hz
CR34K6M-TFD 33800 3300 10.2 5.1 45 59.66
CR34K6M-TF5 33900 3300 10.3 10 65 59.66
CR37K6M-PFV 36800 3680 10.0 16.8 86 63.52
CR37K6M-TFD 37200 3580 10.4 5.6 45 63.52
CR37K6M-TF5 36500 3500 10.4 11 68 72.09
CR42K6M-TF5 41500 3850 10.8 11.8 68 72.09
CR42K6M-PFV 41900 3875 10.8 17.9 102 72.08
CR47KQM-PFZ 40700 3950 10.3 20 110 82.75
CR47KQM-TFD 39700 3825 10.4 6.9 60 78.78
50Hz CR53KQM-TFD 44700 4350 10.3 7.7 61 88.28
CR62KQM-TFD 51500 5100 10.1 8.8 55 101.92
CR57KQM-TFD 47800 4650 10.3 8.3 61 94.61
CR62KQM-TFD 61300 6075 10.1 8.7 50 101.92
CR47KQM-PFV 47500 4650 10.2 22 115 82.74
CRKQM CR47KQM-TFD 47200 4550 10.4 6.8 51 78.78
CR47KQM-TF5 45700 4420 10.3 13.5 125 78.78
CR53KQM-TF5 52500 5050 10.4 15.5 135 88.28
60Hz
CR53KQM-TFD 53000 5200 10.2 7.5 60 88.28
CR57KQM-TF5 56500 5540 10.2 16.2 135 94.61
CR57KQM-TFD 57000 5550 10.3 8.1 60 94.61
CR62KQM-PFV 60600 6200 9.8 28.5 155 101.92
CR62KQM-TF5 61300 6100 10.0 17.5 125 101.92
Note: Data is as per ARI Rating Standard

Liquid Temperature
Rating Conditions Evaporating Temperature °F/°C Condensing Temperature °F/°C Ambient Temperature °F/°C
°F/°C

ARI 45/7.2 130/54.4 95/35 115/46.1

Run Capacitor
Voltage Rating Weight
Motor Circuit
(V-Phase-Hz) (Approx.) Mfd VAC

230-1-50 29.8 PSC / CSCR 36 440

220/240-1-50 29.8 PSC / CSCR 36 440
380/420-3-50 29.5 3 Phase NA NA Best suited for 55°C
230-1-50 32.5 PSC / CSCR 45 440 High Ambient conditions
220/240-1-50 32.5 CSCR 45 440
220/240-1-50 32.5 CSCR 45 440
380/420-3-50 31 3 Phase NA NA
220/240-1-50 34.9 CSCR 45 440
400-3-50 31 3 Phase NA NA
380/420-3-50 32 3 Phase NA NA
220/240-1-50 34.9 CSCR 50 440
UL Approval*
400-3-50 32.7 3 Phase NA NA
220/240-1-50 32.9 CSCR 60 440
208/230-1-60 29.8 PSC / CSCR 36 440
208/230-1-60 29.8 PSC / CSCR 36 440
208/230-1-60 29.5 3 Phase NA NA
200/230-3-60 29.5 3 Phase NA NA
208/230-1-60 32.5 PSC / CSCR 45 440
Multiple Choice Mounting
208/230-1-60 29.8 CSCR 45 440
208/230-1-60 32.5 CSCR 45 440
460-3-60 31 3 Phase NA NA
200/230-3-60 31 3 Phase NA NA
208/230-1-60 34.9 CSCR 50 440
460-3-60 32 3 Phase NA NA
200/230-3-60 32.7 3 Phase NA NA
200/230-3-60 32.7 3 Phase NA NA
208/230-1-60 34 CSCR 40/45 440 Ultra High Efficiency
220/240-1-50 36 CSCR 60 440
380/420-3-50 36.2 3 Phase NA NA
380/420-3-50 36.2 3 Phase NA NA
380/420-3-50 36.2 3 Phase NA NA
380/420-3-50 36.2 3 Phase NA NA
460-3-60 36.2 3 Phase NA NA
208/230-1-60 36 CSCR 60 440
High Liquid Handling Capability
460-3-60 36.2 3 Phase NA NA
200/230-3-60 36.8 3 Phase NA NA
200/230-3-60 36.8 3 Phase NA NA
460-3-60 36.2 3 Phase NA NA
200/230-3-60 36.8 3 Phase NA NA
460-3-60 36.2 3 Phase NA NA
208/230-1-60 40.3 CSCR 60 440
200/230-3-60 37 3 Phase NA NA Industry Leading Reliability

Cooling Type (CFM) - 400

Return Gas Temperature °F/°C Oil Charge Qty - 1330CC (approx.)
Motor Circuit
65/18.3 PSC - Permanent Split Capacitor
CSCR - Capacitor Start Capacitor Run
Components required For CSCR motor circuits are available on request
Performance values declared at rating conditions are subject to +/- 5% tolerance
Mechanical Dimensions for CRKQM/CRK6M
Dist Discharge Process Dist Discharge Process
Suction Tube ID Suction Tube ID
SN Compressor Model View ‘A’ Tube ID Tube ID SN Compressor Model View ‘A’ Tube ID Tube ID

inch inch mm inch mm inch mm inch inch mm inch mm inch mm

1 CR36K6M-PFZ-101 P 13.76 3/4 19.1 3/8 9.5 1/4 6.3 10 CR47KQM-TF5-201 Q 14.26 7/8 22.2 1/2 12.7 3/8 9.5

2 CR36K6M-TFM-101 P 13.51 3/4 19.1 3/8 9.5 1/4 6.3 11 CR53KQM-TFD-201 Q 14.26 7/8 22.2 1/2 12.7 3/8 9.5

3 CR42K6M-PFZ-101 P 14.26 3/4 19.1 3/8 9.5 3/8 9.5 12 CR53KQM-TF5-201 Q 14.26 7/8 22.2 1/2 12.7 3/8 9.5

4 CR42K6M-TF5-101 P 14.01 3/4 19.1 3/8 9.5 1/4 6.3 13 CR57KQM-TFD-201 Q 14.26 7/8 22.2 1/2 12.7 3/8 9.5

5 CR42K6M-PFV-101 P 14.01 3/4 19.1 1/2 12.7 1/4 6.3 14 CR57KQM-TF5-201 Q 14.26 7/8 22.2 1/2 12.7 3/8 9.5

6 CR42K6M-TFM-101 P 14.01 3/4 19.1 3/8 9.5 1/4 6.3 15 CR62KQM-PFV-201 Q 15.01 7/8 22.2 1/2 12.7 3/8 9.5

7 CR47KQM-PFZ-101 P 14.26 7/8 22.2 1/2 12.7 3/8 9.5 16 CR62KQM-TFD-201 Q 14.26 7/8 22.2 1/2 12.7 3/8 9.5

8 CR47KQM-PFV-101 P 14.26 7/8 22.2 1/2 12.7 3/8 9.5 17 CR62KQM-TF5-201 Q 14.26 7/8 22.2 1/2 12.7 3/8 9.5

9 CR47KQM-TFD-201 Q 14.26 7/8 22.2 1/2 12.7 3/8 9.5

Square Mount

View ‘Q’
View ‘P’
Type A

Type A
XXX Bill of Material Nomenclature
1st Digit Compressor Mounting Mounting Kit Terminal Fence
Half Round- CR20 - CR37
A (Long Leg) E (Short Leg) D (3 Leg) Other*** Std** Other*** Rectangular
Square – CR 36/42 PFV/PFZ/TFM & CR 47 PFZ/PFV )
1 X X X
2 X X X
3 X X X
4 X X X
5 X X X
6 X X X

2nd Digit Suction Discharge Process

Tube Upward Tube Angular Tube Straight Tube Tube Upward Other***
0 X X X

1 X X X

2 X X X

3rd Digit Crank Case Heater

No Heater 240V 480V
1 X

2 X

3 X
*** Indicates Non Standard Requirements & shall be suffixed by two digits at the end.
** Standard Mounting Kit & Fence Design may vary for different Platform / Designs.

Model Availability
Displacement/
PFV TF5 PF1 PFZ TFM TFD
Electrical
CR20 101,102,301,401

CR22 101,111 101,111

CR24 101,102,301,401 101,102 101,102,301 101,102,103

CR28 101,102,301,401

CR30 101,102,111,112,401,301 101,102,111,112

CR32 101,102,301 101,102,301

CR34 101,102 101,102 101,102 101,102,103

CR36 101,102,111,112 101,102,103,111,112, 113

CR37 101,102 101,102 101,102 101,102,103

CR42 101,102 101,102 101,102 101,102,103

CR47 101,102 201,202 101,102 201,202,203

CR53 201,202 201,202,203

CR57 201,202 201,202,203

CR62 201,202 201,202 201,202,203

Emerson Climate Technologies at a glance
Emerson Climate Technologies is the world’s leading provider of divisions and brands with our global engineering, design and
heating, ventilation, air conditioning and refrigeration solutions for distribution capabilities to create reliable, energy efficient climate
residential, industrial and commercial applications. We combine systems that improve human comfort, safeguard food, and protect
technically superior products and services from our industry-leading the environment.

As we are constantly endeavouring to improve the performance of our models, the specifications mentioned here are subject to change from time to time.
The Emerson logo is a trademark and service mark of Emerson Electric Co.
[Link] 0001

For more details, see [Link]/mea

Emerson Climate Technologies FZE - Jebel Ali Free Zone, PO Box 26382, Dubai - UAE
Phone: +971 4 811 8100 - Fax: +971 4 886 54 65 - Internet: [Link]/mea
The Emerson Climate Technologies logo is a trademark and service mark of Emerson Electric Co. Emerson Climate Technologies Inc. is a subsidiary of Emerson Electric Co.
Copeland is a registered trademark and Copeland Scroll is a trademark of Emerson Climate Technologies Inc. All other trademarks are property of their respective owners.
Information contained in this brochure is subject to change without notification

50 HERTZ COPELAMETIC ®
COMPRESSORS

THE INDUSTRY
STANDARD
SEMI-HERMETIC COMPRESSORS

Contents
Page Page
Description of Product . . . . . . . . . . . . . . . . . . . 2 Copeland Discus™ Compressor Section
Features . . . . . . . . . . . . . . . . . . . . . . . . . 85
Conventional Compressor Section
Copeland Discus™ Story . . . . . . . . . . . . . . . . 85
Features . . . . . . . . . . . . . . . . . . . . . . . . . 5
Conventional Copelametic Story . . . . . . . . . . . . . 5 Compressor Capacity – 50 Hertz
Refrigerant Cooled . . . . . . . . . . . . . . . 86 to 93
Compressor Capacity – 50 Hertz
Tandems . . . . . . . . . . . . . . . . . . . . 94 to 99
Air Cooled . . . . . . . . . . . . . . . . . . . 6 to 15
Capacity Control . . . . . . . . . . . . . . . 100 to 109
Refrigerant Cooled . . . . . . . . . . . . . . . 16 to 25
Capacity Control Tandems . . . . . . . . . . 110 to 119
Tandems . . . . . . . . . . . . . . . . . . . 26 to 29
Capacity Control . . . . . . . . . . . . . . . . . 30, 31 Mechanical, Electrical Specifications
Capacity Control Tandems . . . . . . . . . . . . 32, 33 Refrigerant Cooled . . . . . . . . . . . . . 120 to 123
Two-Stage . . . . . . . . . . . . . . . . . . . . . . 34 Tandems . . . . . . . . . . . . . . . . . . 124 to 127
Two-Stage Tandems . . . . . . . . . . . . . . . . . 35 Capacity Control . . . . . . . . . . . . . . . 128 to 133
Capacity Control Tandems . . . . . . . . . . 134 to 137
Mechanical, Electrical Specifications
Air Cooled . . . . . . . . . . . . . . . . . . . 36 to 39 Dimensions, Photographs . . . . . . . . . . . . . . . 138
Refrigerant Cooled . . . . . . . . . . . . . . . 40 to 43 Rating Conditions . . . . . . . . . . . . . . . . . . . 139
Tandems . . . . . . . . . . . . . . . . . . . . . 44, 45 Application Requirements . . . . . . . . . . . . . 139, 140
Capacity Control . . . . . . . . . . . . . . . . . 46, 47 Electrical Application Information . . . . . . . . . . . . 141
Capacity Control Tandems . . . . . . . . . . . . 48, 49 Application Options . . . . . . . . . . . . . . . . . . 142
Two-Stage . . . . . . . . . . . . . . . . . . . . 50, 51 Conversion Chart . . . . . . . . . . . . . . . . . . . 142
Two-Stage Tandems . . . . . . . . . . . . . . . 50, 51 Demand Cooling Information . . . . . . . . . . . . . . 143
Conventional to Discus Cross Reference . . . . . 144, 145
Dimensions, Photographs . . . . . . . . . . . . . 52 to 54
Application Bulletin Listing . . . . . . . . . . . . . . . 146
Rating Conditions . . . . . . . . . . . . . . . . . . . . 55
Single Compressor Nomenclature . . . . . . . . . . . 147
Application Requirements . . . . . . . . . . . . . . . . 55
Tandem Compressor Nomenclature . . . . . . . . . . 148
Electrical Application Information . . . . . . . . . . . . 56
Application Options . . . . . . . . . . . . . . . . . . . 57 HFC Copeland Discus™ Compressor Section
Conversion Chart . . . . . . . . . . . . . . . . . . . . 57 Features . . . . . . . . . . . . . . . . . . . . . . . 151
Application Bulletin Listing . . . . . . . . . . . . . . . . 58 HFC Copeland Discus™ Story . . . . . . . . . . . . . 151
Single Compressor Nomenclature . . . . . . . . . . . . 59
Compressor Capacity – 50 Hertz
Tandem Compressor Nomenclature . . . . . . . . . . . 60
Refrigerant Co oled . . . . . . . . . . . . . 152 to 159
HFC Conventional Compressor Section Tandems . . . . . . . . . . . . . . . . . . 160 to 165
Features . . . . . . . . . . . . . . . . . . . . . . . . . 63 Capacity Control . . . . . . . . . . . . . . . 166 to 171
HFC Conventional Copelametic Story . . . . . . . . . . 63 Capacity Control Tandems . . . . . . . . . . 172 to 177
Compressor Capacity – 50 Hertz Mechanical, Electrical Specifications
Air Cooled . . . . . . . . . . . . . . . . . . . 64 to 68 Refrigerant Cooled . . . . . . . . . . . . . 178 to 181
Refrigerant Cooled . . . . . . . . . . . . . . . . . 69 Tandems . . . . . . . . . . . . . . . . . . . 182, 183
Capacity Control . . . . . . . . . . . . . . . 184 to 187
Mechanical, Electrical Specifications
Capacity Control Tandems . . . . . . . . . . 188 to 191
Air Cooled . . . . . . . . . . . . . . . . . . . 70 to 73
Refrigerant Cooled . . . . . . . . . . . . . . . 74, 75 Dimensions, Photographs . . . . . . . . . . . . . . . 192
Rating Conditions . . . . . . . . . . . . . . . . . . . 193
Dimensions, Photographs . . . . . . . . . . . . . . 76, 77
Application Requirements . . . . . . . . . . . . . 193, 194
Rating Conditions . . . . . . . . . . . . . . . . . . . . 78
Electrical Application Information . . . . . . . . . . . . 195
Application Requirements . . . . . . . . . . . . . . . . 78
Application Options . . . . . . . . . . . . . . . . . . 196
Electrical Application Information . . . . . . . . . . . . 79
Conversion Chart . . . . . . . . . . . . . . . . . . . 196
Application Options . . . . . . . . . . . . . . . . . . . 79
Refrigerant Changeover Guidelines . . . . . . . . . . 197
Conversion Chart . . . . . . . . . . . . . . . . . . . . 79
Application Bulletin Listing . . . . . . . . . . . . . . . 198
Refrigerant Changeover Guidelines . . . . . . . . . . . 80
Single Compressor Nomenclature . . . . . . . . . . . 199
Application Bulletin Listing . . . . . . . . . . . . . . . 81
Tandem Compressor Nomenclature . . . . . . . . . . 200
Compressor Nomenclature . . . . . . . . . . . . . . . 82

1
PRODUCT DESCRIPTION
Copelametic®, the reliable semi-hermetic compressor line for
the commercial refrigeration and air conditioning market, is a
trademark that signifies the unique position of Emerson Climate
Technologies as the world leader in accessible hermetic
compressors. Reliable semi-hermetic compressors have been
the backbone of the commercial refrigeration and air
conditioning business ever since Copeland Corporation (now
Emerson Climate Technologies, Inc.) invented the first
accessible hermetic motor compressor 50 years ago. A
continuing evolution of compressor design improvements, and
advanced manufacturing technology, have contributed to this
leading position.
The commitment of Emerson Climate Technologies to its
customers is represented in significant financial investments to
meet today’s market requirements: high energy efficiency; the Copelametic Manufacturing Plant
rugged reliability and long-life so crucial in commercial
applications; focused manufacturing providing dependable
delivery and consistent compressor quality; and responsive
after sales service to serve you, our customer.
The Copelametic motor compressors described in this book
are produced by the world’s largest manufacturer of semi-
hermetic compressors. These accessible hermetic compressors
consist of a compressor mechanism and a matched motor
enclosed in a bolted together cast iron housing. No shaft seals
are required, and each compressor can be disassembled in the
field for service.
The Conventional Copelametic compressor was the first
semi-hermetic compressor produced by Emerson Climate
Technologies. The popularity of having the motor inside the
casting with the compressor grew until it became the full line of
Conventional compressors we have today.
The Copeland Discus™ compressor, with a unique conical
discharge valve, illustrates our commitment to develop new Copelametic Component Machining
innovative concepts to serve the market needs of our
customers. This new valve increases both compressor capacity
and efficiency.
Refrigerant 22 (HCFC-22) is becoming an increasingly
important refrigerant. Recognizing this importance, Emerson
Climate Technologies has introduced a broad range of products
for use with HCFC-22. Compressor designs from 1/4 through 120
horsepower (.19 through 89.5 kilowatt), in both Conventional
and Copeland Discus™ designs, are now demonstrating
excellent performance and reliability in many high, medium, and
low temperature applications. In addition, innovative new
technologies such as Demand Cooling are gaining popularity
due to simplicity of design and a proven ability to maintain
efficiency.
Emerson Climate Technologies has led the industry in CFC
alternatives for refrigeration applications. The compressors
approved for these HFC refrigerants are shown in this book
under the appropriate HFC tabs. Copelametic Compressor Assembly
This book has been designed to assist you in selecting the
right compressor for the right application. It is divided into four
sections to help you with your selections:
• Conventional Compressors (R12, 22, 502)
• HFC Conventional Compressors (R404A, 407A, 507)
• Copeland Discus™ Compressors (R12, 22, 502)
• HFC Discus Compressors (R134a, 404A, 407A, 507)
Fifty hertz compressor capacity in three different units is
shown. Full mechanical, electrical, and application information
follows the capacity information in each section.
The Copelametic® compressor product line follows in these
pages. We at Emerson Climate Technologies are committed to
give you the right Copelametic compressor and the support you
need for your applications, now and in the future.

Copelametic Life Testing

2
Conventional Compressors

CONVENTIONAL
Over fifty years of semi-hermetic success goes into each Conventional
Copelametic Compressor.

3
CONVENTIONAL COMPRESSORS

FEATURES CONVENTIONAL COPELAMETIC

STORY
• Wide 50 and 60 Hertz Selection Range The Conventional Copelametic compressor
1
/4 to 80 Horsepower has been produced by Emerson Climate
.19 to 59.7 Kilowatts Technologies since 1941. It was the first
successful compressor to operate with an
• Proven Copeland ®
Brand Products electric motor inside the compressor casting.
Dependability As its popularity grew, the product line was
expanded until it reached the 80 horsepower,
59.7 kilowatt, size that we have today.
• Extensive Selection of Models for Commercial
Refrigeration, Air Conditioning, and Heat Conventional Copelametic compressors in
Pump Duty this section of the catalog are found in the
following order:
• Rugged,Compact Construction for Heavy- • Air Cooled
Duty Usage
• Refrigerant Cooled
• Easily Accessible for Maintenance • Tandem
• Capacity Control
• Wide Voltage Selection • Capacity Control Tandem
• Two-Stage
• Full Maximum Load Rundown Capability • Two-Stage Tandem
• Motor Protection on All Models Air and Refrigerant Cooled refers to the type
of compressor motor cooling. Tandem
compressors are those produced when two
• Oil Sight Glass on All Models Except H single compressors are bolted together to
make one large compressor. In order to
• “Sentronic” CompatibleOil Pump Included
regulate the output of the compressor,
on N, M, 9, 4, and 6 Models
Capacity Control compressors can be used as
shown in their respective pages. Compressors
• CapacityControl, Tandem, and Two-Stage that compress the refrigerant in two steps are
Models Available shown in the pages labeled Two-Stage.
We are proud to offer you the following full
• More R22 Application Range line of our popular Conventional Copelametic
compressors.

5
CONVENTIONAL COMPRESSORS

BTUS / HOUR
50 HERTZ CAPACITY KCALS / HOUR
WATTS

AIR COOLED R12 R22

CFH CONDENSING EVAPORATING TEMPERATURE °F/°C
HP m 3/hr
MODEL TEMPERATURE 55 45 35 25 15 5 0 –5 – 10 – 20 – 30 – 40 55 45 35
kW
50HZ °F °C 12.8 7.2 1.7 – 3.9 – 9.4 – 15 – 17.8 – 20.6 – 23.3 – 28.9 – 34.4 – 40 12.8 7.2 1.7
1550 1350 990 690 440
100 37.8 390 340 250 170 110
.25 85.2 450 400 290 200 130
HAK - 0025
.19 2.41 1100 920 600 330 100
130 54.4 280 230 150 80 25
320 270 180 100 30
2640 2050 1560 1340 1150 975
100 37.8 670 520 390 340 290 250
.33 69.7 770 600 460 390 340 290
HAJ - 0033
.25 1.97 1960 1490 1100 930 790 660
130 54.4 490 380 280 230 200 170
570 440 320 270 230 190
7910 6360 5040
100 37.8 1990 1600 1270
.50 63.4 2320 1860 1480
HAG -0050
.37 1.79 6060 4850 3810
130 54.4 1530 1220 960
1780 1420 1120

100 37.8
.50 69.7
HAJ- 0050
.37 1.97
130 54.4

6930 5650 4550 3570 2710 1980 1680 1370

100 37.8 1750 1420 1150 900 680 500 420 350
KAN -0050 .50 93.5 2030 1660 1330 1050 790 580 490 400
(LT) .37 2.65 5240 4210 3320 2540 1840 1270 1030 780
130 54.4 1320 1060 840 640 460 320 260 200
1540 1230 970 740 540 360 300 230
7810 6510 5340 4310 3410 2660 2320 2020 1750
100 37.8 1970 1640 1350 1090 860 670 580 510 440
.50 111 2290 1910 1560 1260 1000 780 680 590 510
KAE -0050
.37 3.14 6080 5070 4160 3360 2610 1990 1710 1470 1250
130 54.4 1530 1280 1050 850 660 500 430 370 320
1780 1490 1220 980 760 580 500 430 400
3610 3100 2620 1930 1280 700
100 37.8 910 780 660 490 320 180
.50 167 1060 910 770 570 380 210
KAH -0050
.37 4.73 2700 2280 1910 1290 750 290
130 54.4 680 570 480 330 190 70
790 670 560 380 220 80
3300 2820 1960 1230 610
100 37.8 830 710 490 310 150
.50 181 970 830 570 360 180
KAJ - 0050
.37 5.12 2330 1970 1320 760 270
130 54.4 590 500 330 190 70
680 580 390 220 80
(LT) Oil pump is required for R22LT only. Use A or B in place of in model number.

6
CONVENTIONAL COMPRESSORS

BTUS / HOUR
CAPACITY KCALS / HOUR
WATTS

3700 2860 2170 1880

930 720 550 470
1080 840 640 550
2720 2080 1570 1360
690 520 400 340
800 610 460 400
4170 3270 2520 2200 1910
1050 820 640 550 480
1220 960 740 640 560
3140 2430 1840 1580 1340
790 610 460 400 340
920 710 540 460 390
3010 2580 2190 1500 950 530 3410 2990 2610 1940 1400 980
760 650 550 380 240 130 860 750 660 490 350 250
880 760 640 440 280 160 1000 880 760 570 410 290
2090 1770 1470 930 480 120 2360 2030 1730 1220 830 540
530 450 370 230 120 30 590 510 440 310 210 140
610 520 430 270 140 40 690 590 510 360 240 160

7
CONVENTIONAL COMPRESSORS

BTUS / HOUR
50 HERTZ CAPACITY KCALS / HOUR
WATTS

AIR COOLED R12 R22

CFH CONDENSING EVAPORATING TEMPERATURE °F/°C
HP m 3/hr
MODEL TEMPERATURE 55 45 35 25 15 5 0 –5 – 10 – 20 – 30 – 40 55 45 35
kW
50HZ °F °C 12.8 7.2 1.7 – 3.9 – 9.4 – 15 – 17.8 – 20.6 – 23.3 – 28.9 – 34.4 – 40 12.8 7.2 1.7
12000 9750 7750
100 37.8 3020 2460 1950
.75 93.5 3520 2860 2270
KAN - 0075
.56 2.65 9330 7490 5920
130 54.4 2350 1890 1490
2730 2190 1730

100 37.8
.75 111
KAE - 0075
.56 3.14
130 54.4

10700 8770 7140 5690 4430 3370 2930 2490 2120 1520 1010 610
100 37.8 2700 2200 1800 1430 1120 850 740 630 530 380 250 150
KAM -0075 .75 140 3140 2570 2090 1670 1300 990 860 730 620 450 300 180
(LT) .56 3.96 8420 6860 5520 4340 3310 2460 2110 1760 1490 990 570 240
130 54.4 2120 1730 1390 1090 830 620 530 440 380 250 140 60
2470 2010 1620 1270 970 720 620 520 440 290 170 70
11200 9350 7660 6180 4850 3720 3230 2780 2380
100 37.8 2830 2360 1930 1560 1220 940 810 700 600
.75 153 3280 2740 2240 1810 1420 1090 950 810 700
KAG - 0075
.56 4.33 8710 7180 5880 4740 3650 2750 2360 2010 1700
130 54.4 2200 1810 1480 1190 920 690 590 510 430
2550 2100 1720 1390 1070 810 690 590 500
3940 3330 2500 1800 1160
100 37.8 990 840 630 460 290
.75 211 1150 980 730 530 340
KAA - 0075
.56 5.97 3060 2570 1850 1220 700
130 54.4 770 650 470 310 180
900 750 540 360 210
5070 4410 3260 2330 1590
100 37.8 1280 1110 820 590 400
.75 261 1490 1290 960 680 470
KAL - 0075
.56 7.39 3960 3390 2410 1630 1010
130 54.4 1000 890 610 410 260
1160 990 710 480 300
16700 13700 11000
100 37.8 4210 3450 2770
1 131 4890 4010 3220
KAR -0100
.75 3.71 13100 10700 8500
130 54.4 3300 2700 2140
3840 3140 2490
19400 15700 12600
100 37.8 4890 3960 3180
1 140 5680 4600 3690
KAM -0100
.75 3.96 15500 12300 9750
130 54.4 3910 3100 2460
4540 3600 2860
(LT) Oil pump is required for R22LT only. Use A or B in place of in model number.

8
CONVENTIONAL COMPRESSORS

BTUS / HOUR
CAPACITY KCALS / HOUR
WATTS

R22 R502
EVAPORATING TEMPERATURE °F/°C
25 15 5 0 –5 – 10 – 20 – 30 – 40 45 35 25 15 5 0 –5 – 10 – 20 – 30 – 40
– 3.9 – 9.4 – 15 – 17.8 – 20.6 – 23.3 – 28.9 – 34.4 – 40 7.2 1.7 – 3.9 – 9.4 – 15 – 17.8 – 20.6 – 23.3 – 28.9 – 34.4 – 40
5670 4330 3210 2720 3440 3010 2630 1960 1410 980
1430 1090 810 690 870 760 660 490 360 250
1660 1270 940 800 1010 880 770 570 410 290
4320 3200 2210 1750 2360 2040 1740 1240 840 540
1090 810 560 440 590 510 440 310 210 140
1270 940 650 510 690 600 510 360 250 160
6780 5350 4130 3620 3170
1710 1350 1040 910 800
1990 1570 1210 1060 930
5170 4060 3100 2680 2320
1300 1020 780 680 580
1510 1190 910 790 680
7730 6530 5330 4730 4120 3570 2610 1820 1170 6080 5330 4650 3460 2500 1750
1950 1650 1340 1190 1040 900 660 460 290 1530 1340 1170 870 630 440
2260 1910 1560 1390 1210 1050 760 530 340 1780 1560 1360 1010 730 510
6020 5020 4020 3520 3020 2570 1770 1110 530 4220 3630 3100 2190 1480 970
1520 1270 1010 890 760 650 450 280 130 1060 910 780 550 370 240
1760 1470 1180 1030 880 750 520 330 160 1240 1060 910 640 430 280

8230 6440 4950 4320

2070 1620 1250 1090
2410 1890 1450 1270
6310 4860 3640 3120
1590 1220 920 790
1850 1420 1070 910
9430 7340 5550 4750
2380 1850 1400 1200
2760 2150 1630 1390
7170 5500 4100 3480
1810 1390 1010 880
2100 1610 1170 1020

9
CONVENTIONAL COMPRESSORS

BTUS / HOUR
50 HERTZ CAPACITY KCALS / HOUR
WATTS

AIR COOLED R12 R22

CFH CONDENSING EVAPORATING TEMPERATURE °F/°C
HP m 3/hr
MODEL TEMPERATURE 55 45 35 25 15 5 0 –5 – 10 – 20 – 30 – 40 55 45 35
kW
50HZ °F °C 12.8 7.2 1.7 – 3.9 – 9.4 – 15 – 17.8 – 20.6 – 23.3 – 28.9 – 34.4 – 40 12.8 7.2 1.7
13500 11100 9060 7300 5740 4450 3830 3300 2820 1960 1230 610
100 37.8 3400 2800 2290 1840 1450 1120 970 830 710 490 310 150
KAJ - 0100 1 181 3960 3250 2650 2140 1680 1300 1120 970 830 570 360 180
(LT) .75 5.12 10700 8690 7020 5560 4310 3300 2770 2330 1970 1320 760 270
130 54.4 2690 2190 1770 1400 1090 830 700 590 500 330 190 70
3140 2550 2060 1630 1260 970 810 680 580 390 220 80
15800 13000 10700 8580 6770 5290 4500 3940 3430 2540 1800 1210
100 37.8 3990 3290 2690 2160 1710 1330 1130 990 870 640 460 300
1 211 4630 3810 3140 2510 1980 1550 1320 1150 1000 740 530 350
KAK - 0100
.75 5.97 12600 10200 8260 6550 5070 3890 3540 3060 2620 1850 1220 720
130 54.4 3170 2580 2090 1650 1280 980 890 770 660 470 310 180
760 2990 2420 1920 1490 1140 1040 900 770 540 360 210
19700 16100 13100 10100 8140 6400 5550 4800 4410 3260 2330 1590
100 37.8 4970 4070 3300 2550 2050 1610 1400 1210 1110 820 590 400
1 261 5770 4720 3840 2960 2390 1880 1630 1410 1290 960 680 470
KAL - 0100
.75 7.39 16400 13200 10600 7850 6100 4710 4100 3500 3390 2410 1630 1010
130 54.4 4130 3330 2660 1980 1540 1190 1030 880 850 610 410 260
4810 3870 3110 2120 1790 1380 1200 1030 990 710 480 300
6300 5500 4680 2990 2090
100 37.8 1590 1390 1180 750 530
KAT - 0100 1 322 1850 1610 1370 880 610
(OP) .75 9.12 4900 4240 3090 2170 1450
130 54.4 1230 1070 780 550 370
1440 1240 910 640 420

100 37.8
KAJ - 0101 1 181
(OP) .75 5.12
130 54.4

21100 17200 13700

100 37.8 5320 4330 3450
KAG-0150 1.5 153 6180 5040 4010
(OP) 1.1 4.33 17000 13700 10700
130 54.4 4280 3450 2700
4980 4010 3140
19400 16000 13100 10500 8260 6360 5560 5110 4440 3280 2330 1570
100 37.8 4880 4030 3300 2650 2080 1600 1400 1290 1120 830 590 400
KAL - 0150 1.5 261 5680 4690 3840 3080 2420 1860 1630 1500 1300 960 680 460
(LA) 1.1 7.39 15700 12900 10400 8240 6340 4760 4100 3890 3340 2380 1620 1020
(OP)
130 54.4 3960 3240 2620 2080 1600 1200 1030 980 840 600 400 260
4600 3780 3050 2410 1860 1390 1200 1140 980 700 470 300
12900 10300 8080 7120 6300 5490 4080 2950 2060
100 37.8 3240 2590 2040 1790 1590 1380 1030 740 520
KAT - 0150 1.5 322 3780 3020 2370 2090 1850 1610 1200 860 600
(OP) 1.1 9.12 10400 8130 6320 5560 4900 4230 3060 2140 1460
130 54.4 2620 2050 1590 1400 1230 1070 770 540 370
3050 2380 1850 1630 1440 1240 900 630 430
(LT) Oil pump is required for R22LT only. Use A or B in place of in model number.
(OP) Oil pump is required for all applications. Use A or B in place of in model number.
(LA) R22 usage is limited to TAU motor only.

10
CONVENTIONAL COMPRESSORS

BTUS / HOUR
CAPACITY KCALS / HOUR
WATTS

R22 R502
EVAPORATING TEMPERATURE °F/°C
25 15 5 0 –5 – 10 – 20 – 30 – 40 45 35 25 15 5 0 –5 – 10 – 20 – 30 – 40
– 3.9 – 9.4 – 15 – 17.8 – 20.6 – 23.3 – 28.9 – 34.4 – 40 7.2 1.7 – 3.9 – 9.4 – 15 – 17.8 – 20.6 – 23.3 – 28.9 – 34.4 – 40
6320 5510 4790 3550 2560 1740 5930 5250 3960 2850 1960
1590 1390 1210 890 650 440 1490 1320 1000 720 490
1850 1610 1400 1040 750 510 1740 1540 1160 840 570
4810 4170 3580 2590 1770 1080 4120 3590 2640 1810 1120
1210 1050 900 650 450 270 1040 900 670 460 280
1410 1220 1050 760 520 320 1210 1050 770 530 330
7070 6200 4680 3410 2360
1780 1560 1180 860 600
2070 1820 1370 1000 700
4870 4220 3080 2140 1380
1230 1060 780 540 350
1430 1240 900 630 400

6270 5490 4760 3510 2490 1720

1580 1380 1200 880 630 430
1840 1610 1390 1030 730 500
4650 4030 3470 2470 1670 1070
1170 1020 870 620 420 270
1360 1180 1020 720 490 310
10100 7840 6000 5260
2550 1980 1510 1330
2960 2300 1760 1540
7790 5910 4510 4000
1960 1490 1140 1010
2280 1730 1320 1170
15600 12300 9450 8490 7410 5560 4090 3000
3930 3090 2380 2140 1870 1400 1030 760
4570 3600 2770 2490 2170 1630 1200 880
12700 9770 7350 5950 5080 3620 2540 1810
3190 2460 1850 1500 1280 910 640 460
3720 2860 2150 1740 1490 1060 740 530

11
CONVENTIONAL COMPRESSORS

BTUS / HOUR
50 HERTZ CAPACITY KCALS / HOUR
WATTS

AIR COOLED R12 R22

CFH CONDENSING EVAPORATING TEMPERATURE °F/°C
HP m 3/hr
MODEL TEMPERATURE 55 45 35 25 15 5 0 –5 – 10 – 20 – 30 – 40 55 45 35
kW
50HZ °F °C 12.8 7.2 1.7 – 3.9 – 9.4 – 15 – 17.8 – 20.6 – 23.3 – 28.9 – 34.4 – 40 12.8 7.2 1.7
7790 6800 5110 3770 2750
100 37.8 1960 1710 1290 950 690
1.5 408 2280 1990 1500 1100 810
EAJ- 0150
1.1 11.6 6190 5310 3840 2710 1910
130 54.4 1560 1340 970 680 480
1810 1560 1130 790 560
28900 23200 18600
100 37.8 7280 5850 4690
KAK- 0200 2 211 8470 6800 5450
(OP) 1.5 5.97 23600 18900 15000
130 54.4 5950 4760 3780
6910 5540 4400
12600 10200 7720 6680 5660
100 37.8 3170 2560 1950 1680 1430
KAT- 0200
2 322 3690 2990 2260 1960 1660
(LV) 1.5 9.12 9770 7530 5530 4730 3910
(OP)
130 54.4 2460 1900 1390 1190 990
2860 2210 1620 1390 1150

100 37.8
EAD - 0200 2 322
(LT) 1.5 9.12
130 54.4

27600 22800 18700 15100 11900 9180 8060 7170 6130 4320 2830 1620
100 37.8 6950 5750 4710 3800 2990 2310 2030 1810 1550 1090 710 410
EAV - 0200 2 366 8090 6680 5480 4420 3490 2690 2360 2100 1800 1270 830 470
(LA) 1.5 10.4 21800 17900 14700 11800 9180 7060 6180 4930 4140 2780 1680 800
130 54.4 5490 4520 3690 2960 2310 1780 1560 1240 1040 700 420 200
6390 5240 4310 3460 2690 2070 1810 1440 1210 810 490 230
17300 13800 10700 9430 8230 7260 5110 3350 1920
100 37.8 4360 3470 2710 2380 2070 1830 1290 840 480
2 435 5070 4040 3140 2760 2410 2130 1500 980 560
EAL - 0200
1.5 12.3 13900 10800 8240 7120 6110 4910 3290 1980 940
130 54.4 3500 2730 2080 1790 1540 1240 830 500 240
4070 3160 2410 2090 1790 1440 960 580 280
11100 9560 6920 4770 3050
100 37.8 2790 2410 1740 1200 770
2 551 3250 2800 2030 1400 890
3AH - 0200
1.5 15.6 8050 6790 4620 2880 1530
130 54.4 2030 1710 1160 730 390
2360 1990 1350 840 450

100 37.8
EAV- 0210 2 366
(LT) 1.5 10.4
130 54.4

(OP) Oil pump is required for all applications. Use A or B in place of in model number.
(LV) Limited voltage. Available only in 200 volt electrical.
(LT) Oil pump is required for R22LT only. Use A or B in place of in model number.
(LA) R22 usage is limited to TAU motor only.

12
CONVENTIONAL COMPRESSORS

BTUS / HOUR
CAPACITY KCALS / HOUR
WATTS

14000 11000 8240 7290 6300 5420 3970 2830 1910

3530 2770 2080 1840 1590 1370 1000 710 480
4100 3220 2410 2140 1850 1590 1160 830 560
11200 8650 6190 5420 4610 3900 2750 1850 1110
2820 2180 1560 1370 1160 980 690 470 280
3280 2530 1810 1590 1350 1140 810 540 330
19200 15000 11600 10000 8410 7470 5600 3730 2210 10200 9080 6940 6080 3290
4840 3780 2920 2520 2120 1880 1410 940 560 2570 2290 1750 1530 830
5630 4400 3400 2930 2460 2190 1640 1090 650 2990 2660 2030 1780 960
14400 11900 8910 7500 6500 5760 4300 2870 1700 7330 6330 4900 3080 1790
3640 2990 2250 1890 1640 1450 1080 720 430 1850 1600 1230 780 450
4220 3490 2610 2200 1900 1690 1260 840 500 2150 1850 1440 900 520
10300 8910 7710 5560 3770 2320 11000 9560 7080 5030 3360
2600 2250 1940 1400 950 580 2760 2410 1780 1270 850
3020 2610 2260 1630 1100 680 3220 2800 2070 1470 980
7610 6460 5410 3630 2220 1110 7530 6460 4590 3060 1860
1920 1630 1360 910 560 280 1900 1630 1160 770 470
2230 1890 1590 1060 650 330 2210 1890 1340 900 540
23200 18200 14100 12800 10600 8410 6250 4260 2180 24200 19000 14600 12900 11700 10400 8060 6080 4430
5820 4590 3560 3230 2670 2120 1580 1070 550 6100 4780 3690 3250 2950 2620 2030 1530 1120
6800 5330 4130 3750 3110 2460 1830 1250 640 7090 5570 4280 3780 3430 3050 2360 1780 1300
18200 14100 10800 10000 8260 6570 4880 3280 1680 17400 13200 9940 9450 8960 7770 5640 3840 2340
4570 3550 2720 2520 2080 1660 1230 830 420 4370 3330 2500 2380 2260 1960 1420 970 590
5330 4130 3160 2930 2420 1930 1430 960 490 5100 3870 2910 2770 2630 2280 1650 1130 690

12800 11200 9580 6820 4670 3360

3230 2820 2410 1720 1180 850
3750 3280 2810 2000 1370 980
9410 8100 6810 4500 2730 1690
2370 2040 1720 1130 690 430
2760 2370 2000 1320 800 500

13
CONVENTIONAL COMPRESSORS

BTUS / HOUR
50 HERTZ CAPACITY KCALS / HOUR
WATTS

AIR COOLED R12 R22

CFH CONDENSING EVAPORATING TEMPERATURE °F/°C
HP m 3/hr
MODEL TEMPERATURE 55 45 35 25 15 5 0 –5 – 10 – 20 – 30 – 40 55 45 35
kW
50HZ °F °C 12.8 7.2 1.7 – 3.9 – 9.4 – 15 – 17.8 – 20.6 – 23.3 – 28.9 – 34.4 – 40 12.8 7.2 1.7
41700 34500 28400 23000 18300 14400 12800
100 37.8 10500 8690 7160 5800 4610 3630 3230
LAH-0310 3 12200 10100 8320 6740 5360 4220 3750
576
(LT) 2.2 16.3 32900 27000 22100 17700 13900 10900 9700
(RG)
130 54.4 8290 6810 5550 4460 3510 2750 2450
9640 7910 6480 5190 4070 3190 2840
26100 20700 16300 14400 12700 11200 8110 5590 3580
100 37.8 6590 5220 4100 3620 3200 2820 2040 1410 900
3 641 7650 6070 4780 4220 3720 3280 2380 1640 1050
LAL- 0310
2.2 18.1 20300 15800 12200 10700 9440 7960 5410 3370 1790
130 54.4 5130 3980 3070 2700 2380 2010 1360 850 450
5950 4630 3570 3140 2770 2330 1590 990 520
25500 20900 16900 14900 12900 11600 9650 6850 4570
100 37.8 6430 5270 4260 3750 3250 2910 2430 1730 1150
LAC- 0310 3 675 7470 6120 4950 4370 3780 3400 2830 2010 1340
(LA) 2.2 19.1 21000 17300 13400 11500 9700 9250 6720 4540 2790
130 54.4 5290 4360 3380 2900 2440 2330 1690 1140 700
6150 5070 3930 3370 2840 2710 1970 1330 820
17600 15600 13700 9930 6840 4380
100 37.8 4450 3930 3460 2500 1720 1100
3 793 5160 4570 4010 2910 2000 1280
LAM- 0310
2.2 22.4 13200 11600 9740 6620 4130 2190
130 54.4 3310 2920 2450 1670 1040 550
3870 3400 2850 1940 1210 640
43600 35700 28700
100 37.8 11000 9000 7230
3 322 12800 10500 8410
EAD- 0320
2.2 9.12 35200 28500 22600
130 54.4 8870 7180 5700
10300 8350 6620

100 37.8
LAH- 0320
3 576
(OP) 2.2 16.3
(RG)
130 54.4

LAC- 0420 100 37.8

(MC) 4 675
(OP) 3.0 19.1
(RG) 130 54.4

(LT) Oil pump is required for R22LT only. Use A or B in place of in model number.
(RG) In grey shaded area the maximum return gas temperature is 50°F (10°C).
(LA) R22 usage is limited to TAU motor only.
(OP) Oil pump is required for all applications. Use A or B in place of in model number.
(MC) Maximum condensing temperature is 130°F (54.4°C) and maximum return gas is 65°F (18.3°C).

14
CONVENTIONAL COMPRESSORS

BTUS / HOUR
CAPACITY KCALS / HOUR
WATTS

R22 R502
EVAPORATING TEMPERATURE °F/°C
25 15 5 0 –5 – 10 – 20 – 30 – 40 45 35 25 15 5 0 –5 – 10 – 20 – 30 – 40
– 3.9 – 9.4 – 15 – 17.8 – 20.6 – 23.3 – 28.9 – 34.4 – 40 7.2 1.7 – 3.9 – 9.4 – 15 – 17.8 – 20.6 – 23.3 – 28.9 – 34.4 – 40
20000 17300 14900 10500 6970 4660 19100 16500 12000 8530 5890
5040 4360 3750 2650 1760 1170 4810 4150 3030 2150 1490
5860 5070 4370 3080 2040 1370 5600 4830 3520 2500 1730
14700 12600 10600 6910 3940 1920 13400 11100 7420 4630 2720
3700 3180 2670 1740 990 480 3370 2810 1870 1170 680
4310 3690 3110 2020 1150 560 3930 3250 2170 1360 800
21200 18300 13400 9470 6540
5340 4610 3370 2390 1650
6210 5360 3930 2770 1920
14800 12400 8240 5130 3010
3740 3120 2080 1290 760
4340 3630 2410 1500 880
43200 34100 26400 22900 19600 22900 20000 13800 10400 7650
10900 8600 6650 5770 4940 5770 5040 3470 2620 1930
12700 9990 7740 6710 5740 6710 5860 4040 3050 2240
34100 26600 20500 17500 15000 17000 14800 9890 6970 4630
8600 6700 5170 4410 3780 4280 3730 2490 1760 1170
9990 7790 6010 5130 4400 4980 4340 2900 2040 1400

21500 16900 13000 11400

5420 4260 3280 2870
6300 4950 3810 3340
16600 12800 9700 8430
4180 3230 2440 2120
4860 3750 2840 2470
34600 28700 22900 20000 17300 14900 10500 6970 4660
8720 7230 5770 5040 4360 3750 2650 1760 1170
10100 8410 6710 5860 5070 4370 3080 2040 1370
25400 21200 16800 14700 12600 10600 6910 3940 1920
6400 5340 4230 3700 3180 2670 1740 990 480
7440 6210 4920 4310 3690 3110 2020 1150 560
43200 34100 26400 22900 19600 16900 11900 7890 5280
10900 8600 6650 5770 4940 4260 3000 1990 1330
12700 9990 7740 6710 5740 4950 3490 2310 1550
34100 26600 20500 17500 15000 12600 8230 4690 2290
8600 6700 5170 4410 3780 3180 2070 1180 580
9990 7790 6010 5130 4400 3690 2410 1370 670

15
CONVENTIONAL COMPRESSORS

BTUS / HOUR
50 HERTZ CAPACITY KCALS / HOUR
WATTS

REFRIGERANT COOLED R12 R22

CFH CONDENSING EVAPORATING TEMPERATURE °F/°C
HP m 3/hr
MODEL TEMPERATURE 55 45 35 25 15 5 0 –5 – 10 – 20 – 30 – 40 55 45 35
kW
50HZ °F °C 12.8 7.2 1.7 – 3.9 – 9.4 – 15 – 17.8 – 20.6 – 23.3 – 28.9 – 34.4 – 40 12.8 7.2 1.7
32600 26000 20100
100 37.8 8220 6550 5070
2 280 9550 7620 5890
ERA - 0200
1.5 7.93 23300 18100 13300
130 54.4 5870 4560 3350
6830 5300 3900

100 37.8
2 280
ERC - 0200
1.5 7.93
130 54.4

45900 37600 30200

100 37.8 11600 9480 7610
3 382 13400 11000 8850
ERF - 0310
2.2 10.8 37000 29900 23700
130 54.4 9320 7530 5970
10800 8760 6940
18200 15200 11900 10500 8900
100 37.8 4590 3830 3000 2650 2240
3RA- 0310 5330 4450 3490 3080 2610
3 520
(LT) 2.2 14.7 14900 11400 8600 7500 6400
(RG)
130 54.4 3750 2870 2170 1890 1610
4370 3340 2520 2200 1880
26100 20700 16100 14200 12400 11300 8440 6060 4080
100 37.8 6590 5210 4060 3570 3120 2840 2130 1530 1030
NRD -0310 3 675 7650 6070 4720 4160 3630 3310 2470 1780 1200
(LA) 2.2 19.1 20400 15900 12300 10800 9500 8700 6250 4170 2420
130 54.4 5140 4020 3100 2720 2380 2190 1570 1050 610
5980 4660 3600 3160 2780 2550 1830 1220 710
73600 58900 46600
100 37.8 18500 14800 11700
4 576 21600 17300 13700
NRB -0400
3.0 16.3 56300 45000 35300
130 54.4 14200 11300 8900
16500 13200 10300
(LT) Oil pump is required for R22LT only. Use A or B in place of in model number.
(RG) In grey shaded area the maximum return gas temperature is 50°F (10°C) and a vertical cooling fan is required.
(LA) R22 usage is limited to TFU motor only.

16
CONVENTIONAL COMPRESSORS

BTUS / HOUR
CAPACITY KCALS / HOUR
WATTS

R22 R502
EVAPORATING TEMPERATURE °F/°C
25 15 5 0 –5 – 10 – 20 – 30 – 40 45 35 25 15 5 0 –5 – 10 – 20 – 30 – 40
– 3.9 – 9.4 – 15 – 17.8 – 20.6 – 23.3 – 28.9 – 34.4 – 40 7.2 1.7 – 3.9 – 9.4 – 15 – 17.8 – 20.6 – 23.3 – 28.9 – 34.4 – 40
13800 9830 6160 4500
3480 2480 1550 1130
4040 2880 1800 1320
8830 5500 2500
2230 1390 630 —
2590 1610 730
16700 12800 9610 7910 7000 18400 14700 11400 10000 8610
4210 3230 2420 1990 1760 4640 3700 2880 2530 2170
4890 3750 2820 2320 2050 5390 4310 3340 2930 2520
12600 9490 6980 5830 5000 13600 10800 8380 7350 6310
3180 2390 1760 1470 1260 3420 2720 2110 1850 1590
3690 2780 2050 1710 1470 3980 3160 2460 2150 1850
22700 17700 13400 39900 32600 26300 21000 16600 14900 13100
5720 4460 3380 10100 8220 6640 5300 4180 3740 3290
6650 5190 3930 11700 9550 7710 6150 4860 4370 3840
17500 13300 9910 29900 24100 19300 15300 12100 11000 9800
4410 3350 2500 7530 6080 4860 3850 3060 2770 2470
5130 3900 2900 8760 7060 5650 4480 3550 3220 2870
28700 22900 17800 15200 13200 12100 8900 6080 3500 32600 25800 20100 17800 15500
7240 5760 4470 3830 3330 3050 2240 1530 880 8210 6510 5080 4490 3900
8410 6710 5220 4450 3870 3550 2610 1780 1030 9550 7560 5890 5220 4540
22300 17200 12700 10400 8750 8210 6060 4130 2380 23400 18100 13700 12000 10300
5620 4330 3200 2620 2210 2070 1530 1040 600 5890 4560 3460 3030 2600
6830 5040 3720 3050 2560 2410 1780 1210 700 6860 5300 4010 3520 3020
37600 29800 23100 20800 18100 13300 9570 6770
9480 7510 5810 5250 4550 3360 2410 1710
11000 8730 6770 6090 5300 3900 2800 1980
29100 22300 16500 14900 12700 9230 6640 4940
7330 5620 4150 3750 3210 2330 1670 1240
8530 6530 4830 4370 3720 2700 1950 1450
34200 26200 18300
8620 6600 4010
10000 7680 5360
25700 19400 14200
6480 4890 3580
7530 5680 4160

17
CONVENTIONAL COMPRESSORS

BTUS / HOUR
50 HERTZ CAPACITY KCALS / HOUR
WATTS

REFRIGERANT COOLED R12 R22

CFH CONDENSING EVAPORATING TEMPERATURE °F/°C
HP m 3/hr
MODEL TEMPERATURE 55 45 35 25 15 5 0 –5 – 10 – 20 – 30 – 40 55 45 35
kW
50HZ °F °C 12.8 7.2 1.7 – 3.9 – 9.4 – 15 – 17.8 – 20.6 – 23.3 – 28.9 – 34.4 – 40 12.8 7.2 1.7
81400 66300 52300
100 37.8 20500 16700 13200
5 675 23900 19400 15300
NRA - 0500
3.7 19.1 63300 51100 40800
130 54.4 16000 12900 10300
18500 15000 12000

100 37.8
5 804
NRM- 0500
3.7 22.8
130 54.4

32500 25600 19900 17400 16000 14300 11400 9040 7180

100 37.8 8190 6460 5020 4390 4030 3610 2870 2280 1810
5 896 9520 7500 5830 5100 4690 4190 3340 2650 2100
MRA -0500
3.7 25.4 25400 19900 15400 13500 12100 10700 8430 6610 5230
130 54.4 6400 5010 3880 3400 3040 2700 2120 1660 1320
7440 5830 4510 3960 3550 3140 2470 1940 1530
32300 24900 19100 16100
100 37.8 8140 6280 4800 4050
MRJ - 0500 5 896 9460 7300 5600 4720
(LV) 3.7 25.4 25300 19100 14100 11700
130 54.4 6370 4800 3550 2940
7410 5600 4130 3430
39000 31100 24300 21200 18500
100 37.8 9830 7830 6110 5350 4660
5 988 11400 9110 7120 6210 5420
MRB -0500
3.7 28.0 31500 24700 18800 16200 13800
130 54.4 7940 6210 4730 4080 3480
9230 7240 5510 4750 4040
(LV) Limited voltage. Available only in 200 volt electrical.

18
CONVENTIONAL COMPRESSORS

BTUS / HOUR
CAPACITY KCALS / HOUR
WATTS

R22 R502
EVAPORATING TEMPERATURE °F/°C
25 15 5 0 –5 – 10 – 20 – 30 – 40 45 35 25 15 5 0 –5 – 10 – 20 – 30 – 40
– 3.9 – 9.4 – 15 – 17.8 – 20.6 – 23.3 – 28.9 – 34.4 – 40 7.2 1.7 – 3.9 – 9.4 – 15 – 17.8 – 20.6 – 23.3 – 28.9 – 34.4 – 40
39200 30000 23300 64200 52400 42600 34100 27000 22700 20100 17600 13300 9820 7010
9880 7560 5870 16200 13200 10700 8535 6800 5730 5050 4440 3360 2470 1770
11500 8790 6830 18800 15400 12500 9990 7910 6650 5890 5160 3900 2880 2050
30000 23300 17500 48000 38500 30900 24800 19500 17300 15100 13100 9610 6820 4660
7560 5870 4410 12100 9710 7780 6260 4920 4360 3800 3300 2420 1720 1170
8790 6830 5130 14100 11300 9050 7270 5710 5070 4420 3840 2820 2000 1370
48500 38300 29800 25800 22900 49700 39800 31500 27800 24400
12200 9640 7500 6500 5770 12500 10000 7940 6990 6160
14200 11200 8730 7560 6710 14600 11700 9230 8150 7150
37600 29500 22900 19200 36000 29000 22800 19500 17000
9480 7420 5770 4840 — 9080 7310 5740 4910 4280
11000 8640 6710 5630 10500 8500 6680 5710 4980
59000 46800 36500 32600 28700 25300 19300 14400 10300
14900 11800 9190 8220 7240 6380 4870 3620 2600
17300 13700 10700 9550 8410 7410 5650 4220 3020
42000 32800 25200 22700 20200 17500 12900 9050 5970
10600 8260 6340 5710 5080 4420 3240 2280 1500
12300 9610 7380 6650 5920 5130 3780 2650 1750
53400 41900 31600 28700 25100 26000 22700 17000 13500 9030
13500 10600 7960 7230 6330 6560 5710 4270 3400 2280
15600 12300 9260 8410 7350 7620 6650 4980 3960 2650
41600 32400 24400 22400 19400 18800 16200 13600 8650 4660
10500 8160 6160 5640 4890 4740 4090 3420 2180 1180
12200 9490 7150 6560 5680 5510 4750 3980 2530 1370
32000 28400 21900 16400 11800
8060 7150 5520 4130 2960
9380 8320 6420 4810 3460
23800 20700 15100 10400 6340
5990 5210 3810 2620 1600
6970 6070 4420 3050 1860

19
CONVENTIONAL COMPRESSORS

BTUS / HOUR x 1000

50 HERTZ CAPACITY KCALS / HOUR x 1000
WATTS x 1000

REFRIGERANT COOLED R12 R22

CFH CONDENSING EVAPORATING TEMPERATURE °F/°C
HP m 3/hr
MODEL TEMPERATURE 55 45 35 25 15 5 0 –5 – 10 – 20 – 30 – 40 55 45 35
kW
50HZ °F °C 12.8 7.2 1.7 – 3.9 – 9.4 – 15 – 17.8 – 20.6 – 23.3 – 28.9 – 34.4 – 40 12.8 7.2 1.7
119.0 97.0 78.0
100 37.8 30.0 24.5 19.5
7.5 941 35.0 28.5 23.0
MRH -0760
5.6 26.6 91.0 74.0 59.5
130 54.4 23.0 18.5 15.0
26.5 21.5 17.5
78.0 63.5 51.5 41.0 32.5 26.0 24.0 93.0
100 37.8 19.5 16.0 13.0 10.5 8.0 6.5 6.0 23.5
7.5 1135 23.0 18.5 15.0 12.0 9.5 7.5 7.0 27.0
9RJ - 0765
5.6 32.1 64.5 51.0 40.0 31.5 24.5 20.0 18.5 74.0
130 54.4 16.0 13.0 10.0 8.0 6.0 5.0 4.5 18.5
19.0 15.0 11.5 9.0 7.0 6.0 5.5 21.5
52.0 42.0 33.5 30.0 26.5
100 37.8 13.0 10.5 8.5 7.5 6.5
7.5 1338 15.0 12.5 10.0 9.0 8.0
9RB - 0765
5.6 37.9 41.5 33.0 26.0 23.0 20.5
130 54.4 10.5 8.5 6.5 6.0 5.0
12.0 9.5 7.5 6.5 6.0
88.5 73.5 61.0 47.5 37.5 27.5 25.0
100 37.8 22.5 18.5 15.5 12.0 9.5 7.0 6.5
9RZ - 0765 7.5 1338 26.0 21.5 18.0 14.0 11.0 8.0 7.5
(LV) 5.6 37.9 72.0 59.0 47.5 37.5 28.0 21.5 18.0
130 54.4 18.0 15.0 12.0 9.5 7.0 5.5 4.5
21.0 17.5 14.0 11.0 8.0 6.5 5.5
61.0 50.0 41.0 37.0 33.0 28.5 21.0 14.5 9.0
100 37.8 15.5 12.5 10.5 9.5 8.5 7.0 5.5 3.5 2.5
7.5 1762 18.0 14.5 12.0 11.0 9.5 8.5 6.0 4.0 2.5
9RS - 0765
5.6 49.9 48.5 39.5 32.0 28.5 25.0 21.0 14.5 8.5 3.5
130 54.4 12.0 10.0 8.0 7.0 6.5 5.5 3.5 2.0 1.0
14.0 11.5 9.5 8.5 7.5 6.0 4.0 2.5 1.0
162.5 134.5 110.0
100 37.8 41.0 34.0 27.5
10 1338 47.5 39.5 32.0
9RC - 1015
7.5 37.9 132.5 109.0 88.0
130 54.4 33.5 27.5 22.0
39.0 32.0 26.0
127.0 105.0 85.5 69.0 54.0 41.5 36.0
100 37.8 32.0 26.5 21.5 17.5 13.5 10.5 9.0
10 1762 37.0 31.0 25.0 20.0 16.0 12.0 10.5
9RS - 1015
7.5 49.9 102.0 83.0 67.0 53.0 40.0 30.0 25.0
130 54.4 25.5 21.0 17.0 13.5 10.0 7.5 6.5
30.0 24.5 19.5 15.5 11.5 9.0 7.5
(LV) Limited voltage. Available only in 200 volt electrical.

20
CONVENTIONAL COMPRESSORS

BTUS / HOUR x 1000

CAPACITY KCALS / HOUR x 1000
WATTS x 1000

R22 R502
EVAPORATING TEMPERATURE °F/°C
25 15 5 0 –5 – 10 – 20 – 30 – 40 45 35 25 15 5 0 –5 – 10 – 20 – 30 – 40
– 3.9 – 9.4 – 15 – 17.8 – 20.6 – 23.3 – 28.9 – 34.4 – 40 7.2 1.7 – 3.9 – 9.4 – 15 – 17.8 – 20.6 – 23.3 – 28.9 – 34.4 – 40
57.5 44.0 33.5 62.0 49.5 38.5 34.0 29.5 25.0 18.0 13.5 10.0
14.5 11.0 8.5 15.5 12.5 9.5 8.5 7.5 6.0 4.5 3.5 2.5
17.0 13.0 10.0 18.0 14.5 11.5 10.0 8.5 7.5 5.5 4.0 3.0
44.0 34.0 26.0 44.0 34.5 26.5 23.5 20.0 17.0 12.5 10.0 9.0
11.0 8.5 6.5 11.0 8.5 6.5 6.0 5.0 4.5 3.0 2.5 2.0
13.0 10.0 7.5 13.0 10.0 8.0 7.0 6.0 5.0 3.5 3.0 2.5
70.0 55.5 43.0 37.5 32.5 101.0 83.0 70.0 53.0 47.0 41.0 34.0 25.5 18.5 13.0
17.5 14.0 11.0 9.5 8.0 25.5 21.0 17.0 13.5 12.0 10.5 8.5 6.5 4.5 3.5
20.5 16.5 12.5 11.0 9.5 29.5 24.5 20.5 15.5 14.0 12.0 10.0 7.5 5.5 4.0
55.0 43.0 33.5 29.0 25.0 79.0 64.0 51.0 39.5 34.5 30.0 24.0 17.0 11.5 6.5
14.0 11.0 8.5 7.5 6.5 20.0 16.0 13.0 10.0 8.5 7.5 6.0 4.5 3.0 1.5
16.0 12.5 10.0 8.5 7.5 23.0 19.0 15.0 11.5 10.0 9.0 7.0 5.0 3.5 2.0
43.5 38.5 30.0 23.0 17.5
11.0 9.5 7.5 6.0 4.5
12.5 11.5 9.0 6.5 5.0
30.5 26.5 20.0 14.5 11.0
7.5 6.5 5.0 3.5 3.0
9.0 8.0 6.0 4.0 3.0
80.5 65.5 51.0 45.4 39.6 37.5 32.5 26.0 21.0 15.0
20.5 16.5 13.0 11.4 10.0 9.5 8.5 6.5 5.5 4.0
23.5 19.0 15.0 13.3 11.6 11.0 9.5 7.5 6.0 4.5
62.5 49.5 37.5 35.0 30.8 26.0 23.0 18.0 15.0 10.0
15.5 12.5 9.5 8.8 7.8 6.5 6.0 4.5 4.0 2.5
18.5 14.5 11.0 10.3 9.0 7.5 6.5 5.5 4.5 3.0
55.0 49.0 37.5 28.0 20.0
14.0 12.5 9.5 7.0 5.0
16.0 14.5 11.0 8.0 6.0
38.0 33.5 24.5 17.5 11.5
9.5 8.5 6.0 4.5 3.0
11.0 10.0 7.0 5.0 3.5
81.5 65.0 50.0 43.5 132.0 108.0 87.0 69.5 55.0 49.5 44.5 40.0 32.0 26.0 21.5
20.5 16.5 12.5 11.0 33.5 27.0 22.0 17.5 14.0 12.5 11.0 10.0 8.0 6.5 5.5
24.0 19.0 14.5 12.5 38.5 31.5 25.5 20.5 16.0 14.5 13.0 11.5 9.5 7.5 6.5
65.0 50.0 36.5 104.0 83.5 66.0 51.5 40.0 36.0 31.0 27.0 20.5 16.0 13.0
16.5 12.5 9.0 — 26.5 21.0 16.5 13.0 10.0 9.0 8.0 7.0 5.0 4.0 3.5
19.0 14.5 10.5 30.5 24.5 19.5 15.0 11.5 10.5 9.0 8.0 6.0 4.5 4.0
64.0 56.0 49.0 37.0 28.0 21.0
16.0 14.0 12.5 9.5 7.0 5.5
19.0 16.5 14.5 11.0 8.0 6.0
47.0 41.5 35.5 26.5 19.5 15.5
12.0 10.5 9.0 6.5 5.0 4.0
14.0 12.0 10.5 8.0 5.5 4.5

21
CONVENTIONAL COMPRESSORS

BTUS / HOUR x 1000

50 HERTZ CAPACITY KCALS / HOUR x 1000
WATTS x 1000

REFRIGERANT COOLED R12 R22

CFH CONDENSING EVAPORATING TEMPERATURE °F/°C
HP m 3/hr
MODEL TEMPERATURE 55 45 35 25 15 5 0 –5 – 10 – 20 – 30 – 40 55 45 35
kW
50HZ °F °C 12.8 7.2 1.7 – 3.9 – 9.4 – 15 – 17.8 – 20.6 – 23.3 – 28.9 – 34.4 – 40 12.8 7.2 1.7
78.5 64.0 51.0 37.5 32.5
100 37.8 20.0 16.0 13.0 9.5 8.5
9RS - 1016 10 1762 23.0 19.0 15.0 11.0 9.5
(LV) 7.5 49.9 64.0 51.0 39.5 29.5 26.0
130 54.4 16.0 13.0 10.0 7.5 6.5
19.0 15.0 11.5 8.5 7.5
135.0 112.0 93.0 75.5 60.0 47.0 41.5 36.0 31.5 23.5 16.5 12.0
100 37.8 34.0 28.5 23.5 19.0 15.0 12.0 10.5 9.0 8.0 6.0 4.0 3.0
10 1977 39.5 33.0 27.0 22.0 17.5 14.0 12.0 10.5 9.0 7.0 5.0 3.5
4RA - 1000
7.5 56.0 109.0 89.5 73.0 58.5 46.0 35.0 30.5 26.0 24.0 17.5 11.5
130 54.4 27.5 22.5 18.5 15.0 11.5 9.0 7.5 6.5 6.0 4.5 3.0 —
32.0 26.0 21.5 17.0 13.5 10.5 9.0 7.5 7.0 5.0 3.5
222.5 182.5 147.0
100 37.8 56.0 46.0 37.0
15 1762 65.0 53.5 43.0
9RS - 1505
11.2 49.9 173.5 140.5 111.5
130 54.4 43.5 35.5 28.0
51.0 41.0 32.5

100 37.8
4RL - 1500 15 2499
(OC) 11.2 70.7
130 54.4

102.0 85.0 72.0 59.0 52.0 46.0

100 37.8 26.0 22.0 18.0 15.0 13.0 12.0
4RL - 1900
19 2499 30.0 25.0 21.0 17.5 15.0 13.5
(LV) 14.2 70.7 89.0 72.0 56.0 43.0 36.0 30.0
(OC)
130 54.4 22.0 18.0 14.0 11.0 9.0 7.0
26.0 21.0 16.5 12.5 10.5 9.0
255.0 209.0 170.0
100 37.8 64.5 52.5 42.5
20 1977 74.5 61.0 50.0
4RA - 2000
14.9 56.0 208.0 167.0 133.0
130 54.4 52.5 42.0 33.5
61.0 49.0 39.0
214.0 179.0 149.0 123.0 99.5 81.0 73.5 65.5
100 37.8 54.0 45.0 37.5 31.0 25.0 20.5 18.5 16.5
20 2966 62.5 52.5 43.5 36.0 29.0 23.5 21.5 19.0
6RA - 2000
14.9 84.0 168.0 138.0 114.0 92.0 73.5 60.0 53.0 47.0
130 54.4 42.5 35.0 28.5 23.0 18.5 15.0 13.5 12.0
49.0 40.5 33.5 27.0 21.5 17.5 15.5 14.0
(LV) Limited voltage. Available only in 200 volt electrical.
(OC) Oil cooler and vertical cooling fan are standard on this model.

22
CONVENTIONAL COMPRESSORS

BTUS / HOUR x 1000

CAPACITY KCALS / HOUR x 1000
WATTS x 1000

R22 R502
EVAPORATING TEMPERATURE °F/°C
25 15 5 0 –5 – 10 – 20 – 30 – 40 45 35 25 15 5 0 –5 – 10 – 20 – 30 – 40
– 3.9 – 9.4 – 15 – 17.8 – 20.6 – 23.3 – 28.9 – 34.4 – 40 7.2 1.7 – 3.9 – 9.4 – 15 – 17.8 – 20.6 – 23.3 – 28.9 – 34.4 – 40
108.0 85.5 64.0 52.1 42.5 61.0 49.5 42.5 31.0 26.0 18.0
27.0 21.5 16.0 13.1 10.7 15.5 12.5 10.5 8.0 6.5 4.5
31.5 25.0 19.0 15.3 12.5 18.0 14.5 12.5 9.0 7.5 5.5
81.0 64.0 47.5 37.1 29.0 47.0 36.0 31.0 23.0 18.0 11.5
20.5 16.0 12.0 9.3 7.3 12.0 9.0 8.0 6.0 4.5 3.0
23.5 19.0 14.0 10.9 8.5 14.0 10.5 9.0 6.5 5.5 3.5
74.0 67.5 59.0 45.0 33.0 23.0
18.5 17.0 15.0 11.5 8.5 6.0
21.5 20.0 17.5 13.0 9.5 6.5
54.0 47.5 41.5 31.0 22.5 15.0
13.5 12.0 10.5 8.0 5.5 4.0
16.0 14.0 12.0 9.0 6.5 4.5
107.0 83.5 61.5 51.5 164.0 135.0 109.0 86.5 68.0 60.0 56.0 49.0 37.0 28.0 21.0
27.0 21.0 15.5 13.0 42.0 34.0 27.5 22.0 17.0 15.0 14.0 12.5 9.5 7.0 5.5
31.5 24.5 18.0 15.0 48.0 39.5 32.0 25.5 20.0 17.5 16.5 14.5 11.0 8.0 6.0
83.5 62.5 42.5 125.0 101.0 81.0 63.5 49.0 43.0 41.5 35.5 26.5 19.5 15.5
21.0 16.0 10.5 — 31.5 25.5 21.0 16.0 12.5 11.0 10.5 9.0 6.5 5.0 4.0
24.5 18.5 12.5 36.5 29.5 23.5 18.5 14.5 12.5 12.0 10.5 8.0 5.5 4.5
80.0 70.5 54.5 41.5 31.0
20.0 18.0 13.5 10.5 8.0
23.5 20.5 16.0 12.0 9.0
57.5 50.0 37.0 27.0 19.5
14.5 12.5 9.5 7.0 5.0
17.0 14.5 11.0 8.0 5.5
135.0 108.0 96.6 84.1 71.6 80.0 70.5 54.5 41.5 31.0
34.0 27.0 24.3 21.2 18.0 20.0 18.0 13.5 10.5 8.0
39.5 31.5 28.3 24.6 21.0 23.5 20.5 16.0 12.0 9.0
102.0 79.0 73.3 63.3 55.0 57.5 50.0 37.0 27.0 19.5
26.0 20.0 18.5 16.0 13.9 14.5 12.5 9.5 7.0 5.0
30.0 23.0 21.5 18.5 16.1 17.0 14.5 11.0 8.0 5.5
125.0 101.0 83.0 196.0 160.0 129.0 102.0 81.0 72.5 64.0
31.5 25.5 21.0 49.5 40.5 32.5 26.0 20.5 18.5 16.0
36.5 29.5 24.5 57.5 47.0 38.0 30.0 23.5 21.0 19.0
101.0 79.0 63.5 160.0 128.0 101.0 80.0 63.0 56.5 50.0
25.5 20.0 16.0 40.5 32.5 25.5 20.0 16.0 14.5 13.0
29.5 23.0 18.5 47.0 37.5 29.5 23.5 18.5 16.5 14.5
95.5 84.0 63.5 47.0 33.0
24.0 21.0 16.0 12.0 8.5
28.0 24.5 18.5 14.0 9.5
67.5 59.0 44.0 31.5 21.5
17.0 15.0 11.0 8.0 5.5
20.0 17.5 13.0 9.0 6.5

23
CONVENTIONAL COMPRESSORS

BTUS / HOUR x 1000

50 HERTZ CAPACITY KCALS / HOUR x 1000
WATTS x 1000

REFRIGERANT COOLED R12 R22

CFH CONDENSING EVAPORATING TEMPERATURE °F/°C
HP m 3/hr
MODEL TEMPERATURE 55 45 35 25 15 5 0 –5 – 10 – 20 – 30 – 40 55 45 35
kW
50HZ °F °C 12.8 7.2 1.7 – 3.9 – 9.4 – 15 – 17.8 – 20.6 – 23.3 – 28.9 – 34.4 – 40 12.8 7.2 1.7
339.0 275.0 219.0
100 37.8 85.5 69.0 55.5
25 2499 99.5 80.5 64.0
4RH - 2500
18.7 70.7 260.0 208.0 165.0
130 54.4 65.5 52.5 41.5
76.0 61.0 48.5

100 37.8
6RL- 2500 25 3748
(OC) 18.7 106.1
130 54.4

391.0 323.5 264.5

100 37.8 98.5 81.5 66.5
30 2985 115.0 95.0 77.5
4RJ - 3000
22.4 84.5 295.5 242.5 197.5
130 54.4 74.5 61.0 49.5
86.5 71.0 58.0
384.0 314.0 255.0
100 37.8 96.5 79.0 64.0
30 2966 113.0 92.0 74.5
6RA - 3000
22.4 84.0 312.0 252.0 201.0
130 54.4 78.5 63.5 50.5
91.5 74.0 59.0

100 37.8
6RT - 3000
30 4478
(DS) 22.4 126.8
(OC)
130 54.4

496.0 405.0 326.0

100 37.8 125.0 102.0 82.0
35 3748 145.0 119.0 95.5
6RH - 3500
26.1 106.1 386.0 316.0 256.0
130 54.4 97.0 79.5 64.5
113.0 92.5 75.0
552.0 446.0 356.0
100 37.8 139.0 112.5 89.5
6RJ - 4000 40 4478 162.0 131.0 104.0
(DS) 29.8 126.8 440.5 351.5 277.0
130 54.4 111.0 88.5 70.0
129.0 103.0 81.0
(OC) Oil cooler and vertical cooling fan are standard on this model.
(DS) Deep oil sump is standard on this model.

24
CONVENTIONAL COMPRESSORS

BTUS / HOUR x 1000

CAPACITY KCALS / HOUR x 1000
WATTS x 1000

R22 R502
EVAPORATING TEMPERATURE °F/°C
25 15 5 0 –5 – 10 – 20 – 30 – 40 45 35 25 15 5 0 –5 – 10 – 20 – 30 – 40
– 3.9 – 9.4 – 15 – 17.8 – 20.6 – 23.3 – 28.9 – 34.4 – 40 7.2 1.7 – 3.9 – 9.4 – 15 – 17.8 – 20.6 – 23.3 – 28.9 – 34.4 – 40
159.0 129.0 24.5 245.0 200.0 162.0 130.0 102.0 91.0 80.5
40.0 32.5 24.5 61.5 50.5 41.0 32.5 26.0 23.0 20.0
46.5 38.0 28.5 72.0 58.5 47.5 38.0 30.0 26.5 23.5
124.0 97.5 79.5 187.0 150.0 118.0 91.5 70.0 62.0 53.5
31.0 24.5 20.0 47.0 37.5 29.5 23.0 17.5 15.5 13.5
36.5 28.5 23.5 55.0 44.0 34.5 27.0 20.5 18.0 15.5
125.5 116.0 103.0 81.0 62.0 46.0
31.5 29.0 26.0 20.5 15.5 11.5
37.0 34.0 30.0 23.5 18.0 13.5
96.0 85.0 75.0 57.5 42.0 29.0
24.0 21.5 19.0 14.5 10.5 7.5
28.0 25.0 22.0 17.0 12.5 8.5
194.0 150.0 125.0 260.5 217.5 179.0 147.5 118.5 105.5 94.5
49.0 38.0 31.5 65.5 55.0 45.0 37.0 30.0 26.5 24.0
57.0 44.0 36.5 76.5 63.5 52.5 43.0 34.5 31.0 27.5
145.0 112.0 88.5 199.0 163.0 132.0 106.0 82.0 71.5 61.5
36.5 28.0 22.5 50.0 41.0 33.5 26.5 20.5 18.0 15.5
42.5 33.0 26.0 58.5 48.0 38.5 31.0 24.0 21.0 18.0
189.0 152.0 123.0 282.0 235.0 193.0 156.0 125.0 111.0 97.5
47.5 38.5 31.0 71.0 59.0 48.5 39.5 31.5 28.0 24.5
55.5 44.5 36.0 82.5 69.0 56.5 45.5 36.5 32.5 28.5
151.0 118.0 95.0 235.0 192.0 154.0 122.0 93.0 81.0 69.0
38.0 29.5 24.0 59.5 48.5 39.0 30.5 23.5 20.5 17.5
44.0 34.5 28.0 69.0 56.5 45.0 35.5 27.0 23.5 20.0
136.5 123.0 111.0 89.5 70.0 52.0
34.5 31.0 28.0 22.5 17.5 13.0
40.0 36.0 32.5 26.0 20.5 15.0
104.0 91.5 81.0 61.5 44.0 27.0
26.0 23.0 20.5 15.5 11.0 7.0
30.5 27.0 23.5 18.0 13.0 8.0
241.0 192.0 149.0 383.0 312.0 252.0 200.0 157.0 140.0 122.0
60.5 48.5 37.5 96.5 78.5 63.5 50.5 39.5 35.0 30.5
70.5 56.5 43.5 112.0 91.5 74.0 58.5 46.0 41.0 35.5
197.0 157.0 129.0 297.0 238.0 187.0 145.0 110.0 97.0 84.0
49.5 39.5 32.5 75.0 60.0 47.0 36.5 28.0 24.5 21.0
57.5 46.0 38.0 87.0 69.5 55.0 42.5 32.0 28.5 24.5
258.0 200.0 157.0 417.5 337.0 269.5 210.5 165.5 146.0 131.0
65.0 50.5 39.5 105.0 85.0 68.0 53.0 41.5 37.0 33.0
75.5 58.5 46.0 122.0 98.5 79.0 61.5 48.5 43.0 38.5
200.0 154.0 125.0 322.5 255.0 198.5 151.0 116.0 101.5 87.0
50.5 39.0 31.5 81.0 64.0 50.0 38.0 29.0 25.5 22.0
58.5 45.0 36.5 94.5 74.5 58.0 44.0 34.0 29.5 25.5

25
CONVENTIONAL COMPRESSORS

BTUS / HOUR x 1000

100 37.8
44L- 3000 30 4998
(OC) 22.4 141.5
130 54.4

503.0 412.0 333.0

100 37.8 127.0 104.0 84.0
40 3954 147.0 121.0 97.5
44A - 4000
29.8 111.9 405.0 333.0 270.0
130 54.4 102.0 84.0 68.0
119.0 97.5 79.0
415.0 350.0 292.0 240.0 193.0 154.0 136.0 120.0
100 37.8 105.0 88.0 73.5 60.5 48.5 39.0 34.0 30.0
40 5932 122.0 103.0 85.5 70.5 56.5 45.0 40.0 35.0
66A - 4000
29.8 167.9 332.0 277.0 225.0 182.0 143.0 111.0 96.0 86.0
130 54.4 83.5 69.5 56.5 46.0 36.0 28.0 24.0 21.5
97.5 81.0 66.0 53.5 42.0 32.5 28.0 25.0
(OC) Oil coolers and vertical cooling fans are standard on this model.

COPELAMETIC
TANDEM COMPRESSORS
Copelametic Tandem compressors are available from nominal
20 horsepower (15.0 kW) thus providing extensive system
design flexibility. The popular combinations are shown, but any
4R and 6R compressors can be put together to make a tandem.
The capacity of a tandem model is the sum of the capacities of
the individual compressors. Since each compressor may be
operated individually, the tandem provides simple, foolproof
capacity reduction with maximum power savings, and greatly
simplifies system control. The unique tandem design solves the
troublesome problems of oil equalization sometimes
encountered on compressors with interconnected crankcases.
See Application Bulletin AE 4-1167 for complete details.

26
CONVENTIONAL COMPRESSORS

BTUS / HOUR x 1000

CAPACITY KCALS / HOUR x 1000
WATTS x 1000

R22 R502
EVAPORATING TEMPERATURE °F/°C
25 15 5 0 –5 – 10 – 20 – 30 – 40 45 35 25 15 5 0 –5 – 10 – 20 – 30 – 40
– 3.9 – 9.4 – 15 – 17.8 – 20.6 – 23.3 – 28.9 – 34.4 – 40 7.2 1.7 – 3.9 – 9.4 – 15 – 17.8 – 20.6 – 23.3 – 28.9 – 34.4 – 40
148.0 132.0 117.0 88.0 65.0 45.0
37.5 33.0 29.5 22.5 16.5 11.5
43.5 38.5 34.5 26.0 19.0 13.0
108.0 96.0 84.0 62.0 45.0 30.0
27.5 24.0 21.0 15.5 11.5 7.5
31.5 28.0 24.5 18.0 13.0 9.0
178.0 158.0 140.0 107.0 82.0 62.0
45.0 40.0 35.5 27.0 20.5 15.5
52.0 46.5 41.0 31.5 24.0 18.0
131.0 114.0 99.0 73.0 53.0 38.0
33.0 29.0 25.0 18.5 13.5 9.5
38.5 33.5 29.0 21.5 15.5 11.0
250.0 202.0 166.0 387.0 315.0 258.0 205.0 162.0 143.0 127.0
63.0 51.0 42.0 97.5 79.5 65.0 51.5 40.5 36.0 32.0
73.5 59.0 48.5 113.0 92.5 75.5 60.0 47.5 42.0 37.0
202.0 158.0 127.0 315.0 252.0 203.0 159.0 126.0 112.0 101.0
51.0 40.0 32.0 79.5 63.5 51.0 40.0 31.5 28.0 25.5
59.0 46.5 37.0 92.5 74.0 59.5 46.5 37.0 33.0 29.5
212.0 188.0 165.0 126.0 92.0 64.0
53.5 47.5 41.5 31.5 23.0 16.0
62.0 55.0 48.5 37.0 27.0 19.0
153.0 136.0 119.0 89.0 63.0 43.0
38.5 34.0 30.0 22.5 16.0 10.5
45.0 40.0 35.0 26.0 18.5 12.5

27
CONVENTIONAL COMPRESSORS

BTUS / HOUR x 1000

100 37.8
66L- 5000 50 7496
(OC) 37.3 212.2
130 54.4

763.0 636.0 520.0

100 37.8 192.0 160.0 131.0
60 5970 224.0 186.0 152.0
44J - 6000
44.8 169.0 583.0 486.0 395.0
130 54.4 147.0 123.0 99.5
171.0 142.0 116.0
758.0 618.0 501.0
100 37.8 191.0 156.0 126.0
60 5932 222.0 181.0 147.0
66A - 6000
44.8 167.9 610.0 501.0 407.0
130 54.4 154.0 127.0 102.0
179.0 147.0 119.0

100 37.8
66T - 6000
60 8956
(DS) 44.8 253.5
(OC)
130 54.4

966.0 793.0 640.0

100 37.8 244.0 200.0 161.0
70 7496 283.0 232.0 188.0
66H - 7000
52.2 212.2 760.0 633.0 518.0
130 54.4 191.0 160.0 131.0
223.0 185.0 152.0
1090.0 873.0 698.0
100 37.8 275.0 220.0 176.0
66J- 8000 80 8956 319.0 256.0 205.0
(DS) 59.7 253.5 870.0 693.0 546.0
130 54.4 219.0 175.0 138.0
255.0 203.0 160.0
(OC) Oil coolers and vertical cooling fans are standard on this model.
(DS) Deep oil sumps are standard on this model.

28
CONVENTIONAL COMPRESSORS

BTUS / HOUR x 1000

CAPACITY KCALS / HOUR x 1000
WATTS x 1000

R22 R502
EVAPORATING TEMPERATURE °F/°C
25 15 5 0 –5 – 10 – 20 – 30 – 40 45 35 25 15 5 0 –5 – 10 – 20 – 30 – 40
– 3.9 – 9.4 – 15 – 17.8 – 20.6 – 23.3 – 28.9 – 34.4 – 40 7.2 1.7 – 3.9 – 9.4 – 15 – 17.8 – 20.6 – 23.3 – 28.9 – 34.4 – 40
318.0 258.0 195.0 481.0 395.0 323.0 260.0 205.0 182.0 161.0
80.0 65.0 49.0 121.0 99.5 81.5 65.5 51.5 46.0 40.5
93.0 75.5 57.0 141.0 116.0 94.5 76.0 60.0 53.5 47.0
248.0 195.0 159.0 368.0 295.0 237.0 183.0 140.0 122.0 107.0
62.5 49.0 40.0 93.0 74.5 59.5 46.0 35.5 31.0 27.0
72.5 57.0 46.5 108.0 86.5 69.5 53.5 41.0 35.5 31.5
251.0 228.0 203.0 160.0 122.0 91.0
63.5 57.5 51.0 40.5 31.0 23.0
73.5 67.0 59.5 47.0 35.5 26.5
192.0 168.0 148.0 113.0 83.5 57.5
48.5 42.5 37.5 28.5 21.0 14.5
56.5 49.0 43.5 33.0 24.5 17.0
388.0 300.0 250.0 514.0 429.0 353.0 291.0 233.0 208.0 187.0
98.0 75.5 63.0 130.0 108.0 89.0 73.5 59.0 52.5 47.0
114.0 88.0 73.5 151.0 126.0 103.0 85.5 68.5 61.0 55.0
290.0 224.0 177.0 392.0 322.0 260.0 209.0 162.0 141.0 122.0
73.0 56.5 44.5 99.0 81.0 65.5 52.5 40.5 35.5 30.5
85.0 65.5 52.0 115.0 94.5 76.0 61.0 47.5 41.5 35.5
378.0 304.0 246.0 556.0 461.0 383.0 313.0 250.0 220.0 193.0
95.5 76.5 62.0 140.0 116.0 96.5 79.0 63.0 55.5 48.5
111.0 89.0 72.0 163.0 135.0 112.0 91.5 73.5 64.5 56.5
302.0 236.0 190.0 463.0 378.0 308.0 245.0 188.0 162.0 137.0
76.0 59.5 48.0 117.0 95.5 77.5 61.5 47.5 40.5 34.5
88.5 69.0 55.5 136.0 111.0 90.0 72.0 55.0 47.5 40.0
273.0 247.0 223.0 180.0 142.0 103.0
69.0 62.0 56.0 45.5 36.0 26.0
50.5 72.5 65.5 52.5 41.5 30.0
208.0 187.0 165.0 127.0 91.5 57.5
52.5 47.0 41.5 32.0 23.0 14.5
61.0 55.0 48.5 37.0 27.0 17.0
482.0 384.0 298.0 753.0 615.0 503.0 400.0 313.0 268.0 245.0
121.0 97.0 75.0 190.0 155.0 127.0 101.0 79.0 67.5 61.5
141.0 113.0 87.5 221.0 180.0 147.0 117.0 91.5 78.5 72.0
394.0 314.0 258.0 586.0 468.0 375.0 290.0 220.0 192.0 166.0
99.5 79.0 65.0 148.0 118.0 94.5 73.0 55.5 48.5 42.0
115.0 92.0 75.5 172.0 137.0 110.0 85.0 64.5 56.5 48.5
516.0 400.0 314.0 823.0 665.0 531.0 415.0 327.0 288.0 252.0
130.0 101.0 79.0 207.0 168.0 134.0 105.0 82.5 72.5 63.5
151.0 117.0 92.0 241.0 195.0 156.0 122.0 96.0 84.5 74.0
400.0 308.0 250.0 636.0 502.0 392.0 298.0 228.0 200.0 172.0
101.0 77.5 63.0 160.0 127.0 98.5 75.0 57.5 50.5 43.0
117.0 90.0 73.5 186.0 147.0 115.0 87.5 67.0 58.5 50.5

29
CONVENTIONAL COMPRESSORS

BTUS / HOUR x 1000

50 HERTZ CAPACITY KCALS / HOUR x 1000
WATTS x 1000
REFRIGERANT COOLED
CAPACITY CONTROL R12 R22
CAPACITY BASIC CFH CONDENSING EVAPORATING TEMPERATURE °F/°C
HP m 3/hr
CONTROL COMPRESSOR TEMPERATURE 55 45 35 25 55 45 35 25
kW
MODEL MODEL 50HZ °F °C 12.8 7.2 1.7 – 3.9 12.8 7.2 1.7 – 3.9
105.0 87.0 71.5 54.0
100 37.8 26.5 22.0 18.0 13.5
9RP - 1015
10 1338 31.0 25.5 21.0 16.0
33% 9RC - 1015
7.5 37.9 84.5 70.0 60.5 45.5
Unloaded
130 54.4 21.5 17.5 15.5 11.5
25.0 20.5 17.5 13.5
78.5 64.5 53.0 43.0
100 37.8 19.5 16.5 13.5 11.0
4RE - 1000
10 1977 23.0 19.0 15.5 12.5
50% 4RA - 1000
7.5 56.0 63.5 52.0 42.0 34.0
Unloaded
130 54.4 16.0 13.0 10.5 8.5
18.5 15.0 12.5 10.0
139.0 111.5 89.0 66.0
100 37.8 35.0 28.0 22.5 16.5
9RT - 1505
15 1762 40.5 32.5 26.0 19.5
33% 9RS - 1505
11.2 49.9 114.5 91.5 74.0 56.0
Unloaded
130 54.4 29.0 23.0 18.5 14.0
33.5 27.0 21.5 16.5
132.0 105.0 82.5 59.5
100 37.8 33.0 26.5 20.5 15.0
4RE - 2000
20 1977 38.5 31.0 24.0 17.5
50% 4RA - 2000
14.9 56.0 101.0 82.5 66.5 51.0
Unloaded
130 54.4 25.5 20.5 17.0 13.0
29.5 24.0 19.5 15.0
148.0 122.0 101.0 82.0
100 37.8 37.0 31.0 25.5 21.0
6RE - 2000
20 2966 43.5 35.5 29.5 24.0
33% 6RA - 2000
14.9 84.0 119.0 97.0 79.0 63.5
Unloaded
130 54.4 30.0 24.5 20.0 16.0
35.0 28.5 23.0 18.5
65.0 54.0 44.5 36.0
100 37.8 16.5 13.5 11.0 9.0
6RN - 2000
20 2966 19.0 16.0 13.0 10.5
67% 6RA - 2000
14.9 84.0 52.0 42.5 35.0 29.0
Unloaded
130 54.4 13.0 11.0 9.0 7.0
15.0 12.5 10.5 8.5

30
CONVENTIONAL COMPRESSORS

BTUS / HOUR x 1000

50 HERTZ CAPACITY KCALS / HOUR x 1000
WATTS x 1000
REFRIGERANT COOLED
CAPACITY CONTROL R12 R22
CAPACITY BASIC CFH CONDENSING EVAPORATING TEMPERATURE °F/°C
HP m 3/hr
CONTROL COMPRESSOR TEMPERATURE 55 45 35 25 55 45 35 25
kW
MODEL MODEL 50HZ °F °C 12.8 7.2 1.7 – 3.9 12.8 7.2 1.7 – 3.9
157.0 130.0 107.0 81.5
100 37.8 39.5 33.0 27.0 20.5
4RK - 2500
25 2499 46.0 38.0 31.5 24.0
50% 4RH - 2500
18.7 70.7 129.0 105.0 84.5 63.0
Unloaded
130 54.4 32.5 26.5 21.5 16.0
38.0 31.0 25.0 18.5
192.5 154.5 121.5 89.5
100 37.8 48.5 39.0 30.5 22.5
4RR - 3000
30 2985 56.5 45.5 35.5 26.0
50% 4RJ - 3000
22.4 84.5 156.5 122.5 96.5 71.0
Unloaded
130 54.4 39.5 31.0 24.5 18.0
46.0 36.0 28.5 21.0
264.0 218.0 179.0 137.0
100 37.8 66.5 55.0 45.0 34.5
6RE - 3000
30 2966 77.5 64.0 52.5 40.0
33% 6RA - 3000
22.4 84.0 212.0 174.0 141.0 107.0
Unloaded
130 54.4 53.5 44.0 35.5 27.0
62.0 51.0 41.5 31.5
131.0 106.0 85.0 63.5
100 37.8 33.0 27.0 21.5 16.0
6RN - 3000
30 2966 38.5 31.0 25.0 18.5
67% 6RA - 3000
22.4 84.0 103.0 83.0 66.0 48.5
Unloaded
130 54.4 26.0 21.0 16.5 12.0
30.0 24.5 19.5 14.0
326.0 266.0 215.0 164.0
100 37.8 82.0 67.0 54.0 41.5
6RK - 3500
35 3748 95.5 78.0 63.0 48.0
33% 6RH - 3500
26.1 106.1 272.0 220.0 177.0 137.0
Unloaded
130 54.4 68.5 55.5 44.5 34.5
79.5 64.5 52.0 40.0
162.0 132.0 107.0 81.5
100 37.8 41.0 33.5 27.0 20.5
6RP- 3500
35 3748 47.5 38.5 31.5 24.0
67% 6RH - 3500
26.1 106.1 135.0 109.0 88.0 67.5
Unloaded
130 54.4 34.0 27.5 22.0 17.0
39.5 32.0 26.0 20.0
399.0 317.0 246.0 178.0
6RR - 4000 100 37.8 100.5 80.0 62.0 45.0
33% 40 4478 117.0 93.0 72.0 52.0
6RJ - 4000
Unloaded 29.8 126.8 309.0 243.0 189.0 138.0
(DS) 130 54.4 78.0 61.0 47.5 35.0
90.5 71.0 55.5 40.5
200.0 159.0 123.0 90.0
6RS - 4000 100 37.8 50.5 40.0 31.0 22.5
67% 40 4478 58.5 46.5 36.0 26.5
6RJ - 4000
Unloaded 29.8 126.8 162.0 128.0 98.0 70.0
(DS) 130 54.4 41.0 32.5 24.5 17.5
47.5 37.5 28.5 20.5
(DS) Deep oil sump is standard on this model.

31
CONVENTIONAL COMPRESSORS

BTUS / HOUR x 1000

50 HERTZ CAPACITY KCALS / HOUR x 1000
WATTS x 1000
REFRIGERANT COOLED
CAPACITY CONTROL TANDEMS R12 R22
CAPACITY BASIC CFH CONDENSING EVAPORATING TEMPERATURE °F/°C
HP m 3/hr
CONTROL TANDEM TEMPERATURE 55 45 35 25 55 45 35 25
kW
MODEL MODEL 50HZ °F °C 12.8 7.2 1.7 – 3.9 12.8 7.2 1.7 – 3.9
157.0 129.0 106.0 86.0
100 37.8 39.0 33.0 27.0 22.0
44E - 2000
20 3954 46.0 38.0 31.0 25.0
50% 44A - 2000
14.9 111.9 127.0 104.0 84.0 68.0
Unloaded
130 54.4 32.0 26.0 21.0 17.0
37.0 30.5 24.5 20.0
264.0 210.0 165.0 119.0
100 37.8 66.0 53.0 41.0 30.0
44E - 4000
40 3954 77.5 61.5 48.5 35.0
50% 44A - 4000
29.8 111.9 202.0 165.0 133.0 102.0
Unloaded
130 54.4 51.0 41.0 34.0 25.5
59.0 48.5 39.0 30.0
296.0 244.0 202.0 164.0
100 37.8 74.0 62.0 51.0 42.0
66E - 4000
40 5932 86.5 71.5 59.0 48.0
33% 66A - 4000
29.8 167.9 238.0 194.0 158.0 127.0
Unloaded
130 54.4 60.0 49.0 40.0 32.0
69.5 57.0 46.5 37.0
130.0 108.0 89.0 72.0
100 37.8 33.0 27.0 22.0 18.0
66N - 4000
40 5932 38.0 31.5 26.0 21.0
67% 66A - 4000
29.8 167.9 104.0 85.0 70.0 58.0
Unloaded
130 54.4 26.0 22.0 18.0 14.0
30.5 25.0 20.5 17.0
314.0 260.0 214.0 163.0
100 37.8 79.0 66.0 54.0 41.0
44K - 5000
50 4998 92.0 76.0 62.5 48.0
50% 44H - 5000
37.3 141.5 258.0 210.0 169.0 126.0
Unloaded
130 54.4 65.0 53.0 43.0 32.0
75.5 61.5 49.5 37.0

32
CONVENTIONAL COMPRESSORS

BTUS / HOUR x 1000

50 HERTZ CAPACITY KCALS / HOUR x 1000
WATTS x 1000
REFRIGERANT COOLED
CAPACITY CONTROL TANDEMS R12 R22
CAPACITY BASIC CFH CONDENSING EVAPORATING TEMPERATURE °F/°C
HP m 3/hr
CONTROL TANDEM TEMPERATURE 55 45 35 25 55 45 35 25
kW
MODEL MODEL 50HZ °F °C 12.8 7.2 1.7 – 3.9 12.8 7.2 1.7 – 3.9
385.0 309.0 243.0 179.0
100 37.8 97.0 78.0 61.0 45.0
44R - 6000
60 5970 113.0 90.5 71.0 52.2
50% 44J - 6000
44.8 169.0 313.0 245.0 193.0 142.0
Unloaded
130 54.4 79.0 62.0 49.0 36.0
91.5 72.0 56.5 41.5
528.0 436.0 358.0 274.0
100 37.8 133.0 110.0 90.0 69.0
66E - 6000
60 5932 155.0 128.0 105.0 80.5
33% 66A - 6000
44.8 167.9 424.0 348.0 282.0 214.0
Unloaded
130 54.4 107.0 88.0 71.0 54.0
124.0 102.0 82.5 62.5
262.0 212.0 170.0 127.0
100 37.8 66.0 54.0 43.0 32.0
66N - 6000
60 5932 77.0 62.0 50.0 37.0
67% 66A - 6000
44.8 167.9 206.0 166.0 132.0 97.5
Unloaded
130 54.4 52.0 42.0 33.0 24.5
60.5 48.5 38.5 28.5
672.0 532.0 430.0 329.0
100 37.8 164.0 134.0 108.0 83.0
66K - 7000
70 7496 197.0 156.0 126.0 96.5
33% 66H - 7000
52.2 212.2 544.0 440.0 354.0 274.0
Unloaded
130 54.4 137.0 111.0 89.0 69.0
159.0 129.0 104.0 80.5
324.0 264.0 214.0 163.0
100 37.8 82.0 67.0 54.0 41.0
66P - 7000
70 7496 95.0 77.5 62.5 48.0
67% 66H - 7000
52.2 212.2 270.0 218.0 176.0 135.0
Unloaded
130 54.4 68.0 55.0 44.0 34.0
79.0 64.0 51.5 39.5
798.0 634.0 492.0 355.0
66R - 8000 100 37.8 201.0 160.0 124.0 89.5
33% 80 8956 234.0 186.0 144.0 104.0
66J - 8000
Unloaded 59.7 253.5 618.0 486.0 378.0 276.0
(DS) 130 54.4 156.0 122.0 95.0 69.5
181.0 142.0 111.0 81.0
400.0 318.0 246.0 180.0
66S - 8000 100 37.8 101.0 80.0 62.0 45.5
67% 80 8956 117.0 93.0 72.0 52.5
66J - 8000
Unloaded 59.7 253.5 324.0 256.0 196.0 140.0
(DS) 130 54.4 82.0 65.0 49.0 35.5
95.0 75.0 57.5 41.0
(DS) Deep oil sumps are standard on this model.

33
CONVENTIONAL COMPRESSORS

BTUS / HOUR x 1000

50 HERTZ CAPACITY KCALS / HOUR x 1000
WATTS x 1000
REFRIGERANT COOLED
TWO-STAGE R22 R502
CFH CONDENSING EVAPORATING TEMPERATURE °F/°C
HP m 3/hr TEMPERATURE –5 – 10 – 20 – 30 – 40 – 50 – 60 –5 – 10 – 20 – 30 – 40 – 50 – 60 – 70 – 80
MODEL kW
50HZ °F °C – 20.6 – 23.3 – 28.9 – 34.4 – 40 – 45.6 – 51.1 – 20.6 – 23.3 – 28.9 – 34.4 – 40 – 45.6 – 51.1 – 56.7 – 62.2
21.0 17.0 13.5 10.5 8.0 24.5 19.5 15.5 12.0 9.0 6.5 4.5
100 37.8 5.5 4.5 3.5 2.5 2.0 6.0 5.0 4.0 3.0 2.5 1.5 1.0
5 1135 6.0 5.0 4.0 3.0 2.5 7.0 5.5 4.5 3.5 2.5 2.0 1.5
9TK - 0505
3.7 32.1 19.0 15.5 12.0 9.0 7.0 21.5 17.5 14.0 11.0 8.5 6.0 4.5
130 54.4 5.0 4.0 3.0 2.5 1.5 5.5 4.5 3.5 3.0 2.0 1.5 1.0
5.5 4.5 3.5 2.5 2.0 6.5 5.0 4.0 3.0 2.5 2.0 1.5
35.0 31.0 25.0 20.0 15.5 40.0 36.5 29.5 23.5 18.5 13.5 11.0
100 37.8 9.0 8.0 6.5 5.0 4.0 10.0 9.0 7.5 6.0 4.5 3.5 3.0
7.5 1338 10.5 9.0 7.5 6.0 4.5 11.5 10.5 8.5 7.0 5.5 4.0 3.0
9TL - 0765
5.6 37.9 32.5 29.0 23.0 18.5 15.0 35.0 31.5 26.0 21.0 16.5 13.0 10.0
130 54.4 8.0 7.5 6.0 4.5 4.0 9.0 8.0 6.5 5.5 4.0 3.5 2.5
9.5 8.5 6.5 5.5 4.5 10.5 9.0 7.5 6.0 5.0 4.0 3.0
46.0 41.5 33.5 26.5 20.5 52.0 47.0 38.5 31.0 24.5 19.5 14.5
100 37.8 11.5 10.5 8.5 6.5 5.0 13.0 12.0 9.5 8.0 6.0 5.0 3.5
10 1762 13.5 12.0 10.0 8.0 6.0 15.0 14.0 11.5 9.0 7.0 5.5 4.0
9TH - 1015
7.5 49.9 43.0 39.0 31.5 25.5 20.0 46.0 41.5 34.0 27.5 22.0 17.5 14.0
130 54.4 11.0 10.0 8.0 6.5 5.0 11.5 10.5 8.5 7.0 5.5 4.5 3.5
12.5 11.5 9.0 7.5 6.0 13.5 12.0 10.0 8.0 6.5 5.0 4.0
56.5 45.0 35.5 27.5 20.5
100 37.8 14.5 11.5 9.0 7.0 5.0
10 2966 16.5 13.0 10.5 8.0 6.0
6RB - 1000
7.5 84.0
130 54.4 — — — — —

77.5 65.0 54.0 45.0 34.5 25.0

100 37.8 19.5 16.5 13.5 11.5 8.5 6.5
20 2966 22.5 19.0 16.0 13.0 10.0 7.5
6RB - 2000
14.9 84.0 58.5 48.5 39.0 30.5 22.0
130 54.4 — 15.0 12.0 10.0 7.5 5.5
17.0 14.0 11.5 9.0 6.5
70.5 57.0 45.0 34.0 24.5 80.5 66.0 53.0 41.5 30.0
100 37.8 18.0 14.5 11.5 8.5 6.0 20.5 16.5 13.5 10.5 7.5
20 3748 20.5 16.5 13.0 10.0 7.0 23.5 19.5 15.5 12.0 9.0
6TM - 2000
14.9 106.1 66.0 53.5 42.0 31.5 23.5 70.5 58.5 43.5 38.0 28.0
130 54.4 16.5 13.5 10.5 8.0 6.0 18.0 15.0 11.0 9.5 7.0
19.5 15.5 12.5 9.0 7.0 20.5 17.0 12.5 11.0 8.0
Subcooler installed for these capacity values.

COPELAMETIC
TWO-STAGE COMPRESSORS
Copeland® brand product Two-Stage compressors were
developed to reach the ultra-low temperatures needed in many
of today’s applications in an efficient and reliable way.
The Two-Stage compressor is separated into low and high
stages of compression to achieve the necessary pressures and
temperatures for maximum cooling capability. Three cylinder
compressors use two cylinders on the low stage and one
cylinder on the high stage while the six cylinder compressors
use four cylinders on the low stage and two cylinders on the
high stage.
For more information see Application Bulletin AE 19-1132.

34
CONVENTIONAL COMPRESSORS

BTUS / HOUR x 1000

50 HERTZ CAPACITY KCALS / HOUR x 1000
WATTS x 1000
REFRIGERANT COOLED
TWO-STAGE TANDEMS R22 R502
CFH CONDENSING EVAPORATING TEMPERATURE °F/°C
HP m 3/hr TEMPERATURE –5 – 10 – 20 – 30 – 40 – 50 – 60 –5 – 10 – 20 – 30 – 40 – 50 – 60 – 70 – 80
MODEL kW
50HZ °F °C – 20.6 – 23.3 – 28.9 – 34.4 – 40 – 45.6 – 51.1 – 20.6 – 23.3 – 28.9 – 34.4 – 40 – 45.6 – 51.1 – 56.7 – 62.2
113.0 89.5 71.0 55.0 41.0
100 37.8 28.5 22.5 18.0 14.0 10.5
20 5932 33.0 26.0 21.0 16.0 12.0
66B - 2000
14.9 167.9
130 54.4 — — — — —

155.0 130.0 108.0 89.5 68.5 50.0

100 37.8 39.0 33.0 27.5 22.5 17.5 12.5
40 5932 45.5 38.0 31.5 26.0 20.0 14.5
66B - 4000
29.8 167.9 117.0 97.0 78.5 61.0 44.0
130 54.4 — 29.5 24.5 19.5 15.5 11.0
34.5 28.5 23.0 18.0 13.0
141.0 114.0 90.5 68.5 49.0 161.0 132.0 106.0 83.0 60.0
100 37.8 35.5 28.5 23.0 17.0 12.5 40.5 33.0 27.0 21.0 15.0
40 7496 41.5 33.5 26.5 20.0 14.5 47.0 38.5 31.0 24.5 17.5
66M - 4000
29.8 212.2 132.0 107.0 83.5 63.5 47.0 141.0 117.0 87.5 75.5 56.0
130 54.4 33.5 27.0 21.0 16.0 12.0 35.5 29.5 22.0 19.0 14.0
38.5 31.5 24.5 18.5 14.0 41.5 34.5 25.5 22.0 16.5
Subcoolers installed for these capacity values.

COPELAMETIC
TWO-STAGE TANDEM COMPRESSORS
Copeland® brand product Two-Stage Tandem compressors
produce greater capacity for applications where it is
necessary along with the automatic capacity control and
increased factor of safety that tandems naturally offer. Refer
to Application Bulletins AE 4-1167 and AE 19-1132 for
instructions.
Although Two-Stage evaporating temperatures range well
below 0°F (–17.8°C) when operating, no overhead cooling fan
is required for any of our Two-Stage compressors. An
interstage desuperheating expansion valve provides
adequate motor cooling. Refer to Application Bulletin AE
4-1135 for more information.

35
CONVENTIONAL COMPRESSORS

AIR COOLED MECHANICAL SPECIFICATIONS

Oil Charge Mounting Center

CFH Overall Dimensions Service Valve Weights
Bore Stroke (Refill Oil Dimensions
HP m 3 /hr in/mm Sizes lb/kg
MODEL CYL in in Charge) in/mm
kW
mm mm
Suction Discharge
50 Hertz Oz Liter Length Width Height Length Width Net Shipping
in in
.25 15/16 5/8 85.2 22 .65 123/8 8 103/4 83/16 63/8 3/8 1/4 70 81
HAK- 0025 2
.19 33.3 15.9 2.41 (16) (.47) 314 203 273 208 162 Flare Flare 32 37
.33 13/16 5/8 69.7 22 .65 123/8 8 103/4 83/16 63/8 1/2 3/8 70 81
HAJ- 0033 2
.25 30.2 15.9 1.97 (16) (.47) 314 203 273 208 162 Flare Flare 32 37
.50 11/32 3/4 63.4 22 .65 123/8 8 103/4 83/16 63/8 1/2 3/8 72 83
HAG- 0050 2
.37 26.2 19.1 1.79 (16) (.47) 314 203 273 208 162 Flare Flare 33 38
.50 13/16 5/8 69.7 22 .65 123/8 8 103/4 83/16 63/8 1/2 3/8 72 83
HAJ- 0050 2
.37 30.2 15.9 1.97 (16) (.47) 314 203 273 208 162 Flare Flare 33 38
KAN- 0050 .50 13/8 5/8 93.5 22 .65 14 8 103/4 83/16 63/8 1/2 3/8 81 94
2
(LT) .37 34.9 15.9 2.65 (20) (.59) 356 203 273 208 162 Flare Flare 37 43
.50 11/2 5/8 111 22 .65 14 8 103/4 83/16 63/8 1/2 3/8 81 94
KAE- 0050 2
.37 38.1 15.9 3.14 (20) (.59) 356 203 273 208 162 Flare Flare 37 43
.50 11/2 15/16 167 22 .65 14 8 103/4 83/16 63/8 1/2 3/8 81 94
KAH- 0050 2
.37 38.1 23.8 4.73 (20) (.59) 356 203 273 208 162 Flare Flare 37 43
.50 19/16 15/16 181 22 .65 14 8 103/4 83/16 63/8 1/2 3/8 81 94
KAJ- 0050 2
.37 39.7 23.8 5.12 (20) (.59) 356 203 273 208 162 Flare Flare 37 43
.75 13/8 5/8 93.5 22 .65 14 8 103/4 83/16 63/8 1/2 3/8 89 103
KAN- 0075 2
.56 34.9 15.9 2.65 (20) (.59) 356 203 273 208 162 Flare Flare 40 47
.75 11/2 5/8 111 22 .65 14 8 103/4 83/16 63/8 1/2 3/8 89 103
KAE- 0075 2
.56 38.1 15.9 3.14 (20) (.59) 356 203 273 208 162 Flare Flare 40 47
KAM- 0075 .75 13/8 15/16 140 22 .65 14 8 103/4 83/16 63/8 5/8 3/8 89 103
2
(LT) .56 34.9 23.8 3.96 (20) (.59) 356 203 273 208 162 Flare Flare 40 47
.75 17/16 15/16 153 22 .65 14 8 103/4 83/16 63/8 5/8 3/8 89 103
KAG- 0075 2
.56 36.5 23.8 4.33 (20) (.59) 356 203 273 208 162 Flare Flare 40 47
.75 111/16 15/16 211 22 .65 14 8 103/4 83/16 63/8 5/8 3/8 89 103
KAA- 0075 2
.56 42.9 23.8 5.97 (20) (.59) 356 203 273 208 162 Flare Flare 40 47
.75 17/8 15/16 261 22 .65 14 8 103/4 83/16 63/8 5/8 3/8 89 103
KAL- 0075 2
.56 47.6 23.8 7.39 (20) (.59) 356 203 273 208 162 Flare Flare 40 47
1 15/8 5/8 131 22 .65 14 8 103/4 83/16 63/8 5/8 1/2 89 103
KAR- 0100 2
.75 41.3 15.9 3.71 (20) (.59) 356 203 273 208 162 Flare Flare 40 47
1 13/8 15/16 140 22 .65 14 8 103/4 83/16 63/8 5/8 1/2 89 103
KAM- 0100 2
.75 34.9 23.8 3.96 (20) (.59) 356 203 273 208 162 Flare Flare 40 47
KAJ- 0100 1 19/16 15/16 181 22 .65 14 8 103/4 83/16 63/8 5/8 1/2 89 103
2
(LT) .75 39.7 23.8 5.12 (20) (.59) 356 203 273 208 162 Flare Flare 40 47
1 111/16 15/16 211 22 .65 14 8 103/4 83/16 63/8 5/8 1/2 89 103
KAK- 0100 2
.75 42.9 23.8 5.97 (20) (.59) 356 203 273 208 162 Flare Flare 40 47
1 17/8 15/16 261 22 .65 14 8 103/4 83/16 63/8 5/8 1/2 89 103
KAL- 0100 2
.75 47.6 23.8 7.39 (20) (.59) 356 203 273 208 162 Flare Flare 40 47
KAT- 0100 1 17/8 15/32 322 22 .65 14 8 103/4 83/16 63/8 5/8 1/2 89 103
2
(OP) .75 47.6 29.4 9.12 (20) (.59) 356 203 273 208 162 Flare Flare 40 47
(LT) Oil pump is required for R22LT only. Use A or B in place of in model number. Add 3/8 inches (9.53mm) to length shown when an oil pump is used.
(OP) Oil pump is required for all applications. Use A or B in place of in model number.

36
CONVENTIONAL COMPRESSORS

ELECTRICAL SPECIFICATIONS

CAF CAV CAG CAZ TAC TAD

IAF 200/220-1-50 IAG 220/240-1-50 200/220-3-50 380/400-3-50
115-1-50 208/230-1-60 230-1-50 208/230-3-60 460-3-60

RLA LRA RLA LRA RLA LRA RLA LRA RLA LRA RLA LRA
IAF IAG
4.4 28.2 2.2 14.2
CAF CAG
4.9 28.6 2.5 14.5

4.0 22.0 2.4 13.0

3.7 22.0 2.2 13.0

CAF CAG
7.1 45.2 3.6 24.0 3.4 23.3 2.1 13.2
CAF CAG
7.1 45.2 3.4 24.0 3.4 23.3 1.9 13.2
CAF CAG
7.1 45.2 3.4 23.3
CAF CAG
7.1 45.2 3.4 23.3

6.1 36.0 4.9 27.7 3.5 19.9

CAF
9.0 54.0 5.4 36.0 3.4 19.9
CAF CAG
10.8 54.0 5.6 36.0 5.2 27.7 4.7 27.7 3.2 19.9
CAF CAG
10.5 54.0 5.4 36.0 4.6 27.7 2.6 19.9
CAF CAG
10.5 54.0 5.2 36.0 4.6 27.7 2.6 19.9
CAF CAG
10.5 54.0 4.6 27.7

7.4 40.0 4.3 27.0 2.2 13.5

7.5 40.0 4.5 27.0 2.2 13.5

CAG
6.9 40.0 6.0 33.0 3.4 25.0 2.1 15.0
CAG
7.3 40.0 6.0 33.0 4.4 25.0 1.9 15.0
CAG
6.9 40.0 6.0 33.0 3.3 25.0 1.8 15.0
CAG
7.2 40.0 6.0 33.0 4.4 25.0 2.1 15.0

37
CONVENTIONAL COMPRESSORS

AIR COOLED MECHANICAL SPECIFICATIONS

Oil Charge Mounting Center

CFH Overall Dimensions Service Valve Weights
Bore Stroke (Refill Oil Dimensions
HP m 3 /hr in/mm Sizes lb/kg
MODEL CYL in in Charge) in/mm
kW
mm mm
Suction Discharge
50 Hertz Oz Liter Length Width Height Length Width Net Shipping
in in
KAJ- 0101 1 19/16 15/16 181 22 .65 14 8 103/4 83/16 63/8 5/8 1/2 89 103
2
(LT) .75 39.7 23.8 5.12 (20) (.59) 356 203 273 208 162 Flare Flare 40 47
KAG- 0150 1.5 17/16 15/16 153 22 .65 143/8 83/4 103/4 83/16 63/8 7/8 1/2 94 109
2
(OP) 1.1 36.5 23.8 4.33 (20) (.59) 365 222 273 208 162 Solder Flare 43 49
KAL- 0150 1.5 17/8 15/16 261 22 .65 143/8 83/4 103/4 83/16 63/8 7/8 1/2 94 109
2
(OP) 1.1 47.6 23.8 7.39 (20) (.59) 365 222 273 208 162 Solder Flare 43 49
KAT- 0150 1.5 17/8 15/32 322 22 .65 143/8 83/4 103/4 83/16 63/8 7/8 1/2 94 109
2
(OP) 1.1 47.6 29.4 9.12 (20) (.59) 365 222 273 208 162 Solder Flare 43 49
1.5 115/16 13/8 408 60 1.77 161/8 12 1211/16 101/16 101/2 7/8 1/2 152 175
EAJ- 0150 2
1.1 49.2 34.9 11.6 (55) (1.63) 410 305 322 256 267 Solder Flare 69 79
KAK- 0200 2 111/16 15/16 211 22 .65 143/8 83/4 103/4 83/16 63/8 7/8 1/2 112 126
2
(OP) 1.5 42.9 23.8 5.97 (20) (.59) 365 222 273 208 162 Solder Flare 51 57
KAT- 0200 2 17/8 15/32 322 22 .65 143/8 83/4 103/4 83/16 63/8 7/8 1/2 112 126
2
(LV) (OP) 1.5 47.6 29.4 9.12 (20) (.59) 365 222 273 208 162 Solder Flare 51 57
EAD- 0200 2 17/8 15/32 322 60 1.77 161/8 12 1211/16 101/16 101/2 7/8 1/2 158 182
2
(LT) 1.5 47.6 29.4 9.12 (55) (1.63) 410 305 322 256 267 Solder Flare 72 83
2 2 15/32 366 60 1.77 161/8 12 1211/16 101/16 101/2 7/8 1/2 158 182
EAV- 0200 2
1.5 50.8 29.4 10.4 (55) (1.63) 410 305 322 256 267 Solder Flare 72 83
2 2 13/8 435 60 1.77 161/8 12 1211/16 101/16 101/2 7/8 1/2 158 182
EAL- 0200 2
1.5 50.8 34.9 12.3 (55) (1.63) 410 305 322 256 267 Solder Flare 72 83
2 21/4 13/8 551 70 2.07 18 13 1223/32 115/8 11 7/8 1/2 177 204
3AH- 0200 2
1.5 57.2 34.9 15.6 (65) (1.92) 457 330 323 295 279 Solder Flare 80 93
EAV- 0210 2 2 15/32 366 60 1.77 161/2 12 1211/16 101/16 101/2 7/8 1/2 159 183
2
(LT) 1.5 50.8 29.4 10.4 (55) (1.63) 419 305 322 256 267 Solder Flare 72 83
LAH- 0310 3 21/4 17/16 576 80 2.37 181/32 14 145/8 115/8 11 11/8 5/8 210 237
2
(LT) 2.2 57.2 36.5 16.3 (75) (2.22) 458 356 371 295 279 Solder Flare 95 107
3 23/8 17/16 641 80 2.37 181/32 14 145/8 115/8 11 11/8 5/8 210 237
LAL- 0310 2
2.2 60.3 36.5 18.1 (75) (2.22) 458 356 371 295 279 Solder Flare 95 107
3 27/16 17/16 675 80 2.37 181/32 14 145/8 115/8 11 11/8 5/8 210 237
LAC- 0310 2
2.2 61.9 36.5 19.1 (75) (2.22) 458 356 371 295 279 Solder Flare 95 107
3 27/16 111/16 793 80 2.37 181/32 14 145/8 115/8 11 11/8 5/8 210 237
LAM- 0310 2
2.2 61.9 42.9 22.4 (75) (2.22) 458 356 371 295 279 Solder Flare 95 107
3 17/8 15/32 322 60 1.77 161/8 12 1211/16 101/16 101/2 7/8 1/2 158 182
EAD- 0320 2
2.2 47.6 29.4 9.12 (55) (1.63) 410 305 322 256 267 Solder Flare 72 83
LAH- 0320 3 21/4 17/16 576 80 2.37 181/32 14 145/8 115/8 11 11/8 5/8 210 237
2
(OP) 2.2 57.2 36.5 16.3 (75) (2.22) 458 356 371 295 279 Solder Flare 95 107
LAC- 0420 3 27/16 17/16 675 80 2.37 185/8 14 1423/32 115/8 11 11/8 5/8 198 225
2
(OP) 2.2 61.9 36.5 19.1 (75) (2.22) 473 356 374 295 279 Solder Flare 90 102
(LT) Oil pump is required for R22LT only. Use A or B in place of in model number. Add 3/8 inches (9.53mm) to length shown when an oil pump is used.
(OP) Oil pump is required for all applications. Use A or B in place of in model number.
(LV) Limited voltage. Available only in 200 volt electrical.

38
CONVENTIONAL COMPRESSORS

ELECTRICAL SPECIFICATIONS

CAV CAS CAZ TAC TAD TAE TAM TAU

200/220-1-50 220-1-50 220/240-1-50 200/220-3-50 380/400-3-50 500-3-50 380/400-3-50 200-3-50
208/230-1-60 208/230-3-60 460-3-60 575-3-60 200-3-60

RLA LRA RLA LRA RLA LRA RLA LRA RLA LRA RLA LRA RLA LRA RLA LRA

4.5 27.0

9.6 55.0 5.5 35.5 2.5 18.2

9.9 55.0 7.6 35.0 5.4 35.5 2.9 18.2 6.6 51.6

9.6 55.0 7.6 35.0 5.0 35.5 2.9 18.2

5.9 38.0 2.5 19.0 2.2 14.3

10.6 55.0 6.8 50.0 3.0 25.0

7.2 51.0

6.8 46.0 3.4 23.0 2.3 20.0

9.0 54.0 6.6 46.0 3.5 23.0 2.3 20.0 9.7 57.1

8.4 54.0 7.1 46.0 3.7 23.0 2.3 20.0

8.4 54.0 6.6 46.0 3.7 23.0 2.3 20.0

14.7 102.0 7.4 50.0 3.9 26.6

10.7 82.0 5.7 41.0 4.0 30.0

14.0 79.0 10.9 82.0 5.0 41.0 4.0 30.0

14.0 79.0 10.0 82.0 5.7 41.0 4.0 30.0 16.5 99.7

14.0 79.0 10.0 82.0 4.7 41.0 4.0 30.0

12.4 85.0 5.2 42.0

12.8 112.0

6.0 56.0

39
CONVENTIONAL COMPRESSORS

REFRIGERANT COOLED MECHANICAL SPECIFICATIONS

Oil Charge Mounting Center

CFH Overall Dimensions Service Valve Weights
Bore Stroke (Refill Oil Dimensions
HP m 3 /hr in/mm Sizes lb/kg
MODEL CYL in in Charge) in/mm
kW
mm mm
Suction Discharge
50 Hertz Oz Liter Length Width Height Length Width Net Shipping
in in
2 13/4 15/32 280 60 1.77 161/8 12 1211/16 101/16 101/2 7/8 5/8 160 184
ERA- 0200 2
1.5 44.5 29.4 7.93 (55) (1.63) 410 305 322 256 267 Solder Flare 73 84
2 13/4 15/32 280 60 1.77 161/8 12 1211/16 101/16 101/2 7/8 5/8 160 184
ERC- 0200 2
1.5 44.5 29.4 7.93 (55) (1.63) 410 305 322 256 267 Solder Flare 73 84
3 17/8 13/8 382 60 1.77 171/8 12 1211/16 101/16 101/2 11/8 5/8 177 204
ERF- 0310 2
2.2 47.6 34.9 10.8 (55) (1.63) 435 305 322 256 267 Solder Flare 80 93
3 23/16 13/8 520 70 2.07 18 13 1211/16 115/8 11 11/8 5/8 177 205
3RA- 0310 2
2.2 55.6 34.9 14.7 (65) (1.92) 457 330 322 295 279 Solder Flare 80 93
3 27/16 17/16 675 70 2.07 211/16 13 151/4 115/8 11 11/8 5/8 216 249
NRD- 0310 2
2.2 61.9 36.5 19.1 (65) (1.92) 535 330 387 295 279 Solder Flare 98 113
4 21/4 17/16 576 70 2.07 201/8 13 151/4 115/8 11 11/8 5/8 231 266
NRB- 0400 2
3.0 57.2 36.5 16.3 (65) (1.92) 511 330 387 295 279 Solder Solder 105 121
5 27/16 17/16 675 70 2.07 201/8 13 151/4 115/8 11 11/8 5/8 231 266
NRA- 0500 2
3.7 61.9 36.5 19.1 (65) (1.92) 511 330 387 295 279 Solder Solder 105 121
5 23/16 21/8 804 70 2.07 211/16 13 151/4 115/8 11 11/8 5/8 231 266
NRM- 0500 2
3.7 55.6 54.0 22.8 (65) (1.92) 535 330 387 295 279 Solder Solder 105 121
5 21/2 113/16 896 80 2.37 227/16 13 1615/16 115/8 11 13/8 7/8 269 306
MRA- 0500 2
3.7 63.5 46.0 25.4 (70) (2.07) 570 330 430 295 279 Solder Solder 122 139
MRJ- 0500 5 21/2 113/16 896 80 2.37 227/16 13 1615/16 115/8 11 13/8 7/8 269 306
2
(LV) 3.7 63.5 46.0 25.4 (70) (2.07) 570 330 430 295 279 Solder Solder 122 139
5 25/8 113/16 988 80 2.37 227/16 13 1615/16 115/8 11 13/8 7/8 269 306
MRB- 0500 2
3.7 66.7 46.0 28.0 (70) (2.07) 570 330 430 295 279 Solder Solder 122 139
7.5 29/16 113/16 941 80 3.40 233/8 13 1615/16 115/8 11 13/8 11/8 281 324
MRH- 0760 2
5.6 65.1 46.0 26.6 (70) (3.10) 594 330 430 295 279 Solder Solder 127 147
7.5 23/16 2 1135 115 3.40 2523/32 151/16 171/2 15 12 13/8 11/8 318 367
9RJ- 0765 3
5.6 55.6 50.8 32.1 (105) (3.10) 653 383 445 381 305 Solder Solder 144 166
7.5 23/8 2 1338 115 3.40 2523/32 151/16 171/2 15 12 13/8 11/8 318 367
9RB- 0765 3
5.6 60.3 50.8 37.9 (105) (3.10) 653 383 445 381 305 Solder Solder 144 166
9RZ- 0765 7.5 23/8 2 1338 115 3.40 2523/32 151/16 171/2 15 12 13/8 11/8 318 367
3
(LV) 5.6 60.3 50.8 37.9 (105) (3.10) 653 383 445 381 305 Solder Solder 144 166
7.5 27/16 21/2 1762 115 3.40 2523/32 151/16 171/2 15 12 13/8 11/8 333 383
9RS- 0765 3
5.6 61.9 63.5 49.9 (105) (3.10) 653 383 445 381 305 Solder Solder 151 174
10 23/8 2 1338 115 3.40 2619/32 151/16 171/2 15 12 13/8 11/8 345 397
9RC- 1015 3
7.5 60.3 50.8 37.9 (105) (3.10) 675 383 445 381 305 Solder Solder 156 180
10 27/16 21/2 1762 115 3.40 2619/32 151/16 171/2 15 12 13/8 11/8 345 397
9RS- 1015 3
7.5 61.9 63.5 49.9 (105) (3.10) 675 383 445 381 305 Solder Solder 156 180
9RS- 1016 10 27/16 21/2 1762 115 3.40 2619/32 151/16 171/2 15 12 15/8 11/8 345 397
3
(LV) 7.5 61.9 63.5 49.9 (105) (3.10) 675 383 445 381 305 Solder Solder 156 180
10 21/2 2 1977 140 4.14 245/8 189/16 165/8 15 12 15/8 11/8 369 425
4RA- 1000 4
7.5 63.5 50.8 56.0 (130) (3.84) 625 471 422 381 305 Solder Solder 167 193
(LV) Limited voltage. Available only in 200 volt electrical.

40
CONVENTIONAL COMPRESSORS

ELECTRICAL SPECIFICATIONS

ESL ESM FSR FSM TAC TAD TSK TAE / TFE TAU / TFU
210/240-3-50 380/420-3-50 200/240-3-50 380/420-3-50 TFC TFD 200/400-3-50 TSE TSU
380/420-3-50 200/220-3-50 380/400-3-50 208/230-3-60 500-3-50 200-3-50
208/230-3-60 460-3-60 460-3-60 575-3-60 200-3-60

RLA LRA RLA LRA RLA LRA RLA LRA RLA LRA RLA LRA RLA LRA RLA LRA RLA LRA
TAC TAD TAE
6.6 46.0 3.5 23.0 3.5 20.0
TAC TAD TAE
6.8 46.0 3.6 23.0 3.2 20.0
TAC TAD TAE
11.7 82.0 6.4 41.0 5.2 30.0
TAC TAD TAU
13.1 82.0 6.6 41.0 10.9 82.0
TFC TFD TFE TFU
14.3 82.0 7.3 41.0 5.5 32.0 19.2 92.5
TFC TFD TFE
21.8 141.0 11.3 62.5 9.2 53.4
TFC TFD TFE
19.2 141.0 9.6 62.5 9.2 53.4
TFC TFD TFE
24.3 141.0 12.1 62.5 9.2 53.4
210 / 240
17.0 90.0 TFC TFD TFE TFU
380 / 420
9.5 50.0 9.5 50.0 17.0 90.0 9.5 50.0 22.0 115.0 8.6 53.0 7.8 42.0 27.1 120.0
TFU
27.0 120.0
210 / 240
9.5 90.0 TFC TFD TFE
380 / 420
17.0 50.0 9.5 50.0 17.0 90.0 9.5 50.0 21.2 115.0 12.1 53.0 7.6 42.0
210 / 240
32.5 130.0 TFC TFD TFE
380 / 420
18.8 75.0 18.8 75.0 32.5 130.0 18.8 75.0 30.3 164.0 13.5 82.0 10.8 63.8
TFC TFD TFE
18.8 75.0 29.6 164.0 14.7 82.0 10.7 63.8
210 / 240
32.5 130.0 TFC TFD TFE TFU
380 / 420
18.8 75.0 18.8 75.0 32.5 130.0 18.8 75.0 29.9 164.0 15.4 82.0 14.0 63.8 40.8 158.0
TFU
30.7 158.0
210 / 240
32.5 130.0 TFC TFD TFE
380 / 420
18.8 75.0 18.8 75.0 32.5 130.0 18.8 75.0 29.4 164.0 16.5 82.0 14.0 63.8
210 / 240
36.2 222.0 TFC TFD TFE
380 / 420
20.4 125.0 20.4 125.0 36.2 222.0 20.4 125.0 44.0 208.0 20.0 104.0 17.5 88.2
210 / 240
36.2 222.0 TFC TFD TFE TSU
380 / 420
20.4 125.0 20.4 125.0 36.2 222.0 20.4 125.0 41.0 208.0 19.0 104.0 15.5 88.2 62.0 232.0
TSU
62.0 232.0
210 / 240 200 / 208 / 230
39.2 176.0 54.8 240.0 TSE
380 / 420 400 / 460
22.0 102.0 22.0 102.0 22.0 102.0 27.4 120.0 19.8 106.0

41
CONVENTIONAL COMPRESSORS

REFRIGERANT COOLED MECHANICAL SPECIFICATIONS

Oil Charge Mounting Center

CFH Overall Dimensions Service Valve Weights
Bore Stroke (Refill Oil Dimensions
HP m 3 /hr in/mm Sizes lb/kg
MODEL CYL in in Charge) in/mm
kW
mm mm
Suction Discharge
50 Hertz Oz Liter Length Width Height Length Width Net Shipping
in in
15 27/16 21/2 1762 115 3.40 2715/32 151/16 171/2 15 12 15/8 11/8 365 419
9RS- 1505 3
11.2 61.9 63.5 49.9 (105) (3.10) 698 383 445 381 305 Solder Solder 166 190
4RL - 1500 15 211/16 23/16 2499 135 3.99 271/32 1911/16 231/4 15 12 15/8 11/8 420 483
4
(OC) 11.2 68.3 55.6 70.7 (120) (3.55) 687 500 591 381 305 Solder Solder 191 219
4RL- 1900 19 211/16 23/16 2499 250 7.39 271/32 1911/16 231/4 15 12 15/8 11/8 414 474
4
(LV) (OC) 14.2 68.3 55.6 70.7 (235) (6.95) 687 500 591 381 305 Solder Solder 188 215
20 21/2 2 1977 135 3.99 245/8 189/16 165/8 15 12 15/8 11/8 394 454
4RA- 2000 4
14.9 63.5 50.8 56.0 (120) (3.55) 625 472 422 381 305 Solder Solder 179 206
20 21/2 2 2966 155 4.58 2913/32 201/8 177/8 15 12 21/8 13/8 425 489
6RA- 2000 6
14.9 63.5 50.8 84.0 (145) (4.29) 747 511 454 381 305 Solder Solder 193 222
25 211/16 23/16 2499 130 3.84 2613/32 1815/16 177/8 15 12 21/8 11/8 415 478
4RH- 2500 4
18.7 68.3 55.6 70.7 (120) (3.55) 671 481 454 381 305 Solder Solder 188 217
6RL- 2500 25 211/16 23/16 3748 140 4.14 2913/32 2017/32 2423/32 15 12 21/8 13/8 460 529
6
(OC) 18.7 68.3 55.6 106.1 (130) (3.84) 747 521 628 381 305 Solder Solder 209 240
30 215/16 23/16 2985 140 4.14 275/32 1913/16 177/8 15 12 21/8 13/8 470 541
4RJ- 3000 4
22.4 74.6 55.6 84.5 (125) (3.70) 690 503 454 381 305 Solder Solder 213 245
30 21/2 2 2966 140 4.14 2913/32 201/8 177/8 15 12 21/8 13/8 475 550
6RA- 3000 6
22.4 63.5 50.8 84.0 (130) (3.84) 747 511 454 381 305 Solder Solder 215 249
6RT- 3000 30 215/16 23/16 4478 255 7.54 2913/32 2613/32 273/8 15 12 21/8 13/8 500 575
6
(DS) (OC) 22.4 74.6 55.6 126.8 (245) (7.24) 747 671 695 381 305 Solder Solder 227 261
35 211/16 23/16 3748 140 4.14 305/32 201/2 177/8 15 12 21/8 13/8 484 557
6RH- 3500 6
26.1 68.3 55.6 106.1 (130) (3.84) 766 521 454 381 305 Solder Solder 220 253
6RJ- 4000 40 215/16 23/16 4478 255 7.54 305/32 215/8 207/8 15 12 21/8 13/8 535 616
6
(DS) 29.8 74.6 55.6 126.8 (245) (7.24) 766 549 530 381 305 Solder Solder 243 279
(OC) Oil cooler and vertical cooling fan are standard on this model.
(LV) Limited voltage. Available only in 200 volt electrical.
(DS) Deep oil sump is standard on this model.

42
CONVENTIONAL COMPRESSORS

ELECTRICAL SPECIFICATIONS

ESL ESM ES8 FSR FSM FSD TFC / TSC TFD TSK TSN TFE / TSE TFU
210/240-3-50 380/420-3-50 200-3-50 200/240-3-50 380/420-3-50 380/420-3-50 200/220-3-50 380/400-3-50 200/400-3-50 200/400-3-50 500-3-50 TSU
380/420-3-50 200/220-3-60 460-3-60 208/230-3-60 460-3-60 208/230-3-60 230 /460-3-60 575-3-60 200-3-50
380-3-60 460-3-60 200-3-60

RLA LRA RLA LRA RLA LRA RLA LRA RLA LRA RLA LRA RLA LRA RLA LRA RLA LRA RLA LRA RLA LRA RLA LRA
210 / 240
53.0 195.0 TSC TFE
380 / 420
30.0 110.0 30.0 110.0 53.0 195.0 30.0 137.0 56.5 284.0 28.5 144.0 22.5 127.0
210 / 240 200 / 208 / 230
48.0 200.0 62.6 278.0 TSE
380 / 420 400 / 460
27.0 120.0 27.0 120.0 27.0 120.0 31.3 139.0 24.2 113.0
TSU
65.0 350.0
210 / 240 200 / 220 200 / 208 / 230
57.5 211.0 68.4 335.0 71.4 308.0 TSE
380 / 420 380 400 / 460
34.0 125.0 34.0 125.0 38.9 189.0 32.3 135.0 35.7 154.0 29.2 135.0
210 / 240 200 / 208 / 230
57.5 211.0 67.3 308.0 TSE
380 / 420 400 / 460
34.0 125.0 34.0 125.0 38.8 135.0 33.7 154.0 28.2 135.0
210 / 240 200 / 220 200 / 208 / 230
73.0 290.0 102.5 438.0 88.5 428.0 TSE
380 / 420 380 400 / 460
38.0 165.0 38.0 165.0 59.9 251.0 45.0 165.0 44.3 214.0 34.8 160.0
210 / 240 200 / 220 200 / 208 / 230
73.0 330.0 102.3 438.0 96.9 428.0 TSE
380 / 420 380 400 / 460
38.0 190.0 38.0 190.0 59.3 251.0 38.0 190.0 48.5 214.0 34.8 160.0
210 / 240 200 / 220 200 / 208 / 230
96.0 351.0 119.3 500.0 102.0 470.0 TSE
380 / 420 380 400 / 460
57.0 200.0 57.0 200.0 68.4 289.0 59.0 200.0 51.0 235.0 42.2 200.0
210 / 240 200 / 208 / 230
96.0 351.0 105.0 470.0 TSE
380 / 420 400 / 460
57.0 200.0 57.0 200.0 50.6 200.0 52.5 235.0 43.0 200.0
200 / 208 / 230
111.0 470.0 TSE
400 / 460
60.0 200.0 55.5 235.0 40.0 200.0
210 / 240 200 / 220 200 / 208 / 230
115.0 394.0 145.9 633.0 135.0 565.0 TSE
380 / 420 380 400 / 460
65.0 225.0 65.0 225.0 85.9 365.0 62.7 225.0 67.5 283.0 50.2 230.0
210 / 240 200 / 220 200 / 230
125.0 425.0 160.0 633.0 142.0 594.0 TSE
380 / 420 380 400 / 460
70.0 245.0 70.0 239.0 89.6 365.0 64.3 239.0 71.0 297.0 53.6 225.0

43
CONVENTIONAL COMPRESSORS

TANDEM WIRING
Each compressor of a tandem may be wired with a separate
control system for independent motor operation. If current
inrush decrease is desirable, a time delay relay may be
used to stagger motor starting. Either of these circuits
require that the oil pressure safety control and dual
pressure safety control be wired independently on each
compressor. For tandem wiring diagrams refer to
Application Bulletin AE 4-1167.

44
CONVENTIONAL COMPRESSORS

ELECTRICAL SPECIFICATIONS

ESL ESM ES8 FSD FSM TSK TSN TSE

210/240-3-50 380/420-3-50 200-3-50 380/420-3-50 380/420-3-50 200/400-3-50 200/400-3-50 500-3-50
380/420-3-50 200/220-3-60 460-3-60 208/230-3-60 230/460-3-60 575-3-60
380-3-60 460-3-60

RLA LRA RLA LRA RLA LRA RLA LRA RLA LRA RLA LRA RLA LRA RLA LRA
210 / 240 200 / 208 / 230
39.2 176.0 54.8 240.0
380 / 420 400 / 460
22.0 102.0 22.0 102.0 22.0 102.0 27.4 120.0 19.8 106.0
210 / 240 200 / 208 / 230
48.0 200.0 62.6 278.0
380 / 420 400 / 460
27.0 120.0 27.0 120.0 27.0 120.0 31.3 139.0 24.2 113.0
210 / 240 200 / 220 200 / 208 / 230
57.5 211.0 68.4 335.0 71.4 308.0
380 / 420 380 400 / 460
34.0 125.0 34.0 125.0 38.9 189.0 32.3 135.0 35.7 154.0 29.2 135.0
210 / 240 200 / 208 / 230
57.5 211.0 67.3 308.0
380 / 420 400 / 460
34.0 125.0 34.0 125.0 38.8 135.0 33.7 154.0 28.2 135.0
210 / 240 200 / 220 200 / 208 / 230
73.0 290.0 102.5 438.0 88.5 428.0
380 / 420 380 400 / 460
38.0 165.0 38.0 165.0 59.9 251.0 45.0 165.0 44.3 214.0 34.8 160.0
210 / 240 200 / 220 200 / 208 / 230
73.0 330.0 102.3 438.0 96.9 428.0
380 / 420 380 400 / 460
38.0 190.0 38.0 190.0 59.3 251.0 38.0 190.0 48.5 214.0 34.8 160.0
210 / 240 200 / 220 200 / 208 / 230
96.0 351.0 119.3 500.0 102.0 470.0
380 / 420 380 400 / 460
57.0 200.0 57.0 200.0 68.4 289.0 59.0 200.0 51.0 235.0 42.2 200.0
210 / 240 200 / 208 / 230
96.0 351.0 105.0 470.0
380 / 420 400 / 460
57.0 200.0 57.0 200.0 50.6 200.0 52.5 235.0 43.0 200.0
200 / 208 / 230
111.0 470.0
400 / 460
60.0 200.0 55.5 235.0 40.0 200.0
210 / 240 200 / 220 200 / 208 / 230
115.0 394.0 145.9 633.0 135.0 565.0
380 / 420 380 400 / 460
65.0 225.0 65.0 225.0 85.9 365.0 62.7 225.0 67.5 283.0 50.2 230.0
210 / 240 200 / 220 200 / 230
125.0 425.0 160.0 633.0 142.0 594.0
380 / 420 380 400 / 460
70.0 245.0 70.0 239.0 89.6 365.0 64.3 239.0 71.0 297.0 53.6 225.0

45
CONVENTIONAL COMPRESSORS

46
CONVENTIONAL COMPRESSORS

ELECTRICAL SPECIFICATIONS

ESL ESM ES8 FSR FSD FSM TFC/TSC TFD TSK TSN TFE/TSE
210/240-3-50 380/420-3-50 200-3-50 200/240-3-50 380/420-3-50 380/420-3-50 200/220-3-50 380/400-3-50 200/400-3-50 200/400-3-50 500-3-50
380/420-3-50 200/220-3-60 460-3-60 208/230-3-60 460-3-60 208/230-3-60 230 /460-3-60 575-3-60
380-3-60 460-3-60

RLA LRA RLA LRA RLA LRA RLA LRA RLA LRA RLA LRA RLA LRA RLA LRA RLA LRA RLA LRA RLA LRA
210 / 240
36.2 222.0 TFC TFE
380 / 420
20.4 125.0 20.4 125.0 36.2 222.0 20.4 125.0 44.0 208.0 20.0 104.0 17.5 88.2
200 / 208 / 230
54.8 240.0 TSE
400 / 460
22.0 102.0 27.4 120.0 19.8 106.0
210 / 240
53.0 195.0 TSC TFE
380 / 420
30.0 110.0 30.0 110.0 53.0 195.0 30.0 137.0 56.5 284.0 28.5 144.0 22.5 127.0
210 / 240 200 / 220 200 / 208 / 230
57.5 211.0 68.4 335.0 71.4 308.0 TSE
380 / 420 380 400 / 460
34.0 125.0 38.9 189.0 32.3 135.0 35.7 154.0 29.2 135.0
200 / 208 / 230
67.3 308.0 TSE
400 / 460
38.8 135.0 33.7 154.0 28.2 135.0
210 / 240 200 / 208 / 230
57.5 211.0 67.3 308.0 TSE
380 / 420 400 / 460
34.0 125.0 34.0 125.0 38.8 135.0 33.7 154.0 28.2 135.0
210 / 240 200 / 220 200 / 208 / 230
73.0 290.0 102.5 438.0 88.5 428.0 TSE
380 / 420 380 400 / 460
38.0 165.0 38.0 165.0 59.9 251.0 45.0 165.0 44.3 214.0 34.8 160.0
210 / 240 200 / 220 200 / 208 / 230
96.0 351.0 119.3 500.0 102.0 470.0 TSE
380 / 420 380 400 / 460
57.0 200.0 57.0 200.0 68.4 289.0 59.0 200.0 51.0 235.0 42.2 200.0
210 / 240 200 / 208 / 230
96.0 351.0 105.0 470.0 TSE
380 / 420 400 / 460
57.0 200.0 50.6 200.0 52.5 235.0 43.0 200.0
200 / 208 / 230
105.0 470.0 TSE
400 / 460
50.6 200.0 52.5 235.0 43.0 200.0
210 / 240 200 / 220 200 / 208 / 230
115.0 394.0 145.9 633.0 135.0 565.0 TSE
380 / 420 380 400 / 460
65.0 225.0 65.0 225.0 85.9 365.0 62.7 225.0 67.5 283.0 50.2 230.0
200 / 220 200 / 208 / 230
145.9 633.0 135.0 565.0 TSE
380 400 / 460
65.0 225.0 85.9 365.0 62.7 225.0 67.5 283.0 50.2 230.0
210 / 240 200 / 220 200 / 230
125.0 425.0 160.0 633.0 142.0 594.0 TSE
380 / 420 380 400 / 460
70.0 245.0 70.0 239.0 89.6 365.0 64.3 239.0 71.0 297.0 53.6 225.0
210 / 240 200 / 220 200 / 230
125.0 425.0 160.0 633.0 142.0 594.0 TSE
380 / 420 380 400 / 460
70.0 245.0 70.0 239.0 89.6 365.0 64.3 239.0 71.0 297.0 53.6 225.0

47
CONVENTIONAL COMPRESSORS

48
CONVENTIONAL COMPRESSORS

ELECTRICAL SPECIFICATIONS

ESL ESM ES8 FSD FSM TSK TSN TSE

210/240-3-50 380/420-3-50 200-3-50 380/420-3-50 380/420-3-50 200/400-3-50 200/400-3-50 500-3-50
380/420-3-50 200/220-3-60 460-3-60 208/230-3-60 230/460-3-60 575-3-60
380-3-60 460-3-60

RLA LRA RLA LRA RLA LRA RLA LRA RLA LRA RLA LRA RLA LRA RLA LRA
200 / 208 / 230
54.8 240.0
400 / 460
22.0 102.0 27.4 120.0 19.8 106.0
210 / 240 200 / 220 200 / 208 / 230
57.5 211.0 68.4 335.0 71.4 308.0
380 / 420 380 400 / 460
34.0 125.0 38.9 189.0 32.3 135.0 35.7 154.0 29.2 135.0
200 / 208 / 230
67.3 308.0
400 / 460
38.8 135.0 33.7 154.0 28.2 135.0
210 / 240 200 / 208 / 230
57.5 211.0 67.3 308.0
380 / 420 400 / 460
34.0 125.0 34.0 125.0 38.8 135.0 33.7 154.0 28.2 135.0
210 / 240 200 / 220 200 / 208 / 230
73.0 290.0 102.5 438.0 88.5 428.0
380 / 420 380 400 / 460
38.0 165.0 38.0 165.0 59.9 251.0 45.0 165.0 44.3 214.0 34.8 160.0
210 / 240 200 / 220 200 / 208 / 230
96.0 351.0 119.3 500.0 102.0 470.0
380 / 420 380 400 / 460
57.0 200.0 57.0 200.0 68.4 289.0 59.0 200.0 51.0 235.0 42.2 200.0
210 / 240 200 / 208 / 230
96.0 351.0 105.0 470.0
380 / 420 400 / 460
57.0 200.0 50.6 200.0 52.5 235.0 43.0 200.0
200 / 208 / 230
105.0 470.0
400 / 460
50.6 200.0 52.5 235.0 43.0 200.0
210 / 240 200 / 220 200 / 208 / 230
115.0 394.0 145.9 633.0 135.0 565.0
380 / 420 380 400 / 460
65.0 225.0 65.0 225.0 85.9 365.0 62.7 225.0 67.5 283.0 50.2 230.0
200 / 220 200 / 208 / 230
145.9 633.0 135.0 565.0
380 400 / 460
65.0 225.0 85.9 365.0 62.7 225.0 67.5 283.0 50.2 230.0
210 / 240 200 / 220 200 / 230
125.0 425.0 160.0 633.0 142.0 594.0
380 / 420 380 400 / 460
70.0 245.0 70.0 239.0 89.6 365.0 64.3 239.0 71.0 297.0 53.6 225.0
210 / 240 200 / 220 200 / 230
125.0 425.0 160.0 633.0 142.0 594.0
380 / 420 380 400 / 460
70.0 245.0 70.0 239.0 89.6 365.0 64.3 239.0 71.0 297.0 53.6 225.0

49
CONVENTIONAL COMPRESSORS

REFRIGERANT COOLED MECHANICAL SPECIFICATIONS

TWO-STAGE
Oil Charge Mounting Center Weights
CFH Overall Dimensions Service Valve
Bore Stroke (Refill Oil Dimensions lb/kg
HP m 3 /hr in/mm Sizes
MODEL CYL in in Charge) in/mm with Subcooler
kW
mm mm
Suction Discharge
50 Hertz Oz Liter Length Width Height Length Width Net Shipping
in in
5 23/16 2 1135 115 3.40 2427/32 14 201/8 15 12 13/8 7/8 358 376
9TK- 0505 3
3.7 55.6 50.8 32.1 (105) (3.11) 631 356 511 381 305 Solder Solder 162 171
7.5 23/8 2 1338 115 3.40 2427/32 14 201/8 15 12 13/8 7/8 364 383
9TL- 0765 3
5.6 60.3 50.8 37.9 (105) (3.11) 631 356 511 381 305 Solder Solder 165 174
10 27/16 21/2 1762 115 3.40 2523/32 14 201/8 15 12 13/8 7/8 374 392
9TH- 1015 3
7.5 61.9 63.5 49.9 (105) (3.11) 653 356 511 381 305 Solder Solder 170 178
10 21/2 2 2966 145 4.29 285/32 215/8 191/2 15 12 13/8 13/8 442 466
6RB- 1000 6
7.5 63.5 50.8 84.0 (135) (3.99) 715 549 495 381 305 Solder Solder 200 211
20 21/2 2 2966 155 4.58 285/32 215/8 191/2 15 12 13/8 13/8 447 471
6RB- 2000 6
14.9 63.5 50.8 84.0 (145) (4.29) 715 549 495 381 305 Solder Solder 203 214
20 211/16 23/16 3748 155 4.58 285/32 22 1923/32 15 12 13/8 13/8 458 482
6TM- 2000 6
14.9 68.3 55.6 106.1 (145) (4.29) 715 559 501 381 305 Solder Solder 208 219

REFRIGERANT COOLED
MECHANICAL SPECIFICATIONS
TWO-STAGE TANDEMS
Oil Charge Mounting Center Suction Discharge
CFH Overall Dimensions Weights
Consisting of (Refill Oil Dimensions Connection Connection
HP m 3 /hr in/mm lb/kg
MODEL Two Single Charge) in/mm Size Size
kW
Compressors Fitting Two Valves
50 Hertz Oz Liter Length Width Height Length Width Net Shipping
in in
20 5932 290 8.58 63 / 3 4 23 21 / 5 32 55 12 1/
5 8 1/3 8 1029 1065
66B- 2000 6RB-1000
14.9 167.9 (270) (7.98) 1619 584 537 1397 305 Solder Solder 467 483
40 5932 310 9.17 633/4 23 215/32 55 12 15/8 13/8 1039 1075
66B- 4000 6RB-2000
29.8 167.9 (290) (8.58) 1619 584 537 1397 305 Solder Solder 471 488
40 7496 310 9.17 633/4 225/8 213/8 55 12 15/8 13/8 1061 1097
66M- 4000 6TM- 2000
29.8 212.2 (290) (8.58) 1619 575 543 1397 305 Solder Solder 481 498
Electrical specifications shown for tandems are per compressor rating.

50
CONVENTIONAL COMPRESSORS

ELECTRICAL SPECIFICATIONS

ESL ESM FSR FSD FSM TFC TFD TSK TFE

210/240-3-50 380/420-3-50 200/240-3-50 380/420-3-50 380/420-3-50 200/220-3-50 380/400-3-50 200/400-3-50 TSE
380/420-3-50 460-3-60 208/230-3-60 460-3-60 208/230-3-60 500-3-50
460-3-60 575-3-60

RLA LRA RLA LRA RLA LRA RLA LRA RLA LRA RLA LRA RLA LRA RLA LRA RLA LRA
210 / 240 Approved for
17.0 90.0 TFE
380 / 420 60HZ only
9.5 50.0 9.5 50.0 17.0 90.0 9.5 50.0 19.6 115.0 8.3 53.0 7.8 42.0
210 / 240
32.5 130.0 TFE
380 / 420
18.8 75.0 18.8 75.0 32.5 130.0 18.8 75.0 30.0 164.0 14.5 82.0 9.7 63.8
210 / 240 Approved for Approved for
36.2 222.0 60HZ only 60HZ only
380 / 420
20.4 125.0 20.4 125.0 36.2 222.0 20.4 125.0 37.3 208.0 17.5 104.0
200 / 208 / 230
43.3 240.0
400 / 460
22.0 102.0 22.0 102.0 21.7 120.0
210 / 240 200 / 208 / 230
57.5 211.0 61.4 308.0 TSE
380 / 420 400 / 460
34.0 125.0 34.0 125.0 28.9 135.0 30.7 154.0 25.4 135.0
210 / 240 200 / 208 / 230
57.5 211.0 65.7 308.0 TSE
380 / 420 400 / 460
34.0 125.0 34.0 125.0 34.0 125.0 32.9 154.0 28.2 135.0

ELECTRICAL SPECIFICATIONS

ESL ESM FSD FSM TSK TSE

210/240-3-50 380/420-3-50 380/420-3-50 380/420-3-50 200/400-3-50 500-3-50
380/420-3-50 460-3-60 208/230-3-60 575-3-60
460-3-60

RLA LRA RLA LRA RLA LRA RLA LRA RLA LRA RLA LRA
200 / 208 / 230
43.3 240.0
400 / 460
22.0 102.0 22.0 102.0 21.7 120.0
210 / 240 200 / 208 / 230
57.5 211.0 61.4 308.0
380 / 420 400 / 460
34.0 125.0 34.0 125.0 28.9 135.0 30.7 154.0 25.4 135.0
210 / 240 200 / 208 / 230
57.5 211.0 65.7 308.0
380 / 420 400 / 460
34.0 125.0 34.0 125.0 34.0 125.0 32.9 154.0 28.2 135.0

51
CONVENTIONAL COMPRESSORS

DIMENSIONS AND PHOTOGRAPHS

HA
F
A
M
I
L
Y

Model HAJ1-0025 Shown

KA
F
A
M
I
L
Y

Model KATA-0150 Shown

EA
F
A
M
I
L
Y

Model EAD1-0200 Shown

3A
F
A
M
I
L
Y

Model 3AB1-0310 Shown

LA
F
A
M
I
L
Y

Model LAH1-0310 Shown

Dimensions shown are inches (millimeters).
52
CONVENTIONAL COMPRESSORS

DIMENSIONS AND PHOTOGRAPHS

ER
F
A
M
I
L
Y

Model ERF1-0310 Shown

3R
F
A
M
I
L
Y

Model 3RA1-0310 Shown

NR
F
A
M
I
L
Y

Model NRD1-0406 Shown

MR
F
A
M
I
L
Y

Model MRH4-0760 Shown

9R
F
A
M
I
L
Y

Model 9RC1-1015 Shown

Dimensions shown are inches (millimeters).
53
CONVENTIONAL COMPRESSORS

DIMENSIONS AND PHOTOGRAPHS

4R
F
A
M
I
L
Y

Model 4RJ1-3000 Shown

6R
F
A
M
I
L
Y

Model 6RJ1-4000 Shown

TWO-
STAGE
F
A
M
I
L
Y

Model 9TH1-1015 Shown

TWO-
STAGE
F
A
M
I
L
Y

Model 6TM1-2000 Shown

T
A
N
D
E
M

Model 66P2-4000 Shown

Dimensions shown are inches (millimeters).
54
CONVENTIONAL COMPRESSORS

APPLICATION INFORMATION
RATING CONDITIONS USED IN THIS BOOK
Refrigerant R12 R22 R502
Evaporating Temperature This book does not specifically define the operating limits of the compressors.
Condensing Temperature See individual specification sheets for exact application capability.
Return Gas Temperature 65°F LT, MT: 65°F, 18.3°C 65°F
18.3°C HT: Varies 18.3°C
Ambient Temperature 95°F 95°F 95°F
35°C 35°C 35°C
Liquid Subcooling 0°F LT, MT: 0°F, 0°C 0°F
0°C HT: 15°F, 8.3°C 0°C
Superheat Varies LT, MT: Varies Varies
HT: 20°F, 11.1°C

R22 MT, Medium Temperature is Below 35°F, 1.7°C Two-Stage rating conditions based on 65°F, 18.3°C return gas,
R22 HT, High Temperature is 55°F to 35°F, 12.8°C to 1.7°C 95°F, 35°C ambient and maximum liquid subcooling.

APPLICATION REQUIREMENTS
• All Copelametic compressors require some form of motor power to the compressor and stops it. The Sentronic offers
cooling, regardless of the operating conditions. It is important a new and more reliable solution to capillary leaks. To order
to note that refrigerant-cooled models when operating at the Sentronic Oil Pressure Control use part number 585-
evaporating temperatures of 0°F (–17.8°C) or lower require 1036-00. For instructions refer to Application Bulletin AE 8-
additional motor and cylinder head cooling. This can be 1275.
accomplished by the use of an external fan assembly The Sentronic is only functional when used with our new oil
available from Emerson Climate Technologies. See pump that has a machined port for the Sentronic sensor. The
Application Bulletin AE 4-1135 for complete details and allow Sentronic control and oil pump are standard on all
for extra height to install the fan to the top of the compressor. Copelametic tandem compressors and the oil pump is
• Oil Pump Description. standard on all Copelametic compressors using high
pressure positive displacement oil pumps.
• Models H, K, E, 3, L. If oil pump is used it is a low pressure
pump. No oil pressure control is needed. • All 4 and 6 cylinder models are equipped with a pre-set
internal relief valve between suction and discharge which
• Models N, M, 9, 4, 6. Oil pump is Sentronic high pressure will open if the maximum permissible pressure differential is
oil pump. reached.
• An oil pressure safety control is required on every Copelametic • All Tandem models except Two-Stage include a discharge
compressor equipped with a high pressure oil pump.
Approved controls provide low cost, safe protection against muffler.
damage from loss of lubrication. These can be supplied by
Emerson Climate Technologies and should be listed
• The nominal rotational speeds of the Copelametic
Conventional compressors are:
separately on your purchase orders (except those covering
tandem compressors on which they are supplied as standard • 50 Hertz 1450 RPM.
equipment). There are two types of control available, our
new “Sentronic” Control offering improved reliability and • 60 Hertz 1750 RPM.
accuracy (see next paragraph for details) and the
conventional capillary tube type control which can be
• Dimensions in this brochure include the terminal box and
service valves mounted. Height is from the bottom plate bolts
ordered by using Part Number 998-0700-00. For further or from bottom of extended oil sump where applicable and
information, see Application Bulletin AE 8-1095. does not include mounting parts except mounting for tandem
• Emerson Climate Technologies introduces a new era in oil compressors where dimensions include the mounting rails.
pressure controls with the Sentronic Oil Pressure Control Mounting center dimensions do not apply to narrow profile
System. The Sentronic electronic control system eliminates deep sump models such as those with an 8 in the fourth place
capillary tubes used on electro-mechanical systems to sense of the model number.
oil pressure. The new system uses a pressure transducer
within the oil pump that produces an electrical signal to the
control module. If the oil pressure drops below acceptable
limits for a period of two minutes the control module cuts

55
CONVENTIONAL COMPRESSORS

APPLICATION INFORMATION
PART WINDING AND STAR-DELTA STARTING MOTOR CHARACTERISTICS
Motor Leads Hertz Across-The-Line Part Winding Star-Delta

210/240-3-50
ESL 6 50 210/240-3-50
380 / 420-3-50

ESM 6 50 380 / 420-3-50 380 / 420-3-50

200-3-50
ES8 6 50 200-3-50
200/220-3-60
60 200/220-3-60
380-3-60

50 380 / 420-3-50 380 / 420-3-50

FSD 6
60 460-3-60 460-3-60

FSM 6 50 380 / 420-3-50 380 / 420-3-50

FSR 6 50 200/240-3-50 200/240-3-50

50 500-3-50 500-3-50 (PW)

TSE 6
60 575-3-60 575-3-60 (PW)

200-3-50
50 400-3-50 200-3-50
TSN 9
60 230-3-60 230-3-60
460-3-60

200-3-50
50 400-3-50 200-3-50
TSK 9
60 208/230-3-60 208/230-3-60
460-3-60

(PW) Part winding start applies only to single compressors 20 horsepower, 14.9 kilowatt, and above; tandem 40 horsepower, 29.8 kilowatt, and above.

ELECTRICAL APPLICATION INFORMATION

• On Copelametic compressors with pilot circuit motor • Rated load amps is the value used for contactor and other
protection (compressors with H, L, or S type motor electrical component selection. It is calculated by dividing the
protection) the contactor becomes an integral part of the maximum continuous current that the compressor draws
motor protection system. Modern pilot circuit protection, under the condition of maximum load operation and the
whether solid state or internal thermostat, used in lowest operating voltage by 1.4. See Application Bulletin
conjunction with a properly sized and operating contactor AE 9-1154 for a detailed explanation.
provides excellent motor protection. Emerson Climate
Technologies specifications require the use of a properly • Rated load amps (RLA) and locked rotor amps (LRA) shown
sized, properly applied contactor. For complete contactor in this book are at across-the-line, not part winding start or
sizing information, please see Application Bulletin AE 10- star-delta conections.
1244.
• Refer to the Electrical Handbook, Form 6400, for wiring
diagrams.

56
CONVENTIONAL COMPRESSORS

APPLICATION INFORMATION
APPLICATION OPTIONS
• Use bill of material number 200 for standard compressors. • Crankcase heaters are strongly recommended on all
This bill of material includes oil charge, mounting parts, refrigeration systems where the compressor is exposed to
standard service valves, overload protectors, terminal box cold ambient temperatures, on all split air conditioning
covers and, where applicable, running capacitors, starting systems, and on package air conditioning equipment 5 HP
capacitors and relays. Oil pressure safety controls, crank- and larger. As the refrigerant charge increases, the start-up
problems associated with vapor refrigerant in liquid oil
case heaters, contactors, and high-low pressure controls, becomes more critical. The crankcase heater will minimize
when required, should be ordered with compressors but listed refrigerant migration to the crankcase during periods when
separately on the purchase order. Exception to this rule is that the compressor is not operating and will greatly reduce
200 bill of material tandem compressors include oil pressure liquid slugging, loss of oil and compressor damage. Please
safety controls. Emerson Climate Technologies refer to Application Bulletins AE 4-1166, AE 17-1238, and AE
recommends ordering a standard 9R Compressor with a 22-1182 for additional information.
cylinder head mounted discharge service valve, B / M 400.
But, for a body mounted discharge service valve on the 9R,
• Any model in the families of M, 9, 4, or 6 has the option of an
installed deep oil sump.
B / M 200 should be specified.
• On air conditioning applications where the cooling load may • Airand water-cooled condensing units that contain the
compressors listed in this section are available from
vary over a wide range, some means of compressor capacity
Emerson Climate Technologies.
control is frequently necessary for satisfactory system
performance. Emerson Climate Technologies has available • The H, K, EA and 3A families can be converted to water
capacity reduction control devices for the larger cooled with a factory installed copper water coil wrapped
Copelametic models. These capacity modulation around the compressor body.
accessories can be mounted on the compressor at the
factory or added in the field. The capacity control valves are
mounted externally on the 9R compressors and internally
on the 4R and 6R. Application Bulletins AE 21-1216 and AE
21-1222 provide detailed technical information. Field
conversion kits contain all necessary parts to convert a
standard model to a capacity control model.

UNITS CONVERSION CHART

BTUH x .252 = KCALH

BTUH x .293 = WATTS
(°F – 32) x 5/9 = °C
POUNDS x .454 = KILOGRAMS
INCHES x 25.4 = MILLIMETERS
CUBIC INCHES x 16.386 = CUBIC CENTIMETERS
FLUID OUNCES x .02957 = LITERS
CUBIC FEET x .02831 = CUBIC METERS
HORSEPOWER x .746 = KILOWATTS

57
CONVENTIONAL COMPRESSORS

APPLICATION INFORMATION
APPLICATION BULLETINS
Emerson Climate Technologies has compiled a book of compressor Application Bulletins. Please see the following bulletins, from
the book, for more Conventional Copelametic compressor application information as entitled below:

Location of Pressure Ports . . . . . . . . . . . . AE 4-1094 High Pressure Controls . . . . . . . . . . . . . AE 17-1214

Mounting Parts . . . . . . . . . . . . . . . . . . AE 4-1111 Non-Standard Applications . . . . . . . . . . . . AE 17-1233
Cooling Requirements . . . . . . . . . . . . . . AE 4-1135 Low Ambient Operation . . . . . . . . . . . . . AE 17-1234
Oil Pumps . . . . . . . . . . . . . . . . . . . . AE 4-1166 Parallel Compressor Operation . . . . . . . . . AE 17-1235
Tandem Compressors. . . . . . . . . . . . . . . AE 4-1167 Application of Immersion Type
Discharge Line Mufflers . . . . . . . . . . . . . . AE 4-1181 Crankcase Heaters. . . . . . . . . . . . . . AE 17-1238

Bolt Torque . . . . . . . . . . . . . . . . . . . . AE 4-1219 System Design for Bulk Milk Tank Refrigeration . AE 17-1242

U.L. and C.S.A. File Data . . . . . . . . . . . . . AE 4-1255 Air to Air Heat Pump System Design . . . . . . . AE 17-1243

Converting Compressor Rated Capacity Refrigeration Oils . . . . . . . . . . . . . . . . AE 17-1248

to Actual Capacity . . . . . . . . . . . . . . . AE 4-1273 Design Considerations for High Ambient
Motor Horsepower versus Conditions . . . . . . . . . . . . . . . . . . AE 17-1251
Compressor Efficiency. . . . . . . . . . . . . AE 4-1274 Design Considerations for Heat
Oil Charges. . . . . . . . . . . . . . . . . . . . AE 4-1281 Reclaim Systems . . . . . . . . . . . . . . AE 17-1252

Air Cooled Compressors for R22LT . . . . . . . . AE 4-1291 System Design for Container Refrigeration . . . . AE 17-1257

Oil Pressure Safety Controls . . . . . . . . . . . AE 8-1095 Compressor Overheating . . . . . . . . . . . . AE 17-1260

Sentronic – Electronic Oil Pressure Control . . . . AE 8-1275 Compressor Selection for Mobile or Transport
Applications . . . . . . . . . . . . . . . . . AE 17-1261
Terminal Plate Connections for Dual Winding
Compressors . . . . . . . . . . . . . . . . . AE 9-1076 Compressor Short Cycling . . . . . . . . . . . . AE 17-1262

Nameplate Amperage Rating . . . . . . . . . . . AE 9-1154 Air to Water Heat Pump Cycles . . . . . . . . . AE 17-1263

Single Phase Motors – Frequent Causes Compression Ratio as it Affects Compressor

of Failure . . . . . . . . . . . . . . . . . . . AE 9-1209 Reliability . . . . . . . . . . . . . . . . . . AE 17-1268

Nameplate Voltages . . . . . . . . . . . . . . . AE 9-1228 Oil Additives . . . . . . . . . . . . . . . . . . . AE 17-1282

Power Factor Correction With Capacitors . . . . . AE 9-1249 Switching Refrigerants in Field Installations . . . AE 17-1284

Maximum Continuous Current Rating . . . . . . . AE 9-1250 Two-Stage Compressors . . . . . . . . . . . . . AE 19-1132

Effect of Electrical Components on Motor Transport Refrigeration Manual . . . . . . . . . AE 20-1152

Protection . . . . . . . . . . . . . . . . . . AE 10-1187 Low Limit Pressure Controls for Low
Single versus Two Contactor Selection for Temperature Truck Applications. . . . . . . . AE 20-1197
Model 4R and 6R Compressors . . . . . . . AE 10-1225 Hot Gas Bypass Systems . . . . . . . . . . . . AE 21-1160
Recommended Contactor Selection and System Internal Capacity Control Valves . . . . . . . . . AE 21-1216
Design for Three Phase Motor Protection. . . AE 10-1244 External Capacity Control Valves . . . . . . . . AE 21-1222
Solid State Motor Protection . . . . . . . . . . . AE 10-1264 Liquid Refrigerant Control . . . . . . . . . . . . AE 22-1182
Potential Nuisance Field Problem with Off Cycle Motor Heat for Liquid Refrigerant
Impedance Lockout Relays on Solid State Migration Control. . . . . . . . . . . . . . . AE 22-1230
Protected Compressors . . . . . . . . . . . AE 10-1267
Recommended Control Circuits for Liquid
Copeland Supplied Run Capacitors . . . . . . . AE 10-1272 Refrigerant Control . . . . . . . . . . . . . AE 23-1221
Suction Accumulators . . . . . . . . . . . . . . AE 11-1147 System Cleaning . . . . . . . . . . . . . . . . AE 24-1105
Suction Accumulators for Heat Pump Air Cycle Testing . . . . . . . . . . . . . . . . AE 25-1068
Applications . . . . . . . . . . . . . . . . . AE 11-1247
Safe Handling of Compressed Gases . . . . . . AE 25-1177
Effect of Defrost Control on Compressor
Operation . . . . . . . . . . . . . . . . . . AE 17-1195 Use of Reclaimed Refrigerant . . . . . . . . . . AE 25-1290
Design Consideration for Refrigerant Receivers . AE 17-1212

58
CONVENTIONAL COMPRESSORS

SINGLE COMPRESSOR NOMENCLATURE

Product
Compressor Motor Type
Variations
Phase Motor Type Code
Bill of Material numbers will be
Single Capacitor run, capacitor start C
Compressor Model Type assigned as follows:
Single Induction run, capacitor start I
Code Description Number -100 is standard compressor
Three Wye (star) Delta E used in Copeland® brand products
A Air Cooled
Three Six lead part winding F condensing units.
R Refrigerant Cooled
or across the line. Number -200 indicates a standard
W Water Cooled
Three Miscellaneous three phase T compressor except for 9R.
T Two-Stage • Single voltage three lead Numbers -201 through 299 will be
6RB-1000 and 6RB-2000 • Single voltage six lead on assigned for all other variations of a given
are also two stage. 500-3-50, 575-3-60; 20 HP, model.
14.9 kW, and up.
Number -400 indicates a standard 9R
• Dual voltage nine lead compressor.

XXXX — XXXX — XXX — XXX

Compressor Compressor Motor Rating Compressor Motor Protection Electrical Codes

Family Series
Nominal HP kW Code Type Code 50HZ 60HZ Code
Either a
number or a .25 .19 0025 External inherent protection – A — 115-1 A
letter .33 .25 0033 One protector, use with contactor — 230-1 B
established for (single or three phase). 200/220-3 208/230-3 C
each product .50 .37 0050
model. .75 .56 0075 Internal inherent protection – F 380/400-3 460-3 D
1.0 .75 0100 One protector, use with contactor 500-3 575-3 E
1.5 1.1 0150 (three phase). 115-1 — F
2 1.5 0200 Internal thermostat and two external H 230-1 — G
3 2.2 0300 supplementary protectors mounted — 208-1 H
4 3.0 0400 200/400-3 208/230/460-3 K
on compressor, use with contactor
5 3.7 0500 210/240/380/420-3 — L
(three phase).
Displacement 7.5 5.6 0750 380/420-3 — M
and 10 7.5 1000 Internal thermostat and three external L 200/400-3 230/460-3 N
Valve Plate 15 11.2 1500 supplementary protectors mounted 200/240-3 — R
19 14.2 1900 on compressor, use with contactor 220-1 — S
A letter only, (three phase). 200-3 200-3 U
20 14.9 2000
arbitrarily Internal thermal protectors – S 200/220-1 208/230-1 V
25 18.7 2500
assigned for Three electronic sensors and one — 220/380-3 X
30 22.4 3000
each different external solid state control module, 220/240-1 — Z
35 26.1 3500
displacement use with contactor (three phase). — 380-3 7
40 29.8 4000
and valve plate 200-3 200/220/380-3 8
combination
within any one NOTE: Code D 50HZ rating may be
family series. 380/420 depending on compressor
model. Code U is only 60HZ on one
model.

Model
Variations
A number or
letter arbitrarily
assigned to
indicate major
variations
within any one
family series.

59
CONVENTIONAL COMPRESSORS

TANDEM COMPRESSOR NOMENCLATURE

Compressor Motor Type Product
Phase Motor Type Code Variations
Three Wye (star) Delta E Bill of Material numbers will be
Three Six lead part winding F assigned as follows:
Compressor or across the line. Number -200 indicates a standard
Family Series compressor.
Three Miscellaneous three phase T
A number • Single voltage three lead Numbers -201 through 299 will be
established for • Single voltage six lead on assigned for all other variations of a given
second model 500-3-50, 575-3-60; 40 HP, model.
in the tandem.
29.8 kW, and up.
• Dual voltage nine lead

XXXX — XXXX — XXX — XXX

Compressor Compressor Motor Rating Compressor Motor Protection Electrical Codes

Family Series Type Code 50HZ 60HZ Code
Nominal HP kW Code
A number Internal thermal protectors – S 380/420-3 460-3 D
established for 20 14.9 2000
30 22.4 3000 Three electronic sensors and one 500-3 575-3 E
first model in
the tandem. 40 29.8 4000 external solid state control module, 200/400-3 208/230/460-3 K
50 37.3 5000 use with contactor (three phase). 210/240/380/420-3 — L
60 44.8 6000 380/420-3 — M
70 52.2 7000 200/400-3 230/460-3 N
80 59.7 8000 — 200-3 U
— 220/380-3 X
NOTE: Nominal horsepower 200-3 200/220/380-3 8
rating of tandem compressors is
sum of individual compressor
Displacement
ratings.
and
Valve Plate
A letter only,
arbitrarily
assigned for
each different
displacement
and valve plate
combination
within any one
family series.

Model
Variations
A number
arbitrarily
assigned to
indicate major
variations
within any one
family series.

60
HFC Conventional
Compressors

Emerson Climate Technologies accepts award for corporate leadership in HFC CONVENTIONAL
HFC compressor development.

61
HFC CONVENTIONAL COMPRESSORS

FEATURES HFC CONVENTIONAL

COPELAMETIC STORY
• HFC Ozone Friendly Refrigerants Copelametic® HFC R 404A / R407A / R507
Conventional compressors are the chlorine-free
• 50 and 60 Hertz Models Available solution for low and medium temperature
refrigeration applications.
Emerson Climate Technologies has always been
• Proven Copeland® Brand Products Dependability
committed to designing compressors that meet
customer needs. And in recent years, Emerson
• Rugged, Compact Construction for Heavy-Duty Climate Technologies has led the industry in the
Usage research and testing of CFC alternatives for
refrigeration compressor applications. As a result,
• Easily Accessible for Maintenance Emerson Climate Technologies stands behind these
refrigerants as the closest current replacement for
R502. Customers required a chlorine-free
• Wide Voltage Selection refrigerant, and these possess all the qualities of
R502. R404A / R407A / R507 are free of harmful
• Full Maximum Load Rundown Capability chlorine, and yet allow refrigeration end-users the
same level of maintenance and simplicity of
operation associated with its proven single-stage
• Motor Protection on All Models
systems.
The Conventional Copelametic compressors have
• Polyol Ester Lubricant been produced by Emerson Climate Technologies
since 1941. They were the first successful
• Oil Sight Glass on All Models Except H compressors to operate with an electric motor inside
the compressor casting. The new HFC models
• “Sentronic” Compatible Oil Pump Included on N shown in this section are a qualified derivative of
Models these earlier popular and proven models.
HFC Conventional Copelametic compressors in
this section of the catalog are found in the following
order:
• Air Cooled
• Refrigerant Cooled
Air and Refrigerant Cooled refers to the type of
compressor motor cooling.
Emerson Climate Technologies remains
committed to delivering environmentally acceptable
compressor products, uncompromising reliability
and the highest performance. Our HFC
Conventional compressors are proof of the
technological expertise and industry leadership
you’ve come to expect from Emerson Climate
Technologies.

63
HFC CONVENTIONAL COMPRESSORS

BTUS / HOUR
50 HERTZ CAPACITY KCALS / HOUR
WATTS
AIR COOLED R404A / R407A / R507
CFH EVAPORATING TEMPERATURE °F/°C
HP m 3/ hr CONDENSING
MODEL TEMPERATURE 45 35 25 15 5 0 –5 – 10 – 20 – 30 – 40
kW
50HZ °F °C 7.2 1.7 – 3.9 – 9.4 – 15 – 17.8 – 20.6 – 23.3 – 28.9 – 34.4 – 40

4000 3200 2400 2100 1800

100 37.8 1010 810 600 530 450
.50 63.4 1170 940 700 620 530
HAG- 005E
.37 1.79 2500 2000 1400 1200 1000
130 54.4 630 500 350 300 250
730 390 410 350 290
4600 3600 2800 2500 2100
100 37.8 1160 910 710 630 530
.50 69.7 1350 1050 820 730 620
HAJ- 005E
.37 1.97 3000 2300 1800 1500 1300
130 54.4 760 580 450 380 330
880 670 530 440 380
3900 3400 3000 2200 1500 990
100 37.8 980 860 760 550 380 250
.50 102 1140 1000 880 640 440 290
HAT- 005E
.37 2.89 2500 2200 1900 1300 810 420
130 54.4 630 550 480 330 200 110
730 640 560 380 240 120
3300 2900 2500 1700 1200 690
100 37.8 830 730 630 430 300 170
.50 93.5 970 850 730 500 350 200
KAN- 005E
.37 2.65 1900 1600 1300 900 530 320
130 54.4 480 400 330 230 130 80
560 470 380 260 160 90
3100 2300 1570
100 37.8 780 580 400
.50 153 910 670 460
KAG- 005E
.37 4.33 1900 1240 680
130 54.4 480 310 170
560 360 200
3200 2800 2400 1600 1000 560
100 37.8 810 710 600 400 250 140
.50 93.5 940 820 700 470 290 160
KAN- 006E
.37 2.65 1900 1600 1300 800 300 180
130 54.4 480 400 330 200 80 50
560 470 380 230 90 60

64
HFC CONVENTIONAL COMPRESSORS

6100 4800 3700 3200 2700

100 37.8 1540 1210 930 810 680
.75 93.5 1790 1410 1080 940 790
KAN- 007E
.56 2.65 3900 3000 2200 1900 1600
130 54.4 980 760 550 480 400
1140 880 640 560 470
4000 3500 3000 2200 1500 1000
100 37.8 1010 880 760 550 380 250
.75 111 1170 1030 880 640 440 290
KAE- 007E
.56 3.14 2500 2100 1800 1200 790 440
130 54.4 630 530 450 300 200 110
730 620 530 350 230 130
5300 4700 4100 3000 2200 1550
100 37.8 1340 1180 1030 760 550 390
.75 140 1550 1380 1200 880 640 450
KAM- 007E
.56 3.96 3500 3000 2600 1900 1260 770
130 54.4 880 760 660 480 320 190
1030 880 760 560 370 230
3800 2800 1920
100 37.8 960 710 480
.75 181 1110 820 560
KAJ- 007E
.56 5.12 2300 1550 870
130 54.4 580 390 220
670 450 250
7700 6700 5900 4500 3300 2320
100 37.8 1940 1690 1490 1130 830 580
.75 211 2260 1960 1730 1320 970 680
KAA- 007E
.56 5.92 4900 4300 3700 2700 1890 1080
130 54.4 1230 1080 930 680 480 270
1440 1260 1080 790 550 320
5700 4200 2910
100 37.8 1440 1060 730
.75 261 1670 1230 850
KAL- 007E
.56 7.39 3400 2380 1520
130 54.4 860 600 380
1000 700 450

65
HFC CONVENTIONAL COMPRESSORS

8700 6900 5400 4800 4200

100 37.8 2190 1740 1360 1210 1060
1 131 2550 2020 1580 1410 1230
KAR- 010E
.75 3.71 5900 4500 3500 3100 2600
130 54.4 1490 1130 880 780 660
1730 1320 1030 910 760
10700 8400 6600 5700 5000
100 37.8 2700 2120 1660 1440 1260
1 153 3140 2460 1930 1670 1470
KAG- 010E
.75 4.33 7200 5500 4200 3700 3200
130 54.4 1810 1390 1060 930 810
2110 1610 1230 1080 940
6900 6100 5300 4000 2900 1990
100 37.8 1740 1540 1340 1010 730 500
1 181 2020 1790 1550 1170 850 580
KAJ- 010E
.75 5.12 4500 3900 3400 2500 1680 1020
130 54.4 1130 980 860 630 420 260
1320 1140 1000 730 490 300
5500 4000 2840
100 37.8 1390 1010 720
1 261 1610 1170 830
KAL- 010E
.75 7.39 3400 2320 1370
130 54.4 860 580 350
1000 680 400
7000 5200 3740
100 37.8 1760 1310 940
1 322 2050 1520 1100
KAT- 010E
.75 9.12 4500 3290 2320
130 54.4 1130 830 580
1320 960 680
6600 5800 5100 3800 2700 1870
100 37.8 1660 1460 1290 960 680 470
1 181 1930 1700 1490 1110 790 550
KAJ- 011E
.75 5.12 4200 3700 3200 2300 1540 940
130 54.4 1060 930 810 580 390 240
1230 1080 940 670 450 280

66
HFC CONVENTIONAL COMPRESSORS

8100 7100 6200 4600 3300 2210

100 37.8 2040 1790 1560 1160 830 560
1 211 2370 2080 1820 1350 970 650
KAK- 011E
.75 5.97 5200 4400 3800 2600 1730 1190
130 54.4 1310 1110 960 660 440 300
1520 1290 1110 760 510 350
9800 8700 7600 5700 4100 2850
100 37.8 2470 2190 1920 1440 1030 720
1.5 261 2870 2550 2230 1670 1200 840
KAL- 015E
1.1 7.39 6500 5700 4900 3500 2350 1350
130 54.4 1640 1440 1230 880 590 340
1900 1670 1440 1030 690 400
7000 5100 3630
100 37.8 1760 1290 910
1.5 322 2050 1490 1060
KAT- 015E
1.1 9.12 4700 3090 1990
130 54.4 1180 780 500
1380 910 580
10200 8900 7800 5700 4000 2710
100 37.8 2570 2240 1970 1440 1010 680
1.5 261 2990 2610 2290 1670 1170 790
KAL- 016E
1.1 7.39 6500 5600 4800 3400 2270 1510
130 54.4 1640 1410 1210 860 570 380
1900 1640 1410 1000 670 440
14300 11500 8900 7800 6900
100 37.8 3600 2900 2240 1970 1740
2 211 4190 3370 2610 2290 2020
KAK- 020E
1.5 5.97 9700 7700 5800 5000 4400
130 54.4 2440 1940 1460 1260 1110
2840 2260 1700 1470 1290
12100 10600 9400 7100 5300 3850
100 37.8 3050 2670 2370 1790 1340 970
2 322 3550 3110 2750 2080 1550 1130
KAT- 020E
1.5 9.12 8200 7200 6300 4700 3340 2200
130 54.4 2070 1810 1590 1180 840 550
2400 2110 1850 1380 980 640

67
HFC CONVENTIONAL COMPRESSORS

12000 10500 9100 6700 4800 3230

100 37.8 3020 2650 2290 1690 1210 810
2 322 3520 3080 2670 1960 1410 950
EAD- 020E
1.5 9.12 7700 6700 5700 4000 2670 1530
130 54.4 1940 1690 1440 1010 670 390
2260 1960 1670 1170 780 450
14700 11800 9200 8100 7200
100 37.8 3700 2970 2320 2040 1810
2 211 4310 3460 2700 2370 2110
KAK- 021E
1.5 5.97 9900 7900 6000 5200 4600
130 54.4 2490 1990 1510 1310 1160
2900 2310 1760 1520 1350
12200 10700 9300 6800 4800 3250
100 37.8 3070 2700 2340 1710 1210 820
2 322 3570 3140 2720 1990 1410 950
EAD- 021E
1.5 9.12 7700 6700 5700 3900 2570 1510
130 54.4 1940 1690 1440 980 650 380
2260 1960 1670 1140 750 440
13800 12100 10500 7700 5400 3600
100 37.8 3480 3050 2650 1940 1360 910
2 366 4040 3550 3080 2260 1580 1050
EAV- 021E
1.5 10.4 9100 7800 6700 4700 3050 1750
130 54.4 2290 1970 1690 1180 770 440
2670 2290 1960 1380 890 510
16300 14200 12400 9200 6600 4220
100 37.8 4110 3580 3120 2320 1660 1060
3 435 4780 4160 3630 2700 1930 1240
3AB- 031E
2.2 12.3 10700 9100 7700 5400 3510 1800
130 54.4 2700 2290 1940 1360 880 450
3140 2670 2260 1580 1030 530
22300 19600 17000 12300 8400 5260
100 37.8 5620 4940 4280 3100 2120 1330
3 576 6530 5740 4980 3600 2460 1540
LAH- 032E
2.2 16.3 14400 12200 10200 6600 3730 1690
130 54.4 3630 3070 2570 1660 940 430
4220 3570 2990 1930 1090 500
24700 21700 18800 13900 9600 6110
100 37.8 6220 5470 4740 3500 2420 1540
3 641 7240 6360 5510 4070 2810 1790
LAL- 032E
2.2 18.1 15700 13500 11500 8000 5060 2550
130 54.4 3960 3400 2900 2020 1280 640
4600 3960 3370 2340 1480 750
15400 11000 7330
100 37.8 3880 2770 1850
3 675 4510 3220 2150
LAC- 032E
2.2 19.1 9800 6310 3990
130 54.4 2470 1590 1010
2870 1850 1170

68
HFC CONVENTIONAL COMPRESSORS

BTUS / HOUR
50 HERTZ CAPACITY KCALS / HOUR
WATTS
REFRIGERANT COOLED R404A / R407A / R507
CFH EVAPORATING TEMPERATURE °F/°C
HP m 3/ hr CONDENSING
MODEL TEMPERATURE 45 35 25 15 5 0 –5 – 10 – 20 – 30 – 40
kW
50HZ °F °C 7.2 1.7 – 3.9 – 9.4 – 15 – 17.8 – 20.6 – 23.3 – 28.9 – 34.4 – 40

18400 14500 11200 9800 8500

100 37.8 4640 3650 2820 2470 2140
2 280 5390 4250 3280 2870 2490
ERC- 021E
1.5 7.9 11900 9400 7100 6000 5100
130 54.4 3000 2370 1790 1510 1290
3490 2750 2080 1760 1490
24600 20100 15000 13100 11900
100 37.8 6200 5070 3780 3300 3000
3 382 7210 5890 4400 3840 3490
ERF- 031E
2.2 10.8 16700 13900 10300 8900 8200
130 54.4 4210 3500 2600 2240 2070
4890 4070 3020 2610 2400
33000 25900 19600 17200 14700 12700 8900 5800 3410
100 37.8 8320 6530 4940 4330 3700 3200 2240 1460 860
3RA- 031E 3 520 9670 7590 5740 5040 4310 3720 2610 1700 1000
(LA) 2.2 14.7 21400 16300 11800 10100 8400 6900 4400 2540 1250
130 54.4 5390 4110 2970 2550 2120 1740 1110 640 320
6270 4780 3460 2960 2460 2020 1290 740 370
24900 21900 19200 14500 10400 6770
100 37.8 6270 5520 4840 3650 2620 1710
3 675 7300 6420 5630 4250 3050 1980
NRD- 032E
2.2 19.1 16800 14600 12500 8600 5040 1430
130 54.4 4230 3680 3150 2170 1270 360
4920 4280 3660 2520 1480 420
36500 28600 21600 18500 15800
100 37.8 9200 7210 5440 4660 3980
4 576 10700 8380 6330 5420 4630
NRB- 040E
3 16.3 23600 18700 13700 11500 9400
130 54.4 5950 4710 3450 2900 2370
6910 5480 4010 3370 2750
(LA) TAC motor medium temperature only, TAU motor low temperature only.

69
HFC CONVENTIONAL COMPRESSORS

AIR COOLED MECHANICAL SPECIFICATIONS

Oil Charge Mounting Center

CFH Overall Dimensions Service Valve Weights
Bore Stroke (Refill Oil Dimensions
HP m 3 /hr in/mm Sizes lb/kg
MODEL CYL in in Charge) in/mm
kW
mm mm
Suction Discharge
50 Hertz Oz Liter Length Width Height Length Width Net Shipping
in in
.50 11/32 3/4 63.4 22 .65 123/4 815/16 1015/32 83/16 63/8 1/2 3/8 72 83
HAG- 005E 2
.37 26.2 19.1 1.79 (16) (.47) 324 227 266 208 162 Flare Flare 33 38
.50 13/16 5/8 69.7 22 .65 123/4 815/16 1015/32 83/16 63/8 1/2 3/8 76 87
HAJ - 005E 2
.37 30.2 15.9 1.97 (16) (.47) 324 227 266 208 162 Flare Flare 34 39
.50 15/16 3/4 102 22 .65 123/4 815/16 1015/32 83/16 63/8 1/2 3/8 76 87
HAT- 005E 2
.37 33.3 19.1 2.89 (16) (.47) 324 227 266 208 162 Flare Flare 34 39
.50 13/8 5/8 93.5 22 .65 143/8 91/2 107/16 83/16 63/8 1/2 3/8 86 99
KAN - 005E 2
.37 34.9 15.9 2.65 (20) (.59) 365 241 265 208 162 Flare Flare 39 45
.50 17/16 15/16 153 22 .65 143/8 91/2 107/16 83/16 63/8 1/2 3/8 85 98
KAG- 005E 2
.37 36.5 23.8 4.33 (20) (.59) 365 241 265 208 162 Flare Flare 39 44
.50 13/8 5/8 93.5 22 .65 14 91/2 107/16 83/16 63/8 1/2 3/8 87 100
KAN- 006E 2
.37 34.9 15.9 2.65 (20) (.59) 356 241 265 208 162 Flare Flare 39 45
.75 13/8 5/8 93.5 22 .65 143/8 91/2 107/16 83/16 63/8 1/2 3/8 87 100
KAN- 007E 2
.56 34.9 15.9 2.65 (20) (.59) 365 241 265 208 162 Flare Flare 39 45
.75 11/2 5/8 111 22 .65 143/8 91/2 107/16 83/16 63/8 1/2 3/8 93 107
KAE - 007E 2
.56 38.1 15.9 3.14 (20) (.59) 365 241 265 208 162 Flare Flare 42 49
.75 13/8 15/16 140 22 .65 143/8 91/2 107/16 83/16 63/8 5/8 3/8 87 101
KAM - 007E 2
.56 34.9 23.8 3.96 (20) (.59) 365 241 265 208 162 Flare Flare 39 46
.75 19/16 15/16 181 22 .65 143/8 91/2 107/16 83/16 63/8 5/8 3/8 87 100
KAJ- 007E 2
.56 39.7 23.8 5.12 (20) (.59) 365 241 265 208 162 Flare Flare 39 45
.75 111/16 15/16 211 22 .65 14 8 103/4 83/16 63/8 5/8 3/8 93 107
KAA- 007E 2
.56 42.9 23.8 5.97 (20) (.59) 356 203 273 208 162 Flare Flare 42 49
.75 17/8 15/16 261 22 .65 143/8 91/2 107/16 83/16 63/8 5/8 3/8 87 100
KAL- 007E 2
.56 47.6 23.8 7.39 (20) (.59) 365 241 265 208 162 Flare Flare 39 45
1 15/8 5/8 131 22 .65 143/8 91/2 107/16 83/16 63/8 5/8 1/2 90 104
KAR - 010E 2
.75 41.3 15.9 3.71 (20) (.59) 365 241 265 208 162 Flare Flare 41 47
1 17/16 15/16 153 22 .65 143/8 91/2 107/16 83/16 63/8 5/8 1/2 93 107
KAG- 010E 2
.75 36.5 23.8 4.33 (20) (.59) 365 241 265 208 162 Flare Flare 42 49
1 19/16 15/16 181 22 .65 143/8 91/2 107/16 83/16 63/8 5/8 1/2 93 107
KAJ - 010E 2
.75 39.7 23.8 5.12 (20) (.59) 365 241 265 208 162 Flare Flare 42 49
1 17/8 15/16 261 22 .65 143/8 91/2 107/16 83/16 63/8 5/8 1/2 91 105
KAL - 010E 2
.75 47.6 23.8 7.39 (20) (.59) 365 241 265 208 162 Flare Flare 41 48
1 17/8 15/32 322 22 .65 143/8 91/2 107/16 83/16 63/8 5/8 1/2 93 107
KAT- 010E 2
.75 47.6 29.4 9.12 (20) (.59) 365 241 265 208 162 Flare Flare 42 49
1 19/16 15/16 181 22 .65 143/8 91/2 107/16 83/16 63/8 5/8 1/2 92 106
KAJ - 011E 2
.75 39.7 23.8 5.12 (20) (.59) 365 241 265 208 162 Flare Flare 42 48
1 111/16 15/16 211 22 .65 143/8 91/2 107/16 83/16 63/8 5/8 1/2 93 107
KAK - 011E 2
.75 42.9 23.8 5.97 (20) (.59) 365 241 265 208 162 Flare Flare 42 49
1.5 17/8 15/16 261 22 .65 143/8 91/2 107/16 83/16 63/8 7/8 1/2 95 110
KAL - 015E 2
1.1 47.6 23.8 7.39 (20) (.59) 365 241 265 208 162 Solder Flare 43 50

70
HFC CONVENTIONAL COMPRESSORS

ELECTRICAL SPECIFICATIONS

CAG CAV CAZ TAC TAD

230-1-50 200/220-1-50 220/240-1-50 200/220-3-50 380/400-3-50
208/230-1-60 208/230-3-60 460-3-60

RLA LRA RLA LRA RLA LRA RLA LRA RLA LRA

4.0 22.0 2.4 13.0

3.7 22.0 2.2 13.0

4.4 22.0

3.4 23.3 3.6 24.0

3.3 23.3

2.2 13.2

5.4 36.0 3.0 19.9

5.4 36.0 3.4 19.9

5.2 27.7 5.6 36.0 5.2 27.7 3.2 19.9

4.6 27.7

5.3 27.7

7.4 40.0 4.3 27.0

7.5 40.0 4.3 27.0

6.0 33.0 6.9 40.0 5.9 35.0

6.0 33.0 6.9 40.0

5.9 33.0

4.6 27.0 2.1 15.0

7.9 40.0

9.9 55.0 7.6 35.0

71
HFC CONVENTIONAL COMPRESSORS

AIR COOLED MECHANICAL SPECIFICATIONS

Oil Charge Mounting Center

CFH Overall Dimensions Service Valve Weights
Bore Stroke (Refill Oil Dimensions
HP m 3 /hr in/mm Sizes lb/kg
MODEL CYL in in Charge) in/mm
kW
mm mm Suction Discharge
50 Hertz Oz Liter Length Width Height Length Width Net Shipping
in in
1.5 17/8 15/32 322 22 .65 143/8 91/2 107/16 83/16 63/8 7/8 1/2 96 111
KAT - 015E 2
1.1 47.6 29.4 9.12 (20) (.59) 365 241 265 208 162 Solder Flare 44 50
1.5 17/8 15/16 261 22 .65 143/8 91/2 107/16 83/16 63/8 7/8 1/2 95 110
KAL - 016E 2
1.1 47.6 23.8 7.39 (20) (.59) 365 241 265 208 162 Solder Flare 43 50
2 111/16 15/16 211 22 .65 143/8 91/2 107/16 83/16 63/8 7/8 1/2 98 112
KAK - 020E 2
1.5 42.9 23.8 5.97 (20) (.59) 365 241 265 208 162 Solder Flare 44 51
2 17/8 15/32 322 22 .65 143/8 91/2 107/16 83/16 63/8 7/8 1/2 99 113
KAT - 020E 2
1.5 47.6 29.4 9.12 (20) (.59) 365 241 265 208 162 Solder Flare 45 51
2 17/8 15/32 322 60 1.77 1611/16 12 1225/32 101/16 101/2 7/8 1/2 160 184
EAD - 020E 2
1.5 47.6 29.4 9.12 (55) (1.63) 424 305 325 256 267 Solder Flare 73 83
2 111/16 15/16 211 22 .65 143/8 91/2 107/16 83/16 63/8 7/8 1/2 96 110
KAK - 021E 2
1.5 42.9 23.8 5.97 (20) (.59) 365 241 265 208 162 Solder Flare 44 50
2 17/8 15/32 322 60 1.77 1611/16 12 1225/32 101/16 101/2 7/8 1/2 160 184
EAD - 021E 2
1.5 47.6 29.4 9.12 (55) (1.63) 424 305 325 256 267 Solder Flare 73 83
2 2 15/32 366 60 1.77 1611/16 12 1225/32 101/16 101/2 7/8 1/2 158 182
EAV- 021E 2
1.5 50.8 29.4 10.4 (55) (1.63) 424 305 325 256 267 Solder Flare 72 83
3 2 13/8 435 70 2.07 185/8 13 1211/16 115/8 11 11/8 5/8 179 206
3AB - 031E 2
2.2 50.8 34.9 12.3 (65) (1.92) 473 330 322 295 279 Solder Flare 81 93
3 21/4 17/16 576 80 2.37 185/8 14 1423/32 115/8 11 11/8 5/8 200 227
LAH - 032E 2
2.2 57.2 36.5 16.3 (75) (2.22) 473 356 374 295 279 Solder Flare 91 103
3 23/8 17/16 641 80 2.37 185/8 14 1423/32 115/8 11 11/8 5/8 200 227
LALA- 032E 2
2.2 60.3 36.5 18.1 (75) (2.22) 473 356 374 295 279 Solder Flare 91 103
3 27/16 17/16 675 80 2.37 185/8 14 1423/32 115/8 11 11/8 5/8 198 225
LAC - 032E 2
2.2 61.9 36.5 19.1 (75) (2.22) 473 356 374 295 279 Solder Flare 90 102

72
HFC CONVENTIONAL COMPRESSORS

ELECTRICAL SPECIFICATIONS

CAV CAZ TAC TAD TAE TAU

200/220-1-50 220/240-1-50 200/220-3-50 380/400-3-50 500-3-50 200-3-50
208/230-1-60 208/230-3-60 460-3-60 575-3-60 200-3-60

RLA LRA RLA LRA RLA LRA RLA LRA RLA LRA RLA LRA

9.6 55.0 6.8 35.0 5.0 35.5

6.6 50.0 3.4 25.0

6.8 50.0

7.2 51.0

6.8 46.0

10.6 55.0

10.4 58.0

14.7 102.0 7.4 50.0 3.9 26.6 3.1 20.0

10.0 82.0 5.1 41.0

12.8 112.0 6.0 56.0 4.1 30.0

12.6 112.0 6.2 56.0

12.8 112.0 6.0 56.0

73
HFC CONVENTIONAL COMPRESSORS

REFRIGERANT COOLED MECHANICAL SPECIFICATIONS

Oil Charge Mounting Center

74
HFC CONVENTIONAL COMPRESSORS

ELECTRICAL SPECIFICATIONS

TAC TAD TAE

TFC TFD 500-3-50
200/220-3-50 380/400-3-50 575-3-60
208/230-3-60 460-3-60

RLA LRA RLA LRA RLA LRA

TAC
8.8 46.0 3.1 20.0
TAC TAD
12.4 82.0 5.8 41.0 5.2 30.0
TAC TAD
14.2 82.0 6.3 41.0
TFC TFD
16.3 82.0 8.4 41.0
TFC TFD
21.8 141.0 9.0 62.5

75
HFC CONVENTIONAL COMPRESSORS

DIMENSIONS AND PHOTOGRAPHS

HA
F
A
M
I
L
Y

Model HAJB-005E Shown

KA
F
A
M
I
L
Y

Model KATA-015E Shown

EA
F
A
M
I
L
Y

Model EADA-020E Shown

3A
F
A
M
I
L
Y

Model 3ABA-031E Shown

Dimensions shown are inches (millimeters).

76
HFC CONVENTIONAL COMPRESSORS

DIMENSIONS AND PHOTOGRAPHS

LA
F
A
M
I
L
Y

Model LAHA-032E Shown

ER
F
A
M
I
L
Y

Model ERFA-031E Shown

3R
F
A
M
I
L
Y

Model 3RAA-031E Shown

NR
F
A
M
I
L
Y

Model NRD1-040E Shown

Dimensions shown are inches (millimeters).

77
HFC CONVENTIONAL COMPRESSORS

APPLICATION INFORMATION
RATING CONDITIONS USED IN THIS BOOK
Refrigerant R404A / R407A / R507
Evaporating Temperature This book does not specifically define the operating limits of the compressors.
Condensing Temperature See individual specification sheets for exact application capability.
Return Gas Temperature 65°F
18.3°C
Ambient Temperature 95°F
35°C
Liquid Subcooling 0°F
0°C
Superheat Varies

APPLICATION REQUIREMENTS
• All Copelametic compressors require some form of motor • The nominal rotational speeds of the HFC Copelametic
cooling, regardless of the operating conditions. It is Conventional compressors are:
important to note that refrigerant-cooled models when • 50 Hertz 1450 RPM.
operating at evaporating temperatures of 0°F (–17.8°C)
or lower, require additional motor and cylinder head • 60 Hertz 1750 RPM.
cooling. This can be accomplished by the use of an • Dimensions in this brochure include the terminal box and
external fan assembly available from Emerson Climate service valves mounted. Height is from the bottom plate
Technologies. See Application Bulletin AE 4-1135 for bolts and does not include mounting parts.
complete details and allow for extra height to install the
fan to the top of the compressor. • Mineral oils are not suitable as lubricants for HFC
Conventional Compressors due to insufficient lubricity
• Oil Pump Description and miscibility. After screening numerous synthetic
• Models H, K, E, 3, L. Oil pump is a low pressure pump. lubricants, Emerson Climate Technologies has selected a
No oil pressure control is needed. modified pentaerythritol ester oil (POE) MOBIL EAL
ARCTIC 22 CC or ICI EMKARATE RL 32 CF. Other
• Model N. Oil pump is Sentronic high pressure oil pump. lubricants are being evaluated. Refer to Application
• An oil pressure safety control is required on every Engineering Bulletin 17-1248 for a list of all approved
Copelametic compressor equipped with a high pressure lubricants.
oil pump. Approved controls provide low cost, safe
protection against damage from loss of lubrication. These • Ester lubricants have the characteristic of quickly
absorbing moisture from the ambient surroundings. Such
can be supplied by Emerson Climate Technologies and lubricants absorb moisture faster and in greater quantity
should be listed separately on your purchase orders. than conventional mineral oils. Since moisture levels
There are two types of control available, our new greater than 100 ppm will result in system corrosion and
“Sentronic” Control offering improved reliability and ultimate failure, it is imperative that compressors,
accuracy (see next paragraph for details) and the components, containers, and the entire system be kept
conventional capillary tube type control which can be sealed as much as possible. Lubricants will be packaged
ordered by using Part Number 998-0700-00. For further in specially designed, sealed containers. After opening,
information, see Application Bulletin AE 8-1095. all the lubricant in a container should be used at once
• Emerson Climate Technologies introduces a new era in since it will readily absorb moisture if left exposed to the
oil pressure controls with the Sentronic Oil Pressure ambient. Any unused lubricant should be properly
Control System. The Sentronic electronic control system disposed of. Similarly, work on systems and compressors
eliminates capillary tubes used on electro-mechanical must be carried out with the open time as short as
systems to sense oil pressure. The new system uses a possible. Leaving the system or compressor open during
pressure transducer within the oil pump that produces an breaks or overnight must be avoided!
electrical signal to the control module. If the oil pressure
drops below acceptable limits for a period of two minutes • As received, the POE lubricant will be clear or straw
colored. After use, it may acquire a darker color. This
the control module cuts power to the compressor and does not indicate a problem as the darker color merely
stops it. The Sentronic offers a new and more reliable reflects the activity of the lubricant’s protective additive.
solution to capillary leaks. To order the Sentronic Oil
Pressure Control use part number 585-1036-00. For • Due to the higher operating pressures of R407A and
instructions refer to Application Bulletin AE 8-1275. R507, single phase models using these refrigerants may
experience slightly higher minimum operating voltages.
The Sentronic is only functional when used with our new
oil pump that has a machined port for the Sentronic
sensor. This oil pump is standard on all Copelametic
compressors using high pressure positive displacement
oil pumps.

78
HFC CONVENTIONAL COMPRESSORS

APPLICATION INFORMATION
ELECTRICAL APPLICATION INFORMATION APPLICATION OPTIONS

• Rated load amps is the value used for contactor and • Use bill of material number 200 for standard
other electrical component selection. It is calculated compressors. This bill of material includes oil charge,
by dividing the maximum continuous current that the mounting parts, standard service valves, overload
compressor draws under the condition of maximum protectors, terminal box covers and, where applicable,
load operation and the lowest operating voltage by running capacitors, starting capacitors and relays. Oil
1.4. See application Bulletin AE 9-1154 for a detailed pressure safety controls, crankcase heaters,
explanation. contactors, and high-low pressure controls, when
required, should be ordered with compressors but
• Refer to the Electrical Handbook, Form 6400, for listed separately on the purchase order.
wiring diagrams.
• Crankcase heaters are required on any refrigeration
system where the compressor is exposed to cold
ambient temperatures and on all split air conditioning
systems. As the refrigerant charge increases, the
start-up problems associated with vapor refrigerant in
liquid oil becomes more critical. The crankcase heater
will minimize refrigerant migration to the crankcase
during periods when the compressor is not operating
and will greatly reduce liquid slugging, loss of oil and
compressor damage. Please refer to Application
Bulletins AE 4-1166, AE 17-1238, and AE 22-1182 for
additional information.
• Airand water cooled condensing units are available
from Emerson Climate Technologies that contain the
compressors listed in this section.
• TheH, K, EA and 3A families can be converted to
water cooled with a factory installed copper water coil
wrapped around the compressor body.

UNITS CONVERSION CHART

BTUH x .252 = KCALH

79
HFC CONVENTIONAL COMPRESSORS

APPLICATION INFORMATION
REFRIGERANT CHANGEOVER GUIDELINES
• Emerson Climate Technologies does not advocate the • Compacted bead type driers can use XH6 or XH9
wholesale changeover of CFC refrigerants to HCFCs or HFCs. molecular sieve material such as found in the ALCO EK or
If a system is not leaking refrigerant to the atmosphere, and is EKH series.
operating properly, there is no technical reason to replace the
CFC refrigerant. • If a loose fill type drier is to be used, XH9 molecular sieve
is required.
• Retrofittingsystems that employ compressors manufactured
• Before starting the changeover, it is suggested that at least the
prior to 1973 is not recommended. This is due to the different
materials used in motor insulation that have not been evaluated following items be ready:
for compatibility with the new refrigerants and lubricants. 1. Safety glasses
2. Gloves
• The lubricant recommended by Emerson Climate Technologies 3. Refrigerant service gauges
for use with R404A / R407A / R507 is a Polyol Ester (POE),
either Mobil EAL™ Arctic 22 CC or ICI EMKARATE™ RL 32 CF. 4. Electronic thermometer
These are the only POE lubricants approved for use in 5. Vacuum pump capable of pulling 250 microns
Copeland® brand compressors and are available from all 6. Thermocouple micron gauge
authorized Emerson Climate Technologies wholesalers. The 7. Leak detector
use of any other POE lubricant may void the compressor
warranty. 8. Refrigerant recovery unit including refrigerant cylinder
9. Proper container for removed lubricant
• Mineral oil lubricants, such as 3GS, must not be used as the 10. New liquid control device
compressor lubricant with R404A / R407A / R507.
11. Replacement liquid line filter-drier(s)
• It is important that the system contain not more than 5% 12. New POE lubricant, Mobil EAL Arctic 22 CC / ICI
residual mineral oil. More than 5% may contribute to premature EMKARATE RL 32 CF
compressor failure and or system capacity short-fall. 13. Pressure temperature chart for new refrigerant
• Filter-driers must be changed at the time of conversion. This is 14. New HFC refrigerant
proper air conditioning / refrigeration practice.
• Use only Emerson Climate Technologies approved refrigerants
• The recommended drier for use with all HFC refrigerants and lubricants in the manner prescribed by Emerson Climate
is Alco UltraFlow. Technologies. In some circumstances, other refrigerants and
lubricants may be dangerous and could cause fires, explosions
• Solid core driers such as ALCO ADK are compatible with or electrical shorting. Contact Emerson Climate Technologies
R502 and R404A. for more information.

SPECIFIC REFRIGERANT CONSIDERATIONS

• Because mineral oils are not miscible with R404A / require the addition of a pressure relief valve on the
R407A / R507, they may log in the evaporator resulting in compressor crankcase, set at a maximum of 375 psig (26.4
system capacity loss. It is for this reason that the flushing kg/cm 2) to adequately protect the compressor from the
process must be done with R502 in the system. possibility of excessive pressure. Pressure relief valves can be
purchased from your authorized Emerson Climate
• R404A / R407A / R507 can be used in either low or medium Technologies wholesaler as part number 998-0051-02.
temperature systems. These HFC refrigerants should not be
mixed with any other refrigerant or with each other. • Systems that use a low pressure controller to maintain space
temperature may need to have the cut-in and cut-out points
• The expansion valve will not need to be changed. The existing changed. Although R404A and R407A do exhibit “glide,” the
R502 valve when used with these HFC refrigerants will have average evaporator or condenser temperature is within 0.5°F
virtually the same capacity; however, it may be necessary to (0.28°C) of the saturated vapor temperature; therefore no
adjust the superheat. correction is required.
• Pressure regulators such as EPR valves may have to be reset. • Systems using R404A and R407A should have approximately
Contact the EPR manufacturer for the correct settings. the same system pressure drop as with R502. Check with the
• R404A / R407A / R507 exhibit higher pressures than R502 at manufacturer of any pressure regulators and pilot operated
solenoid valves used in the system to be sure that they will
normal condensing temperatures. This may require that the
high pressure safety controls be reset in order to operate as operate properly.
intended.
• For the R502 to HFC complete changeover procedure please
• The higher pressure characteristics exhibited by R404A / see Bulletin 94-15.
R407A / R507 will in some cases exceed the industry accepted
safety factors on the compressor crankcase (low side). This will

80
HFC CONVENTIONAL COMPRESSORS

APPLICATION INFORMATION
APPLICATION BULLETINS
Emerson Climate Technologies has compiled a book of compressor Application Bulletins. Please see the following bulletins, from
the book, for more HFC Conventional Copelametic compressor application information as entitled below:

Location of Pressure Ports . . . . . . . . . . . . AE 4-1094 Parallel Compressor Operation . . . . . . . . . AE 17-1235

Mounting Parts . . . . . . . . . . . . . . . . . . AE 4-1111 Application of Immersion Type
Crankcase Heaters. . . . . . . . . . . . . . AE 17-1238
Cooling Requirements . . . . . . . . . . . . . . AE 4-1135
System Design for Bulk Milk Tank
Oil Pumps . . . . . . . . . . . . . . . . . . . . AE 4-1166 Refrigeration . . . . . . . . . . . . . . . . . AE 17-1242
Discharge Line Mufflers . . . . . . . . . . . . . . AE 4-1181 Air to Air Heat Pump System Design . . . . . . . AE 17-1243
Bolt Torque . . . . . . . . . . . . . . . . . . . . AE 4-1219 Refrigeration Oils . . . . . . . . . . . . . . . . AE 17-1248
U.L. and C.S.A. File Data . . . . . . . . . . . . . AE 4-1255 Design Considerations for High Ambient
Motor Horsepower versus Conditions . . . . . . . . . . . . . . . . . . AE 17-1251
Compressor Efficiency. . . . . . . . . . . . . AE 4-1274 Design Considerations for Heat
Oil Charges. . . . . . . . . . . . . . . . . . . . AE 4-1281 Reclaim Systems . . . . . . . . . . . . . . AE 17-1252
Oil Pressure Safety Controls . . . . . . . . . . . AE 8-1095 System Design for Container Refrigeration . . . . AE 17-1257
Sentronic – Electronic Oil Pressure Control . . . . AE 8-1275 Compressor Overheating . . . . . . . . . . . . AE 17-1260
Nameplate Amperage Rating . . . . . . . . . . . AE 9-1154 Compressor Selection for Mobile or Transport
Applications . . . . . . . . . . . . . . . . . AE 17-1261
Single Phase Motors – Frequent Causes
of Failure . . . . . . . . . . . . . . . . . . . AE 9-1209 Compressor Short Cycling . . . . . . . . . . . . AE 17-1262
Nameplate Voltages . . . . . . . . . . . . . . . AE 9-1228 Air to Water Heat Pump Cycles . . . . . . . . . AE 17-1263
Power Factor Correction With Capacitors . . . . . AE 9-1249 Compression Ratio as it Affects Compressor
Reliability . . . . . . . . . . . . . . . . . . AE 17-1268
Maximum Continuous Current Rating . . . . . . . AE 9-1250
Oil Additives . . . . . . . . . . . . . . . . . . . AE 17-1282
Effect of Electrical Components on Motor
Protection . . . . . . . . . . . . . . . . . . AE 10-1187 Switching Refrigerants in Field Installations . . . AE 17-1284
Recommended Contactor Selection and Transport Refrigeration Manual . . . . . . . . . AE 20-1152
System Design for Three Phase Low Limit Pressure Controls for Low
Motor Protection . . . . . . . . . . . . . . . AE 10-1244 Temperature Truck Applications. . . . . . . . AE 20-1197
Copeland Supplied Run Capacitors . . . . . . . AE 10-1272 Hot Gas Bypass Systems . . . . . . . . . . . . AE 21-1160
Suction Accumulators . . . . . . . . . . . . . . AE 11-1147 Liquid Refrigerant Control . . . . . . . . . . . . AE 22-1182
Suction Accumulators for Heat Pump Off Cycle Motor Heat for Liquid Refrigerant
Applications . . . . . . . . . . . . . . . . . AE 11-1247 Migration Control . . . . . . . . . . . . . . . AE 22-1230
Effect of Defrost Control on Compressor Recommended Control Circuits for Liquid
Operation . . . . . . . . . . . . . . . . . . AE 17-1195 Refrigerant Control . . . . . . . . . . . . . AE 23-1221
Design Considerations for Refrigerant System Cleaning . . . . . . . . . . . . . . . . AE 24-1105
Receivers . . . . . . . . . . . . . . . . . . AE 17-1212
Air Cycle Testing . . . . . . . . . . . . . . . . AE 25-1068
High Pressure Controls . . . . . . . . . . . . . AE 17-1214
Safe Handling of Compressed Gases . . . . . . AE 25-1177
Non-Standard Applications . . . . . . . . . . . . AE 17-1233
Use of Reclaimed Refrigerant . . . . . . . . . . AE 25-1290
Low Ambient Operation . . . . . . . . . . . . . AE 17-1234

81
HFC CONVENTIONAL COMPRESSORS

COMPRESSOR NOMENCLATURE
Product
Variations
Compressor Motor Type Bill of Material numbers will be
Phase Motor Type Code assigned as follows:
Compressor Model Type Single Capacitor run, capacitor start C Number –100 is standard compressor
used in Copeland® brand products
Code Description
Single Induction run, capacitor start I condensing units.
A Air Cooled
Number –200 indicates a standard
R Refrigerant Cooled Three Miscellaneous three phase, T
compressor.
single voltage three lead
W Water Cooled Numbers –201 through 299 will be
assigned for all other variations of a given
model.

XXXX — XXXX — XXX — XXX

Compressor
Compressor Motor Rating
Family Series
Electrical Codes
Either a Nominal HP kW Code Compressor Motor Protection 50HZ 60HZ Code
number or a .33 .25 003 Type Code — 115-1 A
letter
established .50 .37 005
External inherent protection – A — 230-1 B
for each .50 .37 006 One protector, use with
product contactor (single or three phase). 200/220-3 208/230-3 C
.75 .56 007
model. 380/400-3 460-3 D
1.0 .75 010 Internal inherent protection – F
1.0 .75 011 One protector, use with 500-3 575-3 E
contactor (three phase).
1.5 1.1 015 230-1 — G
Displacement
and 1.5 1.1 016 200-3 200-3 U
Valve Plate 2 1.5 020 200/220-1 208/230-1 V
A letter only, 2 1.5 021 220/240-1 — Z
arbitrarily
assigned for 3 2.2 031
each different 3 2.2 032
displacement 4 3.0 040
and valve plate
combination
within any one
family series.

Model
Variations Compressor Oil Type
A number or Code Description
letter arbitrarily E Polyol
assigned to Ester Oil
indicate major
variations
within any one
family series.

82
Copeland Discus™
Compressors

COPELAND DISCUS™

Copeland Discus™ valve design increases capacity up to 25 percent

while saving up to 16 percent in energy costs.

83
COPELAND DISCUS™ COMPRESSORS

FEATURES DISCUS COMPRESSOR STORY

The Copelametic “Discus” semi-hermetic compressor
• Wide 50 and 60 Hertz Selection Range was developed to meet changing semi-hermetic market
3 to 120 Horsepower needs and higher efficiency requirements in commercial
2.2 to 89.5 Kilowatts refrigeration and air conditioning. The patented “Discus”
concept has enabled the recognized standard of the
industry – the Copelametic semi-hermetic – to set new
• Efficient Energy Saving Discus Valve Design levels of performance and reliability criteria. The role of
the “Discus” in effectively saving energy and providing
• Proven Copeland ®
brand products Dependability significant operating cost savings for the user is
established beyond question.
• Extensive Selection of Models for Commercial The unique “Discus” valve design increases
Refrigeration, Air Conditioning and Heat Pump Duty capacities up to 25 percent by minimizing re-expansion
gas and improved volumetric pumping efficiency. The
• Rugged, Compact Construction for Heavy-Duty Usage result is a savings of up to 16 percent in energy costs
over conventional compressors.
• Easily Accessible for Maintenance The Copelametic “Discus” compressor is totally
interchangeable with existing Copelametic
• Wide Voltage Selection compressors and is completely compatible with
conventional compressors in the same system. In
addition, as part of our response to the CFC ozone
• Full Maximum Load Rundown Capability depletion issue these compressors operate at an
extended R22 medium temperature range, and with
• Motor Protection on All Models Demand Cooling, operate at the R22 low temperature
range.
• Oil Sight Glass on All Models Copeland Discus™ compressors in this section of
the catalog are found in the following order:
• “Sentronic” Compatible Oil Pump Included on All • Refrigerant Cooled
Models
• Tandem
• Capacity Control and Tandem Models Available • Capacity Control
• Capacity Control Tandem
• More R22 Application Range Including Demand Refrigerant Cooled refers to the type of compressor
Cool ing R22 Low Temperature Compressors motor cooling. Tandem compressors are those
produced when two single compressors are bolted
together to make one large compressor. In order to
regulate the output of the compressor, Capacity Control
compressors can be used as shown in their respective
pages.
In the pages that follow please find the technical
details for our full line of Copeland Discus™
compressors.

85
COPELAND DISCUS™ COMPRESSORS

BTUS / HOUR x 1000

50 HERTZ CAPACITY KCALS / HOUR x 1000
WATTS x 1000

REFRIGERANT COOLED R12 R22

CFH CONDENSING EVAPORATING TEMPERATURE °F/°C
HP m 3/hr TEMPERATURE
MODEL 55 45 35 25 15 5 0 –5 – 10 – 20 – 30 – 40 55 45 35
kW
50HZ °F °C 12.8 7.2 1.7 – 3.9 – 9.4 – 15 – 17.8 – 20.6 – 23.3 – 28.9 – 34.4 – 40 12.8 7.2 1.7
59.3 48.8 39.8 32.1 25.3 19.5 17.3 15.0
100 37.8 14.9 12.3 10.0 8.1 6.4 4.9 4.4 3.8
2DF- 0300 17.4 14.3 11.7 9.4 7.4 5.7 5.1 4.4
3 749
(DC)
2.2 21.2 47.6 38.9 31.7 25.4 19.9 15.4 13.7 11.9
2DF3F16K0 130 54.4 12.0 9.8 8.0 6.4 5.0 3.9 3.5 3.0
13.9 11.4 9.3 7.4 5.8 4.5 4.0 3.5

100 37.8
2DL-0400 4 835
(DC) 3.0 23.6
2DL3F20K0
130 54.4

78.1 63.8 51.3

2DC- 0500 100 37.8 19.7 16.1 12.9
(DC) 5 593 22.9 18.7 15.0
(LA) 3.7 16.8 64.1 51.6 40.7
2DC3R53K0 130 54.4 16.2 13.0 10.3
18.8 15.1 11.9
90.4 74.7 60.3
2DD-0500 100 37.8 22.8 18.8 15.2
4 682 26.5 21.9 17.7
(RG)
3.0 19.3 74.5 60.7 48.2
2DD3R63K0
130 54.4 18.8 15.3 12.1
21.8 17.8 14.1

2DF- 0500 5 100 37.8

749
(DC)
(LV) 3.7 21.2
130 54.4

74.7 61.2 49.8 40.1 31.8 24.8 22.0 19.1

100 37.8 18.8 15.4 12.5 10.1 8.0 6.2 5.5 4.8
2DA- 0500 5 940 21.9 17.9 14.6 11.7 9.3 7.3 6.4 5.6
2DA3R58K0 3.7 26.6 59.6 48.8 39.7 31.9 25.2 19.7 17.5 15.2
130 54.4 15.0 12.3 10.0 8.0 6.4 5.0 4.4 3.8
17.5 14.3 11.6 9.3 7.4 5.8 5.1 4.5
42.8 34.2 26.7 23.5 20.7
100 37.8 10.8 8.6 6.7 5.9 5.2
2DB- 0500 5 987 12.5 10.0 7.8 6.9 6.1
2DB3R61K0 3.7 27.9 34.4 27.0 21.2 18.8 16.4
130 54.4 8.7 6.8 5.3 4.7 4.1
10.1 7.9 6.2 6.0 4.8
45.7 36.5 29.0 25.4 22.4 19.3 14.3 10.1 6.7
100 37.8 11.5 9.2 7.3 6.4 5.6 4.9 3.6 2.5 1.7
3DAA0500 5 1135 13.4 10.7 8.5 7.4 6.6 5.7 4.2 3.0 2.0
3DA3F18K0 3.7 32.1 37.2 29.4 22.9 19.8 17.2 14.6 10.3 6.7 3.1
130 54.4 9.4 7.4 5.8 5.0 4.3 3.7 2.6 1.7 .8
10.9 8.6 6.7 5.8 5.0 4.3 3.0 2.0 .9
32.6 28.6 25.0 18.7 13.4 9.1
100 37.8 8.2 7.2 6.3 4.7 3.4 2.3
3DBA0500 5 1338 9.6 8.4 7.3 5.5 3.9 2.7
3DB3F22K0 3.7 37.9 25.6 22.3 19.2 13.9 9.5 5.8
130 54.4 6.5 5.6 4.8 3.5 2.4 1.5
8.0 6.5 5.6 4.1 2.8 1.7

100 37.8
2DA- 0600
5 940
(DC)
3.7 26.6
2DA3F23K0 130 54.4

(DC) In grey shaded area the maximum return gas is 65°F (18.3°C) and both a Demand Cooling kit and vertical cooling fans are required.
(LA) Use a “J” in the fourth digit of model number for R22LT.
(RG) In grey shaded area the maximum return gas temperature is 50°F (10°C) and vertical cooling fan is required.
(LV) Limited voltage. Available only in 200 volt electrical.
86
COPELAND DISCUS™ COMPRESSORS

BTUS / HOUR x 1000

CAPACITY KCALS / HOUR x 1000
WATTS x 1000

R22 R502
EVAPORATING TEMPERATURE °F/°C
25 15 5 0 –5 – 10 – 20 – 30 – 40 45 35 25 15 5 0 –5 – 10 – 20 – 30 – 40
– 3.9 – 9.4 – 15 – 17.8 – 20.6 – 23.3 – 28.9 – 34.4 – 40 7.2 1.7 – 3.9 – 9.4 – 15 – 17.8 – 20.6 – 23.3 – 28.9 – 34.4 – 40
26.6 23.0 19.7 14.0 9.6 6.3 29.6 26.2 22.8 16.6 11.5 8.0
6.7 5.8 5.0 3.5 2.4 1.6 7.5 6.6 5.7 4.2 2.9 2.0
7.8 6.7 5.8 4.1 2.8 1.8 8.7 7.7 6.7 4.9 3.4 2.3
19.7 16.7 13.9 9.3 5.9 3.7 20.9 18.0 15.2 10.2 6.4 4.3
5.0 4.2 3.5 2.3 1.5 .9 5.3 4.5 3.8 2.6 1.6 1.1
5.8 4.9 4.1 2.7 1.7 1.1 6.1 5.3 4.5 3.0 1.9 1.3
30.9 27.1 23.4 16.5 10.8 6.9 34.0 29.9 26.1 19.4 13.9 9.7
7.8 6.8 5.9 4.2 2.7 1.7 8.6 7.5 6.6 4.9 3.5 2.4
9.1 7.9 6.9 4.8 3.2 2.0 10.0 8.8 7.6 5.7 4.1 2.8
23.1 19.9 16.8 11.1 6.6 3.7 25.3 22.1 19.1 13.8 9.4 6.0
5.8 5.0 4.2 2.8 1.7 .9 6.4 5.6 4.8 3.5 2.4 1.5
6.8 5.8 4.9 3.3 1.9 1.1 7.4 6.5 5.6 4.0 2.8 1.8
39.6 30.9 23.4 20.1 17.0 14.1 11.2 8.8 6.5 61.9 50.4 40.7 32.5 25.4 22.2 19.1
10.0 7.8 5.9 5.1 4.3 3.6 2.8 2.2 1.6 15.6 12.7 10.3 8.2 6.4 5.6 4.8
11.6 9.1 6.9 5.9 5.0 4.1 3.3 2.6 1.9 18.1 14.8 11.9 9.5 7.4 7.0 5.6
30.4 23.1 16.7 14.5 12.2 10.2 8.2 6.4 4.7 46.1 37.4 30.1 24.0 18.6 16.2 13.8
7.7 5.8 4.2 3.7 3.1 2.6 2.1 1.6 1.2 11.6 9.4 7.6 6.0 4.7 4.1 3.5
8.9 6.8 4.9 4.2 3.6 3.0 2.4 1.9 1.4 14.0 11.0 8.8 7.0 5.4 4.7 4.0
46.9 36.9 28.2 24.3 20.7 17.3 75.4 61.2 49.2 39.2 30.8 27.1 23.7
11.8 9.3 7.1 6.1 5.2 4.4 19.0 15.4 12.4 9.9 7.8 6.8 6.0
13.7 10.8 8.3 7.1 6.1 5.1 22.1 17.9 14.4 11.5 9.0 7.9 6.9
36.5 28.1 20.7 54.9 44.6 36.0 28.7 22.4 19.6 16.9
9.2 7.1 5.2 — — — 13.8 11.2 9.1 7.2 5.6 4.9 4.3
10.7 8.2 6.1 16.1 13.1 11.0 8.4 6.6 5.7 5.0
44.4 37.2 30.1 26.6 23.0 19.7 14.0 9.6 6.3
11.2 9.4 7.6 6.7 5.8 5.0 3.5 2.4 1.6
13.0 10.9 8.8 7.8 6.7 5.8 4.1 2.8 1.8
32.2 27.0 21.8 19.7 16.7 13.9 9.3 5.9 3.7
8.1 6.8 5.5 5.0 4.2 3.5 2.3 1.5 .9
9.4 7.9 6.4 5.8 4.9 4.1 2.7 1.7 1.1

35.9 31.0 26.7 19.6 13.8 8.8 39.0 34.4 30.2 22.7 16.5 11.8
9.0 7.8 6.7 4.9 3.5 2.2 9.8 8.7 7.6 5.7 4.2 3.0
10.1 9.1 7.8 5.7 4.0 2.6 11.4 10.1 8.8 6.7 4.8 3.5
26.6 22.3 18.6 12.9 8.6 5.2 30.0 26.1 22.5 16.1 11.1 7.4
6.7 5.6 4.7 3.3 2.2 1.3 7.6 6.6 5.7 4.1 2.8 1.9
7.8 6.5 5.4 3.8 2.5 1.5 8.8 7.6 6.6 4.7 3.3 2.2

87
COPELAND DISCUS™ COMPRESSORS

BTUS / HOUR x 1000

50 HERTZ CAPACITY KCALS / HOUR x 1000
WATTS x 1000

REFRIGERANT COOLED R12 R22

100 37.8
2DB- 0600 6 987
(DC) 4.5 27.9
2DB3F25K0 130 54.4

100 37.8
3DAA0600
6 1135
(DC)
4.5 32.1
3DA3F28K0
130 54.4

113.0 92.4 74.6

2DL-0750 100 37.8 28.5 23.3 18.8
7.5 835 33.1 27.1 21.9
(RG)
5.6 23.6 93.5 75.7 60.6
2DL3R78K0
130 54.4 23.6 19.1 15.3
27.4 22.2 17.8
128.0 105.0 84.8
2DA- 0750 100 37.8 32.3 26.5 21.4
(DC) 7.5 940 37.5 30.8 24.8
(LA) 5.6 26.6 106.0 85.8 68.5
2DA3R89K0 130 54.4 26.7 21.6 17.3
31.1 25.1 20.1
93.3 76.4 61.9 49.4 38.8 29.8 26.0 22.2 153.0 126.0 103.0
3DAA0750 100 37.8 23.5 19.3 15.6 12.4 9.8 7.5 6.6 5.6 38.6 31.8 26.0
(AR) 7.5 1135 27.3 22.4 18.1 14.5 11.4 8.7 7.6 6.5 44.8 36.9 30.2
(DC) 5.6 32.1 76.3 61.8 49.4 38.8 29.8 22.1 19.0 15.8 128.0 105.0 85.0
3DA3R10M0 130 54.4 19.2 15.6 12.4 9.8 7.5 5.6 4.8 4.0 32.3 26.5 21.4
22.4 18.1 14.5 11.4 8.7 6.5 5.6 4.6 37.5 30.8 24.9
105.0 87.2 71.6 58.2 46.7 36.9 32.8 28.6
100 37.8 26.5 22.0 18.0 14.7 11.8 9.3 8.3 7.2
3DBA0750
7.5 1338 30.8 25.5 21.0 17.1 13.7 10.8 9.6 8.4
(DC)
5.6 37.9 86.2 71.2 58.2 47.0 37.4 29.2 25.8 22.3
3DB3F33K0
130 54.4 21.7 17.9 14.7 11.8 9.4 7.4 6.5 5.6
25.3 20.9 17.1 13.8 11.0 8.6 7.6 6.5
70.1 56.7 45.6 40.3 35.9 31.5 24.1 18.0 13.0
100 37.8 17.7 14.3 11.5 10.2 9.0 7.9 6.1 4.5 3.3
3DFA0750 7.5 1586 20.5 16.6 13.4 11.8 10.3 9.2 7.1 5.3 3.8
3DF3F26K0 5.6 44.9 57.2 46.0 36.7 32.3 28.6 24.8 18.6 13.5 9.3
130 54.4 14.4 11.6 9.2 8.1 7.2 6.2 4.7 3.4 2.3
16.8 13.5 10.8 9.5 8.4 7.3 5.4 4.0 2.7
74.4 59.8 47.6 42.3 37.2 32.5 24.4 17.6 12.0
100 37.8 18.7 15.1 12.0 10.7 9.4 8.2 6.1 4.4 3.0
3DSA0750 7.5 1762 21.8 17.5 13.9 12.4 10.9 9.5 7.1 5.2 3.5
3DS3F30K0 5.6 49.9 61.1 48.9 38.7 34.3 30.0 26.1 19.2 13.5 8.8
130 54.4 15.4 12.3 9.8 8.6 7.6 6.6 4.8 3.4 2.2
17.9 14.3 11.3 10.0 8.8 7.6 5.6 4.0 2.6
105.0 87.2 71.6 58.2 46.7 36.9 32.8 28.6 184.0 151.0 122.0
3DBA0900 100 37.8 26.5 22.0 18.0 14.7 11.8 9.3 8.3 7.2 46.4 38.1 30.7
(DC) 9 1338 30.8 25.5 21.0 17.1 13.7 10.8 9.6 8.4 53.9 44.2 35.7
(LV) 6.7 37.9 86.2 71.2 58.2 47.0 37.4 29.2 25.8 22.3 150.0 121.0 98.1
3DB3F27K0 130 54.4 21.7 17.9 14.7 11.8 9.4 7.4 6.5 5.6 37.8 30.5 24.7
25.3 20.9 17.1 13.8 11.0 8.6 7.6 6.5 44.0 35.5 28.7
(DC) In grey shaded area the maximum return gas is 65°F (18.3°C) and both a Demand Cooling kit and vertical cooling fan are required.
(RG) In grey shaded area the maximum return gas is 50°F (10°C) and vertical cooling fan is required.
(LA) Use a “J” in the fourth digit of model number for R22LT.
(AR) R22LT application requires TFU motor.
(LV) Limited voltage. Available only in 200 volt electrical.

88
COPELAND DISCUS™ COMPRESSORS

BTUS / HOUR x 1000

CAPACITY KCALS / HOUR x 1000
WATTS x 1000

R22 R502
EVAPORATING TEMPERATURE °F/°C
25 15 5 0 –5 – 10 – 20 – 30 – 40 45 35 25 15 5 0 –5 – 10 – 20 – 30 – 40
– 3.9 – 9.4 – 15 – 17.8 – 20.6 – 23.3 – 28.9 – 34.4 – 40 7.2 1.7 – 3.9 – 9.4 – 15 – 17.8 – 20.6 – 23.3 – 28.9 – 34.4 – 40
37.8 32.9 28.4 20.8 14.7 9.9 41.0 36.7 32.6 24.7 17.8 12.1
9.5 8.3 7.2 5.2 3.7 2.5 10.3 9.2 8.2 6.2 4.5 3.0
11.1 9.6 8.3 6.1 4.3 2.9 12.0 10.8 9.6 7.2 5.2 3.5
29.2 24.7 20.7 14.0 8.8 5.0 31.2 27.9 24.6 18.3 12.6 7.7
7.4 6.2 5.2 3.5 2.2 1.3 7.9 7.0 6.2 4.6 3.2 1.9
8.6 7.2 6.1 4.1 2.6 1.5 9.1 8.2 7.2 5.4 3.7 2.3
42.4 36.6 31.5 23.0 16.4 11.0 45.5 39.8 34.8 26.6 20.1 14.3
10.7 9.2 7.9 5.8 4.1 2.8 11.5 10.0 8.8 6.7 5.1 3.6
12.4 10.7 9.2 6.7 4.8 3.2 13.3 11.7 10.2 7.8 5.9 4.2
32.6 27.6 23.2 15.9 10.2 5.5 35.4 30.2 25.8 18.9 13.7 9.2
8.2 7.0 5.8 4.0 2.6 1.4 8.9 7.6 6.5 4.8 3.5 2.3
9.6 8.1 6.8 4.7 3.0 1.6 10.4 8.8 7.6 5.5 4.0 2.7
56.4 44.6 34.3 29.7 25.3 21.1 93.4 74.6 59.7 47.8 38.3 34.2 30.4
14.2 11.2 8.6 7.5 6.4 5.3 23.5 18.8 15.0 12.0 9.7 8.6 7.7
16.5 13.1 10.0 8.7 7.4 6.2 27.4 21.9 17.5 14.0 11.2 10.0 8.9
44.7 34.8 26.3 73.8 57.3 44.8 35.7 29.1 26.6 24.4
11.3 8.8 6.6 — — — 18.6 14.4 11.3 9.0 7.3 6.7 6.1
13.1 10.2 7.7 21.6 16.8 13.1 10.5 8.5 7.8 7.1
64.8 51.3 39.5 34.0 28.7 23.6 21.1 13.1 6.0 104.0 84.8 69.0 55.7 44.5 39.5 34.8
16.3 12.9 10.0 8.6 7.2 5.9 5.1 3.3 1.5 26.2 21.4 17.4 14.0 11.2 10.0 8.8
19.0 15.0 11.6 10.0 8.4 6.9 5.9 3.8 1.8 30.5 24.8 20.2 16.3 13.0 11.6 10.2
51.4 39.5 28.4 24.5 20.7 17.0 14.6 9.5 4.3 79.4 64.2 51.7 41.5 33.1 29.4 25.9
13.0 10.0 7.2 6.2 5.2 4.3 3.7 2.4 1.1 20.0 16.2 13.0 10.5 8.3 7.4 6.5
15.1 11.6 8.3 7.2 6.1 5.0 4.3 2.8 1.3 23.3 18.8 15.1 12.2 9.7 8.6 7.6
79.0 63.2 49.9 42.0 36.6 31.4 22.2 14.6 9.2 120.0 98.9 80.9 65.5 52.3 46.3 40.8 36.1 27.7 20.5 14.7
19.9 15.9 12.6 10.6 9.2 7.9 5.6 3.7 2.3 30.2 24.9 20.4 16.5 13.2 11.7 10.3 9.1 7.0 5.2 3.7
23.1 18.5 14.6 12.3 10.7 9.2 6.5 4.3 2.7 35.2 29.0 23.7 19.2 15.3 13.6 12.0 10.6 8.1 6.0 4.3
64.1 51.0 40.0 31.3 26.4 22.0 14.3 8.6 5.4 91.1 75.5 62.1 50.4 40.2 35.5 31.1 26.5 19.8 14.3 9.7
16.2 12.9 10.1 7.9 6.7 5.5 3.6 2.2 1.4 23.0 19.0 15.6 12.7 10.1 8.9 7.8 6.7 5.0 3.6 2.4
18.8 14.9 11.7 9.2 7.7 6.4 4.2 2.5 1.6 26.7 22.1 18.2 14.8 11.8 10.4 9.1 7.8 5.8 4.2 2.8
51.1 45.0 39.4 29.6 21.4 14.6 56.0 49.4 43.5 33.4 25.2 18.0
12.9 11.3 9.9 7.5 5.4 3.7 14.1 12.4 11.0 8.4 6.4 4.5
15.0 13.2 11.5 8.7 6.3 4.3 16.4 14.5 12.7 9.8 7.4 5.3
40.1 34.8 29.9 21.3 14.1 8.0 44.1 38.2 33.1 24.7 18.2 13.1
10.1 8.8 7.5 5.4 3.6 2.0 11.1 9.6 8.3 6.2 4.6 3.3
11.7 10.2 8.8 6.2 4.1 2.3 12.9 11.2 9.7 7.2 5.3 3.8

92.4 73.9 59.0 51.1 44.5 38.3 27.4 18.6 12.0 55.0 48.9 43.4 33.5 25.3 18.5
23.3 18.6 14.9 12.9 11.2 9.7 6.9 4.7 3.0 13.9 12.3 10.9 8.4 6.4 4.7
27.1 21.7 17.3 15.0 13.0 11.2 8.0 5.4 3.5 16.1 14.3 12.7 9.8 7.4 5.4
73.9 58.6 45.7 38.3 32.5 27.1 17.9 10.8 5.8 41.2 36.5 32.1 24.4 18.0 12.6
18.6 14.8 11.5 9.7 8.2 6.8 4.5 2.7 1.5 10.4 9.2 8.1 6.1 4.5 3.2
21.7 17.2 13.4 11.2 9.5 7.9 5.2 3.2 1.7 12.1 10.7 9.4 7.1 5.3 3.7

89
COPELAND DISCUS™ COMPRESSORS

BTUS / HOUR x 1000

50 HERTZ CAPACITY KCALS / HOUR x 1000
WATTS x 1000

REFRIGERANT COOLED R12 R22

CFH CONDENSING EVAPORATING TEMPERATURE °F/°C
HP m 3/hr
MODEL TEMPERATURE 55 45 35 25 15 5 0 –5 – 10 – 20 – 30 – 40 55 45 35
kW
50HZ °F °C 12.8 7.2 1.7 – 3.9 – 9.4 – 15 – 17.8 – 20.6 – 23.3 – 28.9 – 34.4 – 40 12.8 7.2 1.7
128.0 105.0 86.4 70.0 56.0 44.1 39.1 34.0
3DFA0900 100 37.8 32.3 26.5 21.8 17.6 14.1 11.1 9.9 8.6
9 1586 37.5 30.8 25.3 20.5 16.4 12.9 11.5 10.0
(DC)
6.7 44.9 104.0 86.2 70.5 56.9 45.3 35.4 31.3 27.1
3DF3F40K0 130 54.4 26.2 21.7 17.8 14.3 11.4 8.9 7.9 6.8
30.5 25.3 20.7 16.7 13.3 10.4 9.2 7.9
179.0 149.0 122.0
3DBA1000 100 37.8 45.1 37.5 30.7
10 1338 52.4 43.7 35.7
(RG)
7.5 37.9 151.0 124.0 101.0
3DB3R12M0 130 54.4 38.1 31.2 25.5
44.2 36.3 29.6
137.0 113.0 92.8 75.4 60.5 47.9 42.6 37.2
3DSA1000 100 37.8 34.5 28.5 23.4 19.0 15.2 12.1 10.7 9.4
10 1762 40.1 33.1 27.2 22.1 17.7 14.0 12.5 10.9
(DC)
7.5 49.9 113.0 93.5 76.6 62.0 49.6 38.9 34.4 29.9
3DS3F46K0 130 54.4 28.5 23.6 19.3 15.6 12.5 9.8 8.7 7.5
33.1 27.4 22.4 18.2 14.5 11.4 10.1 8.8
147.0 123.0 102.0 83.2 67.4 53.6 46.8 41.3 36.3 27.4 20.1 14.0
4DAA1000 100 37.8 37.0 31.0 25.7 21.0 17.0 13.5 11.8 10.4 9.1 6.9 5.1 3.5
10 1977 43.1 36.0 29.9 24.4 19.7 15.7 13.7 12.1 10.6 8.0 5.9 4.1
(DC)
7.5 56.0 122.0 102.0 83.3 67.3 53.8 42.0 38.3 33.5 29.1 21.4 14.9 9.6
4DAR12M0
130 54.4 30.7 25.7 21.0 17.0 13.6 10.6 9.7 8.4 7.3 5.4 3.8 2.4
35.7 29.9 24.4 19.7 15.8 12.3 11.2 9.8 8.5 6.3 4.4 2.8
147.0 123.0 102.0 83.2 67.4 53.6 46.8 41.3 36.3 27.4 20.1 14.0
4DAA1010 100 37.8 37.0 31.0 25.7 21.0 17.0 13.5 11.8 10.4 9.1 6.9 5.1 3.5
10 1977 43.1 36.0 29.9 24.4 19.7 15.7 13.7 12.1 10.6 8.0 5.9 4.1
(DC)
7.5 56.0 122.0 102.0 83.3 67.3 53.8 42.0 38.3 33.5 29.1 21.4 14.9 9.6
4DAF47K0
130 54.4 30.7 25.7 21.0 17.0 13.6 10.6 9.7 8.4 7.3 5.4 3.8 2.4
35.7 29.9 24.4 19.7 15.8 12.3 11.2 9.8 8.5 6.3 4.4 2.8
178.0 143.0
3DFA1200 100 37.8 44.9 36.0
12 1586 52.1 41.9
(RG)
9.0 44.9 144.0 116.0
3DF3R15M0 130 54.4 36.3 29.2
42.2 34.0
241.0 199.0 163.0
3DSA1500 130 54.4 60.7 50.1 41.1
15 1762 70.6 58.3 47.8
(DC)
11.2 49.9 200.0 164.0 134.0
3DS3R17M0
100 37.8 50.4 41.3 33.8
58.6 48.1 39.3
4DLA1500 100 37.8
(DC) 15 2499
(OC) 11.2 70.7
4DLF63K0 130 54.4

264.0 223.0 180.0

4DAA2000 100 37.8 66.5 56.2 45.4
(DC) 20 1977 77.4 65.3 52.7
(LA) 14.9 56.0 214.0 178.0 141.0
4DAR18M0 130 54.4 53.9 44.9 35.5
62.7 52.2 41.3
303.0 252.0 206.0
4DBA2200 100 37.8 76.4 63.5 51.9
22 2300 88.8 73.8 60.4
(RG)
16.4 65.1 249.0 205.0 165.0
4DBR20M0
130 54.4 62.7 51.7 41.6
73.0 60.1 48.3
4DTA2200 100 37.8
(DC) 22 2985
(OC) 16.4 84.5
4DTF76K0 130 54.4

(DC) In grey shaded area the maximum return gas is 65°F (18.3°C) and both a Demand Cooling kit and vertical cooling fan are required.
(RG) In grey shaded area the maximum return gas is 50°F (10°C) and vertical cooling fan is required.
(OC) Oil cooler and vertical cooling fan are standard on this model.
(LA) Use a “J” in the fourth digit of model number for R22LT.
90
COPELAND DISCUS™ COMPRESSORS

BTUS / HOUR x 1000

CAPACITY KCALS / HOUR x 1000
WATTS x 1000

R22 R502
EVAPORATING TEMPERATURE °F/°C
25 15 5 0 –5 – 10 – 20 – 30 – 40 45 35 25 15 5 0 –5 – 10 – 20 – 30 – 40
– 3.9 – 9.4 – 15 – 17.8 – 20.6 – 23.3 – 28.9 – 34.4 – 40 7.2 1.7 – 3.9 – 9.4 – 15 – 17.8 – 20.6 – 23.3 – 28.9 – 34.4 – 40
60.8 53.5 46.7 34.7 24.8 16.7 66.0 58.6 51.8 39.8 30.0 22.2
15.3 13.5 11.8 8.7 6.2 4.2 16.6 14.8 13.1 10.0 7.6 5.6
17.8 15.7 13.7 10.2 7.3 4.9 19.3 17.2 15.2 11.7 8.8 6.5
48.2 41.3 35.1 24.5 16.4 10.7 51.1 45.1 39.6 30.0 22.1 15.8
12.1 10.4 8.8 6.2 4.1 2.7 12.9 11.4 10.0 7.6 5.6 4.0
14.1 12.1 10.3 7.2 4.8 3.1 15.0 13.2 11.6 8.8 6.5 4.6
94.7 76.2 60.6 53.7 47.4 41.6 144.0 119.0 97.2 78.6 62.7 55.6 48.9
23.9 19.2 15.3 13.5 11.9 10.5 36.3 30.0 24.5 19.8 15.8 14.0 12.3
27.7 22.3 17.8 15.7 13.9 12.2 42.2 34.9 28.5 23.0 18.4 16.3 14.3
76.8 61.3 48.2 109.0 90.4 74.1 60.0 47.8 42.2 36.9
19.4 15.4 12.1 — — — 27.5 22.8 18.7 15.1 12.0 10.6 9.3
22.5 18.0 14.1 31.9 26.5 21.7 17.6 14.0 12.4 10.8
67.8 59.7 52.1 38.8 27.6 18.4 73.4 65.2 57.7 44.6 33.7 24.8
17.1 15.0 13.1 9.8 7.0 4.6 18.5 16.4 14.5 11.2 8.5 6.2
19.9 17.5 15.3 11.4 8.1 5.4 21.5 19.1 16.9 13.1 9.9 7.3
53.4 46.1 39.4 28.0 19.1 12.3 55.5 49.3 43.5 33.4 25.0 18.2
13.5 11.6 9.9 7.1 4.8 3.1 14.0 12.4 11.0 8.4 6.3 4.6
15.6 13.5 11.5 8.2 5.6 3.6 16.3 14.4 12.7 9.8 7.3 5.3
71.3 64.0 56.7 42.6 30.0 19.6 80.5 72.1 64.1 49.4 36.5 25.4
18.0 16.1 14.3 10.7 7.6 4.9 20.3 18.2 16.2 12.4 9.2 6.4
20.9 18.8 16.6 12.5 8.8 5.7 23.6 21.1 18.8 14.5 10.7 7.4
56.8 49.8 42.8 29.1 16.6 6.3 61.1 55.2 49.2 37.1 25.1 13.4
14.3 12.5 10.8 7.3 4.2 1.6 15.4 13.9 12.4 9.3 6.3 3.4
16.6 14.6 12.5 8.5 4.9 1.8 17.9 16.2 14.4 10.9 7.4 3.9
71.3 64.0 56.7 42.6 30.0 19.6 80.5 72.1 64.1 49.4 36.5 25.4
18.0 16.1 14.3 10.7 7.6 4.9 20.3 18.2 16.2 12.4 9.2 6.4
20.9 18.8 16.6 12.5 8.8 5.7 23.6 21.1 18.8 14.5 10.7 7.4
56.8 49.8 42.8 29.1 16.6 6.3 61.1 55.2 49.2 37.1 25.1 13.4
14.3 12.5 10.8 7.3 4.2 1.6 15.4 13.9 12.4 9.3 6.3 3.4
16.6 14.6 12.5 8.5 4.9 1.8 17.9 16.2 14.4 10.9 7.4 3.9
110.0 87.8 69.5 61.0 54.3 47.6
27.7 22.1 17.5 15.4 13.7 12.0
32.2 25.7 20.4 17.9 15.9 13.9
88.5 71.0
22.3 17.9 — — — —
25.9 20.8
124.0 99.0 78.3 69.1 60.7 53.0 38.9 27.7 18.4 190.0 157.0 129.0 105.0 84.4 75.1 66.4
31.2 24.9 19.7 17.4 15.3 13.4 9.8 7.0 4.6 47.9 39.6 32.5 26.5 21.3 18.9 16.7
36.3 29.0 22.9 20.2 17.8 15.5 11.4 8.1 5.4 55.7 46.0 37.8 30.8 24.7 22.0 19.5
101.0 81.6 64.7 52.6 45.3 38.7 27.6 18.8 11.9 145.0 120.0 98.8 80.5 64.6 57.4 50.4
25.5 20.6 16.3 13.3 11.4 9.8 7.0 4.7 3.0 36.5 30.2 24.9 20.3 16.3 14.5 12.7
29.6 23.9 19.0 15.4 13.3 11.3 8.1 5.5 3.5 42.5 35.2 28.9 23.6 18.9 16.8 14.8
94.5 83.5 73.3 55.1 39.8 27.6 102.0 90.4 79.9 61.8 47.1 35.1
23.8 21.0 18.5 13.9 10.0 7.0 25.7 22.8 20.1 15.6 11.9 8.8
27.7 24.5 21.5 16.1 11.7 8.1 29.9 26.5 23.4 18.1 13.8 10.3
71.8 63.0 54.7 39.5 26.4 15.4 76.9 68.5 60.8 46.8 34.5 23.1
18.1 15.9 13.8 10.0 6.7 3.9 19.4 17.3 15.3 11.8 8.7 5.8
21.0 18.5 16.0 11.6 7.7 4.5 22.5 20.1 17.8 13.7 10.1 6.8
132.0 104.0 80.6 70.7 61.7 53.6 40.8 30.0 19.6 219.0 178.0 143.0 115.0 91.0 81.0 72.1
33.3 26.2 20.3 17.8 15.5 13.5 10.3 7.6 4.9 55.2 44.9 36.0 29.0 22.9 20.4 18.2
38.7 30.5 23.6 20.7 18.1 15.7 12.0 8.8 5.7 64.2 52.2 41.9 33.7 26.7 23.7 21.1
106.0 83.4 60.8 52.8 46.6 40.4 29.1 16.6 6.3 162.0 131.0 106.0 84.3 66.7 59.1 52.3
26.7 21.0 15.3 13.3 11.7 10.2 7.3 4.2 1.6 40.8 33.0 26.7 21.2 16.8 14.9 13.2
31.1 24.4 17.8 15.5 13.7 11.8 8.5 4.9 1.8 47.5 38.4 31.1 24.7 19.5 17.3 15.3
154.0 123.0 92.0 76.5 63.0 54.5
38.8 31.0 23.2 19.3 15.9 13.7
45.1 36.0 27.0 22.4 18.5 16.0
123.0 97.1
31.0 24.5 — — — —
36.0 28.5
114.0 97.4 83.9 63.2 47.4 32.9 123.0 109.0 96.2 74.5 56.3 40.6
28.7 24.5 21.1 15.9 11.9 8.3 31.0 27.5 24.2 18.8 14.2 10.2
33.4 28.5 24.6 18.5 13.9 9.6 36.0 31.9 28.2 21.8 16.5 11.9
89.8 75.8 64.3 46.6 33.0 19.5 93.5 82.9 73.3 56.6 42.3 29.0
22.6 19.1 16.2 11.7 8.3 4.9 23.6 20.9 18.5 14.3 10.7 7.3
26.3 22.2 18.8 13.7 9.7 5.7 27.4 24.3 21.5 16.6 12.4 8.5

91
COPELAND DISCUS™ COMPRESSORS

BTUS / HOUR x 1000

50 HERTZ CAPACITY KCALS / HOUR x 1000
WATTS x 1000

REFRIGERANT COOLED R12 R22

CFH CONDENSING EVAPORATING TEMPERATURE °F/°C
HP m 3/hr
MODEL TEMPERATURE 55 45 35 25 15 5 0 –5 – 10 – 20 – 30 – 40 55 45 35
kW
50HZ °F °C 12.8 7.2 1.7 – 3.9 – 9.4 – 15 – 17.8 – 20.6 – 23.3 – 28.9 – 34.4 – 40 12.8 7.2 1.7
330.0 274.0 224.0
4DHA2500 100 37.8 83.2 69.0 56.4
25 2499
(RG) 96.7 80.3 65.6
18.7 70.7
4DHR22M0 274.0 226.0 184.0
130 54.4 69.0 57.0 46.4
80.3 66.2 53.9

6DLA2700 100 37.8

(DC) 27 3748
(OC) 20.1 106.1
6DLF93K0 130 54.4

392.0 325.0 267.0

4DJA3000 100 37.8 98.8 81.9 67.3
30 2985 114.9 95.2 78.2
(RG)
22.4 84.5 321.0 266.0 217.0
4DJR28M0 130 54.4 80.9 67.0 54.7
94.1 77.9 63.6
458.0 374.0 305.0
6DBA3000 100 37.8 115.0 94.2 76.9
30 3450 134.0 110.0 89.4
(RG)
22.4 97.7 361.0 299.0 247.0
6DBR32M0 130 54.4 91.0 75.3 62.2
106.0 87.6 72.4
6DTA3000
(DC) 100 37.8
30 4478
(DS)
22.4 126.8
(OC) 130 54.4
6DTF11M0
497.0 409.0 334.0
6DHA3500 130 54.4 125.0 103.0 84.2
35 3748 146.0 120.0 97.9
(RG)
26.1 106.1 407.0 333.0 271.0
6DHR35M0 100 37.8 103.0 83.9 68.3
119.0 97.6 79.4
533.0 437.0 359.0
100 37.8 134.0 110.0 90.5
6DGA3500 156.0 128.0 105.0
35 4129
(RG)
26.1 116.9 439.0 362.0 299.0
6DGR37M0 130 54.4 111.0 91.2 75.3
129.0 106.0 87.6
578.0 482.0 397.0
6DJ A4000 100 37.8 146.0 121.0 100.0
(DS) 40 4478 169.0 141.0 116.0
(RG) 29.8 126.8 477.0 394.0 322.0
6DJR40M0 130 54.4 120.0 99.3 81.1
140.0 115.0 94.3
707.0 579.0 470.0
8DP - 5000 100 37.8 178.0 146.0 118.0
50 5358 207.0 170.0 138.0
(DS)
37.3 151.7 580.0 475.0 385.0
8DPR56M0 130 54.4 146.0 120.0 97.0
170.0 139.0 113.0
820.0 671.0 543.0
100 37.8 207.0 169.0 137.0
8DS- 6000 240.0 197.0 159.0
60 6340
(DS)
44.8 179.5 666.0 546.0 442.0
8DSR67M0 130 54.4 168.0 138.0 111.0
195.0 160.0 130.0
(RG) In grey shaded area the maximum return gas is 50°F (10°C) and vertical cooling fan is required.
(DC) In grey shaded area the maximum return gas is 65°F (18.3°C) and both a Demand Cooling kit and vertical cooling fan are required.
(OC) Oil cooler and vertical cooling fan are standard on this model.
(DS) Deep oil sump is standard on this model.

92
COPELAND DISCUS™ COMPRESSORS

BTUS / HOUR x 1000

CAPACITY KCALS / HOUR x 1000
WATTS x 1000

R22 R502
EVAPORATING TEMPERATURE °F/°C
25 15 5 0 –5 – 10 – 20 – 30 – 40 45 35 25 15 5 0 –5 – 10 – 20 – 30 – 40
– 3.9 – 9.4 – 15 – 17.8 – 20.6 – 23.3 – 28.9 – 34.4 – 40 7.2 1.7 – 3.9 – 9.4 – 15 – 17.8 – 20.6 – 23.3 – 28.9 – 34.4 – 40
177.0 139.0 107.0 93.6 82.6 73.8 268.0 223.0 183.0 147.0 116.0 103.0 90.6
44.6 35.0 27.0 23.6 20.8 18.6 67.5 56.2 46.1 37.0 29.2 26.0 22.8
51.9 40.7 31.4 27.4 24.2 21.6 78.5 65.3 53.6 43.1 34.0 30.2 26.5
140.0 108.0 203.0 168.0 138.0 111.0 87.1 76.8 67.5
35.3 27.2 — — — — 51.2 42.3 34.8 28.0 21.9 19.4 17.0
41.0 31.6 59.5 49.2 40.4 32.5 25.5 22.5 19.8
140.0 125.0 110.0 81.8 57.7 37.9 150.0 133.0 118.0 92.3 70.5 50.7
35.3 31.5 27.7 20.6 14.5 9.6 37.8 33.5 29.7 23.3 17.8 12.8
41.0 36.6 32.2 24.0 16.9 11.1 44.0 39.0 34.6 27.0 20.7 14.9
111.0 97.3 84.3 59.9 38.0 18.9 116.0 102.0 90.2 69.2 51.3 34.5
28.0 24.5 21.2 15.1 9.6 4.8 29.2 25.7 22.7 17.4 12.9 8.7
32.5 28.5 24.7 17.6 11.1 5.5 34.0 29.9 26.4 20.3 15.0 10.1
209.0 165.0 129.0 113.0 98.8 86.5 316.0 261.0 214.0 174.0 140.0 124.0 110.0
52.7 41.6 32.5 28.5 24.9 21.8 79.6 65.8 53.9 43.8 35.3 31.2 27.7
61.2 48.3 37.8 33.1 28.9 25.3 92.6 76.5 62.7 51.0 41.0 36.3 32.2
166.0 131.0 241.0 198.0 162.0 131.0 105.0 94.1 83.7
41.8 33.0 — — — — 60.7 49.9 40.8 33.0 26.5 23.7 21.1
48.6 38.4 70.6 58.0 47.5 38.4 30.8 27.6 24.5
234.0 193.0 152.0 132.0 112.0 92.0
59.0 48.6 38.3 33.3 28.2 23.2
68.6 56.5 44.5 38.7 32.8 27.0
190.0 153.0
47.9 38.6 — — — —
55.7 44.8
162.0 142.0 125.0 94.4 69.1 46.8 174.0 152.0 134.0 104.0 81.1 61.1
40.8 35.8 31.5 23.8 17.4 11.8 43.8 38.3 33.8 26.2 20.4 15.4
47.5 41.6 36.6 27.7 20.2 13.7 51.0 44.5 39.3 30.5 23.8 17.9
125.0 110.0 95.5 70.7 48.6 27.3 136.0 119.0 104.0 79.7 59.7 40.6
31.5 27.7 24.1 17.8 12.2 6.9 34.3 30.0 26.2 20.1 15.0 10.2
36.6 32.2 28.0 20.7 14.2 8.0 39.8 34.9 30.5 23.4 17.5 11.9
252.0 203.0 161.0 143.0 127.0 111.0 369.0 307.0 253.0 208.0 168.0 150.0 134.0 117.0
63.5 51.2 40.6 36.0 32.0 28.0 93.0 77.4 63.8 52.4 42.3 37.8 33.8 29.5
73.8 59.5 47.2 41.9 37.2 32.5 108.0 90.0 74.1 60.9 49.2 44.0 39.3 34.3
203.0 163.0 283.0 234.0 193.0 158.0 127.0 114.0 101.0 88.0
51.2 41.1 — — — — 71.3 59.0 48.6 39.8 32.0 28.7 25.5 22.2
59.5 47.8 82.9 68.6 56.5 46.3 37.2 33.4 29.6 25.8
277.0 223.0 176.0 155.0 139.0 123.0 407.0 339.0 280.0 229.0 185.0 164.0 147.0 130.0
69.8 56.2 44.4 39.1 35.0 31.0 103.0 85.4 70.6 57.7 46.6 41.3 37.0 32.8
81.2 65.3 51.6 45.4 40.7 36.0 119.0 99.3 82.0 67.1 54.2 48.1 43.1 38.1
224.0 180.0 306.0 254.0 209.0 171.0 138.0 122.0 110.0 97.1
56.4 45.4 — — — — 77.1 64.0 52.7 43.1 34.8 30.7 27.7 24.5
65.6 52.7 89.7 74.4 61.2 50.1 40.4 35.7 32.2 28.5
301.0 242.0 192.0 169.0 148.0 128.0 441.0 368.0 304.0 249.0 201.0 179.0 159.0
75.9 61.0 48.4 42.6 37.3 32.3 111.0 92.7 76.6 62.7 50.7 45.1 40.1
88.2 70.9 56.3 49.5 43.4 37.5 129.0 108.0 89.1 73.0 58.9 52.4 46.6
243.0 196.0 339.0 281.0 231.0 185.0 143.0 123.0 104.0
61.2 49.4 — — — — 85.4 70.8 58.2 46.6 36.0 31.0 26.2
71.2 57.4 99.3 82.3 67.7 54.2 41.9 36.0 30.5
356.0 287.0 521.0 432.0 356.0 291.0 235.0 212.0 188.0
89.7 72.3 131.0 109.0 89.7 73.3 59.2 53.4 47.4
104.0 84.1 153.0 127.0 104.0 85.3 68.9 62.1 55.1
290.0 232.0 401.0 334.0 275.0 225.0 181.0 163.0 144.0
73.1 58.5 101.0 84.2 69.3 56.7 45.6 41.1 36.3
85.0 68.0 117.0 97.9 80.6 65.9 53.0 47.8 42.2
411.0 329.0 603.0 500.0 411.0 335.0 270.0 243.0 215.0
104.0 82.9 152.0 126.0 104.0 84.4 68.0 61.2 54.2
120.0 96.4 177.0 147.0 120.0 98.2 79.1 71.2 63.0
334.0 267.0 465.0 385.0 317.0 258.0 207.0 186.0 165.0
84.2 67.3 117.0 97.0 79.9 65.0 52.2 46.9 41.6
97.9 78.2 136.0 113.0 92.9 75.6 60.7 54.5 48.3

93
COPELAND DISCUS™ COMPRESSORS

BTUS / HOUR x 1000

50 HERTZ CAPACITY KCALS / HOUR x 1000
WATTS x 1000
REFRIGERANT COOLED
TANDEMS R12 R22
CFH CONDENSING EVAPORATING TEMPERATURE °F/°C
HP m 3/hr TEMPERATURE
MODEL 55 45 35 25 15 5 0 –5 – 10 – 20 – 30 – 40 55 45 35
kW
50HZ °F °C 12.8 7.2 1.7 – 3.9 – 9.4 – 15 – 17.8 – 20.6 – 23.3 – 28.9 – 34.4 – 40 12.8 7.2 1.7
91.4 73.0 58.0 50.8 44.8 38.6 28.6 20.2 13.4
100 37.8 23.0 18.4 14.6 12.8 11.3 9.7 7.2 5.1 3.4
33DA10AA 10 2270 26.8 21.4 17.0 14.9 13.1 11.3 8.4 5.9 3.9
33DA3F36K0 7.5 64.3 74.4 58.8 45.8 39.6 34.4 29.2 20.6 13.4 6.2
130 54.4 18.7 14.8 11.5 10.0 8.7 7.4 5.2 3.4 1.6
21.8 17.2 13.4 11.6 10.1 8.6 6.0 3.9 1.8
65.2 57.2 50.0 37.4 26.8 18.2
100 37.8 16.4 14.4 12.6 9.4 6.8 4.6
33DA10BB 10 2676 19.1 16.8 14.7 11.0 7.9 5.3
33DB3F44K0 7.5 75.8 51.2 44.6 38.4 27.8 19.0 11.6
130 54.4 12.9 11.2 9.7 7.0 4.8 2.9
15.0 13.1 11.3 8.1 5.6 3.4

100 37.8
33DA12AA
12 2270
(DC)
9.0 64.3
33DA3F56K0
130 54.4

187.0 153.0 124.0 98.8 77.6 59.6 52.0 44.4 306.0 252.0 206.0
33DA15AA 100 37.8 47.1 38.6 31.2 24.9 19.6 15.0 13.1 11.2 77.1 63.5 51.9
(AR) 15 2270 54.8 44.8 36.3 28.9 22.7 17.5 15.2 13.0 89.7 73.8 60.4
(DC) 11.2 64.3 153.0 124.0 98.8 77.6 59.6 44.2 38.0 31.6 256.0 210.0 170.0
33DA3R20M0 130 54.4 38.6 31.2 24.9 19.6 15.0 11.1 9.6 8.0 64.5 52.9 42.8
44.8 36.3 28.9 22.7 17.5 13.0 11.1 9.3 75.0 61.5 49.8
210.0 174.0 143.0 116.0 93.4 73.8 65.6 57.2
100 37.8 52.9 43.8 36.0 29.2 23.5 18.6 16.5 14.4
33DA15BB
15 2676 61.5 51.0 41.9 34.0 27.4 21.6 19.2 16.8
(DC)
11.2 75.8 172.0 142.0 116.0 94.0 74.8 58.4 51.6 44.6
33DB3F66K0
130 54.4 43.3 35.8 29.2 23.7 18.8 14.7 13.0 11.2
50.4 41.6 34.0 27.5 21.9 17.1 15.1 13.1
140.0 113.0 91.2 80.6 71.8 63.0 48.2 36.0 26.0
130 54.4 35.3 28.5 23.0 20.3 18.1 15.9 12.1 9.1 6.6
33DA15FF 15 3172 41.0 33.1 26.7 23.6 21.0 18.5 14.1 10.5 7.6
33DF3F52K0 11.2 89.8 114.0 92.0 73.4 64.6 57.2 49.6 37.2 27.0 18.6
100 37.8 28.7 23.2 18.5 16.3 14.4 12.5 9.4 6.8 4.7
33.4 27.0 21.5 18.9 16.8 14.5 10.9 7.9 5.4
149.0 120.0 95.2 84.6 74.4 65.0 48.8 35.2 24.0
100 37.8 37.5 30.2 24.0 21.3 18.7 16.4 12.3 8.9 6.0
33DA15SS 15 3524 43.7 35.1 27.9 24.8 21.8 19.0 14.3 10.3 7.0
33DS3F60K0 11.2 99.8 122.0 97.8 77.4 68.6 60.0 52.2 38.4 27.0 17.6
130 54.4 30.7 24.6 19.5 17.3 15.1 13.2 9.7 6.8 4.4
35.7 28.7 22.7 20.1 17.6 15.3 11.3 7.9 5.2
210.0 174.0 143.0 116.0 93.4 73.8 65.6 57.2 368.0 302.0 244.0
33DA18BB 100 37.8 52.9 43.8 36.0 29.2 23.5 18.6 16.5 14.4 92.7 76.1 61.5
(DC) 18 2676 61.5 51.0 41.9 34.0 27.4 21.6 19.2 16.8 108.0 88.5 71.5
(LV) 13.4 75.8 172.0 142.0 116.0 94.0 74.8 58.4 51.6 44.6 300.0 242.0 196.0
33DB3F54K0 130 54.4 43.3 35.8 29.2 23.7 18.8 14.7 13.0 11.2 75.6 61.0 49.4
50.4 41.6 34.0 27.5 21.9 17.1 15.1 13.1 87.9 70.9 57.4
256.0 210.0 173.0 140.0 112.0 88.2 78.2 68.0
100 37.8 64.5 52.9 43.6 35.3 28.2 22.2 19.7 17.1
33DA18FF 75.0 61.5 50.7 41.0 32.8 25.8 22.9 19.9
18 3172
(DC)
13.4 89.8 208.0 172.0 141.0 114.0 90.6 70.8 62.6 54.2
33DF3F80K0
130 54.4 52.4 43.3 35.5 28.7 22.8 17.8 15.8 13.7
60.9 50.4 41.3 33.4 26.5 20.7 18.3 15.9
(DC) In grey shaded area the maximum return gas is 65°F (18.3°C) and both Demand Cooling kits and vertical cooling fans are required.
(AR) R22LT application requires TFU motors.
(LV) Limited voltage. Available only in 200 volt electrical.

94
COPELAND DISCUS™ COMPRESSORS

BTUS / HOUR x 1000

CAPACITY KCALS / HOUR x 1000
WATTS x 1000

84.8 73.2 63.0 46.0 32.8 22.0 91.0 79.6 69.6 53.2 40.2 28.6
21.4 18.4 15.9 11.6 8.3 5.5 22.9 20.1 17.5 13.4 10.1 7.2
24.8 21.4 18.5 13.5 9.6 6.4 26.7 23.3 20.4 15.6 11.88.4
65.2 55.2 46.4 31.8 20.4 11.0 70.8 60.4 51.6 37.8 27.4 18.4
16.4 13.9 11.7 8.0 5.1 2.8 17.8 15.2 13.0 9.5 6.9 4.6
19.1 16.2 13.6 9.3 6.0 3.2 20.7 17.7 15.1 11.1 8.0 5.4
158.0 126.0 99.8 84.0 73.2 62.8 44.4 29.2 18.4 240.0 198.0 162.0 131.0 105.0 92.6 81.6 72.2 55.4 41.0 29.4
39.8 31.8 25.1 21.2 18.4 15.8 11.2 7.4 4.6 60.5 49.9 40.8 33.0 26.5 23.3 20.6 18.2 14.0 10.3 7.4
46.3 36.9 29.2 24.6 21.4 18.4 13.0 8.6 5.4 70.3 58.0 47.5 38.4 30.8 27.1 23.9 21.2 16.2 12.0 8.6
128.0 102.0 80.0 62.6 52.8 44.0 28.6 17.2 10.8 182.0 151.0 124.0 101.0 80.4 71.0 62.2 53.0 39.6 28.6 19.4
32.3 25.7 20.2 15.8 13.3 11.1 7.2 4.3 2.7 45.9 38.1 31.2 25.5 20.3 17.9 15.7 13.4 10.0 7.2 4.9
37.5 29.9 23.4 18.3 15.5 12.9 8.4 5.0 3.2 53.3 44.2 36.3 29.6 23.6 20.8 18.2 15.5 11.6 8.4 5.7
102.0 90.0 78.8 59.2 42.8 29.2 112.0 98.8 87.0 66.8 50.4 36.0
25.7 22.7 19.9 14.9 10.8 7.4 28.2 24.9 21.9 16.8 12.7 9.1
29.9 26.4 23.1 17.3 12.5 8.6 32.8 28.9 25.5 19.6 14.8 10.5
80.2 69.6 59.8 42.6 28.2 16.0 88.2 76.4 66.2 49.4 36.4 26.2
20.2 17.5 15.1 10.7 7.1 4.0 22.2 19.3 16.7 12.4 9.2 6.6
23.5 20.4 17.5 12.5 8.3 4.7 25.8 22.4 19.4 14.5 10.7 7.7

185.0 148.0 118.0 102.0 89.0 76.6 54.8 37.2 24.0 110.0 97.8 86.8 67.0 50.6 37.0
46.6 37.3 29.7 25.8 22.4 19.3 13.8 9.4 6.0 27.7 24.6 21.9 16.9 12.8 9.3
54.2 43.4 34.6 29.9 26.1 22.4 16.1 10.9 7.0 32.2 28.7 25.4 19.6 14.8 10.8
148.0 117.0 91.4 76.6 65.0 54.2 35.8 21.6 11.6 82.4 73.0 64.2 48.8 36.0 25.2
37.3 29.5 23.0 19.3 16.4 13.7 9.0 5.4 2.9 20.8 18.4 16.2 12.3 9.1 6.4
43.4 34.3 26.8 22.4 19.0 15.9 10.5 6.3 3.4 24.1 21.4 18.8 14.3 10.5 7.4
122.0 107.0 93.4 69.4 49.6 33.4 132.0 117.0 104.0 79.6 60.0 44.4
30.7 27.0 23.5 17.5 12.5 8.4 33.3 29.5 26.2 20.1 15.1 11.2
35.7 31.4 27.4 20.3 14.5 9.8 38.7 34.3 30.5 23.3 17.6 13.0
96.4 82.6 70.2 49.0 32.8 21.4 102.0 90.2 79.2 60.0 44.2 31.6
24.3 20.8 17.7 12.3 8.3 5.4 25.7 22.7 20.0 15.1 11.1 8.0
28.2 24.2 20.6 14.4 9.6 6.3 29.9 26.4 23.2 17.6 13.0 9.3

95
COPELAND DISCUS™ COMPRESSORS

BTUS / HOUR x 1000

50 HERTZ CAPACITY KCALS / HOUR x 1000
WATTS x 1000
REFRIGERANT COOLED
TANDEMS R12 R22
CFH CONDENSING EVAPORATING TEMPERATURE °F/°C
HP m 3/hr
MODEL TEMPERATURE 55 45 35 25 15 5 0 –5 – 10 – 20 – 30 – 40 55 45 35
kW
50HZ °F °C 12.8 7.2 1.7 – 3.9 – 9.4 – 15 – 17.8 – 20.6 – 23.3 – 28.9 – 34.4 – 40 12.8 7.2 1.7
358.0 298.0 244.0
100 37.8 90.2 75.1 61.5
33DA20BB
20 2676 105.0 87.3 71.5
(RG)
14.9 75.8 302.0 248.0 202.0
33DB3R24M0
130 54.4 76.1 62.5 50.9
88.5 72.7 59.2
274.0 226.0 186.0 151.0 121.0 95.8 85.2 74.4
100 37.8 69.0 57.0 46.9 38.1 30.5 24.1 21.5 18.7
33DA20SS
20 3524 80.3 66.2 54.5 44.2 35.5 28.1 25.0 21.8
(DC)
14.9 99.8 226.0 187.0 153.0 124.0 99.2 77.8 68.8 59.8
33DS3F92K0
130 54.4 57.0 47.1 38.6 31.2 25.0 19.6 17.3 15.1
66.2 54.8 44.8 36.3 29.1 22.8 20.2 17.5
294.0 246.0 204.0 166.0 135.0 107.0 93.6 82.6 72.6 54.8 40.2 28.0
100 37.8 74.1 62.0 51.4 41.8 34.0 27.0 23.6 20.8 18.3 13.8 10.1 7.1
44DA20AA
20 3954 86.1 72.1 59.8 48.6 39.6 31.4 27.4 24.2 21.3 16.1 11.8 8.2
(DC)
14.9 111.9 244.0 204.0 167.0 135.0 108.0 84.0 76.6 67.0 58.2 42.8 29.8 19.2
44DAR24M0 130 54.4 61.5 51.4 42.1 34.0 27.2 21.2 19.3 16.9 14.7 10.8 7.5 4.8
71.5 59.8 49.0 39.6 31.6 24.6 22.4 19.6 17.1 12.5 8.7 5.6
294.0 246.0 204.0 166.0 135.0 107.0 93.6 82.6 72.6 54.8 40.2 28.0
44DA21AA 100 37.8 74.1 62.0 51.4 41.8 34.0 27.0 23.6 20.8 18.3 13.8 10.1 7.1
20 3954 86.1 72.1 59.8 48.6 39.6 31.4 27.4 24.2 21.3 16.1 11.8 8.2
(DC)
14.9 111.9 244.0 204.0 167.0 135.0 108.0 84.0 76.6 67.0 58.2 42.8 29.8 19.2
44DAF94K0
130 54.4 61.5 51.4 42.1 34.0 27.2 21.2 19.3 16.9 14.7 10.8 7.5 4.8
71.5 59.8 49.0 39.6 31.6 24.6 22.4 19.6 17.1 12.5 8.7 5.6
356.0 286.0
33DA24FF 100 37.8 89.7 72.1
24 3172 104.0 83.8
(RG)
17.9 89.8 288.0 232.0
33DF3R30M0
130 54.4 72.6 58.5
84.4 68.0
482.0 398.0 326.0
100 37.8 121.0 100.0 82.2
33DA30SS
30 3524 141.0 117.0 95.5
(DC)
22.4 99.8 400.0 328.0 268.0
33DS3R34M0
130 54.4 101.0 82.7 67.5
117.0 96.1 78.5

44DA30LL 130 54.4

(DC) 30 4998
(OC) 22.4 141.5
44DLF13M0 100 37.8

528.0 446.0 360.0

44DA40AA 100 37.8 133.0 112.0 90.7
(DC) 40 3954 155.0 131.0 105.0
(LA) 29.8 111.9 428.0 356.0 282.0
44DAR36M0 130 54.4 108.0 89.7 71.1
125.0 104.0 82.6
606.0 504.0 412.0
100 37.8 153.0 127.0 104.0
44DA44BB 178.0 148.0 121.0
44 4600
(RG)
32.8 130.2 498.0 410.0 330.0
44DBR40M0 130 54.4 125.0 103.0 83.2
146.0 120.0 96.7

44DA44TT 100 37.8

(DC) 44 5970
(OC) 32.8 169.0
44DTF15M0 130 54.4

(RG) In grey shaded area the maximum return gas is 50°F (10°C) and vertical cooling fans are required.
(DC) In grey shaded area the maximum return gas is 65°F (18.3°C) and both Demand Cooling kits and vertical cooling fans are required.
(OC) Oil coolers and vertical cooling fans are standard on this model.
(LA) Use a “J” in the fourth digit of model number for R22LT.
96
COPELAND DISCUS™ COMPRESSORS

BTUS / HOUR x 1000

CAPACITY KCALS / HOUR x 1000
WATTS x 1000

R22 R502
EVAPORATING TEMPERATURE °F/°C
25 15 5 0 –5 – 10 – 20 – 30 – 40 45 35 25 15 5 0 –5 – 10 – 20 – 30 – 40
– 3.9 – 9.4 – 15 – 17.8 – 20.6 – 23.3 – 28.9 – 34.4 – 40 7.2 1.7 – 3.9 – 9.4 – 15 – 17.8 – 20.6 – 23.3 – 28.9 – 34.4 – 40
189.0 152.0 121.0 107.0 94.8 83.2 288.0 238.0 194.0 157.0 125.0 111.0 97.8
47.6 38.3 30.5 27.0 23.9 21.0 72.6 60.0 48.9 39.6 31.5 28.0 24.6
55.4 44.5 35.5 31.4 27.8 24.4 84.4 69.7 56.8 46.0 36.6 32.5 28.7
154.0 123.0 96.4 218.0 181.0 148.0 120.0 95.6 84.4 73.8
38.8 31.0 24.3 — — — 54.9 45.6 37.3 30.2 24.1 21.3 18.6
45.1 36.0 28.2 63.9 53.0 43.4 35.2 28.0 24.7 21.6
136.0 119.0 104.0 77.6 55.2 36.8 147.0 130.0 115.0 89.2 67.4 49.6
34.3 30.0 26.2 19.6 13.9 9.3 37.0 32.8 29.0 22.5 17.0 12.5
39.8 34.9 30.5 22.7 16.2 10.8 43.1 38.1 33.7 26.1 19.7 14.5
107.0 92.2 78.8 56.0 38.2 24.6 111.0 98.6 87.0 66.8 50.0 36.4
27.0 23.2 19.9 14.1 9.6 6.2 28.0 24.8 21.9 16.8 12.6 9.2
31.4 27.0 23.1 16.4 11.2 7.2 32.5 28.9 25.5 19.6 14.7 10.7
143.0 128.0 113.0 85.2 60.0 39.2 161.0 144.0 128.0 98.8 73.0 50.8
36.0 32.3 28.5 21.5 15.1 9.9 40.6 36.3 32.3 24.9 18.4 12.8
41.9 37.5 33.1 25.0 17.6 11.5 47.2 42.2 37.5 28.9 21.4 14.9
114.0 99.6 85.6 58.2 33.2 12.6 122.0 110.0 98.4 74.2 50.2 26.8
28.7 25.1 21.6 14.7 8.4 3.2 30.7 27.7 24.8 18.7 12.7 6.8
33.4 29.2 25.1 17.1 9.7 3.7 35.7 32.2 28.8 21.7 14.7 7.9
143.0 128.0 113.0 85.2 60.0 39.2 161.0 144.0 128.0 98.8 73.0 50.8
36.0 32.3 28.5 21.5 15.1 9.9 40.6 36.3 32.3 24.9 18.4 12.8
41.9 37.5 33.1 25.0 17.6 11.5 47.2 42.2 37.5 28.9 21.4 14.9
114.0 99.6 85.6 58.2 33.2 12.6 122.0 110.0 98.4 74.2 50.2 26.8
28.7 25.1 21.6 14.7 8.4 3.2 30.7 27.7 24.8 18.7 12.7 6.8
33.4 29.2 25.1 17.1 9.7 3.7 35.7 32.2 28.8 21.7 14.7 7.9
220.0 176.0 139.0 122.0 109.0 96.0
55.4 44.4 35.0 30.7 27.5 24.2
64.5 51.6 40.7 35.7 31.9 28.1
177.0 142.0 109.0
44.6 35.8 27.5 — — —
51.9 41.6 31.9
248.0 198.0 157.0 138.0 121.0 106.0 77.8 55.4 36.8 380.0 314.0 258.0 210.0 169.0 150.0 133.0
62.5 49.9 39.6 34.8 30.5 26.7 19.6 14.0 9.3 95.8 79.1 65.0 52.9 42.6 37.8 33.5
72.7 58.0 46.0 40.4 35.5 31.1 22.8 16.2 10.8 111.0 92.0 75.6 61.5 49.5 44.0 39.0
202.0 163.0 129.0 105.0 90.6 77.4 55.2 37.6 23.8 290.0 240.0 198.0 161.0 129.0 115.0 101.0
50.9 41.1 32.5 26.5 22.8 19.5 13.9 9.5 6.0 73.1 60.5 49.9 40.6 32.5 29.0 25.5
59.2 47.8 37.8 30.8 26.5 22.7 16.2 11.0 7.0 85.0 70.3 58.0 47.2 37.8 33.7 29.6
189.0 167.0 147.0 110.0 79.6 55.2 204.0 181.0 160.0 124.0 94.2 70.2
47.6 42.1 37.0 27.7 20.1 13.9 51.4 45.6 40.3 31.2 23.7 17.7
55.4 48.9 43.1 32.2 23.3 16.2 59.8 53.0 46.9 36.3 27.6 20.6
144.0 126.0 109.0 79.0 52.8 30.8 154.0 137.0 122.0 93.6 69.0 46.2
36.3 31.8 27.5 19.9 13.3 7.8 38.8 34.5 30.7 23.6 17.4 11.6
42.2 36.9 31.9 23.1 15.5 9.0 45.1 40.1 35.7 27.4 20.2 13.5
264.0 208.0 161.0 141.0 123.0 107.0 81.6 60.0 39.2 438.0 356.0 286.0 230.0 182.0 162.0 144.0
66.5 52.4 40.6 35.5 31.0 27.0 20.6 15.1 9.9 110.0 89.7 72.1 58.0 45.9 40.8 36.3
77.4 60.9 47.2 41.3 36.0 31.4 23.9 17.6 11.5 128.0 104.0 83.8 67.4 53.3 47.5 42.2
212.0 167.0 122.0 106.0 93.2 80.8 58.2 33.2 12.6 324.0 262.0 212.0 169.0 133.0 118.0 105.0
53.4 42.1 30.7 26.7 23.5 20.4 14.7 8.4 3.2 81.6 66.0 53.4 42.6 33.5 29.7 26.5
62.1 48.9 35.7 31.1 27.3 23.7 17.1 9.7 3.7 94.9 76.8 62.1 49.5 39.0 34.6 30.8
308.0 246.0 184.0 153.0 126.0 110.0
77.6 62.0 46.4 38.6 31.8 27.7
90.2 72.1 53.9 44.8 36.9 32.2
246.0 194.0
62.0 48.9 — — — —
72.1 56.8
228.0 195.0 168.0 126.0 94.8 65.8 246.0 218.0 192.0 149.0 113.0 81.2
57.5 49.1 42.3 31.8 23.9 16.6 62.0 54.9 48.4 37.5 28.5 20.5
66.8 57.1 49.2 36.9 27.8 19.3 72.1 63.9 56.3 43.7 33.1 23.8
180.0 152.0 129.0 93.2 66.0 39.0 187.0 166.0 147.0 113.0 84.6 58.0
45.4 38.3 32.5 23.5 16.6 9.8 47.1 41.8 37.0 28.5 21.3 14.6
52.7 44.5 37.8 27.3 19.3 11.4 54.8 48.6 43.1 33.1 24.8 17.0

97
COPELAND DISCUS™ COMPRESSORS

BTUS / HOUR x 1000

66DA54LL 100 37.8

54 7496
(DC)
40.3 212.2
(OC)
66DLF19M0 130 54.4

784.0 650.0 534.0

100 37.8 198.0 164.0 135.0
44DA60JJ
60 5970 230.0 190.0 156.0
(RG)
44.8 169.0 642.0 532.0 434.0
44DJR56M0
130 54.4 162.0 134.0 109.0
188.0 156.0 127.0
916.0 748.0 610.0
66DA60BB 100 37.8 231.0 188.0 154.0
60 6900 268.0 219.0 179.0
(RG)
44.8 195.3 722.0 598.0 494.0
66DBR64M0
130 54.4 182.0 151.0 124.0
212.0 175.0 145.0
66DA60TT
100 37.8
(DC)
60 8956
(DS)
44.8 253.5
(OC)
130 54.4
66DTF22M0
994.0 818.0 668.0
66DA70HH 130 54.4 250.0 206.0 168.0
70 7496 291.0 240.0 196.0
(RG)
52.2 212.2 814.0 666.0 542.0
66DHR70M0
100 37.8 205.0 168.0 137.0
239.0 195.0 159.0
1066.0 874.0 718.0
100 37.8 269.0 220.0 181.0
66DA70GG
70 8258 312.0 256.0 210.0
(RG)
52.2 233.8 878.0 724.0 598.0
66DGR74M0
130 54.4 221.0 182.0 151.0
257.0 212.0 175.0
1156.0 964.0 794.0
66DA80JJ 100 37.8 291.0 243.0 200.0
(DS) 80 8956 339.0 282.0 233.0
(RG) 59.7 253.5 954.0 788.0 644.0
66DJR80M0 130 54.4 240.0 199.0 162.0
280.0 231.0 189.0
1414.0 1158.0 940.0
100 37.8 356.0 292.0 237.0
88D-11PP
100 10716 414.0 339.0 275.0
(DS)
74.6 303.4 1160.0 950.0 770.0
88DPR112M0
130 54.4 292.0 239.0 194.0
340.0 278.0 226.0
1640.0 1342.0 1086.0
100 37.8 413.0 338.0 274.0
88D-12SS 481.0 393.0 318.0
120 12680
(DS)
89.5 359.0 1332.0 1092.0 884.0
88DSR134M0 130 54.4 336.0 275.0 223.0
390.0 320.0 259.0
(RG) In grey shaded area the maximum return gas is 50°F (10°C) and vertical cooling fans are required.
(DC) In grey shaded area the maximum return gas is 65°F (18.3°C) and both Demand Cooling kits and vertical cooling fans are required.
(OC) Oil coolers and vertical cooling fans are standard on this model.
(DS) Deep oil sumps are standard on this model.
98
COPELAND DISCUS™ COMPRESSORS

BTUS / HOUR x 1000

CAPACITY KCALS / HOUR x 1000
WATTS x 1000

R22 R502
EVAPORATING TEMPERATURE °F/°C
25 15 5 0 –5 – 10 – 20 – 30 – 40 45 35 25 15 5 0 –5 – 10 – 20 – 30 – 40
– 3.9 – 9.4 – 15 – 17.8 – 20.6 – 23.3 – 28.9 – 34.4 – 40 7.2 1.7 – 3.9 – 9.4 – 15 – 17.8 – 20.6 – 23.3 – 28.9 – 34.4 – 40
354.0 278.0 214.0 187.0 165.0 148.0 536.0 446.0 366.0 294.0 232.0 206.0 181.0
89.2 70.1 53.9 47.1 41.6 37.3 135.0 112.0 92.2 74.1 58.5 51.9 45.6
104.0 81.5 62.7 54.8 48.3 43.4 157.0 131.0 107.0 86.1 68.0 60.4 53.0
280.0 216.0 406.0 336.0 276.0 222.0 174.0 154.0 135.0
70.6 54.4 — — — — 102.0 84.7 69.6 55.9 43.8 38.8 34.0
82.0 63.3 119.0 98.4 80.9 65.0 51.0 45.1 40.0
280.0 250.0 220.0 164.0 115.0 75.8 300.0 266.0 236.0 185.0 141.0 101.0
70.6 63.0 55.4 41.3 29.0 19.1 75.6 67.0 59.5 46.6 35.5 25.5
82.0 73.3 64.5 48.1 33.7 22.2 88.0 77.9 69.1 54.2 41.3 29.6
222.0 195.0 169.0 120.0 76.0 37.8 232.0 204.0 180.0 138.0 103.0 69.0
55.9 49.1 42.6 30.2 19.2 9.5 58.5 51.4 45.4 34.8 26.0 17.4
65.0 57.1 49.5 35.2 22.3 11.1 68.0 59.8 52.7 40.4 30.2 20.2
418.0 330.0 258.0 226.0 198.0 173.0 632.0 522.0 428.0 348.0 280.0 248.0 220.0
105.0 83.2 65.0 57.0 49.9 43.6 159.0 132.0 108.0 87.7 70.6 62.5 55.4
122.0 96.7 75.6 66.2 58.0 50.7 185.0 153.0 125.0 102.0 82.0 72.7 64.5
332.0 262.0 482.0 396.0 324.0 262.0 210.0 188.0 167.0
83.7 66.0 — — — — 121.0 99.8 81.6 66.0 52.9 47.4 42.1
97.3 76.8 141.0 116.0 94.9 76.8 61.5 55.1 48.9
468.0 386.0 304.0 264.0 224.0 184.0
118.0 97.3 76.6 66.5 56.4 46.4
137.0 113.0 89.1 77.4 65.6 53.9
380.0 306.0
95.8 77.1 — — — —
111.0 89.7
324.0 284.0 250.0 189.0 138.0 93.6 348.0 304.0 268.0 208.0 162.0 122.0
81.6 71.6 63.0 47.6 34.8 23.6 87.7 76.6 67.5 52.4 40.8 30.7
94.9 83.2 73.3 55.4 40.4 27.4 102.0 89.1 78.5 60.9 47.5 35.7
250.0 220.0 191.0 141.0 97.2 54.6 272.0 238.0 208.0 159.0 119.0 81.0
63.0 55.4 48.1 35.5 24.5 13.8 68.5 60.0 52.4 40.1 30.0 20.4
73.3 64.5 56.0 41.3 28.5 16.0 79.7 69.7 60.9 46.6 34.9 23.7
504.0 406.0 322.0 286.0 254.0 222.0 738.0 614.0 506.0 416.0 336.0 300.0 268.0 234.0
127.0 102.0 81.1 72.1 64.0 55.9 186.0 155.0 128.0 105.0 84.7 75.6 67.5 59.0
148.0 119.0 94.3 83.8 74.4 65.0 216.0 180.0 148.0 122.0 98.4 87.9 78.5 68.6
406.0 326.0 566.0 468.0 386.0 316.0 254.0 228.0 202.0 176.0
102.0 82.2 — — — — 143.0 118.0 97.3 79.6 64.0 57.5 50.9 44.4
119.0 96.0 166.0 137.0 113.0 92.6 74.4 66.8 59.2 51.6
554.0 446.0 352.0 310.0 278.0 246.0 814.0 678.0 560.0 458.0 370.0 328.0 294.0 260.0
140.0 112.0 88.7 78.1 70.1 62.0 205.0 171.0 141.0 115.0 93.2 82.7 74.1 65.5
162.0 131.0 103.0 90.8 81.5 72.1 239.0 199.0 164.0 134.0 108.0 96.1 86.1 76.2
448.0 360.0 612.0 508.0 418.0 342.0 276.0 244.0 220.0 194.0
113.0 90.7 — — — — 154.0 128.0 105.0 86.2 69.6 61.5 55.4 48.9
131.0 105.0 179.0 149.0 122.0 100.0 80.9 71.5 64.5 56.8
602.0 484.0 384.0 338.0 296.0 256.0 882.0 736.0 608.0 498.0 402.0 358.0 318.0
152.0 122.0 96.8 85.2 74.6 64.5 222.0 185.0 153.0 125.0 101.0 90.2 80.1
176.0 142.0 113.0 99.0 86.7 75.0 258.0 216.0 178.0 146.0 118.0 105.0 93.2
486.0 392.0 678.0 562.0 462.0 370.0 286.0 246.0 208.0
122.0 98.8 — — — — 171.0 142.0 116.0 93.2 72.1 62.0 52.4
142.0 115.0 199.0 165.0 135.0 108.0 83.8 72.1 60.9
712.0 574.0 1042.0 864.0 712.0 582.0 470.0 424.0 376.0
179.0 145.0 263.0 218.0 179.0 147.0 118.0 107.0 94.8
209.0 168.0 305.0 253.0 209.0 171.0 138.0 124.0 110.0
580.0 464.0 802.0 668.0 550.0 450.0 362.0 326.0 288.0
146.0 117.0 202.0 168.0 139.0 113.0 91.2 82.2 72.6
170.0 136.0 235.0 196.0 161.0 132.0 106.0 96.0 84.4
822.0 658.0 1206.0 1000.0 822.0 670.0 540.0 486.0 430.0
207.0 166.0 304.0 252.0 207.0 169.0 136.0 122.0 108.0
241.0 193.0 353.0 293.0 241.0 196.0 158.0 142.0 126.0
668.0 534.0 930.0 770.0 634.0 516.0 414.0 372.0 330.0
168.0 135.0 234.0 194.0 160.0 130.0 104.0 93.7 83.2
196.0 156.0 272.0 226.0 186.0 151.0 121.0 109.0 96.7

99
COPELAND DISCUS™ COMPRESSORS

BTUS / HOUR x 1000

100 37.8
3DH A0600
3DA A0600 6 1135
Moduload
3DA3F28K0 4.5 32.1
3DH3F28K0 130 54.4

121.0 93.2 67.0

100 37.8 30.5 23.5 16.9
3DE A0750
3DA A0750 7.5 1135 35.5 27.3 19.6
Moduload
3DA3R10M0 5.6 32.1 76.8 53.6 32.3
3DE3R10M0
130 54.4 19.4 13.5 8.1
22.5 15.7 9.5
61.0 43.7 28.5 15.9
100 37.8 — 15.4 11.0 7.2 4.0
3DP A0750
3DB A0750 7.5 1338 17.9 12.8 8.4 4.7
Moduload
3DB3F33K0 5.6 37.9 48.3 32.8 18.6
3DP3F33K0
130 54.4 12.2 8.3 4.7 — —
14.2 9.6 5.4

100 37.8
3DJ A0750
3DB A0750 7.5 1338
Moduload
3DB3F33K0 5.6 37.9
3DJ3F33K0
130 54.4

34.3 19.3
100 37.8 8.6 4.9
3DK A0750
3DF A0750 7.5 1586 10.0 5.7
Moduload
3DF3F26K0 5.6 44.9
3DK3F26K0
130 54.4 — —

36.5 20.3
100 37.8 9.2 5.1
3DT A0750
3DS A0750 7.5 1762 10.7 5.9
Moduload
3DS3F30K0 5.6 49.9
3DT3F30K0
130 54.4 — —

61.0 43.7 28.5 15.9 145.0 112.0 79.3

3DP A0900 100 37.8 — 15.4 11.0 7.2 4.0 36.5 28.2 20.0
Moduload 3DB A0900 9 1338 17.9 12.8 8.4 4.7 42.5 32.8 23.2
(LV) 3DB3F27K0 6.7 37.9 48.3 32.8 18.6 90.0 61.7 37.3
3DP3F27K0 130 54.4 12.2 8.3 4.7 — — 22.7 15.5 9.4
14.2 9.6 5.4 26.4 18.1 10.9

3DJ A0900 100 37.8

Moduload 3DB A0900 9 1338
(LV) 3DB3F27K0 6.7 37.9
3DJ3F27K0 130 54.4

(LV) Limited voltage. Available only in 200 volt electrical.

100
COPELAND DISCUS™ COMPRESSORS

BTUS / HOUR x 1000

CAPACITY KCALS / HOUR x 1000
WATTS x 1000

35.9 30.6 25.8 17.6 10.7 5.3

9.0 7.7 6.5 4.4 2.7 1.3
10.5 9.0 7.6 5.2 3.1 1.6
24.4 19.6 15.7 9.1 4.1
6.1 4.9 4.0 2.3 1.0 —
7.1 5.7 4.6 2.7 1.2
60.8 44.9 88.8 67.3 46.1 28.2
15.3 11.3 22.4 17.0 11.6 7.1
17.8 13.2 26.0 19.7 13.5 8.3
31.0 23.5 47.4 31.0
7.8 5.9 11.9 7.8 — —
10.7 6.9 13.9 9.1

44.2 38.0 32.2 22.0 13.4 6.7

11.1 9.6 8.1 5.5 3.4 1.7
13.0 11.1 9.4 6.4 3.9 2.0
30.4 24.8 20.2 11.9 5.5
7.7 6.2 5.1 3.0 1.4 —
8.9 7.3 5.9 3.5 1.6

71.1 52.5
17.9 13.2
20.8 15.4
32.1 27.0
8.1 6.8
9.4 7.9
43.5 37.7 32.1 22.1 13.4 6.8
11.0 9.5 8.1 5.6 3.4 1.7
12.7 11.0 9.4 6.5 3.9 2.0
28.4 23.7 19.6 11.7 5.4
7.2 6.0 4.9 2.9 1.4 —
8.3 6.9 5.7 3.4 1.6

101
COPELAND DISCUS™ COMPRESSORS

BTUS / HOUR x 1000

100 37.8
3DG A0900
3DF A0900 9 1586
Moduload
3DF3F40K0 6.7 44.9
3DG3F40K0
130 54.4

141.0 110.0 79.3

100 37.8 35.5 27.7 20.0
3DP A1000 41.3 32.2 23.2
3DB A1000 10 1338
Moduload
3DB3R12M0 7.5 37.9 90.6 63.2 38.4
3DP3R12M0
130 54.4 22.8 15.9 9.7
26.5 18.5 11.3
79.1 56.6 36.9 20.6
100 37.8 —19.9 14.3 9.3 5.2
3DT A1000 23.2 16.6 10.8 6.0
3DSA1000 10 1762
Moduload
3DS3R11M0 7.5 49.9 63.3 43.0 24.5
3DT3R11M0
130 54.4 16.0 10.8 6.2 — —
18.5 12.6 7.2

100 37.8
3DR A1000
3DSA1000 10 1762
Moduload
3DS3F46K0 7.5 49.9
3DR3F46K0
130 54.4

41.6 33.7 26.8 23.4 20.7

4DEA1000 100 37.8 10.5 8.5 6.8 5.9 5.2
50% 4DAA1000 10 1977 12.2 9.9 7.9 6.9 6.1
Unloaded 4DAR12M0 7.5 56.0 33.7 26.9 21.0 19.2 16.8
4DER12M0 130 54.4 8.5 6.8 5.3 4.8 4.2
9.9 7.9 6.2 5.6 4.9
20.7 18.2 13.7 10.1 7.0
4DN A1000
100 37.8 5.2 4.6 3.5 2.5 1.8
50%
4DAA1000 10 1977 6.1 5.3 4.0 3.0 2.1
Unloaded
4DAR12M0 7.5 56.0 16.8 14.6 10.7 7.5 4.8
(OC)
4DNR12M0 130 54.4 4.2 3.7 2.7 1.9 1.2
4.9 4.3 3.1 2.2 1.4
41.6 33.7 26.8 23.4 20.7
4DEA1010 100 37.8 10.5 8.5 6.8 5.9 5.2
50% 4DAA1010 10 1977 12.2 9.9 7.9 6.9 6.1
Unloaded 4DAF47K0 7.5 56.0 33.7 26.9 21.0 19.2 16.8
4DEF47K0 130 54.4 8.5 6.8 5.3 4.8 4.2
9.9 7.9 6.2 5.6 4.9
20.7 18.2 13.7 10.1 7.0
4DN A1010 100 37.8 5.2 4.6 3.5 2.5 1.8
50% 6.1 5.3 4.0 3.0 2.1
4DAA1010 10 1977
Unloaded
4DAF47K0 7.5 56.0 16.8 14.6 10.7 7.5 4.8
(OC)
130 54.4 4.2 3.7 2.7 1.9 1.2
4DNF47K0
4.9 4.3 3.1 2.2 1.4
(OC) Oil cooler and vertical cooling fan are standard on this model.

102
COPELAND DISCUS™ COMPRESSORS

BTUS / HOUR x 1000

CAPACITY KCALS / HOUR x 1000
WATTS x 1000

52.1 45.1 38.3 26.3 15.9 8.2

13.1 11.4 9.7 6.6 4.0 2.1
15.3 13.2 11.2 7.7 4.7 2.4
35.3 29.3 24.2 14.4 6.6
8.9 7.4 6.1 3.6 1.7 —
10.3 8.6 7.1 4.2 1.9
72.9 54.1 107.0 80.9 55.4 33.8
18.4 13.6 27.0 20.4 14.0 8.5
21.4 15.9 31.4 23.7 16.2 9.9
35.0 28.2 56.7 37.1
8.8 7.1 14.3 9.3 — —
10.3 8.3 16.6 10.9

58.0 50.2 42.7 29.4 17.9 9.2

14.6 12.7 10.8 7.4 4.5 2.3
17.0 14.7 12.5 8.6 5.2 2.7
38.3 32.0 26.5 16.0 7.5
9.7 8.1 6.7 4.0 1.9 —
11.2 9.4 7.8 4.7 2.2

40.3 36.1 32.1 24.7 18.3 12.7

10.2 9.1 8.1 6.2 4.6 3.2
11.8 10.6 9.4 7.2 5.4 3.7
30.6 27.6 24.6 18.6 12.6 6.7
7.7 7.0 6.2 4.7 3.2 1.7
9.0 8.1 7.2 5.4 3.7 2.0

40.3 36.1 32.1 24.7 18.3 12.7

10.2 9.1 8.1 6.2 4.6 3.2
11.8 10.6 9.4 7.2 5.4 3.7
30.6 27.6 24.6 18.6 12.6 6.7
7.7 7.0 6.2 4.7 3.2 1.7
9.0 8.1 7.2 5.4 3.7 2.0

103
COPELAND DISCUS™ COMPRESSORS

BTUS / HOUR x 1000

4DP A1500 100 37.8

50%
4DL A1500 15 2499
Unloaded
4DLF63K0 11.2 70.7
(OC)
130 54.4
4DPF63K0

132.0 112.0 90.0

4DE A2000 100 37.8 33.3 28.2 22.7
50%
4DA A2000 20 1977 38.7 32.8 26.4
Unloaded
4DAR18M0 14.9 56.0 107.0 89.0 70.5
(RG)
4DER18M0 130 54.4 27.0 22.4 17.8
31.4 26.1 20.7
152.0 126.0 103.0
4DC A2200 100 37.8 38.3 31.8 26.0
50%
4DBA2200 22 2300 44.5 36.9 30.2
Unloaded
4DBR20M0 16.4 65.1 125.0 103.0 82.5
(RG)
4DCR20M0 130 54.4 31.5 26.0 20.8
36.6 30.2 24.2

4DS A2200
100 37.8
50%
4DT A2200 22 2985
Unloaded
4DTF76K0 16.4 84.5
(OC)
4DSF76K0 130 54.4

165.0 137.0 112.0

4DK A2500
100 37.8 41.6 34.5 28.2
50%
4DH A2500 25 2499 48.3 40.1 32.8
Unloaded
4DHR22M0 18.7 70.7 137.0 113.0 92.0
(RG)
4DKR22M0 130 54.4 34.5 28.5 23.2
40.1 33.1 27.0

6DC A2700
100 37.8
33%
6DL A2700 27 3748
Unloaded
6DLF93K0 20.1 106.1
(OC)
6DCF93K0 130 54.4

6DD A2700
100 37.8
67%
6DL A2700 27 3748
Unloaded
6DLF93K0 20.1 106.1
(OC)
6DDF93K0 130 54.4

(OC) Oil cooler and vertical cooling fan are standard on this model.
(RG) In grey shaded area the maximum return gas is 50°F (10°C).

104
COPELAND DISCUS™ COMPRESSORS

BTUS / HOUR x 1000

CAPACITY KCALS / HOUR x 1000
WATTS x 1000

R22 R502
EVAPORATING TEMPERATURE °F/°C
25 15 5 0 –5 – 10 – 20 – 30 – 40 45 35 25 15 5 0 –5 – 10 – 20 – 30 – 40
– 3.9 – 9.4 – 15 – 17.8 – 20.6 – 23.3 – 28.9 – 34.4 – 40 7.2 1.7 – 3.9 – 9.4 – 15 – 17.8 – 20.6 – 23.3 – 28.9 – 34.4 – 40
84.7 62.3
21.3 15.7
24.8 18.3
42.0 32.7
10.6 8.2
12.3 9.6
95.5 70.3 141.0 107.0 73.5 45.2
24.1 17.7 35.5 27.0 18.5 11.4
28.0 20.6 41.3 31.4 21.5 13.2
48.0 37.5 75.4 49.2
12.1 9.5 19.0 12.4 — —
14.1 11.0 22.1 14.4
51.0 45.2 40.0 30.9 23.6 17.6
12.9 11.4 10.1 7.8 5.9 4.4
14.9 13.2 11.7 9.1 6.9 5.2
38.5 34.3 30.4 23.4 17.3 11.6
9.7 8.6 7.7 5.9 4.4 2.9
11.3 10.0 8.9 6.9 5.1 3.4
66.0 52.0 40.3 35.4 30.9 26.8 110.0 89.0 71.5 57.5 45.5 40.5 36.1
16.6 13.1 10.2 8.9 7.8 6.8 27.7 22.4 18.0 14.5 11.5 10.2 9.1
19.3 15.2 11.8 10.4 9.1 7.9 32.2 26.1 20.9 16.8 13.3 11.9 10.6
53.0 41.7 81.0 65.5 53.0 42.2 33.4 29.6 26.2
13.4 10.5 — — — — 20.4 16.5 13.4 10.6 8.4 7.5 6.6
15.5 12.2 23.7 19.2 15.5 12.4 9.8 8.7 7.7
77.0 61.5 46.0 38.3 30.6 27.3
19.4 15.5 11.6 9.7 7.7 6.9
22.6 18.0 13.5 11.2 9.0 8.0
61.5 48.6
15.5 12.2 — — — —
18.0 14.2
61.5 54.5 48.1 37.3 28.2 20.3
15.5 13.7 12.1 9.4 7.1 5.1
18.0 16.0 14.1 10.9 8.3 5.9
46.8 41.5 36.7 28.3 21.2 14.5
11.8 10.5 9.2 7.1 5.3 3.7
13.7 12.2 10.8 8.3 6.2 4.2
88.5 69.5 53.5 46.8 41.3 36.9 134.0 112.0 91.5 73.5 58.0 51.5 45.3
22.3 17.5 13.5 11.8 10.4 9.3 33.8 28.2 23.1 18.5 14.6 13.0 11.4
25.9 20.4 15.7 13.7 12.1 10.8 39.3 32.8 26.8 21.5 17.0 15.1 13.3
70.0 54.0 102.0 84.0 69.0 55.5 43.6 38.4 33.8
17.6 13.6 — — — — 25.7 21.2 17.4 14.0 11.0 9.7 8.5
20.5 15.8 29.9 24.6 20.2 16.3 12.8 11.3 9.9
105.0 93.1 82.6 64.6 49.4 35.5
26.5 23.5 20.8 16.3 12.4 8.9
30.8 27.3 24.2 18.9 14.5 10.4
81.2 71.4 63.1 48.4 35.9 24.2
20.5 18.0 15.9 12.2 9.0 6.1
23.8 20.9 18.5 14.2 10.5 7.1
54.0 47.9 42.5 33.2
13.6 12.1 10.7 8.4
15.8 14.0 12.5 9.7
41.8 36.7 32.5 24.9
10.5 9.2 8.2 6.3
12.2 10.8 9.5 7.3

105
COPELAND DISCUS™ COMPRESSORS

BTUS / HOUR x 1000

50 HERTZ CAPACITY KCALS / HOUR x 1000
WATTS x 1000
REFRIGERANT COOLED
CAPACITY CONTROL R12 R22
CAPACITY BASIC CFH CONDENSING EVAPORATING TEMPERATURE °F/°C
HP m 3/hr
CONTROL COMPRESSOR TEMPERATURE 55 45 35 25 15 5 0 – 5 – 10 – 20 – 30 – 40 55 45 35
kW
MODEL MODEL 50HZ °F °C 12.8 7.2 1.7 – 3.9 – 9.4 – 15 – 17.8 – 20.6 – 23.3 – 28.9 – 34.4 – 40 12.8 7.2 1.7
196.0 163.0 134.0
4DR A3000
100 37.8 49.4 41.1 33.8
50%
4DJ A3000 30 2985 57.4 47.8 39.3
Unloaded
4DJR28M0 22.4 84.5 161.0 133.0 109.0
(RG)
4DRR28M0 130 54.4 40.6 33.5 27.5
47.2 39.0 31.9
321.0 262.0 214.0
6DWA3000
100 37.8 80.9 66.0 53.9
33%
6DB A3000 30 3450 94.1 76.8 62.7
Unloaded
6DBR32M0 22.4 97.7 253.0 209.0 173.0
(RG)
6DWR32M0 130 54.4 63.8 52.7 43.6
74.1 61.2 50.7
165.0 135.0 110.0
6DYA3000
100 37.8 41.6 34.0 27.7
67%
6DBA3000 30 3450 48.3 39.6 32.2
Unloaded
6DBR32M0 22.4 97.7 130.0 108.0 88.9
(RG)
6DYR32M0 130 54.4 32.8 27.2 22.4
38.1 31.6 26.0
6DE A3000
33% 100 37.8
Unloaded 6DT A3000 30 4478
(DS) 6DTF11M0 22.4 126.8
(OC) 130 54.4
6DEF11M0
6DF A3000
67% 100 37.8
Unloaded 6DT A3000 30 4478
(DS) 6DTF11M0 22.4 126.8
(OC)
130 54.4
6DFF11M0
348.0 286.0 234.0
6DK A3500
100 37.8 87.7 72.1 59.0
33%
6DH A3500 35 3748 102.0 83.8 68.6
Unloaded
6DHR35M0 26.1 106.1 285.0 233.0 190.0
(RG)
6DKR35M0 130 54.4 71.8 58.7 47.9
83.5 68.3 55.7
179.0 147.0 120.0
6DP A3500
100 37.8 45.1 37.0 30.2
67%
6DH A3500 35 3748 52.4 43.1 35.2
Unloaded
6DHR35M0 26.1 106.1 147.0 120.0 97.6
(RG)
6DPR35M0 130 54.4 37.0 30.2 24.6
43.1 35.2 28.6
373.0 306.0 251.0
6DM A3500
100 37.8 94.0 77.1 63.3
33%
6DG A3500 35 4129 109.0 89.7 73.5
Unloaded
6DGR37M0 26.1 116.9 307.0 253.0 209.0
(RG)
6DMR37M0 130 54.4 77.4 63.8 52.7
90.0 74.1 61.2
192.0 157.0 129.0
6DN A3500
100 37.8 48.4 39.6 32.5
67%
6DGA3500 35 4129 56.3 46.0 37.8
Unloaded
6DGR37M0 26.1 116.9 158.0 130.0 108.0
(RG)
6DNR37M0 130 54.4 39.8 32.8 27.2
46.3 38.1 31.6
(RG) In grey shaded area the maximum return gas is 50°F (10°C).
(DS) Deep oil sump is standard on this model.
(OC) Oil cooler and vertical cooling fan are standard on this model.

106
COPELAND DISCUS™ COMPRESSORS

BTUS / HOUR x 1000

CAPACITY KCALS / HOUR x 1000
WATTS x 1000

R22 R502
EVAPORATING TEMPERATURE °F/°C
25 15 5 0 –5 – 10 – 20 – 30 – 40 45 35 25 15 5 0 –5 – 10 – 20 – 30 – 40
– 3.9 – 9.4 – 15 – 17.8 – 20.6 – 23.3 – 28.9 – 34.4 – 40 7.2 1.7 – 3.9 – 9.4 – 15 – 17.8 – 20.6 – 23.3 – 28.9 – 34.4 – 40
105.0 82.5 64.5 56.5 49.4 43.3 158.0 131.0 107.0 87.0 70.0 62.0 55.0
26.5 20.8 16.3 14.2 12.4 10.9 39.8 33.0 27.0 21.9 17.6 15.6 13.9
30.8 24.4 18.9 16.6 14.5 12.7 46.3 38.4 31.4 25.5 20.5 18.2 16.1
83.0 65.5 121.0 99.0 81.0 65.5 52.5 47.1 41.9
20.9 16.5 — — — — 30.5 24.9 20.4 16.5 13.2 11.9 10.6
24.3 19.2 35.5 29.0 23.7 19.2 15.4 13.8 12.3
164.0 135.0 106.0 91.5 77.0 64.4
41.3 34.0 26.7 23.1 19.4 16.2
48.1 39.6 31.1 26.8 22.6 18.9
133.0 107.0
33.5 27.0 — — — —
39.0 31.4
84.2 69.5 54.8 47.5 40.2 33.1
21.2 17.5 13.8 12.0 10.1 8.3
24.7 20.4 16.1 13.9 11.8 9.7
68.4 55.1
17.2 13.9 — — — —
20.0 16.1
122.0 106.0 93.8 72.8 56.8 42.8
30.7 26.7 23.6 18.3 14.3 10.8
35.7 31.1 27.5 21.3 16.6 12.5
95.2 83.3 72.8 55.8 41.8 28.4
24.0 21.0 18.3 14.1 10.5 7.2
27.9 24.4 21.3 16.3 12.2 8.3
62.6 54.7 48.2 37.4
15.8 13.8 12.1 9.4
18.3 16.0 14.1 11.0
49.0 42.8 37.4 28.7
12.3 10.8 9.4 7.2
14.4 12.5 11.0 8.4
176.0 142.0 113.0 100.0 88.9 77.7 258.0 215.0 177.0 146.0 118.0 105.0 93.8
44.4 35.8 28.5 25.2 22.4 19.6 65.0 54.2 44.6 36.8 29.7 26.5 23.6
51.6 41.6 33.1 29.3 26.0 22.8 75.6 63.0 51.9 42.8 34.6 30.8 27.5
142.0 114.0 198.0 164.0 135.0 111.0 88.9 79.8 70.7
35.8 28.7 — — — — 49.9 41.3 34.0 28.0 22.4 20.1 17.8
41.6 33.4 58.0 48.1 39.6 32.5 26.0 23.4 20.7
90.7 73.1 58.0 51.5 45.7 40.0 133.0 111.0 91.1 74.9 60.5 54.0 48.2
22.9 18.4 14.6 13.0 11.5 10.1 33.5 28.0 23.0 18.9 15.2 13.6 12.1
26.6 21.4 17.0 15.1 13.4 11.7 39.0 32.5 26.7 21.9 17.7 15.8 14.1
73.1 58.7 102.0 84.2 69.5 56.9 45.7 41.0 36.4
18.4 14.8 — — — — 25.7 21.2 17.5 14.3 11.5 10.3 9.2
21.4 17.2 29.9 24.7 20.4 16.7 13.4 12.0 10.7
194.0 156.0 123.0 109.0 97.3 86.1 285.0 237.0 196.0 160.0 130.0 115.0 103.0
48.9 39.3 31.0 27.5 24.5 21.7 71.8 59.7 49.4 40.3 32.8 29.0 26.0
56.8 45.7 36.0 31.9 28.5 25.2 83.5 69.4 57.4 46.9 38.1 33.7 30.2
157.0 126.0 214.0 178.0 146.0 120.0 96.6 85.4 77.0
39.6 31.8 — — — — 53.9 44.9 36.8 30.2 24.3 21.5 19.4
46.0 36.9 62.7 52.2 42.8 35.2 28.3 25.0 22.6
99.7 80.3 63.4 55.8 50.0 44.3 147.0 122.0 101.0 82.4 66.6 59.0 52.9
25.1 20.2 16.0 14.1 12.6 11.2 37.0 30.7 25.5 20.8 16.8 14.9 13.3
29.2 23.5 18.6 16.3 14.7 13.0 43.1 35.7 29.6 24.1 19.5 17.3 15.5
80.6 64.8 110.0 91.4 75.2 61.6 49.7 43.9 39.6
20.3 16.3 — — — — 27.7 23.0 19.0 15.5 12.5 11.1 10.0
23.6 19.0 32.2 26.8 22.0 18.0 14.6 12.9 11.6

107
COPELAND DISCUS™ COMPRESSORS

BTUS / HOUR x 1000

50 HERTZ CAPACITY KCALS / HOUR x 1000
WATTS x 1000
REFRIGERANT COOLED
CAPACITY CONTROL R12 R22
CAPACITY BASIC CFH CONDENSING EVAPORATING TEMPERATURE °F/°C
HP m 3/hr
CONTROL COMPRESSOR TEMPERATURE 55 45 35 25 15 5 0 – 5 – 10 – 20 – 30 – 40 55 45 35
kW
MODEL MODEL 50HZ °F °C 12.8 7.2 1.7 – 3.9 – 9.4 – 15 – 17.8 – 20.6 – 23.3 – 28.9 – 34.4 – 40 12.8 7.2 1.7
6DR A4000 405.0 337.0 278.0
33% 100 37.8 102.0 84.9 70.1
6DJ A4000 40 4478
Unloaded 119.0 98.7 81.5
6DJR40M0 29.8 126.8
(DS) 334.0 276.0 225.0
(RG) 130 54.4 84.2 69.6 56.7
6DRR40M0 97.9 80.9 65.9
6DS A4000 208.0 174.0 143.0
67% 100 37.8 52.4 43.8 36.0
Unloaded 6DJ A4000 40 4478 60.9 51.0 41.9
(DS) 6DJR40M0 29.8 126.8 172.0 142.0 116.0
(RG) 130 54.4 43.3 35.8 29.2
6DSR40M0 50.4 41.6 34.0
559.0 457.0 371.0
8DP - 5000
100 37.8 141.0 115.0 93.5
25%
8DP - 5000 50 5358 164.0 134.0 109.0
Unloaded
8DPR56M0 37.3 151.7 458.0 375.0 304.0
(DS)
8DPR56M0 130 54.4 115.0 94.5 76.6
134.0 110.0 89.1
375.0 307.0 249.0
8DP - 5000 100 37.8 94.5 77.4 62.7
50% 110.0 90.0 73.0
8DP - 5000 50 5358
Unloaded
8DPR56M0 37.3 151.7 307.0 252.0 204.0
(DS)
130 54.4 77.4 63.5 51.4
8DPR56M0
90.0 73.8 59.8
644.0 527.0 426.0
8DS - 6000 100 37.8 162.0 133.0 107.0
25% 189.0 154.0 125.0
8DS - 6000 60 6340
Unloaded
8DSR67M0 44.8 179.5 523.0 429.0 347.0
(DS)
8DSR67M0 130 54.4 132.0 108.0 87.4
153.0 126.0 102.0
443.0 362.0 293.0
8DS - 6000 100 37.8 112.0 91.2 73.8
50%
8DS - 6000 60 6340 130.0 106.0 85.8
Unloaded
8DSR67M0 44.8 179.5 360.0 295.0 239.0
(DS)
8DSR67M0 130 54.4 90.7 74.3 60.2
105.0 86.4 70.0
(DS) Deep oil sump is standard on this model.
(RG) In grey shaded area the maximum return gas is 50°F (10°C).

108
COPELAND DISCUS™ COMPRESSORS

BTUS / HOUR x 1000

CAPACITY KCALS / HOUR x 1000
WATTS x 1000

R22 R502
EVAPORATING TEMPERATURE °F/°C
25 15 5 0 –5 – 10 – 20 – 30 – 40 45 35 25 15 5 0 –5 – 10 – 20 – 30 – 40
– 3.9 – 9.4 – 15 – 17.8 – 20.6 – 23.3 – 28.9 – 34.4 – 40 7.2 1.7 – 3.9 – 9.4 – 15 – 17.8 – 20.6 – 23.3 – 28.9 – 34.4 – 40
211.0 169.0 134.0 118.0 104.0 89.6 309.0 258.0 213.0 174.0 141.0 125.0 111.0
53.2 42.6 33.8 29.7 26.2 22.6 77.9 65.0 53.7 43.8 35.5 31.5 28.0
61.8 49.5 39.3 34.6 30.5 26.3 90.5 75.6 62.4 51.0 41.3 36.6 32.5
170.0 137.0 237.0 197.0 162.0 130.0 100.0 86.1 72.8
42.8 34.5 — — — — 59.7 49.6 40.8 32.8 25.2 21.7 18.3
49.8 40.1 69.4 57.7 47.5 38.1 29.3 25.2 21.3
108.0 87.1 69.1 60.8 53.3 46.1 159.0 132.0 109.0 89.6 72.4 64.4 57.2
27.2 21.9 17.4 15.3 13.4 11.6 40.1 33.3 27.5 22.6 18.2 16.2 14.4
31.6 25.5 20.2 17.8 15.6 13.5 46.6 38.7 31.9 26.3 21.2 18.9 16.8
87.5 70.6 122.0 101.0 83.2 66.6 51.5 44.3 37.4
22.1 17.8 — — — — 30.7 25.5 21.0 16.8 13.0 11.2 9.4
25.6 20.7 35.7 29.6 24.4 19.5 15.1 13.0 11.0
281.0 227.0 406.0 337.0 278.0 227.0 183.0 165.0 147.0
70.8 57.2 102.0 84.9 70.1 57.2 46.1 41.6 37.0
82.3 66.5 119.0 98.7 81.5 66.5 53.6 48.3 43.1
229.0 183.0 313.0 261.0 215.0 176.0 141.0 127.0 112.0
57.7 46.1 78.9 65.8 54.2 44.4 35.5 32.0 28.2
67.1 53.6 91.7 76.5 63.0 51.6 41.3 37.2 32.8
189.0 152.0 276.0 229.0 189.0 154.0 125.0 112.0 99.6
47.6 38.3 69.6 57.7 47.6 38.8 31.5 28.2 25.1
55.4 44.5 80.9 67.1 55.4 45.1 36.6 32.8 29.2
154.0 123.0 213.0 177.0 146.0 119.0 95.9 86.4 76.3
38.8 31.0 53.7 44.6 36.8 30.0 24.2 21.8 19.2
45.1 36.0 62.4 51.9 42.8 34.9 28.1 25.3 22.4
323.0 258.0 470.0 390.0 321.0 261.0 211.0 190.0 168.0
81.4 65.0 118.0 98.3 80.9 65.8 53.2 47.9 42.3
94.6 75.6 138.0 114.0 94.1 76.5 61.8 55.7 49.2
262.0 210.0 363.0 300.0 247.0 201.0 161.0 145.0 129.0
66.0 52.9 91.5 75.6 62.2 50.7 40.6 36.5 32.5
76.8 61.5 106.0 87.9 72.4 58.9 47.2 42.5 37.8
222.0 178.0 320.0 265.0 218.0 178.0 143.0 129.0 114.0
55.9 44.9 80.6 66.8 54.9 44.9 36.0 32.5 28.7
65.0 52.2 93.8 77.6 63.9 52.2 41.9 37.8 33.4
180.0 144.0 246.0 204.0 168.0 137.0 110.0 98.6 87.5
45.4 36.3 62.0 51.4 42.3 34.5 27.7 24.8 22.1
52.7 42.2 72.1 59.8 49.2 40.1 32.2 28.9 25.6

109
COPELAND DISCUS™ COMPRESSORS

BTUS / HOUR x 1000

50 HERTZ CAPACITY KCALS / HOUR x 1000
WATTS x 1000
REFRIGERANT COOLED
CAPACITY CONTROL TANDEMS R12 R22
CAPACITY BASIC CFH CONDENSING EVAPORATING TEMPERATURE °F/°C
HP m 3/hr
CONTROL TANDEM TEMPERATURE 55 45 35 25 15 5 0 – 5 – 10 – 20 – 30 – 40 55 45 35
kW
MODEL MODEL 50HZ °F °C 12.8 7.2 1.7 – 3.9 – 9.4 – 15 – 17.8 – 20.6 – 23.3 – 28.9 – 34.4 – 40 12.8 7.2 1.7
44.8 24.8
33DA10EE 100 37.8 11.3 6.2
33D A10AA 10 2270
Moduload 13.1 7.3
33DA3F36K0 7.5 64.3
33DE3F36K0
130 54.4 — —

100 37.8
33DA12HH
33D A12AA 12 2270
Moduload
33DA3F56K0 9.0 64.3
33DH3F56K0 130 54.4

242.0 186.0 134.0

33DA15EE 100 37.8 61.0 46.9 33.8
33D A15AA 15 2270 70.9 54.5 39.3
Moduload
33DA3R20M0 11.2 64.3 154.0 107.0 64.6
33DE3R20M0
130 54.4 38.8 27.0 16.3
45.1 31.4 18.9
122.0 87.4 57.0 31.8
33DA15PP 100 37.8 — 30.7 22.0 14.4 8.0
33D A15BB 15 2676 35.7 25.6 16.7 9.3
Moduload
33DB3F66K0 11.2 75.8 96.6 65.6 37.2
33DP3F66K0
130 54.4 24.3 16.5 9.4 — —
28.3 19.2 10.9

33DA15JJ 100 37.8

33D A15BB 15 2676
Moduload
33DB3F66K0 11.2 75.8
33DJ3F66K0
130 54.4

68.6 38.6
33DA15KK 100 37.8 17.3 9.7
33D A15FF 15 3172 20.1 11.3
Moduload
33DF3F52K0 11.2 89.8
33DK3F52K0
130 54.4 — —

73.0 40.6
100 37.8 18.4 10.2
33DA15TT 21.4 11.9
33D A15SS 15 3524
Moduload
33DS3F60K0 11.2 99.8
33DT3F66K0 130 54.4 — —

122.0 87.4 57.0 31.8 290.0 224.0 159.0

33DA18PP 100 37.8 — 30.7 22.0 14.4 8.0 73.1 56.4 40.1
Moduload 33D A18BB 18 2676 35.7 25.6 16.7 9.3 85.0 65.6 46.6
(LV) 33DB3F54K0 13.4 75.8 96.6 65.6 37.2 180.0 123.0 74.6
33DP3F54K0 130 54.4 24.3 16.5 9.4 — — 45.4 31.0 18.8
28.3 19.2 10.9 52.7 36.0 21.9

33DA18JJ 100 37.8

Moduload 33D A18BB 18 2676
(LV) 33DB3F54K0 13.4 75.8
33DJ3F54K0 130 54.4

(LV) Limited voltage. Available only in 200 volt electrical.

110
COPELAND DISCUS™ COMPRESSORS

BTUS / HOUR x 1000

CAPACITY KCALS / HOUR x 1000
WATTS x 1000

71.8 61.2 51.6 35.2 21.4 10.6

18.1 15.4 13.0 8.9 5.4 2.7
21.0 17.9 15.1 10.3 6.3 3.1
48.8 39.2 31.4 18.2 8.2
12.3 9.9 7.9 4.6 2.1 —
14.3 11.5 9.2 5.3 2.4
122.0 89.8 178.0 135.0 92.2 56.4
30.7 22.6 44.9 34.0 23.2 14.2
35.7 26.3 52.2 39.6 27.0 16.5
62.0 47.0 94.8 62.0
15.6 11.8 23.9 15.6 — —
18.2 13.8 27.8 18.2

88.4 76.0 64.4 44.0 26.8 13.4

22.3 19.2 16.2 11.1 6.8 3.4
25.9 22.3 18.9 12.9 7.9 3.9
60.8 49.6 40.4 23.8 11.0
15.3 12.5 10.2 6.0 2.8 —
17.8 14.5 11.8 7.0 3.2

142.0 105.0
35.8 26.5
41.6 30.8
64.2 54.0
16.2 13.6
18.8 15.8
87.0 75.4 64.2 44.2 26.8 13.6
21.9 19.0 16.2 11.1 6.8 3.4
25.5 23.0 18.8 13.0 7.9 4.0
56.8 47.4 39.2 23.4 10.8
14.3 11.9 9.9 5.9 2.7 —
16.6 13.9 11.5 6.9 3.2

111
COPELAND DISCUS™ COMPRESSORS

BTUS / HOUR x 1000

50 HERTZ CAPACITY KCALS / HOUR x 1000
WATTS x 1000
REFRIGERANT COOLED
CAPACITY CONTROL TANDEMS R12 R22
CAPACITY BASIC CFH CONDENSING EVAPORATING TEMPERATURE °F/°C
HP m 3/hr
CONTROL TANDEM TEMPERATURE 55 45 35 25 15 5 0 – 5 – 10 – 20 – 30 – 40 55 45 35
kW
MODEL MODEL 50HZ °F °C 12.8 7.2 1.7 – 3.9 – 9.4 – 15 – 17.8 – 20.6 – 23.3 – 28.9 – 34.4 – 40 12.8 7.2 1.7
147.0 105.0 68.6 38.0
100 37.8 — 37.0 26.5 17.3 9.6
33DA18KK 43.1 30.8 20.1 11.1
33DA18FF 18 3172
Moduload 116.0 79.4 45.2
33DF3F80K0 13.4 89.8
33DK3F80K0 130 54.4 29.2 20.0 11.4 — —
34.0 23.3 13.2

33DA18GG 100 37.8

33DA18FF 18 3172
Moduload
33DF3F80K0 13.4 89.8
33DG3F80K0
130 54.4

282.0 220.0 159.0

33D A20PP 100 37.8 71.1 55.4 40.1
33D A20BB 20 2676 82.6 64.5 46.6
Moduload
33DB3R24M0 14.9 75.8 181.0 126.0 76.8
33DP3R24M0
130 54.4 45.6 31.8 19.4
53.0 36.9 22.5
158.0 113.0 73.8 41.2
100 37.8 — 39.8 28.5 18.6 10.4
33D A20TT
33D A20SS 20 3524 46.3 33.1 21.6 12.1
Moduload
33DS3R22M0 14.9 99.8 127.0 86.0 49.0
33DT3R22M0 130 54.4 32.0 21.7 12.3 — —
37.2 25.2 14.4

33DA20RR 100 37.8

33DA20SS 20 3524
Moduload
33DS3F92K0 14.9 99.8
33DR3F92K0
130 54.4

83.2 67.4 53.6 46.8 41.4

44DA20EE 100 37.8 21.0 17.0 13.5 11.8 10.4
50% 44DA20AA 20 3954 24.4 19.7 15.7 13.7 12.1
Unloaded 44DAR24M0 14.9 111.9 67.4 53.8 42.0 38.4 33.6
44DER24M0 130 54.4 17.0 13.6 10.6 9.7 8.5
19.7 15.8 12.3 11.3 9.8
44DA20NN 41.4 36.4 27.4 20.2 14.0
50% 100 37.8 10.4 9.2 6.9 5.1 3.5
44DA20AA 20 3954 12.1 10.7 8.0 5.9 4.1
Unloaded
44DAR24M0 14.9 111.9 33.6 29.2 21.4 15.0 9.6
(OC)
130 54.4 8.5 7.4 5.4 3.8 2.4
44DNR24M0 9.8 8.6 6.3 4.4 2.8
83.2 67.4 53.6 46.8 41.4
44DA21EE 100 37.8 21.0 17.0 13.5 11.8 10.4
50% 44DA21AA 20 3954 24.4 19.7 15.7 13.7 12.1
Unloaded 44DAF94K0 14.9 111.9 67.4 53.8 42.0 38.4 33.6
44DEF94K0 130 54.4 17.0 13.6 10.6 9.7 8.5
19.7 15.8 12.3 11.3 9.8
44DA21NN 41.4 36.4 27.4 20.2 14.0
100 37.8 10.4 9.2 6.9 5.1 3.5
50%
44DA21AA 20 3954 12.1 10.7 8.0 5.9 4.1
Unloaded
44DAF94K0 14.9 111.9 33.6 29.2 21.4 15.0 9.6
(OC) 130 54.4 8.5 7.4 5.4 3.8 2.4
44DNF94K0 9.8 8.6 6.3 4.4 2.8
(OC) Oil coolers and vertical cooling fans are standard on this model.

112
COPELAND DISCUS™ COMPRESSORS

BTUS / HOUR x 1000

CAPACITY KCALS / HOUR x 1000
WATTS x 1000

104.0 90.2 76.6 52.6 31.8 16.4

26.2 22.7 19.3 13.3 8.0 4.1
30.5 26.4 22.4 15.4 9.3 4.8
70.6 58.6 48.4 28.8 13.2
17.8 14.8 12.2 7.3 3.3 —
20.7 17.2 14.2 8.4 3.9
146.0 108.0 214.0 162.0 111.0 67.6
36.8 27.2 53.9 40.8 28.0 17.0
42.8 31.6 62.7 47.5 32.5 19.8
70.0 56.4 113.0 74.2
17.6 14.2 28.5 18.7 — —
20.5 16.5 33.1 21.7

116.0 100.0 85.4 58.8 35.8 18.4

29.2 25.2 21.5 14.8 9.0 4.6
34.0 29.3 25.0 17.2 10.5 5.4
76.6 64.0 53.0 32.0 15.0
19.3 16.1 13.4 8.1 3.8 —
22.4 18.8 15.5 9.4 4.4

80.6 72.2 64.2 49.4 36.6 25.4

20.3 18.2 16.2 12.4 9.2 6.4
23.6 21.2 18.8 14.5 10.7 7.4
61.2 55.2 49.2 37.2 25.2 13.4
15.4 13.9 12.4 9.4 6.4 3.4
17.9 16.2 14.4 10.9 7.4 3.9

80.6 72.2 64.2 49.4 36.6 25.4

20.3 18.2 16.2 12.4 9.2 6.4
23.6 21.2 18.8 14.5 10.7 7.4
61.2 55.2 49.2 37.2 25.2 13.4
15.4 13.9 12.4 9.4 6.4 3.4
17.9 16.2 14.4 10.9 7.4 3.9

113
COPELAND DISCUS™ COMPRESSORS

BTUS / HOUR x 1000

50 HERTZ CAPACITY KCALS / HOUR x 1000
WATTS x 1000
REFRIGERANT COOLED
CAPACITY CONTROL TANDEMS R12 R22
CAPACITY BASIC CFH CONDENSING EVAPORATING TEMPERATURE °F/°C
HP m 3/hr
CONTROL TANDEM TEMPERATURE 55 45 35 25 15 5 0 – 5 – 10 – 20 – 30 – 40 55 45 35
kW
MODEL MODEL 50HZ °F °C 12.8 7.2 1.7 – 3.9 – 9.4 – 15 – 17.8 – 20.6 – 23.3 – 28.9 – 34.4 – 40 12.8 7.2 1.7
264.0 186.0
33DA24KK 100 37.8 66.5 46.9
33DA24FF 24 3172 77.4 54.5
Moduload
33DF3R30M0 17.9 89.8 147.0 88.2
33DK3R30M0
130 54.4 37.0 22.2
43.1 25.8
380.0 294.0 212.0
33DA30TT 100 37.8 95.8 74.1 53.4
33D A30SS 30 3524 111.0 86.1 62.1
Moduload
33DS3R34M0 22.4 99.8 240.0 167.0 102.0
33DT3R34M0
130 54.4 60.5 42.1 25.7
70.3 48.9 29.9

44DA30PP 100 37.8

50%
44D A30LL 30 4998
Unloaded
44DLF13M0 22.4 141.5
(OC) 130 54.4
44DPF13M0

44D A40EE 264.0 224.0 180.0

50% 100 37.8 66.5 56.4 45.4
44DA44AA 40 3954 77.4 65.6 52.7
Unloaded
44DAR36M0 29.8 111.9 214.0 178.0 141.0
(RG)
130 54.4 53.9 44.9 35.5
44DER36M0 62.7 52.2 41.3
44DA44CC 304.0 252.0 206.0
50% 100 37.8 76.6 63.5 51.9
44DA44BB 44 4600 89.1 73.8 60.4
Unloaded
44DBR40M0 32.8 130.2 250.0 206.0 165.0
(RG)
130 54.4 63.0 51.9 41.6
44DCR40M0
73.3 60.4 48.3
44DA44SS
100 37.8
50%
44DA44TT 44 5970
Unloaded
44DTF15M0 32.8 169.0
(OC) 130 54.4
44DSF15M0
44DA50KK 330.0 274.0 224.0
50% 100 37.8 83.2 69.0 56.4
44DA50HH 50 4998 96.7 80.3 65.6
Unloaded
44DHR44M0 37.3 141.5 274.0 226.0 184.0
(RG)
130 54.4 69.0 57.0 46.4
44DKR44M0 80.3 66.2 53.9
66DA54CC
33% 100 37.8
66D A54LL 54 7496
Unloaded
66DLF19M0 40.3 212.2
(OC)
130 54.4
66DCF19M0

66DA54DD
100 37.8
67%
66DA54LL 54 7496
Unloaded
66DLF19M0 40.3 212.2
(OC)
130 54.4
66DDF19M0
(OC) Oil coolers and vertical cooling fans are standard on this model.
(RG) In grey shaded area the maximum return gas is 50°F (10°C).

114
COPELAND DISCUS™ COMPRESSORS

BTUS / HOUR x 1000

CAPACITY KCALS / HOUR x 1000
WATTS x 1000

R22 R502
EVAPORATING TEMPERATURE °F/°C
25 15 5 0 –5 – 10 – 20 – 30 – 40 45 35 25 15 5 0 –5 – 10 – 20 – 30 – 40
– 3.9 – 9.4 – 15 – 17.8 – 20.6 – 23.3 – 28.9 – 34.4 – 40 7.2 1.7 – 3.9 – 9.4 – 15 – 17.8 – 20.6 – 23.3 – 28.9 – 34.4 – 40
169.0 125.0
42.6 31.5
49.5 36.6
84.0 65.4
21.2 16.5
24.6 19.2
191.0 141.0 282.0 214.0 147.0 90.4
48.1 35.5 71.1 53.9 37.0 22.8
56.0 41.3 82.6 62.7 43.1 26.5
96.0 75.0 151.0 98.4
24.2 18.9 38.1 24.8 — —
28.1 22.0 44.2 28.8
102.0 90.4 80.0 61.8 47.2 35.2
25.7 22.8 20.2 15.6 11.9 8.9
29.9 26.5 23.4 18.1 13.8 10.3
77.0 68.6 60.8 46.8 34.6 23.2
19.4 17.3 15.3 11.8 8.7 5.8
22.6 20.1 17.8 13.7 10.1 6.8
132.0 104.0 80.6 70.8 61.8 53.6 220.0 178.0 143.0 115.0 91.0 81.0 72.2
33.3 26.2 20.3 17.8 15.6 13.5 55.4 44.9 36.0 29.0 22.9 20.4 18.2
38.7 30.5 23.6 20.7 18.1 15.7 64.5 52.2 41.9 33.7 26.7 23.7 21.2
106.0 83.4 162.0 131.0 106.0 84.4 66.8 59.2 52.4
26.7 21.0 — — — — 40.8 33.0 26.7 21.3 16.8 14.9 13.2
31.1 24.4 47.5 38.4 31.1 24.7 19.6 17.3 15.4
154.0 123.0 92.0 76.5 61.0 54.6
38.8 31.0 23.2 19.3 15.4 13.8
45.1 36.0 27.0 22.4 17.9 16.0
123.0 97.2
31.0 24.5 — — — —
36.0 28.5
123.0 109.0 96.2 74.6 56.4 40.6
31.0 27.5 24.2 18.8 14.2 10.2
36.0 31.9 28.2 21.9 16.5 11.9
93.6 83.0 73.4 56.6 42.4 29.0
23.6 20.9 18.5 14.3 10.7 7.3
27.4 24.3 21.5 16.6 12.4 8.5
177.0 139.0 107.0 93.6 82.6 73.8 268.0 224.0 183.0 147.0 116.0 103.0 90.6
44.6 35.0 27.0 23.6 20.8 18.6 67.5 56.4 46.1 37.0 29.2 26.0 22.8
51.9 40.7 31.4 27.4 24.2 21.6 78.5 65.6 53.6 43.1 34.0 30.2 26.5
140.0 108.0 204.0 168.0 138.0 111.0 87.2 76.8 67.6
35.3 27.2 — — — — 51.4 42.3 34.8 28.0 22.0 19.4 17.0
41.0 31.6 59.8 49.2 40.4 32.5 25.5 22.5 19.8
210.0 186.0 165.0 129.0 98.8 71.0
52.9 46.9 41.6 32.5 24.9 17.9
61.5 54.5 48.3 37.8 28.9 20.8
162.0 143.0 126.0 96.8 71.8 48.4
40.8 36.0 31.8 24.4 18.1 12.2
47.5 41.9 36.9 28.4 21.0 14.2
108.0 95.8 85.0 66.4
27.2 24.1 21.4 16.7
31.6 28.1 24.9 19.5
83.6 73.4 65.0 49.8
21.1 18.5 16.4 12.5
24.5 21.5 19.0 14.6

115
COPELAND DISCUS™ COMPRESSORS

BTUS / HOUR x 1000

50 HERTZ CAPACITY KCALS / HOUR x 1000
WATTS x 1000
REFRIGERANT COOLED
CAPACITY CONTROL TANDEMS R12 R22
CAPACITY BASIC CFH CONDENSING EVAPORATING TEMPERATURE °F/°C
HP m 3/hr
CONTROL TANDEM TEMPERATURE 55 45 35 25 15 5 0 – 5 – 10 – 20 – 30 – 40 55 45 35
kW
MODEL MODEL 50HZ °F °C 12.8 7.2 1.7 – 3.9 – 9.4 – 15 – 17.8 – 20.6 – 23.3 – 28.9 – 34.4 – 40 12.8 7.2 1.7

44DA60RR 392.0 326.0 268.0

100 37.8 98.8 82.2 67.5
50%
44DA60JJ 60 5970 115.0 95.5 78.5
Unloaded
44DJR56M0 44.8 169.0 322.0 266.0 218.0
(RG)
130 54.4 81.1 67.0 54.9
44DRR56M0 94.3 77.9 63.9
642.0 524.0 428.0
66DA60WW
100 37.8 162.0 132.0 108.0
33%
66DA60BB 60 6900 188.0 154.0 125.0
Unloaded
66DBR64M0 44.8 195.3 506.0 418.0 346.0
(RG) 130 54.4 128.0 105.0 87.2
66DWR64M0
148.0 122.0 101.0
66D A60YY 330.0 270.0 220.0
67% 100 37.8 83.2 68.0 55.4
66DA60BB 60 6900 96.7 79.1 64.5
Unloaded
66DBR64M0 44.8 195.3 260.0 216.0 178.0
(RG)
130 54.4 65.5 54.4 44.9
66DYR64M0 76.2 63.3 52.2
66D A60EE
33% 100 37.8
66D A60TT 60 8956
Unloaded
66DTF22M0 44.8 253.5
(DS) (OC)
130 54.4
66DEF22M0

66D A60FF
67% 100 37.8
66DA60TT 60 8956
Unloaded
66DTF22M0 44.8 253.5
(DS) (OC)
130 54.4
66DFF22M0

66D A70KK 696.0 572.0 468.0

33% 100 37.8 175.0 144.0 118.0
66DA70HH 70 7496 204.0 168.0 137.0
Unloaded
66DHR70M0 52.2 212.2 570.0 466.0 380.0
(RG)
130 54.4 144.0 117.0 95.8
66DKR70M0 167.0 137.0 111.0
66DA70PP 358.0 294.0 240.0
67% 100 37.8 90.2 74.1 60.5
66DA70HH 70 7496 105.0 86.1 70.3
Unloaded
66DHR70M0 52.2 212.2 294.0 240.0 195.0
(RG)
130 54.4 74.1 60.5 49.1
66DPR70M0 86.1 70.3 57.1
66DA70MM 746.0 612.0 502.0
33% 100 37.8 188.0 154.0 127.0
66DA70GG 70 8258 219.0 179.0 147.0
Unloaded
66DGR74M0 52.2 233.8 614.0 506.0 418.0
(RG)
130 54.4 155.0 128.0 105.0
66DMR74M0 180.0 148.0 122.0
66DA70NN 384.0 314.0 258.0
100 37.8 96.8 79.1 65.0
67%
66DA70GG 70 8258 113.0 92.0 75.6
Unloaded
66DGR74M0 52.2 233.8 316.0 260.0 216.0
(RG)
130 54.4 79.6 65.5 54.4
66DNR74M0 92.6 76.2 63.3
(RG) In grey shaded area the maximum return gas is 50°F (10°C).
(DS) Deep oil sumps are standard on this model.
(OC) Oil coolers and vertical cooling fans are standard on this model.

116
COPELAND DISCUS™ COMPRESSORS

BTUS / HOUR x 1000

CAPACITY KCALS / HOUR x 1000
WATTS x 1000

R22 R502
EVAPORATING TEMPERATURE °F/°C
25 15 5 0 –5 – 10 – 20 – 30 – 40 45 35 25 15 5 0 –5 – 10 – 20 – 30 – 40
– 3.9 – 9.4 – 15 – 17.8 – 20.6 – 23.3 – 28.9 – 34.4 – 40 7.2 1.7 – 3.9 – 9.4 – 15 – 17.8 – 20.6 – 23.3 – 28.9 – 34.4 – 40
210.0 165.0 129.0 113.0 98.8 86.6 316.0 262.0 214.0 174.0 140.0 124.0 110.0
52.9 41.6 32.5 28.5 24.9 21.8 79.6 66.0 53.9 43.8 35.3 31.2 27.7
61.5 48.3 37.8 33.1 28.9 25.4 92.6 76.8 62.7 51.0 41.0 36.3 32.2
166.0 131.0 242.0 198.0 162.0 131.0 105.0 94.2 83.8
41.8 33.0 — — — — 61.0 49.9 40.8 33.0 26.5 23.7 21.1
48.6 38.4 70.9 58.0 47.5 38.4 30.8 27.6 24.6
328.0 270.0 212.0 183.0 154.0 129.0
82.7 68.0 53.4 46.1 38.8 32.5
96.1 79.1 62.1 53.6 45.1 37.8
266.0 214.0
67.0 53.9 — — — —
77.9 62.7
168.0 139.0 110.0 95.5 81.0 66.2
42.3 35.0 27.7 24.1 20.4 16.7
49.2 40.7 32.2 28.0 23.7 19.4
137.0 110.0
34.5 27.7 — — — —
40.1 32.2
244.0 212.0 188.0 146.0 114.0 85.6
61.5 53.4 47.4 36.8 28.7 21.6
71.5 62.1 55.1 42.8 33.4 25.1
190.0 167.0 146.0 112.0 83.6 56.8
47.9 42.1 36.8 28.2 21.1 14.3
55.7 48.9 42.8 32.8 24.5 16.6
125.0 109.0 96.4 74.8
31.5 27.5 24.3 18.8
36.6 31.9 28.2 21.9
98.0 85.6 74.8 57.4
24.7 21.6 18.8 14.5
28.7 25.1 21.9 16.8
352.0 284.0 226.0 200.0 178.0 155.0 516.0 430.0 354.0 292.0 236.0 210.0 188.0
88.7 71.6 57.0 50.4 44.9 39.1 130.0 108.0 89.2 73.6 59.5 52.9 47.4
103.0 83.2 66.2 58.6 52.2 45.4 151.0 126.0 104.0 85.6 69.1 61.5 55.1
284.0 228.0 396.0 328.0 270.0 222.0 178.0 160.0 141.0
71.6 57.5 — — — — 99.8 82.7 68.0 55.9 44.9 40.3 35.5
83.2 66.8 116.0 96.1 79.1 65.0 52.2 46.9 41.3
181.0 146.0 116.0 103.0 91.4 80.0 266.0 222.0 182.0 150.0 121.0 108.0 96.4
45.6 36.8 29.2 26.0 23.0 20.2 67.0 55.9 45.9 37.8 30.5 27.2 24.3
53.0 42.8 34.0 30.2 26.8 23.4 77.9 65.0 53.3 44.0 35.5 31.6 28.2
146.0 117.0 204.0 168.0 139.0 114.0 91.4 82.0 72.8
36.8 29.5 — — — — 51.4 42.3 35.0 28.7 23.0 20.7 18.3
42.8 34.3 59.8 49.2 40.7 33.4 26.8 24.0 21.3
388.0 312.0 246.0 218.0 195.0 172.0 570.0 474.0 392.0 320.0 260.0 230.0 206.0
97.8 78.6 62.0 54.9 49.1 43.3 144.0 119.0 98.8 80.6 65.5 58.0 51.9
114.0 91.4 72.1 63.9 57.1 50.4 167.0 139.0 115.0 93.8 76.2 67.4 60.4
314.0 252.0 428.0 356.0 292.0 240.0 193.0 171.0 154.0
79.1 63.5 — — — — 108.0 89.7 73.6 60.5 48.6 43.1 38.8
92.0 73.8 125.0 104.0 85.6 70.3 56.5 50.1 45.1
199.0 161.0 127.0 112.0 100.0 88.6 294.0 244.0 202.0 165.0 133.0 118.0 106.0
50.1 40.6 32.0 28.2 25.2 22.3 74.1 61.5 50.9 41.6 33.5 29.7 26.7
58.3 47.2 37.2 32.8 29.3 26.0 86.1 71.5 59.2 48.3 39.0 34.6 31.1
161.0 130.0 220.0 183.0 150.0 123.0 99.4 87.8 79.2
40.6 32.8 — — — — 55.4 46.1 37.8 31.0 25.0 22.1 20.0
47.2 38.1 64.5 53.6 44.0 36.0 29.1 25.7 23.2

117
COPELAND DISCUS™ COMPRESSORS

BTUS / HOUR x 1000

50 HERTZ CAPACITY KCALS / HOUR x 1000
WATTS x 1000
REFRIGERANT COOLED
CAPACITY CONTROL TANDEMS R12 R22
CAPACITY BASIC CFH CONDENSING EVAPORATING TEMPERATURE °F/°C
HP m 3/hr
CONTROL TANDEM TEMPERATURE 55 45 35 25 15 5 0 – 5 – 10 – 20 – 30 – 40 55 45 35
kW
MODEL MODEL 50HZ °F °C 12.8 7.2 1.7 – 3.9 – 9.4 – 15 – 17.8 – 20.6 – 23.3 – 28.9 – 34.4 – 40 12.8 7.2 1.7

66D A80RR 810.0 674.0 556.0

100 37.8 204.0 170.0 140.0
33%
66D A80JJ 80 8956 237.0 197.0 163.0
Unloaded
66DJR80M0 59.7 253.5 668.0 552.0 450.0
(DS) (RG) 130 54.4 168.0 139.0 113.0
66DRR80M0 196.0 162.0 132.0
66D A80SS 416.0 348.0 286.0
100 37.8 105.0 87.7 72.1
67%
66D A80JJ 80 8956 122.0 102.0 83.8
Unloaded
66DJR80M0 59.7 253.5 344.0 284.0 232.0
(DS) (RG)
130 54.4 86.7 71.6 58.5
66DSR80M0 101.0 83.2 68.0
88D - 11PP 1118.0 914.0 742.0
25% 100 37.8 282.0 230.0 187.0
88D - 11PP 100 10716 328.0 268.0 217.0
Unloaded
88DPR112M0 74.6 303.4 916.0 750.0 608.0
(DS)
130 54.4 231.0 189.0 153.0
88DPR112M0 268.0 220.0 178.0
88D - 11PP 750.0 614.0 498.0
100 37.8 189.0 155.0 125.0
50%
88D - 11PP 100 10716 220.0 180.0 146.0
Unloaded
88DPR112M0 74.6 303.4 614.0 504.0 408.0
(DS)
130 54.4 155.0 127.0 103.0
88DPR112M0 180.0 148.0 119.0
88D - 12SS 1288.0 1054.0 852.0
25% 100 37.8 325.0 266.0 215.0
88D - 12SS 120 12680 377.0 309.0 250.0
Unloaded
88DSR134M0 89.5 359.0 1046.0 858.0 694.0
(DS)
130 54.4 264.0 216.0 175.0
88DSR134M0 306.0 251.0 203.0
88D - 12SS 886.0 724.0 586.0
100 37.8 223.0 182.0 148.0
50%
88D- 12SS 120 12680 260.0 212.0 172.0
Unloaded
88DSR134M0 89.5 359.0 720.0 590.0 478.0
(DS)
130 54.4 181.0 149.0 120.0
88DSR134M0 211.0 173.0 140.0
(DS) Deep oil sumps are standard on this model.
(RG) In grey shaded area the maximum return gas is 50°F (10°C).

DISCUS
TANDEM COMPRESSORS
Discus Tandem compressors are available from nominal 10
horsepower (7.5 kW) thus providing extensive system design
flexibility. The popular combinations are shown, but any 3D, 4D
or 6D, 8D compressors can be put together to make a tandem.
The capacity of a tandem model is the sum of the capacities of
the individual compressors. Since each compressor may be
operated individually, the tandem provides simple, foolproof
capacity reduction with maximum power savings, and greatly
simplifies system control. The unique tandem design solves the
troublesome problems of oil equalization sometimes
encountered on compressors with interconnected crankcases.
See Application Bulletin AE 4-1167 for complete details.

118
COPELAND DISCUS™ COMPRESSORS

BTUS / HOUR x 1000

CAPACITY KCALS / HOUR x 1000
WATTS x 1000

R22 R502
EVAPORATING TEMPERATURE °F/°C
25 15 5 0 –5 – 10 – 20 – 30 – 40 45 35 25 15 5 0 –5 – 10 – 20 – 30 – 40
– 3.9 – 9.4 – 15 – 17.8 – 20.6 – 23.3 – 28.9 – 34.4 – 40 7.2 1.7 – 3.9 – 9.4 – 15 – 17.8 – 20.6 – 23.3 – 28.9 – 34.4 – 40
422.0 338.0 268.0 236.0 208.0 179.0 618.0 516.0 426.0 348.0 282.0 250.0 222.0
106.0 85.2 67.5 59.5 52.4 45.1 156.0 130.0 107.0 87.7 71.1 63.0 55.9
124.0 99.0 78.5 69.1 60.9 52.4 181.0 151.0 125.0 102.0 82.6 73.3 65.0
340.0 274.0 474.0 394.0 324.0 260.0 200.0 172.0 146.0
85.7 69.0 — — — — 119.0 99.3 81.6 65.5 50.4 43.3 36.8
99.6 80.3 139.0 115.0 94.9 76.2 58.6 50.4 42.8
216.0 174.0 138.0 122.0 107.0 92.2 318.0 264.0 218.0 179.0 145.0 129.0 114.0
54.4 43.8 34.8 30.7 27.0 23.2 80.1 66.5 54.9 45.1 36.5 32.5 28.7
63.3 51.0 40.4 35.7 31.4 27.0 93.2 77.4 63.9 52.4 42.5 37.8 33.4
175.0 141.0 244.0 202.0 166.0 133.0 103.0 88.6 74.8
44.1 35.5 — — — — 61.5 50.9 41.8 33.5 26.0 22.3 18.8
51.3 41.3 71.5 59.2 48.6 39.0 30.2 26.0 21.9
562.0 454.0 812.0 674.0 556.0 454.0 366.0 330.0 294.0
142.0 114.0 205.0 170.0 140.0 114.0 92.2 83.2 74.1
165.0 133.0 238.0 197.0 163.0 133.0 107.0 96.7 86.1
458.0 366.0 626.0 522.0 430.0 352.0 282.0 254.0 224.0
115.0 92.2 158.0 132.0 108.0 88.7 71.1 64.0 56.4
134.0 107.0 183.0 153.0 126.0 103.0 82.6 74.4 65.6
378.0 304.0 552.0 458.0 378.0 308.0 250.0 224.0 199.0
95.3 76.6 139.0 115.0 95.3 77.6 63.0 56.4 50.1
111.0 89.1 162.0 134.0 111.0 90.2 73.3 65.6 58.3
308.0 246.0 426.0 354.0 292.0 238.0 192.0 173.0 153.0
77.6 62.0 107.0 89.2 73.6 60.0 48.4 43.6 38.6
90.2 72.1 125.0 104.0 86.0 69.7 56.3 50.7 44.8
646.0 516.0 940.0 780.0 642.0 522.0 422.0 380.0 336.0
163.0 130.0 237.0 197.0 162.0 132.0 106.0 95.8 84.7
189.0 151.0 275.0 228.0 188.0 153.0 124.0 111.0 98.4
524.0 420.0 726.0 600.0 494.0 402.0 322.0 290.0 258.0
132.0 106.0 183.0 151.0 124.0 101.0 81.1 73.1 65.0
154.0 123.0 213.0 176.0 145.0 118.0 94.3 85.0 75.6
444.0 356.0 640.0 530.0 436.0 356.0 286.0 258.0 228.0
112.0 89.7 161.0 134.0 110.0 89.7 72.1 65.0 57.5
130.0 104.0 187.5 155.3 128.0 104.0 83.8 75.6 66.8
360.0 288.0 492.0 408.0 336.0 274.0 220.0 197.0 175.0
90.7 72.6 124.0 103.0 84.7 69.0 55.4 49.6 44.1
105.0 84.4 144.0 120.0 98.4 80.3 64.5 57.7 51.3

119
COPELAND DISCUS™ COMPRESSORS

REFRIGERANT COOLED MECHANICAL SPECIFICATIONS

Oil Charge Mounting Center

CFH Overall Dimensions Service Valve Weights
Bore Stroke (Refill Oil Dimensions
HP m 3 /hr in/mm Sizes lb/kg
MODEL CYL in in Charge) in/mm
kW
mm mm Suction Discharge
50 Hertz Oz Liter Length Width Height Length Width Net Shipping
in in
2DF - 0300 3 25/8 13/8 749 80 2.37 231/4 13 173/32 115/8 11 13/8 7/8 280 310
2
2DF3F16K0 2.2 66.7 34.9 21.2 (72) (2.13) 591 330 434 295 279 Solder Solder 127 141
2DL- 0400 4 21/2 111/16 835 80 2.37 231/4 13 173/32 115/8 11 13/8 7/8 290 320
2
2DL3F20K0 3.0 63.5 42.9 23.6 (72) (2.13) 591 330 434 295 279 Solder Solder 132 145
2DC - 0500 5 21/2 113/64 593 80 2.37 231/4 13 173/32 115/8 11 13/8 7/8 290 320
2
2DC3R53K0 3.7 63.5 30.6 16.8 (72) (2.13) 591 330 434 295 279 Solder Solder 132 145
2DD - 0500 5 21/2 13/8 682 80 2.37 231/4 13 173/32 115/8 11 13/8 7/8 290 320
2
2DD3R63K0 3.7 63.5 34.9 19.3 (72) (2.13) 591 330 434 295 279 Solder Solder 132 145
2DF- 0500 5 25/8 13/8 749 80 2.37 231/4 13 173/32 115/8 11 13/8 7/8 280 310
2
(LV) 3.7 66.7 34.9 21.2 (72) (2.13) 591 330 434 295 279 Solder Solder 127 141
2DA- 0500 5 29/16 113/16 940 80 2.37 221/4 13 173/32 115/8 11 13/8 7/8 290 320
2
2DA3R58K0 3.7 65.1 46.0 26.6 (72) (2.13) 565 330 434 295 279 Solder Solder 132 145
2DB - 0500 5 25/8 113/16 987 80 2.37 221/4 13 173/32 115/8 11 13/8 7/8 290 320
2
2DB3R61K0 3.7 66.7 46.0 27.9 (72) (2.13) 565 330 434 295 279 Solder Solder 132 145
3DA A0500 5 23/16 2 1135 125 3.70 2513/16 151/16 181/32 15 12 13/8 7/8 335 380
3
3DA3F18K0 3.7 55.6 50.8 32.1 (115) (3.40) 656 383 458 381 305 Solder Solder 152 172
3DB A0500 5 23/8 2 1338 125 3.70 2513/16 151/16 181/32 15 12 13/8 7/8 335 380
3
3DB3F22K0 3.7 60.3 50.8 37.9 (115) (3.40) 656 383 458 381 305 Solder Solder 152 172
2DA - 0600 6 29/16 113/16 940 80 2.37 231/4 13 173/32 115/8 11 13/8 7/8 290 320
2
2DA3F23K0 4.5 65.1 46.0 26.6 (72) (2.13) 591 330 434 295 279 Solder Solder 132 145
2DB - 0600 6 25/8 113/16 987 80 2.37 231/4 13 173/32 115/8 11 13/8 7/8 290 320
2
2DB3F25K0 4.5 66.7 46.0 27.9 (72) (2.13) 591 330 434 295 279 Solder Solder 132 145
3DA A0600 6 23/16 2 1135 125 3.70 2513/16 151/16 181/32 15 12 13/8 11/8 345 395
3
3DA3F28K0 4.5 55.6 50.8 32.1 (115) (3.40) 656 383 458 381 305 Solder Solder 156 179
2DL- 0750 7.5 21/2 111/16 835 80 2.37 231/4 13 173/32 115/8 11 13/8 7/8 300 345
2
2DL3R78K0 5.6 63.5 42.9 23.6 (72) (2.13) 591 330 434 295 279 Solder Solder 136 156
2DA - 0750 7.5 29/16 113/16 940 80 2.37 231/4 13 173/32 115/8 11 13/8 7/8 300 345
2
2DA3R89K0 5.6 65.1 46.0 26.6 (72) (2.13) 591 330 434 295 279 Solder Solder 136 156
3DA A0750 7.5 23/16 2 1135 125 3.70 2625/32 151/16 181/32 15 12 13/8 11/8 345 395
3
3DA3R10M0 5.6 55.6 50.8 32.1 (115) (3.40) 680 383 458 381 305 Solder Solder 156 179
3DB A0750 7.5 23/8 2 1338 125 3.70 2613/16 151/16 181/32 15 12 13/8 11/8 345 395
3
3DB3F33K0 5.6 60.3 50.8 37.9 (115) (3.40) 656 383 458 381 305 Solder Solder 156 179
3DFA0750 7.5 25/16 21/2 1586 125 3.70 2625/32 151/16 181/32 15 12 13/8 11/8 345 395
3
3DF3F26K0 5.6 58.7 63.5 44.9 (115) (3.40) 680 383 458 381 305 Solder Solder 156 179
3DSA0750 7.5 27/16 21/2 1762 125 3.70 2625/32 151/16 181/32 15 12 13/8 11/8 345 395
3
3DS3F30K0 5.6 61.9 63.5 49.9 (115) (3.40) 680 383 458 381 305 Solder Solder 156 179
3DB A0900
9 3 23/8 2 1338 125 3.70 2513/16 151/16 181/32 15 12 13/8 11/8 345 395
(LV)
6.7 60.3 50.8 37.9 (115) (3.40) 656 383 458 381 305 Solder Solder 156 179
3DB3F27K0
3DFA0900 9 25/16 21/2 1586 125 3.70 2625/32 151/16 181/32 15 12 13/8 11/8 345 395
3
3DF3F40K0 6.7 58.7 63.5 44.9 (115) (3.40) 680 383 458 381 305 Solder Solder 156 179
3DB A1000 10 23/8 2 1338 125 3.70 2625/32 151/16 181/32 15 12 13/8 11/8 360 410
3
3DB3R12M0 7.5 60.3 50.8 37.9 (115) (3.40) 680 383 458 381 305 Solder Solder 163 186
(LV) Limited voltage. Available only in 200 volt electrical.

120
COPELAND DISCUS™ COMPRESSORS

ELECTRICAL SPECIFICATIONS

FSM TFC TFD TFE TFU

380/420-3-50 200/220-3-50 380/420-3-50 500-3-50 200-3-50
208/230-3-60 460-3-60 575-3-60 200-3-60

RLA LRA RLA LRA RLA LRA RLA LRA RLA LRA

16.8 102.0 8.1 52.0 6.7 41.0

26.3 161.0 10.2 60.0 7.7 49.0

22.3 120.0 10.4 60.0 7.7 49.0

22.3 120.0 10.5 60.0 7.9 49.0

21.4 105.0

22.3 120.0 10.4 60.0 7.9 49.0

19.2 120.0 10.2 60.0 7.6 49.0

8.6 55.0 18.6 115.0 11.0 58.0 7.9 43.0

7.6 55.0 18.0 115.0 10.1 58.0 7.5 43.0

28.8 161.0 10.2 60.0 9.1 49.0

28.2 161.0 13.3 80.0 9.6 63.0

13.5 78.0 30.3 150.0 13.7 77.0 10.5 62.0

31.6 169.0 13.8 85.0 13.2 67.0

32.0 169.0 14.1 85.0 13.3 67.0

20.4 102.0 41.0 215.0 20.0 106.0 16.5 84.0 35.0 220.0

15.0 85.0 31.5 161.0 16.1 83.0 11.0 67.0

30.7 161.0 15.0 83.0

12.5 85.0 32.0 161.0 16.4 83.0 11.5 67.0

36.8 220.0

17.2 102.0 39.0 215.0 16.9 106.0 16.5 84.0

22.5 102.0 43.6 215.0 20.0 106.0 16.5 84.0

121
COPELAND DISCUS™ COMPRESSORS

REFRIGERANT COOLED MECHANICAL SPECIFICATIONS

Oil Charge Mounting Center

CFH Overall Dimensions Service Valve Weights
Bore Stroke (Refill Oil Dimensions
HP m 3 /hr in/mm Sizes lb/kg
MODEL CYL in in Charge) in/mm
kW
mm mm Suction Discharge
50 Hertz Oz Liter Length Width Height Length Width Net Shipping
in in
3DSA1000 10 27/16 21/2 1762 125 3.70 2625/32 151/16 181/32 15 12 13/8 11/8 360 410
3
3DS3F46K0 7.5 61.9 63.5 49.9 (115) (3.40) 680 383 458 381 305 Solder Solder 163 186
4DAA1000 10 21/2 2 1977 135 3.99 2513/32 203/16 1721/32 15 12 15/8 11/8 382 437
4
4DAR12M0 7.5 63.5 50.8 56.0 (125) (3.70) 645 513 448 381 305 Solder Solder 173 198
4DAA1010 10 21/2 2 1977 135 3.99 2513/32 203/16 1721/32 15 12 15/8 11/8 382 437
4
4DA*F47K0 7.5 63.5 50.8 56.0 (125) (3.70) 645 513 448 381 305 Solder Solder 173 198
3DFA1200 12 25/16 21/2 1586 125 3.70 2625/32 151/16 181/32 15 12 13/8 11/8 370 425
3
3DF3R15M0 9.0 58.7 63.5 44.9 (115) (3.40) 680 383 458 381 305 Solder Solder 168 193
3DSA1500 15 27/16 21/2 1762 125 3.70 281/32 151/16 181/32 15 12 15/8 11/8 370 425
3
3DS3R17M0 11.2 61.9 63.5 49.9 (115) (3.40) 712 383 458 381 305 Solder Solder 168 193
4DLA1500
15 4 211/16 23/16 2499 135 3.99 271/32 201/2 23 15 12 15/8 13/8 404 469
(OC)
11.2 68.3 55.6 70.7 (125) (3.70) 687 521 584 381 305 Solder Solder 183 213
4DLF63K0
4DAA2000 20 21/2 2 1977 135 3.99 2513/32 203/16 1721/32 15 12 15/8 13/8 407 467
4
4DAR18M0 14.9 63.5 50.8 56.0 (125) (3.70) 645 513 448 381 305 Solder Solder 185 212
4DBA2200 22 211/16 2 2300 135 3.99 269/32 201/2 1713/16 15 12 21/8 13/8 427 492
4
4DBR20M0 16.4 68.3 50.8 65.1 (125) (3.70) 668 521 452 381 305 Solder Solder 194 223
4DTA2200
22 215/16 23/16 3603 135 3.99 2715/16 201/2 23 15 12 21/8 13/8 412 472
(OC) 4
4DTF76K0 16.4 74.6 55.6 102.0 (125) (3.70) 710 521 584 381 305 Solder Solder 187 214
4DHA2500 25 211/16 23/16 3016 135 3.99 269/32 201/2 1713/16 15 12 21/8 13/8 427 492
4
4DHR22M0 18.7 68.3 55.6 85.4 (125) (3.70) 668 521 452 381 305 Solder Solder 194 223
6DLA2700
27 6 211/16 23/16 4524 140 4.14 297/16 227/16 26 15 12 21/8 13/8 490 550
(OC)
20.1 68.3 55.6 128.1 (130) (3.84) 748 570 660 381 305 Solder Solder 222 249
6DLF93K0
4DJA3000 30 215/16 23/16 3603 135 3.99 271/32 201/2 1713/16 15 12 21/8 13/8 432 502
4
4DJR28M0 22.4 74.6 55.6 102.0 (125) (3.70) 687 521 452 381 305 Solder Solder 196 228
6DBA3000 30 211/16 2 4140 140 4.14 297/16 227/16 1731/32 15 12 21/8 15/8 502 577
6
6DBR32M0 22.4 68.3 50.8 117.2 (130) (3.84) 748 570 456 381 305 Solder Solder 228 262
6DTA3000
30 6 215/16 23/16 5405 255 7.54 297/16 227/16 287/8 15 12 21/8 13/8 527 602
(DS) (OC)
22.4 74.6 55.6 153.0 (245) (7.25) 748 570 733 381 305 Solder Solder 239 273
6DTF11M0
6DHA3500 35 211/16 23/16 4524 140 4.14 303/16 227/16 1731/32 15 12 21/8 15/8 502 577
6
6DHR35M0 26.1 68.3 55.6 128.1 (130) (3.84) 767 570 456 381 305 Solder Solder 228 262
6DGA3500 35 213/16 23/16 4955 140 4.14 303/16 227/16 1731/32 15 12 21/8 15/8 502 577
6
6DGR37M0 26.1 71.4 55.6 140.3 (130) (3.84) 767 570 456 381 305 Solder Solder 228 262
6DJA4000
40 6 215/16 23/16 5405 255 7.54 303/16 227/16 2027/32 15 12 21/8 15/8 550 630
(DS)
29.8 74.6 55.6 153.0 (245) (7.25) 767 570 529 381 305 Solder Solder 249 286
6DJR40M0
8DP- 5000
(DS) (VR) 50 8 211/16 221/64 6429 260 7.69 3213/16 191/4 2429/32 18 12 25/8 15/8 695 765
8DPR56M 37.3 68.3 59.1 182.0 (250) (7.39) 833 489 633 457 305 Solder Solder 315 347
8DS- 6000
60 8 215/16 221/64 7609 260 7.69 3213/16 191/4 2429/32 18 12 31/8 15/8 695 765
(DS) (VR)
44.8 74.6 59.1 215.4 (250) (7.39) 833 489 633 457 305 Solder Solder 315 347
8DSR67M0
(OC) Oil cooler and vertical cooling fan are standard on this model.
(DS) Deep oil sump is standard on this model.
(VR) Voltage rating for TSK for this model is 200 / 400-3-50, 208 / 230 / 460-3-60.

122
COPELAND DISCUS™ COMPRESSORS

ELECTRICAL SPECIFICATIONS

ES8 FSD FSM TFC TFD TSK TSN TFE

200-3-50 380/420-3-50 380/420-3-50 200/220-3-50 380/420-3-50 200-3-50 200-3-50 TSE
200/220-3-60 460-3-60 208/230-3-60 460-3-60 380/400-3-50 380/400-3-50 500-3-50
380-3-60 208/230-3-60 230-3-60 575-3-60
460-3-60 460-3-60
RLA LRA RLA LRA RLA LRA RLA LRA RLA LRA RLA LRA RLA LRA RLA LRA
200 / 220
47.2 228.0 TFE
380
25.7 132.0 17.5 102.0 42.0 215.0 18.6 106.0 16.8 84.0

20.0 115.0
200 / 208 / 230
45.2 220.0 TSE
380 / 400 / 460
22.6 110.0 17.5 106.0
TFE
48.2 275.0 23.6 138.0 19.5 110.0
200 / 220
57.6 316.0 TFE
380
32.8 180.0 24.8 136.0 59.6 275.0 29.0 138.0 23.6 110.0
200 / 220 200 / 208 / 230 TSE
62.0 295.0 52.6 278.0
380 380 / 400 / 460
31.0 175.0 24.5 136.0 26.3 139.0 20.9 113.0
200 / 208 / 230
66.0 308.0 TSE
380 / 400 / 460
33.6 173.0 33.0 154.0 24.7 135.0
200 / 208 / 230
65.6 374.0 TSE
380 / 400 / 460
32.5 180.0 32.8 187.0 26.5 135.0
200 / 220 200 / 208 / 230 TSE
69.0 405.0 66.0 374.0
380 380 / 400 / 460
40.0 235.0 33.9 180.0 33.0 187.0 24.2 135.0
200 / 220 200 / 208 / 230
99.3 438.0 82.2 428.0 TSE
380 380 / 400 / 460
58.6 251.0 40.6 206.0 41.1 214.0 34.4 172.0

200 / 220 200 / 208 / 230

82.5 445.0 80.8 450.0 TSE
380 380 / 400 / 460
48.0 260.0 41.6 218.0 40.4 225.0 32.5 172.0
200 / 220 200 / 208 / 230
123.6 500.0 94.0 470.0 TSE
380 380 / 400 / 460
71.4 289.0 45.0 235.0 47.0 235.0 39.3 200.0
200 / 208 / 230
105.0 565.0 TSE
380 / 400 / 460
50.0 260.0 52.5 783.0 40.0 230.0
200 / 220 200 / 208 / 230 TSE
95.9 500.0 95.6 470.0
380 380 / 400 / 460
55.6 289.0 42.8 235.0 47.8 235.0 39.6 200.0
200 / 220 200 / 208 / 230 TSE
146.7 633.0 107.0 565.0
380 55.0 260.0 380 / 400 / 460 42.5 230.0
84.1 365.0 53.5 283.0
200 / 230
125.0 594.0 TSE
380 / 400 / 460
66.0 315.0 62.5 297.0 46.0 245.0
200 / 220 200 / 230
164.0 633.0 142.0 594.0 TSE
380 380 / 400 / 460
96.9 365.0 70.0 315.0 71.0 297.0 53.5 245.0

200 / 208 / 230 TSE

180.0 1070.0
91.0 510.0 380 / 400 / 460 75.0 405.0
90.0 535.0

200 / 208 / 230 TSE

224.0 1070.0
380 / 400 / 460
96.5 510.0 112.0 535.0 80.0 405.0

123
COPELAND DISCUS™ COMPRESSORS

REFRIGERANT COOLED
MECHANICAL SPECIFICATIONS
TANDEMS
Oil Charge Mounting Center Suction Discharge
CFH Overall Dimensions Weights
Consisting of (Refill Oil Dimensions Connection Connection
HP m 3 /hr in/mm lb/kg
MODEL Two Single Charge) in/mm Size Size
kW
Compressors Valve Fitting
50 Hertz Oz Liter Length Width Height Length Width Net Shipping
in in
33DA10AA 10 3DAA0500 2270 250 7.39 56 13
16 /16 19 /2 1
50 12 1
2 /8 3
1 /8 750 865
33DA3F36K0 7.5 3DA3F18K0 64.3 (230) (6.80) 1422 427 495 1270 305 Solder Solder 340 392
33DA10BB 10 3DBA0500 2676 250 7.39 56 1613/16 191/2 50 12 21/8 13/8 750 865
33DB3F44K0 7.5 3DB3F22K0 75.8 (230) (6.80) 1422 427 495 1270 305 Solder Solder 340 392
33DA12AA 12 3DAA0600 2270 250 7.39 56 1613/16 191/2 50 12 21/8 13/8 770 885
33DA3F56K0 9.0 3DA3F28K0 64.3 (230) (6.80) 1422 427 495 1270 305 Solder Solder 349 401
33DA15AA 15 3DAA0750 2270 250 7.39 56 1613/16 191/2 50 12 21/8 13/8 770 885
33DA3R20M0 11.2 3DA3R10M0 64.3 (230) (6.80) 1422 427 495 1270 305 Solder Solder 349 401
33DA15BB 15 3DBA0750 2676 250 7.39 56 1613/16 191/2 50 12 21/8 13/8 770 885
33DB3F66K0 11.2 3DB3F33K0 75.8 (230) (6.80) 1422 427 495 1270 305 Solder Solder 349 401
33DA15FF 15 3DFA0750 3172 250 7.39 56 1613/16 191/2 50 12 21/8 13/8 770 885
33DF3F52K0 11.2 3DF3F26K0 89.8 (230) (6.80) 1422 427 495 1270 305 Solder Solder 349 401
33DA15SS 15 3DSA0750 3524 250 7.39 56 1613/16 191/2 50 12 21/8 13/8 770 885
33DS3F60K0 11.2 3DS3F30K0 99.8 (230) (6.80) 1422 427 495 1270 305 Solder Solder 349 401
33DA18BB
18 3DBA0900 2676 250 7.39 56 1613/16 191/2 50 12 21/8 13/8 770 885
(LV)
33DB3F54K0 13.4 3DB3F27K0 75.8 (230) (6.80) 1422 427 495 1270 305 Solder Solder 349 401
33DA18FF 18 3DFA0900 3172 250 7.39 56 1613/16 191/2 50 12 21/8 13/8 770 885
33DF3F80K0 13.4 3DF3F40K0 89.8 (230) (6.80) 1422 427 495 1270 305 Solder Solder 349 401
33DA20BB 20 3DBA1000 2676 250 7.39 56 1613/16 191/2 50 12 21/8 13/8 800 915
33DB3R24M0 14.9 3DB3R12M0 75.8 (230) (6.80) 1422 427 495 1270 305 Solder Solder 363 415
33DA20SS 20 3DSA1000 3524 250 7.39 56 1613/16 191/2 50 12 21/8 13/8 800 915
33DS3F92K0 14.9 3DS3F46K0 99.8 (230) (6.80) 1422 427 495 1270 305 Solder Solder 363 415
44DA20AA 20 4DAA1000 3954 270 7.98 5711/16 21 195/16 50 12 21/8 15/8 884 1004
44DAR24M0 14.9 4DAR12M0 111.9 (250) (7.39) 1465 533 491 1270 305 Solder Solder 401 455
44DA21AA 20 4DAA1010 3954 270 7.98 5711/16 21 195/16 50 12 21/8 15/8 884 1004
44DAF94K0 14.9 4DAF47K0 111.9 (250) (7.39) 1465 533 491 1270 305 Solder Solder 401 455
33DA24FF 24 3DFA1200 3172 250 7.39 56 1613/16 191/2 50 12 21/8 13/8 820 935
33DF3R30M0 17.9 3DF3R15M0 89.8 (230) (6.80) 1422 427 495 1270 305 Solder Solder 372 424
33DA30SS 30 3DSA1500 3524 250 7.39 56 1613/16 191/2 50 12 21/8 13/8 820 935
33DS3R34M0 22.4 3DS3R17M0 99.8 (230) (6.80) 1422 427 495 1270 305 Solder Solder 372 424
44DA30LL
(OC) 30 4DLA1500 4998 270 7.98 631/8 213/8 2421/32 50 12 21/8 15/8 928 1048
44DLF13M0 22.4 4DLF63K0 141.5 (250) (7.39) 1603 543 626 1270 305 Solder Solder 421 475
44DA40AA 40 4DAA2000 3954 270 7.98 5711/16 21 195/16 50 12 21/8 15/8 934 1054
44DAR36M0 29.8 4DAR18M0 111.9 (250) (7.39) 1465 533 491 1270 305 Solder Solder 424 478
44DA44BB 44 4DBA2200 4600 270 7.98 613/8 217/16 191/2 55 12 25/8 15/8 974 1094
44DBR40M0 32.8 4DBR20M0 130.2 (250) (7.39) 1559 545 495 1397 305 Solder Solder 442 496
44DA44TT
44 4DTA2200 5970 270 7.98 613/8 213/8 2411/16 55 12 31/8 15/8 944 1064
(OC)
44DTF15M0 32.8 4DTF76K0 169.0 (250) (7.39) 1559 543 627 1397 305 Solder Solder 428 483
44DA50HH 50 4DHA2500 4998 270 7.98 613/8 217/16 191/2 55 12 25/8 15/8 974 1094
44DHR44M0 37.3 4DHR22M0 141.5 (250) (7.39) 1559 545 495 1397 305 Solder Solder 442 496
66DA54LL
54 6DLA2700 7496 280 8.28 633/4 235/16 275/8 55 12 31/8 15/8 1100 1220
(OC)
66DLF19M0 40.3 6DLF93K0 212.2 (260) (7.69) 1619 592 702 1397 305 Solder Solder 499 553
Electrical specifications shown for tandems are per compressor rating.
(LV) Limited voltage. Available only in 200 volt electrical.
(OC) Oil coolers and vertical cooling fans are standard on this model.
TANDEM WIRING
Each compressor of a tandem may be wired with a separate the oil pressure safety control and dual pressure safety control
control system for independent motor operation. If current be wired independently on each compressor. For tandem
inrush decrease is desirable, a time delay relay may be used wiring diagrams refer to Application Bulletin AE 4-1167.
to stagger motor starting. Either of these circuits require that

124
COPELAND DISCUS™ COMPRESSORS

ELECTRICAL SPECIFICATIONS

ES8 FSM FSD TFC TFD TSK TFE TFU

200-3-50 380/420-3-50 380/420-3-50 200/220-3-50 380/420-3-50 200-3-50 TSE 200-3-50
200/220-3-60 460-3-60 208/230-3-60 460-3-60 380/400-3-50 500-3-50 200-3-60
380-3-60 208/230-3-60 575-3-60
460-3-60
RLA LRA RLA LRA RLA LRA RLA LRA RLA LRA RLA LRA RLA LRA RLA LRA
TFE
8.6 55.0 18.6 115.0 11.0 58.0 7.9 43.0
TFE
7.6 55.0 18.0 115.0 10.1 58.0 7.5 43.0
TFE
13.5 78.0 30.3 150.0 13.7 77.0 10.5 62.0
TFE
20.4 102.0 41.0 215.0 20.0 106.0 16.5 84.0 35.0 220.0
200 / 220 TFE
29.2 167.0
380
16.4 96.0 15.0 85.0 31.5 161.0 16.1 83.0 11.0 67.0

30.7 161.0 15.0 83.0

TFE
12.5 85.0 32.0 161.0 16.4 83.0 11.5 67.0

36.8 220.0
TFE
17.2 102.0 39.0 215.0 16.9 106.0 16.5 84.0
200 / 220 TFE
48.0 228.0
380 22.5 102.0 43.6 215.0 20.0 106.0 16.5 84.0
27.4 132.0
200 / 220 TFE
47.2 228.0
380 17.5 102.0 42.0 215.0 18.6 106.0 16.8 84.0
25.7 132.0

20.0 115.0
200 / 208 / 230 TSE
45.2 220.0
380 / 400 / 460 17.5 106.0
22.6 110.0
TFE
48.2 275.0 23.6 138.0 19.5 110.0
200 / 220 TFE
57.6 316.0
380 24.8 136.0 59.6 275.0 29.0 138.0 23.6 110.0
32.8 180.0

200 / 220 200 / 208 / 230 TSE

62.0 295.0 52.6 278.0
380 24.5 136.0 380 / 400 / 460 20.9 113.0
31.0 175.0 26.3 139.0
200 / 208 / 230 TSE
66.0 308.0
33.6 173.0 380 / 400 / 460 24.7 135.0
33.0 154.0
200 / 208 / 230 TSE
65.6 374.0
32.5 180.0 380 / 400 / 460 26.5 135.0
32.8 187.0
200 / 220 200 / 208 / 230
69.0 405.0 66.0 374.0 TSE
380 33.9 180.0 380 / 400 / 460 24.2 135.0
40.0 235.0 33.0 187.0
200 / 220 200 / 208 / 230 TSE
99.3 438.0 82.2 428.0
380 40.6 206.0 380 / 400 / 460 34.4 172.0
58.6 251.0 41.1 214.0
200 / 220 200 / 208 / 230
82.5 445.0 80.8 450.0 TSE
380 380 / 400 / 460
48.0 260.0 41.6 218.0 40.4 225.0 32.5 172.0

125
COPELAND DISCUS™ COMPRESSORS

126
COPELAND DISCUS™ COMPRESSORS

ELECTRICAL SPECIFICATIONS

ES8 FSD TSK TSN TSE

200-3-50 380/420-3-50 200-3-50 200-3-50 500-3-50
200/220-3-60 460-3-60 380/400-3-50 380/400-3-50 575-3-60
380-3-60 208/230-3-60 230-3-60
460-3-60 460-3-60
RLA LRA RLA LRA RLA LRA RLA LRA RLA LRA
200 / 220 200 / 208 / 230
123.6 500.0 94.0 470.0
380 380 / 400 / 460
71.4 289.0 45.0 235.0 47.0 235.0 39.3 200.0
200 / 208 / 230
105.0 565.0
380 / 400 / 460
50.0 260.0 52.5 283.0 40.0 230.0
200 / 220 200 / 208 / 230
95.9 500.0 95.6 470.0
380 380 / 400 / 460
55.6 289.0 47.8 235.0
42.8 235.0 39.6 200.0
200 / 220 200 / 208 / 230
146.7 633.0 107.0 565.0
380 380 / 400 / 460
84.1 365.0 55.0 260.0 53.5 283.0 42.5 230.0
200 / 230
125.0 594.0
380 / 400 / 460
66.0 315.0 62.5 297.0 46.0 245.0
200 / 220 200 / 230
164.0 633.0 142.0 594.0
380 380 / 400 / 460
96.9 365.0 71.0 297.0
70.0 315.0 53.5 245.0
200 / 208 / 230
180.0 1070.0
400 / 460
90.0 535.0
91.0 510.0 75.0 405.0
200 / 208 / 230
224.0 1070.0
400 / 460
96.5 510.0 112.0 535.0 80.0 405.0

127
COPELAND DISCUS™ COMPRESSORS

REFRIGERANT COOLED
MECHANICAL SPECIFICATIONS
CAPACITY CONTROL
Oil Charge Mounting Center
CFH Overall Dimensions Service Valve Weights
CAPACITY BASIC Bore Stroke (Refill Oil Dimensions
HP m 3 /hr in/mm Sizes lb/kg
CONTROL COMPRESSOR CYL in in Charge) in/mm
kW
MODEL MODEL mm mm Suction Discharge
50 Hertz Oz Liter Length Width Height Length Width Net Shipping
in in
3DEA0500 3DAA0500 5 23/16 2 1135 125 3.70 2525/32 151/16 215/16 15 12 13/8 7
/8 340 385
3
3DE3F18K0 3DA3F18K0 3.7 55.6 50.8 32.1 (115) (3.40) 655 383 541 381 305 Solder Solder 154 175
3DHA0600 3DAA0600 6 23/16 2 1135 125 3.70 2525/32 151/16 215/16 15 12 13/8 11/8 350 400
3
3DH3F28K0 3DA3F28K0 4.5 55.6 50.8 32.1 (115) (3.40) 655 383 541 381 305 Solder Solder 159 181
3DEA0750 3DAA0750 7.5 23/16 2 1135 125 3.70 2625/32 151/16 215/16 15 12 13/8 11/8 350 400
3
3DE3R10M0 3DA3R10M0 5.6 55.6 50.8 32.1 (115) (3.40) 680 383 541 381 305 Solder Solder 159 181
3DPA0750 3DBA0750 7.5 23/8 2 1338 125 3.70 2525/32 151/16 215/16 15 12 13/8 11/8 350 400
3
3DP3F33K0 3DB3F33K0 5.6 60.3 50.8 37.9 (115) (3.40) 655 383 541 381 305 Solder Solder 159 181
3DJA0750 3DBA0750 7.5 23/8 2 1338 125 3.70 2525/32 151/16 215/16 15 12 13/8 11/8 350 400
3
3DJ3F33K0 3DB3F33K0 5.6 60.3 50.8 37.9 (115) (3.40) 655 383 541 381 305 Solder Solder 159 181
3DKA0750 3DFA0750 7.5 25/16 21/2 1586 125 3.70 2625/32 151/16 215/16 15 12 13/8 11/8 350 400
3
3DK3F26K0 3DF3F26K0 5.6 58.7 63.5 44.9 (115) (3.40) 680 383 541 381 305 Solder Solder 159 181
3DTA0750 3DSA0750 7.5 27/16 21/2 1762 125 3.70 2625/32 151/16 215/16 15 12 13/8 11/8 350 400
3
3DT3F30K0 3DS3F30K0 5.6 61.9 63.5 49.9 (115) (3.40) 680 383 541 381 305 Solder Solder 159 181
3DPA0900
3DBA0900 9 23/8 2 1338 125 3.70 2525/32 151/16 215/16 15 12 13/8 11/8 350 400
(LV) 3
3DB3F27K0 6.7 60.3 50.8 37.9 (115) (3.40) 655 383 541 381 305 Solder Solder 159 181
3DP3F27K0
3DJA0900
3DBA0900 9 23/8 2 1338 125 3.70 2525/32 151/16 215/16 15 12 13/8 11/8 350 400
(LV) 3
3DB3F27K0 6.7 60.3 50.8 37.9 (115) (3.40) 655 383 541 381 305 Solder Solder 159 181
3DJ3F27K0
3DKA0900 3DFA0900 9 25/16 21/2 1586 125 3.70 2625/32 151/16 215/16 15 12 13/8 11/8 350 400
3
3DK3F40K0 3DF3F40K0 6.7 58.7 63.5 44.9 (115) (3.40) 680 383 541 381 305 Solder Solder 159 181
3DGA0900 3DFA0900 9 25/16 21/2 1586 125 3.70 2625/32 151/16 215/16 15 12 13/8 11/8 350 400
3
3DG3F40K0 3DF3F40K0 6.7 58.7 63.5 44.9 (115) (3.40) 680 383 541 381 305 Solder Solder 159 181
3DPA1000 3DBA1000 10 23/8 2 1338 125 3.70 2625/32 151/16 215/16 15 12 13/8 11/8 365 415
3
3DP3R12M0 3DB3R12M0 7.5 60.3 50.8 37.9 (115) (3.40) 680 383 541 381 305 Solder Solder 166 188
3DTA1000 3DSA1000 10 27/16 21/2 1762 125 3.70 2625/32 151/16 215/16 15 12 13/8 11/8 365 415
3
3DT3R11M0 3DS3R11M0 7.5 61.9 63.5 49.9 (115) (3.40) 680 383 541 381 305 Solder Solder 166 188
3DRA1000 3DSA1000 10 27/16 21/2 1762 125 3.70 2625/32 151/16 215/16 15 12 13/8 11/8 365 415
3
3DR3F46K0 3DS3F46K0 7.5 61.9 63.5 49.9 (115) (3.40) 680 383 541 381 305 Solder Solder 166 188
4DEA1000 4DAA1000 10 21/2 2 1977 135 3.99 2513/32 203/16 185/8 15 12 15/8 11/8 387 442
4
4DER12M0 4DAR12M0 7.5 63.5 50.8 56.0 (125) (3.70) 645 513 473 381 305 Solder Solder 176 200
4DNA1000
4DAA1000 10 21/2 2 1977 135 3.99 271/32 203/16 23 15 12 15/8 11/8 397 452
(OC) 4
4DAR12M0 7.5 63.5 50.8 56.0 (125) (3.70) 687 513 584 381 305 Solder Solder 180 205
4DNR12M0
4DEA1010 4DAA1010 10 21/2 2 1977 135 3.99 2513/32 203/16 185/8 15 12 15/8 11/8 387 442
4
4DEF47K0 4DAF47K0 7.5 63.5 50.8 56.0 (125) (3.70) 645 513 473 381 305 Solder Solder 176 200
4DNA1010
4DAA1010 10 21/2 2 1977 135 3.99 271/32 203/16 23 15 12 15/8 11/8 397 452
(OC) 4
4DAF47K0 7.5 63.5 50.8 56.0 (125) (3.70) 687 513 584 381 305 Solder Solder 180 205
4DNF47K0
3DKA1200 3DFA1200 12 25/16 21/2 1586 125 3.70 2625/32 151/16 215/16 15 12 13/8 11/8 375 430
3
3DK3R15M0 3DF3R15M0 9.0 58.7 63.5 44.9 (115) (3.40) 680 383 541 381 305 Solder Solder 170 195
(LV) Limited voltage. Available only in 200 volt electrical.
(OC) Oil cooler and vertical cooling fan are standard on this model.

128
COPELAND DISCUS™ COMPRESSORS

ELECTRICAL SPECIFICATIONS

ES8 FSM FSD TFC TFD TSK TFE TFU

200-3-50 380/420-3-50 380/420-3-50 200/220-3-50 380/420-3-50 200-3-50 TSE 200-3-50
200/220-3-60 460-3-60 208/230-3-60 460-3-60 380/400-3-50 500-3-50 200-3-60
380-3-60 208/230-3-60 575-3-60
460-3-60
RLA LRA RLA LRA RLA LRA RLA LRA RLA LRA RLA LRA RLA LRA RLA LRA
TFE
18.6 115.0 11.0 58.0 7.9 43.0
TFE
13.5 78.0 30.3 150.0 13.7 77.0 10.5 62.0
TFE
20.4 102.0 41.0 215.0 20.0 106.0 16.5 84.0 35.0 220.0
TFE
15.0 85.0 31.5 161.0 16.1 83.0 11.0 67.0
TFE
15.0 85.0 31.5 161.0 14.3 83.0 11.0 67.0

30.7 161.0 15.0 83.0

TFE
12.5 85.0 32.0 161.0 16.4 83.0 11.5 67.0

36.8 220.0

34.6 220.0

TFE
17.2 102.0 39.0 215.0 16.9 106.0 16.5 84.0
TFE
15.8 102.0 39.0 215.0 15.6 106.0 15.7 84.0
200 / 220
48.0 228.0 TFE
380
27.4 132.0 22.5 102.0 43.6 215.0 20.0 106.0 16.5 84.0
200 / 220
47.2 228.0 TFE
380
25.7 132.0 17.5 102.0 42.0 215.0 18.6 106.0 16.8 84.0
200 / 220
41.7 228.0 TFE
380
23.8 132.0 16.0 102.0 42.0 215.0 18.6 106.0 15.4 84.0

20.0 115.0

20.0 115.0
200 / 208 / 230
45.2 220.0 TSE
380 / 400 / 460
22.6 110.0 17.5 106.0
200 / 208 / 230
45.2 220.0 TSE
380 / 400 / 460
22.6 110.0 17.5 106.0

TFE
48.2 275.0 23.6 138.0 19.5 110.0

129
COPELAND DISCUS™ COMPRESSORS

130
COPELAND DISCUS™ COMPRESSORS

ELECTRICAL SPECIFICATIONS

ES8 FSM FSD TFC TFD TSK TFE TFU

200-3-50 380/420-3-50 380/420-3-50 200/220-3-50 380/420-3-50 200-3-50 TSE 200-3-50
200/220-3-60 460-3-60 208/230-3-60 460-3-60 380/400-3-50 500-3-50 200-3-60
380-3-60 208/230-3-60 575-3-60
460-3-60
RLA LRA RLA LRA RLA LRA RLA LRA RLA LRA RLA LRA RLA LRA RLA LRA
200 / 220 TFE
57.6 316.0
380
32.8 180.0 24.8 136.0 59.6 275.0 29.0 138.0 23.6 110.0
200 / 220 200 / 208 / 230 TSE
62.0 295.0 52.6 278.0
380 380 / 400 / 460
31.0 175.0 24.5 136.0 26.3 139.0 20.9 113.0
200 / 208 / 230
66.0 308.0 TSE
380 / 400 / 460
33.6 173.0 33.0 154.0 24.7 135.0
200 / 208 / 230
65.6 374.0 TSE
380 / 400 / 460
32.5 180.0 32.8 187.0 26.5 135.0

131
COPELAND DISCUS™ COMPRESSORS

REFRIGERANT COOLED
MECHANICAL SPECIFICATIONS
CAPACITY CONTROL
Oil Charge Mounting Center
CFH Overall Dimensions Service Valve Weights
CAPACITY BASIC Bore Stroke (Refill Oil Dimensions
HP m 3 /hr in/mm Sizes lb/kg
CONTROL COMPRESSOR CYL in in Charge) in/mm
kW
MODEL MODEL mm mm Suction Discharge
50 Hertz Oz Liter Length Width Height Length Width Net Shipping
in in
4DSA2200
4DTA2200 22 4 215/16 23/16 3603 135 3.99 2715/16 201/2 23 15 12 21/8 13/8 417 477
(OC)
4DTF76K0 16.4 74.6 55.6 102.0 (125) (3.70) 710 521 584 381 305 Solder Solder 189 216
4DSF76K0
4DKA2500 4DHA2500 25 211/16 23/16 3016 135 3.99 269/32 201/2 1825/32 15 12 21/8 13/8 432 497
4
4DKR22M0 4DHR22M0 18.7 68.3 55.6 85.4 (125) (3.70) 668 521 477 381 305 Solder Solder 196 225
6DCA2700
6DLA2700 27 6 211/16 23/16 3748 140 4.14 297/16 227/16 26 15 12 21/8 13/8 495 555
(OC)
6DLF93K0 20.1 68.3 55.6 106.1 (130) (3.84) 748 570 635 381 305 Solder Solder 225 252
6DCF93K0
6DDA2700
6DLA2700 27 6 211/16 23/16 3748 140 4.14 297/16 227/16 26 15 12 21/8 13/8 500 560
(OC)
6DLF93K0 20.1 68.3 55.6 106.1 (130) (3.84) 748 570 635 381 305 Solder Solder 227 254
6DDF93K0
4DRA3000 4DJA3000 30 215/16 23/16 2985 135 3.99 271/32 201/2 1825/32 15 12 21/8 13/8 437 507
4
4DRR28M0 4DJR28M0 22.4 74.6 55.6 84.5 (125) (3.70) 687 521 477 381 305 Solder Solder 198 230
6DWA3000 6DBA3000 30 211/16 2 3450 140 4.14 297/16 227/16 1731/32 15 12 21/8 15/8 507 582
6
6DWR32M0 6DBR32M0 22.4 68.3 50.8 97.7 (130) (3.84) 748 570 456 381 305 Solder Solder 230 264
6DYA3000 6DBA3000 30 211/16 2 3450 140 4.14 297/16 227/16 2011/32 15 12 21/8 15/8 512 587
6
6DYR32M0 6DBR32M0 22.4 68.3 50.8 97.7 (130) (3.84) 748 570 517 381 305 Solder Solder 232 266
6DEA3000
6DTA3000 30 6 215/16 23/16 4478 255 7.54 297/16 227/16 287/8 15 12 21/8 13/8 532 607
(DS) (OC)
6DTF11M0 22.4 74.6 55.6 126.8 (245) (7.25) 748 570 733 381 305 Solder Solder 241 275
6DEF11M0
6DFA3000
6DTA3000 30 6 215/16 23/16 4478 255 7.54 297/16 227/16 287/8 15 12 21/8 13/8 537 612
(DS) (OC)
6DTF11M0 22.4 74.6 55.6 126.8 (245) (7.25) 748 570 733 381 305 Solder Solder 244 278
6DFF11M0
6DKA3500 6DHA3500 35 211/16 23/16 3748 140 4.14 303/16 227/16 1731/32 15 12 21/8 15/8 507 582
6
6DKR35M0 6DHR35M0 26.1 68.3 55.6 106.1 (130) (3.84) 767 570 456 381 305 Solder Solder 230 264
6DPA3500 6DHA3500 35 211/16 23/16 3748 140 4.14 303/16 227/16 2011/32 15 12 21/8 15/8 512 587
6
6DPR35M0 6DHR35M0 26.1 68.3 55.6 106.1 (130) (3.84) 767 570 517 381 305 Solder Solder 232 266
6DMA3500 6DGA3500 35 213/16 23/16 4129 140 4.14 303/16 227/16 1731/32 15 12 21/8 15/8 507 582
6
6DMR37M0 6DGR37M0 26.1 71.4 55.6 116.9 (130) (3.84) 767 570 456 381 305 Solder Solder 230 264
6DNA3500 6DGA3500 35 213/16 23/16 4129 140 4.14 303/16 227/16 2011/32 15 12 21/8 15/8 512 587
6
6DNR37M0 6DGR37M0 26.1 71.4 55.6 116.9 (130) (3.84) 767 570 517 381 305 Solder Solder 232 266
6DRA4000
6DJA4000 40 6 215/16 23/16 4478 255 7.54 303/16 227/16 2027/32 15 12 21/8 15/8 555 635
(DS)
6DJR40M0 29.8 74.6 55.6 126.8 (245) (7.25) 767 570 529 381 305 Solder Solder 252 288
6DRR40M0
6DSA4000
6DJA4000 40 6 215/16 23/16 4478 255 7.54 303/16 227/16 237/32 15 12 21/8 15/8 560 640
(DS)
6DJR40M0 29.8 74.6 55.6 126.8 (245) (7.25) 767 570 590 381 305 Solder Solder 254 290
6DSR40M0
8DP- 5000
8DP-5000 50 8 211/16 221/64 5358 260 7.69 3213/16 2113/32 2429/32 18 12 25/8 15/8 705 775
(DS) (VR)
8DPR56M0 37.3 68.3 59.1 151.7 (250) (7.39) 833 544 633 457 305 Solder Solder 320 352
8DPR56M0
8DS- 6000
8DS-6000 60 8 215/16 221/64 7609 260 7.69 3213/16 2113/32 2429/32 18 12 31/8 15/8 705 775
(DS) (VR)
8DSR67M0 44.8 74.6 59.1 215.4 (250) (7.39) 833 544 633 457 305 Solder Solder 320 352
8DSR67M0
(OC) Oil cooler and vertical cooling fan are standard on this model.
(DS) Deep oil sump is standard on this model.
(VR) Voltage rating for TSK for this model is 200 / 400-3-50, 208 / 230 / 460-3-60.

132
COPELAND DISCUS™ COMPRESSORS

ELECTRICAL SPECIFICATIONS

ES8 FSD TSK TSN TSE

200 / 220 200 / 208 / 230

82.5 445.0 80.8 450.0
380 380 / 400 / 460
48.0 260.0 41.6 218.0 40.4 225.0 32.5 172.0
200 / 220 200 / 208 / 230
123.6 500.0 94.0 470.0
380 380 / 400 / 460
71.4 289.0 45.0 235.0 47.0 235.0 39.3 200.0
200 / 208 / 230
105.0 565.0
380 / 400 / 460
50.0 260.0 52.5 283.0 40.0 230.0
200 / 208 / 230
105.0 565.0
380 / 400 / 460
50.0 260.0 52.5 283.0 40.0 230.0
200 / 208 / 230
200 / 220 95.6 470.0
95.9 500.0 380 / 400 / 460
380 42.8 235.0 47.8 235.0 39.6 200.0
55.6 289.0

200 / 220 200 / 208 / 230

95.9 500.0 95.6 470.0
380 380 / 400 / 460
55.6 289.0 47.8 235.0
42.8 235.0 39.6 200.0
200 / 220 200 / 208 / 230
146.7 633.0 107.0 565.0
380 380 / 400 / 460
84.1 365.0 55.0 260.0 53.5 283.0 42.5 230.0
200 / 220 200 / 208 / 230
146.7 633.0 107.0 565.0
380 380 / 400 / 460
84.1 365.0 55.0 260.0 53.5 283.0 42.5 230.0
200 / 230
125.0 594.0
380 / 400 / 460
66.0 315.0 62.5 297.0 46.0 245.0
200 / 230
125.0 594.0
380 / 400 / 460
66.0 315.0 62.5 297.0 46.0 245.0
200 / 220 200 / 230
164.0 633.0 142.0 594.0
380 380 / 400 / 460
96.9 365.0 70.0 315.0 71.0 297.0 53.5 245.0

200 / 220 200 / 230

164.0 633.0 142.0 594.0
380 380 / 400 / 460
96.9 365.0 70.0 315.0 71.0 297.0 53.5 245.0

200 / 208 / 230

180.0 1070.0
400 / 460
91.0 510.0 90.0 535.0 75.0 405.0

200 / 208 / 230

224.0 1070.0
400 / 460
96.5 510.0 112.0 535.0 80.0 405.0

133
COPELAND DISCUS™ COMPRESSORS

33DA10EE 10 3DEA0500 2270 250 7.39 56 13

16 /16 25
22 /32 50 12 1
2 /8 3
1 /8 760 875
33DE3F36K0 7.5 3DE3F18K0 64.3 (230) (6.80) 1422 427 579 1270 305 Solder Solder 345 397
33DA12HH 12 3DHA0600 2270 250 7.39 56 1613/16 2225/32 50 12 21/8 13/8 780 895
33DH3F56K0 9.0 3DH3F28K0 64.3 (230) (6.80) 1422 427 579 1270 305 Solder Solder 354 406
33DA15EE 15 3DEA0750 2270 250 7.39 56 1613/16 2225/32 50 12 21/8 13/8 780 895
33DE3R20M0 11.2 3DE3R10M0 64.3 (230) (6.80) 1422 427 579 1270 305 Solder Solder 354 406
33DA15PP 15 3DPA0750 2676 250 7.39 56 1613/16 2225/32 50 12 21/8 13/8 780 895
33DP3F66K0 11.2 3DP3F33K0 75.8 (230) (6.80) 1422 427 579 1270 305 Solder Solder 354 406
33DA15JJ 15 3DJA0750 2676 250 7.39 56 1613/16 2225/32 50 12 21/8 13/8 780 895
33DJ3F66K0 11.2 3DJ3F33K0 75.8 (230) (6.80) 1422 427 579 1270 305 Solder Solder 354 406
33DA15KK 15 3DKA0750 3172 250 7.39 56 1613/16 2225/32 50 12 21/8 13/8 780 895
33DK3F52K0 11.2 3DK3F26K0 89.8 (230) (6.80) 1422 427 579 1270 305 Solder Solder 354 406
33DA15TT 15 3DTA0750 3524 250 7.39 56 1613/16 2225/32 50 12 21/8 13/8 780 895
33DT3F60K0 11.2 3DT3F30K0 99.8 (230) (6.80) 1422 427 579 1270 305 Solder Solder 354 406
33DA18PP
18 3DPA0900 2676 250 7.39 56 1613/16 2225/32 50 12 21/8 13/8 780 895
(LV)
13.4 3DP3F27K0 75.8 (230) (6.80) 1422 427 579 1270 305 Solder Solder 354 406
33DP3F54K0
33DA18JJ
18 3DJA0900 2676 250 7.39 56 1613/16 2225/32 50 12 21/8 13/8 780 895
(LV)
13.4 3DJ3F27K0 75.8 (230) (6.80) 1422 427 579 1270 305 Solder Solder 354 406
33DJ3F54K0
33DA18KK 18 3DKA0900 3172 250 7.39 56 1613/16 2225/32 50 12 21/8 13/8 780 895
33DK3F80K0 13.4 3DK3F40K0 89.8 (230) (6.80) 1422 427 579 1270 305 Solder Solder 354 406
33DA18GG 18 3DGA0900 3172 250 7.39 56 1613/16 2225/32 50 12 21/8 13/8 780 895
33DG3F80K0 13.4 3DG3F40K0 89.8 (230) (6.80) 1422 427 579 1270 305 Solder Solder 354 406
33DA20PP 20 3DPA1000 2676 250 7.39 56 1613/16 2225/32 50 12 21/8 13/8 810 925
33DP3R24M0 14.9 3DP3R12M0 75.8 (230) (6.80) 1422 427 579 1270 305 Solder Solder 367 420
33DA20TT 20 3DTA1000 3524 250 7.39 56 1613/16 2225/32 50 12 21/8 13/8 810 925
33DT3R22M0 14.9 3DT3R11M0 99.8 (230) (6.80) 1422 427 579 1270 305 Solder Solder 367 420
33DA20RR 20 3DRA1000 3524 250 7.39 56 1613/16 2225/32 50 12 21/8 13/8 810 925
33DR3F92K0 14.9 3DR3F46K0 99.8 (230) (6.80) 1422 427 579 1270 305 Solder Solder 367 420
44DA20EE 20 4DEA1000 3954 270 7.98 5711/16 21 1931/32 55 12 21/8 15/8 894 1014
44DER24M0 14.9 4DER12M0 111.9 (250) (7.39) 1465 533 507 1397 305 Solder Solder 406 460
44DA20NN
20 4DNA1000 3954 270 7.98 613/8 21 2421/32 55 12 21/8 15/8 914 1034
(OC)
14.9 4DNR12M0 111.9 (250) (7.39) 1559 533 626 1397 305 Solder Solder 415 469
44DNR24M0
44DA21EE 20 4DEA1010 3954 270 7.98 5711/16 21 1931/32 55 12 21/8 15/8 894 1014
44DEF94K0 14.9 4DEF47K0 111.9 (250) (7.39) 1465 533 507 1397 305 Solder Solder 406 460
44DA21NN
20 4DNA1010 3954 270 7.98 613/8 21 2421/32 55 12 21/8 15/8 914 1034
(OC)
14.9 4DNF47K0 111.9 (250) (7.39) 1559 533 626 1397 305 Solder Solder 415 469
44DNF94K0
33DA24KK 24 3DKA1200 3172 250 7.39 56 1613/16 2225/32 50 12 21/8 13/8 830 945
33DK3R30M0 17.9 3DK3R15M0 89.8 (230) (6.80) 1422 427 579 1270 305 Solder Solder 376 429
33DA30TT 30 3DTA1500 3524 250 7.39 56 1613/16 2225/32 50 12 21/8 13/8 830 945
33DT3R34M0 22.4 3DT3R17M0 99.8 (230) (6.80) 1422 427 579 1270 305 Solder Solder 376 429
44DA30PP
30 4DPA1500 4998 270 7.98 631/8 213/8 2421/32 50 12 21/8 15/8 938 1058
(OC)
22.4 4DPF63K0 141.5 (250) (7.39) 1603 543 626 1270 305 Solder Solder 425 480
44DPF13M0
44DA40EE 40 4DEA2000 3954 270 7.98 5711/16 21 1931/32 50 12 21/8 15/8 944 1064
44DER36M0 29.8 4DER18M0 111.9 (250) (7.39) 1465 533 507 1270 305 Solder Solder 428 483
44DA44CC 44 4DCA2200 4600 270 7.98 613/8 217/16 2015/32 55 12 25/8 15/8 984 1104
44DCR40M0 32.8 4DCR20M0 130.2 (250) (7.39) 1559 545 520 1397 305 Solder Solder 446 501
Electrical specifications shown for tandems are per compressor rating.
(LV) Limited voltage. Available only in 200 volt electrical.
(OC) Oil coolers and vertical cooling fans are standard on this model.
134
COPELAND DISCUS™ COMPRESSORS

ELECTRICAL SPECIFICATIONS

ES8 FSM FSD TFC TFD TSK TFE TFU

TFE
18.6 115.0 11.0 58.0 7.9 43.0
TFE
13.5 78.0 30.3 150.0 13.7 77.0 10.5 62.0
TFE
20.4 102.0 41.0 215.0 20.0 106.0 16.5 84.0 35.0 220.0
TFE
15.0 85.0 31.5 161.0 16.1 83.0 11.0 67.0
TFE
15.0 85.0 31.5 161.0 14.3 83.0 11.0 67.0

30.7 161.0 15.0 83.0

TFE
12.5 85.0 32.0 161.0 16.4 83.0 11.5 67.0

36.8 220.0

34.6 220.0

TFE
17.2 102.0 39.0 215.0 16.9 106.0 16.5 84.0
TFE
15.8 102.0 39.0 215.0 16.9 106.0 15.7 84.0
200 / 220 TFE
48.0 228.0
380 22.5 102.0 43.6 215.0 20.0 106.0 16.5 84.0
27.4 132.0
200 / 220 TFE
47.2 228.0
380 17.5 102.0 42.0 215.0 18.6 106.0 16.8 84.0
25.7 132.0
200 / 220 TFE
41.7 228.0
380 16.0 102.0 42.0 215.0 18.6 106.0 15.4 84.0
23.8 132.0

20.0 115.0

20.0 115.0
200 / 208 / 230 TSE
45.2 220.0
380 / 400 / 460 17.5 106.0
22.6 110.0
200 / 208 / 230
45.2 220.0 TSE
380 / 400 / 460
22.6 110.0 17.5 106.0

TFE
48.2 275.0 23.6 138.0 19.5 110.0
200 / 220 TFE
57.6 316.0
380 24.8 136.0 59.6 275.0 29.0 138.0 23.6 110.0
32.8 180.0
200 / 220 200 / 208 / 230
62.0 295.0 TSE 52.6 278.0
380 380 / 400 / 460
31.0 175.0 24.5 136.0 26.3 139.0 20.9 113.0
200 / 208 / 230 TSE
66.0 308.0
33.6 173.0 380 / 400 / 460 24.7 135.0
33.0 154.0
200 / 208 / 230 TSE
65.6 374.0
32.5 180.0 380 / 400 / 460 26.5 135.0
32.8 187.0

135
COPELAND DISCUS™ COMPRESSORS

REFRIGERANT COOLED
CAPACITY CONTROL MECHANICAL SPECIFICATIONS
TANDEMS
Oil Charge Mounting Center Suction Discharge
CFH Overall Dimensions Weights
Consisting of (Refill Oil Dimensions Connection Connection
HP m 3 /hr in/mm lb/kg
MODEL Two Single Charge) in/mm Size Size
kW
Compressors Valve Fitting
50 Hertz Oz Liter Length Width Height Length Width Net Shipping
in in
44DA44SS
44 4DSA2200 5970 270 7.98 613/8 213/8 2411/16 55 12 31/8 15/8 954 1074
(OC)
32.8 4DSF76K0 169.0 (250) (7.39) 1559 543 627 1397 305 Solder Solder 433 487
44DSF15M0
44DA50KK 50 4DKA2500 4998 270 7.98 613/8 217/16 2015/32 55 12 25/8 15/8 984 1104
44DKR44M0 37.3 4DKR22M0 141.5 (250) (7.39) 1559 545 520 1397 305 Solder Solder 446 501
66DA54CC
54 6DCA2700 7496 280 8.28 633/4 235/16 275/8 55 12 31/8 15/8 1110 1230
(OC)
40.3 6DCF93K0 212.2 (260) (7.69) 1619 592 702 1397 305 Solder Solder 503 558
66DCF19M0
66DA54DD
54 6DDA2700 7496 280 8.28 633/4 235/16 275/8 55 12 31/8 15/8 1120 1240
(OC)
40.3 6DDF93K0 212.2 (260) (7.69) 1619 592 702 1397 305 Solder Solder 508 562
66DDF19M0
44DA60RR 60 4DRA3000 5970 270 7.98 613/8 213/8 2015/32 55 12 31/8 15/8 994 1114
44DRR56M0 44.8 4DRR28M0 169.0 (250) (7.39) 1559 543 520 1397 305 Solder Solder 451 505
66DA60WW 60 6DWA3000 6900 280 8.28 633/4 231/4 21 55 12 31/8 15/8 1134 1284
66DWR64M0 44.8 6DWR32M0 195.3 (260) (7.69) 1619 591 533 1397 305 Solder Solder 514 582
66DA60YY 60 6DYA3000 6900 280 8.28 633/4 231/4 233/8 55 12 31/8 15/8 1144 1294
66DYR64M0 44.8 6DYR32M0 195.3 (260) (7.69) 1619 591 594 1397 305 Solder Solder 519 587
66DA60EE
60 6DEA3000 8956 510 15.1 633/4 231/4 321/4 55 12 31/8 15/8 1184 1334
(DS) (OC)
44.8 6DEF11M0 253.5 (490) (14.5) 1619 591 819 1397 305 Solder Solder 537 605
66DEF22M0
66DA60FF
60 6DFA3000 8956 510 15.1 633/4 231/4 321/4 55 12 31/8 15/8 1194 1344
(DS) (OC)
44.8 6DFF11M0 253.5 (490) (14.5) 1619 591 819 1397 305 Solder Solder 542 610
66DFF22M0
66D70KK 70 6DKA3500 7496 280 8.28 633/4 231/4 21 55 12 31/8 21/8 1134 1284
66DKR70M0 52.2 6DKR35M0 212.2 (260) (7.69) 1619 591 533 1397 305 Solder Solder 514 582
66DA70PP 70 6DPA3500 7496 280 8.28 633/4 231/4 233/8 55 12 31/8 21/8 1144 1294
66DPR70M0 52.2 6DPR35M0 212.2 (260) (7.69) 1619 591 594 1397 305 Solder Solder 519 587
66DA70MM 70 6DMA3500 8258 280 8.28 633/4 231/4 21 55 12 31/8 21/8 1134 1284
66DMR74M0 52.2 6DMR37M0 233.8 (260) (7.69) 1619 591 533 1397 305 Solder Solder 514 582
66DA70NN 70 6DNA3500 8258 280 8.28 633/4 231/4 233/8 55 12 31/8 21/8 1144 1294
66DNR74M0 52.2 6DNR37M0 233.8 (260) (7.69) 1619 591 594 1397 305 Solder Solder 519 587
66DA80RR
80 6DRA4000 8956 510 15.1 633/4 231/4 253/16 55 12 31/8 21/8 1230 1390
(DS)
59.7 6DRR40M0 253.5 (490) (14.5) 1619 591 640 1397 305 Solder Solder 558 630
66DRR80M0
66DA80SS
80 6DSA4000 8956 510 15.1 633/4 231/4 279/16 55 12 31/8 21/8 1240 1400
(DS)
59.7 6DSR40M0 253.5 (490) (14.5) 1619 591 700 1397 305 Solder Solder 562 635
66DSR80M0
88D-11PP
100 8DP-5000 10716 520 15.4 7211/16 251/16 251/2 661/8 12 41/8 21/8 1620 1795
(DS) (VR)
74.6 8DPR56M0 303.4 (500) (14.8) 1846 637 648 1680 305 Solder Solder 735 814
88DPR112M0
88D-12SS
120 8DS-6000 12680 520 15.4 7211/16 251/16 251/2 661/8 12 41/8 21/8 1730 1905
(DS) (VR)
89.5 8DSR67M0 359.0 (500) (14.8) 1846 637 648 1680 305 Solder Solder 785 864
88DSR134M0
Electrical specifications shown for tandems are per compressor rating.
(OC) Oil coolers and vertical cooling fans are standard on this model.
(DS) Deep oil sumps are standard on this model.
(VR) Voltage rating for TSK for this model is 200 / 400-3-50, 208 / 230 / 460-3-60.

136
COPELAND DISCUS™ COMPRESSORS

ELECTRICAL SPECIFICATIONS

ES8 FSD TSK TSN TSE

200 / 220 200 / 208 / 230

95.9 500.0 95.6 470.0
380 380 / 400 / 460
55.6 289.0 42.8 235.0 47.8 235.0 39.6 200.0

200 / 220 200 / 208 / 230

95.9 500.0 95.6 470.0
380 380 / 400 / 460
55.6 289.0 42.8 235.0 47.8 235.0 39.6 200.0
200 / 220 200 / 208 / 230
146.7 633.0 107.0 565.0
380 380 / 400 / 460
84.1 365.0 55.0 260.0 53.5 283.0 42.5 230.0
200 / 220 200 / 208 / 230
146.7 633.0 107.0 565.0
380 380 / 400 / 460
84.1 365.0 55.0 260.0 53.5 283.0 42.5 230.0
200 / 230
125.0 594.0
380 / 400 / 460
66.0 315.0 62.5 297.0 46.0 245.0
200 / 230
125.0 594.0
380 / 400 / 460
66.0 315.0 62.5 297.0 46.0 245.0
200 / 220 200 / 230
164.0 633.0 142.0 594.0
380 380 / 400 / 460
96.9 365.0 70.0 315.0 71.0 297.0 53.5 245.0

200 / 220 200 / 230

164.0 633.0 142.0 594.0
380 380 / 400 / 460
96.9 365.0 70.0 315.0 71.0 297.0 53.5 245.0

200 / 208 / 230

180.0 1070.0
400 / 460
91.0 510.0 90.0 535.0 75.0 405.0

200 / 208 / 230

224.0 1070.0
400 / 460
96.5 510.0 112.0 535.0 80.0 405.0

137
COPELAND DISCUS™ COMPRESSORS

DIMENSIONS AND PHOTOGRAPHS

2D
F
A
M
I
L
Y

Model 2DC3-0500 Shown

3D
F
A
M
I
L
Y

Model 3DB3A0750 with

Demand Cooling Shown

4D
F
A
M
I
L
Y

Model 4DA3A2000 Shown

6D
F
A
M
I
L
Y

Model 6DH3A3500 Shown

8D
F
A
M
I
L
Y

Model 8DP1-5000 Shown

Dimensions shown are inches (millimeters).
138
COPELAND DISCUS™ COMPRESSORS

Superheat Varies LT, MT: Varies Varies

HT: 20°F, 11.1°C
R22 MT, Medium Temperature is Below 35°F, 1.7°C
R22 HT, High Temperature is 55°F to 35°F, 12.8°C to 1.7°C

APPLICATION REQUIREMENTS
• All Copeland Discus™ compressors require return • Emerson Climate Technologies introduces a new era
gas motor cooling. It is important to note that when in oil pressure controls with the Sentronic Oil
operating at evaporating temperatures of 0°F Pressure Control System. The Sentronic electronic
(–17.8°C) or lower, additional motor and cylinder control system eliminates capillary tubes used on
head cooling is required. This can be accomplished electro-mechanical systems to sense oil pressure.
by the use of an external fan assembly available from The new system uses a pressure transducer within
Emerson Climate Technologies. See Application the oil pump that produces an electrical signal to the
Bulletin AE 4-1135 for complete details and allow for control module. If the oil pressure drops below
extra height to install the fan to the top of the acceptable limits for a period of two minutes the
compressor. control module cuts power to the compressor and
stops it. The Sentronic offers a new and more reliable
• Oil Pump is Sentronic high pressure oil pump. solution to capillary leaks. To order the Sentronic Oil
• An oil pressure safety control is required on all Discus Pressure Control use part number 585-1036-00. For
compressors. Approved controls provide low cost, instructions refer to Application Bulletin AE 8-1275.
safe protection against damage from loss of
The Sentronic is only functional when used with our
lubrication. These can be supplied by Emerson
new oil pump that has a machined port for the
Climate Technologies and should be listed separately
Sentronic sensor. The Sentronic control and oil pump
on your purchase orders (except those covering
are standard on all Discus tandem compressors and
tandem compressors on which they are supplied as
the oil pump is standard on all Copeland Discus™
standard equipment). There are two types of control
compressors.
available, our new “Sentronic” Control offering
improved reliability and accuracy (see next paragraph
for details) and the conventional capillary tube type
control which can be ordered by using Part Number
998-0700-00. For further information, see
Application Bulletin AE 8-1095.

139
COPELAND DISCUS™ COMPRESSORS

APPLICATION INFORMATION
APPLICATION REQUIREMENTS (continued)

• R22MT Discus compressors can operate from 9°F • All 4, 6 and 8 cylinder models are equipped with a
to –10°F, –12.8°C to —23.3°C if the following criteria preset internal relief valve between suction and
are met: discharge which will open if the maximum permissible
pressure differential is reached.
• Return gas temperature not to exceed 50°F, 10°C.
• Condensing temperature not to exceed 110°F, • All Tandem models include a discharge muffler.
43.3°C. • The nominal rotational speeds of the Copeland
Discus™ com pressors are:
• Vertical cooling fan is used.
• Discus 4D, 6D, 8D capacity control operating • 50 Hertz 1450 RPM.
requirements are: • 60 Hertz 1750 RPM.
• Medium Temperature R12 and R502 • Dimensions in this brochure include the terminal box
and service valves mounted. Height is from the bottom
• Evaporating range +25°F to –5°F, –3.9°C to
plate bolts or from bottom of extended oil sump where
–20.6°C.
applicable and does not include mounting parts except
• Vertical cooling fan is required. mounting for tandem compressors where dimensions
include the mounting rails. Mounting center
• Maximum condensing temperature 140°F, 60°C. dimensions do not apply to narrow profile deep sump
• Medium Temperature R22 models such as those with an 8 in the fourth place of
the model number.
• Evaporator range +25°F to 10°F, –3.9°C to
–12.2°C. • With the exception of the valve plate and head area,
the internal construction of Discus and Conventional
• Vertical cooling fan is required. Copelametic compressors is similar. While the Discus
• Maximum condensing temperature 140°F, 60°C. valving is extremely rugged, Copeland Discus™
compressors can be damaged by abuse in the same
• Evaporator range 9°F to –10°F, –12.8°C to –23°C. way that any compressor can be damaged. The
• Return gas temperature not to exceed 50°F, Copeland Discus™ compressor is a highly reliable,
10°C. highly efficient compressor. It is not a magic panacea
for compressor misapplication, and is not a cure-all for
• Condensing temperature not to exceed 100°F, recurring system problems that need to be identified
37.8°C. and corrected.
• Vertical cooling fan is required.
• Low Temperature R12, R22, and R502
• Vertical cooling fan is required.
• Oil cooler is required.
• Maximum condensing temperature is 130°F,
54.4°C.
• Minimum evaporating temperature for 4D and 6D
(33% unloaded) is –40°F, –40°C.
• Minimum evaporating temperature for 6D (67%
unloaded) is –25°F, –31°C.
• For R22 demand cooling unloading, the compressor
cannot be unloaded during the time liquid injection is
being used.

140
COPELAND DISCUS™ COMPRESSORS

APPLICATION INFORMATION
PART WINDING AND STAR-DELTA STARTING MOTOR CHARACTERISTICS
Motor Leads Hertz Across-The-Line Part Winding Star-Delta

200-3-50
50 220-3-60
ES8 6 200 / 220-3-60
60 200 / 220-3-60
380-3-60
50 380 / 420-3-50 380 / 420-3-50
FSD 6
60 460-3-60 460-3-60
FSM 6 50 380 / 420-3-50 380 / 420-3-50
50 500-3-50 500-3-50 (PW)
TSE 6
60 575-3-60 575-3-60 (PW)
200-3-50
50 380 / 400-3-50 200-3-50
TSN 9
60 230-3-60 230-3-60
460-3-60
200-3-50
50 380 / 400-3-50 (VR) 200-3-50
TSK 9
60 208 / 230-3-60 208 / 230-3-60
460-3-60
(PW) Part winding start applies only to single compressors 20 horsepower, 14.9 kilowatt, and above; tandem 40 horsepower, 29.8 kilowatt, and above.
(VR) Voltage rating for 8D is 400-3-50.

ELECTRICAL APPLICATION INFORMATION

• On Copeland Discus™ compressors with pilot circuit motor • Rated load amps is the value used for contactor and other
protection (compressors with S type motor protection) the electrical component selection. It is calculated by dividing
contactor becomes an integral part of the motor protection the maximum continuous current that the compressor draws
system. Modern pilot circuit protection used in conjunction under the condition of maximum load operation and the
with a properly sized and operating contactor provides lowest operating voltage by 1.4. See Application Bulletin
excellent motor protection. Emerson Climate Technologies AE 9-1154 for a detailed explanation.
specifications require the use of a properly sized, properly
applied contactor. For complete contactor sizing information, • Rated load amps (RLA) and locked rotor amps (LRA) shown
please see Application Bulletin AE 10-1244. in this book are at across-the-line, not part winding start or
star-delta conditions.
• Refer to the Electrical Handbook, Form 6400, for wiring
diagrams.

141
COPELAND DISCUS™ COMPRESSORS

APPLICATION INFORMATION
APPLICATION OPTIONS
migration to the crankcase during periods when the
• Use bill of material number 200 for standard compressors. compressor is not operating and will greatly reduce liquid
This bill of material includes oil charge, mounting parts,
standard service valves, overload protectors, terminal box slugging, loss of oil and compressor damage. Please refer
covers and, where applicable, running capacitors, starting to Application Bulletins AE 4-1166, AE 17-1238, and
capacitors and relays. Oil pressure safety controls, crank- AE 22-1182 for additional information.
case heaters, contactors, and high-low pressure controls,
when required, should be ordered with compressors but
• Any Copeland Discus™ model has the option of an installed
deep oil sump except for 8D where the deep sump is
listed separately on the purchase order. Exceptions to this standard.
rule are that 200 bill of material tandem compressors include
oil pressure safety controls, and 8D compressors use the • Airand water-cooled condensing units that contain the
matrix below. compressors listed in this section are available from
Emerson Climate Technologies.
• On applications where the cooling load may vary over a wide
range, some means of compressor capacity control is • The 8D Compressor can be 25% (1 bank) or 50% (2 banks)
frequently necessary for satisfactory system performance. unloaded. All compressors will have two unloader type
Emerson Climate Technologies has available capacity cylinder heads factory installed which are already equipped
reduction control devices for the larger Copelametic models. with unloader plungers. The external solenoid opening will
These capacity modulation accessories can be mounted on be sealed with a small, cast iron cap. To make the unloading
the compressor at the factory or added in the field. plunger operational, the cast iron cap is to be removed and
Application Bulletins AE 21-1216 and AE 21-1278 provide the solenoid coil attached. Please refer to Application
detailed technical information. Field conversion kits contain Bulletin AE 21-1216 for further information on internal
all necessary parts to convert a standard model to a capacity capacity control valves.
control model.
• To protect the 8D compressor from liquid refrigerant migration
• Crankcase heaters are strongly recommended on all into the crankcase during off-cycle periods, the application of
refrigeration systems where the compressor is exposed to cold a continuous pump down cycle is mandatory. Equally
ambient temperatures, on all split air conditioning systems, and important is the proper installation and operation of the
on package air conditioning equipment 5 HP and larger. As crankcase heater which is supplied as standard equipment on
the refrigerant charge increases, the start-up problems all 8D compressors. Please refer to Application Bulletin AE
associated with vapor refrigerant in liquid oil becomes more 22-1182 for additional information on liquid refrigerant control.
critical. The crankcase heater will minimize refrigerant

8DP and 8DS Standard Bills of Material for Single and Tandem Compressors
BILL OF MATERIAL NUMBER ACCESSORIES ARE SHIPPED IN KIT FORM
NO ONE TWO CONTROL TERMINAL SOLID
VOLTAGE MOUNTING SERVICE CRANKCASE
UNLOADER UNLOADER UNLOADER CONNECTION STATE PARTS VALVES HEATER
SOLENOID SOLENOID SOLENOIDS PARTS MODULE
200 240 270 240 Volt X X X X X
201 241 271 120 Volt X X X X X

UNITS CONVERSON CHART

BTUH x .252 = KCALH

142
COPELAND DISCUS™ COMPRESSORS

APPLICATION INFORMATION

DEMAND COOLING
Demand Cooling Kit Part Numbers
Control
Frequency 2D 3D 4D 6D
Voltage

120 Volt 998-1000-12 998-1001-13 998-1001-14 998-1001-16

50 HZ
240 Volt 998-1000-22 998-1001-23 998-1001-24 998-1001-26

• Demand Cooling Kits Include • Demand Cooling Installation Instruction Guides

Emerson Climate Technologies Publication Numbers
• Demand Cooling Module with 2 mounting screws
• Temperature Sensor with 3 foot (914 mm) shielded cable • 90-130 for 2D / 3D Compressors
• Injection Valve and Solenoid (with mounting hardware) • 90-131 for 4D Compressors
• Installation / Troubleshooting Guide • 90-133 for 6D Compressors
• Optional Demand Cooling Module Mounting Brackets • Demand Cooling Operating Requirements
• 2D and 3D Models 998-0700-09 • Vertical cooling fan must be used
• 4D and 6D Models 998-0700-10 • Return gas temperature must not exceed 65°F, 18.3°C
• Temperature Sensors • See page 6 of Application Bulletin AE 4-1287 for further
details.
• 3 Foot (914 mm) Shielded Cable (standard)
085-0109-00.
• 10 Foot (3 meter) Shielded Cable (optional)
085-0109-01.

143
COPELAND DISCUS™ COMPRESSORS

CONVENTIONAL COPELAMETIC COMPRESSOR TO

DISCUS COMPRESSOR CROSS REFERENCE

The Copeland Discus™ design results in significant capacity Since compressors are normally selected on a reasonably
increases for a given compressor displacement, to the extent conservative basis, capacity differences of plus or minus 10%
that in a majority of cases it will be necessary to select a usually will create no problems. The cross reference
Discus compressor with smaller displacement to replace a replacement selection is based on capacities within the plus or
Conventional compressor. The amount of capacity difference minus 10% parameter. Capacity differences beyond that level
is important in selecting a suitable replacement. Too little may or may not create problems depending on the original
capacity in a replacement may mean the system will be unable design, but if the compressor selection had little room for
to maintain temperatures. Too much capacity may lead to tolerance initially, then the potential for system imbalance is
short cycling and force control settings down to a level which possible.
may nullify the efficiency improvement and lead to other
problems.

Conventional Discus Conventional Discus Conventional Discus

R12 R22 R502
Model Model Model Model Model Model
MRJ-0500 2DF-0300 NRA-0500 2DC-0500 NRA-0500 2DC-0500
MRF-0500 2DF-0300 MRH-0760 2DL-0750 MRA-0500 2DL-0750
9RJ-0765 2DA-0500 9RC-1015 3DA-0750 MRH-0760 2DL-0750
9RC-0765 3DA-0750 9RS-1505 3DF-1200 9RJ-0765 3DA-0750
9RZ-0765 3DA-0750 4RA-2000 3DS-1500 9RC-1015 3DB-1000
High High
Temperature 9RS-1015 3DF-0900 Temperature 4RH-2500 4DB-2200 High 9RS-1505 3DF-1200
9RS-1016 3DF-0900 4RJ-3000 4DH-2500 Temperature 4RA-2000 4DA-2000
4RA-1000 3DS-1000 4RJ-3000 4DJ-3000 4RH-2500 4DH-2500
4RH-1500 3DF-1200 6RA-3000 4DJ-3000 4RJ-3000 4DH-2500
6RA-2000 3DS-1500 6RH-3500 6DH-3500 6RA-3000 4DJ-3000
6RH-2000 4DA-2000 6RJ-4000 6DG-3500 6RH-3500 6DH-3500
MRA-0500 2DF-0300 NRD-0310 2DC-0500 6RJ-4000 6DG-3500
MRJ-0500 2DC-0500 NRD-0400 2DC-0500 NRA-0500 2DC-0500
MRB-0500 2DA-0500 NRA-0500 2DC-0500 NRM-0500 2DD-0500
MRC-0500 2DA-0500 NRM-0500 2DD-0500 MRA-0500 2DL-0750
9RA-0505 2DA-0500 MRJ-0500 2DL-0750 MRH-0760 2DL-0750
9RJ-0765 2DA-0500 MRH-0760 2DL-0750 9RJ-0765 3DA-0750
9RB-0765 3DB-0750 9RJ-0765 2DA-0750 9RC-1015 3DA-0750
Medium
9RC-0765 3DA-0500 9RZ-0765 3DA-0750 Temperature 9RS-1505 3DB-1000
Medium
Temperature 9RZ-0765 3DB-0750 Medium 9RC-1015 3DA-0750 4RA-2000 4DA-2000
9RS-0765 3DB-0750 Temperature 9RS-1016 3DF-1200 4RH-2500 4DB-2200
9RS-1015 3DF-0750 9RS-1505 3DF-1200 4RJ-3000 4DH-2500
9RS-1016 3DS-0750 4RL-1900 3DS-1500 6RA-3000 4DJ-3000
4RA-1000 3DS-0750 4RA-2000 3DS-1500 6RH-3500 6DH-3500
4RH-1500 3DB-1000 4RH-2500 4DB-2200 6RJ-4000 6DH-3500
4RL-1900 4DA-1000 4RJ-3000 4DH-2500
6RA-2000 3DF-1200 6RA-3000 4DJ-3000
6RH-2000 4DA-2000 6RH-3500 6DH-3500
6RJ-4000 6DH-3500

NOTE: For models with green screens use Refrigerant R22.

144
COPELAND DISCUS™ COMPRESSORS

CONVENTIONAL COPELAMETIC COMPRESSOR TO

DISCUS COMPRESSOR CROSS REFERENCE

Conventional Discus Conventional Discus

R12 R502
Model Model Model Model
MRC-0500 3DA-0500 MRA-0500 2DF-0300
9RJ-0505 3DA-0500 MRJ-0500 2DL-0400
Low 9RB-0505 3DB-0500 MRB-0500 2DA-0600
Temperature 9RS-0765 3DF-0750 MRH-0760 2DL-0400
4RA-1000 3DS-0750 9RJ-0765 3DA-0750
6RA-1000 3DF-0900 9RB-0765 3DB-0750
9RZ-0765 3DB-0750
9RS-0765 3DF-0900
Low 9RC-1015 3DB-0750
Temperature 9RS-1015 3DF-0900
9RS-1016 3DF-0900
4RA-1000 3DS-1000
9RS-1505 3DF-0900
4RL-1500 4DL-1500
4RL-1900 4DL-1500
6RA-2000 4DL-1500
6RL-2500 4DT-2200
6RT-3000 6DL-2700

NOTE: For models with green screens, use Refrigerant R22 complete with Demand Cooling kit.

145
COPELAND DISCUS™ COMPRESSORS

APPLICATION INFORMATION
APPLICATION BULLETINS
Emerson Climate Technologies has compiled a book of compressor Application Bulletins. Please see the following bulletins, from
the book, for more Discus compressor application information as entitled below:

Location of Pressure Ports . . . . . . . . . . . . . . . . AE 4-1094 Design Consideration for Refrigerant

Mounting Parts . . . . . . . . . . . . . . . . . . . . . . . . AE 4-1111 Receivers . . . . . . . . . . . . . . . . . . . . . . . . AE 17-1212

Cooling Requirements . . . . . . . . . . . . . . . . . . . AE 4-1135 High Pressure Controls . . . . . . . . . . . . . . . . . . AE 17-1214

Oil Pumps . . . . . . . . . . . . . . . . . . . . . . . . . . . AE 4-1166 Non-Standard Applications . . . . . . . . . . . . . . . . AE 17-1233

Tandem Compressors. . . . . . . . . . . . . . . . . . . . AE 4-1167 Low Ambient Operation . . . . . . . . . . . . . . . . . . AE 17-1234

Discharge Line Mufflers . . . . . . . . . . . . . . . . . . AE 4-1181 Parallel Compressor Operation . . . . . . . . . . . . . AE 17-1235

Bolt Torque. . . . . . . . . . . . . . . . . . . . . . . . . . . AE 4-1219 Application of Immersion Type

Crankcase Heaters . . . . . . . . . . . . . . . . . . AE 17-1238
U.L. and C.S.A. File Data . . . . . . . . . . . . . . . . . AE 4-1255
System Design for Bulk Milk
8D Compressors . . . . . . . . . . . . . . . . . . . . . . AE 4-1265 Tank Refrigeration . . . . . . . . . . . . . . . . . . . AE 17-1242
Converting Compressor Rated Capacity Air to Air Heat Pump System Design . . . . . . . . . AE 17-1243
to Actual Capacity . . . . . . . . . . . . . . . . . . . . AE 4-1273
Refrigeration Oils . . . . . . . . . . . . . . . . . . . . . . AE 17-1248
Motor Horsepower versus
Compressor Efficiency . . . . . . . . . . . . . . . . . AE 4-1274 Design Considerations for High Ambient
Conditions . . . . . . . . . . . . . . . . . . . . . . . . AE 17-1251
Oil Charges . . . . . . . . . . . . . . . . . . . . . . . . . . AE 4-1281
Design Considerations for Heat
R22 Envelope Extended . . . . . . . . . . . . . . . . . . AE 4-1283 Reclaim Systems . . . . . . . . . . . . . . . . . . . AE 17-1252
Demand Cooling . . . . . . . . . . . . . . . . . . . . . . . AE 4-1287 System Design for Container
Oil Pressure Safety Controls . . . . . . . . . . . . . . . AE 8-1095 Refrigeration . . . . . . . . . . . . . . . . . . . . . . AE 17-1257
Sentronic – Electronic Oil Pressure Control . . . . . AE 8-1275 Compressor Overheating. . . . . . . . . . . . . . . . . AE 17-1260
Terminal Plate Connections for Dual Winding Compressor Selection for Mobile or Transport
Compressors . . . . . . . . . . . . . . . . . . . . . . . AE 9-1076 Applications . . . . . . . . . . . . . . . . . . . . . . . AE 17-1261
Nameplate Amperage Rating . . . . . . . . . . . . . . . AE 9-1154 Compressor Short Cycling . . . . . . . . . . . . . . . . AE 17-1262
Single Phase Motors – Frequent Causes Air to Water Heat Pump Cycles . . . . . . . . . . . . AE 17-1263
of Failure. . . . . . . . . . . . . . . . . . . . . . . . . . AE 9-1209 Compression Ratio as it Affects Compressor
Nameplate Voltages . . . . . . . . . . . . . . . . . . . . . AE 9-1228 Reliability. . . . . . . . . . . . . . . . . . . . . . . . . AE 17-1268
Power Factor Correction With Capacitors . . . . . . . AE 9-1249 Oil Additives . . . . . . . . . . . . . . . . . . . . . . . . . AE 17-1282
Maximum Continuous Current Rating . . . . . . . . . AE 9-1250 Switching Refrigerants in Field Installations. . . . . AE 17-1284
Effect of Electrical Components on Motor Transport Refrigeration Manual . . . . . . . . . . . . . AE 20-1152
Protection . . . . . . . . . . . . . . . . . . . . . . . . AE 10-1187 Low Limit Pressure Controls for Low
Single versus Two Contactor Selection for Temperature Truck Applications . . . . . . . . . . AE 20-1197
Model 4D and 6D Compressors . . . . . . . . . . AE 10-1225 Hot Gas Bypass Systems . . . . . . . . . . . . . . . . AE 21-1160
Recommended Contactor Selection and System Internal Capacity Control Valves . . . . . . . . . . . . AE 21-1216
Design for Three Phase Motor Protection. . . . AE 10-1244
Moduload Capacity Control . . . . . . . . . . . . . . . AE 21-1278
Solid State Motor Protection . . . . . . . . . . . . . . . AE 10-1264
Liquid Refrigerant Control . . . . . . . . . . . . . . . . AE 22-1182
Potential Nuisance Field Problem with
Impedance Lockout Relays on Solid State Off Cycle Motor Heat for Liquid Refrigerant
Protected Compressors . . . . . . . . . . . . . . . AE 10-1267 Migration Control. . . . . . . . . . . . . . . . . . . . AE 22-1230

Copeland Supplied Run Capacitors . . . . . . . . . . AE 10-1272 Recommended Control Circuits for Liquid
Refrigerant Control . . . . . . . . . . . . . . . . . . AE 23-1221
Suction Accumulators . . . . . . . . . . . . . . . . . . . AE 11-1147
System Cleaning . . . . . . . . . . . . . . . . . . . . . . AE 24-1105
Suction Accumulators for Heat Pump
Applications . . . . . . . . . . . . . . . . . . . . . . . AE 11-1247 Air Cycle Testing . . . . . . . . . . . . . . . . . . . . . . AE 25-1068

Effect of Defrost Control on Compressor Safe Handling of Compressed Gases. . . . . . . . . AE 25-1177

Operation . . . . . . . . . . . . . . . . . . . . . . . . AE 17-1195 Use of Reclaimed Refrigerant. . . . . . . . . . . . . . AE 25-1290

146
COPELAND DISCUS™ COMPRESSORS

SINGLE COMPRESSOR NOMENCLATURE

Primary Application Range
R = ARI High Temperature, Rated @ 45/130 °F
F = ARI Low Temperature, Rated @ -25/105 °F
Compressor Motor Type
Phase Motor Type Code
Single Capacitor run, capacitor start C
Three Wye (star) Delta E
Three Six lead part winding F Product
or across the line. Variations
Three Miscellaneous three phase T
Compressor Model Type Bill of Material numbers will be
• Single voltage three lead assigned as follows:
Code Description • Single voltage six lead on
D Discus 500-3-50, 575-3-60; 20 HP, Number -100 is standard compressor
14.9 kW, and up. used in Copeland condensing units.
• Dual voltage nine lead Number -200 indicates a standard
compressor.
Numbers -201 through 299 will be
assigned for all other variations of a given
model.
Oil Type Note: 8D compressors have a unique bill
“O” Mineral Oil of material matrix. See page 142.
“E” POE Oil
“L” Less Oil

XXXXXXXXX — XXX — XXX

Compressor Nominal Capacity

Family Series at Rating Condition Compressor Motor Protection Electrical Codes
Either a Two numeric Type Code 50HZ 60HZ Code
number characters
established for Internal inherent protection – F — 230-1 B
each product One protector, use with contactor 200/220-3 208/230-3 C
model. (single or three phase). 380/420-3 460-3 D
500-3 575-3 E
Internal thermal protectors – S
200/380/400-3 208/230/460-3 K
Three electronic sensors and one
380/420-3 — M
external solid state control module,
200/380/400-3 230/460-3 N
use with contactor (three phase).
200-3 200-3 U
— 380-3 7
200-3 200/220/380-3 8
Displacement
and NOTE: Code U is only 60HZ on one
Valve Plate Capacity Multiplier model. Code K varies from above for
8D compressors.
A letter only, K - 1,000
arbitrarily M- 10,000
assigned for
each different
displacement
and valve plate
combination
within any one
family series.
Model
Variations
Either a
number or letter
arbitrarily
assigned to
indicate major
variations
within any one
family series.

147
COPELAND DISCUS™ COMPRESSORS

TANDEM COMPRESSOR NOMENCLATURE

Primary Application Range Compressor Motor Type Product

Phase Motor Type Code Variations
R = ARI High Temperature, Rated @ 45/130 °F
F = ARI Low Temperature, Rated @ -25/105 °F Three Wye (star) Delta E Bill of Material numbers will be
assigned as follows:
Three Six lead part winding F
or across the line. Number -200 indicates a standard
compressor.
Three Miscellaneous three phase T
Numbers -201 through 299 will be
• Single voltage three lead assigned for all other variations of a given
• Single voltage six lead on model.
500-3-50, 575-3-60; 40 HP,
Compressor 29.8 kW, and up. Note: 8D compressors have a unique bill
Family Series • Dual voltage nine lead of material matrix. See page 142.
A number
established for
second model
in the tandem.

X X X X X X X X X X —X X X — X X X

Compressor Electrical Codes

Family Series Nominal Capacity
at Rating Condition 50HZ 60HZ Code
A number
established for Two numeric characters 200/220-3 208/230-3 C
first model in 380/420-3 460-3 D
the tandem. 500-3 575-3 E
200/380/400-3 208/230/460-3 K
380/420-3 — M
200/380/400-3 230/460-3 N
200-3 200-3 U
— 380-3 7
Oil Type 200-3 200/220/380-3 8
Product “O” Mineral Oil
Note: Code U is only 60HZ on one
Type “E” POE Oil model. Code K varies from above for
Code Type “L” Less Oil 8D tandems.
D Discus

Compressor Motor Protection

Type Code
Internal inherent protection – F
One protector, use with
contactor (three phase).
Model Capacity Multiplier
Displacement Internal thermal protectors – S
and Valve Plate Variations
K - 1,000 Three electronic sensors and
A letter only, A number one external solid state control
M- 10,000
arbitrarily arbitrarily module, use with contactor
assigned for assigned to (three phase).
each different indicate major
displacement- variations
valve plate within any one
combination
within any one family series.
family series.

148
HFC Copeland Discus™
Compressors

Emerson Climate Technologies is leading the industry with

HFC COPELAND DISCUS™

environmentally responsible refrigerant solutions.

149
HFC COPELAND DISCUS™ COMPRESSORS

FEATURES HFC COPELAND DISCUS™

• HFC Ozone Friendly Refrigerants COMPRESSOR STORY
In the past few years the use of chlorofluorocarbons
• Wide 50 and 60 Hertz Selection Range (CFCs) in the refrigeration and air conditioning industry
3 to 80 Horsepower
2.2 to 59.7 Kilowatts has become a major topic of discussion. With the signing
of the Montreal Protocol and the 1992 Clean Air Act – and
especially the decision to end CFC-production by Jan. 1,
• Efficient Energy Saving Discus Valve Design 1996, – many contractors and in-plant engineers have
been in a turmoil as to what they should do. What
• Proven Copeland brand products Dependability
®
refrigerants should they use? Should they retrofit their
machines or buy new ones? Who can answer their
• Extensive Selection of Models for Commercial questions?
Refrigeration Emerson Climate Technologies has been looking for
answers to these and many other questions – and finding
• Rugged, Compact Construction for Heavy-Duty some – for more than six years now.
Usage
While the effort to move away from CFC-use with R22
was a proper initial response, Emerson Climate
• Easily Accessible for Maintenance Technologies decided that it needed a long-term solution
to the refrigerant problem since HCFCs will also be
• Wide Voltage Selection phased out. In October 1992, the company began
replacing its Discus line of R12 reciprocating, semi-
• Full Maximum Load Rundown Capability hermetic compressors with compressors designed to use
the hydrofluorocarbon (HFC) 134a. Because HFCs do not
• Motor Protection on All Models contain any chlorine, they should not deplete the ozone
layer.
• Poloyol Ester Lubricant While HFC134a works well for medium- and high-
temperature applications, Emerson Climate Technologies
• Oil Sight Glass on All Models decided that it needed a replacement for low- and
medium-temperature applications previously supported by
• “Sentronic” Compatible Oil Pump Included on All R502 and R22. At the January 1992 International Air-
Models Conditioning Heating Refrigeration (IACHR) Exposition in
Chicago, Emerson Climate Technologies announced an
effort to release a full line of products using HFCs
• Capacity Control and Tandem Models Available R404A / R407A / R507.
As with the standard Discus compressors the HFC
Discus Compressors continue to offer the same energy
efficiency and cost savings.
HFC Discus Compressors in this section of the
catalog are found in the following order:
• Refrigerant Cooled • Capacity Control
• Tandem • Capacity Control Tandem
Refrigerant Cooled refers to the type of compressor
motor cooling. Tandem compressors are those
produced when two single compressors are bolted
together to make one large compressor. In order to
regulate the output of the compressor, Capacity Control
compressors can be used as shown in their respective
pages.
When it comes to refrigeration, people look to
Emerson Climate Technologies to provide answers. We
committed early in this process to not only develop new
compressor lines around the new refrigerants but also
to provide what input we could in regard to things like
retrofitting and dealing with the whole service issue.

151
HFC COPELAND DISCUS™ COMPRESSORS

BTUS / HOUR x 1000

50 HERTZ CAPACITY KCALS / HOUR x 1000
WATTS x 1000

REFRIGERANT COOLED R134a

CFH CONDENSING EVAPORATING TEMPERATURE °F/°C
HP m 3/hr TEMPERATURE
MODEL 55 45 35 25 15 5 0 –5
kW
50HZ °F °C 12.8 7.2 1.7 – 3.9 – 9.4 – 15 – 17.8 – 20.6
64.2 51.9 41.6 33.0 25.7 19.5 16.7 14.1
100 37.8 16.2 13.1 10.5 8.3 6.5 4.9 4.2 3.6
2DF - 030E 3 749 18.8 15.2 12.2 9.7 7.5 5.7 4.9 4.1
2DF3F16KE 2.2 21.2 50.4 40.7 32.6 25.6 19.5 13.9 11.2 8.5
130 54.4 12.7 10.3 8.2 6.5 4.9 3.5 2.8 2.1
14.8 11.9 9.6 7.5 5.7 4.1 3.3 2.5

100 37.8
2DL-040E 4 835
2DL3F20KE 3.0 23.6
130 54.4

100 37.8
2DC - 050E 5 593
2DC3R53KE 3.7 16.8
130 54.4

100 37.8
2DD - 050E 5 682
2DD3R63KE 3.7 19.3
130 54.4

80.6 65.1 52.2 41.4 32.3 24.5 21.0 17.7

100 37.8 20.3 16.4 13.2 10.4 8.1 6.2 5.3 4.5
2DA - 060E 6 940 23.6 19.1 15.3 12.1 9.5 7.2 6.2 5.2
2DA3F23KE 4.5 26.6 63.2 51.1 40.9 32.1 24.5 17.5 14.1 10.7
130 54.4 15.9 12.9 10.3 8.1 6.2 4.4 3.6 2.7
18.5 15.0 12.0 9.4 7.2 5.1 4.1 3.1
84.5 68.3 54.7 43.4 33.9 25.7 22.0 18.5
100 37.8 21.3 17.2 13.8 10.9 8.5 6.5 5.5 4.7
2DB - 060E 6 987 24.8 20.0 16.0 12.7 9.9 7.5 6.4 5.4
2DB3F25KE 4.5 27.9 66.4 53.6 42.9 33.7 25.7 18.3 14.8 11.2
130 54.4 16.7 13.5 10.8 8.5 6.5 4.6 3.7 2.8
19.5 15.7 12.6 9.9 7.5 5.4 4.3 3.3
96.7 78.0 62.5 49.7 39.0 29.8 25.6 21.6
100 37.8 24.4 19.7 15.8 12.5 9.8 7.5 6.5 5.4
3DAA060E 6 1135 28.3 22.9 18.3 14.6 11.4 8.7 7.5 6.3
3DA3F28KE 4.5 32.1 75.9 61.2 49.0 38.7 29.9 21.9 18.1 14.2
130 54.4 19.1 15.4 12.3 9.8 7.5 5.5 4.6 3.6
22.2 17.9 14.4 11.3 8.8 6.4 5.3 4.2

100 37.8
2DL - 075E 7.5 835
2DL3R78KE 5.6 23.6
130 54.4

100 37.8
2DA - 075E 7.5 940
2DA3R89KE 5.6 26.6
130 54.4

152
HFC COPELAND DISCUS™ COMPRESSORS

BTUS / HOUR x 1000

CAPACITY KCALS / HOUR x 1000
WATTS x 1000

R404A/ R407A/ R507

EVAPORATING TEMPERATURE °F/°C
45 35 25 15 5 0 –5 – 10 – 20 – 30 – 40
7.2 1.7 – 3.9 – 9.4 – 15 – 17.8 – 20.6 – 23.3 – 28.9 – 34.4 – 40
29.5 26.0 22.7 16.9 12.1 8.3
7.4 6.6 5.7 4.3 3.0 2.1
8.6 7.6 6.7 5.0 3.5 2.4
19.8 17.2 14.8 10.6 7.1 4.4
5.0 4.3 3.7 2.7 1.8 1.1
5.8 5.0 4.3 3.1 2.1 1.3
35.3 31.2 27.4 20.8 15.4 10.9
8.9 7.9 6.9 5.2 3.9 2.7
10.3 9.1 8.0 6.1 4.5 3.2
24.6 21.6 18.8 13.9 9.7 6.1
6.2 5.4 4.7 3.5 2.4 1.5
7.2 6.3 5.5 4.1 2.8 1.8
64.4 52.7 42.4 33.5 26.0 22.7 19.9 17.0
16.2 13.3 10.7 8.4 6.6 5.7 5.0 4.3
18.9 15.4 12.4 9.8 7.6 6.7 5.8 5.0
44.7 36.3 29.0 22.6 17.2 14.8 12.7 10.6
11.3 9.1 7.3 5.7 4.3 3.7 3.2 2.7
13.1 10.6 8.5 6.6 5.0 4.3 3.7 3.1
75.3 61.8 50.1 40.0 31.4 27.6 24.3 21.0
19.0 15.6 12.6 10.1 7.9 7.0 6.1 5.3
22.1 18.1 14.7 11.7 9.2 8.1 7.1 6.2
53.4 43.6 35.0 27.7 21.4 18.7 16.3 13.8
13.5 11.0 8.8 7.0 5.4 4.7 4.1 3.5
15.6 12.8 10.3 8.1 6.3 5.5 4.8 4.0
40.2 35.6 31.4 24.1 18.0 12.9
10.1 9.0 7.9 6.1 4.5 3.3
11.8 10.4 9.2 7.1 5.3 3.8
28.2 24.8 21.8 16.3 11.6 7.4
7.1 6.2 5.5 4.1 2.9 1.9
8.3 7.3 6.4 4.8 3.4 2.2
42.7 37.8 33.3 25.4 18.9 13.6
10.8 9.5 8.4 6.4 4.8 3.4
12.5 11.1 9.8 7.4 5.5 4.0
30.3 26.7 23.4 17.6 12.7 8.5
7.6 6.7 5.9 4.4 3.2 2.1
8.9 7.8 6.9 5.2 3.7 2.5
47.5 42.1 37.0 28.0 20.7 15.0
12.0 10.6 9.3 7.1 5.2 3.8
13.9 12.3 10.8 8.2 6.1 4.4
33.4 29.5 25.9 19.3 13.7 9.0
8.4 7.4 6.5 4.9 3.5 2.3
9.8 8.6 7.6 5.7 4.0 2.6
92.2 75.7 61.5 49.4 39.0 34.5 30.5 26.5
23.2 19.1 15.5 12.4 9.8 8.7 7.7 6.7
27.0 22.2 18.0 14.5 11.4 10.1 8.9 7.8
66.2 54.1 43.8 35.0 27.5 24.1 21.1 18.1
16.7 13.6 11.0 8.8 6.9 6.1 5.3 4.6
19.4 15.9 12.8 10.3 8.1 7.1 6.2 5.3
122.0 96.7 77.5 62.4 49.7 43.7 37.5 31.3
30.7 24.4 19.5 15.7 12.5 11.0 9.5 7.9
35.7 28.3 22.7 18.3 14.6 12.8 11.0 9.2
82.8 63.1 49.0 38.8 30.8 27.2 23.3 19.4
20.9 15.9 12.3 9.8 7.8 6.9 5.9 4.9
24.3 18.5 14.4 11.4 9.0 8.0 6.8 5.7

153
HFC COPELAND DISCUS™ COMPRESSORS

BTUS / HOUR x 1000

50 HERTZ CAPACITY KCALS / HOUR x 1000
WATTS x 1000

REFRIGERANT COOLED R134a

CFH CONDENSING EVAPORATING TEMPERATURE °F/°C
HP m 3/hr TEMPERATURE
MODEL 55 45 35 25 15 5 0 –5
kW
50HZ °F °C 12.8 7.2 1.7 – 3.9 – 9.4 – 15 – 17.8 – 20.6

100 37.8
3DAA075E 7.5 1135
3DA3R10ME 5.6 32.1
130 54.4

114.0 91.8 73.6 58.5 45.9 35.1 30.2 25.5

100 37.8 28.7 23.1 18.5 14.7 11.6 8.8 7.6 6.4
3DBA075E 7.5 1338 33.4 26.9 21.6 17.1 13.4 10.3 8.8 7.5
3DB3F33KE 5.6 37.9 89.4 72.0 57.7 45.6 35.2 25.9 21.3 16.8
130 54.4 22.5 18.1 14.5 11.5 8.9 6.5 5.4 4.2
26.2 21.1 16.9 13.4 10.3 7.6 6.2 4.9
134.0 108.0 86.8 68.9 54.1 41.7 36.3 31.4
100 37.8 33.8 27.2 21.9 17.4 13.6 10.5 9.1 7.9
3DFA090E 9 1586 39.3 31.6 25.4 20.2 15.9 12.2 10.6 9.2
3DF3F40KE 6.7 44.9 107.0 85.7 68.3 53.9 42.0 32.1 27.7 23.6
130 54.4 27.0 21.6 17.2 13.6 10.6 8.1 7.0 5.9
31.4 25.1 20.0 15.8 12.3 9.4 8.1 6.9

100 37.8
3DBA100E 10 1338
3DB3R12ME 7.5 37.9
130 54.4

148.0 120.0 96.1 76.3 59.9 46.2 40.2 34.7

100 37.8 37.3 30.2 24.2 19.2 15.1 11.6 10.1 8.7
3DSA100E 10 1762 43.4 35.2 28.2 22.4 17.6 13.5 11.8 10.2
3DS3F46KE 7.5 49.9 118.0 94.9 75.6 59.7 46.5 35.5 30.6 26.1
130 54.4 29.7 23.9 19.1 15.0 11.7 8.9 7.7 6.6
34.6 27.8 22.2 17.5 13.6 10.4 9.0 7.6
162.0 132.0 106.0 83.5 65.0 49.5 42.8 36.6
100 37.8 40.8 33.3 26.7 21.0 16.4 12.5 10.8 9.2
4DAA100E 10 1977 47.5 38.7 31.1 24.5 19.0 14.5 12.5 10.7
4DAR12ME 7.5 56.0 128.0 104.0 82.9 65.3 50.5 38.0 32.4 27.3
130 54.4 32.3 26.2 20.9 16.5 12.7 9.6 8.2 6.9
37.5 30.5 24.3 19.1 14.8 11.1 9.5 8.0
162.0 132.0 106.0 83.5 65.0 49.5 42.8 36.6
100 37.8 40.8 33.3 26.7 21.0 16.4 12.5 10.8 9.2
4DAA101E 10 1977 47.5 38.7 31.1 24.5 19.0 14.5 12.5 10.7
4DAF47KE 7.5 56.0 128.0 104.0 82.9 65.3 50.5 38.0 32.4 27.3
130 54.4 32.3 26.2 20.9 16.5 12.7 9.6 8.2 6.9
37.5 30.5 24.3 19.1 14.8 11.1 9.5 8.0

100 37.8
3DFA120E 12 1586
3DF3R15ME 9.0 44.9
130 54.4

100 37.8
3DSA150E 15 1762
3DS3R17ME 11.2 49.9
130 54.4

154
HFC COPELAND DISCUS™ COMPRESSORS

BTUS / HOUR x 1000

CAPACITY KCALS / HOUR x 1000
WATTS x 1000

R404A/ R407A/ R507

EVAPORATING TEMPERATURE °F/°C
45 35 25 15 5 0 –5 – 10 – 20 – 30 – 40
7.2 1.7 – 3.9 – 9.4 – 15 – 17.8 – 20.6 – 23.3 – 28.9 – 34.4 – 40
124.0 99.5 80.2 64.7 52.0 46.4 41.2 35.9
31.2 25.1 20.2 16.3 13.1 11.7 10.4 9.0
36.3 29.2 23.5 19.0 15.2 13.6 12.1 10.5
87.4 71.8 59.1 48.4 38.7 33.9 28.8 23.7
22.0 18.1 14.9 12.2 9.8 8.5 7.3 6.0
25.6 21.0 17.3 14.2 11.3 9.9 8.4 6.9
54.8 48.5 42.9 33.1 25.0 18.3
13.8 12.2 10.8 8.3 6.3 4.6
16.1 14.2 12.6 9.7 7.3 5.4
40.4 35.9 31.8 24.3 17.6 11.2
10.2 9.0 8.0 6.1 4.4 2.8
11.8 10.5 9.3 7.1 5.2 3.3
68.7 61.2 54.3 41.8 31.4 23.0
17.3 15.4 13.7 10.5 7.9 5.8
20.1 17.9 15.9 12.2 9.2 6.7
49.4 43.7 38.4 29.2 21.6 15.8
12.4 11.0 9.7 7.4 5.4 4.0
14.5 12.8 11.3 8.6 6.3 4.6
147.0 121.0 98.3 79.4 63.4 56.3 49.9 43.4
37.0 30.5 24.8 20.0 16.0 14.2 12.6 10.9
43.1 35.5 28.8 23.3 18.6 16.5 14.6 12.7
105.0 86.3 70.4 56.9 45.0 39.5 34.4 29.2
26.5 21.7 17.7 14.3 11.3 10.0 8.7 7.4
30.8 25.3 20.6 16.7 13.2 11.6 10.1 8.6
74.5 66.2 58.7 45.4 34.3 24.9
18.8 16.7 14.8 11.4 8.6 6.3
21.8 19.4 17.2 13.3 10.0 7.3
54.2 47.9 42.1 32.2 24.1 17.4
13.7 12.1 10.6 8.1 6.1 4.4
15.9 14.0 12.3 9.4 7.1 5.1
81.0 71.7 63.2 48.3 36.0 25.6
20.4 18.1 15.9 12.2 9.1 6.5
23.7 21.0 18.5 14.2 10.5 7.5
57.1 50.4 44.2 33.1 23.3 14.4
14.4 12.7 11.1 8.3 5.9 3.6
16.7 14.8 13.0 9.7 6.8 4.2
81.0 71.7 63.2 48.3 36.0 25.6
20.4 18.1 15.9 12.2 9.1 6.5
23.7 21.0 18.5 14.2 10.5 7.5
57.1 50.4 44.2 33.1 23.3 14.4
14.4 12.7 11.1 8.3 5.9 3.6
16.7 14.8 13.0 9.7 6.8 4.2
174.0 146.0 120.0 97.3 77.6 69.0 61.5 54.0
43.8 36.8 30.2 24.5 19.6 17.4 15.5 13.6
51.0 42.8 35.2 28.5 22.7 20.2 18.0 15.8
128.0 107.0 88.0 70.9 56.1 49.5 43.9 38.3
32.3 27.0 22.2 17.9 14.1 12.5 11.1 9.7
37.5 31.4 25.8 20.8 16.4 14.5 12.9 11.2
193.0 161.0 133.0 108.0 86.0 76.4 68.1 59.8
48.6 40.6 33.5 27.2 21.7 19.3 17.2 15.1
56.5 47.2 39.0 31.6 25.2 22.4 20.0 17.5
142.0 119.0 97.4 78.5 62.1 54.9 48.7 42.4
35.8 30.0 24.5 19.8 15.6 13.8 12.3 10.7
41.6 34.9 28.5 23.0 18.2 16.1 14.3 12.4

155
HFC COPELAND DISCUS™ COMPRESSORS

BTUS / HOUR x 1000

50 HERTZ CAPACITY KCALS / HOUR x 1000
WATTS x 1000

REFRIGERANT COOLED R134a

CFH CONDENSING EVAPORATING TEMPERATURE °F/°C
HP m 3/hr TEMPERATURE
MODEL 55 45 35 25 15 5 0 –5
kW
50HZ °F °C 12.8 7.2 1.7 – 3.9 – 9.4 – 15 – 17.8 – 20.6
210.0 170.0 136.0 108.0 84.3 64.3 55.4 47.2
100 37.8 52.9 42.8 34.3 27.2 21.2 16.2 14.0 11.9
4DHA150E 15 2499 61.5 49.8 39.8 31.6 24.7 18.8 16.2 13.8
4DHR16ME 11.2 70.7 166.0 133.0 105.0 82.3 63.6 48.3 41.7 35.7
130 54.4 41.8 33.5 26.5 20.7 16.0 12.2 10.5 9.0
48.6 39.0 30.8 24.1 18.6 14.2 12.2 10.5

100 37.8
4DLA150E
15 2499
(OC) 11.2 70.7
4DLF63KE 130 54.4

100 37.8
4DAA200E 20 1977
4DAR18ME 14.9 56.0
130 54.4

250.0 203.0 163.0 129.0 101.0 76.6 66.0 56.2

100 37.8 63.0 51.2 41.1 32.5 25.5 19.3 16.6 14.2
4DJA200E 20 2985 73.3 59.5 47.8 37.8 29.6 22.4 19.3 16.5
4DJR19ME 14.9 84.5 199.0 159.0 125.0 98.2 75.9 57.7 49.9 42.6
130 54.4 50.1 40.1 31.5 24.7 19.1 14.5 12.6 10.7
58.3 46.6 36.6 28.8 22.2 16.9 14.6 12.5
314.0 255.0 205.0 162.0 127.0 96.4 83.1 70.7
100 37.8 79.1 64.3 51.7 40.8 32.0 24.3 20.9 17.8
6DHA200E 20 3748 92.0 74.7 60.1 47.5 37.2 28.2 24.3 20.7
6DHR23ME 14.9 106.1 250.0 199.0 158.0 123.0 95.4 72.5 62.6 53.5
130 54.4 63.0 50.1 39.8 31.0 24.0 18.3 15.8 13.5
73.3 58.3 46.3 36.0 28.0 21.2 18.3 15.7

100 37.8
4DTA220E 22 2985
(OC) 16.4 84.5
4DTF76KE 130 54.4

100 37.8
4DHA250E 25 2499
4DHR22ME 18.7 70.7
130 54.4

100 37.8
6DLA270E 27 3748
(OC) 20.1 106.1
6DLF93KE 130 54.4

100 37.8
4DJA300E 30 2985
4DJR28ME 22.4 84.5
130 54.4

(OC) Oil cooler and vertical cooling fan are standard on this model.

156
HFC COPELAND DISCUS™ COMPRESSORS

BTUS / HOUR x 1000

CAPACITY KCALS / HOUR x 1000
WATTS x 1000

R404A/ R407A/ R507

EVAPORATING TEMPERATURE °F/°C
45 35 25 15 5 0 –5 – 10 – 20 – 30 – 40
7.2 1.7 – 3.9 – 9.4 – 15 – 17.8 – 20.6 – 23.3 – 28.9 – 34.4 – 40

105.0 93.4 82.9 64.7 49.4 35.5

26.5 23.5 20.9 16.3 12.4 8.9
30.8 27.4 24.3 19.0 14.5 10.4
74.4 65.1 56.8 42.7 30.8 19.9
18.7 16.4 14.3 10.8 7.8 5.0
21.8 19.1 16.6 12.5 9.0 5.8
207.0 173.0 142.0 114.0 90.4 79.8 70.7 61.5
52.2 43.6 35.8 28.7 22.8 20.1 17.8 15.5
60.7 50.7 41.6 33.4 26.5 23.4 20.7 18.0
150.0 124.0 100.0 79.7 61.9 54.0 47.4 40.8
37.8 31.2 25.2 20.1 15.6 13.6 11.9 10.3
44.0 36.3 29.3 23.4 18.1 15.8 13.9 12.0

123.0 109.0 95.5 72.8 54.1 39.1

31.0 27.5 24.1 18.3 13.6 9.9
36.0 31.9 28.0 21.3 15.9 11.5
85.7 75.3 65.9 49.5 36.2 25.4
21.6 19.0 16.6 12.5 9.1 6.4
25.1 22.1 19.3 14.5 10.6 7.4
264.0 223.0 184.0 149.0 118.0 104.0 92.2 80.4
66.5 56.2 46.4 37.5 29.7 26.2 23.2 20.3
77.4 65.3 53.9 43.7 34.6 30.5 27.0 23.6
196.0 163.0 133.0 107.0 83.6 73.8 66.1 58.3
49.4 41.1 33.5 27.0 21.1 18.6 16.6 14.7
57.4 47.8 39.0 31.4 24.5 21.6 19.4 17.1
155.0 137.0 121.0 93.1 70.9 52.8
39.1 34.5 30.5 23.5 17.9 13.3
45.4 40.1 35.5 27.3 20.8 15.5
111.0 98.3 87.1 67.0 49.1 31.9
28.0 24.8 21.9 16.9 12.4 8.0
32.5 28.8 25.5 19.6 14.4 9.3
327.0 273.0 224.0 181.0 143.0 127.0 112.0 97.2
82.4 68.8 56.4 45.6 36.0 32.0 28.2 24.5
95.8 80.0 65.6 53.0 41.9 37.2 32.8 28.5
233.0 193.0 157.0 126.0 98.9 87.3 77.3 67.3
58.7 48.6 39.6 31.8 24.9 22.0 19.5 17.0
68.3 56.5 46.0 36.9 29.0 25.6 22.6 19.7

157
HFC COPELAND DISCUS™ COMPRESSORS

BTUS / HOUR x 1000

50 HERTZ CAPACITY KCALS / HOUR x 1000
WATTS x 1000

REFRIGERANT COOLED R134a

CFH CONDENSING EVAPORATING TEMPERATURE °F/°C
HP m 3/hr TEMPERATURE
MODEL 55 45 35 25 15 5 0 –5
kW
50HZ °F °C 12.8 7.2 1.7 – 3.9 – 9.4 – 15 – 17.8 – 20.6
375.0 304.0 244.0 193.0 151.0 115.0 99.1 84.3
100 37.8 94.5 76.6 61.5 48.6 38.1 29.0 25.0 21.2
6DJA300E 30 4478 110.0 89.1 71.5 56.5 44.2 33.7 29.0 24.7
(DS) 22.4 126.8
298.0 238.0 188.0 147.0 114.0 86.6 74.8 63.9
6DJR28ME
130 54.4 75.1 60.0 47.4 37.0 28.7 21.8 18.8 16.1
87.3 69.7 55.1 43.1 33.4 25.4 21.9 18.7

100 37.8
6DTA300E
(DS) 30 4478
(OC) 22.4 126.8
6DTF11ME 130 54.4

100 37.8
6DHA350E 35 3748
6DHR35ME 26.1 106.1
130 54.4

100 37.8
6DJA400E 40 4478
(DS) 29.8 126.8
6DJR40ME 130 54.4

(DS) Deep oil sump is standard on this model.

(OC) Oil cooler and vertical cooling fan are standard on this model.

158
HFC COPELAND DISCUS™ COMPRESSORS

BTUS / HOUR x 1000

CAPACITY KCALS / HOUR x 1000
WATTS x 1000

R404A/ R407A/ R507

EVAPORATING TEMPERATURE °F/°C
45 35 25 15 5 0 –5 – 10 – 20 – 30 – 40
7.2 1.7 – 3.9 – 9.4 – 15 – 17.8 – 20.6 – 23.3 – 28.9 – 34.4 – 40

171.0 152.0 135.0 105.0 80.0 59.0

43.1 38.3 34.0 26.5 20.2 14.9
50.1 44.5 39.6 30.8 23.4 17.3
123.0 110.0 97.0 75.1 56.1 38.1
31.0 27.7 24.4 18.9 14.1 9.6
36.0 32.2 28.4 22.0 16.4 11.2
399.0 329.0 269.0 217.0 173.0 153.0 137.0 121.0
101.0 82.9 67.8 54.7 43.6 38.6 34.5 30.5
117.0 96.4 78.8 63.6 50.7 44.8 40.1 35.5
280.0 232.0 190.0 153.0 121.0 107.0 94.7 82.4
70.6 58.5 47.9 38.6 30.5 27.0 23.9 20.8
82.0 68.0 55.7 44.8 35.5 31.4 27.7 24.1
473.0 391.0 319.0 258.0 206.0 184.0 165.0 145.0
119.0 98.5 80.4 65.0 51.9 46.4 41.6 36.5
139.0 115.0 93.5 75.6 60.4 53.9 48.3 42.5
332.0 275.0 226.0 184.0 149.0 133.0 120.0 107.0
83.7 69.3 57.0 46.4 37.5 33.5 30.2 27.0
97.3 80.6 66.2 53.9 43.7 39.0 35.2 31.4

159
HFC COPELAND DISCUS™ COMPRESSORS

BTUS / HOUR x 1000

50 HERTZ CAPACITY KCALS / HOUR x 1000
WATTS x 1000
REFRIGERANT COOLED
TANDEMS R134a
CFH CONDENSING EVAPORATING TEMPERATURE °F/°C
HP m 3/hr TEMPERATURE
MODEL 55 45 35 25 15 5 0 –5
kW
50HZ °F °C 12.8 7.2 1.7 – 3.9 – 9.4 – 15 – 17.8 – 20.6
193.0 156.0 125.0 99.4 78.0 59.6 51.2 43.2
100 37.8 48.6 39.3 31.5 25.0 19.7 15.0 12.9 10.9
33EA12AA 12 2270 56.5 45.7 36.6 29.1 22.9 17.5 15.0 12.7
33DA3F56KE 9.0 64.3 152.0 122.0 98.0 77.4 59.8 43.8 36.2 28.4
130 54.4 38.3 30.7 24.7 19.5 15.1 11.0 9.1 7.2
44.5 35.7 28.7 22.7 17.5 12.8 10.6 8.3

100 37.8
33EA15AA 15 2270
33DA3R20ME 11.2 64.3
130 54.4

228.0 184.0 147.0 117.0 91.8 70.2 60.4 51.0

100 37.8 57.5 46.4 37.0 29.5 23.1 17.7 15.2 12.9
33EA15BB 15 2676 66.8 53.9 43.1 34.3 26.9 20.6 17.7 14.9
33DB3F66KE 11.2 75.8 179.0 144.0 115.0 91.2 70.4 51.8 42.6 33.6
130 54.4 45.1 36.3 29.0 23.0 17.7 13.1 10.7 8.5
52.4 42.2 33.7 26.7 20.6 15.2 12.5 9.8
268.0 216.0 174.0 138.0 108.0 83.4 72.6 62.8
100 37.8 67.5 54.4 43.8 34.8 27.2 21.0 18.3 15.8
33EA18FF 18 3172 78.5 63.3 51.0 40.4 31.6 24.4 21.3 18.4
33DF3F80KE 13.4 89.8 214.0 171.0 137.0 108.0 84.0 64.2 55.4 47.2
130 54.4 53.9 43.1 34.5 27.2 21.2 16.2 14.0 11.9
62.7 50.1 40.1 31.6 24.6 18.8 16.2 13.8

100 37.8
33EA20BB 20 2676
33DB3R24ME 14.9 75.8
130 54.4

296.0 240.0 192.0 153.0 120.0 92.4 80.4 69.4

100 37.8 74.6 60.5 48.4 38.6 30.2 23.3 20.3 17.5
33EA20SS 20 3524 86.7 70.3 56.3 44.8 35.2 27.1 23.6 20.3
33DS3F92KE 14.9 99.8 236.0 190.0 151.0 119.0 93.0 71.0 61.2 52.2
130 54.4 59.5 47.9 38.1 30.0 23.4 17.9 15.4 13.2
69.1 55.7 44.2 34.9 27.2 20.8 17.9 15.3
324.0 264.0 212.0 167.0 130.0 99.0 85.6 73.2
100 37.8 81.6 66.5 53.4 42.1 32.8 24.9 21.6 18.4
44EA20AA 20 3954 94.9 77.4 62.1 48.9 38.1 29.0 25.1 21.4
44DAR24ME14.9 111.9 256.0 208.0 166.0 131.0 101.0 76.0 64.8 54.6
130 54.4 64.5 52.4 41.8 33.0 25.5 19.2 16.3 13.8
75.0 60.9 48.6 38.4 29.6 22.3 19.0 16.0
324.0 264.0 212.0 167.0 130.0 99.0 85.6 73.2
100 37.8 81.6 66.5 53.4 42.1 32.8 24.9 21.6 18.4
44EA21AA 20 3954 94.9 77.4 62.1 48.9 38.1 29.0 25.1 21.4
44DAF94KE 14.9 111.9 256.0 208.0 166.0 131.0 101.0 76.0 64.8 54.6
130 54.4 64.5 52.4 41.8 33.0 25.5 19.2 16.3 13.8
75.0 60.9 48.6 38.4 29.6 22.3 19.0 16.0

100 37.8
33EA24FF 24 3172
33DF3R30ME 17.9 89.8
130 54.4

160
HFC COPELAND DISCUS™ COMPRESSORS

BTUS / HOUR x 1000

CAPACITY KCALS / HOUR x 1000
WATTS x 1000

R404A/ R407A/ R507

EVAPORATING TEMPERATURE °F/°C
45 35 25 15 5 0 –5 – 10 – 20 – 30 – 40
7.2 1.7 – 3.9 – 9.4 – 15 – 17.8 – 20.6 – 23.3 – 28.9 – 34.4 – 40
95.0 84.2 74.0 56.0 41.4 30.0
23.9 21.2 18.6 14.1 10.4 7.6
27.8 24.7 21.7 16.4 12.1 8.8
66.8 59.0 51.8 38.6 27.4 18.0
16.8 14.9 13.1 9.7 6.9 4.5
19.6 17.3 15.2 11.3 8.0 5.3
248.0 199.0 160.0 129.0 104.0 92.8 82.3 71.8
62.5 50.1 40.4 32.6 26.2 23.4 20.7 18.1
72.7 58.3 47.0 37.9 30.5 27.2 24.1 21.0
175.0 144.0 118.0 96.8 77.4 67.8 57.6 47.4
44.0 36.2 29.8 24.4 19.5 17.1 14.5 11.9
51.2 42.1 34.6 28.4 22.7 19.9 16.9 13.9
110.0 97.0 85.8 66.2 50.0 36.6
27.6 24.4 21.6 16.7 12.6 9.2
32.1 28.4 25.1 19.4 14.7 10.7
80.8 71.8 63.6 48.6 35.2 22.4
20.4 18.1 16.0 12.2 8.9 5.6
23.7 21.0 18.6 14.2 10.3 6.6
137.0 122.0 109.0 83.6 62.8 46.0
34.6 30.8 27.4 21.1 15.8 11.6
40.3 35.9 31.8 24.5 18.4 13.5
98.8 87.4 76.8 58.4 43.2 31.6
24.9 22.0 19.4 14.7 10.9 8.0
28.9 25.6 22.5 17.1 12.7 9.3
294.0 242.0 197.0 159.0 127.0 113.0 99.7 86.8
74.1 61.0 49.5 40.0 32.0 28.4 25.1 21.9
86.1 70.9 57.6 46.5 37.2 33.0 29.2 25.4
210.0 173.0 141.0 114.0 90.0 79.0 68.7 58.4
52.9 43.5 35.5 28.7 22.7 19.9 17.3 14.7
61.5 50.6 41.3 33.3 26.4 23.1 20.1 17.1
149.0 132.0 117.0 90.8 68.6 49.8
37.5 33.4 29.6 22.9 17.3 12.5
43.7 38.8 34.4 26.6 20.1 14.6
108.0 95.8 84.2 64.4 48.2 34.8
27.3 24.1 21.2 16.2 12.1 8.8
31.8 28.1 24.7 18.9 14.1 10.2
162.0 143.0 126.0 96.6 72.0 51.2
40.8 36.1 31.9 24.3 18.1 12.9
47.5 42.0 37.0 28.3 21.1 15.0
114.0 101.0 88.4 66.2 46.6 28.8
28.8 25.4 22.3 16.7 11.7 7.3
33.5 29.5 25.9 19.4 13.7 8.4
162.0 143.0 126.0 96.6 72.0 51.2
40.8 36.1 31.9 24.3 18.1 12.9
47.5 42.0 37.0 28.3 21.1 15.0
114.0 101.0 88.4 66.2 46.6 28.8
28.8 25.4 22.3 16.7 11.7 7.3
33.5 29.5 25.9 19.4 13.7 8.4
348.0 292.0 240.0 195.0 155.0 138.0 123.0 108.0
87.7 73.6 60.5 49.0 39.1 34.8 31.0 27.2
102.0 85.6 70.3 57.0 45.5 40.4 36.0 31.6
256.0 214.0 176.0 142.0 112.0 99.0 87.8 76.6
64.5 53.9 44.4 35.7 28.3 24.9 22.1 19.3
75.0 62.7 51.6 41.5 32.9 29.0 25.7 22.4

161
HFC COPELAND DISCUS™ COMPRESSORS

BTUS / HOUR x 1000

100 37.8
33EA30SS 30 3524
33DS3R34ME 22.4 99.8
130 54.4

420.0 340.0 272.0 216.0 169.0 129.0 111.0 94.4

100 37.8 106.0 85.7 68.5 54.4 42.6 32.5 28.0 23.8
44EA30HH 30 4998 123.0 99.6 79.7 63.3 49.5 37.8 32.5 27.7
44DHR32ME 22.4 141.5 332.0 266.0 210.0 165.0 127.0 96.6 83.4 71.4
130 54.4 83.7 67.0 52.9 41.6 32.0 24.3 21.0 18.0
97.3 77.9 61.5 48.3 37.2 28.3 24.4 20.9

100 37.8
44EA30LL
30 4998
(OC) 22.4 141.5
44DLF13ME
130 54.4

100 37.8
44EA40AA 40 3954
44DAR36ME 29.8 111.9
130 54.4

500.0 406.0 326.0 258.0 202.0 153.0 132.0 112.0

100 37.8 126.0 102.0 82.2 65.0 50.9 38.6 33.3 28.2
44EA40JJ 40 5970 147.0 119.0 95.5 75.6 59.2 44.8 38.7 32.8
44DJR38ME 29.8 169.0 398.0 318.0 250.0 196.0 152.0 115.0 99.8 85.2
130 54.4 100.0 80.1 63.0 49.4 38.3 29.0 25.1 21.5
117.0 93.2 73.3 57.4 44.5 33.7 29.2 25.0
628.0 510.0 410.0 324.0 254.0 193.0 166.0 141.0
100 37.8 158.0 129.0 103.0 81.6 64.0 48.6 41.8 35.5
66EA40HH 40 7496 184.0 149.0 120.0 94.9 74.4 56.5 48.6 41.3
66DHR46ME 29.8 212.2 500.0 398.0 316.0 246.0 191.0 145.0 125.0 107.0
130 54.4 126.0 100.0 79.6 62.0 48.1 36.5 31.5 27.0
147.0 117.0 92.6 72.1 56.0 42.5 36.6 31.4

100 37.8
44EA44TT 44 5970
(OC) 32.8 169.0
44DTF15ME
130 54.4

(OC) Oil coolers and vertical cooling fans are standard on this model.

162
HFC COPELAND DISCUS™ COMPRESSORS

BTUS / HOUR x 1000

CAPACITY KCALS / HOUR x 1000
WATTS x 1000

R404A/ R407A/ R507

EVAPORATING TEMPERATURE °F/°C
45 35 25 15 5 0 –5 – 10 – 20 – 30 – 40
7.2 1.7 – 3.9 – 9.4 – 15 – 17.8 – 20.6 – 23.3 – 28.9 – 34.4 – 40
386.0 322.0 266.0 216.0 172.0 153.0 136.0 120.0
97.3 81.1 67.0 54.4 43.3 38.5 34.3 30.1
113.0 94.3 77.9 63.3 50.4 44.8 39.9 35.0
284.0 238.0 195.0 157.0 124.0 110.0 97.3 84.8
71.6 60.0 49.1 39.6 31.3 27.7 24.5 21.4
83.2 69.7 57.1 46.0 36.4 32.2 28.5 24.8

210.0 187.0 166.0 129.0 98.8 71.0

52.9 47.1 41.8 32.6 24.9 17.9
61.5 54.7 48.6 37.9 28.9 20.8
149.0 130.0 114.0 85.4 61.6 39.8
37.5 32.8 28.6 21.5 15.5 10.0
43.6 38.1 33.3 25.0 18.0 11.7
414.0 346.0 284.0 228.0 181.0 160.0 141.0 123.0
104.0 87.2 71.6 57.5 45.6 40.2 35.6 31.0
121.0 101.0 83.2 66.8 53.0 46.8 41.4 36.0
300.0 248.0 200.0 159.0 124.0 108.0 94.8 81.6
75.6 62.5 50.4 40.2 31.2 27.2 23.9 20.6
87.9 72.7 58.6 46.7 36.3 31.6 27.8 23.9

246.0 218.0 191.0 146.0 108.0 78.2

62.0 54.9 48.1 36.7 27.3 19.7
72.1 63.9 56.0 42.7 31.7 22.9
171.0 151.0 132.0 99.0 72.4 50.8
43.2 38.0 33.2 24.9 18.2 12.8
50.2 44.1 38.6 29.0 21.2 14.9
HFC COPELAND DISCUS™ COMPRESSORS

BTUS / HOUR x 1000

100 37.8
44EA50HH 50 4998
44DHR44ME 37.3 141.5
130 54.4

100 37.8
66EA54LL
54 7496
(OC) 40.3 212.2
66DLF19ME 130 54.4

100 37.8
44EA60JJ 60 5970
44DJR56ME 44.8 169.0
130 54.4

750.0 608.0 488.0 386.0 302.0 230.0 198.0 169.0

100 37.8 189.0 153.0 123.0 97.3 76.1 58.0 49.9 42.6
66EA60JJ 60 8956 220.0 178.0 143.0 113.0 88.5 67.4 58.0 49.5
(DS) 44.8 253.5 596.0 476.0 376.0 294.0 228.0 173.0 150.0 128.0
66DJR56ME
130 54.4 150.0 120.0 94.8 74.1 57.5 43.6 37.8 32.3
175.0 140.0 110.0 86.1 66.8 50.7 44.0 37.5

66EA60TT 100 37.8

(DS) 60 8956
(OC) 44.8 253.5
66DTF22ME 130 54.4

100 37.8
66EA70HH 70 7496
66DHR70ME 52.2 212.2
130 54.4

100 37.8
66EA80JJ 80 8956
(DS) 59.7 253.5
66DJR80ME
130 54.4

(OC) Oil coolers and vertical cooling fans are standard on this model.
(DS) Deep oil sumps are standard on this model.

164
HFC COPELAND DISCUS™ COMPRESSORS

BTUS / HOUR x 1000

CAPACITY KCALS / HOUR x 1000
WATTS x 1000

R404A/ R407A/ R507

EVAPORATING TEMPERATURE °F/°C
45 35 25 15 5 0 –5 – 10 – 20 – 30 – 40
7.2 1.7 – 3.9 – 9.4 – 15 – 17.8 – 20.6 – 23.3 – 28.9 – 34.4 – 40
528.0 446.0 368.0 298.0 236.0 208.0 184.0 161.0
133.0 112.0 92.7 75.1 59.5 52.4 46.5 40.5
155.0 131.0 108.0 87.3 69.1 60.9 54.0 47.1
392.0 326.0 266.0 214.0 167.0 148.0 132.0 117.0
98.8 82.2 67.0 53.9 42.1 37.2 33.3 29.4
115.0 95.5 77.9 62.7 49.0 43.2 38.7 34.2
310.0 274.0 242.0 186.0 142.0 106.0
78.1 69.0 61.0 46.9 35.7 26.6
90.8 80.3 70.9 54.6 41.5 30.9
222.0 197.0 174.0 134.0 98.2 63.8
55.9 49.5 43.9 33.8 24.7 16.1
65.0 57.6 51.0 39.3 28.8 18.7
654.0 546.0 448.0 362.0 286.0 254.0 224.0 194.0
165.0 138.0 113.0 91.2 72.1 64.0 56.4 49.0
192.0 160.0 131.0 106.0 83.8 74.4 65.6 57.0
466.0 386.0 314.0 252.0 198.0 175.0 155.0 135.0
117.0 97.3 79.1 63.5 49.8 44.0 39.0 33.9
137.0 113.0 92.0 73.8 58.0 51.2 45.3 39.4

342.0 304.0 270.0 210.0 160.0 118.0

86.2 76.6 68.0 52.9 40.3 29.7
100.0 89.1 79.1 61.5 46.9 34.6
246.0 220.0 194.0 150.0 112.0 76.2
62.0 55.4 48.9 37.9 28.3 19.2
72.1 64.5 56.8 44.0 32.9 22.3
798.0 658.0 538.0 434.0 346.0 306.0 274.0 242.0
202.0 166.0 136.0 109.0 87.2 77.1 69.0 61.0
234.0 193.0 158.0 127.0 101.0 89.7 80.3 70.9
560.0 464.0 380.0 306.0 242.0 214.0 189.0 165.0
141.0 117.0 95.8 77.1 61.0 53.9 47.7 41.5
164.0 136.0 111.0 89.7 70.9 62.7 55.5 48.3
946.0 782.0 638.0 516.0 412.0 368.0 330.0 290.0
238.0 197.0 161.0 130.0 104.0 92.7 83.2 73.1
278.0 230.0 187.0 151.0 121.0 108.0 96.7 85.0
664.0 550.0 452.0 368.0 298.0 266.0 240.0 214.0
167.0 139.0 114.0 92.7 75.1 67.0 60.5 53.9
195.0 161.0 132.0 108.0 87.3 77.9 70.3 62.7

165
HFC COPELAND DISCUS™ COMPRESSORS

BTUS / HOUR x 1000

50 HERTZ CAPACITY KCALS / HOUR x 1000
WATTS x 1000
REFRIGERANT COOLED
CAPACITY CONTROL R134a
CAPACITY BASIC CFH CONDENSING EVAPORATING TEMPERATURE °F/°C
HP m 3/hr
CONTROL COMPRESSOR TEMPERATURE 55 45 35 25 15 5 0 –5
kW
MODEL MODEL 50HZ °F °C 12.8 7.2 1.7 – 3.9 – 9.4 – 15 – 17.8 – 20.6
81.0 66.0 53.0 41.8 32.5 24.8 21.4 18.3
4DEA100E 100 37.8 20.4 16.7 13.4 10.5 8.2 6.3 5.4 4.6
50% 4DAA100E 10 1977 23.8 19.4 15.6 12.3 9.5 7.3 6.3 5.4
Unloaded 4DAR12ME 7.5 56.0 64.0 52.0 41.5 32.7 25.3 19.0 16.2 13.7
4DER12ME 130 54.4 16.2 13.1 10.5 8.3 6.4 4.8 4.1 3.5
18.8 15.3 12.2 9.6 7.4 5.6 4.8 4.0
4DNA100E
100 37.8
50%
4DAA100E 10 1977
Unloaded
4DAR12ME 7.5 56.0
(OC)
4DNR12ME 130 54.4

81.0 66.0 53.0 41.8 32.5 24.8 21.4 18.3

4DEA101E 100 37.8 20.4 16.7 13.4 10.5 8.2 6.3 5.4 4.6
50% 4DAA101E 10 1977 23.8 19.4 15.6 12.3 9.5 7.3 6.3 5.4
Unloaded 4DAF47KE 7.5 56.0 64.0 52.0 41.5 32.7 25.3 19.0 16.2 13.7
4DEF47KE 130 54.4 16.2 13.1 10.5 8.3 6.4 4.8 4.1 3.5
18.8 15.3 12.2 9.6 7.4 5.6 4.8 4.0
4DNA101E
100 37.8
50%
4DAA101E 10 1977
Unloaded
4DAF47KE 7.5 56.0
(OC)
4DNF47KE 130 54.4

105.0 85.0 68.0 54.0 42.2 32.2 27.7 23.6

4DKA150E 100 37.8 26.5 21.4 17.2 13.6 10.6 8.1 7.0 6.0
50% 4DHA150E 15 2499 30.8 24.9 19.9 15.8 12.4 9.4 8.1 6.9
Unloaded 4DHR16ME 11.2 70.7 83.0 66.5 52.5 41.2 31.8 24.2 20.9 17.9
4DKR16ME 130 54.4 20.9 16.8 13.3 10.4 8.0 6.1 5.3 4.5
24.3 19.5 15.4 12.1 9.3 7.1 6.1 5.3
4DPA150E
100 37.8
50%
4DL A150E 15 2499
Unloaded
4DLF63KE 11.2 70.7
(OC)
4DPF63KE 130 54.4

4DEA200E 100 37.8

50% 4DAA200E 20 1977
Unloaded 4DAR18ME 14.9 56.0
4DER18ME 130 54.4

125.0 102.0 81.5 64.5 50.5 38.3 33.0 28.1

4DR A200E 100 37.8 31.5 25.6 20.6 16.3 12.8 9.7 8.3 7.1
50% 4DJ A200E 20 2985 36.7 29.8 23.9 18.9 14.8 11.2 9.7 8.3
Unloaded 4DJR19ME 14.9 84.5 99.5 79.5 62.5 49.1 38.0 28.9 25.0 21.3
4DRR19ME 130 54.4 25.1 20.1 15.8 12.4 9.6 7.3 6.3 5.4
29.2 23.3 18.3 14.4 11.1 8.5 7.3 6.3
220.0 179.0 144.0 113.0 88.9 67.5 58.2 49.5
6DKA200E 100 37.8 55.4 45.0 36.2 28.6 22.4 17.0 14.6 12.5
33% 6DHA200E 20 3748 64.4 52.3 42.1 33.3 26.0 19.7 17.0 14.5
Unloaded 6DHR23ME 14.9 106.1 175.0 139.0 111.0 86.1 66.8 50.8 43.8 37.5
6DKR23ME 130 54.4 44.1 35.1 27.9 21.7 16.8 12.8 11.1 9.5
51.3 40.8 32.4 25.2 19.6 14.8 12.8 11.0
113.0 91.8 73.8 58.3 45.7 34.7 29.9 25.5
6DPA200E 100 37.8 28.5 23.1 18.6 14.7 11.5 8.7 7.5 6.4
67% 6DHA200E 20 3748 33.1 26.9 21.6 17.1 13.4 10.2 8.7 7.5
Unloaded 6DHR23ME 14.9 106.1 90.0 71.6 56.9 44.3 34.3 26.1 22.5 19.3
6DPR23ME 130 54.4 22.7 18.0 14.3 11.2 8.6 6.6 5.7 4.9
26.4 21.0 16.7 13.0 10.1 7.6 6.6 5.7
(OC) Oil cooler and vertical cooling fan are standard on this model.
166
HFC COPELAND DISCUS™ COMPRESSORS

BTUS / HOUR x 1000

CAPACITY KCALS / HOUR x 1000
WATTS x 1000

R404A/ R407A/ R507

EVAPORATING TEMPERATURE °F/°C
45 35 25 15 5 0 –5 – 10 – 20 – 30 – 40
7.2 1.7 – 3.9 – 9.4 – 15 – 17.8 – 20.6 – 23.3 – 28.9 – 34.4 – 40

40.5 35.9 31.6 24.2 18.0 12.8

10.2 9.0 8.0 6.1 4.5 3.2
11.9 10.5 9.3 7.1 5.3 3.8
28.6 25.2 22.1 16.6 11.7 7.2
7.2 6.4 5.6 4.2 2.9 1.8
8.4 7.4 6.5 4.8 3.4 2.1

40.5 35.9 31.6 24.2 18.0 12.8

10.2 9.0 8.0 6.1 4.5 3.2
11.9 10.5 9.3 7.1 5.3 3.8
28.6 25.2 22.1 16.6 11.7 7.2
7.2 6.4 5.6 4.2 2.9 1.8
8.4 7.4 6.5 4.8 3.4 2.1

52.5 46.7 41.5 32.4 24.7 17.8

13.2 11.8 10.4 8.2 6.2 4.5
15.4 13.7 12.1 9.5 7.2 5.2
37.2 32.6 28.4 21.4 15.4 10.0
9.4 8.2 7.2 5.4 3.9 2.5
10.9 9.5 8.3 6.3 4.5 2.9
104.0 86.5 71.0 57.0 45.2 39.9 35.3
26.1 21.8 17.9 14.4 11.4 10.1 8.9
30.3 25.3 20.8 16.7 13.2 11.7 10.4
75.0 62.0 50.0 39.9 31.0 27.0 23.7
18.9 15.6 12.6 10.0 7.8 6.8 6.0
22.0 18.2 14.7 11.7 9.1 7.9 6.9

167
HFC COPELAND DISCUS™ COMPRESSORS

BTUS / HOUR x 1000

4DS A220E 100 37.8

50% 4DT A220E 22 2985
Unloaded 4DTF76KE 16.4 84.5
(OC)
4DSF76KE 130 54.4

4DK A250E 100 37.8

50% 4DH A250E 25 2499
Unloaded 4DHR22ME 18.7 70.7
4DKR22ME 130 54.4

6DC A270E 100 37.8

33%
6DL A270E 27 3748
Unloaded
6DLF93KE 20.1 106.1
(OC)
6DCF93KE 130 54.4

6DD A270E 100 37.8

67%
6DL A270E 27 3748
Unloaded
6DLF93KE 20.1 106.1
(OC)
6DDF93KE 130 54.4

4DR A300E 100 37.8

50% 4DJ A300E 30 2985
Unloaded 4DJR28ME 22.4 84.5
4DRR28ME 130 54.4

263.0 213.0 171.0 135.0 106.0 80.5 69.4 59.0

6DR A300E 100 37.8 66.2 53.6 43.1 34.0 26.7 20.3 17.5 14.8
33% 77.0 62.4 50.1 39.6 30.9 23.6 20.3 17.3
6DJ A300E 30 4478
Unloaded
6DJR28ME 22.4 126.8 209.0 167.0 132.0 103.0 79.8 60.6 52.4 44.7
(DS)
6DRR28ME 130 54.4 52.6 42.0 33.2 25.9 20.1 15.3 13.2 11.3
61.1 48.8 38.6 30.2 23.4 17.8 15.3 13.1
135.0 109.0 87.8 69.5 54.4 41.4 35.7 30.3
6DS A300E 100 37.8 34.0 27.6 22.1 17.5 13.7 10.4 9.0 7.6
67% 39.6 32.1 25.7 20.3 15.9 12.1 10.4 8.9
6DJ A300E 30 4478
Unloaded
6DJR28ME 22.4 126.8 107.0 85.7 67.7 52.9 41.0 31.2 26.9 23.0
(DS)
130 54.4 27.0 21.6 17.1 13.3 10.3 7.8 6.8 5.8
6DSR28ME
31.4 25.1 19.8 15.5 12.0 9.1 7.9 6.7
(OC) Oil cooler and vertical cooling fan are standard on this model.
(DS) Deep oil sump is standard on this model.

168
HFC COPELAND DISCUS™ COMPRESSORS

BTUS / HOUR x 1000

CAPACITY KCALS / HOUR x 1000
WATTS x 1000

R404A/ R407A/ R507

EVAPORATING TEMPERATURE °F/°C
45 35 25 15 5 0 –5 – 10 – 20 – 30 – 40
7.2 1.7 – 3.9 – 9.4 – 15 – 17.8 – 20.6 – 23.3 – 28.9 – 34.4 – 40
61.5 54.5 47.8 36.4 27.1 19.6
15.5 13.7 12.0 9.2 6.8 4.9
18.0 16.0 14.0 10.7 7.9 5.7
42.9 37.7 33.0 24.8 18.1 12.7
10.8 9.5 8.3 6.2 4.6 3.2
12.6 11.0 9.7 7.3 5.3 3.7
132.0 112.0 92.0 74.5 59.0 52.0 46.1
33.3 28.1 23.2 18.8 14.9 13.1 11.6
38.7 32.7 27.0 21.8 17.3 15.2 13.5
98.0 81.5 66.5 53.5 41.8 36.9 33.0
24.7 20.5 16.8 13.5 10.5 9.3 8.3
28.7 23.9 19.5 15.7 12.2 10.8 9.7
109.0 95.9 84.7 65.2 49.6 37.0
27.3 24.2 21.3 16.4 12.5 9.3
31.8 28.1 24.8 19.1 14.5 10.8
77.7 68.8 61.0 46.9 34.4 22.3
19.6 17.3 15.4 11.8 8.7 5.6
22.8 20.2 17.9 13.7 10.1 6.5
55.8 49.3 43.6 33.5
14.1 12.4 11.0 8.4
16.3 14.5 12.8 9.8
40.0 35.4 31.4 24.1
10.1 8.9 7.9 6.1
11.7 10.4 9.2 7.1
164.0 137.0 112.0 90.5 71.5 63.5 56.0
41.2 34.4 28.2 22.8 18.0 16.0 14.1
47.9 40.0 32.8 26.5 20.9 18.6 16.4
117.0 96.5 78.5 63.0 49.5 43.7 38.7
29.4 24.3 19.8 15.9 12.5 11.0 9.7
34.1 28.3 23.0 18.5 14.5 12.8 11.3

169
HFC COPELAND DISCUS™ COMPRESSORS

BTUS / HOUR x 1000

6DEA300E
33% 100 37.8
Unloaded 6DT A300E 30 4478
(DS) 6DTF11ME 22.4 126.8
(OC) 130 54.4
6DEF11ME
6DFA300E
67% 100 37.8
Unloaded 6DT A300E 30 4478
(DS) 6DTF11ME 22.4 126.8
(OC) 130 54.4
6DFF11ME

6DKA350E 100 37.8

33% 6DHA350E 35 3748
Unloaded 6DHR35ME 26.1 106.1
6DKR35ME 130 54.4

6DPA350E 100 37.8

67% 6DHA350E 35 3748
Unloaded 6DHR35ME 26.1 106.1
6DPR35ME 130 54.4

6DRA400E 100 37.8

33%
6DJA400E 40 4478
Unloaded
6DJR40ME 29.8 126.8
(DS) 130 54.4
6DRR40ME

6DSA400E 100 37.8

67%
6DJA400E 40 4478
Unloaded
6DJR40ME 29.8 126.8
(DS) 130 54.4
6DSR40ME

(DS) Deep oil sump is standard on this model.

(OC) Oil cooler and vertical cooling fan are standard on this model.

170
HFC COPELAND DISCUS™ COMPRESSORS

BTUS / HOUR x 1000

CAPACITY KCALS / HOUR x 1000
WATTS x 1000

R404A/ R407A/ R507

EVAPORATING TEMPERATURE °F/°C
45 35 25 15 5 0 –5 – 10 – 20 – 30 – 40
7.2 1.7 – 3.9 – 9.4 – 15 – 17.8 – 20.6 – 23.3 – 28.9 – 34.4 – 40
120.0 106.0 94.5 73.5 56.0 41.3
30.2 26.8 23.8 18.5 14.1 10.4
35.1 31.2 27.7 21.5 16.4 12.1
86.1 77.0 67.9 52.6 39.3 26.7
21.7 19.4 17.1 13.2 9.9 6.7
25.2 22.6 19.9 15.4 11.5 7.8
61.6 54.7 48.6 37.8
15.5 13.8 12.2 9.5
18.0 16.0 14.2 11.1
44.3 39.6 34.9 27.0
11.2 10.0 8.8 6.8
13.0 11.6 10.2 7.9
279.0 230.0 188.0 152.0 121.0 107.0 95.9
70.7 58.0 47.5 38.3 30.5 27.0 24.2
81.9 67.5 55.2 44.5 35.5 31.4 28.1
196.0 162.0 133.0 107.0 84.7 74.9 66.3
49.4 40.9 33.5 27.0 21.3 18.9 16.7
57.4 47.6 39.0 31.4 24.8 21.9 19.4
144.0 118.0 96.8 78.1 62.3 55.1 49.3
36.4 29.8 24.4 19.7 15.7 13.9 12.4
42.1 34.7 28.4 22.9 18.2 16.1 14.5
101.0 83.5 68.4 55.1 43.6 38.5 34.1
25.4 21.0 17.2 13.9 11.0 9.7 8.6
29.5 24.5 20.0 16.1 12.8 11.3 10.0
331.0 274.0 223.0 181.0 144.0 129.0 116.0
83.3 69.0 56.3 45.5 36.3 32.5 29.1
97.3 80.5 65.4 52.9 42.3 37.7 33.8
232.0 193.0 158.0 129.0 104.0 93.1 84.0
58.6 48.5 39.9 32.5 26.3 23.5 21.2
68.1 56.4 46.4 37.7 30.6 27.3 24.6
170.0 141.0 115.0 92.9 74.2 66.2 59.4
42.8 35.5 28.9 23.4 18.7 16.7 15.0
50.0 41.4 33.6 27.2 21.7 19.4 17.4
120.0 99.0 81.4 66.2 53.6 47.9 43.2
30.1 24.9 20.5 16.7 13.5 12.1 10.9
35.0 29.0 23.8 19.4 15.7 14.0 12.7

171
HFC COPELAND DISCUS™ COMPRESSORS

BTUS / HOUR x 1000

50 HERTZ CAPACITY KCALS / HOUR x 1000
WATTS x 1000
REFRIGERANT COOLED
CAPACITY CONTROL TANDEMS R134a
CAPACITY BASIC CFH CONDENSING EVAPORATING TEMPERATURE °F/°C
HP m 3/hr
CONTROL TANDEM TEMPERATURE 55 45 35 25 15 5 0 –5
kW
MODEL MODEL 50HZ °F °C 12.8 7.2 1.7 – 3.9 – 9.4 – 15 – 17.8 – 20.6
162.0 132.0 106.0 83.5 65.0 49.5 42.8 36.6
44EA20EE 100 37.8 40.8 33.3 26.7 21.0 16.4 12.5 10.8 9.2
50% 44EA20AA 20 3954 47.5 38.7 31.1 24.5 19.0 14.5 12.5 10.7
Unloaded 44DAR24ME 14.9 111.9 128.0 104.0 82.9 65.3 50.5 38.0 32.4 27.3
44DER24ME 130 54.4 32.3 26.2 20.9 16.5 12.7 9.6 8.2 6.9
37.5 30.5 24.3 19.1 14.8 11.1 9.5 8.0

44EA20NN 100 37.8

50%
44EA20AA 20 3954
Unloaded
44DAR24ME 14.9 111.9
(OC) 130 54.4
44DNR24ME
162.0 132.0 106.0 83.5 65.0 49.5 42.8 36.6
44EA21EE 100 37.8 40.8 33.3 26.7 21.0 16.4 12.5 10.8 9.2
50% 44EA21AA 20 3954 47.5 38.7 31.1 24.5 19.0 14.5 12.5 10.7
Unloaded 44DAF94KE 14.9 111.9 128.0 104.0 82.9 65.3 50.5 38.0 32.4 27.3
44DEF94KE 130 54.4 32.3 26.2 20.9 16.5 12.7 9.6 8.2 6.9
37.5 30.5 24.3 19.1 14.8 11.1 9.5 8.0
44EA21NN
100 37.8
50%
44EA21AA 20 3954
Unloaded
44DAF94KE 14.9 111.9
(OC)
130 54.4
44DNF94KE
210.0 170.0 136.0 108.0 84.3 64.3 55.4 47.2
44EA30KK 100 37.8 52.9 42.8 34.3 27.2 21.2 16.2 14.0 11.9
50% 44EA30HH 30 4998 61.5 49.8 39.8 31.6 24.7 18.8 16.2 13.8
Unloaded 44DHR32ME 22.4 141.5 166.0 133.0 105.0 82.3 63.6 48.3 41.7 35.7
44DKR32ME 130 54.4 41.8 33.5 26.5 20.7 16.0 12.2 10.5 9.0
48.6 39.0 30.8 24.1 18.6 14.2 12.2 10.5

44EA30PP 100 37.8

50%
44EA30LL 30 4998
Unloaded
44DLF13ME 22.4 141.5
(OC)
130 54.4
44DPF13ME

44EA40EE 100 37.8

50% 44EA40AA 40 3954
Unloaded 44DAR36ME 29.8 111.9
44DER36ME 130 54.4

250.0 204.0 163.0 129.0 101.0 76.6 66.0 56.2

44EA40RR 100 37.8 63.0 51.2 41.1 32.5 25.5 19.3 16.6 14.2
50% 44EA40JJ 40 5970 73.3 59.5 47.8 37.8 29.6 22.4 19.3 16.5
Unloaded 44DJR38ME 29.8 169.0 199.0 159.0 125.0 98.2 75.9 57.7 49.9 42.6
44DRR38ME 130 54.4 50.1 40.1 31.5 24.7 19.1 14.5 12.6 10.7
58.3 46.6 36.6 28.8 22.2 16.9 14.6 12.5
440.0 358.0 288.0 226.0 178.0 135.0 116.0 99.0
66EA40KK 100 37.8 111.0 90.0 72.4 57.1 44.8 34.0 29.3 24.9
33% 66EA40HH 40 7496 129.0 105.0 84.1 66.5 52.1 39.5 34.0 29.0
Unloaded 66DHR46ME 29.8 212.2 350.0 278.0 222.0 172.0 134.0 102.0 87.6 74.9
66DKR46ME 130 54.4 88.2 70.1 55.7 43.4 33.6 25.6 22.1 18.9
103.0 81.6 64.8 50.4 39.2 29.7 25.6 22.0
226.0 184.0 148.0 117.0 91.4 69.4 59.8 50.9
66EA40PP 100 37.8 57.0 46.3 37.2 29.4 23.0 17.5 15.0 12.8
67% 66EA40HH 40 7496 66.2 53.8 43.3 34.2 26.8 20.3 17.5 14.9
Unloaded 66DHR46ME 29.8 212.2 180.0 143.0 114.0 88.6 68.7 52.2 45.1 38.5
66DPR46ME 130 54.4 45.4 36.1 28.7 22.3 17.3 13.2 11.4 9.7
52.8 42.0 33.3 25.9 20.2 15.3 13.2 11.3
(OC) Oil coolers and vertical cooling fans are standard on this model.
172
HFC COPELAND DISCUS™ COMPRESSORS

BTUS / HOUR x 1000

CAPACITY KCALS / HOUR x 1000
WATTS x 1000

R404A/ R407A/ R507

EVAPORATING TEMPERATURE °F/°C
45 35 25 15 5 0 –5 – 10 – 20 – 30 – 40
7.2 1.7 – 3.9 – 9.4 – 15 – 17.8 – 20.6 – 23.3 – 28.9 – 34.4 – 40

81.0 71.7 63.2 48.3 36.0 25.6

20.4 18.1 15.9 12.2 9.1 6.5
23.7 21.0 18.5 14.2 10.5 7.5
57.1 50.4 44.2 33.1 23.3 14.4
14.4 12.7 11.1 8.3 5.9 3.6
16.7 14.8 13.0 9.7 6.8 4.2

81.0 71.7 63.2 48.3 36.0 25.6

20.4 18.1 15.9 12.2 9.1 6.5
23.7 21.0 18.5 14.2 10.5 7.5
57.1 50.4 44.2 33.1 23.3 14.4
14.4 12.7 11.1 8.3 5.9 3.6
16.7 14.8 13.0 9.7 6.8 4.2

105.0 93.4 82.9 64.7 49.4 35.5

26.5 23.5 20.9 16.3 12.4 8.9
30.8 27.4 24.3 19.0 14.5 10.4
74.4 65.1 56.8 42.7 30.8 19.9
18.7 16.4 14.3 10.8 7.8 5.0
21.8 19.1 16.6 12.5 9.0 5.8
208.0 173.0 142.0 114.0 90.4 79.8 70.7
52.2 43.6 35.8 28.7 22.8 20.1 17.8
60.7 50.7 41.6 33.4 26.5 23.4 20.7
150.0 124.0 100.0 79.7 61.9 54.0 47.4
37.8 31.2 25.2 20.1 15.6 13.6 11.9
44.0 36.3 29.3 23.4 18.1 15.8 13.9

173
HFC COPELAND DISCUS™ COMPRESSORS

BTUS / HOUR x 1000

44E A44SS 100 37.8

50%
44EA44TT 44 5970
Unloaded
44DTF15ME 32.8 169.0
(OC)
44DSF15ME 130 54.4

44E A50KK 100 37.8

50% 44EA50HH 50 4998
Unloaded 44DHR44ME 37.3 141.5
44DKR44ME 130 54.4

66E A54CC 100 37.8

33%
66EA54LL 54 7496
Unloaded
66DLF19ME 40.3 212.2
(OC)
66DCF19ME 130 54.4

66E A54DD 100 37.8

67%
66EA54LL 54 7496
Unloaded
66DLF19ME 40.3 212.2
(OC)
66DDF19ME 130 54.4

44E A60RR 100 37.8

50% 44EA60JJ 60 5970
Unloaded 44DJR56ME 44.8 169.0
44DRR56ME 130 54.4

526.0 426.0 342.0 270.0 212.0 161.0 139.0 118.0

66E A60RR 100 37.8 133.0 107.0 86.2 68.0 53.4 40.6 35.0 29.7
33% 154.0 125.0 100.0 79.1 62.1 47.2 40.7 34.6
66EA60JJ 60 8956
Unloaded 418.0 334.0 264.0 206.0 160.0 121.0 105.0 89.4
66DJR56ME 44.8 253.5
(DS) 130 54.4 105.0 84.2 66.5 51.9 40.3 30.5 26.5 22.5
66DRR56ME
122.0 97.9 77.4 60.4 46.9 35.5 30.8 26.2
270.0 218.0 176.0 139.0 109.0 82.8 71.4 60.6
66E A60SS 100 37.8 68.0 54.9 44.4 35.0 27.5 20.9 18.0 15.3
67% 79.1 63.9 51.6 40.7 31.9 24.3 20.9 17.8
66EA60JJ 60 8956
Unloaded
66DJR56ME 44.8 253.5 214.0 171.0 135.0 106.0 82.0 62.4 53.8 46.0
(DS) 130 54.4 53.9 43.1 34.0 26.7 20.7 15.7 13.6 11.6
66DSR56ME
62.7 50.1 39.6 31.1 24.0 18.3 15.8 13.5
(OC) Oil coolers and vertical cooling fans are standard on this model.
(DS) Deep oil sumps are standard on this model.

174
HFC COPELAND DISCUS™ COMPRESSORS

BTUS / HOUR x 1000

CAPACITY KCALS / HOUR x 1000
WATTS x 1000

R404A/ R407A/ R507

EVAPORATING TEMPERATURE °F/°C
45 35 25 15 5 0 –5 – 10 – 20 – 30 – 40
7.2 1.7 – 3.9 – 9.4 – 15 – 17.8 – 20.6 – 23.3 – 28.9 – 34.4 – 40
123.0 109.0 95.5 72.8 54.1 39.1
31.0 27.5 24.1 18.3 13.6 9.9
36.0 31.9 28.0 21.3 15.9 11.5
85.7 75.3 65.9 49.5 36.2 25.4
21.6 19.0 16.6 12.5 9.1 6.4
25.1 22.1 19.3 14.5 10.6 7.4
264.0 224.0 184.0 149.0 118.0 104.0 92.2
66.5 56.2 46.4 37.5 29.7 26.2 23.2
77.4 65.3 53.9 43.7 34.6 30.5 27.0
196.0 163.0 133.0 107.0 83.6 73.8 66.1
49.4 41.1 33.5 27.0 21.1 18.6 16.6
57.4 47.8 39.0 31.4 24.5 21.6 19.4
218.0 192.0 169.0 130.0 99.3 73.9
54.7 48.3 42.7 32.8 25.0 18.6
63.6 56.2 49.6 38.2 29.1 21.7
155.0 138.0 122.0 93.8 68.7 44.7
39.2 34.7 30.7 23.6 17.3 11.3
45.5 40.3 35.7 27.5 20.1 13.1
112.0 98.6 87.1 67.0
28.1 24.9 22.0 16.9
32.7 28.9 25.5 19.6
79.9 70.8 62.7 48.2
20.1 17.8 15.8 12.2
23.4 20.7 18.4 14.1
328.0 274.0 224.0 181.0 143.0 127.0 112.0
82.4 68.8 56.4 45.6 36.0 32.0 28.2
95.8 80.0 65.6 53.0 41.9 37.2 32.8
234.0 193.0 157.0 126.0 98.9 87.3 77.3
58.7 48.6 39.6 31.8 24.9 22.0 19.5
68.3 56.5 46.0 36.9 29.0 25.6 22.6

175
HFC COPELAND DISCUS™ COMPRESSORS

BTUS / HOUR x 1000

66EA60EE
33% 100 37.8
Unloaded 66EA60TT 60 8956
(DS) 66DTF22ME 44.8 253.5
(OC) 130 54.4
66DEF22ME
66EA60FF
67% 100 37.8
Unloaded 66EA60TT 60 8956
(DS) 66DTF22ME 44.8 253.5
(OC) 130 54.4
66DFF22ME

66EA70KK 100 37.8

33% 66EA70HH 70 7496
Unloaded 66DHR70ME 52.2 212.2
66DKR70ME 130 54.4

66EA70PP 100 37.8

67% 66EA70HH 70 7496
Unloaded 66DHR70ME 52.2 212.2
66DPR70ME 130 54.4

66EA80RR 100 37.8

33% 66EA80JJ 80 8956
Unloaded 66DJR80ME 59.7 253.5
(DS) 130 54.4
66DRR80ME

66EA80SS 100 37.8

67% 66EA80JJ 80 8956
Unloaded 66DJR80ME 59.7 253.5
(DS)
66DSR80ME 130 54.4

(DS) Deep oil sumps are standard on this model.

(OC) Oil coolers and vertical cooling fans are standard on this model.

176
HFC COPELAND DISCUS™ COMPRESSORS

BTUS / HOUR x 1000

CAPACITY KCALS / HOUR x 1000
WATTS x 1000

R404A/ R407A/ R507

EVAPORATING TEMPERATURE °F/°C
45 35 25 15 5 0 –5 – 10 – 20 – 30 – 40
7.2 1.7 – 3.9 – 9.4 – 15 – 17.8 – 20.6 – 23.3 – 28.9 – 34.4 – 40
240.0 212.0 189.0 147.0 112.0 82.6
60.3 53.6 47.6 37.0 28.2 20.8
70.1 62.4 55.4 43.1 32.8 24.2
172.0 154.0 136.0 105.0 78.5 53.3
43.4 38.8 34.2 26.5 19.8 13.4
50.5 45.1 39.8 30.8 23.0 15.6
123.0 109.0 97.2 75.6
31.0 27.6 24.5 19.1
36.1 32.1 28.5 22.2
88.6 79.2 69.8 54.1
22.3 20.0 17.6 13.6
25.9 23.2 20.5 15.8
558.0 460.0 376.0 304.0 242.0 214.0 192.0
141.0 116.0 94.9 76.6 61.0 54.0 48.3
164.0 135.0 110.0 89.0 71.0 62.8 56.2
392.0 324.0 266.0 214.0 169.0 150.0 133.0
98.8 81.8 67.0 54.0 42.7 37.7 33.4
115.0 95.2 77.9 62.8 49.6 43.9 38.8
288.0 236.0 194.0 156.0 125.0 110.0 98.6
72.7 59.7 48.8 39.4 31.4 27.8 24.9
84.2 69.4 56.7 45.8 36.5 32.3 28.9
202.0 167.0 137.0 110.0 87.1 77.0 68.2
50.8 42.1 34.5 27.8 22.0 19.4 17.2
59.1 48.9 40.1 32.3 25.5 22.6 20.0
662.0 548.0 446.0 362.0 288.0 258.0 232.0
167.0 138.0 113.0 91.0 72.7 64.9 58.2
195.0 161.0 131.0 106.0 84.5 75.5 67.7
464.0 386.0 316.0 258.0 208.0 186.0 168.0
117.0 97.0 79.7 64.9 52.6 46.9 42.3
136.0 113.0 92.7 75.5 61.1 54.6 49.2
340.0 282.0 230.0 186.0 148.0 132.0 119.0
85.7 70.9 57.9 46.8 37.4 33.4 29.9
100.0 82.8 67.3 54.4 43.5 38.8 34.8
240.0 198.0 163.0 132.0 107.0 95.8 86.4
60.2 49.9 41.0 33.4 27.0 24.1 21.8
70.0 58.0 47.7 38.8 31.4 28.1 25.3

177
HFC COPELAND DISCUS™ COMPRESSORS

REFRIGERANT COOLED MECHANICAL SPECIFICATIONS

Oil Charge Mounting Center

178
HFC COPELAND DISCUS™ COMPRESSORS

ELECTRICAL SPECIFICATIONS

FSM TFC TFD TFE

380/420-3-50 200/220-3-50 380/420-3-50 500-3-50
208/230-3-60 460-3-60 575-3-60

RLA LRA RLA LRA RLA LRA RLA LRA

16.8 102.0 8.1 52.0 6.7 41.0

26.3 161.0 10.2 60.0 7.7 49.0

22.3 120.0 10.4 60.0 7.7 49.0

22.3 120.0 10.5 60.0 7.9 49.0

28.8 161.0 10.2 60.0 9.1 49.0

28.2 161.0 13.3 80.0 9.6 63.0

30.3 150.0 13.7 77.0 10.5 62.0

31.6 169.0 13.8 85.0 13.2 67.0

32.0 169.0 14.1 85.0 13.3 67.0

41.0 215.0 20.0 106.0 16.5 84.0

31.5 161.0 16.1 83.0 11.0 67.0

39.0 215.0 16.9 106.0 16.5 84.0

43.6 215.0 20.0 106.0 16.5 84.0

17.5 102.0 42.0 215.0 18.6 106.0 16.8 84.0

179
HFC COPELAND DISCUS™ COMPRESSORS

REFRIGERANT COOLED MECHANICAL SPECIFICATIONS

Oil Charge Mounting Center

CFH Overall Dimensions Service Valve Weights
Bore Stroke (Refill Oil Dimensions
HP m 3 /hr in/mm Sizes lb/kg
MODEL CYL in in Charge) in/mm
kW
mm mm
Suction Discharge
50 Hertz Oz Liter Length Width Height Length Width Net Shipping
in in
4DA A100E 10 21/2 2 1977 135 3.99 2513/32 203/16 1721/32 15 12 15/8 11/8 382 437
4
4DAR12ME 7.5 63.5 50.8 56.0 (125) (3.70) 645 513 448 381 305 Solder Solder 173 198
4DA A101E 10 21/2 2 1977 135 3.99 2513/32 203/16 1721/32 15 12 15/8 11/8 382 437
4
4DAF47KE 7.5 63.5 50.8 56.0 (125) (3.70) 645 513 448 381 305 Solder Solder 173 198
3DF A120E 12 25/16 21/2 1586 125 3.70 2625/32 151/16 181/32 15 12 13/8 11/8 370 425
3
3DF3R15ME 9.0 58.7 63.5 44.9 (115) (3.40) 680 383 458 381 305 Solder Solder 168 193
3DS A150E 15 27/16 21/2 1762 125 3.70 281/32 151/16 181/32 15 12 15/8 11/8 370 425
3
3DS3R17ME 11.2 61.9 63.5 49.9 (115) (3.40) 712 383 458 381 305 Solder Solder 168 193
4DH A150E 15 211/16 23/16 2499 135 3.99 2513/32 201/2 167/8 15 12 15/8 11/8 405 470
4
4DHR16ME 11.2 68.3 55.6 70.7 (125) (3.70) 645 521 429 381 305 Solder Solder 184 213
4DL A150E
15 211/16 23/16 2499 135 3.99 271/32 201/2 23 15 12 15/8 13/8 404 469
(OC) 4
11.2 68.3 55.6 70.7 (125) (3.70) 687 521 584 381 305 Solder Solder 183 213
4DLF63KE
4DA A200E 20 21/2 2 1977 135 3.99 2513/32 203/16 1721/32 15 12 15/8 13/8 407 467
4
4DAR18ME 14.9 63.5 50.8 56.0 (125) (3.70) 645 513 448 381 305 Solder Solder 185 212
4DJ A200E 20 215/16 23/16 2985 135 3.99 269/32 201/2 177/8 15 12 21/8 13/8 415 485
4
4DJR19ME 14.9 74.6 55.6 84.5 (125) (3.70) 668 521 454 381 305 Solder Solder 188 220
6DH A200E 20 211/16 23/16 3748 140 4.14 2911/32 227/16 177/8 15 12 21/8 13/8 490 565
6
6DHR23ME 14.9 68.3 55.6 106.1 (130) (3.84) 745 570 454 381 305 Solder Solder 222 256
4DT A220E
(OC) 22 215/16 23/16 2985 135 3.99 2715/16 201/2 23 15 12 21/8 13/8 412 472
16.4 4 74.6 55.6 84.5 (125) (3.70) 710 521 584 381 305 Solder Solder 187 214
4DTF76KE
4DH A250E 25 211/16 23/16 2499 135 3.99 269/32 201/2 1713/16 15 12 21/8 13/8 427 492
4
4DHR22ME 18.7 68.3 55.6 70.7 (125) (3.70) 668 521 452 381 305 Solder Solder 194 223
6DL A270E
(OC) 27 6 211/16 23/16 3748 140 4.14 297/16 227/16 26 15 12 21/8 13/8 490 550
20.1 68.3 55.6 106.1 (130) (3.84) 748 570 660 381 305 Solder Solder 222 249
6DLF93KE
4DJ A300E 30 215/16 23/16 2985 135 3.99 271/32 201/2 1713/16 15 12 21/8 13/8 432 502
4
4DJR28ME 22.4 74.6 55.6 84.5 (125) (3.70) 687 521 452 381 305 Solder Solder 196 228
6DJ A300E
(DS) 30 6 215/16 23/16 4478 255 7.54 315/32 227/16 2027/32 15 12 21/8 15/8 530 610
22.4 74.6 55.6 126.8 (245) (7.25) 791 570 529 381 305 Solder Solder 240 277
6DJR28ME
6DT A300E
(DS) (OC) 30 6 215/16 23/16 4478 255 7.54 297/16 227/16 287/8 15 12 21/8 13/8 527 602
22.4 74.6 55.6 126.8 (245) (7.25) 748 570 733 381 305 Solder Solder 239 273
6DTF11ME
6DH A350E 35 211/16 23/16 3748 140 4.14 303/16 227/16 1731/32 15 12 21/8 15/8 502 577
6
6DHR35ME 26.1 68.3 55.6 106.1 (130) (3.84) 767 570 456 381 305 Solder Solder 228 262
6DJ A400E
40 6 215/16 23/16 4478 255 7.54 303/16 227/16 2027/32 15 12 21/8 15/8 550 630
(DS)
29.8 74.6 55.6 126.8 (245) (7.25) 767 570 529 381 305 Solder Solder 249 286
6DJR40ME
(OC) Oil cooler and vertical cooling fan are standard on this model.
(DS) Deep oil sump is standard on this model.

180
HFC COPELAND DISCUS™ COMPRESSORS

ELECTRICAL SPECIFICATIONS

FSD FSM TFC TFD TSK TSN TFE

20.0 115.0
200 / 208 / 230
45.2 220.0 TSE
380 / 400 / 460
22.6 110.0 17.5 106.0

48.2 275.0 23.6 138.0

TFE
59.6 275.0 29.0 138.0 23.6 110.0
200 / 208 / 230 TSE
58.0 278.0
32.9 136.0 380 / 400 / 460 24.3 113.0
29.0 139.0

200 / 208 / 230 TSE

52.6 278.0
380 / 400 / 460
24.5 136.0 26.3 139.0 20.9 113.0
200 / 208 / 230 TSE
66.0 308.0
33.6 173.0 380 / 400 / 460 24.7 135.0
33.0 154.0
200 / 208 / 230
66.0 308.0 TSE
380 / 400 / 460
32.9 173.0 33.0 154.0 30.0 135.0
200 / 208 / 230
75.0 346.0 TSE
380 / 400 / 460
39.3 173.0 37.5 173.0 30.0 135.0
200 / 208 / 230 TSE
66.0 374.0
380 / 400 / 460
33.9 180.0 33.0 187.0 24.2 135.0
200 / 208 / 230 TSE
82.2 428.0
40.6 206.0 380 / 400 / 460 34.4 172.0
41.1 214.0
200 / 208 / 230 TSE
80.8 450.0
380 / 400 / 460
41.6 218.0 40.4 225.0 32.5 172.0
200 / 208 / 230 TSE
94.0 470.0
45.0 235.0 380 / 400 / 460 39.3 200.0
47.0 235.0
200 / 208 / 230 TSE
100.0 470.0
380 / 400 / 460
50.0 235.0 40.0 200.0
200 / 208 / 230 TSE
95.6 470.0
380 / 400 / 460
42.8 235.0 47.8 235.0 39.6 200.0
200 / 208 / 230
107.0 565.0 TSE
380 / 400 / 460
55.0 260.0 53.5 283.0 42.5 230.0
200 / 230
142.0 594.0 TSE
380 / 400 / 460
71.0 297.0
70.0 315.0 53.5 245.0

181
HFC COPELAND DISCUS™ COMPRESSORS

REFRIGERANT COOLED
MECHANICAL SPECIFICATIONS
TANDEMS
Oil Charge Mounting Center Suction Discharge
CFH Overall Dimensions Weights
Consisting of (Refill Oil Dimensions Connection Connection
HP m 3 /hr in/mm lb/kg
MODEL Two Single Charge) in/mm Size Size
kW
Compressors Valve Fitting
50 Hertz Oz Liter Length Width Height Length Width Net Shipping
in in
33EA12AA 12 3DAA060E 2270 250 7.39 56 13
16 /16 19 /2 1
50 12 1
2 /8 3
1 /8 770 885
33DA3F56KE 9.0 3DA3F28KE 64.3 (230) (6.80) 1422 427 495 1270 305 Solder Solder 349 401
33EA15AA 15 3DAA075E 2270 250 7.39 56 1613/16 191/2 50 12 21/8 13/8 770 885
33DA3R20ME 11.2 3DA3R10ME 64.3 (230) (6.80) 1422 427 495 1270 305 Solder Solder 349 401
33EA15BB 15 3DBA075E 2676 250 7.39 56 1613/16 191/2 50 12 21/8 13/8 770 885
33DB3F66KE 11.2 3DB3F33KE 75.8 (230) (6.80) 1422 427 495 1270 305 Solder Solder 349 401
33EA18FF 18 3DFA090E 3172 250 7.39 56 1613/16 191/2 50 12 21/8 13/8 770 885
33DF3F80KE 13.4 3DF3F40KE 89.8 (230) (6.80) 1422 427 495 1270 305 Solder Solder 349 401
33EA20BB 20 3DBA100E 2676 250 7.39 56 1613/16 191/2 50 12 21/8 13/8 800 915
33DB3R24ME 14.9 3DB3R12ME 75.8 (230) (6.80) 1422 427 495 1270 305 Solder Solder 363 415
33EA20SS 20 3DSA100E 3524 250 7.39 56 1613/16 191/2 50 12 21/8 13/8 800 915
33DS3F92KE 14.9 3DS3F46KE 99.8 (230) (6.80) 1422 427 495 1270 305 Solder Solder 363 415
44EA20AA 20 4DAA100E 3954 270 7.98 5711/16 21 195/16 50 12 21/8 15/8 884 1004
44DAR24ME 14.9 4DAR12ME 111.9 (250) (7.39) 1465 533 491 1270 305 Solder Solder 401 455
44EA21AA 20 4DAA101E 3954 270 7.98 5711/16 21 195/16 50 12 21/8 15/8 884 1004
44DAF94KE 14.9 4DAF47KE 111.9 (250) (7.39) 1465 533 491 1270 305 Solder Solder 401 455
33EA24FF 24 3DFA120E 3172 250 7.39 56 1613/16 191/2 50 12 21/8 13/8 820 935
33DF3R30ME 17.9 3DF3R15ME 89.8 (230) (6.80) 1422 427 495 1270 305 Solder Solder 372 424
33EA30SS 30 3DSA150E 3524 250 7.39 56 1613/16 191/2 50 12 21/8 13/8 820 935
33DS3R34ME 22.4 3DS3R17ME 99.8 (230) (6.80) 1422 427 495 1270 305 Solder Solder 372 424
44EA30HH 30 4DHA150E 4998 270 7.98 5711/16 215/16 1817/32 50 12 21/8 15/8 930 1050
44DHR32ME 22.4 4DHR16ME 141.5 (250) (7.39) 1465 541 471 1270 305 Solder Solder 422 476
44EA30LL
(OC) 30 4DLA150E 4998 270 7.98 631/8 213/8 2421/32 50 12 21/8 15/8 928 1048
44DLF13ME 22.4 4DLF63KE 141.5 (250) (7.39) 1603 543 626 1270 305 Solder Solder 421 475
44EA40AA 40 4DAA200E 3954 270 7.98 5711/16 21 195/16 50 12 21/8 15/8 934 1054
44DAR36ME 29.8 4DAR18ME 111.9 (250) (7.39) 1465 533 491 1270 305 Solder Solder 424 478
44EA40JJ 40 4DJA200E 5970 270 7.98 613/8 201/2 199/16 50 12 25/8 15/8 950 1070
44DJR38ME 29.8 4DJR19ME 169.0 (250) (7.39) 1559 521 497 1270 305 Solder Solder 431 485
66EA40HH 40 6DHA200E 7496 280 8.28 639/16 235/16 199/16 55 12 31/8 15/8 1100 1220
66DHR46ME 29.8 6DHR23ME 212.2 (260) (7.69) 1614 592 497 1397 305 Solder Solder 499 553
44EA44TT
(OC) 44 4DTA220E 5970 270 7.98 613/8 213/8 2411/16 55 12 31/8 15/8 944 1064
44DTF15ME 32.8 4DTF76KE 169.0 (250) (7.39) 1559 543 627 1397 305 Solder Solder 428 483
44EA50HH 50 4DHA250E 4998 270 7.98 613/8 217/16 191/2 55 12 25/8 15/8 974 1094
44DHR44ME 37.3 4DHR22ME 141.5 (250) (7.39) 1559 545 495 1397 305 Solder Solder 442 496
66EA54LL
(OC) 54 6DLA270E 7496 280 8.28 633/4 235/16 275/8 55 12 31/8 15/8 1100 1220
66DLF19ME 40.3 6DLF93KE 212.2 (260) (7.69) 1619 592 702 1397 305 Solder Solder 499 553
44EA60JJ 60 4DJA300E 5970 270 7.98 613/8 213/8 191/2 55 12 31/8 15/8 984 1104
44DJR56ME 44.8 4DJR28ME 169.0 (250) (7.39) 1559 543 495 1397 305 Solder Solder 446 501
66EA60JJ
(DS) 60 6DJA300E 8956 510 15.1 6511/16 231/4 253/16 55 12 31/8 21/8 1180 1340
66DJR56ME 44.8 6DJR28ME 253.5 (490) (14.5) 1668 591 640 1397 305 Solder Solder 535 608
66EA60TT
(DS) (OC) 60 6DTA300E 8956 510 15.1 633/4 231/4 321/4 55 12 31/8 15/8 1174 1324
66DTF22ME 44.8 6DTF11ME 253.5 (490) (14.5) 1619 591 819 1397 305 Solder Solder 533 601
66EA70HH 70 6DHA350E 7496 280 8.28 633/4 231/4 21 55 12 31/8 21/8 1124 1274
66DHR70ME 52.2 6DHR35ME 212.2 (260) (7.69) 1619 591 533 1397 305 Solder Solder 510 578
66EA80JJ
(DS) 80 6DJA400E 8956 510 15.1 633/4 231/4 253/16 55 12 31/8 21/8 1220 1380
66DJR80ME 59.7 6DJR40ME 253.5 (490) (14.5) 1619 591 640 1397 305 Solder Solder 553 626

Electrical specifications shown for tandems are per compressor rating.

(OC) Oil coolers and vertical cooling fans are standard on this model.
(DS) Deep oil sumps are standard on this model.

TANDEM WIRING stagger motor starting. Either of these circuits require that the
Each compressor of a tandem may be wired with a separate oil pressure safety control and dual pressure safety control be
control system for independent motor operation. If current in- wired independently on each compressor. For tandem wiring
rush decrease is desirable, a time delay relay may be used to diagrams refer to Application Bulletin AE 4-1167.
182
HFC COPELAND DISCUS™ COMPRESSORS

ELECTRICAL SPECIFICATIONS

FSM FSD TFC TFD TSK TSN TFE

380/420-3-50 380/420-3-50 200/220-3-50 380/420-3-50 200-3-50 200-3-50 TSE
460-3-60 208/230-3-60 460-3-60 380/400-3-50 380/400-3-50 500-3-50
208/230-3-60 230-3-60 575-3-60
460-3-60 460-3-60
RLA LRA RLA LRA RLA LRA RLA LRA RLA LRA RLA LRA RLA LRA
TFE
30.3 150.0 13.7 77.0 10.5 62.0
TFE
41.0 215.0 20.0 106.0 16.5 84.0
TFE
31.5 161.0 16.1 83.0 11.0 67.0
TFE
39.0 215.0 16.9 106.0 16.5 84.0
TFE
43.6 215.0 20.0 106.0 16.5 84.0
TFE
17.5 102.0 42.0 215.0 18.6 106.0 16.8 84.0

20.0 115.0
45.2
200 / 208 / 230
220.0 TSE
22.6
380 / 400 / 460
110.0
17.5 106.0

48.2 275.0 23.6 138.0

TFE
59.6 275.0 29.0 138.0 23.6 110.0
200 / 208 / 230
58.0 278.0 TSE
32.9 136.0 380 / 400 / 460
29.0 139.0
24.3 113.0
200 / 208 / 230 TSE
52.6 278.0
380 / 400 / 460
24.5 136.0 26.3 139.0 20.9 113.0
200 / 208 / 230 TSE
66.0 308.0
33.6 173.0 380 / 400 / 460
33.0 154.0 24.7 135.0
200 / 208 / 230
66.0 346.0 TSE
380 / 400 / 460
32.9 173.0 33.0 173.0 30.0 135.0
200 / 208 / 230
75.0 346.0 TSE
39.3 173.0 380 / 400 / 460
37.5 173.0
30.0 135.0
200 / 208 / 230
66.0 374.0
TSE
380 / 400 / 460
33.9 180.0 33.0 187.0 24.2 135.0
200 / 208 / 230
82.2 428.0 TSE
40.6 206.0 380 / 400 / 460 34.4 172.0
41.1 214.0

200 / 208 / 230

80.8 450.0 TSE
380 / 400 / 460
40.4 225.0
41.6 218.0 32.5 172.0
200 / 208 / 230
94.0 470.0 TSE
380 / 400 / 460
45.0 235.0 47.0 235.0 39.3 200.0
200 / 208 / 230
100.0 470.0
TSE
380 / 400 / 460
50.0 235.0 40.0 200.0
200 / 208 / 230 TSE
95.6 470.0
380 / 400 / 460
42.8 235.0 47.8 235.0 39.6 200.0
200 / 208 / 230 TSE
107.0 565.0
380 / 400 / 460
55.0 260.0 53.5 283.0 42.5 230.0
200 / 230
142.0 594.0 TSE
380 / 400 / 460
70.0 315.0 71.0 297.0 53.5 245.0

183
HFC COPELAND DISCUS™ COMPRESSORS

REFRIGERANT COOLED
MECHANICAL SPECIFICATIONS
CAPACITY CONTROL
Oil Charge Mounting Center
CFH Overall Dimensions Service Valve Weights
CAPACITY BASIC Bore Stroke (Refill Oil Dimensions
HP m 3 /hr in/mm Sizes lb/kg
CONTROL COMPRESSOR CYL in in Charge) in/mm
kW
MODEL MODEL mm mm Suction Discharge
50 Hertz Oz Liter Length Width Height Length Width Net Shipping
in in
4DE A100E 4DAA100E 10 21/2 2 1977 135 3.99 2513/32 207/16 173/4 15 12 15/8 11/8 387 438
4
4DER12ME 4DAR12ME 7.5 63.5 50.8 56.0 (125) (3.70) 645 519 451 381 305 Solder Solder 176 199
4DN A100E
4DAA100E 10 21/2 2 1977 135 3.99 271/32 203/16 23 15 12 15/8 11/8 397 452
(OC) 4
4DAR12ME 7.5 63.5 50.8 56.0 (125) (3.70) 687 513 584 381 305 Solder Solder 173 198
4DNR12ME
4DE A101E 4DAA101E 10 21/2 2 1977 135 3.99 2513/32 207/16 173/4 15 12 15/8 11/8 387 438
4
4DEF47KE 4DAF47KE 7.5 63.5 50.8 56.0 (125) (3.70) 645 519 451 381 305 Solder Solder 176 199
4DNA101E
4DAA101E 10 21/2 2 1977 135 3.99 271/32 203/16 23 15 12 15/8 11/8 397 452
(OC) 4
4DAF47KE 7.5 63.5 50.8 56.0 (125) (3.70) 687 513 584 381 305 Solder Solder 173 198
4DNF47KE
4DKA150E 4DHA150E 15 211/16 23/16 2499 135 3.99 2513/32 203/8 1729/32 15 12 15/8 11/8 410 475
4
4DKR16ME 4DHR16ME 11.2 68.3 55.6 70.7 (125) (3.70) 645 518 455 381 305 Solder Solder 186 215
4DP A150E
4DLA150E 15 211/16 23/16 2499 135 3.99 271/32 203/4 23 15 12 15/8 13/8 409 474
(OC) 4
4DLF63KE 11.2 68.3 55.6 70.7 (125) (3.70) 687 527 584 381 305 Solder Solder 186 215
4DPF63KE
4DEA200E 4DAA200E 20 21/2 2 1977 135 3.99 2513/32 201/16 173/4 15 12 15/8 13/8 412 472
4
4DER18ME 4DAR18ME 14.9 63.5 50.8 56.0 (125) (3.70) 645 510 451 381 305 Solder Solder 187 214
4DRA200E 4DJA200E 20 215/16 23/16 2985 135 3.99 269/32 203/8 1729/32 15 12 21/8 13/8 420 490
4
4DRR19ME 4DJR19ME 14.9 74.6 55.6 84.5 (125) (3.70) 668 518 455 381 305 Solder Solder 191 222
6DKA200E 6DHA200E 20 211/16 23/16 3748 140 4.14 2911/32 227/16 177/8 15 12 21/8 13/8 495 570
6
6DKR23ME 6DHR23ME 14.9 68.3 55.6 106.1 (130) (3.84) 745 570 454 381 305 Solder Solder 225 259
6DP A200E 6DHA200E 20 211/16 23/16 3748 140 4.14 2911/32 227/16 203/16 15 12 21/8 13/8 500 575
6
6DPR23ME 6DHR23ME 14.9 68.3 55.6 106.1 (130) (3.84) 745 570 513 381 305 Solder Solder 222 256
4DSA220E
4DTA220E 22 215/16 23/16 2985 135 3.99 2715/16 203/4 23 15 12 21/8 13/8 417 477
(OC) 4
4DTF76KE 16.4 74.6 55.6 84.5 (125) (3.70) 710 527 584 381 305 Solder Solder 189 216
4DSF76KE
4DKA250E 4DHA250E 25 211/16 23/16 2499 135 3.99 269/32 203/8 1729/32 15 12 21/8 13/8 432 497
4
4DKR22ME 4DHR22ME 18.7 68.3 55.6 70.7 (125) (3.70) 668 518 455 381 305 Solder Solder 196 225
6DCA270E
6DLA270E 27 211/16 23/16 3748 140 4.14 297/16 227/16 26 15 12 21/8 13/8 495 555
(OC) 6
6DLF93KE 20.1 68.3 55.6 106.1 (130) (3.84) 748 570 660 381 305 Solder Solder 225 252
6DCF93KE
6DDA270E
6DLA270E 27 211/16 23/16 3748 140 4.14 297/16 227/16 26 15 12 21/8 13/8 500 560
(OC) 6
6DLF93KE 20.1 68.3 55.6 106.1 (130) (3.84) 748 570 660 381 305 Solder Solder 227 254
6DDF93KE
4DRA300E 4DJA300E 30 215/16 23/16 2985 135 3.99 271/32 203/8 1729/32 15 12 21/8 13/8 437 507
4
4DRR28ME 4DJR28ME 22.4 74.6 55.6 84.5 (125) (3.70) 687 518 455 381 305 Solder Solder 198 230
6DR A300E
6DJA300E 30 215/16 23/16 4478 255 7.54 315/32 227/16 2011/32 15 12 21/8 15/8 535 615
(DS) 6
6DJR28ME 22.4 74.6 55.6 126.8 (245) (7.25) 791 570 517 381 305 Solder Solder 243 279
6DRR28ME
6DSA300E
6DJA300E 30 215/16 23/16 4478 255 7.54 315/32 227/16 2121/32 15 12 21/8 15/8 540 620
(DS) 6
6DJR28ME 22.4 74.6 55.6 126.8 (245) (7.25) 791 570 550 381 305 Solder Solder 245 281
6DSR28ME
6DEA300E
6DTA300E 30 215/16 23/16 4478 255 7.54 297/16 227/16 2827/32 15 12 21/8 13/8 532 607
(DS) (OC) 6
6DTF11ME 22.4 74.6 55.6 126.8 (245) (7.25) 748 570 733 381 305 Solder Solder 241 275
6DEF11ME
(OC) Oil cooler and vertical cooling fan are standard on this model.
(DS) Deep oil sump is standard on this model.

184
HFC COPELAND DISCUS™ COMPRESSORS

ELECTRICAL SPECIFICATIONS

FSD FSM TSK TSN TSE

380/420-3-50 380/420-3-50 200-3-50 200-3-50 500-3-50
460-3-60 380/400-3-50 380/400-3-50 575-3-60
208/230-3-60 230-3-60
460-3-60 460-3-60
RLA LRA RLA LRA RLA LRA RLA LRA RLA LRA

20.0 115.0

20.0 115.0
200 / 208 / 230
45.2 220.0
380 / 400 / 460 17.5 106.0
22.6 110.0
200 / 208 / 230
45.2 220.0
380 / 400 / 460
22.6 110.0
17.5 106.0
200 / 208 / 230
58.0 278.0
380 / 400 / 460
32.9 136.0 29.0 139.0 24.3 113.0
200 / 208 / 230
52.6 278.0
380 / 400 / 460
26.3 139.0
24.5 136.0 20.9 113.0
200 / 208 / 230
66.0 308.0
380 / 400 / 460
33.6 173.0 33.0 154.0 24.7 135.0
200 / 208 / 230
66.0 346.0
380 / 400 / 460
32.9 173.0 33.0 173.0 30.0 135.0
200 / 208 / 230
75.0 346.0
380 / 400 / 460
39.3 173.0 37.5 173.0 30.0 135.0
200 / 208 / 230
75.0 346.0
380 / 400 / 460
39.3 173.0 37.5 173.0 30.0 135.0
200 / 208 / 230
66.0 374.0
380 / 400 / 460
33.0 187.0
33.9 180.0 24.2 135.0
200 / 208 / 230
82.2 428.0
380 / 400 / 460
40.6 206.0 41.1 214.0 34.4 172.0
200 / 208 / 230
80.8 450.0
380 / 400 / 460
41.6 218.0 40.4 225.0 32.5 172.0
200 / 208 / 230
80.8 450.0
380 / 400 / 460
40.4 225.0
41.6 218.0 32.5 172.0
200 / 208 / 230
94.0 470.0
380 / 400 / 460
45.0 235.0 47.0 235.0 39.3 200.0
200 / 208 / 230
100.0 470.0
380 / 400 / 460
50.0 235.0
40.0 200.0
200 / 208 / 230
100.0 470.0
380 / 400 / 460
50.0 235.0
40.0 200.0

200 / 208 / 230

95.6 470.0
380 / 400 / 460
47.8 235.0
42.8 235.0 39.6 200.0

185
HFC COPELAND DISCUS™ COMPRESSORS

186
HFC COPELAND DISCUS™ COMPRESSORS

ELECTRICAL SPECIFICATIONS

FSD FSM TSK TSN TSE

380/420-3-50 380/420-3-50 200-3-50 200-3-50 500-3-50
460-3-60 380/400-3-50 380/400-3-50 575-3-60
208/230-3-60 230-3-60
460-3-60 460-3-60
RLA LRA RLA LRA RLA LRA RLA LRA RLA LRA

200 / 208 / 230

95.6 470.0
380 / 400 / 460
47.8 235.0
42.8 235.0 39.6 200.0
200 / 208 / 230
107.0 565.0
380 / 400 / 460
55.0 260.0 53.5 283.0 42.5 230.0
200 / 208 / 230
107.0 565.0
380 / 400 / 460
55.0 260.0 53.5 283.0 42.5 230.0
200 / 230
142.0 594.0
380 / 400 / 460
71.0 297.0
70.0 315.0 53.5 245.0
200 / 230
142.0 594.0
380 / 400 / 460
70.0 315.0 71.0 297.0 53.5 245.0

187
HFC COPELAND DISCUS™ COMPRESSORS

REFRIGERANT COOLED
CAPACITY CONTROL MECHANICAL SPECIFICATIONS
TANDEMS
Oil Charge Mounting Center Suction Discharge
CFH Overall Dimensions Weights
Consisting of (Refill Oil Dimensions Connection Connection
HP m 3 /hr in/mm lb/kg
MODEL Two Single Charge) in/mm Size Size
kW
Compressors Valve Fitting
50 Hertz Oz Liter Length Width Height Length Width Net Shipping
in in
44EA20EE 20 4DEA100E 3954 270 7.98 11
57 /16 21 31
19 /32 55 12 1
2 /8 5
1 /8 894 1014
44DER24ME 14.9 4DER12ME 111.9 (250) (7.39) 1465 533 507 1397 305 Solder Solder 406 460
44EA20NN
20 4DNA100E 3954 270 7.98 613/8 21 2421/32 55 12 21/8 15/8 914 1034
(OC)
14.9 4DNR12ME 111.9 (250) (7.39) 1559 533 626 1397 305 Solder Solder 415 469
44DNR24ME
44EA21EE 20 4DEA101E 3954 270 7.98 5711/16 21 1931/32 55 12 21/8 15/8 894 1014
44DEF94KE 14.9 4DEF47KE 111.9 (250) (7.39) 1465 533 507 1397 305 Solder Solder 406 460
44EA21NN
20 4DNA101E 3954 270 7.98 613/8 21 2421/32 55 12 21/8 15/8 914 1034
(OC)
14.9 4DNF47KE 111.9 (250) (7.39) 1559 533 626 1397 305 Solder Solder 415 469
44DNF94KE
44EA30KK 30 4DKA150E 4998 270 7.98 595/8 217/16 2015/32 50 12 21/8 15/8 940 1060
44DKR32ME 22.4 4DKR16ME 141.5 (250) (7.39) 1514 545 520 1270 305 Solder Solder 426 481
44EA30PP
30 4DPA150E 4998 270 7.98 631/8 213/8 2421/32 50 12 21/8 15/8 938 1058
(OC)
22.4 4DPF63KE 141.5 (250) (7.39) 1603 543 626 1270 305 Solder Solder 425 480
44DPF13ME
44EA40EE 40 4DEA200E 3954 270 7.98 5711/16 21 1931/32 50 12 21/8 15/8 944 1064
44DER36ME 29.8 4DER18ME 111.9 (250) (7.39) 1465 533 507 1270 305 Solder Solder 428 483
44EA40RR 40 4DRA200E 5970 270 7.98 597/8 213/8 2015/32 50 12 25/8 15/8 960 1080
44DRR38ME 29.8 4DRR19ME 169.0 (250) (7.39) 1521 543 520 1270 305 Solder Solder 435 490
66EA40KK 40 6DKA200E 7496 280 8.28 601/8 231/4 21 55 12 31/8 15/8 1110 1230
66DKR46ME 29.8 6DKR23ME 212.2 (260) (7.69) 1527 591 533 1397 305 Solder Solder 503 558
66EA40PP 40 6DPA200E 7496 280 8.28 601/8 231/4 233/8 55 12 31/8 15/8 1120 1240
66DPR46ME 29.8 6DPR23ME 212.2 (260) (7.69) 1527 591 594 1397 305 Solder Solder 508 562
44EA44SS
44 4DSA220E 5970 270 7.98 613/8 213/8 2411/16 55 12 31/8 15/8 954 1074
(OC)
32.8 4DSF76KE 169.0 (250) (7.39) 1559 543 627 1397 305 Solder Solder 433 487
44DSF15ME
44EA50KK 50 4DKA250E 4998 270 7.98 613/8 217/16 2015/32 55 12 25/8 15/8 984 1104
44DKR44ME 37.3 4DKR22ME 141.5 (250) (7.39) 1559 545 520 1397 305 Solder Solder 446 501
66EA54CC
54 6DCA270E 7496 280 8.28 633/4 235/16 275/8 55 12 31/8 15/8 1110 1230
(OC)
40.3 6DCF93KE 212.2 (260) (7.69) 1619 592 702 1397 305 Solder Solder 503 558
66DCF19ME
66EA54DD
54 6DDA270E 7496 280 8.28 633/4 235/16 275/8 55 12 31/8 15/8 1120 1240
(OC)
40.3 6DDF93KE 212.2 (260) (7.69) 1619 592 702 1397 305 Solder Solder 508 562
66DDF19ME
44EA60RR 60 4DRA300E 5970 270 7.98 613/8 213/8 2015/32 55 12 31/8 15/8 994 1114
44DRR56ME 44.8 4DRR28ME 169.0 (250) (7.39) 1559 543 520 1397 305 Solder Solder 451 505
66EA60RR
60 6DRA300E 8956 510 15.1 633/4 231/4 253/16 55 12 31/8 21/8 1190 1350
(DS)
44.8 6DRR28ME 253.5 (490) (14.5) 1619 591 640 1397 305 Solder Solder 540 612
66DRR56ME
66EA60SS
60 6DSA300E 8956 510 15.1 633/4 231/4 279/16 55 12 31/8 21/8 1200 1360
(DS)
44.8 6DSR28ME 253.5 (490) (14.5) 1619 591 700 1397 305 Solder Solder 544 617
66DSR56ME
66EA60EE
60 6DEA300E 8956 510 15.1 633/4 231/4 321/4 55 12 31/8 15/8 1184 1334
(DS) (OC)
44.8 6DEF11ME 253.5 (490) (14.5) 1619 591 819 1397 305 Solder Solder 537 605
66DEF22ME
Electrical specifications shown for tandems are per compressor rating.
(OC) Oil coolers and vertical cooling fans are standard on this model.
(DS) Deep oil sumps are standard on this model.

188
HFC COPELAND DISCUS™ COMPRESSORS

ELECTRICAL SPECIFICATIONS

FSM FSD TSK TSN TSE

380/420-3-50 380/420-3-50 200-3-50 200-3-50 500-3-50
460-3-60 380/400-3-50 380/400-3-50 575-3-60
208/230-3-60 230-3-60
460-3-60 460-3-60
RLA LRA RLA LRA RLA LRA RLA LRA RLA LRA

20.0 115.0

20.0 115.0
200 / 208 / 230
45.2 220.0
380 / 400 / 460 17.5 106.0
22.6 110.0
200 / 208 / 230
45.2 220.0
380 / 400 / 460
22.6 110.0
17.5 106.0
200 / 208 / 230
58.0 278.0
32.9 136.0 380 / 400 / 460 24.3 113.0
29.0 139.0
200 / 208 / 230
52.6 278.0
380 / 400 / 460
26.3 139.0
24.5 136.0 20.9 113.0
200 / 208 / 230
66.0 308.0
33.6 173.0 380 / 400 / 460 24.7 135.0
33.0 154.0
200 / 208 / 230
66.0 346.0
32.9 173.0 380 / 400 / 460 30.0 135.0
33.0 173.0
200 / 208 / 230
75.0 346.0
39.3 173.0 380 / 400 / 460 30.0 135.0
37.5 173.0
200 / 208 / 230
75.0 346.0
39.3 173.0 380 / 400 / 460 30.0 135.0
37.5 173.0
200 / 208 / 230
66.0 374.0
380 / 400 / 460
33.0 187.0
33.9 180.0 24.2 135.0
200 / 208 / 230
82.2 428.0
380 / 400 / 460
40.6 206.0 41.1 214.0 34.4 172.0
200 / 208 / 230
80.8 450.0
380 / 400 / 460
40.4 225.0
41.6 218.0 32.5 172.0
200 / 208 / 230
80.8 450.0
380 / 400 / 460
41.6 218.0 40.4 225.0 32.5 172.0
200 / 208 / 230
94.0 470.0
45.0 235.0 380 / 400 / 460 39.3 200.0
47.0 235.0
200 / 208 / 230
100.0 470.0
380 / 400 / 460
50.0 235.0
40.0 200.0
200 / 208 / 230
100.0 470.0
380 / 400 / 460
50.0 235.0
40.0 200.0
200 / 208 / 230
95.6 470.0
380 / 400 / 460
47.8 235.0
42.8 235.0 39.6 200.0

189
HFC COPELAND DISCUS™ COMPRESSORS

66EA60FF
60 6DFA300E 8956 510 15.1 633/4 231/4 321/4 55 12 31/8 15/8 1194 1334
(DS) (OC)
44.8 6DFF11ME 253.5 (490) (14.5) 1619 591 819 1397 305 Solder Solder 542 610
6DFF22ME
66EA70KK 70 6DKA350E 7496 280 8.28 633/4 231/4 21 55 12 31/8 21/8 1134 1284
66DKR70ME 52.2 6DKR35ME 212.2 (260) (7.69) 1619 591 533 1397 305 Solder Solder 514 582
66EA70PP 70 6DPA350E 7496 280 8.28 633/4 231/4 233/8 55 12 31/8 21/8 1144 1294
66DPR70ME 52.2 6DPR35ME 212.2 (260) (7.69) 1619 591 594 1397 305 Solder Solder 519 587
66EA80RR
80 6DRA400E 8956 510 15.1 633/4 231/4 253/16 55 12 31/8 21/8 1230 1390
(DS)
59.7 6DRR40ME 253.5 (490) (14.5) 1619 591 640 1397 305 Solder Solder 558 630
66DRR80ME
66EA80SS
80 6DSA400E 8956 510 15.1 633/4 231/4 279/16 55 12 31/8 21/8 1240 1400
(DS)
59.7 6DSR40ME 253.5 (490) (14.5) 1619 591 700 1397 305 Solder Solder 562 635
66DSR80ME
Electrical specifications shown for tandems are per compressor rating.
(DS) Deep oil sumps are standard on this model.
(OC) Oil coolers and vertical cooling fans are standard on this model.

190
HFC COPELAND DISCUS™ COMPRESSORS

ELECTRICAL SPECIFICATIONS

FSM FSD TSK TSN TSE

380/420-3-50 380/420-3-50 200-3-50 200-3-50 500-3-50
460-3-60 380/400-3-50 380/400-3-50 575-3-60
208/230-3-60 230-3-60
460-3-60 460-3-60
RLA LRA RLA LRA RLA LRA RLA LRA RLA LRA

200 / 208 / 230

95.6 470.0
380 / 400 / 460
47.8 235.0
42.8 235.0 39.6 200.0
200 / 208 / 230
107.0 565.0
380 / 400 / 460
55.0 260.0 53.5 283.0 42.5 230.0
200 / 208 / 230
107.0 565.0
55.0 260.0 380 / 400 / 460 42.5 230.0
53.5 283.0

200 / 230
142.0 594.0
380 / 400 / 460
70.0 315.0 71.0 297.0 53.5 245.0
200 / 230
142.0 594.0
380 / 400 / 460
71.0 297.0
70.0 315.0 53.5 245.0

191
HFC COPELAND DISCUS™ COMPRESSORS

DIMENSIONS AND PHOTOGRAPHS

2D
F
A
M
I
L
Y

Model 2DC3-050E Shown

3D
F
A
M
I
L
Y

Model 3DB3A075E Shown

4D
F
A
M
I
L
Y

Model 4DA3A200E Shown

6D
F
A
M
I
L
Y

Model 6DH3A350E Shown

66
F
A
M
I
L
Y

Model 66D3A70HH Shown

Dimensions shown are inches (millimeters).

192
HFC COPELAND DISCUS™ COMPRESSORS

APPLICATION INFORMATION
RATING CONDITIONS USED IN THIS BOOK
Refrigerant R134a R404A / R407A / R507
Evaporating Temperature This book does not specifically define the operating limits of the compressors.
Condensing Temperature See individual specification sheets for exact application capability.
Return Gas Temperature 65°F 65°F
18.3°C 18.3°C
Ambient Temperature 95°F 95°F
35°C 35°C
Liquid Subcooling 0°F 0°F
0°C 0°C
Superheat Varies Varies

APPLICATION REQUIREMENTS
• All Copeland Discus™ compressors require return • Emerson Climate Technologies introduces a new era
gas motor cooling. It is important to note that when in oil pressure controls with the Sentronic Oil Pressure
operating at evaporating temperatures of 0°F Control System. The Sentronic electronic control
(–17.8°C) or lower, additional motor and cylinder head system eliminates capillary tubes used on electro-
cooling is required. This can be accomplished by the mechanical systems to sense oil pressure. The new
use of an external fan assembly available from system uses a pressure transducer within the oil pump
Emerson Climate Technologies. See Application that produces an electrical signal to the control
Bulletin AE 4-1135 for complete details and allow for module. If the oil pressure drops below acceptable
extra height to install the fan to the top of the limits for a period of two minutes the control module
compressor. cuts power to the compressor and stops it. The
Sentronic offers a new and more reliable solution to
• Oil Pump is Sentronic high pressure oil pump. capillary leaks. To order the Sentronic Oil Pressure
• An oil pressure safety control is required on all Control use part number 585-1036-00. For
Copeland Discus™ compressors. Approved controls instructions refer to Application Bulletin AE 8-1275.
provide low cost, safe protection against damage from
loss of lubrication. These can be supplied by Emerson The Sentronic is only functional when used with our
Climate Technologies and should be listed separately new oil pump that has a machined port for the
on your purchase orders (except those covering Sentronic sensor. The Sentronic control and oil pump
tandem compressors on which they are supplied as are standard on all Discus tandem compressors and
standard equipment). There are two types of control the oil pump is standard on all Copeland Discus™
available, our new “Sentronic” Control offering compressors.
improved reliability and accuracy (see next paragraph
for details) and the conventional capillary tube type
control which can be ordered by using Part Number
998-0700-00. For further information, see Application
Bulletin AE 8-1095.

193
HFC COPELAND DISCUS™ COMPRESSORS

APPLICATION INFORMATION

APPLICATION REQUIREMENTS (continued)

• HFC Discus 4D, 6D capacity control operating • With the exception of the valve plate and head area,
requirements are: the internal construction of Copeland Discus™ and
Conventional Copelametic compressors is similar.
• Medium Temperature. While the Discus valving is extremely rugged,
• Evaporating range + 25°F to –5°F, –3.9°C to Copeland Discus™ compressors can be damaged by
–20.6°C. abuse in the same way that any compressor can be
damaged. The Copeland Discus™ compressor is a
• Vertical cooling fan is required. highly reliable, highly efficient compressor. It is not a
• Maximum condensing temperature 140°F, 60°C. magic panacea for compressor misapplication, and is
not a cure-all for recurring system problems that need
• Low Temperature. to be identified and corrected.
• Vertical cooling fan is required. • Due to the differences in volumetric capacity,
• Oil cooler is required. HFC134a should not be used in a compressor
originally intended for use with HCFC22.
• Maximum condensing temperature is 130°F,
54.4°C. • Conventional mineral oils are not suitable as
lubricants for HFC Copeland Discus™ Compressors
• Minimum evaporating temperature for 4D and 6D due to insufficient lubricity and miscibility. After
(33% unloaded) is –40°F, –40°C. screening numerous synthetic lubricants, Emerson
• Minimum evaporating temperature for 6D (67% Climate Technologies has selected a modified
unloaded) is –25°F, –31.7°C. pentaerythritol ester oil (POE) MOBIL EAL ARCTIC 22
CC or ICI Emkarate RL32 CF. Other lubricants are
• All 4D and 6D models are equipped with a preset being evaluated. Refer to Application Engineering
internal relief valve between suction and discharge Bulletin 17-1248 for a list of all approved lubricants.
which will open if the maximum permissible pressure
differential is reached. • Ester lubricants have the characteristic of quickly
absorbing moisture from the ambient surroundings.
• All Tandem models include a discharge muffler. Such lubricants absorb moisture faster and in greater
• The nominal rotational speeds of the Copeland quantity than conventional mineral oils. Since
Discus™ compressors are: moisture levels greater than 100 ppm will result in
system corrosion and ultimate failure, it is imperative
• 50 Hertz 1450 RPM. that compressors, components, containers, and the
• 60 Hertz 1750 RPM. entire system be kept sealed as much as possible.
Lubricants will be packaged in specially designed,
• Dimensions in this brochure include the terminal box sealed containers. After opening, all the lubricant in a
and service valves mounted. Height is from the bottom container should be used at once since it will readily
plate bolts or from bottom of extended oil sump where absorb moisture if left exposed to the ambient. Any
applicable and does not include mounting parts except unused lubricant should be properly disposed of.
mounting for tandem compressors where dimensions Similarly, work on systems and compressors must be
include the mounting rails. Mounting center carried out with the open time as short as possible.
dimensions do not apply to narrow profile deep sump Leaving the system or compressor open during breaks
models such as those with an 8 in the fourth place of or overnight must be avoided.
the model number.
• As received, the POE lubricant will be clear or straw
colored. After use, it may acquire a darker color. This
does not indicate a problem as the darker color merely
reflects the activity of the lubricant’s protective additive.

194
HFC COPELAND DISCUS™ COMPRESSORS

APPLICATION INFORMATION
PART WINDING AND STAR-DELTA
STARTING MOTOR CHARACTERISTICS
Motor Leads Hertz Across-The-Line Part Winding

50 380 / 420-3-50 380 / 420-3-50

FSD 6
60 460-3-60 460-3-60
FSM 6 50 380 / 420-3-50 380 /420-3-50
50 500-3-50 500-3-50 (PW)
TSE 6
60 575-3-60 575-3-60 (PW)
200-3-50
50 380 / 400-3-50 200-3-50
TSN 9
60 230-3-60 230-3-60
460-3-60
200-3-50
50 380 / 400-3-50 200-3-50
TSK 9
60 208 / 230-3-60 208 / 230-3-60
460-3-60
(PW) Part winding start applies only to single compressors 20 horsepower, 14.9 kilowatt, and above; tandem 40 horsepower, 29.8 kilowatt, and
above.

ELECTRICAL APPLICATION INFORMATION

195
HFC COPELAND DISCUS™ COMPRESSORS

APPLICATION INFORMATION
APPLICATION OPTIONS
• Use bill of material number 200 for standard • Crankcase heaters are required on any refrigeration
compressors. This bill of material includes oil charge, systems where the compressor is exposed to cold
mounting parts, standard service valves, overload ambient temperatures and the refrigerant charge is
protectors, terminal box covers and, where applicable, over 1 pound (0.45 kg), on all split air conditioning
running capacitors, starting capacitors and relays. Oil systems, and on package air conditioning equipment 5
pressure safety controls, crankcase heaters, HP and larger. As the refrigerant charge increases, the
contactors, and high-low pressure controls, when start-up problems associated with vapor refrigerant in
required, should be ordered with compressors but liquid oil becomes more critical. The crankcase heater
listed separately on the purchase order. The exception will minimize refrigerant migration to the crankcase
to this rule is that 200 bill of material tandem during periods when the compressor is not operating
compressors include oil pressure safety controls. and will greatly reduce liquid slugging, loss of oil and
compressor damage. Please refer to Application
• On applications where the cooling load may vary over Bulletins AE 4-1166, AE 17-1238, and AE 22-1182 for
a wide range, some means of compressor capacity additional information.
control is frequently necessary for satisfactory system
performance. Emerson Climate Technologies has • Any Copeland Discus™ model has the option of an
available capacity reduction control devices for the installed deep oil sump.
larger Copelametic models. These capacity
modulation accessories can be mounted on the • Airand water cooled condensing units are available
from Emerson Climate Technologies that contain the
compressor at the factory or added in the field.
compressors listed in this section.
Application Bulletins AE 21-1216 and AE 21-1278
provide detailed technical information. Field
conversion kits contain all necessary parts to convert
a standard model to a capacity control model.

UNITS CONVERSION CHART

BTUH x .252 = KCALH

196
HFC COPELAND DISCUS™ COMPRESSORS

APPLICATION INFORMATION
REFRIGERANT CHANGEOVER GUIDELINES
• Emerson Climate Technologies does not advocate the wholesale • Mineral oil lubricants, such as 3GS, must not be used as the
changeover of CFC refrigerants to HCFCs or HFCs. If a system is compressor lubricant with HFCs. Polyol Ester (POE) lubricant, Mobil
not leaking refrigerant to the atmosphere, and is operating properly, EAL Arctic 22 CC or ICI EMKARATE™ RL 32 CF, are the only
there is no technical reason to replace the CFC refrigerant. lubricants that can be used in a compressor when using these
• Retrofitting systems that employ compressors manufactured prior to refrigerants.
1973 is not recommended. This is due to the different materials used • Before starting the changeover, it is suggested that at least the
in motor insulation that have not been evaluated for compatibility following items be ready:
with the new refrigerants and lubricants. 1. Safety glasses
• The lubricant recommended by Emerson Climate Technologies for 2. Gloves
3. Refrigerant service gauges
use with R134a and R404A/R407A/R507 is a Polyol Ester (POE),
either Mobil EAL™ Arctic 22 CC or ICI EMKARATE™ RL 32 CF. 4. Electronic thermometer
These are the only POE lubricants approved for use in Copeland® 5. Vacuum pump capable of pulling 250 microns
brand products compressors and are available from all authorized 6. Thermocouple micron gauge
Emerson Climate Technologies wholesalers. The use of any other 7. Leak detector
POE lubricant may void the compressor warranty. 8. Refrigerant recovery unit including refrigerant cylinder
• It is important that the system contain not more than 5% residual 9. Proper container for removed lubricant
10. New liquid control device
mineral oil. More than 5% may contribute to premature compressor
failure and or system capacity short-fall. 11. Replacement liquid line filter-drier(s)
• Filter-driers must be changed at the time of conversion. This is 12. New POE lubricant, Mobil EAL Arctic 22 CC/ICI EMKARATE RL
proper air conditioning/refrigeration practice. 32 CF
13. Pressure temperature chart for new refrigerant
• The recommended drier for use with all HFC refrigerants is 14. New HFC refrigerant
Alco UltraFlow.
• Solid core driers such as ALCO ADK are compatible with R12, • Use only Emerson Climate Technologies approved refrigerants and
R134a, R404A, R407A, R502 and R507. lubricants in the manner prescribed by Emerson Climate
Technologies. In some circumstances, other refrigerants and
• Compacted bead type driers can use XH6 or XH9 molecular lubricants may be dangerous and could cause fires, explosions or
sieve material such as found in the ALCO EK or EKH series. electrical shorting. Contact Emerson Climate Technologies for more
• If a loose fill type drier is to be used, XH9 molecular sieve is information.
required.
SPECIFIC REFRIGERANT CONSIDERATIONS
R134a R404A / R407A / R507
• R134a should be used only in systems where the • Because mineral oils are not miscible with R404A/R407A/R507,
saturated suction temperature is maintained at –10°F (–23.3°C) or they may log in the evaporator resulting in system capacity loss. It
higher. It should not be mixed with any other refrigerant! is for this reason that the flushing process must be done with R502
• The expansion valve may need to be changed. The existing in the system.
R12 valve when used with R134a will have approximately 15% • R404A/R407A/R507 can be used in either low or medium
more capacity. Oversized expansion valves can result in hunting temperature systems. These HFC refrigerants should not be mixed
and refrigerant floodback. Consult with the thermostatic expansion with any other refrigerant or with each other.
valve manufacturer for the correct valve and size. • The expansion valve will not need to be changed. The existing
• R134a exhibits marginally higher pressures than R12 at normal R502 valve when used with the HFC refrigerants will have virtually
condensing temperatures. We do not believe this will require the same capacity; however, it may be necessary to adjust the
readjustment of safety controls; however, you should verify this superheat.
with the system manufacturer or component suppliers. • Pressure regulators such as EPR valves may have to be reset.
• Systems that use a low pressure controller to maintain space Contact the EPR manufacturer for the correct settings.
temperature may need to have the cut-in and cut-out points • R404A/R407A/R507 exhibit higher pressures than R502 at normal
changed due to the difference in Pressure / Temperature condensing temperatures. This may require that the high pressure
relationships. safety controls be reset in order to operate as intended.
• Systems using R134a may have a lower system pressure drop • The higher pressure characteristics exhibited by these HFC
than with R12. Because of the lower pressure drop, check with the refrigerants will in some cases exceed the industry accepted safety
manufacturer of any pressure regulators and pilot operated factors on the compressor crankcase (low side). This will require the
solenoid valves used in the system to be sure that they will operate addition of a pressure relief valve on the compressor crankcase, set
with the lower pressure drop. It is possible that these controls may at a maximum of 375 psig (26.4 kg/cm 2) to adequately protect the
have to be downsized in order to operate properly. compressor from the possibility of excessive pressure. Pressure
• For the R12 to R134a complete changeover procedure please see relief valves can be purchased from your authorized Emerson
Bulletin 93-04. Climate Technologies wholesaler as part number 998-0051-02.
Copeland Discus™ 3D, 4D, 9D and MD compressors require this
additional valve.
• Systems that use a low pressure controller to maintain space
temperature may need to have the cut-in and cut-out points
changed. Although R404A and R407A do exhibit “glide,” the
average evaporator or condenser temperature is within 0.5°F
(0.28°C) of the saturated vapor temperature; therefore no
correction is required.
• Systems using R404A/R407A/R507 should have approximately the
same system pressure drop as with R502. Check with the
manufacturer of any pressure regulators and pilot operated solenoid
valves used in the system to be sure that they will operate properly.
• For the R502 to R404A/R407A/R507 complete changeover
procedure please see Bulletin 94-15.
197
HFC COPELAND DISCUS™ COMPRESSORS

APPLICATION INFORMATION
APPLICATION BULLETINS
Emerson Climate Technologies has compiled a book of compressor Application Bulletins. Please see the following bulletins, from
the book, for more HFC Discus compressor application information as entitled below:

Location of Pressure Ports . . . . . . . . . . . . AE 4-1094 Design Considerations for Refrigerant

Mounting Parts . . . . . . . . . . . . . . . . . . AE 4-1111 Receivers . . . . . . . . . . . . . . . . . . AE 17-1212
Cooling Requirements . . . . . . . . . . . . . . AE 4-1135 High Pressure Controls . . . . . . . . . . . . . AE 17-1214
Oil Pumps . . . . . . . . . . . . . . . . . . . . AE 4-1166 Non-Standard Applications . . . . . . . . . . . . AE 17-1233
Tandem Compressors. . . . . . . . . . . . . . . AE 4-1167 Low Ambient Operation . . . . . . . . . . . . . AE 17-1234
Discharge Line Mufflers . . . . . . . . . . . . . . AE 4-1181 Parallel Compressor Operation . . . . . . . . . AE 17-1235
Bolt Torque . . . . . . . . . . . . . . . . . . . . AE 4-1219 Application of Immersion Type
Crankcase Heaters. . . . . . . . . . . . . . AE 17-1238
U.L. and C.S.A. File Data . . . . . . . . . . . . . AE 4-1255
System Design for Bulk Milk Tank
Motor Horsepower versus Refrigeration . . . . . . . . . . . . . . . . . AE 17-1242
Compressor Efficiency. . . . . . . . . . . . . AE 4-1274
Air to Air Heat Pump System Design . . . . . . . AE 17-1243
Oil Charges. . . . . . . . . . . . . . . . . . . . AE 4-1281
Refrigeration Oils . . . . . . . . . . . . . . . . AE 17-1248
HFC R134a Refrigerant Guidelines . . . . . . . . AE 4-1295
Design Considerations for High Ambient
Oil Pressure Safety Controls . . . . . . . . . . . AE 8-1095 Conditions . . . . . . . . . . . . . . . . . . AE 17-1251
Sentronic – Electronic Oil Pressure Control . . . . AE 8-1275 Design Considerations for Heat
Terminal Plate Connections for Dual Winding Reclaim Systems . . . . . . . . . . . . . . AE 17-1252
Compressors . . . . . . . . . . . . . . . . . AE 9-1076 System Design for Container Refrigeration . . . . AE 17-1257
Nameplate Amperage Rating . . . . . . . . . . . AE 9-1154 Compressor Overheating . . . . . . . . . . . . AE 17-1260
Single Phase Motors – Frequent Causes Compressor Selection for Mobile or Transport
of Failure . . . . . . . . . . . . . . . . . . . AE 9-1209 Applications . . . . . . . . . . . . . . . . . AE 17-1261
Nameplate Voltages . . . . . . . . . . . . . . . AE 9-1228 Compressor Short Cycling . . . . . . . . . . . . AE 17-1262
Power Factor Correction With Capacitors . . . . . AE 9-1249 Air to Water Heat Pump Cycles . . . . . . . . . AE 17-1263
Maximum Continuous Current Rating . . . . . . . AE 9-1250 Compression Ratio as it Affects Compressor
Effect of Electrical Components on Motor Reliability . . . . . . . . . . . . . . . . . . AE 17-1268
Protection . . . . . . . . . . . . . . . . . . AE 10-1187 Oil Additives . . . . . . . . . . . . . . . . . . . AE 17-1282
Single versus Two Contactor Selection for Switching Refrigerants in Field Installations . . . AE 17-1284
Model 4D and 6D Compressors . . . . . . . AE 10-1225
Transport Refrigeration Manual . . . . . . . . . AE 20-1152
Recommended Contactor Selection and
System Design for Three Phase Low Limit Pressure Controls for Low
Motor Protection . . . . . . . . . . . . . . . AE 10-1244 Temperature Truck Applications. . . . . . . . AE 20-1197
Solid State Motor Protection . . . . . . . . . . . AE 10-1264 Hot Gas Bypass Systems . . . . . . . . . . . . AE 21-1160
Potential Nuisance Field Problem with Internal Capacity Control Valves . . . . . . . . AE 21-1216
Impedance Lockout Relays on Solid State Liquid Refrigerant Control . . . . . . . . . . . . AE 22-1182
Protected Compressors . . . . . . . . . . . AE 10-1267 Off Cycle Motor Heat for Liquid Refrigerant
Copeland Supplied Run Capacitors . . . . . . . AE 10-1272 Migration Control . . . . . . . . . . . . . . . AE 22-1230
Suction Accumulators . . . . . . . . . . . . . . AE 11-1147 Recommended Control Circuits for Liquid
Suction Accumulators for Heat Pump Refrigerant Control . . . . . . . . . . . . . AE 23-1221
Applications . . . . . . . . . . . . . . . . . AE 11-1247 System Cleaning . . . . . . . . . . . . . . . . AE 24-1105
Effect of Defrost Control on Compressor Air Cycle Testing . . . . . . . . . . . . . . . . AE 25-1068
Operation . . . . . . . . . . . . . . . . . . AE 17-1195 Safe Handling of Compressed Gases . . . . . . AE 25-1177
Use of Reclaimed Refrigerant . . . . . . . . . . AE 25-1290

198
HFC COPELAND DISCUS™ COMPRESSORS

SINGLE COMPRESSOR NOMENCLATURE

Product
Primary Application Range Compressor Motor Type Variations
R = ARI High Temperature, Rated @ 45/130 °F
Phase Motor Type Code Bill of Material numbers will be
F = ARI Low Temperature, Rated @ -25/105 °F
Three Six lead part winding F assigned as follows:
or across the line. Number –100 is standard compressor
Three Miscellaneous three phase T used in Copeland® brand products
condensing units.
Compressor Model Type • Single voltage three lead Number –200 indicates a standard
Code Description • Single voltage six lead on compressor.
500-3-50, 575-3-60; 20 HP,
D Copeland Discus™ 14.9 kW and up. Numbers –201 through 299 will be
• Dual voltage nine lead. assigned for all other variations of a given
model.

Capacity Multiplier
K - 1,000
M- 10,000

X X X X X X X X X — X X X —X X X

Nominal Capacity Electrical Codes

Compressor at Rating Condition Compressor Motor Protection
Family Series Type Code 50 HZ 60 HZ Code
Two numeric characters
A number Internal inherent protection – F — 230-1 B
established One protector, use with 200/220-3 208/230-3 C
for each contactor 380/420-3 460-3 D
product (single or three phase). 500-3 575-3 E
model. 200/380/400-3 208/230/460-3 K
Internal thermal protectors – S
Three electronic sensors and 380/420-3 — M
one external solid state 200/380/400-3 230/460-3 N
control module, use with — 200-3 U
Displacement contactor (three phase).
and
Valve Plate
A letter only,
arbitrarily
assigned for Oil Type
each different “O” Mineral Oil
displacement “E” POE Oil
and valve plate
“L” Less Oil
combination
within any one
family series.

Model
Variations
A number or
letter arbitrarily
assigned to
indicate major
variations
within any one
family series.

199
HFC COPELAND DISCUS™ COMPRESSORS

TANDEM COMPRESSOR NOMENCLATURE

Compressor Motor Type Product
Primary Application Range Variations
R = ARI HighTemperature, Rated @ 45/130 °F Phase Motor Type Code
F = ARI Low Temperature, Rated @ -25/105 °F Three Six lead part winding F Bill of Material numbers will be
or across the line. assigned as follows:
Number –200 indicates a standard
Three Miscellaneous three phase T
compressor.
• Single voltage three Numbers –201 through 299 will be
lead.
assigned for all other variations of a given
Compressor • Single voltage six lead model.
Family Series on 500-3-50, 575-3-60;
40 HP, 29.8 kW, and up.
A number
established for • Dual voltage nine lead.
second model
in the tandem.

XXXXXXXXXX— XXX —XXX

Compressor Compressor Motor Protection Electrical Codes

Family Series Type Code 50 HZ 60 HZ Code
A number
established for Internal inherent protection – F 200/220-3 208/230-3 C
first model in One protector, use with 380/420-3 460-3 D
the tandem. contactor (three phase).
500-3 575-3 E
Nominal Capacity Internal thermal protectors – S
Three electronic sensors and 200/380/400-3 208/230/460-3 K
at Rating Condition
one external solid state control 380/420-3 — M
Two numeric characters module, use with contactor 200/380/400-3 230/460-3 N
(three phase). — 200-3 U
Compressor
Cooling Description
Code Description
D Discus

Displacement
and Valve Plate
A letter only, arbitrarily
assigned for each
different displacement -
valve plate combination Capacity Multiplier Oil Type
within any one family K - 1,000 “O” Mineral Oil
series.
M- 10,000 “E” POE Oil
“L” Less Oil

Model
Variations
A number
arbitrarily
assigned to
indicate major
variations
within any one
family series.

200
COPELAND EMPLOYEES WAIT AT THESE
WORLDWIDE LOCATIONS TO SERVE YOU

MANUFACTURING LOCATIONS CARACAS, VENEZUELA

SIDNEY, OHIO U.S.A. SÃO PAULO, BRAZIL
SHELBY, NORTH CAROLINA U.S.A. BUENOS AIRES, ARGENTINA
RUSHVILLE, INDIANA U.S.A. SYDNEY, AUSTRALIA
HARTSELLE, ALABAMA U.S.A. YOKOHAMA, JAPAN
LEBANON, MISSOURI U.S.A. SEOUL, SOUTH KOREA
AVA, MISSOURI U.S.A. TAIPEI, TAIWAN
BRANTFORD, ONTARIO CANADA SHENYANG, CHINA
REYNOSA, MEXICO SHANGHAI, CHINA
SHENYANG, CHINA BEIJING, CHINA
SUZHOU, CHINA GUANGZHOU, CHINA
RAYONG, THAILAND HONG KONG
KARAD, INDIA JAKARTA, INDONESIA
ATIT, INDIA BANGKOK, THAILAND
KOLIN, CZECH REPUBLIC KUALA LUMPUR, MALAYSIA
BERLIN, GERMANY KARAD, INDIA
WELKENRAEDT, BELGIUM DUBAI, UAE
THATCHAM, UNITED KINGDOM VAEDERSTAD, SWEDEN
COOKSTOWN, NORTHERN IRELAND BERLIN, GERMANY
TECHNICAL ASSISTANCE FRANKFURT, GERMANY
LOCATIONS MILANO, ITALY
SIDNEY, OHIO U.S.A. ECULLY, FRANCE
MIAMI, FLORIDA U.S.A. NUENEN, NETHERLANDS
BRANTFORD, ONTARIO CANADA WELKENRAEDT, BELGIUM
MEXICO CITY, MEXICO THATCHAM, UNITED KINGDOM
BARCELONA, SPAIN
Form 95-50 R2 Revised 1/08
Emerson, Copeland, Copelametic, and Copeland Discus are trademarks of Emerson EMERSON CLIMATE TECHNOLOGIES, INC., 1675 W. CAMPBELL ROAD
SIDNEY, OHIO 45365-0669 USA
Electric Co. or one of its affiliated companies. ©1995 Emerson Climate Technologies,
Inc. All rights reserved. Printed in the USA. Telephone 937-498-3011 Telefax 937-498-3793
SEMI-HERMETIC COMPRESSORS

1
For more free Copeland literature please visit [Link]

Refrigerant
Changeover Guidelines
CFC R-502 to HFC R-404A/R-507
Leading the Industry with Environmentally
Responsible Refrigerant Solutions
Copeland does not ad- 4. R-404A/R-507 can be used in either low or medium
CFC
vocate the wholesale temperature systems. R-404A/R-507 should not be
changeover of CFC mixed with any other refrigerant!
HCFC refrigerants to HCFCs
HFC 5. The expansion valves will probably need to be
or HFCs. If a system is
changed. New power heads and larger orifices will
not leaking refrigerant
likely be required. The valve manufacturers should be
to the atmosphere, and is operating properly, there is no
consulted for the exact details.
technical reason to replace the CFC refrigerant. In fact,
changing the refrigerant may void the U.L. listing of the 6. Filter-driers must be changed at the time of conversion.
system. However, once the decision has been made to This is proper air conditioning/refrigeration practice.
make the change from CFC R-502 to HFC R-404A or
R-507, the following guidelines are recommended. a. Solid core driers such as Emerson Climate
Technologies ADK are compatible with either R-502
CONSIDERATIONS or R-404A/R-507.
1. Retrofitting systems that employ compressors b. Compacted bead type driers can use XH6 or XH9
manufactured prior to 1973 is not recommended. This molecular sieve material such as found in the Emerson
is due to the different materials used in motor insulation Climate Technologies EK or EKH series.
systems that have not been evaluated for compatibility
with the new refrigerants and lubricants. Failure to c. If a loose fill type drier is to be used, XH9 molecular
heed this advice will violate the U.L. Standard For sieve material is required.
Field Conversion/Retrofit Of Alternate Refrigerants In 7. Pressure regulators such as EPR valves may have
Refrigeration and Air Conditioning Equipment (U.L.2170- to be reset. Contact the EPR manufacturer for the cor-
2172). rect settings.
2. Copeland's lubricant recommendation for use with 8. R-404A/R-507 exhibits higher pressures than R-502
R-404A/R-507 is a Polyol Ester (POE), for a complete at normal condensing temperatures. This may require
list of Copeland approved lubricants refer to Form that the high pressure safety controls be reset in order
93-11. These are the only POE lubricants approved for to operate as intended.
use in Copeland compressors and are available from all
authorized Copeland wholesalers. The use of any other 9. The higher pressure characteristics exhibited by
POE lubricant may void the compressor warranty. R-404A/R-507 will in some cases exceed the industry
accepted safety factors on the compressor crankcase
3. Compressor capacity will be comparable to R-22 in (low side). This will require the addition of a pressure
medium temperature applications. However, there can relief valve on the compressor crankcase, set at a maxi-
be a significant increase in compressor capacity for mum of 375 psig to adequately protect the compressor
low temperature applications. This could result in the from the possibility of excessive pressure. Pressure
condenser being undersized. relief valves can be purchased from your Authorized
It is important that the system contain not more than Copeland wholesaler as part number 998-0051-02.
5% residual mineral oil. More than 5% may contribute Copeland semi-hermetic compressors that require this
to premature compressor failure and/or system capacity additional valve are:
short-fall. Because mineral oils are not miscible with R- * Discus® 3D, 4D, 9D and MD
404A/R-507, they may log in the evaporator resulting in
system capacity loss. It is for this reason that the flushing * All Other Semi-Hermetic (Non-Discus Models)
process must be done with the R-502 in the system.

WARNING: Use only Copeland approved refrigerants and lubricants in the manner prescribed by Copeland.
In some circumstances, other refrigerants and lubricants may be dangerous and could cause fires, explo-
sions or electrical shorting. Contact Copeland Corp., Sidney, Ohio for more information.
WARNING: IT IS POSSIBLE THAT EXCESS PRES- 2. For low temperature ZF Scroll compressors, the
SURE BUILD-UP ON MODELS INDICATED COULD liquid injection requirements are different and the
RESULT IN THE COMPRESSOR BURSTING UNLESS proper cap tube or DTC valve must be used.
THE PRESSURE RELIEF VALVE SPECIFIED HAS
Consult your Copeland wholesaler for the proper part
BEEN PROPERLY INSTALLED ON THE ORIGINALLY
numbers.
BUILT COPELAND COMPRESSOR.
1. The system should be thoroughly leak tested with
10. Systems that use a low pressure controller to maintain
the R-502 refrigerant still in the system. All leaks should
space temperature may need to have the cut in and cut
be repaired before the R-404A/R-507 refrigerant is
out points changed. Although R-404A/R-507 does exhibit
added.
“glide”, the average evaporator or condenser tempera-
ture is within 0.5ºF of the saturated vapor temperature; 2. It is advisable that the system operating conditions
therefore no correction is required. be recorded with the R-502 still in the system. This will
provide the base data for comparison when the system
11. Systems using R-404A/R-507 should have approxi-
is put back into operation with the R-404A/R-507.
mately the same system pressure drop as with R-502.
Check with the manufacturer of any pressure regulators 3. It is necessary to thoroughly remove the existing min-
and pilot operated solenoid valves used in the system eral oil lubricant from the system before the refrigerant is
to be sure that they will operate properly. changed. No more than 5% residual mineral oil may be
left in the system when it is recharged with R-404A/R-
12. Mineral oil lubricants, such as 3GS, must not be
507 for proper compressor operation. No more than 1
used as the compressor lubricant with R-404A/R-
to 2% residual mineral oil may be required to assure no
507. Polyol Ester (POE) lubricant, for a complete
loss of heat transfer if enhanced tube heat exchangers
list of Copeland approved lubricants refer to Form
are used in the system.
93-11, are the only lubricants that can be used in a
Copeland compressor when using R-404A/R-507. I. Systems with service valves
Before starting the changeover, it is suggested that at a. Disconnect electrical power to system.
least the following items be readily available:
b. Front seat the service valves to isolate the com-
1. Safety glasses pressor.
2. Gloves c. Properly remove the R-502 from the compressor.
3. Refrigerant service gauges
d. Remove the mineral oil lubricant from the compres-
4. Electronic thermometer
sor. Hermetic compressors will have to be removed
5. Vacuum pump capable of pulling 250 microns
from the system and tipped up to drain the lubricant
6. Thermocouple micron gauge
out through the suction/process fitting.
7. Leak detector
8. Refrigerant recovery unit including refrigerant e. Those systems that have oil separators, oil reser-
cylinder voirs, oil floats and suction line accumulators must
9. Proper container for removed lubricant have the mineral oil drained from them. Add POE
10. New liquid control device lubricant to the oil separator and to the oil reservoir.
11. Replacement liquid line filter-drier(s) f. Replace the liquid line filter-drier with one that is
12. New POE lubricant compatible with R-404A/R-507.
13. R-404A/R-507 pressure temperature chart g. Fill the compressor with the proper amount of
14. R-404A/R-507 refrigerant POE lubricant. The oil charge is on the label of
the compressors. If the lubricant charge is unknown,
CHANGEOVER PROCEDURE an authorized Copeland wholesaler can provide the
technician with the information.
NOTE: 1. R-404A/R-507 is not compatible with the
h. Reinstall the compressor in the system. Evacuate
seal material used in the R-22 Moduload Unloading
it to 250 microns. A vacuum decay test is suggested
System. If your system has Moduload, the valve
to assure the system is dry and leak free.
plate assembly MUST be changed.
i. Recharge the system with R-502.
j. Operate the compressor in the system for a minimum of 24 hours. On large systems with long piping runs,
of 24 hours. On large systems with long piping runs, experience indicates operating for several days to
experience indicates operating for several days to allow for thorough mixing of the remaining mineral oil
allow for thorough mixing of the remaining mineral oil and POE will minimize the number of flushes.
and POE will minimize the number of flushes. k. Repeat steps [Link].a through j until the residual
k. Repeat steps 3.I.a through j until the residual min- mineral oil is less than 5%.
eral oil is less than 5%. This may require two flushes l. To date, three complete flushes of the lubricant
of the system’s lubricant. lowers the mineral oil to 5% or less in the system. To
l. In most cases, three complete flushes of the lubri- be sure of the mineral oil content between flushes and
cant lowers the mineral oil to the desired percentage to be sure that the system ultimately has 5% or less
or less in the system. To be sure of the mineral oil mineral oil, test kits are available from Virginia KMP
content between flushes and to be sure that the or Nu Calgon. A Refractometer may also be used to
system ultimately has 5% or less mineral oil, test determine the residual mineral oil in the system. The
kits are available from Virginia KMP or Nu Calgon. Refractometer (P/N 998-RMET-00) is available from
A Refractometer may also be used to determine the the Copeland Wholesaler.
residual mineral oil in the system. The Refractometer [Link] dispose of the lubricant after each
(P/N 998-RMET-00) is available from your Copeland flush.
Wholesaler.
4. With the proper amount of polyol ester in the system,
m. Properly dispose of the lubricant removed from the R-502 can now be removed. Measure and note the
the system after each flush. amount removed.
II. Systems without service valves
5. Before the final flush, be sure all leaks are repaired,
a. Disconnect electrical power to system. liquid control devices and any other system components
b. Properly remove the R-502 from the system. are changed. Install the correct liquid line filter-drier.
Driers must be compatible with the refrigerant and
c. Remove the mineral oil lubricant from the compres-
lubricant.
sor. Hermetic compressors will have to be removed
from the system and tipped up to drain the lubricant 6. Be advised that POEs are very hygroscopic. They
out through the suction/process fitting. will very quickly absorb moisture from the air once
d. It may be advisable to add service valves at the the container is opened. Once the lubricant is added
compressor suction and discharge connections. The to the compressor, the compressor should be quickly
compressor will have to have its lubricant changed installed. Like an open container, an open compressor
generally three times. with POE will absorb moisture. Add the correct amount
of lubricant to the compressor. It is important that the
e. Those systems that have oil separators, oil reser-
system contain not more than 5% mineral oil. More than
voirs, oil floats and suction line accumulators must
5% may contribute to premature compressor failure
have the mineral oil drained from them. Add POE
and/or system capacity problems. Mineral oils are not
lubricant to the oil separator and to the oil reservoir.
miscible with R-404/R-507. The lubricant may log in the
f. Replace the liquid line filter-drier with one that is evaporator resulting in system capacity loss. It is for this
compatible with R-404A/R-507. reason that the flushing process must be done with the
g. Fill the compressor with the proper amount of R-502 in the system.
POE lubricant. The oil charge is on the label of the
7. Once the compressor is installed and the system is
compressors. If the lubricant charge is unknown, an
closed, the system must be evacuated to and hold 250
authorized Copeland wholesaler can provide the
microns or lower.
technician with the information.
h. Reinstall the compressor in the system. Evacuate 8. Charge the system with the R-404A/R-507. Charge to
it to 250 microns. A vacuum decay test is suggested 90% of the refrigerant removed in item 4. R-404A/R-507
to assure the system is dry and leak free. must leave the charging cylinder in the liquid phase. It
is suggestd that a sight glass be connected between
i. Recharge the system with R-502.
the charging hose and compressor suction service
j. Operate the compressor in the system for a minimum
valve. This will permit adjustment of the cylinder valve 11. Clean up and properly dispose of the removed lubri-
to assure the refrigerant enters the compressor in the cant. Check local and state laws regarding the disposal
vapor state. of refrigerant lubricants. Recycle or reclaim the removed
refrigerant.
9. Operate the system. Record the data and compare
to the data taken in item 2. Check and adjust the TEV CAUTION: These guidelines are intended for use
superheat setting if necessary. Make adjustments to other with R-404A and/or R-507 only. Other refrigerants
controls as needed. Additional R-404A/R-507 may have may not be compatible with the materials used in our
to be added to obtain optimum system performance. compressors or the lubricants recommended in this bul-
letin resulting in unacceptable reliability and durability
10. Properly label the components. Tag the compres-
of the compressor.
sor with the refrigerant used (R-404A/R-507) and the
lubricant used. The proper color code for R-404A is
Pantone Orange PMS (Paint Matching System) 021C;
for R-507, Teal, PMS 326.
R-404A/507 Pressure/Temperature Chart

Vapor Vapor Vapor Vapor Vapor Vapor Vapor Vapor Vapor

Pressure Temp. ºF Temp ºF Pressure Temp. ºF Temp ºF Pressure Temp. ºF Temp ºF
PSIG R-404A R- 507 PSIG R-404A R- 507 PSIG R-404A R- 507

0 -50 -52.1 41 8 5.5 82 38.2 35.4

1 -48 -49.7 42 9 6.4 83 38.8 36
2 -46 -47.3 43 10 7.3 84 39.4 36.6
3 -43.5 -46 44 11 8.2 85 40 37.2
4 -41 -43 45 11.5 9 86 40.6 37.8
5 -39 -41 46 12 9.9 87 41.2 38.4
6 -37 -39 47 13 10.7 88 41.8 39
7 -35 -37 48 14 11.6 89 42.4 39.5
8 -33 -35.3 49 15 12.3 90 43 40.1
9 -31.5 -33.5 50 16 13.2 91 43.4 40.7
10 -30 -31.8 51 16.5 14 92 43.8 41.2
11 -28 -30.2 52 17 14.8 93 44.2 41.8
12 -26 -28.6 53 18 15.6 94 44.6 42.4
13 -24.5 -27 54 19 16.4 95 45 42.9
14 -23 -25.5 55 19.5 17.2 96 45.6 43.4
15 -21.5 -24 56 20 17.9 97 46.2 44
16 -20 -22.6 57 21 18.7 98 46.8 44.5
17 -19 -21.2 58 22 19.4 99 47.4 45.1
18 -18 -19.8 59 22.5 20.2 100 48 45.6
19 -16.5 -18.4 60 23 20.9 101 48.6 46.1
20 -15 -17.1 61 24 21.6 102 49.2 46.7
21 -13.5 -15.8 62 25 22.3 103 49.8 47.2
22 -12 -14.6 63 25.5 23.1 104 50.4 47.7
23 -11 -13.4 64 26 23.8 105 51 48.2
24 -10 -12.2 65 27 24.5 106 51.4 48.7
25 -8.5 -11 66 28 25.2 107 51.8 49.2
26 -7 -9.8 67 28.5 25.8 108 52.2 49.7
27 -6 -8.7 68 29 26.5 109 52.6 50.2
28 -5 -7.5 69 29.5 27.2 110 53 50.7
29 -4 -6.4 70 30 27.9 115 56 53.2
30 -3 -5.4 71 31 28.5 120 58 55.6
31 -2 -4.3 72 32 29.2 125 60 57.9
32 -1 -3.3 73 32.5 29.8 130 63 60.1
33 0 -2.2 74 33 30.5 135 65 62.3
34 1 -1.2 75 33.5 31.1 140 67 64.4
35 2 -0.2 76 34 31.7 145 69 66.5
36 3 0.8 77 34.5 32.4 150 71 68.6
37 4 1.7 78 35 33 155 73 70.6
38 5 2.7 79 36 33.6 160 75 72.5
39 6 3.6 80 37 34.2 165 77 74.4
40 7 4.6 81 37.6 34.8 170 79 76.3
Chart continued next page
R-404A/507 Pressure/Temperature Chart
Vapor Vapor Vapor Vapor Vapor Vapor
Pressure Temp. ºF Temp ºF Pressure Temp. ºF Temp ºF
PSIG R-404A R- 507 PSIG R-404A R- 507

Continued from previous 290 115 112.4

175 81 78.1 295 116.5 113.6
180 82 79.9 300 118 114.8
185 84 81.7 305 119 116
190 86 83.4 310 120 117.2
195 88 85.1 315 121 118.4
200 89 86.7 320 122 119.6
205 90.5 88.3 325 123.5 120.7
210 92 89.9 330 125 121.8
215 94 91.5 335 126 123
220 96 93.1 340 127 124.1
225 97.5 94.6 345 128 125.2
230 99 96.1 350 129 126.3
235 100.5 97.5 355 130.5 127.3
240 102 99 360 132 128.4
245 103 100.4 365 133 129.4
250 104 101.8 370 134 130.5
255 105.5 103.2 375 135 131.5
260 107 104.6 380 136 132.5
265 108.5 105.9 385 137 133.5
270 110 107.2 390 138 134.5
275 111.5 108.6 395 139 135.5
280 113 109.8 400 140 136.4
285 114 111.1

Note: Saturated Vapor Temperatures are shown. The average evaporator or con-
denser temperature is within .5° F of the saturated vapor temperature; therefore,
no correction is required.

The information contained herein is based

on technical data and tests which we be-
lieve to be reliable and is intended for use
by persons having technical skill, at their
own discretion and risk. Since conditions of
use are beyond Copeland’s control, we can
assume no liability for results obtained or
damages incurred through the application
of the data presented.
1675 W. Campbell Road
Sidney, OH 45365-0669
(937) 498-3011
[Link]

Form No. 94-15 R5 Revised 6/05

Emerson Climate Technologies and the Emerson Climate Technologies logo are trademarks and service marks of
Emerson Electric Co. Copeland is a registered trademark of Emerson Electric. All other trademarks are property of
their respective owners. © 2005 Copeland Corporation. Printed in the USA.
For more free Copeland literature please visit [Link]

Refrigerant
Changeover Guidelines
CFC-12 to HFC-134a
Leading the Industry with Environmentally
Responsible Refrigerant Solutions
Copeland does not ad- valves can result in hunting and refrigerant ﬂoodback.
CFC
vocate the wholesale Consult with the thermostatic expansion valve manu-
changeover of CFC facturer for the correct valve and size.
HCFC refrigerants to HCFCs
HFC 6. Filter-driers must be changed at the time of conversion.
or HFCs. If a system is
This is proper air conditioning/refrigeration practice.
not leaking refrigerant
to the atmosphere, and is operating properly, there is no a. The recommended drier for use with all HFC refriger-
technical reason to replace the CFC refrigerant. Chang- ants is Emerson Climate Technologies UltraFlow.
ing the refrigerant may void the U.L. listing of the unit.
However, once the decision has been made to make b. Solid core driers such as Emerson Climate
the change from CFC-12 (R-12) to HFC-134a (R-134a), Technologies ADK are compatible with either R-12 or
the following guidelines are recommended. R-134a.

c. Compacted bead type driers can use XH6 or XH9

molecular sieve material such as found in the Emerson
CONSIDERATIONS Climate Technologies UK series.
1. Retrofitting systems that employ compressors manu- d. If a loose fill type drier is to be used, XH9 molecular
factured prior to 1973 is not recommended. This is due sieve is required.
to the different materials used in motor insulation that
have not been evaluated for compatibility with the new 7. R-134a exhibits marginally higher pressures than R-12
refrigerants and lubricants. Failure to heed this advice at normal condensing temperatures. We do not believe
will violate the U.L. Standard For Field Conversion/Ret- this will require readjustment of safety controls; however,
rofit Of Alternate Refrigerants In Refrigeration and Air you should verify this with the system manufacturer or
Conditioning Equipment (U.L. 2170-2172). component suppliers.

2. Copeland’s lubricant recommendation for use with 8. Systems that use a low pressure controller to maintain
HFC-134a is a Polyol Ester (POE), for a complete list space temperature may need to have the cut-in and
of Copeland approved lubricants refer to Form 93-11. cut-out points changed due to the difference in Pres-
The use of any other POE lubricant may void the com- sure/Temperature relationships.
pressor warranty. 9. Systems using R-134a may have a lower system
3. Compressor capacity will be comparable to R-12 in pressure drop than with R-12. Because of the lower pres-
medium temperature applications. However, there can sure drop, check with the manufacturer of any pressure
be a signiﬁcant increase in compressor capacity for regulators and pilot operated solenoid valves used in the
low temperature applications. This could result in the system to be sure that they will operate with the lower
condenser being undersized. pressure drop. It is possible that these controls may have
to be downsized in order to operate properly.
4. R-134a should be used only in systems where the
saturated suction temperature is maintained at -10°F 10. Mineral oil lubricants, such as 3GS, must not
or higher. It should not be mixed with any other be used as the compressor lubricant. Polyol Es-
refrigerant! ter (POE) lubricants are the only lubricants that
can be used in a Copeland compressor when
5. The expansion valve may need to be changed. The using R-134a.
existing R-12 valve when used with R-134a will have
approximately 15% more capacity. Oversized expansion

1. Safety glasses c. Properly remove the R-12 from the compressor.

2. Gloves d. Remove the mineral oil lubricant from the compressor.

Hermetic compressors will have to be removed from the
3. Refrigerant service gauges
system and tipped up to drain the lubricant out through
4. Electronic thermometer the suction stub.

5. Vacuum pump capable of pulling 250 microns e. Those systems that have oil separators, oil reservoirs,
oil ﬂoats and suction line accumulators must have the
6. Thermocouple micron gauge mineral oil drained from them. Add POE lubricant to the
7. Leak detector oil separator and to the oil reservoir.

8. Refrigerant recovery unit including refrigerant f. Replace the liquid line ﬁlter-drier with one that is
cylinder compatible with R-134a.

9. Proper container for removed lubricant g. Fill the compressor with the proper amount of POE
lubricant. The oil charge is on the label of the compres-
10. New liquid control device sors. If the lubricant charge is unknown, an authorized
11. Replacement liquid line ﬁlter-drier(s) Copeland wholesaler can provide the technician with
the information.
12. New lubricant, Copeland approved
h. Reinstall the compressor in the system. Evacuate it
13. R-134a pressure temperature chart to 250 microns. A vacuum decay test is suggested to
assure the system is dry and leak free.
14. R-134a refrigerant
i. Recharge the system with R-12.

j. Operate the compressor in the system for a minimum

CHANGEOVER PROCEDURE
of 24 hours, one to two weeks maximum.
Consult your Copeland wholesaler for the proper part
k. Repeat steps 3.I.a through j two more times. This will
number.
have provided three flushes of the system’s lubricant.
1. The system should be thoroughly leak tested with
l. To date, three complete flushes of the lubricant has
the R-12 still in the system. All leaks should be repaired
shown to lower the mineral oil content down to 5% or
before the R-134a refrigerant is added.
less in the system. To be sure of the mineral oil content
2. It is advisable that the system operating conditions between flushes and to be sure that the system ultimately
be recorded with the R-12 still in the system. This will has 5% or less mineral oil, Copeland recommends the
provide the base data for comparison when the system use of a refractometer.
is put back into operation with the R-134a.
m. Properly dispose of the lubricant removed from the
3. It is necessary to thoroughly remove the existing min- system after each flush.
eral oil lubricant from the system before the refrigerant
II. Systems without service valves
is changed. No more than 5% residual mineral oil may
be left in the system when it is recharged with R-134a a. Disconnect electrical power to system.
for proper compressor operation. No more than1 to 2%
residual mineral oil may be required to assure no loss b. Properly remove the R-12 from the system.
of heat transfer if enhanced tube heat exchangers are c. Remove the mineral oil lubricant from the compressor.
used in the system. Hermetic compressors will have to be removed from the
I. Systems with service valves system and tipped up to drain the lubricant out through
the suction stub.
a. Disconnect electrical power to system.
d. It may be advisable to add service valves at the 6. Be advised that POEs are very hygroscopic. They
compressor suction and discharge connections. The will very quickly absorb moisture from the air once the
compressor will have to have its lubricant changed container is opened. Once the lubricant is added to the
generally three times. compressor, the compressor should be quickly installed.
Like an open container, an open compressor with POE
e. Those systems that have oil separators, oil reservoirs,
will absorb moisture. Add the correct amount of lubri-
oil floats and suction line accumulators must have the
cant to the compressor. It is important that the system
mineral oil drained from them. Add POE lubricant to the
contain not more than 5% mineral oil. More than 5%
oil separator and to the oil reservoir.
may contribute to premature compressor failure and/or
f. Replace the liquid line filter-drier with one that is system capacity problems. Mineral oils are not miscible
compatible with R-134a. with R-134a. The lubricant may log in the evaporator
resulting in system capacity loss. It is for this reason
g. Fill the compressor with the proper amount of POE that the flushing process must be done with the R-12
lubricant. The oil charge is on the label of the compres- in the system.
sors. If the lubricant charge is unknown, an authorized
Coeland wholesaler can provide the technician with 7. Once the compressor is installed and the system is
the information. closed, the system must be evacuated to and hold 250
microns or lower.
h. Reinstall the compressor in the system. Evacuate it
to 250 microns. A vacuum decay test is suggested to 8. Charge the system with the R-134a. Charge to 90%
assure the system is dry and leak free. of the refrigerant removed in item 4.

i. Recharge the system with R-12. 9. Operate the system. Record the data and compare
to the data taken in item 2. Check and adjust the TEV
j. Operate the compressor in the system for a minimum superheat setting if necessary. Make adjustments to
of 24 hours, longer is better. other controls as needed. Additional R-134a may have
k. Repeat steps [Link].a through j two more times. This will to be added to obtain optimum system performance.
have provided three flushes of the system's lubricant. 10. Properly label the components. tag the compressor
l. To date, three complete flushes of the lubricant has with the refrigerant used (R-134a) and the lubricant used
shown to get the mineral oil content down to 5% or The proper color code for R-134a is Light Sky Blue PMS
less in the system. To be sure of the mineral oil level (Paint Matching System) 2975.
between flushes and to be sure that the system has 5% 11. Clean up and properly dispose of the removed
or less mineral oil, Copeland recommends the use of lubricant. Check local and state laws regarding the
a refractometer (P/N 998-RMET-00) is available from disposal of refrigerant lubricants. Recycle or reclaim
your Copeland Wholesaler. the removed refrigerant.
4. With the proper amount of polyol ester in the system, CAUTION: These guidelines are intended for use with
the R-12 can now be removed. Measure and note the R-134a only, not for refrigerants which are similar to
amount removed. R-134a. Other refrigerants may not be compatible with
5. Before the final flush, be sure all leaks are repaired, the materials used in our compressors or the lubricants
liquid control devices and any other system components recommended in this bulletin resulting in unacceptable
are changed. Install the correct liquid line filter-drier. reliability and durability of the compressor.
Driers must be compatible with the refrigerant and Note: Retrofit videos are available from your
lubricant. Authorized Copeland Wholesaler. Ask for VT-026.
P-134a Saturated Vapor/Liquid
Temperature/Pressure Chart
Temperature Pressure Temperature Pressure
°F PSIG °F PSIG
-10 1.8
-9 2.2
-8 2.6 30 25.6
-7 3.0 31 26.4
-6 3.5 32 27.3
-5 3.9 33 28.1
-4 4.4 34 29.0
-3 4.8 35 29.9
-2 5.3 40 34.5
-1 5.8 45 39.5
50 44.9
0 6.2 55 50.7
1 6.7
2 7.2 60 56.9
3 7.8 65 63.5
4 8.3 70 70.7
5 8.8 75 78.3
6 9.3 80 86.4
7 9.9 85 95.0
8 10.5 90 104.2
9 11.0 95 113.9
100 124.3
10 11.6 105 135.2
11 12.2
12 12.8 110 146.8
13 13.4 115 159.0
14 14.0 120 171.9
15 14.7 125 185.5
16 15.3 130 199.8
17 16.0 135 214.8
18 16.7
19 17.3

20 18.0
21 18.7
22 19.4
23 20.2
24 20.9
25 21.7
26 22.4
27 23.2
28 24.0
29 24.8

The information contained herein is based on technical data and tests which we believe to be reliable and is
intended for use by persons having technical skill, at their own discretion and risk. Since conditions of use are
beyond Copeland’s control, we can assume no liability for results obtained or damages incurred through the
application of the data presented.
1675 W. Campbell Road
Sidney, OH 45365-0669
(937) 498-3011
[Link]

Form No. 93-04 R7 Revised 6/05

C O P E L A N D
S C R O L L ®
C O M P R E S S O R S
5 0 H Z
T H E I N D U S T R Y
B R E A K T H R O U G H

2
Emerson Climate Technologies is the recognized leader in the development of
advanced compressor technology.

All About Scroll Compressors Copeland
No ratings yet
All About Scroll Compressors Copeland
83 pages
Copeland ZR Scroll Compressors For Airconditioning PDF
100% (1)
Copeland ZR Scroll Compressors For Airconditioning PDF
141 pages
38LZA&40LZA
No ratings yet
38LZA&40LZA
2 pages
Central Station Air Handling Units 39 G
No ratings yet
Central Station Air Handling Units 39 G
27 pages
38ah 4pd
No ratings yet
38ah 4pd
76 pages
RAUP THA Commercial R22, R407C 250-6000 MBH 50, 60 HZ Product Catalogue
No ratings yet
RAUP THA Commercial R22, R407C 250-6000 MBH 50, 60 HZ Product Catalogue
68 pages
O6D and O6E Compressor Data and Accessory Guide: Replacement Components Division Carrier Corporation
100% (1)
O6D and O6E Compressor Data and Accessory Guide: Replacement Components Division Carrier Corporation
6 pages
Ymmrzc Catalogue - Ymmrzc (055-250)
No ratings yet
Ymmrzc Catalogue - Ymmrzc (055-250)
4 pages
AC Air Conditioner 300W MCA0300 User Manual
No ratings yet
AC Air Conditioner 300W MCA0300 User Manual
16 pages
Rtaa SB 20
100% (1)
Rtaa SB 20
5 pages
Dsme H.5287 (Prov)
No ratings yet
Dsme H.5287 (Prov)
113 pages
Model J Style G Hermetic Compressors: Maintenance
No ratings yet
Model J Style G Hermetic Compressors: Maintenance
24 pages
Comp Carly Semi Accy 2004
No ratings yet
Comp Carly Semi Accy 2004
26 pages
Optical Oil Level Monitoring System
100% (1)
Optical Oil Level Monitoring System
2 pages
HTS Centrifugal Chiller-2 Start Up Report
No ratings yet
HTS Centrifugal Chiller-2 Start Up Report
9 pages
Carrier 06e Wiring Diagram Combined A
100% (2)
Carrier 06e Wiring Diagram Combined A
1 page
HCCA-PRC001-EN - Apr 2017
No ratings yet
HCCA-PRC001-EN - Apr 2017
8 pages
User Guide: Tracer™ TD7 With UC 800
No ratings yet
User Guide: Tracer™ TD7 With UC 800
24 pages
CARLYLE Part Numbers
No ratings yet
CARLYLE Part Numbers
78 pages
EK Liquid Line Filter Drier and Capacity Table
No ratings yet
EK Liquid Line Filter Drier and Capacity Table
4 pages
CGAM Chiller Technical Details PDF
No ratings yet
CGAM Chiller Technical Details PDF
8 pages
TB6980 and TB7980 Series Catalog Page
No ratings yet
TB6980 and TB7980 Series Catalog Page
2 pages
APK Series: Propeller Fans
No ratings yet
APK Series: Propeller Fans
4 pages
Haier 2020 Technical Manual PDF
No ratings yet
Haier 2020 Technical Manual PDF
216 pages
ATV212 Installation Manual en S1A53832 05
No ratings yet
ATV212 Installation Manual en S1A53832 05
83 pages
Compressor Model Number Guide
No ratings yet
Compressor Model Number Guide
1 page
Rzasg-M2 (7) v1b Databook Eeden17 New Daikin
No ratings yet
Rzasg-M2 (7) v1b Databook Eeden17 New Daikin
37 pages
Edr Designbriefs Chillerplant
No ratings yet
Edr Designbriefs Chillerplant
96 pages
Technical Data: Connection Diagrams Series High Wye
No ratings yet
Technical Data: Connection Diagrams Series High Wye
3 pages
2749 - Carrier 30 GH 095
100% (3)
2749 - Carrier 30 GH 095
16 pages
4he 25y Bitzer 4h 25.2y
No ratings yet
4he 25y Bitzer 4h 25.2y
13 pages
Manual t15fct
No ratings yet
Manual t15fct
16 pages
R410A Mini VRF System Overview
No ratings yet
R410A Mini VRF System Overview
49 pages
30gxn 1w
100% (1)
30gxn 1w
20 pages
YCAB Man
67% (3)
YCAB Man
44 pages
Carlyle 06D Compressor Guide
No ratings yet
Carlyle 06D Compressor Guide
26 pages
Carrier 30RB-22PD Product Data
No ratings yet
Carrier 30RB-22PD Product Data
96 pages
RTAA Air-Cooled Chillers Manual
No ratings yet
RTAA Air-Cooled Chillers Manual
90 pages
150.72-EG1-Engineering Guide-Model YLAA Air-Cooled Scroll Chillers Style A 60 HZ
No ratings yet
150.72-EG1-Engineering Guide-Model YLAA Air-Cooled Scroll Chillers Style A 60 HZ
86 pages
Castel Refrigeration Components Handbook
No ratings yet
Castel Refrigeration Components Handbook
172 pages
Evpd Air Con 1.2 PDF
100% (1)
Evpd Air Con 1.2 PDF
9 pages
Databook NX g06
No ratings yet
Databook NX g06
90 pages
TQ/PHTQ Electronic Valve Parts Update
No ratings yet
TQ/PHTQ Electronic Valve Parts Update
2 pages
H Im 64L
No ratings yet
H Im 64L
48 pages
Im Mmy-Map 4 HT8P PDF
100% (1)
Im Mmy-Map 4 HT8P PDF
35 pages
Exocompact 3rd Gen PRSH en
No ratings yet
Exocompact 3rd Gen PRSH en
5 pages
Voltas Air-Cooled Scroll Chillers
No ratings yet
Voltas Air-Cooled Scroll Chillers
12 pages
Rcuf Az (P) Y1 TC 1 Z0011912-2017-A TC1
No ratings yet
Rcuf Az (P) Y1 TC 1 Z0011912-2017-A TC1
58 pages
Comprehensive Refrigeration System Manual
No ratings yet
Comprehensive Refrigeration System Manual
42 pages
Copeland Compressor Specs
0% (2)
Copeland Compressor Specs
66 pages
Technical YPC
No ratings yet
Technical YPC
6 pages
HVAC Equipment Request for Quotation
No ratings yet
HVAC Equipment Request for Quotation
102 pages
RTHDlost of Oil at Compresor
No ratings yet
RTHDlost of Oil at Compresor
12 pages
Amazon VRF Site Monitor Software Instruction 130131 PDF
No ratings yet
Amazon VRF Site Monitor Software Instruction 130131 PDF
8 pages
ZR Copeland Scroll Manual
No ratings yet
ZR Copeland Scroll Manual
103 pages
Catalogue Emerson
No ratings yet
Catalogue Emerson
129 pages
SGE127 Emerson General Product Catalogue 2015 en 0
No ratings yet
SGE127 Emerson General Product Catalogue 2015 en 0
332 pages
Emerson Digital Scroll-Catalogue 2012 en
No ratings yet
Emerson Digital Scroll-Catalogue 2012 en
256 pages
Catalogue - 2012 - EN Copeland Emerson PDF
100% (1)
Catalogue - 2012 - EN Copeland Emerson PDF
256 pages
General Product Catalogue en 2013 Low
No ratings yet
General Product Catalogue en 2013 Low
296 pages
ST Alban's f5 PHSC Prelim p1 2025 + Memo
100% (1)
ST Alban's f5 PHSC Prelim p1 2025 + Memo
38 pages
Plus Two Onam Exam Master Guide 2025
No ratings yet
Plus Two Onam Exam Master Guide 2025
11 pages
Stainless Steel Grade 303 / 1.4305: Typical Mechanical Properties
No ratings yet
Stainless Steel Grade 303 / 1.4305: Typical Mechanical Properties
2 pages
Of Solar Module Manufacturers:: Solar Industry in India List
No ratings yet
Of Solar Module Manufacturers:: Solar Industry in India List
6 pages
Entropy Notes
No ratings yet
Entropy Notes
8 pages
Calculus Concepts for Students
No ratings yet
Calculus Concepts for Students
48 pages
IET Power Electronics - 2022 - Lee - Optimal Transformer Design of DAB Converters in Solid State Transformers For Maximum
No ratings yet
IET Power Electronics - 2022 - Lee - Optimal Transformer Design of DAB Converters in Solid State Transformers For Maximum
15 pages
MTH1101 Problem Sheet
No ratings yet
