Volume Control Damper

BC 02
Volume Control
Dampers
VCD-GAB-22B
certified
Volume Control Dampers

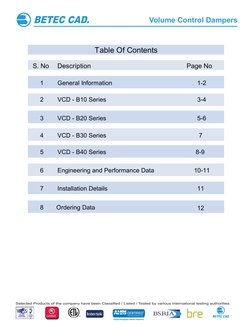

Table Of Contents
S. No Description Page No
1 General Information 1-2
2 VCD - B10 Series 3-4
4 VCD - B30 Series 7
6 Engineering and Performance Data 10-11
7 Installation Details 11
8 Ordering Data 12
certified
Volume Control Damper - VCD
BETEC CAD manufactures high quality volume control Applications:
dampers, specially designed for use in HVAC Heating GI: HVAC commercial
Ventilating and Air conditioning systems for volume, flow AL: Special e.g Hospitals, Labs, Green Building etc.
and pressure control of air within the ducts. SS: Special Applications e.g offshore works oil&gas.
The light, medium and heavy duty construction of VCD’s

allow even distribution and flow control of air at high duct
pressures and are suitable for various type of HVAC
applications.
Blade operation, either parallel or opposed in operation

fitted with tip seals to ensure minimum air leakage through
the blades.
Volume Control Damper
S tandard Types and Models

Material Blade
Product Series Model / Specification Construction
Frame Blade Operation
11 Single Skin G*,S G*, S, A, A /B /C
B - 10 Normal
12 Do uble Skin G*,A,S G, A*,S A /B /C
21 Single Skin G*,S, A G*, S, A A /B /C
B - 20 Low Leakage
22 Do uble Skin G*,A,S G, A*, S A /B /C
VCD
31 Single Skin G*,S, G*, S B
B - 30 Round
32 Do uble Skin G*,S G*, S B
41 Single Skin G*,S G*, S A /B
B - 40 Heavy Duty
42 Do uble Skin G*,S G*, S A /B
Material Details Applications:

All types and models of volume control dampers are
available in Galvanized Steel, Stainless Steel & Aluminium GI Construction : For HVAC commercial, Residential etc.
according to the design and application. AL Construction : For Hospitals,Labs,Green Building etc.
SS Construction : For Offshore , Oil & Gas etc.
Sheet Metal Galvanized Steel (GI)
Zinc coating Z-22 to Z-27 as per ASTM-A653 Standards. The respective alphabet indicates the type of material
G - Galvanized steel (GI)
Sheet Metal Aluminium (AL) S - Stainless steel (SS)
Aluminium Sheet as per Alloy A1100 Standards. A - Aluminum (AL)
Extruded aluminium as per Alloy 6063 A Standards.
Alphabet indicates the type of blade operation
Sheet Metal Stainless Steel (SS) A - Parallel Blade.
Stainless steel 304 / 316L. B - Opposed Blade.
C - Gear Opposed Blade.
BETEC CAD. VCD’s are manufactured as per international standards and confirmed to NFPA 90 A and UL 181
standards for erosion.
Note:
* Indicates BETEC CAD’s Standard Construction.
1
certified

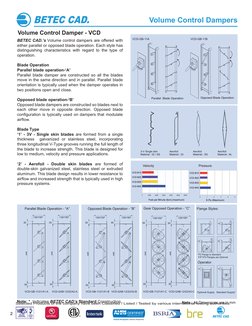

Volume Control Damper - VCD
VCD-GB-11A VCD-GB-11B
BETEC CAD.’s Volume control dampers are offered with
either parallel or opposed blade operation. Each style has -
- - - -
-
-
distinguishing characteristics with regard to the type of
operation.
Blade Operation
Parallel blade operation-‘A’
Parallel blade damper are constructed so all the blades
move in the same direction and in parallel. Parallel blade
orientation is typically used when the damper operates in
two positions open and close. -
- - -
-
- -
-
Parallel Blade Operation Opposed Blade Operation
Opposed blade operation-‘B’
Opposed blade dampers are constructed so blades next to
each other move in opposite direction. Opposed blade
configuration is typically used on dampers that modulate
airflow.
Blade Type
‘1’ - 3V - Single skin blades are formed from a single
thickness galvanized or stainless steel, incorporating
three longitudinal V-Type grooves running the full length of
the blade to increase strength. This blade is designed for 3-V Single skin Aerofoil Aerofoil Aerofoil
low to medium, velocity and pressure applications. Material : GI / SS Material : GI Material : SS Material : AL
‘2’ - Aerofoil - Double skin blades are formed of Velocity Pressure

double-skin galvanized steel, stainless steel or extruded
aluminum. This blade design results in lower resistance to VCD-B10 VCD-B10
VCD-B20
airflow and increased strength that is typically used in high VCD-B20
VCD-B30
pressure systems. VCD-B40
VCD-B30
VCD-B40
0 1000 2000 3000 4000 5000 6000

0 1 2 3 4 5
Feet per Minute (fpm) (maximum) K.Pa (Maximum)
Parallel Blade Operation - “A” Opposed Blade Operation - “B” Gear Opposed Operation - “C” Flange Styles:
130/150* 130/150* 130/150* 130/150* 130/150* 130/150*

30 30 30 30 30 30 30
30 30
*F2 Flange is Standard

F/F1/F3 Flanges are Optional
Operator:
30 30
30 30 30 30
30 30
VCD-GB-11/21/41-A VCD-GAB-12/22/42-A VCD-GB-11/21/41-B VCD-GAB-12/22/42-B VCD-GB-11/21/41-C VCD-GAB-12/22/42-C Optional Supply Standard Supply*
Note: * Indicates BETEC CAD’s Standard Construction. Note : All Dimensions are in mm
2 certified

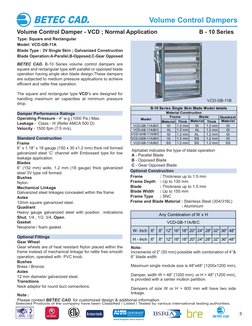

Volume Control Damper - VCD ; Normal Application B - 10 Series
Type: Square and Rectangular
Model: VCD-GB-11A
Blade Type : 3V Single Skin ; Galvanized Construction
Blade Operation:A-Parallel,B-Opposed,C-Gear Opposed
BETEC CAD. B-10 Series volume control dampers are
square and rectangular type with parallel or opposed blade
operation having single skin blade design.These dampers
are subjected to medium pressure applications to achieve
efficient and rattle free operation.
The square and rectangular type VCD’s are designed for

handling maximum air capacities at minimum pressure VCD-GB-11B
drop.
B-10 Series Single Skin Blade Model details
Damper Performance Ratings Material Construction
Frame Blade Quadrant
Operating Pressure - 4” w.g (1000 Pa.) Max. Model
Material Thick Material Thick Material
Leakage - Class - III (Refer AMCA 500 D)
VCD-GB-11A/B/C Gl 1.2 mm Gl 1.2 mm Gl
Velocity - 1500 fpm (7.5 m/s). VCD-AB-11A/B/C AL 1.2 mm AL 1.2 mm Gl
VCD-GAB-11A/B/C Gl 1.2 mm AL 1.2 mm Gl
Standard Construction VCD-GSB-11A/B/C Gl 1.2 mm SS 1.2 mm Gl
Frame VCD-SB-11A/B/C SS 1.2 mm SS 1.2 mm SS
6’’ x 1.18” x 18 gauge (150 x 30 x1.2 mm) thick roll formed
Alphabet indicates the type of blade operation
galvanized steel ‘C’ channel with Embossed type for low
A - Parallel Blade
leakage application.
B - Opposed Blade
Blades
C - Gear Opposed Blade
6” (152 mm) wide, 1.2 mm (18 gauge) thick galvanized
steel 3V type roll formed. Optional Construction
Bushes Frame : Thickness up to 1.5 mm
Nylon. Frame Depth : Up to 130 mm
Mechanical Linkage Blade : Thickness up to 1.5 mm
Galvanized steel linkages concealed within the frame. Blade Width : Up to 150 mm
Axles Frame Type : SNC
12mm square galvanized steel. Frame and Blade Material : Stainless Steel (304/316L)
Quadrant : Aluminium
Heavy gauge galvanized steel with position indications
Any Combination of W x H
Shut, 1/4 , 1/2, 3/4, Open.
Gasket VCD-GB-11A/B/C
Neoprene / foam gasket.
W- Inch 6" 8" 12" 16" 18" 20" 24" 28" 32" 36" 48"
Optional Fittings
H - Inch 6" 8" 12" 16" 18" 20" 24" 28" 32" 36" 48"
Gear Wheel
Gear wheels are of heat resistant Nylon placed within the Note:
frame instead of mechanical linkage for rattle free smooth Increments of 2” (50 mm) possible with combination of 4’’&
operation, operated with PVC knob. 6’’ blade width.
Bushes
Brass / Bronze. Maximum single module size is 48”x48” (1200x1200 mm).
Axles
12 mm diameter galvanized steel. Damper, width W > 48” (1200 mm) or H > 48” (1200 mm),
is provided with a center mullion partition.
Transitions
Neck adaptor for round duct connections. Dampers of size W or H > 800 mm will have two side
linkage.
Note :
Please contact BETEC CAD. for customized design & additional information.
certified
3
Volume Control Damper - VCD ; Normal Application B - 10 Series
Model: VCD-GAB-12A
Blade Type : Aerofoil ; Galvanized Construction

operation having Aerofoil double skin blade design. These
dampers are subjected to medium pressure applications to
acheive efficient and uniform air distribution.
The square and rectangular type VCD’s are designed for VCD-GAB-12A
handling maximum air capacities at minimum pressure
drop. B 10 Series Aerofoil Blade Model details
Material Construction
Damper Performance Ratings Model
Operating Pressure - 4” w.g (1000 Pa.) Max. VCD-GB-12A/B/C Gl 1.2 mm Gl 0.7 mm Gl
Leakage - Class - III (Refer AMCA 500D) VCD-AB-12A/B/C AL 1.2 mm AL 1 mm Gl
Velocity - 1500 fpm (7.5 m/s). VCD-GAB-12A/B/C Gl 1.2 mm AL 1 mm Gl
VCD-GSB-12A/B/C Gl 1.2 mm SS 0.7 mm Gl
Standard Construction VCD-SB-12A/B/C SS 1.2 mm SS 0.7 mm SS
Frame Alphabet indicates the type of blade operation
6’’x 1.18” x18 gauge (150 x 30 x 1.2 mm) thick roll formed A - Parallel Blade
galvanized steel ‘C’ Channel with Embossed type for low B - Opposed Blade
leakage application. C - Gear Opposed Blade
Blades Optional Construction
6” (152 mm) wide, 1 mm (18 gauge) thick extruded Frame : Thickness up to 1.5 mm
aluminium aerofoil type. Frame Depth : Up to 130 mm
Bushes Blade : Thickness up to 1.2 mm
Nylon. Blade Width : Up to 150 mm
Mechanical Linkage Frame Type : SNC
Galvanized steel linkages concealed in the frame. Frame and Blade Material : Stainless Steel (304/316L)
Axles : Aluminium
12 mm square galvanized steel.
Quadrant
Heavy gauge galvanized steel with position indications Any Combination of W x H
Shut, 1/4 , 1/2, 3/4, Open.
Neoprene / foam gasket. W- Inch 6" 8" 12" 16" 18" 20" 24" 28" 32" 36" 48"
Optional Fittings H - Inch 6" 8" 12" 16" 18" 20" 24" 28" 32" 36" 48"
Gear Wheel
Gear wheels are of heat resistant Nylon placed within the Note:
frame instead of mechanical linkage for rattle free smooth Increments of 2” (50 mm) possible with combination of 4’’&
operation, operated with PVC knob. 6’’ blade width.
Bushes
Maximum single module size is 48”x48” (1200x1200 mm).
Brass / Bronze.
Axles Damper, width W > 48” (1200 mm) or H > 48” (1200 mm),
12 mm diameter galvanized steel. is provided with a center mullion partition.
Transitions
Neck adaptor for round duct connections. Dampers of size W or H > 800 mm will have two side
Note : linkage.
4 certified

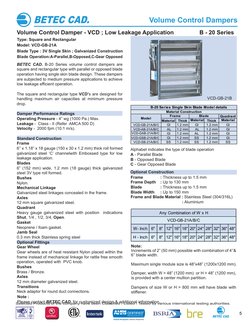

Volume Control Damper - VCD ; Low Leakage Application B - 20 Series
Model: VCD-GB-21A
Blade Type : 3V Single Skin ; Galvanized Construction
operation having single skin blade design. These dampers
are subjected to medium pressure applications to achieve
low leakage efficient operation.

handling maximum air capacities at minimum pressure VCD-GB-21B
drop.
Damper Performance Ratings
Operating Pressure - 4” wg (1000 Pa.) Max. Model
Leakage - Class - II (Refer AMCA 500 D) VCD-GB-21A/B/C Gl 1.2 mm Gl 1.2 mm Gl
Velocity - 2000 fpm (10.1 m/s). VCD-AB-21A/B/C AL 1.2 mm AL 1.2 mm Gl
VCD-GAB-21A/B/C Gl 1.2 mm AL 1.2 mm Gl
Standard Construction VCD-GSB-21A/B/C Gl 1.2 mm SS 1.2 mm Gl
Frame VCD-SB-21A/B/C SS 1.2 mm SS 1.2 mm SS
6’’ x 1.18” x 18 gauge (150 x 30 x 1.2 mm) thick roll formed 12”
Alphabet 12”
indicates the type of blade operation
galvanized steel ‘C’ channelwith Embossed type for low A - Parallel Blade
leakage application. B - Opposed Blade
Blades C - Gear Opposed Blade
steel 3V type roll formed. Optional Construction
Galvanized steel linkages concealed in the frame. Blade Width : Up to 150 mm
Axles Frame and Blade Material : Stainless Steel (304/316L)
12 mm square galvanized steel. : Aluminium
Quadrant
Shut, 1/4 , 1/2, 3/4, Open.
Jamb Seal
0.3 mm thick Stainless spring steel H - Inch 6" 8" 12" 16" 18" 20" 24" 28" 32" 36" 48"
Optional Fittings
Gear Wheel Note:
Gear wheels are of heat resistant Nylon placed within the Increments of 2” (50 mm) possible with combination of 4’’&
frame instead of mechanical linkage for rattle free smooth 6’’ blade width.
operation, operated with PVC knob.
Maximum single module size is 48”x48” (1200x1200 mm).
Bushes
Brass / Bronze. Damper, width W > 48” (1200 mm) or H > 48” (1200 mm),
Axles is provided with a center mullion partition.
12 mm diameter galvanized steel.
Transitions Dampers of size W or H > 800 mm will have blade with
Neck adaptor for round duct connections. stiffener.
Note :
5
certified

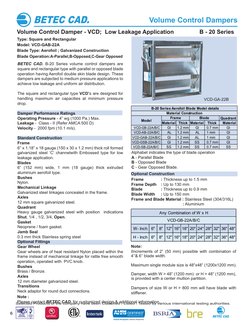

Volume Control Damper - VCD; Low Leakage Application B - 20 Series
Model: VCD-GAB-22A
Blade Type: Aerofoil ; Galvanized Construction
operation having Aerofoil double skin blade design. These
dampers are subjected to medium pressure applications to
achieve low leakage and uniform air distribution.

handling maximum air capacities at minimum pressure VCD-GِِA-22B
drop.
B-20 Series Aerofoil Blade Model details
Operating Pressure - 4” wg (1000 Pa.) Max. Frame Blade Quadrant
Model
Leakage - Class - II (Refer AMCA 500 D) Material Thick Material Thick Material
Velocity - 2000 fpm (10.1 m/s). VCD-GB-22A/B/C Gl 1.2 mm Gl 0.7 mm Gl
VCD-AB-22A/B/C AL 1.2 mm AL 1 mm Gl
Standard Construction VCD-GAB-22A/B/C Gl 1.2 mm AL 1 mm Gl
Frame VCD-GSB-22A/B/C Gl 1.2 mm SS 0.7 mm Gl
6’’ x 1.18” x 18 gauge (150 x 30 x 1.2 mm) thick roll formed VCD-SB-22A/B/C SS 1.2 mm SS 0.7 mm SS
galvanized steel ‘C’ channelwith Embossed type for low Alphabet indicates the type of blade operation
leakage application. A - Parallel Blade
Blades B - Opposed Blade
6” (152 mm) wide, 1 mm (18 gauge) thick extruded C - Gear Opposed Blade.
aluminium aerofoil type. Optional Construction
12 mm square galvanized steel. : Aluminium
Quadrant
Shut, 1/4 , 1/2, 3/4, Open.
Jamb Seal
0.3 mm thick Stainless spring steel H - Inch 6" 8" 12" 16" 18" 20" 24" 28" 32" 36" 48"
Optional Fittings
Gear Wheel Note:
Gear wheels are of heat resistant Nylon placed within the IIncrements of 2” (50 mm) possible with combination of
frame instead of mechanical linkage for rattle free smooth 4’’& 6’’ blade width.
operation, operated with PVC knob.
Bushes Maximum single module size is 48”x48” (1200x1200 mm).
Brass / Bronze.
Damper, width W > 48” (1200 mm) or H > 48” (1200 mm),
Axles
is provided with a center mullion partition.
12 mm diameter galvanized steel.
Transitions Dampers of size W or H > 800 mm will have blade with
Neck adaptor for round duct connections. stiffener.
Note :
6
certified

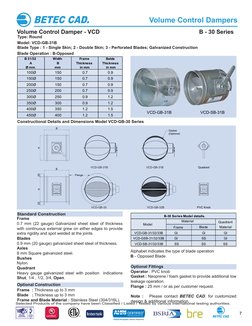

Volume Control Damper - VCD B - 30 Series
Type: Round
Model: VCD-GB-31B
Blade Type : 1 - Single Skin; 2 - Double Skin; 3 - Perforated Blades; Galvanized Construction
Blade Operation : B-Opposed
B 31/32 Width Frame Balde
A B Thickness Thickness
Ø mm mm in mm in mm
100Ø 150 0.7 0.9
150Ø 150 0.7 0.9
200Ø 150 0.7 0.9
250Ø 200 0.7 0.9
300Ø 250 0.9 1.2
350Ø 300 0.9 1.2
400Ø 350 1.2 1.5
VCD-GB-31B VCD-SB-31B
450Ø 400 1.2 1.5
Constructional Details and Dimensions Model VCD-GB-30 Series
VCD-GB-31B VCD-GB-31B Quadrant
VCD-GB-33 VCD-GB-32B PVC Knob
Standard Construction B-30 Series Model details.

Frame
Material Quadrant
0.7 mm (22 gauge) Galvanized sheet steel of thickness Model
Frame
Frame Blade Material
with continuous external grew on either edges to provide
extra rigidity and spot welded at the joints. VCD-GB-31/32/33B Gl Gl GI
Blades VCD-GSB-31/32/33B Gl SS GI
0.9 mm (20 gauge) galvanized sheet steel of thickness. VCD-SB-31/32/33B SS SS SS
Axles
8 mm Square galvanized steel. Alphabet indicates the type of blade operation
Bushes B - Opposed Blade
Nylon.
Quadrant Optional Fittings
Heavy gauge galvanized steel with position indications Operator : PVC knob
Shut, 1/4 , 1/2, 3/4, Open. Gasket : Neoprene / foam gasket to provide additional low
leakage operation.
Optional Construction Flange : 25 mm / or as per customer request.
Frame : Thickness up to 3 mm
Blade : Thickness up to 3 mm Note : Please contact BETEC CAD. for customized
Frame and Blade Material : Stainless Steel (304/316L). design & additional information.
7
certified

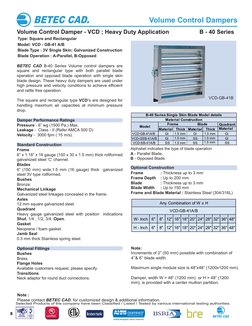

Volume Control Damper - VCD ; Heavy Duty Application B - 40 Series
Model: VCD - GB-41 A/B
Blade Type : 3V Single Skin; Galvanized Construction
Blade Operation : A-Parallel, B-Opposed
BETEC CAD B-40 Series Volume control dampers are

square and rectangular type with both parallel blade
operation and opposed blade operation with single skin
blade design. These heavy duty dampers are used under
high pressure and velocity conditions to achieve efficient
and rattle free operation.
VCD-GB-41B
drop.
Pressure - 6” wg (1500 Pa.) Max. Frame Blade Quadrant
Model
Leakage - Class - II (Refer AMCA 500 D) Material Thick Material Thick Material
Velocity - 3000 fpm ( 15 m/s). VCD-GB-41A/B Gl 1.5 mm Gl 1.5 mm Gl
VCD-GSB-41A/B Gl 1.5 mm SS 1 mm
1.5 mm Gl
VCD-SB-41A/B SS 1.5 mm SS 1.5 mm SS
Standard Construction
6” x 1.18” x 16 gauge (150 x 30 x 1.5 mm) thick rollformed A - Parallel Blade.
galvanized steel ‘C’ channel. B - Opposed Blade. 1.5-3mm
Blades
6” (150 mm) wide,1.5 mm (16 gauge) thick galvanized Optional Construction
steel 3V type rollformed. Frame : Thickness up to 3 mm
Bushes Frame Depth : Up to 200 mm
Bronze. Blade : Thickness up to 3 mm
Mechanical Linkage Blade Width : Up to 150 mm
Galvanized steel linkages concealed in the frame. Frame and Blade Material : Stainless Steel (304/316L)
Axles
12 mm square galvanized steel. Any Combination of W x H
Quadrant VCD-GB-41A/B
Heavy gauge galvanized steel with position indications
Shut, 1/4 , 1/2, 3/4, Open. W- Inch 6" 8" 12" 16" 18" 20" 24" 28" 32" 36" 48"
Gasket
Neoprene / foam gasket. H - Inch 6" 8" 12" 16" 18" 20" 24" 28" 32" 36" 48"
Jamb Seal
0.3 mm thick Stainless spring steel.
Optional Fittings Note:

Bushes Increments of 2” (50 mm) possible with combination of
Brass. 4’’& 6’’ blade width.
Flange Holes
Available customers request, please specify. Maximum single module size is 48”x48” (1200x1200 mm).
Transitions
Neck adaptor for round duct connections. Damper, width W > 48” (1200 mm) or H > 48” (1200
mm), is provided with a center mullion partition.
Note :
8 certified
Volume Control Damper - VCD; Heavy Duty Application B- 40 Series
Model: VCD - GB-42A
Blade Type Aerofoil; Galvanized Construction
Blade Operation : A-Parallel, B-Opposed
BETEC CAD B-40 Series Volume control dampers are

square and rectangular type with both parallel blade
operation and opposed blade operation, double skin blade
design. These heavy duty dampers are used under high
pressure and velocity conditions to achieve efficient and
rattle free operation.
The square and rectangular type VCD’s are designed for VCD-SB-42B
drop.
B- 40 Series Aerofoil Blade Model Details
Damper Performance Ratings
Operating Pressure - 6” wg (1500 Pa.) Max. Frame Blade Quadrant
Leakage - Class - II (Refer to AMCA 500 D) Model
Velocity - 3000 fpm ( 15 m/s). VCD-GB-42A/B Gl 1.5 mm Gl 0.9 mm Gl
VCD-GSB-42A/B Gl 1.5 mm SS 0.9 mm Gl
Standard Construction VCD-SB-42A/B SS 1.5 mm SS 0.9 mm SS
6” x 1.18” x 16 gauge (150 x 30 x 1.5 mm) thick rollformed A - Parallel Blade.
galvanized steel ‘C’ channel. B - Opposed Blade.
Blades
steel Aerofoil type rollformed. Optional Construction
Bushes Frame : Thickness up to 3 mm
Bronze. Frame Depth : Up to 200 mm
Mechanical Linkage Blade : Thickness up to 2 mm
12 mm square galvanized steel.
Quadrant
Shut, 1/4 , 1/2, 3/4, Open. VCD-GB-42A/B
Gasket
Jamb Seal
0.3 mm thick Stainless spring steel. H - Inch 6" 8" 12" 16" 18" 20" 24" 28" 32" 36" 48"
Optional Fittings Note:

Bushes Increments of 2” (50 mm) possible with combination of
Brass. 4’’& 6’’ blade width.
Flange Holes
Available customers request, please specify. Maximum single module size is 48”x48” (1200x1200 mm).
Transitions
Neck adaptor for round duct connections. Damper, width W > 48” (1200 mm) or H > 48” (1200
mm), is provided with a center mullion partition.
Note :
certified
9
Engineering And Performance Data - VCD B - 10/20/30/40 Series
Pressure drop for Volume Control Dampers
Single Skin Blade : VCD B 11/21/31/41
Aerofoil Blade : VCD B 12/22/32/42
• Pressure drop and resistance of multi- leaf damper is a

function of airspeed and varies in relation to the system's
total pressure.
• The pressure drop is indicated in graph for opposed

blade and parallel blade damper for blade in 100 % open
position.
• The pressure drop indicated is the difference in measured

pressure before and after the damper.
Volume Control Damper

Pressure Loss Vs Face Velocity
Pressure Drop For Models VCD - B10/20/30/40 Series.
For VCD Models : B-11/21/31/41 For VCD Models : B-12/22/32/42

Single skin 3-V Blade Construction Aerofoil Blade Construction
110
100
100 90
90 80
70
80
70 60
60
50 50
Pressure Drop (Pa)
Pressure Drop (Pa)
40 40
30
30
20 20
10
10
0 0
0 500 1000 1500 2000 2500 3000 3500 0 500 1000 1500 2000 2500 3000 3500
Velocity (fpm) Velocity (fpm)

Static Pressure - 1 KPa Static Pressure - 1 KPa
Airflow V/S Pressure drop for Single skin blade - Damper 100% ( full) Open.
Max. System Pressure 1000 - Pa
Air Velocity (fpm) 500 1000 1500 2000 2500
Pressure drop (Pa) 3.2 12.8 28.8 51.2 80
Airflow V/S Pressure drop for Single skin - Aerofoil blade - Damper 100% ( full) Open.
Max. System Pressure 1000 - Pa
Air Velocity (fpm) 500 1000 1500 2000 2500
Pressure drop (Pa) 2.8 11 25 46 63
10 certified
Engineering And Performance Data - VCD B 10/20/30/40 Series
Leakage Characteristics for Volume Control Dampers
Models VCD - B 10/20/30/40 - Leakage Curve (Blades 100% Closed Position)
For Low Leakage Models: B-20/40 For Low Leakage Models: B-10/30
12
80
11
10 70
60
9
8
50
6 40
5
cfm / sq.ft
4 30
3
20
cfm/ sq.ft
2
10
0
0 200 400 600 800 1000 1200
0 200 400 600 800 1000 1200
Pressure ( Pa) Pressure ( Pa)
Details o f VCD Leakage Class Leakage ratings for Blades in 100% Closed Position
V C D - S e rie s Le a k a ge C la s s S t a t ic P re s s ure System

200 400 600 800 1000
Pressure (Pa)
VCD-B 10-Series Class - III 1kpa
VCD-B 20-Series Class - II 1kpa VCD-B20/40
3.3 4.6 5.7 6.6 7.3
(Leakage in cfm / sq.ft)
VCD-B 30-Series Class - III 1kpa
VCD-B10/30
VCD 40-Series Class - II 1kpa (Leakage in cfm / sq.ft) 15 28 40 55 70
Note: VCD-B-20/30/40 Series Class - I Leakage type available on request.
Installation Details
Duct Duct Duct

Duct Duct Duct
VCD-B-10/20 VCD-B-10/20/40 VCD-B-10/20

with “F” Frame Installation with “F1”/“F2” Frame Installation with “F3” Frame Installation
11
certified
Volume Control Dampers - VCD
Ordering Data
VCD Vo lume Co ntro l Damper

G Galvanized Steel (GI)
S Stainless Steel ( SS)
A A luminium (A L)
G Galvanized Steel (GI)
A A luminium (A L)
S Stainless Steel ( SS)
B B ET EC C A D .
10 No rmal Co nstructio n
20 Lo w Leakage Co nstructio n
30 Ro und
40 Heavy Duty
1 Single Skin 3V
2 A ero fo il
3 P erfo rated
A P arallel
B Oppo sed
C Gear Oppo sed
X X X X X
VCD Frame Blade B Blade Blade
Series
M aterial M aterial Type Operation
Note :
1) For blade type, add Series to Blade Type.
For example: VCD-GB-(10+1=11) A => VCD-GB-11A.
2) If frame and blade material is same, use single alphabet.
Example : VCD-GB-11A where G = Galvanized frame and blade.

VCD-GAB-11A where G = Galvanized frame
A = Aluminium blade.
12
certified
Special Notes:
certified
13
© Copyright reserved for BETEC CAD.
“Due to continuous progress and product improvement, BETEC CAD. reserves the right to make changes without notice” July - 2017

Volume Control Damper

Uploaded by

Document Information

Copyright

Available Formats

Share this document

Share or Embed Document

Sharing Options

Did you find this document useful?

Is this content inappropriate?

Copyright:

Available Formats

Volume Control Damper

Uploaded by

Copyright:

Available Formats

BC 02

1 General Information 1-2

2 VCD - B10 Series 3-4

3 VCD - B20 Series 5-6

4 VCD - B30 Series 7

5 VCD - B40 Series 8-9

6 Engineering and Performance Data 10-11

The light, medium and heavy duty construction of VCD’s

Blade operation, either parallel or opposed in operation

Volume Control Damper

S tandard Types and Models

Material Details Applications:

‘2’ - Aerofoil - Double skin blades are formed of Velocity Pressure

0 1000 2000 3000 4000 5000 6000

Feet per Minute (fpm) (maximum) K.Pa (Maximum)

130/150* 130/150* 130/150* 130/150* 130/150* 130/150*

*F2 Flange is Standard

The square and rectangular type VCD’s are designed for

BETEC CAD. B-10 Series volume control dampers are

The square and rectangular type VCD’s are designed for

The square and rectangular type VCD’s are designed for

VCD-GB-31B VCD-GB-31B Quadrant

VCD-GB-33 VCD-GB-32B PVC Knob

Standard Construction B-30 Series Model details.

BETEC CAD B-40 Series Volume control dampers are

Optional Fittings Note:

BETEC CAD B-40 Series Volume control dampers are

Optional Fittings Note:

• Pressure drop and resistance of multi- leaf damper is a

• The pressure drop is indicated in graph for opposed

• The pressure drop indicated is the difference in measured

Volume Control Damper

For VCD Models : B-11/21/31/41 For VCD Models : B-12/22/32/42

Pressure Drop (Pa)

Velocity (fpm) Velocity (fpm)

Pressure ( Pa) Pressure ( Pa)

V C D - S e rie s Le a k a ge C la s s S t a t ic P re s s ure System

Note: VCD-B-20/30/40 Series Class - I Leakage type available on request.

Duct Duct Duct

VCD-B-10/20 VCD-B-10/20/40 VCD-B-10/20

VCD Vo lume Co ntro l Damper

2) If frame and blade material is same, use single alphabet.

Example : VCD-GB-11A where G = Galvanized frame and blade.

You might also like
