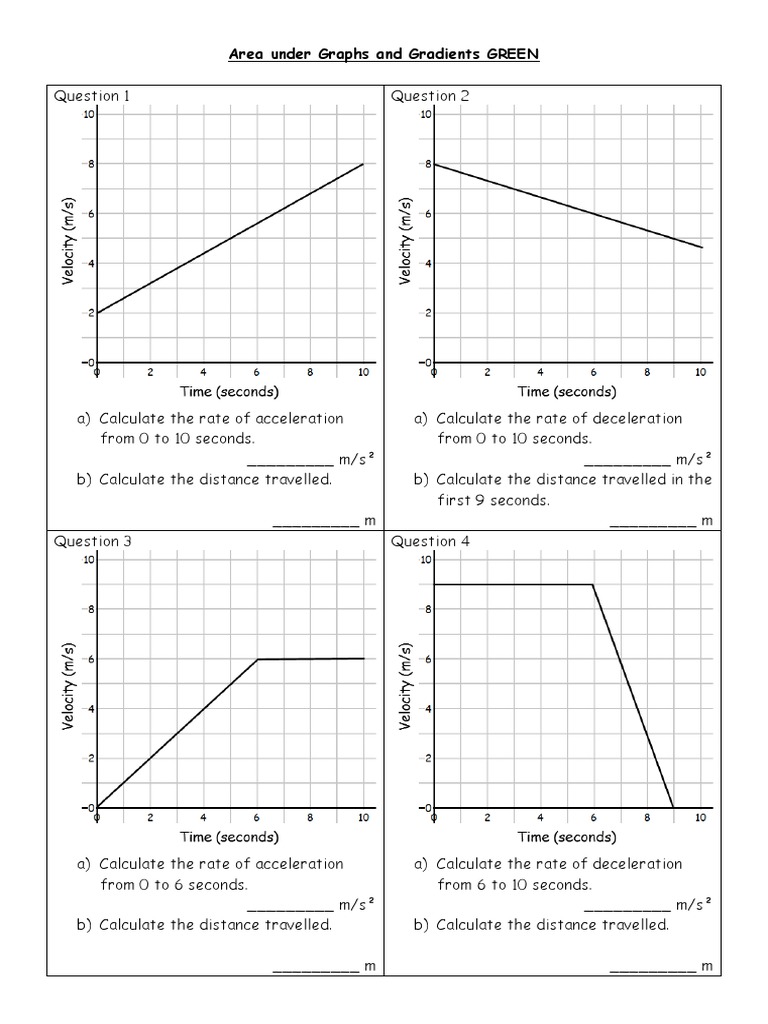

Area under Graphs and Gradients GREEN

Question 1 Question 2

a) Calculate the rate of acceleration a) Calculate the rate of deceleration

from 0 to 10 seconds. from 0 to 10 seconds.
_________ m/s² _________ m/s²
b) Calculate the distance travelled. b) Calculate the distance travelled in the
first 9 seconds.
_________ m _________ m
Question 3 Question 4

a) Calculate the rate of acceleration a) Calculate the rate of deceleration

from 0 to 6 seconds. from 6 to 10 seconds.
_________ m/s² _________ m/s²
b) Calculate the distance travelled. b) Calculate the distance travelled.

_________ m _________ m
Question 5 Question 6

a) Calculate the rate of acceleration a) Calculate the rate of deceleration

from 0 to 3 seconds. from 7 to 10 seconds.
_________ m/s² _________ m/s²
b) Calculate the distance travelled. b) Calculate the distance travelled.

_________ m _________ m
Question 7 Question 8

a) Calculate the rate of acceleration a) Calculate the rate of deceleration

from 5 to 7 seconds. from 7 to 9 seconds.
_________ m/s² _________ m/s²
b) Calculate the distance travelled. b) Calculate the distance travelled.

_________ m _________ m
 Acceleration/deceleration = gradient
Area under Graphs and Gradients AMBER Distance travelled = area under the graph

Question 1 Question 2

a) Calculate the rate of acceleration a) Calculate the rate of deceleration

from 0 to 10 seconds. from 0 to 10 seconds.
_________ m/s² _________ m/s²
b) Calculate the distance travelled. c) Calculate the distance travelled in the
first 9 seconds.
_________ m _________ m
Question 3 Question 4

a) Calculate the rate of acceleration a) Calculate the rate of deceleration

from 0 to 6 seconds. from 6 to 10 seconds.
_________ m/s² _________ m/s²
b) Calculate the distance travelled. b) Calculate the distance travelled.

_________ m _________ m
Question 5 Question 6

a) Calculate the rate of acceleration a) Calculate the rate of deceleration

from 0 to 3 seconds. from 7 to 10 seconds.
_________ m/s² _________ m/s²
b) Calculate the distance travelled. b) Calculate the distance travelled.

_________ m _________ m
Question 7 Question 8

a) Calculate the rate of acceleration a) Calculate the rate of deceleration

from 5 to 7 seconds. from 7 to 9 seconds.
_________ m/s² _________ m/s²
b) Calculate the distance travelled. b) Calculate the distance travelled.

_________ m _________ m
 Acceleration/deceleration = gradient
Area under Graphs and Gradients RED Distance travelled = area under the graph

Question 1 Question 2

Gradient = rise
run

Area of trapezium = ½ (a + b) h

a) Calculate the rate of acceleration a) Calculate the rate of deceleration

from 0 to 10 seconds. from 0 to 10 seconds.
_________ m/s² _________ m/s²
b) Calculate the distance travelled. d) Calculate the distance travelled in the
first 9 seconds.
_________ m _________ m
Question 3 Question 4

a) Calculate the rate of acceleration a) Calculate the rate of deceleration

from 0 to 6 seconds. from 6 to 10 seconds.
_________ m/s² _________ m/s²
b) Calculate the distance travelled. b) Calculate the distance travelled.

_________ m _________ m
Question 5 Question 6

a) Calculate the rate of acceleration a) Calculate the rate of deceleration

from 0 to 3 seconds. from 7 to 10 seconds.
_________ m/s² _________ m/s²
b) Calculate the distance travelled. b) Calculate the distance travelled.

_________ m _________ m
Question 7 Question 8

a) Calculate the rate of acceleration a) Calculate the rate of deceleration

from 5 to 7 seconds. from 7 to 9 seconds.
_________ m/s² _________ m/s²
b) Calculate the distance travelled. b) Calculate the distance travelled.

_________ m _________ m
